1. Reversim
Summit
2014
Concurrency
and
Multi-­‐Threading
Demystified
!
Haim Yadid - Performize-IT

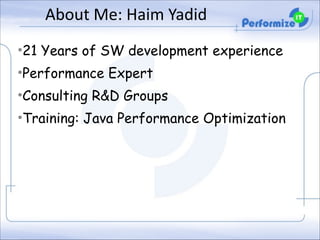

2. About
Me:
Haim
Yadid
•21 Years of SW development experience
•Performance Expert
•Consulting R&D Groups
•Training: Java Performance Optimization

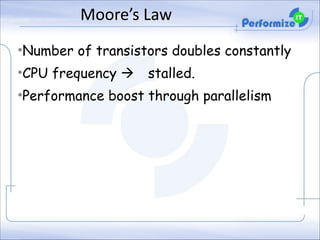

4. Moore’s
Law
•Number of transistors doubles constantly
•CPU frequency à
stalled.
•Performance boost through parallelism

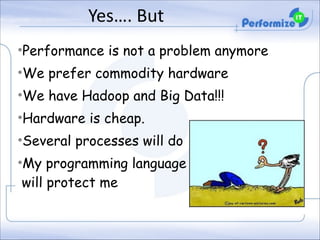

5. Yes….
But
•Performance is not a problem anymore
•We prefer commodity hardware
•We have Hadoop and Big Data!!!
•Hardware is cheap.
•Several processes will do
•My programming language
will protect me

6. !
Concurrency

7. Concurrency
•Decomposition of your program
into independently executing processes
•About structure
•About design
•It is not something you code it is
something you architect

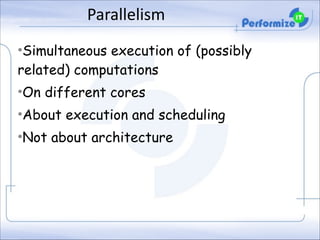

8. Parallelism
•Simultaneous execution of (possibly
related) computations
•On different cores
•About execution and scheduling
•Not about architecture

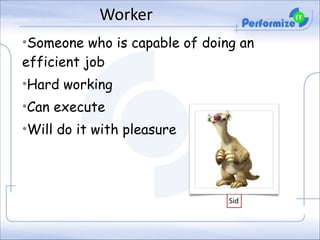

9. Worker
•Someone who is capable of doing an
efficient job
•Hard working
•Can execute
•Will do it with pleasure
Sid

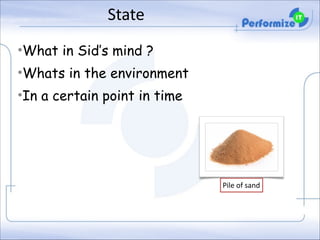

10. State
•What in Sid’s mind ?
•Whats in the environment
•In a certain point in time
Pile
of
sand

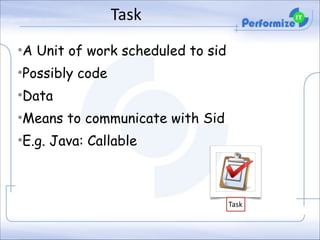

11. Task
•A Unit of work scheduled to sid
•Possibly code
•Data
•Means to communicate with Sid
•E.g. Java: Callable
Task

12. Our
World

14. Liveliness
Problems
•Deadlock
•Starvation
•Waiting for a train that will never come
func count() {
for i := 0; i < 1000; i++ {
fmt.Println(i)
time.Sleep(10 * time.Millisecond)
}
}
func main() {
go count()
time.Sleep(3000 * time.Millisecond)
for {}
GOMAXPROCS=2
}
Go

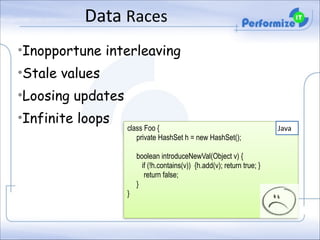

15. Data
Races
•Inopportune interleaving
•Stale values
•Loosing updates
•Infinite loops
class Foo {
private HashSet h = new HashSet();
!
}
!
boolean introduceNewVal(Object v) {
if (!h.contains(v)) {h.add(v); return true; }
return false;
}
Java

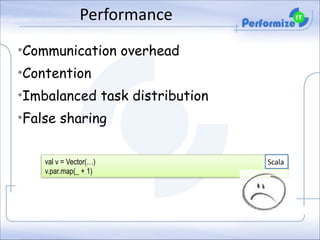

16. Performance
•Communication overhead
•Contention
•Imbalanced task distribution
•False sharing
val v = Vector(…)
v.par.map(_ + 1)
Scala

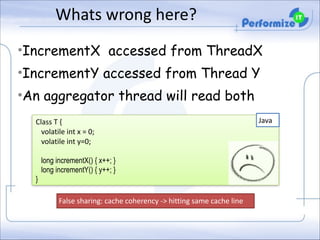

17. Whats
wrong
here?
•IncrementX accessed from ThreadX
•IncrementY accessed from Thread Y
•An aggregator thread will read both
Class
T
{
volatile
int
x
=
0;
volatile
int
y=0;
!
long incrementX() { x++; }
long incrementY() { y++; }
}
False
sharing:
cache
coherency
-­‐>
hitting
same
cache
line
Java

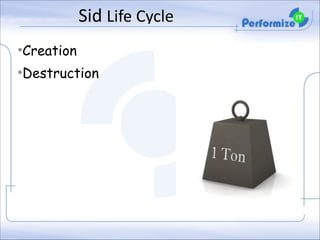

19. Sid
Life
Cycle
•Creation
•Destruction

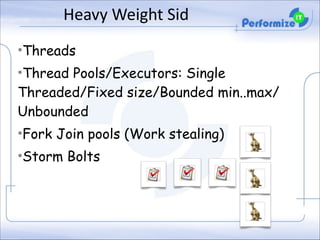

20. Heavy
Weight
Sid
•Threads
•Thread Pools/Executors: Single
Threaded/Fixed size/Bounded min..max/
Unbounded
•Fork Join pools (Work stealing)
•Storm Bolts

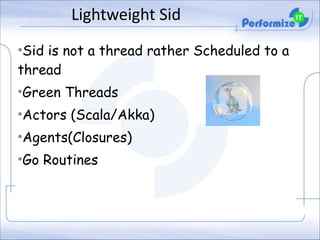

21. Lightweight
Sid
•Sid is not a thread rather Scheduled to a
thread
•Green Threads
•Actors (Scala/Akka)
•Agents(Closures)
•Go Routines

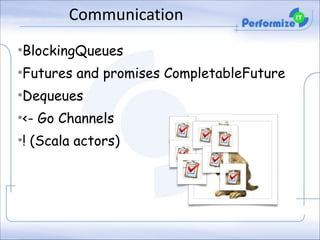

22. Communication
•BlockingQueues
•Futures and promises CompletableFuture
•Dequeues
•<- Go Channels
•! (Scala actors)

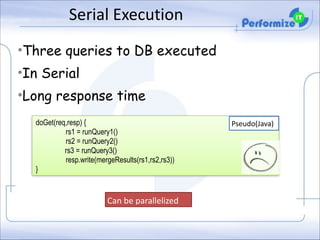

23. Serial
Execution
•Three queries to DB executed
•In Serial
•Long response time
doGet(req,resp) {
rs1 = runQuery1()
rs2 = runQuery2()
rs3 = runQuery3()
resp.write(mergeResults(rs1,rs2,rs3))
}
Can
be
parallelized
Pseudo(Java)

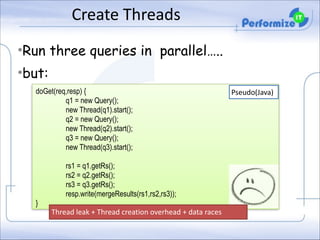

24. Create
Threads
•Run three queries in parallel…..
•but:
doGet(req,resp) {
q1 = new Query();
new Thread(q1).start();
q2 = new Query();
new Thread(q2).start();
q3 = new Query();
new Thread(q3).start();
!
}
rs1 = q1.getRs();
rs2 = q2.getRs();
rs3 = q3.getRs();
resp.write(mergeResults(rs1,rs2,rs3));
Thread
leak
+
Thread
creation
overhead
+
data
races
Pseudo(Java)

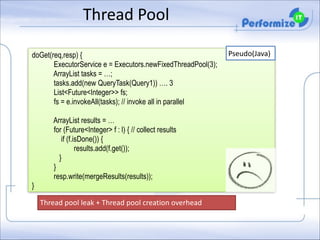

25. Thread
Pool
doGet(req,resp) {
ExecutorService e = Executors.newFixedThreadPool(3);
ArrayList tasks = …;
tasks.add(new QueryTask(Query1)) …. 3
List<Future<Integer>> fs;
fs = e.invokeAll(tasks); // invoke all in parallel
ArrayList results = …
for (Future<Integer> f : l) { // collect results
if (f.isDone()) {
results.add(f.get());
}
}
resp.write(mergeResults(results));
}
Thread
pool
leak
+
Thread
pool
creation
overhead
Pseudo(Java)

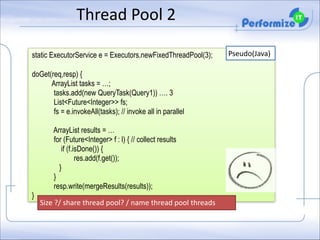

26. Thread
Pool
2
static ExecutorService e = Executors.newFixedThreadPool(3);
!
doGet(req,resp) {
ArrayList tasks = …;
tasks.add(new QueryTask(Query1)) …. 3
List<Future<Integer>> fs;
fs = e.invokeAll(tasks); // invoke all in parallel
!
}
ArrayList results = …
for (Future<Integer> f : l) { // collect results
if (f.isDone()) {
res.add(f.get());
}
}
resp.write(mergeResults(results));
Size
?/
share
thread
pool?
/
name
thread
pool
threads
Pseudo(Java)

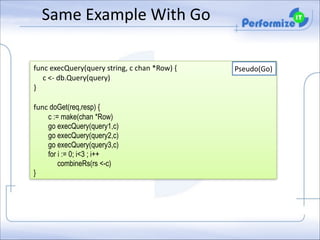

27. Same
Example
With
Go
func
execQuery(query
string,
c
chan
*Row)
{
c
<-­‐
db.Query(query)
}
!
func
doGet(req,resp) {
c := make(chan *Row)
go execQuery(query1,c)
go execQuery(query2,c)
go execQuery(query3,c)
for i := 0; i<3 ; i++
combineRs(rs <-c)
}
Pseudo(Go)

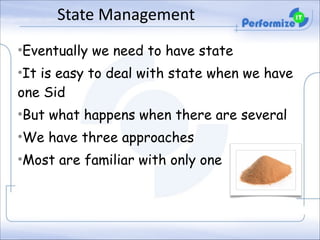

29. State
Management
•Eventually we need to have state
•It is easy to deal with state when we have
one Sid
•But what happens when there are several
•We have three approaches
•Most are familiar with only one

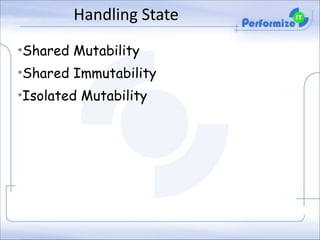

30. Handling
State
•Shared Mutability
•Shared Immutability
•Isolated Mutability

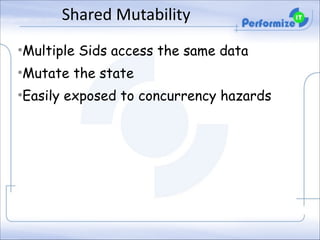

32. Shared
Mutability
•Multiple Sids access the same data
•Mutate the state
•Easily exposed to concurrency hazards

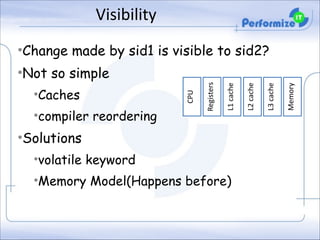

33. Visibility
•Change made by sid1 is visible to sid2?
•Solutions
•volatile keyword
•Memory Model(Happens before)
Memory
L3
cache
L2
cache
L1
cache
•compiler reordering
Registers
•Caches
CPU
•Not so simple

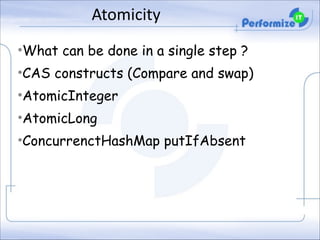

34. Atomicity
•What can be done in a single step ?
•CAS constructs (Compare and swap)
•AtomicInteger
•AtomicLong
•ConcurrenctHashMap putIfAbsent

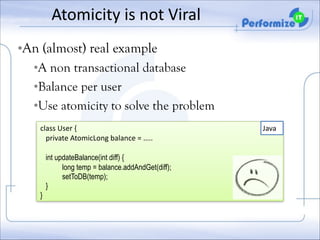

35. Atomicity
is
not
Viral
•An (almost) real example
•A non transactional database
•Balance per user
•Use atomicity to solve the problem
class
User
{
private
AtomicLong
balance
=
…..
!
int updateBalance(int diff) {
long temp = balance.addAndGet(diff);
setToDB(temp);
}
}
Java

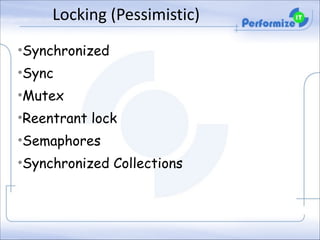

36. Locking
(Pessimistic)
•Synchronized
•Sync
•Mutex
•Reentrant lock
•Semaphores
•Synchronized Collections

37. Beware
Sync
Collections
•Two synchronized operations
•are not synchronized
if
(syncedHashMap.get(“b”)
!=
null)
{
syncedHashMap.put(“b”,2);
}
Java

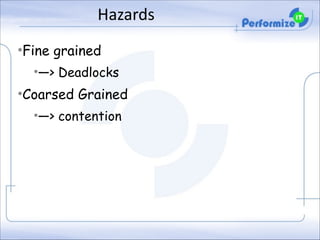

38. Hazards
•Fine grained
•—> Deadlocks
•Coarsed Grained
•—> contention

39. STM
(Optimistic)
•Software Transactional Memory
•Transactional semantics ACI: (not Durable)
•Atomic,
•Consistent and
•Isolated
•No deadlocks - when collision retry!
•Clojure refs , Akka refs
STM
performance
problem
when
there
are
too
many
mutations.

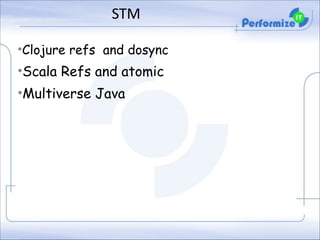

40. STM
•Clojure refs and dosync
•Scala Refs and atomic
•Multiverse Java

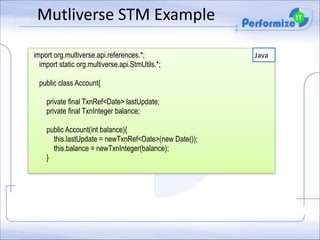

41. Mutliverse
STM
Example
import org.multiverse.api.references.*;
import static org.multiverse.api.StmUtils.*;
!
!
!
public class Account{
private final TxnRef<Date> lastUpdate;
private final TxnInteger balance;
public Account(int balance){
this.lastUpdate = newTxnRef<Date>(new Date());
this.balance = newTxnInteger(balance);
}
Java

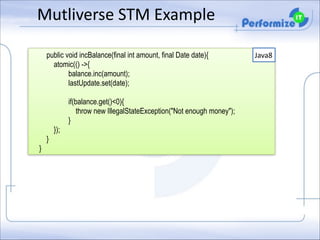

42. Mutliverse
STM
Example
public void incBalance(final int amount, final Date date){
atomic(() ->{
balance.inc(amount);
lastUpdate.set(date);
!
if(balance.get()<0){
throw new IllegalStateException("Not enough money");
}
});
}
}
Java8

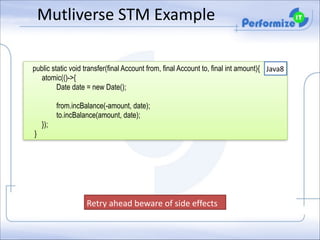

43. Mutliverse
STM
Example
!
public static void transfer(final Account from, final Account to, final int amount){ Java8
atomic(()->{
Date date = new Date();
from.incBalance(-amount, date);
to.incBalance(amount, date);
});
}
Retry
ahead
beware
of
side
effects

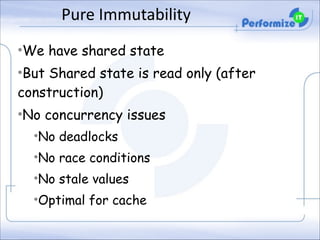

45. Pure
Immutability
•We have shared state
•But Shared state is read only (after
construction)
•No concurrency issues
•No deadlocks
•No race conditions
•No stale values
•Optimal for cache

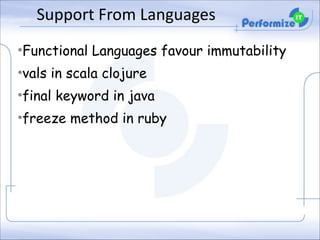

46. Support
From
Languages
•Functional Languages favour immutability
•vals in scala clojure
•final keyword in java
•freeze method in ruby

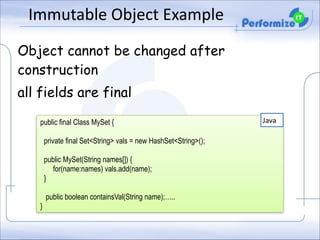

47. Immutable
Object
Example
Object cannot be changed after
construction
all fields are final
public final Class MySet {
private final Set<String> vals = new HashSet<String>();
public MySet(String names[]) {
for(name:names) vals.add(name);
}
public boolean containsVal(String name);…..
}
Java

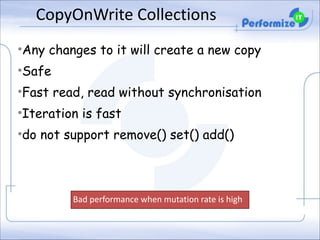

48. CopyOnWrite
Collections
•Any changes to it will create a new copy
•Safe
•Fast read, read without synchronisation
•Iteration is fast
•do not support remove() set() add()
Bad
performance
when
mutation
rate
is
high

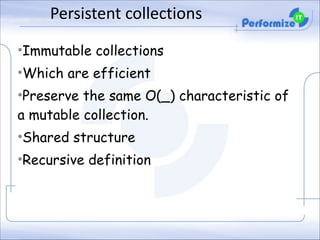

49. Persistent
collections
•Immutable collections
•Which are efficient
•Preserve the same O(_) characteristic of
a mutable collection.
•Shared structure
•Recursive definition

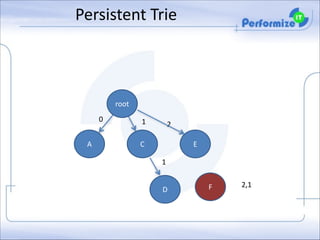

50. Persistent
Trie
root
0
A
1
2
C
E
1
D
F
2,1

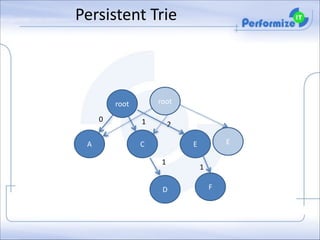

51. Persistent
Trie
root
root
0
A
1
2
C
E
E
1
D
1
F

52. Example
Customization
Cache
•A Web application server
•Serving Complicated and customisable UI
•Each user has it’s own customization
(potentially)
•Classic for immutable collection
•Low mutation rate
•High read rate

53. Example
Customization
Cache
•Customization Data is immutable
•Customization Data HashMap is a
Persistent Map
•Cache is represented by a single STM
reference
•Update will fail if two are performing it
at once

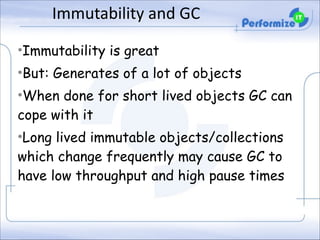

54. Immutability
and
GC
•Immutability is great
•But: Generates of a lot of objects
•When done for short lived objects GC can
cope with it
•Long lived immutable objects/collections
which change frequently may cause GC to
have low throughput and high pause times

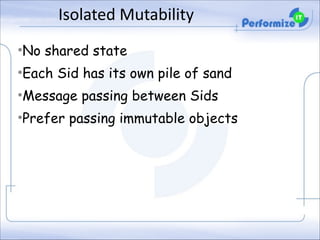

56. Isolated
Mutability
•No shared state
•Each Sid has its own pile of sand
•Message passing between Sids
•Prefer passing immutable objects

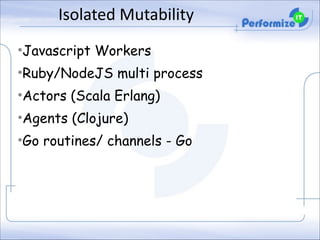

57. Isolated
Mutability
•Javascript Workers
•Ruby/NodeJS multi process
•Actors (Scala Erlang)
•Agents (Clojure)
•Go routines/ channels - Go

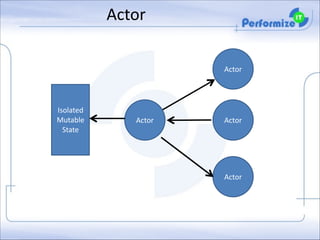

58. Actor
Actor
Isolated
Mutable
State
Actor
Actor
Actor

60. Building
a
Monitoring
System
•Monitoring System (e.g. Nagios)
•~100k of monitors
•running periodically
•Each one has a state.
•Consumers are able to query state.
•Some monitors may affect other monitor
state

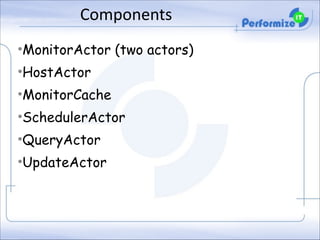

61. Components
•MonitorActor (two actors)
•HostActor
•MonitorCache
•SchedulerActor
•QueryActor
•UpdateActor

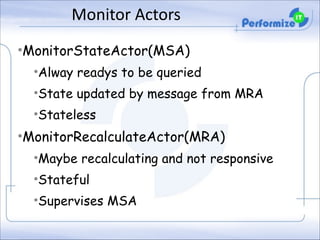

62. Monitor
Actors
•MonitorStateActor(MSA)
•Alway readys to be queried
•State updated by message from MRA
•Stateless
•MonitorRecalculateActor(MRA)
•Maybe recalculating and not responsive
•Stateful
•Supervises MSA

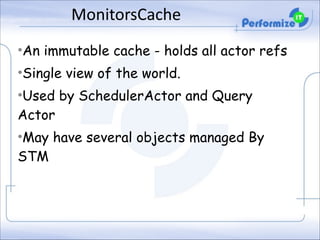

63. MonitorsCache
•An immutable cache - holds all actor refs
•Single view of the world.
•Used by SchedulerActor and Query
Actor
•May have several objects managed By
STM

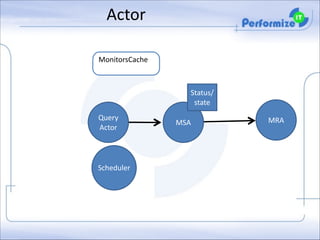

64. Actor
MonitorsCache
Status/
state
Query
Actor
Scheduler
MSA
MRA

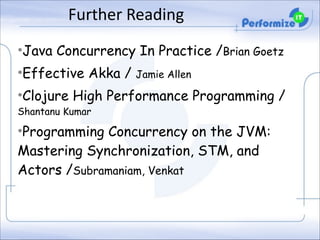

65. Further
Reading
•Java Concurrency In Practice /Brian Goetz
•Effective Akka / Jamie Allen
•Clojure High Performance Programming /
Shantanu Kumar
•Programming Concurrency on the JVM:
Mastering Synchronization, STM, and
Actors /Subramaniam, Venkat

66. Thanks + Q&A + Contact Me
lifey@performize-it.com
blog.performize-it.com
www.performize-it.com
https://github.com/lifey
http://il.linkedin.com/in/haimyadid
@lifeyx
© Copyright Performize-IT LTD.
