Garbage Collectors Explained

Garbage Collectors
Haim Yadid,
Head of Performance and Application Infra Group

Why Java has GC?
Memory management is hard
malloc/free
Memory leaks (dangling pointers)
Heap corruption (Free an object twice)
Reference counting
Cyclic graphs
Garbage Collectors

GC
Me allocate
myObject = new MyClass(2015)
GC cleans
So everything is cool !

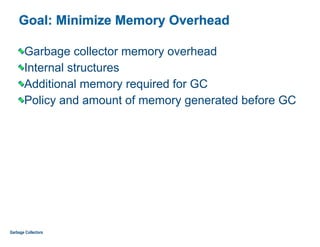

Goal: Minimize Memory Overhead
Garbage collector memory overhead
Internal structures
Additional memory required for GC
Policy and amount of memory generated before GC
Garbage Collectors

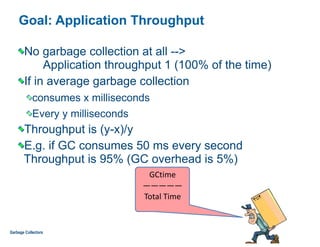

Goal: Application Throughput
No garbage collection at all --> 
Application throughput 1 (100% of the time)
If in average garbage collection
consumes x milliseconds
Every y milliseconds
Throughput is (y-x)/y
E.g. if GC consumes 50 ms every second  
Throughput is 95% (GC overhead is 5%)
Garbage Collectors
GCtime

—————

Total
Time

Goal: Responsiveness
Pause Time
Garbage collector stops the application
During that time the application is not responsive
What is the maximal delay your application can
sustain:
Batch applications seconds…
Web applications ½ second?
Swing UI 100 ms max
Trading application milliseconds
Robotics microseconds….
Garbage Collectors

Goals
Memory footprint
Throughput
Max pause time
Garbage Collectors: G1
Contradicting!
Choose 2 of 3

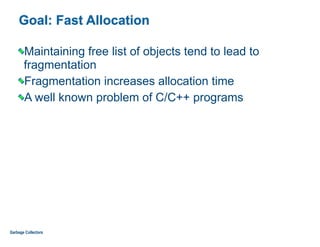

Goal: Fast Allocation
Maintaining free list of objects tend to lead to
fragmentation
Fragmentation increases allocation time
A well known problem of C/C++ programs
Garbage Collectors

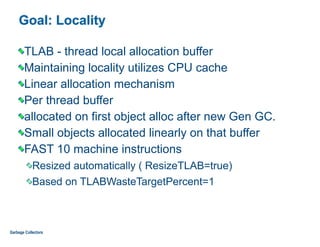

Goal: Locality
TLAB - thread local allocation buffer
Maintaining locality utilizes CPU cache
Linear allocation mechanism
Per thread buffer
allocated on first object alloc after new Gen GC.
Small objects allocated linearly on that buffer
FAST 10 machine instructions
Resized automatically ( ResizeTLAB=true)
Based on TLABWasteTargetPercent=1
Garbage Collectors

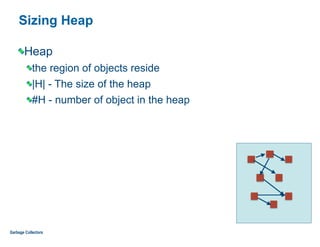

Sizing Heap
Heap
the region of objects reside
|H| - The size of the heap
#H - number of object in the heap
Garbage Collectors

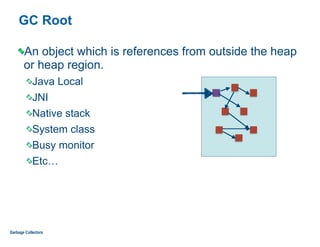

GC Root
An object which is references from outside the heap
or heap region.
Java Local
JNI
Native stack
System class
Busy monitor
Etc…
Garbage Collectors

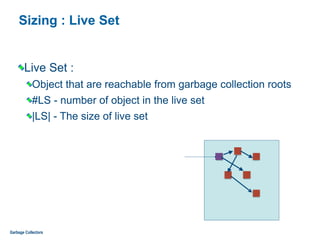

Sizing : Live Set
Live Set :
Object that are reachable from garbage collection roots
#LS - number of object in the live set
|LS| - The size of live set
Garbage Collectors

Mutator
Application threads
The stuff that create new objects and changes state
The stuff that makes the garbage collector suffer
Allocation rate - how fast new objects are allocated
Mutation rate - how fast app changes references of
live objects
Garbage Collectors

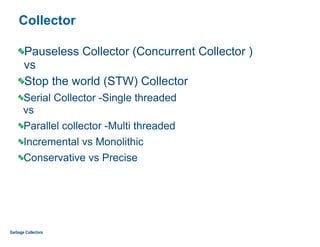

Collector
Pauseless Collector (Concurrent Collector ) 
vs
Stop the world (STW) Collector
Serial Collector -Single threaded 
vs
Parallel collector -Multi threaded
Incremental vs Monolithic
Conservative vs Precise
Garbage Collectors

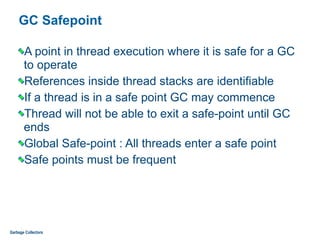

GC Safepoint
A point in thread execution where it is safe for a GC
to operate
References inside thread stacks are identifiable
If a thread is in a safe point GC may commence
Thread will not be able to exit a safe-point until GC
ends
Global Safe-point : All threads enter a safe point
Safe points must be frequent
Garbage Collectors

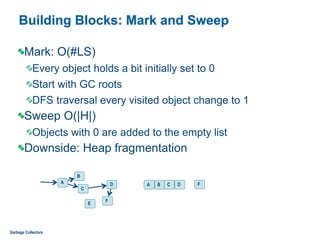

Building Blocks: Mark and Sweep
Mark: O(#LS)
Every object holds a bit initially set to 0
Start with GC roots
DFS traversal every visited object change to 1
Sweep O(|H|)
Objects with 0 are added to the empty list
Downside: Heap fragmentation
Garbage Collectors
A
B
C
E
F
D A B C D F

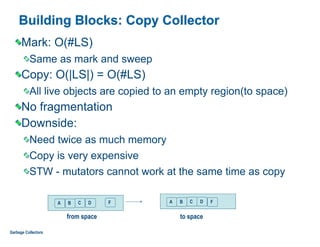

Building Blocks: Copy Collector
Mark: O(#LS)
Same as mark and sweep
Copy: O(|LS|) = O(#LS)
All live objects are copied to an empty region(to space)
No fragmentation
Downside:
Need twice as much memory
Copy is very expensive
STW - mutators cannot work at the same time as copy
Garbage Collectors
A B C D F A B C D F
from space to space

Building Blocks: Mark (Sweep)Compact
Mark: O(#LS)
Same as mark&sweep
Sliding compaction O(|H|+|LS|)
move objects (relocate)
fix pointers(remap)
Compact to the beginning of the heap
Do not need twice the memory
Copy is more delicate and may be slower
Garbage Collectors

The Weak Generational Hypothesis
Most objects survive for only a short period of time.
Low number of references from old to new objects
Garbage Collectors

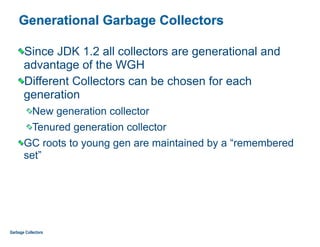

Generational Garbage Collectors
Since JDK 1.2 all collectors are generational and
advantage of the WGH
Different Collectors can be chosen for each
generation
New generation collector
Tenured generation collector
GC roots to young gen are maintained by a “remembered
set”
Garbage Collectors

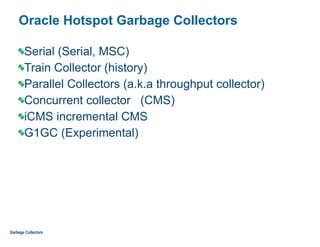

Oracle Hotspot Garbage Collectors
Serial (Serial, MSC)
Train Collector (history)
Parallel Collectors (a.k.a throughput collector)
Concurrent collector (CMS)
iCMS incremental CMS
G1GC (Experimental)
Garbage Collectors

Major Memory Regions
Monitoring the JVM
Young PermTenured
Code
Cache
Young generation
Further divided into:
Eden
A “from” survivor space
A “to” survivor space
Tenured (old) generation
Permanent generation/Meta Space
Code Cache
Heap Non Heap
NativeNative

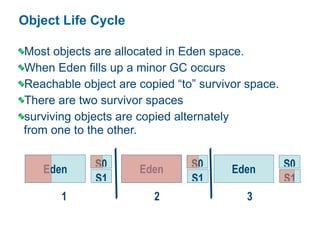

Object Life Cycle
Most objects are allocated in Eden space.
When Eden fills up a minor GC occurs
Reachable object are copied “to” survivor space.
There are two survivor spaces
surviving objects are copied alternately  
from one to the other.
Eden S0
S1
Eden S0
S1
Eden S0
S1
1 2 3

Object Promotion
Objects are promoted to the old generation
(tenured) when:
surviving several minor GCs
Survival spaces fill up

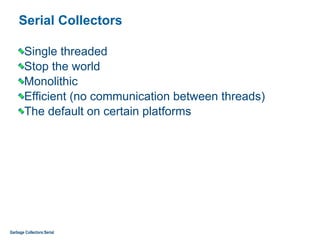

Serial Collectors
Single threaded
Stop the world
Monolithic
Efficient (no communication between threads)
The default on certain platforms 
Garbage Collectors:Serial

Serial New Collector
-XX:+ UseSerialGC
Serial new Single threaded young generation
collector
Triggered when:
Eden space is full.
An explicit invocation or call to System.gc().
Garbage Collectors: Serial

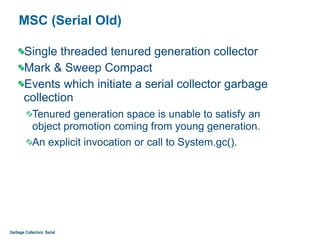

MSC (Serial Old)
Single threaded tenured generation collector
Mark & Sweep Compact
Events which initiate a serial collector garbage
collection
Tenured generation space is unable to satisfy an  
object promotion coming from young generation.
Garbage Collectors: Serial

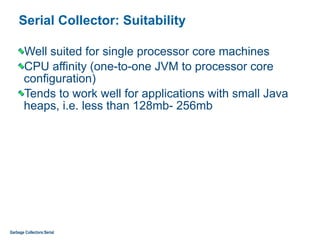

Serial Collector: Suitability
Well suited for single processor core machines
CPU affinity (one-to-one JVM to processor core
configuration)
Tends to work well for applications with small Java
heaps, i.e. less than 128mb- 256mb
Garbage Collectors:Serial

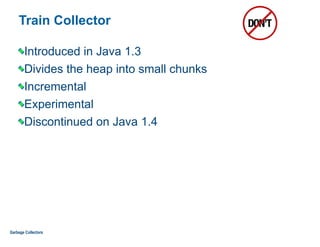

Train Collector
Introduced in Java 1.3
Divides the heap into small chunks
Incremental
Experimental
Discontinued on Java 1.4
Garbage Collectors

Parallel Collector
Multi-threaded
Monolithic
Stop the world
Three variants
-XX:+UseParallelGC
-XX:+UseParallelOldGC
The default on most platforms
Garbage Collectors

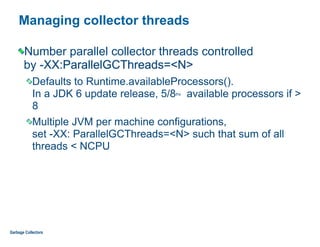

Managing collector threads
Number parallel collector threads controlled  
by -XX:ParallelGCThreads=<N>
Defaults to Runtime.availableProcessors().  
In a JDK 6 update release, 5/8ths available processors if >
8
Multiple JVM per machine configurations,  
set -XX: ParallelGCThreads=<N> such that sum of all
threads < NCPU
Garbage Collectors

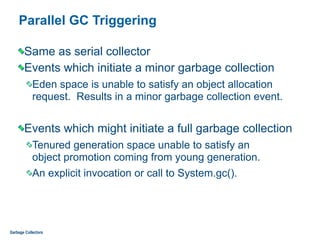

Parallel GC Triggering
Same as serial collector
Events which initiate a minor garbage collection
Eden space is unable to satisfy an object allocation
request. Results in a minor garbage collection event.
Events which might initiate a full garbage collection
Tenured generation space unable to satisfy an  
object promotion coming from young generation.
Garbage Collectors

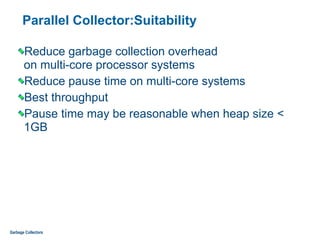

Parallel Collector:Suitability
Reduce garbage collection overhead  
on multi-core processor systems
Reduce pause time on multi-core systems
Best throughput
Pause time may be reasonable when heap size <
1GB
Garbage Collectors

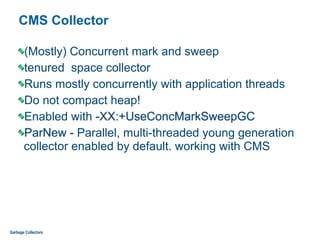

CMS Collector
(Mostly) Concurrent mark and sweep
tenured space collector
Runs mostly concurrently with application threads
Do not compact heap!
Enabled with -XX:+UseConcMarkSweepGC
ParNew - Parallel, multi-threaded young generation
collector enabled by default. working with CMS
Garbage Collectors

Alas!
Lower throughput
Requires more memory 20-30% more
Concurrent mode failure will fallback to a stop the
world full GC can occur when :
objects are copied to the tenured space faster than the
concurrent collector can collect them. (“loses the race”)
space fragmentation
-XX:PrintFLSStatistics=1
Garbage Collectors

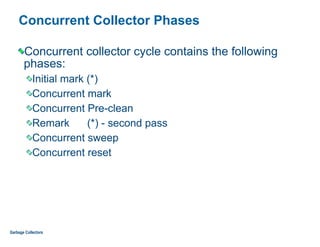

Concurrent Collector Phases
Concurrent collector cycle contains the following
phases:
Initial mark (*)
Concurrent mark
Concurrent Pre-clean
Remark (*) - second pass
Concurrent sweep
Concurrent reset
Garbage Collectors

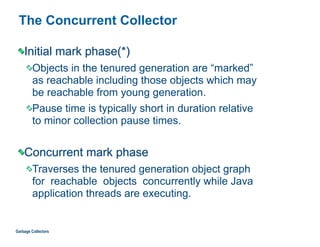

The Concurrent Collector
Initial mark phase(*)
Objects in the tenured generation are “marked”  
as reachable including those objects which may  
be reachable from young generation.
Pause time is typically short in duration relative  
to minor collection pause times.
Concurrent mark phase
Traverses the tenured generation object graph  
for reachable objects concurrently while Java  
application threads are executing.
Garbage Collectors

The Concurrent Collector Phases
Remark(*)
Finds objects that were missed by the concurrent  
mark phase due to updates by Java application  
threads to objects after the concurrent collector  
had finished tracing that object.
Concurrent sweep
Collects the objects identified as  
unreachable during marking phases.
Concurrent reset
Prepares for next concurrent collection.
Garbage Collectors

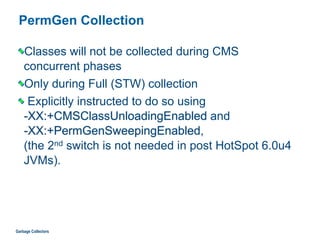

PermGen Collection
Classes will not be collected during CMS  
concurrent phases
Only during Full (STW) collection
Explicitly instructed to do so using  
-XX:+CMSClassUnloadingEnabled and  
-XX:+PermGenSweepingEnabled,  
(the 2nd switch is not needed in post HotSpot 6.0u4
JVMs).
Garbage Collectors

Suitability
Application responsiveness is more important than
application throughput
More than one core
Large Heaps > 1GB
Garbage Collectors

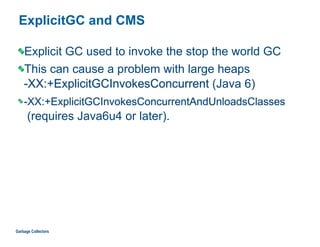

ExplicitGC and CMS
Explicit GC used to invoke the stop the world GC
This can cause a problem with large heaps 
-XX:+ExplicitGCInvokesConcurrent (Java 6)
-XX:+ExplicitGCInvokesConcurrentAndUnloadsClasses  
(requires Java6u4 or later).
Garbage Collectors

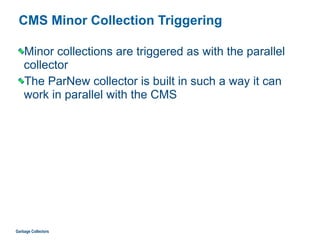

CMS Minor Collection Triggering
Minor collections are triggered as with the parallel
collector
The ParNew collector is built in such a way it can
work in parallel with the CMS
Garbage Collectors

CMS Collection Triggering
Start if the occupancy exceeds a percentage
threshold
Default value is 92%
-XX:CMSInitiatingOccupancyFraction=n  
where n is the % of the tenured space size.
Garbage Collectors

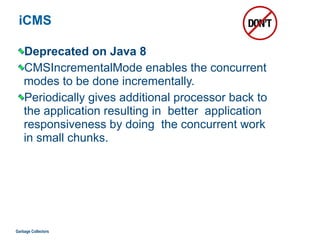

iCMS
Deprecated on Java 8
CMSIncrementalMode enables the concurrent  
modes to be done incrementally.
Periodically gives additional processor back to  
the application resulting in better application
responsiveness by doing the concurrent work  
in small chunks.
Garbage Collectors

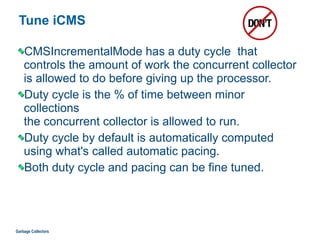

Tune iCMS
CMSIncrementalMode has a duty cycle that
controls the amount of work the concurrent collector
is allowed to do before giving up the processor.
Duty cycle is the % of time between minor
collections  
the concurrent collector is allowed to run.
Duty cycle by default is automatically computed
using what's called automatic pacing.
Both duty cycle and pacing can be fine tuned.
Garbage Collectors

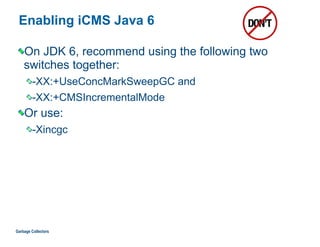

Enabling iCMS Java 6
On JDK 6, recommend using the following two
switches together:
-XX:+UseConcMarkSweepGC and
-XX:+CMSIncrementalMode
Or use:
-Xincgc
Garbage Collectors

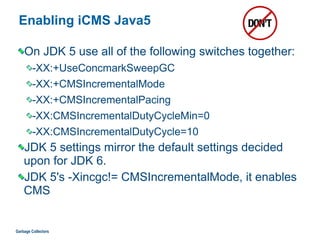

Enabling iCMS Java5
On JDK 5 use all of the following switches together:
-XX:+UseConcmarkSweepGC
-XX:+CMSIncrementalMode
-XX:+CMSIncrementalPacing
-XX:CMSIncrementalDutyCycleMin=0
-XX:CMSIncrementalDutyCycle=10
JDK 5 settings mirror the default settings decided
upon for JDK 6.
JDK 5's -Xincgc!= CMSIncrementalMode, it enables
CMS
Garbage Collectors

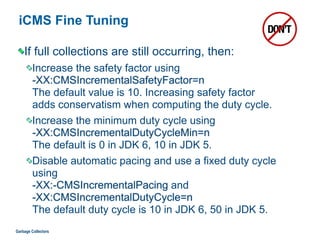

iCMS Fine Tuning
If full collections are still occurring, then:
Increase the safety factor using  
-XX:CMSIncrementalSafetyFactor=n  
The default value is 10. Increasing safety factor  
adds conservatism when computing the duty cycle.
Increase the minimum duty cycle using 
-XX:CMSIncrementalDutyCycleMin=n  
The default is 0 in JDK 6, 10 in JDK 5.
Disable automatic pacing and use a fixed duty cycle
using  
-XX:-CMSIncrementalPacing and  
-XX:CMSIncrementalDutyCycle=n  
The default duty cycle is 10 in JDK 6, 50 in JDK 5.
Garbage Collectors

G1 Garbage collector

Garbage First GC
Stop the world
Incremental
Beta stage in Java6 and Java 7
Supported since Java7u4

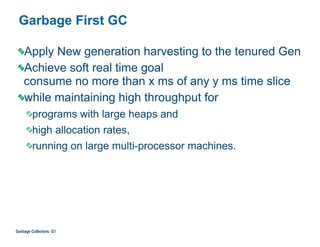

Garbage First GC
Apply New generation harvesting to the tenured Gen
Achieve soft real time goal  
consume no more than x ms of any y ms time slice
while maintaining high throughput for
programs with large heaps and
high allocation rates,
running on large multi-processor machines.

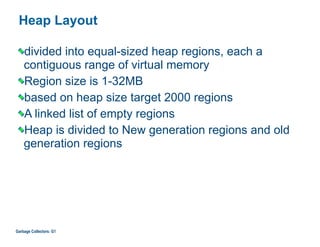

Heap Layout
divided into equal-sized heap regions, each a
contiguous range of virtual memory
Region size is 1-32MB
based on heap size target 2000 regions
A linked list of empty regions
Heap is divided to New generation regions and old
generation regions

Each region is either Marked
Eden
Survivor Space
Old Generation
Empty
Humongous

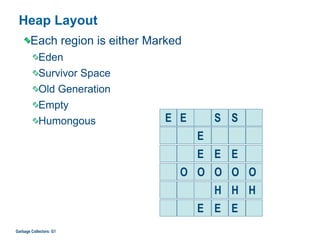

Heap Layout
E E S S
E
E E E
O O O O O
H H H
E E E

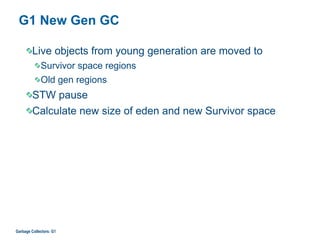

G1 New Gen GC
Live objects from young generation are moved to
Survivor space regions
Old gen regions
STW pause
Calculate new size of eden and new Survivor space

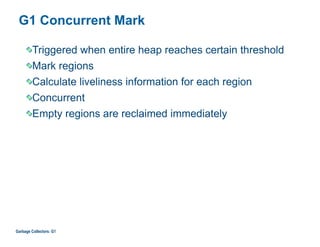

G1 Concurrent Mark
Triggered when entire heap reaches certain threshold
Mark regions
Calculate liveliness information for each region
Concurrent
Empty regions are reclaimed immediately

OldGen collection
Choose regions with low liveliness
Piggyback some during next young GC
Denoted GC Pause (mixed)

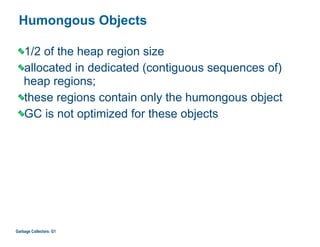

Humongous Objects
1/2 of the heap region size
allocated in dedicated (contiguous sequences of)
heap regions;
these regions contain only the humongous object
GC is not optimized for these objects

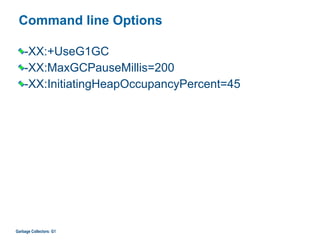

Command line Options
-XX:+UseG1GC
-XX:MaxGCPauseMillis=200
-XX:InitiatingHeapOccupancyPercent=45

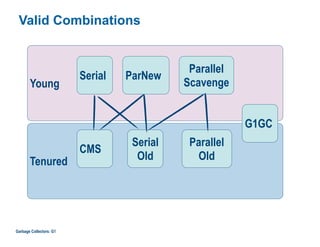

Valid Combinations
Tenured
Young
G1GC
Parallel
Scavenge
ParNewSerial
Serial
Old
CMS
Parallel
Old

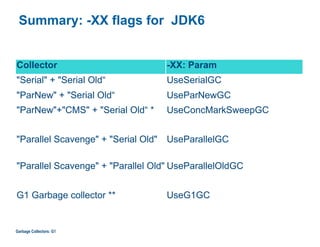

Summary: -XX flags for JDK6
Collector -XX: Param
"Serial" + "Serial Old“ UseSerialGC
"ParNew" + "Serial Old“ UseParNewGC
"ParNew"+"CMS" + "Serial Old“ * UseConcMarkSweepGC
"Parallel Scavenge" + "Serial Old" UseParallelGC
"Parallel Scavenge" + "Parallel Old" UseParallelOldGC
G1 Garbage collector ** UseG1GC

Alternatives

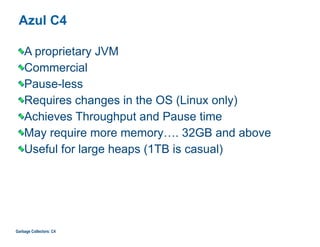

Azul C4
A proprietary JVM
Commercial
Pause-less
Requires changes in the OS (Linux only)
Achieves Throughput and Pause time
May require more memory…. 32GB and above
Useful for large heaps (1TB is casual)
Garbage Collectors: C4

Shenandoah
JEP 189 for Open JDK
Developed in RedHat
An Ultra-Low-Pause-Time Garbage
Regions same as G1
Concurrent collection w/o memory barrier
Not a generational collector
Brooks forwarding pointer
Garbage Collectors: Shenandoah
Ref
Object

Weird References

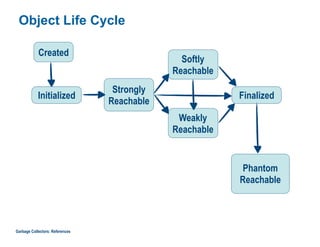

Object Life Cycle
Garbage Collectors: References
Created
Initialized
Strongly
Reachable
Softly
Reachable
Weakly
Reachable
Finalized
Phantom
Reachable

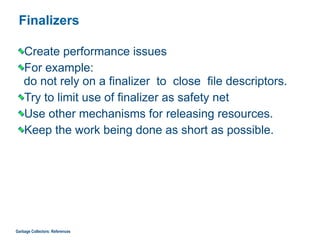

Finalizers
Create performance issues
For example:  
do not rely on a finalizer to close file descriptors.
Try to limit use of finalizer as safety net
Use other mechanisms for releasing resources.
Keep the work being done as short as possible.

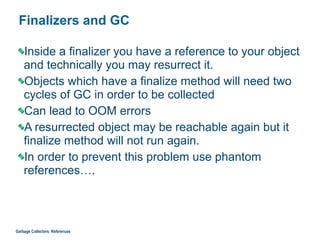

Finalizers and GC
Inside a finalizer you have a reference to your object
and technically you may resurrect it.
Objects which have a finalize method will need two
cycles of GC in order to be collected
Can lead to OOM errors
A resurrected object may be reachable again but it
finalize method will not run again.
In order to prevent this problem use phantom
references….

Finalizers and Thread Safety
Finalizers are executed from a special thread
According to the Java memory model 
updates to local variable may not be visible to the
Finalization thread
Occurs when GC happen too soon
In order to ensure correct memory visibility one need
to use a sync block to force coherency

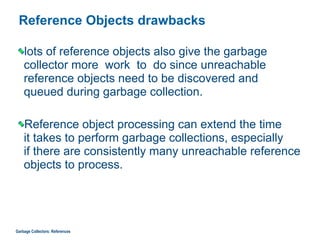

Reference Objects drawbacks
lots of reference objects also give the garbage
collector more work to do since unreachable
reference objects need to be discovered and  
queued during garbage collection.
Reference object processing can extend the time  
it takes to perform garbage collections, especially  
if there are consistently many unreachable reference
objects to process.

GC Tuning
Tuning Memory: Tuning GC

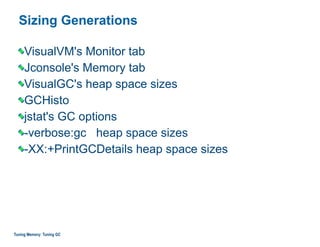

Sizing Generations
VisualVM's Monitor tab
Jconsole's Memory tab
VisualGC's heap space sizes
GCHisto
jstat's GC options
-verbose:gc heap space sizes
-XX:+PrintGCDetails heap space sizes

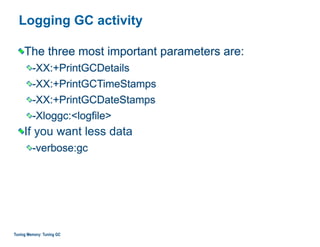

Logging GC activity
The three most important parameters are:
-XX:+PrintGCDetails
-XX:+PrintGCTimeStamps
-XX:+PrintGCDateStamps
-Xloggc:<logfile>
If you want less data
-verbose:gc

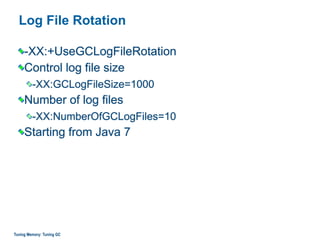

Log File Rotation
-XX:+UseGCLogFileRotation
Control log file size
-XX:GCLogFileSize=1000
Number of log files
-XX:NumberOfGCLogFiles=10
Starting from Java 7

Verbose GC on runtime
Java.lang.Memory
Set verbose attribute to true

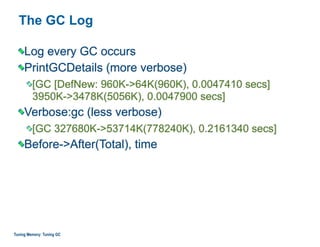

The GC Log
Log every GC occurs
PrintGCDetails (more verbose)
[GC [DefNew: 960K->64K(960K), 0.0047410 secs]  
3950K->3478K(5056K), 0.0047900 secs]
Verbose:gc (less verbose)
[GC 327680K->53714K(778240K), 0.2161340 secs]
Before->After(Total), time

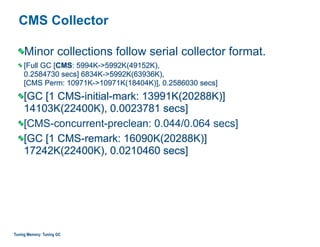

CMS Collector
Minor collections follow serial collector format.
[Full GC [CMS: 5994K->5992K(49152K), 
0.2584730 secs] 6834K->5992K(63936K),  
[CMS Perm: 10971K->10971K(18404K)], 0.2586030 secs]
[GC [1 CMS-initial-mark: 13991K(20288K)]  
14103K(22400K), 0.0023781 secs]
[CMS-concurrent-preclean: 0.044/0.064 secs]
[GC [1 CMS-remark: 16090K(20288K)]  
17242K(22400K), 0.0210460 secs]

Additional information
More information with the flags
-XX:+PrintGCApplicationStoppedTime
-XX:+PrintGCApplicationConcurrentTime
-XX:+PrintTenuringDistribution

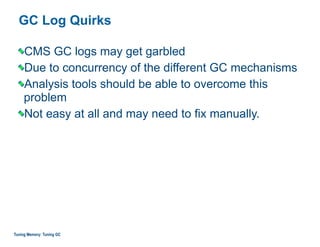

GC Log Quirks
CMS GC logs may get garbled
Due to concurrency of the different GC mechanisms
Analysis tools should be able to overcome this
problem
Not easy at all and may need to fix manually.

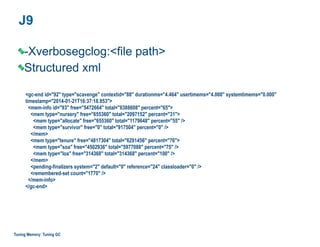

J9
-Xverbosegclog:<file path>
Structured xml
<gc-end id="92" type="scavenge" contextid="88" durationms="4.464" usertimems="4.000" systemtimems="0.000"
timestamp="2014-01-21T16:37:18.953">
<mem-info id="93" free="5472664" total="8388608" percent="65">
<mem type="nursery" free="655360" total="2097152" percent="31">
<mem type="allocate" free="655360" total="1179648" percent="55" />
<mem type="survivor" free="0" total="917504" percent="0" />
</mem>
<mem type="tenure" free="4817304" total="6291456" percent="76">
<mem type="soa" free="4502936" total="5977088" percent="75" />
<mem type="loa" free="314368" total="314368" percent="100" />
</mem>
<pending-finalizers system="2" default="0" reference="24" classloader="0" />
<remembered-set count="1770" />
</mem-info>
</gc-end>

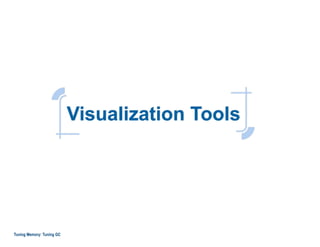

Visualization Tools

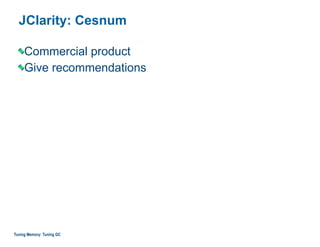

JClarity: Cesnum
Commercial product
Give recommendations

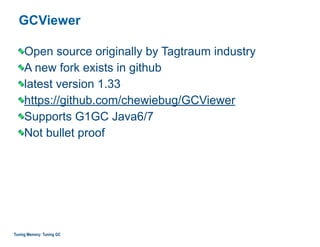

GCViewer
Open source originally by Tagtraum industry
A new fork exists in github
latest version 1.33
https://github.com/chewiebug/GCViewer
Supports G1GC Java6/7
Not bullet proof

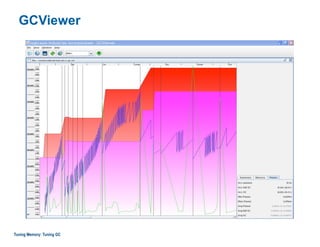

GCViewer

GCViewer View
Choose which info to  
view

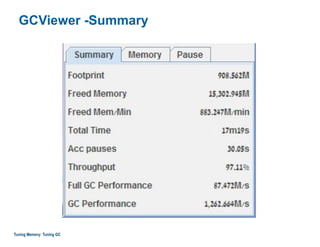

GCViewer -Summary

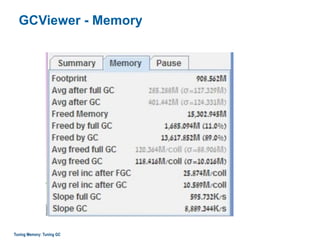

GCViewer - Memory

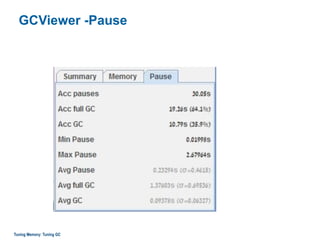

GCViewer -Pause

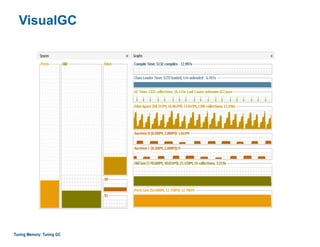

VisualGC

Explicit GC
Do not use System.gc() unless there is a specific  
use case or need to.
Disable Explicit GC: -XX:+DisableExplicitGC.
Default RMI distributed GC interval is once per
minute, (60000 ms).
Use:  
-Dsun.rmi.dgc.client.gcInterval =3600000  
-Dsun.rmi.dgc.server.gcInterval =3600000
When using JDK 6 and the Concurrent collector also use  
-XX:+ExplicitGCInvokesConcurrent

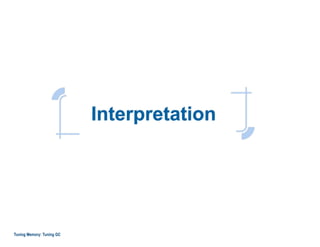

Interpretation

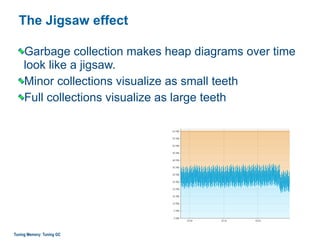

The Jigsaw effect
Garbage collection makes heap diagrams over time
look like a jigsaw.
Minor collections visualize as small teeth
Full collections visualize as large teeth

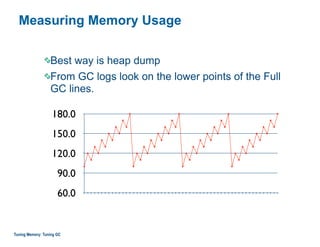

Measuring Memory Usage
Best way is heap dump
From GC logs look on the lower points of the Full
GC lines.
60.0
90.0
120.0
150.0
180.0

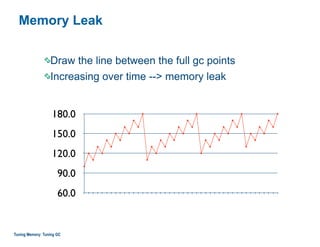

Memory Leak
Draw the line between the full gc points
Increasing over time --> memory leak
60.0
90.0
120.0
150.0
180.0

Low Throughput
Under 95%
Increase Heap:
Low throughput is usually a result of insufficient memory
GC kicks in too frequently and frees small amounts
New Gen too small
New gen GC kicks in too fast
Not able to release enough
as a result mid term objects spill to old gen.
Old Gen too small
Application state spills to new Gen.
Breaks the Generational Hypothesis

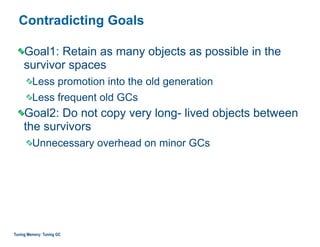

Contradicting Goals
Goal1: Retain as many objects as possible in the
survivor spaces
Less promotion into the old generation
Less frequent old GCs
Goal2: Do not copy very long- lived objects between
the survivors
Unnecessary overhead on minor GCs

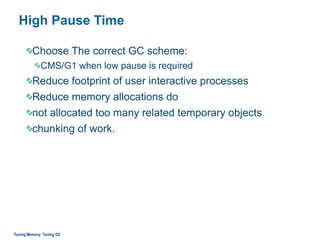

High Pause Time
Choose The correct GC scheme:
CMS/G1 when low pause is required
Reduce footprint of user interactive processes
Reduce memory allocations do
not allocated too many related temporary objects
chunking of work.

Garbage Collectors Explained

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Garbage Collectors Explained

Similar to Garbage Collectors Explained (20)

More from Haim Yadid

More from Haim Yadid (17)

Recently uploaded

Recently uploaded (20)

Garbage Collectors Explained
