SWIG is a tool that allows the use of C and C++ code from other languages like Python. It generates wrapper code that allows Python to call C/C++ functions. SWIG has been around since 1996 and supports wrapping code for many languages including Python, Java, C#, Ruby and more. While wrapping C code is straightforward, wrapping C++ can sometimes be more complex as it involves classes and other OOP features.

1. Python with a of C++
Bob McNaughton
PyData NYC 2015

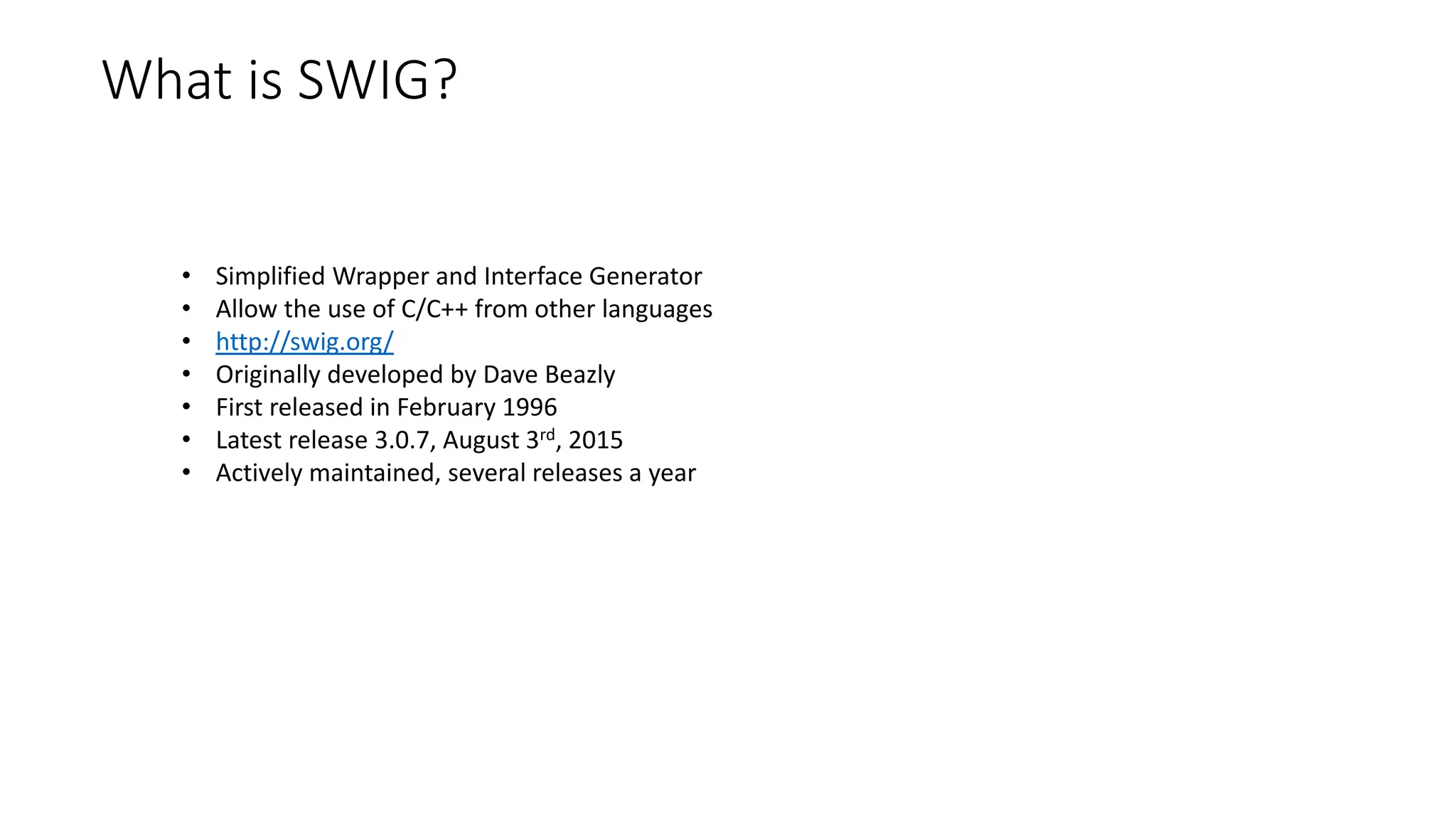

2. • Simplified Wrapper and Interface Generator
• Allow the use of C/C++ from other languages
• http://swig.org/
• Originally developed by Dave Beazly
• First released in February 1996
• Latest release 3.0.7, August 3rd, 2015
• Actively maintained, several releases a year
What is SWIG?

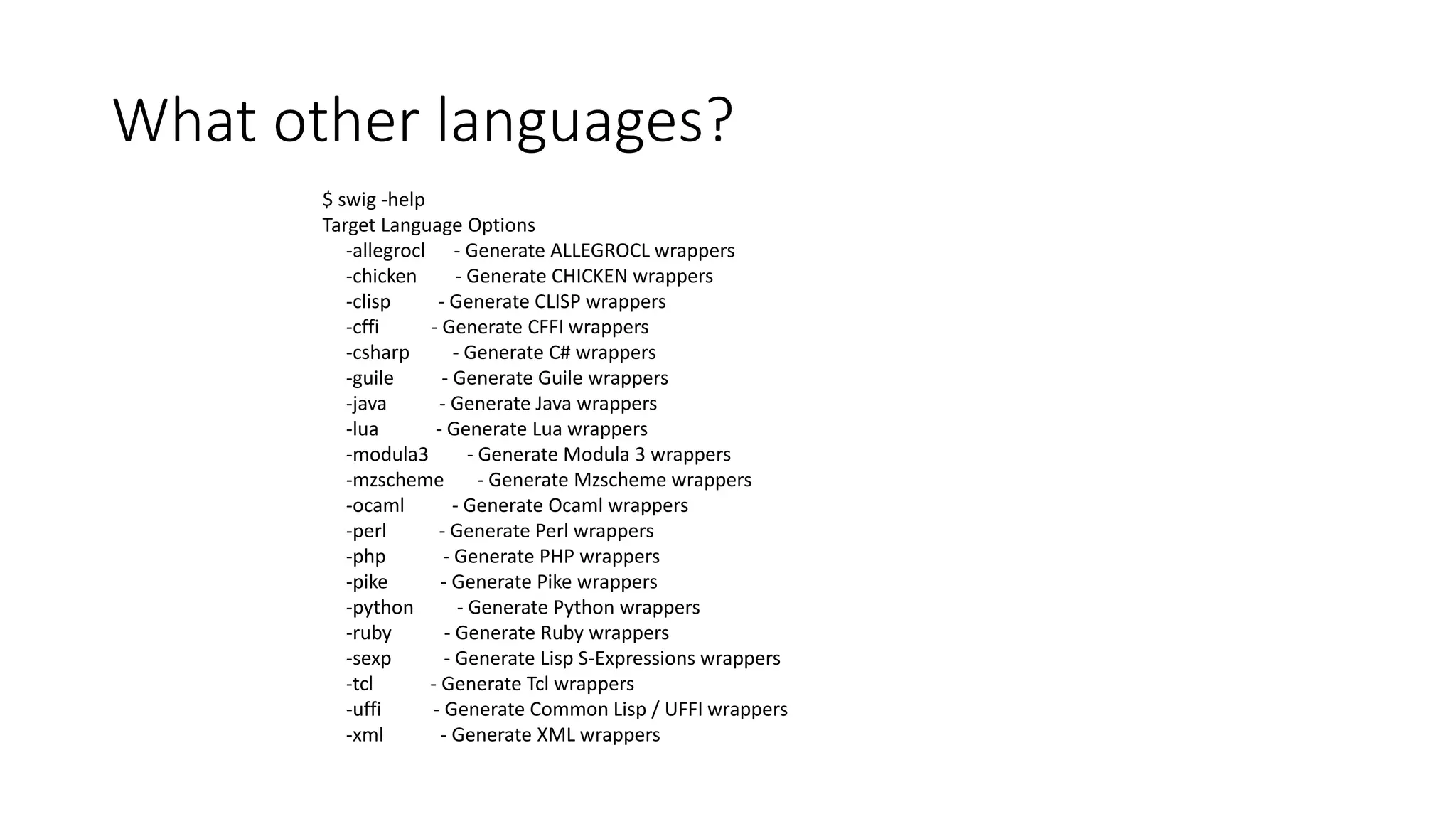

3. What other languages?
$ swig -help
Target Language Options
-allegrocl - Generate ALLEGROCL wrappers
-chicken - Generate CHICKEN wrappers
-clisp - Generate CLISP wrappers
-cffi - Generate CFFI wrappers
-csharp - Generate C# wrappers
-guile - Generate Guile wrappers
-java - Generate Java wrappers
-lua - Generate Lua wrappers
-modula3 - Generate Modula 3 wrappers
-mzscheme - Generate Mzscheme wrappers
-ocaml - Generate Ocaml wrappers
-perl - Generate Perl wrappers
-php - Generate PHP wrappers
-pike - Generate Pike wrappers
-python - Generate Python wrappers
-ruby - Generate Ruby wrappers
-sexp - Generate Lisp S-Expressions wrappers
-tcl - Generate Tcl wrappers
-uffi - Generate Common Lisp / UFFI wrappers
-xml - Generate XML wrappers

4. Are there any alternatives?
• Cython
• cTypes
• Cpython C API

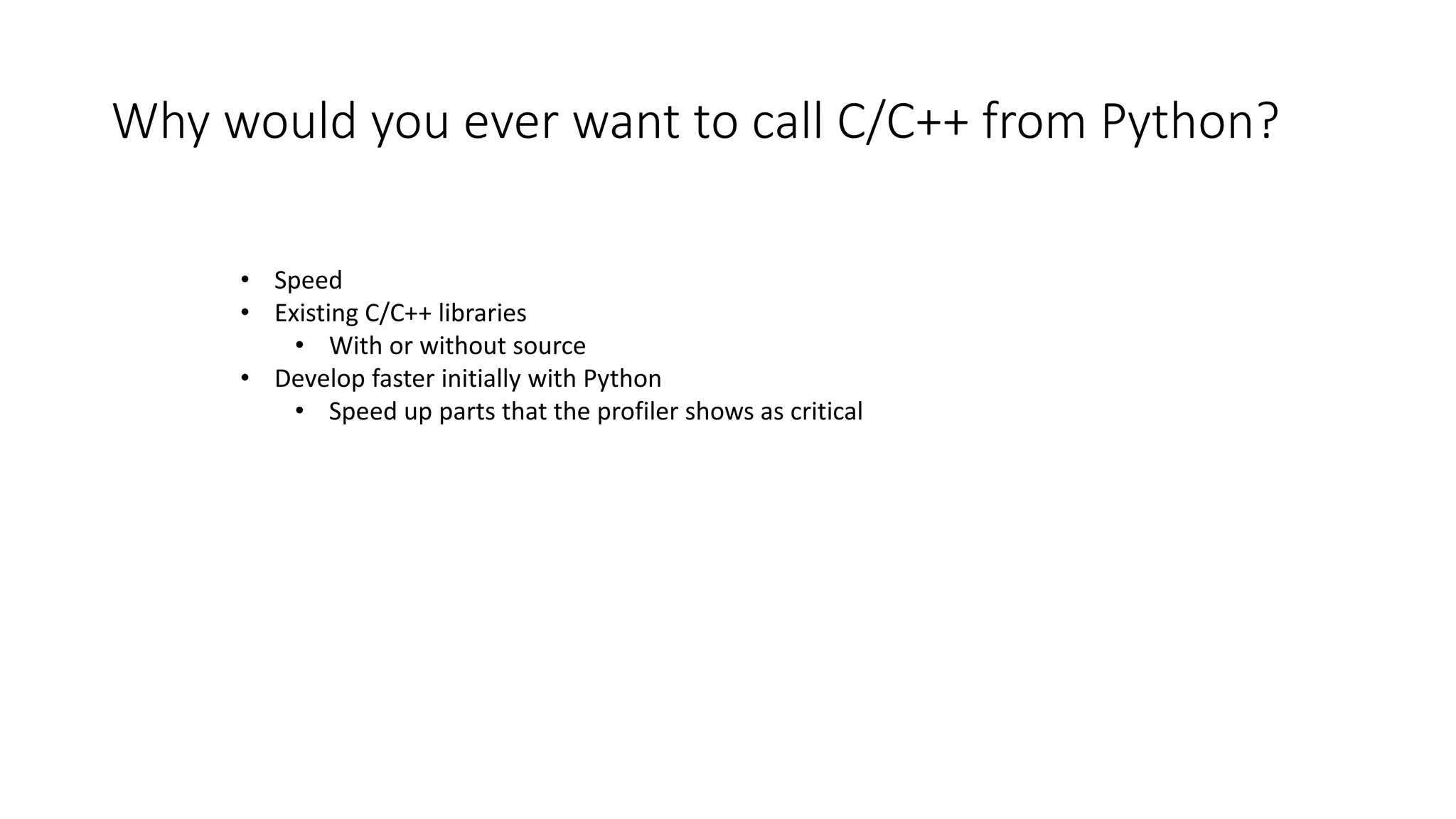

5. Why would you ever want to call C/C++ from Python?
• Speed
• Existing C/C++ libraries
• With or without source
• Develop faster initially with Python
• Speed up parts that the profiler shows as critical

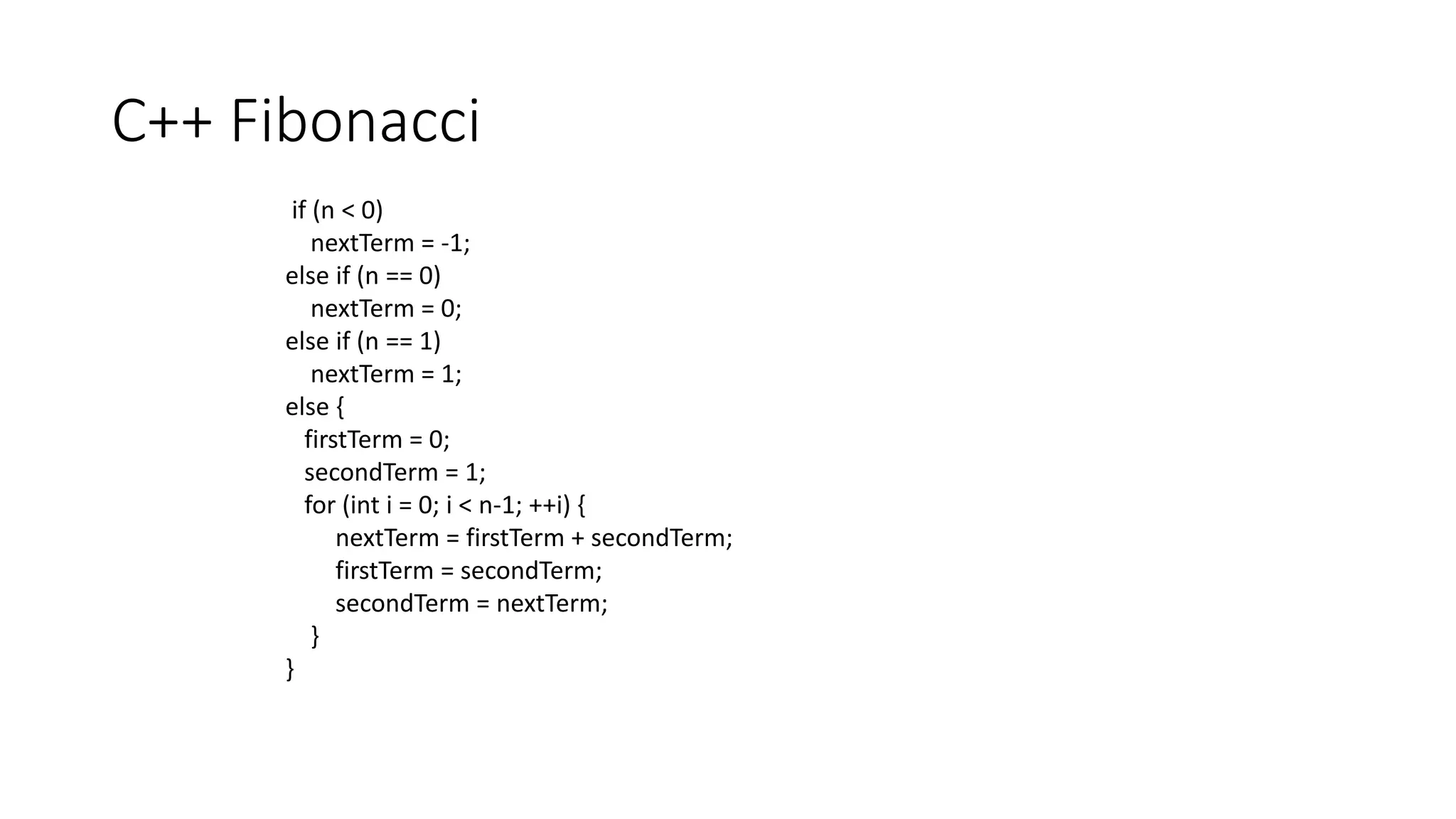

6. C++ Fibonacci
if (n < 0)
nextTerm = -1;
else if (n == 0)
nextTerm = 0;
else if (n == 1)
nextTerm = 1;
else {
firstTerm = 0;
secondTerm = 1;
for (int i = 0; i < n-1; ++i) {
nextTerm = firstTerm + secondTerm;
firstTerm = secondTerm;
secondTerm = nextTerm;
}
}

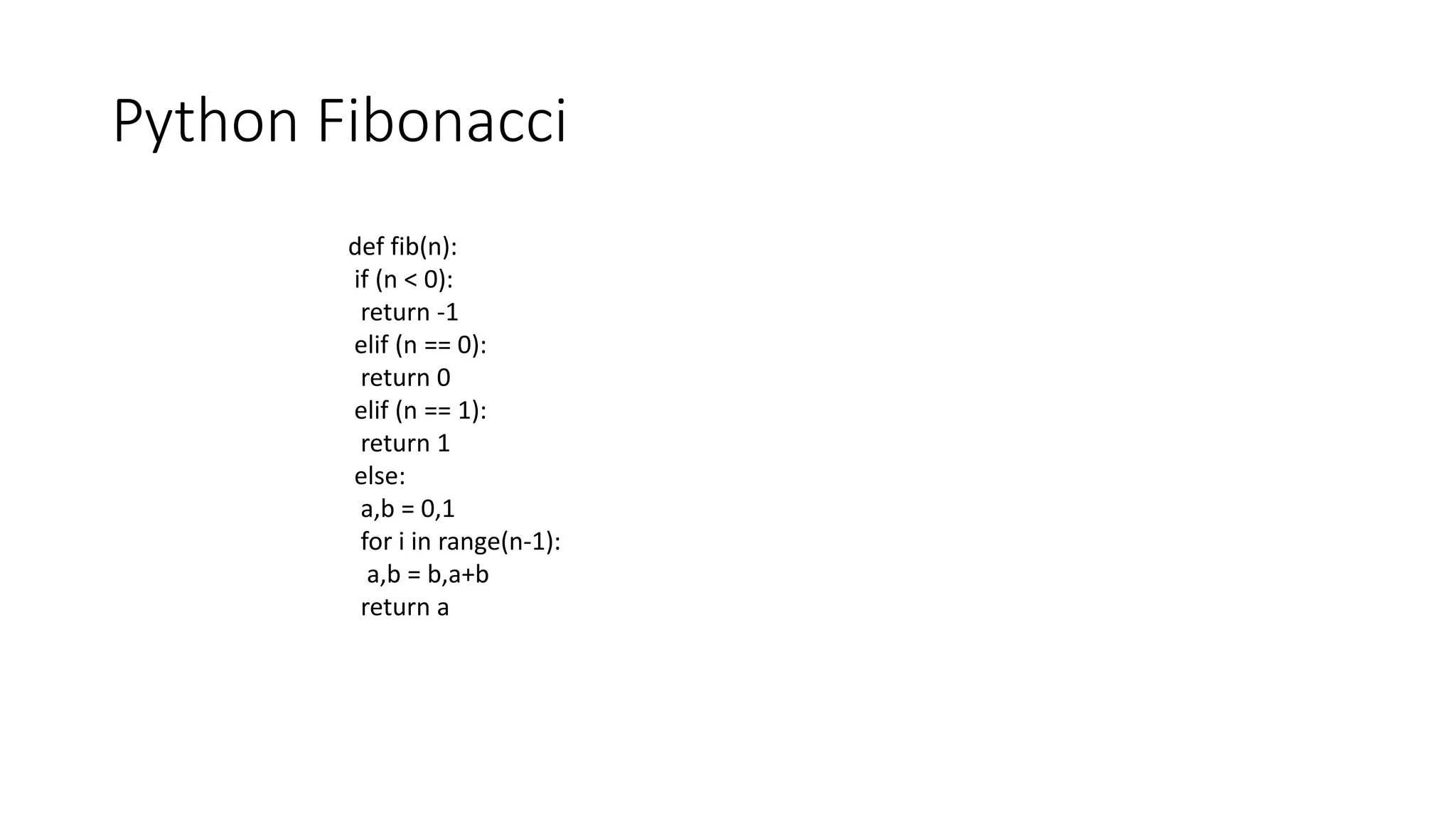

7. Python Fibonacci
def fib(n):
if (n < 0):
return -1
elif (n == 0):
return 0
elif (n == 1):
return 1
else:
a,b = 0,1
for i in range(n-1):
a,b = b,a+b
return a

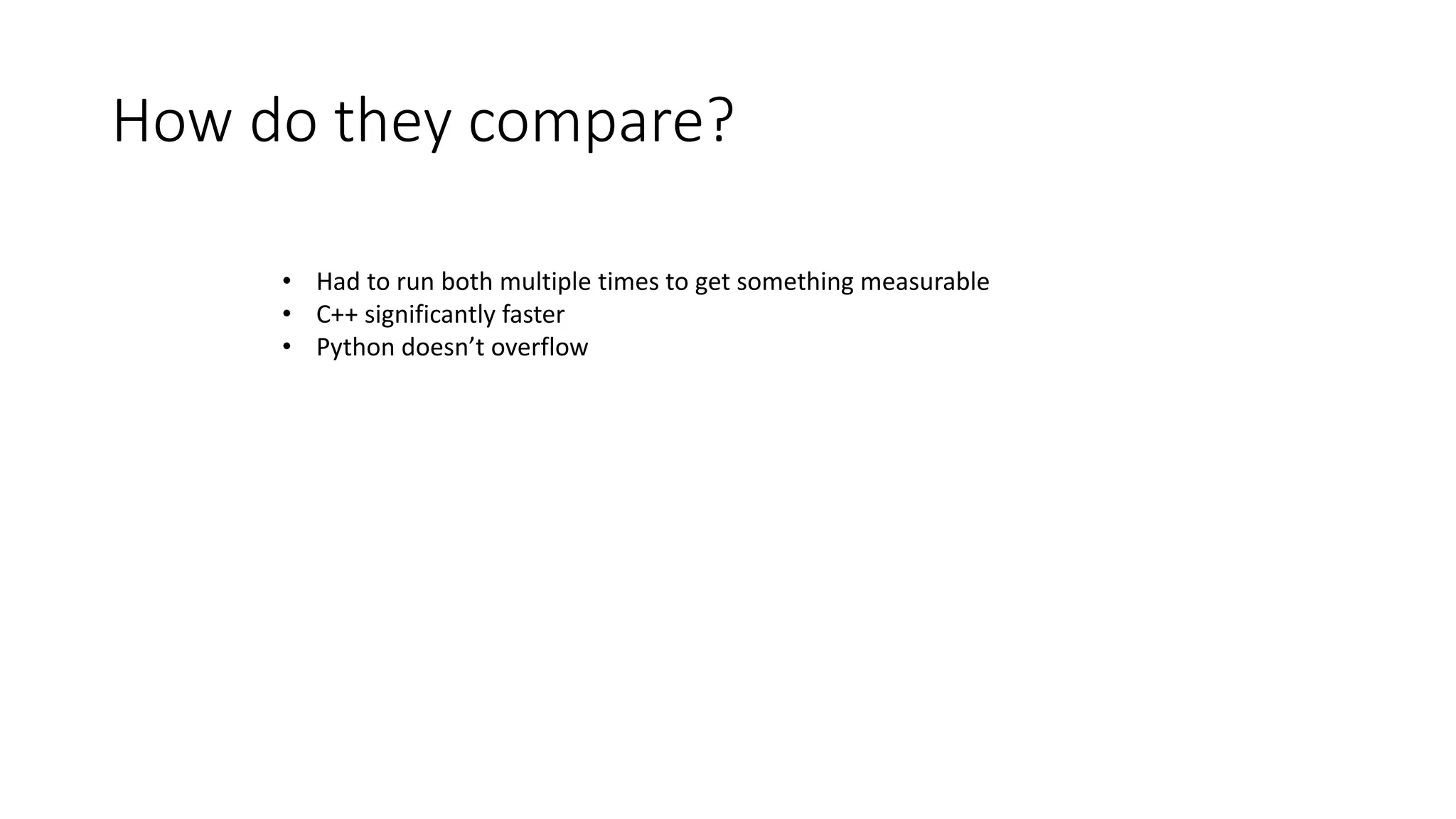

8. How do they compare?
• Had to run both multiple times to get something measurable
• C++ significantly faster
• Python doesn’t overflow

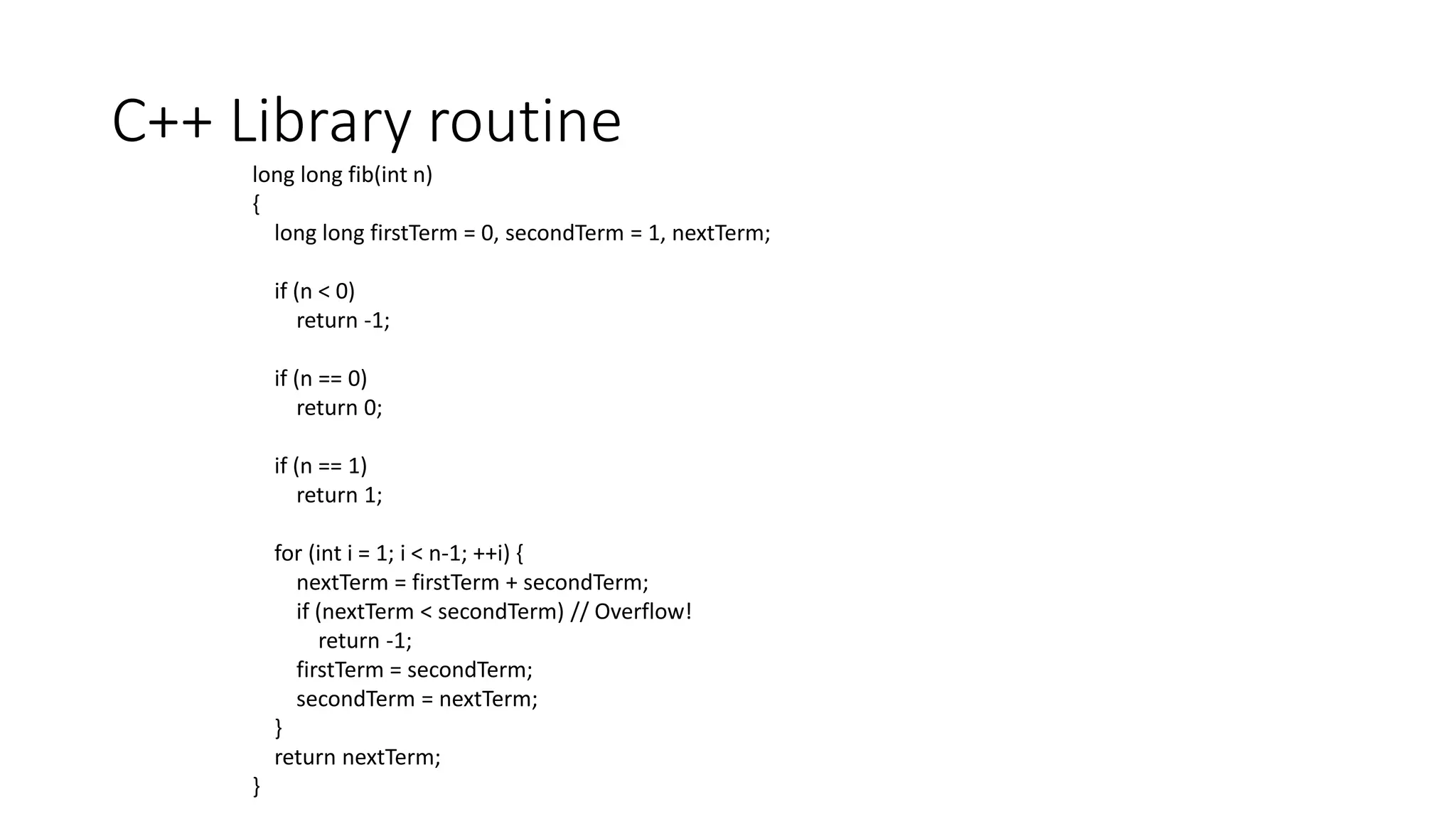

9. C++ Library routine
long long fib(int n)
{
long long firstTerm = 0, secondTerm = 1, nextTerm;
if (n < 0)
return -1;
if (n == 0)
return 0;
if (n == 1)
return 1;
for (int i = 1; i < n-1; ++i) {
nextTerm = firstTerm + secondTerm;
if (nextTerm < secondTerm) // Overflow!
return -1;
firstTerm = secondTerm;
secondTerm = nextTerm;
}
return nextTerm;
}

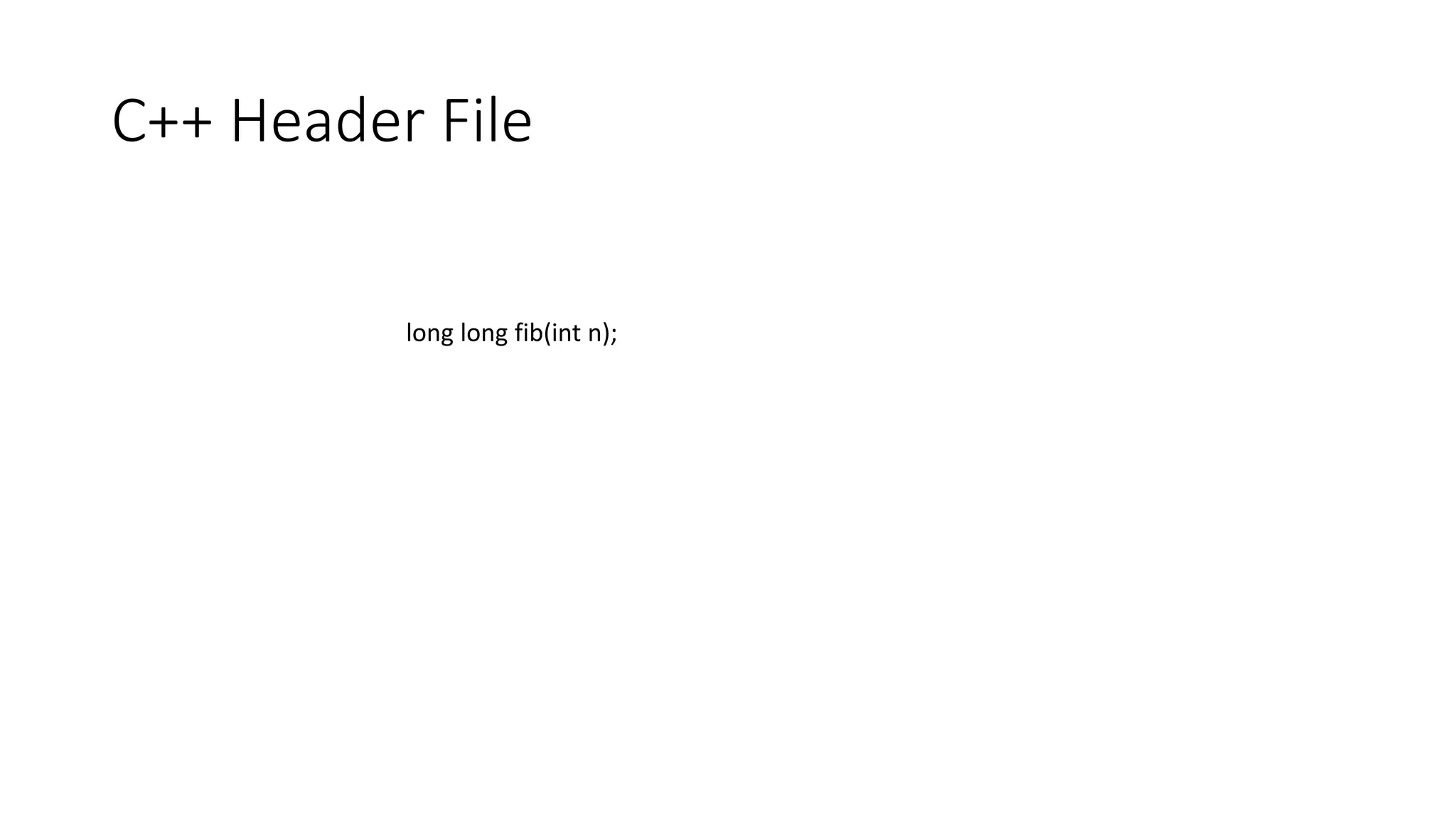

10. C++ Header File
long long fib(int n);

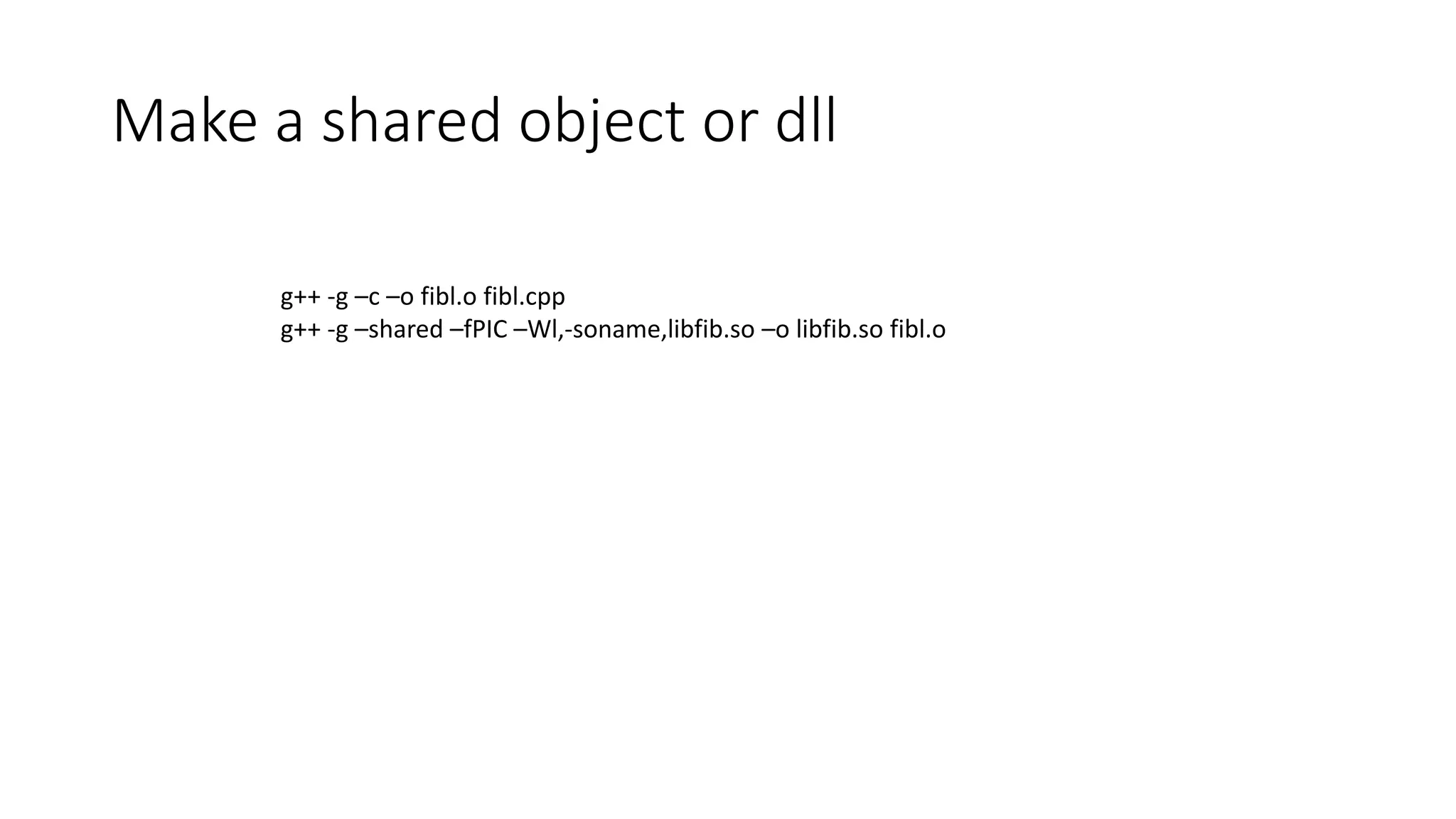

11. Make a shared object or dll
g++ -g –c –o fibl.o fibl.cpp
g++ -g –shared –fPIC –Wl,-soname,libfib.so –o libfib.so fibl.o

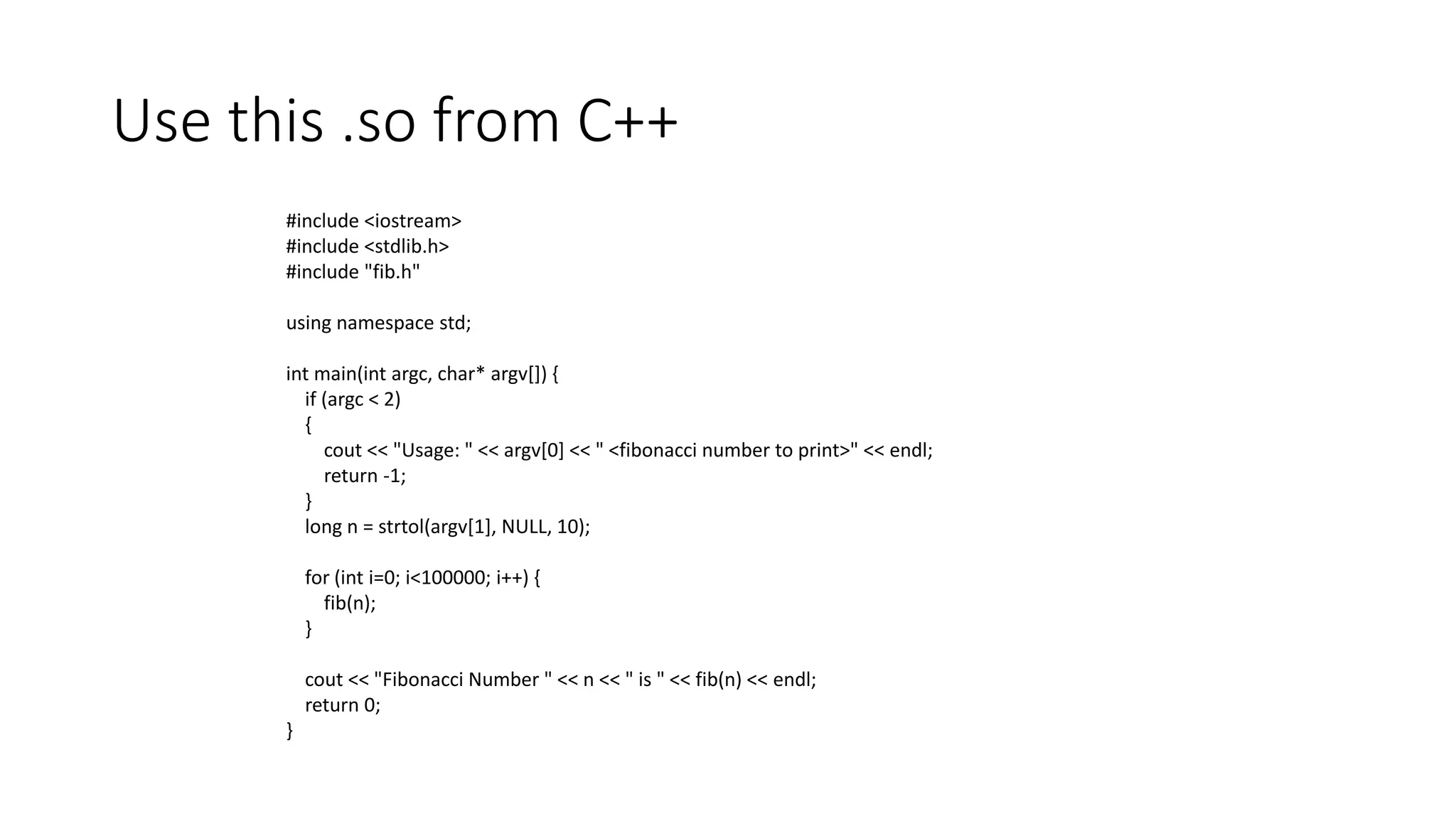

12. Use this .so from C++
#include <iostream>
#include <stdlib.h>
#include "fib.h"
using namespace std;
int main(int argc, char* argv[]) {
if (argc < 2)
{
cout << "Usage: " << argv[0] << " <fibonacci number to print>" << endl;
return -1;
}
long n = strtol(argv[1], NULL, 10);
for (int i=0; i<100000; i++) {
fib(n);
}
cout << "Fibonacci Number " << n << " is " << fib(n) << endl;
return 0;
}

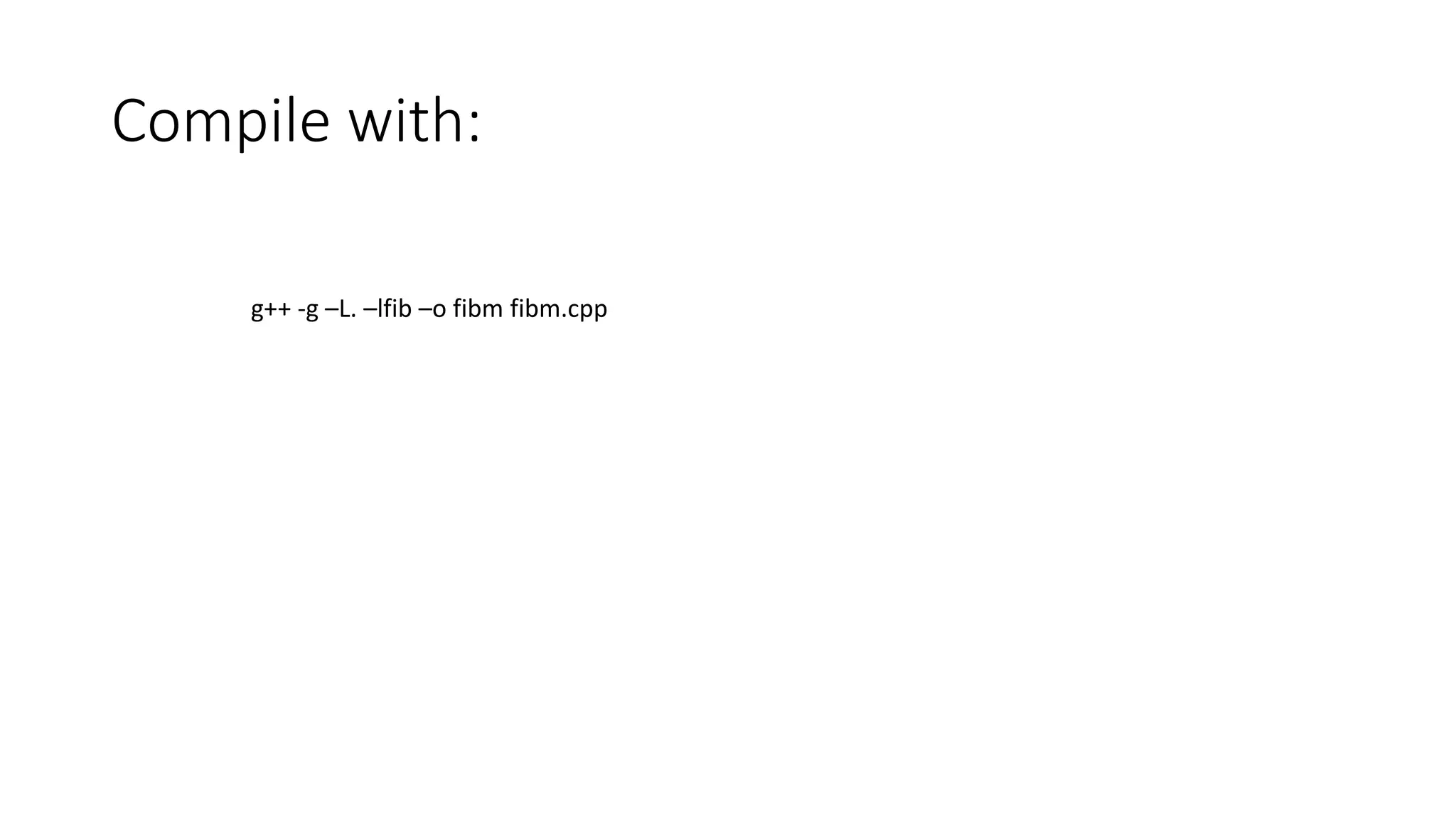

13. Compile with:
g++ -g –L. –lfib –o fibm fibm.cpp

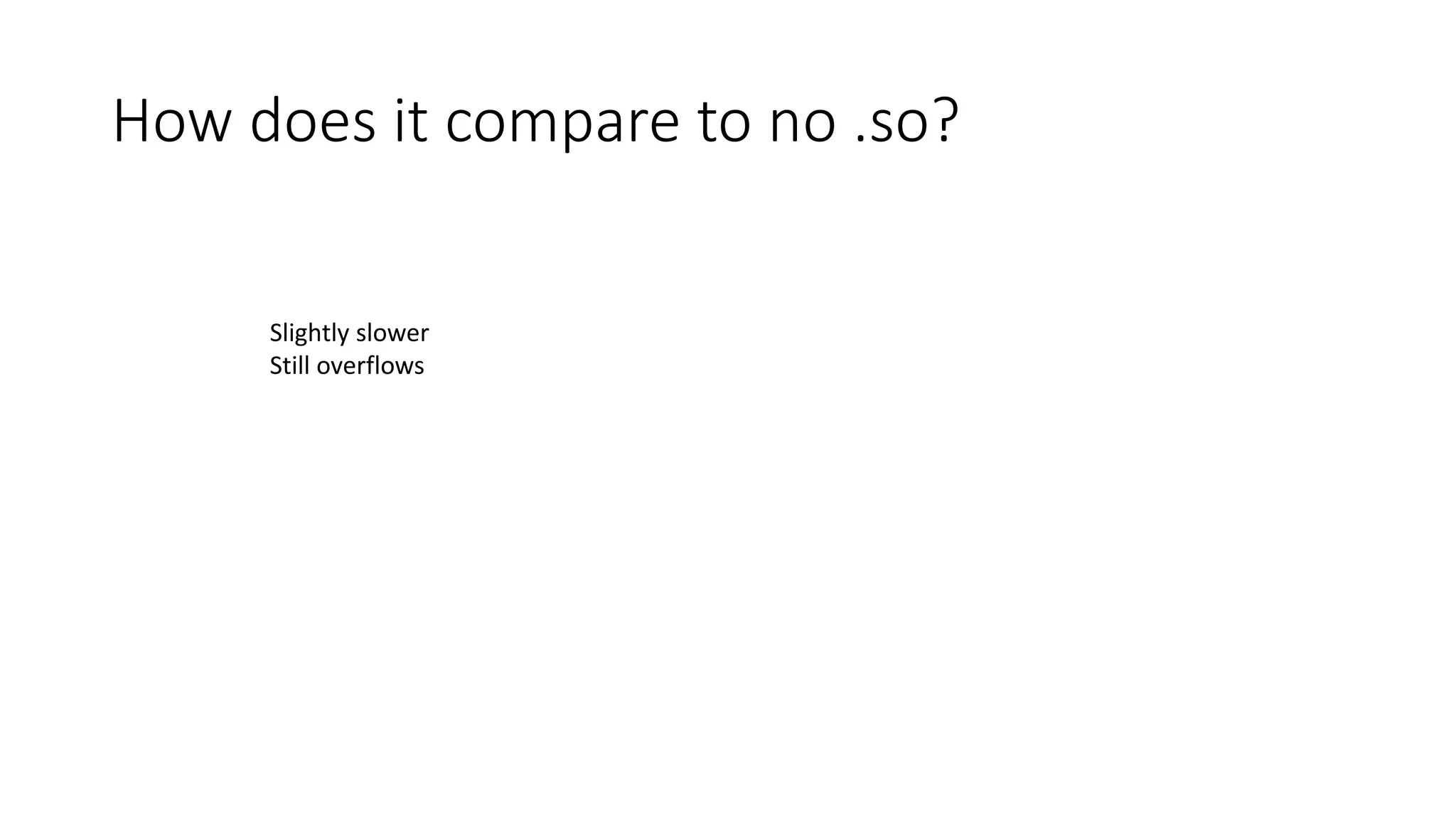

14. How does it compare to no .so?
Slightly slower
Still overflows

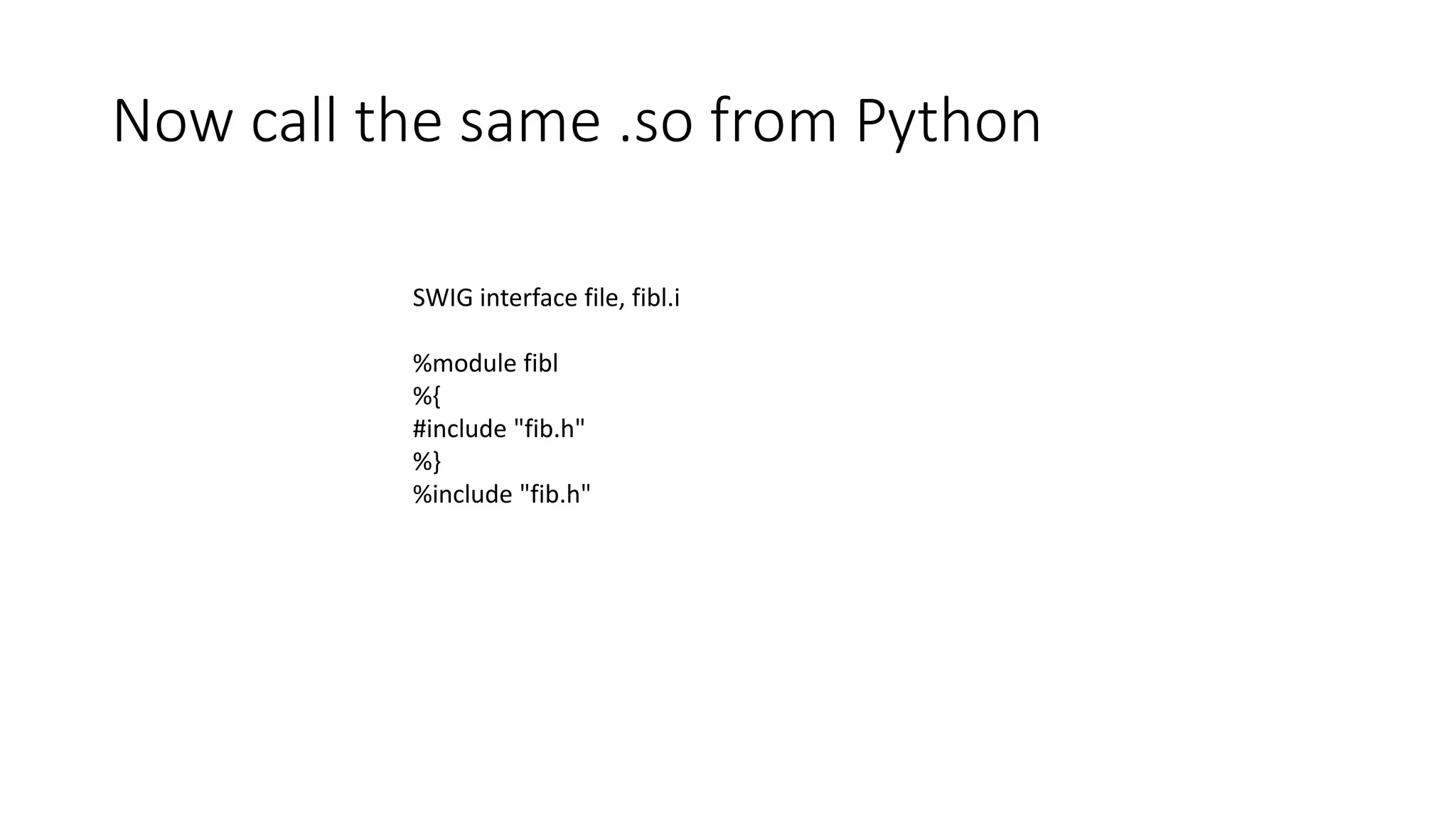

15. Now call the same .so from Python
SWIG interface file, fibl.i
%module fibl
%{
#include "fib.h"
%}
%include "fib.h"

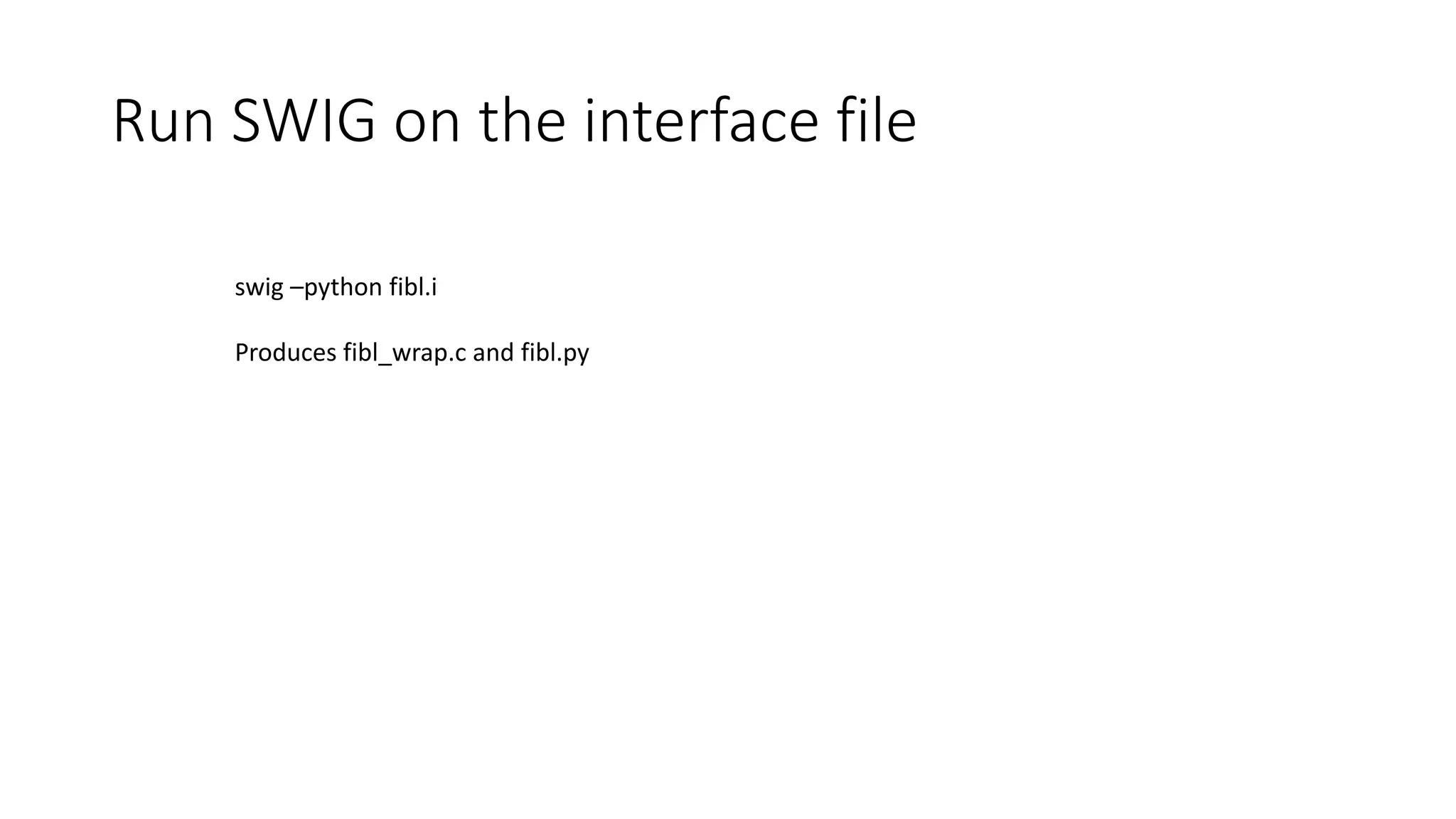

16. Run SWIG on the interface file
swig –python fibl.i
Produces fibl_wrap.c and fibl.py

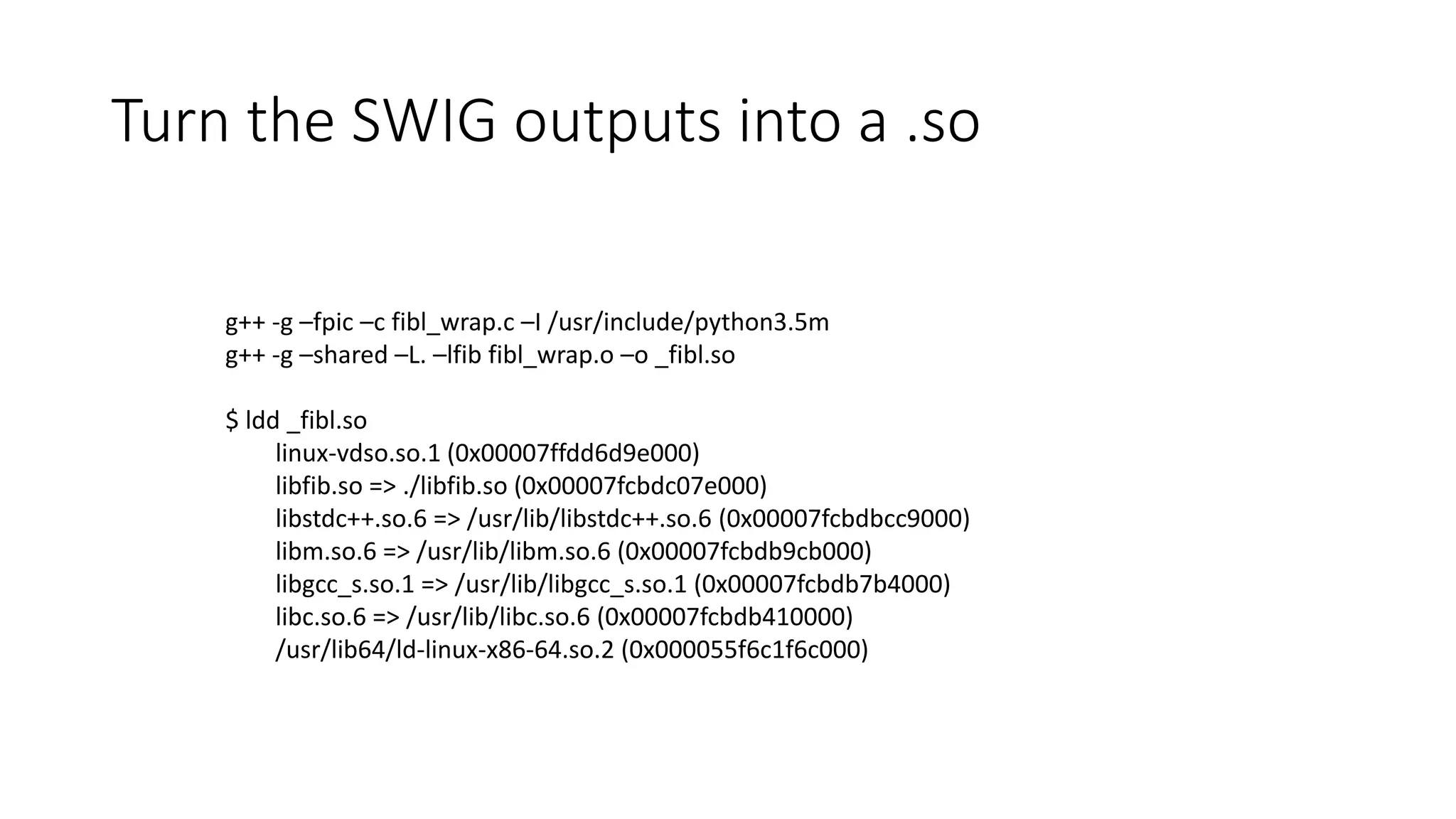

17. Turn the SWIG outputs into a .so
g++ -g –fpic –c fibl_wrap.c –I /usr/include/python3.5m
g++ -g –shared –L. –lfib fibl_wrap.o –o _fibl.so
$ ldd _fibl.so
linux-vdso.so.1 (0x00007ffdd6d9e000)
libfib.so => ./libfib.so (0x00007fcbdc07e000)
libstdc++.so.6 => /usr/lib/libstdc++.so.6 (0x00007fcbdbcc9000)
libm.so.6 => /usr/lib/libm.so.6 (0x00007fcbdb9cb000)
libgcc_s.so.1 => /usr/lib/libgcc_s.so.1 (0x00007fcbdb7b4000)
libc.so.6 => /usr/lib/libc.so.6 (0x00007fcbdb410000)
/usr/lib64/ld-linux-x86-64.so.2 (0x000055f6c1f6c000)

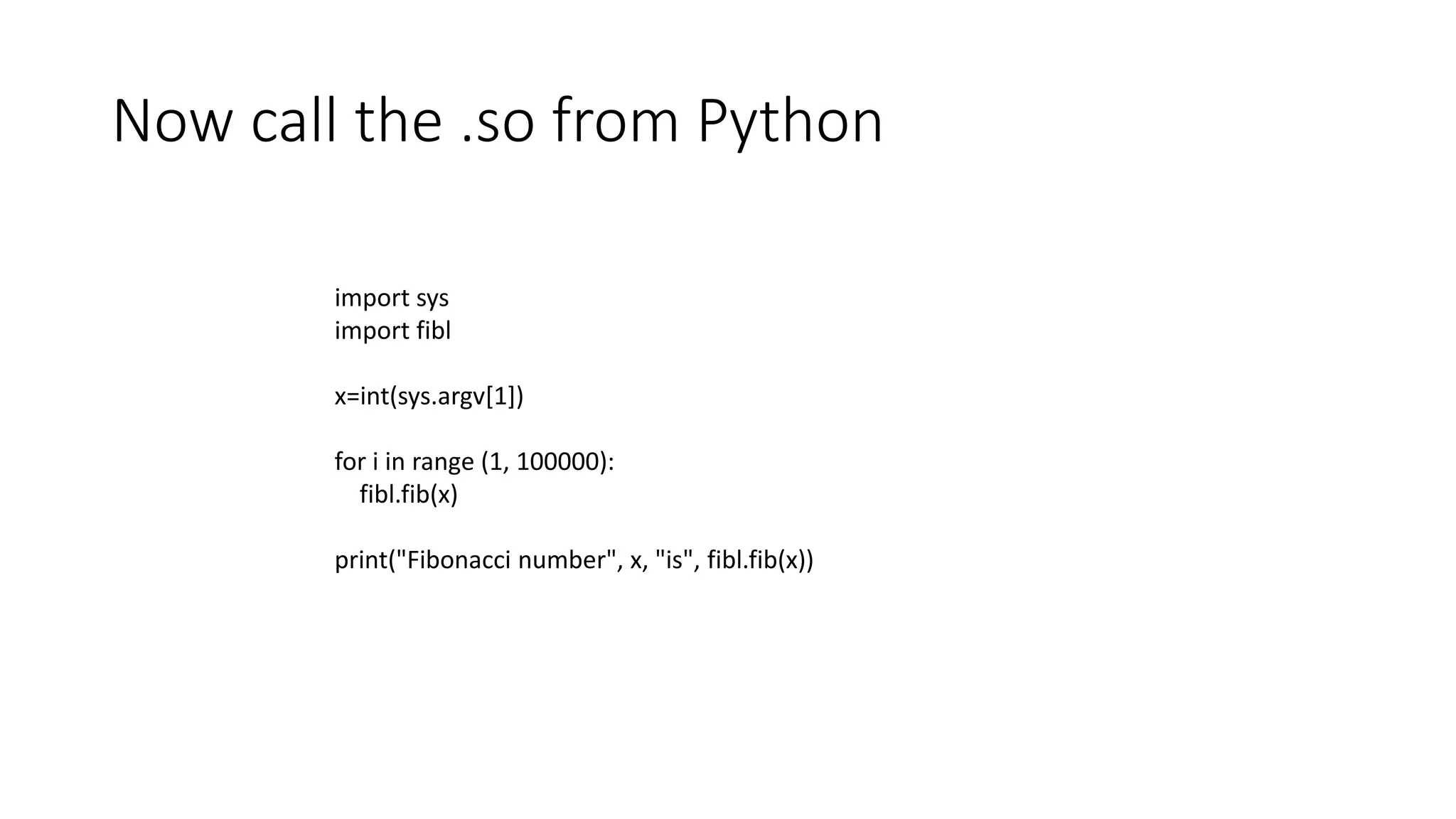

18. Now call the .so from Python
import sys
import fibl
x=int(sys.argv[1])
for i in range (1, 100000):
fibl.fib(x)
print("Fibonacci number", x, "is", fibl.fib(x))

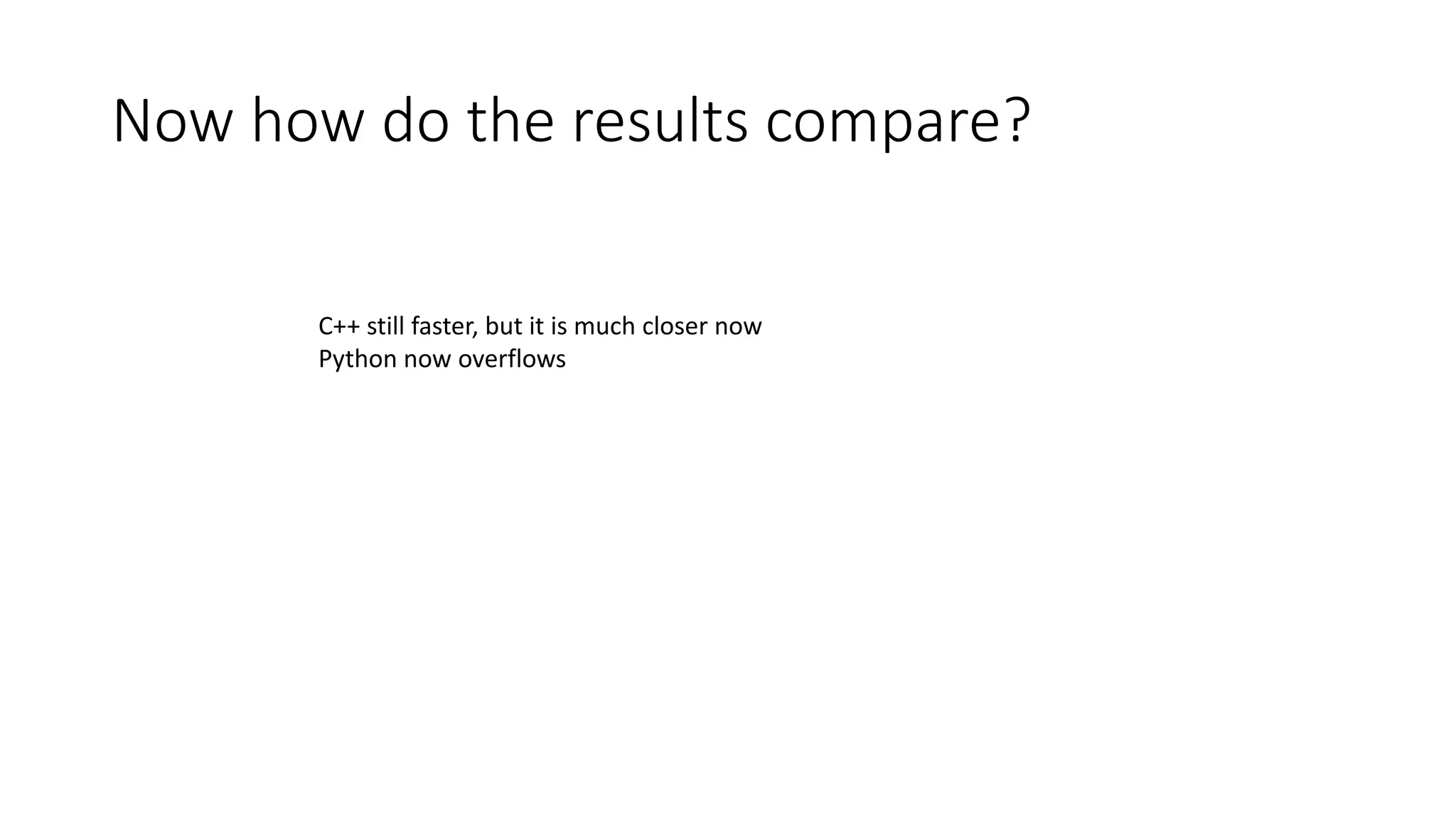

19. Now how do the results compare?
C++ still faster, but it is much closer now
Python now overflows

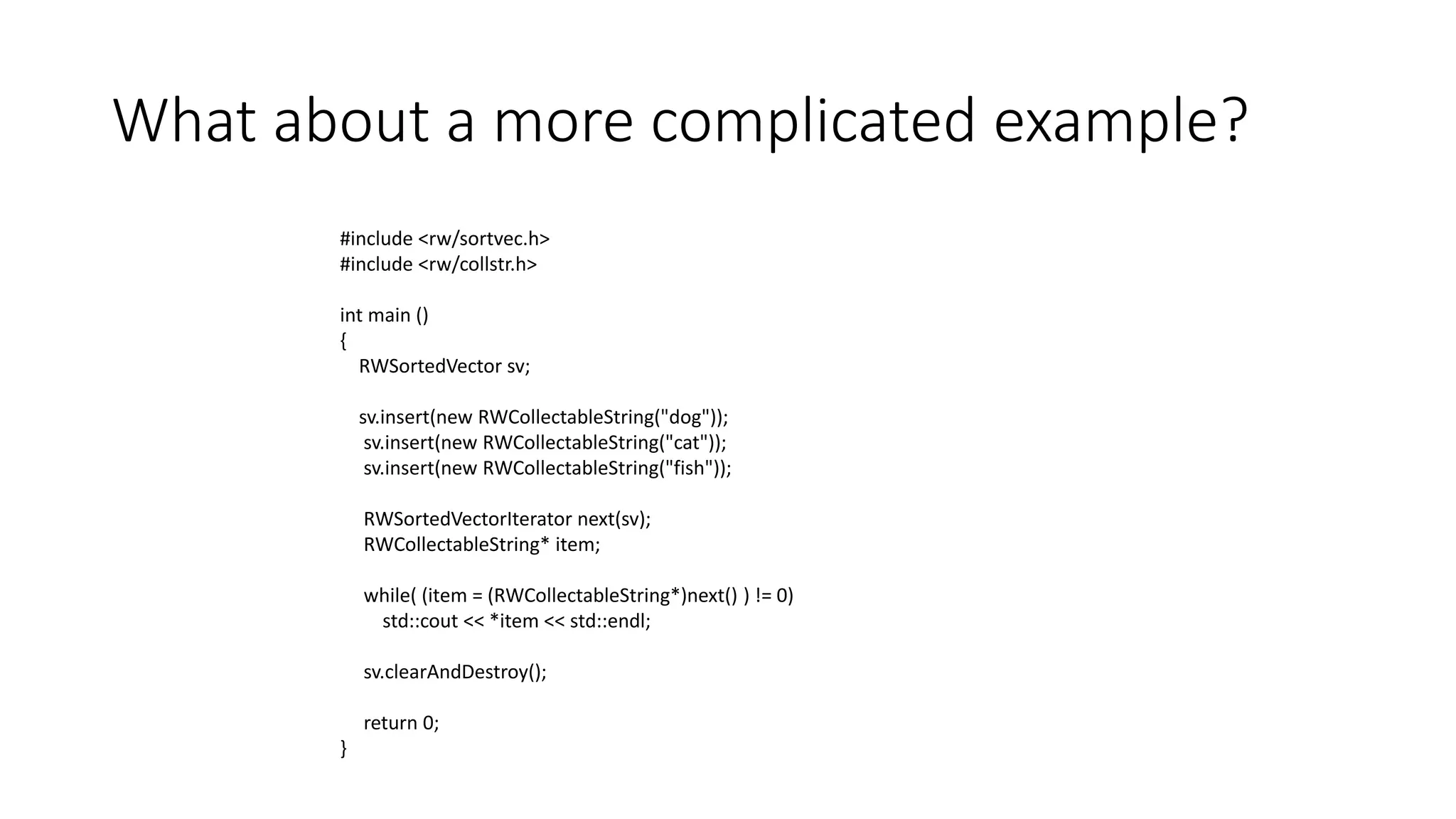

20. What about a more complicated example?
#include <rw/sortvec.h>
#include <rw/collstr.h>
int main ()
{
RWSortedVector sv;
sv.insert(new RWCollectableString("dog"));
sv.insert(new RWCollectableString("cat"));
sv.insert(new RWCollectableString("fish"));
RWSortedVectorIterator next(sv);
RWCollectableString* item;
while( (item = (RWCollectableString*)next() ) != 0)
std::cout << *item << std::endl;
sv.clearAndDestroy();
return 0;
}

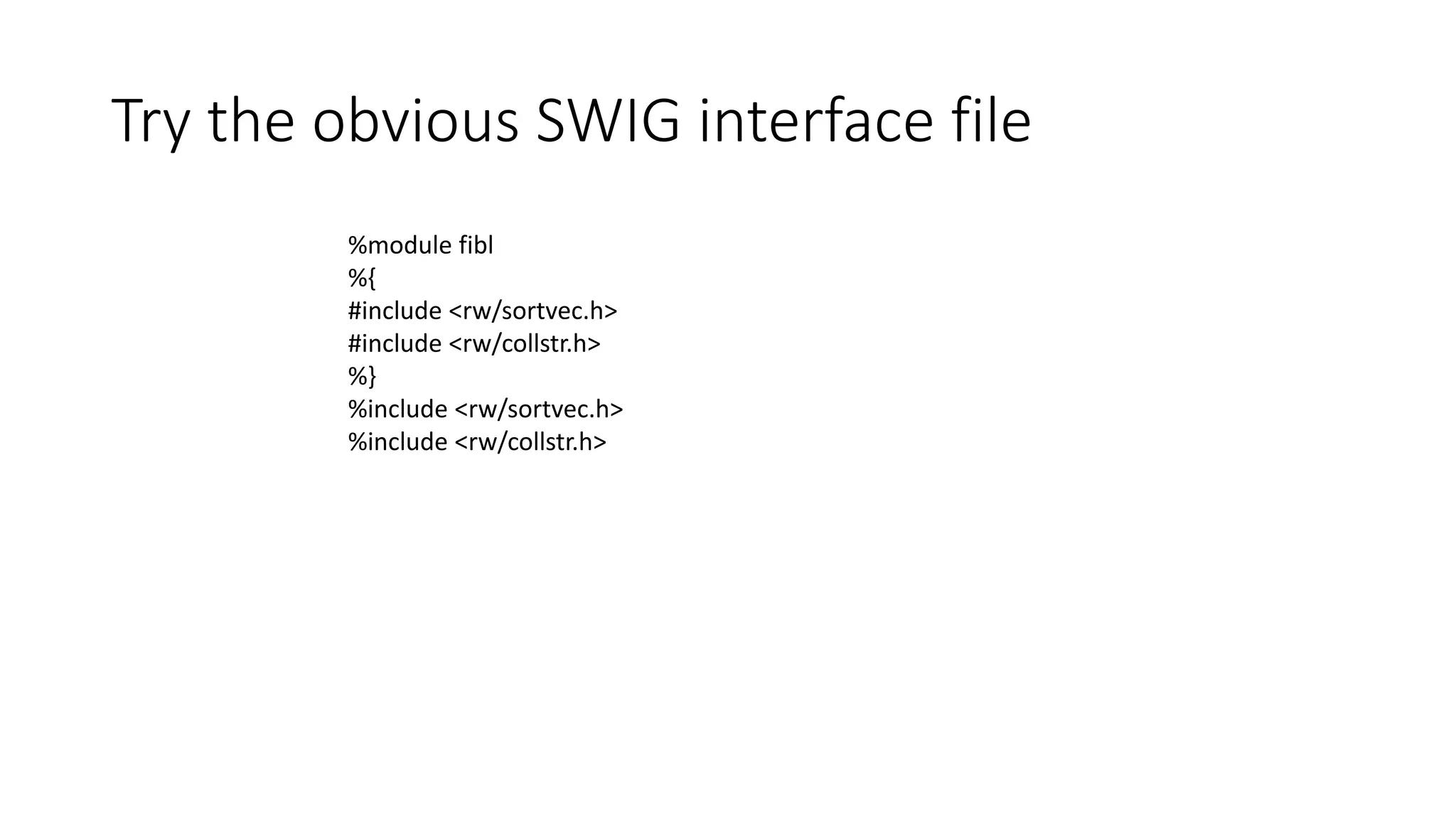

21. Try the obvious SWIG interface file
%module fibl
%{
#include <rw/sortvec.h>
#include <rw/collstr.h>
%}
%include <rw/sortvec.h>
%include <rw/collstr.h>

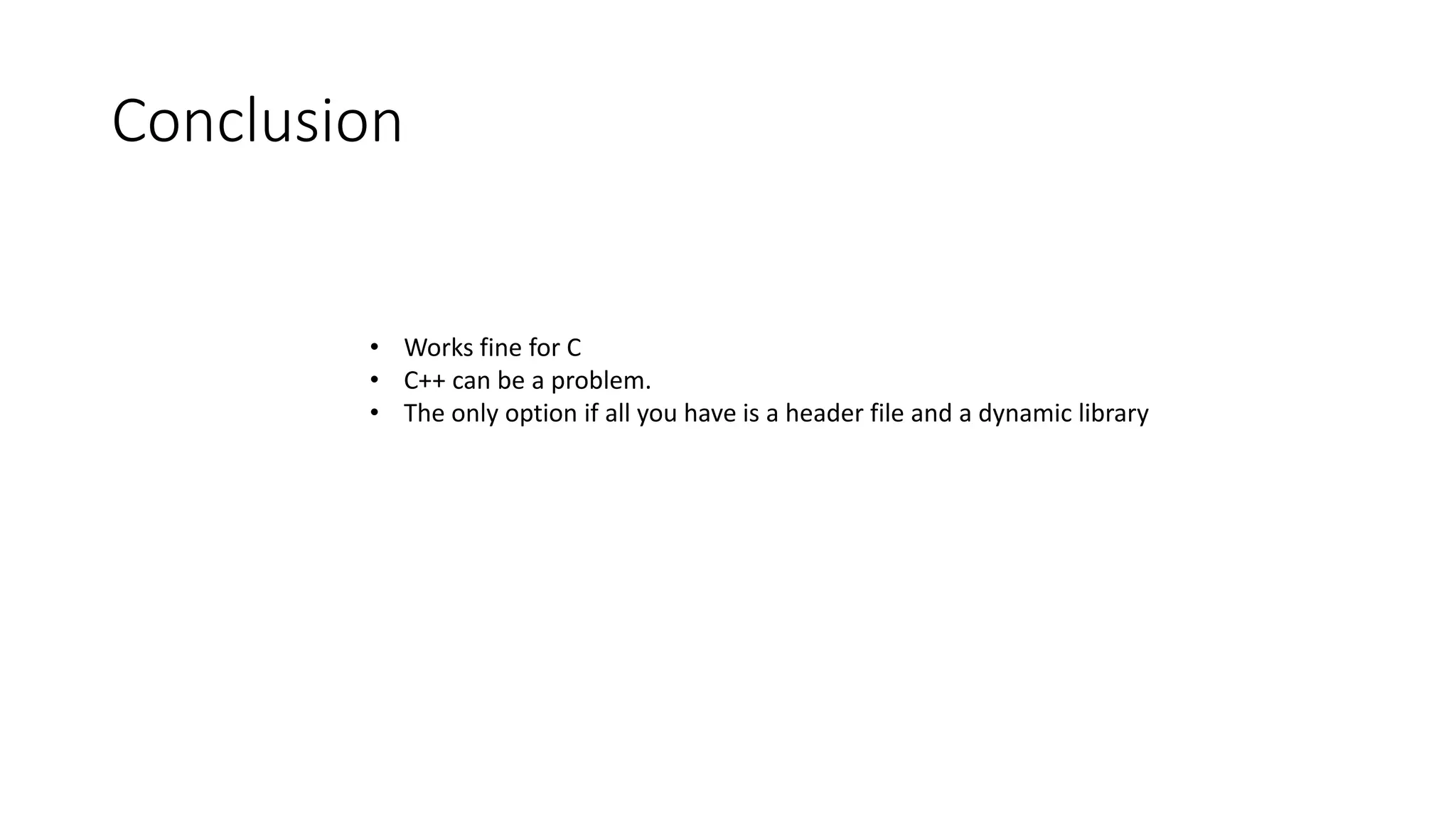

22. Conclusion
• Works fine for C
• C++ can be a problem.
• The only option if all you have is a header file and a dynamic library
