Computer Vision for Microscopes
Microsystem & Machine Vision Laboratory
16th Dec 2005
MMVL http://vision.eng.shu.ac.uk/mmvl/ (vision/www)
MRC http://www.shu.ac.uk/research/meri/modelling_rc.html
MERI http://www.shu.ac.uk/research/meri/
SHU http://www.shu.ac.uk/
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

2. Computer Vision for Microscopes -2- Modelling Research Centre, 16th Dec 2005

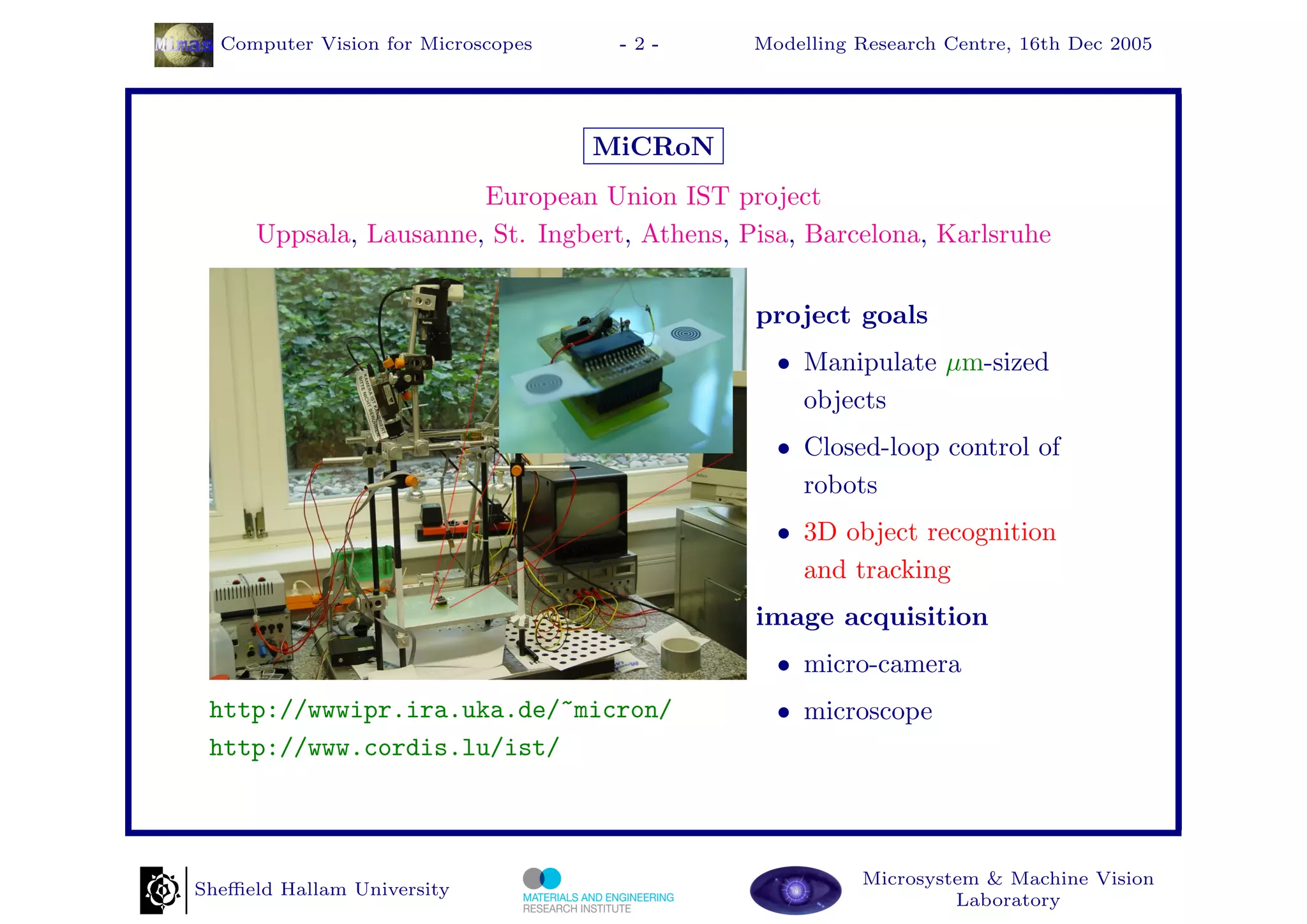

MiCRoN
European Union IST project
Uppsala, Lausanne, St. Ingbert, Athens, Pisa, Barcelona, Karlsruhe
project goals
• Manipulate µm-sized
objects
• Closed-loop control of
robots
• 3D object recognition
and tracking
image acquisition
• micro-camera
http://wwwipr.ira.uka.de/~micron/ • microscope
http://www.cordis.lu/ist/
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

3. Computer Vision for Microscopes -3- Modelling Research Centre, 16th Dec 2005

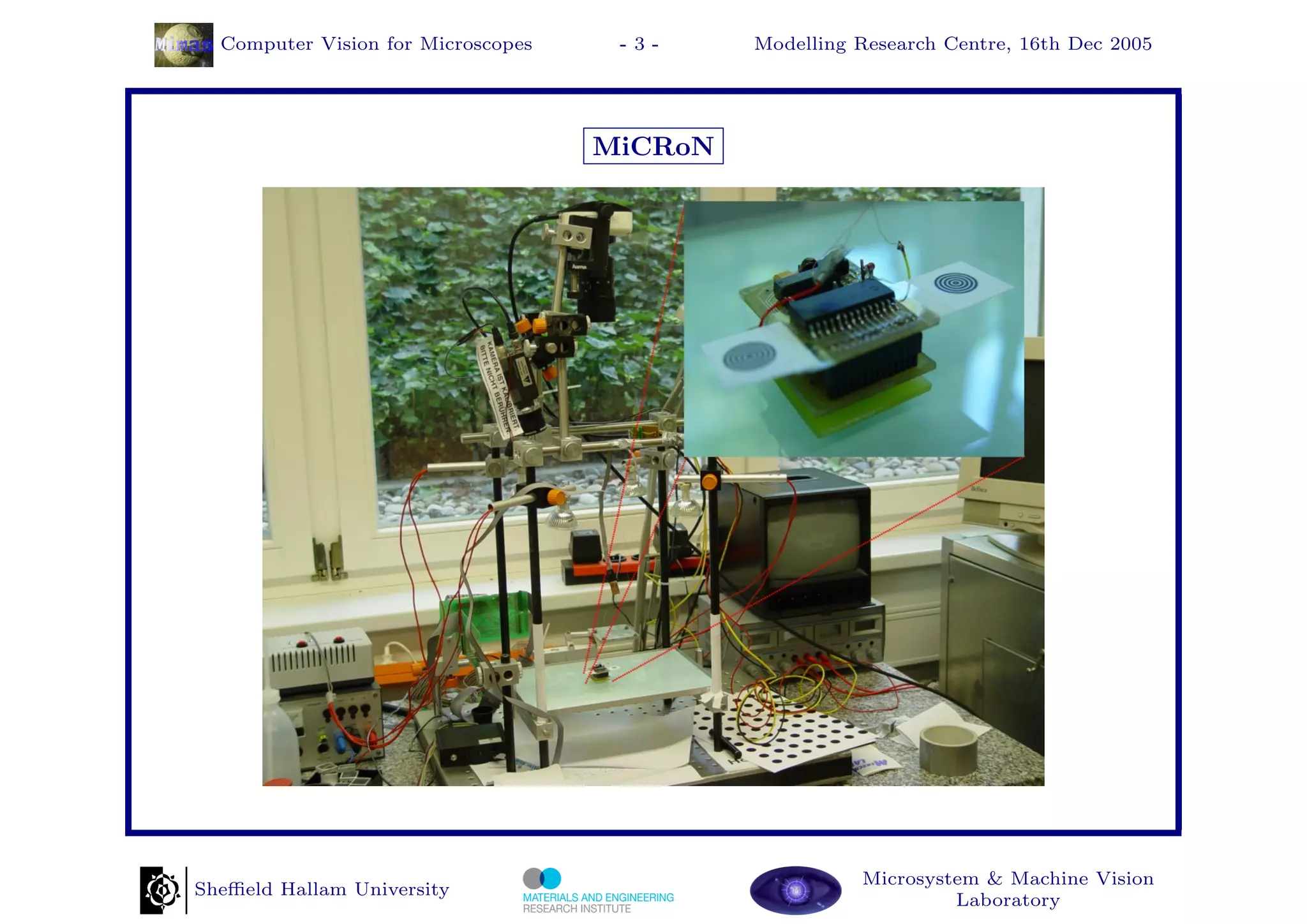

MiCRoN
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

4. Computer Vision for Microscopes -4- Modelling Research Centre, 16th Dec 2005

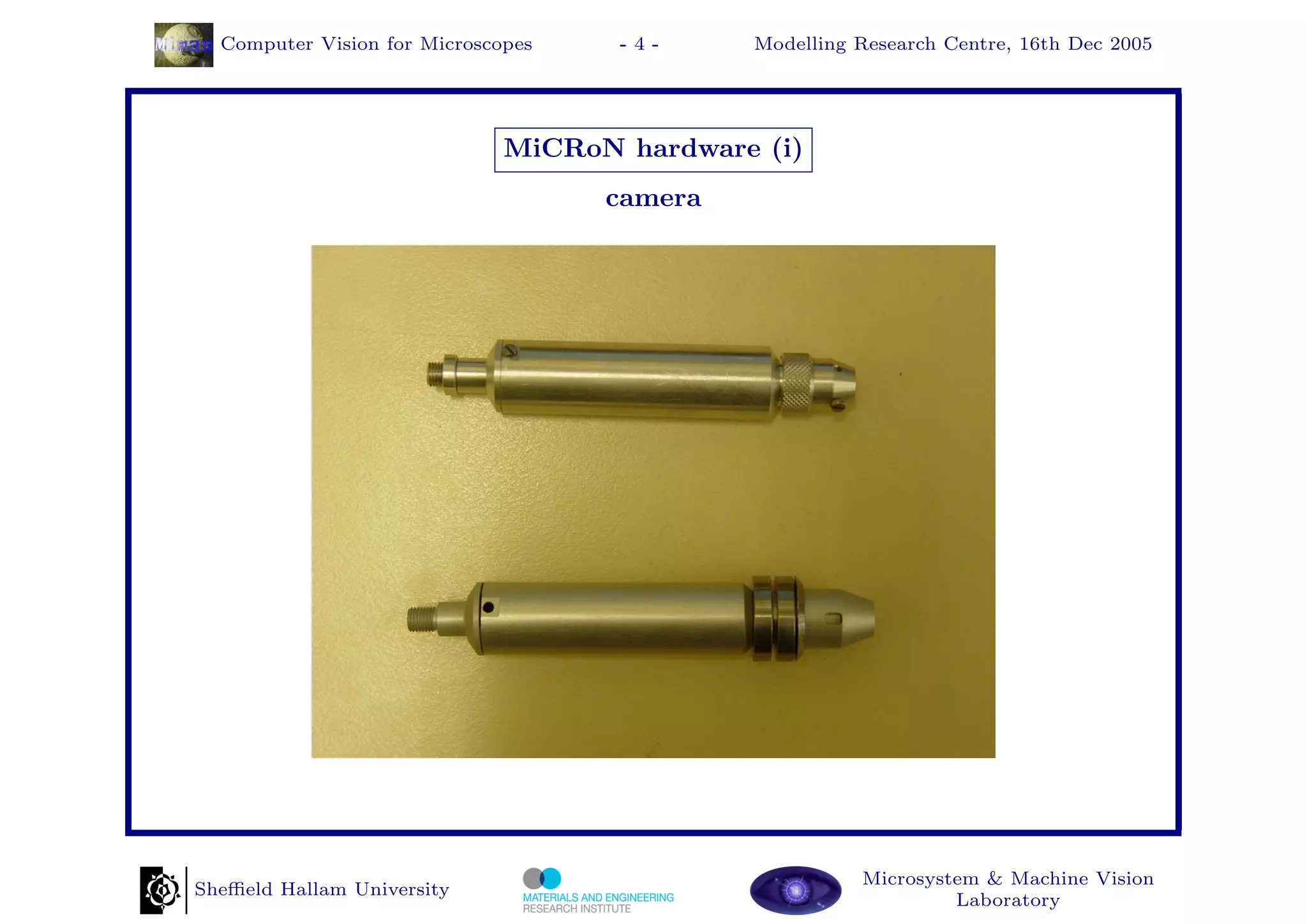

MiCRoN hardware (i)
camera
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

5. Computer Vision for Microscopes -5- Modelling Research Centre, 16th Dec 2005

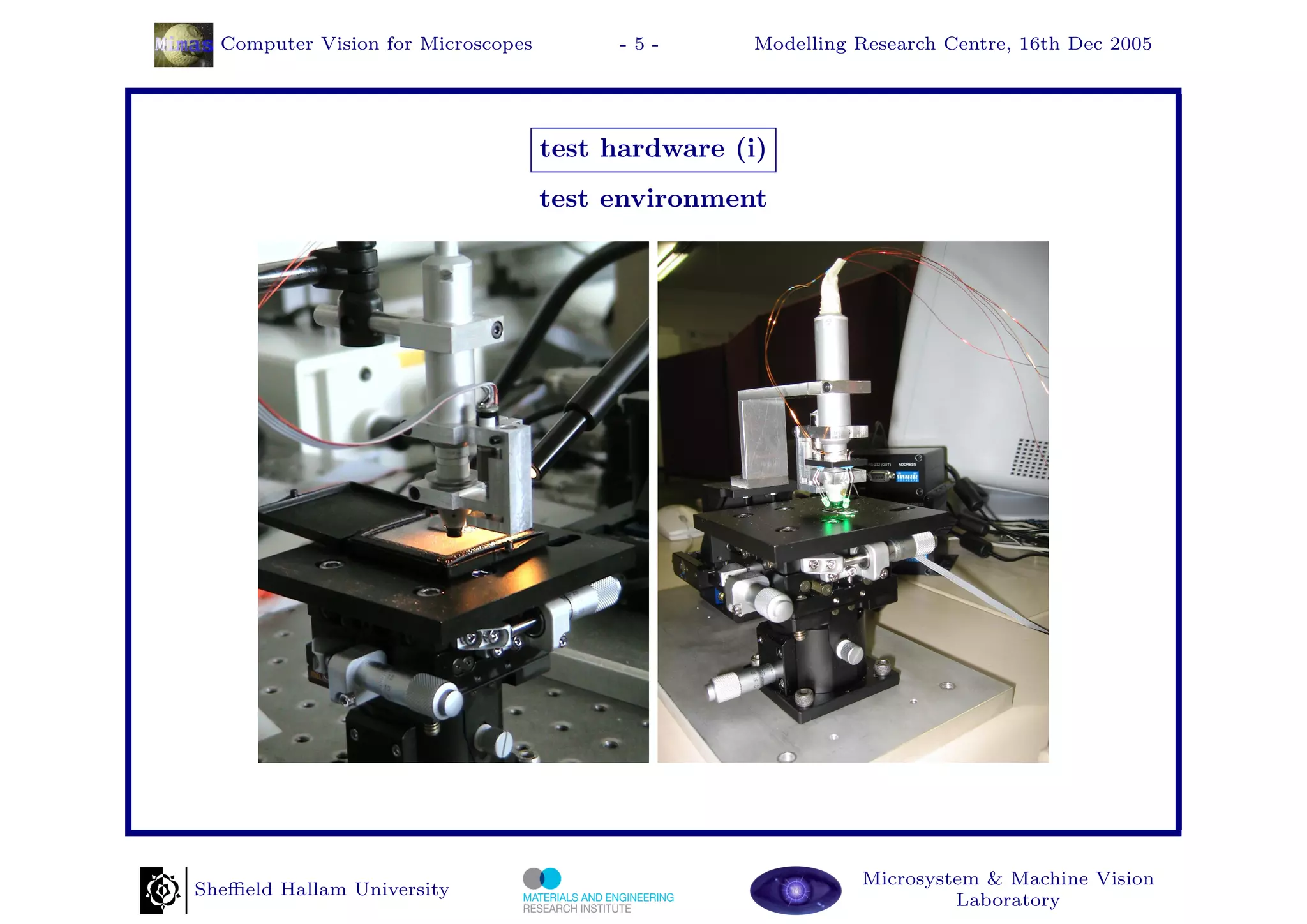

test hardware (i)
test environment
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

6. Computer Vision for Microscopes -6- Modelling Research Centre, 16th Dec 2005

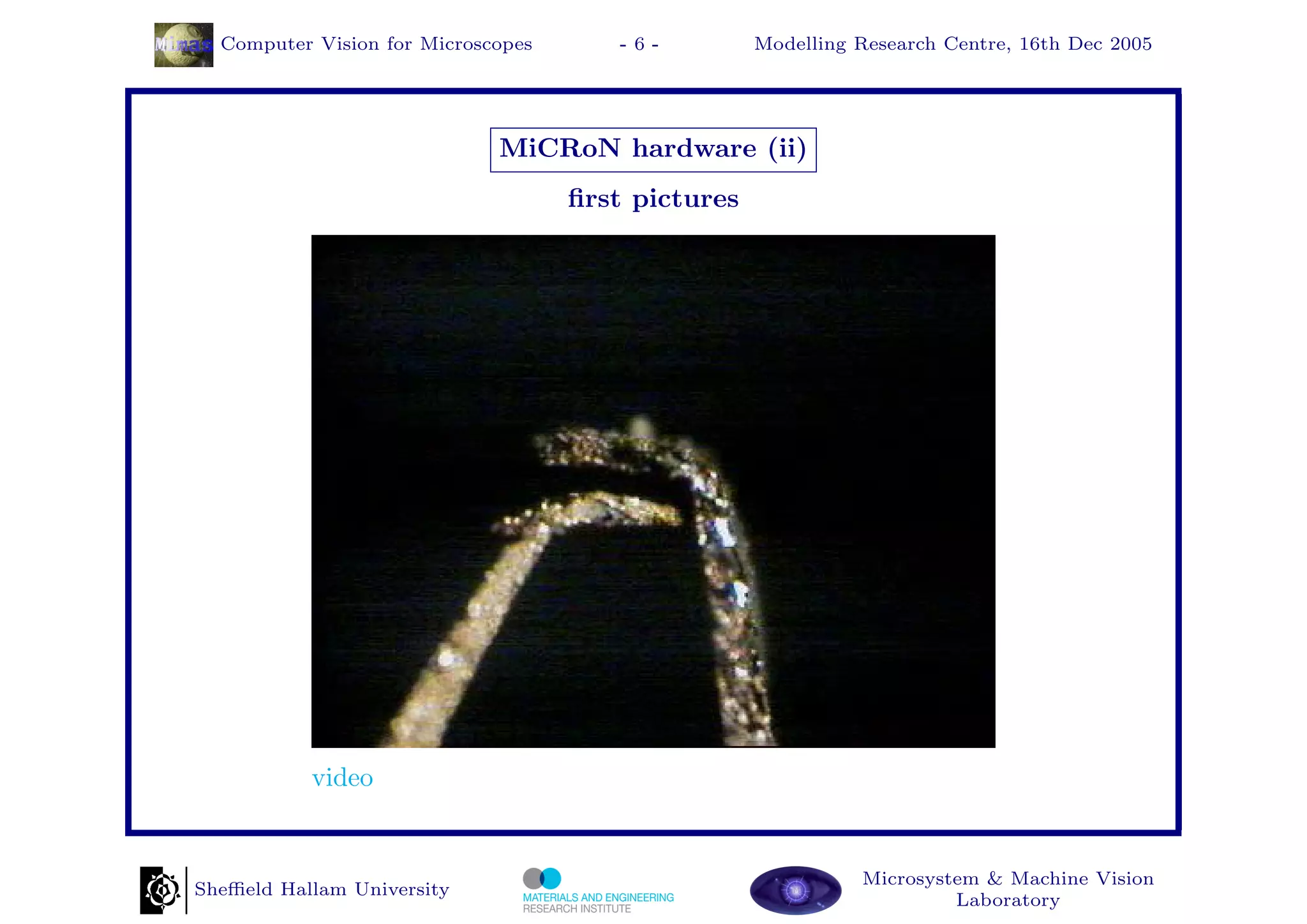

MiCRoN hardware (ii)
first pictures
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

7. Computer Vision for Microscopes -7- Modelling Research Centre, 16th Dec 2005
test hardware (ii)

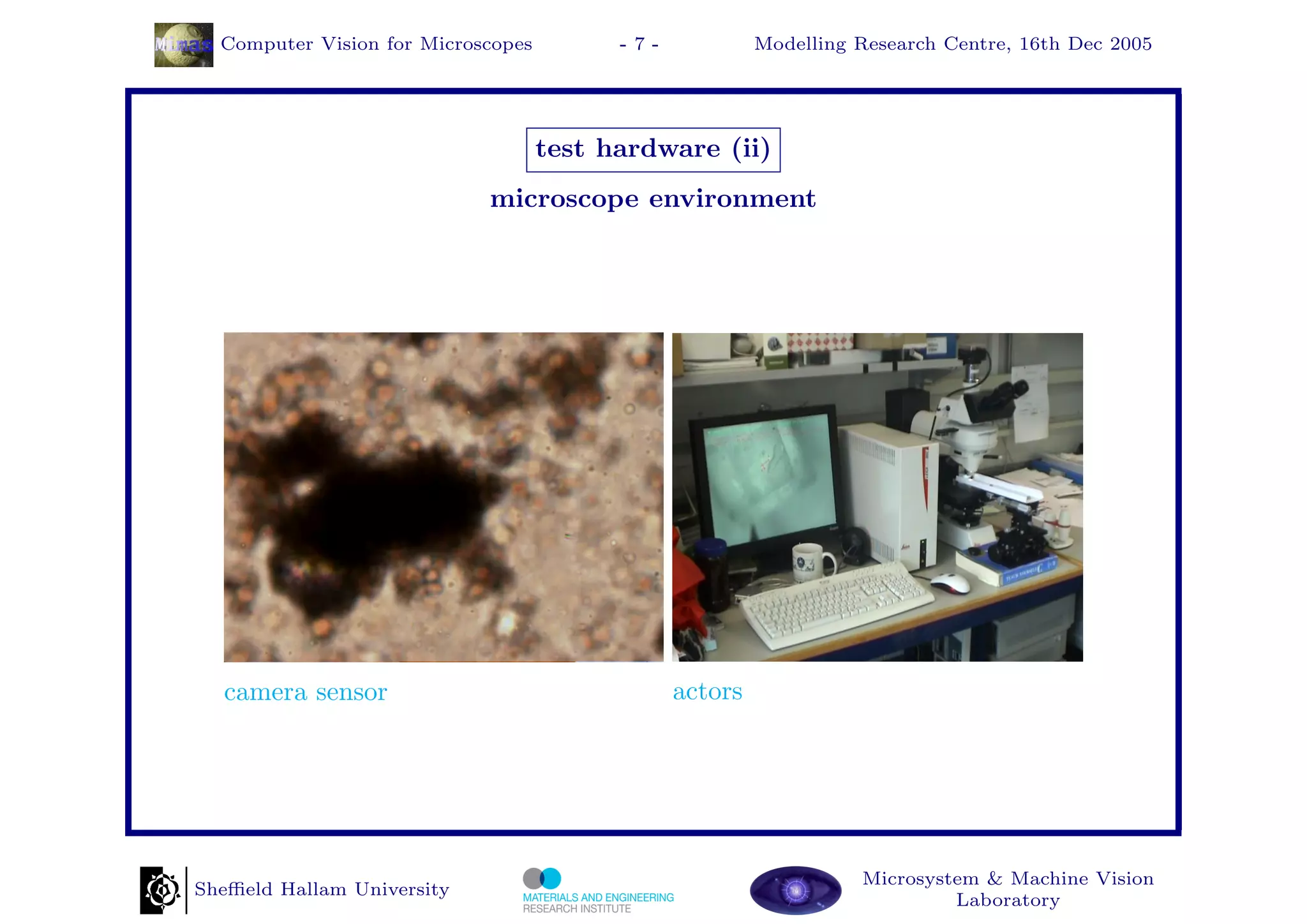

microscope environment
camera sensor actors
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

8. Computer Vision for Microscopes -8- Modelling Research Centre, 16th Dec 2005

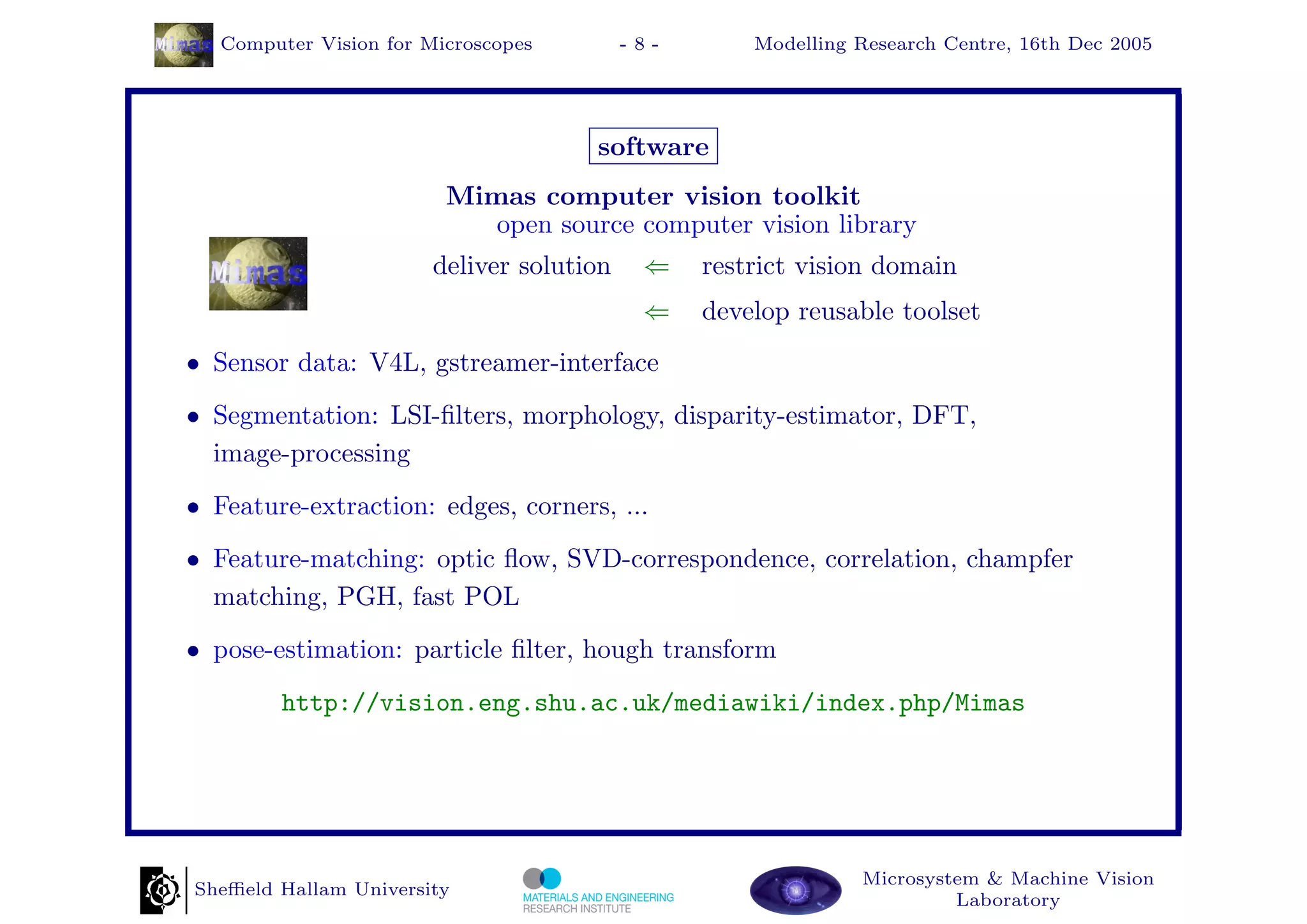

software
Mimas computer vision toolkit
open source computer vision library
deliver solution ⇐ restrict vision domain
⇐ develop reusable toolset
• Sensor data: V4L, gstreamer-interface
• Segmentation: LSI-filters, morphology, disparity-estimator, DFT,
image-processing
• Feature-extraction: edges, corners, ...
• Feature-matching: optic flow, SVD-correspondence, correlation, champfer
matching, PGH, fast POL
• pose-estimation: particle filter, hough transform
http://vision.eng.shu.ac.uk/mediawiki/index.php/Mimas
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

9. Computer Vision for Microscopes -9- Modelling Research Centre, 16th Dec 2005

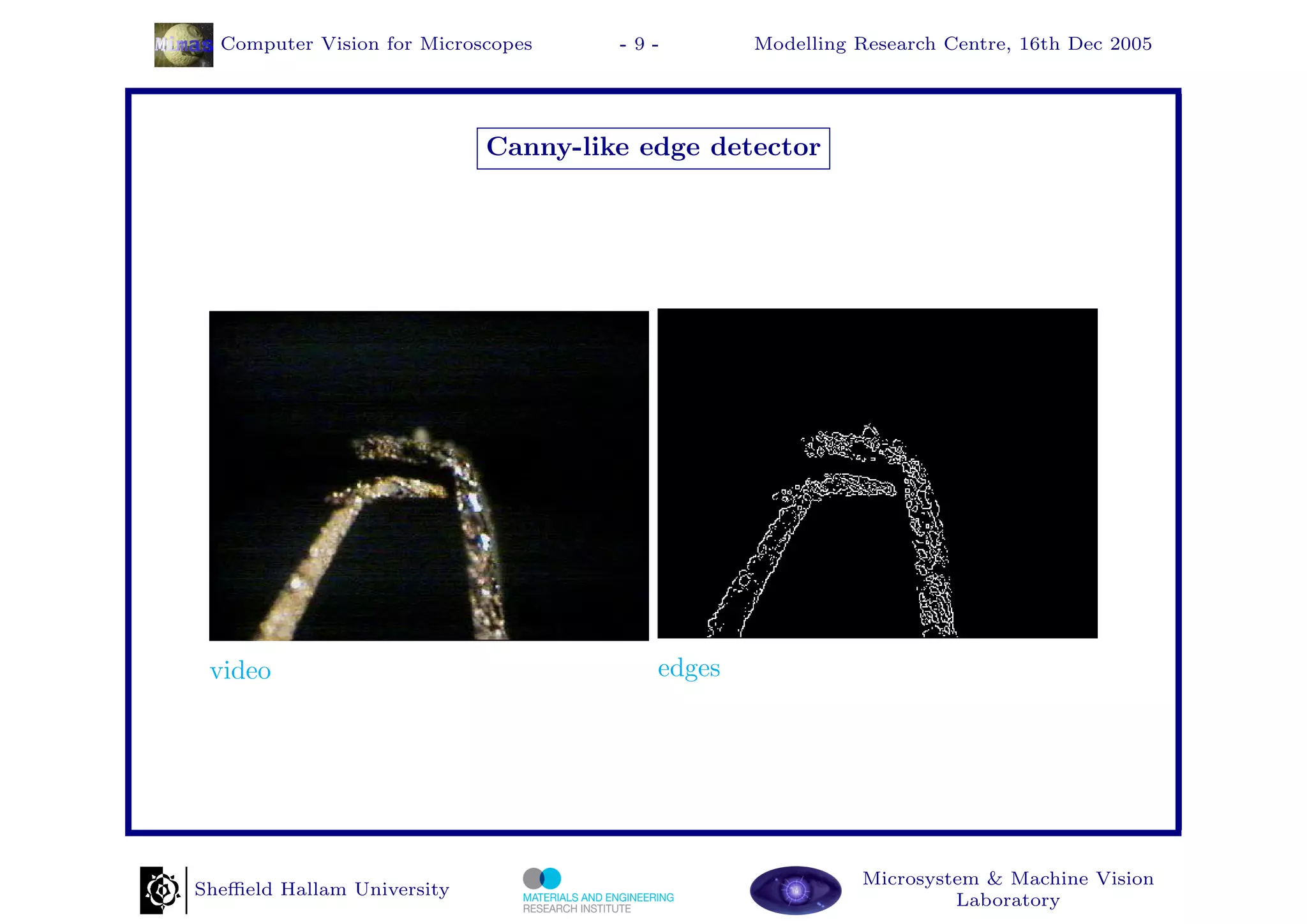

Canny-like edge detector
video edges
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

10. Computer Vision for Microscopes - 10 - Modelling Research Centre, 16th Dec 2005

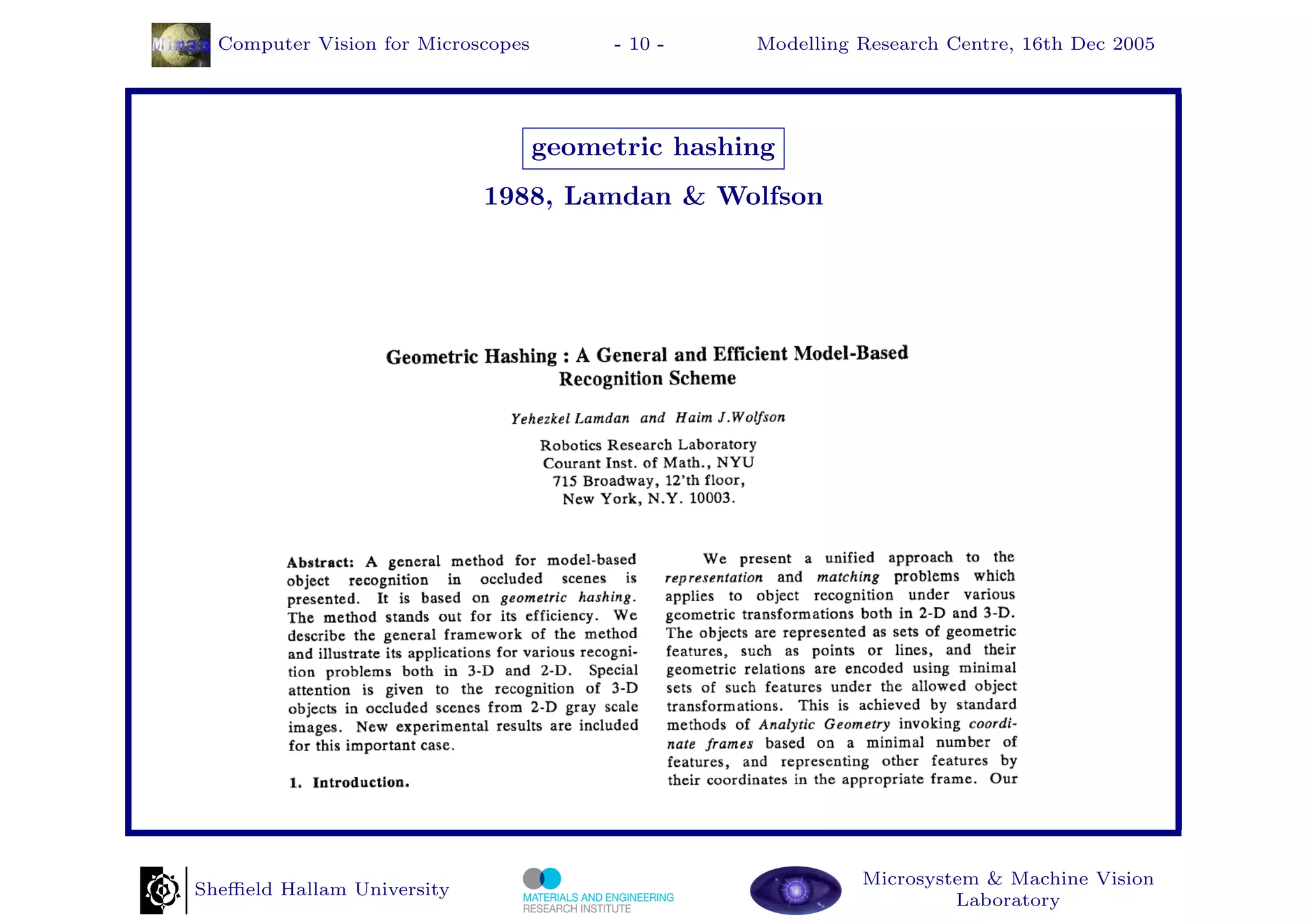

geometric hashing
1988, Lamdan & Wolfson
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

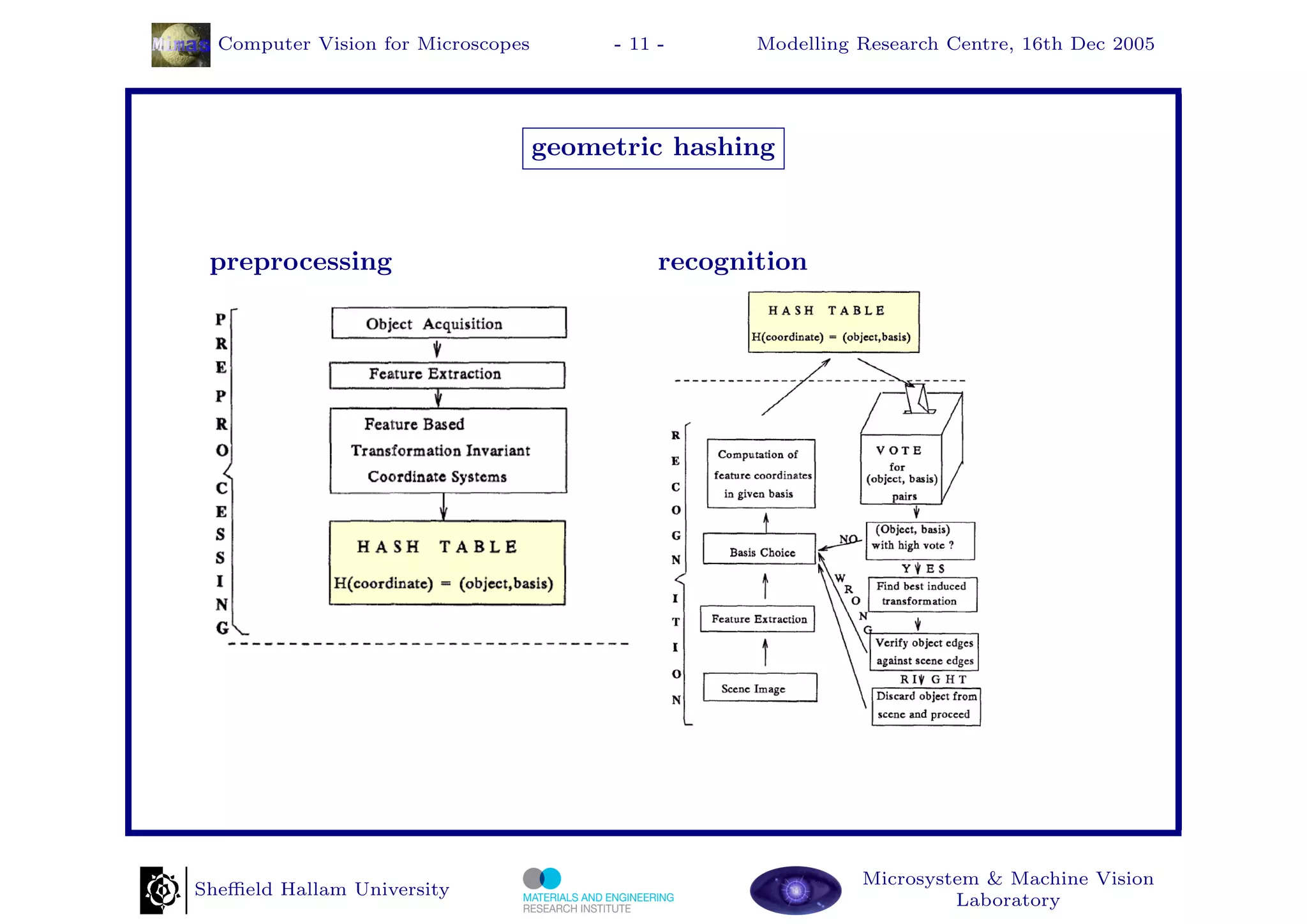

11. Computer Vision for Microscopes - 11 - Modelling Research Centre, 16th Dec 2005
geometric hashing
preprocessing recognition
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

12. Computer Vision for Microscopes - 12 - Modelling Research Centre, 16th Dec 2005

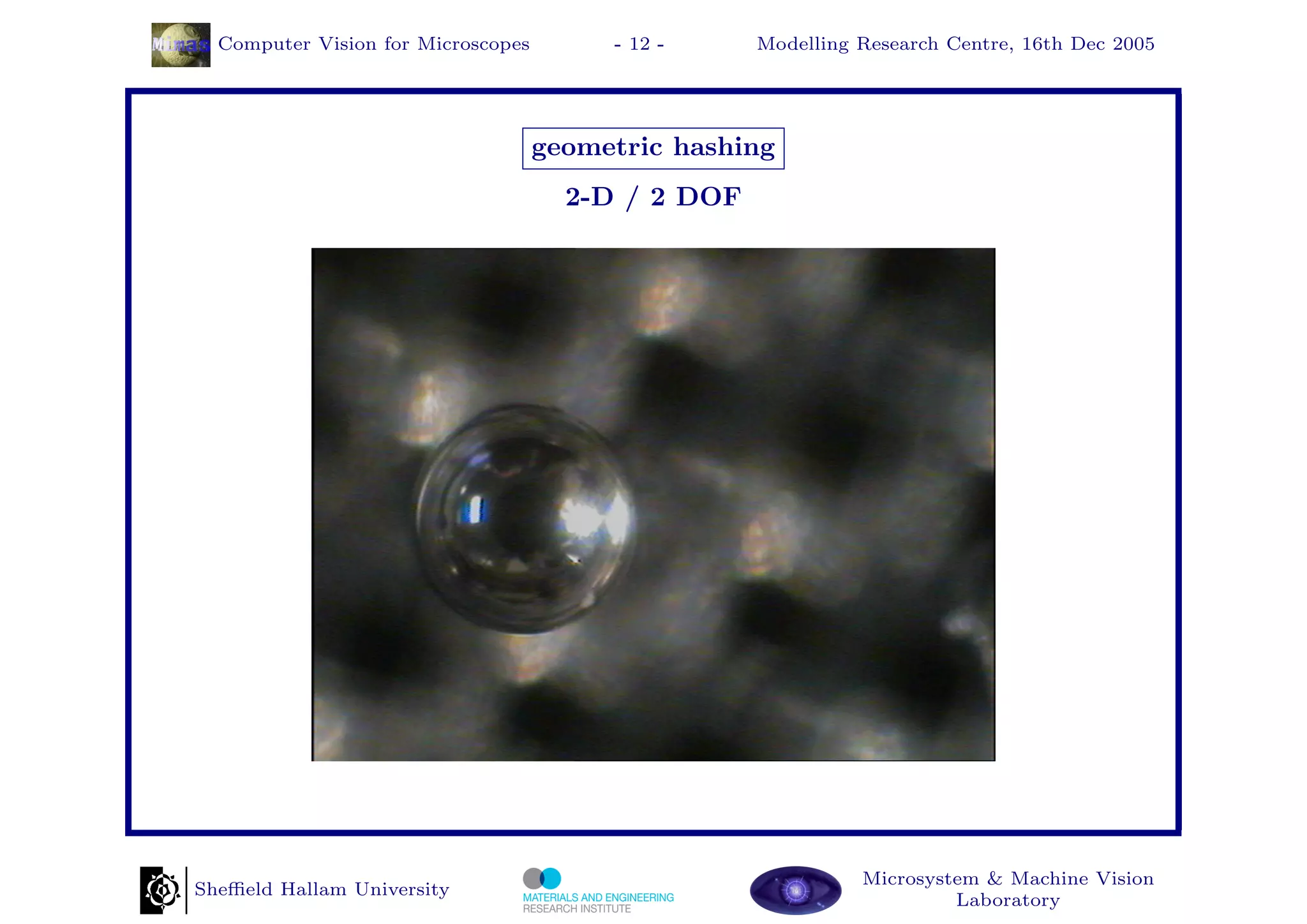

geometric hashing
2-D / 2 DOF
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

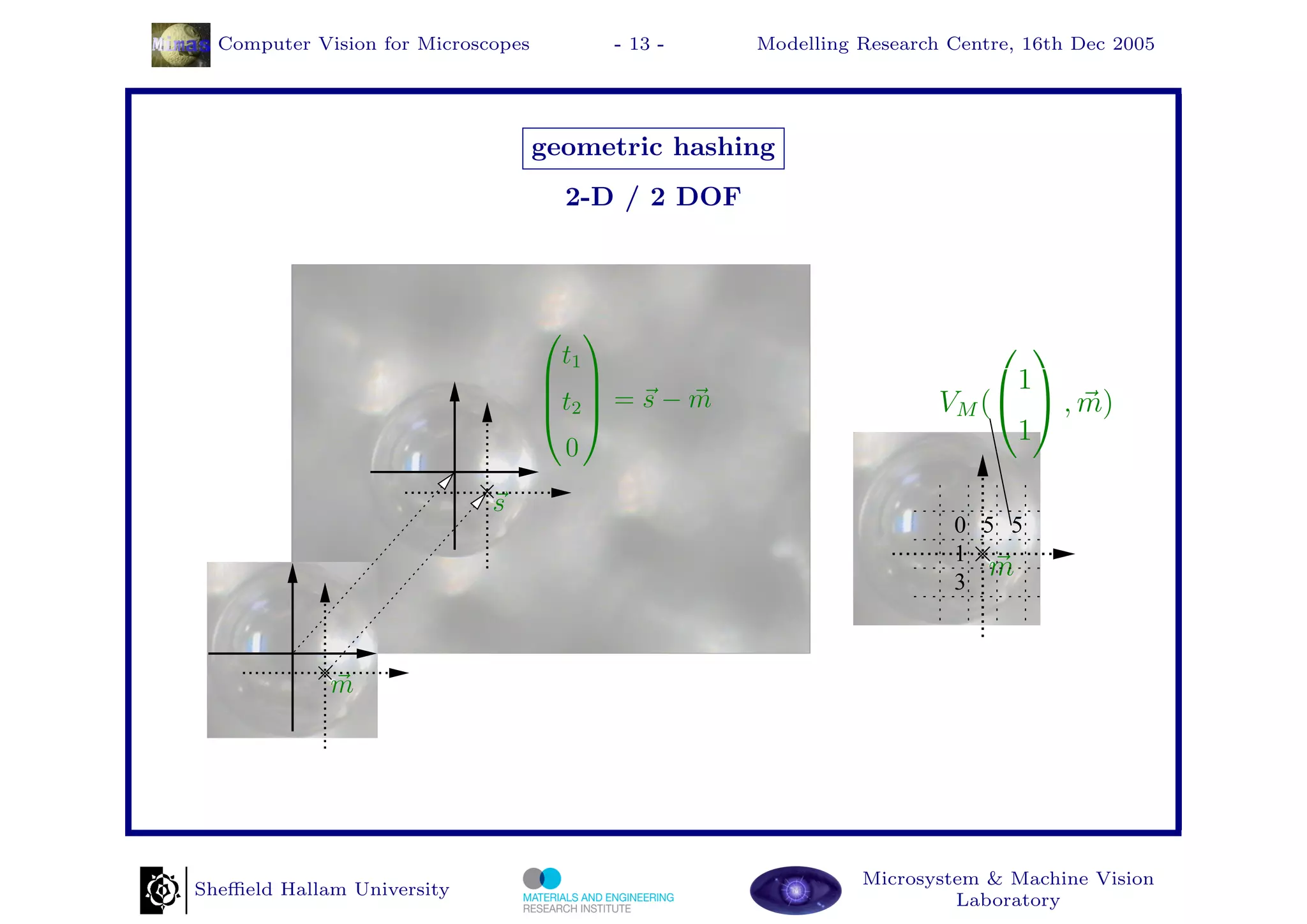

13. Computer Vision for Microscopes - 13 - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 2 DOF
 
t1  
 
t2  = s − m 1
  VM (  , m)
1
0
s
0 5 5
1
3
m
m
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

14. Computer Vision for Microscopes - 14 (i) - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF
scene features
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

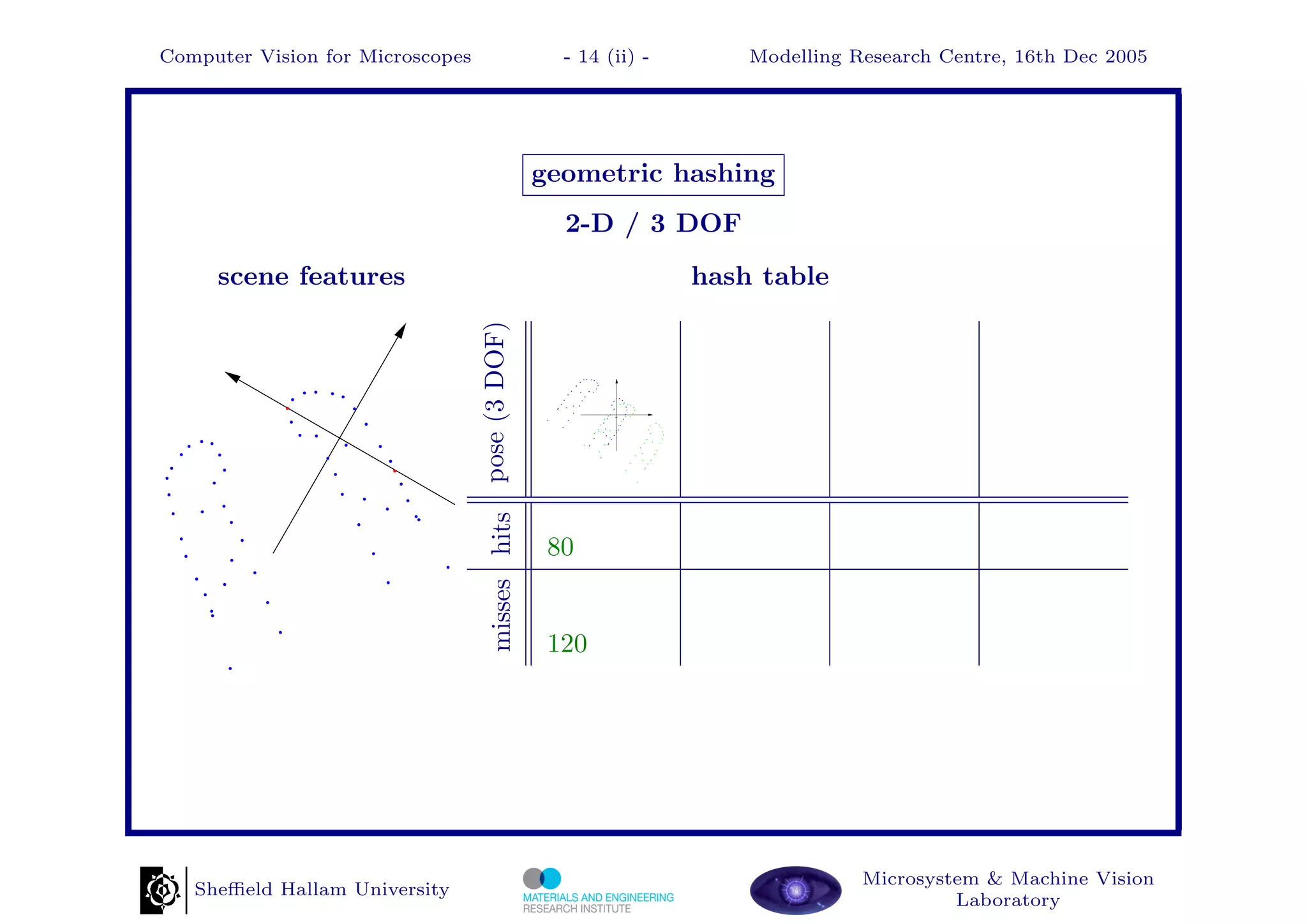

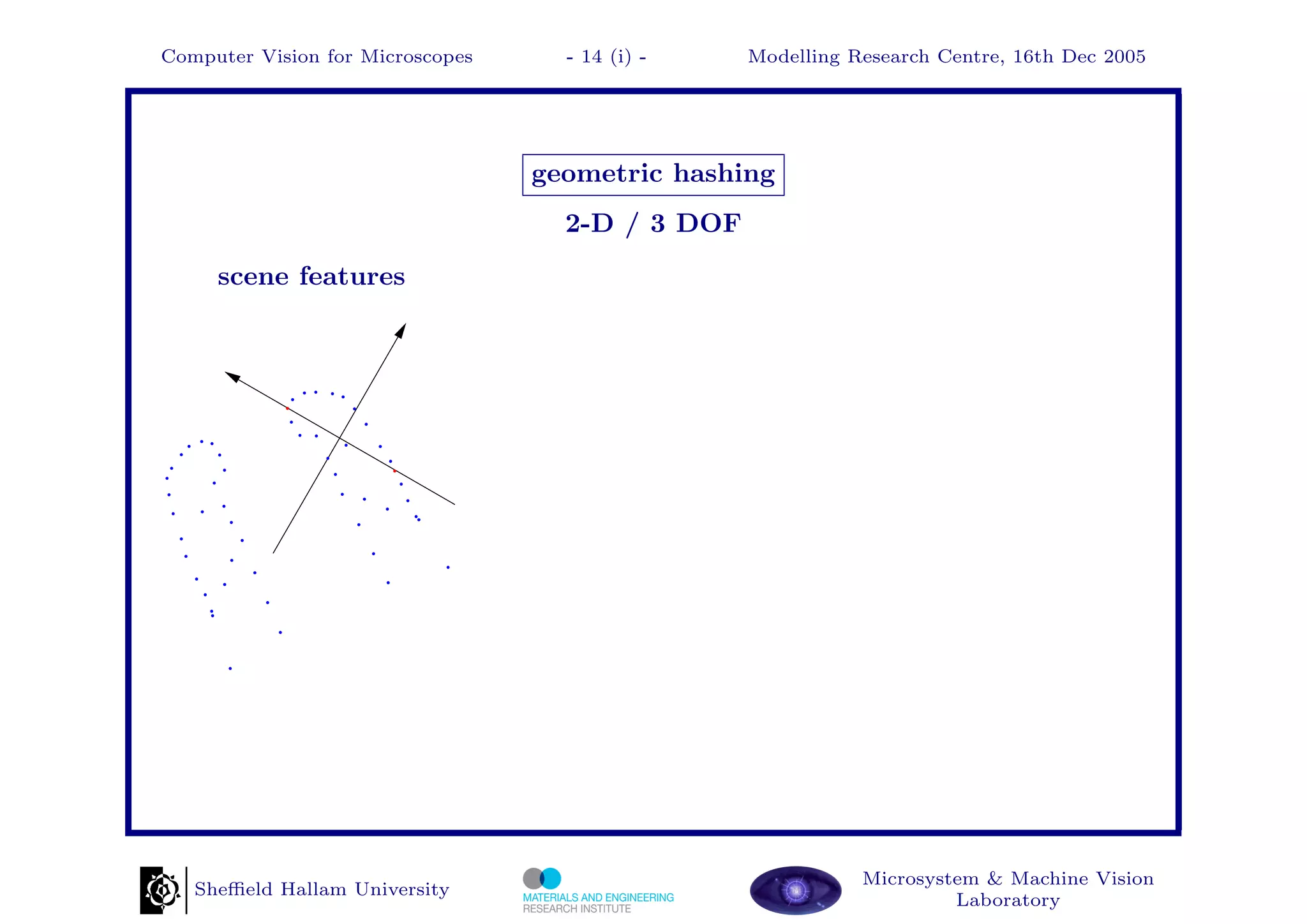

15. Computer Vision for Microscopes - 14 (ii) - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF

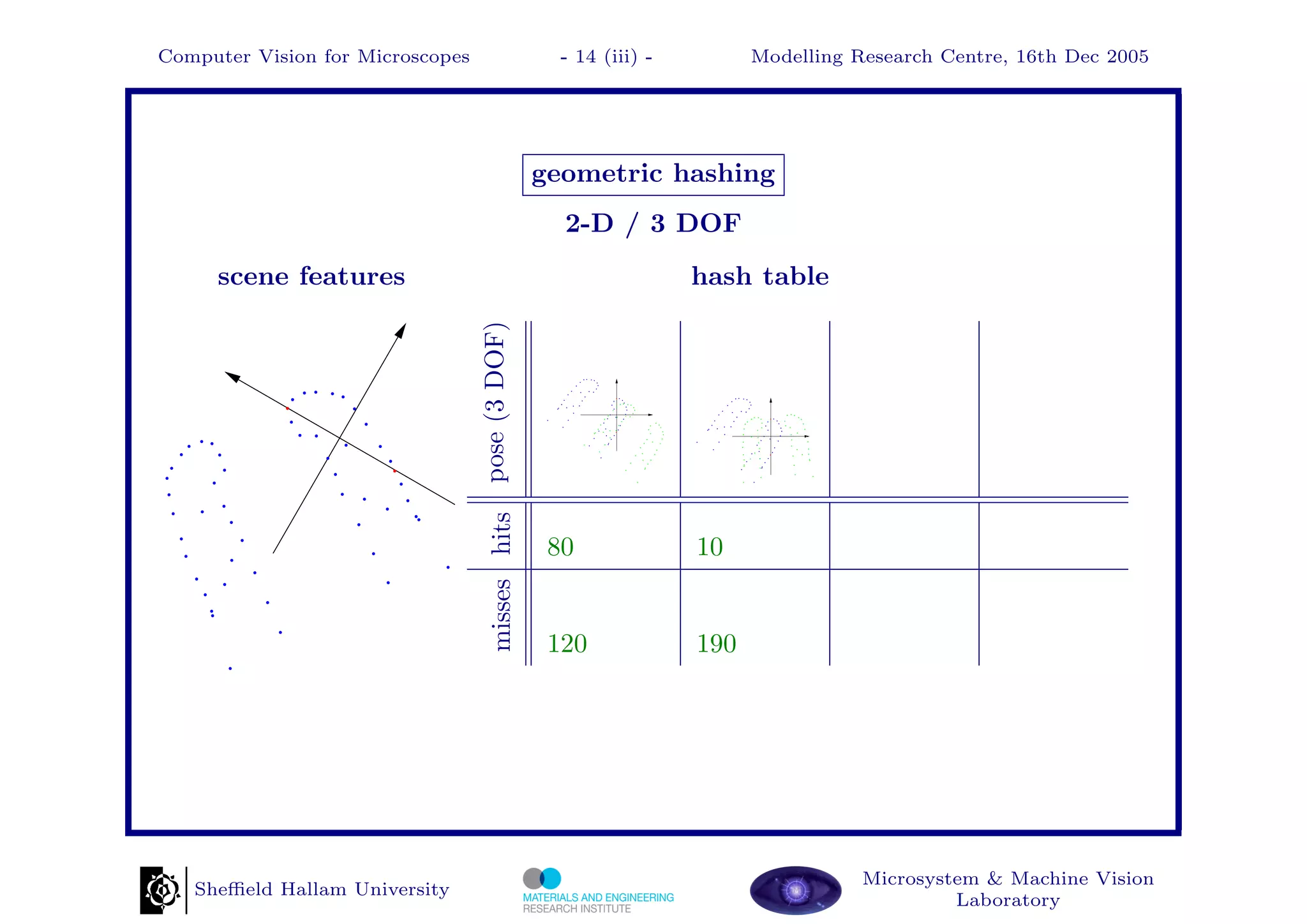

scene features hash table
pose (3 DOF)
misses hits
80
120
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

16. Computer Vision for Microscopes - 14 (iii) - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF
scene features hash table
pose (3 DOF)
misses hits
80 10
120 190
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

17. Computer Vision for Microscopes - 14 (iv) - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF
scene features hash table
pose (3 DOF)
misses hits
80 10 50
120 190 150
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

18. Computer Vision for Microscopes - 14 (v) - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF
scene features hash table
pose (3 DOF)
misses hits
80 10 50 200∗
120 190 150 0∗
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

19. Computer Vision for Microscopes - 15 - Modelling Research Centre, 16th Dec 2005
geometric hashing
2-D / 3 DOF

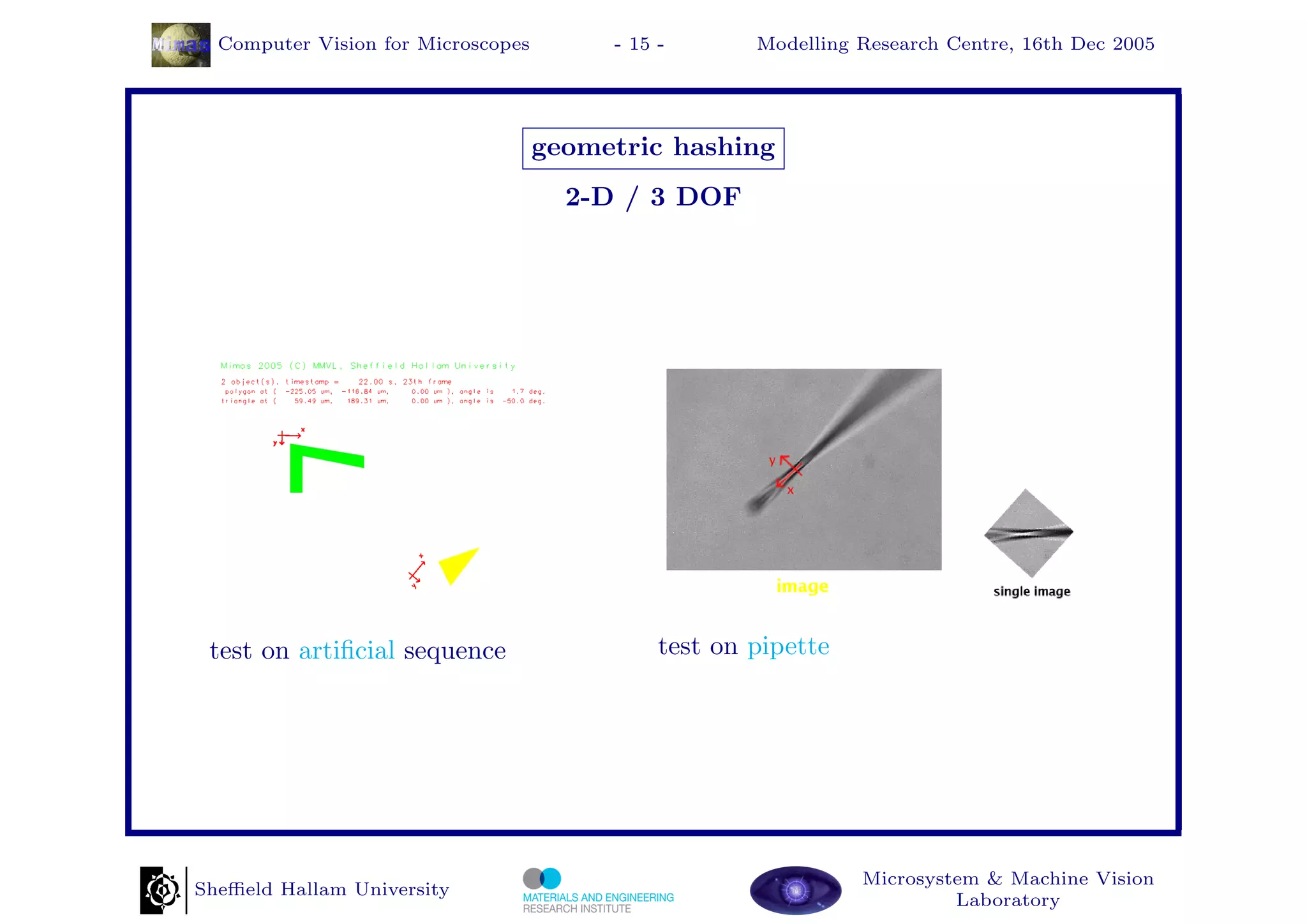

test on artificial sequence test on pipette
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

20. Computer Vision for Microscopes - 16 - Modelling Research Centre, 16th Dec 2005
geometric hashing

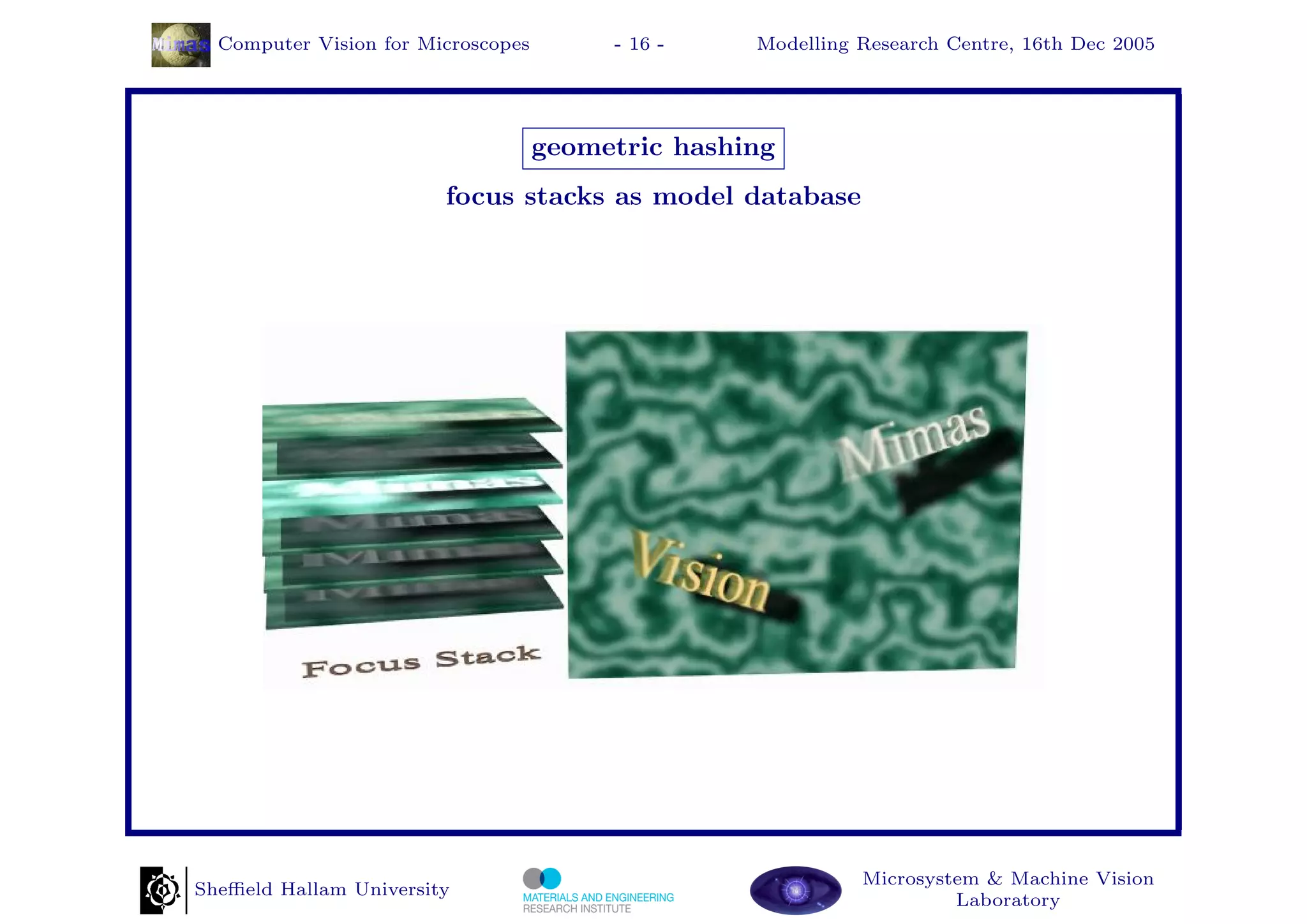

focus stacks as model database
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

21. Computer Vision for Microscopes - 17 - Modelling Research Centre, 16th Dec 2005

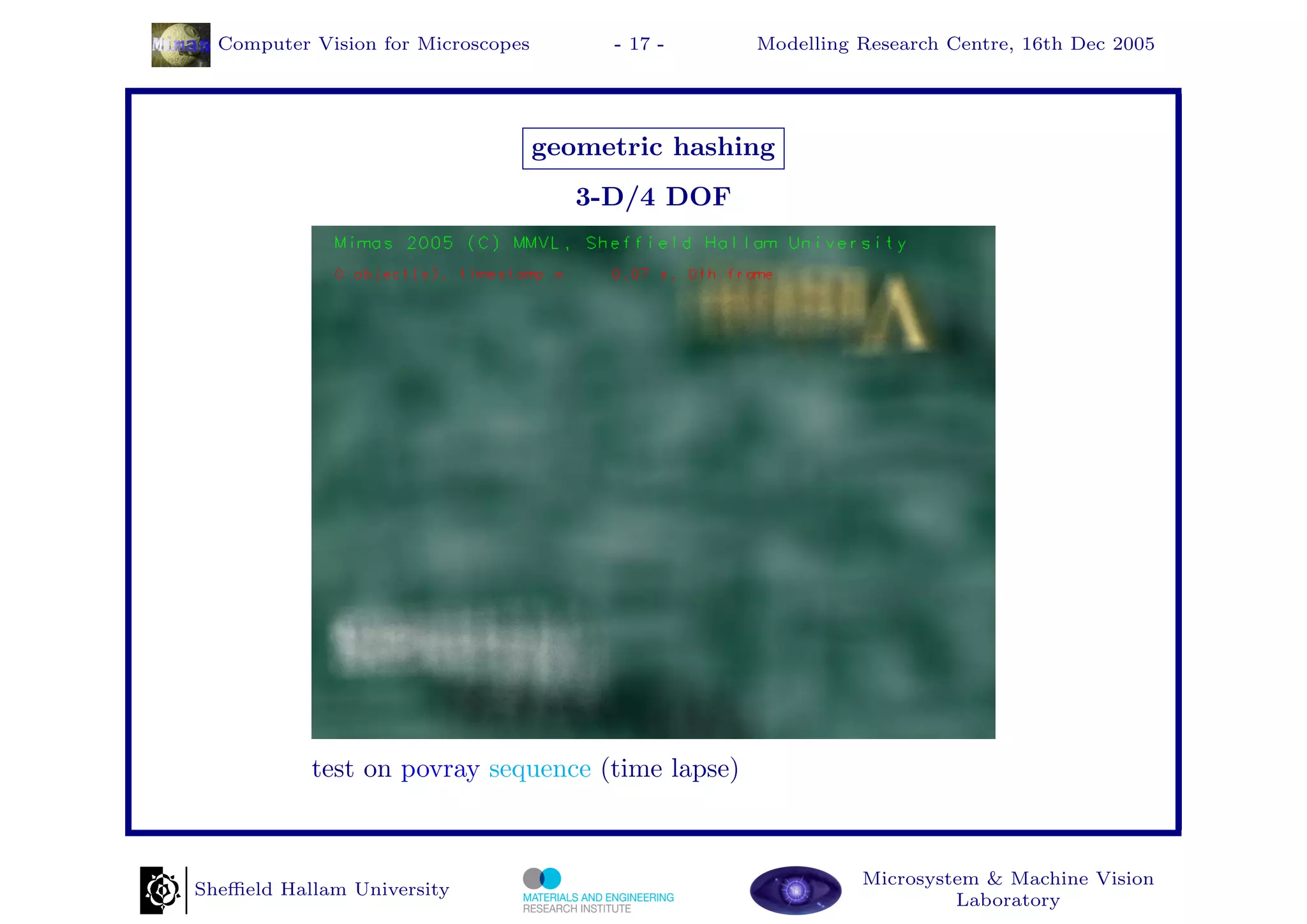

geometric hashing
3-D/4 DOF
test on povray sequence (time lapse)
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

22. Computer Vision for Microscopes - 18 - Modelling Research Centre, 16th Dec 2005

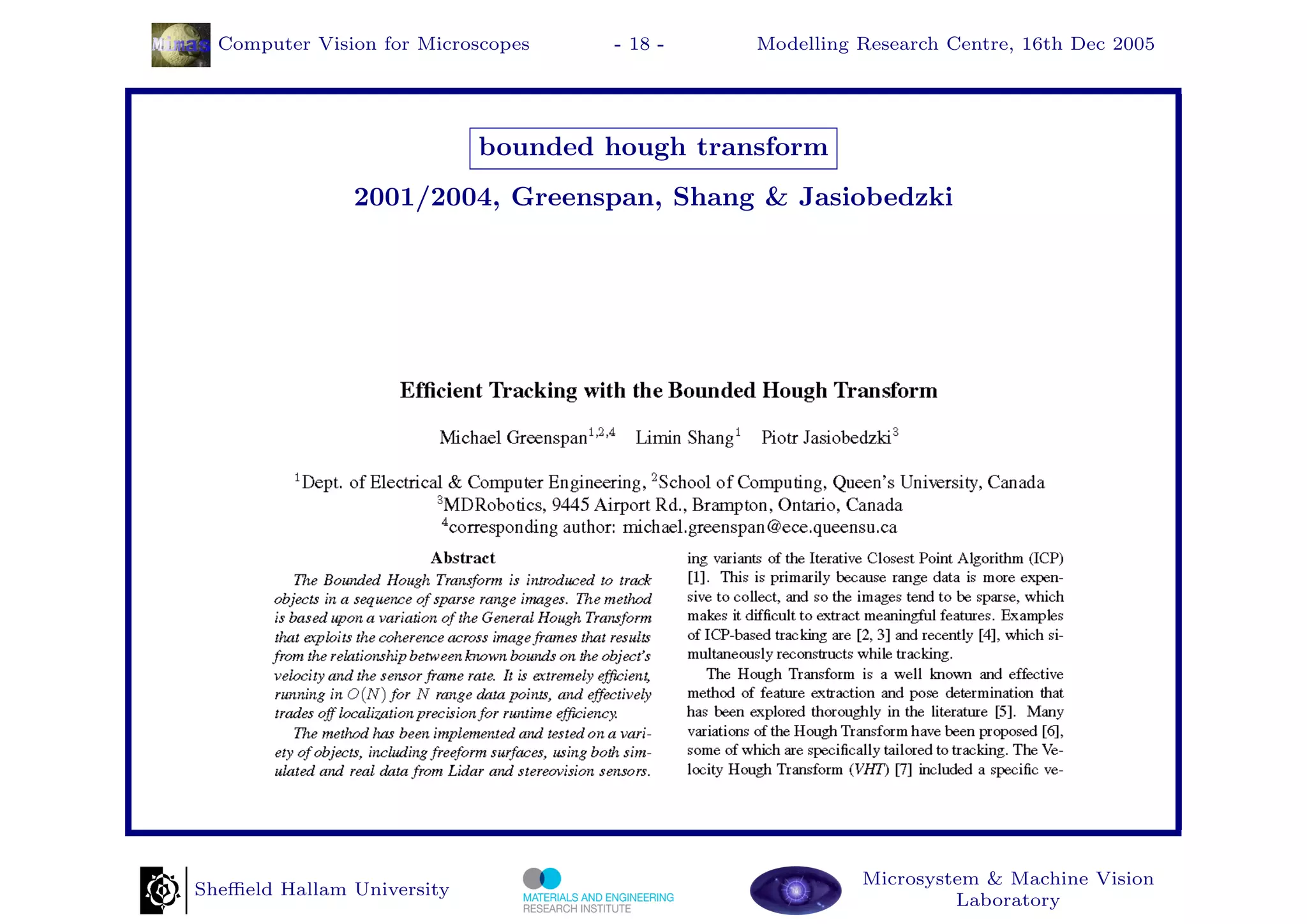

bounded hough transform
2001/2004, Greenspan, Shang & Jasiobedzki
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

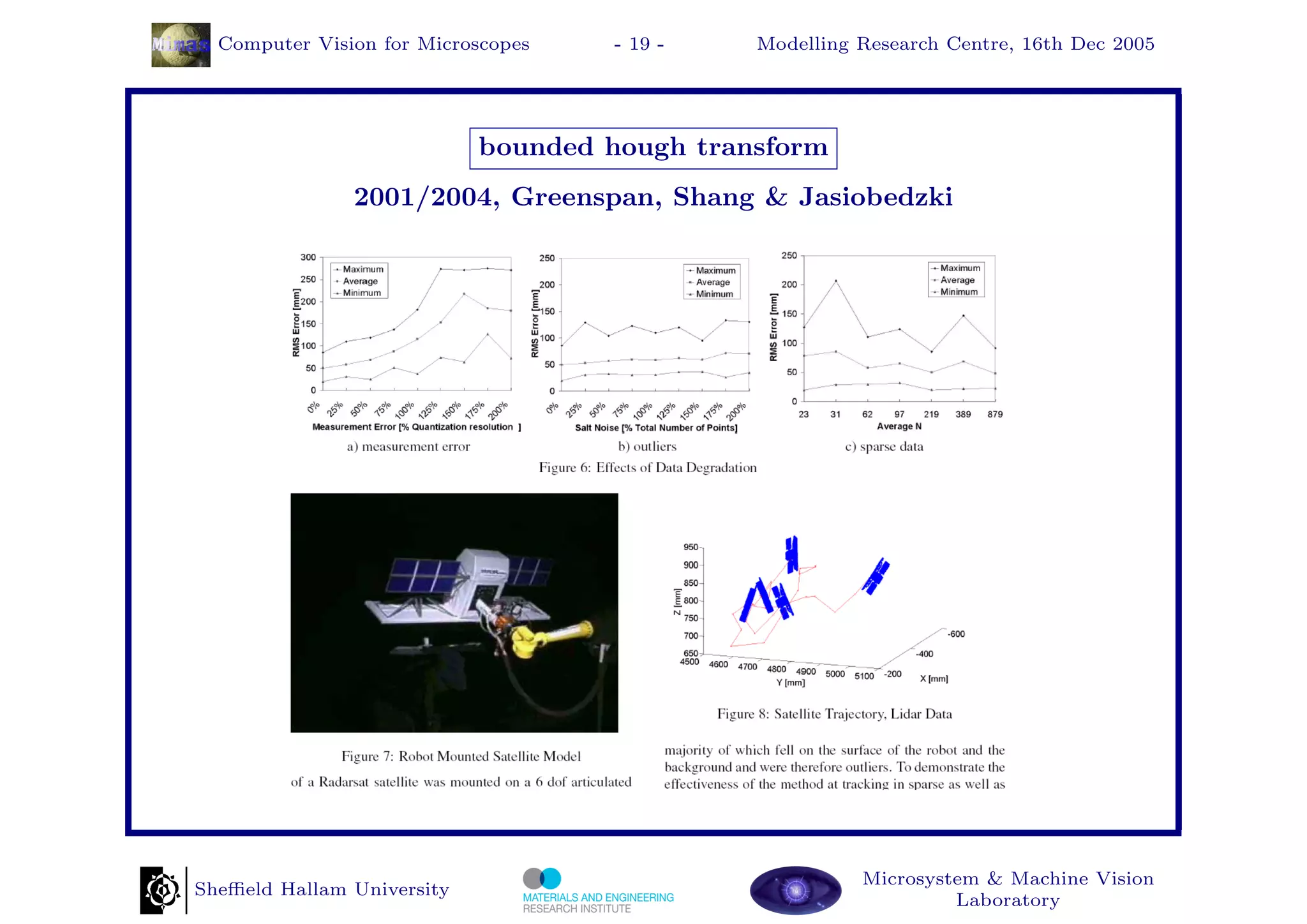

23. Computer Vision for Microscopes - 19 - Modelling Research Centre, 16th Dec 2005
bounded hough transform
2001/2004, Greenspan, Shang & Jasiobedzki
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

24. Computer Vision for Microscopes - 20 - Modelling Research Centre, 16th Dec 2005

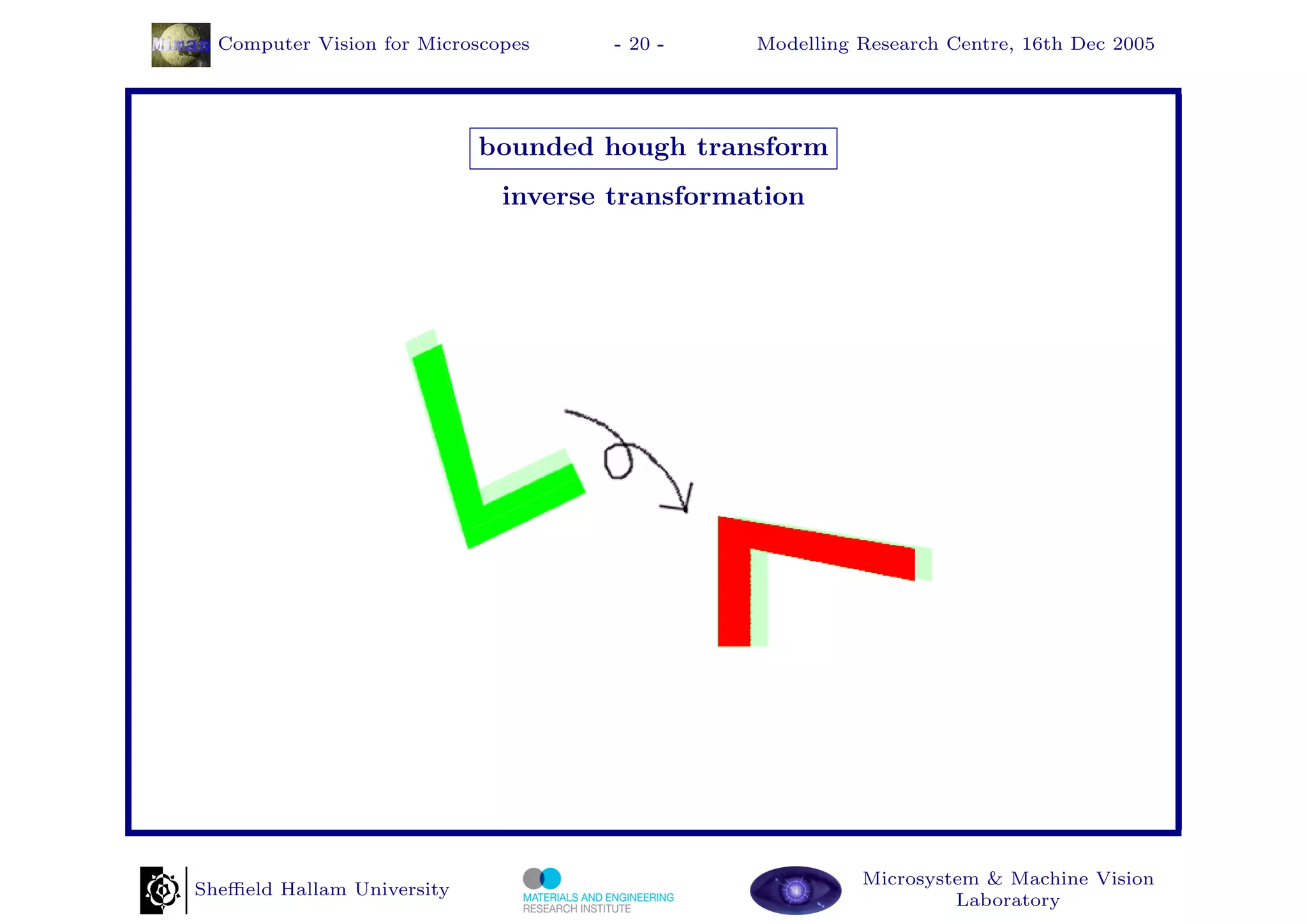

bounded hough transform
inverse transformation
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

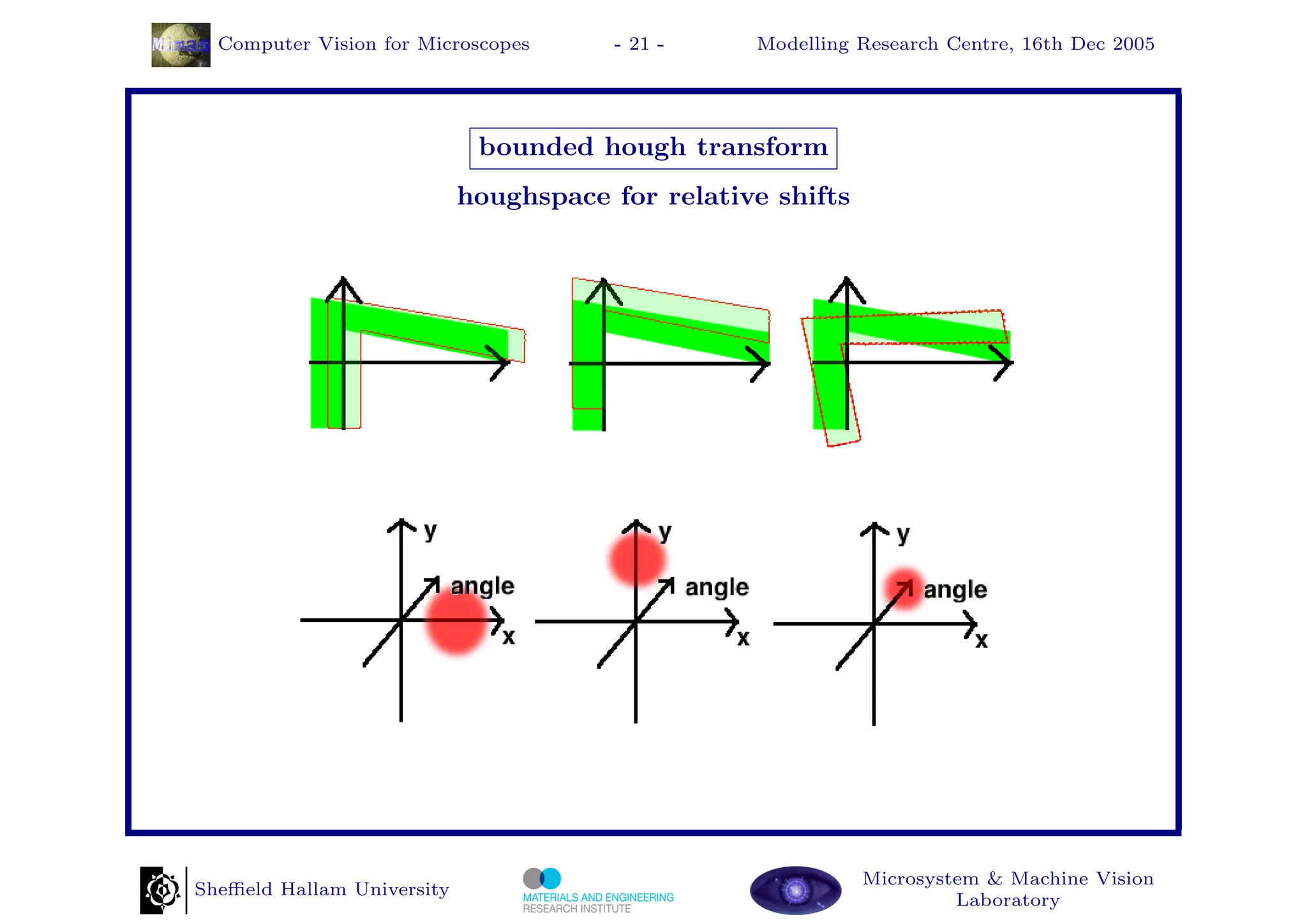

25. Computer Vision for Microscopes - 21 - Modelling Research Centre, 16th Dec 2005
bounded hough transform
houghspace for relative shifts
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

26. Computer Vision for Microscopes - 22 - Modelling Research Centre, 16th Dec 2005
bounded hough transform
focus stacks for 4 DOF
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

27. Computer Vision for Microscopes - 23 - Modelling Research Centre, 16th Dec 2005

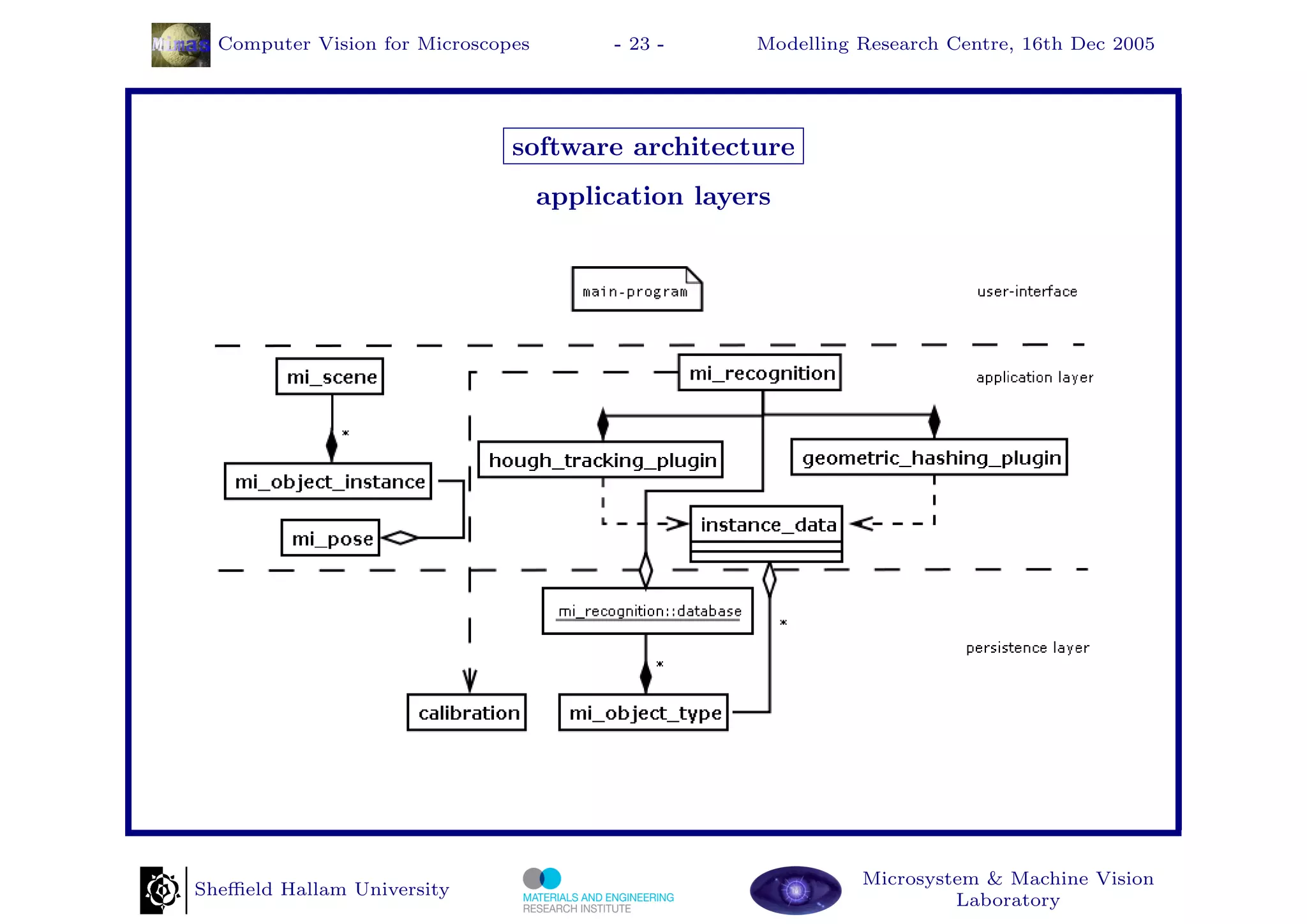

software architecture
application layers
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

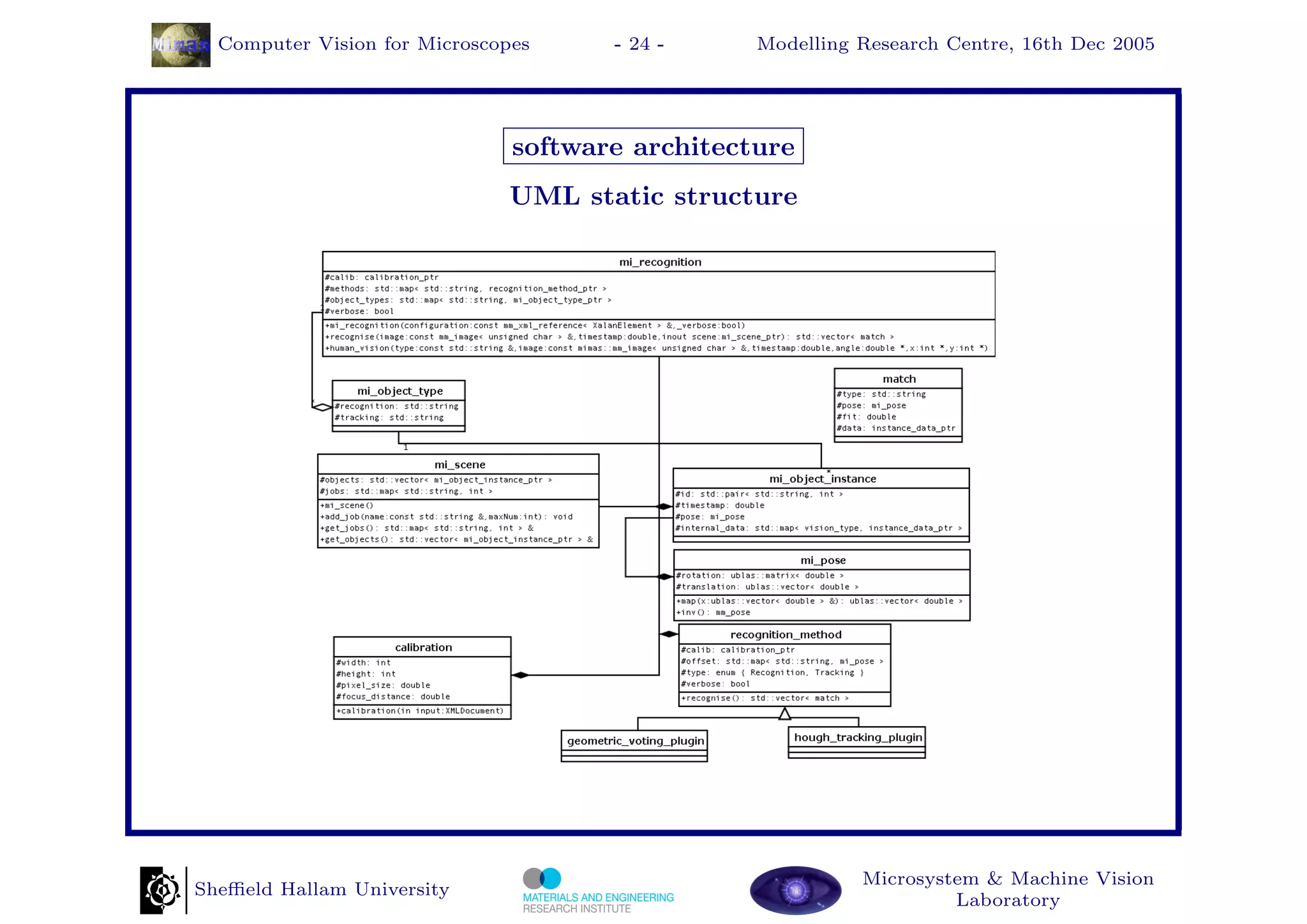

28. Computer Vision for Microscopes - 24 - Modelling Research Centre, 16th Dec 2005
software architecture
UML static structure
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

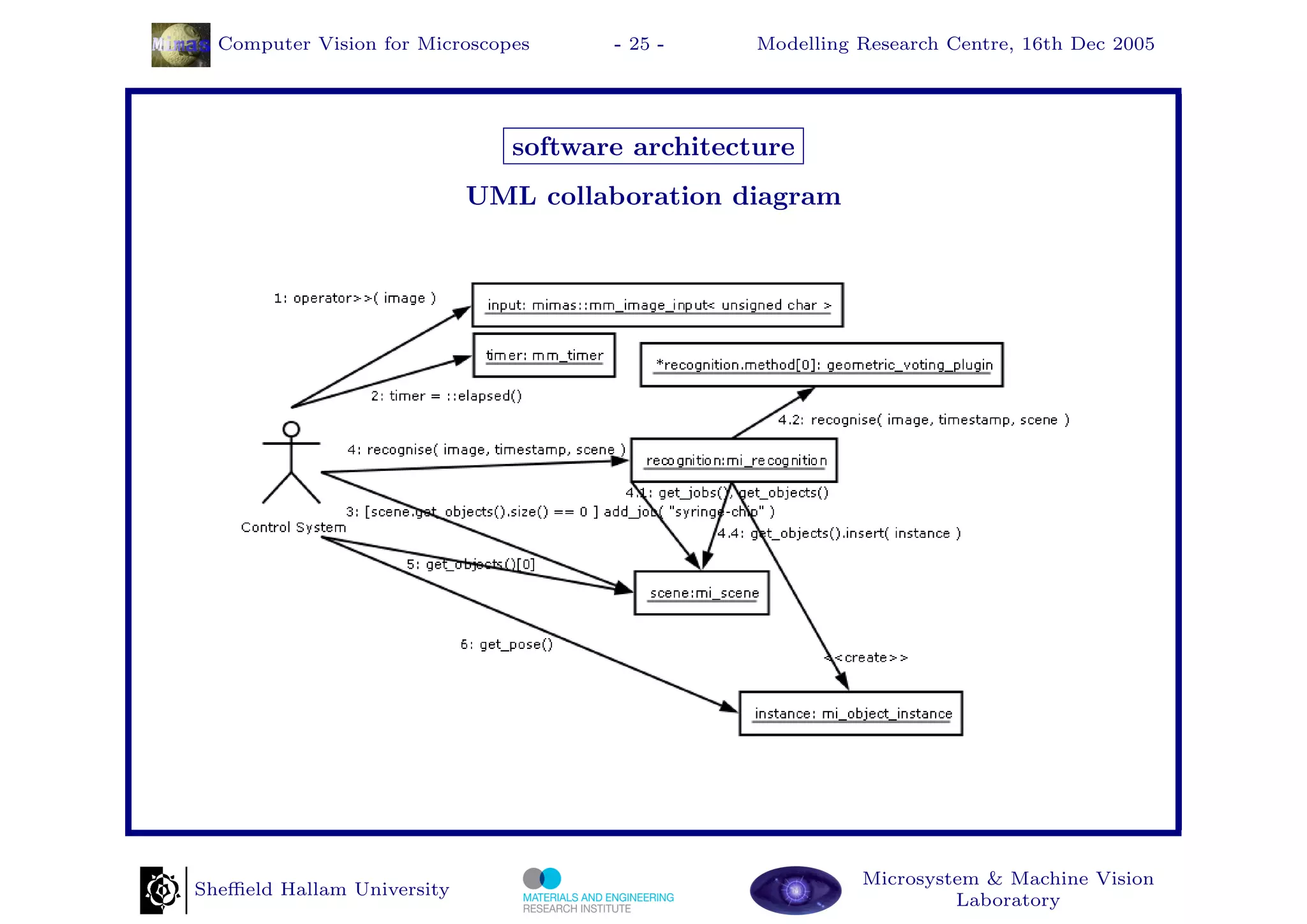

29. Computer Vision for Microscopes - 25 - Modelling Research Centre, 16th Dec 2005
software architecture
UML collaboration diagram
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

30. Computer Vision for Microscopes - 26 - Modelling Research Centre, 16th Dec 2005

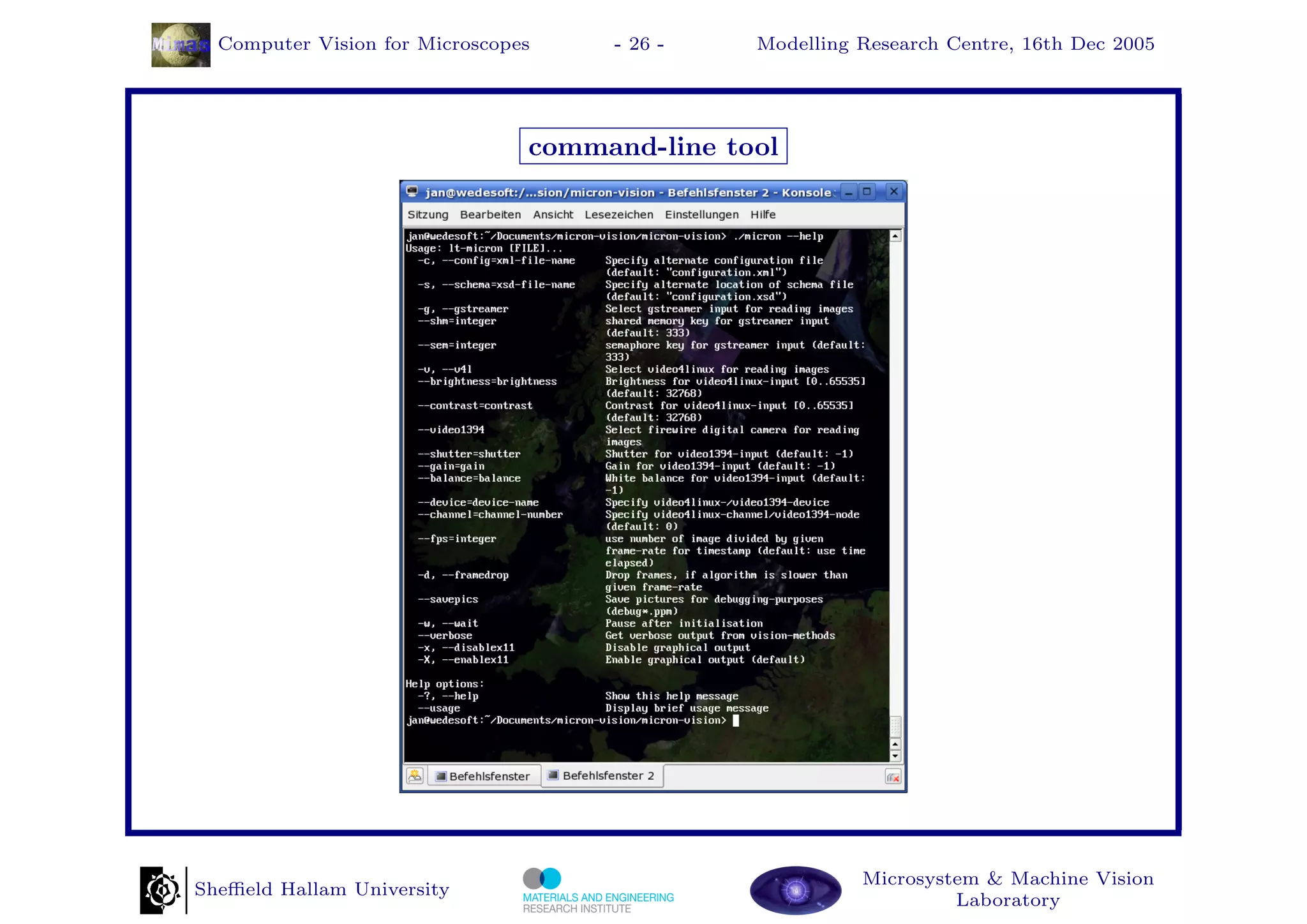

command-line tool
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

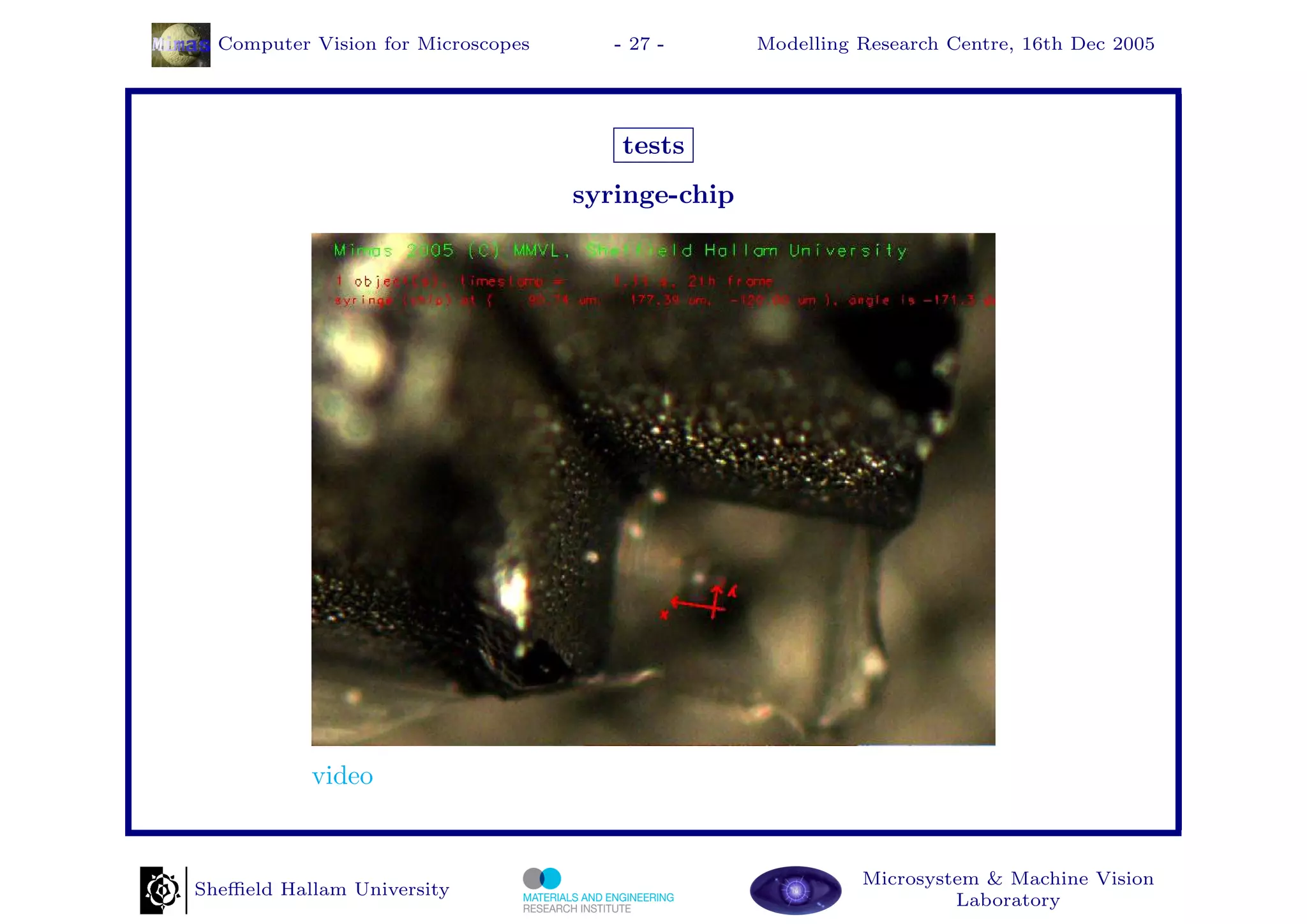

31. Computer Vision for Microscopes - 27 - Modelling Research Centre, 16th Dec 2005
tests
syringe-chip
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

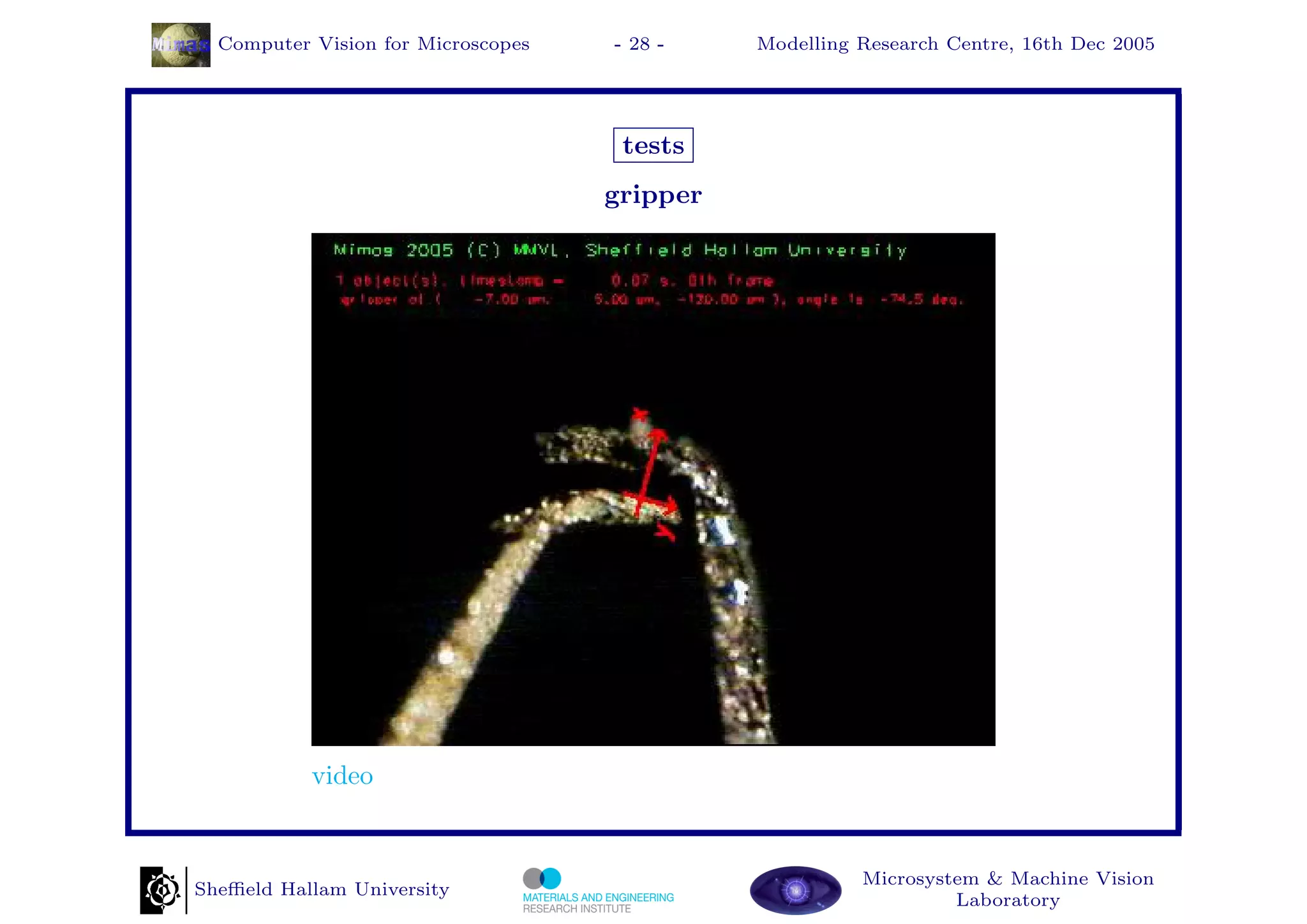

32. Computer Vision for Microscopes - 28 - Modelling Research Centre, 16th Dec 2005
tests
gripper
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

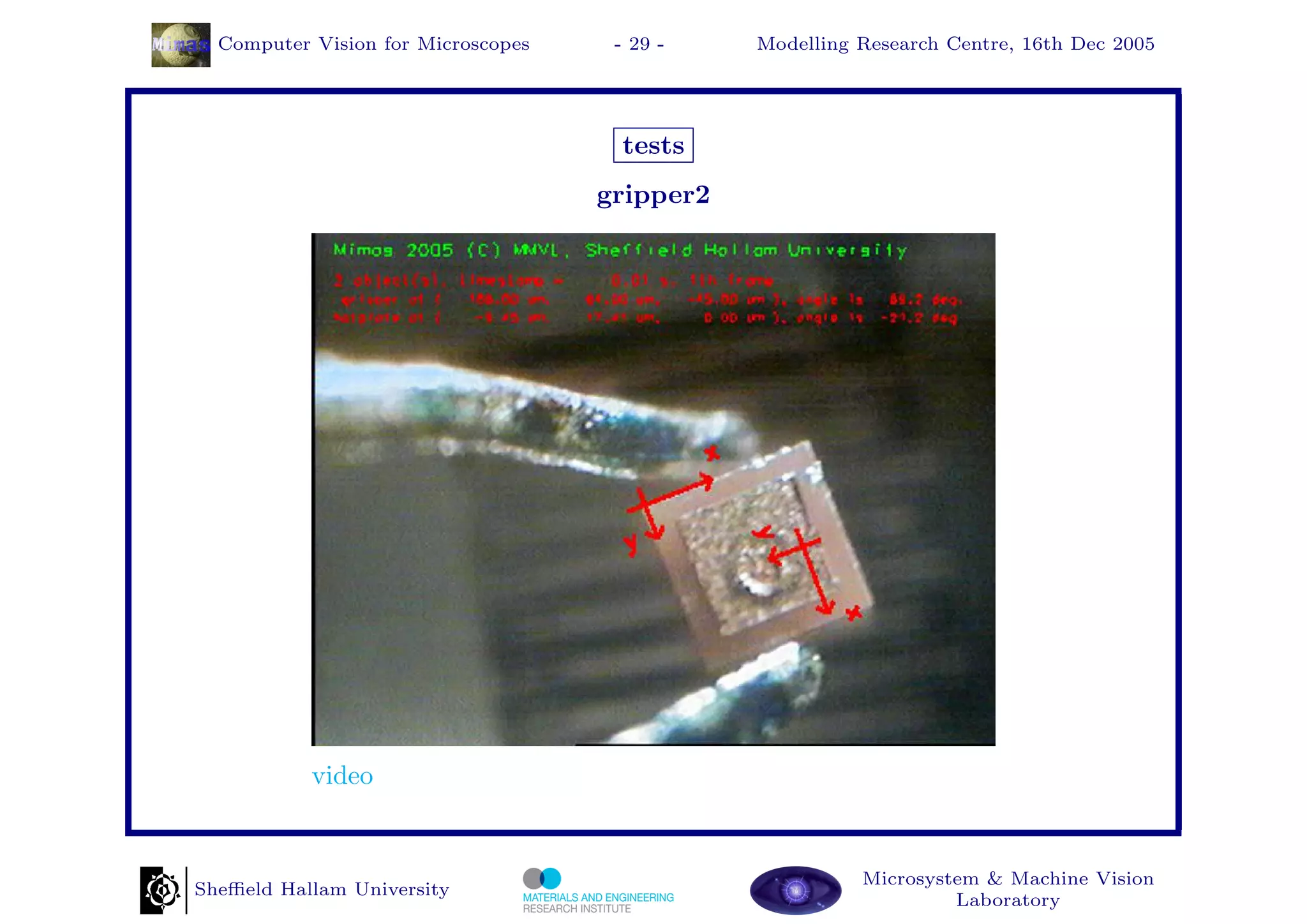

33. Computer Vision for Microscopes - 29 - Modelling Research Centre, 16th Dec 2005
tests
gripper2
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

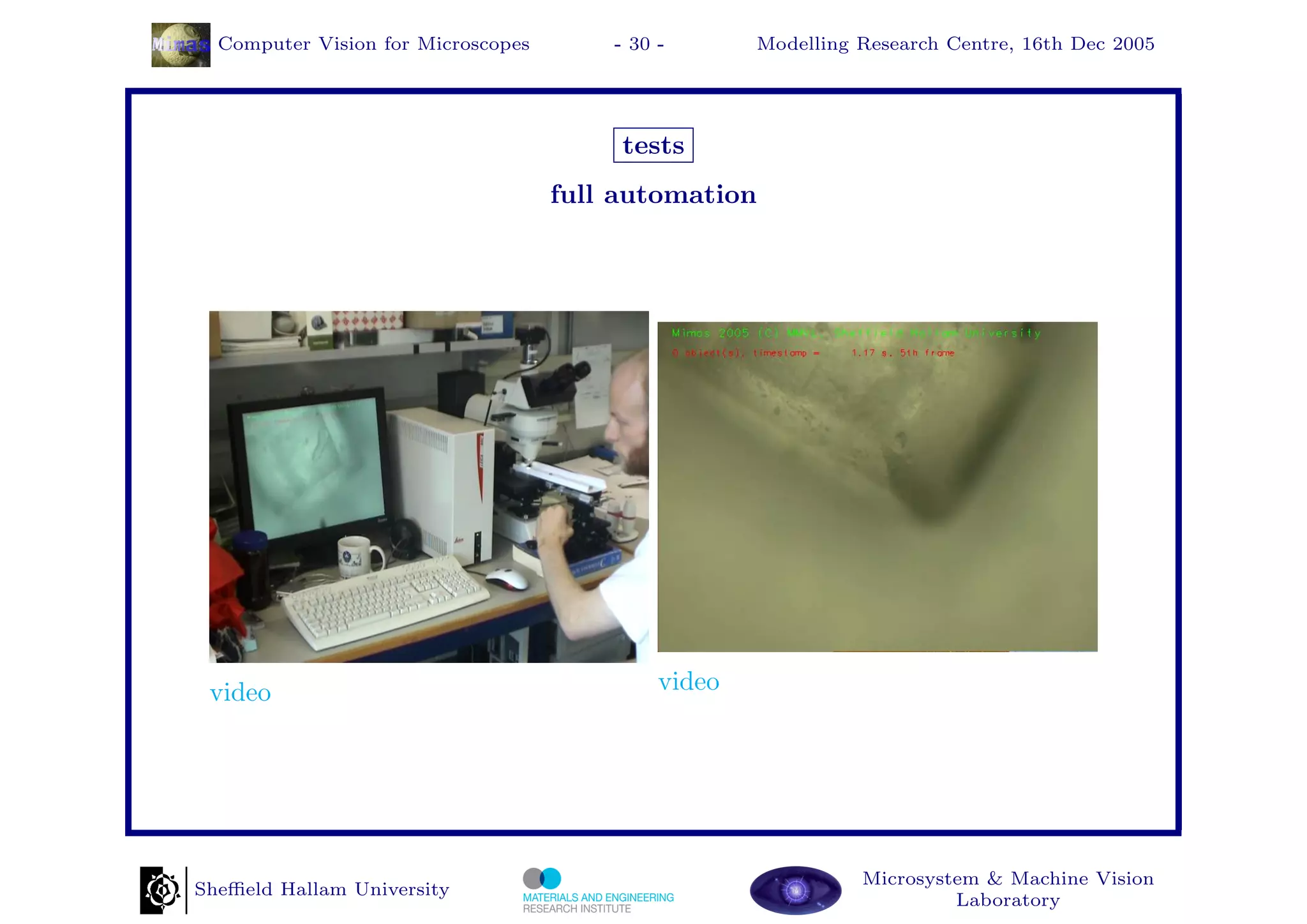

34. Computer Vision for Microscopes - 30 - Modelling Research Centre, 16th Dec 2005
tests
full automation
video video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

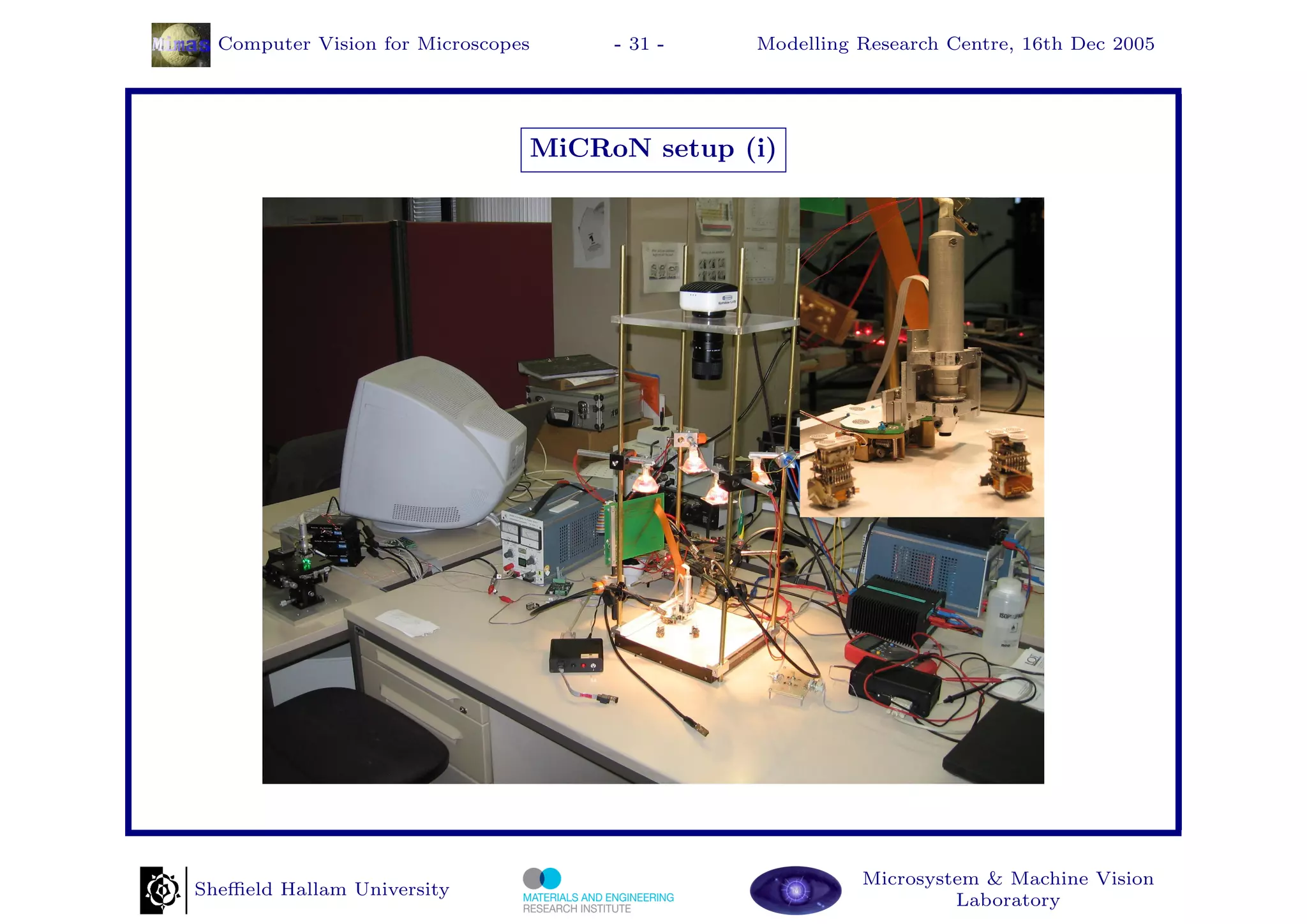

35. Computer Vision for Microscopes - 31 - Modelling Research Centre, 16th Dec 2005
MiCRoN setup (i)
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

36. Computer Vision for Microscopes - 32 - Modelling Research Centre, 16th Dec 2005

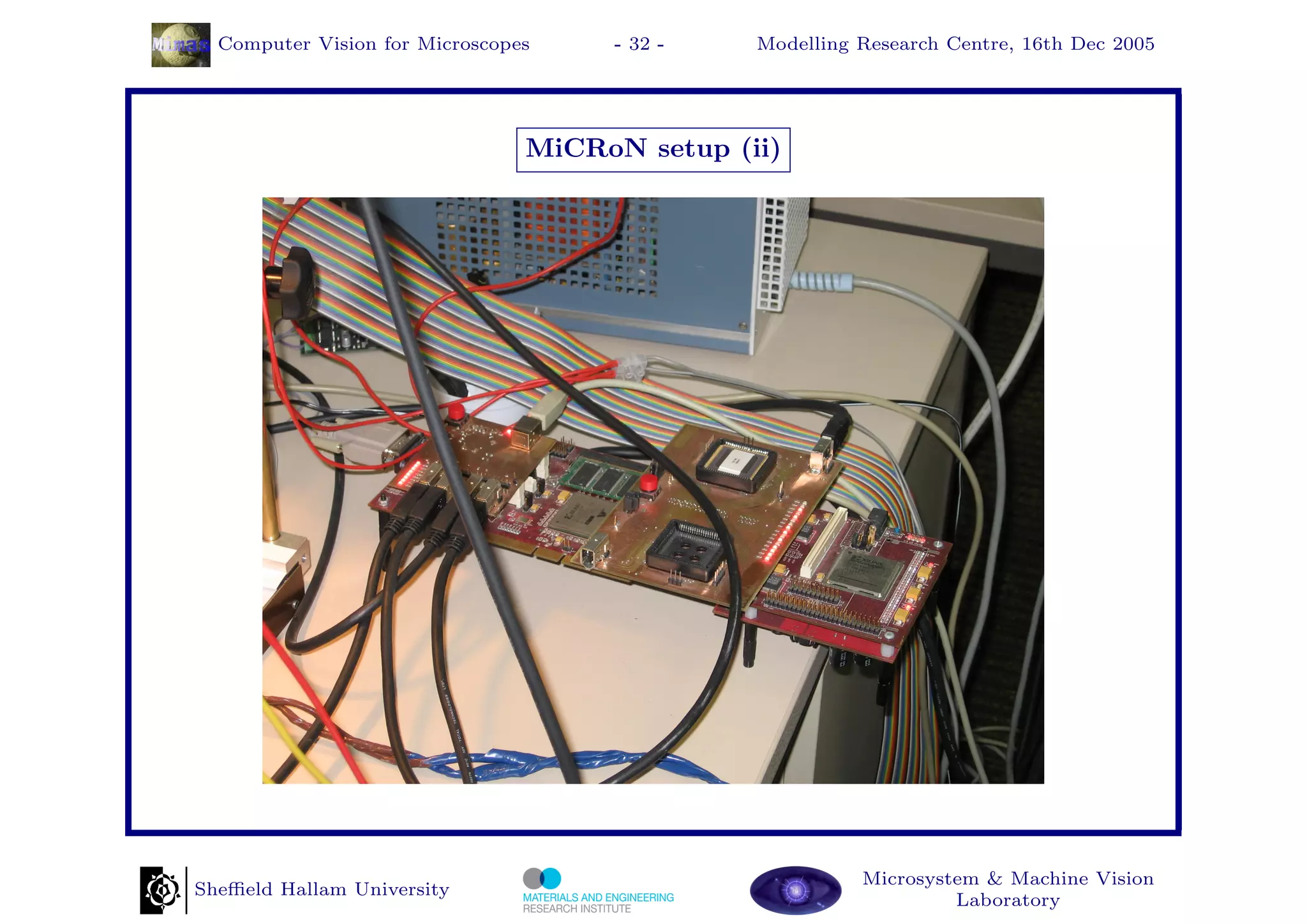

MiCRoN setup (ii)
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

37. Computer Vision for Microscopes - 33 - Modelling Research Centre, 16th Dec 2005

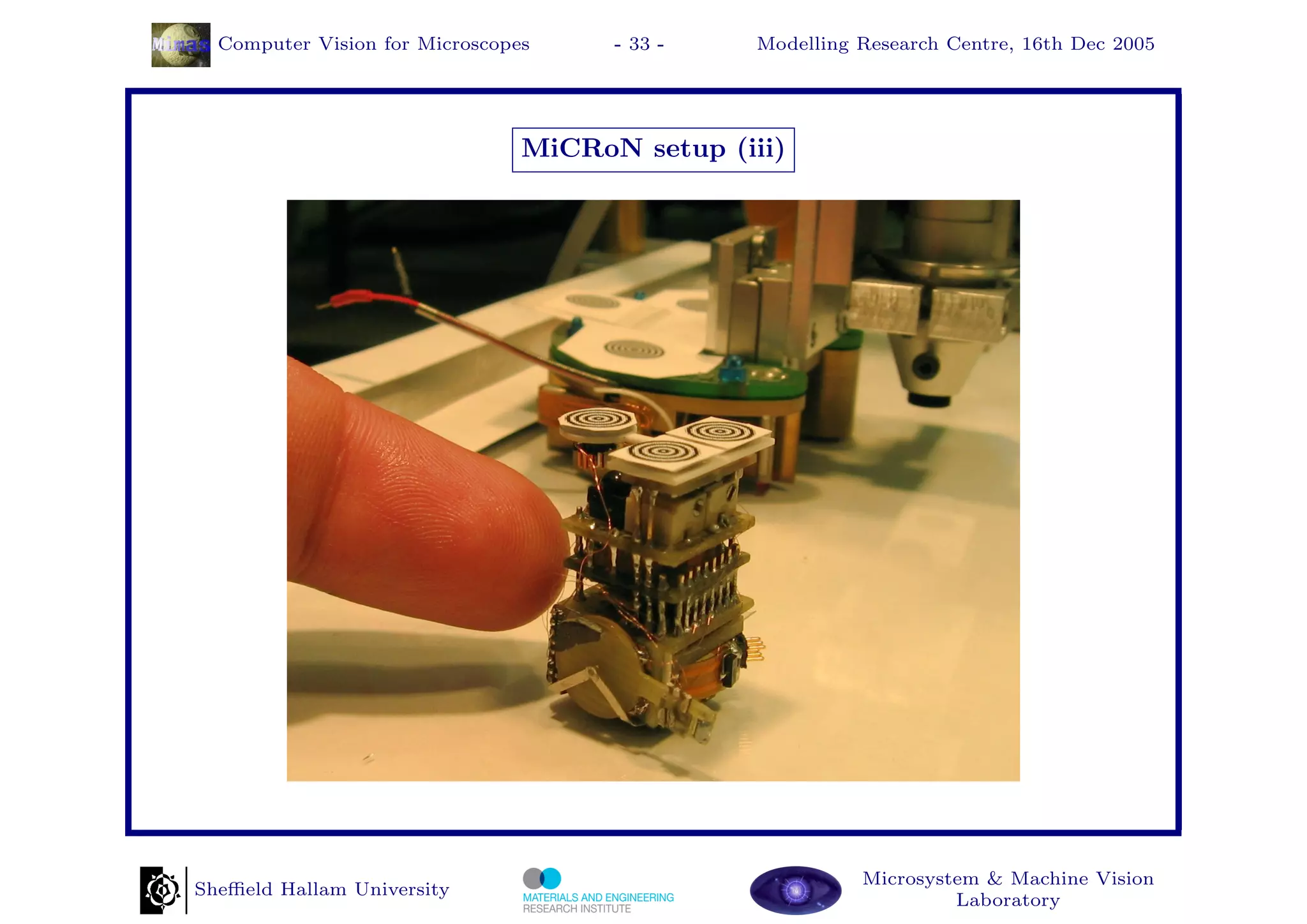

MiCRoN setup (iii)
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

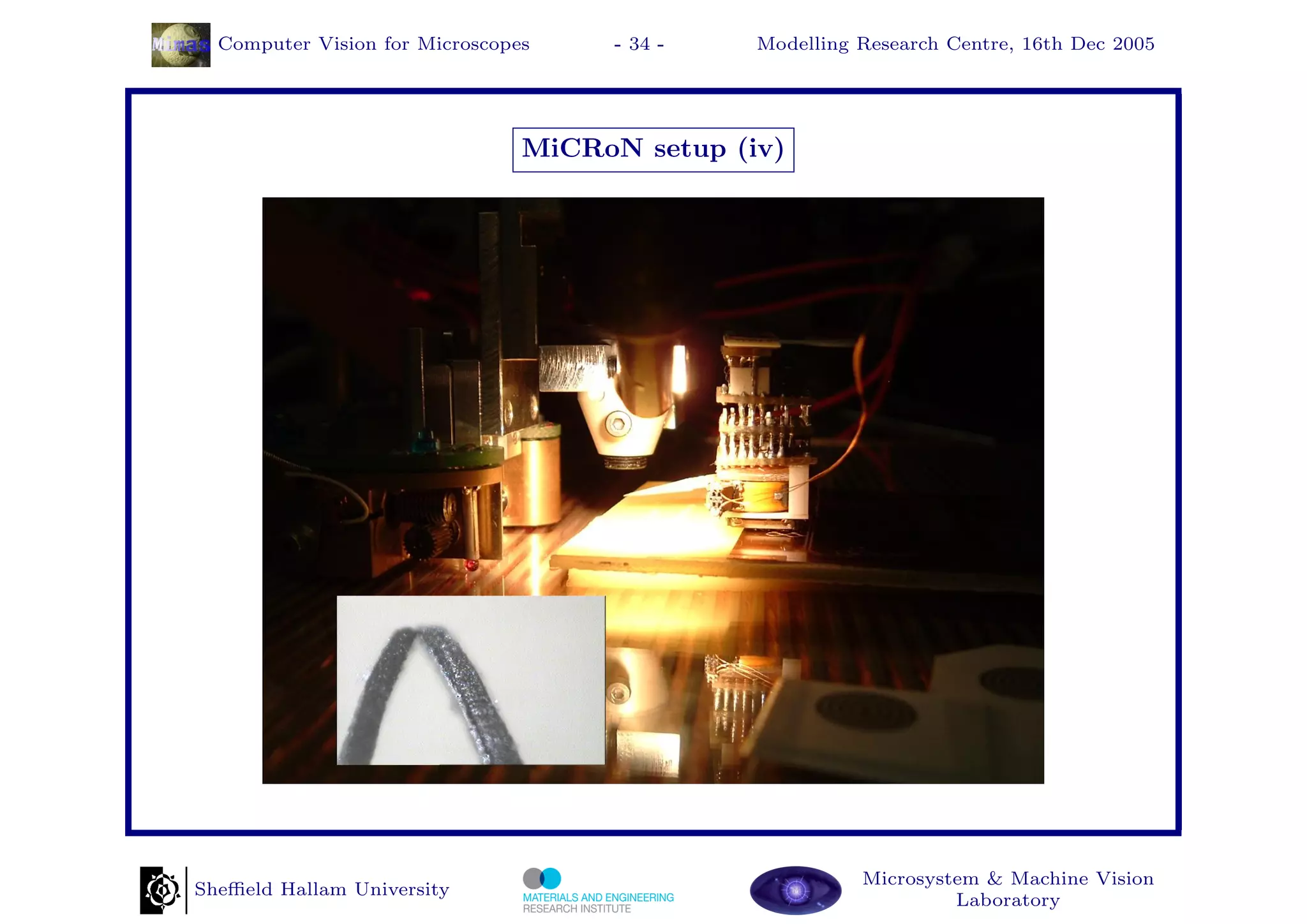

38. Computer Vision for Microscopes - 34 - Modelling Research Centre, 16th Dec 2005
MiCRoN setup (iv)
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

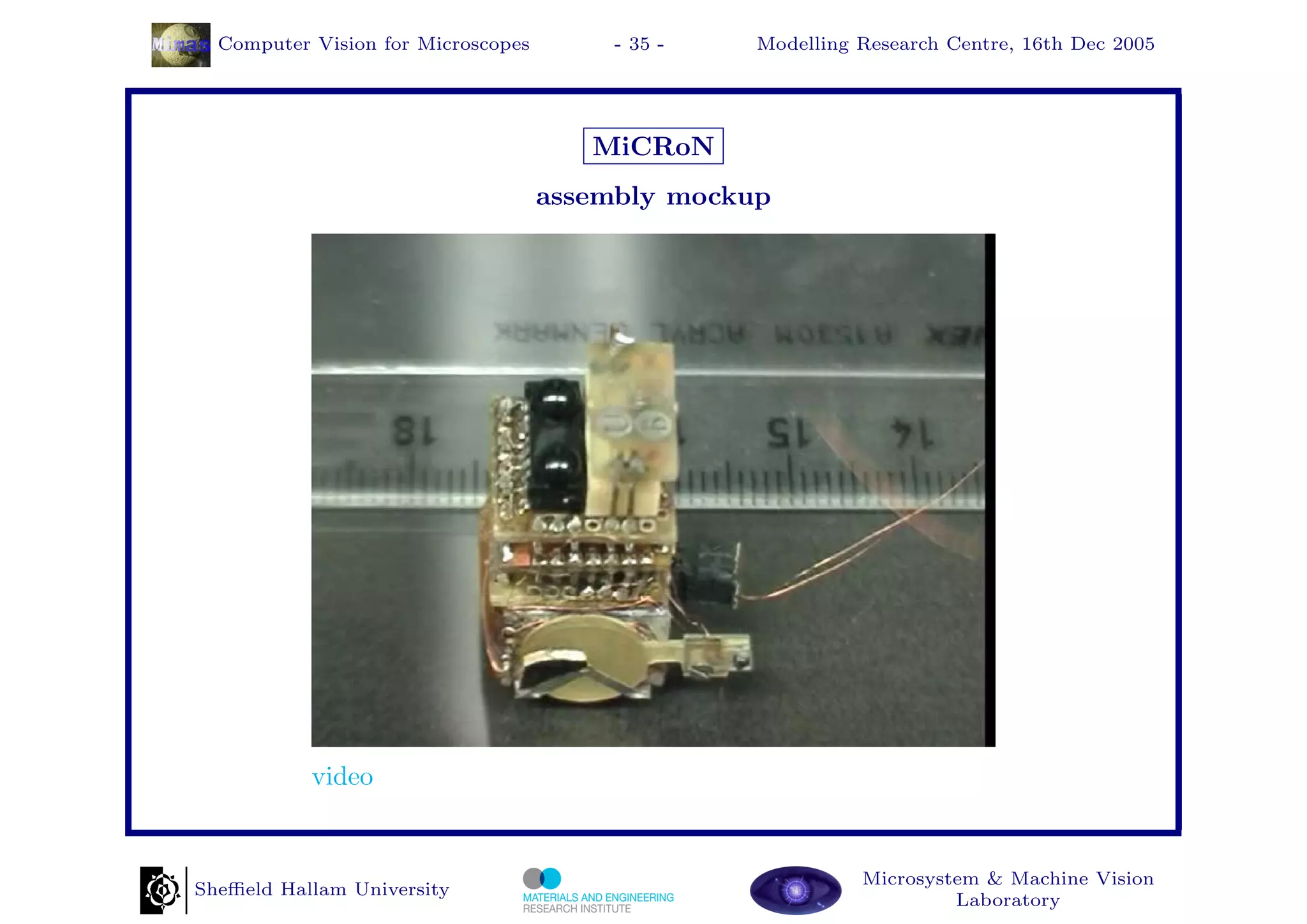

39. Computer Vision for Microscopes - 35 - Modelling Research Centre, 16th Dec 2005
MiCRoN
assembly mockup
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

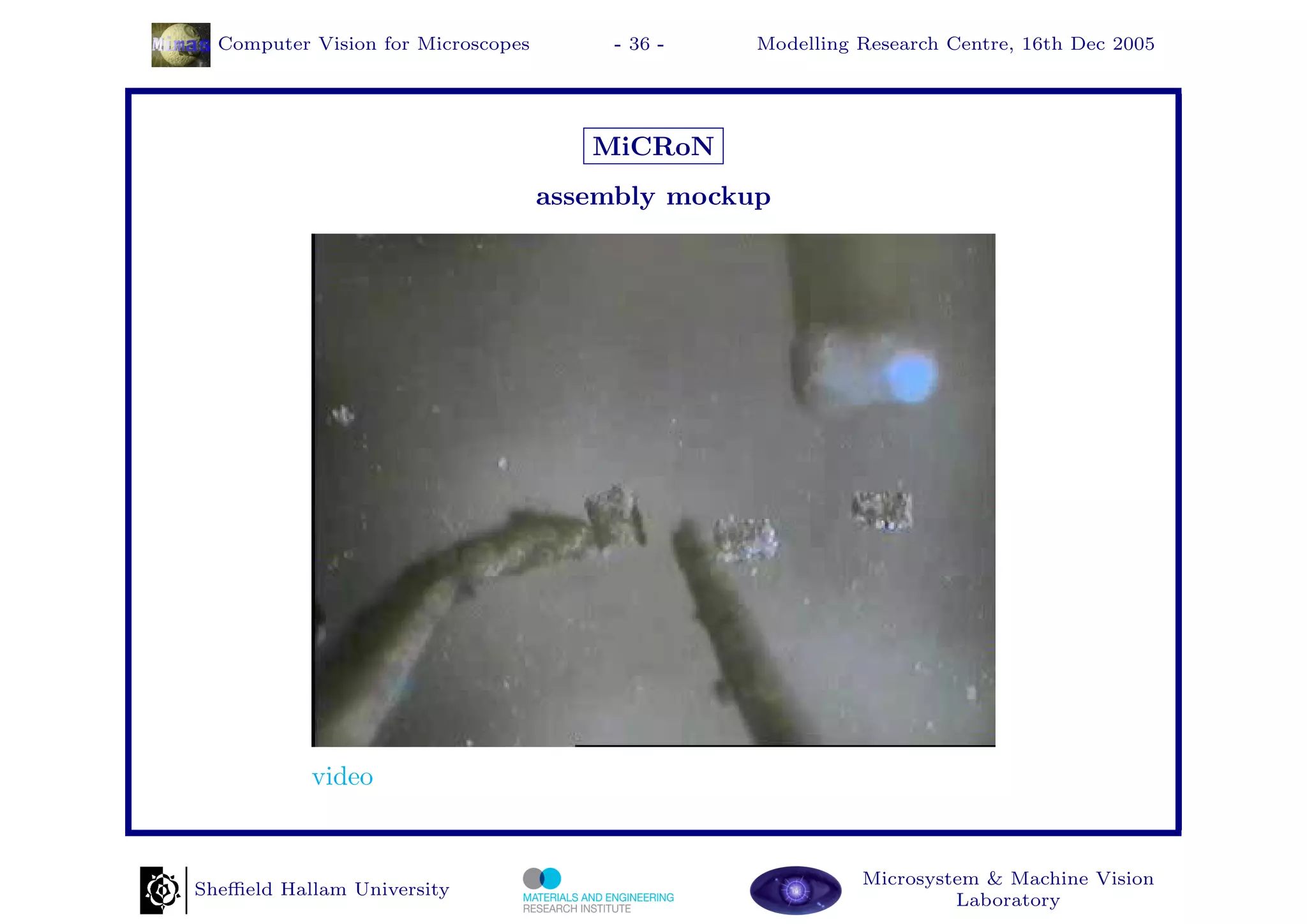

40. Computer Vision for Microscopes - 36 - Modelling Research Centre, 16th Dec 2005
MiCRoN
assembly mockup
video
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

41. Computer Vision for Microscopes - 37 - Modelling Research Centre, 16th Dec 2005

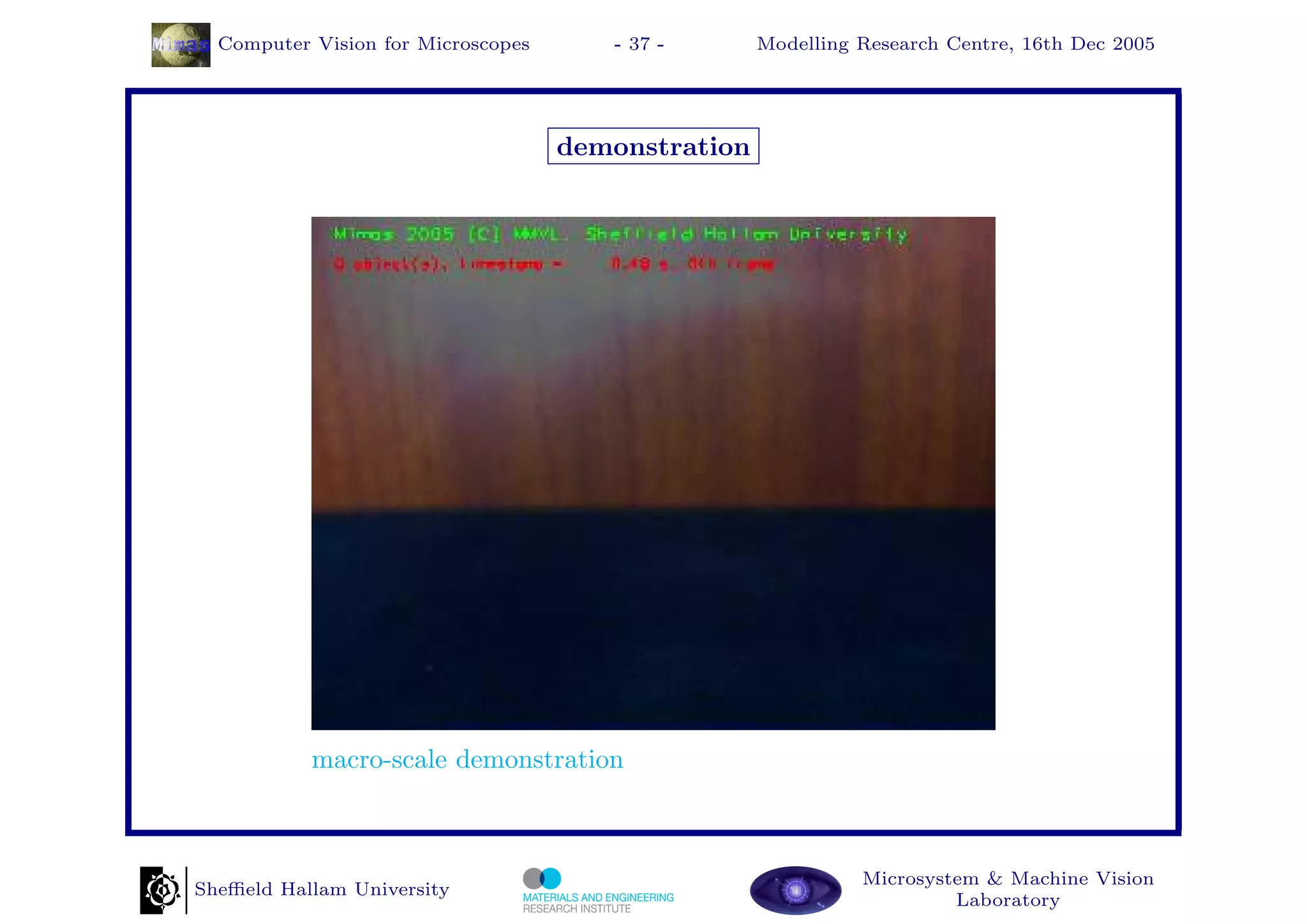

demonstration
macro-scale demonstration
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

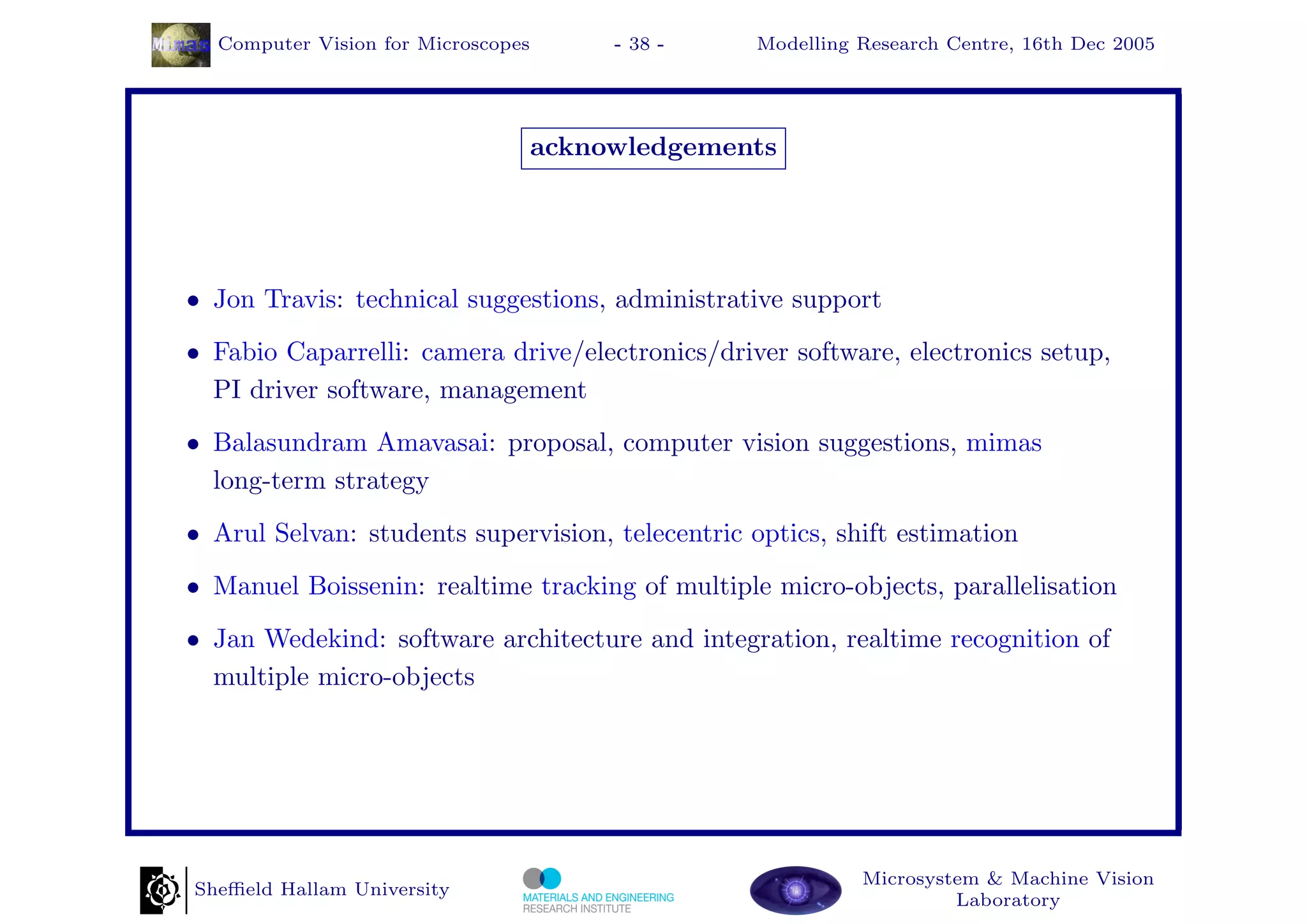

42. Computer Vision for Microscopes - 38 - Modelling Research Centre, 16th Dec 2005
acknowledgements
• Jon Travis: technical suggestions, administrative support
• Fabio Caparrelli: camera drive/electronics/driver software, electronics setup,
PI driver software, management
• Balasundram Amavasai: proposal, computer vision suggestions, mimas
long-term strategy
• Arul Selvan: students supervision, telecentric optics, shift estimation
• Manuel Boissenin: realtime tracking of multiple micro-objects, parallelisation
• Jan Wedekind: software architecture and integration, realtime recognition of
multiple micro-objects
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

43. Computer Vision for Microscopes - 39 - Modelling Research Centre, 16th Dec 2005
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

44. Computer Vision for Microscopes - 40 - Modelling Research Centre, 16th Dec 2005
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

45. Computer Vision for Microscopes - 41 - Modelling Research Centre, 16th Dec 2005
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

46. Computer Vision for Microscopes - 42 - Modelling Research Centre, 16th Dec 2005
Microsystem & Machine Vision
Sheffield Hallam University
Laboratory

47. Computer Vision for Microscopes - 43 - Modelling Research Centre, 16th Dec 2005

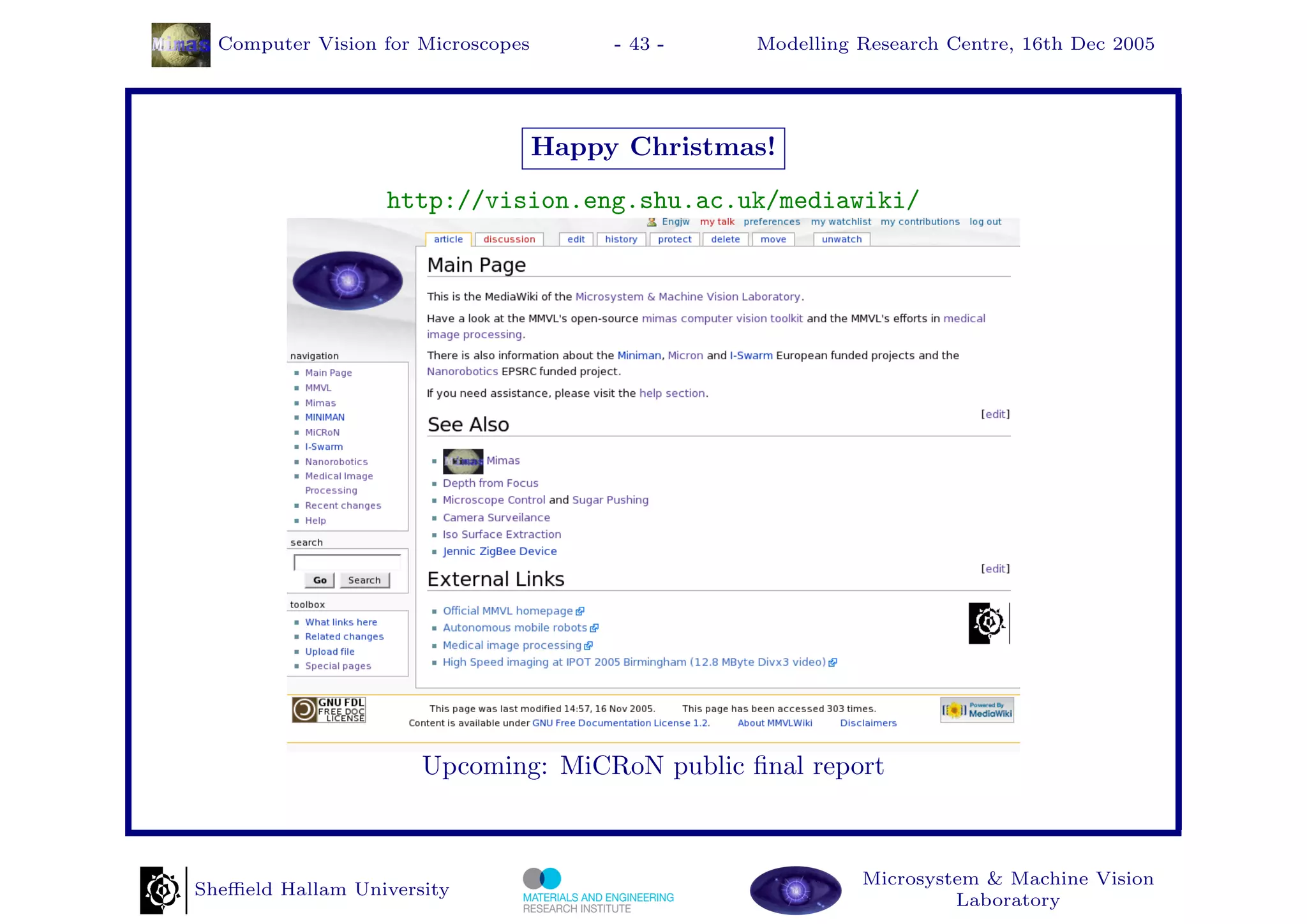

Happy Christmas!
