Svib Technologies Pvt. Ltd is an independent subsidiary of SV Corporation, South Korea that is headquartered in Bangalore, India. They produce portable vibration and sound analyzers, including the Realwave Pocket Analyzer and Environmental/Blast Vibration Analyzer, to diagnose machinery issues like imbalance, misalignment, and gear or motor problems. In addition to products, Svib offers consultancy, training, and support services for vibration analysis and machine diagnostics across various industries.

1. Svib Technologies Pvt. Ltd.
Product introduction

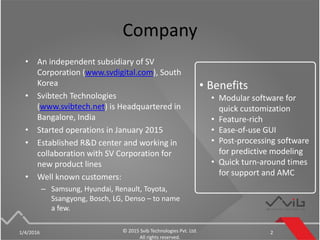

2. Company
• An independent subsidiary of SV
Corporation (www.svdigital.com), South
Korea
• Svibtech Technologies
(www.svibtech.net) is Headquartered in
Bangalore, India
• Started operations in January 2015
• Established R&D center and working in
collaboration with SV Corporation for
new product lines
• Well known customers:
– Samsung, Hyundai, Renault, Toyota,
Ssangyong, Bosch, LG, Denso – to name
a few.
• Benefits
• Modular software for
quick customization
• Feature-rich
• Ease-of-use GUI
• Post-processing software
for predictive modeling
• Quick turn-around times
for support and AMC
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
2

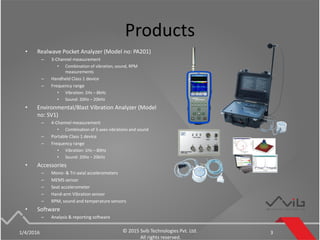

3. Products
• Realwave Pocket Analyzer (Model no: PA201)
– 3-Channel measurement
• Combination of vibration, sound, RPM
measurements
– Handheld Class 1 device
– Frequency range
• Vibration: 1Hz – 8kHz
• Sound: 20Hz – 20kHz
• Environmental/Blast Vibration Analyzer (Model
no: SV1)
– 4-Channel measurement
• Combination of 3-axes vibrations and sound
– Portable Class 1 device
– Frequency range
• Vibration: 1Hz – 80Hz
• Sound: 20Hz – 20kHz
• Accessories
– Mono- & Tri-axial accelerometers
– MEMS sensor
– Seat accelerometer
– Hand-arm Vibration sensor
– RPM, sound and temperature sensors
• Software
– Analysis & reporting software
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
3

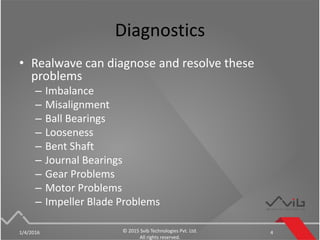

4. Diagnostics
• Realwave can diagnose and resolve these
problems
– Imbalance
– Misalignment
– Ball Bearings
– Looseness
– Bent Shaft
– Journal Bearings
– Gear Problems
– Motor Problems
– Impeller Blade Problems
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
4

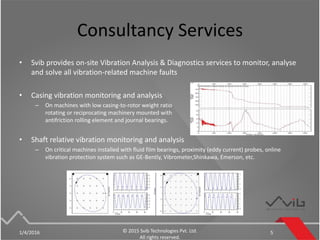

5. Consultancy Services
• Svib provides on-site Vibration Analysis & Diagnostics services to monitor, analyse
and solve all vibration-related machine faults
• Casing vibration monitoring and analysis
– On machines with low casing-to-rotor weight ratio
rotating or reciprocating machinery mounted with
antifriction rolling element and journal bearings.
• Shaft relative vibration monitoring and analysis
– On critical machines installed with fluid film bearings, proximity (eddy current) probes, online
vibration protection system such as GE-Bently, Vibrometer,Shinkawa, Emerson, etc.
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
5

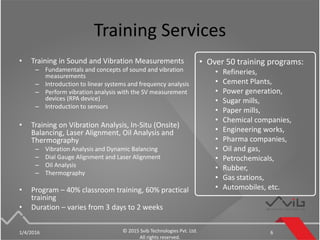

6. Training Services
• Training in Sound and Vibration Measurements
– Fundamentals and concepts of sound and vibration
measurements
– Introduction to linear systems and frequency analysis
– Perform vibration analysis with the SV measurement
devices (RPA device)
– Introduction to sensors
• Training on Vibration Analysis, In-Situ (Onsite)
Balancing, Laser Alignment, Oil Analysis and
Thermography
– Vibration Analysis and Dynamic Balancing
– Dial Gauge Alignment and Laser Alignment
– Oil Analysis
– Thermography
• Program – 40% classroom training, 60% practical
training
• Duration – varies from 3 days to 2 weeks
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
6
• Over 50 training programs:
• Refineries,
• Cement Plants,
• Power generation,
• Sugar mills,
• Paper mills,
• Chemical companies,
• Engineering works,
• Pharma companies,
• Oil and gas,
• Petrochemicals,
• Rubber,
• Gas stations,
• Automobiles, etc.

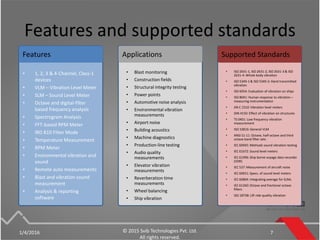

7. Features and supported standards
• 1, 2, 3 & 4-Channel, Class-1
devices
• VLM – Vibration Level Meter
• SLM – Sound Level Meter
• Octave and digital-filter
based frequency analysis
• Spectrogram Analysis
• FFT-based RPM Meter
• IRD 810 Filter Mode
• Temperature Measurement
• RPM Meter
• Environmental vibration and
sound
• Remote auto measurements
• Blast and vibration sound
measurement
• Analysis & reporting
software
Features
• Blast monitoring
• Construction fields
• Structural integrity testing
• Power points
• Automotive noise analysis
• Environmental vibration
measurements
• Airport noise
• Building acoustics
• Machine diagnostics
• Production-line testing
• Audio quality
measurements
• Elevator vibration
measurements
• Reverberation time
measurements
• Wheel balancing
• Ship vibration
Applications
• ISO 2631-1, ISO 2631-2, ISO 2631-3 & ISO
2631-4: Whole body vibration
• ISO 5349-1 & ISO 5349-2: Hand transmitted
vibration
• ISO 6954: Evaluation of vibration on ships
• ISO 8041: Human response to vibration –
measuring instrumentation
• JIN C 1510: Vibration level meters
• DIN 4150: Effect of vibration on structures
• TS 0401: Low frequency vibration
measurement
• ISO 10816: General VLM
• ANSI S1-11: Octave, half-octave and third
octave band filter sets
• IEC 60945: Methods sound vibration testing
• IEC 61672: Sound level meters
• IEC 61996: Ship borne voyage data recorder
(VDR)
• IEC 537: Measurement of aircraft noise
• IEC 60651: Specs. of sound level meters
• IEC 60804: Integrating average for SLMs
• IEC 61260: Octave and fractional octave
filters
• ISO 18738: Lift ride quality vibration
Supported Standards
1/4/2016 © 2015 Svib Technologies Pvt. Ltd.
All rights reserved.
7
