1. Condition Based MonitoringHigh Performance Test Instruments
TPI 9080 Smart Trend Meter
TPI 9080 analyzes interprets & trend readings:
• Asset management and trending with
VibTrend standard software
• ISO machine alarms and BDU reading
indicate overall machine and bearing
condition
• Clear picture of 1X, 2X, & 3X machine
problems detects imbalance, misalignment
and looseness
• 800 line spectrum for complex machine
problems
TPI 9070 Vibration analysis simply
at the touch of a button!
TPI 9070 analyzes & interprets readings:
• ISO machine alarms and BDU reading indicate
overall machine and bearing condition
• Clear picture of 1X, 2X & 3X machine
problems detects imbalance, misalignment
and looseness
• 800-line spectrum with zoom and cursor
to identify complex issues
www.testproductsintl.comCopyright © 2016 Test Products International, Inc.
Bearing & Lubrication Problems?
High Maintenance Costs?
Reliability Issues?
Pumps
This style pump can have bearing
problems or balancing issues.
The motor is bolted directly to the
pump and does not normally have
alignments issues.
Fans
Fans can also
have bearing
and balancing
problems. A fan
can be out of
balance due to
damage, dirt, or
thrown weight.
A bent shaft will
also create a
balance issue.
Motors
The motor and pump are
bolted to the fame and at-
tached with a coupling.
This can present bearing
problems in the motor and
pump; balancing
issues due to damaged
impellers; and also shaft
misalignment between the
two.
ANALYZE • INTERPRET • SAVE

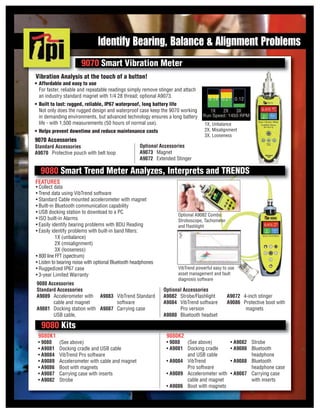

2. Identify Bearing, Balance & Alignment Problems
1X, Unbalance
2X, Misalignment
3X, Looseness
Vibration Analysis at the touch of a button!
• Affordable and easy to use
For faster, reliable and repeatable readings simply remove stinger and attach
an industry standard magnet with 1/4 28 thread; optional A9073.
• Built to last: rugged, reliable, IP67 waterproof, long battery life
Not only does the rugged design and waterproof case keep the 9070 working
in demanding environments, but advanced technology ensures a long battery
life - with 1,500 measurements (50 hours of normal use).
• Helps prevent downtime and reduce maintenance costs
9070 Smart Vibration Meter
FEATURES
• Collect data
• Trend data using VibTrend software
• Standard Cable mounted accelerometer with magnet
• Built-in Bluetooth communication capability
• USB docking station to download to a PC
• ISO built-in Alarms
• Easily identify bearing problems with BDU Reading
• Easily identify problems with built-in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)
• 800 line FFT (spectrum)
• Listen to bearing noise with optional Bluetooth headphones
• Ruggedized IP67 case
• 3-year Limited Warranty
• 9080 (See above)
• A9081 Docking cradle and USB cable
• A9084 VibTrend Pro software
• A9089 Accelerometer with cable and magnet
• A9086 Boot with magnets
• A9087 Carrying case with inserts
• A9082 Strobe
• 9080 (See above)
• A9081 Docking cradle
and USB cable
• A9084 VibTrend
Pro software
• A9089 Accelerometer with
cable and magnet
• A9086 Boot with magnets
• A9082 Strobe
• A9080 Bluetooth
headphone
• A9088 Bluetooth
headphone case
• A9087 Carrying case
with inserts
Optional A9082 Combo:
Stroboscope, Tachometer
and Flashlight
VibTrend powerful easy to use
asset management and fault
diagnosis software
9080 Smart Trend Meter Analyzes, Interprets and TRENDS
9080 Kits
9080K1 9080K2
9070 Accessories
Standard Accessories
A9070 Protective pouch with belt loop
Optional Accessories
A9073 Magnet
A9072 Extended Stinger
9080 Accessories
Standard Accessories
A9089 Accelerometer with
cable and magnet
A9081 Docking station with
USB cable,
A9083 VibTrend Standard
software
A9087 Carrying case
Optional Accessories
A9082 Strobe/Flashlight
A9084 VibTrend software
Pro version
A9080 Bluetooth headset
A9072 4-inch stinger
A9086 Protective boot with
magnets

3. Unbalance (Band 1x)
The presence of high vibration in
Band 1x (Unbalance) - 1x Running Speed
symptom in the radial plane - without any
accompanying high vibration in Band 2x
(Misalignment) or Band 3x (Looseness)
which are called harmonics, is an indica-
tor of out of balance. The presence of the
other harmonics in Bands 2x and 3x
would more likely point to misalignment
or looseness conditions. Always remem-
ber unbalance levels will always be the
highest in the weakest plane (usually in
the horizontal direction).
Misalignment (Band 2x)
Misalignment is a common fault
since it can be difficult to align two shafts
and their bearings properly. The three
main types of shaft misalignment are an-
gular misalignment, offset misalignment,
and combination misalignment. The clas-
sic vibration signature for coupling mis-
alignment is high vibration at Band 1x
(out of balance) and Band 2x (misalign-
ment) in the radial plane. Most times you
will find Band 2x (misalignment) to be
equal to or higher than Band 1x (out of
balance).
Looseness (Band 3x)
Looseness can take many forms in
rotating machinery. A looseness condition
can be created by weakness in the
machine feet or in the structure itself.
Improperly fitted or worn pillow block
bolts or bearing pedestals can manifest
themselves as a looseness condition.
Improper fit between components,
improperly installed couplings, blades,
vanes, etc.) are a form of looseness.
Finally, a bearing turning in its housing or
loose on the journal can sometimes be
detected as a looseness condition. There
are a number of different vibration signa-
tures that constitute looseness, with
emphasis on the fundamental harmonics
of the running speed and sometimes 1/2
and 1/3 harmonics Band .5x (Instability).
Bearing Lube Condition
A bearing lube condition can be triggered
by two situations. One is the presence of
microscopic cracks in the rollers or balls
of the bearing, tiny scratches in the inner
or outer races of the bearing, or some
cracking or slight distortion in the cage
assembly. The second is a momentary
loss of boundary lubrication in the bear-
ing. This loss of the lubrication barrier
between rolling element and raceway
leads to metal-to-metal contact. Bearing
lube conditions can be detected by the
use of (BDU) Bearing Damage Units. If
the bearing is grease lubricated and the
BDU reading is elevated, this may be a
good indicator that greasing the bearing
may be in order. If the bearing is oil-lubri-
cated, and an elevated BDU condition is
persistant, the bearing lubrication system
may not be performing as specified. The
presence of an elevated BDU symptom on
an antifriction bearing may indicate early
bearing wear or a possible lubrication
problem with the bearing.
Test the TPI Advantagewww.testproductsintl.com
. . . and use the TPI 9070 to Prevent Costly Down-Time!
Customer responses on the
9070 and 9080
The most powerful vibration
meter and trending meter I
have ever seen for the price
point.
The 9080 was the best decision
I ever made easy to use tons of
horse power great software.
The 9070 is the ultimate in
frontline defense for machinery
problems.

4. Smart Vibration Monitor 9034 & 9038
Online/Fixed Vibration Monitoring
Features:
• 4 accelerometer channel & 8 accelerometer channel versions
• 24VDC (relay drive) switched output for each channel
(warning/critical, g or velocity)
• 4 to 20mA output for each channel (g or velocity)
• Temperature input
• Tacho Input
• USB for connection to VibRanger PC Software
• Ethernet socket for connection to Online Vibration
analysis software
Advantages:
• Extremely cost effective – lowest cost/channel industrial
vibration monitor/analyser
• Very easy to set up using VibRanger PC software
• 24/7 monitoring of critical plant
Benefits:
Single low cost unit monitors plant with local alarms, connects to high functionality PC analysis software AND connects
to cloud based monitoring and analysis software.
The VibRanger-04 and VibRanger-08 modules are supplied to work in any, or all, modes right out of the box so it truly is a
system that will grow with your requirements.
The VibRanger modules are perfect for extremely cost effective monitoring of critical plants and when used in conjunction
with the TPI 9070, 9080 and 9041 vibration analysers provide the complete CBM soluition.
The VibRanger-04 and VibRanger-08 are the new
generation of low price-high performance installed
vibration analysers from TPI. With up to 8 accelerometer
inputs, 8 digital outputs, 8 analogue outputs, temperature
and tacho inputs as well as USB and Ethernet connectivity
the VibRanger-04 and VibRanger-08 modules offer
unrivalled price/channel performance. The analysers can
be used in several different ways:
• Standalone Operation – Connect up to 8 accelerometers
and up to 8 relays and instantaneously monitor and
alarm on key vibration points. Using the included
VibRanger PC software the alarms can each
independently be set to trigger on either a
velocity level or a g level. If a tacho is
connected a speed range can be set so as
not to activate during machine start-up or
shut-down
• Legacy Systems Operation – for each
connected accelerometer the VibRanger units
can also output levels of vibration (g or
velocity) as 4 to 20mA signals for connection
to existing monitoring systems such as
PLCs etc
• PC Operation – If a laptop/pc is connected via a USB
cable, up to 64 modules can be monitored and the
vibration levels displayed on screen. With the PC
connected more detailed vibration analysis can be
carried out such as up to 51,200 line FFT analysis.
• Online Cloud Operation – by subscribing to TPI’s
DataDecypher cloud based service all installed modules
can be monitored and analysed from a single web based
interface. Just log on via your standard internet browser
and all modules can be viewed and configured.
Furthermore, detailed reporting is just a click away, as
is automatic alarm notification via email.

5. Online/Fixed Vibration Monitoring
TPI Connected CBM
After people, information is a company’s greatest asset. TPI’s Connected CBM products help grow that information
by providing the essential data to leverage its true value. Our continually expanding range of Connected CBM
offerings already includes two portable vibration analysers, an Infra-Red & contact thermometer, and now the 90XX
VibRanger online vibration analysers.
Whether the readings are collected by a maintenance technician using the simple to operate 9080 VibMeter, or by a
vibration analyst on a 9041 Ultra II, or 24/7 on a 90XX VibRanger, all of the data will be available on the same analysis
and reporting platform. The only question is which platform to choose – local PC or remote Cloud? Or Both! – With
TPI’s solution the PC based C-Trend II and the Cloud based DataDecypher can share and synchronise all data for a
truly connected solution.
Knowledge may be power, but knowledge needs data – TPI gives you the data!
9034 9038
Measurement
IEPE Accelerometer Input Channels 4 8
Accelerometer Sampling Frequency 0 25.6kHz
4-20mA Output Channels 4 8
24VDC Digital Outputs 4 8
24VDC Dig. Output Current Max 100mA
Digital Output Alarm Acceleration or Velocity (Channel Selectable)
Tachometer Input 1 (0V to any voltage upto +24VDC)
Frequency Dependent Alarms Yes (using Tachometer)
Temperature Input 1 (Typically 10mV/°C)
PC Connection USB
Internet/Cloud Connection Ethernet
PC Software
Alarms 4 Vibration + Temperature 8 Vibration + Temperature
Alarm Choice Acceleration AND/OR Velocity (channel selectable)
FFT Up to 51,200 lines
Time Waveform Yes
Electrical
Supply Voltage USB or 24VDC
Supply Current 500mA
Mechanical
Environmental IP50
Operating Temperature °C 0-55°C (32-151°F)
Storage Temp °C 0-55°C (32-151°F)
Mounting DIN Rail
Part Number 9034 9038
www.testproductsintl.com
Test the TPI Advantage
Smart Vibration Monitor 9034 & 9038

6. C-Trend Software gives you
greater ease of use and
flexibility.
• Store, analyze and report
on all your vibration, lube
and process parameters
(e.g. oil pressures, lube
volume, temperature, run
hours, etc.) in one place.
• All information is just a
click away. Color coded
alarms highlight
problems. Trend lines
show problems before
they happen.
• Data can be accessed
anywhere on any
machine, with networking
software. Plant history
is everything and
C-Trend turns it into
useful information with
the click of a mouse!
Machinery Health Monitoring Tools from testproductsintl.com • 866.693.8558
The Ultra II does it all...
• High spec CBM data collector • Dynamic 2 plane rotor balancer
• Plant and asset inspections
BENEFITS
FEATURES
Automatically detects out
of balance, misalignment,
looseness and bearing
defects
Predictive analysis
capabilities that accurately
calculate time frame to
failure
Condition based monitoring
analyzes bearing wear and
gear degradation
Automatic RFID
measurement point
identification. Saves and
reads measurement values
to/from RFID tags optional
Additional features include
Inspection, Lube and
remote/server database
User selectable defined
envelope filters and
demodulation functionaliy
True simultaneous
3 channel capture
High resolution (0.2Hz)
frequency spectra from
0Hz to 10kHz
Rugged fully waterproof
construction meets IP68
and MIL-STD-810F
requirements.
Includes C-Trend
powerful and easy
to use asset management
and fault diagnosis
software

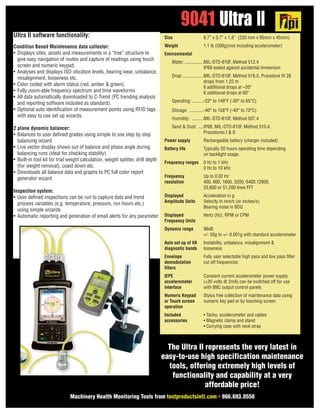

7. Ultra II software functionality:
Condition Based Maintenance data collector:
• Displays sites, assets and measurements in a “tree” structure to
give easy navigation of routes and capture of readings using touch
screen and numeric keypad.
• Analyses and displays ISO vibration levels, bearing wear, unbalance,
misalignment, looseness etc.
• Color coded with alarm status (red, amber & green).
• Fully zoom-able frequency spectrum and time waveforms
• All data automatically downloaded to C-Trend (PC trending analysis
and reporting software included as standard).
• Optional auto identification of measurement points using RFID tags
with easy to use set up wizards.
2 plane dynamic balancer:
• Balances to user defined grades using simple to use step by step
balancing wizard
• Live vector display shows out of balance and phase angle during
balancing runs (ideal for checking stability)
• Built-in tool kit for trial weight calculation, weight splitter, drill depth
(for weight removal), coast down etc.
• Downloads all balance data and graphs to PC full color report
generator wizard
Inspection system:
• User defined inspections can be run to capture data and trend
process variables (e.g. temperature, pressure, run hours etc.)
using simple wizards
• Automatic reporting and generation of email alerts for any parameter
9041 Ultra II
Machinery Health Monitoring Tools from testproductsintl.com • 866.693.8558
Size 8.7” x 3.7” x 1.8” (220 mm x 95mm x 45mm)
Weight 1.1 lb (500g)(not including accelerometer)
Environmental
Water: ................MIL-STD-810F, Method 512.4
IP68 sealed against accidental immersion
Drop:..................MIL-STD-810F, Method 516.5, Procedure IV 26
drops from 1.22 m
6 additional drops at –20º
6 additional drops at 60º
Operating:..........-22° to 149°F (-30° to 65°C)
Storage: ............-40° to 158°F (-40° to 70°C)
Humidity: ..........MIL-STD-810F, Method 507.4
Sand & Dust: ....IP68, MIL-STD-810F, Method 510.4,
Procedures I & II
Power supply Rechargeable battery (charger included)
Battery life Typically 20 hours operating time depending
on backlight usage.
Frequency ranges 0 Hz to 1 kHz
0 Hz to 10 kHz
Frequency Up to 0.02 Hz
resolution 400, 800, 1600, 3200, 6400,12800,
25,600 or 51,200 lines FFT
Displayed Acceleration in g
Amplitude Units Velocity in mm/s (or inches/s)
Bearing noise in BDU
Displayed Hertz (Hz), RPM or CPM
Frequency Units
Dynamic range 96dB
+/- 50g to +/- 0.001g with standard accelerometer
Auto set up of VA Instability, unbalance, misalignment &
diagnostic bands looseness
Envelope Fully user selectable high pass and low pass filter
demodulation cut off frequencies
filters
IEPE Constant current accelerometer power supply
accelerometer (+20 volts @ 2mA) can be switched off for use
interface with BNC output control panels
Numeric Keypad Stylus free collection of maintenance data using
or Touch screen numeric key pad or by touching screen
operation
Included • Tacho, accelerometer and cables
accessories • Magnetic clamp and stand
• Carrying case with neck strap
The Ultra II represents the very latest in
easy-to-use high specification maintenance
tools, offering extremely high levels of
functionality and capability at a very
affordable price!

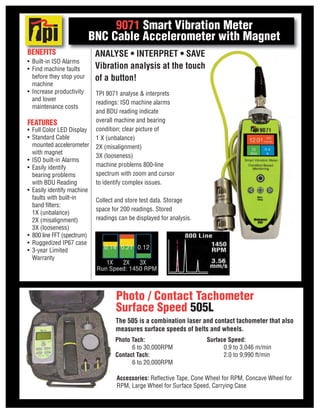

8. FEATURES
• Full Color LED Display
• Standard Cable
mounted accelerometer
with magnet
• ISO built-in Alarms
• Easily identify
bearing problems
with BDU Reading
• Easily identify machine
faults with built-in
band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)
• 800 line FFT (spectrum)
• Ruggedized IP67 case
• 3-year Limited
Warranty
BENEFITS
• Built-in ISO Alarms
• Find machine faults
before they stop your
machine
• Increase productivity
and lower
maintenance costs
9071 Smart Vibration Meter
BNC Cable Accelerometer with Magnet
TPI 9071 analyse & interprets
readings: ISO machine alarms
and BDU reading indicate
overall machine and bearing
condition; clear picture of
1 X (unbalance)
2X (misalignment)
3X (looseness)
machine problems 800-line
spectrum with zoom and cursor
to identify complex issues.
Collect and store test data. Storage
space for 200 readings. Stored
readings can be displayed for analysis.
ANALYSE • INTERPRET • SAVE
Vibration analysis at the touch
of a button!
Photo Tach:
6 to 30,000RPM
Contact Tach:
6 to 20,000RPM
Surface Speed:
0.9 to 3,046 m/min
2.0 to 9,990 ft/min
Accessories: Reflective Tape, Cone Wheel for RPM, Concave Wheel for
RPM, Large Wheel for Surface Speed, Carrying Case
Photo / Contact Tachometer
Surface Speed 505L
The 505 is a combination laser and contact tachometer that also
measures surface speeds of belts and wheels.
