This document summarizes a student project to design and construct a fire alarm system and smoke detector using a SCADA system. The project has four members and aims to study fire alarm and smoke detecting systems, discover fires early through detection devices, and control fires. It discusses causes of fires, fire stages, sensor types, and advantages like reducing manpower needs, costs, and losses. Applications mentioned include uses in transportation, industries, residential and commercial areas.

1. FIRE CONTROL

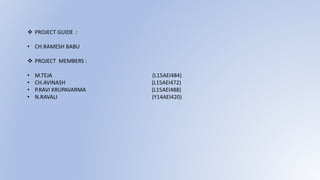

2.  PROJECT GUIDE :
• CH.RAMESH BABU
 PROJECT MEMBERS :
• M.TEJA (L15AEI484)
• CH.AVINASH (L15AEI472)
• P.RAVI KRUPAVARMA (L15AEI488)
• N.RAVALI (Y14AEI420)

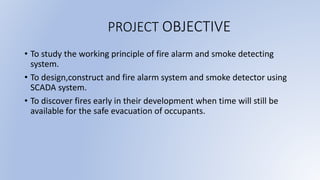

3. PROJECT OBJECTIVE
• To study the working principle of fire alarm and smoke detecting
system.
• To design,construct and fire alarm system and smoke detector using
SCADA system.
• To discover fires early in their development when time will still be
available for the safe evacuation of occupants.

4. Introduction
• A fire alarm system is number of devices working together to detect &
Warn people through visual and audio appliances when
smoke,fire,carbon monoxide or other emergencies are present.
• Alarms may be activated from smoke detectors,and heat detectors.

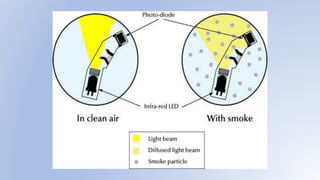

A smoke detector is a device that senses smoke,typically as an indicator
of fire.

5. SCADA:

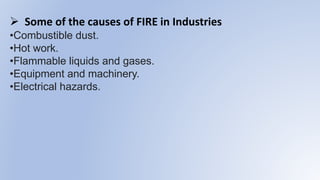

7.  Some of the causes of FIRE in Industries
•Combustible dust.
•Hot work.
•Flammable liquids and gases.
•Equipment and machinery.
•Electrical hazards.

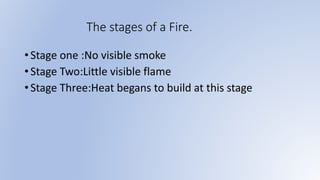

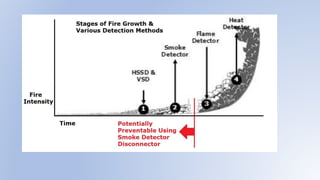

8. The stages of a Fire.
• Stage one :No visible smoke
• Stage Two:Little visible flame
• Stage Three:Heat begans to build at this stage

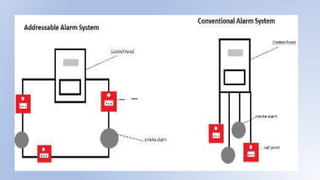

12. Type of Alarm Detection
System
• Conventional system
• Addressable System

14.  TO CONTROL THE FIRE.

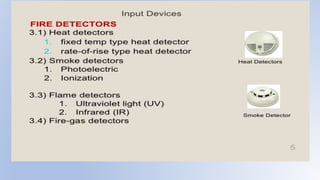

15. Sensor Fire Alarm

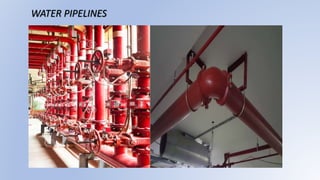

17. WATER PIPELINES

21. PROJECT OVERVIEW

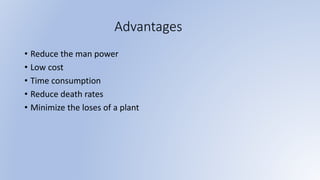

22. Advantages
• Reduce the man power
• Low cost
• Time consumption
• Reduce death rates
• Minimize the loses of a plant

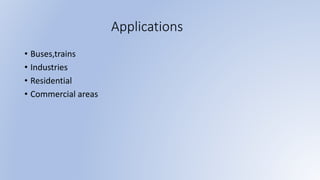

23. Applications
• Buses,trains
• Industries
• Residential
• Commercial areas

25. Thank you
