COMMUNICATIONS
for
ECE / IN
By
www.thegateacademy.com

Syllabus Communication
THE GATE ACADEMY PVT.LTD. H.O.: #74, Keshava Krupa (third Floor), 30th
Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
: 080-65700750,  info@thegateacamy.com © Copyright reserved. Web: www.thegateacademy.com

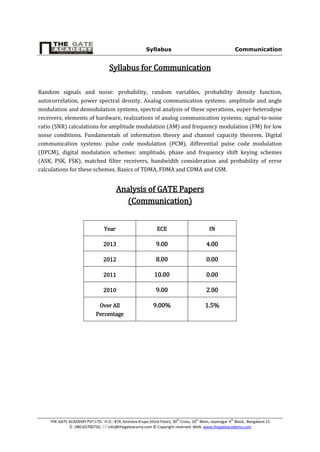

Syllabus for Communication
Random signals and noise: probability, random variables, probability density function,
autocorrelation, power spectral density. Analog communication systems: amplitude and angle
modulation and demodulation systems, spectral analysis of these operations, super-heterodyne
receivers; elements of hardware, realizations of analog communication systems; signal-to-noise
ratio (SNR) calculations for amplitude modulation (AM) and frequency modulation (FM) for low
noise conditions. Fundamentals of information theory and channel capacity theorem. Digital
communication systems: pulse code modulation (PCM), differential pulse code modulation
(DPCM), digital modulation schemes: amplitude, phase and frequency shift keying schemes
(ASK, PSK, FSK), matched filter receivers, bandwidth consideration and probability of error
calculations for these schemes. Basics of TDMA, FDMA and CDMA and GSM.
Analysis of GATE Papers
(Communication)
Year ECE IN
2013 9.00 4.00
2012 8.00 0.00
2011 10.00 0.00
2010 9.00 2.00
Over All
Percentage
9.00% 1.5%

Contents Communication
Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
: 080-65700750,  info@thegateacademy.com © Copyright reserved. Web: www.thegateacademy.com Page I

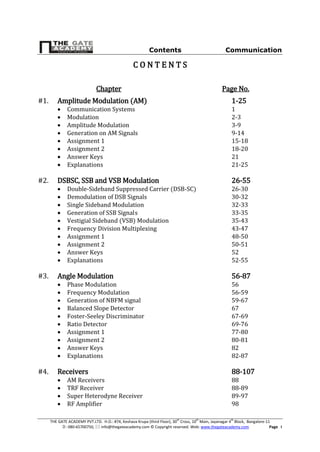

C O N T E N T S
Chapter Page No.
#1. Amplitude Modulation (AM) 1-25
 Communication Systems 1
 Modulation 2-3
 Amplitude Modulation 3-9
 Generation on AM Signals 9-14
 Assignment 1 15-18
 Answer Keys 21
 Explanations 21-25
#2. DSBSC, SSB and VSB Modulation 26-55
 Double-Sideband Suppressed Carrier (DSB-SC) 26-30
 Demodulation of DSB Signals 30-32
 Single Sideband Modulation 32-33
 Generation of SSB Signals 33-35
 Vestigial Sideband (VSB) Modulation 35-43
 Frequency Division Multiplexing 43-47
 Answer Keys 52
#3. Angle Modulation 56-87
 Phase Modulation 56
 Frequency Modulation 56-59
 Generation of NBFM signal 59-67
 Balanced Slope Detector 67
 Foster-Seeley Discriminator 67-69
 Ratio Detector 69-76
 Answer Keys 82
#4. Receivers 88-107
 AM Receivers 88
 TRF Receiver 88-89
 Super Heterodyne Receiver 89-97
 RF Amplifier 98

Contents Communication
Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
: 080-65700750,  info@thegateacademy.com © Copyright reserved. Web: www.thegateacademy.com Page II

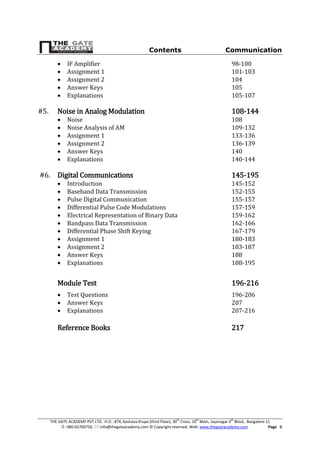

 IF Amplifier 98-100
 Assignment 2 104
 Answer Keys 105
#5. Noise in Analog Modulation 108-144
 Noise 108
 Noise Analysis of AM 109-132
 Answer Keys 140
#6. Digital Communications 145-195
 Introduction 145-152
 Baseband Data Transmission 152-155
 Pulse Digital Communication 155-157
 Differential Pulse Code Modulations 157-159
 Electrical Representation of Binary Data 159-162
 Bandpass Data Transmission 162-166
 Differential Phase Shift Keying 167-179
 Answer Keys 188
Module Test 196-216
 Test Questions 196-206
 Answer Keys 207
Reference Books 217

Chapter 1 Communication
Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
: 080-65700750,  info@thegateacademy.com © Copyright reserved. Web: www.thegateacademy.com Page 1
CHAPTER 1
Amplitude Modulation (AM)
Communication Systems
Irrespective of the form of communication process being considered, there are three basic
elements to every communication system, namely, transmitter, channel and receiver. The
transmitter is located at one point in space, the receiver is located at some other point
separate from the transmitter and the channel is the physical medium that connects them. The
purpose of the transmitter is to convert the message signal produced by the source of
information into a form suitable for transmission over the channel.
Generalized Block Diagram
However, as the transmitted signal propagates along the channel, it is distorted due to channel
imperfections. Moreover, noise and interfering signals are added to the channel output, with
the result that the received signal is a corrupted version of the transmitted signal. The receiver
has the task of operating on the received signal so as to reconstruct it to a recognizable form of
the original message signal.
Normally used communication channels are twisted pair, coaxial cable, fiber optic cable and
free space.
Primary Communication Resources
In a communication system, two primary resources are employed: transmitted power and
channel bandwidth. The transmitted power is the average power of the transmitted signal.
The channel bandwidth is defined as the band of frequencies allocated for the transmission of
the message signal. A general system design objective is to use these two resources as
efficiently as possible. In most communication channels, one source may be considered more
important than the other. Therefore, communication channels are classified as power limited
or band limited.
When the spectrum of a message signal extends down to zero or low frequencies, we define
the bandwidth of the signal as that upper frequency above which the spectrum content of the
signal is negligible and therefore unnecessary for transmitting information. The important
point is unavoidable presence of noise in a communication system. Noise refers to unwanted
waves that tend to disturb the transmission and processing of message signals in a
communication system. The source of noise may be internal or external to the system.
A quantitative way to account for the effect of noise is to introduce signal – to – noise ratio
(SNR) as a system parameter. We may define the SNR at the receiver input as the ratio of the
average signal power to the average noise power, both being measured at the same point.
Transducer Modulator or
Transmitter
Demodulator
or Receiver Transducer
Channelm(t)
O/P

Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11

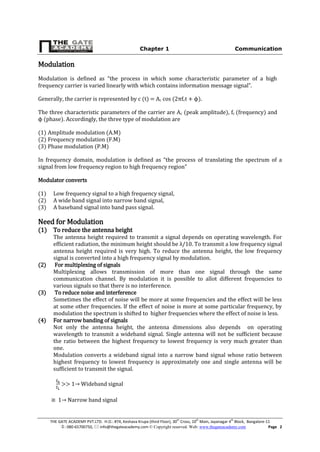

Modulation
Modulation is defined as “the process in which some characteristic parameter of a high
frequency carrier is varied linearly with which contains information message signal”.
Generally, the carrier is represented by c (t) = Ac cos (2πfct + ϕ).
The three characteristic parameters of the carrier are Ac (peak amplitude), fc (frequency) and
ϕ (phase). Accordingly, the three type of modulation are
(1) Amplitude modulation (A.M)
(2) Frequency modulation (F.M)
(3) Phase modulation (P.M)
In frequency domain, modulation is defined as “the process of translating the spectrum of a
signal from low frequency region to high frequency region”
Modulator converts
(1) Low frequency signal to a high frequency signal,
(2) A wide band signal into narrow band signal,
(3) A baseband signal into band pass signal.
Need for Modulation
(1) To reduce the antenna height
The antenna height required to transmit a signal depends on operating wavelength. For
efficient radiation, the minimum height should be λ/10. To transmit a low frequency signal
antenna height required is very high. To reduce the antenna height, the low frequency
signal is converted into a high frequency signal by modulation.
(2) For multiplexing of signals
Multiplexing allows transmission of more than one signal through the same
communication channel. By modulation it is possible to allot different frequencies to
various signals so that there is no interference.
(3) To reduce noise and interference
Sometimes the effect of noise will be more at some frequencies and the effect will be less
at some other frequencies. lf the effect of noise is more at some particular frequency, by
modulation the spectrum is shifted to higher frequencies where the effect of noise is less.
(4) For narrow banding of signals
Not only the antenna height, the antenna dimensions also depends on operating
wavelength to transmit a wideband signal. Single antenna will not be sufficient because
the ratio between the highest frequency to lowest frequency is very much greater than
one.
Modulation converts a wideband signal into a narrow band signal whose ratio between
highest frequency to lowest frequency is approximately one and single antenna will be
sufficient to transmit the signal.
>> 1→ Wideband signal
1→ Narrow band signal

Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11

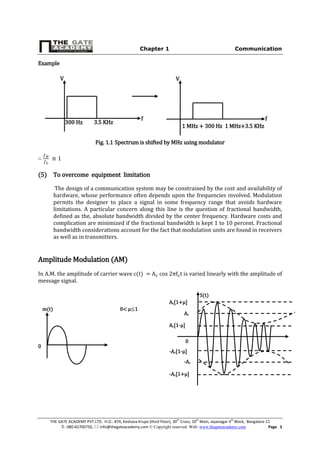

Example
Fig. 1.1 Spectrum is shifted by MHz using modulator
1
(5) To overcome equipment limitation
The design of a communication system may be constrained by the cost and availability of
hardware, whose performance often depends upon the frequencies involved. Modulation
permits the designer to place a signal in some frequency range that avoids hardware
limitations. A particular concern along this line is the question of fractional bandwidth,
defined as the, absolute bandwidth divided by the center frequency. Hardware costs and
complication are minimized if the fractional bandwidth is kept 1 to 10 percent. Fractional
bandwidth considerations account for the fact that modulation units are found in receivers
as well as in transmitters.
Amplitude Modulation (AM)
In A.M. the amplitude of carrier wave c(t) = cos 2πf t is varied linearly with the amplitude of
message signal.
0
Ac[1+μ]
Ac
Ac[1-μ]
0
-Ac[1-μ]
-Ac
-Ac[1+μ]
m(t) 0< μ 1
S(t)
1 MHz + 300 Hz 1 MHz+3.5 KHz
300 Hz 3.5 KHz
V
f
V
f

Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
Time domain equation of AM
The standard form of AM wave is defined by,
S(t)= cos 2πf t+ k m(t) cos 2πf t = [1+k m(t)]cos2πf t …….(1.1)
The amplitude of the carrier before modulation is and the amplitude of the carrier after
modulation is [1+ m(t)] (After modulation the carrier amplitude depends on the message
signal),k =amplitude sensitivity of the modulator.
Envelope of AM wave S(t) is given by,
a(t) = 1 + m(t)| ……..(1.2)
The maximum absolute value of m(t) multiplied by 100 is referred as percentage
modulation.
When | m(t)| 1 for all t, the term [1 + m(t)] is always non-negative, on the other hand
when m(t)| >1 for all t, the term [1 + m(t)] will not be always non- negative and the AM
wave is said to be over modulated and it is said that wave suffer from envelope distortion.
0
t
0
0
0
t
t
t
Message
AM signal
e-t
Fig. 1.2 Amplitude Modulation

Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11

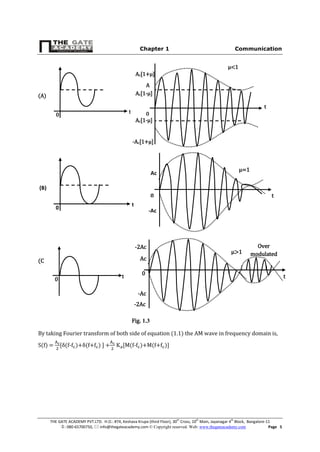

By taking Fourier transform of both side of equation (1.1) the AM wave in frequency domain is,
S(f) = [δ(f-f )+δ(f+f ) ] + [M(f-f )+M(f+f )]
0
(C
)
t t
Ac
0
-Ac
μ>1
-2Ac
Over
modulated
signal
-2Ac
Fig. 1.3
0
(B)
t
Ac
0
-Ac
μ=1
t
0
(A)
t
Ac[1+μ]
A
cAc[1-μ]
0
t
μ<1
Ac[1-μ]
-Ac[1+μ]

Cross, 10th
Main, Jayanagar 4th
Block, Bangalore-11
Fig. 1.4 (a) Spectrum of message signal (b) spectrum of AM wave
The condition > W ensures that the side bands do not overlap otherwise, the modulated wave
exhibits spectral overlap and therefore, frequency distortion.
Bandwidth of the A.M signal = 2W
= 2× message bandwidth,
Bandwidth of USB=W
Bandwidth of LSB=W
Single Tone Modulation of AM
When the message contains single frequency or single tone, the modulation is called single tone
modulation. Message signal, M(t)= cos (2πf t)
Spectrum of message is given by, M(f) = [δ(f-f ) + δ(f +f )]
The time domain equation of AM for single tone modulation is,
S(t) = cos (2πf t) + cos (2πf t).cos (2πf t)
-fm fm
f
0
Fig. 1.5 Spectrum of message signal
fc fc+wfc-w-fc+w-fc-w -fc
Ac/2
( )
S(f)
USB
LSB
2 w(b)
f
M(f)
M(0
)
0 w-w f
(a)
