SDI Nitrox
- 1.
- 2. Why Nitrox? • Fewrecent advances have had as much as impact on divers as: – Enriched Air Nitrox. – Nitrox programmable dive computers. • Nitrox lets divers enjoy: – Longer bottom times. – Shorter surface intervals.

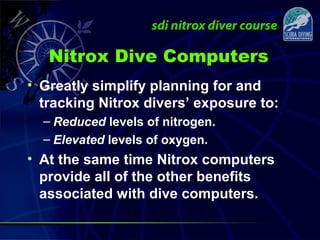

- 3. Nitrox Dive Computers •Greatly simplify planning for and tracking Nitrox divers’ exposure to: – Reduced levels of nitrogen. – Elevated levels of oxygen. • At the same time Nitrox computers provide all of the other benefits associated with dive computers.

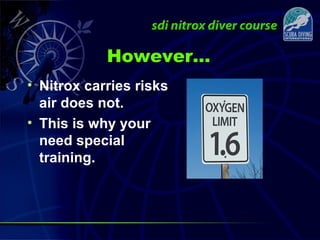

- 4. However… • Nitrox carriesrisks air does not. • This is why your need special training.

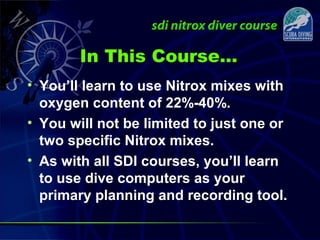

- 5. In This Course… •You’ll learn to use Nitrox mixes with oxygen content of 22%-40%. • You will not be limited to just one or two specific Nitrox mixes. • As with all SDI courses, you’ll learn to use dive computers as your primary planning and recording tool.

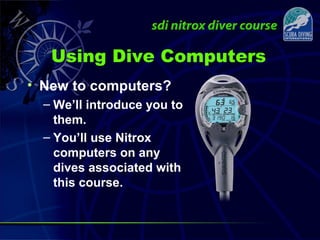

- 6. Using Dive Computers •New to computers? – We’ll introduce you to them. – You’ll use Nitrox computers on any dives associated with this course.

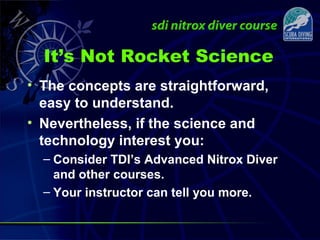

- 7. It’s Not RocketScience • The concepts are straightforward, easy to understand. • Nevertheless, if the science and technology interest you: – Consider TDI’s Advanced Nitrox Diver and other courses. – Your instructor can tell you more.

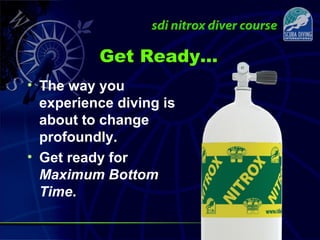

- 8. Get Ready… • Theway you experience diving is about to change profoundly. • Get ready for Maximum Bottom Time.

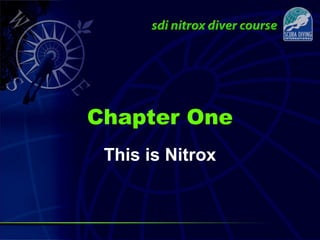

- 9.

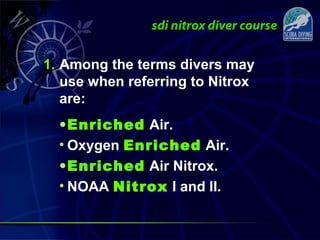

- 10. 1. Among theterms divers may use when referring to Nitrox are: •Enriched Air. • Oxygen Enriched Air. •Enriched Air Nitrox. • NOAA Nitrox I and II.

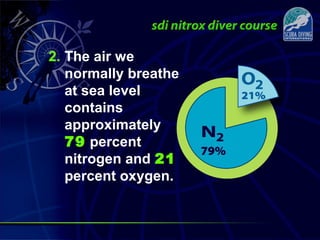

- 11. 2. The airwe normally breathe at sea level contains approximately 79 percent nitrogen and 21 percent oxygen.

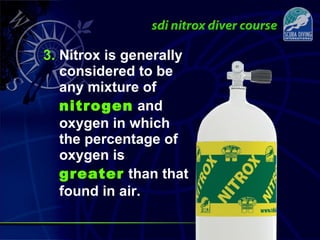

- 12. 3. Nitrox isgenerally considered to be any mixture of nitrogen and oxygen in which the percentage of oxygen is greater than that found in air.

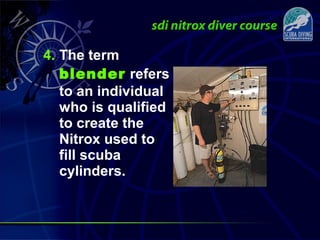

- 13. 4. The term blenderrefers to an individual who is qualified to create the Nitrox used to fill scuba cylinders.
- 14. 5. According toyour study materials, among the common Nitrox mixtures sport divers use are: • EAN 30. • EAN 32. • EAN 36.

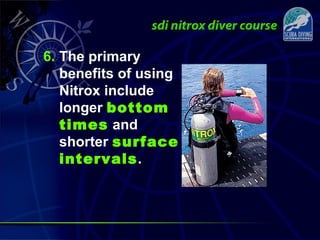

- 15. 6. The primary benefitsof using Nitrox include longer bottom times and shorter surface intervals.
- 16. 7. During any24- hour period, you can be exposed to a Nitrox mixture at its Maximum Operating Depth (MOD) for up to 150 minutes.

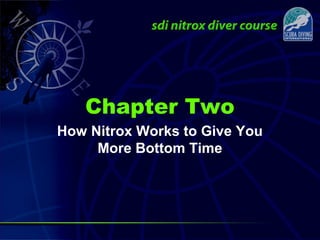

- 17. How Nitrox Worksto Give You More Bottom Time Chapter Two
- 18. 1. Dive computers workby calculating the approximate amount of excess nitrogen present in your body, based on factors such as depth and time.

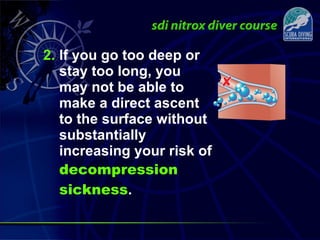

- 19. 2. If yougo too deep or stay too long, you may not be able to make a direct ascent to the surface without substantially increasing your risk of decompression sickness.
- 20. 3. A decompressionstop involves pausing at a fixed depth for a specified period of time to allow excess nitrogen to exit your body more slowly.

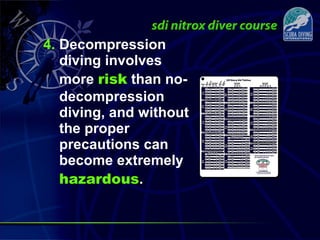

- 21. 4. Decompression diving involves morerisk than no- decompression diving, and without the proper precautions can become extremely hazardous.

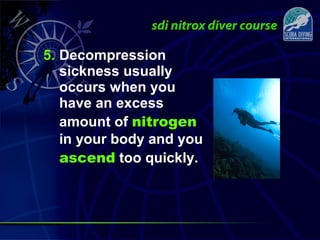

- 22. 5. Decompression sickness usually occurswhen you have an excess amount of nitrogen in your body and you ascend too quickly.

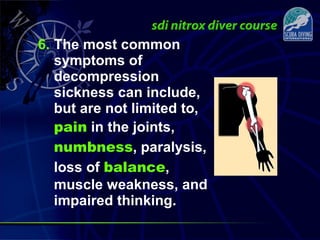

- 23. 6. The mostcommon symptoms of decompression sickness can include, but are not limited to, pain in the joints, numbness, paralysis, loss of balance, muscle weakness, and impaired thinking.

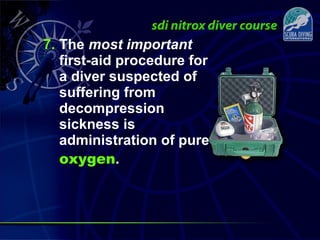

- 24. 7. The mostimportant first-aid procedure for a diver suspected of suffering from decompression sickness is administration of pure oxygen.

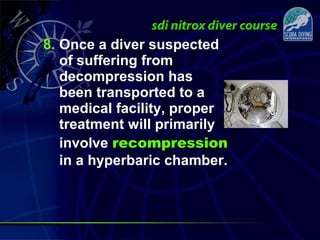

- 25. 8. Once adiver suspected of suffering from decompression has been transported to a medical facility, proper treatment will primarily involve recompression in a hyperbaric chamber.
- 26. 9. The minimum concentrationof oxygen required to maintain consciousness at sea level is 16 percent.

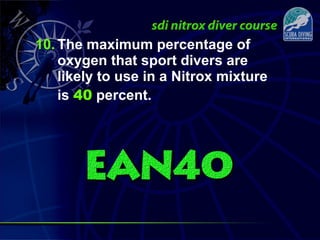

- 27. 10. The maximumpercentage of oxygen that sport divers are likely to use in a Nitrox mixture is 40 percent.

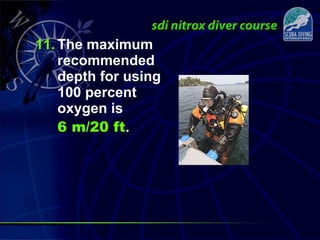

- 28. 11. The maximum recommended depthfor using 100 percent oxygen is 6 m/20 ft.
- 29. 12. The term EAN32refers to a Nitrox mixture in which the Fraction of Oxygen is 32 percent.

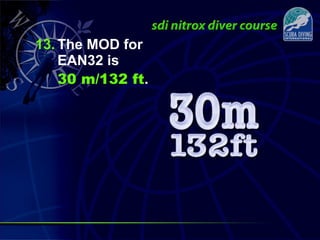

- 30. 13. The MODfor EAN32 is 30 m/132 ft.

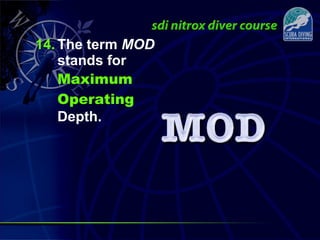

- 31. 14. The termMOD stands for Maximum Operating Depth.

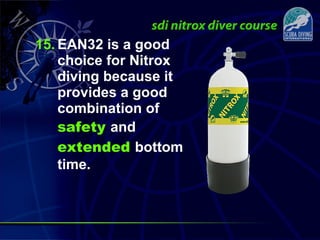

- 32. 15. EAN32 isa good choice for Nitrox diving because it provides a good combination of safety and extended bottom time.

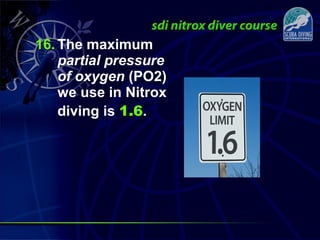

- 33. 16. The maximum partialpressure of oxygen (PO2) we use in Nitrox diving is 1.6.

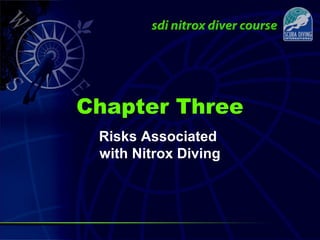

- 34. Risks Associated with NitroxDiving Chapter Three

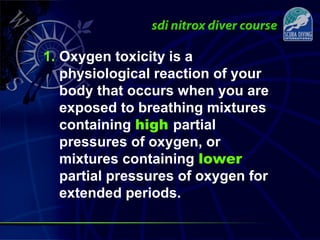

- 35. 1. Oxygen toxicityis a physiological reaction of your body that occurs when you are exposed to breathing mixtures containing high partial pressures of oxygen, or mixtures containing lower partial pressures of oxygen for extended periods.

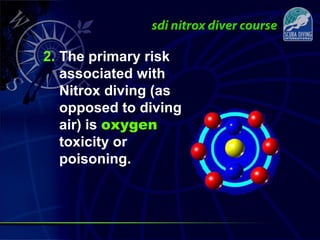

- 36. 2. The primaryrisk associated with Nitrox diving (as opposed to diving air) is oxygen toxicity or poisoning.

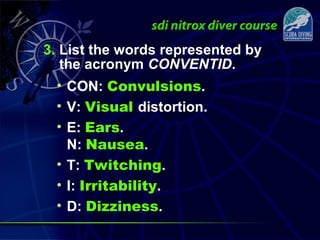

- 37. 3. List thewords represented by the acronym CONVENTID. • CON: Convulsions. • V: Visual distortion. • E: Ears. N: Nausea. • T: Twitching. • I: Irritability. • D: Dizziness.
- 38. 4. The followingare factors that may increase a diver’s susceptibility to oxygen toxicity: • Overheating. • Insulin-dependent diabetes. • Vitamin E deficiency. • An overactive thyroid (hyperthyroid) gland. • Inadequate thermal protection.

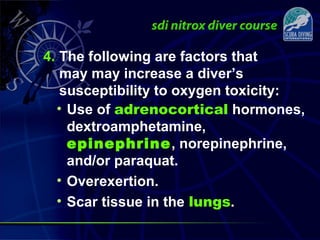

- 39. 4. The followingare factors that may may increase a diver’s susceptibility to oxygen toxicity: • Use of adrenocortical hormones, dextroamphetamine, epinephrine, norepinephrine, and/or paraquat. • Overexertion. • Scar tissue in the lungs.
- 40. 5. The followingare things divers can do to help minimize the general risks associated with Nitrox and other forms of diving: • Get the training necessary for the type of diving you are doing. • Use only complete and well- maintained equipment. • Maintain adequate health and fitness for diving. Dive regularly.

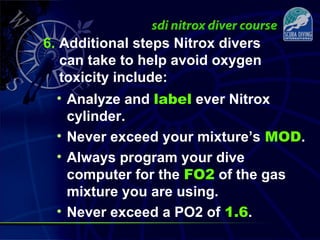

- 41. 6. Additional stepsNitrox divers can take to help avoid oxygen toxicity include: • Analyze and label ever Nitrox cylinder. • Never exceed your mixture’s MOD. • Always program your dive computer for the FO2 of the gas mixture you are using. • Never exceed a PO2 of 1.6.

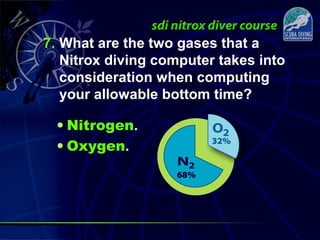

- 42. 7. What arethe two gases that a Nitrox diving computer takes into consideration when computing your allowable bottom time? • Nitrogen. • Oxygen.

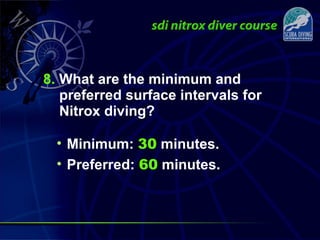

- 43. 8. What arethe minimum and preferred surface intervals for Nitrox diving? • Minimum: 30 minutes. • Preferred: 60 minutes.

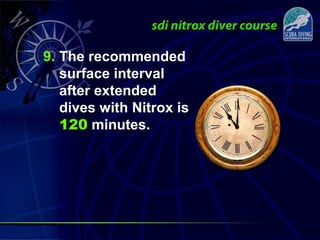

- 44. 9. The recommended surfaceinterval after extended dives with Nitrox is 120 minutes.
- 45. Selecting Equipment for NitroxDiving Chapter Four

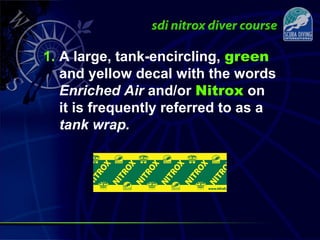

- 46. 1. A large,tank-encircling, green and yellow decal with the words Enriched Air and/or Nitrox on it is frequently referred to as a tank wrap.
- 47. 2. The twomost important pieces of information that will appear on a Nitrox fill tag or label are FO2 and MOD.

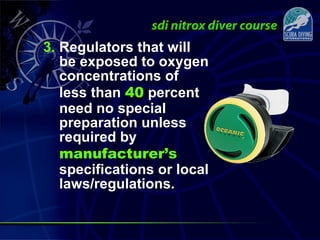

- 48. 3. Regulators thatwill be exposed to oxygen concentrations of less than 40 percent need no special preparation unless required by manufacturer’s specifications or local laws/regulations.

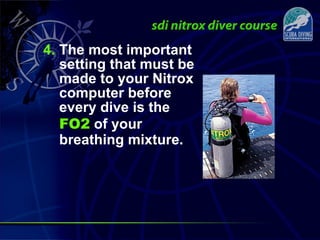

- 49. 4. The mostimportant setting that must be made to your Nitrox computer before every dive is the FO2 of your breathing mixture.

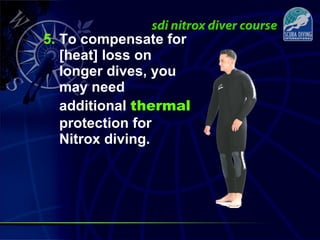

- 50. 5. To compensatefor [heat] loss on longer dives, you may need additional thermal protection for Nitrox diving.
- 51. 6. An oxygen analyzeris an electronic device used to measure the percentage of oxygen in a gas mixture.
- 52. 7. Because they comein contact with Nitrox only at very low pressures, BCa and dry suit valves do not need to be cleaned for oxygen service.

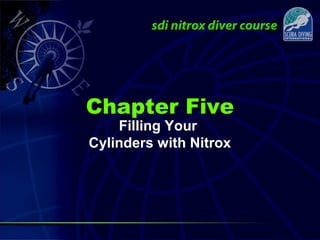

- 53. Filling Your Cylinders withNitrox Chapter Five

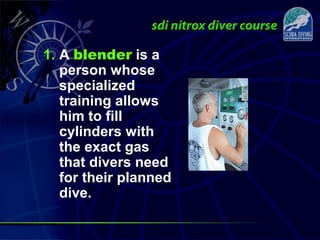

- 54. 1. A blenderis a person whose specialized training allows him to fill cylinders with the exact gas that divers need for their planned dive.
- 55. 2. What isthe acceptable range of accuracy blenders must adhere to when asked to supply a Nitrox mixture with a particular FO2? • Plus or minus one percent.

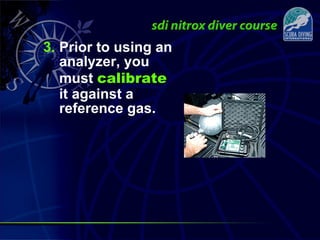

- 56. 3. Prior tousing an analyzer, you must calibrate it against a reference gas.

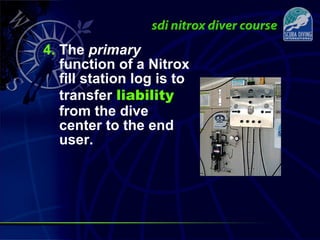

- 57. 4. The primary functionof a Nitrox fill station log is to transfer liability from the dive center to the end user.
- 58. Planning the NitroxDive Chapter Six

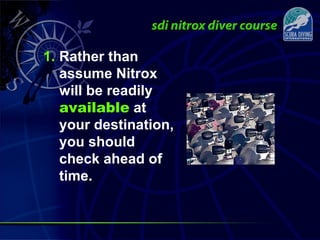

- 59. 1. Rather than assumeNitrox will be readily available at your destination, you should check ahead of time.
- 60. 2. If youdo not set your dive computer’s FO2 prior to every dive, it will typically default to 21 percent.

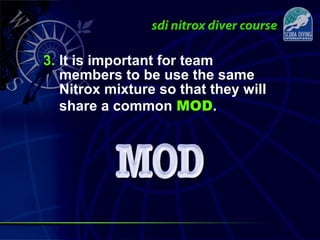

- 61. 3. It isimportant for team members to be use the same Nitrox mixture so that they will share a common MOD.
- 62.
- 63. 1. Recreational diving activitiesthat take place beyond the commonly accepted sport diving limits are referred to as technical diving.

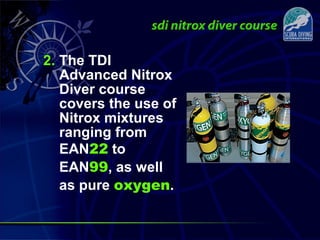

- 64. 2. The TDI AdvancedNitrox Diver course covers the use of Nitrox mixtures ranging from EAN22 to EAN99, as well as pure oxygen.

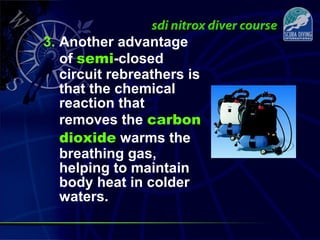

- 65. 3. Another advantage ofsemi-closed circuit rebreathers is that the chemical reaction that removes the carbon dioxide warms the breathing gas, helping to maintain body heat in colder waters.
- 66. 4. The keyreason why technical divers generally prefer Trimix for dives past 40 m/132 ft is that the helium Trimix contains helps reduce the concentration and, thus, the narcotic effect of the nitrogen in the gas mixture.
