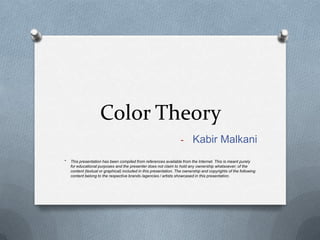

1. Color Theory
- Kabir Malkani
* This presentation has been compiled from references available from the Internet. This is meant purely
for educational purposes and the presenter does not claim to hold any ownership whatsoever; of the
content (textual or graphical) included in this presentation. The ownership and copyrights of the following
content belong to the respective brands /agencies / artists showcased in this presentation.

2. Topics Covered
1. The Science of Color
2. The Color Wheel (History)
3. Primary Colors
4. Secondary Colors
5. Tertiary Colors
6. Properties of Color
7. Color Systems
8. Color Schemes
9. Creating a Custom Color Scheme

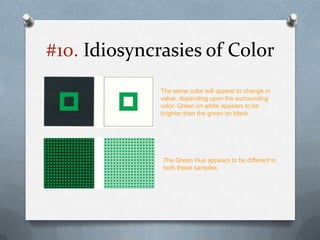

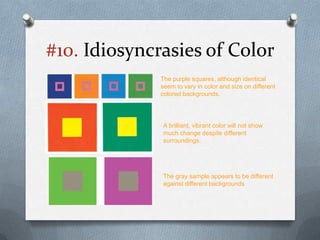

10. Idiosyncrasies of Color

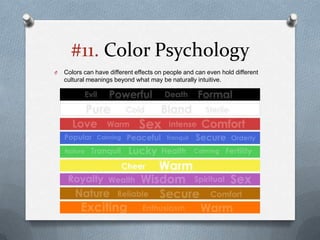

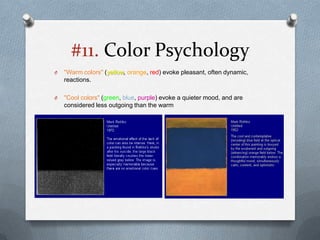

11. Color Psychology

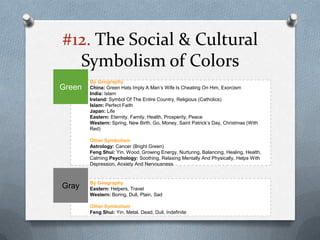

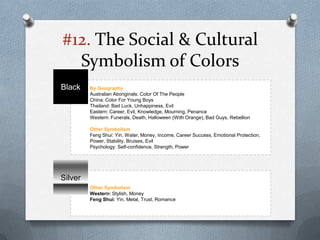

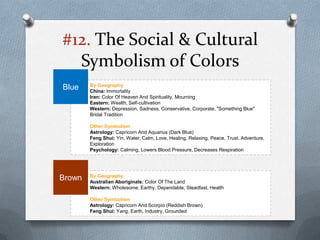

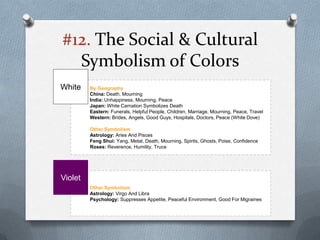

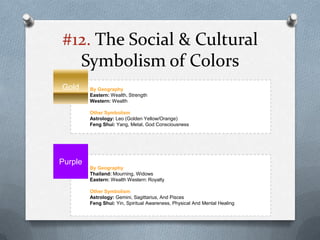

12. The Social & Cultural Symbolism of Colors

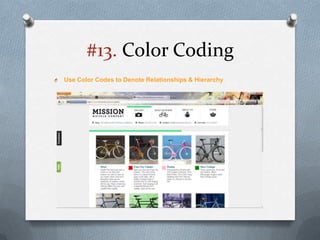

13. Color Coding
14. Perceptual Disabilities
15. The Gender Connotations of Colors

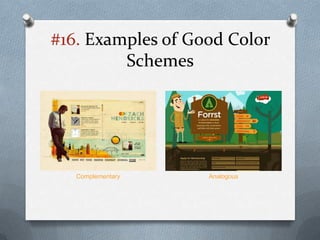

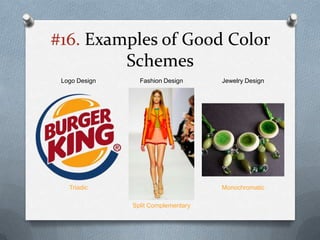

16. Examples of Good Color Schemes

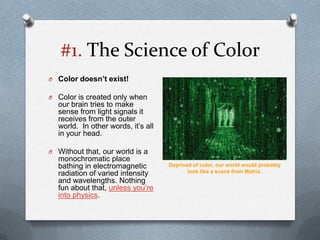

3. #1. The Science of Color
O Color doesn’t exist!
O Color is created only when
our brain tries to make
sense from light signals it
receives from the outer
world. In other words, it’s all
in your head.
O Without that, our world is a
monochromatic place
bathing in electromagnetic Deprived of color, our world would probably
radiation of varied intensity look like a scene from Matrix.
and wavelengths. Nothing
fun about that, unless you’re
into physics.

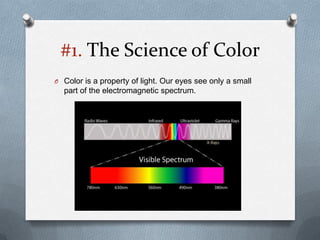

4. #1. The Science of Color
O Color is a property of light. Our eyes see only a small
part of the electromagnetic spectrum.

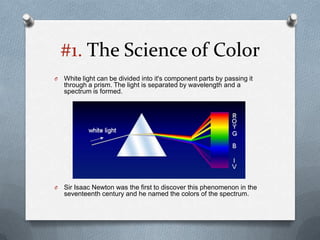

5. #1. The Science of Color
O White light can be divided into it's component parts by passing it
through a prism. The light is separated by wavelength and a
spectrum is formed.
O Sir Isaac Newton was the first to discover this phenomenon in the
seventeenth century and he named the colors of the spectrum.

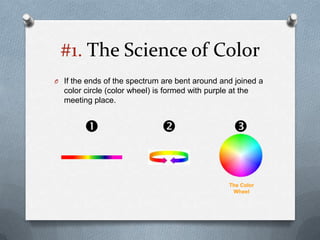

6. #1. The Science of Color
O If the ends of the spectrum are bent around and joined a
color circle (color wheel) is formed with purple at the
meeting place.
  
The Color
Wheel

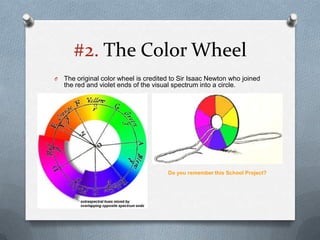

7. #2. The Color Wheel
O The original color wheel is credited to Sir Isaac Newton who joined
the red and violet ends of the visual spectrum into a circle.
Do you remember this School Project?

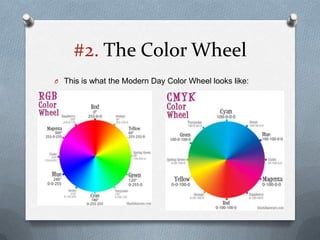

8. #2. The Color Wheel
O This is what the Modern Day Color Wheel looks like:

9. #3. Primary Colors
O The primary colors are Red, Yellow and
Blue
These colors cannot be mixed
from any other colors. The triangle
they form on the color wheel is
called the
primary triad.

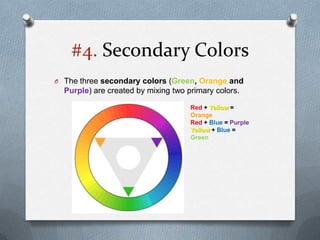

10. #4. Secondary Colors
O The three secondary colors (Green, Orange and
Purple) are created by mixing two primary colors.
Red + Yellow =
Orange
Red + Blue = Purple
Yellow + Blue =
Green

11. #5. Tertiary Colors
O When a primary color is mixed with a secondary color
tertiary colors are made
Yellow + Green = Lime Green
Green + Blue = Turquoise
Blue +Purple = Violet
Purple + Red = Magenta
Red + Orange = Vermillion
Orange + Yellow = Light
Orange

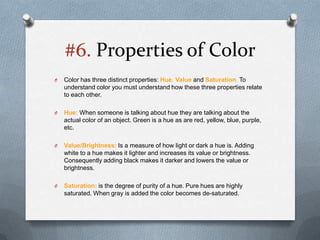

12. #6. Properties of Color
O Color has three distinct properties: Hue, Value and Saturation. To
understand color you must understand how these three properties relate
to each other.
O Hue: When someone is talking about hue they are talking about the
actual color of an object. Green is a hue as are red, yellow, blue, purple,
etc.
O Value/Brightness: Is a measure of how light or dark a hue is. Adding
white to a hue makes it lighter and increases its value or brightness.
Consequently adding black makes it darker and lowers the value or
brightness.
O Saturation: is the degree of purity of a hue. Pure hues are highly
saturated. When gray is added the color becomes de-saturated.

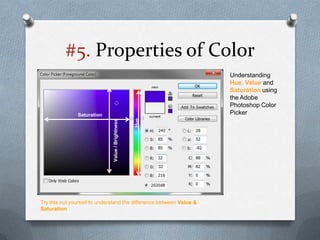

13. #5. Properties of Color
Understanding
Hue, Value and
Saturation using
the Adobe
Photoshop Color
Saturation Picker
Hue
Value / Brightness
Try this out yourself to understand the difference between Value &
Saturation

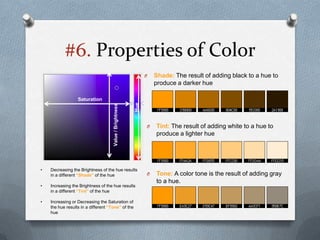

14. #6. Properties of Color
O Shade: The result of adding black to a hue to
produce a darker hue
Saturation
Hue
Value / Brightness
O Tint: The result of adding white to a hue to
produce a lighter hue
• Decreasing the Brightness of the hue results
in a different “Shade” of the hue O Tone: A color tone is the result of adding gray
to a hue.
• Increasing the Brightness of the hue results
in a different “Tint” of the hue
• Increasing or Decreasing the Saturation of
the hue results in a different “Tone” of the
hue

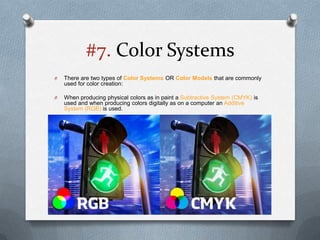

15. #7. Color Systems
O There are two types of Color Systems OR Color Models that are commonly
used for color creation:
O When producing physical colors as in paint a Subtractive System (CMYK) is
used and when producing colors digitally as on a computer an Additive
System (RGB) is used.

16. #7. Color Systems

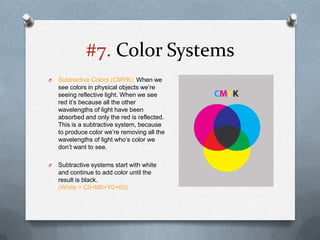

O Subtractive Colors (CMYK): When we
see colors in physical objects we’re
seeing reflective light. When we see
red it’s because all the other
wavelengths of light have been
absorbed and only the red is reflected.
This is a subtractive system, because
to produce color we’re removing all the
wavelengths of light who’s color we
don’t want to see.
O Subtractive systems start with white
and continue to add color until the
result is black.
(White = C0+M0+Y0+K0)

17. #7. Color Systems

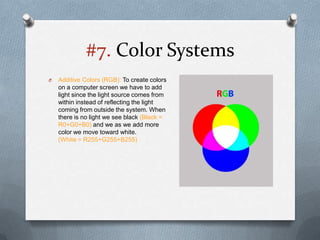

O Additive Colors (RGB): To create colors
on a computer screen we have to add
light since the light source comes from
within instead of reflecting the light
coming from outside the system. When
there is no light we see black (Black =
R0+G0+B0) and we as we add more
color we move toward white.
(White = R255+G255+B255)

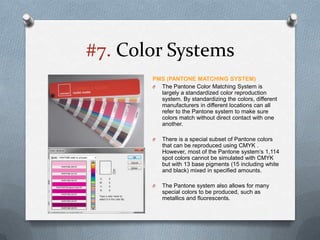

18. #7. Color Systems
PMS (PANTONE MATCHING SYSTEM)
O The Pantone Color Matching System is
largely a standardized color reproduction
system. By standardizing the colors, different
manufacturers in different locations can all
refer to the Pantone system to make sure
colors match without direct contact with one
another.
O There is a special subset of Pantone colors
that can be reproduced using CMYK .
However, most of the Pantone system’s 1,114
spot colors cannot be simulated with CMYK
but with 13 base pigments (15 including white
and black) mixed in specified amounts.
O The Pantone system also allows for many
special colors to be produced, such as
metallics and fluorescents.

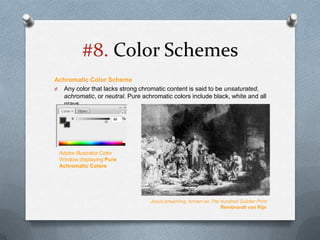

19. #8. Color Schemes
Achromatic Color Scheme
O Any color that lacks strong chromatic content is said to be unsaturated,
achromatic, or neutral. Pure achromatic colors include black, white and all
grays.
Adobe Illustrator Color
Window displaying Pure
Achromatic Colors
Jesus preaching, known as The hundred Guilder Print
Rembrandt van Rijn

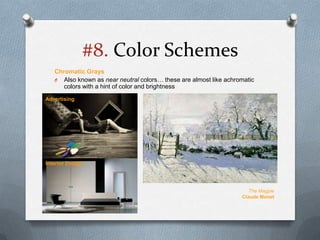

20. #8. Color Schemes
Chromatic Grays
O Also known as near neutral colors… these are almost like achromatic
colors with a hint of color and brightness
Advertising
Interior Design
The Magpie
Claude Monet

21. #8. Color Schemes

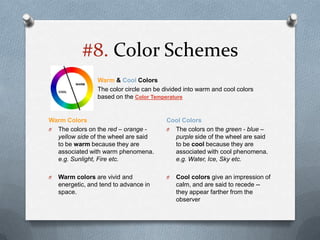

Warm & Cool Colors
The color circle can be divided into warm and cool colors
based on the Color Temperature
Warm Colors Cool Colors
O The colors on the red – orange - O The colors on the green - blue –
yellow side of the wheel are said purple side of the wheel are said
to be warm because they are to be cool because they are
associated with warm phenomena. associated with cool phenomena.
e.g. Sunlight, Fire etc. e.g. Water, Ice, Sky etc.
O Warm colors are vivid and O Cool colors give an impression of
energetic, and tend to advance in calm, and are said to recede --
space. they appear farther from the
observer

22. #8. Color Schemes

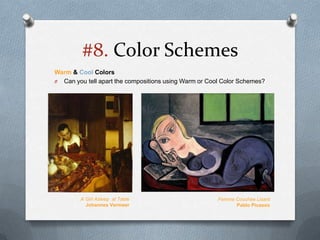

Warm & Cool Colors
O Can you tell apart the compositions using Warm or Cool Color Schemes?
A Girl Asleep at Table Femme Couchée Lisant
Johannes Vermeer Pablo Picasso

23. #8. Color Schemes
Monochromatic Colors
O Monochromatic color schemes are made up of different tones, shades and tints within a
specific hue. These are the simplest color schemes to create, as they’re all taken from the
same hue, making it harder to create a jarring or ugly scheme (though both are still possible).
Monochromatic
Schemes can be
represented by a
single spoke of the
color wheel
Examples
Interiors following a
Monochromatic Color Scheme

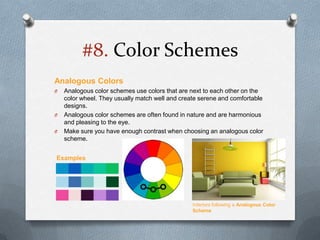

24. #8. Color Schemes
Analogous Colors
O Analogous color schemes use colors that are next to each other on the
color wheel. They usually match well and create serene and comfortable
designs.
O Analogous color schemes are often found in nature and are harmonious
and pleasing to the eye.
O Make sure you have enough contrast when choosing an analogous color
scheme.
Examples
Interiors following a Analogous Color
Scheme

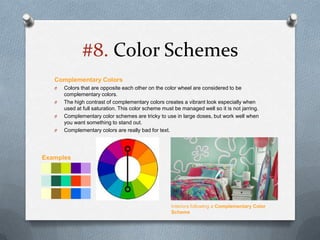

25. #8. Color Schemes
Complementary Colors
O Colors that are opposite each other on the color wheel are considered to be
complementary colors.
O The high contrast of complementary colors creates a vibrant look especially when
used at full saturation. This color scheme must be managed well so it is not jarring.
O Complementary color schemes are tricky to use in large doses, but work well when
you want something to stand out.
O Complementary colors are really bad for text.
Examples
Interiors following a Complementary Color
Scheme

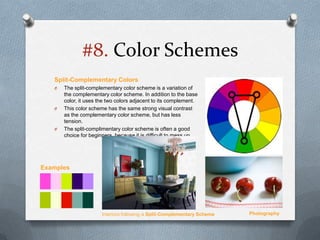

26. #8. Color Schemes
Split-Complementary Colors
O The split-complementary color scheme is a variation of
the complementary color scheme. In addition to the base
color, it uses the two colors adjacent to its complement.
O This color scheme has the same strong visual contrast
as the complementary color scheme, but has less
tension.
O The split-complimentary color scheme is often a good
choice for beginners, because it is difficult to mess up.
Examples
Interiors following a Split-Complementary Scheme Photography

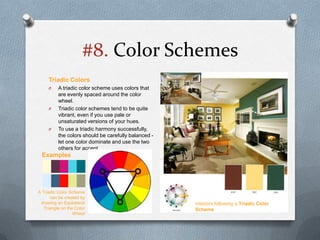

27. #8. Color Schemes
Triadic Colors
O A triadic color scheme uses colors that
are evenly spaced around the color
wheel.
O Triadic color schemes tend to be quite
vibrant, even if you use pale or
unsaturated versions of your hues.
O To use a triadic harmony successfully,
the colors should be carefully balanced -
let one color dominate and use the two
others for accent.
Examples
A Triadic Color Scheme
can be created by
drawing an Equilateral Interiors following a Triadic Color
Triangle on the Color Scheme
Wheel

28. #8. Color Schemes
Double Complementary (Tetradic) Colors
O The rectangle or tetradic color scheme uses four colors arranged into two
complementary pairs.
O This rich color scheme offers plenty of possibilities for variation.
O Tetradic color schemes works best if you let one color be dominant.
O You should also pay attention to the balance between warm and cool colors in your
design.
Examples
This painting
uses red as the
dominate color
with blue, yellow
A Double Complementary and green as
Color Scheme can be accents.
created by drawing a
Rectangle on the Color
Wheel

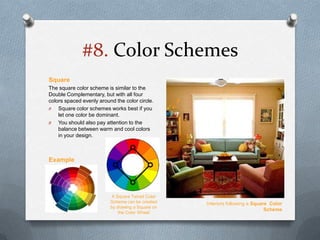

29. #8. Color Schemes
Square
The square color scheme is similar to the
Double Complementary, but with all four
colors spaced evenly around the color circle.
O Square color schemes works best if you
let one color be dominant.
O You should also pay attention to the
balance between warm and cool colors
in your design.
Example
A Square Tetrad Color
Scheme can be created Interiors following a Square Color
by drawing a Square on
Scheme
the Color Wheel

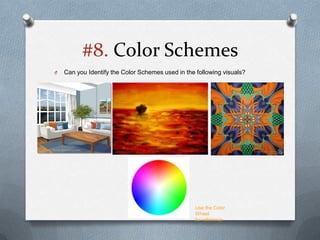

30. #8. Color Schemes
O Can you Identify the Color Schemes used in the following visuals?
Use the Color
Wheel
for reference

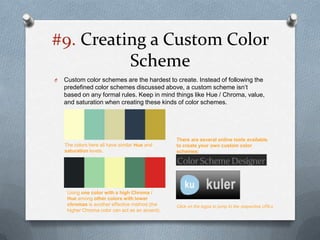

31. #9. Creating a Custom Color
Scheme
O Custom color schemes are the hardest to create. Instead of following the
predefined color schemes discussed above, a custom scheme isn’t
based on any formal rules. Keep in mind things like Hue / Chroma, value,
and saturation when creating these kinds of color schemes.
There are several online tools available
The colors here all have similar Hue and to create your own custom color
saturation levels. schemes:
Using one color with a high Chroma /
Hue among other colors with lower
chromas is another effective method (the Click on the logos to jump to the respective URLs
higher Chroma color can act as an accent).

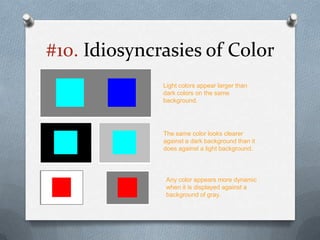

32. #10. Idiosyncrasies of Color
Light colors appear larger than
dark colors on the same
background.
The same color looks clearer
against a dark background than it
does against a light background.
Any color appears more dynamic
when it is displayed against a
background of gray.

33. #10. Idiosyncrasies of Color
The purple squares, although identical
seem to vary in color and size on different
colored backgrounds.
A brilliant, vibrant color will not show
much change despite different
surroundings.
The gray sample appears to be different
against different backgrounds

34. #10. Idiosyncrasies of Color
The same color will appear to change in
value, depending upon the surrounding
color. Green on white appears to be
brighter than the green on black.
The Green Hue appears to be different in
both these samples.

35. #11. Color Psychology
O "Warm colors" (yellow, orange, red) evoke pleasant, often dynamic,
reactions.
O "Cool colors" (green, blue, purple) evoke a quieter mood, and are
considered less outgoing than the warm

36. #11. Color Psychology
O Colors can have different effects on people and can even hold different
cultural meanings beyond what may be naturally intuitive.

37. #12. The Social & Cultural
Symbolism of Colors
O Understand the Social & Cultural Symbolism of Colors. Colors carry a strong emotional
weight for most people, due to the social connotations that are often associated with them.
Red By Geography
Australian Aboriginals: Land, Earth
China: Good Luck, Celebration, Summoning
Israel: Sacrifice, Sin
India: Purity
South Africa: Color Of Mourning
Russia: Bolsheviks And Communism
Eastern: Worn By Brides, Happiness And Prosperity
Western: Excitement, Danger, Love, Passion, Stop, Christmas (With Green),
Valentine’s Day
Other Symbolism
Astrology: Gemini
Feng Shui: Yang, Fire, Good Luck, Money, Respect, Recognition, Vitality
Psychology: Stimulates Brain Wave Activity, Increases Heart Rate,
Increases Blood Pressure
Roses: Love, Respect — Red And Yellow Together Means Gaiety, Joviality.

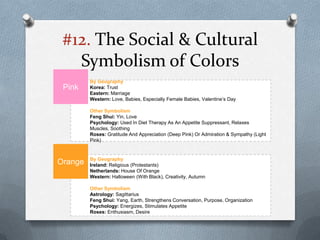

38. #12. The Social & Cultural
Symbolism of Colors
By Geography
Pink Korea: Trust
Eastern: Marriage
Western: Love, Babies, Especially Female Babies, Valentine’s Day
Other Symbolism
Feng Shui: Yin, Love
Psychology: Used In Diet Therapy As An Appetite Suppressant, Relaxes
Muscles, Soothing
Roses: Gratitude And Appreciation (Deep Pink) Or Admiration & Sympathy (Light
Pink)
By Geography
Orange Ireland: Religious (Protestants)
Netherlands: House Of Orange
Western: Halloween (With Black), Creativity, Autumn
Other Symbolism
Astrology: Sagittarius
Feng Shui: Yang, Earth, Strengthens Conversation, Purpose, Organization
Psychology: Energizes, Stimulates Appetite
Roses: Enthusiasm, Desire

39. #12. The Social & Cultural
Symbolism of Colors
Gold By Geography
Eastern: Wealth, Strength
Western: Wealth
Other Symbolism
Astrology: Leo (Golden Yellow/Orange)
Feng Shui: Yang, Metal, God Consciousness
Purple
By Geography
Thailand: Mourning, Widows
Eastern: Wealth Western: Royalty
Other Symbolism
Astrology: Gemini, Sagittarius, And Pisces
Feng Shui: Yin, Spiritual Awareness, Physical And Mental Healing

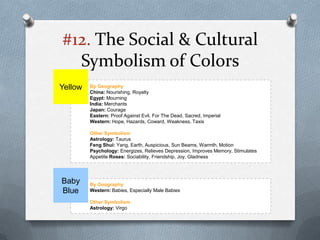

40. #12. The Social & Cultural
Symbolism of Colors
Yellow By Geography
China: Nourishing, Royalty
Egypt: Mourning
India: Merchants
Japan: Courage
Eastern: Proof Against Evil, For The Dead, Sacred, Imperial
Western: Hope, Hazards, Coward, Weakness, Taxis
Other Symbolism
Astrology: Taurus
Feng Shui: Yang, Earth, Auspicious, Sun Beams, Warmth, Motion
Psychology: Energizes, Relieves Depression, Improves Memory, Stimulates
Appetite Roses: Sociability, Friendship, Joy, Gladness
Baby By Geography
Blue Western: Babies, Especially Male Babies
Other Symbolism
Astrology: Virgo

41. #12. The Social & Cultural
Symbolism of Colors
By Geography
Green China: Green Hats Imply A Man’s Wife Is Cheating On Him, Exorcism
India: Islam
Ireland: Symbol Of The Entire Country, Religious (Catholics)
Islam: Perfect Faith
Japan: Life
Eastern: Eternity, Family, Health, Prosperity, Peace
Western: Spring, New Birth, Go, Money, Saint Patrick’s Day, Christmas (With
Red)
Other Symbolism
Astrology: Cancer (Bright Green)
Feng Shui: Yin, Wood, Growing Energy, Nurturing, Balancing, Healing, Health,
Calming Psychology: Soothing, Relaxing Mentally And Physically, Helps With
Depression, Anxiety And Nervousness
By Geography
Gray Eastern: Helpers, Travel
Western: Boring, Dull, Plain, Sad
Other Symbolism
Feng Shui: Yin, Metal, Dead, Dull, Indefinite

42. #12. The Social & Cultural
Symbolism of Colors
By Geography
Blue China: Immortality
Iran: Color Of Heaven And Spirituality, Mourning
Eastern: Wealth, Self-cultivation
Western: Depression, Sadness, Conservative, Corporate, "Something Blue"
Bridal Tradition
Other Symbolism
Astrology: Capricorn And Aquarius (Dark Blue)
Feng Shui: Yin, Water, Calm, Love, Healing, Relaxing, Peace, Trust, Adventure,
Exploration
Psychology: Calming, Lowers Blood Pressure, Decreases Respiration
By Geography
Brown Australian Aboriginals: Color Of The Land
Western: Wholesome, Earthy, Dependable, Steadfast, Health
Other Symbolism
Astrology: Capricorn And Scorpio (Reddish Brown)
Feng Shui: Yang, Earth, Industry, Grounded

43. #12. The Social & Cultural
Symbolism of Colors
White By Geography
China: Death, Mourning
India: Unhappiness, Mourning, Peace
Japan: White Carnation Symbolizes Death
Eastern: Funerals, Helpful People, Children, Marriage, Mourning, Peace, Travel
Western: Brides, Angels, Good Guys, Hospitals, Doctors, Peace (White Dove)
Other Symbolism
Astrology: Aries And Pisces
Feng Shui: Yang, Metal, Death, Mourning, Spirits, Ghosts, Poise, Confidence
Roses: Reverence, Humility, Truce
Violet
Other Symbolism
Astrology: Virgo And Libra
Psychology: Suppresses Appetite, Peaceful Environment, Good For Migraines

44. #12. The Social & Cultural
Symbolism of Colors
Black By Geography
Australian Aboriginals: Color Of The People
China: Color For Young Boys
Thailand: Bad Luck, Unhappiness, Evil
Eastern: Career, Evil, Knowledge, Mourning, Penance
Western: Funerals, Death, Halloween (With Orange), Bad Guys, Rebellion
Other Symbolism
Feng Shui: Yin, Water, Money, Income, Career Success, Emotional Protection,
Power, Stability, Bruises, Evil
Psychology: Self-confidence, Strength, Power
Silver
Other Symbolism
Western: Stylish, Money
Feng Shui: Yin, Metal, Trust, Romance

45. #13. Color Coding
O Use Color Codes to Denote Relationships & Hierarchy

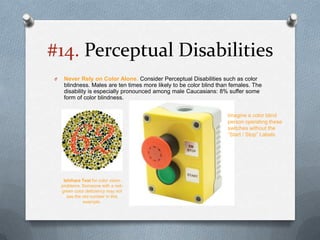

46. #14. Perceptual Disabilities
O Never Rely on Color Alone. Consider Perceptual Disabilities such as color
blindness. Males are ten times more likely to be color blind than females. The
disability is especially pronounced among male Caucasians: 8% suffer some
form of color blindness.
Imagine a color blind
person operating these
switches without the
“Start / Stop” Labels
Ishihara Test for color vision
problems. Someone with a red-
green color deficiency may not
see the red number in this
example.

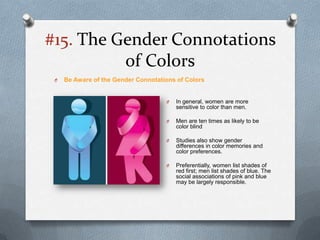

47. #15. The Gender Connotations
of Colors
O Be Aware of the Gender Connotations of Colors
O In general, women are more
sensitive to color than men.
O Men are ten times as likely to be
color blind
O Studies also show gender
differences in color memories and
color preferences.
O Preferentially, women list shades of
red first; men list shades of blue. The
social associations of pink and blue
may be largely responsible.

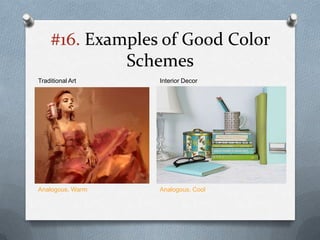

48. #16. Examples of Good Color
Schemes
Traditional Art Interior Decor
Analogous, Warm Analogous, Cool

49. #16. Examples of Good Color
Schemes
Logo Design Fashion Design Jewelry Design
Triadic Monochromatic
Split Complementary

50. #16. Examples of Good Color
Schemes
Monochromatic Achromatic

51. #16. Examples of Good Color
Schemes
Complementary Analogous

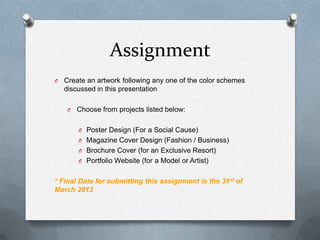

52. Assignment
O Create an artwork following any one of the color schemes
discussed in this presentation
O Choose from projects listed below:
O Poster Design (For a Social Cause)
O Magazine Cover Design (Fashion / Business)
O Brochure Cover (for an Exclusive Resort)
O Portfolio Website (for a Model or Artist)
* Final Date for submitting this assignment is the 31st of
March 2013
