1. <Insert Picture Here>
OTN Architect Day
Cloud Computing - Making IT Simple
Dr. James Baty
VP, Oracle Global Enterprise Arch. Pgm.

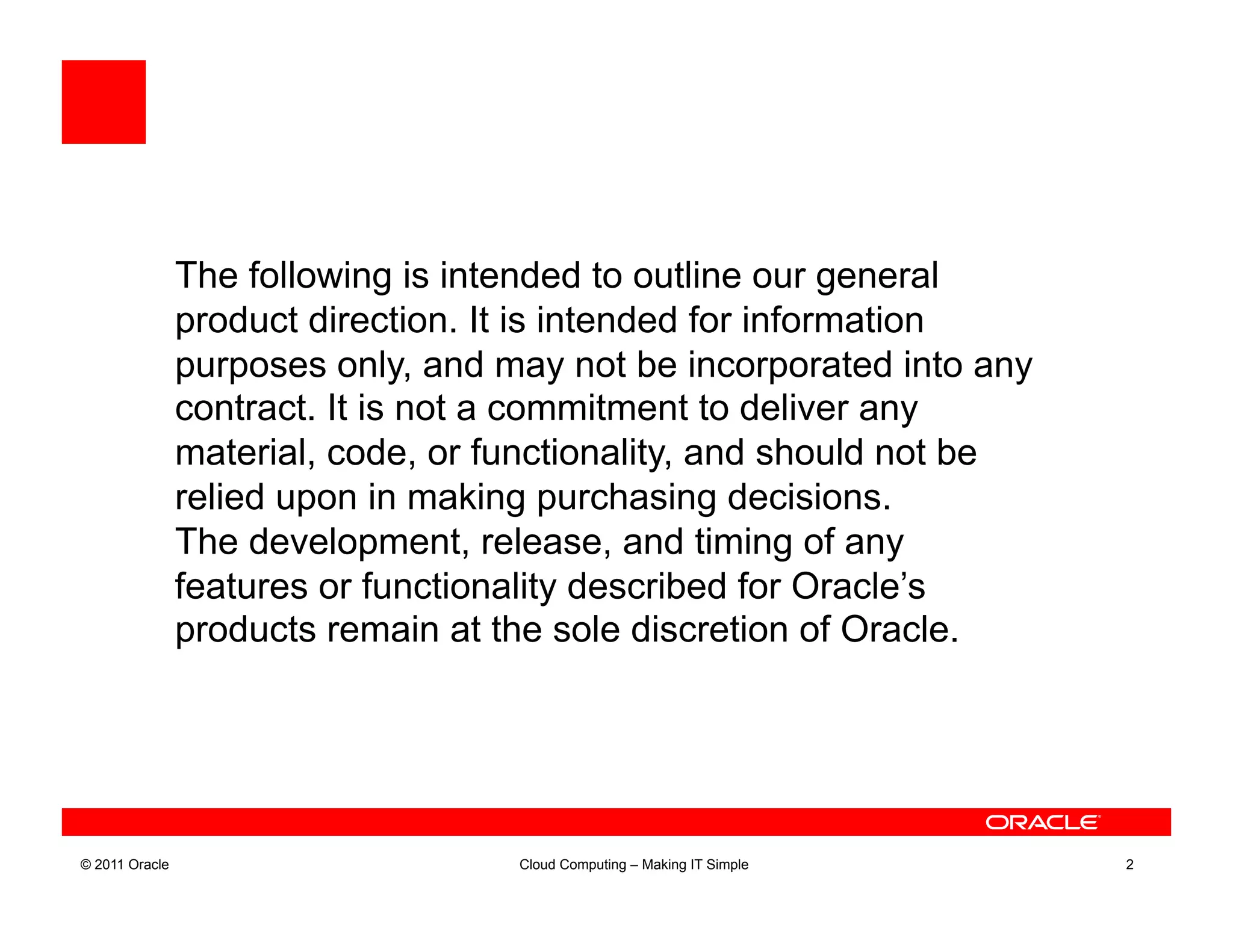

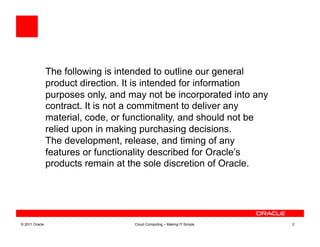

2. The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remain at the sole discretion of Oracle.
© 2011 Oracle Cloud Computing – Making IT Simple 2

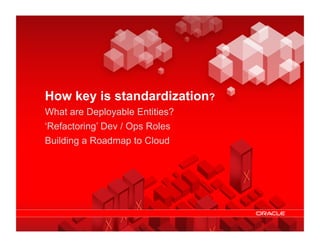

3. How key is standardization?
What are Deployable Entities?
‘Refactoring’ Dev / Ops Roles
Building a Roadmap to Cloud
© 2011 Oracle Cloud Computing – Making IT Simple 3

4. Moving to Cloud
First Inventory Applications & Workloads
Suitable for cloud now Not as suitable for cloud
Time based Vertically scaled applications
Very parallel (i.e. batch) Consistent load levels
Spiky traffic Latency sensitive applications
Capital intensive (especially Insecure applications
startup)
Hardware device dependent (e.g.
Proof of Concept fax server, SNA gateway)
Low utilization ISV unsupported
Less deployment costs Per CPU licensed applications
High bandwidth costs / high real
estate
© 2011 Oracle Cloud Computing – Making IT Simple 4

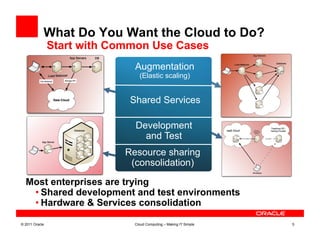

5. What Do You Want the Cloud to Do?
Start with Common Use Cases
Augmentation
(Elastic scaling)
Shared Services
Development
and Test
Resource sharing
(consolidation)
Most enterprises are trying
• Shared development and test environments
• Hardware & Services consolidation
© 2011 Oracle Cloud Computing – Making IT Simple 5

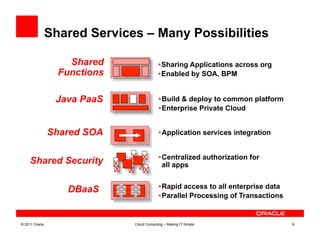

6. Shared Services – Many Possibilities
Shared • Sharing Applications across org
Functions • Enabled by SOA, BPM
Java PaaS • Build & deploy to common platform
• Enterprise Private Cloud
Shared SOA • Application services integration
X X • Centralized authorization for
Shared Security X all apps
X X XX
DBaaS • Rapid access to all enterprise data
• Parallel Processing of Transactions
© 2011 Oracle Cloud Computing – Making IT Simple 6

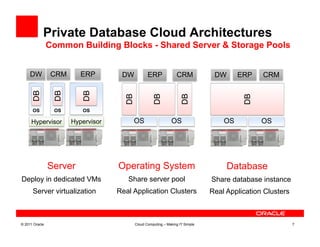

7. Private Database Cloud Architectures
Common Building Blocks - Shared Server & Storage Pools
DW CRM ERP DW ERP CRM DW ERP CRM
DB
DB
DB
DB
DB
DB
DB
OS OS OS
Hypervisor Hypervisor OS OS OS OS
Server Operating System Database
Deploy in dedicated VMs Share server pool Share database instance
Server virtualization Real Application Clusters Real Application Clusters
© 2011 Oracle Cloud Computing – Making IT Simple 7

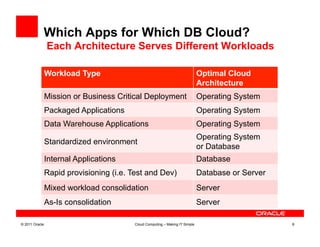

8. Which Apps for Which DB Cloud?
Each Architecture Serves Different Workloads
Workload Type Optimal Cloud
Architecture
Mission or Business Critical Deployment Operating System
Packaged Applications Operating System
Data Warehouse Applications Operating System
Operating System
Standardized environment
or Database
Internal Applications Database
Rapid provisioning (i.e. Test and Dev) Database or Server
Mixed workload consolidation Server
As-Is consolidation Server
© 2011 Oracle Cloud Computing – Making IT Simple 8

9. Database Cloud Planning
Identification of Applications to Migrate
- New applications are deployed to the Cloud
- Existing applications are migrated based on:
• Difficulty
• ROI
• Suitability
- The benefits and difficulties of consolidating existing
applications in the Cloud will vary
• Applications with highly varying peaks will show
greatest benefit
- The “lowest hanging fruit” should be migrated to the
Cloud first
© 2011 Oracle Cloud Computing – Making IT Simple 9

10. Roadmap to Cloud
Multi-Dimensional Journey
Optimize
Automate
Consolidate
Achieve new
Standardize Reduce the operational
manual tasks models &
Reduce the for managing greatest
Define a footprint of IT efficiency
single solution deployed
for a given applications
problem
Individual enterprises or applications may join the roadmap at different points
© 2011 Oracle Cloud Computing – Making IT Simple 10

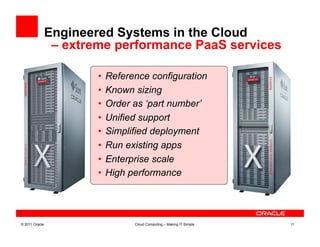

11. Engineered Systems in the Cloud
– extreme performance PaaS services
• Reference configuration
• Known sizing
• Order as ‘part number’
• Unified support
• Simplified deployment
• Run existing apps
• Enterprise scale
• High performance
© 2011 Oracle Cloud Computing – Making IT Simple 11

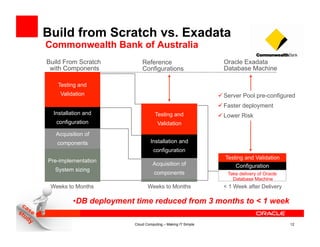

12. Build from Scratch vs. Exadata
Commonwealth Bank of Australia
Build From Scratch Reference Oracle Exadata
with Components Configurations Database Machine
Testing and
Validation  Server Pool pre-configured
 Faster deployment
Installation and Testing and  Lower Risk
configuration Validation
Acquisition of
components Installation and
configuration
Testing and Validation
Pre-implementation
Acquisition of Configuration
System sizing
components Take delivery of Oracle
Database Machine
Weeks to Months Weeks to Months < 1 Week after Delivery
• DB deployment time reduced from 3 months to < 1 week
© 2011 Oracle Cloud Computing – Making IT Simple 12

13. How key is standardization?
What are Deployable Entities?
‘Refactoring’ Dev / Ops Roles
Building a Roadmap to Cloud
© 2011 Oracle Cloud Computing – Making IT Simple 13

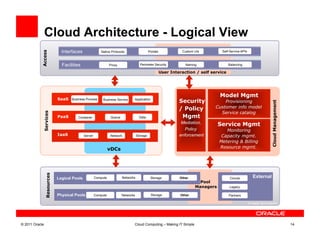

14. Cloud Architecture - Logical View
Interfaces Custom UIs Self-Service APIs
Access
Native Protocols Portals
Facilities Proxy Perimeter Security Naming Balancing
User Interaction / self service
Model Mgmt
SaaS Business Process Business Service Application
Security Provisioning
Cloud Management
/ Policy Customer info model
Service catalog
Services
PaaS Container Queue Data Mgmt
Mediation, Service Mgmt
Policy Monitoring
IaaS Server Network Storage enforcement Capacity mgmt.
Metering & Billing
vDCs Resource mgmt.
Resources
Logical Pools Compute Networks Storage Other Clouds External
Pool
Managers Legacy
Physical Pools Compute Networks Storage Other Partners
© Oracle, 2010 (GEAP)
© 2011 Oracle Cloud Computing – Making IT Simple 14

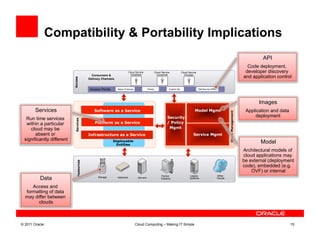

15. Compatibility & Portability Implications
API
Code deployment,
Cloud Service Cloud Service Cloud Service developer discovery
Consumers & Developer Consumer Provider
Access
Delivery Channels
and application control
Access Points Native Protocols Portals Custom UIs Self-Service APIs
Images
Services Software as a Service Model Mgmt Application and data
Cloud Management
Security deployment
Run time services
Services
within a particular Platform as a Service / Policy
cloud may be Mgmt
absent or Infrastructure as a Service Service Mgmt
significantly different Deployable
Entities
Model
Architectural models of
cloud applications may
be external (deployment
Resources
code), embedded (e.g.
OVF) or internal
Partner Legacy Other
Data Storage Networks Servers Systems Systems Clouds
© Oracle, 2010 (GEAP)
Access and
formatting of data
may differ between
clouds
© 2011 Oracle Cloud Computing – Making IT Simple 15

16. Cloud Infrastructure – Key Abstractions
– making it simple
• Separation of roles (e.g.,
Cloud Provider vs Service
Developer)
Cloud Service Cloud Service Cloud Service
Consumers & Developer Consumer Provider
• Model Management incl.
Access
Delivery Channels
Services, Consumers, etc. Access Points Native Protocols Portals Custom UIs Self-Service APIs
• Deployable Entities (aka
Software as a Service Model Mgmt
VDCs) include both Service
Cloud Management
Security
Templates and Service
Services
Platform as a Service / Policy
Mgmt
Context (e.g. – VAB Infrastructure as a Service Service Mgmt
‘Assemblies’) Deployable
Entities
• Separation of control plane
‘cloud’ mgmt vs ‘pool’
Resources
resource mgmt Partner Legacy Other
Storage Networks Servers Systems Clouds
Systems
© Oracle, 2010 (GEAP)
• Resources abstracted as
logical resource “pools”
which are addressable.
© 2011 Oracle Cloud Computing – Making IT Simple 16

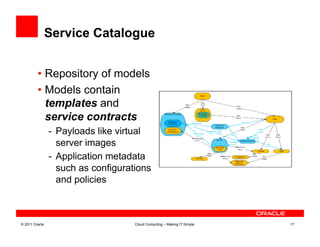

17. Service Catalogue
• Repository of models
• Models contain
templates and
service contracts
- Payloads like virtual
server images
- Application metadata
such as configurations
and policies
© 2011 Oracle Cloud Computing – Making IT Simple 17

18. Model / Service Management
• Model management supports • Service management controls
build-time functions in cloud the run-time aspects of the cloud
- Exposes resources to developers - Capacity management
- Stores developer’s models for - Service management
deployment
• Operator’s main point of contact
- Validates cloud models
for the cloud
• Developer’s main point of
• Provisions / monitors resource tier
interaction with the cloud
• Contains configuration
• Model management also
management repository which is
contains the solution catalogue,
the current state of all cloud vDCs
facilitating discovery, storage,
use and re-use of cloud services
© 2011 Oracle Cloud Computing – Making IT Simple 18

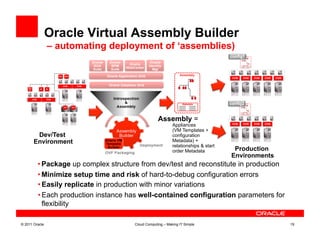

19. Oracle Virtual Assembly Builder
– automating deployment of ‘assemblies)
config1
config2
Assembly =
Appliances
(VM Templates +
Dev/Test configuration
Environment Metadata) +
relationships & start
order Metadata Production
Environments
• Package up complex structure from dev/test and reconstitute in production
• Minimize setup time and risk of hard-to-debug configuration errors
• Easily replicate in production with minor variations
• Each production instance has well-contained configuration parameters for
flexibility
© 2011 Oracle Cloud Computing – Making IT Simple 19

20. How Key is Standardization?
What are Deployable Entities?
‘Refactoring’ Dev / Ops Roles
Building a Roadmap to Cloud
© 2011 Oracle Cloud Computing – Making IT Simple 20

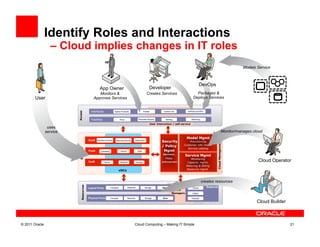

21. Identify Roles and Interactions
– Cloud implies changes in IT roles
Models Service
DevOps
App Owner Developer
Monitors & Creates Services Packages &
User Approves Services Deploys Services
Interfaces Custom UIs Self-Service APIs
Access
Native Protocols Portals
Facilities Proxy Perimeter Security Naming Balancing
User Interaction / self service
uses
service Monitor/manages cloud
Model Mgmt
SaaS Business Process Business Service Application
Security Provisioning
Cloud Management
/ Policy Customer info model
Service catalog
Services
PaaS Container Queue Data Mgmt
Mediation, Service Mgmt
Policy Monitoring
IaaS Server Network Storage enforcement Capacity mgmt.
Cloud Operator
Metering & Billing
vDCs Resource mgmt.
creates resources
Resources
Logical Pools Compute Networks Storage Other Clouds External
Pool
Managers Legacy
Physical Pools Compute Networks Storage Other Partners
© Oracle, 2010 (GEAP) Cloud Builder
© 2011 Oracle Cloud Computing – Making IT Simple 21

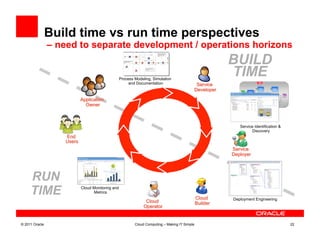

22. Build time vs run time perspectives
– need to separate development / operations horizons
BUILD
Process Modeling, Simulation
TIME
and Documentation
Service Identification &
Discovery
RUN
TIME Cloud Monitoring and
Metrics
Deployment Engineering
© 2011 Oracle Cloud Computing – Making IT Simple 22

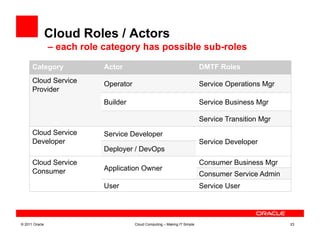

23. Cloud Roles / Actors
– each role category has possible sub-roles
Category Actor DMTF Roles
Cloud Service Operator Service Operations Mgr
Provider
Builder Service Business Mgr
Service Transition Mgr
Cloud Service Service Developer
Developer Service Developer
Deployer / DevOps
Cloud Service Consumer Business Mgr
Consumer Application Owner
Consumer Service Admin
User Service User
© 2011 Oracle Cloud Computing – Making IT Simple 23

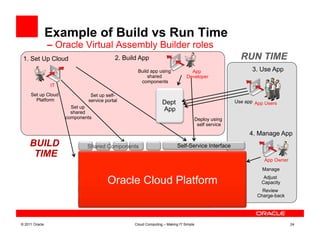

24. Example of Build vs Run Time
– Oracle Virtual Assembly Builder roles
1. Set Up Cloud 2. Build App RUN TIME
Build app using App 3. Use App
shared Developer
components
IT
Set up Cloud Set up self-
Platform service portal Dept Use app App Users
Set up
shared
App
components Deploy using
self service
4. Manage App
BUILD Shared Components Self-Service Interface
TIME Integration / Security &
BPM Portal App Owner
SOA Identity
Manage
Application Server System
Oracle Cloud Platform Manager Adjust
Capacity
Database Review
Charge-back
Operating System,Virtualization,Server,Storage
© 2011 Oracle Cloud Computing – Making IT Simple 24

25. How Key is Standardization?
What are Deployable Entities?
‘Refactoring’ Dev / Ops Roles
Building a Roadmap to Cloud
© 2011 Oracle Cloud Computing – Making IT Simple 25

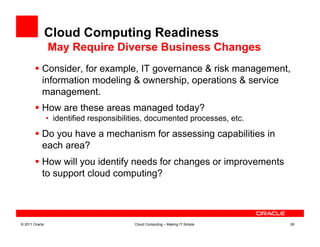

26. Cloud Computing Readiness
May Require Diverse Business Changes
 Consider, for example, IT governance & risk management,
information modeling & ownership, operations & service
management.
 How are these areas managed today?
• identified responsibilities, documented processes, etc.
 Do you have a mechanism for assessing capabilities in
each area?
 How will you identify needs for changes or improvements
to support cloud computing?
© 2011 Oracle Cloud Computing – Making IT Simple 26

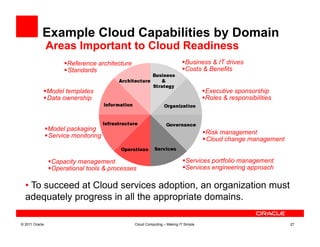

27. Example Cloud Capabilities by Domain
Areas Important to Cloud Readiness
 Reference architecture  Business & IT drives
 Standards  Costs & Benefits
 Model templates  Executive sponsorship
 Data ownership  Roles & responsibilities
 Model packaging
 Risk management
 Service monitoring
 Cloud change management
 Capacity management  Services portfolio management
 Operational tools & processes  Services engineering approach
• To succeed at Cloud services adoption, an organization must
adequately progress in all the appropriate domains.
© 2011 Oracle Cloud Computing – Making IT Simple 27

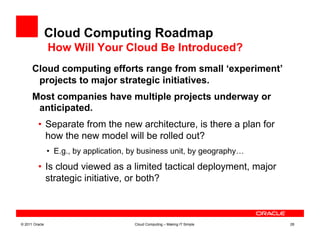

28. Cloud Computing Roadmap
How Will Your Cloud Be Introduced?
Cloud computing efforts range from small ‘experiment’
projects to major strategic initiatives.
Most companies have multiple projects underway or
anticipated.
• Separate from the new architecture, is there a plan for
how the new model will be rolled out?
• E.g., by application, by business unit, by geography…
• Is cloud viewed as a limited tactical deployment, major
strategic initiative, or both?
© 2011 Oracle Cloud Computing – Making IT Simple 28

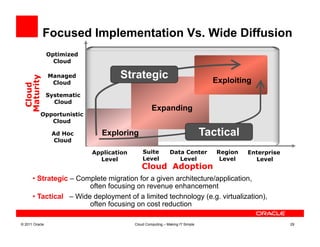

29. Focused Implementation Vs. Wide Diffusion
Optimized
Cloud
Managed Strategic
Maturity
Cloud Exploiting
Cloud
Systematic
Cloud
Expanding
Opportunistic
Cloud
Ad Hoc Exploring Tactical
Cloud
Application Suite Data Center Region Enterprise
Level Level Level Level Level
Cloud Adoption
• Strategic – Complete migration for a given architecture/application,
often focusing on revenue enhancement
• Tactical – Wide deployment of a limited technology (e.g. virtualization),
often focusing on cost reduction
© 2011 Oracle Cloud Computing – Making IT Simple 29

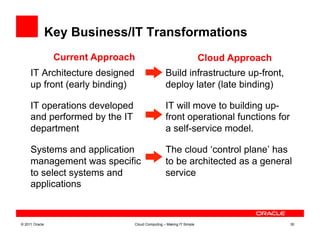

30. Key Business/IT Transformations
Current Approach Cloud Approach
IT Architecture designed Build infrastructure up-front,
up front (early binding) deploy later (late binding)
IT operations developed IT will move to building up-
and performed by the IT front operational functions for
department a self-service model.
Systems and application The cloud ‘control plane’ has
management was specific to be architected as a general
to select systems and service
applications
© 2011 Oracle Cloud Computing – Making IT Simple 30

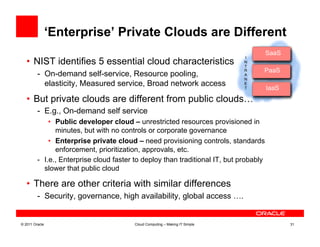

31. ‘Enterprise’ Private Clouds are Different
SaaS
Saa
I
• NIST identifies 5 essential cloud characteristics N
T
R PaaS
- On-demand self-service, Resource pooling, ARapidPaa
N
elasticity, Measured service, Broad network access E
T IaaS
Iaa
• But private clouds are different from public clouds…
- E.g., On-demand self service
• Public developer cloud – unrestricted resources provisioned in
minutes, but with no controls or corporate governance
• Enterprise private cloud – need provisioning controls, standards
enforcement, prioritization, approvals, etc.
- I.e., Enterprise cloud faster to deploy than traditional IT, but probably
slower that public cloud
• There are other criteria with similar differences
- Security, governance, high availability, global access ….
© 2011 Oracle Cloud Computing – Making IT Simple 31

32. For More Information….
oracle.com/cloud
© 2011 Oracle Cloud Computing – Making IT Simple 32

33. © 2011 Oracle Cloud Computing – Making IT Simple 33

34. © 2011 Oracle Cloud Computing – Making IT Simple 34
© 2009 Oracle
