1. Clean In Place(CIP)
Mrs. Poonam Sunil Aher (M Pharm)
Sanjivani College of Pharmaceutical Education and Research
(Autonomous),
Kopargaon, Ahmednagar-423603 (M.S.), INDIA
poonamprakashpatil4174@gmail.com

2. CIP
Cleaning in Place (CIP) is a method of cleaning the interior surfaces of pipelines, vessels, equipment, and
associated fittings without disassembly. It's commonly used in industries such as food and beverage,
pharmaceuticals, and chemical processing where cleanliness and sanitation are critical.
• The CIP process typically involves the following steps:
1. Pre-rinse: Water or a cleaning solution is circulated through the system to remove large particles and debris.
2. Alkaline cleaning: An alkaline solution (detergent) is circulated through the system to remove organic
residues such as fats, oils, and proteins. The solution is typically heated to enhance its effectiveness.
3. Rinse: Clean water is circulated through the system to remove the alkaline cleaning solution and any
remaining residues.
4. Acid cleaning (optional): An acid solution is circulated through the system to remove mineral deposits and
scale. This step is necessary in some cases where alkaline cleaning alone is insufficient.

3. • Throughout the CIP process, cleaning solutions are often circulated at high flow rates and
temperatures to ensure thorough cleaning and sanitation. The entire process is typically
automated and controlled by a CIP system, which regulates flow rates, temperatures, and
chemical concentrations to optimize cleaning efficiency while minimizing resource usage.
• Advantages of CIP:
• 1.Include reduced labor costs, minimized downtime, improved cleaning consistency, and
enhanced sanitation compared to manual cleaning methods.
• 2.CIP helps to prevent cross-contamination between batches and ensures compliance with
regulatory requirements for cleanliness and hygiene in industries where it is used.

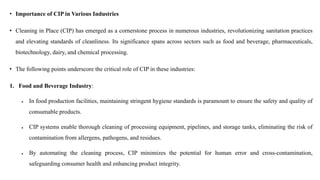

4. • Importance of CIP in Various Industries
• Cleaning in Place (CIP) has emerged as a cornerstone process in numerous industries, revolutionizing sanitation practices
and elevating standards of cleanliness. Its significance spans across sectors such as food and beverage, pharmaceuticals,
biotechnology, dairy, and chemical processing.
• The following points underscore the critical role of CIP in these industries:
1. Food and Beverage Industry:
 In food production facilities, maintaining stringent hygiene standards is paramount to ensure the safety and quality of
consumable products.
 CIP systems enable thorough cleaning of processing equipment, pipelines, and storage tanks, eliminating the risk of
contamination from allergens, pathogens, and residues.
 By automating the cleaning process, CIP minimizes the potential for human error and cross-contamination,
safeguarding consumer health and enhancing product integrity.

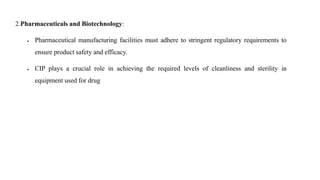

5. 2.Pharmaceuticals and Biotechnology:
 Pharmaceutical manufacturing facilities must adhere to stringent regulatory requirements to
ensure product safety and efficacy.
 CIP plays a crucial role in achieving the required levels of cleanliness and sterility in
equipment used for drug

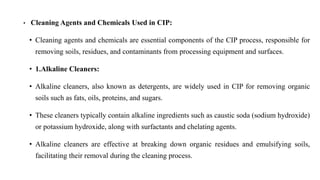

6. • Cleaning Agents and Chemicals Used in CIP:
• Cleaning agents and chemicals are essential components of the CIP process, responsible for
removing soils, residues, and contaminants from processing equipment and surfaces.
• 1.Alkaline Cleaners:
• Alkaline cleaners, also known as detergents, are widely used in CIP for removing organic
soils such as fats, oils, proteins, and sugars.
• These cleaners typically contain alkaline ingredients such as caustic soda (sodium hydroxide)
or potassium hydroxide, along with surfactants and chelating agents.
• Alkaline cleaners are effective at breaking down organic residues and emulsifying soils,
facilitating their removal during the cleaning process.

7. • 2.Acid Cleaners:
• Acidic cleaning agents are employed in CIP for removing inorganic deposits, mineral scale, and metal
oxides from equipment surfaces.
• Common acids used in CIP include phosphoric acid, nitric acid, and citric acid, which help dissolve and
solubilize mineral deposits such as calcium carbonate and calcium phosphate.
• Acid cleaners are particularly useful for descaling heat exchangers, pipelines, and stainless-steel
equipment that are prone to mineral fouling.
• 3.Sanitizing Agents:
• Sanitizing agents are applied in the final stage of the CIP process to disinfect equipment surfaces and
eliminate microbial contaminants.
• Chlorine-based sanitizers, quaternary ammonium compounds (quats), hydrogen peroxide, and peracetic
acid are commonly used sanitizing agents in CIP. These agents exert antimicrobial activity, killing or
inhibiting the growth of bacteria, yeast, mold, and other pathogens, thereby ensuring product safety and
compliance with regulatory standards.

8. • 4.Specialty Cleaners:
• Specialty cleaners are formulated for specific cleaning challenges encountered in
various industries, such as removing biofilms, proteinaceous soils, or stubborn
residues.
• Enzymatic cleaners, for example, contain enzymes that target specific organic
compounds, enhancing the effectiveness of cleaning in certain applications.
• Specialty cleaners may also include oxidizing agents, sequestrants, or complexing
agents tailored to address unique cleaning requirements.

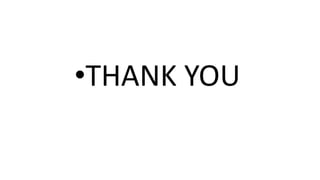

9. •THANK YOU
