Classes allow programmers to define custom data types called objects that encapsulate both data and functions that operate on that data. A class defines the form of an object, while an object is an instance of a class. Classes contain private and public members and methods - private members and methods can only be accessed within the class, while public members and methods provide the interface for outside access. Classes provide data hiding, reusability, and changeability in programs. Common C++ classes include strings and file input/output streams.

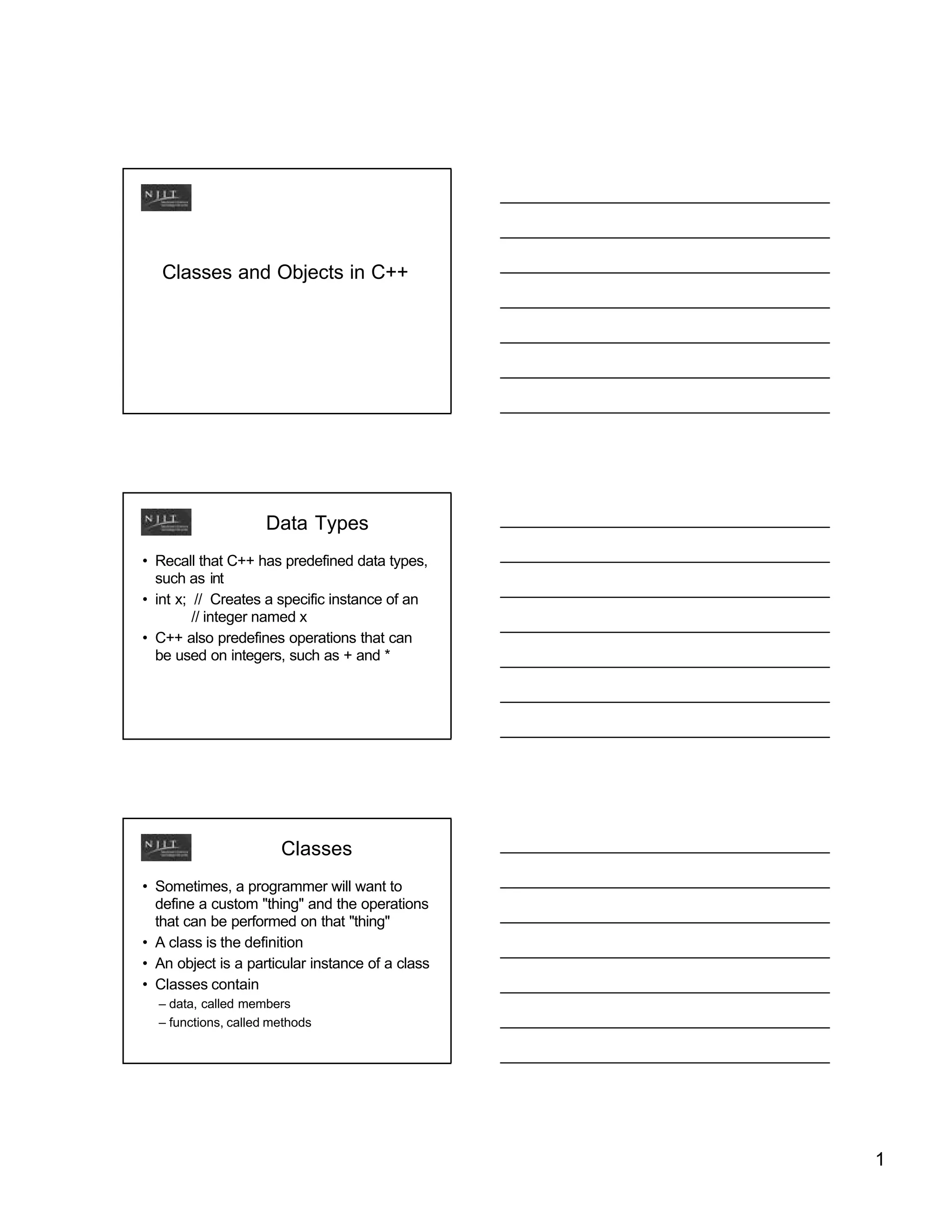

1. Classes and Objects in C++
Data Types
• Recall that C++ has predefined data types,
such as int
• int x; // Creates a specific instance of an
// integer named x
• C++ also predefines operations that can
be used on integers, such as + and *
Classes
• Sometimes, a programmer will want to
define a custom "thing" and the operations
that can be performed on that "thing"
• A class is the definition
• An object is a particular instance of a class
• Classes contain
– data, called members
– functions, called methods
1

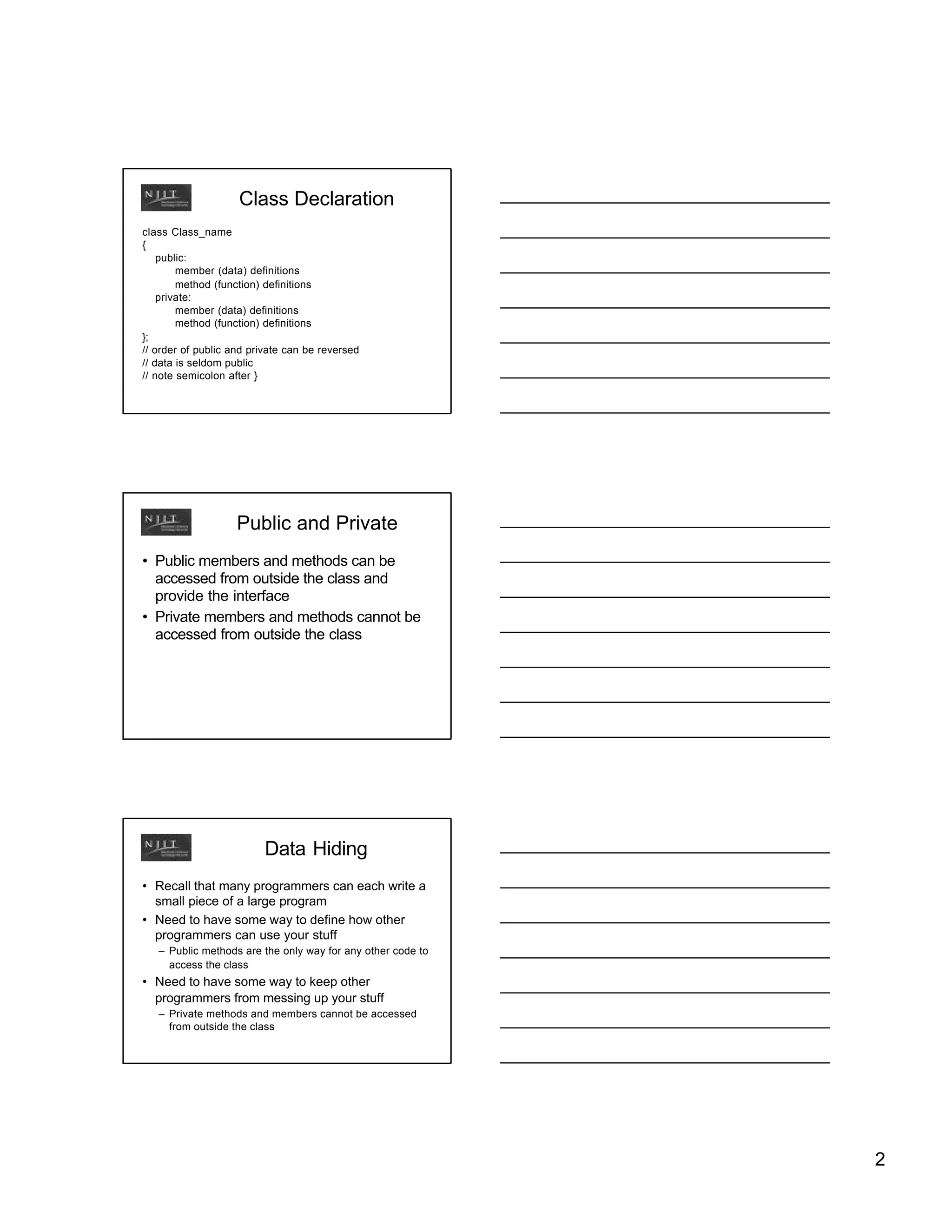

2. Class Declaration
class Class_name
{
public:
member (data) definitions
method (function) definitions
private:
member (data) definitions
method (function) definitions
};
// order of public and private can be reversed
// data is seldom public
// note semicolon after }
Public and Private
• Public members and methods can be
accessed from outside the class and
provide the interface
• Private members and methods cannot be
accessed from outside the class
Data Hiding
• Recall that many programmers can each write a
small piece of a large program
• Need to have some way to define how other
programmers can use your stuff
– Public methods are the only way for any other code to
access the class
• Need to have some way to keep other
programmers from messing up your stuff
– Private methods and members cannot be accessed
from outside the class
2

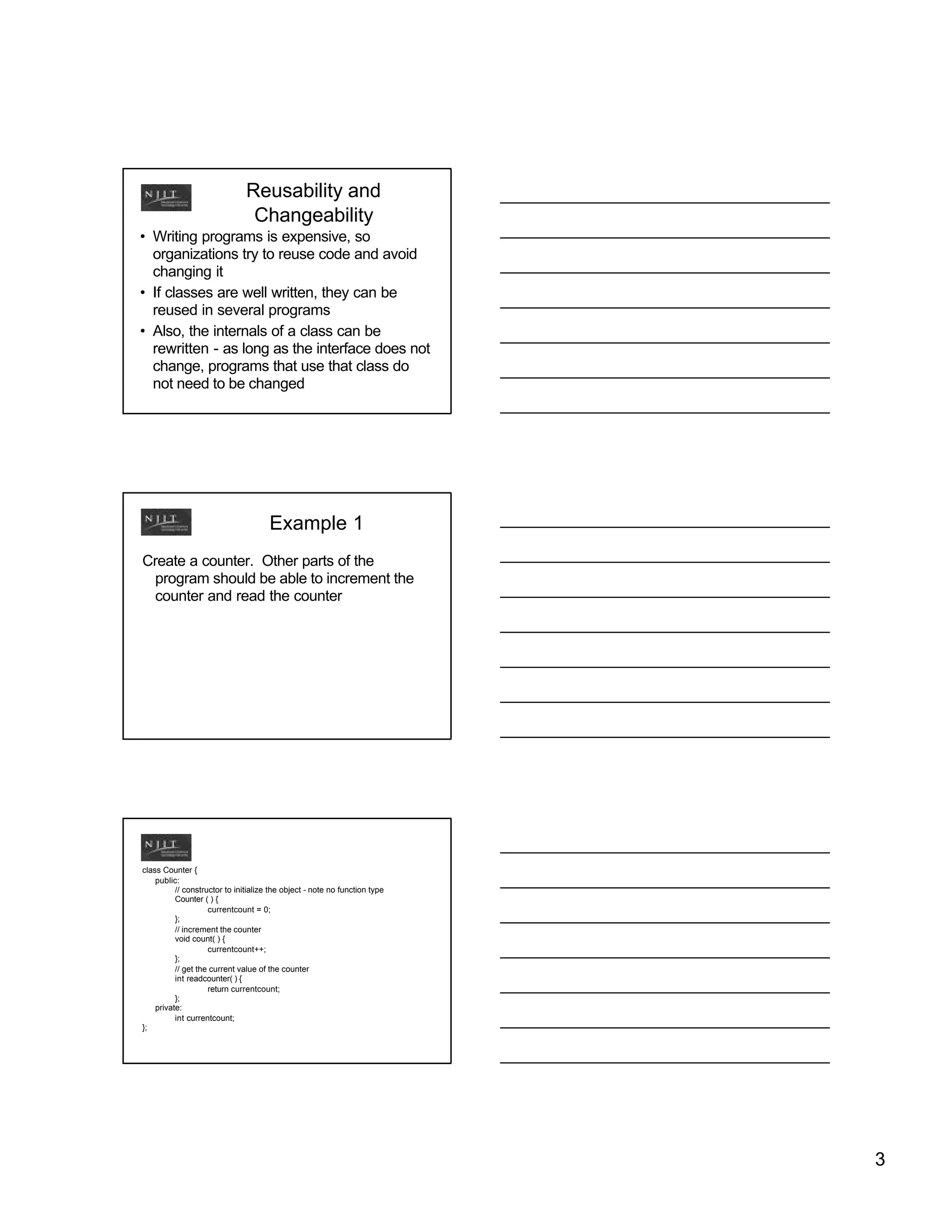

3. Reusability and
Changeability
• Writing programs is expensive, so
organizations try to reuse code and avoid
changing it
• If classes are well written, they can be
reused in several programs
• Also, the internals of a class can be
rewritten - as long as the interface does not
change, programs that use that class do
not need to be changed
Example 1
Create a counter. Other parts of the
program should be able to increment the
counter and read the counter
class Counter {
public:
// constructor to initialize the object - note no function type
Counter ( ) {
currentcount = 0;
};
// increment the counter
void count( ) {
currentcount++;
};
// get the current value of the counter
int readcounter( ) {
return currentcount;
};
private:
int currentcount;
};
3

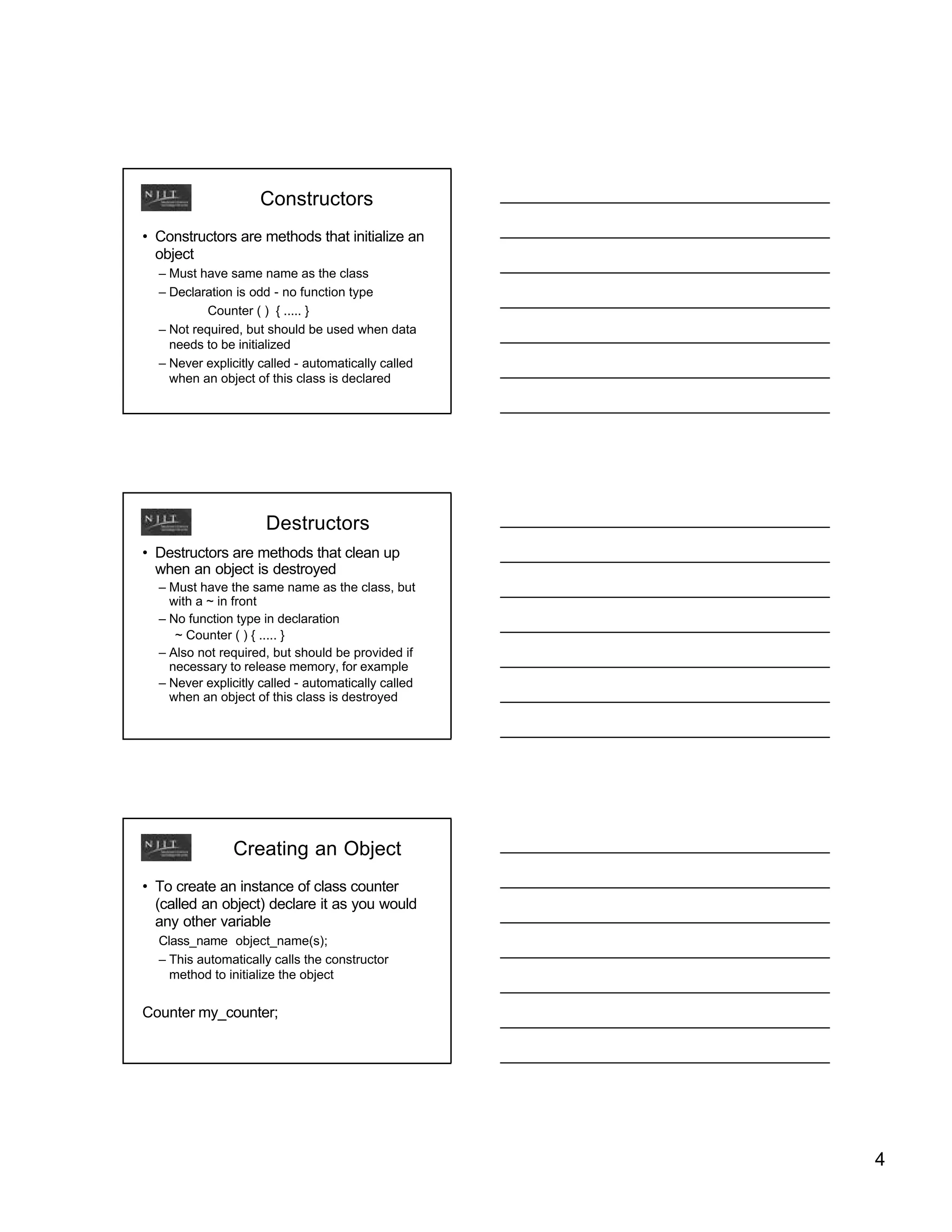

4. Constructors
• Constructors are methods that initialize an
object
– Must have same name as the class
– Declaration is odd - no function type
Counter ( ) { ..... }
– Not required, but should be used when data
needs to be initialized
– Never explicitly called - automatically called
when an object of this class is declared
Destructors
• Destructors are methods that clean up
when an object is destroyed
– Must have the same name as the class, but
with a ~ in front
– No function type in declaration
~ Counter ( ) { ..... }
– Also not required, but should be provided if
necessary to release memory, for example
– Never explicitly called - automatically called
when an object of this class is destroyed
Creating an Object
• To create an instance of class counter
(called an object) declare it as you would
any other variable
Class_name object_name(s);
– This automatically calls the constructor
method to initialize the object
Counter my_counter;
4

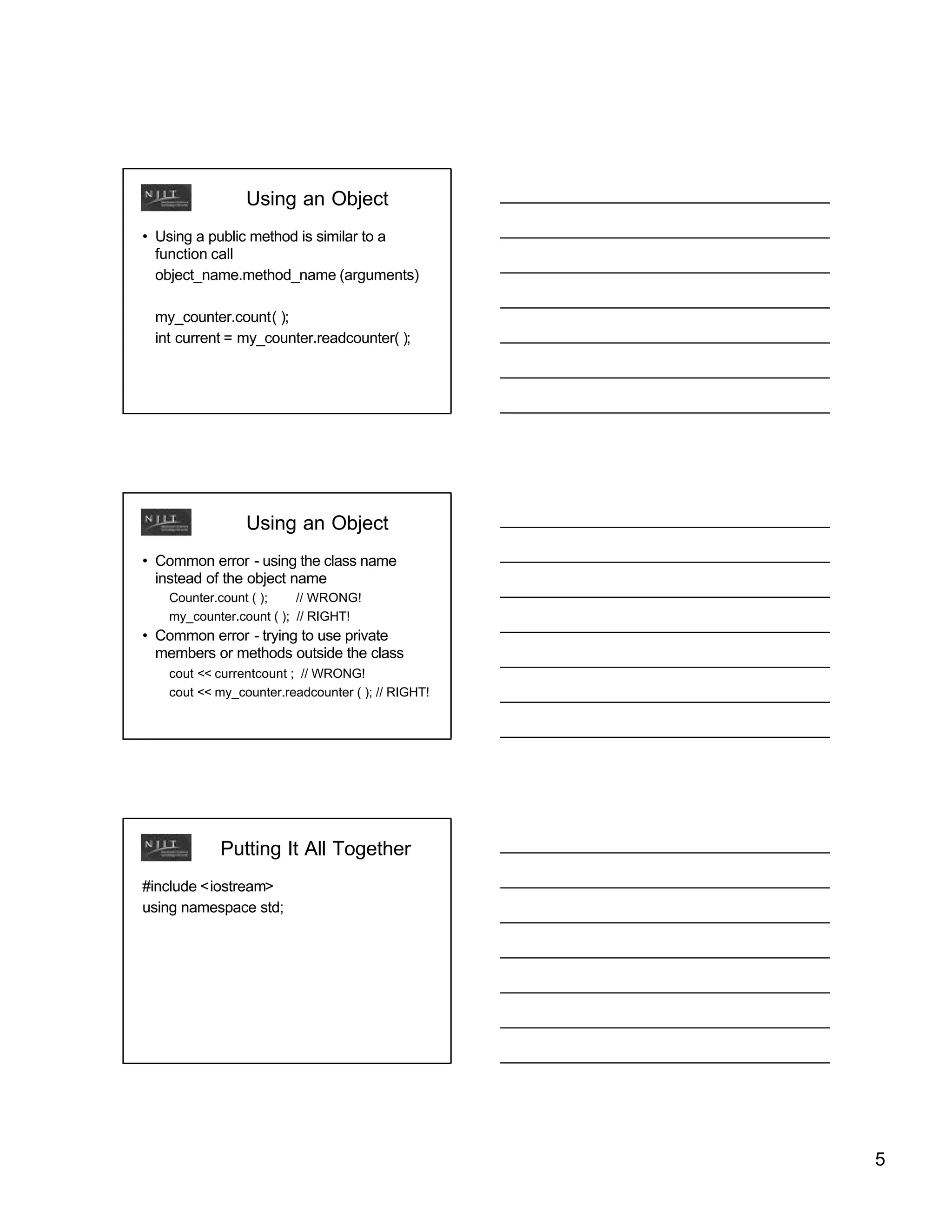

5. Using an Object
• Using a public method is similar to a
function call
object_name.method_name (arguments)
my_counter.count( );
int current = my_counter.readcounter( );
Using an Object
• Common error - using the class name
instead of the object name
Counter.count ( ); // WRONG!
my_counter.count ( ); // RIGHT!
• Common error - trying to use private
members or methods outside the class
cout << currentcount ; // WRONG!
cout << my_counter.readcounter ( ); // RIGHT!
Putting It All Together
#include <iostream>
using namespace std;
5

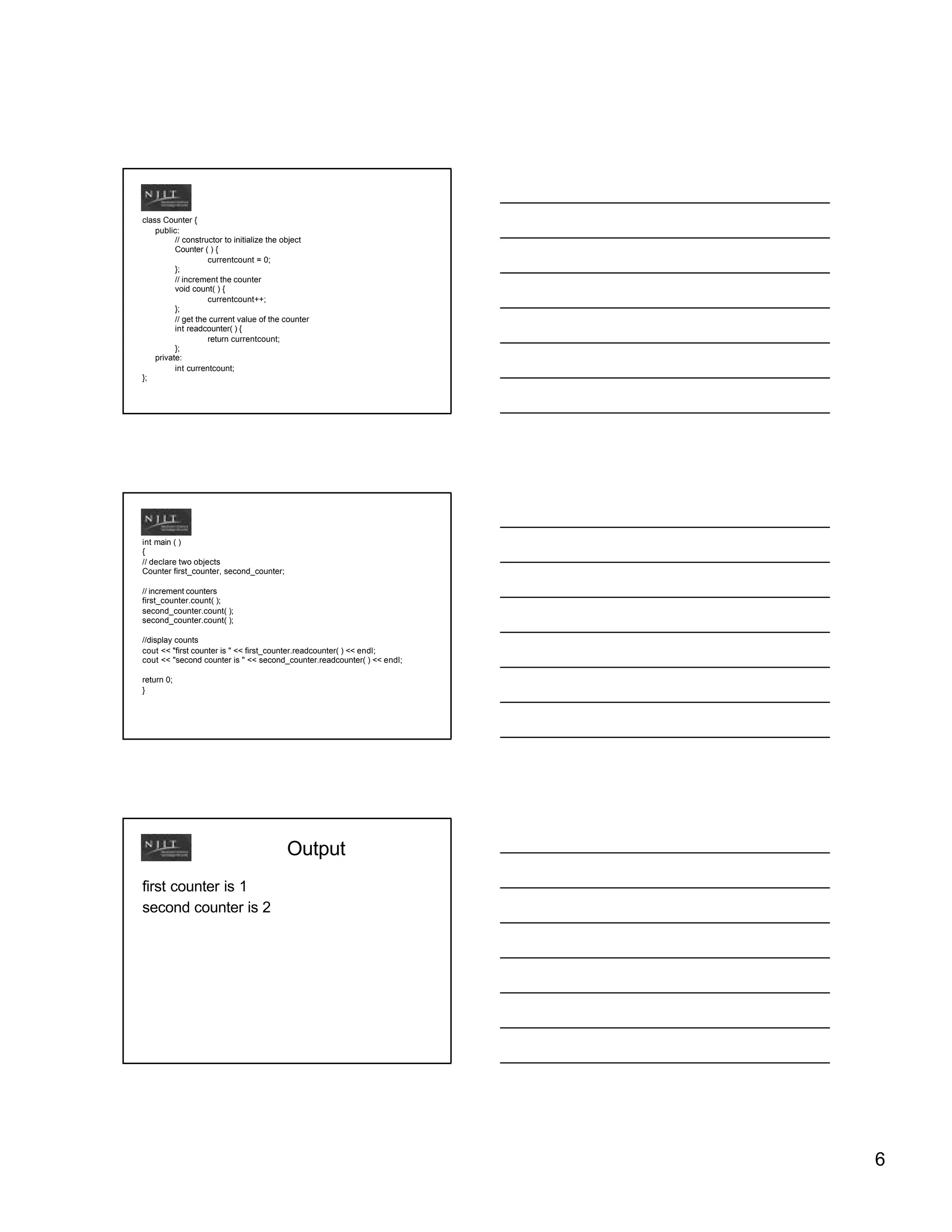

6. class Counter {
public:
// constructor to initialize the object
Counter ( ) {
currentcount = 0;
};
// increment the counter
void count( ) {
currentcount++;
};
// get the current value of the counter
int readcounter( ) {
return currentcount;
};
private:
int currentcount;
};
int main ( )
{
// declare two objects
Counter first_counter, second_counter;
// increment counters
first_counter.count( );
second_counter.count( );
second_counter.count( );
//display counts
cout << "first counter is " << first_counter.readcounter( ) << endl;
cout << "second counter is " << second_counter.readcounter( ) << endl;
return 0;
}
Output
first counter is 1
second counter is 2
6

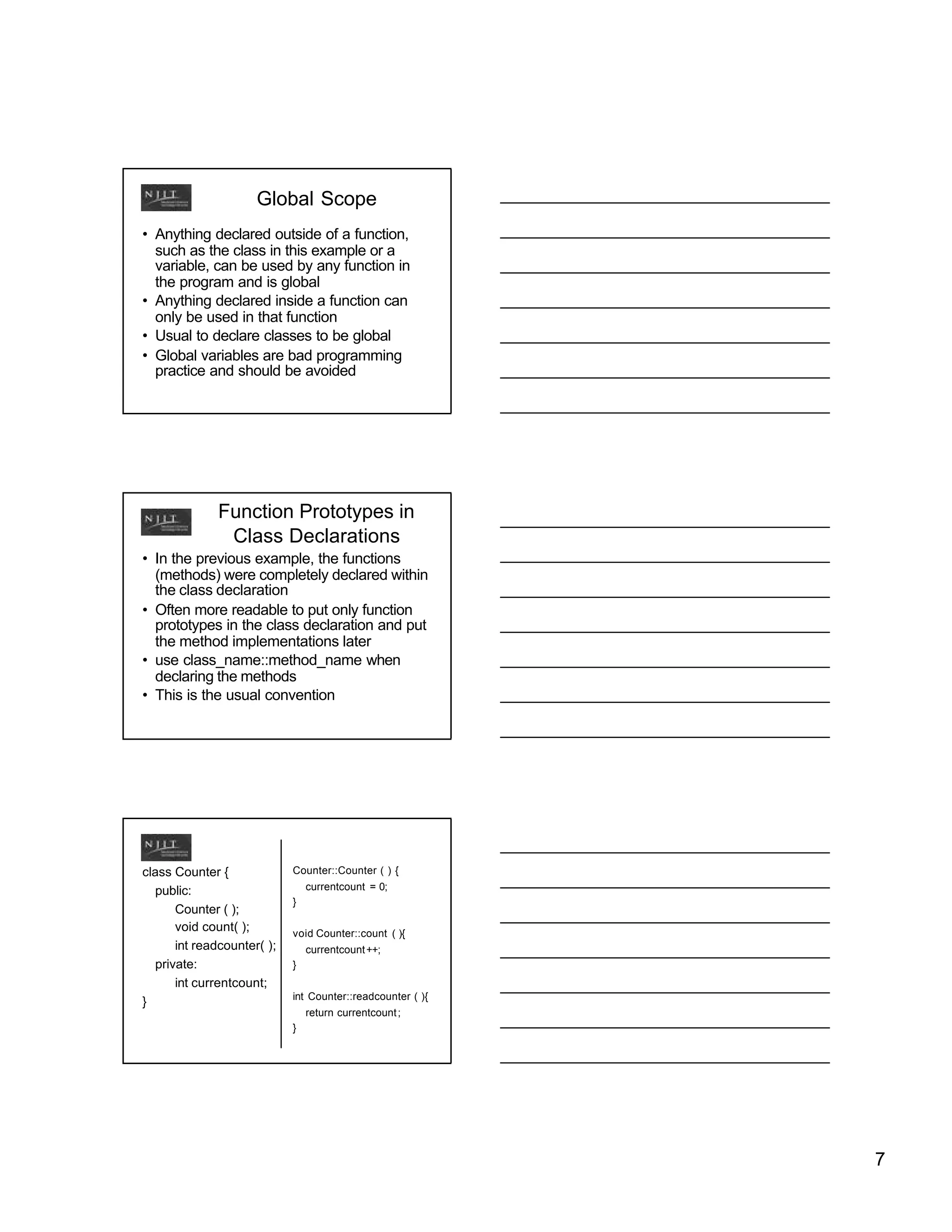

7. Global Scope
• Anything declared outside of a function,
such as the class in this example or a
variable, can be used by any function in
the program and is global
• Anything declared inside a function can
only be used in that function
• Usual to declare classes to be global
• Global variables are bad programming
practice and should be avoided
Function Prototypes in
Class Declarations
• In the previous example, the functions
(methods) were completely declared within
the class declaration
• Often more readable to put only function
prototypes in the class declaration and put
the method implementations later
• use class_name::method_name when
declaring the methods
• This is the usual convention
class Counter { Counter::Counter ( ) {
public: currentcount = 0;
}
Counter ( );
void count( ); void Counter::count ( ){
int readcounter( ); currentcount ++;
private: }
int currentcount;
int Counter::readcounter ( ){
}
return currentcount ;
}
7

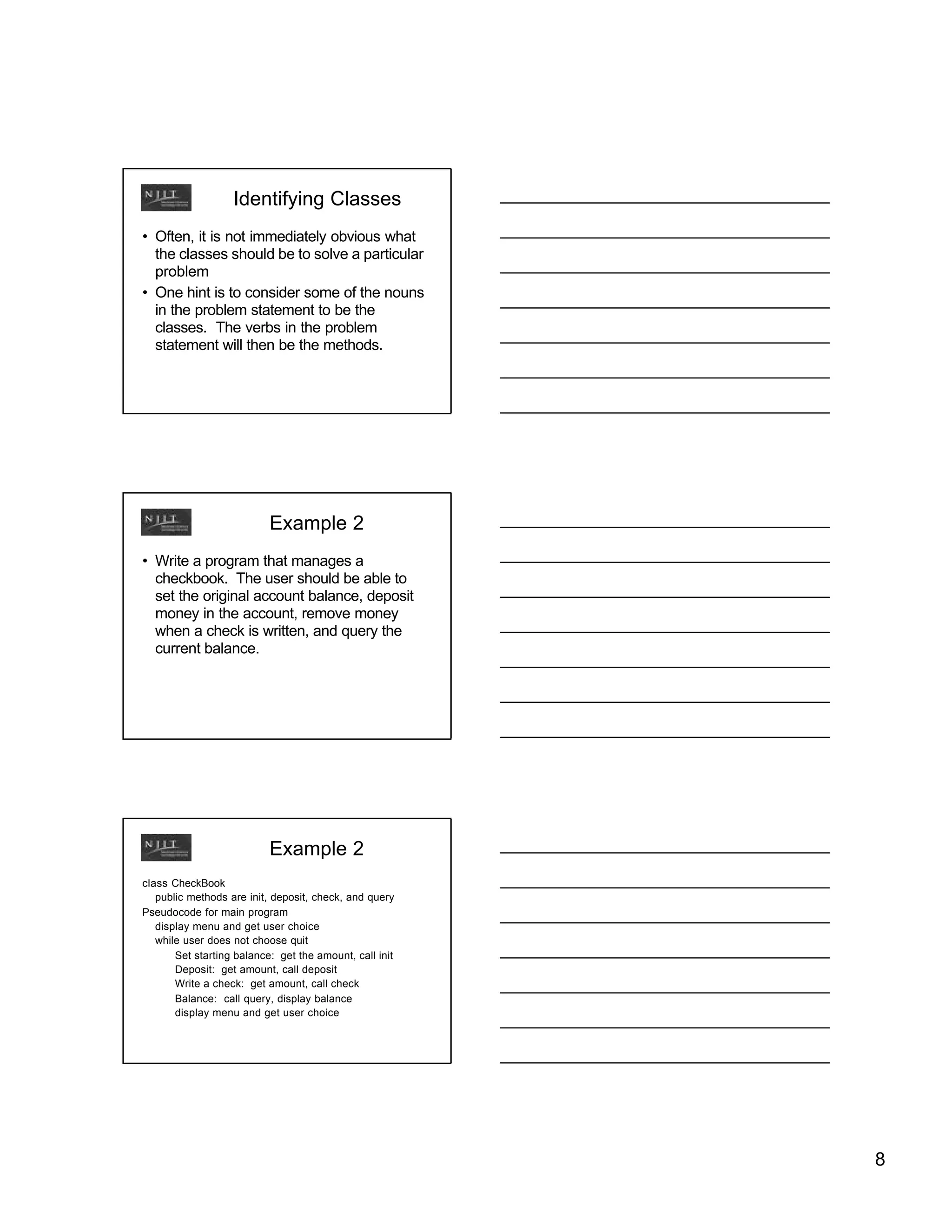

8. Identifying Classes
• Often, it is not immediately obvious what
the classes should be to solve a particular
problem
• One hint is to consider some of the nouns
in the problem statement to be the
classes. The verbs in the problem
statement will then be the methods.
Example 2
• Write a program that manages a
checkbook. The user should be able to
set the original account balance, deposit
money in the account, remove money
when a check is written, and query the
current balance.
Example 2
class CheckBook
public methods are init, deposit, check, and query
Pseudocode for main program
display menu and get user choice
while user does not choose quit
Set starting balance: get the amount, call init
Deposit: get amount, call deposit
Write a check: get amount, call check
Balance: call query, display balance
display menu and get user choice
8

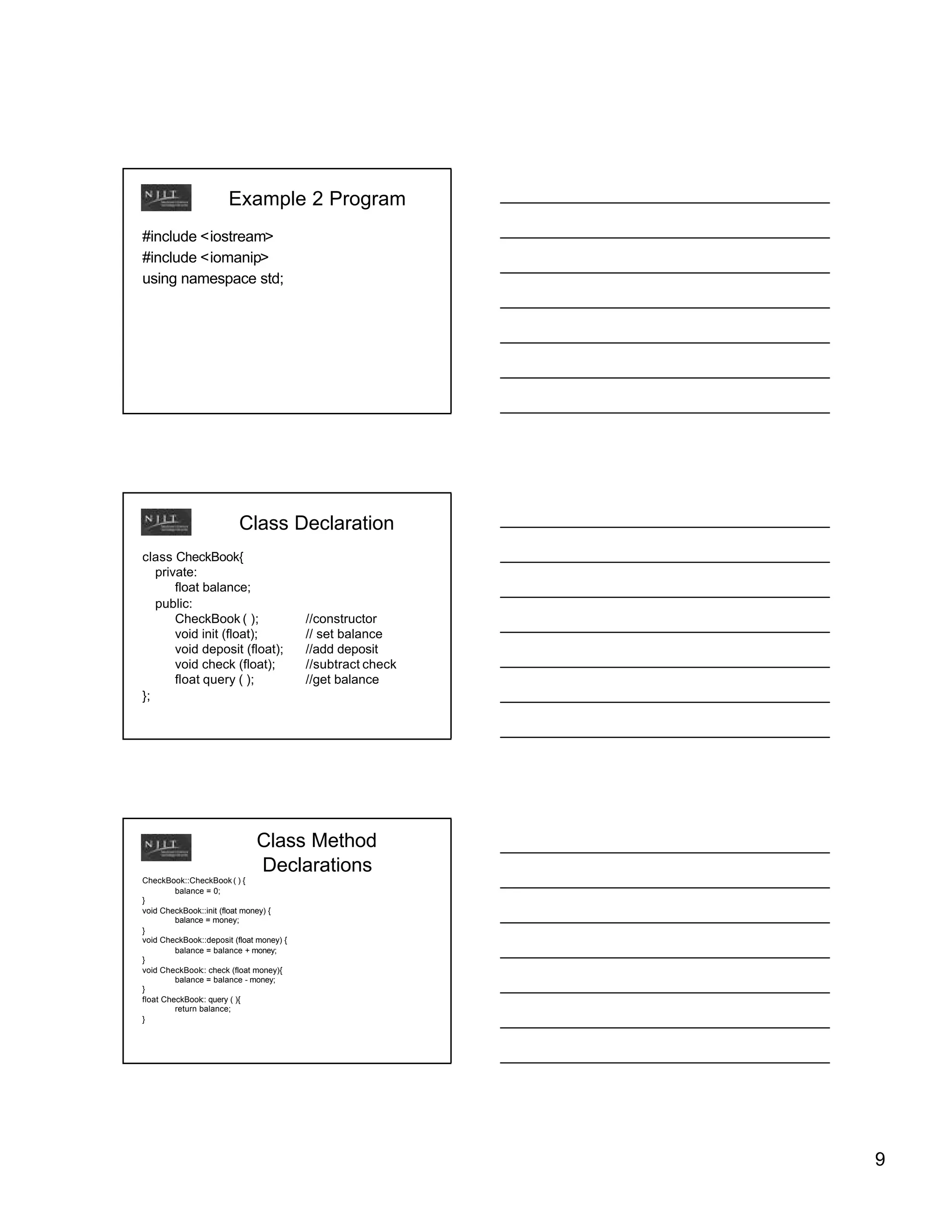

9. Example 2 Program
#include <iostream>
#include <iomanip>
using namespace std;
Class Declaration
class CheckBook{
private:
float balance;
public:
CheckBook ( ); //constructor
void init (float); // set balance
void deposit (float); //add deposit
void check (float); //subtract check
float query ( ); //get balance
};
Class Method
Declarations
CheckBook::CheckBook ( ) {
balance = 0;
}
void CheckBook::init (float money) {
balance = money;
}
void CheckBook::deposit (float money) {
balance = balance + money;
}
void CheckBook:: check (float money){
balance = balance - money;
}
float CheckBook:: query ( ){
return balance;
}
9

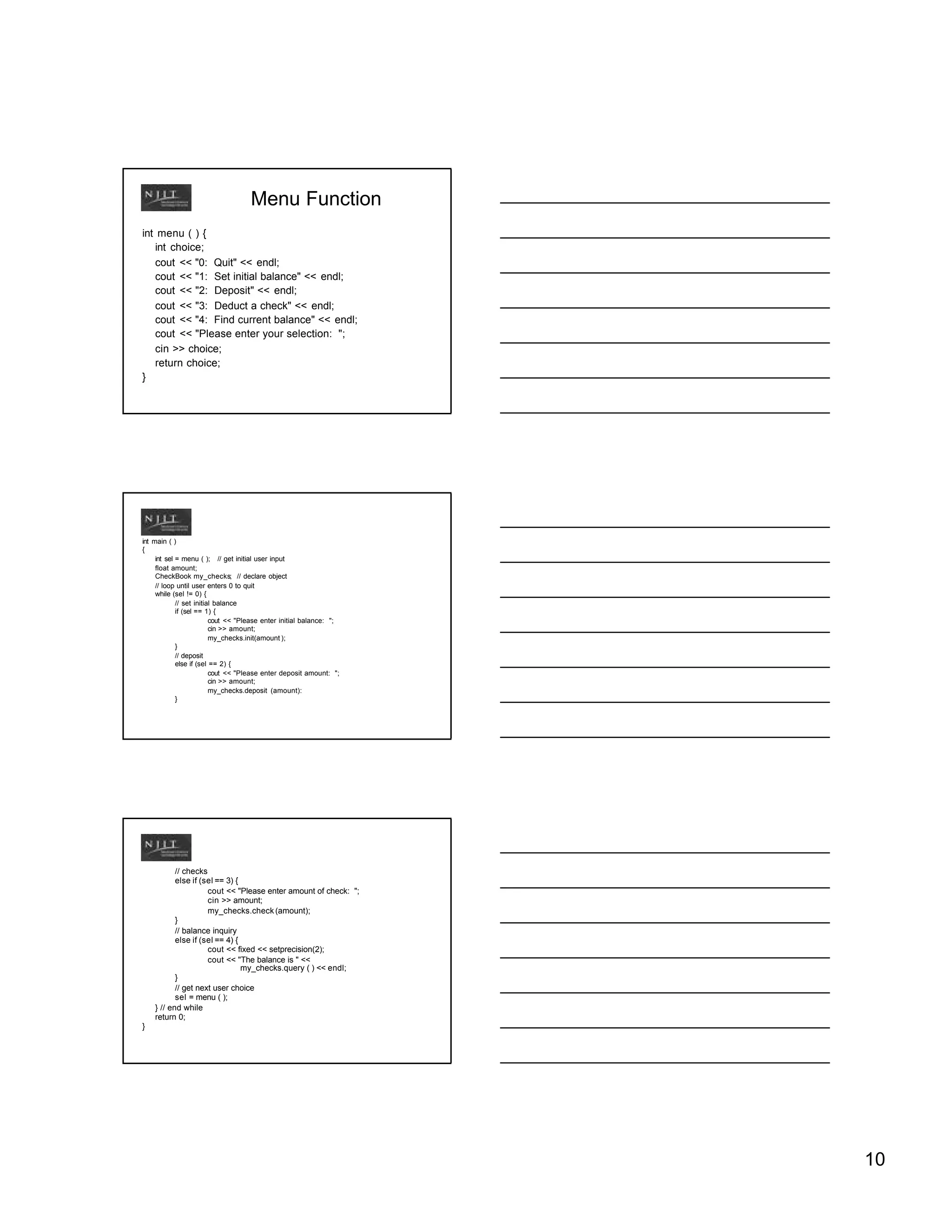

10. Menu Function
int menu ( ) {
int choice;
cout << "0: Quit" << endl;
cout << "1: Set initial balance" << endl;
cout << "2: Deposit" << endl;
cout << "3: Deduct a check" << endl;
cout << "4: Find current balance" << endl;
cout << "Please enter your selection: ";
cin >> choice;
return choice;
}
int main ( )
{
int sel = menu ( ); // get initial user input
float amount;
CheckBook my_checks; // declare object
// loop until user enters 0 to quit
while (sel != 0) {
// set initial balance
if (sel == 1) {
cout << "Please enter initial balance: ";
cin >> amount;
my_checks.init(amount );
}
// deposit
else if (sel == 2) {
cout << "Please enter deposit amount: ";
cin >> amount;
my_checks.deposit (amount):
}
// checks
else if (sel == 3) {
cout << "Please enter amount of check: ";
cin >> amount;
my_checks.check (amount);
}
// balance inquiry
else if (sel == 4) {
cout << fixed << setprecision(2);
cout << "The balance is " <<
my_checks.query ( ) << endl;
}
// get next user choice
sel = menu ( );
} // end while
return 0;
}
10

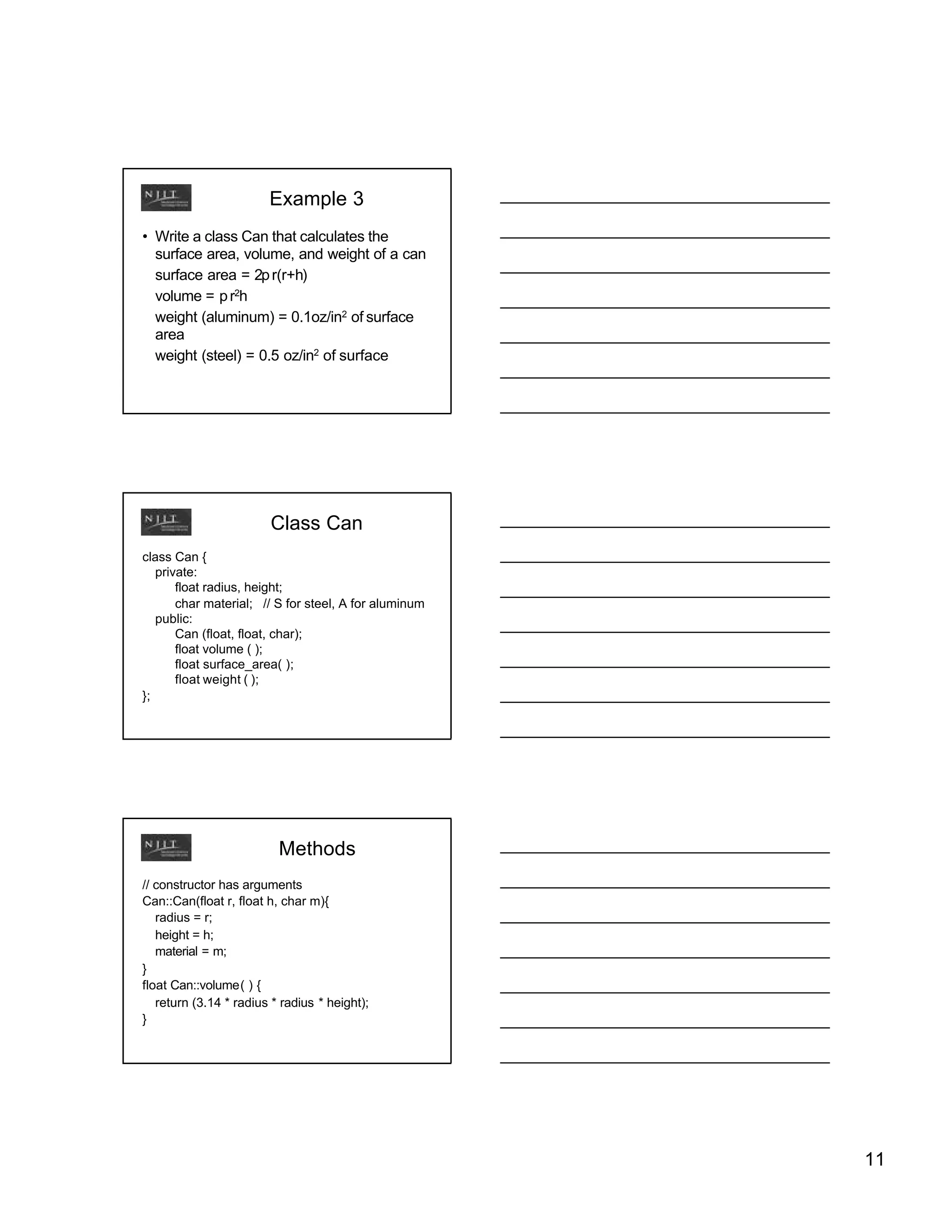

11. Example 3
• Write a class Can that calculates the
surface area, volume, and weight of a can
surface area = 2p r(r+h)
volume = p r2h
weight (aluminum) = 0.1oz/in2 of surface
area
weight (steel) = 0.5 oz/in2 of surface
Class Can
class Can {
private:
float radius, height;
char material; // S for steel, A for aluminum
public:
Can (float, float, char);
float volume ( );
float surface_area( );
float weight ( );
};
Methods
// constructor has arguments
Can::Can(float r, float h, char m){
radius = r;
height = h;
material = m;
}
float Can::volume( ) {
return (3.14 * radius * radius * height);
}
11

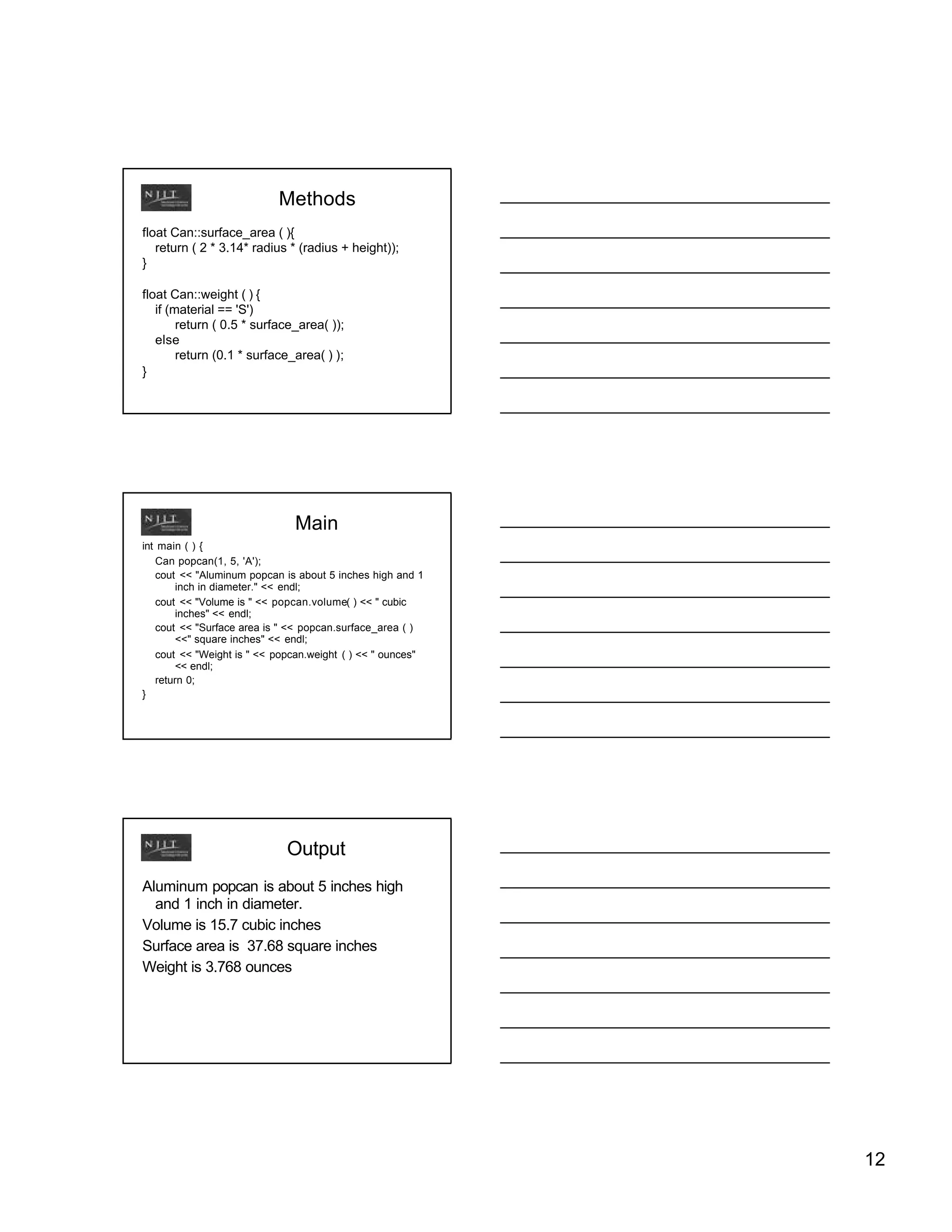

12. Methods
float Can::surface_area ( ){
return ( 2 * 3.14* radius * (radius + height));
}
float Can::weight ( ) {
if (material == 'S')
return ( 0.5 * surface_area( ));
else
return (0.1 * surface_area( ) );
}
Main
int main ( ) {
Can popcan(1, 5, 'A');
cout << "Aluminum popcan is about 5 inches high and 1
inch in diameter." << endl;
cout << "Volume is " << popcan.volume( ) << " cubic
inches" << endl;
cout << "Surface area is " << popcan.surface_area ( )
<<" square inches" << endl;
cout << "Weight is " << popcan.weight ( ) << " ounces"
<< endl;
return 0;
}
Output
Aluminum popcan is about 5 inches high
and 1 inch in diameter.
Volume is 15.7 cubic inches
Surface area is 37.68 square inches
Weight is 3.768 ounces
12

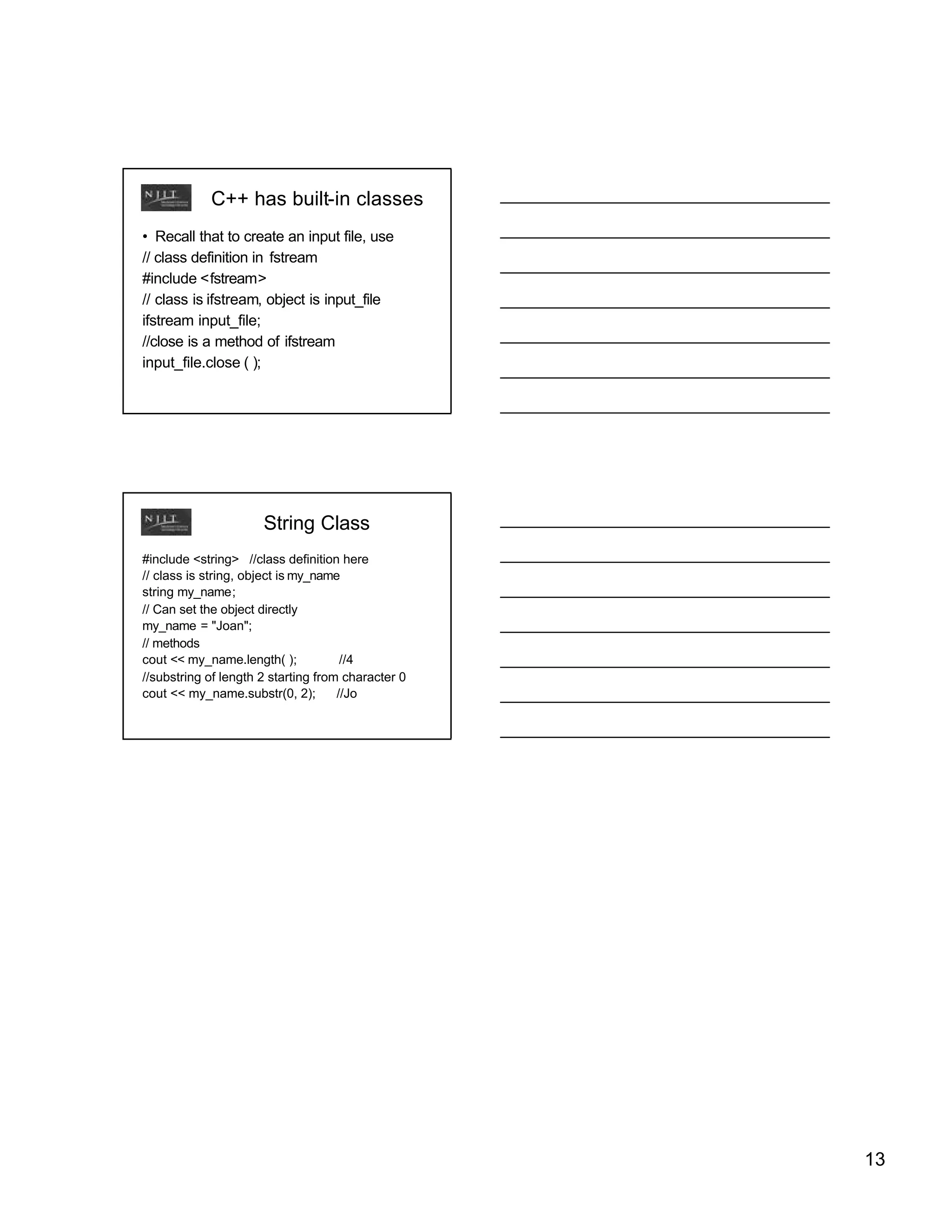

13. C++ has built-in classes
• Recall that to create an input file, use
// class definition in fstream
#include <fstream>
// class is ifstream, object is input_file
ifstream input_file;
//close is a method of ifstream
input_file.close ( );
String Class
#include <string> //class definition here
// class is string, object is my_name
string my_name;
// Can set the object directly
my_name = "Joan";
// methods
cout << my_name.length( ); //4
//substring of length 2 starting from character 0
cout << my_name.substr(0, 2); //Jo
13
