CICD Pipeline configuration as a
Code
(a.k.a. JobConfig)
by Anatolii Kaliuzhnyi

2. 2
Who am I?

3. 3

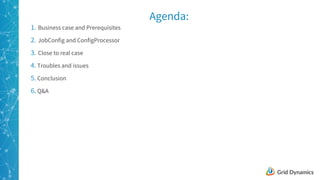

Agenda:
1. Business case and Prerequisites
2. JobConfig and ConfigProcessor
3. Close to real case
4. Troubles and issues
5. Conclusion
6. Q&A

4. 4
Business Case

5. 5
1. Security limitations
Business Case
2. Multiple release support
3. Different teams
4. Comfort

6. 6
Prerequisites

7. 7

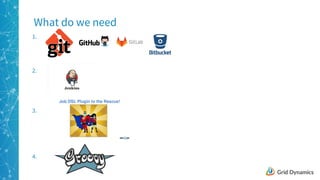

1.
What do we need
2.
3.
4.

8. 8
JobDSL is a dsl wrapper for job creation in Jenkins.
Sample job:
What JobDSL is
job('build') {
description 'Build and test the app.'
scm {
github 'TestOrg/JavaTest'
}
steps {
maven 'test'
}
}

9. 9
What JobDSL is

10. 10
JobDSL allows you to insert any Groovy code inside it, so you can such tricks:
JobDSL power
job('build') {
description 'Build and test the app.'
scm {
github 'TestOrg/JavaTest'
}
steps {
def mavenSteps = ['test', 'deploy', 'clean']
mavenSteps.each{
maven it
}
}
}

11. 11
JobDSL power

12. 12
1. Using JobDSL you can create base classes for each type of Jenkins job you have.
2. Upload them to git and use it inside a seed job(job that executes JobDSL)
3. This is much better than go and click out some jobs in UI in Jenkins (which sucks)
4. With JobDSL you can make a change in a file, push to git and run seed.
Base Class
BaseClass file GIT
Push
Seed Job
Checkout
Jobs

13. 13

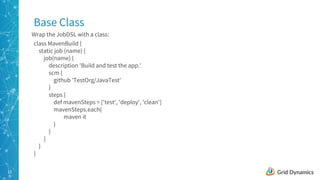

class MavenBuild {
static job (name) {
job(name) {
description 'Build and test the app.'
scm {
github 'TestOrg/JavaTest'
}
steps {
def mavenSteps = ['test', 'deploy', 'clean']
mavenSteps.each{
maven it
}
}
}
}
}
Base Class
Wrap the JobDSL with a class:

14. 14
JobConfig and ConfigProcessor

15. 15
What do we need from such a DSL:
1. We need to have each sub closure as a job (with name as job’s name)
2. Import from external files (preferably with overrides)
3. Reusable blocks, in case we have several alike jobs in a single file
4. All filewise variables (which will be included into each job)
5. Jobs should have a link to its Base Class and folder, where it should be located
DSL above JobDSL

16. 16
1. Use existing some format (json, yaml, etc)
Format
2. Invent bicycle own format
3. Use same approach as for JobDSL

17. 17
JobConfig

18. 18
Example of a JobConfig
imports = ["default.cfg", "build.cfg"]
common {
github {
org = "SomeOrg"
repo = "JavaTest"
}
}
__build {
imports = ["maven.cfg"]
maven {
steps = "deploy"
}
}
Build {
imports = ["__build"]
}

19. 19

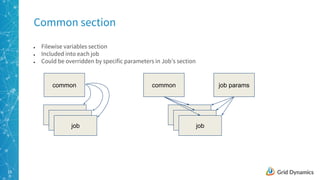

● Filewise variables section
● Included into each job
● Could be overridden by specific parameters in Job’s section
Common section
common
job
common
job
job params

20. 20
● “imports” keyword
● Receives a list of filenames or “__” starting sections to include as a part of the jc itself (also a closure)
● First file of the list is first imported (params could be overridden by next file or section)
Importing
filename
job
section
imports
sections or
files
job
import
order

21. 21
● All sub closures, which start with “__” is being considered as a custom section
● It can be imported with “imports” inside this JobConfig
● This can come in handy, when you have several jobs with similar configuration
Custom Sections
generic section
jobs

22. 22
● Each job will have its own JC
● JC will be a compile of all included blocks and files
● Can be addressed from inside the Base Class, so that you can create more or less generic classes, with
necessary flexibility
Jobs
common
section(s)
file(s)
JobConfig for a job

23. 23
● Use ConfigSlurper to parse the file
● Find all keywords and apply appropriate rules for them
● Generate JCs for each job, include all imports(if needed) and include common section
powered by
Config Processor

24. 24
def processJCFile(fileName) {
def configProcessor = new ConfigProcessor(dslFactory)
def allJCs = configProcessor.processConfig(fileName)
allJCs.each { jc ->
configProcessor.printJC(jc)
def jobClass = Class.forName("${jc.'jobClass.baseClassName'}")?.newInstance()
jobClass.job(context, jc)
}
return allJCs
}
Seed Executor

25. 25
Seed Job Example

26. 26
What could be improved:
● OOP principles applied
● Libraries and collections
● Non-flat structure of the framework
● Helpers
● Fancy stuff (e.g. package into a jar, start using releases and hotfixes)
2 files framework

27. 27
Let’s make a JC for the pipeline:
● Create a base class for pipeline
● Add the map of pipeline steps
● Add all params to paa them into
next step
Create a workflow file:
● Handle the map of steps in the
pipeline itself
● Ensure to pass all params to the
next step
Pipelines
JC:
Pipeline {
imports = ["__pipeline"]
jobClass {
baseClassName = "Pipeline"
classPath = ""
}
job {
pipeline = [ Build: [
BRANCH_NAME:"master"
]
]
}
}
Workflow(jenkins)file
for (kv in mapToList(JC.job.pipeline)) {
def pipeJob = kv[0]
def pipelineParameters = []
for (paramskv in mapToList(kv[1])) {
pipelineParameters.add([$class:
'StringParameterValue', name: paramskv[0], value:
paramskv[1]])
}
build job: JC.allJobs."${pipeJob}", parameters:
pipelineParameters
}

28. 28

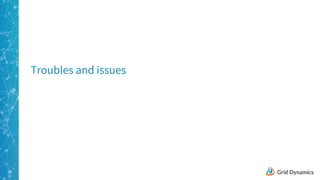

Troubles and issues

29. 29
Complexity of real case
● Arrange files by their purposes and handle those locations
● Split the JCs and framework into separate repos or at least
folders
● Create libraries and collections, to reuse them in Base Classes
or elsewhere
● Create docs (or keep everything in mind)

30. 30
● To debug something, you need to start the seed process, so you need to push the code to the repo and
use some non-master branch, which could take time
● Stack trace is so long for seed jobs and it is not very clear where did it fail
● Non-comprehensive errors appear during the seed process, if something fails
PITA of debug

31. 31

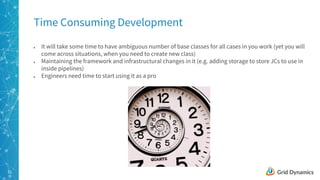

● It will take some time to have ambiguous number of base classes for all cases in you work (yet you will
come across situations, when you need to create new class)
● Maintaining the framework and infrastructural changes in it (e.g. adding storage to store JCs to use in
inside pipelines)
● Engineers need time to start using it as a pro
Time Consuming Development

32. 32
Why and in what cases do you need such solution?

33. 33
1. Laziness (obviously)
Why do we need it?
5. Agility
2. Trackability
3. Simplification of configuration
4. Transparency

34. 34
1. Personal framework to start automation
2. Application is a microservice hell
3. ~10 application to build out
4. Because you want to
In what cases do we need it?

35. 35
1. Only one application
When we don’t need it
2. Support hasn’t been calculated
3. Small amount of jobs in Jenkins

36. 36
Pros and Cons
Pros:
● Super fast creation of jobs from scratch
● Version control
● Fixing issues with several jobs is simpler
● Adding generic functionality to existing jobs
will be much easier
Cons:
● Will take a while, before you get all classes
created
● Debug is horrible
● Changing a single job will take you more time,
than just changing it in UI instead
● Will work only, if you have big number of jobs
to maintain

37. 37
Q&A

38. 38
Thank you
