This document discusses chip packaging technology. It explains that chip packaging brings signal and power connections out of the silicon die while also protecting the die from environmental conditions and dissipating heat. The document covers key aspects of chip packaging like Rent's rule, material selection, interconnect levels, multichip modules, thermal considerations, and trends in packaging technologies. It provides an overview of chip packaging objectives and requirements.

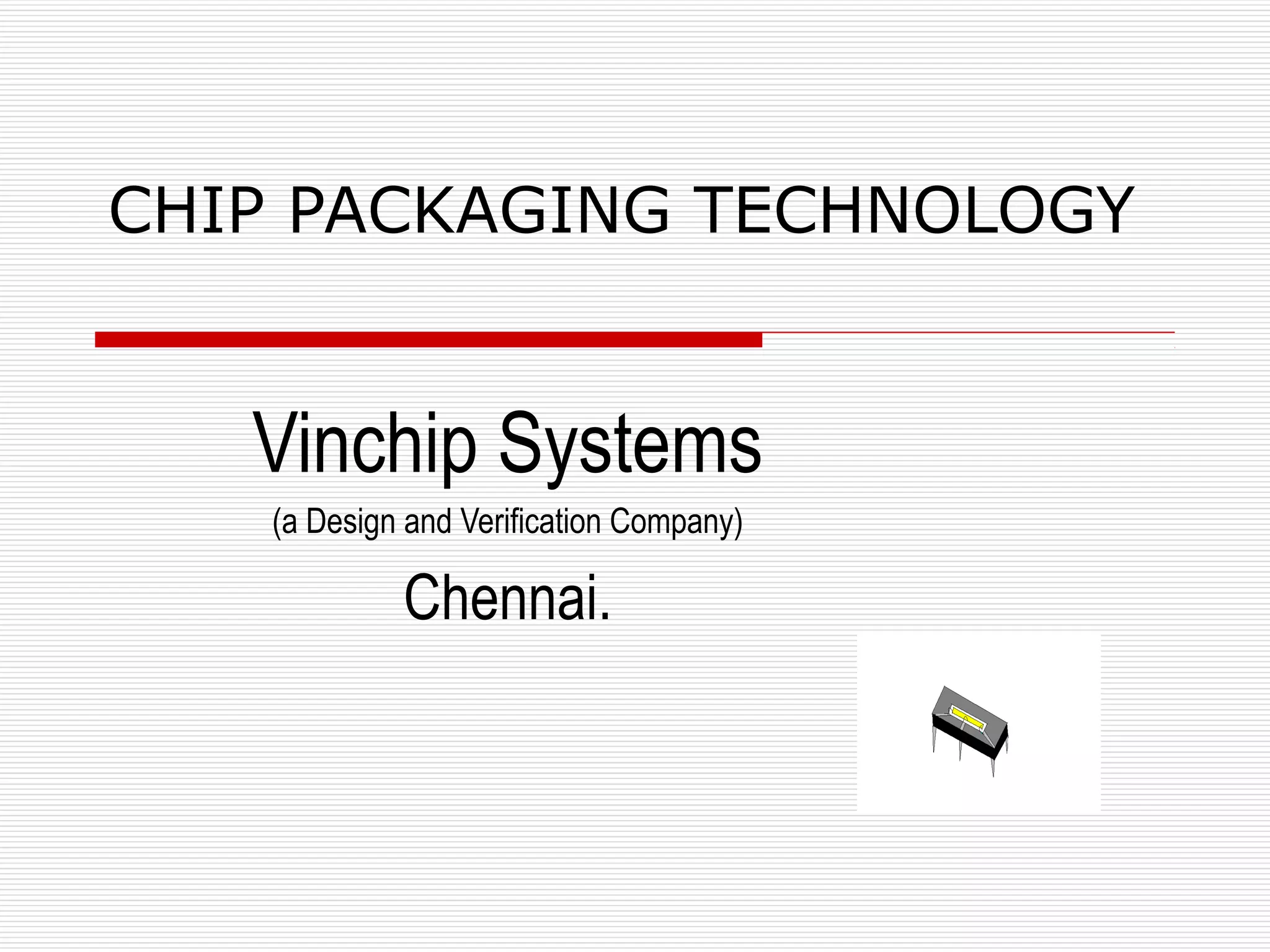

1. CHIP PACKAGING TECHNOLOGY
Vinchip Systems
(a Design and Verification Company)
Chennai.

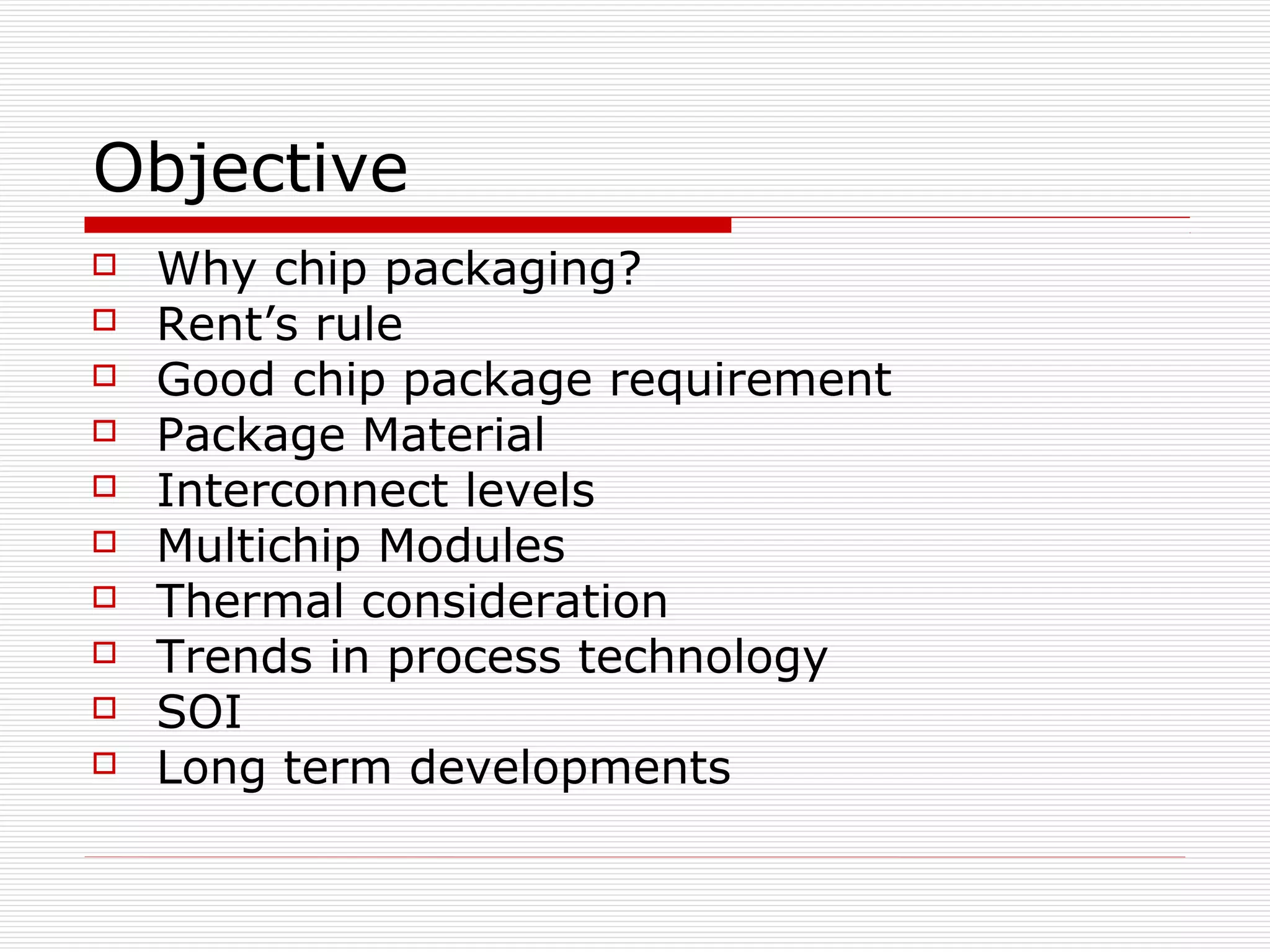

2. Objective
 Why chip packaging?
 Rent’s rule
 Good chip package requirement
 Package Material
 Interconnect levels
 Multichip Modules
 Thermal consideration
 Trends in process technology
 SOI
 Long term developments

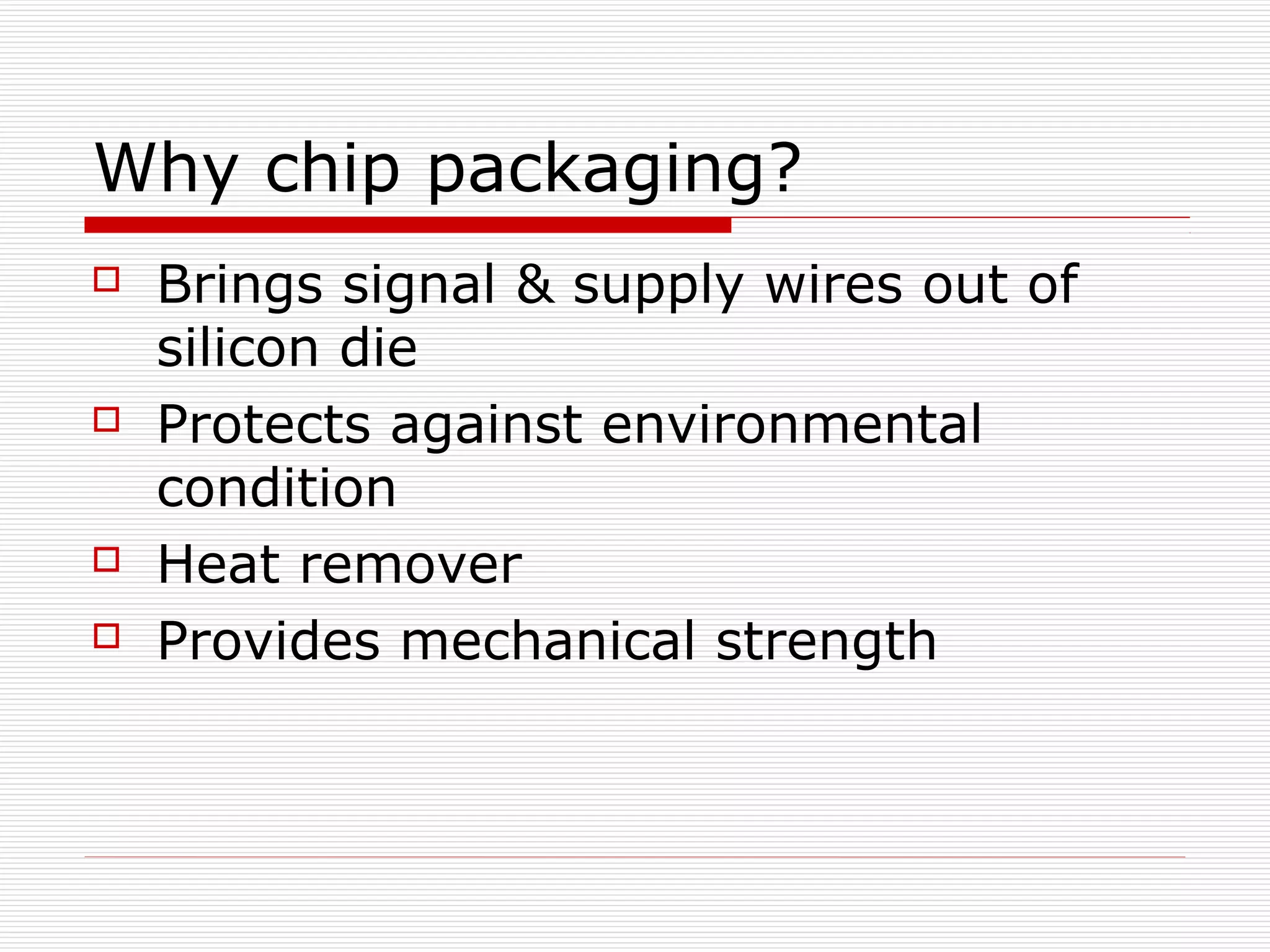

3. Why chip packaging?
 Brings signal & supply wires out of
silicon die
 Protects against environmental
condition
 Heat remover
 Provides mechanical strength

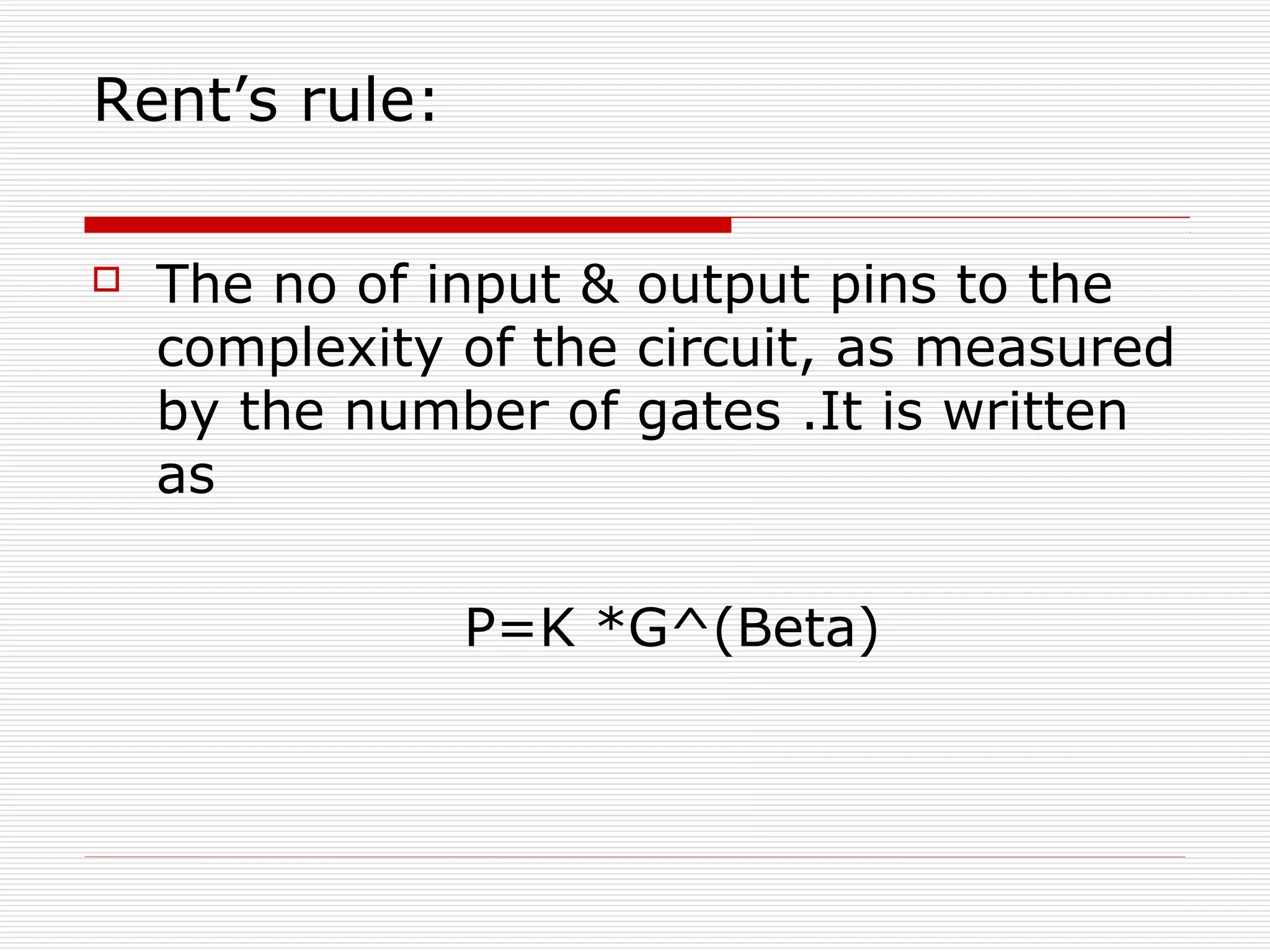

4. Rent’s rule:
 The no of input & output pins to the
complexity of the circuit, as measured
by the number of gates .It is written
as
P=K *G^(Beta)

5. Good chip package requirement
 Electrical Requirement
-C ,R ,L
 Mechanical and thermal properties
-Heat removal
-Reliability
 Cost
-Plastic
-Ceramic

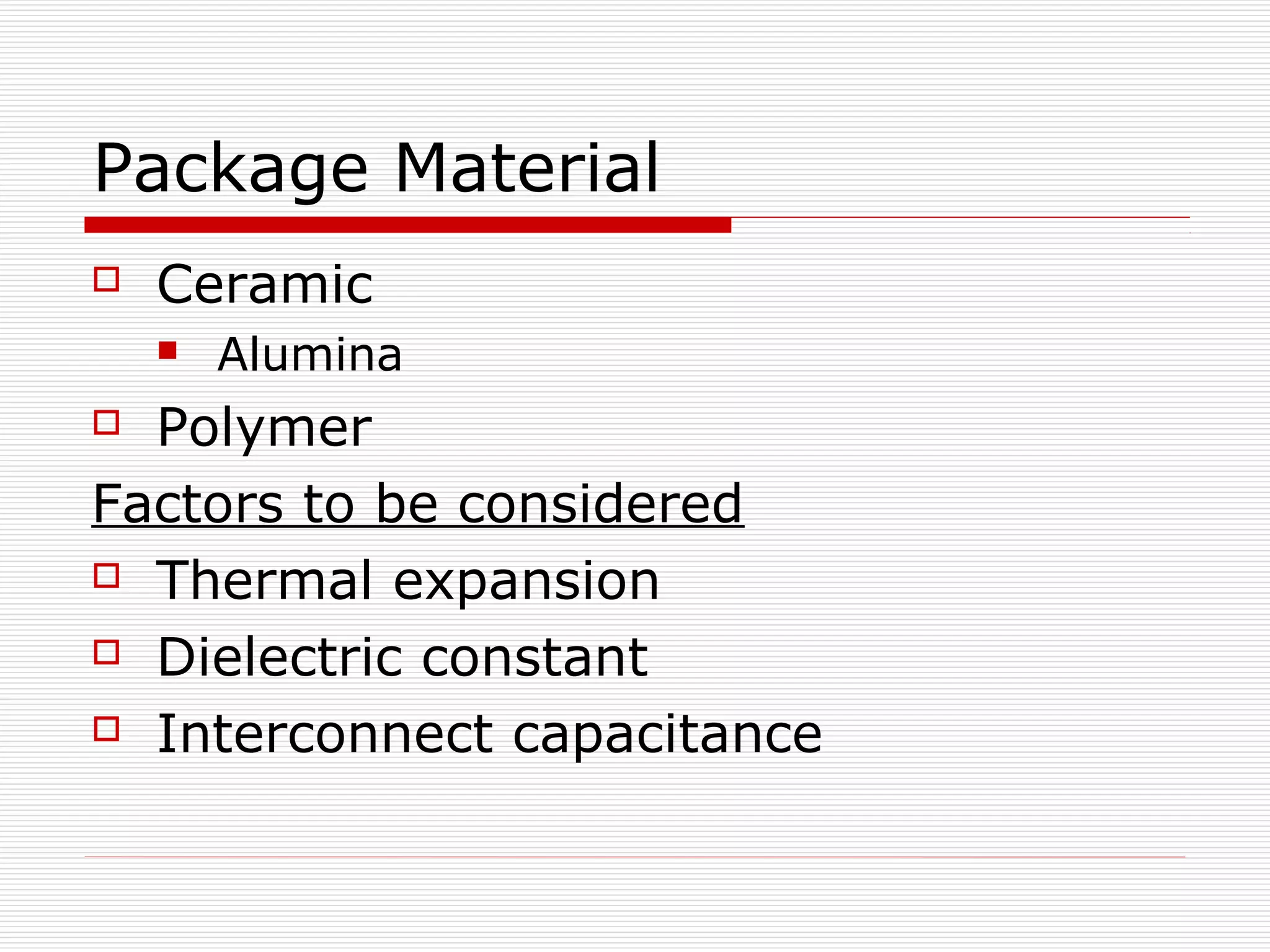

6. Package Material
 Ceramic
 Alumina
 Polymer
Factors to be considered
 Thermal expansion
 Dielectric constant
 Interconnect capacitance

7. Interconnect levels
• Die-to Package substrate
->wire bonding process
->7nH-40nH
->Tap Automated Bonding (TAB)
->(0.3-0.5 )nH
->(0.2-0.5)pF
->Flip-chip mounting

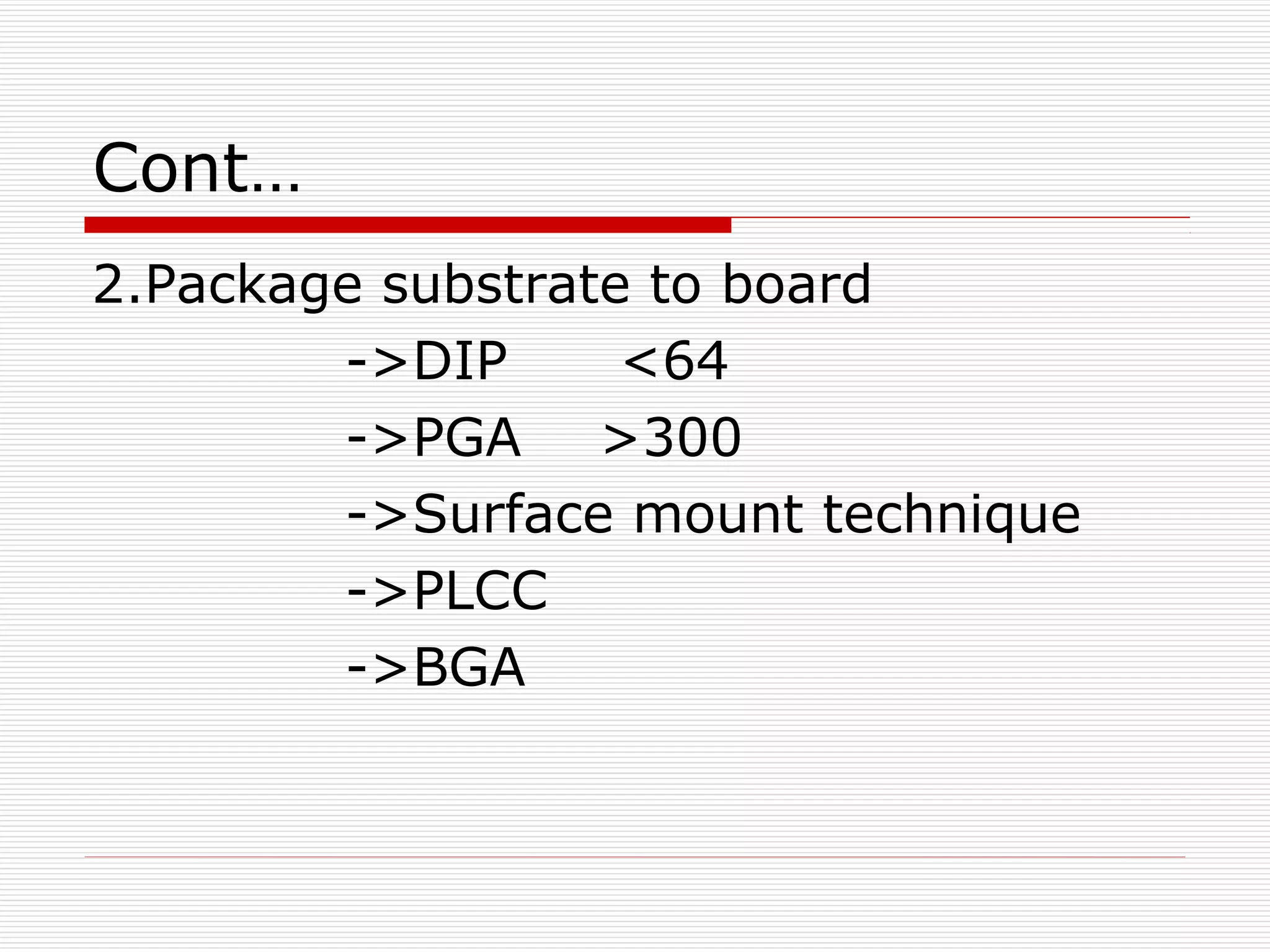

8. Cont…
2.Package substrate to board
->DIP <64
->PGA >300
->Surface mount technique
->PLCC
->BGA

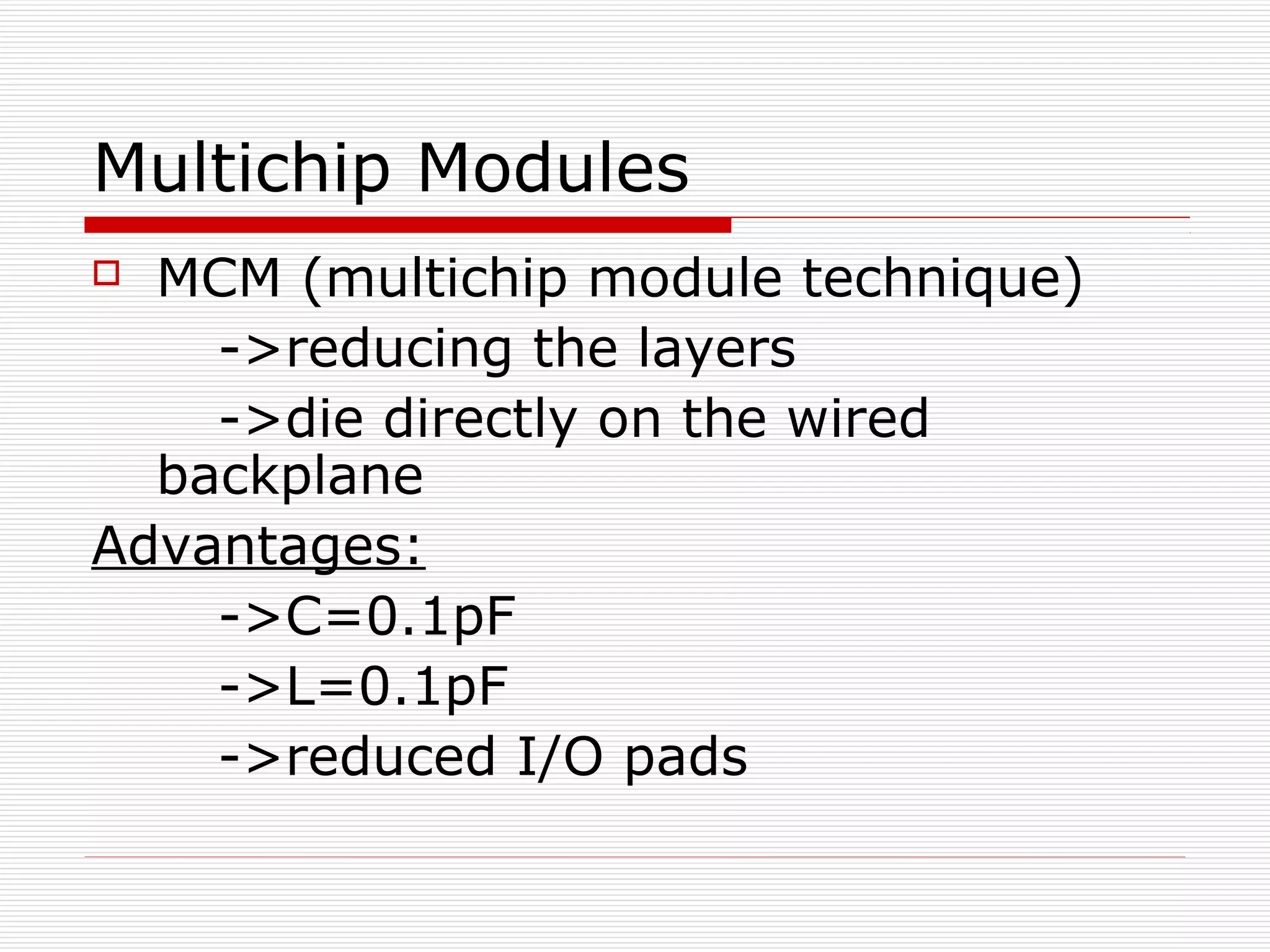

9. Multichip Modules
 MCM (multichip module technique)
->reducing the layers
->die directly on the wired
backplane
Advantages:
->C=0.1pF
->L=0.1pF
->reduced I/O pads

10. Thermal consideration
 Temperature:
->Reverse biased diodes
->Electro migration
->Hot electron trapping
Commercial: (0-70)degree C
Industrial : ((-15) to 85) degree C
Military : ((-55) to 125) degree C

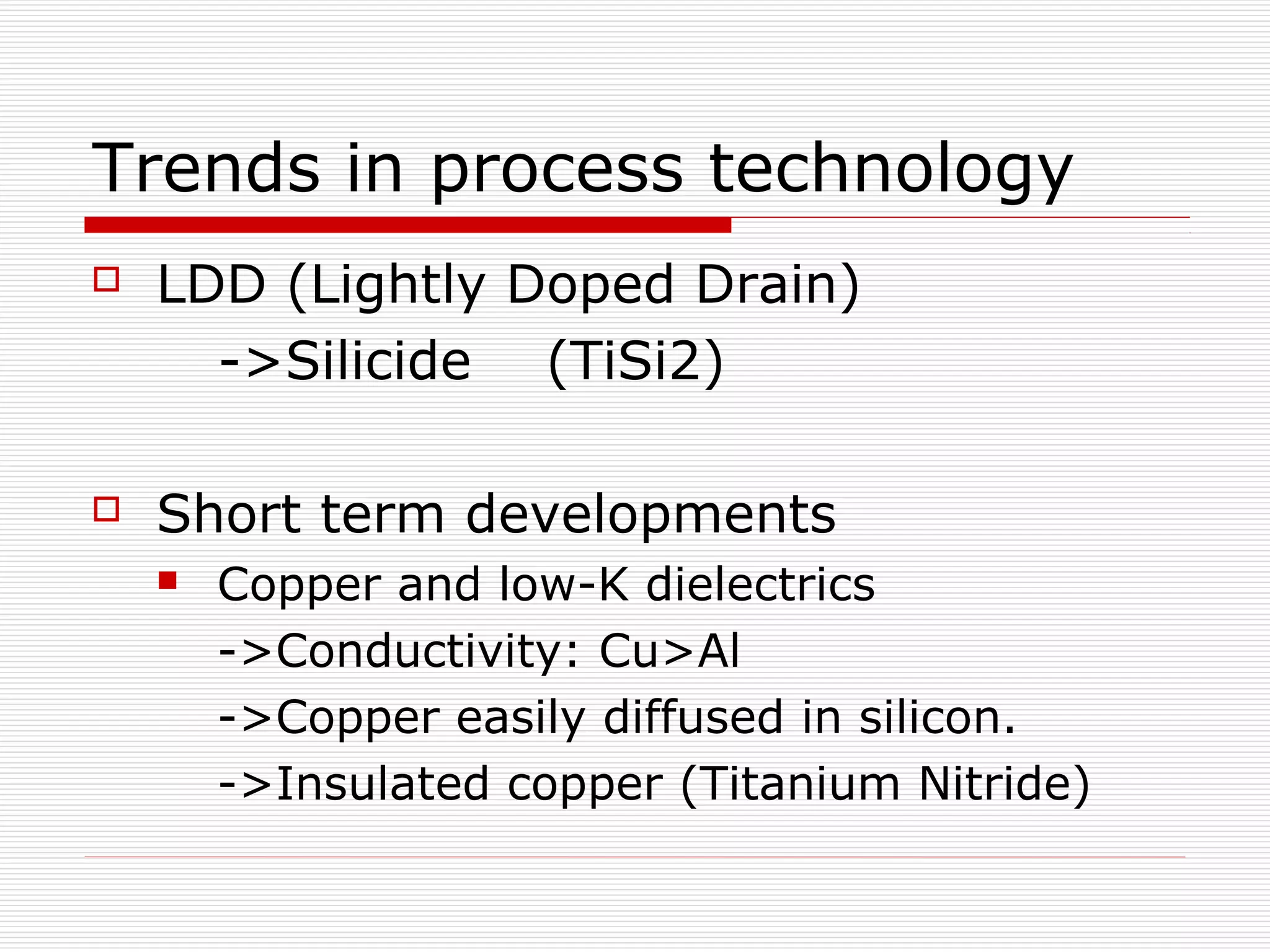

11. Trends in process technology
 LDD (Lightly Doped Drain)
->Silicide (TiSi2)
 Short term developments
 Copper and low-K dielectrics
->Conductivity: Cu>Al
->Copper easily diffused in silicon.
->Insulated copper (Titanium Nitride)

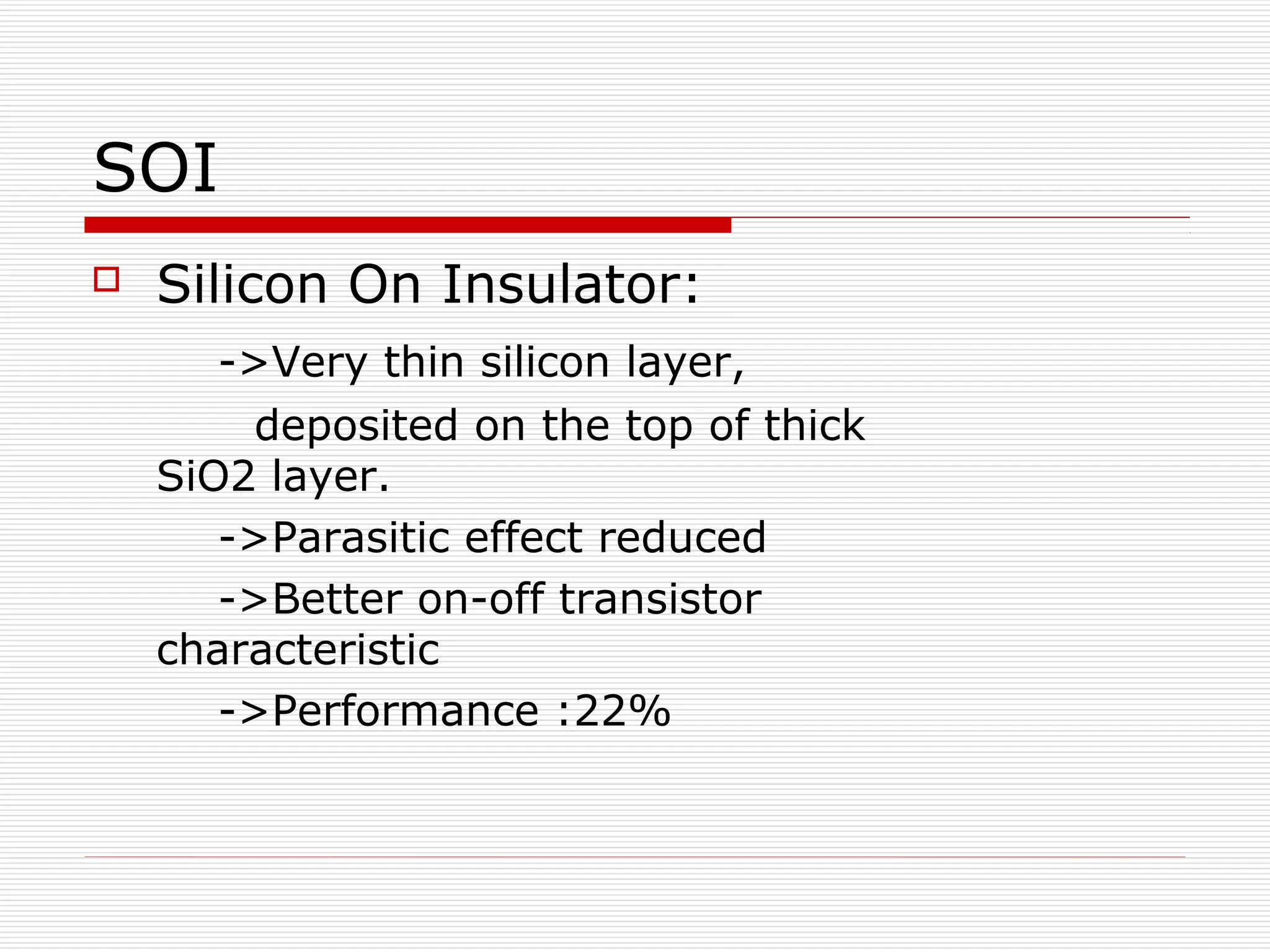

12. SOI
 Silicon On Insulator:
->Very thin silicon layer,
deposited on the top of thick
SiO2 layer.
->Parasitic effect reduced
->Better on-off transistor
characteristic
->Performance :22%

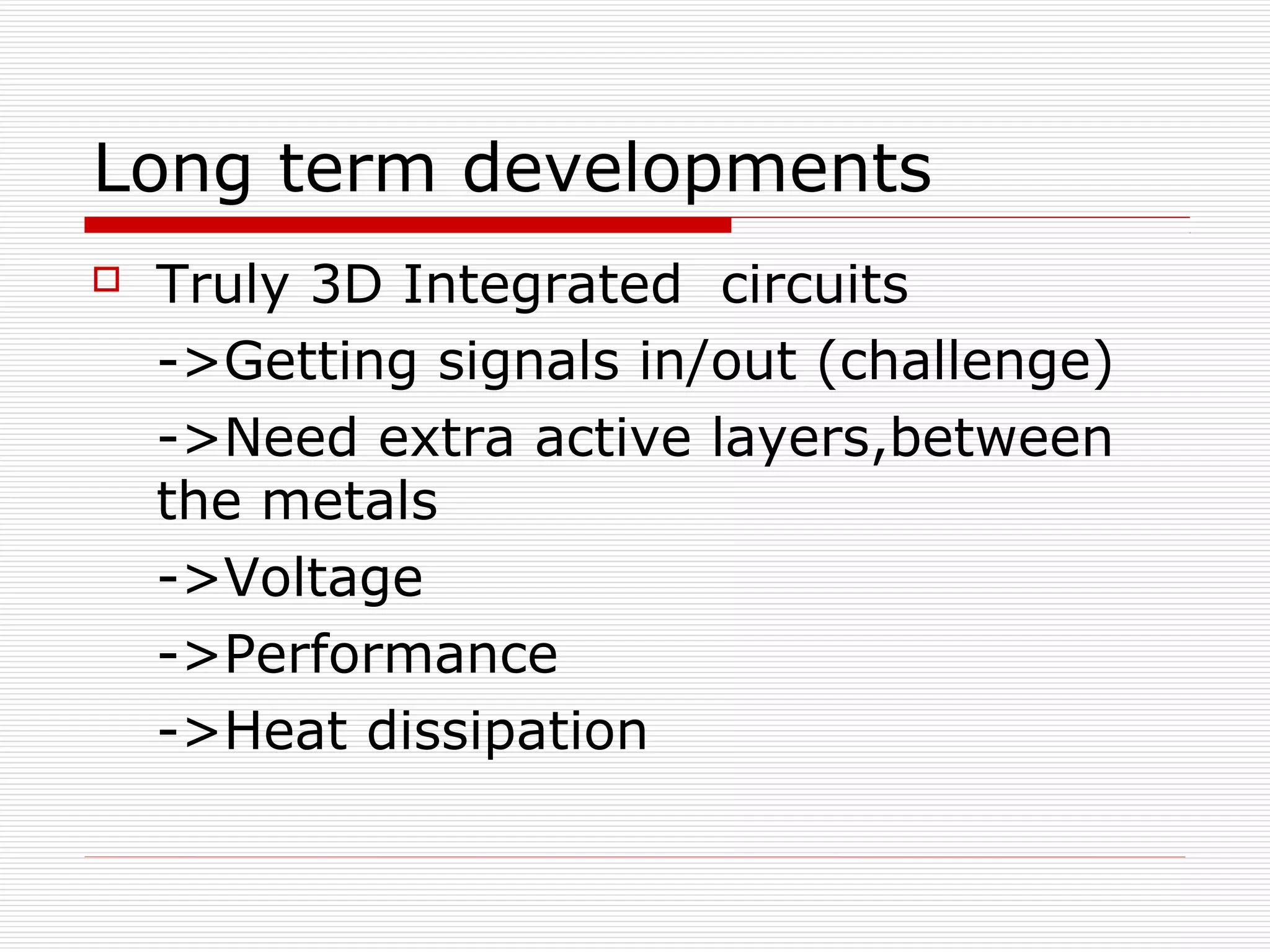

13. Long term developments
 Truly 3D Integrated circuits
->Getting signals in/out (challenge)
->Need extra active layers,between
the metals
->Voltage
->Performance
->Heat dissipation

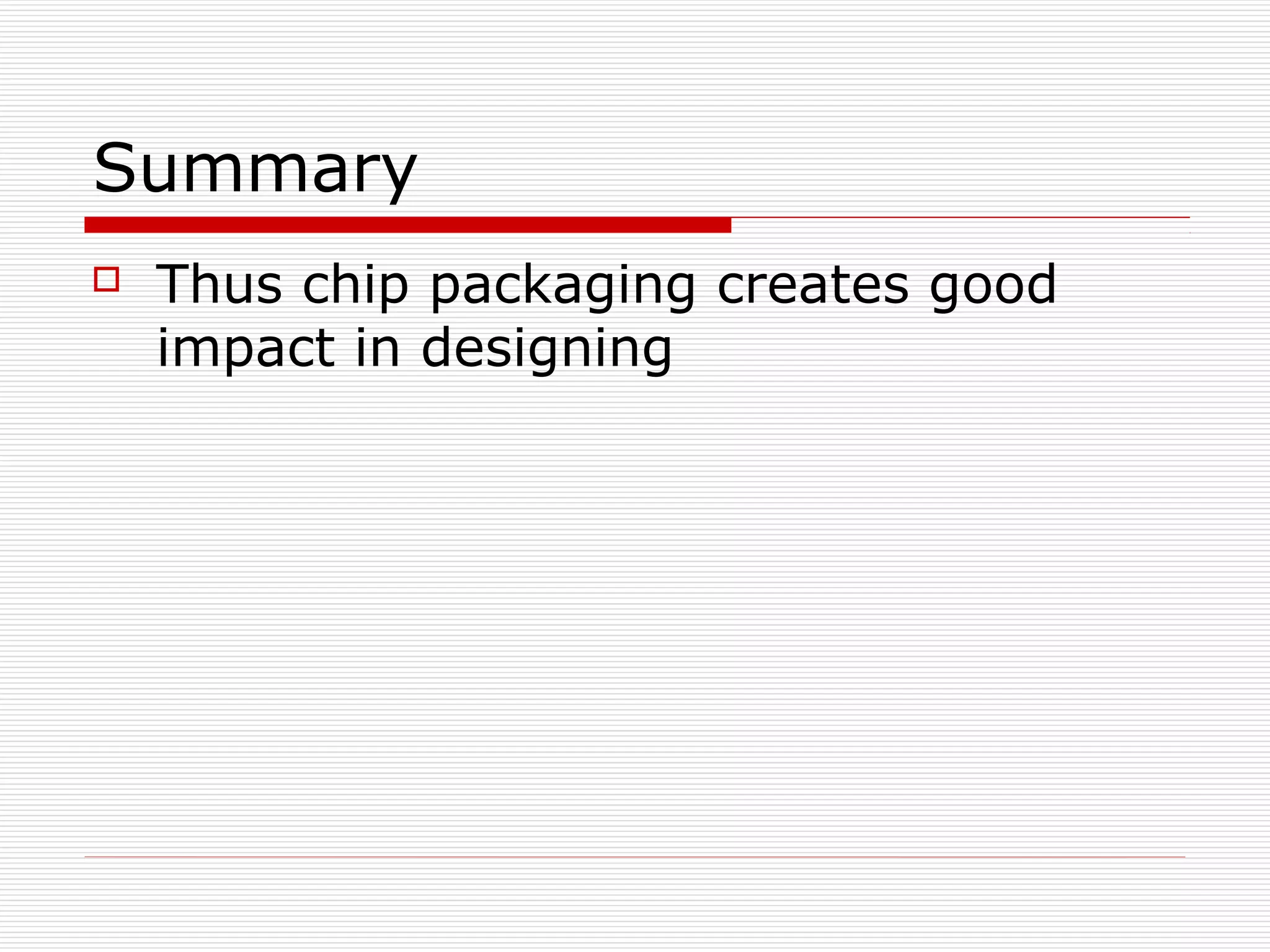

14. Summary
 Thus chip packaging creates good
impact in designing
