1. CHEST X-RAY
ART OF DIAGNOSIS
Presenter: Dr. Ravi Rokaya
Moderator: Dr. Bidesh Bista

2. Contents
• Basics of X-rays
• Assessing image quality
• Approach to interpreting X-ray
• X-ray review
• Documenting details
• Take home message

3. Basics of an X-ray
• X-rays use radiation (photons) to create 2D images
• Structure that are less dense appear dark/black (eg lungs)
• Structure that are more dense appear white (eg bones, tumor,
metals)
• Structure that are medium dense appear grey (eg soft tissues)

4. Before you begin
• Patient details (name, DOB, hospital number)
• Date & time x-ray was performed
• Previous imaging - for comparison

5. Assess image quality
RIPE
• R – Rotation
• I – Inspiration
• P – Projection
• E – Exposure

6. Rotation

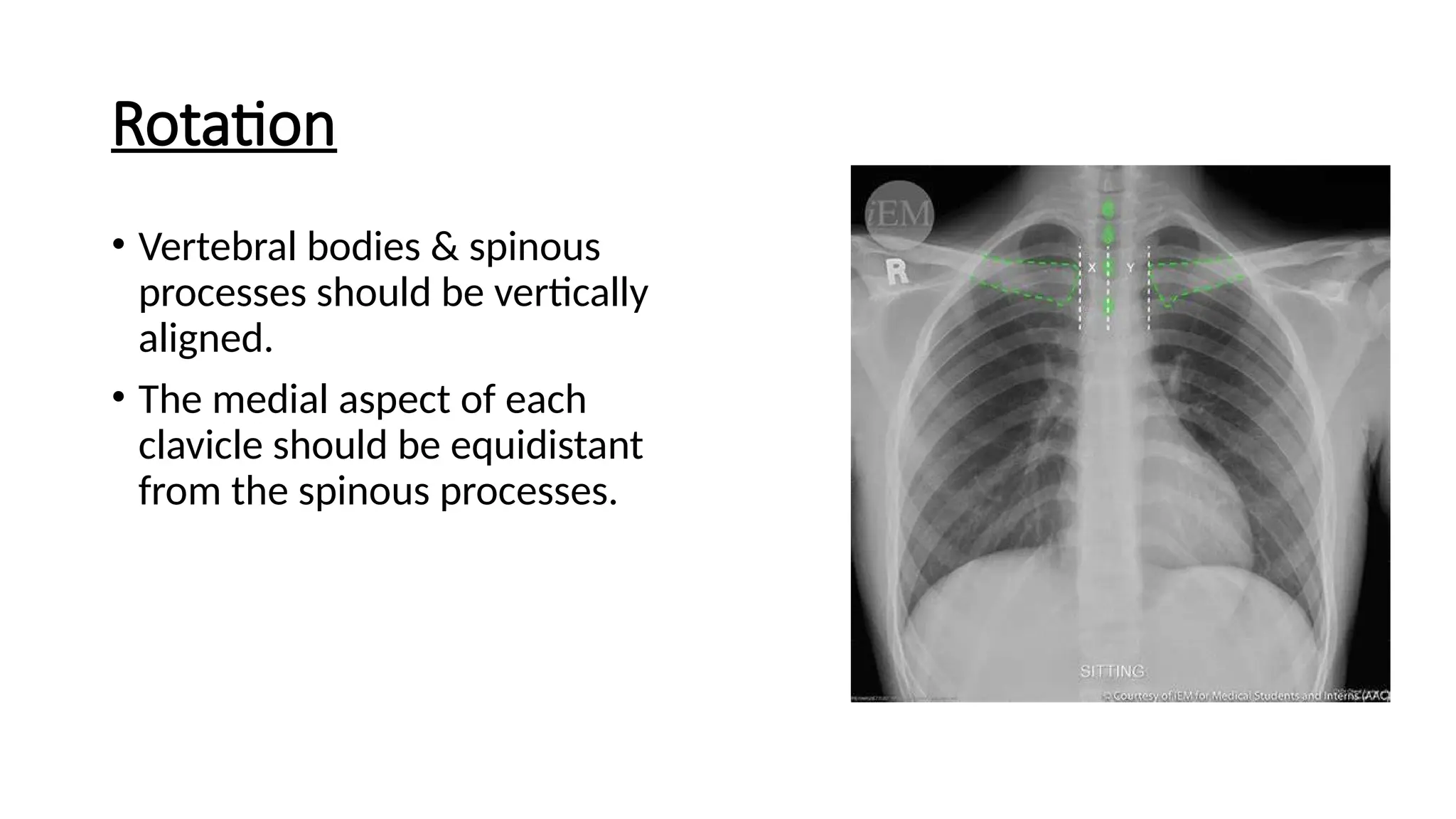

• Vertebral bodies & spinous
processes should be vertically
aligned.
• The medial aspect of each
clavicle should be equidistant
from the spinous processes.

7. Rotation

8. Inspiration
• If inspiration is adequate, the
following should be visible:
5-6 anterior ribs
Both lung apices
Both costophrenic angles
Lateral rib edges

9. Projection

10. Posterior-Anterior (PA) Position
• The standard position for obtaining a routine chest radiograph.
• Patient stands upright with the anterior wall of chest placed against
the front of the film.
• Usually taken with the patient in full inspiration
• The PA film is viewed as if the patient is standing in front of you

11. Anterior-Posterior (AP) Projection
• Used when the patient is debilitated, immobilized, or unable to
cooperate with the PA procedure
• Film is placed behind the patient's back with the patient in a supine
position
• The scapulae are usually visible in the lung fields because they are not
rotated out of the view as they are in a PA

12. Lateral Projection
• Patient stands upright with the left side of the chest against the film
and the arms raised over the head
• Allows the viewer to see behind the heart and diaphragmatic dome
• Typically used in conjunction with a PA view of the same side of chest
to help determine the three-dimensional position of organs or
abnormal densities

13. Exposure
• In a properly exposed chest radiograph:
-the lower thoracic vertebrae should be
visible through the heart
-the broncho vascular structures behind
heart (trachea, aortic arch, pulmonary
arteries, etc.) should be seen.

14. Underexposure
• In an underexposed chest radiograph,
the cardiac shadow is opaque, with
little or no visibility of the thoracic
vertebrae.
• The lungs may appear much denser
and whiter, gives appearance of
infiltrates.

15. Overexposure
• With greater exposure of the chest
radiograph, the heart becomes more
radiolucent and the lungs become
proportionately darker.
• Often gives the appearance of lacking
lung tissue, as would be seen in a
condition such as emphysema.

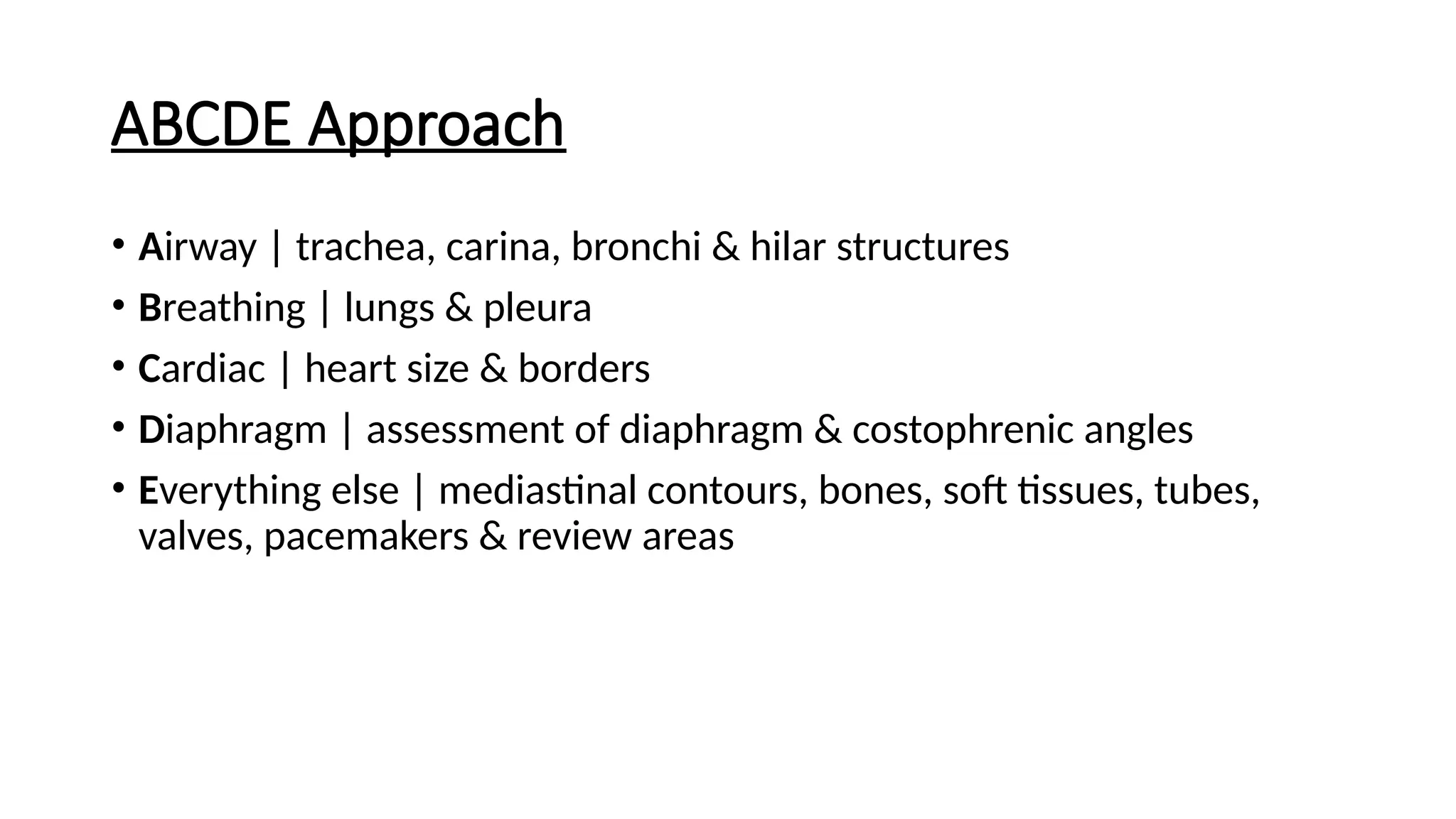

16. ABCDE Approach
• Airway | trachea, carina, bronchi & hilar structures
• Breathing | lungs & pleura
• Cardiac | heart size & borders
• Diaphragm | assessment of diaphragm & costophrenic angles
• Everything else | mediastinal contours, bones, soft tissues, tubes,
valves, pacemakers & review areas

17. Airway
• Airway structures to
examine:
Trachea
Carina & bronchi
Hilar structures

18. Trachea

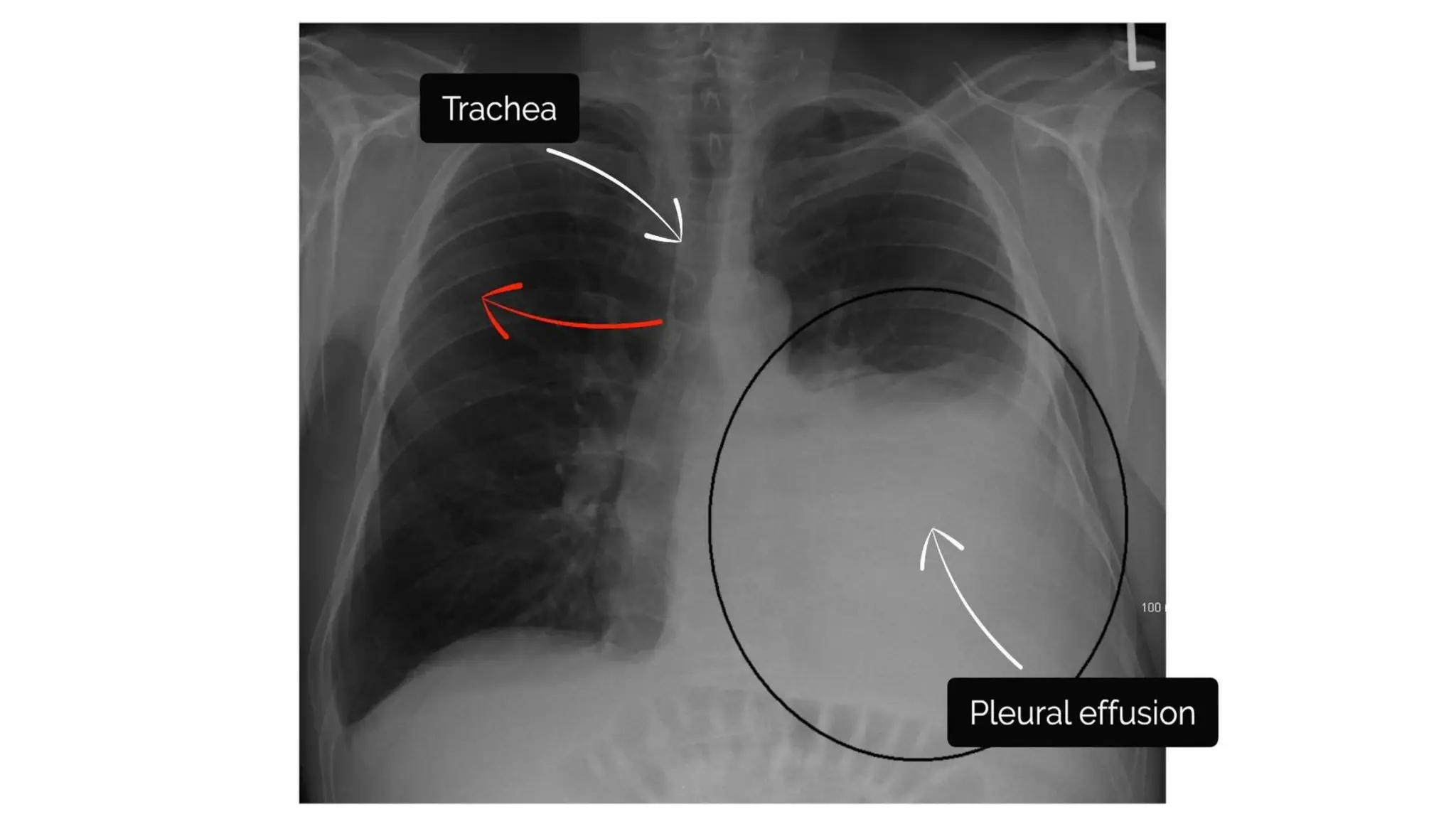

Inspect the trachea for signs of deviation
True deviation Apparent deviation
Large pleural effusion
Tension pneumothorax
Lobar collapse
Rotation of the patient

21. Carina and Bronchi
• The carina is located at the point
where trachea divides into the
Left & Right main bronchus.

22. Hilar structures
• The Hilar contain
 Pulmonary vessels
 Major bronchi
 Lymph nodes

23. • Hilar enlargement can be unilateral
or bilateral
• Bilateral enlargement –
1. Metastasis
2. Tuberculosis
3. Sarcoidosis
4. Lymphoma
5. Histoplasmosis

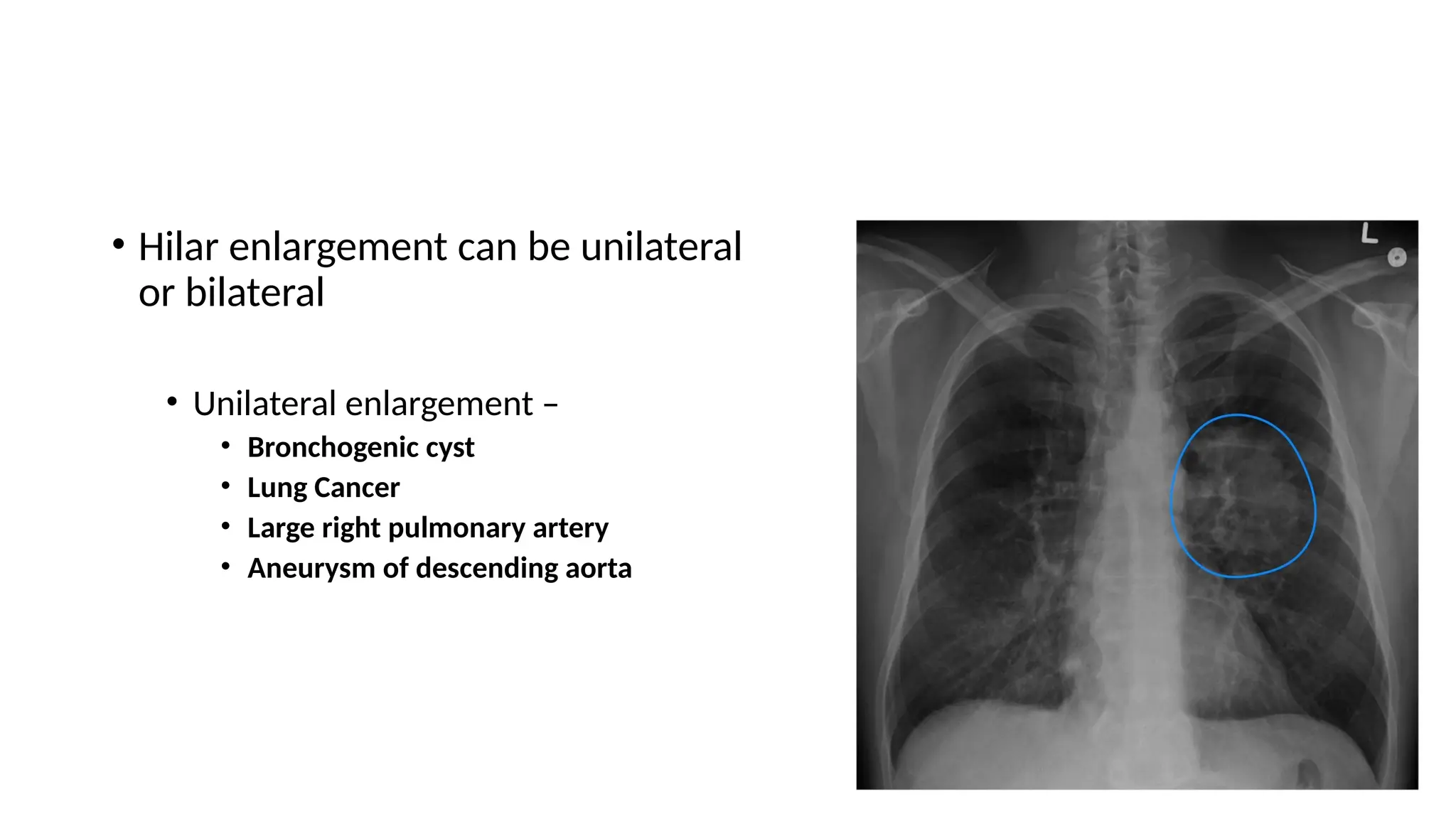

24. • Hilar enlargement can be unilateral
or bilateral
• Unilateral enlargement –
• Bronchogenic cyst
• Lung Cancer
• Large right pulmonary artery
• Aneurysm of descending aorta

25. Breathing

26. Breathing

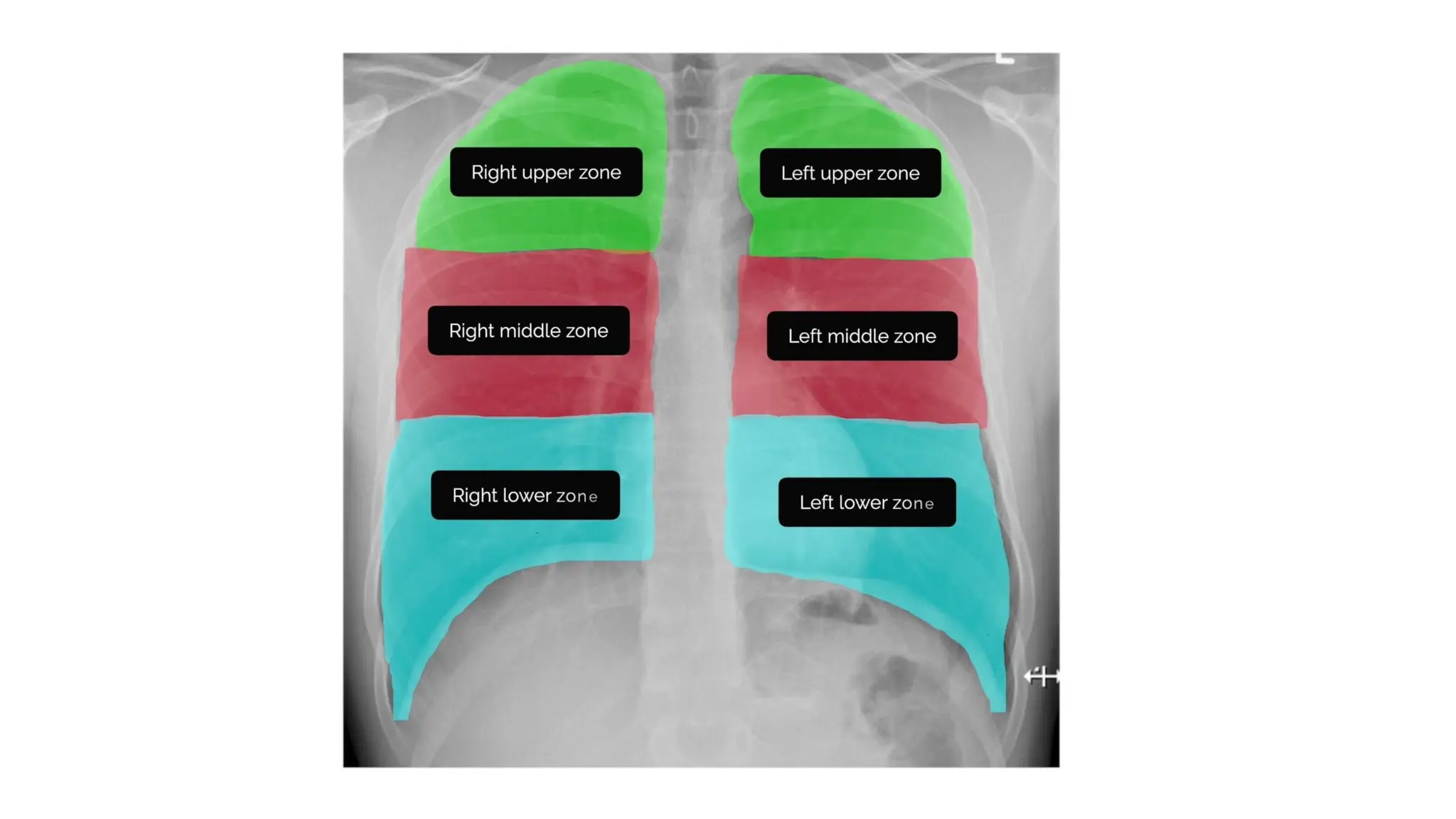

• Divide each of the lungs into three zones & inspect each zone,
noting any asymmetry.

28. Lungs
• Abnormalities may include:
Pulmonary edema
Consolidation/Malignancy
Pneumothorax

29. Pulmonary Edema
• Common findings may include:
Air space opacification (bat wing distribution)
Kerley B lines
Pleural effusions (look for costophrenic blunting)
Fluid in interlobular fissures

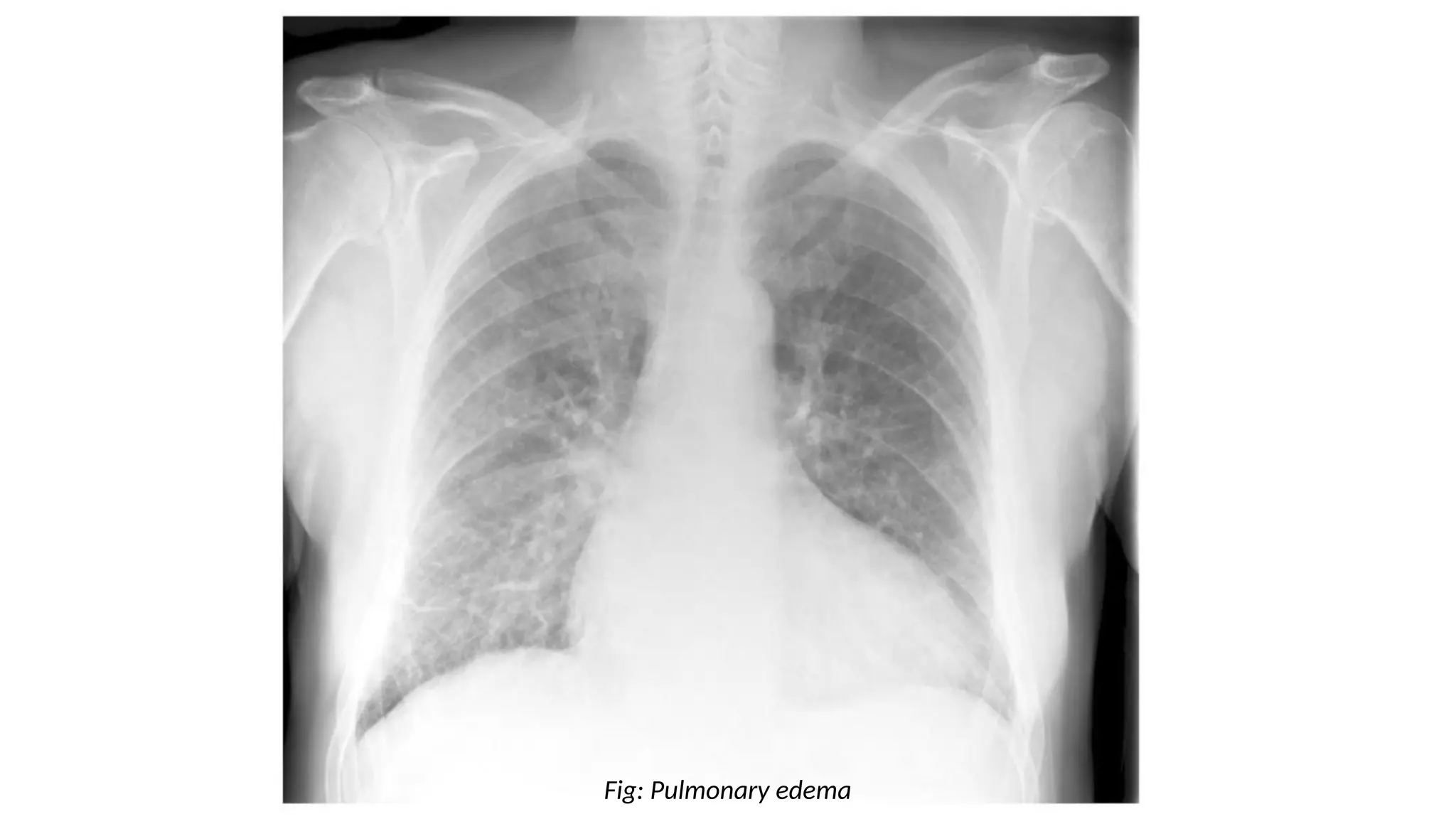

30. Fig: Pulmonary edema

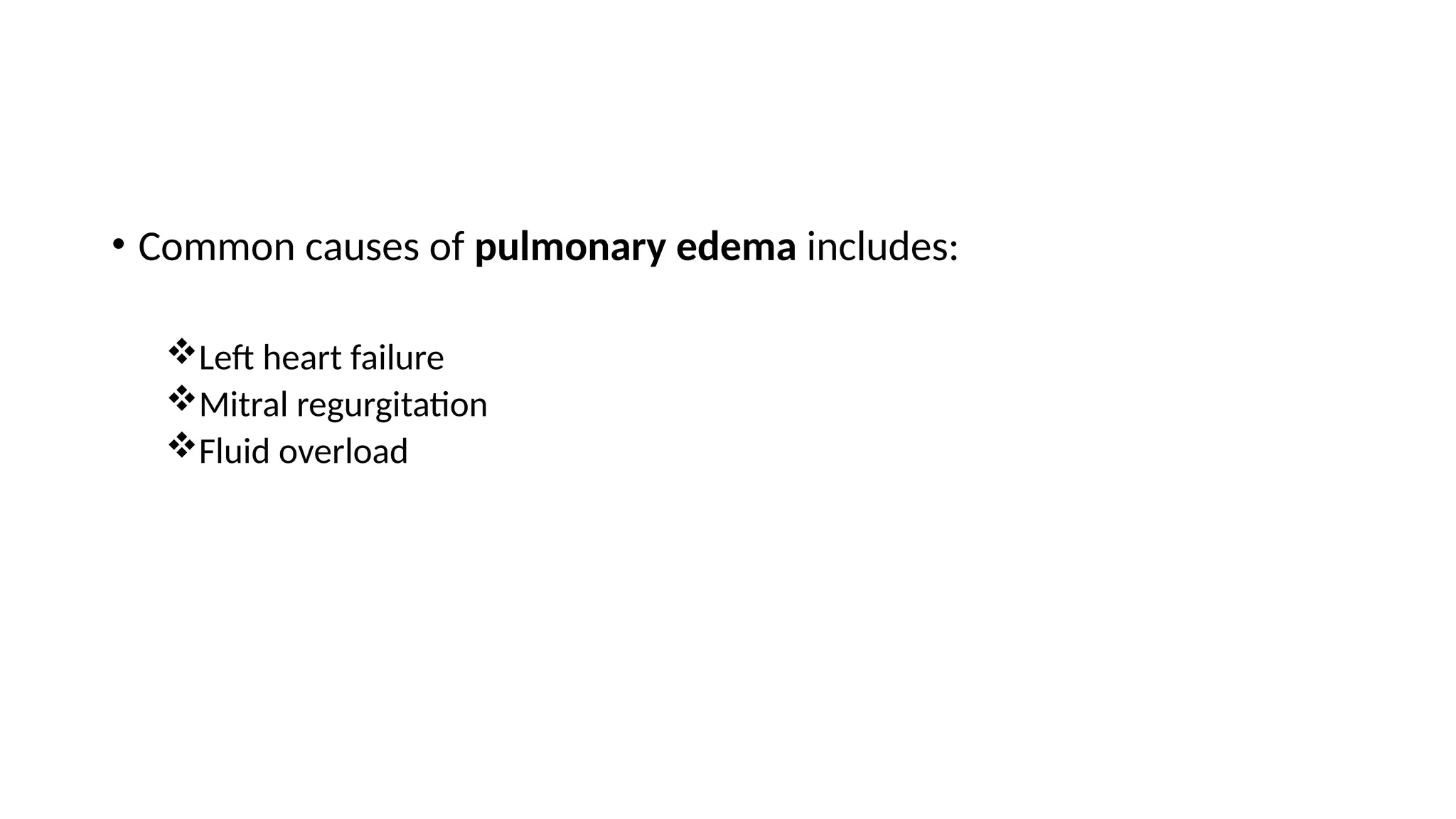

31. • Common causes of pulmonary edema includes:
Left heart failure
Mitral regurgitation
Fluid overload

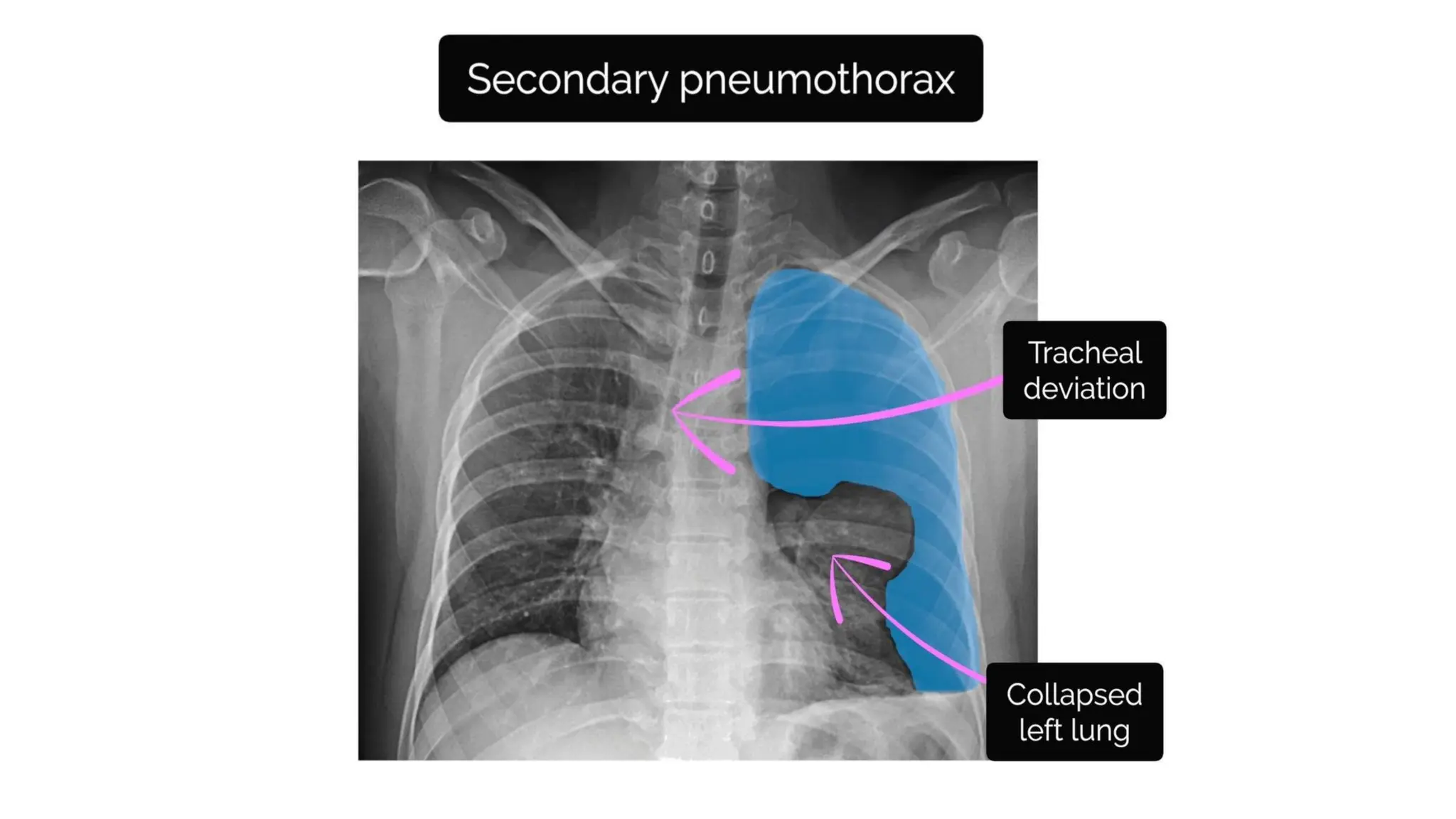

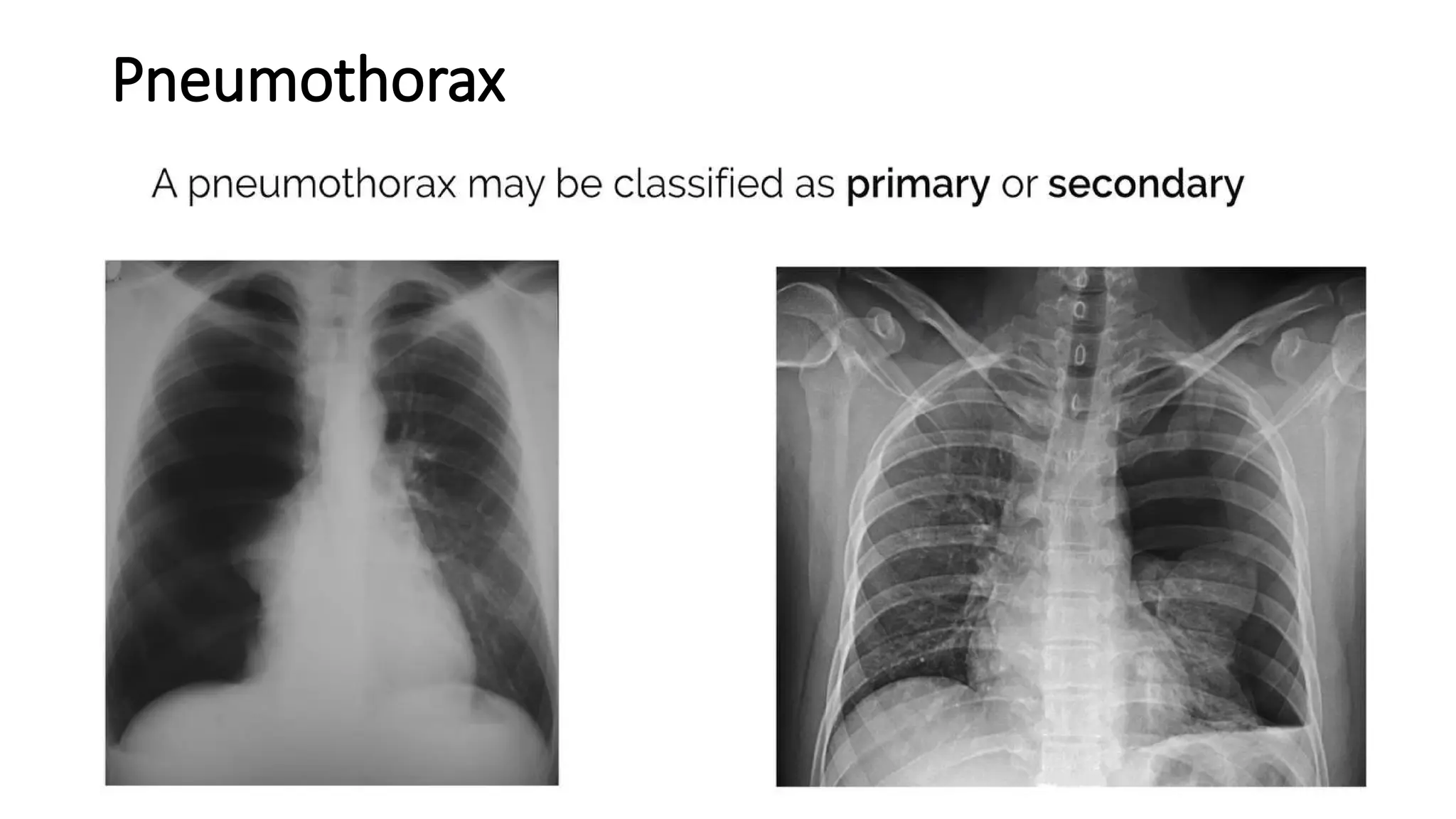

34. Pneumothorax

37. Pleura
• Membrane surrounding the lungs
• Usually not visible in healthy individuals
• But can be visible when thickened

38. • Common causes of pleural
thickening:
• Mesothelioma
Pleural Thickening

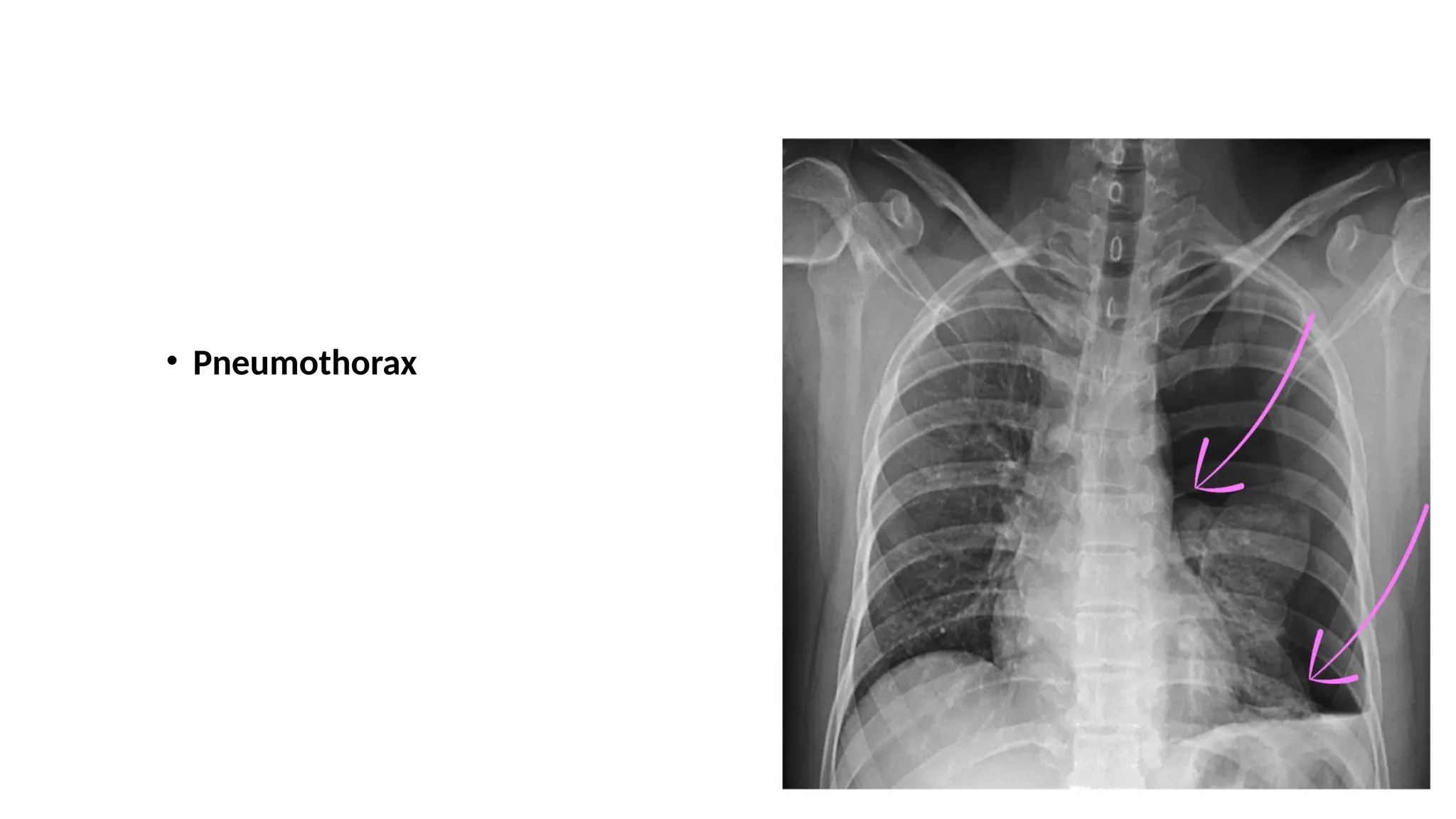

39. • Pneumothorax

40. • Hydrothorax collection
of fluid in pleural space

41. • Haemothorax Collection
of blood in pleural space

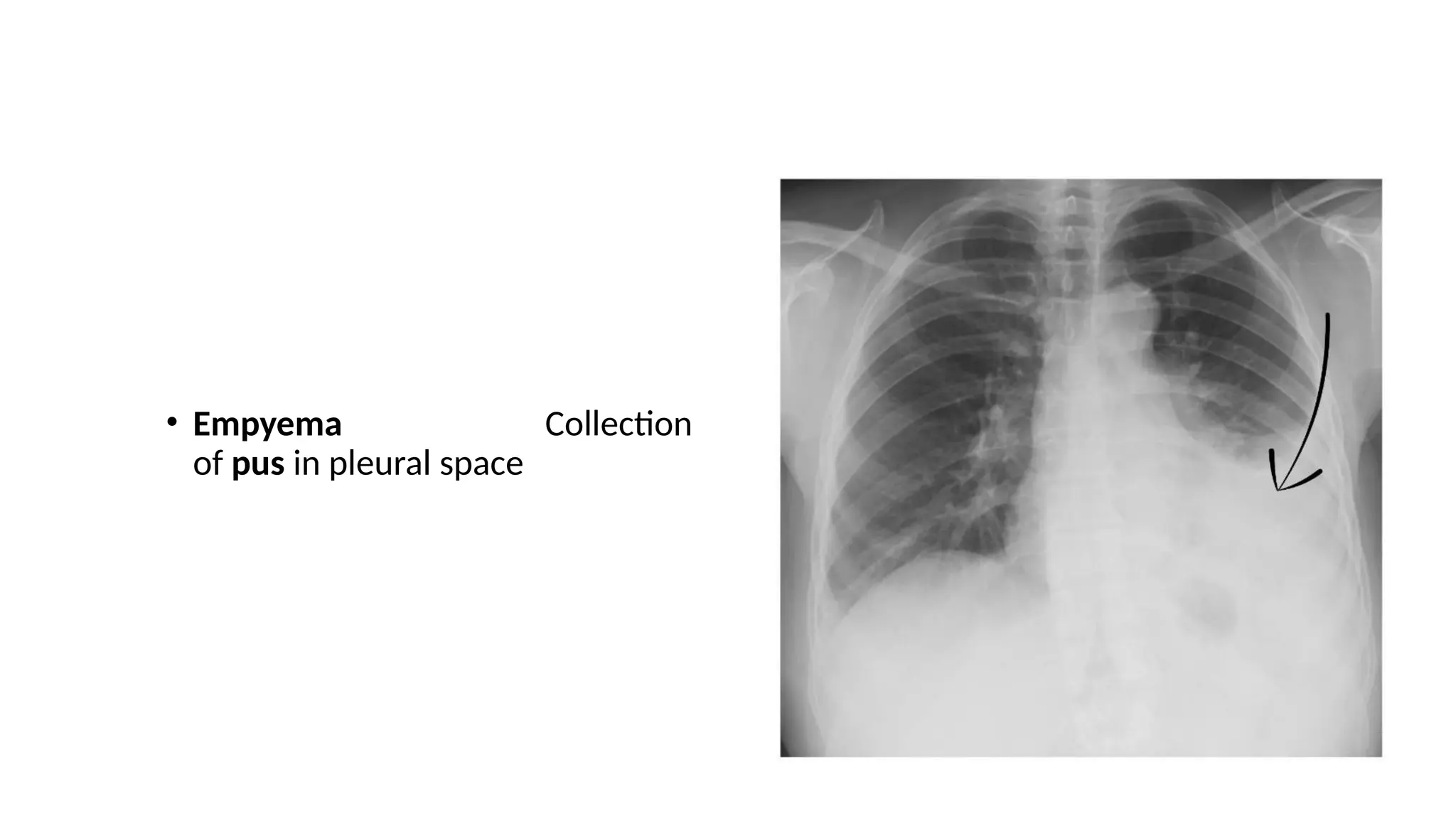

42. • Empyema Collection
of pus in pleural space

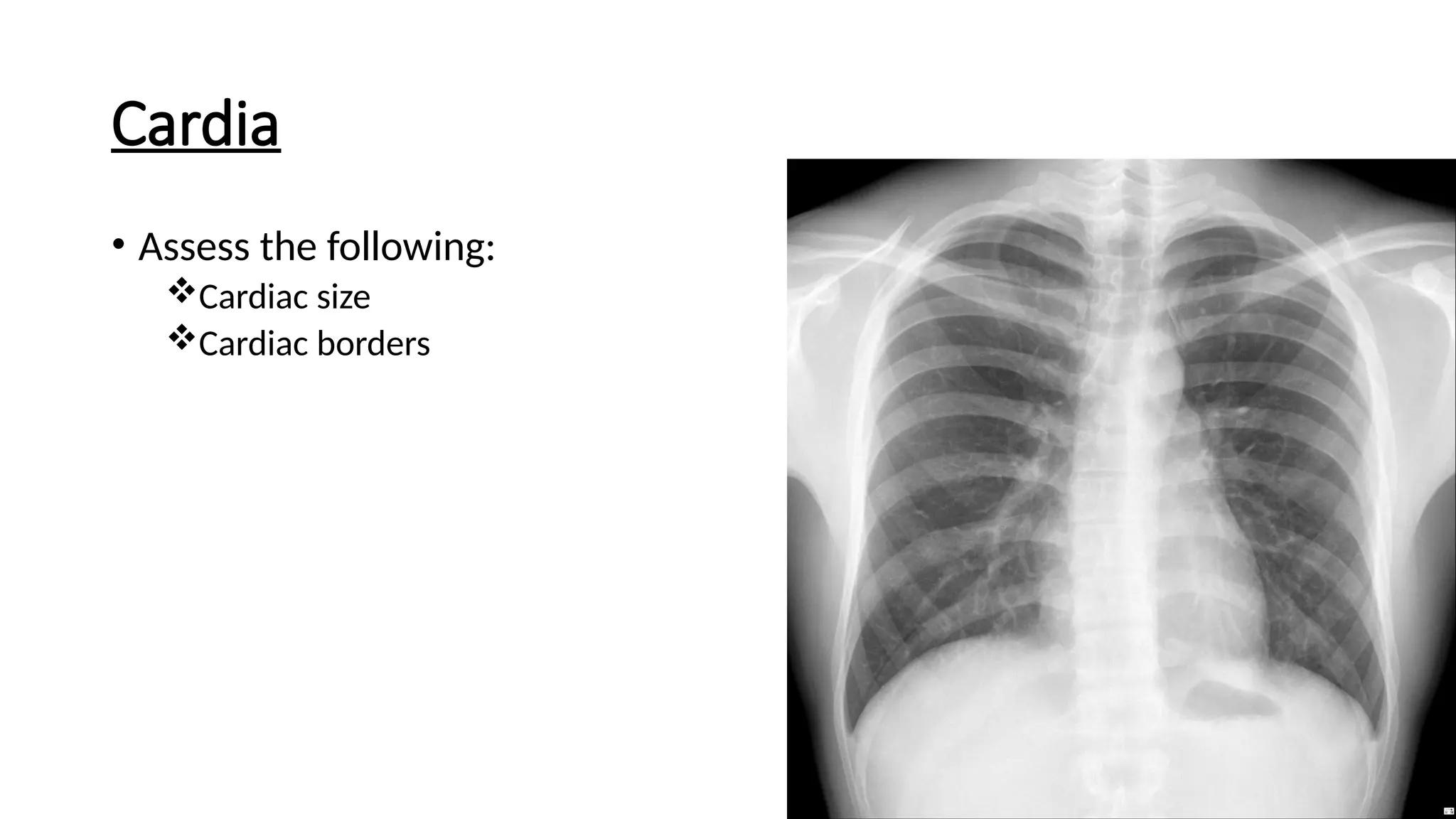

43. Cardia
• Assess the following:
Cardiac size
Cardiac borders

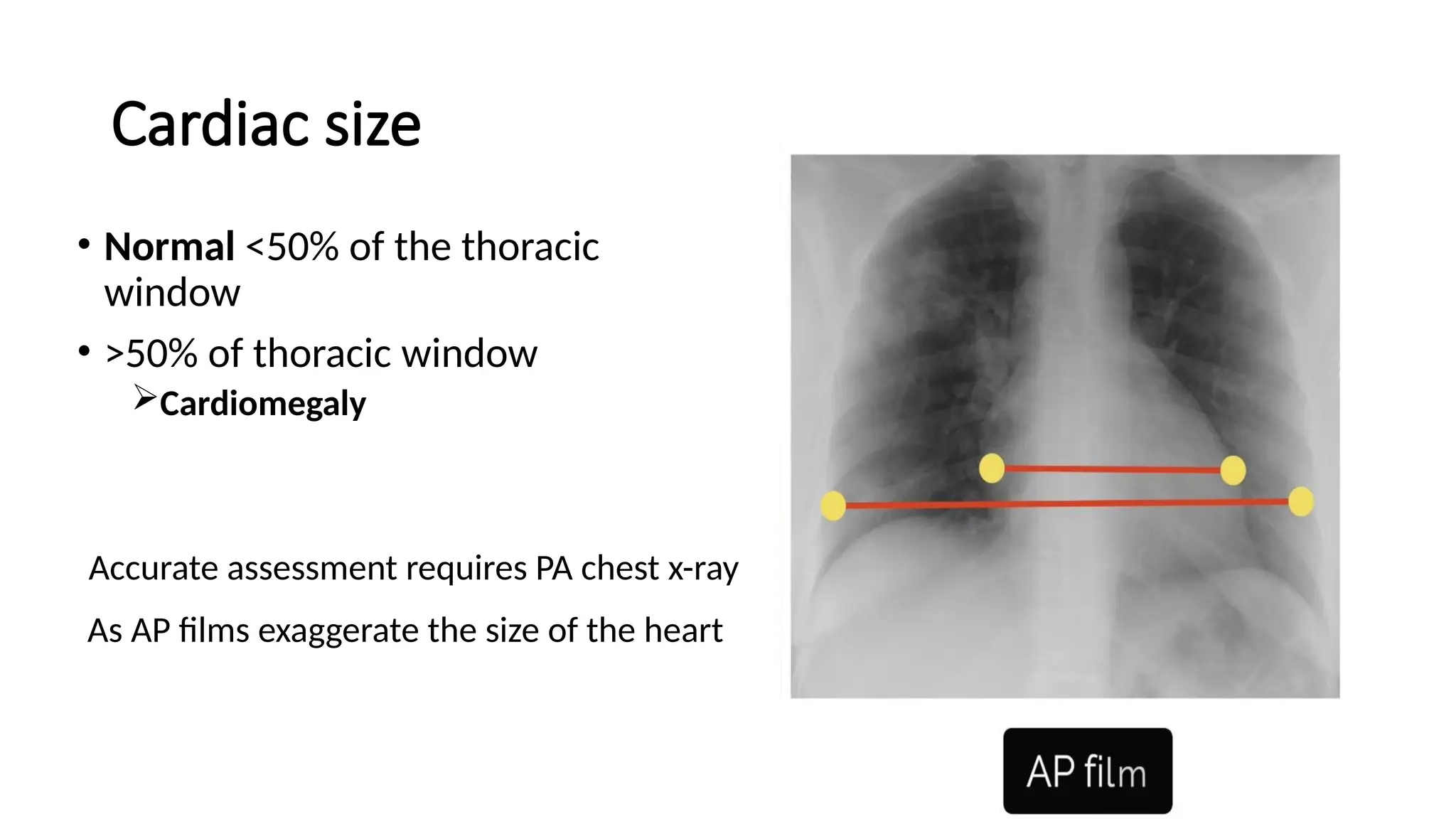

44. Cardiac size
• Normal <50% of the thoracic
window
• >50% of thoracic window
Cardiomegaly
Accurate assessment requires PA chest x-ray
As AP films exaggerate the size of the heart

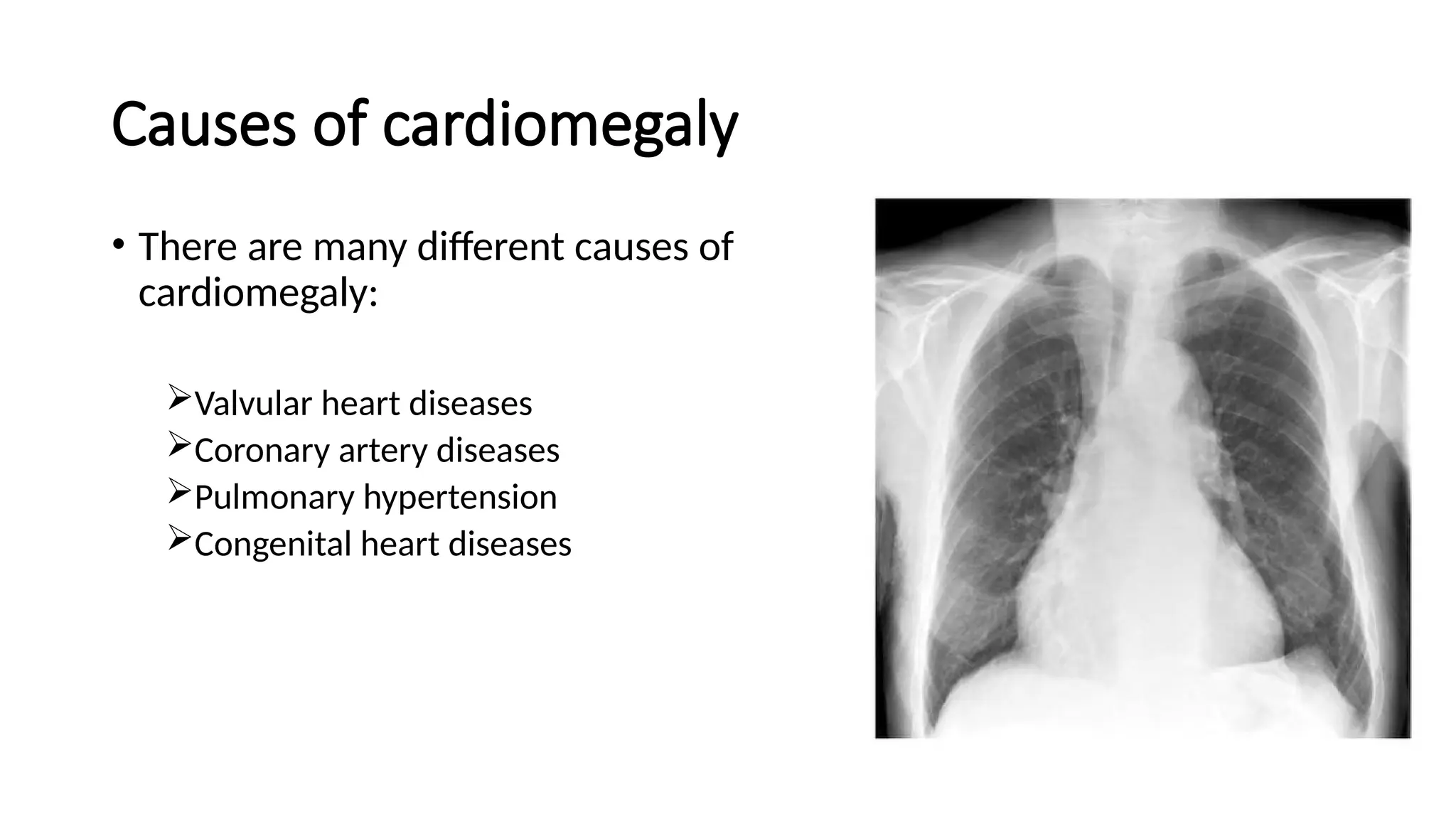

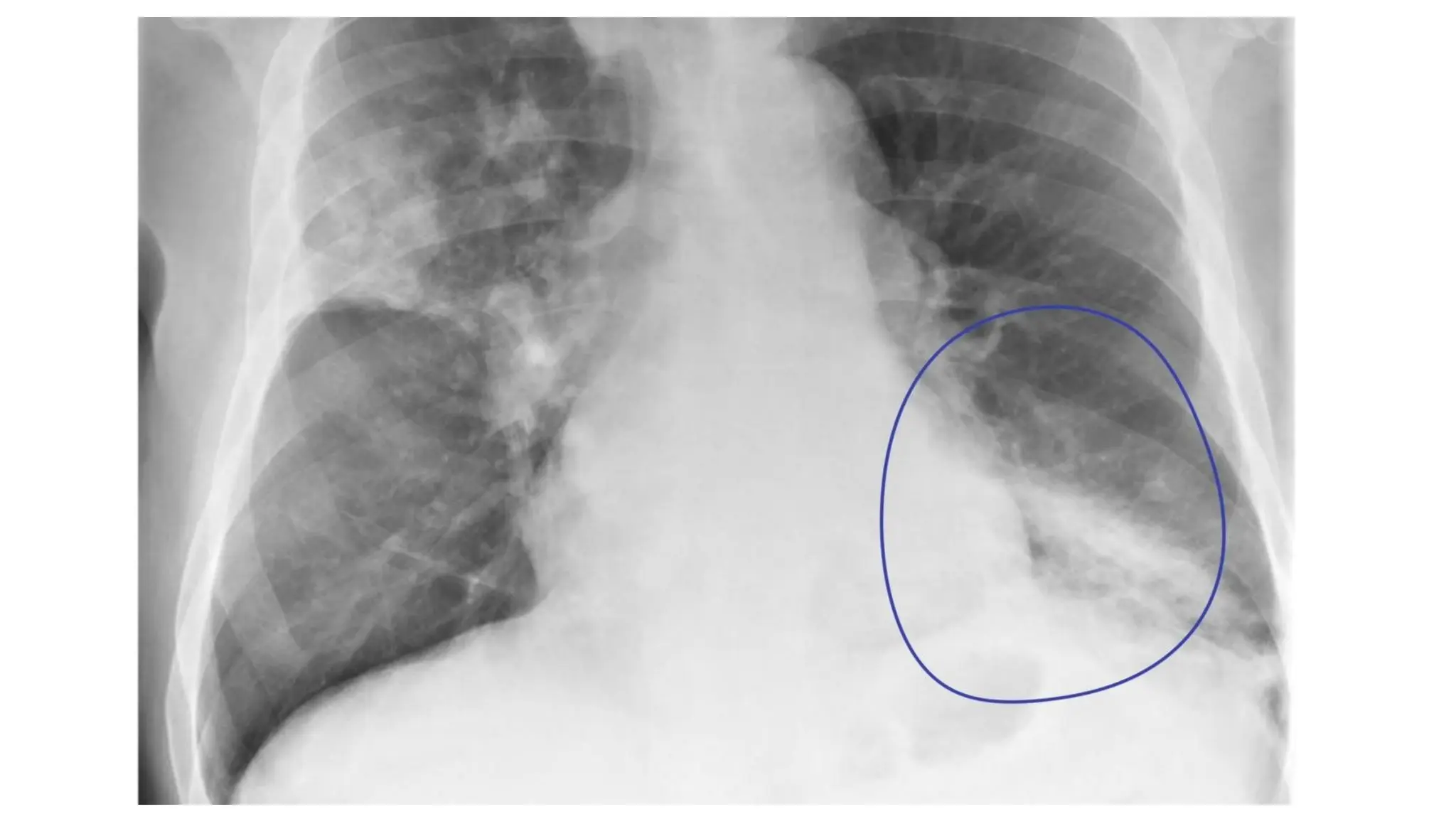

46. Causes of cardiomegaly
• There are many different causes of
cardiomegaly:
Valvular heart diseases
Coronary artery diseases
Pulmonary hypertension
Congenital heart diseases

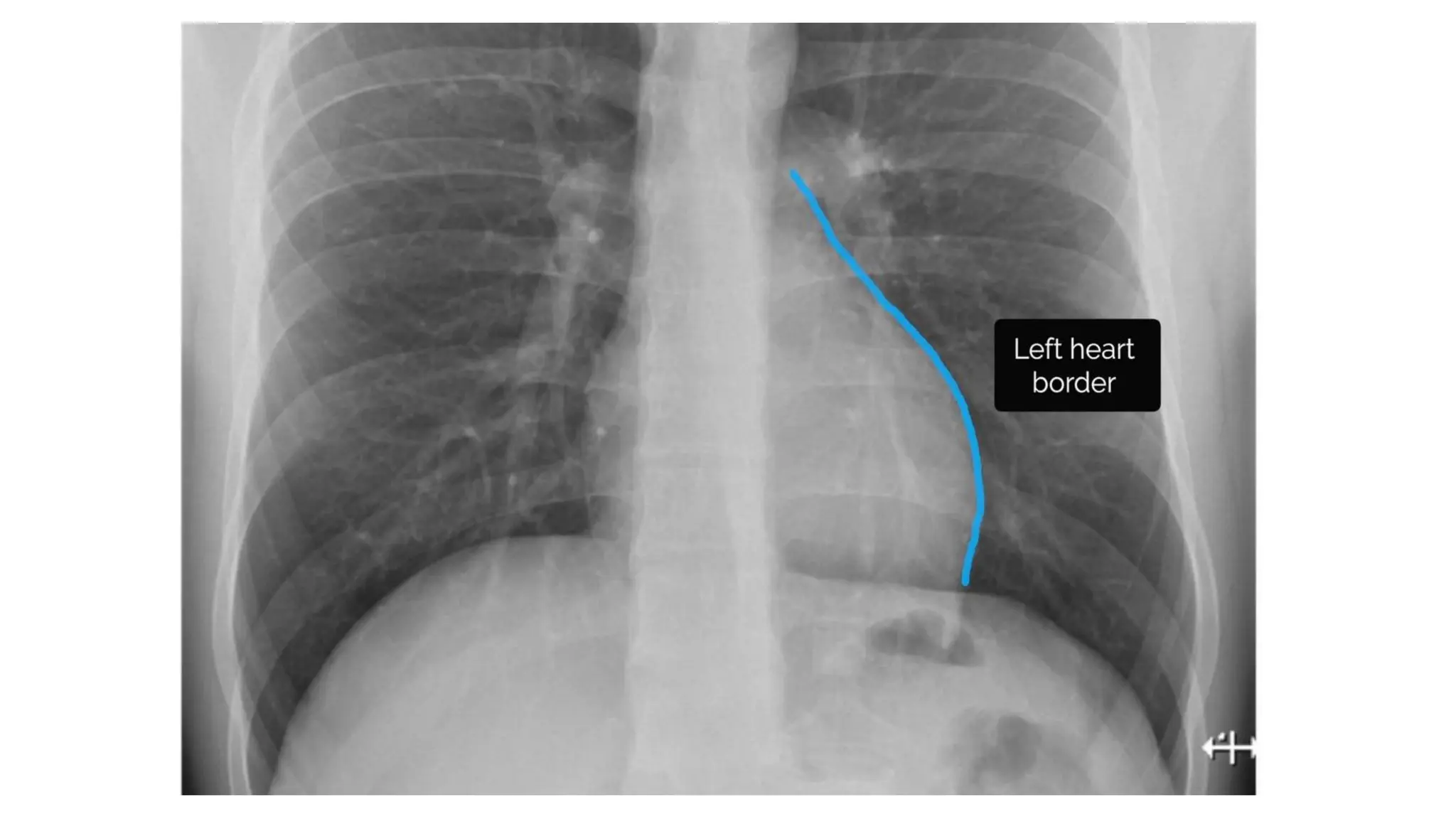

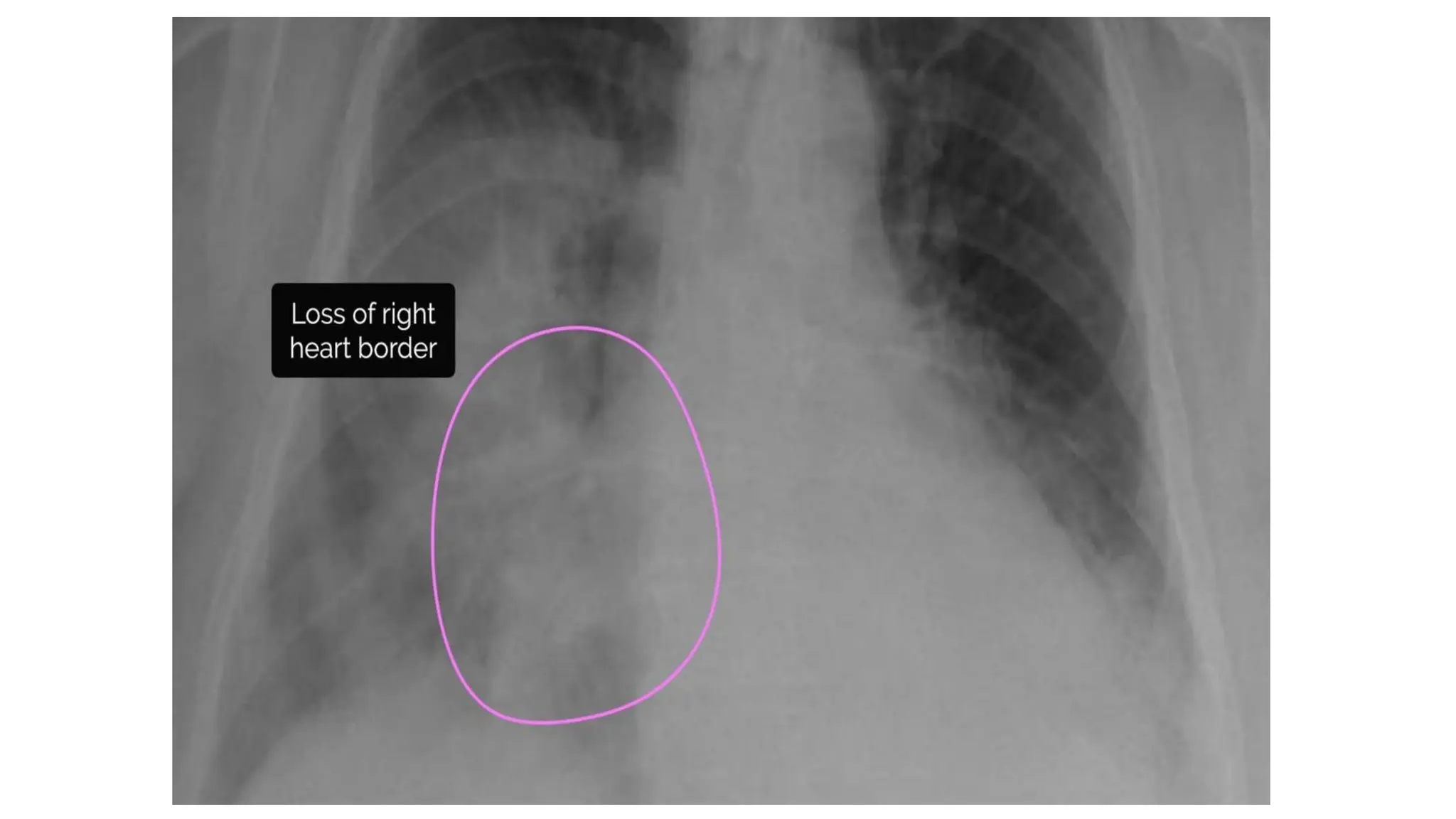

47. Cardiac borders
• In healthy individuals the borders
of the heart should be clearly
visible & well-defined.

52. Diaphragm
• Assessing the diaphragm:
Left & right hemidiaphragm
Costophrenic angles

53. Hemidiaphragm
• Right hemidiaphragm higher than the left
due to presence of liver below
• Stomach sits under the left hemidiaphragm
and gastric bubble can be visualized

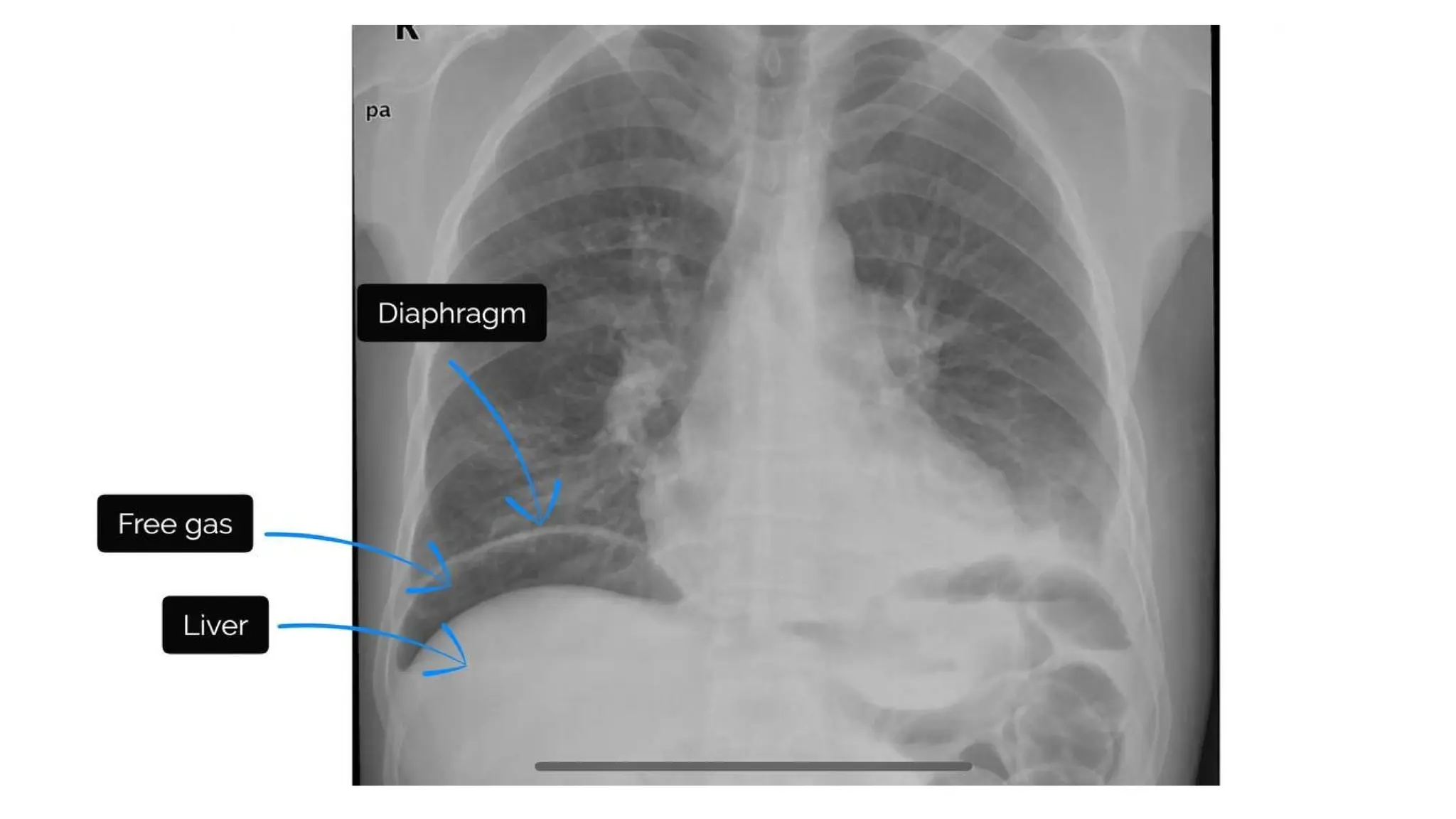

54. • Pneumoperitoneum= accumulation of air
under the diaphragm
• Results in the separation of the diaphragm
from liver.
• Often secondary to a bowel perforation

56. Costophrenic angles
• The costophrenic angles reflect the dome
shape of hemidiaphragm as it meets the
lateral chest wall.

57. • The loss of this angle is termed as
costophrenic blunting & causes
includes:
Pleural effusion
Consolidation
Hyperinflation (e.g. asthma copd)

58. Everything else
Review everything else:
Mediastinal contours
Aortic knuckle
Aortopulmonary window
Bones & soft tissues
Tubes, valves & pacemakers
Review areas

59. Mediastinal contours

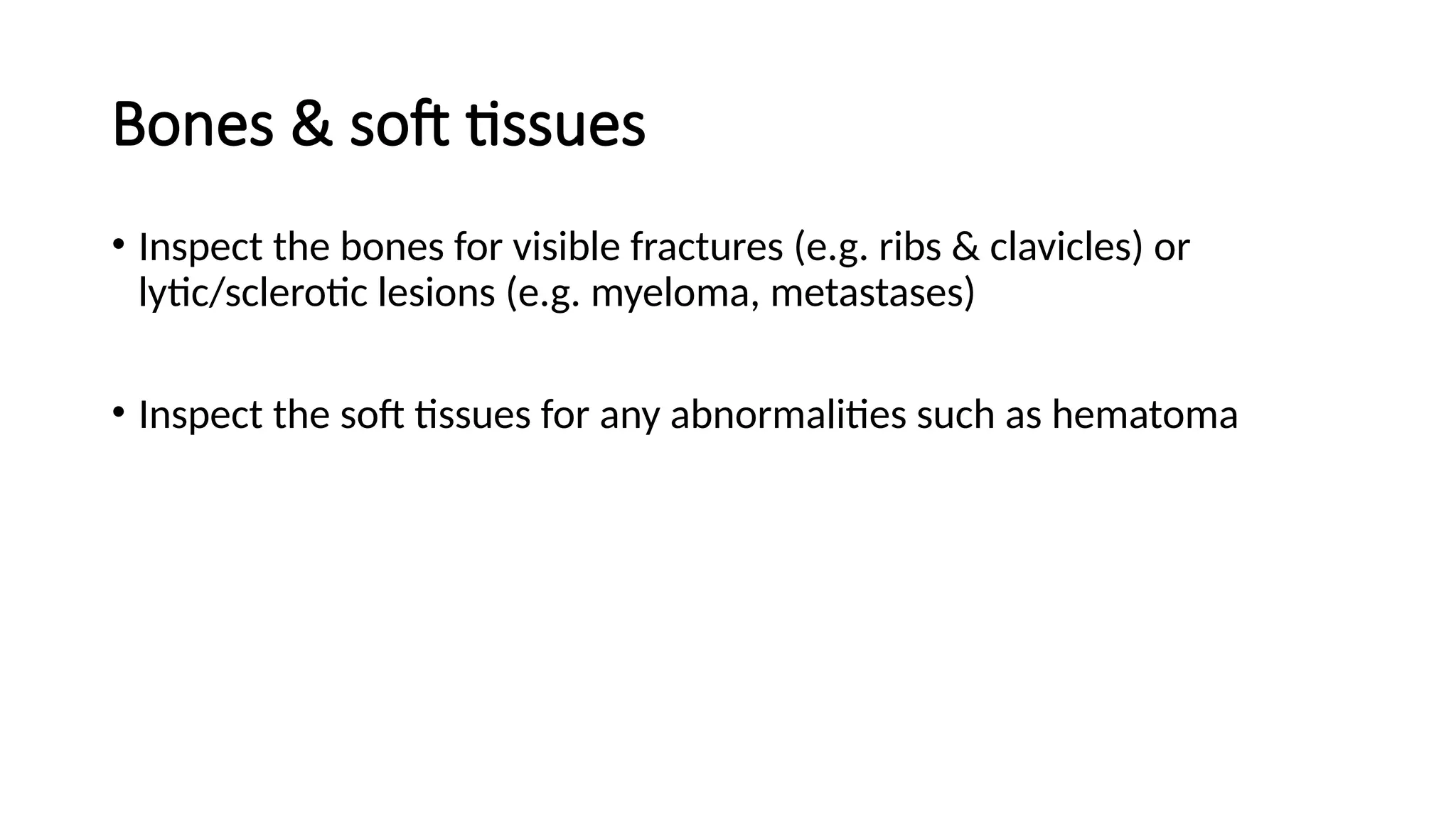

60. Bones & soft tissues
• Inspect the bones for visible fractures (e.g. ribs & clavicles) or
lytic/sclerotic lesions (e.g. myeloma, metastases)
• Inspect the soft tissues for any abnormalities such as hematoma

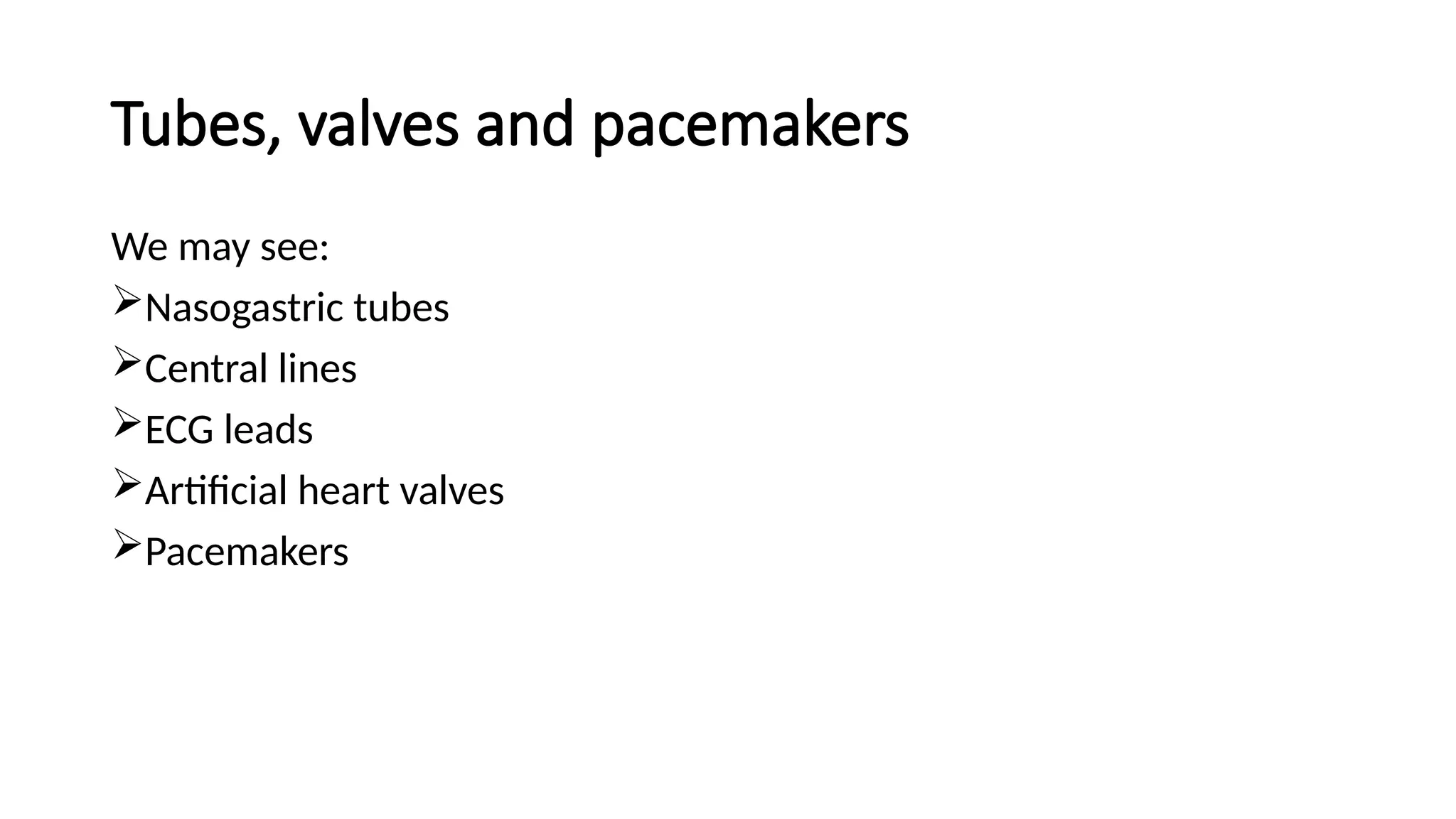

61. Tubes, valves and pacemakers
We may see:
Nasogastric tubes
Central lines
ECG leads
Artificial heart valves

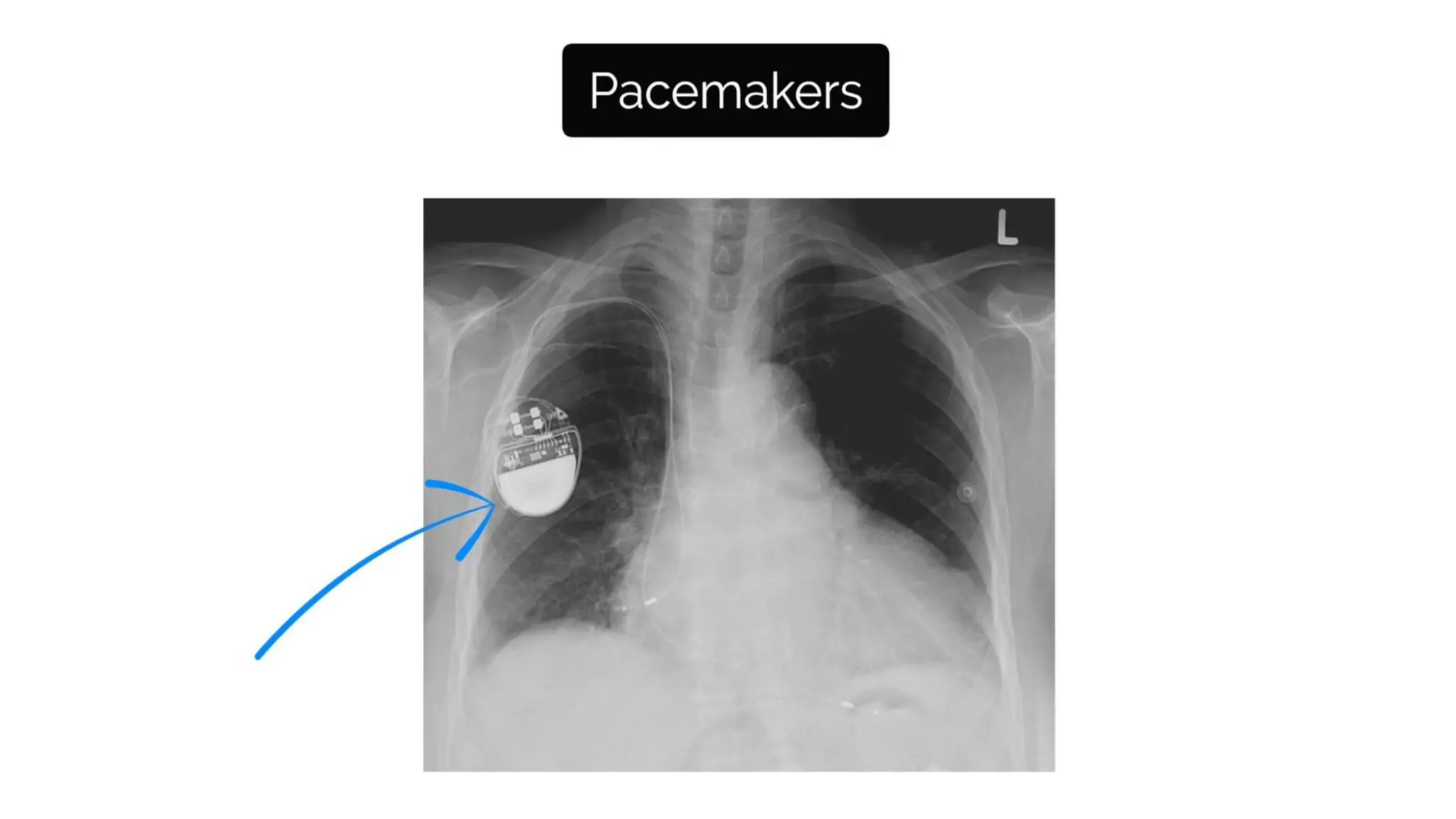

Pacemakers

65. Final Review areas
Lung apices
Retrocardiac region
Lung peripheries

66. Document your findings
Patient details (name, DOB and ID number)
Date and time chest x-ray was performed
Indication/clinical context
Document each finding using ABCDE format
Overall impression
Plan
Your name, grade, signature, registration
number and contact number

67. Take Home Message
• Patient details should always be checked before reading an x-ray
• Appropriate image quality is necessary for interpreting of an x- ray
• PA projection is standard projection
• It is important to know the clinical context before ordering an x-ray as
it will help in overall interpretation & reaching DD

68. References
• UpToDate
• Radipaedia.org
• Davidson’s Principles & Practice of Medicine
• Harrison’s Principle of Internal Medicine
• Washington Manual of Medical Therapeutics
