Chemical database preparation ppt

The document discusses the process of preparing a chemical database for virtual screening or compound acquisition. It begins with assembling collections from in-house and external databases. The collection is then cleaned by removing invalid structures and standardizing structure representations. Property filtering is used to focus on lead-like compounds. Known active molecules are searched for structural similarity. Alternative structures like stereoisomers are explored. Representatives are selected from clustered structures using descriptors and similarity metrics. 3D structures are generated and a final list of compounds is assembled for screening, with some random additions, completing the preparation.

Education◦

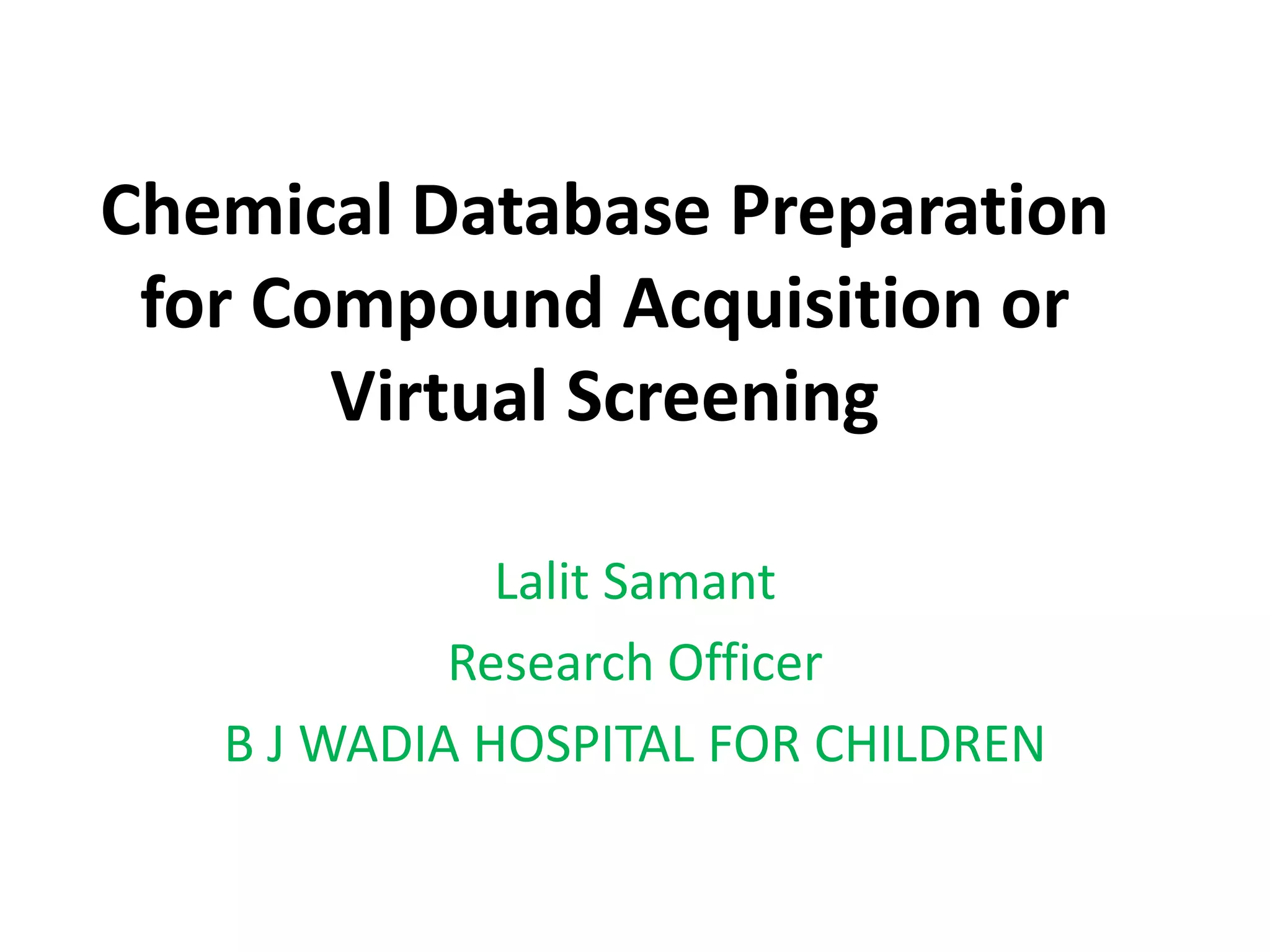

Chemical Database Preparation for Compound Acquisition or Virtual Screening Lalit Samant Research Officer B J WADIA HOSPITAL FOR CHILDREN
Virtual Screening • AIM:- 1. HTS 2. Biologically active 3. Rapid 4. Effective

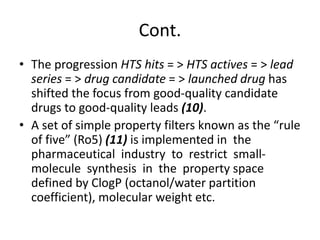

Cont. • The progression HTS hits = > HTS actives = > lead series = > drug candidate = > launched drug has shifted the focus from good-quality candidate drugs to good-quality leads (10). • A set of simple property filters known as the “rule of five” (Ro5) (11) is implemented in the pharmaceutical industry to restrict small- molecule synthesis in the property space defined by ClogP (octanol/water partition coefficient), molecular weight etc.

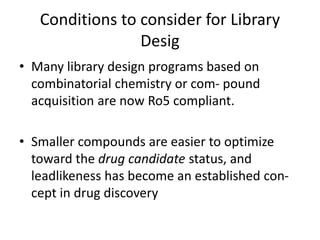

Conditions to consider for Library Desig • Many library design programs based on combinatorial chemistry or com- pound acquisition are now Ro5 compliant. • Smaller compounds are easier to optimize toward the drug candidate status, and leadlikeness has become an established con- cept in drug discovery
Materials 1. Software to convert chemical structures based on standard file formats (e.g., SDF, mol2) into canonical isomeric SMILES (15,16), or equivalent representations of chemical structures 2. Software to handle canonical isomeric SMILES (or equivalent) and provide chemicalfingerprints, e.g., Daylight (19), Unity (20), Mesa Analytics and Computing (21), Barnard Chemical Information ([22]; 3. Software to compute chemical properties from structures; e.g., to calculate the octanol/ water partition coefficient, LogP with CLogP , KowWIN , or ALogPS 4. Software to cluster chemical structures from fingerprints or from computed properties.
Cont. 5. Software to convert SMILES (or equivalent) into appropriate three-dimensional (3D)– coordinate systems using CONCORD 6. Software to appropriately handle D-optimal design based on multidimensional spaces.
Methods 1. Assembling the Collection(s) large pharmaceutical companies have acquired compound collections, Reals , that contain a significant number of molecules, including marketed drugs and other high-activity compounds. Reals-a valuable resource that is routinely screened against novel targets.
Cont. Assembling • such collections of structures must include existing sets of commercially available chemicals, or Tangibles— termed this way because one can conceivably acquire them or synthesize them in-house using tractable chemistry . • Thus, any collection prepared for virtual or HTS would sample both the in-house and the “external” chemical spaces. In addition to the Reals and the Tangibles, one can also define the Virtuals—an extremely large set of molecules (1060–10200) that cannot all be made, at least with current chemistry, but that can essentially be used as “resource” for virtual screening.
Methods 2. Cleaning up the collection There is no “perfect” chemical database, unless it contains rather simple (e.g., NaCl, H2O) or a rather small number of molecules. The user needs to spend a significant effort in cleaning up the collection, whether it includes Virtuals, Reals, or Tangibles.
Cleaning up Cont. 2.1 Removing Garbage From the Collection 2.2 Verifying Integrity of Molecular Structure 2.3. Generation of Unique, Normalized SMILES

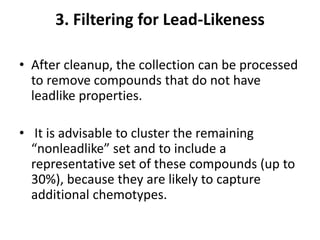

3. Filtering for Lead-Likeness • After cleanup, the collection can be processed to remove compounds that do not have leadlike properties. • It is advisable to cluster the remaining “nonleadlike” set and to include a representative set of these compounds (up to 30%), because they are likely to capture additional chemotypes.

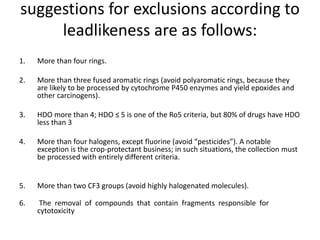

suggestions for exclusions according to leadlikeness are as follows: 1. More than four rings. 2. More than three fused aromatic rings (avoid polyaromatic rings, because they are likely to be processed by cytochrome P450 enzymes and yield epoxides and other carcinogens). 3. HDO more than 4; HDO ≤ 5 is one of the Ro5 criteria, but 80% of drugs have HDO less than 3 4. More than four halogens, except fluorine (avoid “pesticides”). A notable exception is the crop-protectant business; in such situations, the collection must be processed with entirely different criteria. 5. More than two CF3 groups (avoid highly halogenated molecules). 6. The removal of compounds that contain fragments responsible for cytotoxicity

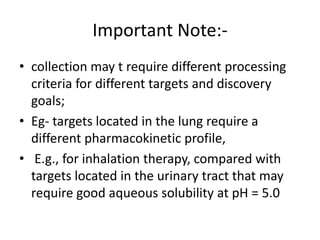

Important Note:- • collection may t require different processing criteria for different targets and discovery goals; • Eg- targets located in the lung require a different pharmacokinetic profile, • E.g., for inhalation therapy, compared with targets located in the urinary tract that may require good aqueous solubility at pH = 5.0
Methods cont. 3.4. Searching for Similarity If Known Active Molecules are Available

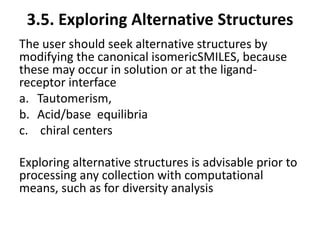

3.5. Exploring Alternative Structures The user should seek alternative structures by modifying the canonical isomericSMILES, because these may occur in solution or at the ligand- receptor interface a. Tautomerism, b. Acid/base equilibria c. chiral centers Exploring alternative structures is advisable prior to processing any collection with computational means, such as for diversity analysis
3.6 Generating 3D Structures • exploring one or more conformers per molecule.- Very Essential
3.7. Selecting Chemical Structure Representatives Screening compounds that are similar to known actives increases the likelihood of finding new active compounds, but it may not lead to different chemotypes, a highly desirable situation in the industrial context. The severity of this situation is increased if the original actives are covered by third-party patents or if the lead chemotype is toxic. Clustering methods aim at grouping molecules into “families” (clusters) of related structures that are perceived—at a given resolution— to be different from other chemical families. With clustering, the end user has the ability to select one or more representatives from each family. SMD methods aim at sampling various areas of chemical space and selecting representatives from each area.

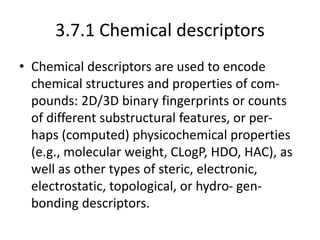

3.7.1 Chemical descriptors • Chemical descriptors are used to encode chemical structures and properties of com- pounds: 2D/3D binary fingerprints or counts of different substructural features, or per- haps (computed) physicochemical properties (e.g., molecular weight, CLogP, HDO, HAC), as well as other types of steric, electronic, electrostatic, topological, or hydro- gen- bonding descriptors.

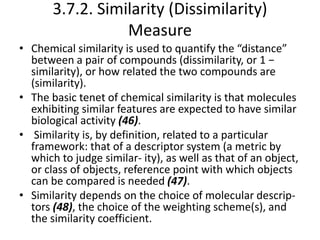

3.7.2. Similarity (Dissimilarity) Measure • Chemical similarity is used to quantify the “distance” between a pair of compounds (dissimilarity, or 1 − similarity), or how related the two compounds are (similarity). • The basic tenet of chemical similarity is that molecules exhibiting similar features are expected to have similar biological activity (46). • Similarity is, by definition, related to a particular framework: that of a descriptor system (a metric by which to judge similar- ity), as well as that of an object, or class of objects, reference point with which objects can be compared is needed (47). • Similarity depends on the choice of molecular descrip- tors (48), the choice of the weighting scheme(s), and the similarity coefficient.

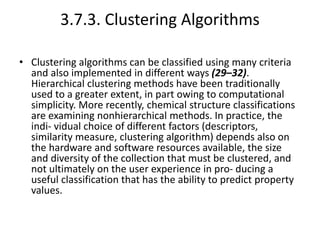

3.7.3. Clustering Algorithms • Clustering algorithms can be classified using many criteria and also implemented in different ways (29–32). Hierarchical clustering methods have been traditionally used to a greater extent, in part owing to computational simplicity. More recently, chemical structure classifications are examining nonhierarchical methods. In practice, the indi- vidual choice of different factors (descriptors, similarity measure, clustering algorithm) depends also on the hardware and software resources available, the size and diversity of the collection that must be clustered, and not ultimately on the user experience in pro- ducing a useful classification that has the ability to predict property values.
3.7.4. Statistical Molecular Design • SMD can be applied to rationally select collection representatives, as illustrated for building block selection in combinatorial synthesis planning (55).
3.8. Assembling List of Compounds for Acquisition or Virtual Screening • Once provided with an output from one or several methods for compound selection, the now-selected collection representatives are almost ready to be submitted for acquisition or for virtual screening. The end user is encouraged to allow non leadlike molecules to be reentered into the candidate pool. • An additional random, perhaps nonleadlike selec- tion (up to 30%) can, and should, be entered in the final list of compounds.
Summery 1. Assemble the collection starting from in-house and on-line databases. 2. Clean up the collection by removing “garbage,” verifying structural integrity, and making sure that only unique structures are screened. 3. Perform property filtering to remove unwanted structures based on substructures, property profiling, or various scoring schemes; the collection can become the virtual screening set at this stage, or it can be further subdivided in a target- and project-dependent manner. 4. Use similarity to given actives to seek compounds with related properties. 5. Explore the possible stereoisomers, tautomers, and protonation state 6. Generate the 3D structures in preparation for virtual screening, or for computation of 3Ddescriptors. 7. Use clustering or SMD to select compound representatives for acquisition. 8. Add a random subset to the final list of compounds. The final list can now be submitted for compound acquisition or virtual screening.
THANK YOU !!!
