1. Sensu and Sensibility
Tomas
Doran
@bobtfish
2014-­‐09-­‐23

2. 2
Sensu and Sensibility

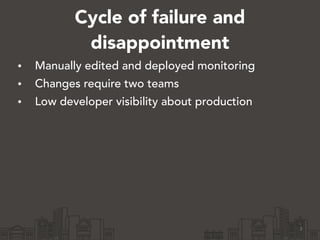

3. Cycle of failure and
disappointment
• Manually edited and deployed monitoring
• Changes require two teams
• Low developer visibility about production
3

4. 4

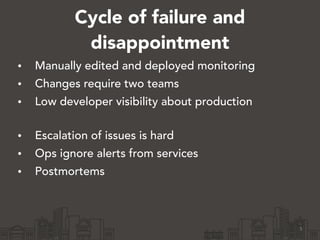

5. Cycle of failure and
disappointment
• Manually edited and deployed monitoring
• Changes require two teams
• Low developer visibility about production
• Escalation of issues is hard
• Ops ignore alerts from services
• Postmortems
5

6. 6

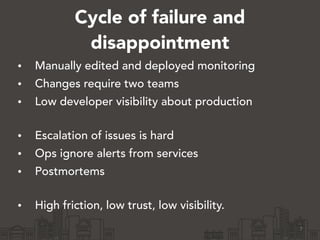

7. Cycle of failure and
disappointment
• Manually edited and deployed monitoring
• Changes require two teams
• Low developer visibility about production
• Escalation of issues is hard
• Ops ignore alerts from services
• Postmortems
• High friction, low trust, low visibility.
7

8. “Normality”
8
-­‐
http://gunshowcomic.com/648

9. “Normality”
dysfunctional
9
This is
-­‐
http://gunshowcomic.com/648

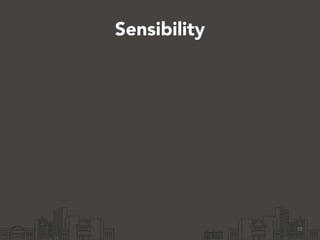

10. 10
Sensibility

11. 11
Sensibility

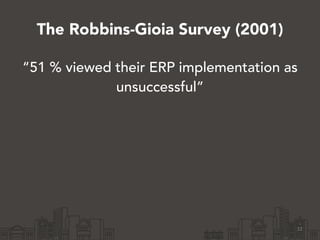

12. “51 % viewed their ERP implementation as
unsuccessful”
12
The Robbins-Gioia Survey (2001)

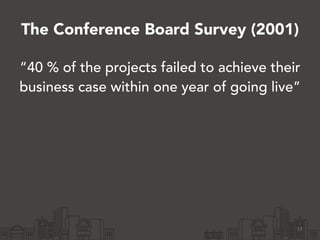

13. The Conference Board Survey (2001)
“40 % of the projects failed to achieve their
business case within one year of going live”
13

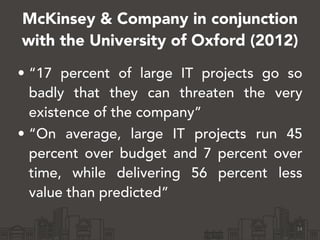

14. McKinsey & Company in conjunction
with the University of Oxford (2012)
• “17 percent of large IT projects go so
badly that they can threaten the very
existence of the company”
• “On average, large IT projects run 45
percent over budget and 7 percent over
time, while delivering 56 percent less
value than predicted”
14

15. Failure is an option
-­‐
blog.parasoft.com/single-­‐greatest-­‐barrier-­‐with-­‐sw-­‐delivery
15

16. Sensibility
16

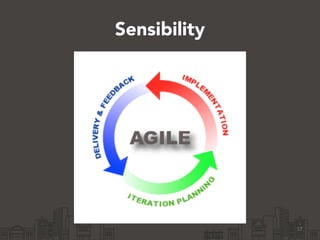

17. 17
Sensibility

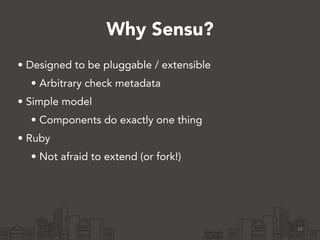

18. Why Sensu?
• Designed to be pluggable / extensible
• Arbitrary check metadata
• Simple model
• Components do exactly one thing
• Ruby
• Not afraid to extend (or fork!)
18

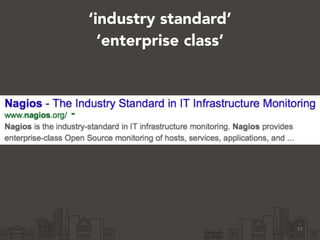

19. ‘industry standard’
‘enterprise class’
19

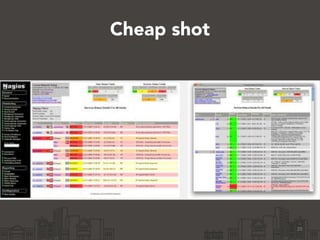

20. Cheap shot
20

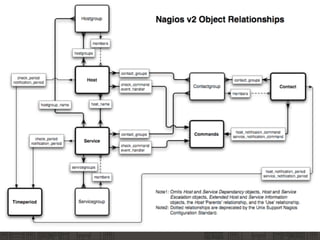

21. 21

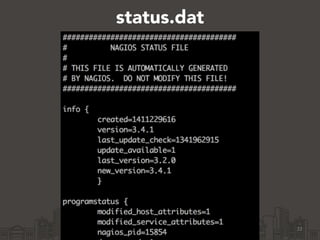

22. status.dat
cmd.dat
22

23. cmd.dat
23

24. 24
Centralized

25. 25

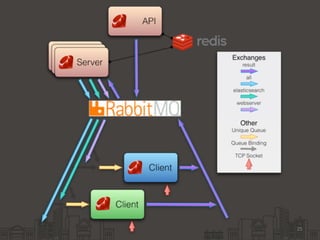

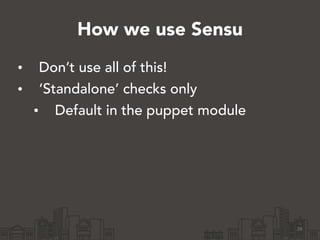

26. How we use Sensu
• Don’t use all of this!
• ‘Standalone’ checks only
• Default in the puppet module
26

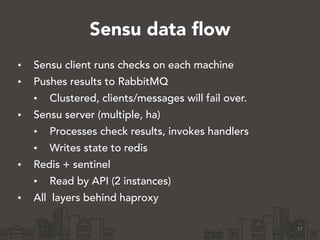

27. Sensu data flow
• Sensu client runs checks on each machine
• Pushes results to RabbitMQ
• Clustered, clients/messages will fail over.
• Sensu server (multiple, ha)
• Processes check results, invokes handlers
• Writes state to redis
• Redis + sentinel
• Read by API (2 instances)
• All layers behind haproxy
27

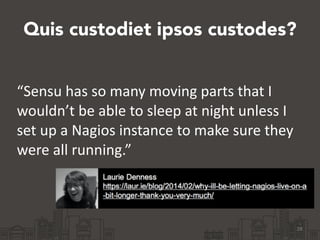

28. Quis custodiet ipsos custodes?
28
“Sensu
has
so
many
moving
parts
that
I
wouldn’t
be
able
to
sleep
at
night
unless
I
set
up
a
Nagios
instance
to
make
sure
they
were
all
running.”

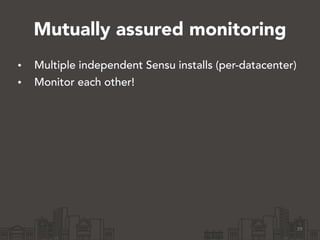

29. Mutually assured monitoring
• Multiple independent Sensu installs (per-datacenter)
• Monitor each other!
29

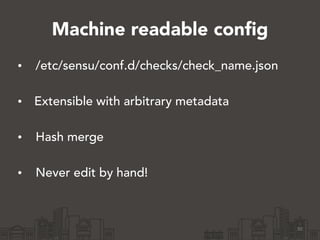

30. Machine readable config
• /etc/sensu/conf.d/checks/check_name.json
• Extensible with arbitrary metadata
• Hash merge
• Never edit by hand!
30

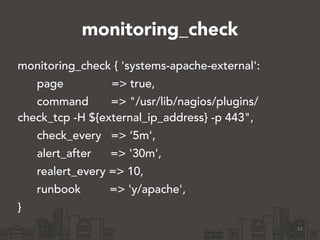

31. monitoring_check
monitoring_check { 'systems-apache-external':
page => true,
command => "/usr/lib/nagios/plugins/
check_tcp -H ${external_ip_address} -p 443",
check_every => ‘5m',
alert_after => '30m',
realert_every => 10,
runbook => 'y/apache',
}
31

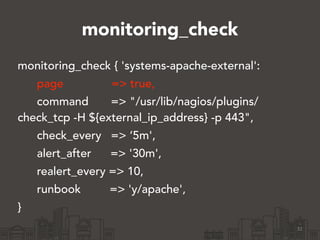

32. monitoring_check
monitoring_check { 'systems-apache-external':
page => true,
command => "/usr/lib/nagios/plugins/
check_tcp -H ${external_ip_address} -p 443",
check_every => ‘5m',
alert_after => '30m',
realert_every => 10,
runbook => 'y/apache',
}
32

33. monitoring_check
monitoring_check { 'systems-apache-external':
page => true,
command => "/usr/lib/nagios/plugins/
check_tcp -H ${external_ip_address} -p 443",
check_every => ‘5m',
alert_after => '30m',
realert_every => 10,
runbook => 'y/apache',
}
33

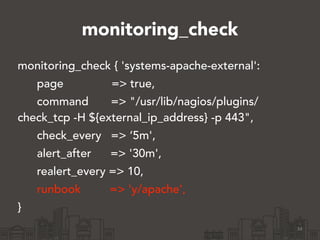

34. monitoring_check
monitoring_check { 'systems-apache-external':
page => true,
command => "/usr/lib/nagios/plugins/
check_tcp -H ${external_ip_address} -p 443",
check_every => ‘5m',
alert_after => '30m',
realert_every => 10,
runbook => 'y/apache',
}
34

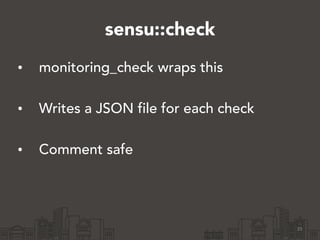

35. sensu::check
• monitoring_check wraps this
• Writes a JSON file for each check
• Comment safe
35

36. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
36

37. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
37

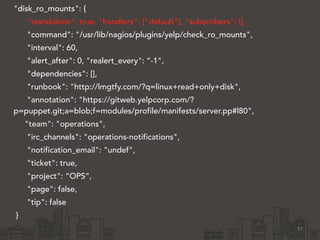

38. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
38

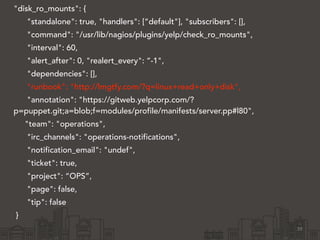

39. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
39

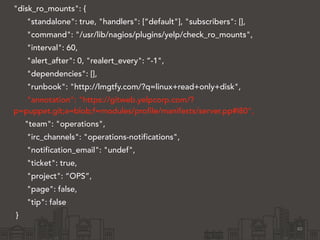

40. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
40

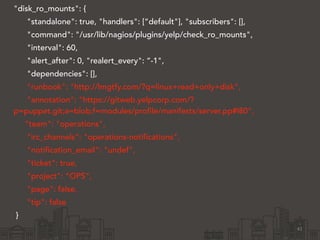

41. "disk_ro_mounts": {
"standalone": true, "handlers": [“default"], "subscribers": [],
"command": "/usr/lib/nagios/plugins/yelp/check_ro_mounts",
"interval": 60,
"alert_after": 0, "realert_every": “-1",
"dependencies": [],
"runbook": "http://lmgtfy.com/?q=linux+read+only+disk",
"annotation": "https://gitweb.yelpcorp.com/?
p=puppet.git;a=blob;f=modules/profile/manifests/server.pp#l80",
"team": "operations",
"irc_channels": "operations-notifications",
"notification_email": "undef",
"ticket": true,
"project": “OPS”,
"page": false,
"tip": false
}
41

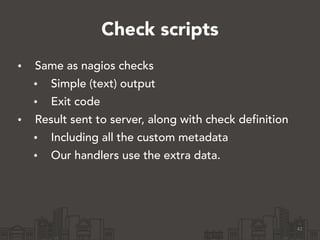

42. Check scripts
• Same as nagios checks
• Simple (text) output
• Exit code
• Result sent to server, along with check definition
• Including all the custom metadata
• Our handlers use the extra data.
42

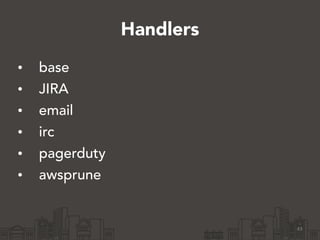

43. Handlers
• base
• JIRA
• email
• irc
• pagerduty
• awsprune
43

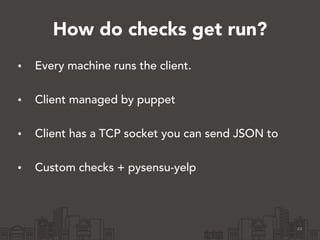

44. How do checks get run?
• Every machine runs the client.
• Client managed by puppet
• Client has a TCP socket you can send JSON to
• Custom checks + pysensu-yelp
44

45. 45

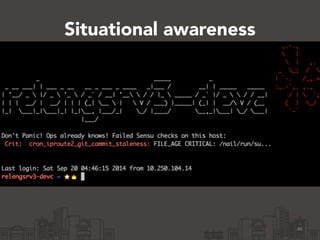

46. Situational awareness
46

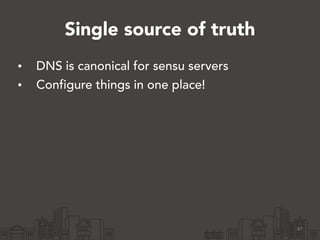

47. Single source of truth
• DNS is canonical for sensu servers
• Configure things in one place!
47

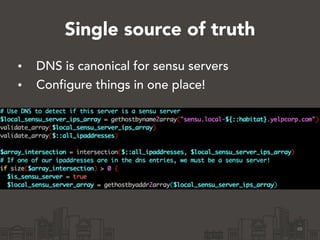

48. Single source of truth
• DNS is canonical for sensu servers
• Configure things in one place!
48

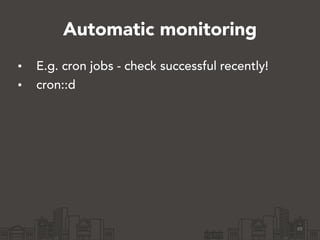

49. Automatic monitoring
• E.g. cron jobs - check successful recently!
• cron::d
49

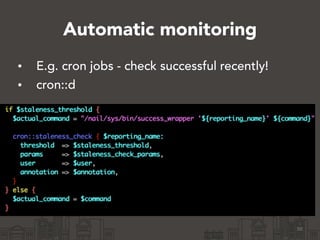

50. Automatic monitoring
• E.g. cron jobs - check successful recently!
• cron::d
50

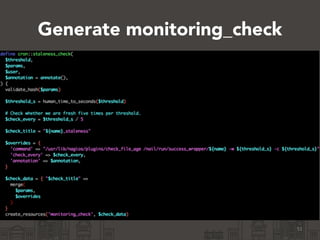

51. Generate monitoring_check
51

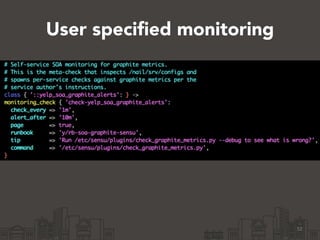

52. User specified monitoring
52

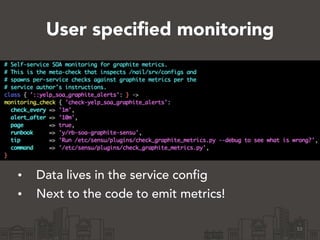

53. User specified monitoring
53
• Data lives in the service config
• Next to the code to emit metrics!

54. • Simple checks for free!
54
User specified monitoring

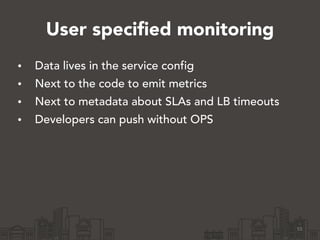

55. User specified monitoring
• Data lives in the service config
• Next to the code to emit metrics
• Next to metadata about SLAs and LB timeouts
• Developers can push without OPS
55

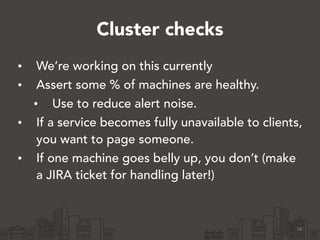

56. Cluster checks
• We’re working on this currently
• Assert some % of machines are healthy.
• Use to reduce alert noise.
• If a service becomes fully unavailable to clients,
you want to page someone.
• If one machine goes belly up, you don’t (make
a JIRA ticket for handling later!)
56

57. WIP
• This is all still a work in progress.
• We’ve not 100% migrated off of Nagios
• Open sourcing the pieces
57

58. Thanks!
• Slides will be online shortly:
• slideshare.net/bobtfish
• @bobtfish
• Some (most?) of our code is open source:
• https://github.com/Yelp/sensu/commit/
aa5c43c2fdfde5e8739952c0b8082000934f3ad2
• https://github.com/Yelp/puppet-monitoring_check
• https://github.com/Yelp/puppet-netstdlib
• https://github.com/Yelp/sensu_handlers
• https://github.com/Yelp/pysensu-yelp
58
