1. Assembling an Open Source Tool
Chain for the Hybrid Cloud
Isaac Christoffersen
Bit Herder & Cloud Wrangler
@ichristo

2. Bit Herder, Cloud Wrangler
● Geek,
Insomniac,
Tinkerer
● Wearer
of
Many
Hats
● Delivering
Open
Source
Solutions
for
10+
years
● Solution
Architect
at
Vizuri

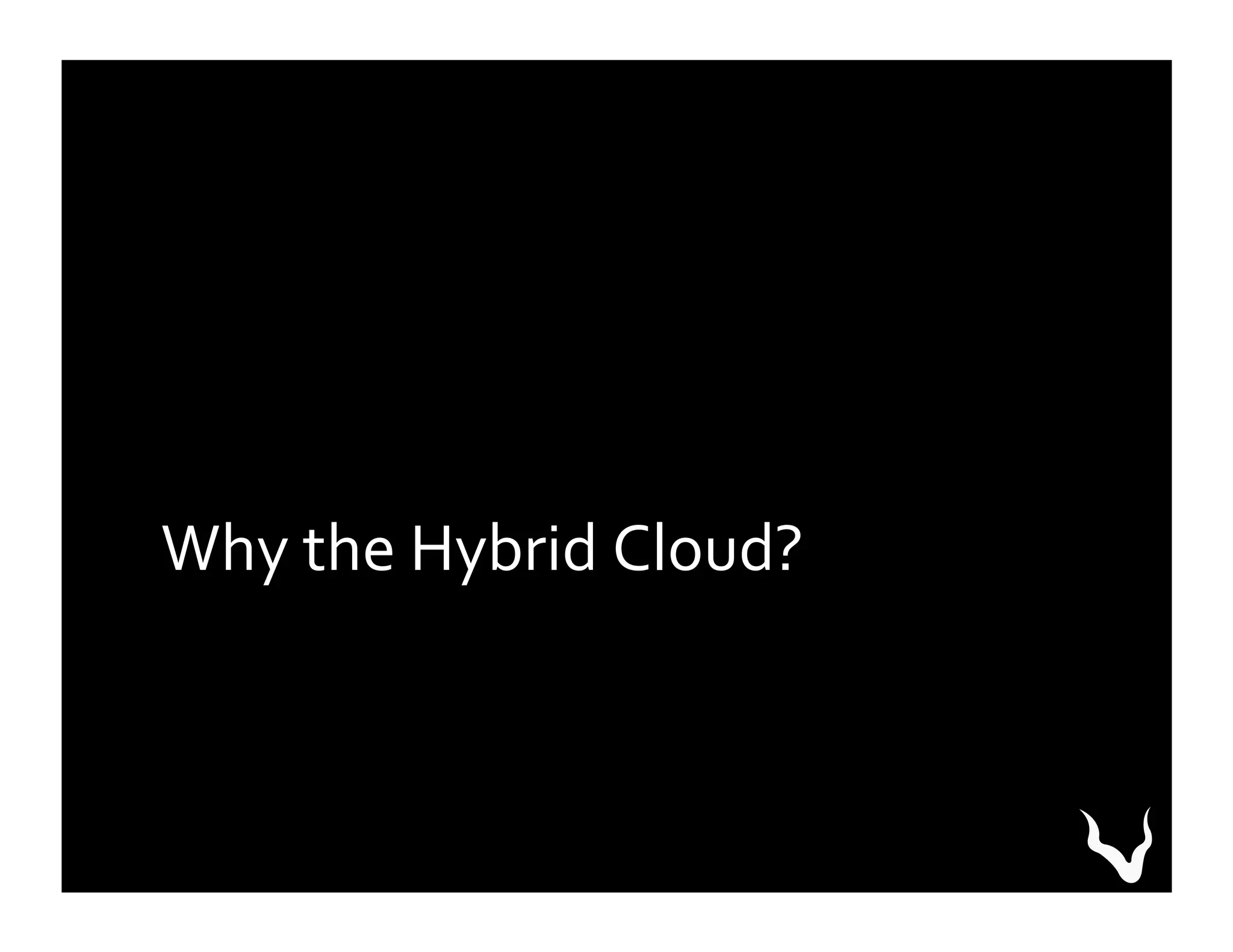

3. Why
the
Hybrid
Cloud?

4. Our
App
is
going
to
change
the
world
as
we
know
it!
“The
best
way
to
predict
the
future
is
to
invent
it”
-­‐-­‐
Ed
Catmull

5. Unleash the System Administrators!
source
-­‐
http://commons.wikimedia.org/wiki/

6. Word of Mouth Spreads. Popularity Rises.

7. source
-­‐
http://commons.wikimedia.org/wiki/File:Ford_assembly_line_-­‐_1913.jpg
More Sys Admins and a Little Automation

8. SlashDot / Oprah / Twitter Effect ...

9. We Need More DevOps!

10. Your App Has Gone Global!

11. All Hail the Fail Whale!
source
-­‐
http://www.whatisfailwhale.info/

12. But We Had DevOps?!

13. source
-­‐
http://upload.wikimedia.org/wikipedia/commons/e/e0/Nagasakibomb.jpg
Cloud Bursting?

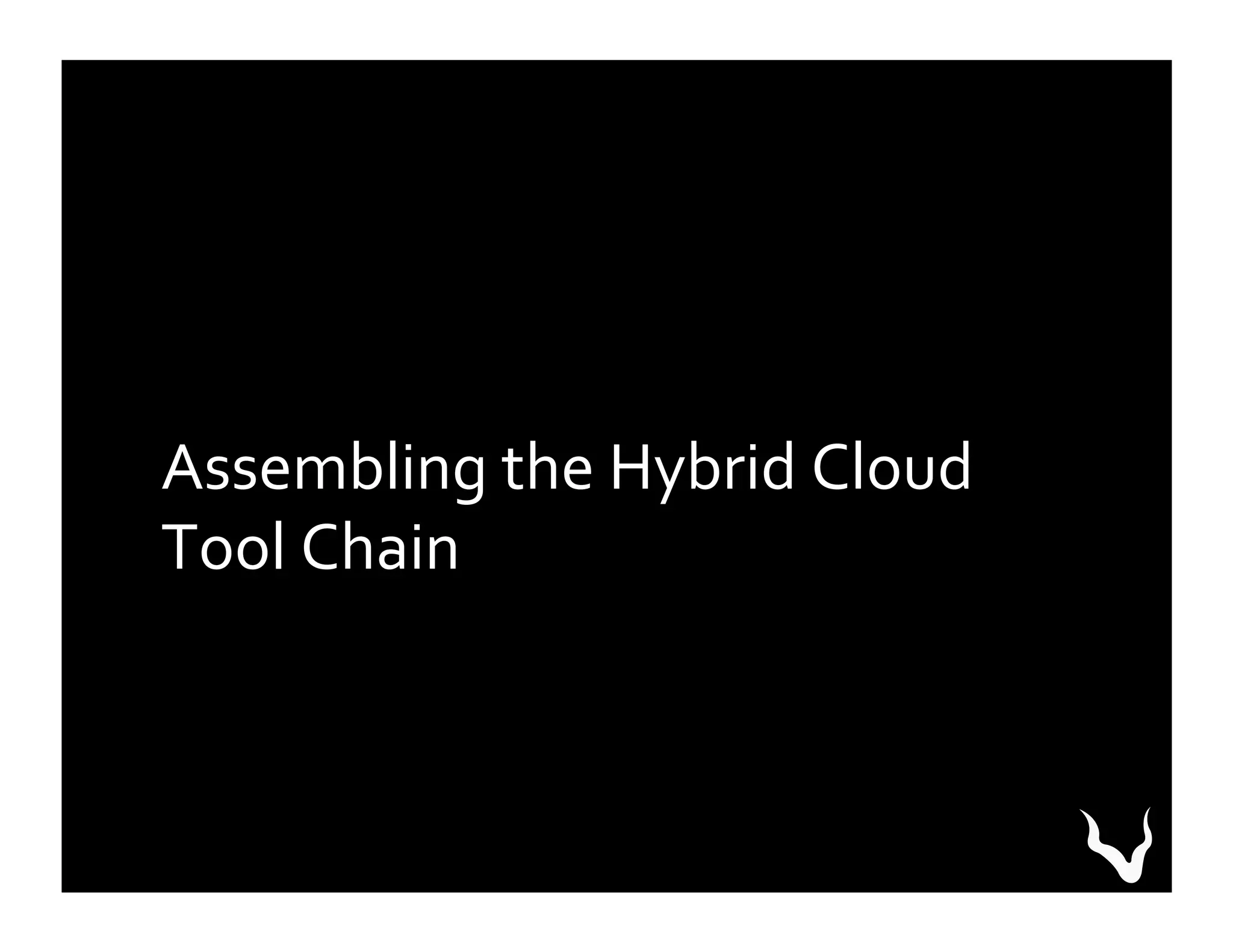

14. Assembling
the
Hybrid
Cloud
Tool
Chain

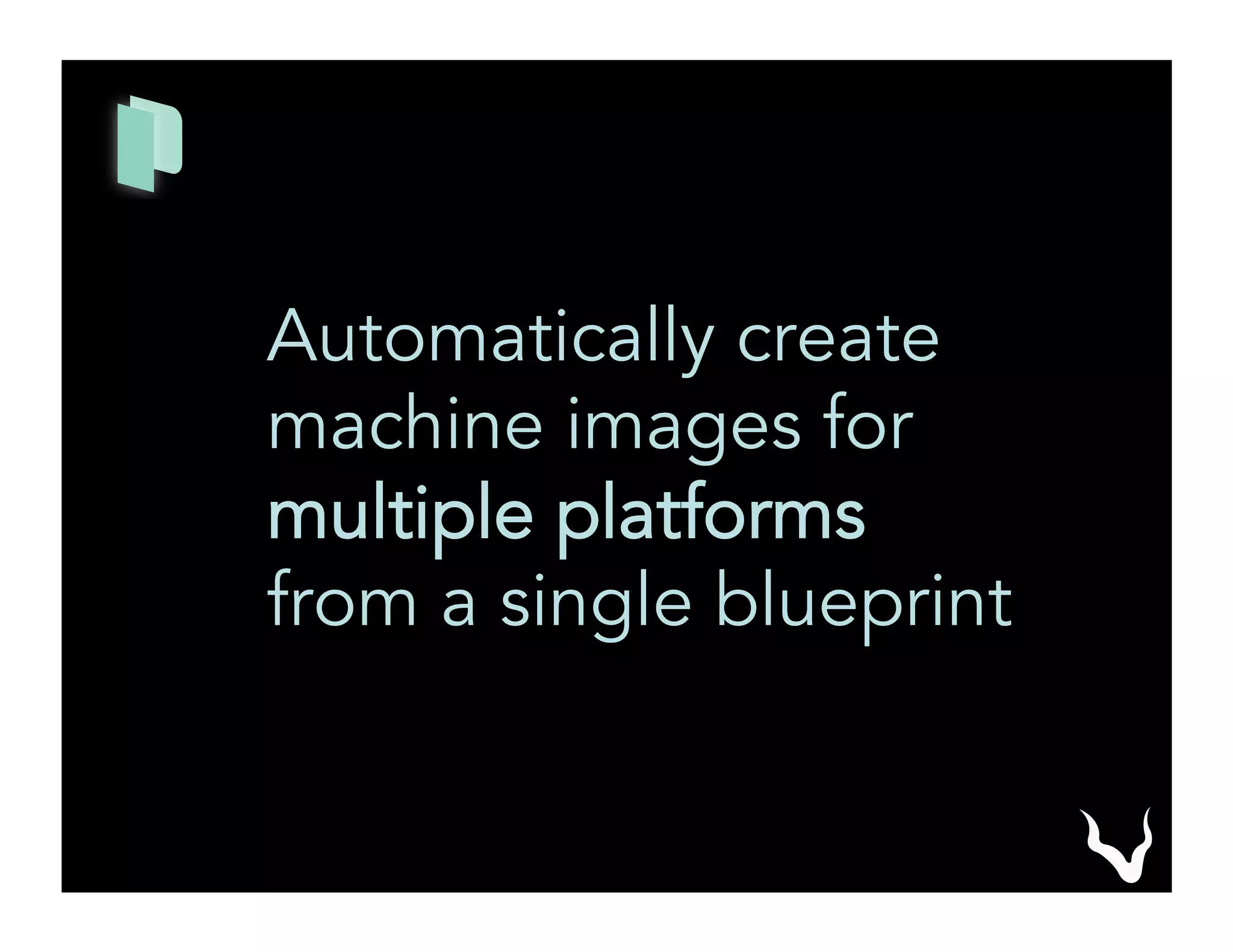

16. Automatically create
machine images for
multiple platforms
from a single blueprint

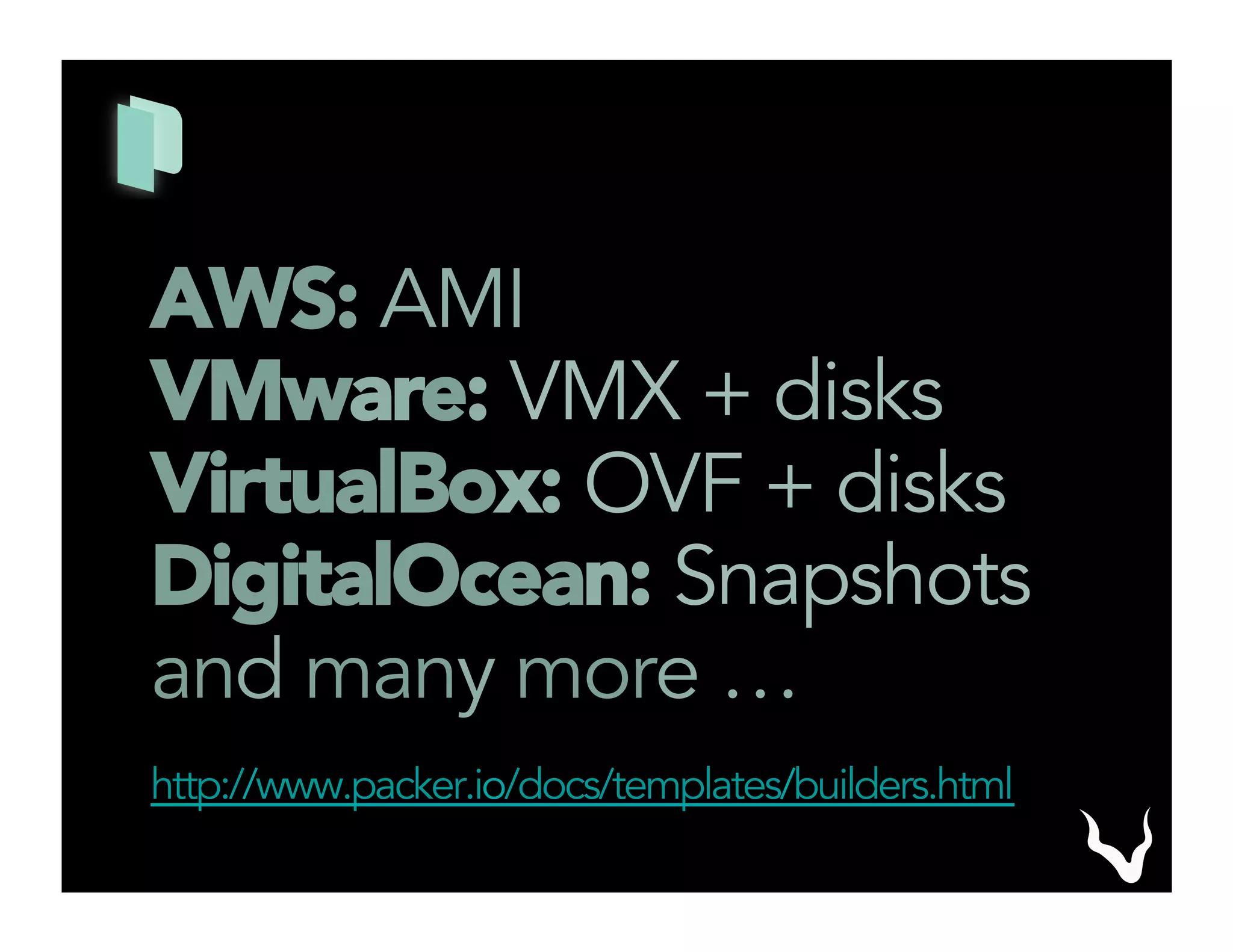

17. AWS: AMI
VMware: VMX + disks
VirtualBox: OVF + disks
DigitalOcean: Snapshots
and many more …
http://www.packer.io/docs/templates/builders.html

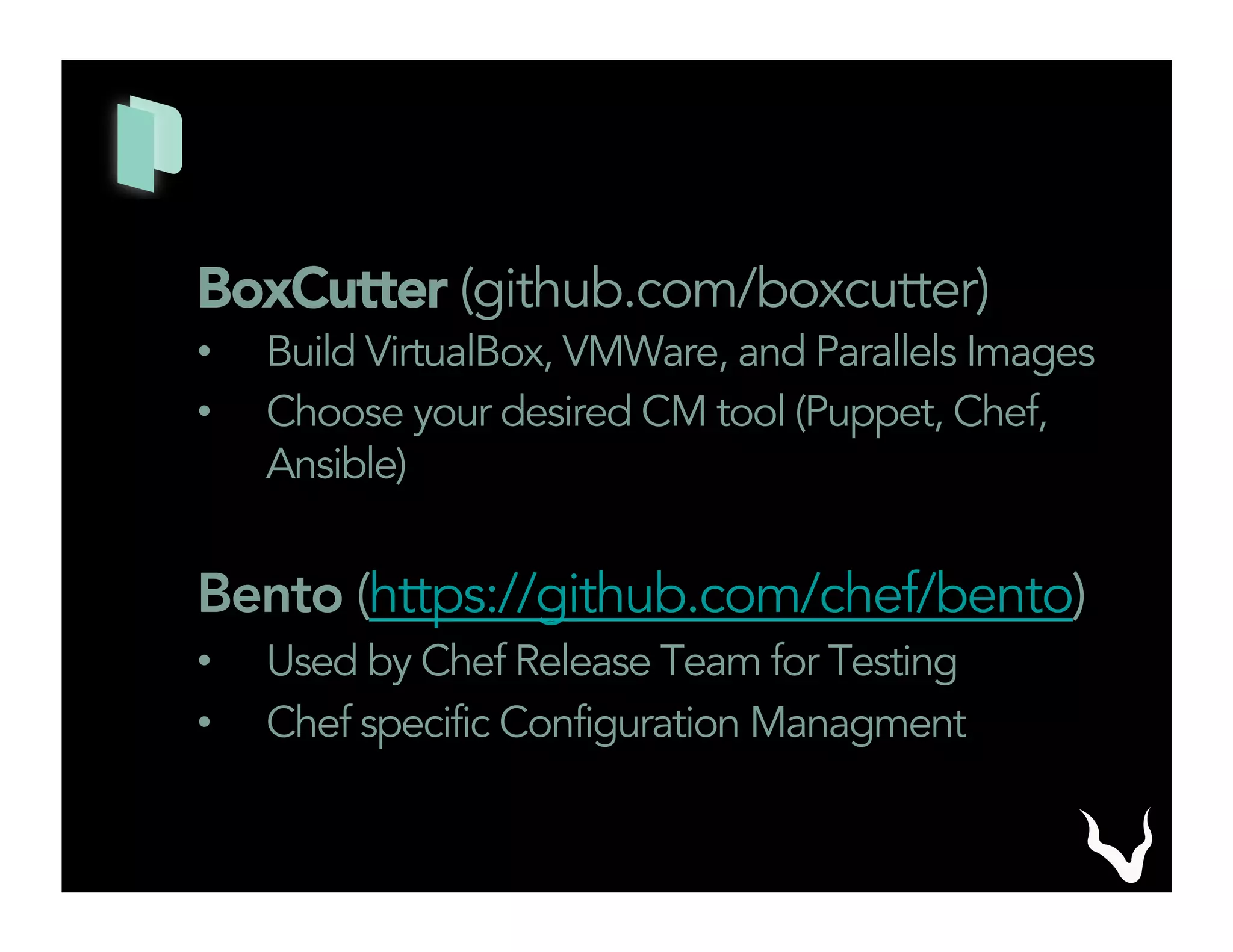

18. BoxCutter (github.com/boxcutter)
• Build VirtualBox, VMWare, and Parallels Images
• Choose your desired CM tool (Puppet, Chef,
Ansible)
Bento (https://github.com/chef/bento)
• Used by Chef Release Team for Testing
• Chef specific Configuration Managment

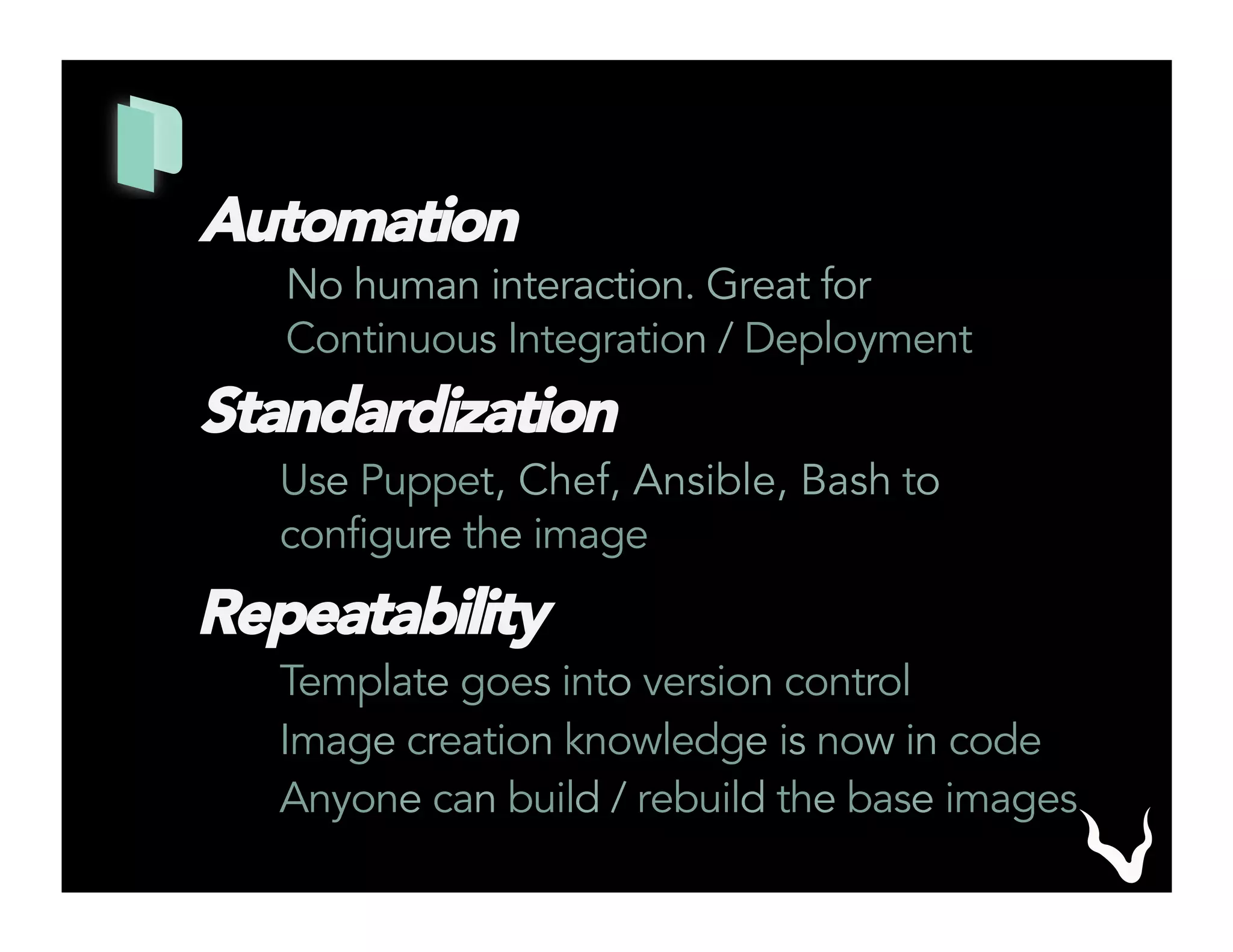

19. Automation
No human interaction. Great for
Continuous Integration / Deployment
Standardization
Use Puppet, Chef, Ansible, Bash to
configure the image
Repeatability
Template goes into version control
Image creation knowledge is now in code
Anyone can build / rebuild the base images

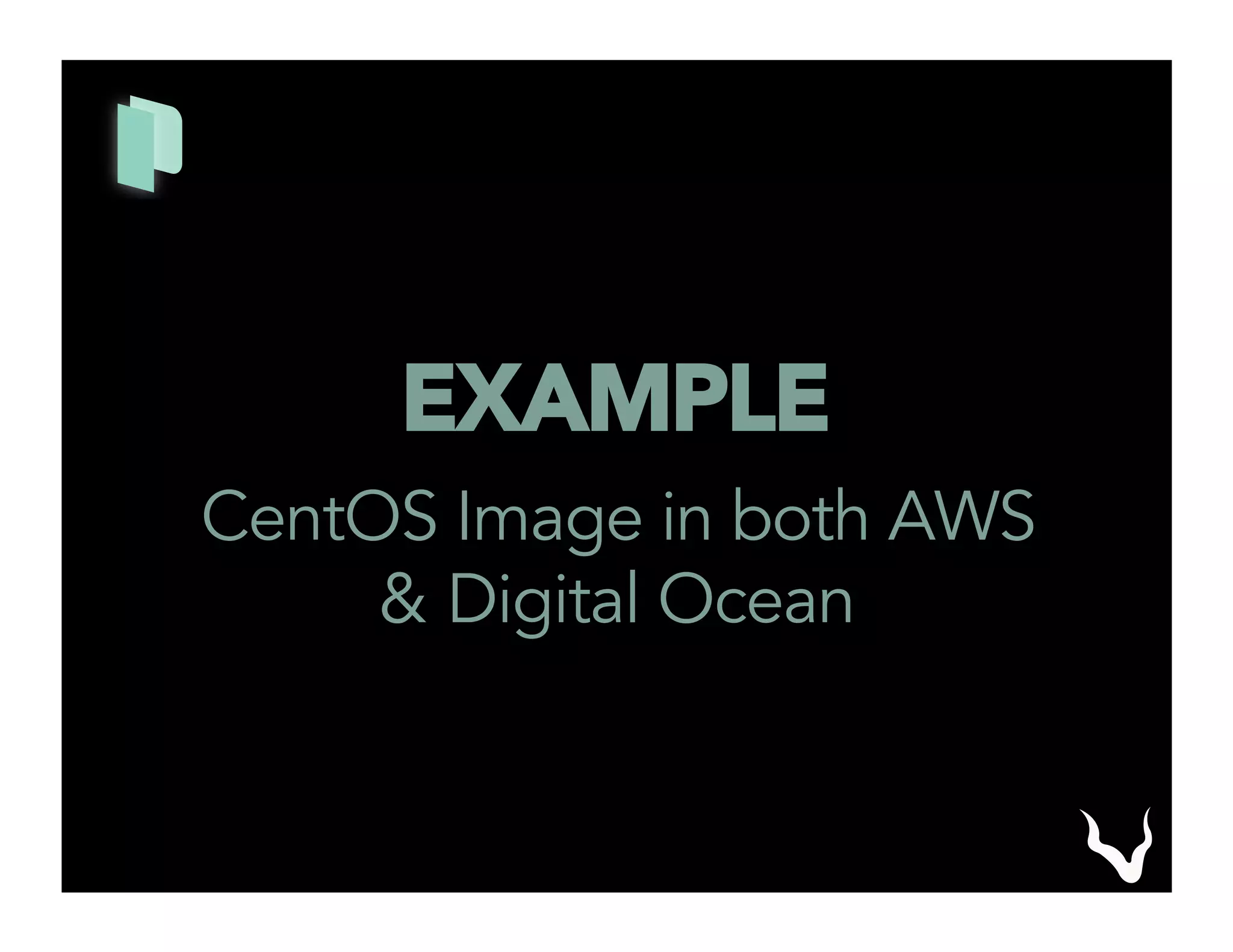

20. EXAMPLE
CentOS Image in both AWS
& Digital Ocean

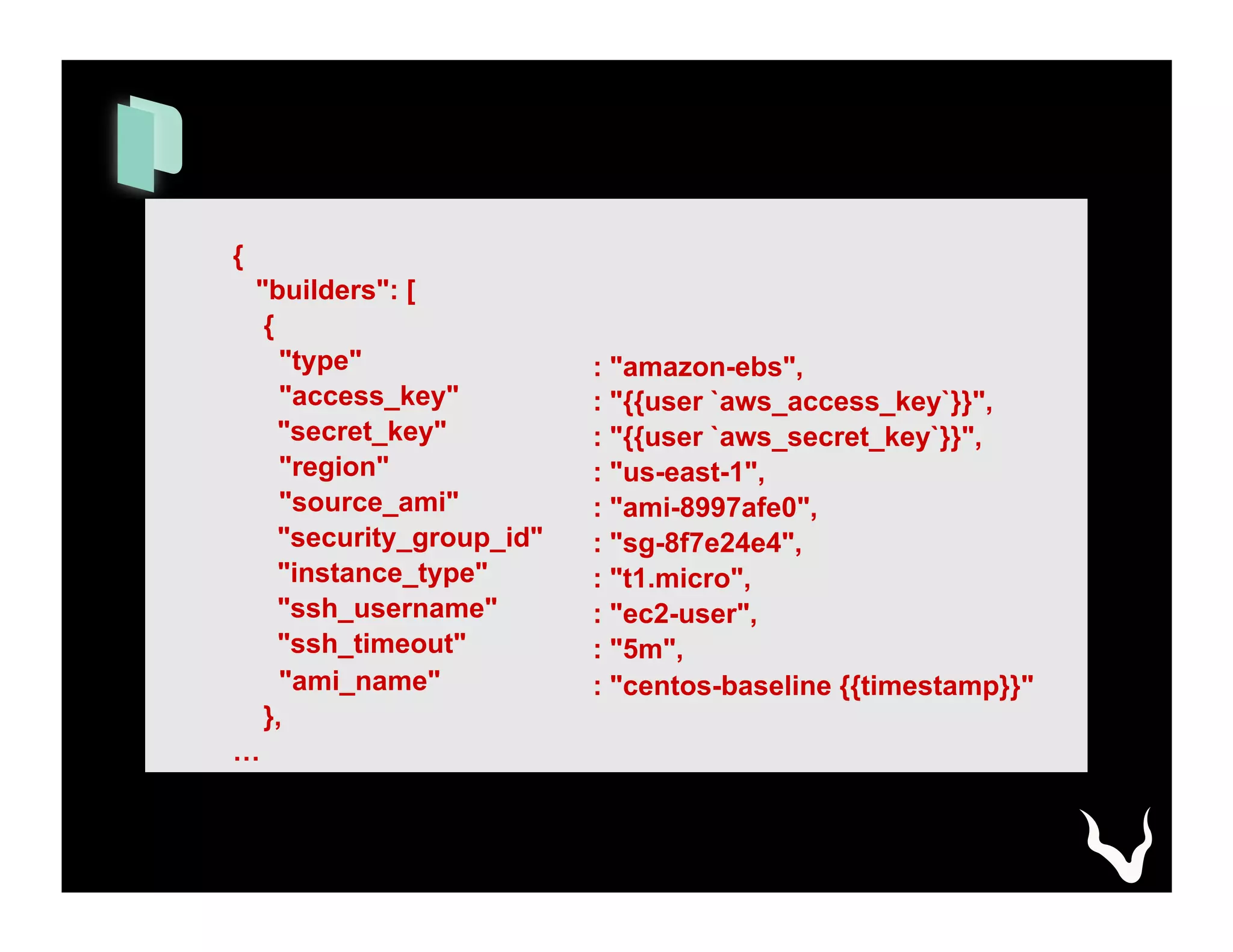

21. {
"builders": [
{
"type"
"access_key"
"secret_key"
"region"
"source_ami"
"security_group_id"
"instance_type"
"ssh_username"
"ssh_timeout"
"ami_name"
},
…
: "amazon-ebs",
: "{{user `aws_access_key`}}",
: "{{user `aws_secret_key`}}",
: "us-east-1",
: "ami-8997afe0",
: "sg-8f7e24e4",
: "t1.micro",
: "ec2-user",
: "5m",
: "centos-baseline {{timestamp}}"

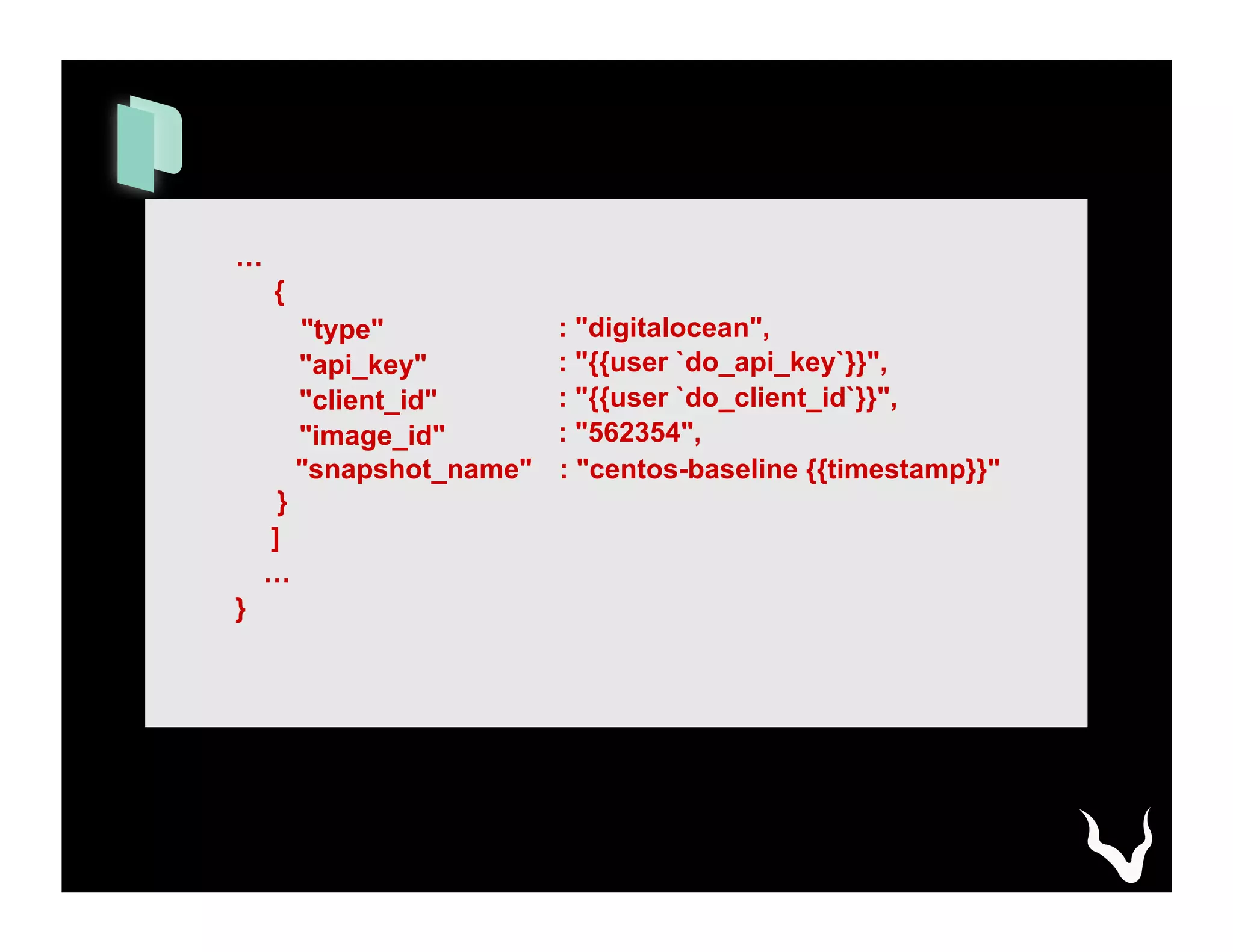

22. …
{
"type"
"api_key"
"client_id"
"image_id"
: "digitalocean",
: "{{user `do_api_key`}}",
: "{{user `do_client_id`}}",
: "562354",
"snapshot_name" : "centos-baseline {{timestamp}}"
}
]
…
}

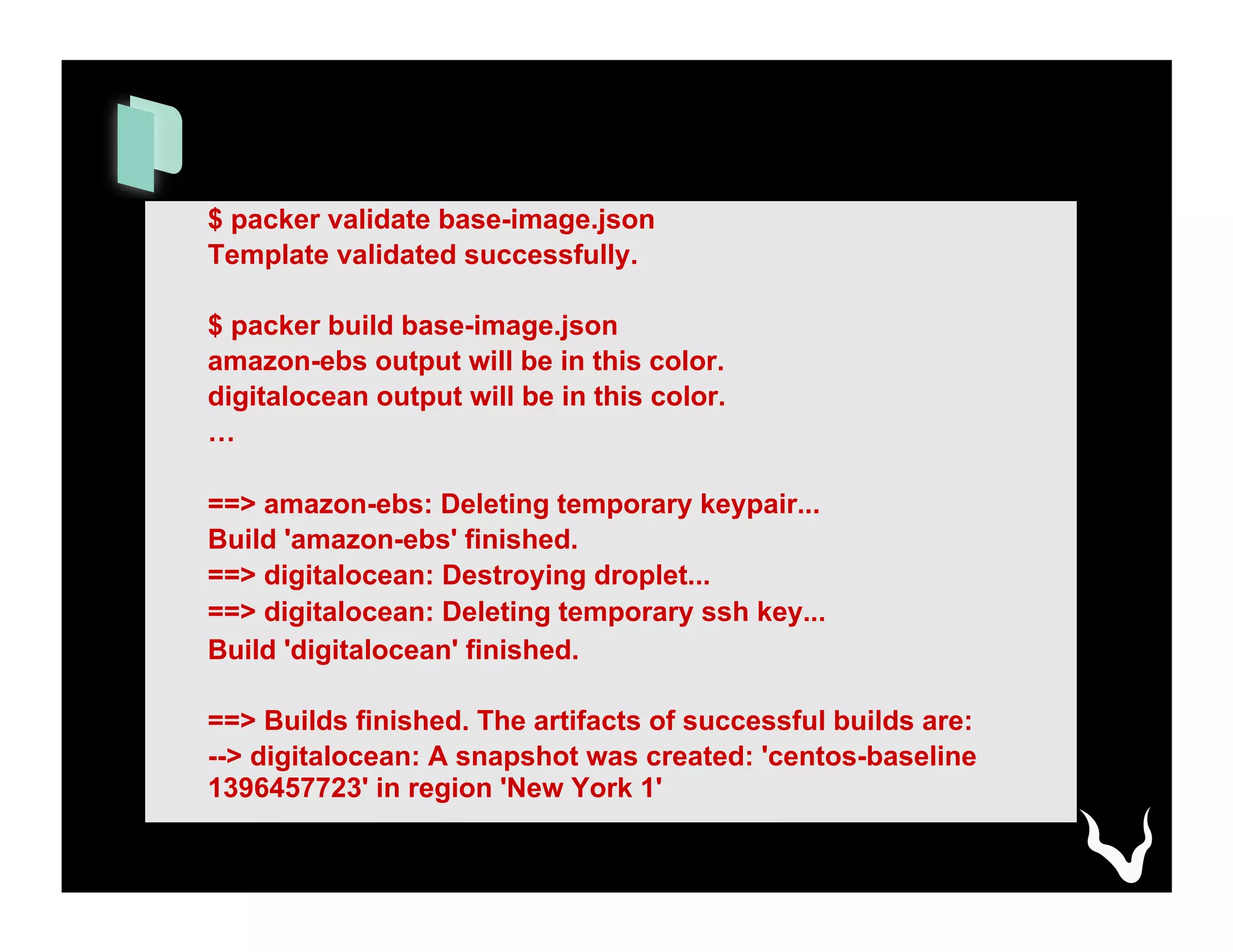

23. $ packer validate base-image.json
Template validated successfully.
$ packer build base-image.json
amazon-ebs output will be in this color.
digitalocean output will be in this color.
…
==> amazon-ebs: Deleting temporary keypair...
Build 'amazon-ebs' finished.
==> digitalocean: Destroying droplet...
==> digitalocean: Deleting temporary ssh key...
Build 'digitalocean' finished.
==> Builds finished. The artifacts of successful builds are:
--> digitalocean: A snapshot was created: 'centos-baseline
1396457723' in region 'New York 1'

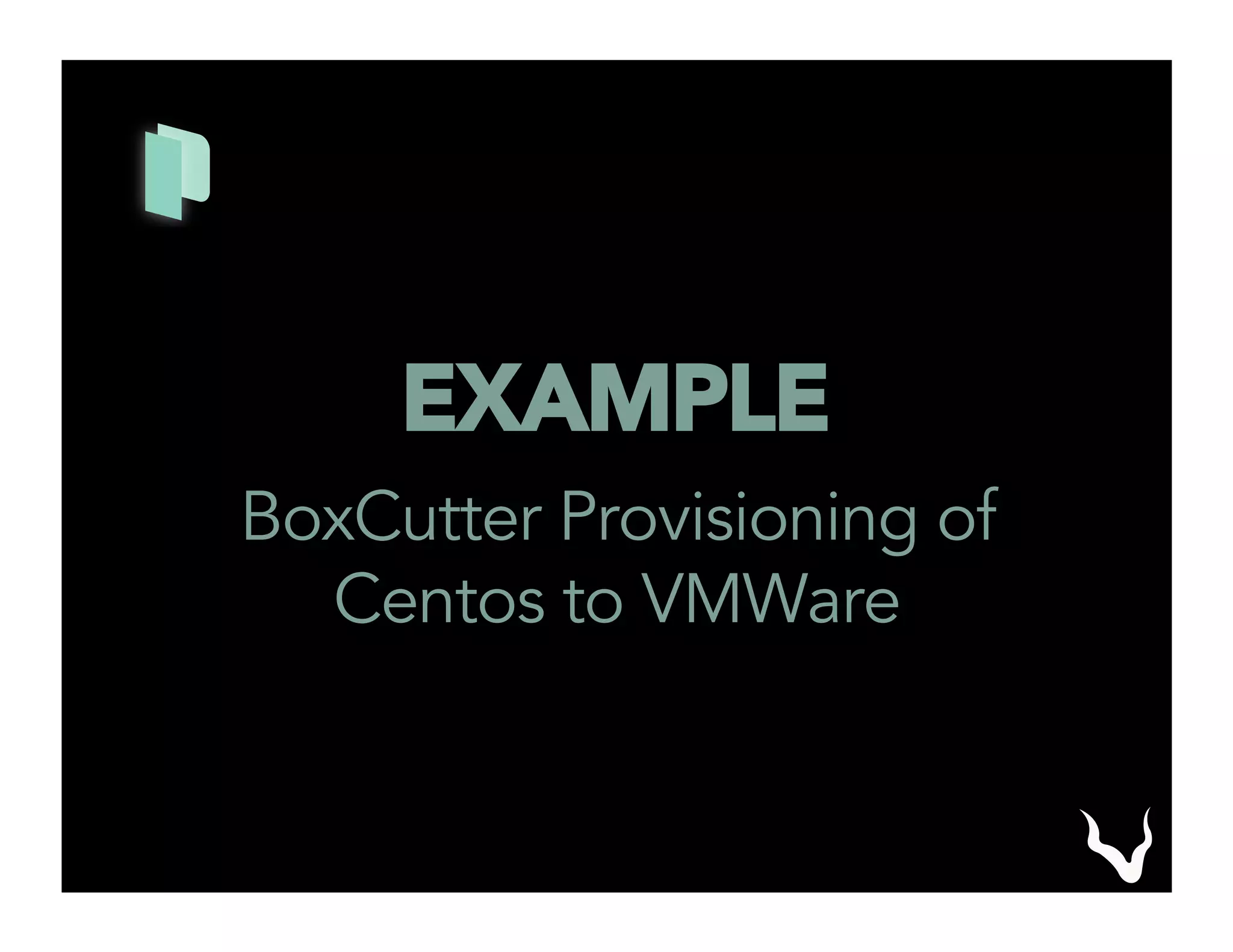

24. EXAMPLE
BoxCutter Provisioning of
Centos to VMWare

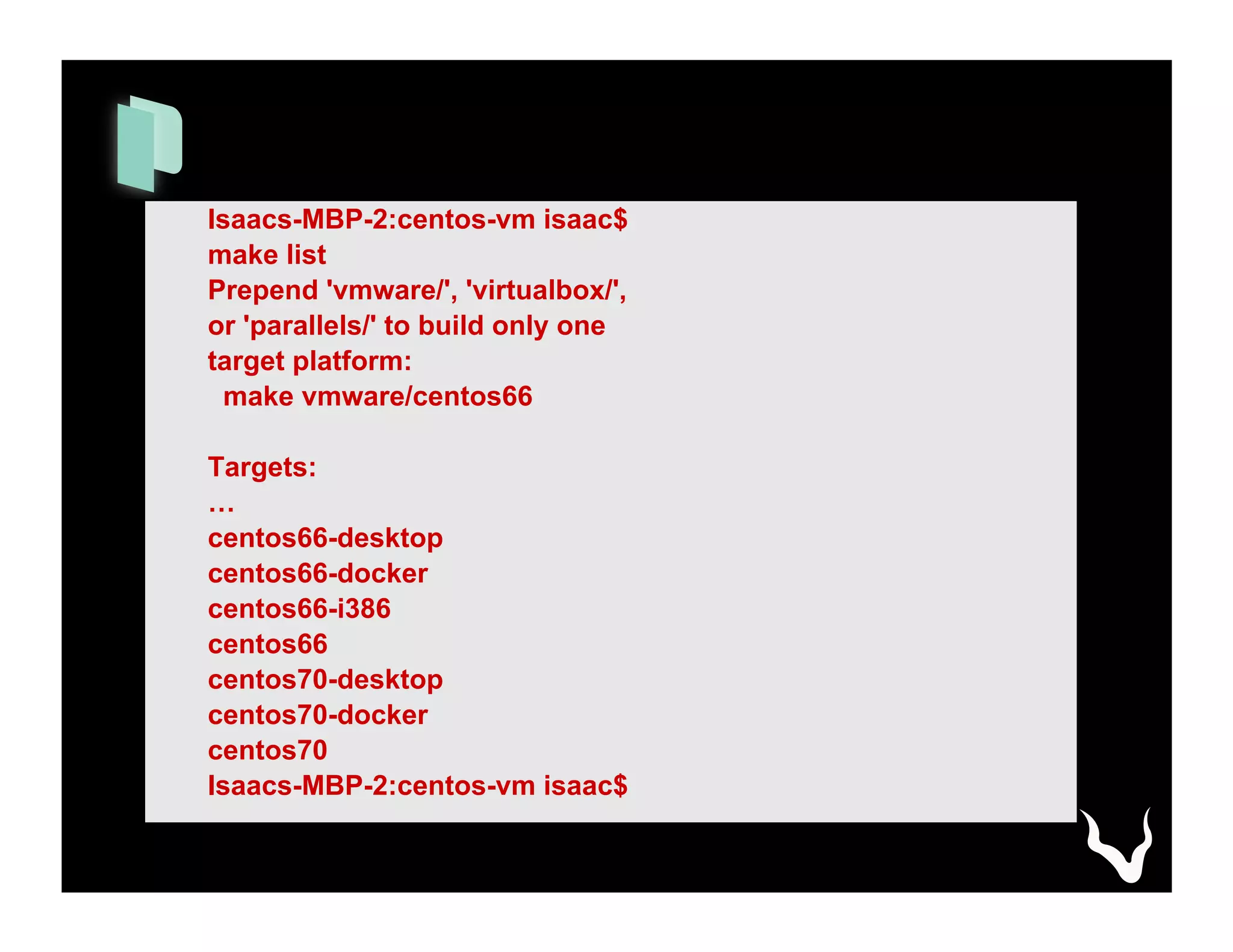

25. Isaacs-MBP-2:centos-vm isaac$
make list
Prepend 'vmware/', 'virtualbox/',
or 'parallels/' to build only one
target platform:
make vmware/centos66
Targets:
…
centos66-desktop
centos66-docker
centos66-i386
centos66
centos70-desktop
centos70-docker
centos70
Isaacs-MBP-2:centos-vm isaac$

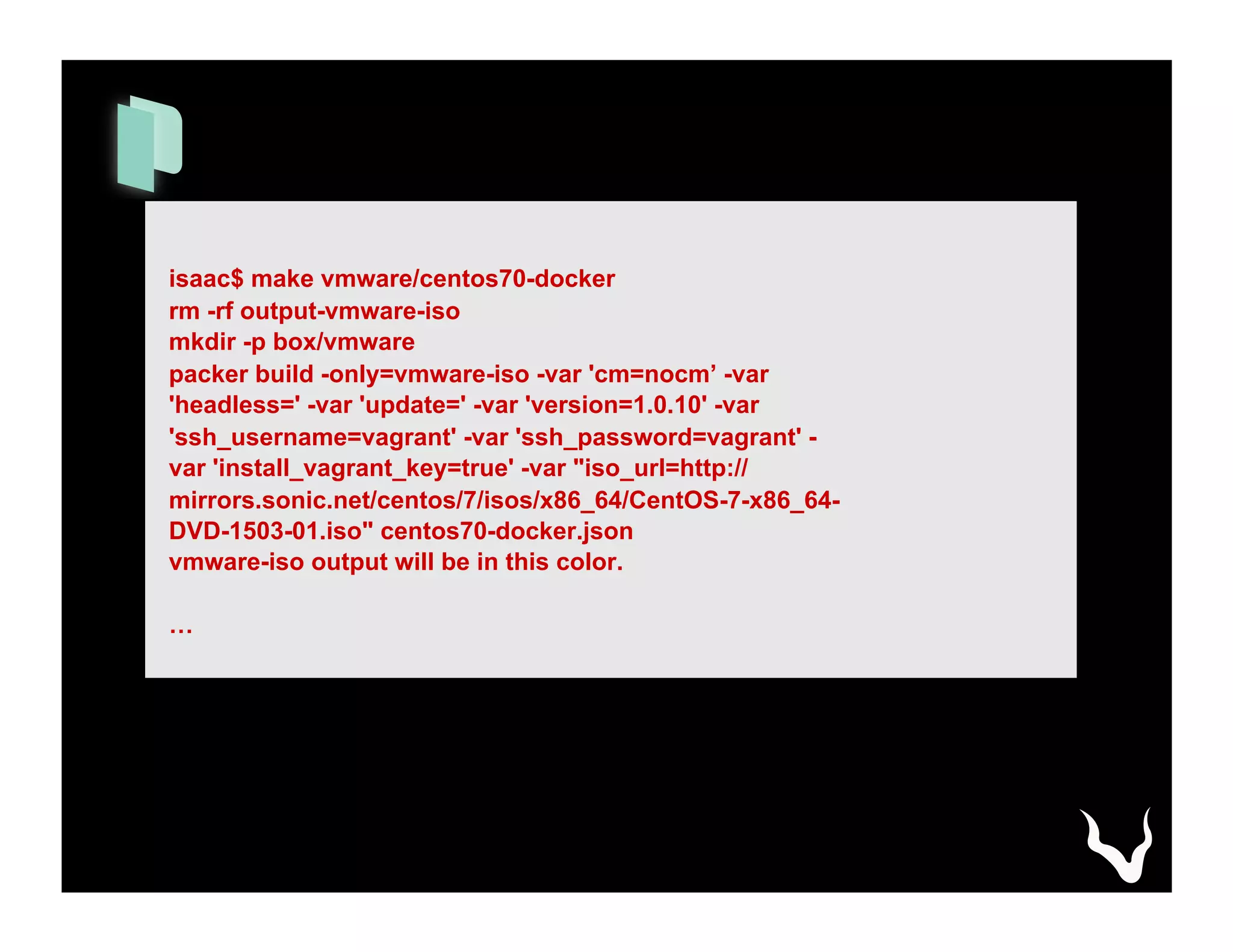

26. isaac$ make vmware/centos70-docker
rm -rf output-vmware-iso
mkdir -p box/vmware
packer build -only=vmware-iso -var 'cm=nocm’ -var
'headless=' -var 'update=' -var 'version=1.0.10' -var
'ssh_username=vagrant' -var 'ssh_password=vagrant' -
var 'install_vagrant_key=true' -var "iso_url=http://
mirrors.sonic.net/centos/7/isos/x86_64/CentOS-7-x86_64-
DVD-1503-01.iso" centos70-docker.json
vmware-iso output will be in this color.
…

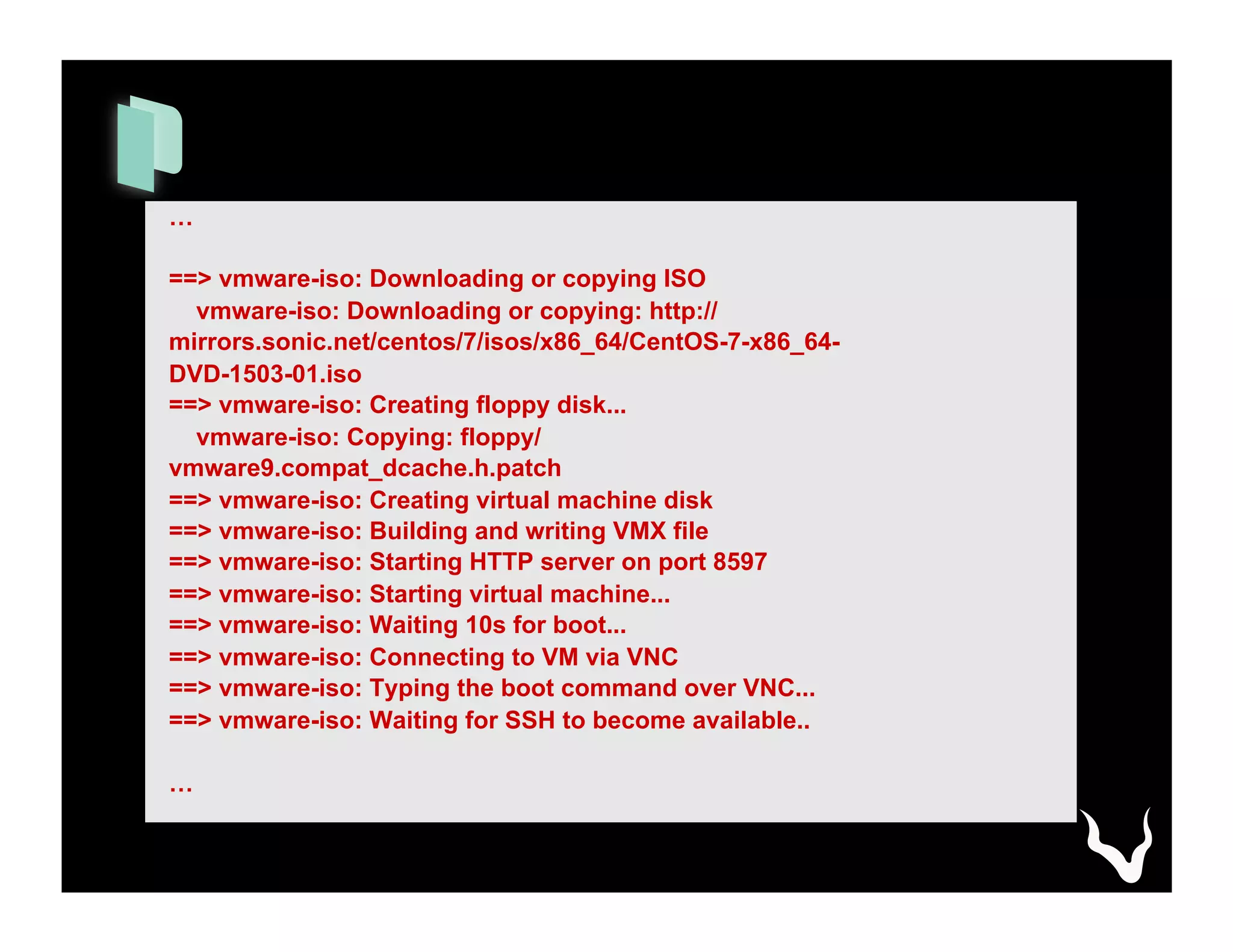

27. …
==> vmware-iso: Downloading or copying ISO
vmware-iso: Downloading or copying: http://
mirrors.sonic.net/centos/7/isos/x86_64/CentOS-7-x86_64-
DVD-1503-01.iso
==> vmware-iso: Creating floppy disk...
vmware-iso: Copying: floppy/
vmware9.compat_dcache.h.patch
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8597
==> vmware-iso: Starting virtual machine...
==> vmware-iso: Waiting 10s for boot...
==> vmware-iso: Connecting to VM via VNC
==> vmware-iso: Typing the boot command over VNC...
==> vmware-iso: Waiting for SSH to become available..
…

28. +

29. Mature, stable, proven. Development
since Jan 2010. Used by thousands
of companies.

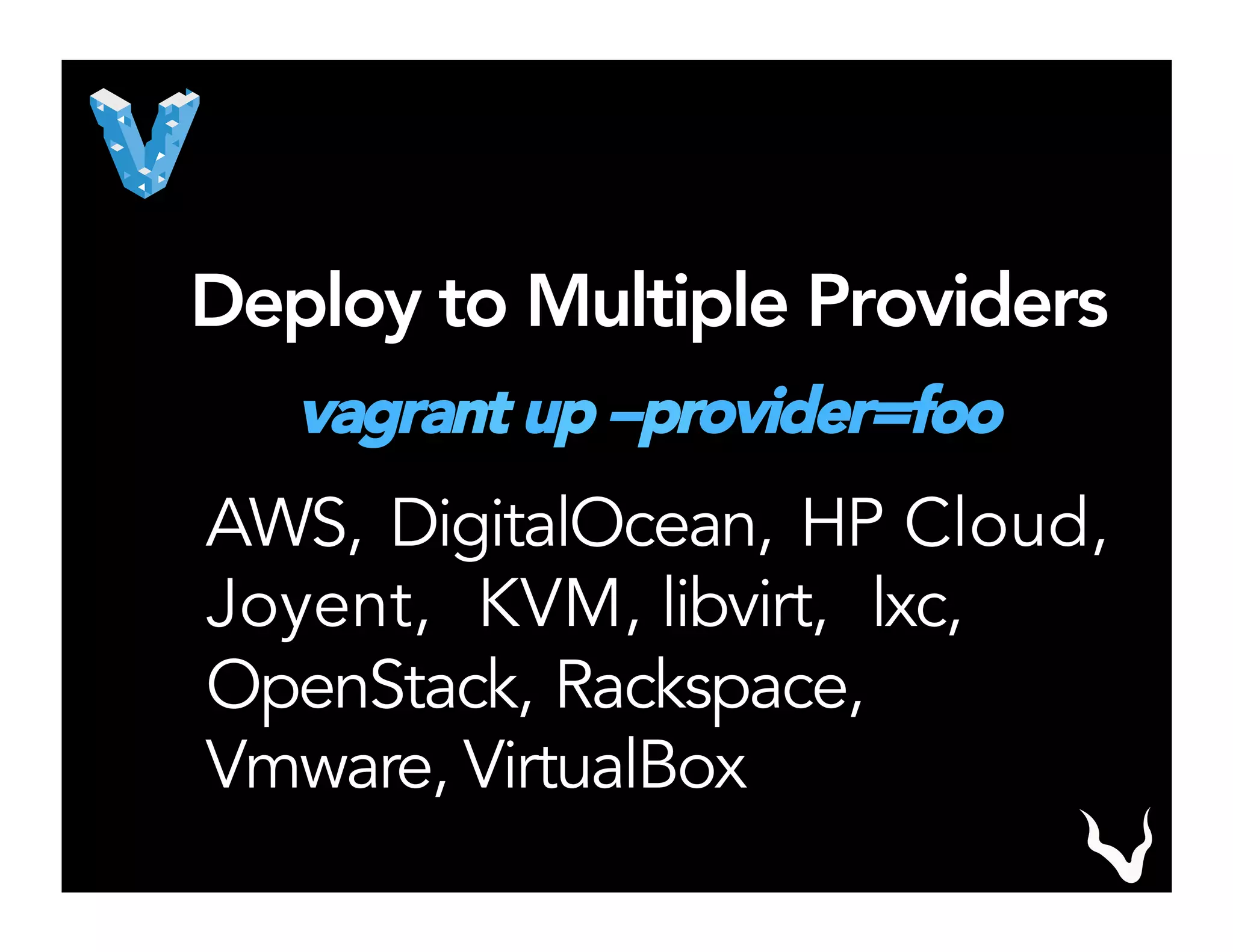

30. Deploy to Multiple Providers
vagrant up --provider=foo
AWS, DigitalOcean, HP Cloud,
Joyent, KVM, libvirt, lxc,
OpenStack, Rackspace,
Vmware, VirtualBox

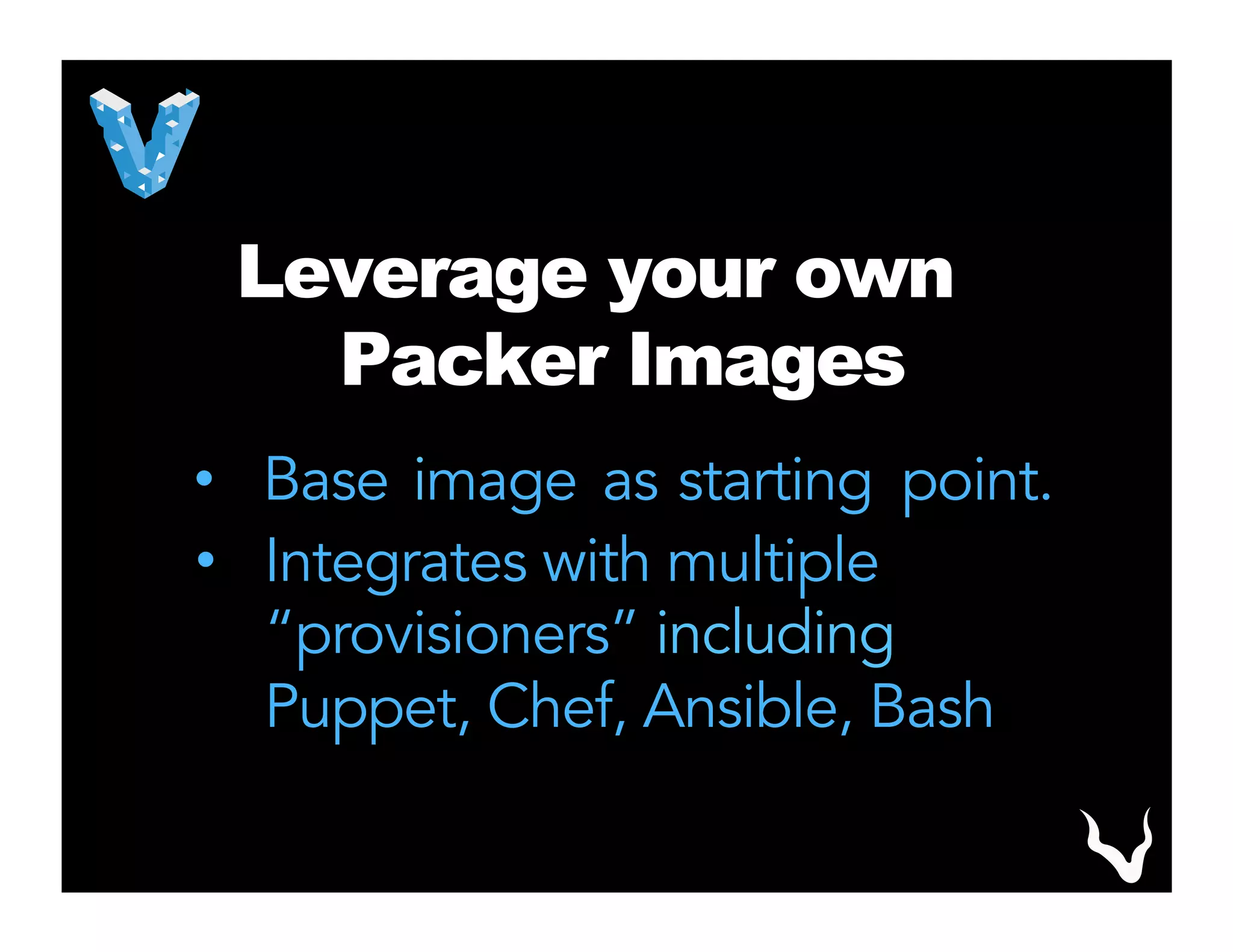

31. Leverage your own
Packer Images
• Base image as starting point.
• Integrates with multiple
“provisioners” including
Puppet, Chef, Ansible, Bash

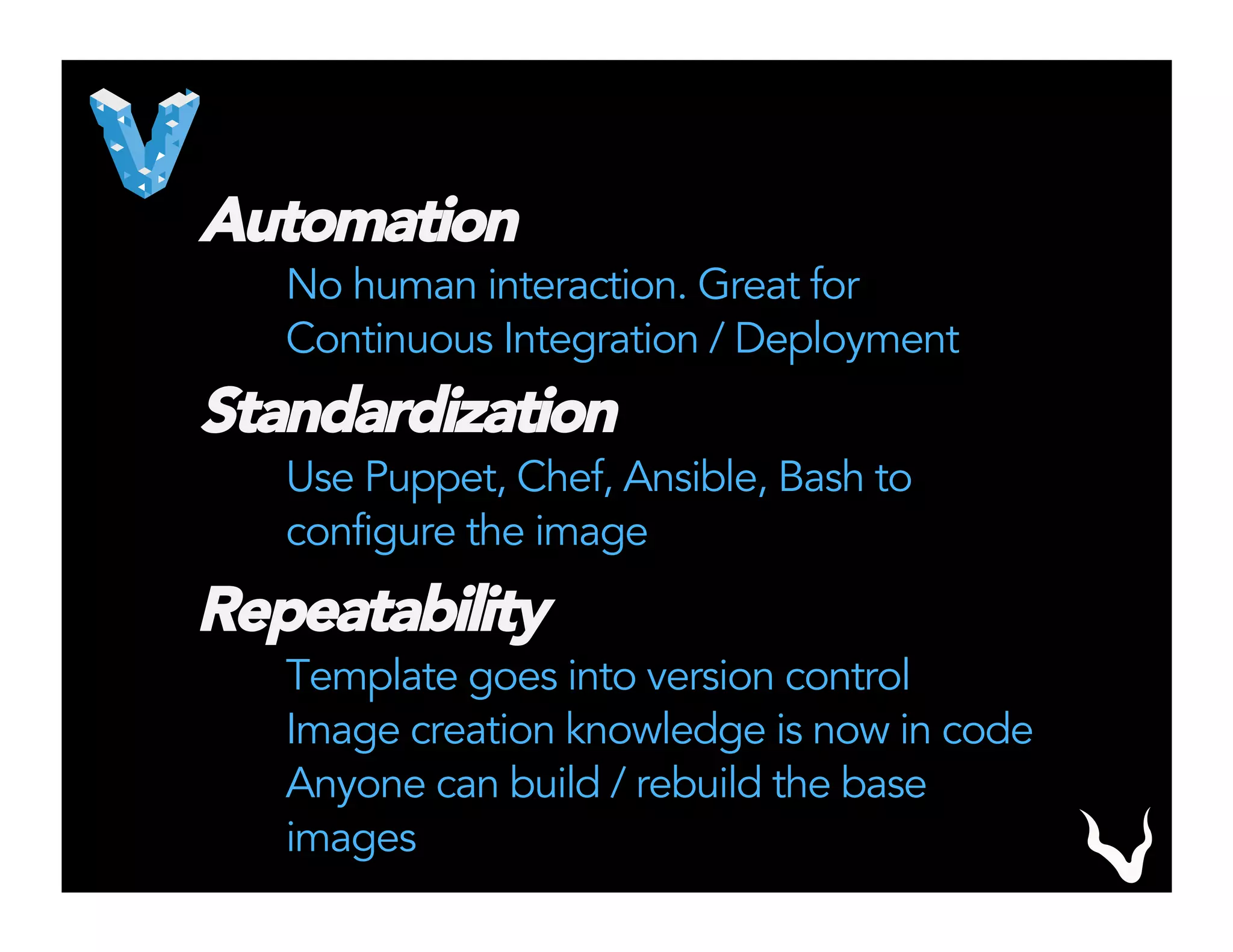

32. Automation
No human interaction. Great for
Continuous Integration / Deployment
Standardization
Use Puppet, Chef, Ansible, Bash to
configure the image
Repeatability
Template goes into version control
Image creation knowledge is now in code
Anyone can build / rebuild the base
images

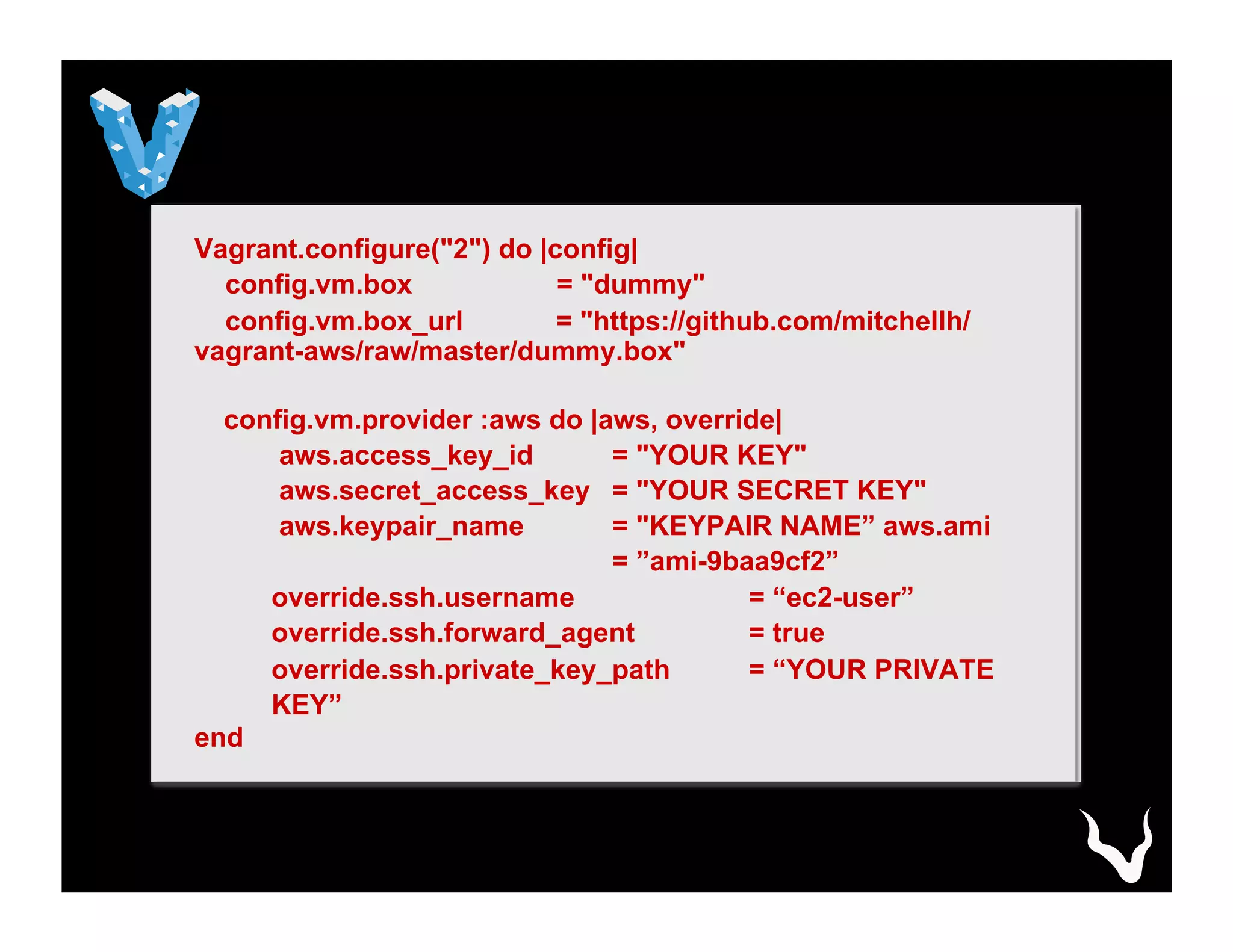

33. Vagrant.configure("2") do |config|
config.vm.box = "dummy"
config.vm.box_url = "https://github.com/mitchellh/
vagrant-aws/raw/master/dummy.box"
config.vm.provider :aws do |aws, override|
aws.access_key_id = "YOUR KEY"
aws.secret_access_key = "YOUR SECRET KEY"
aws.keypair_name = "KEYPAIR NAME” aws.ami
= ”ami-9baa9cf2”
override.ssh.username = “ec2-user”
override.ssh.forward_agent = true
override.ssh.private_key_path = “YOUR PRIVATE
KEY”
end

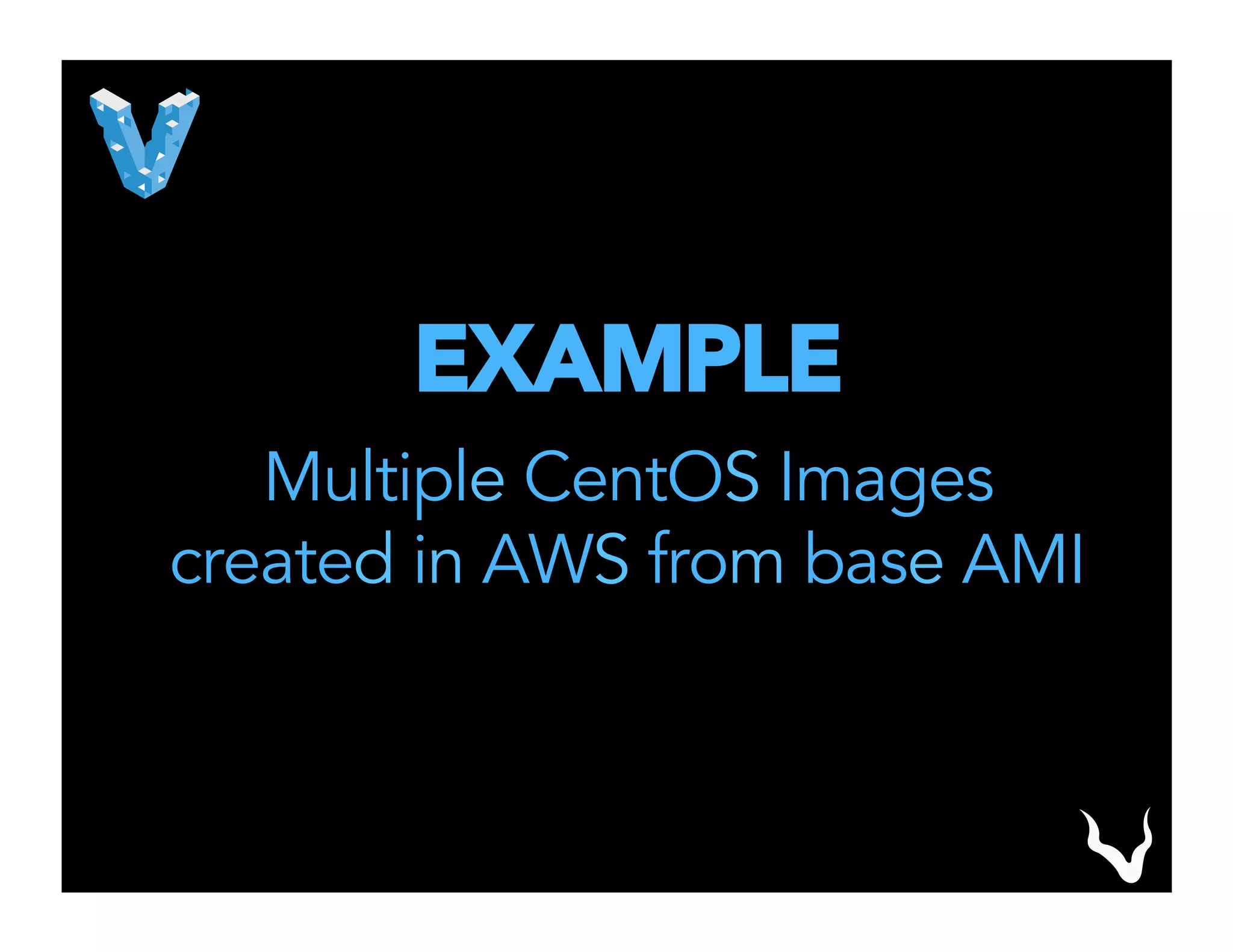

34. EXAMPLE
Multiple CentOS Images
created in AWS from base AMI

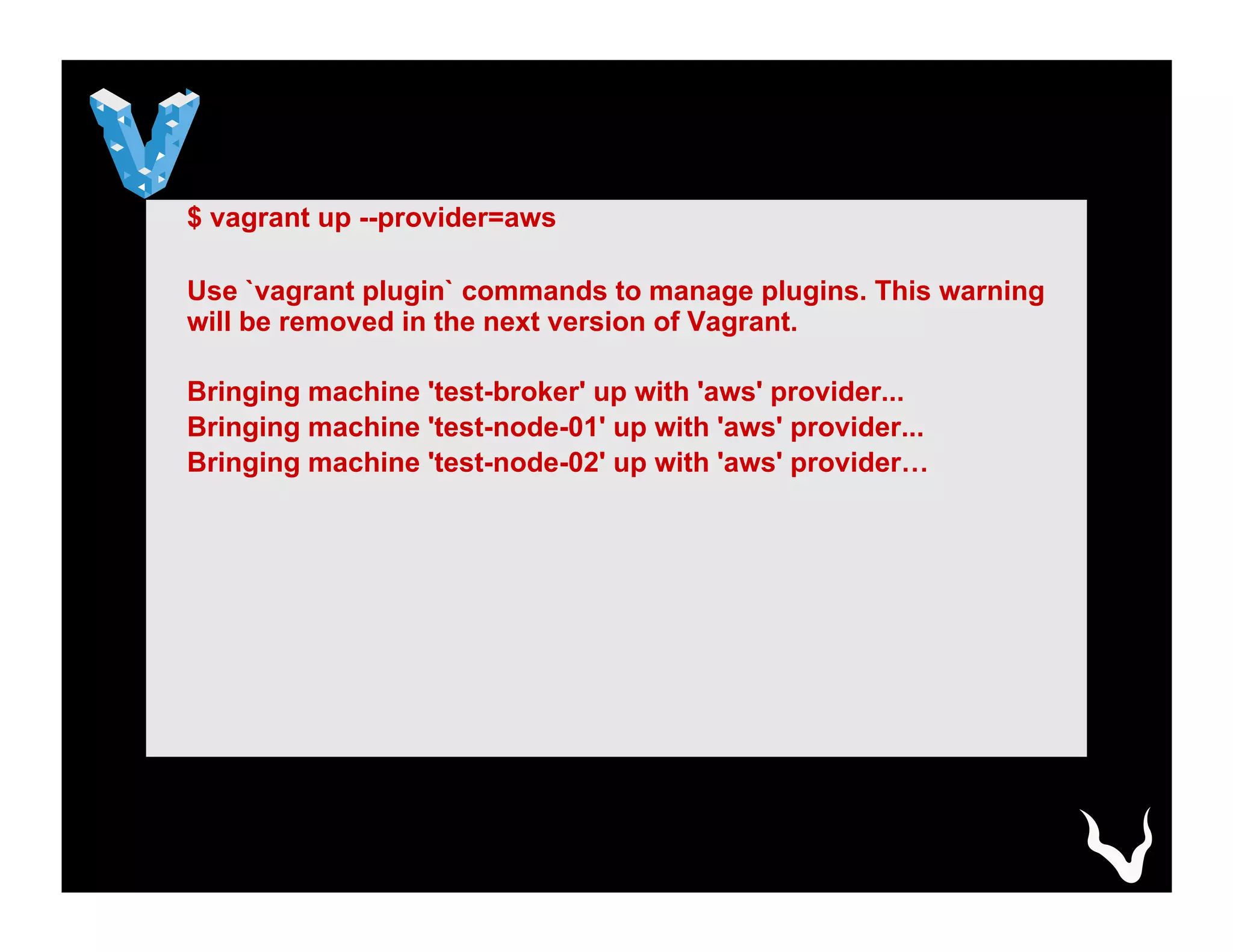

35. $ vagrant up --provider=aws
Use `vagrant plugin` commands to manage plugins. This warning
will be removed in the next version of Vagrant.
Bringing machine 'test-broker' up with 'aws' provider...
Bringing machine 'test-node-01' up with 'aws' provider...
Bringing machine 'test-node-02' up with 'aws' provider…

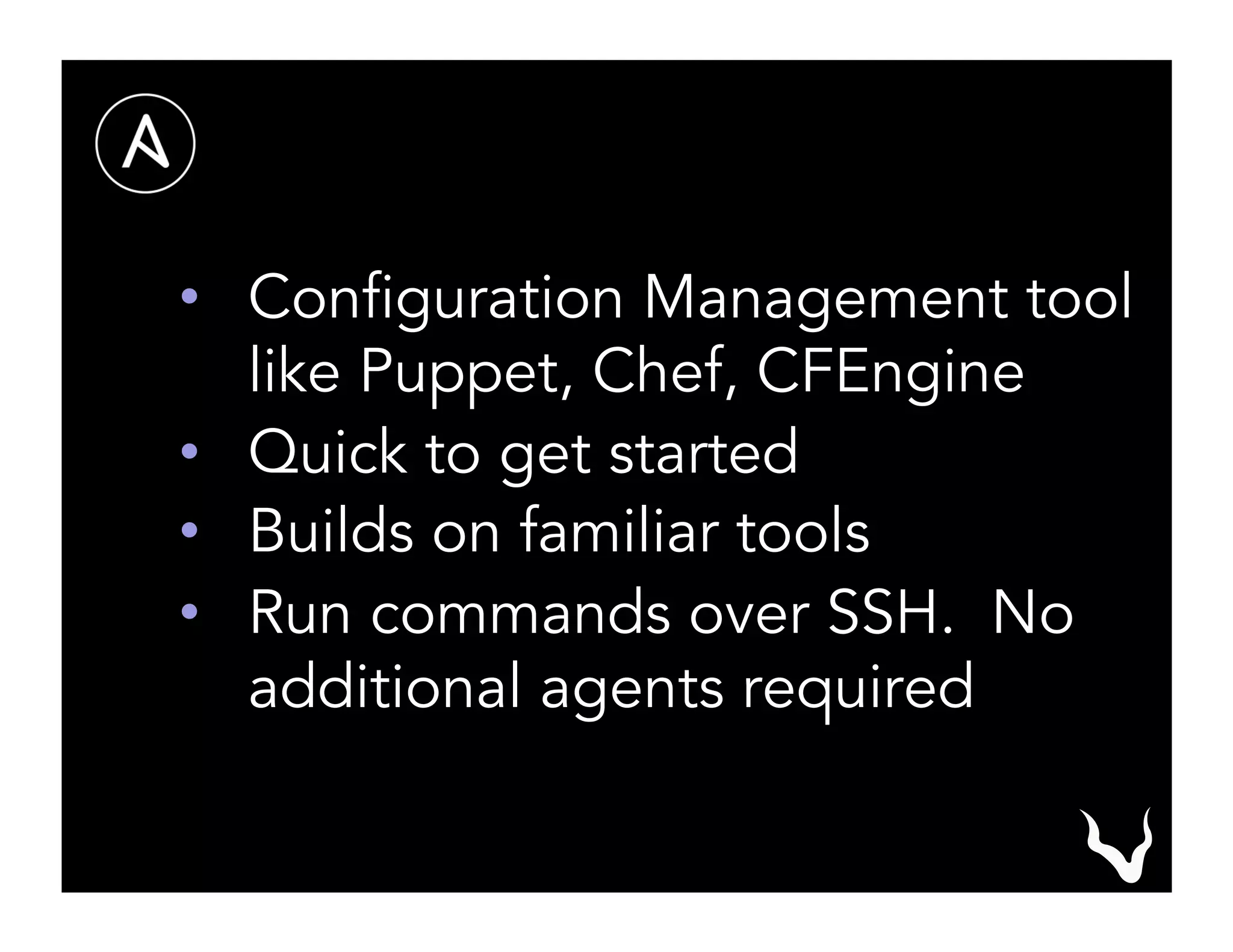

37. • Configuration Management tool
like Puppet, Chef, CFEngine
• Quick to get started
• Builds on familiar tools
• Run commands over SSH. No
additional agents required

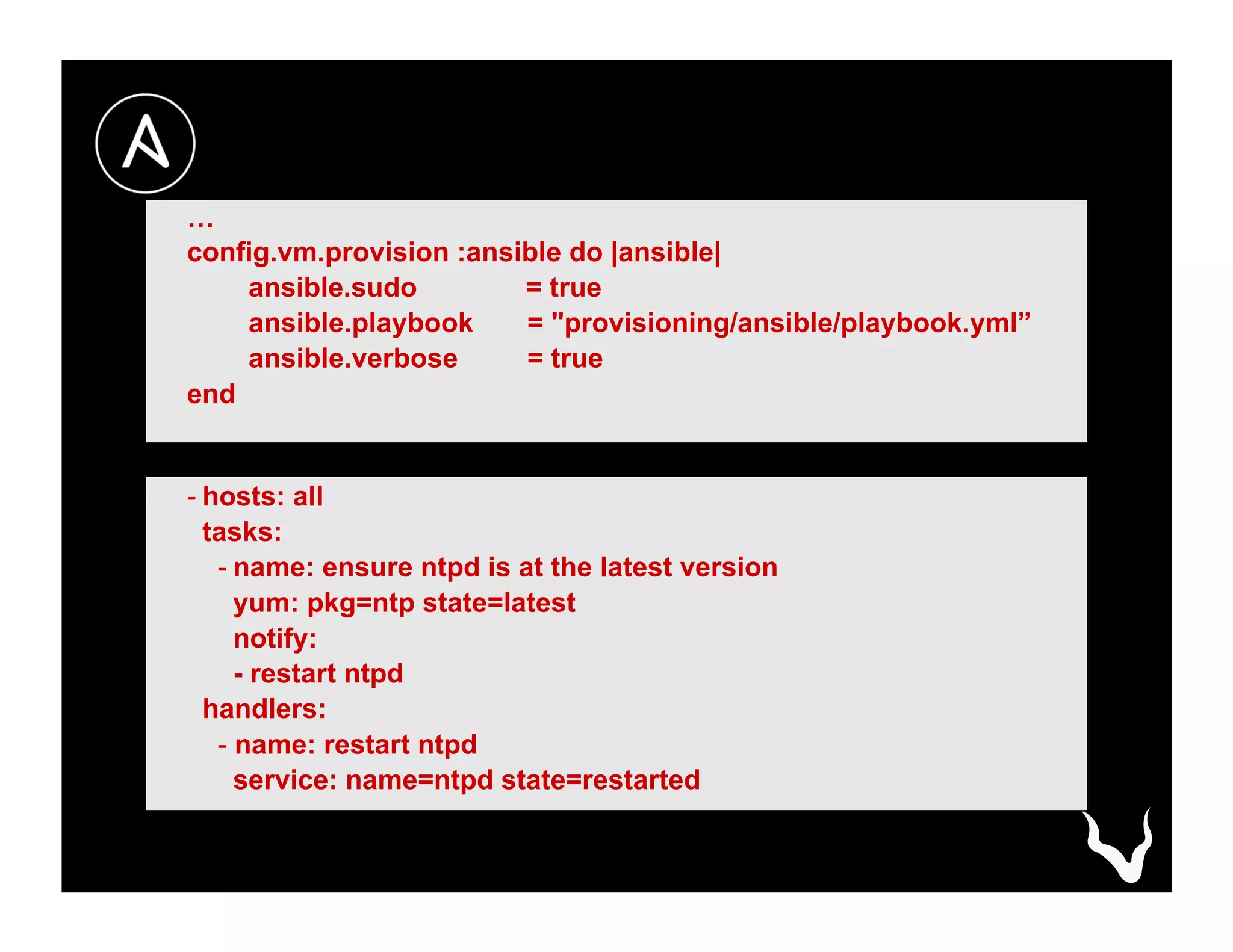

38. …
config.vm.provision :ansible do |ansible|
ansible.sudo = true
ansible.playbook = "provisioning/ansible/playbook.yml”
ansible.verbose = true
end
- hosts: all
tasks:
- name: ensure ntpd is at the latest version
yum: pkg=ntp state=latest
notify:
- restart ntpd
handlers:
- name: restart ntpd
service: name=ntpd state=restarted

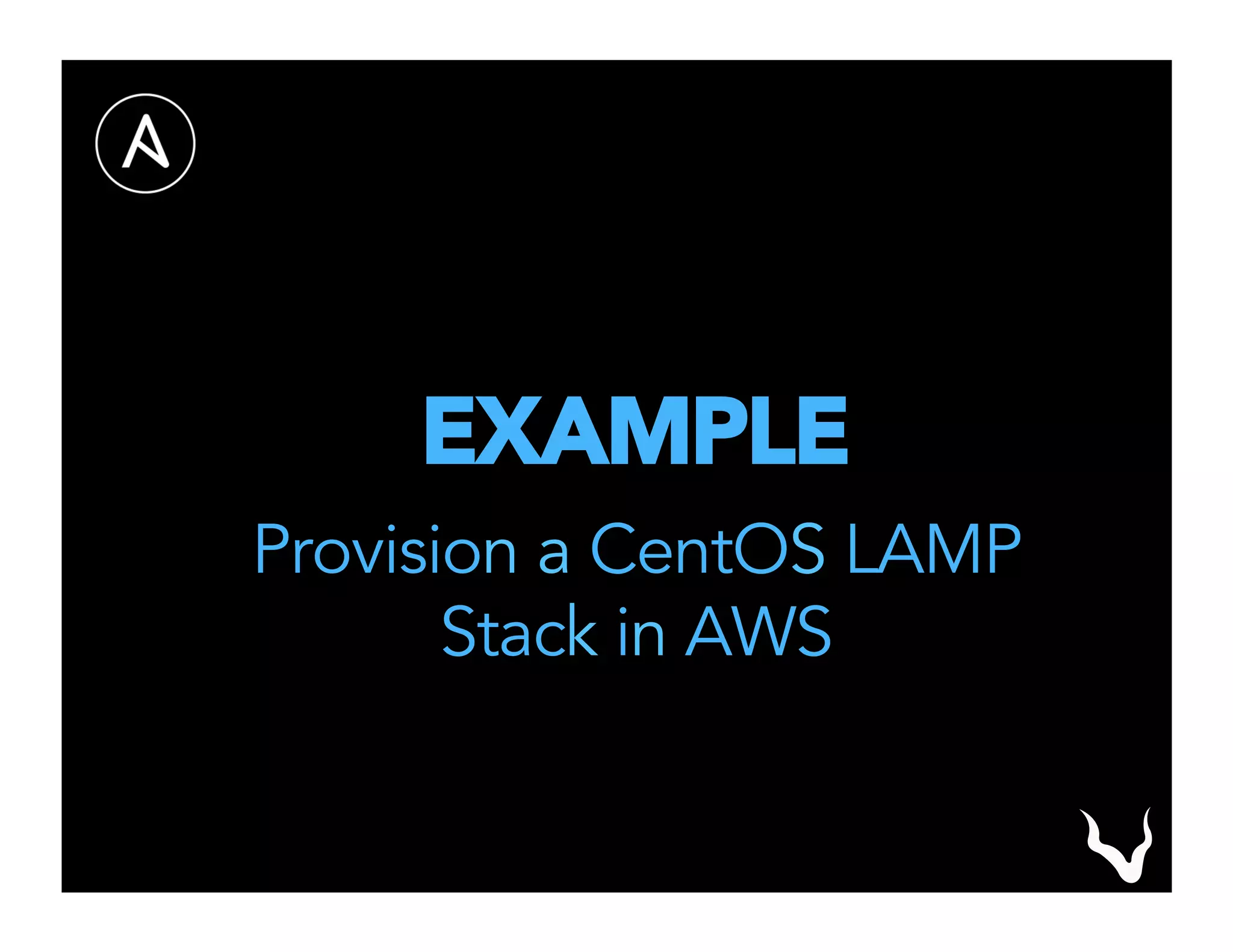

39. EXAMPLE
Provision a CentOS LAMP
Stack in AWS

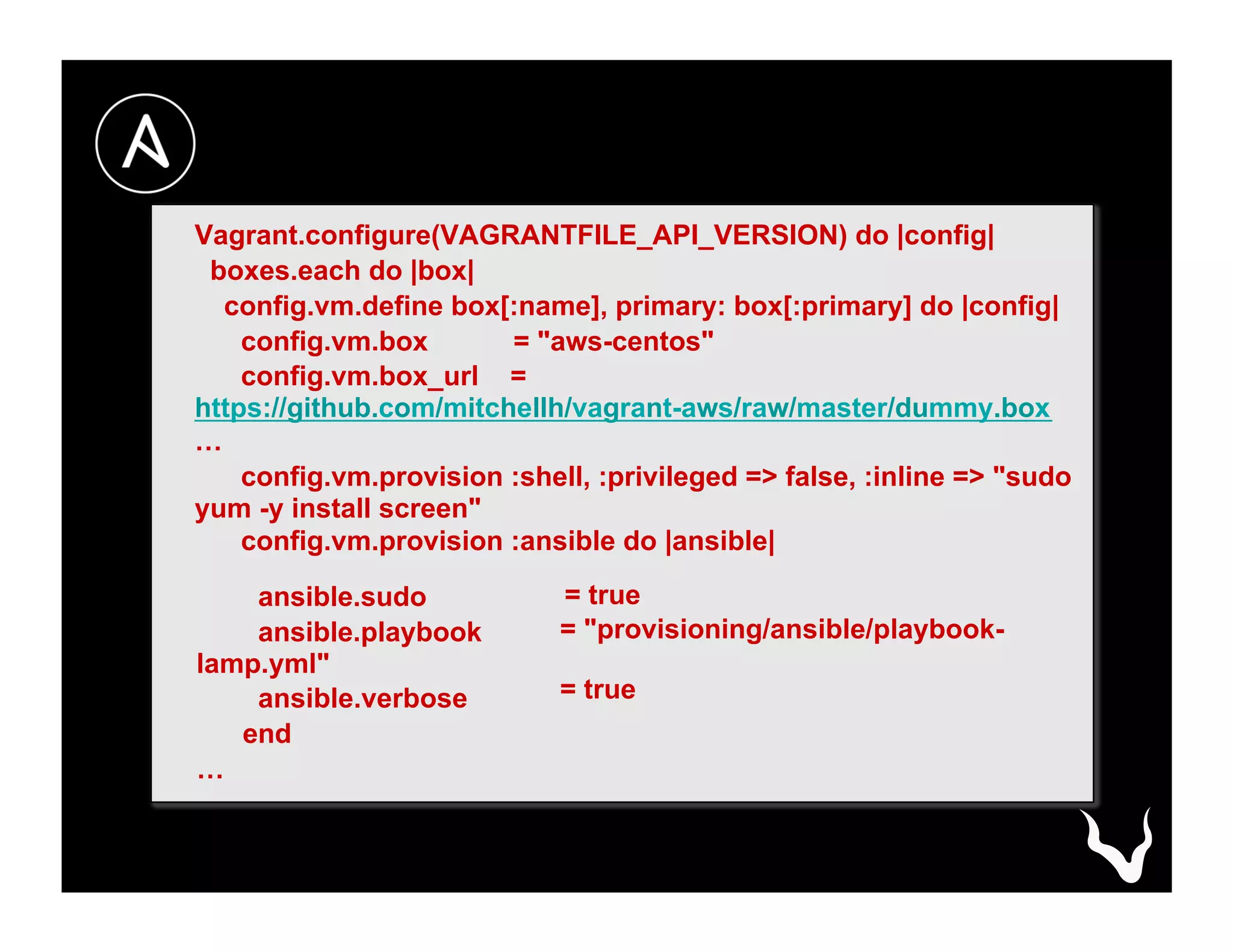

40. Vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
boxes.each do |box|
config.vm.define box[:name], primary: box[:primary] do |config|
config.vm.box = "aws-centos"
config.vm.box_url =
https://github.com/mitchellh/vagrant-aws/raw/master/dummy.box
…
config.vm.provision :shell, :privileged => false, :inline => "sudo
yum -y install screen"
config.vm.provision :ansible do |ansible|
ansible.sudo
ansible.playbook
lamp.yml"
ansible.verbose
end
…
= true
= "provisioning/ansible/playbook-
= true

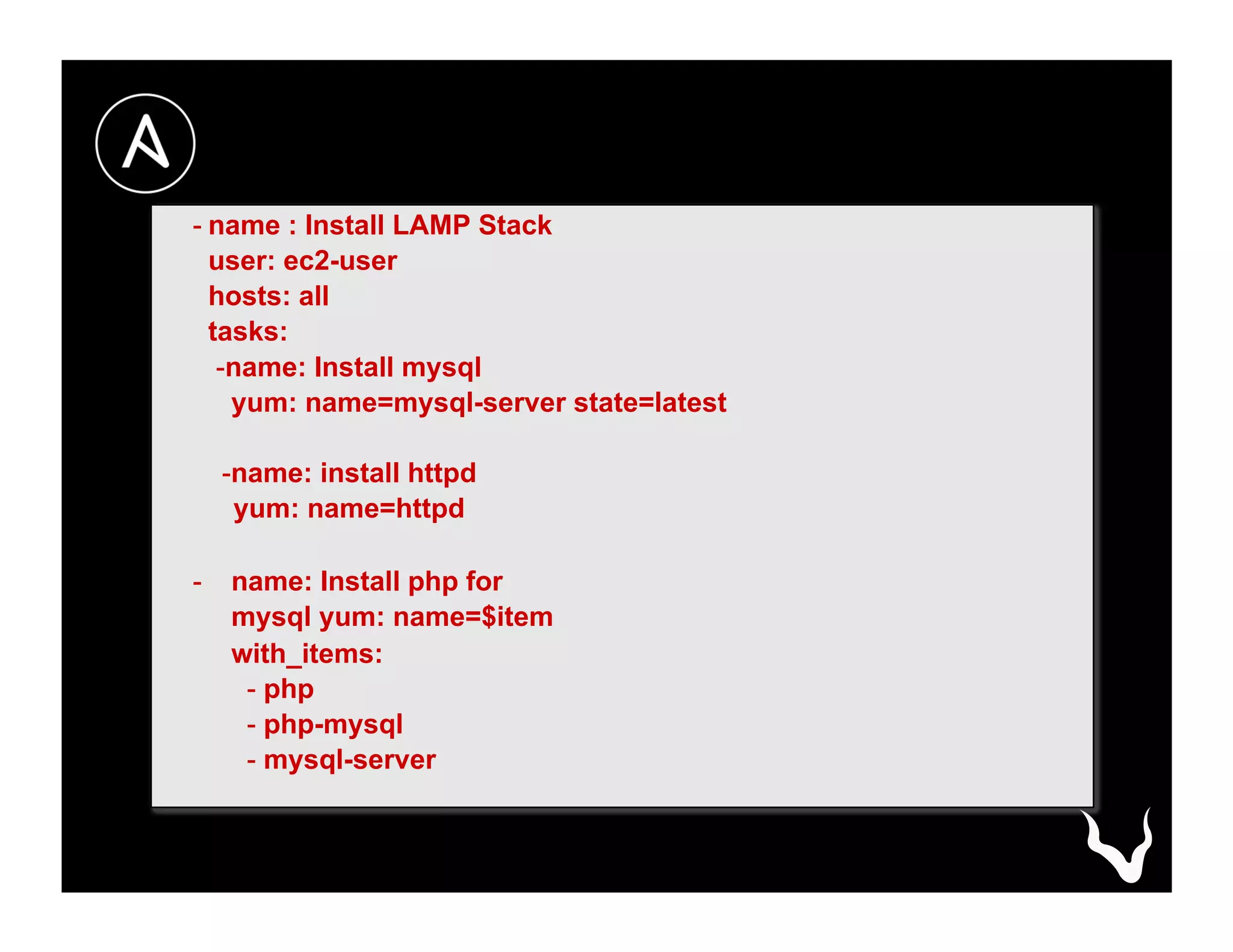

41. - name : Install LAMP Stack
user: ec2-user
hosts: all
tasks:
- name: Install mysql
yum: name=mysql-server state=latest
- name: install httpd
yum: name=httpd
- name: Install php for
mysql yum: name=$item
with_items:
- php
- php-mysql
- mysql-server

42. Only
Scratching
the
Surface

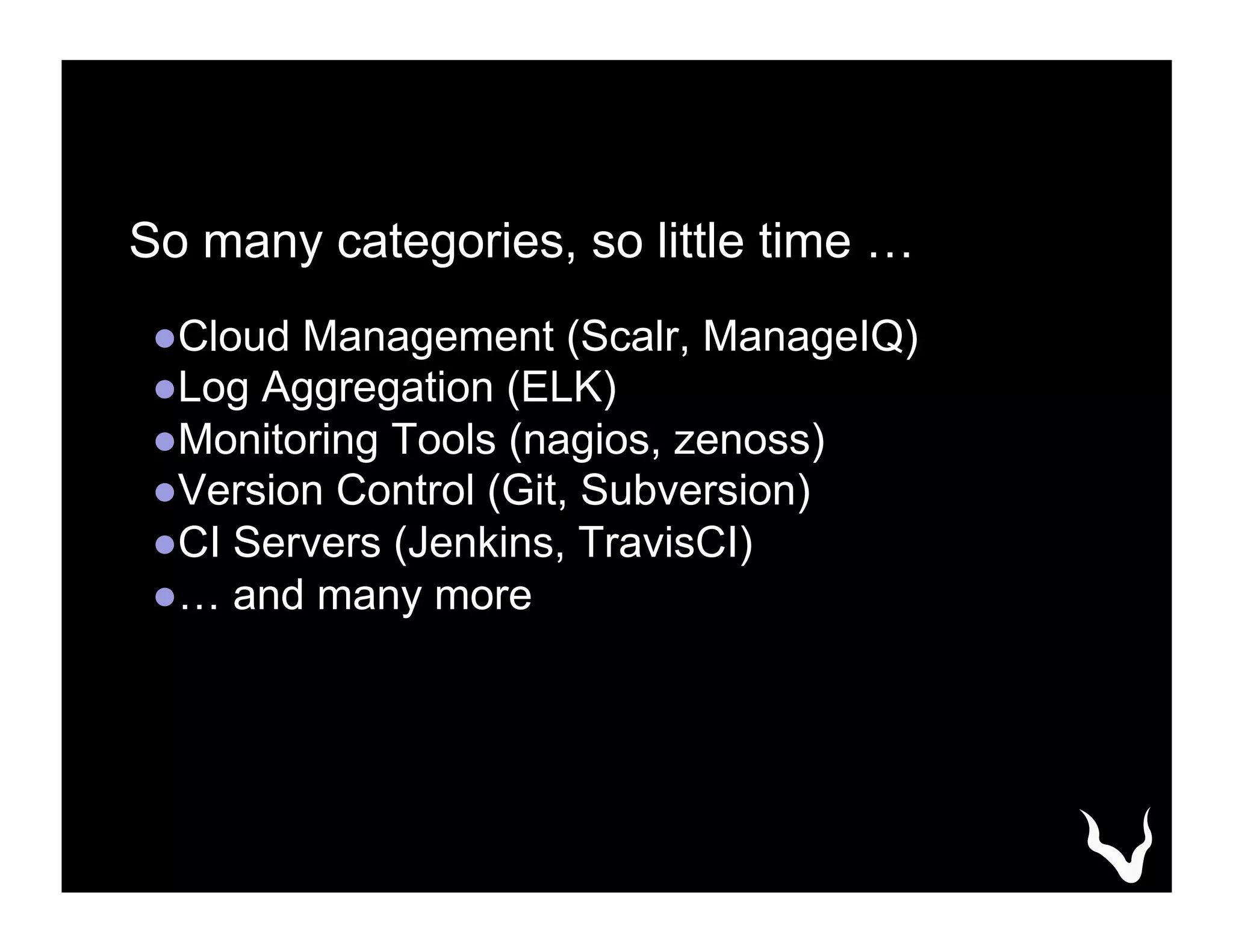

43. So many categories, so little time …
● Cloud Management (Scalr, ManageIQ)
● Log Aggregation (ELK)
● Monitoring Tools (nagios, zenoss)
● Version Control (Git, Subversion)
● CI Servers (Jenkins, TravisCI)
● … and many more

44. OSS DevOps Tools Ecosystem
Check
Out
-­‐
http://www.devopsbookmarks.com/

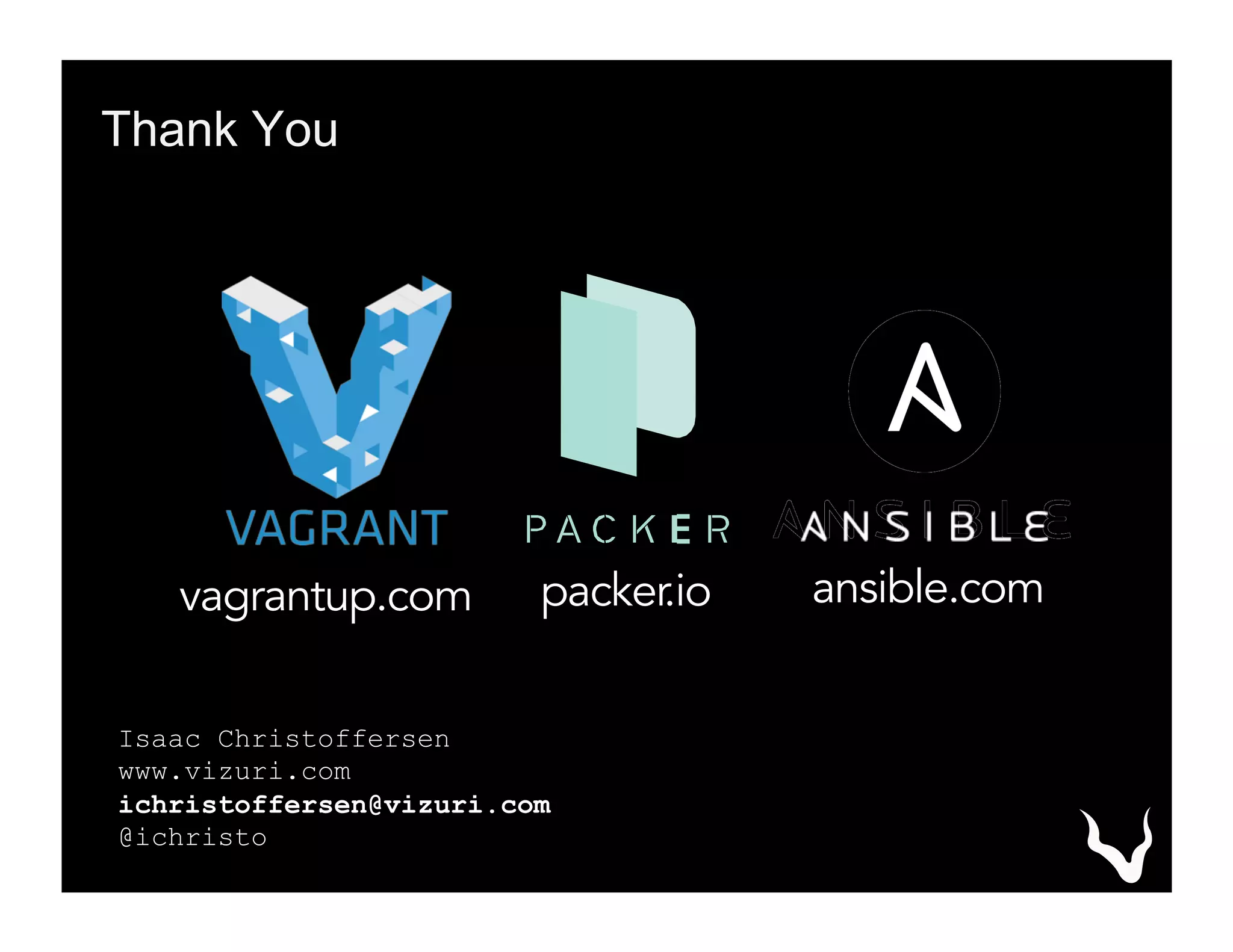

45. Thank You
Isaac Christoffersen
www.vizuri.com
ichristoffersen@vizuri.com
@ichristo
vagrantup.com packer.io ansible.com
