Managing Windows Systems with Puppet - PuppetConf 2013

Managing Windows
Systems with Puppet
James Sweeny
Professional Services | Puppet Labs
james.sweeny@puppetlabs.com
supercow on irc.freenode.net
@jsween_y
Friday, August 23, 13

puppetconf.com #puppetconf

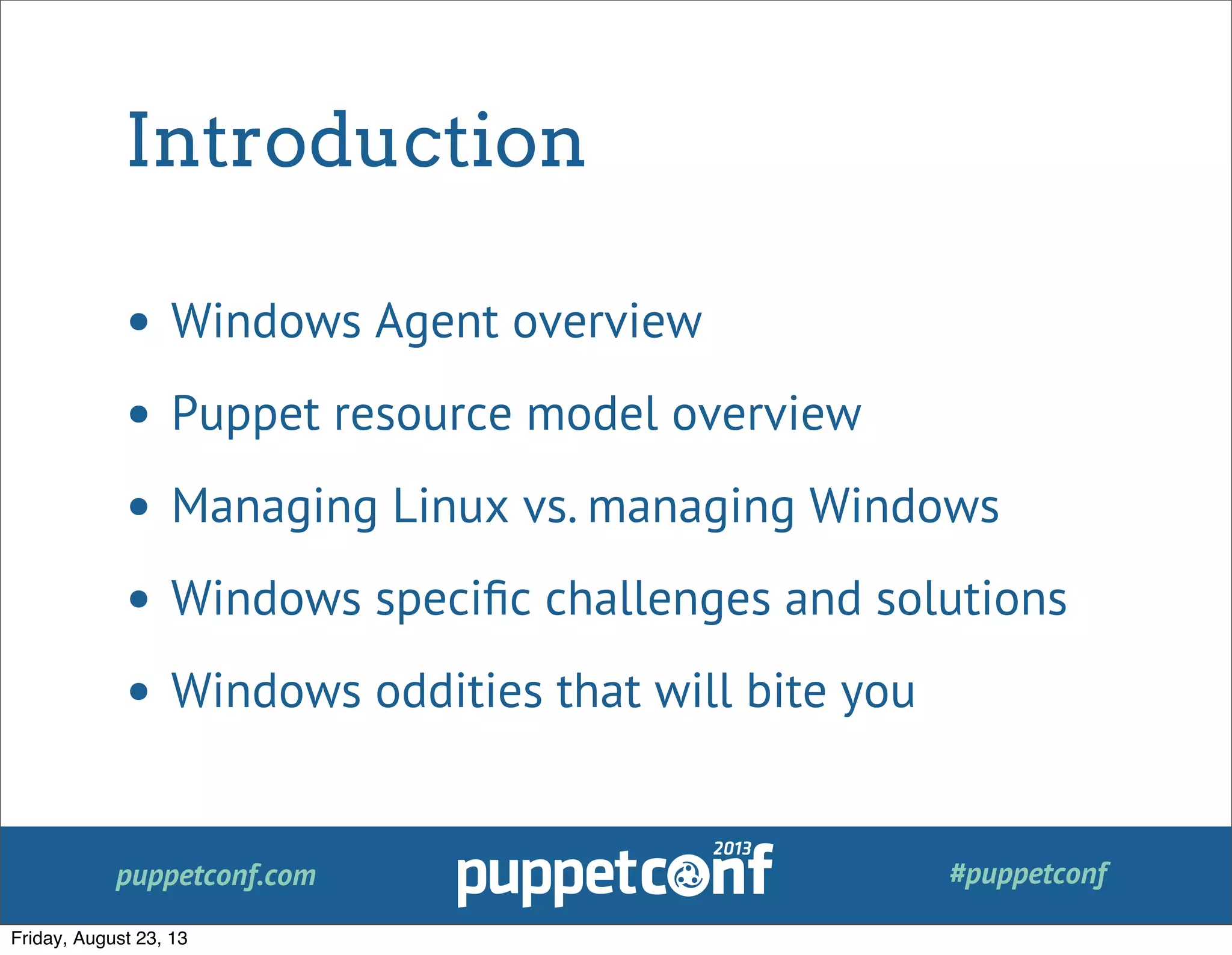

Introduction
• Windows Agent overview
• Puppet resource model overview
• Managing Linux vs. managing Windows
• Windows speciﬁc challenges and solutions
• Windows oddities that will bite you

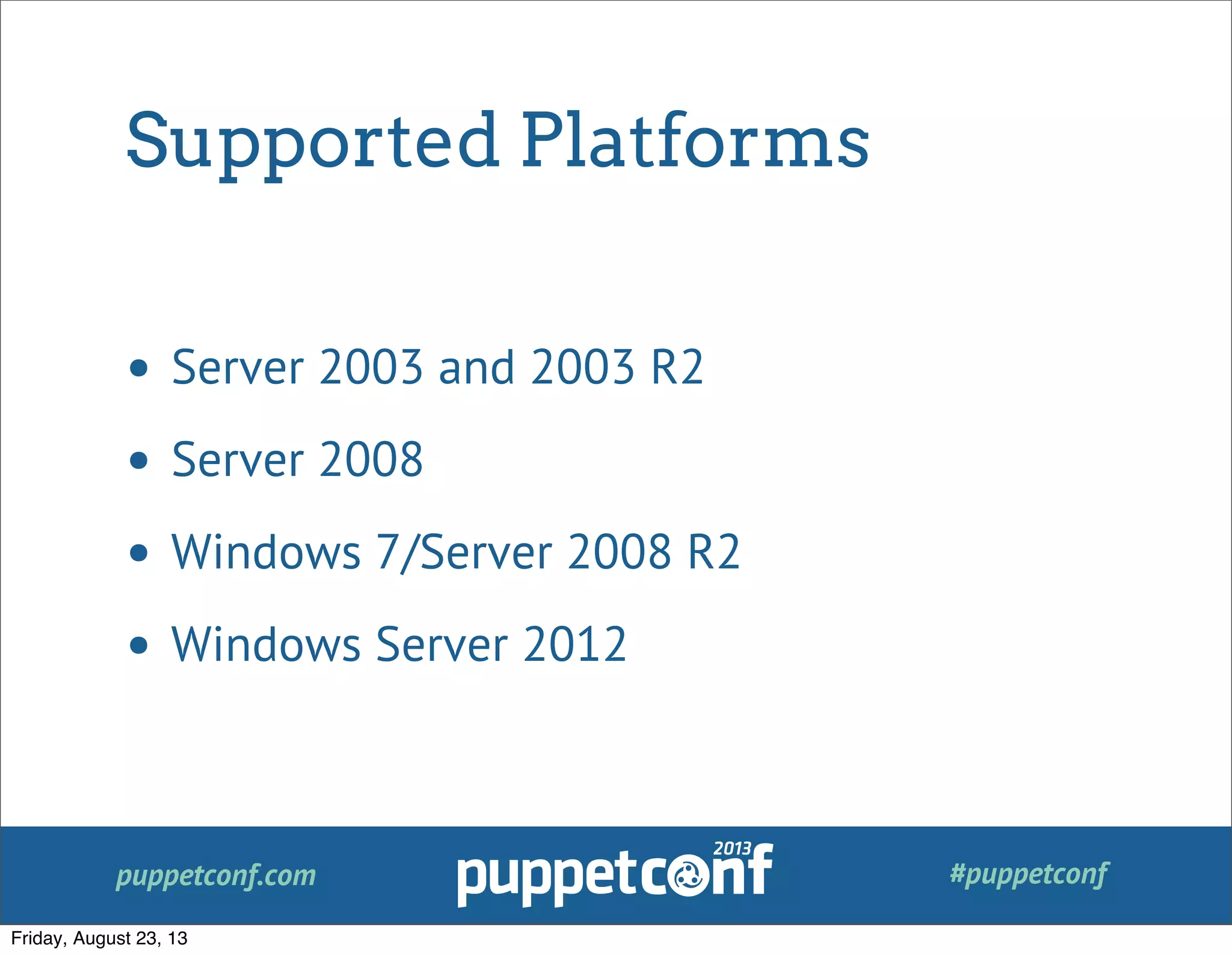

Supported Platforms
• Server 2003 and 2003 R2
• Server 2008
• Windows 7/Server 2008 R2
• Windows Server 2012

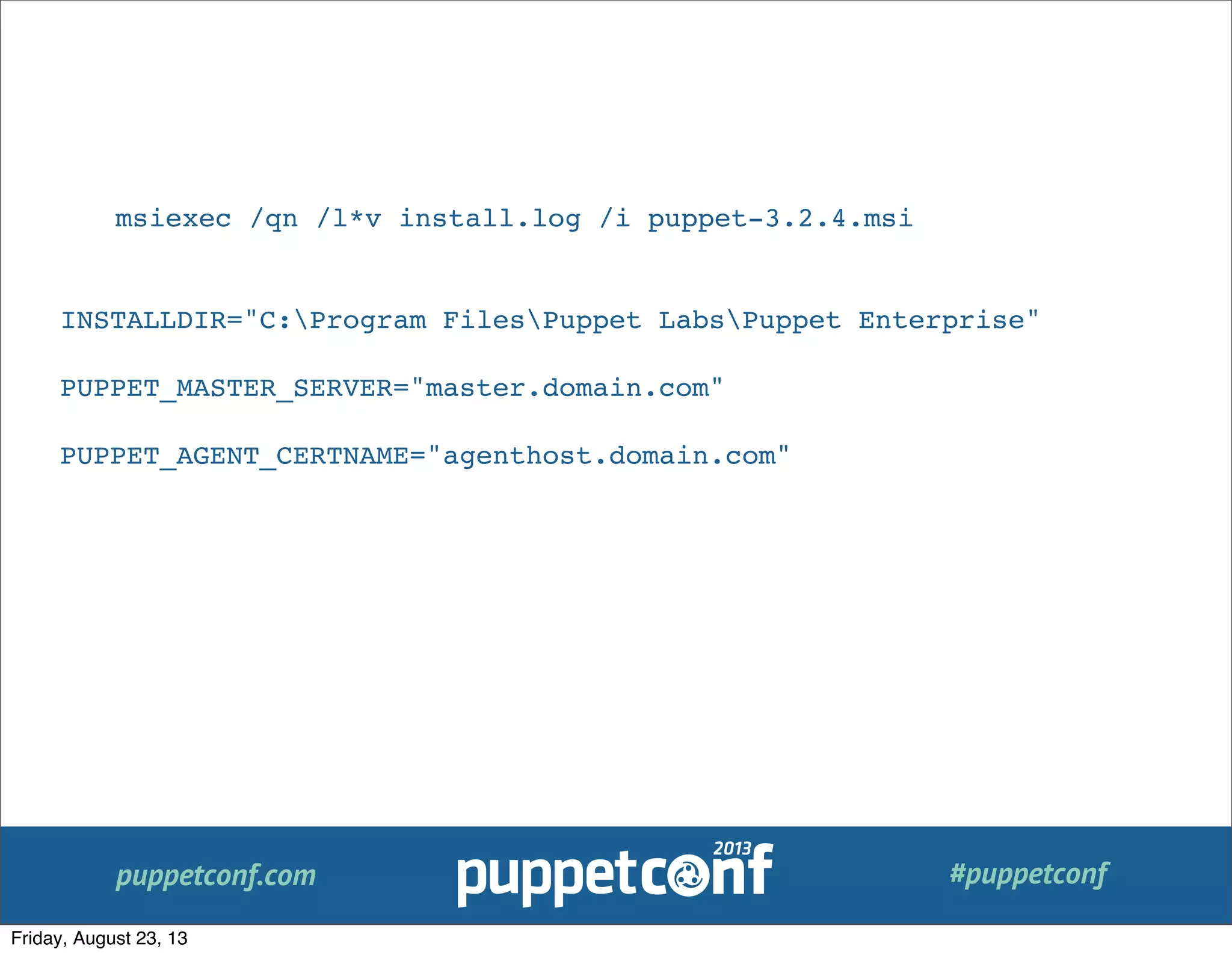

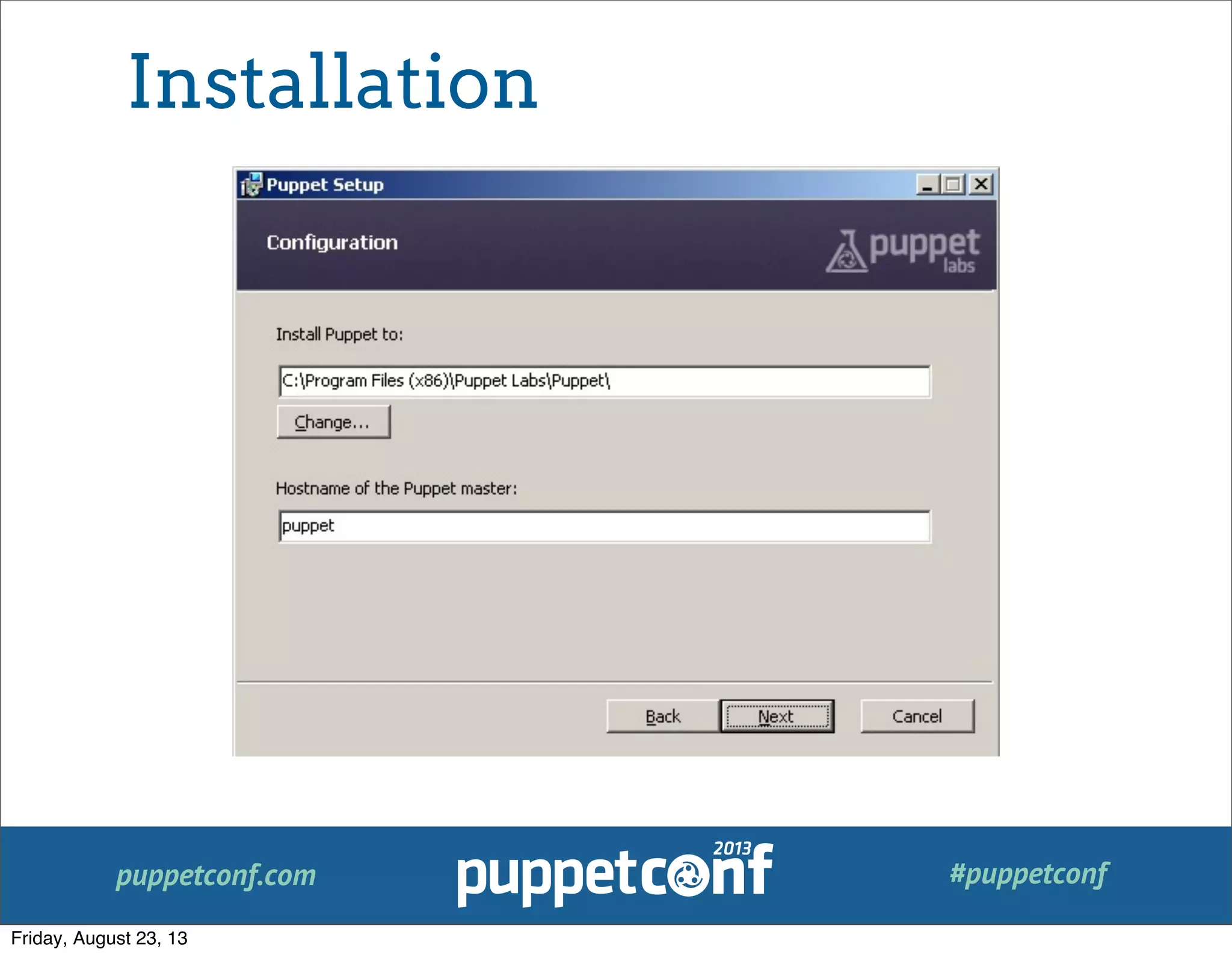

Installation

msiexec /qn /l*v install.log /i puppet-3.2.4.msi
INSTALLDIR="C:Program FilesPuppet LabsPuppet Enterprise"
PUPPET_MASTER_SERVER="master.domain.com"
PUPPET_AGENT_CERTNAME="agenthost.domain.com"

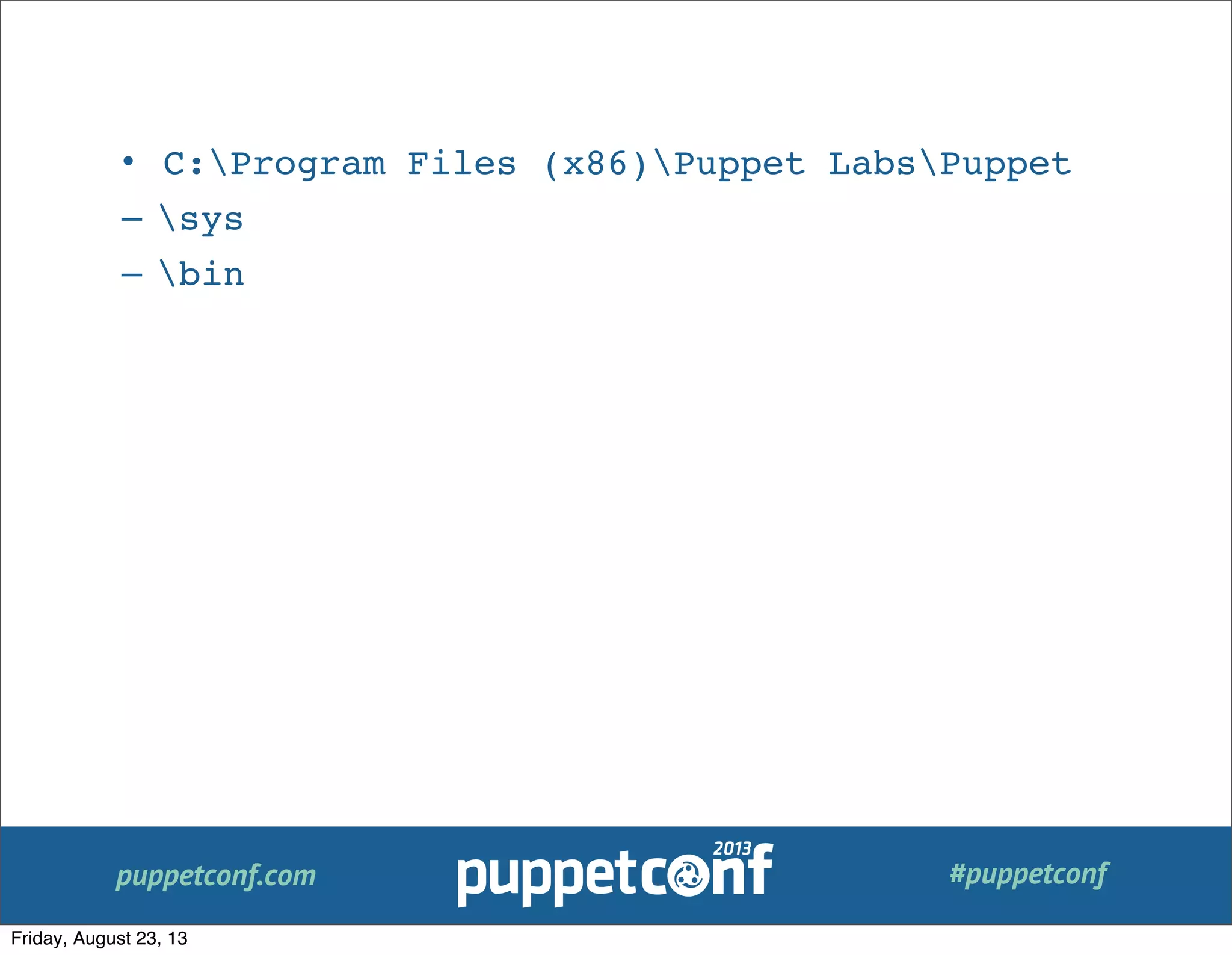

• C:Program Files (x86)Puppet LabsPuppet
– sys
– bin

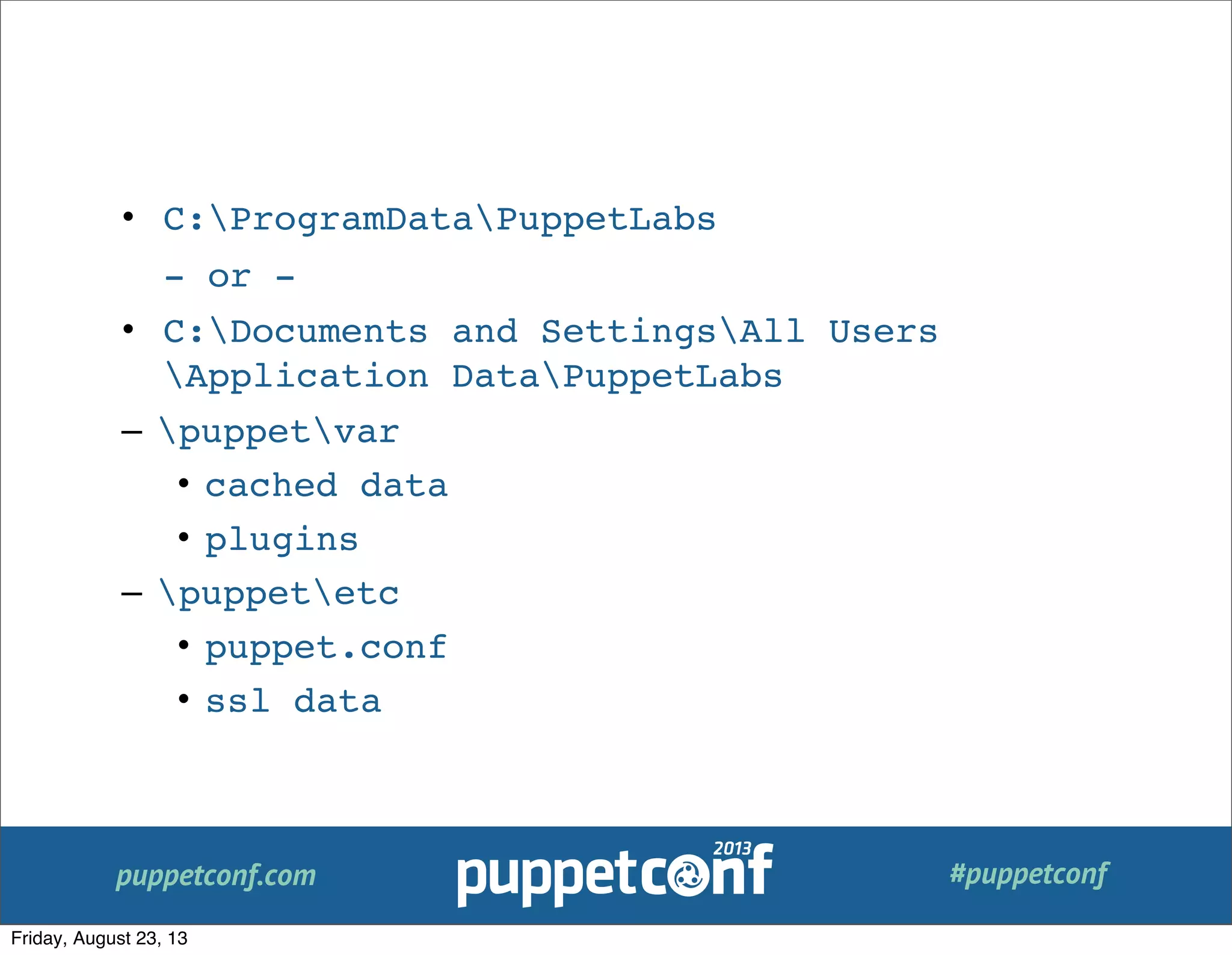

• C:ProgramDataPuppetLabs
- or -
• C:Documents and SettingsAll Users
Application DataPuppetLabs
– puppetvar
• cached data
• plugins
– puppetetc
• puppet.conf
• ssl data

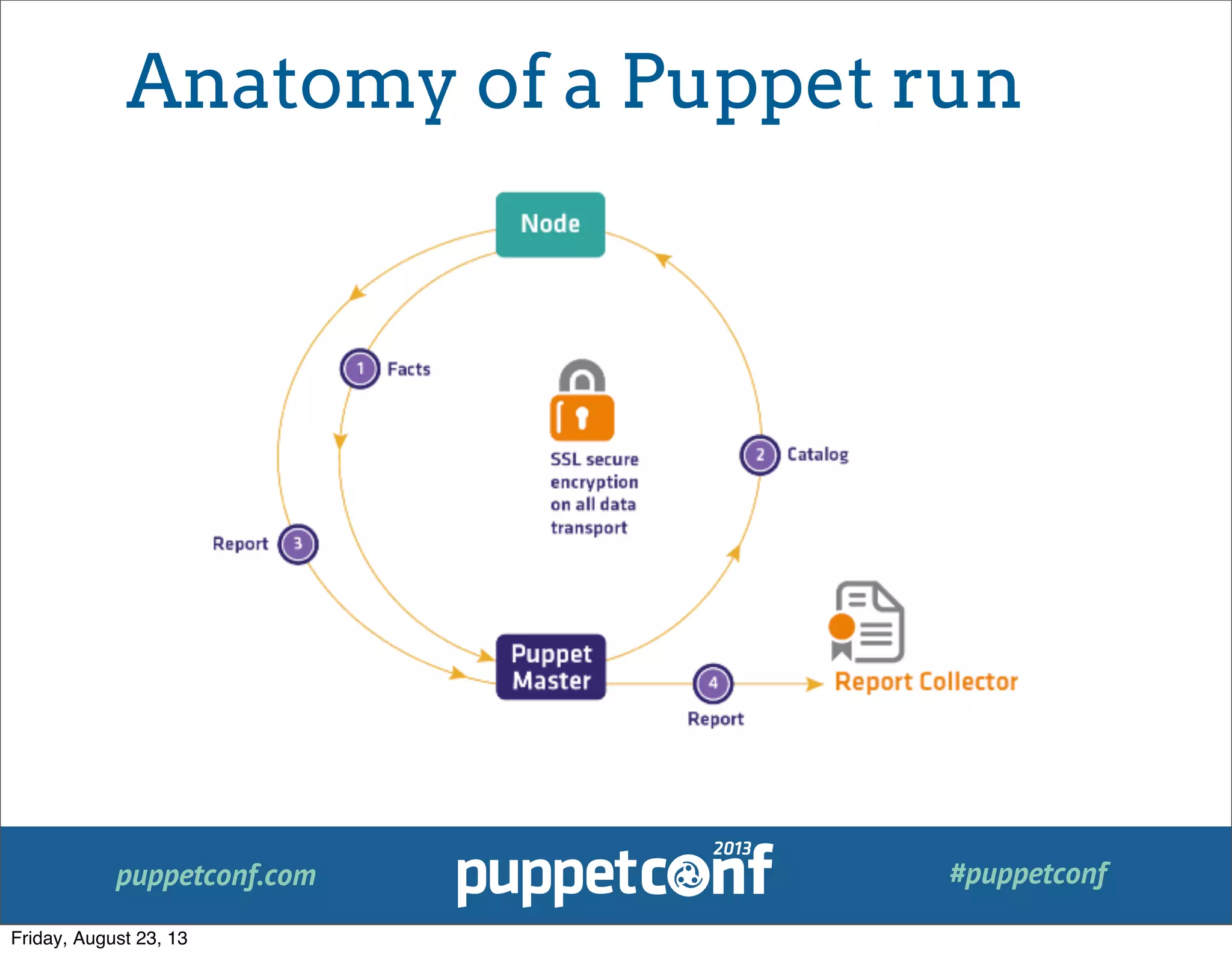

Anatomy of a Puppet run

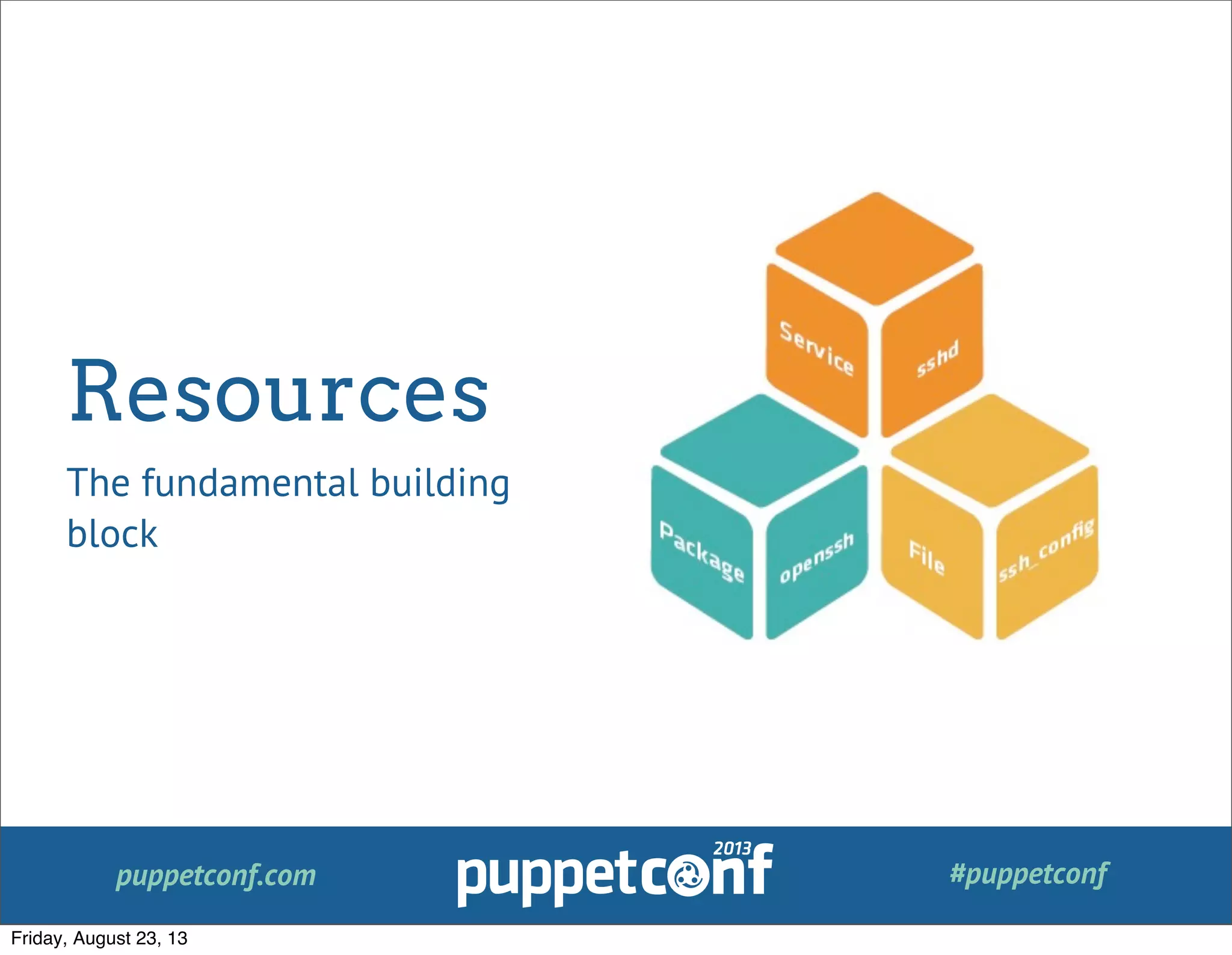

Resources
The fundamental building
block

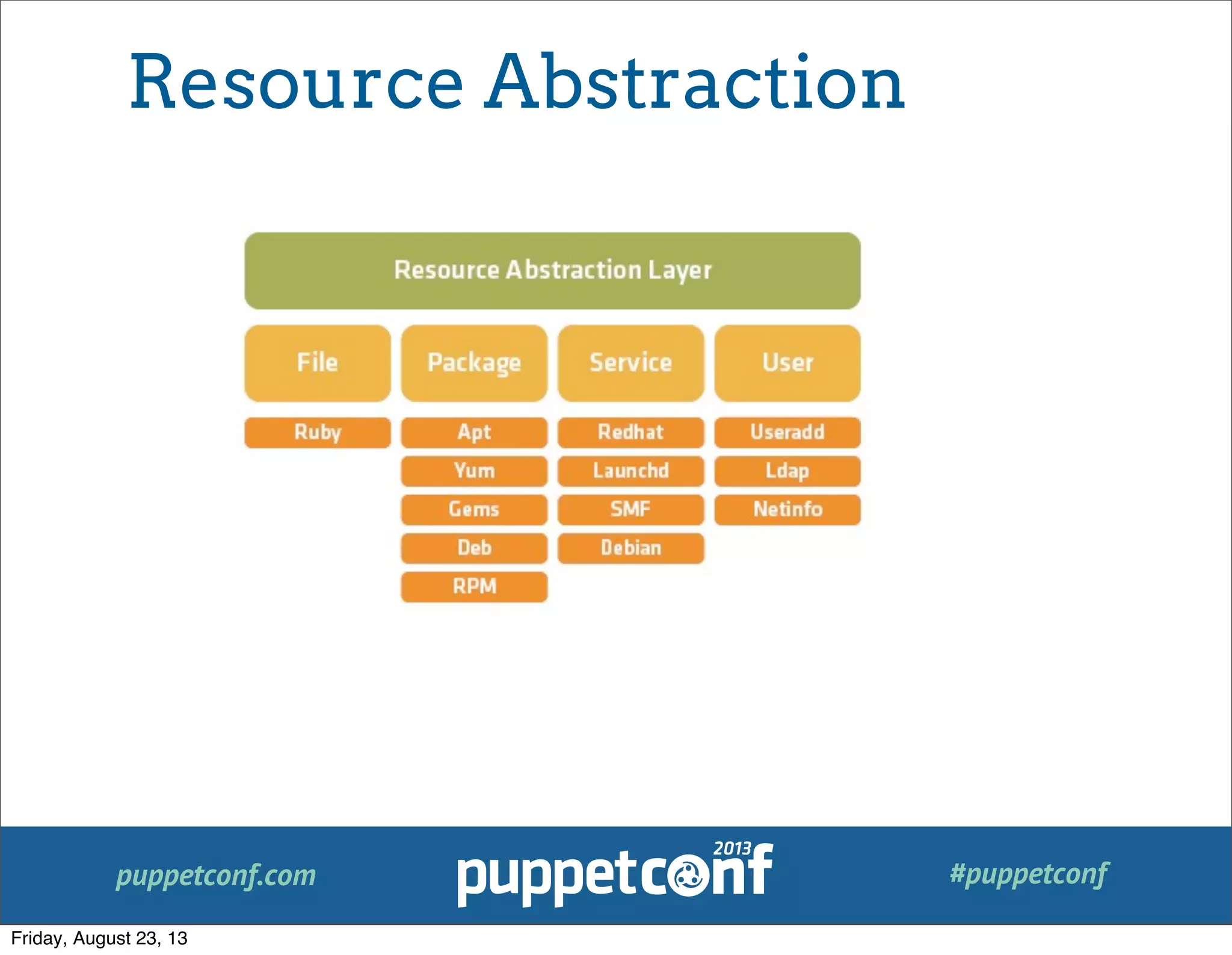

Resource Abstraction

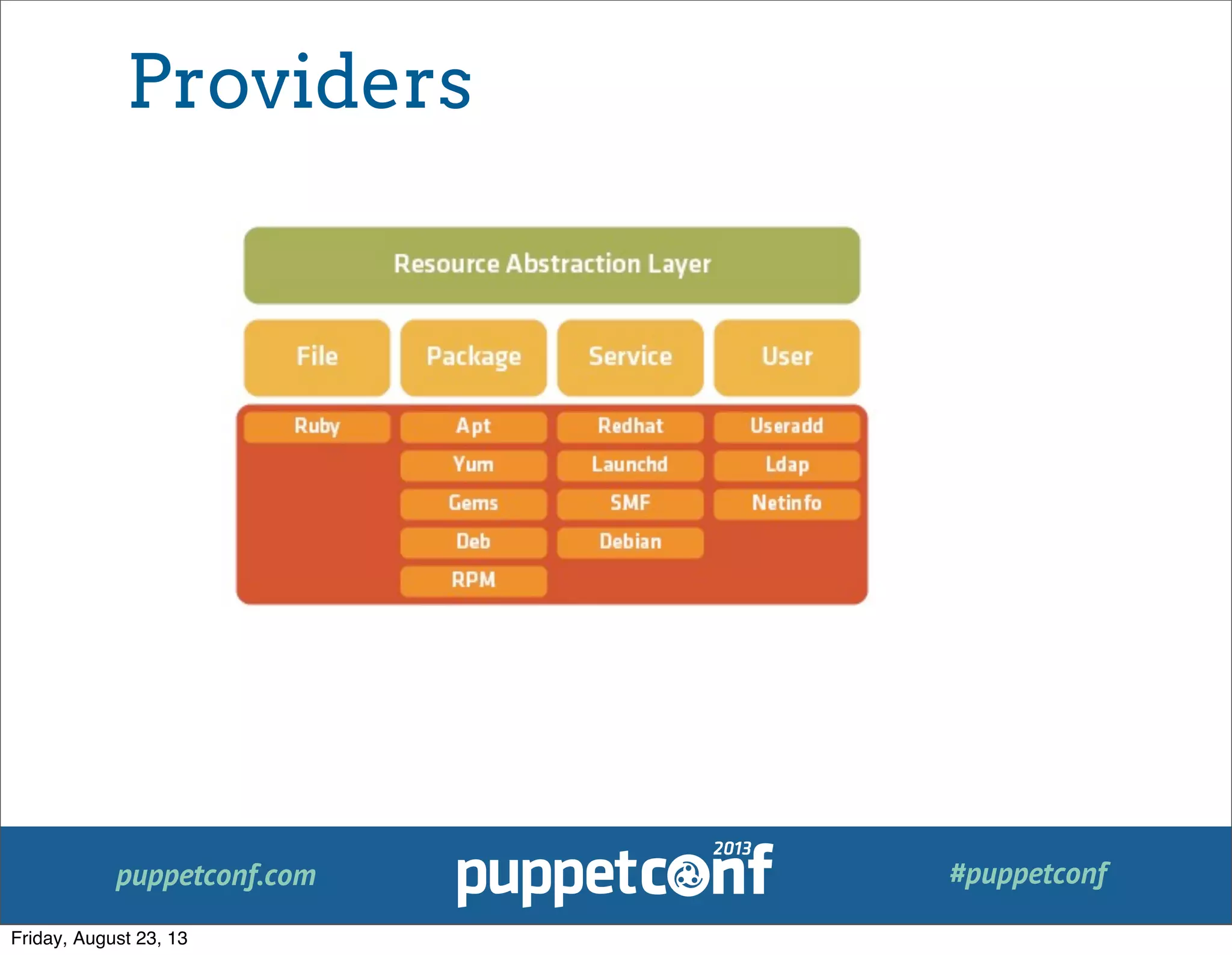

Providers

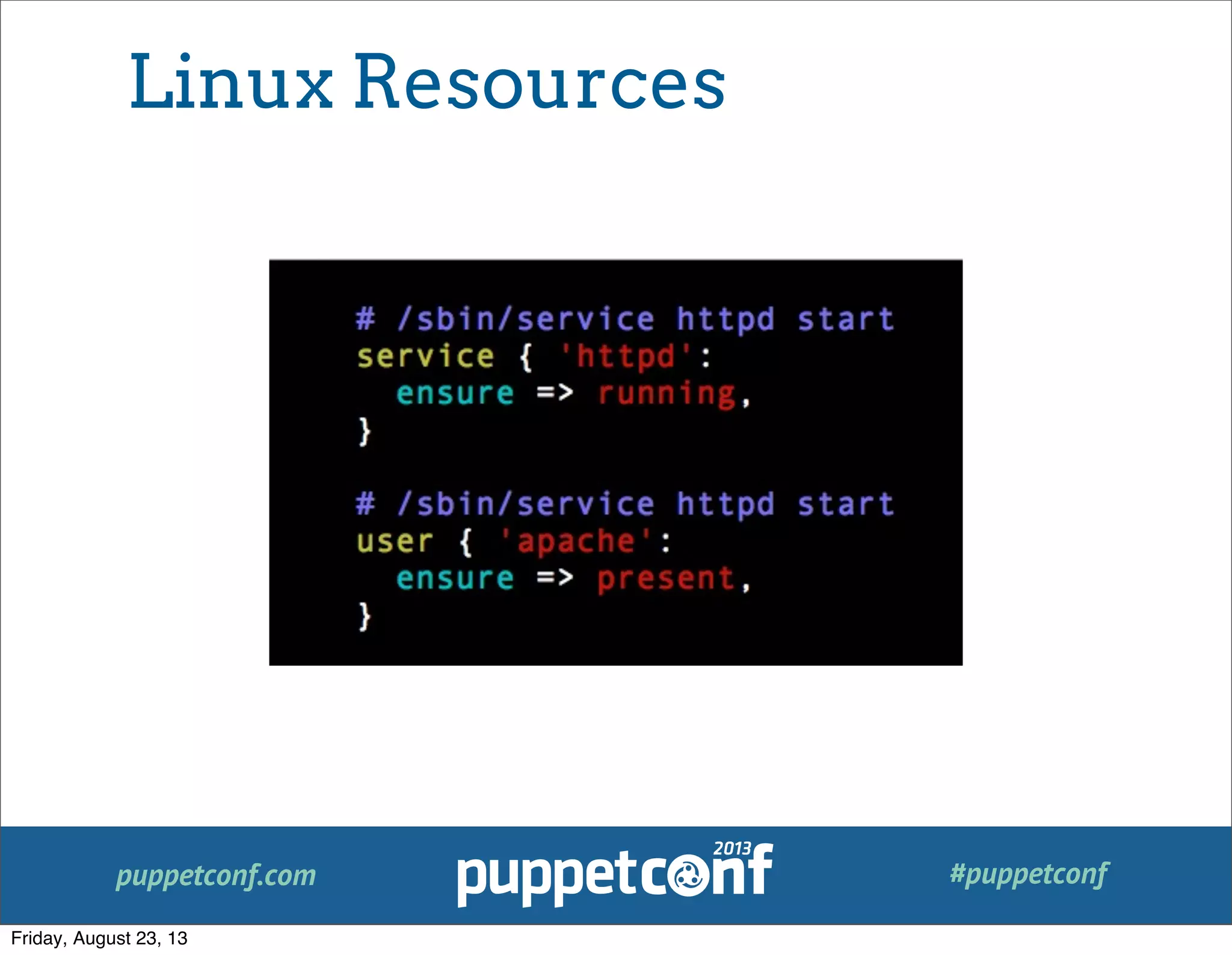

Linux Resources

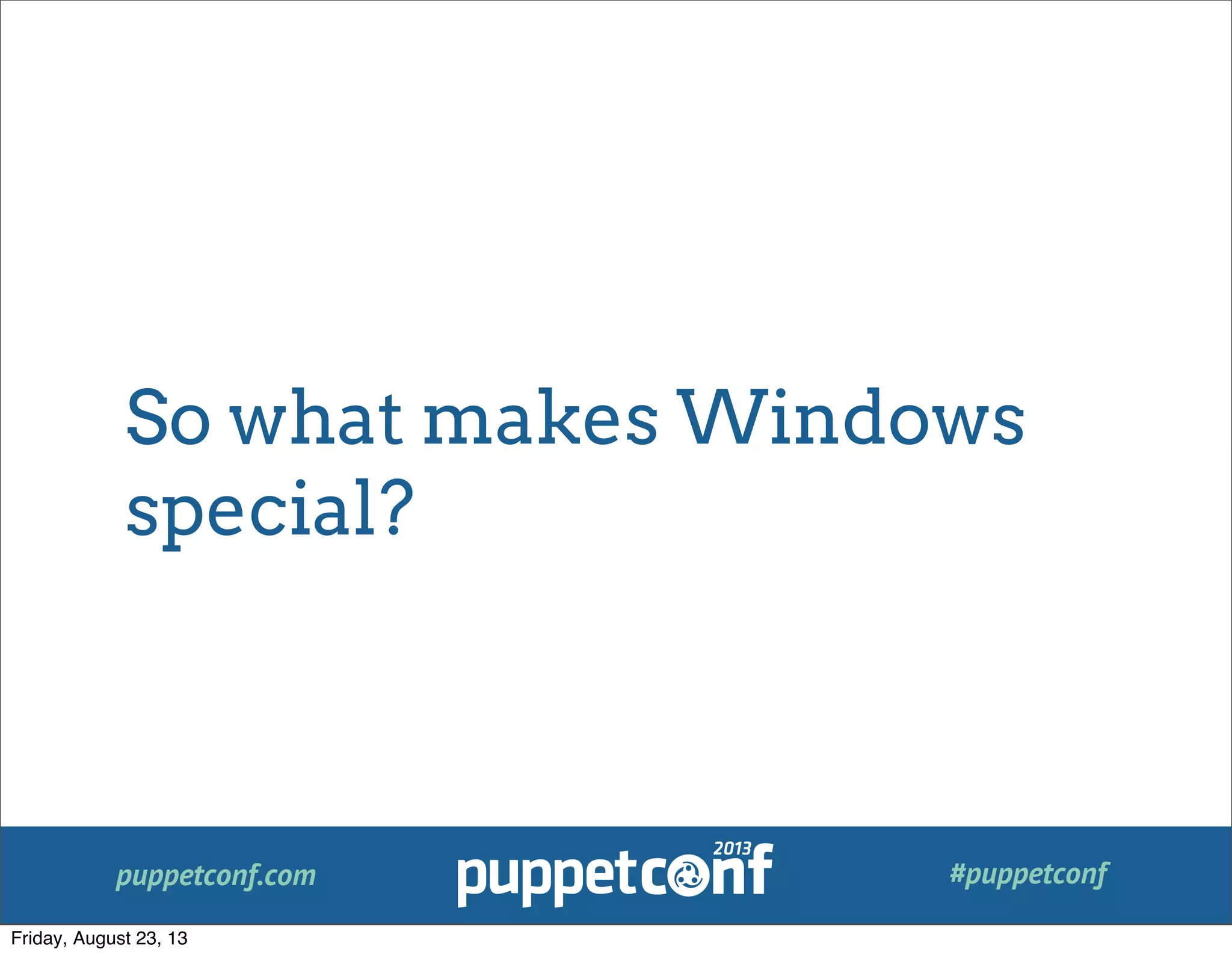

So what makes Windows
special?

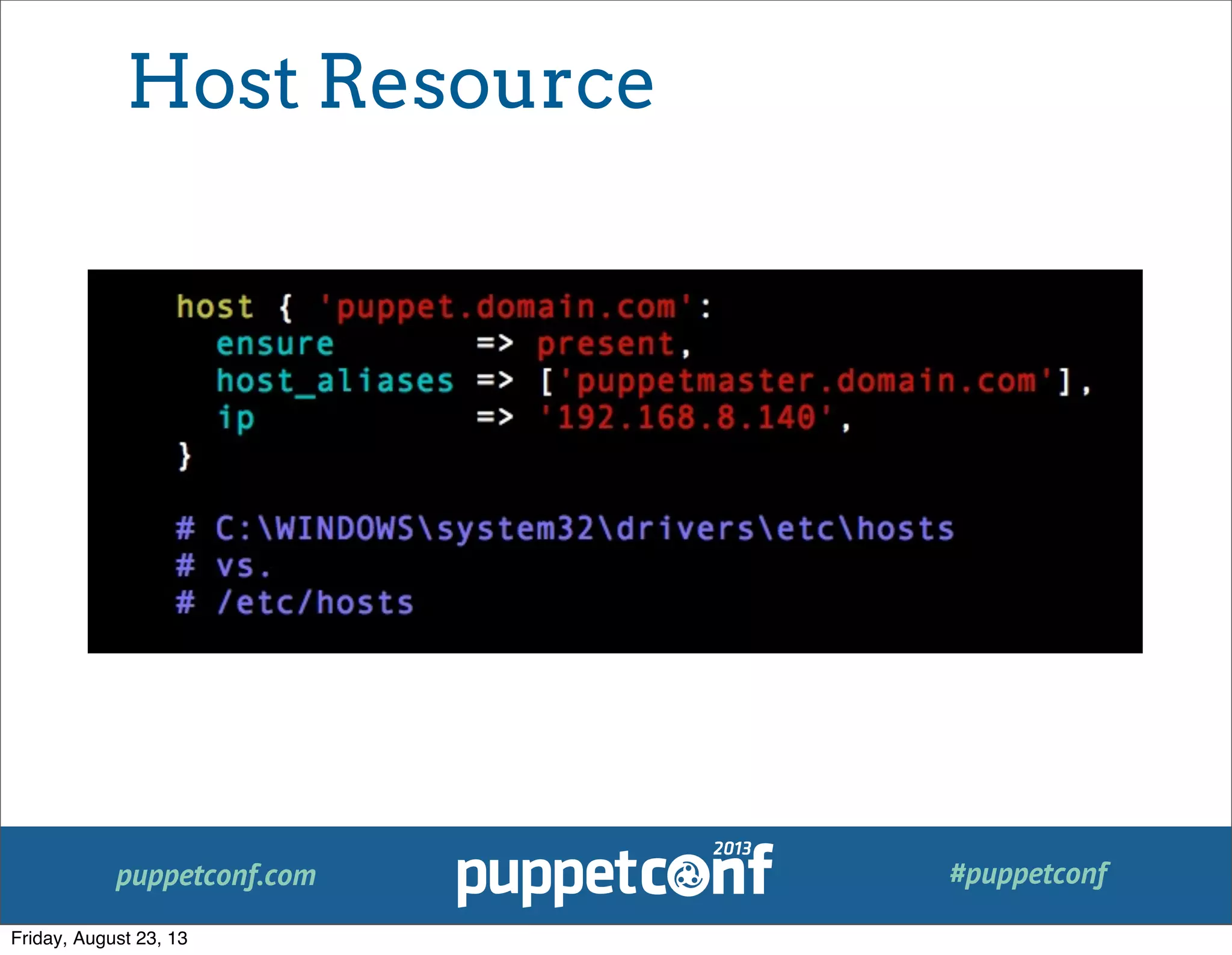

Host Resource

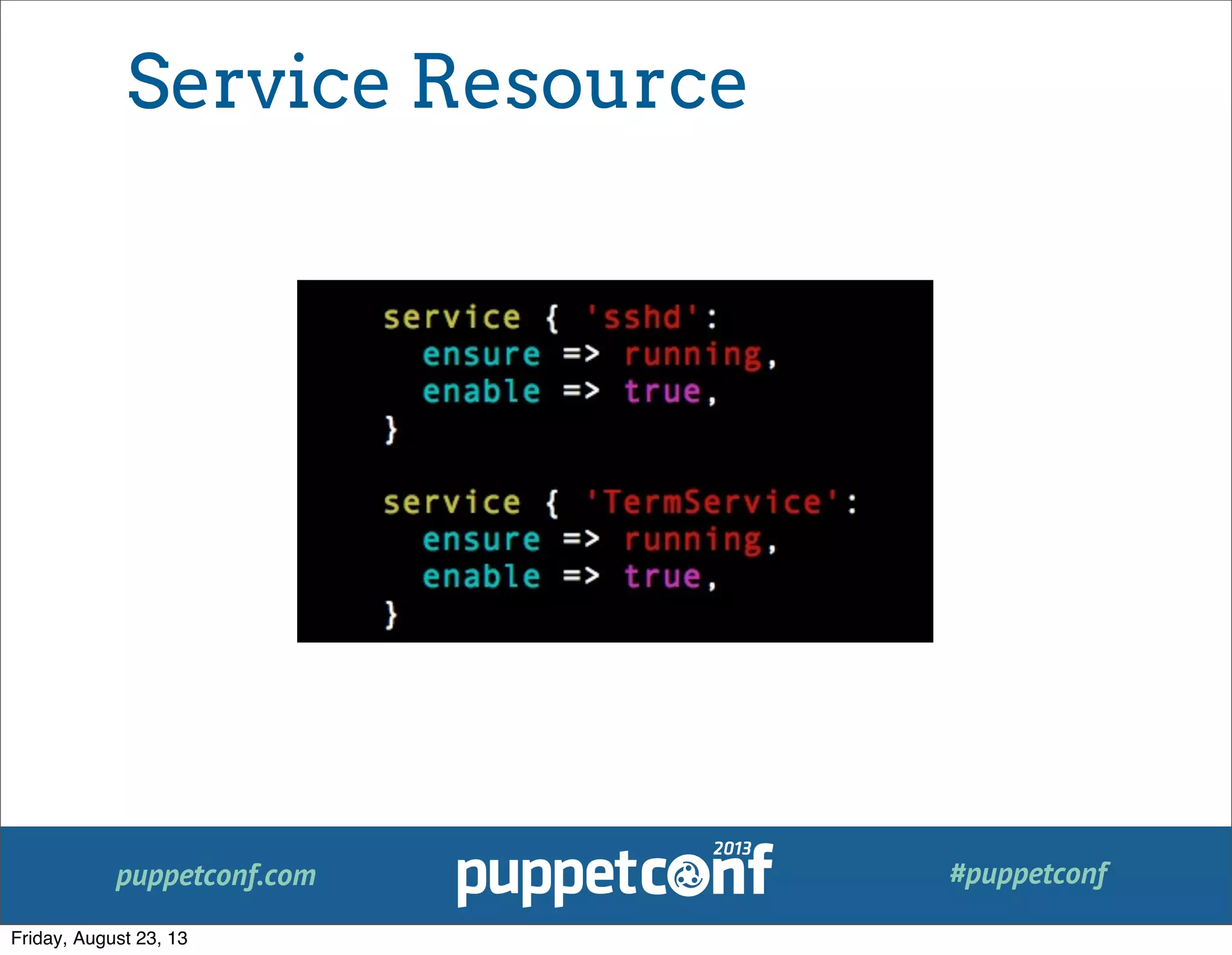

Service Resource

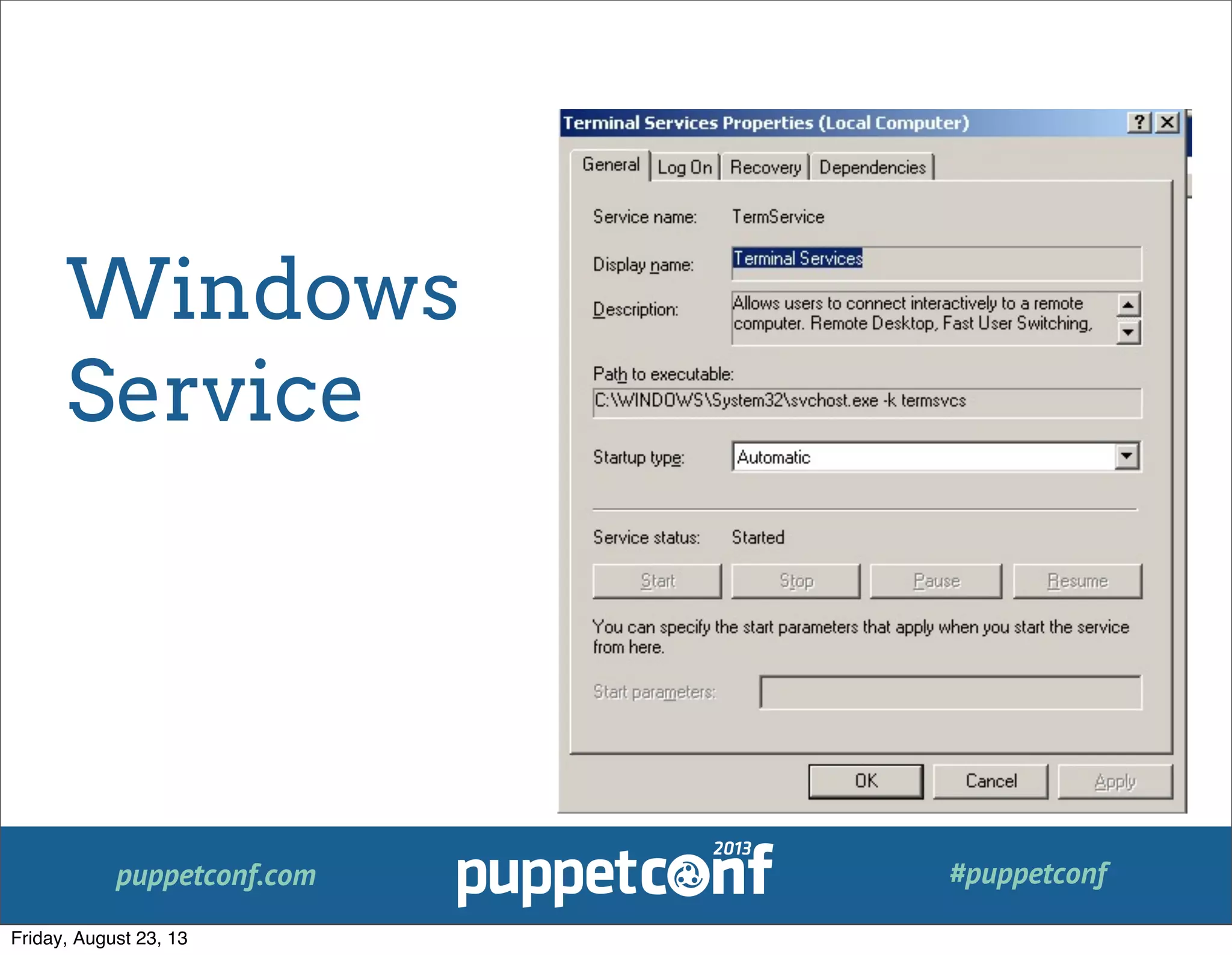

Windows
Service

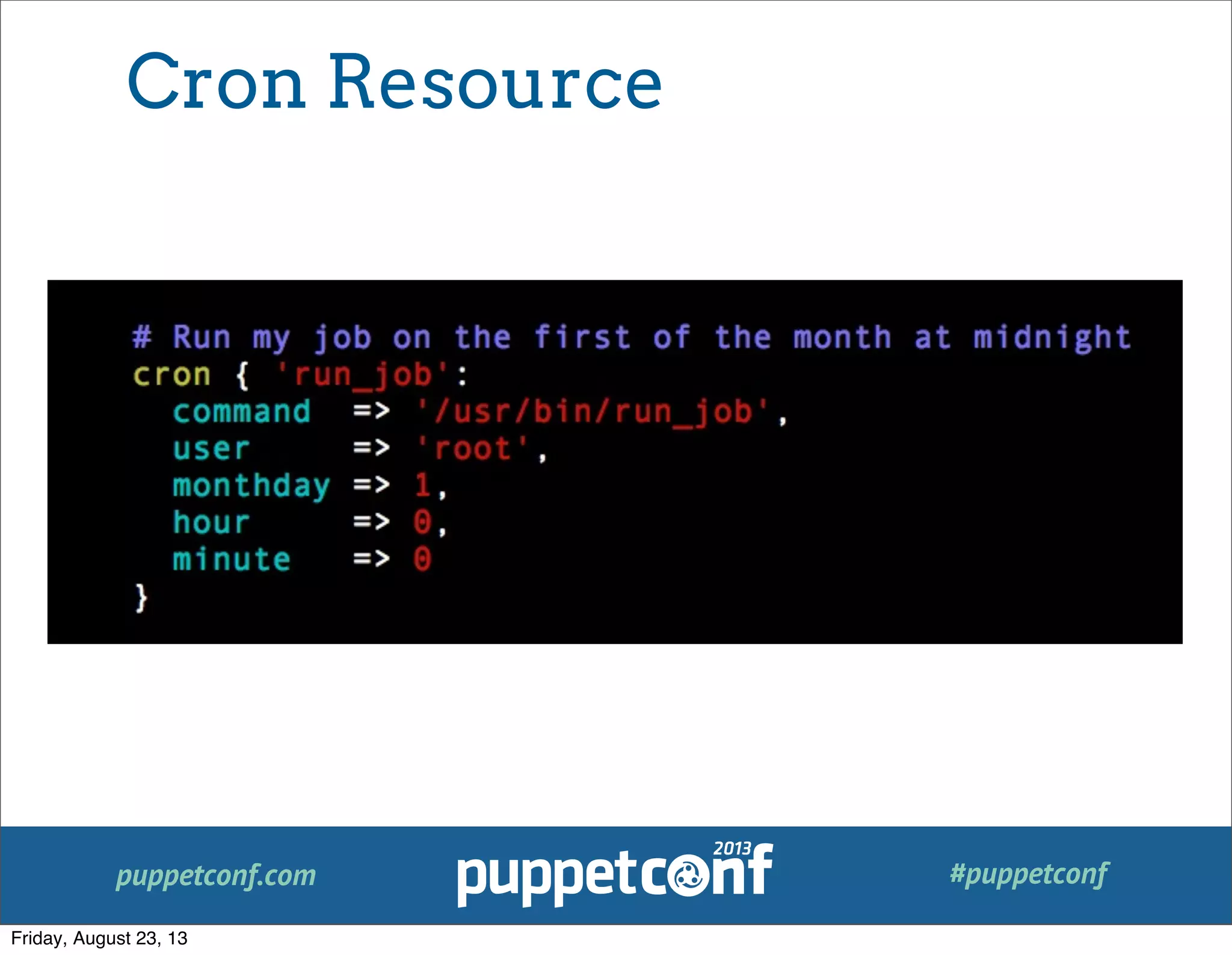

Cron Resource

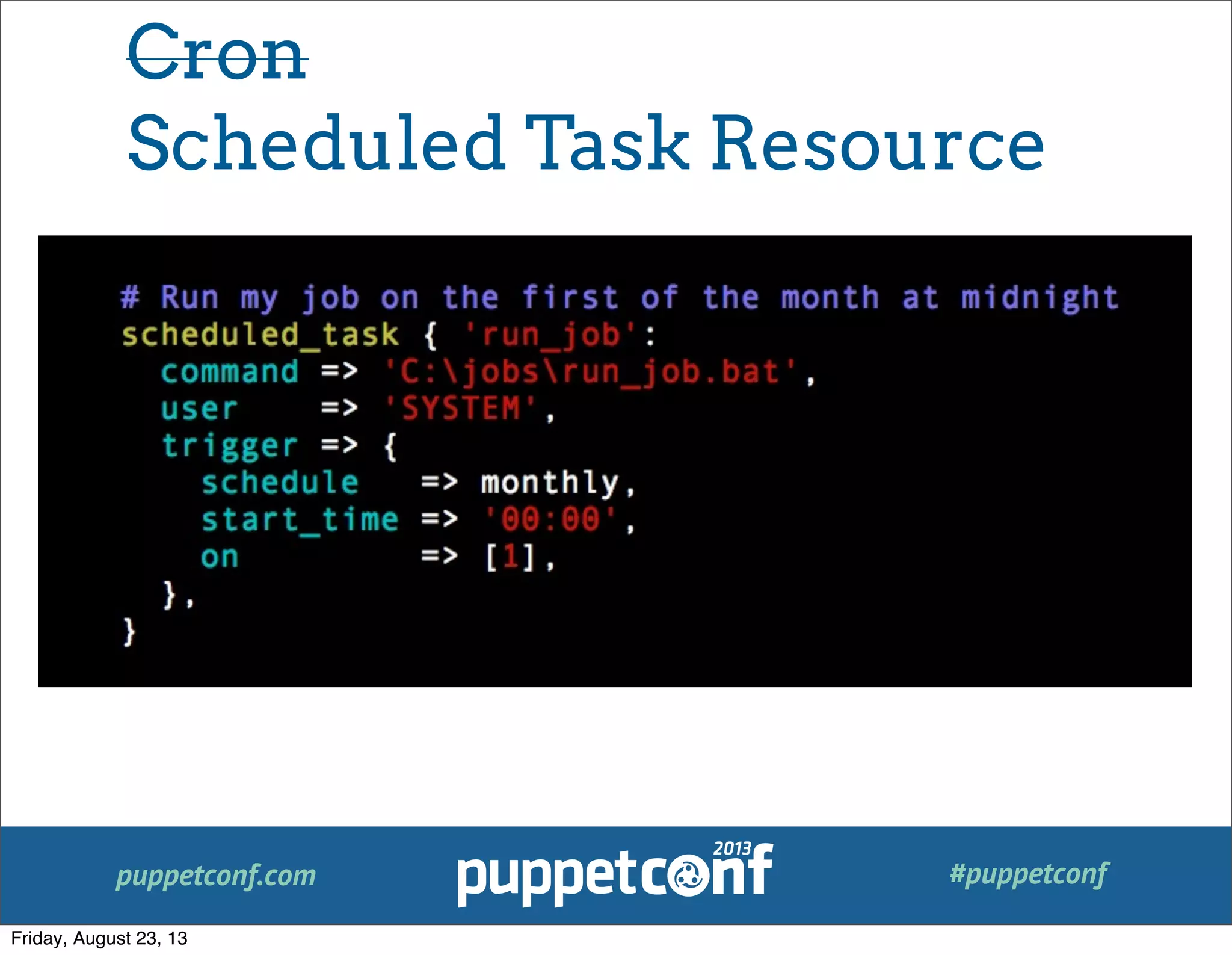

Cron
Scheduled Task Resource

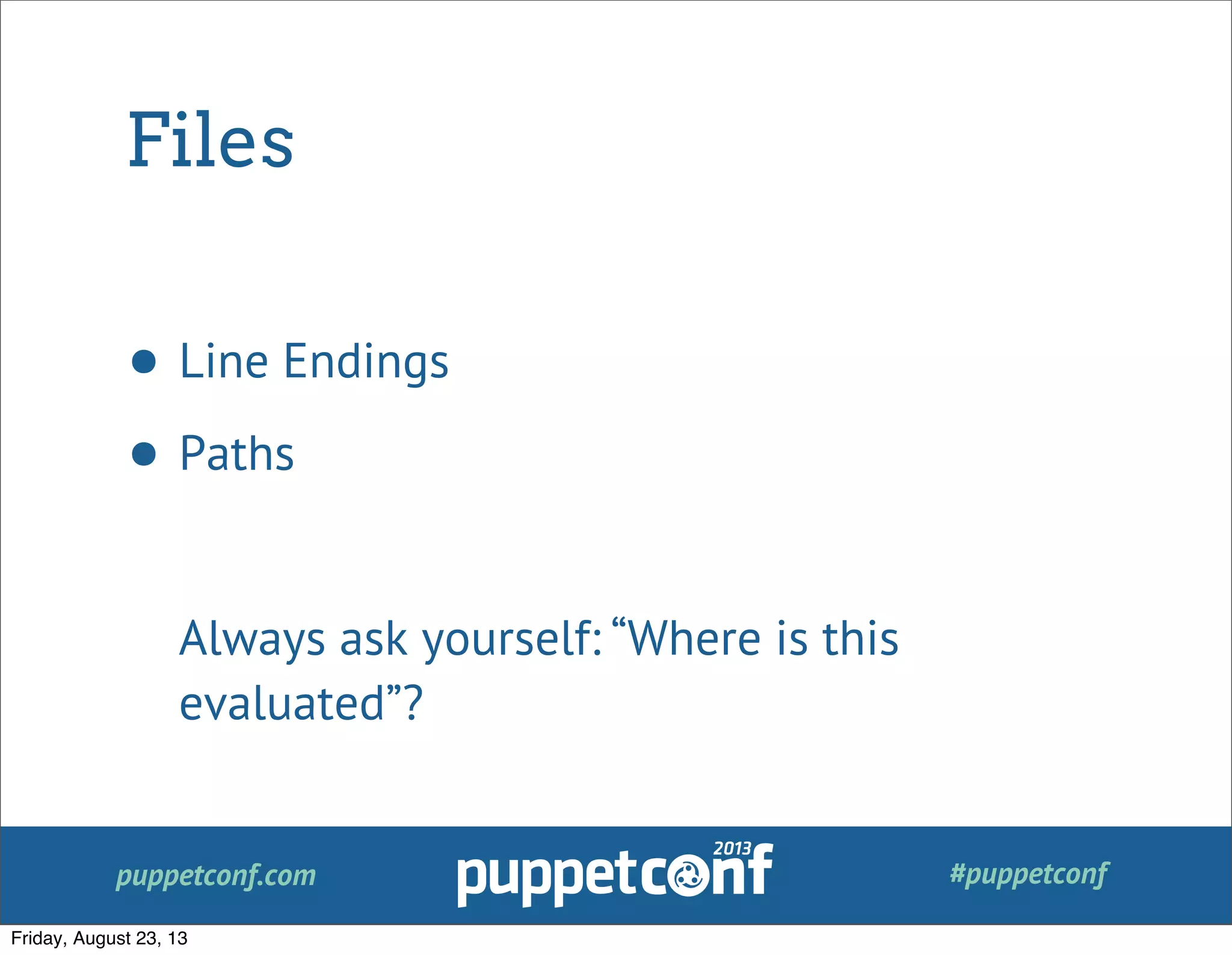

Files
• Line Endings
• Paths
Always ask yourself: “Where is this
evaluated”?

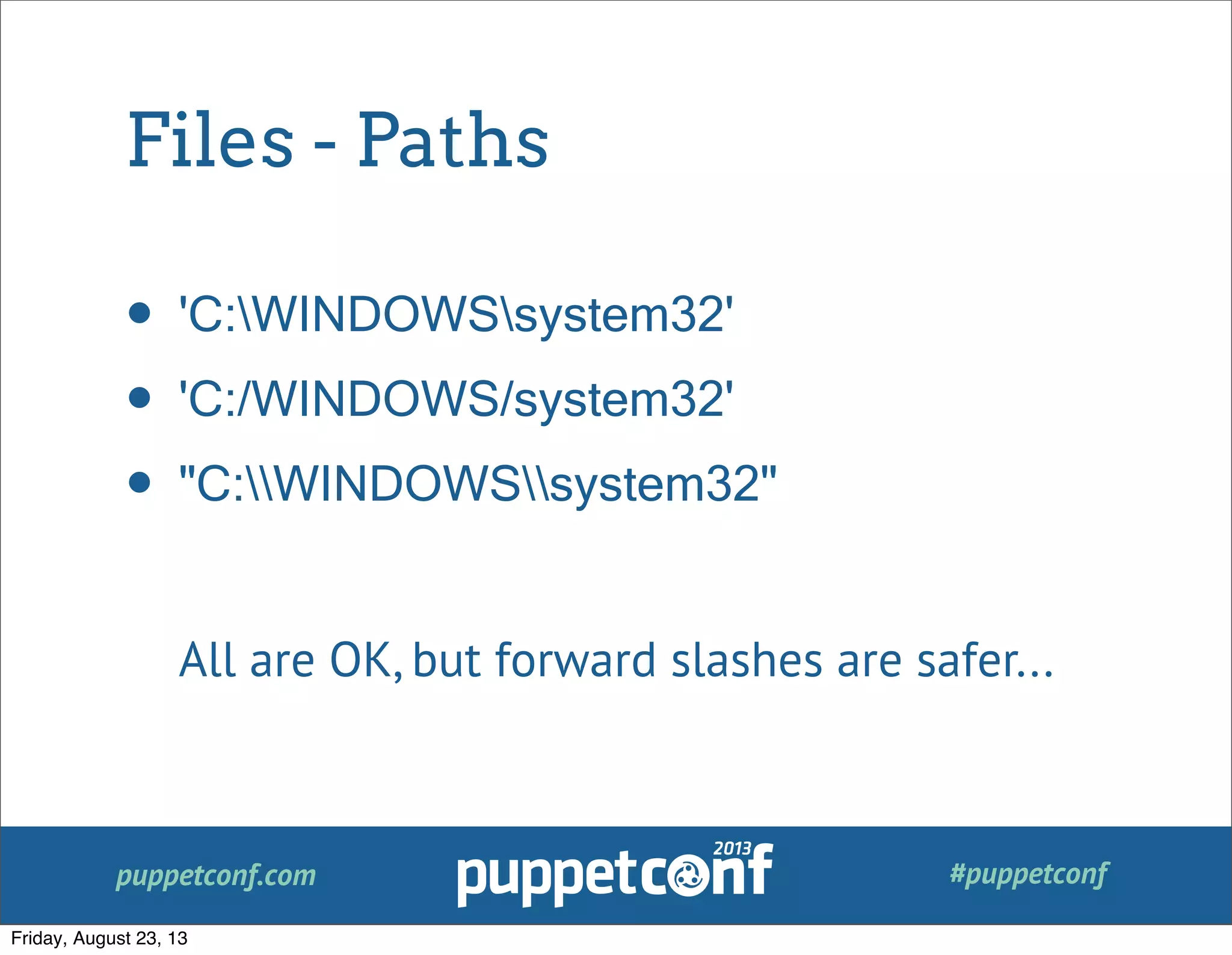

Files - Paths
• 'C:WINDOWSsystem32'
• 'C:/WINDOWS/system32'
• "C:WINDOWSsystem32"
All are OK, but forward slashes are safer...

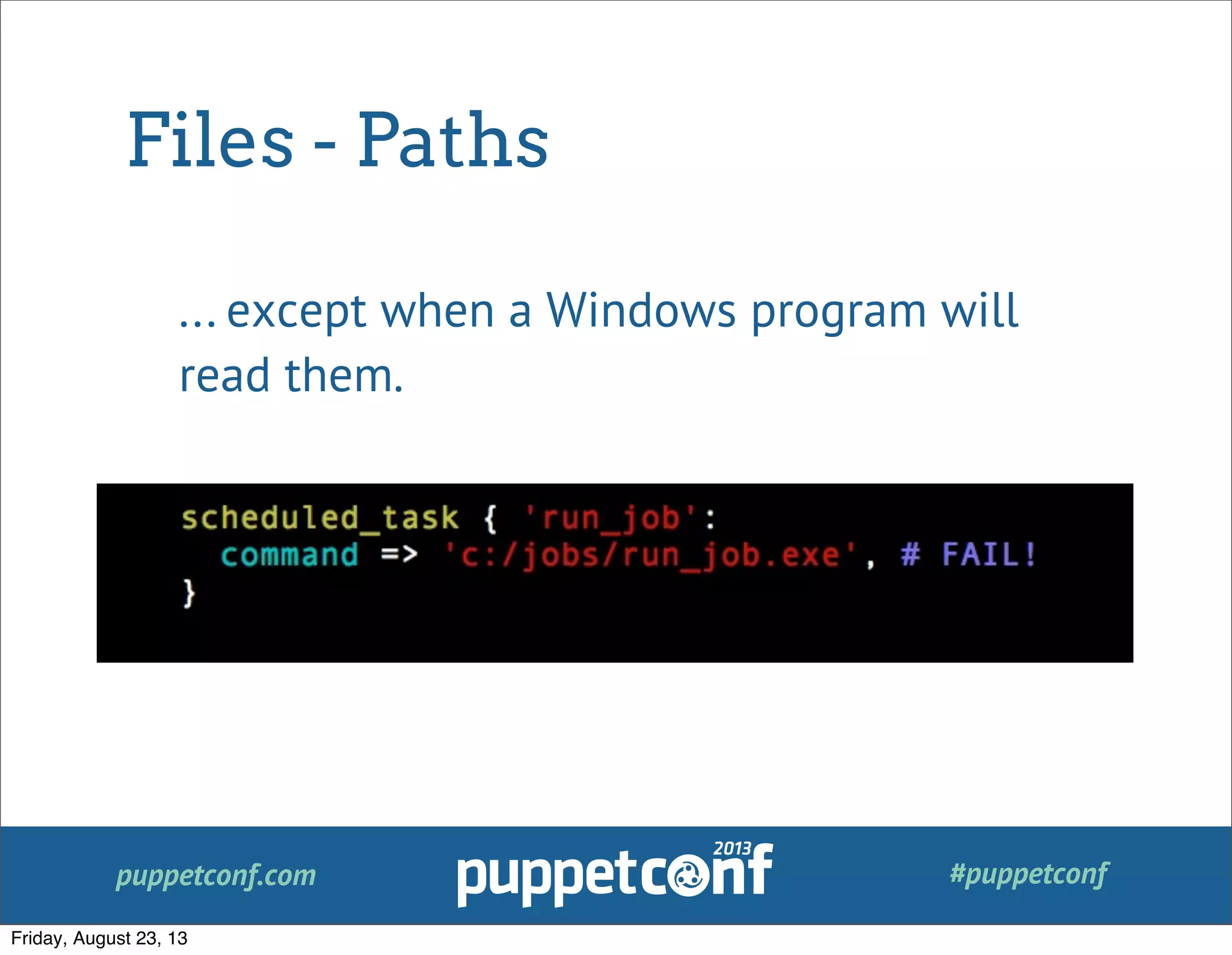

Files - Paths
... except when a Windows program will
read them.

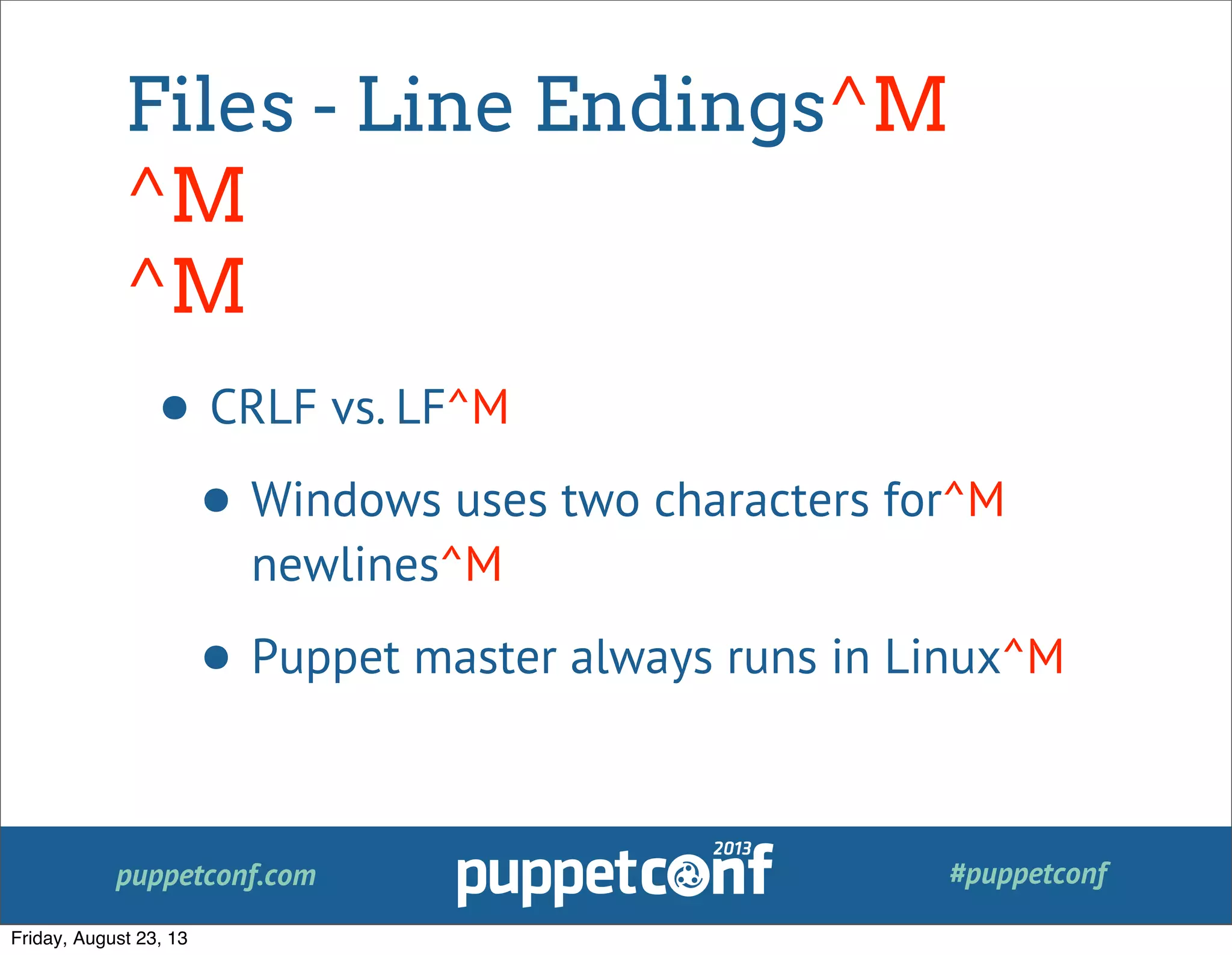

Files - Line Endings^M
^M
^M
• CRLF vs. LF^M
• Windows uses two characters for^M
newlines^M
• Puppet master always runs in Linux^M

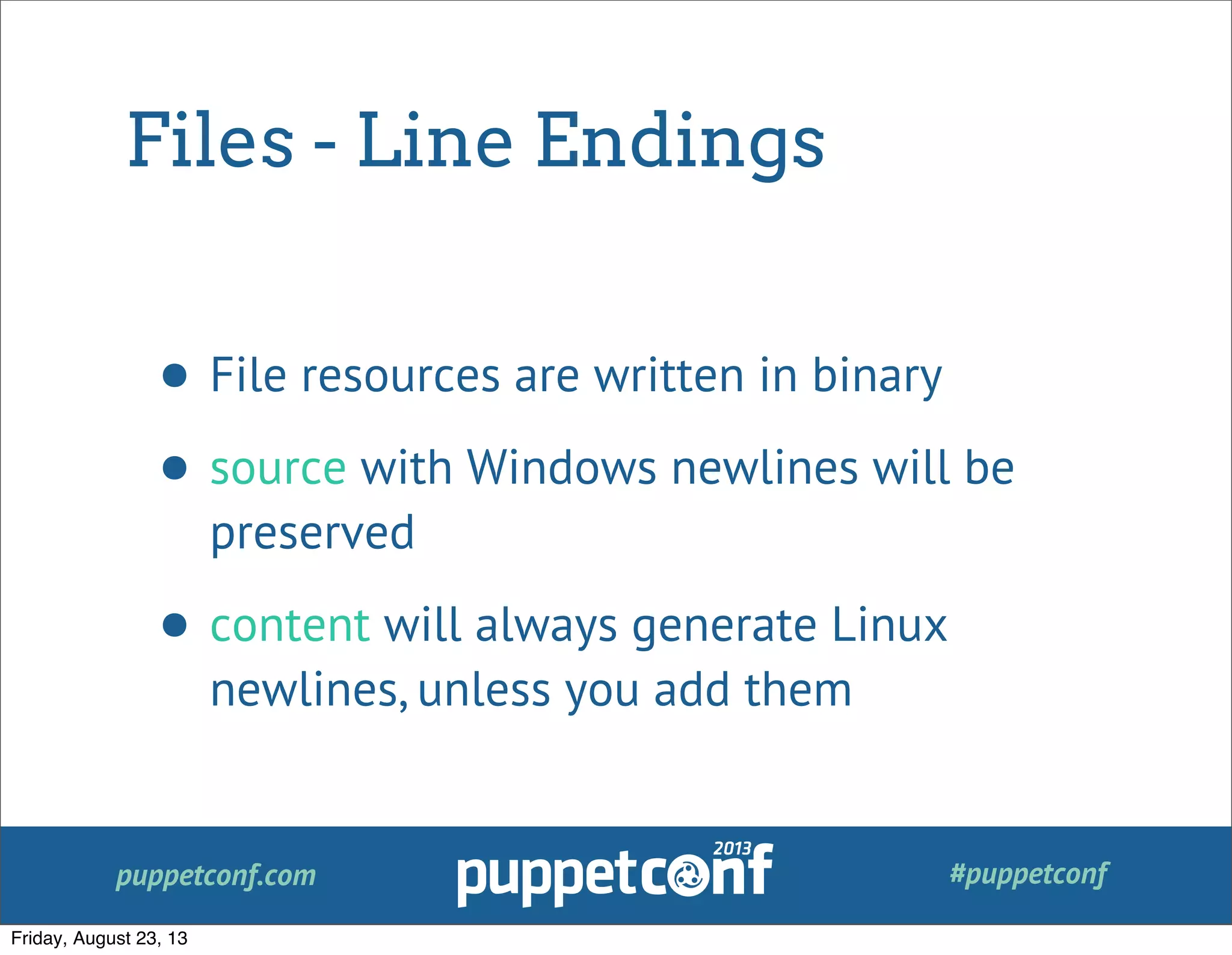

Files - Line Endings
• File resources are written in binary
• source with Windows newlines will be
preserved
• content will always generate Linux
newlines, unless you add them

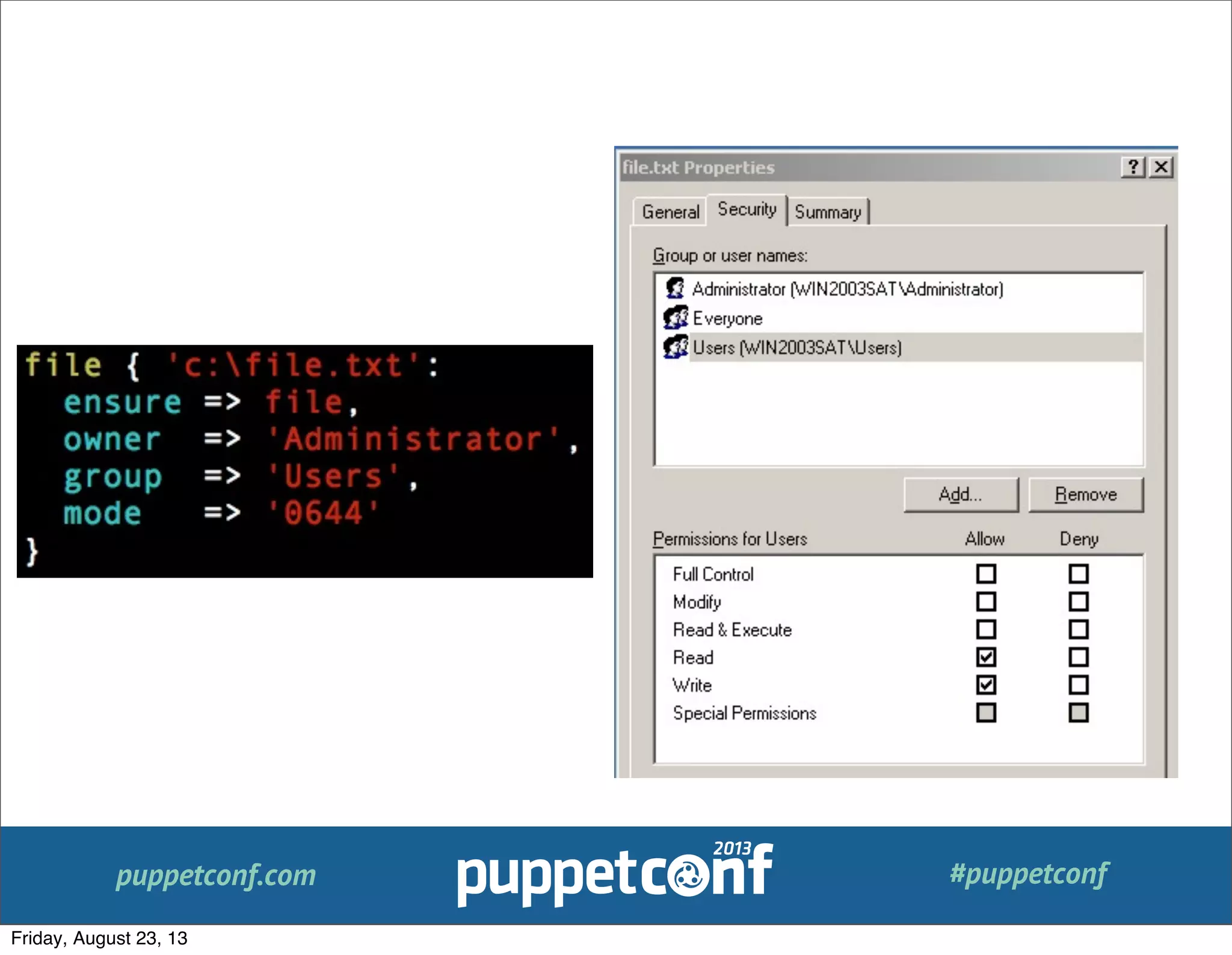

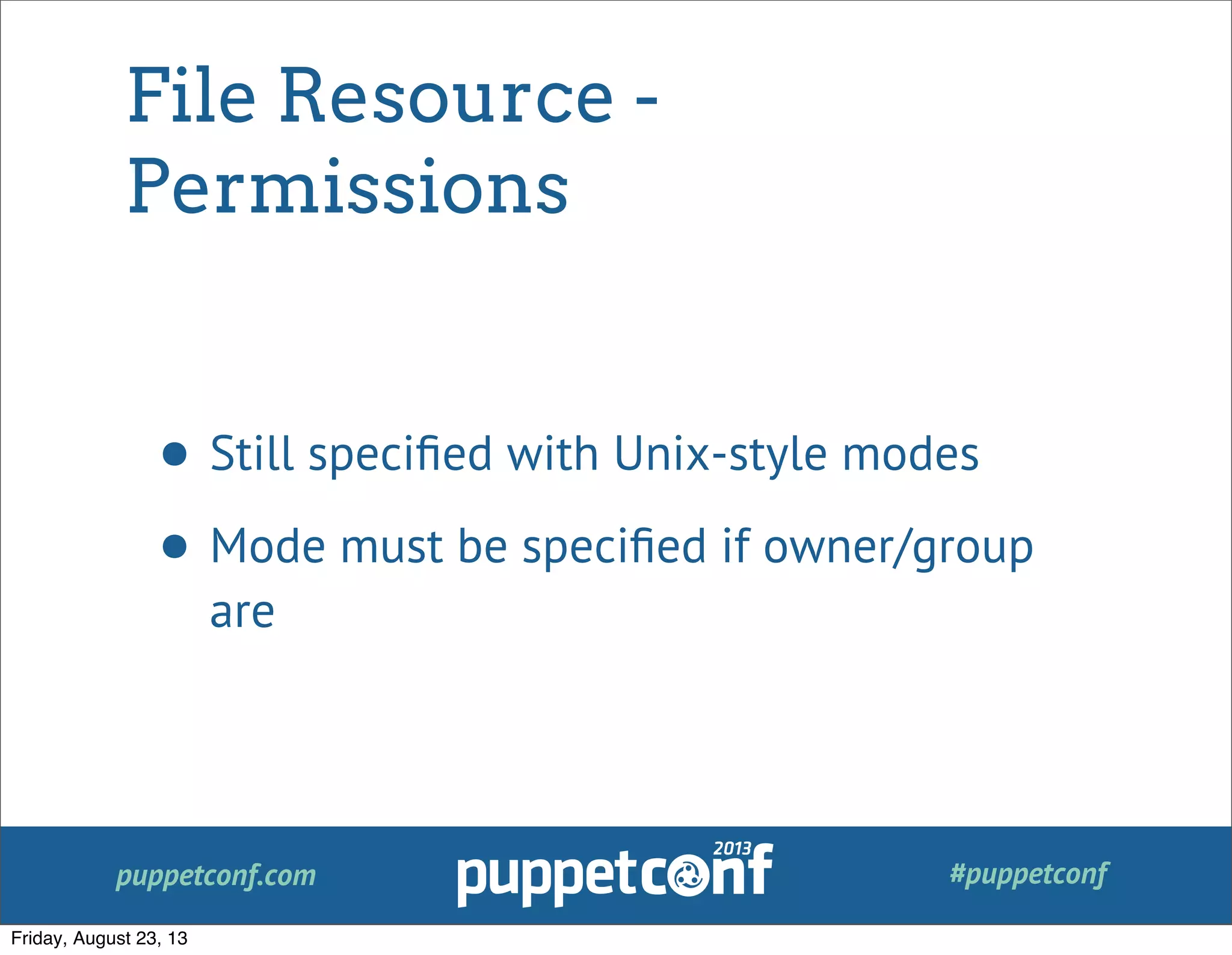

File Resource -
Permissions
• Still speciﬁed with Unix-style modes
• Mode must be speciﬁed if owner/group
are

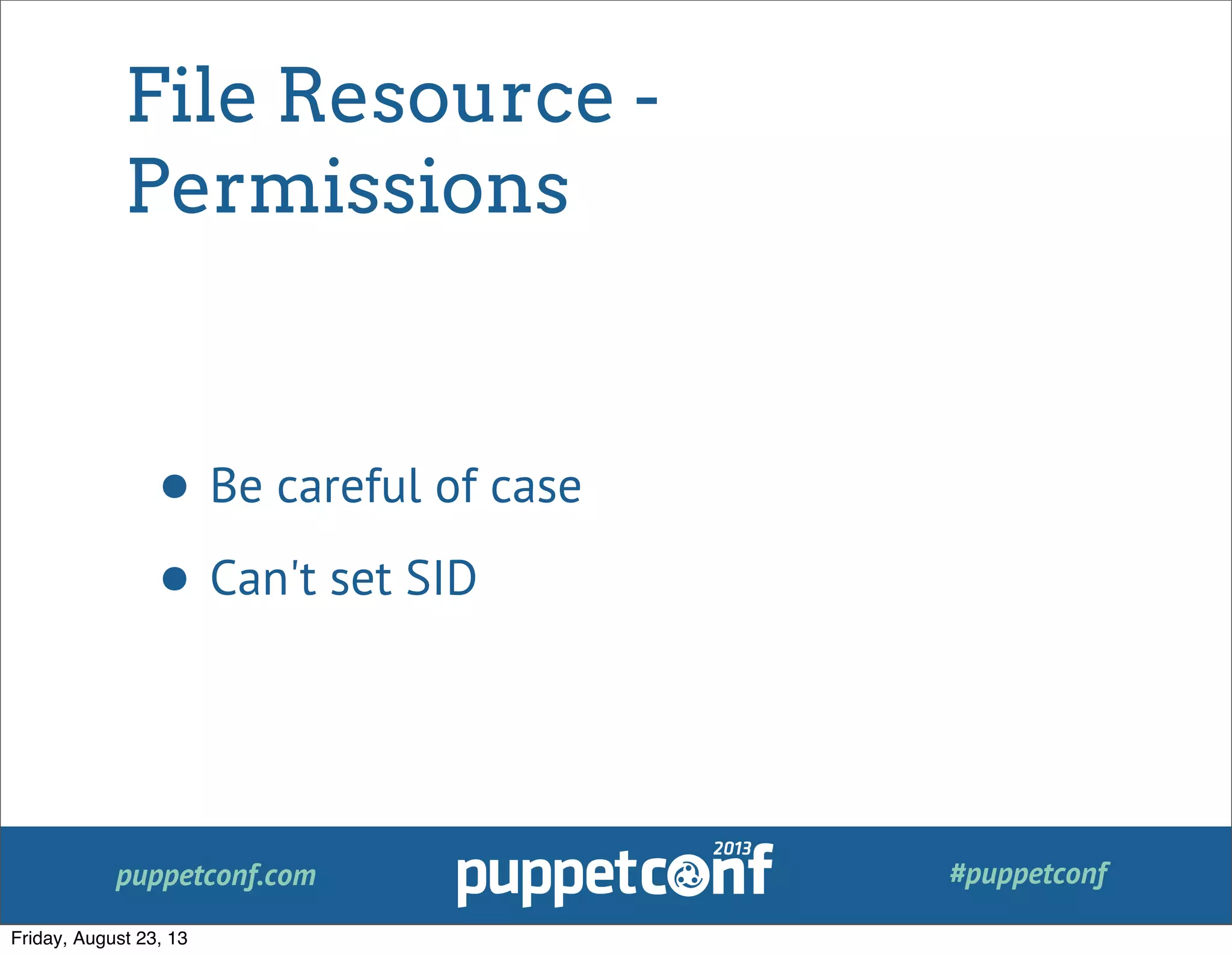

File Resource -
Permissions
• Be careful of case
• Can't set SID

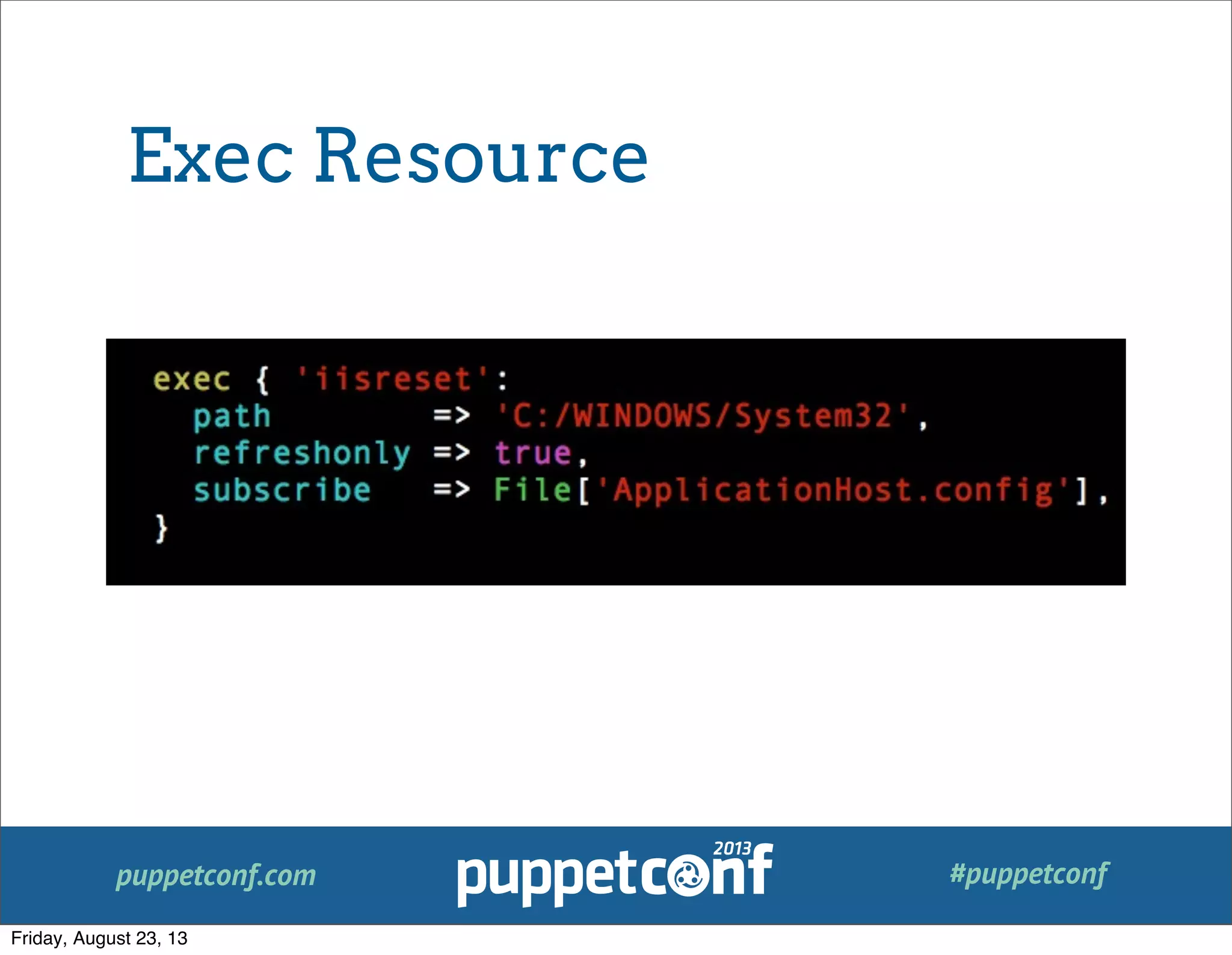

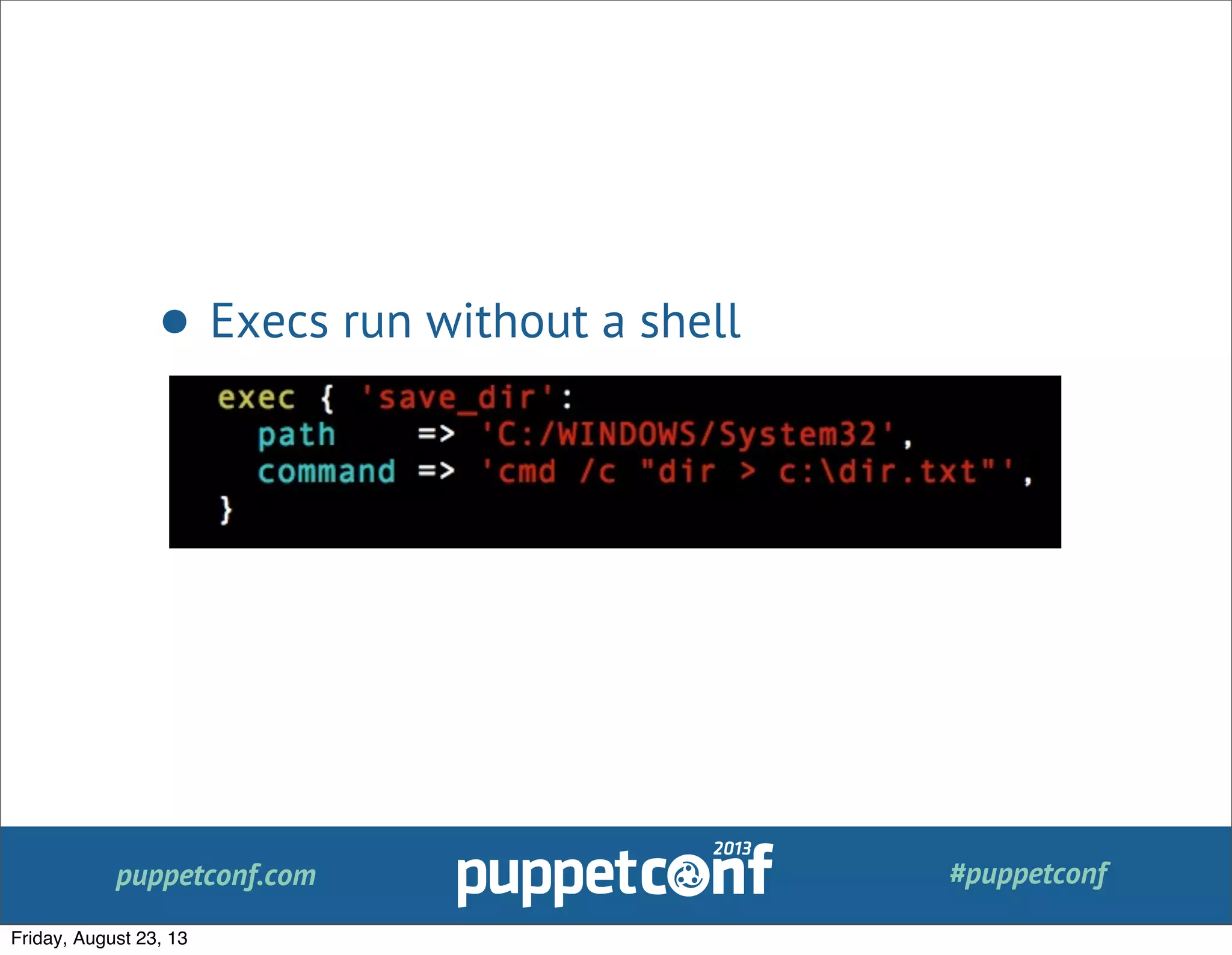

Exec Resource

• Execs run without a shell

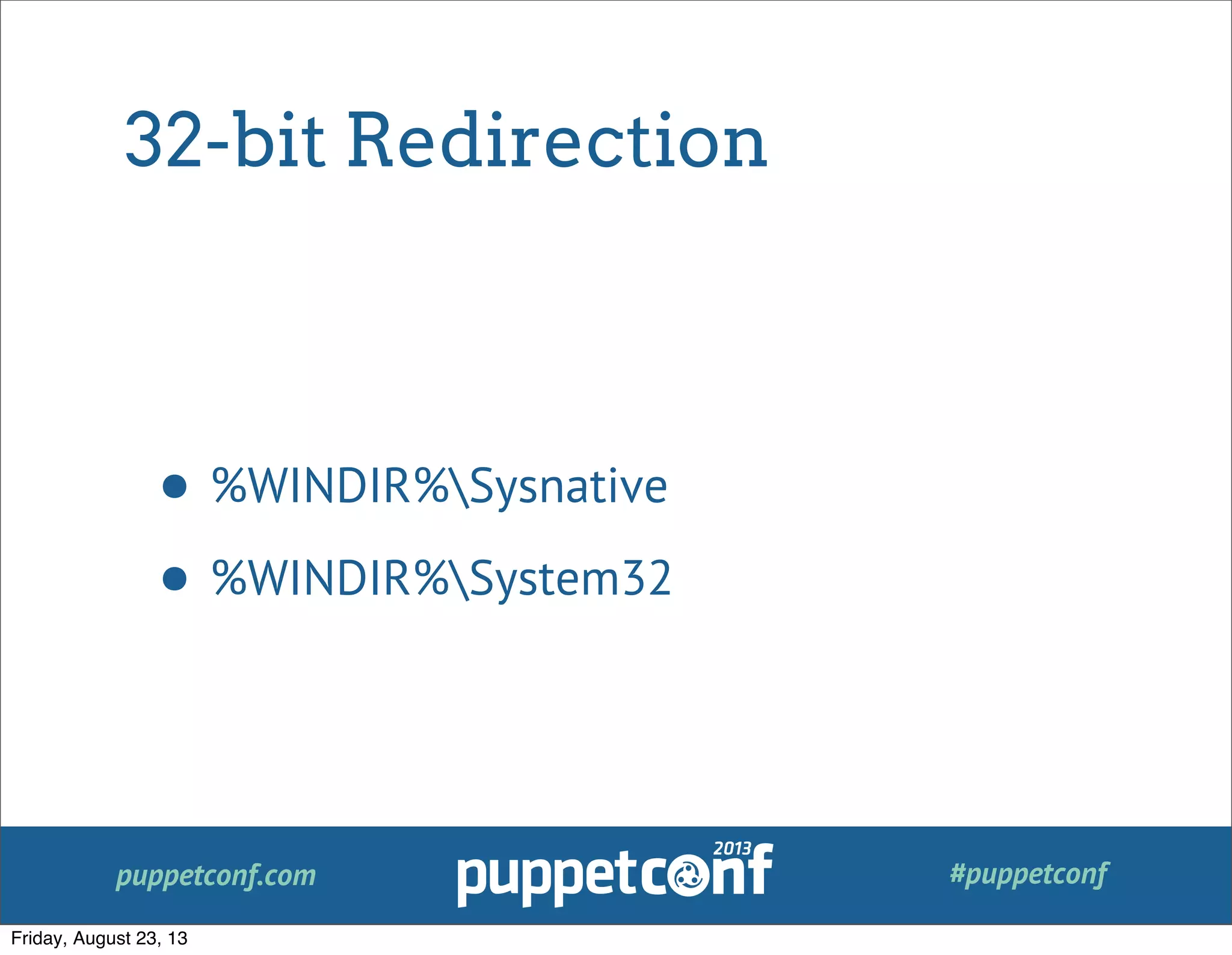

32-bit Redirection
• %WINDIR%Sysnative
• %WINDIR%System32

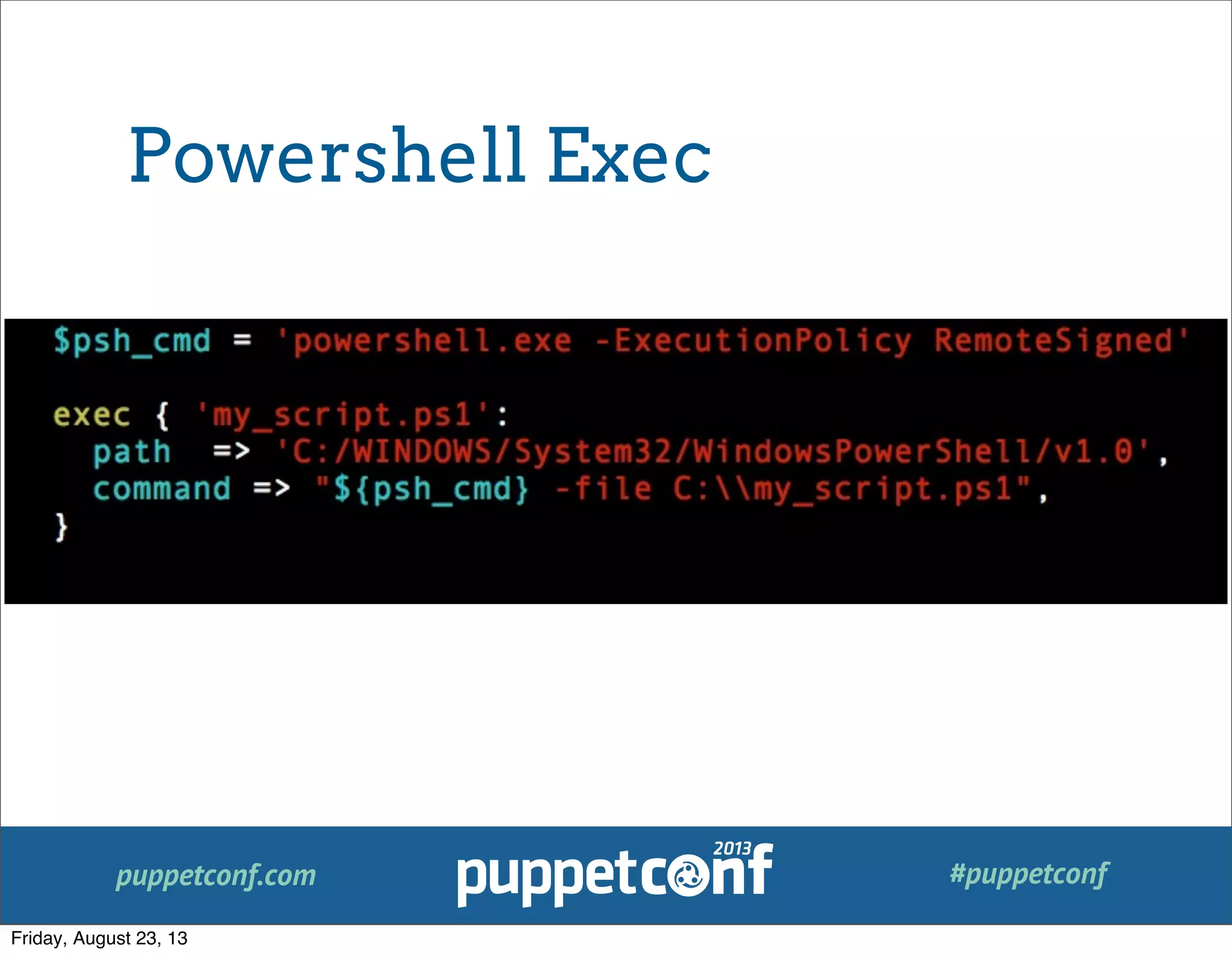

Powershell Exec

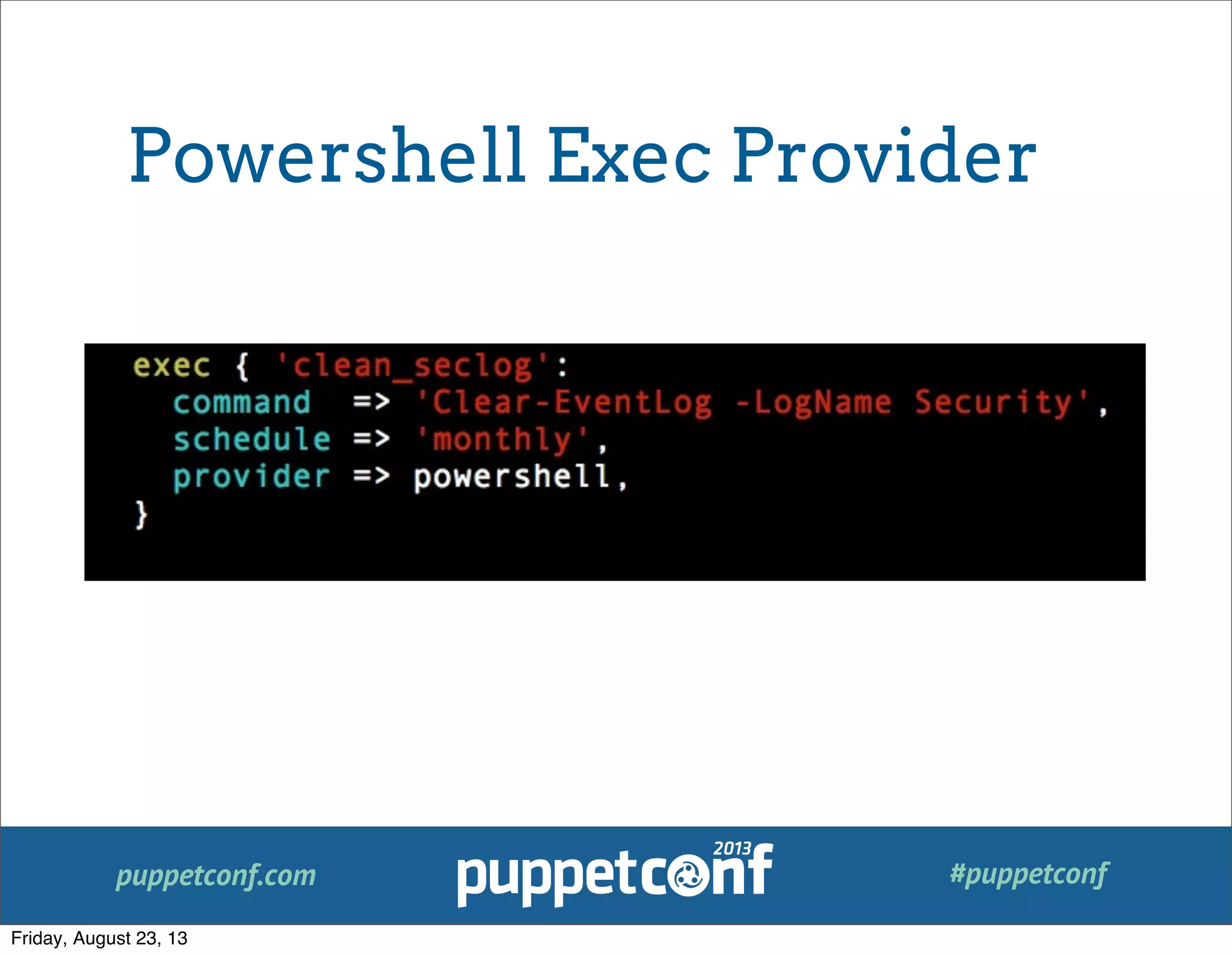

Powershell Exec Provider

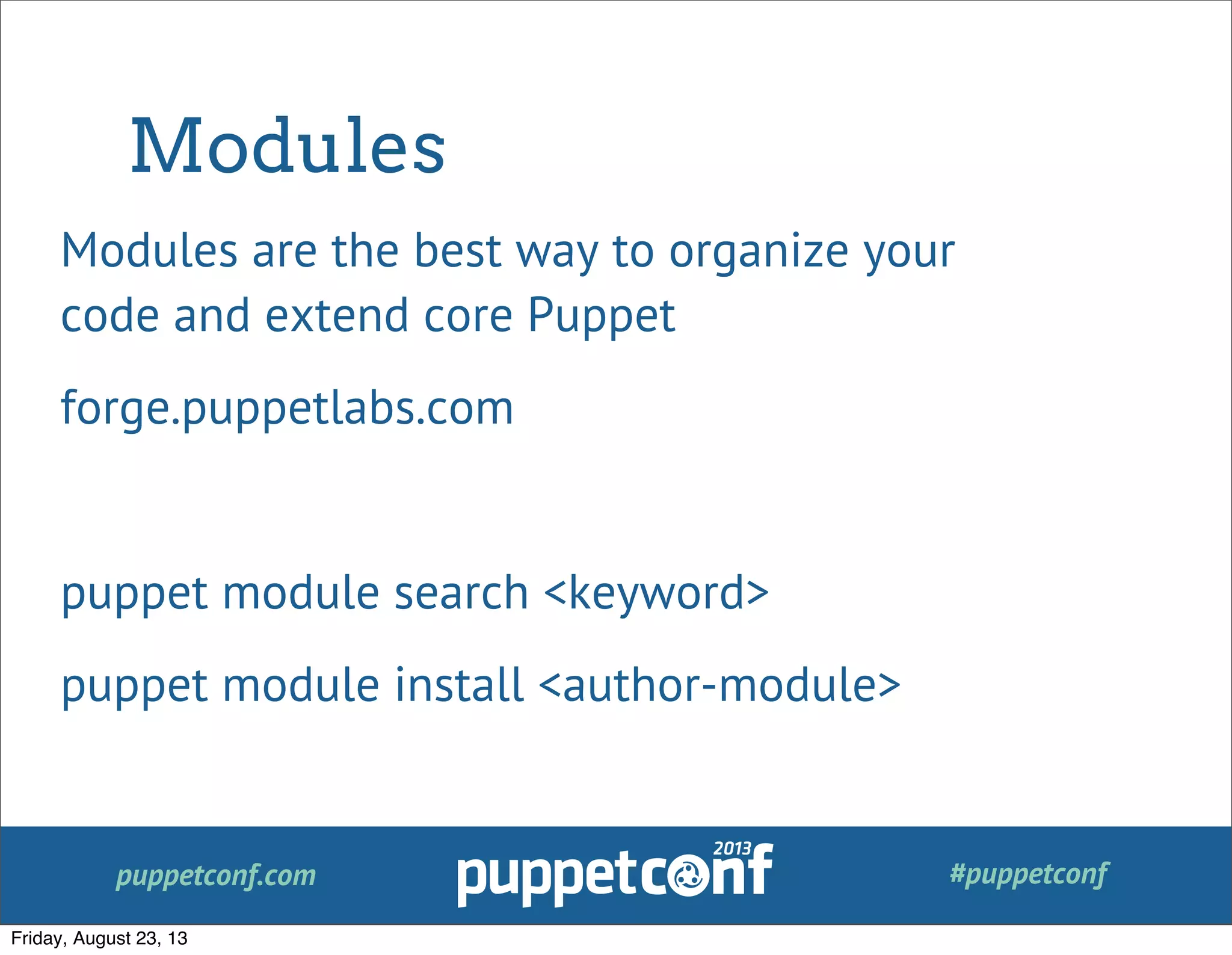

Modules
Modules are the best way to organize your
code and extend core Puppet
forge.puppetlabs.com
puppet module search <keyword>
puppet module install <author-module>

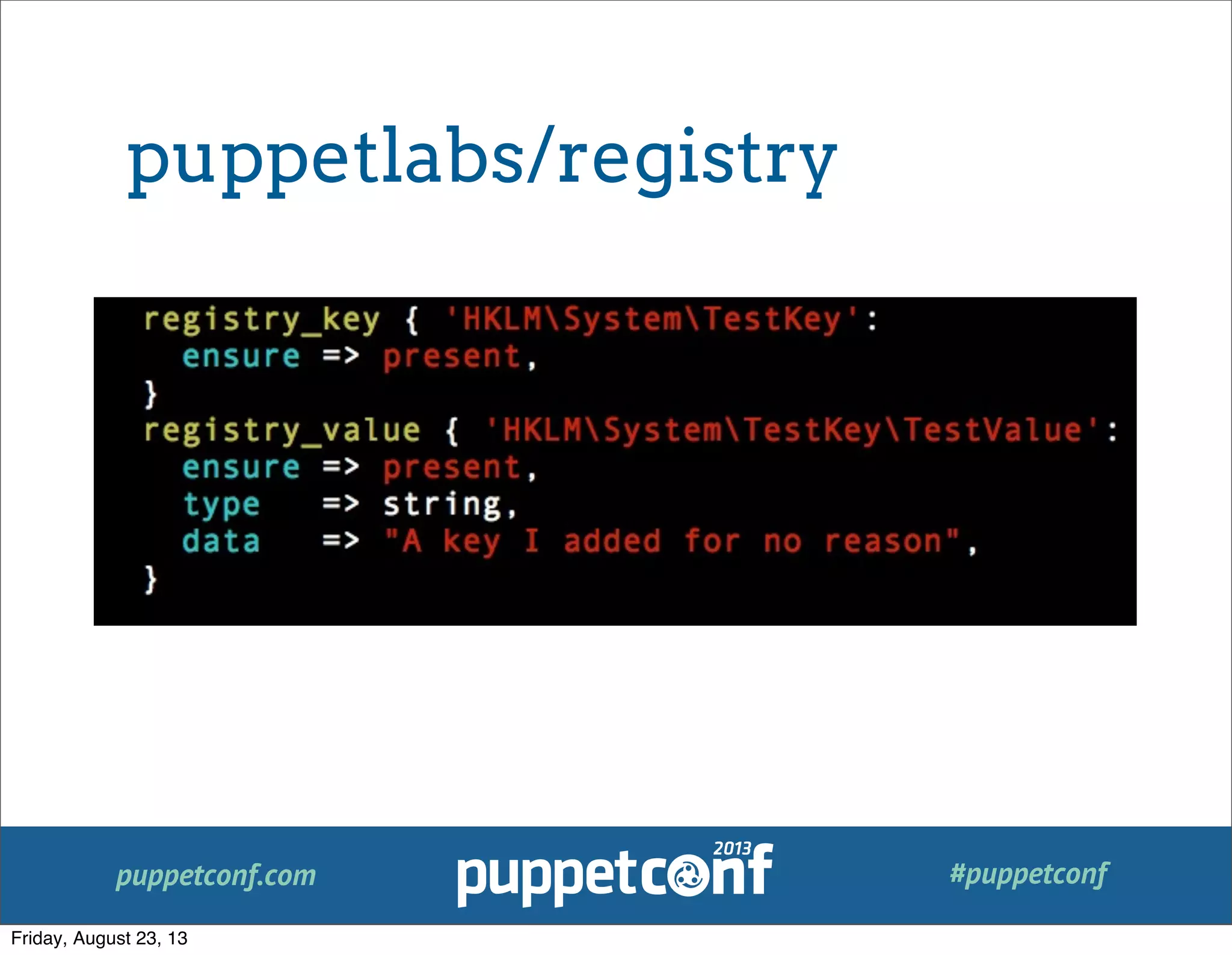

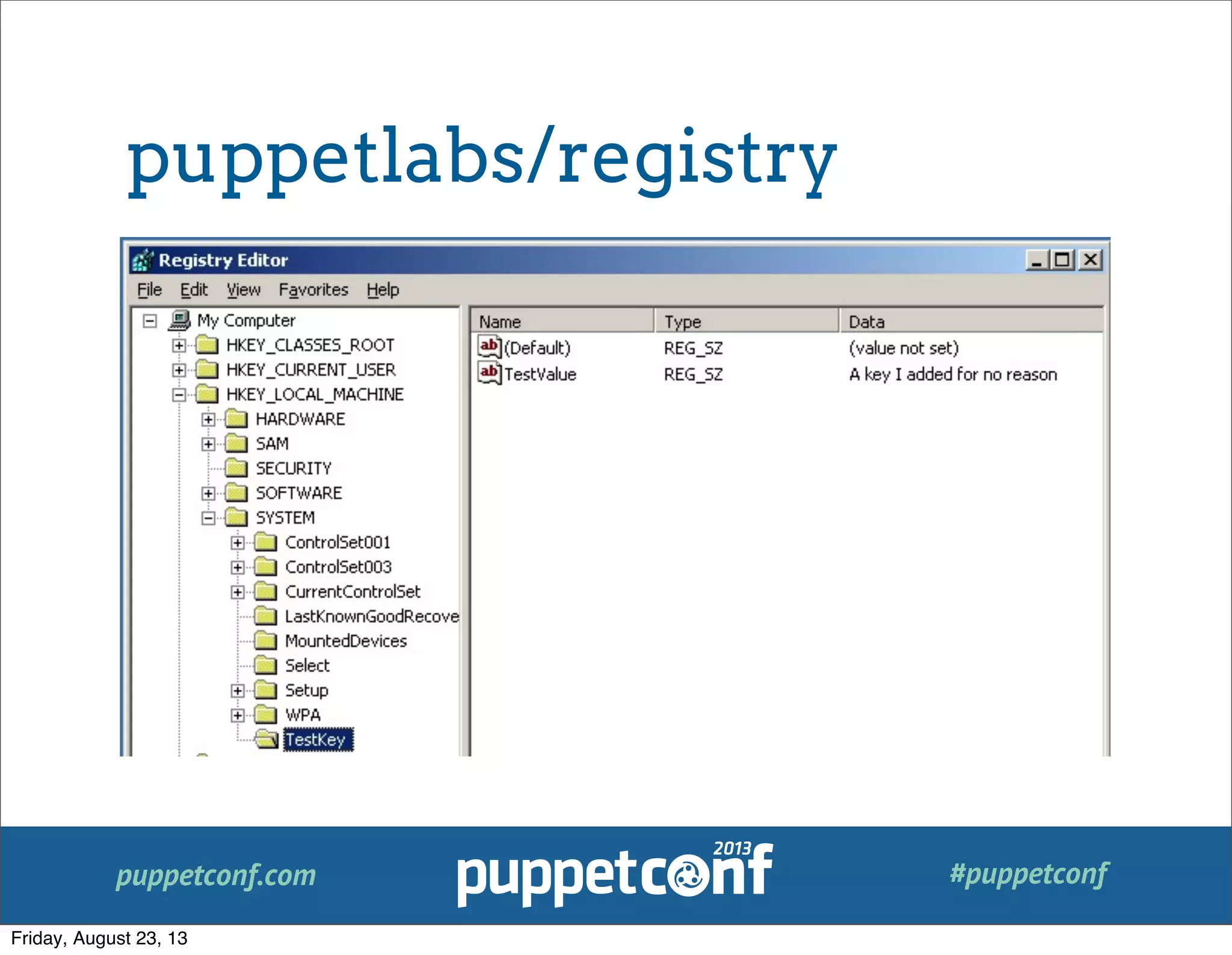

puppetlabs/registry

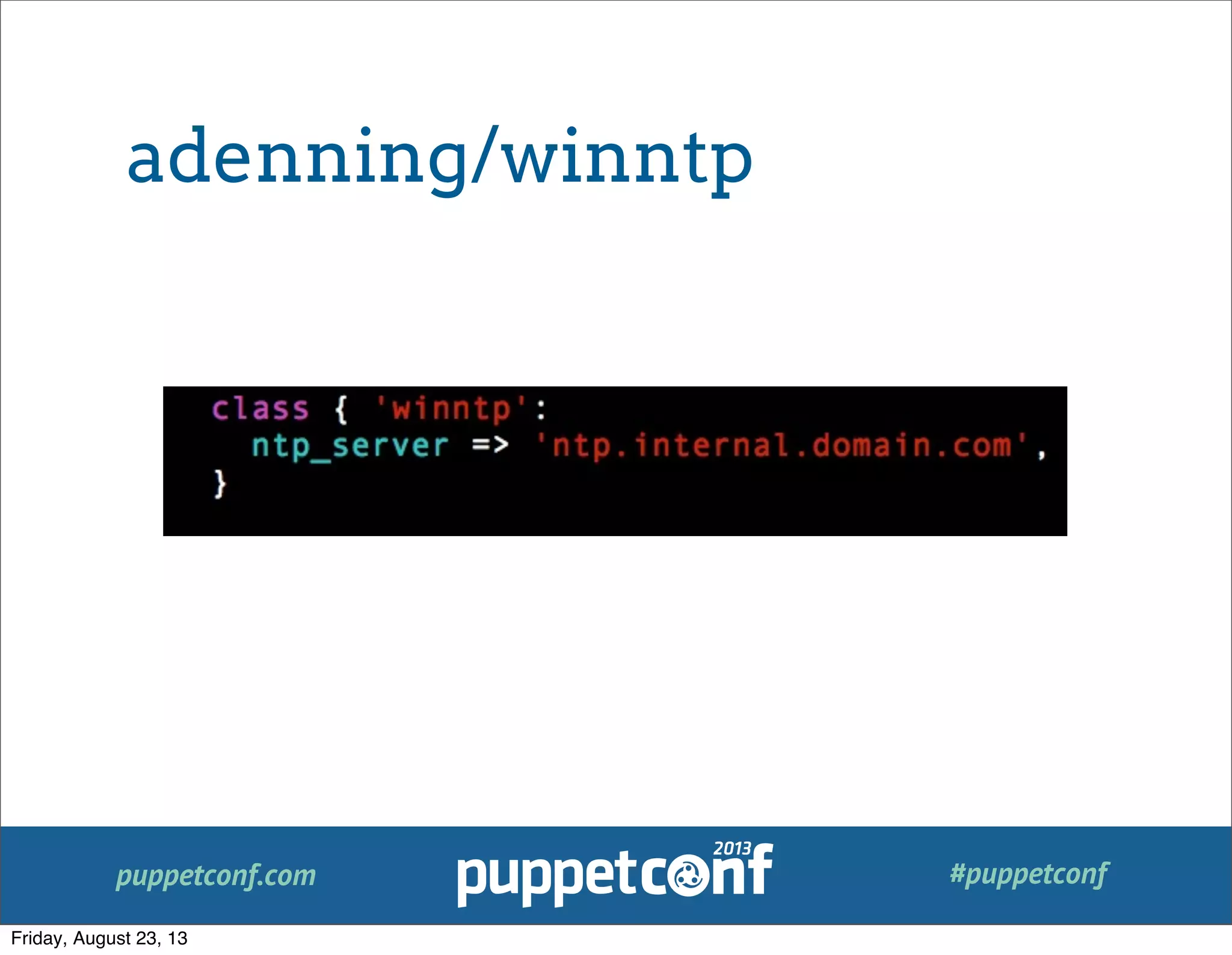

adenning/winntp

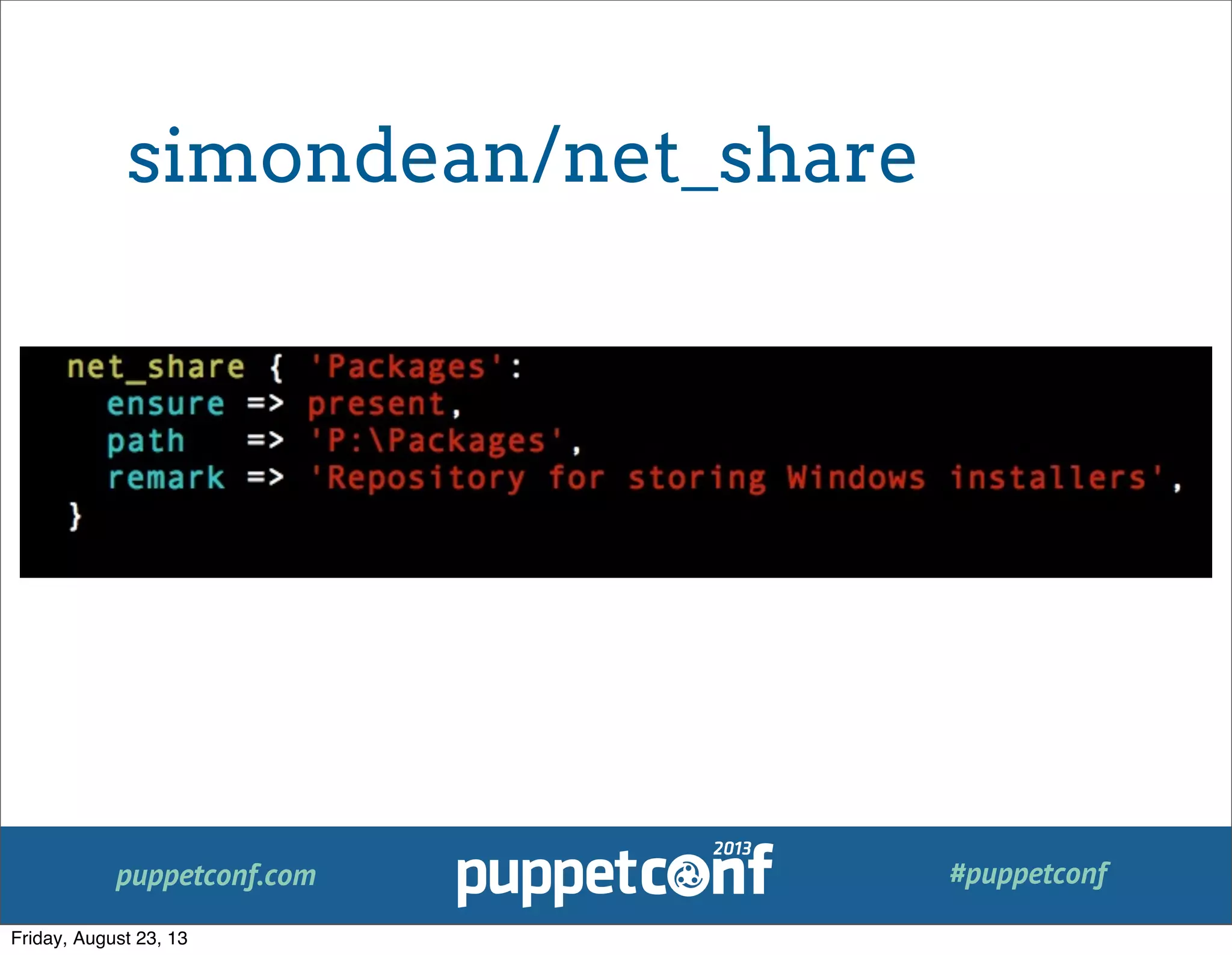

simondean/net_share

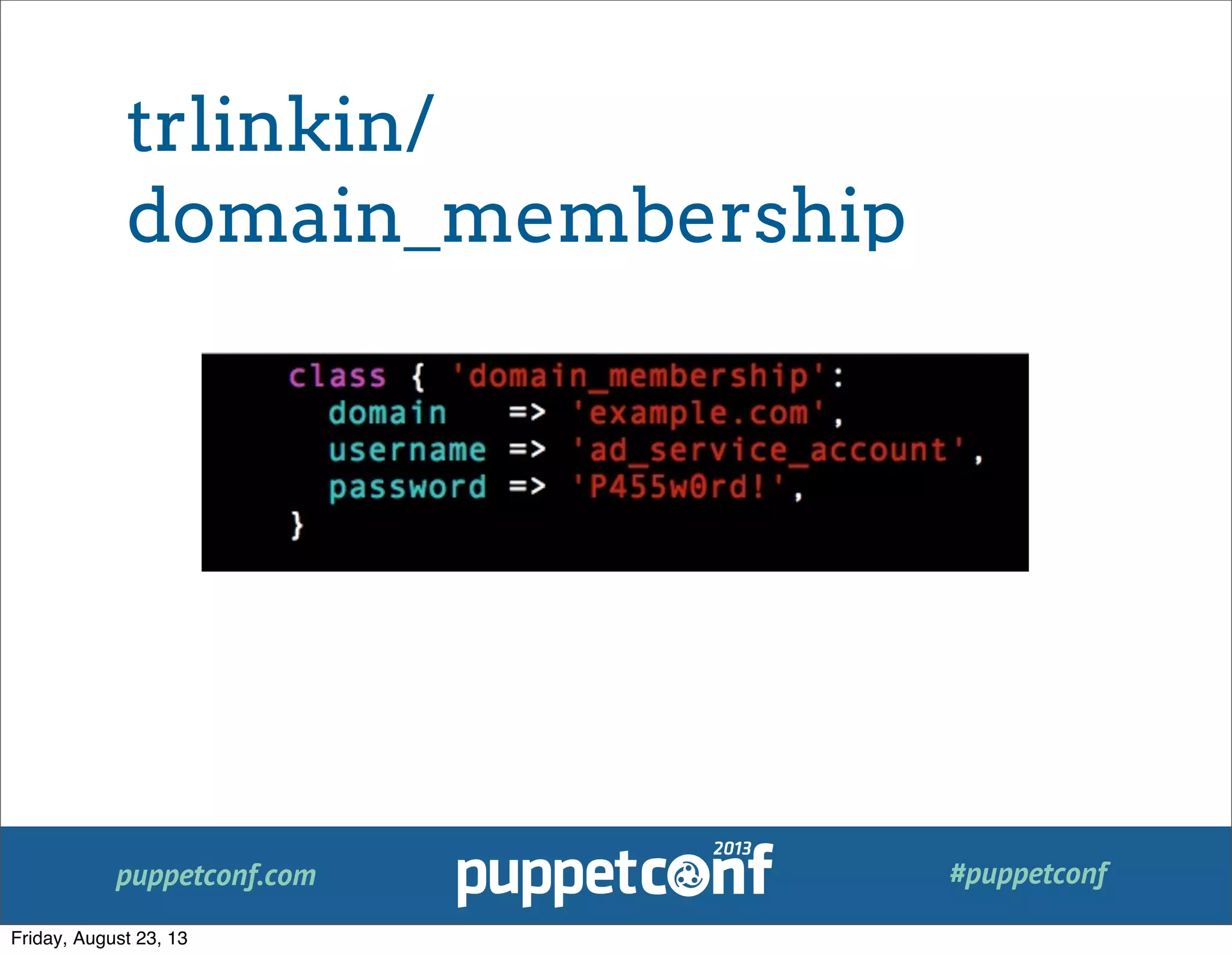

trlinkin/
domain_membership

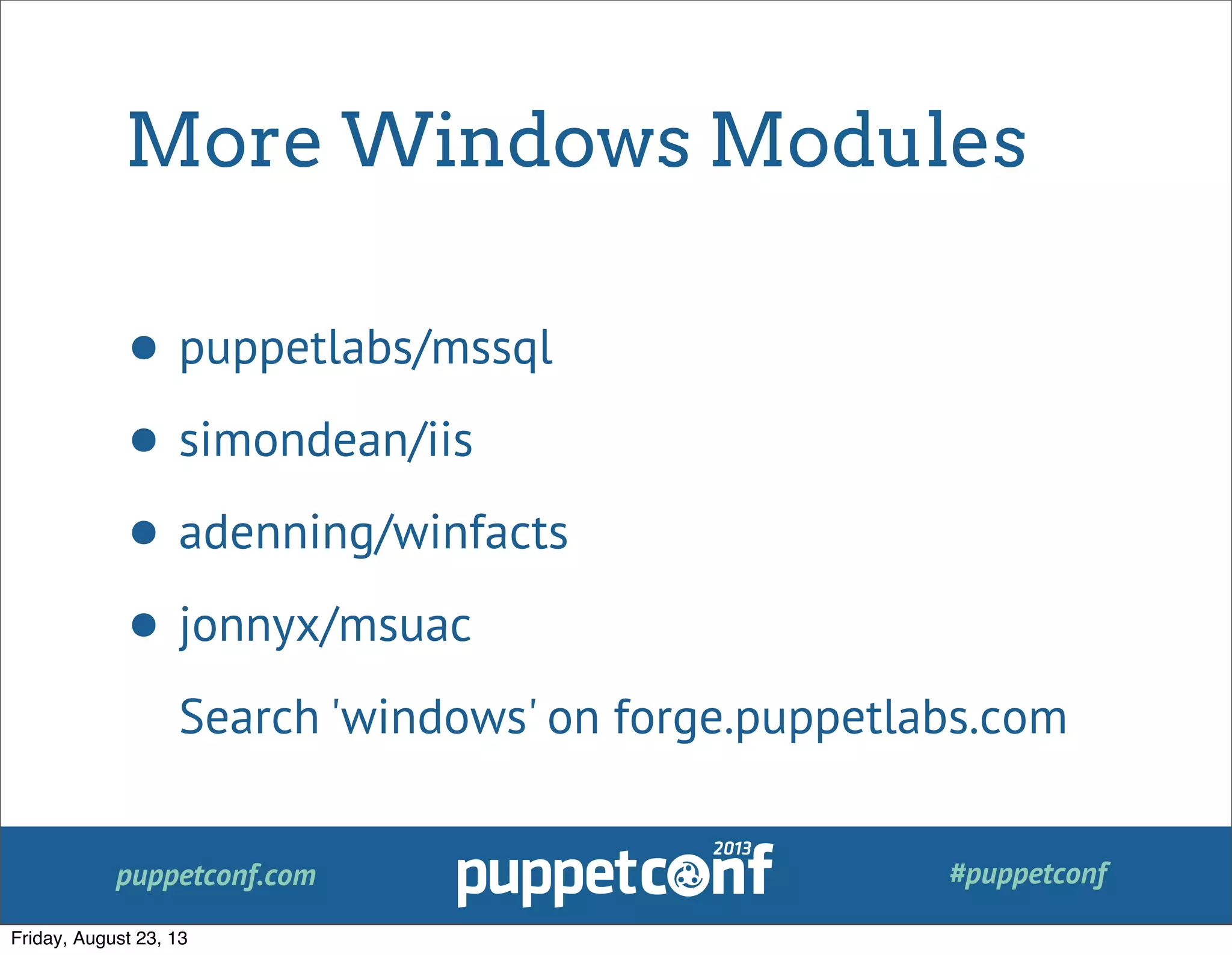

More Windows Modules
• puppetlabs/mssql
• simondean/iis
• adenning/winfacts
• jonnyx/msuac
Search 'windows' on forge.puppetlabs.com

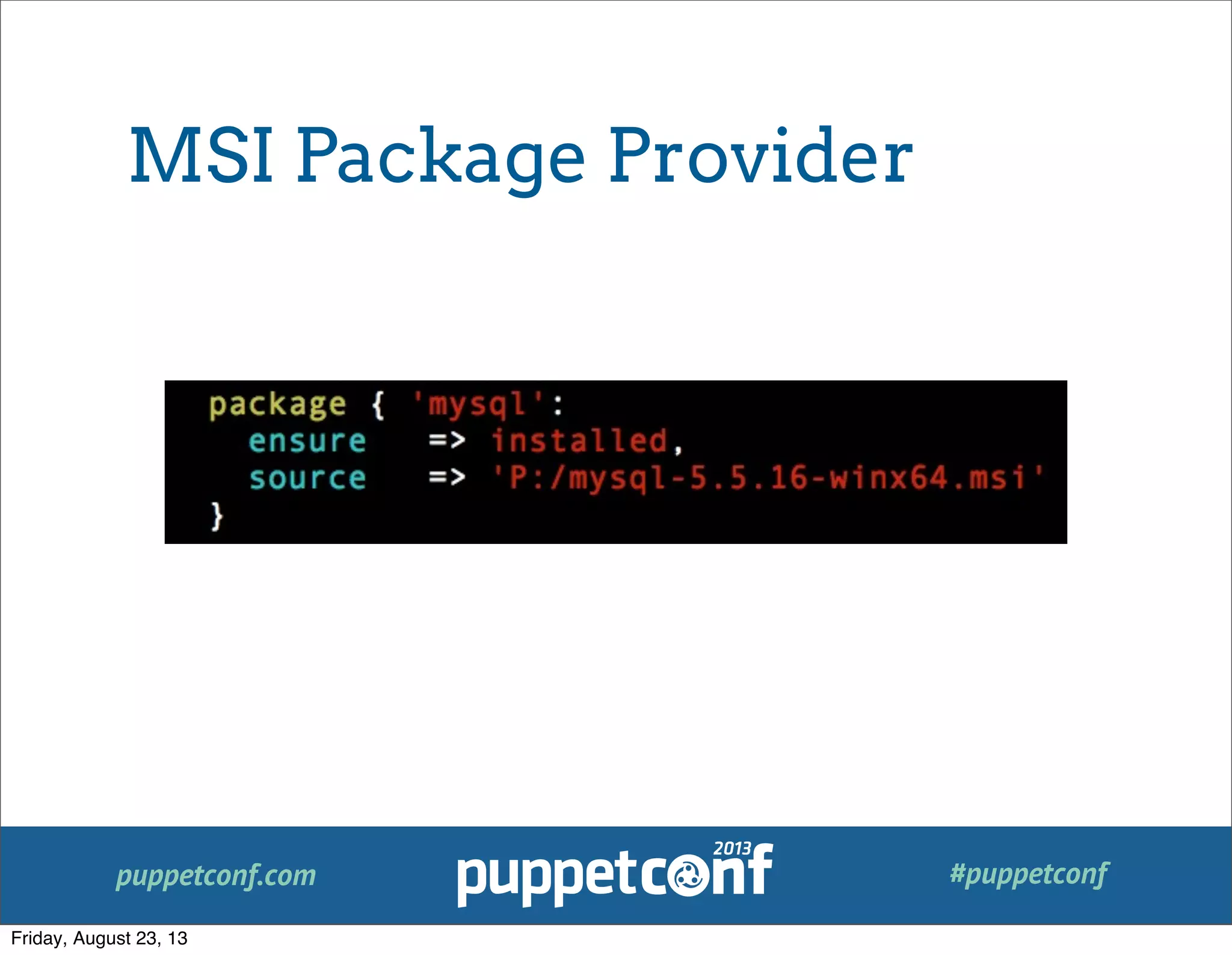

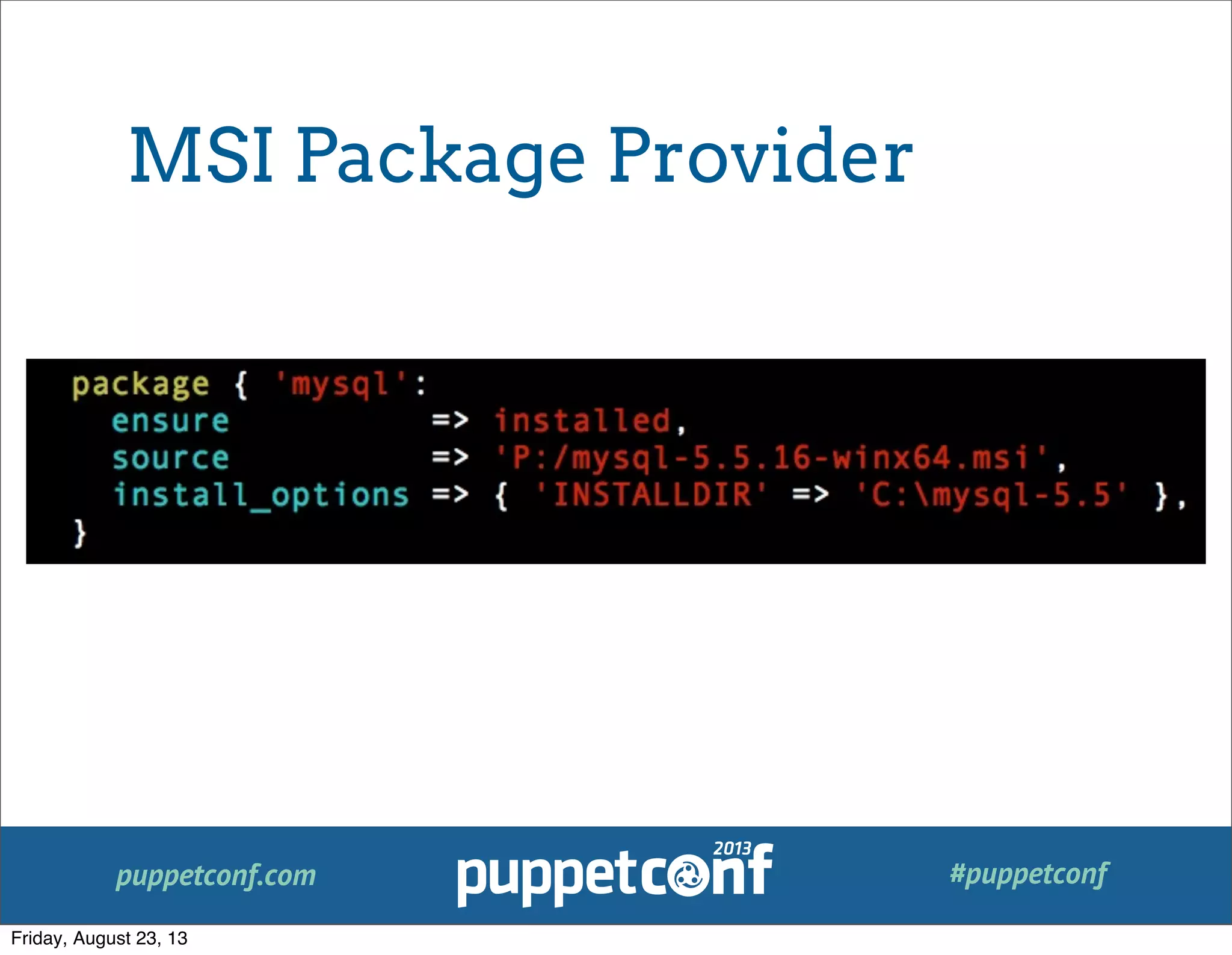

MSI Package Provider

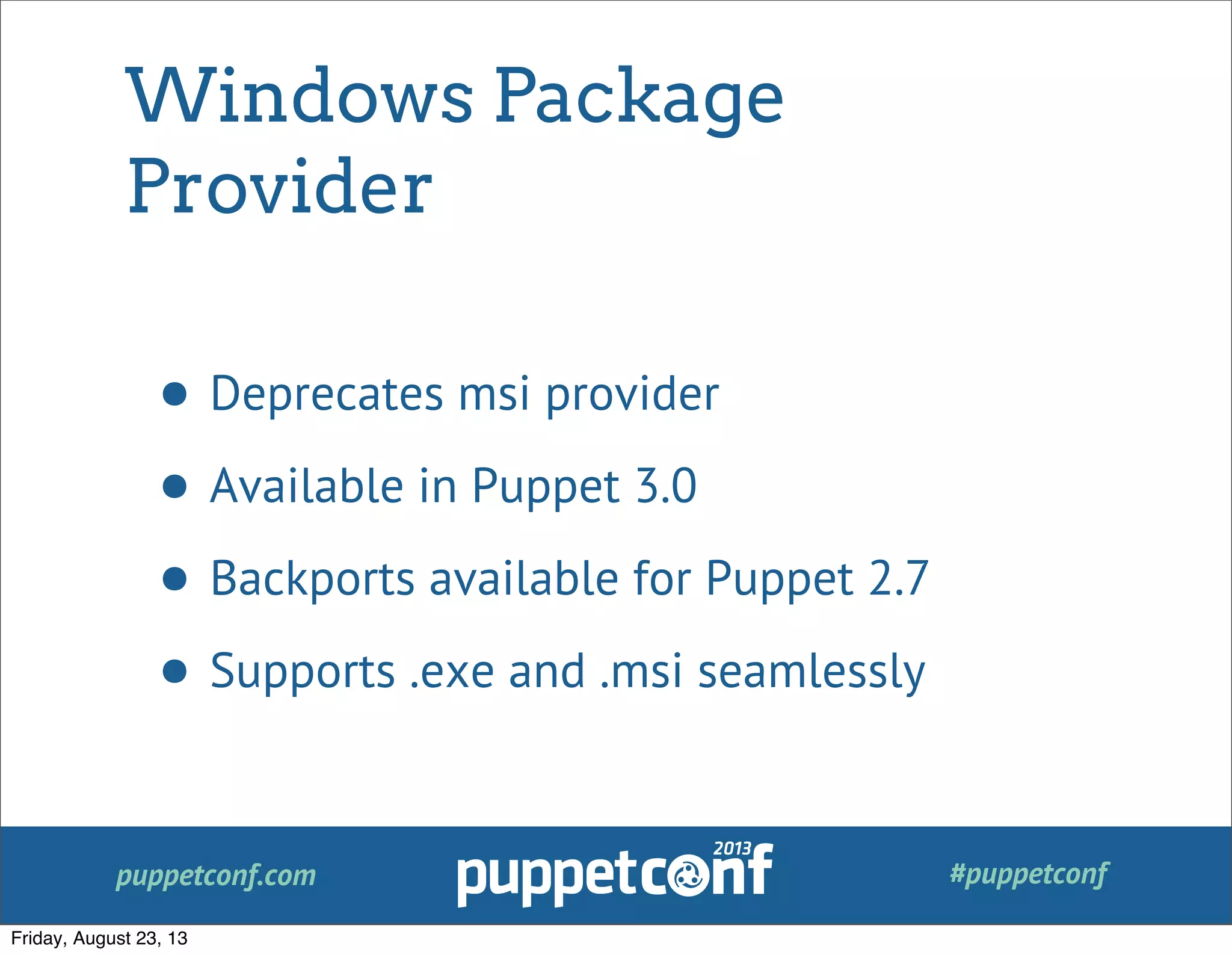

Windows Package
Provider
• Deprecates msi provider
• Available in Puppet 3.0
• Backports available for Puppet 2.7
• Supports .exe and .msi seamlessly

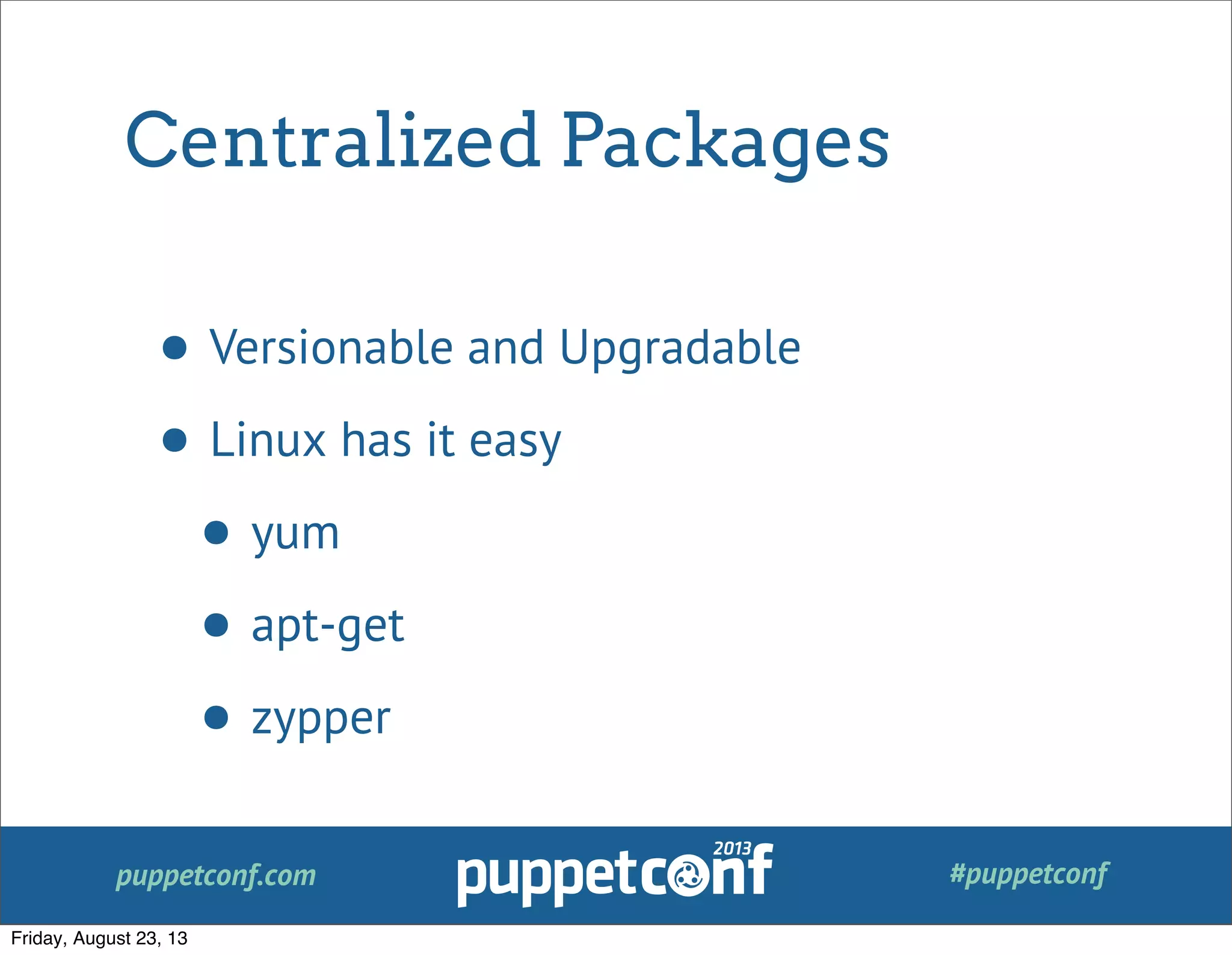

Centralized Packages
• Versionable and Upgradable
• Linux has it easy
• yum
• apt-get
• zypper

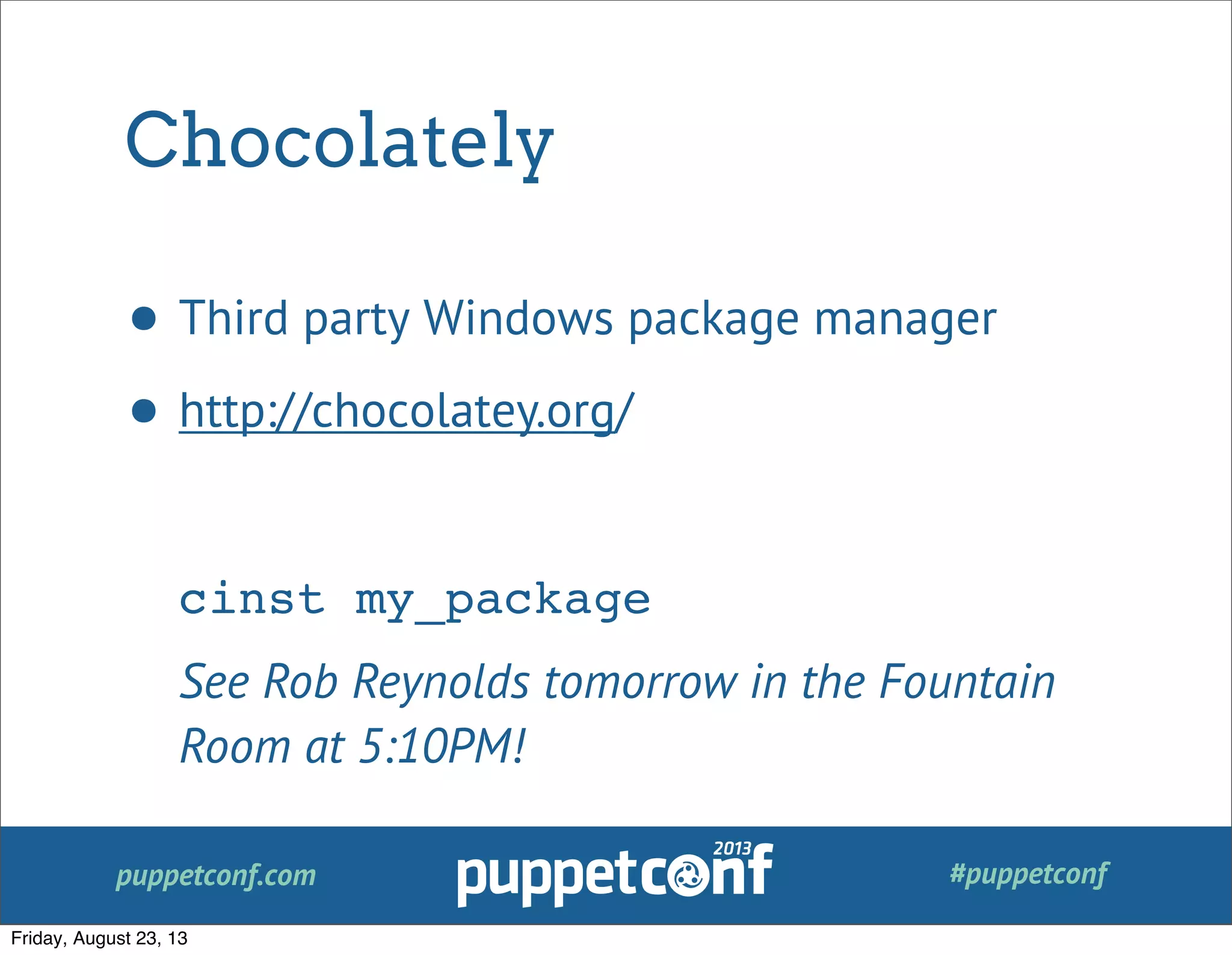

Chocolately
• Third party Windows package manager
• http://chocolatey.org/
cinst my_package
See Rob Reynolds tomorrow in the Fountain
Room at 5:10PM!

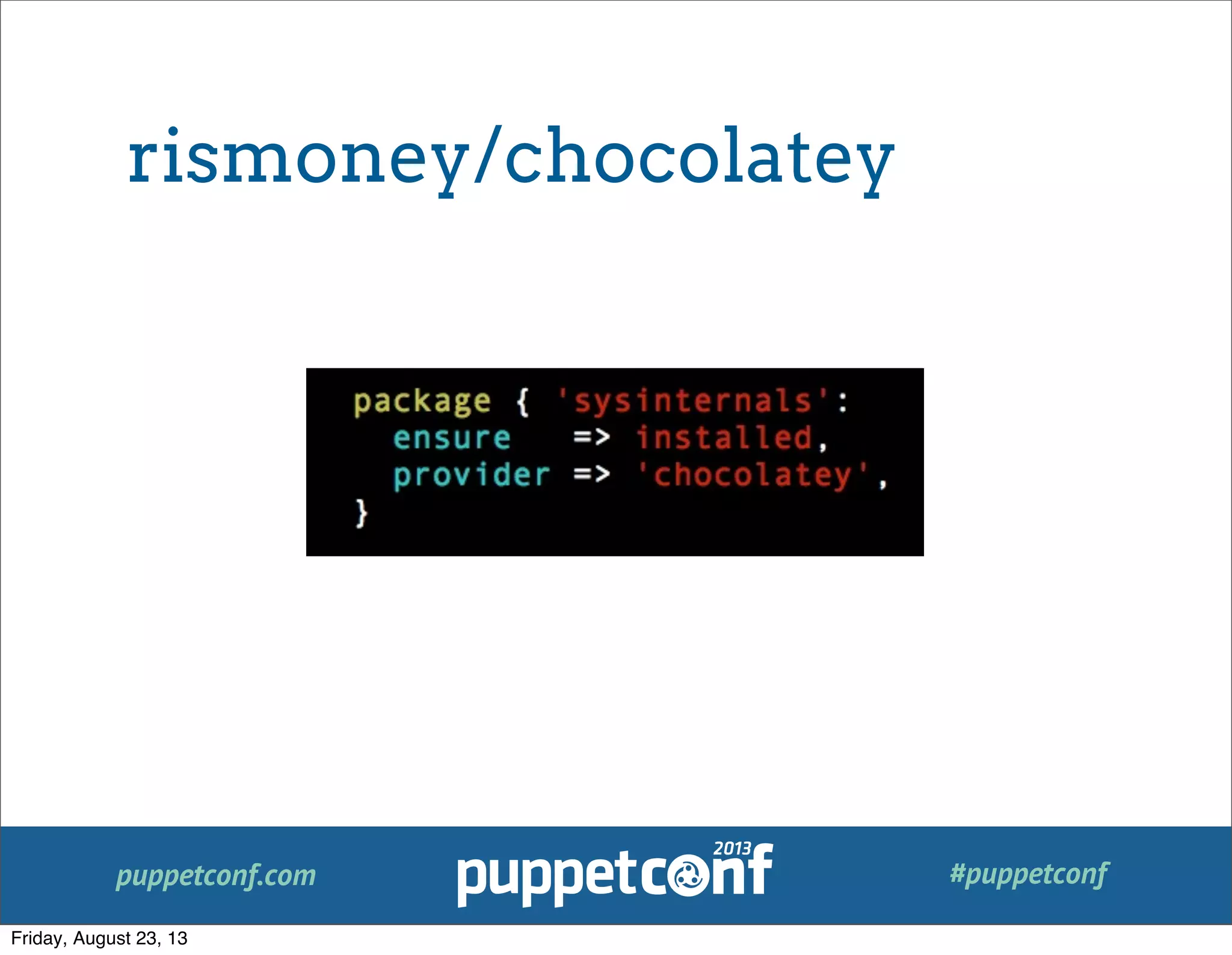

rismoney/chocolatey

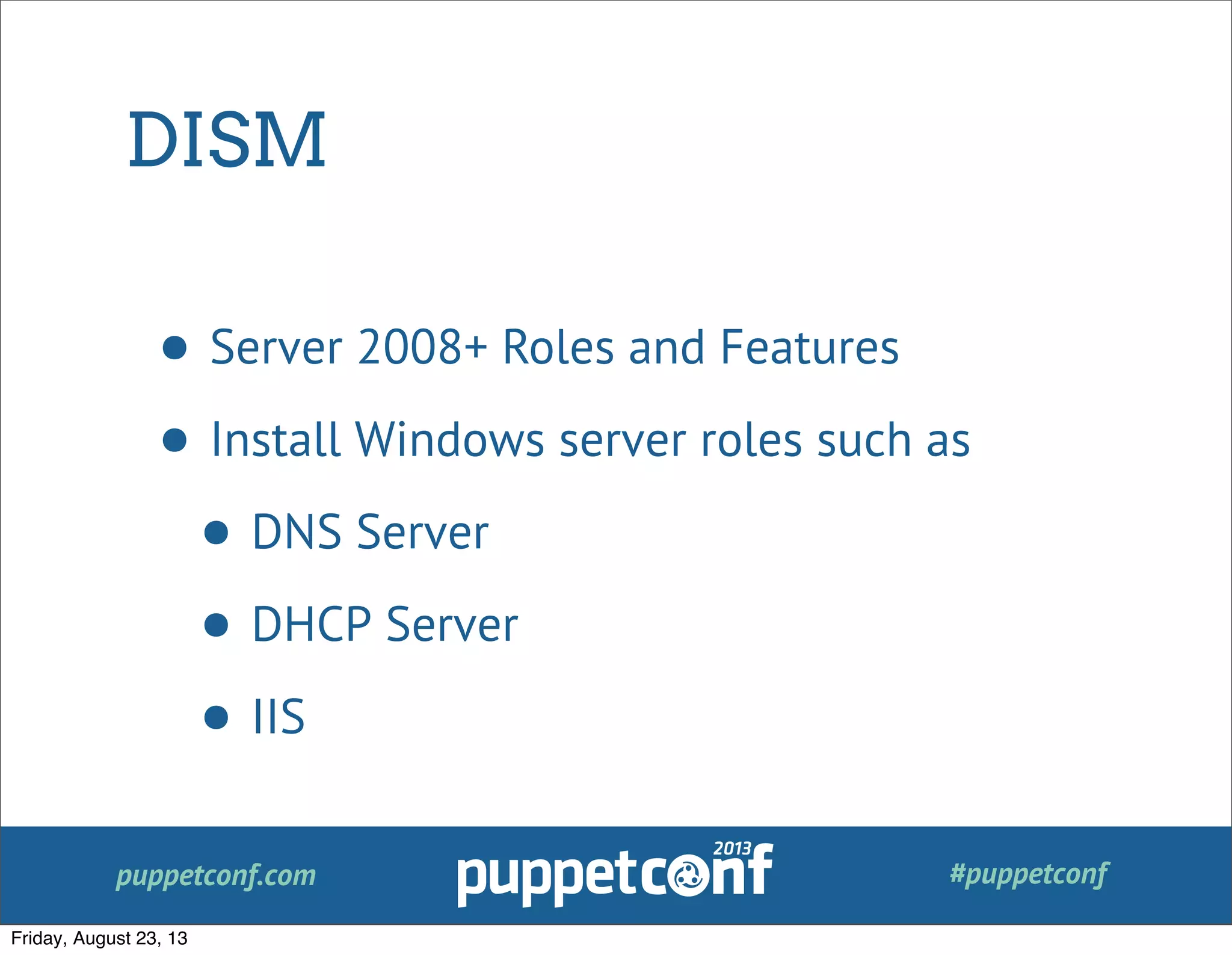

DISM
• Server 2008+ Roles and Features
• Install Windows server roles such as
• DNS Server
• DHCP Server
• IIS

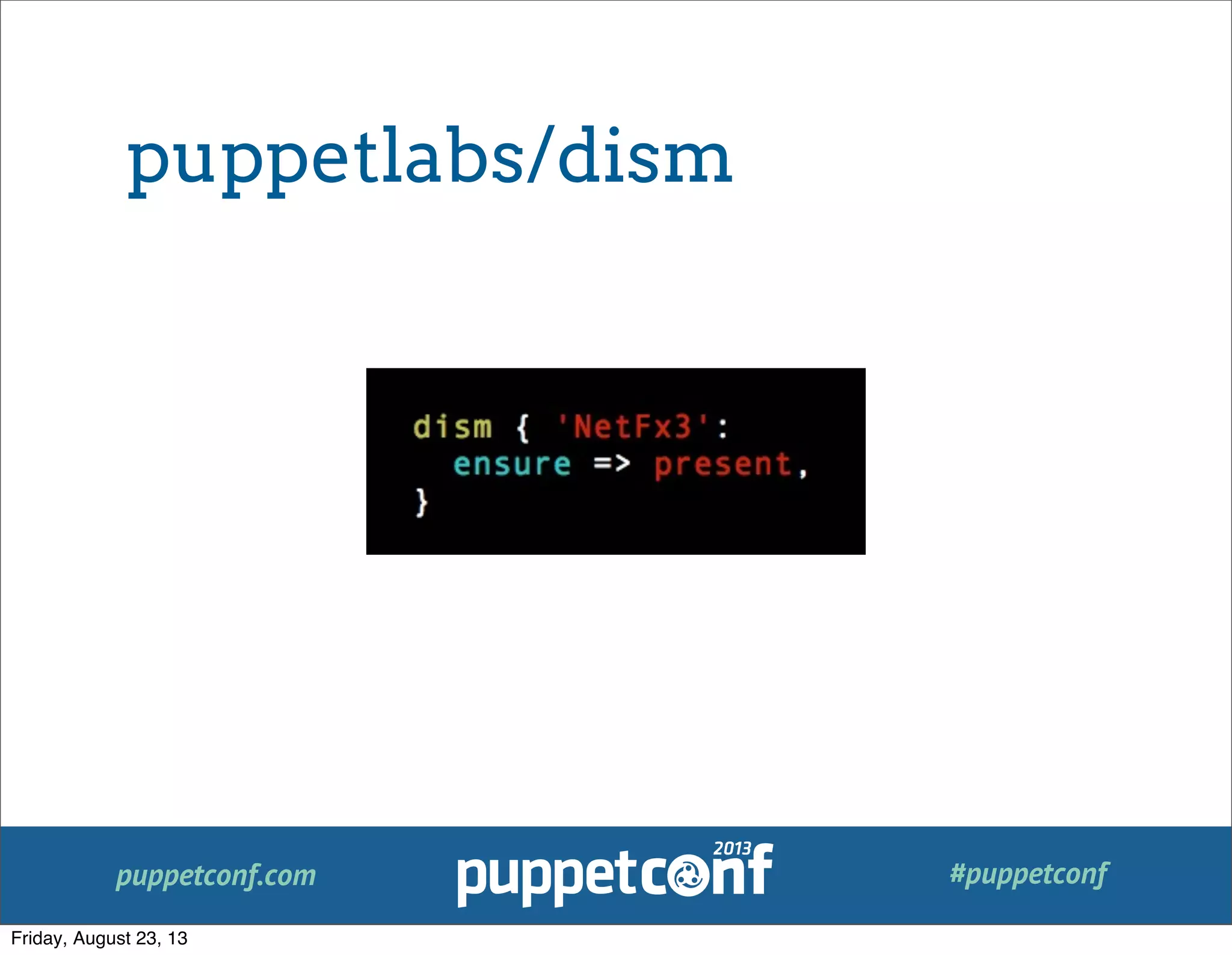

puppetlabs/dism

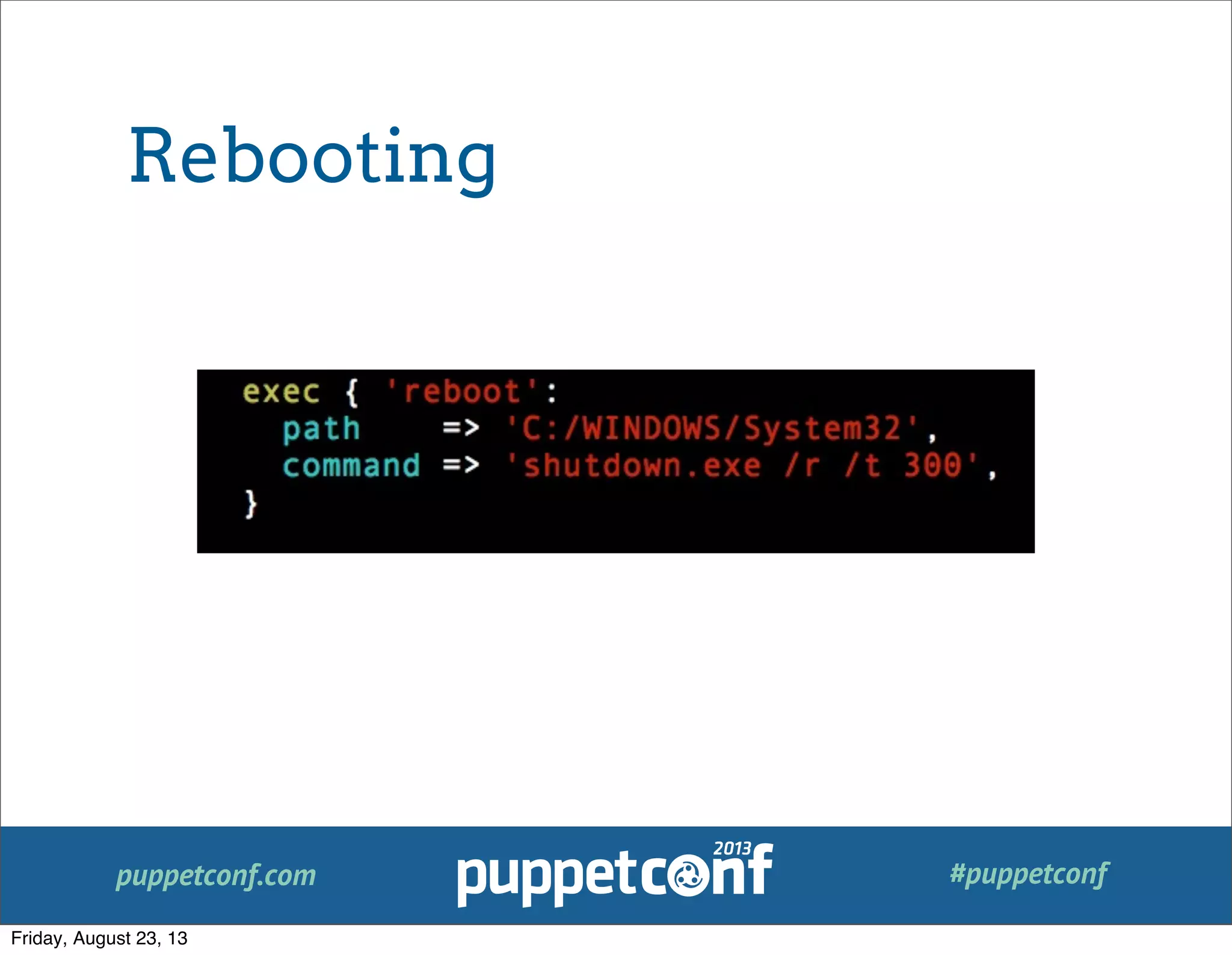

Rebooting

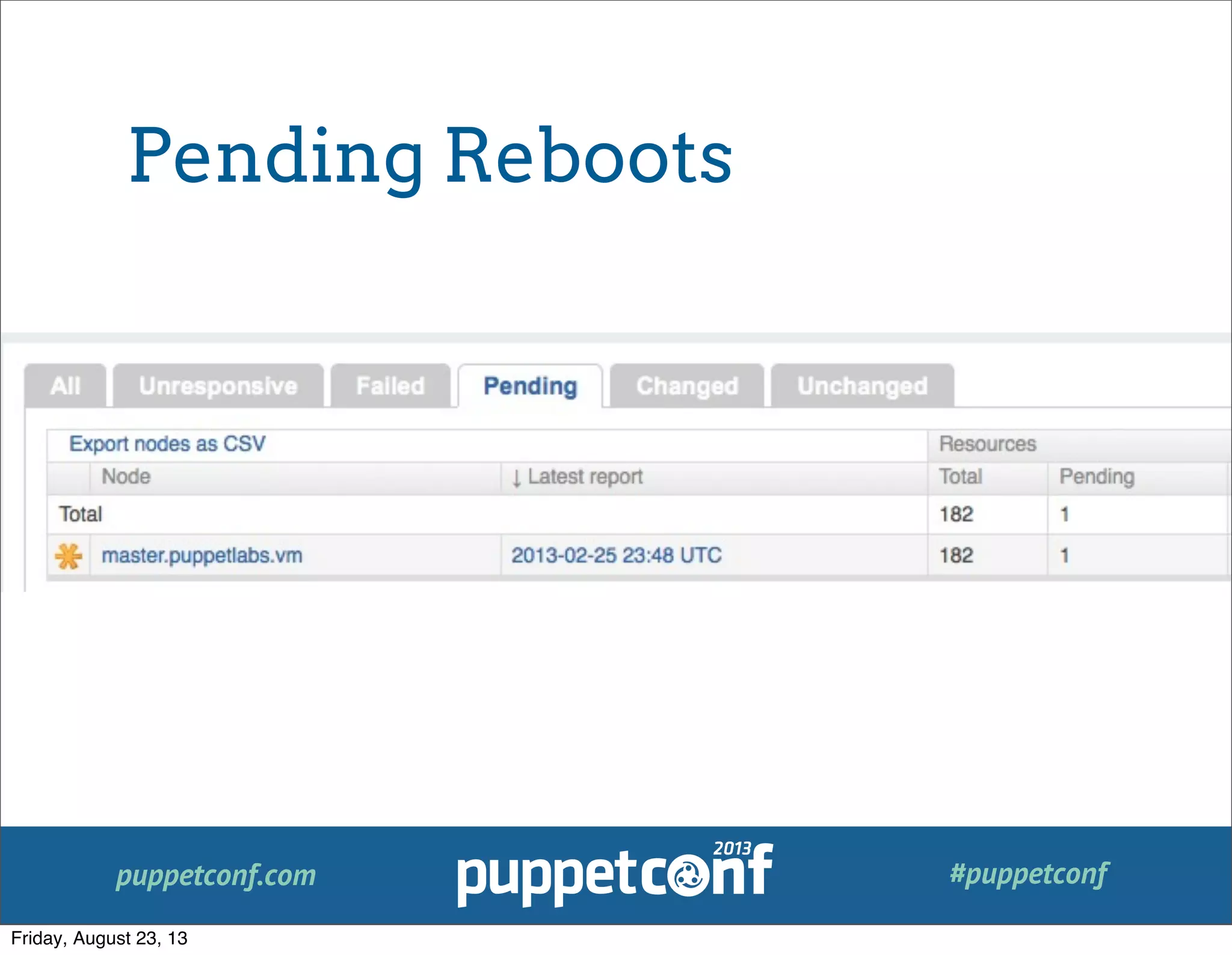

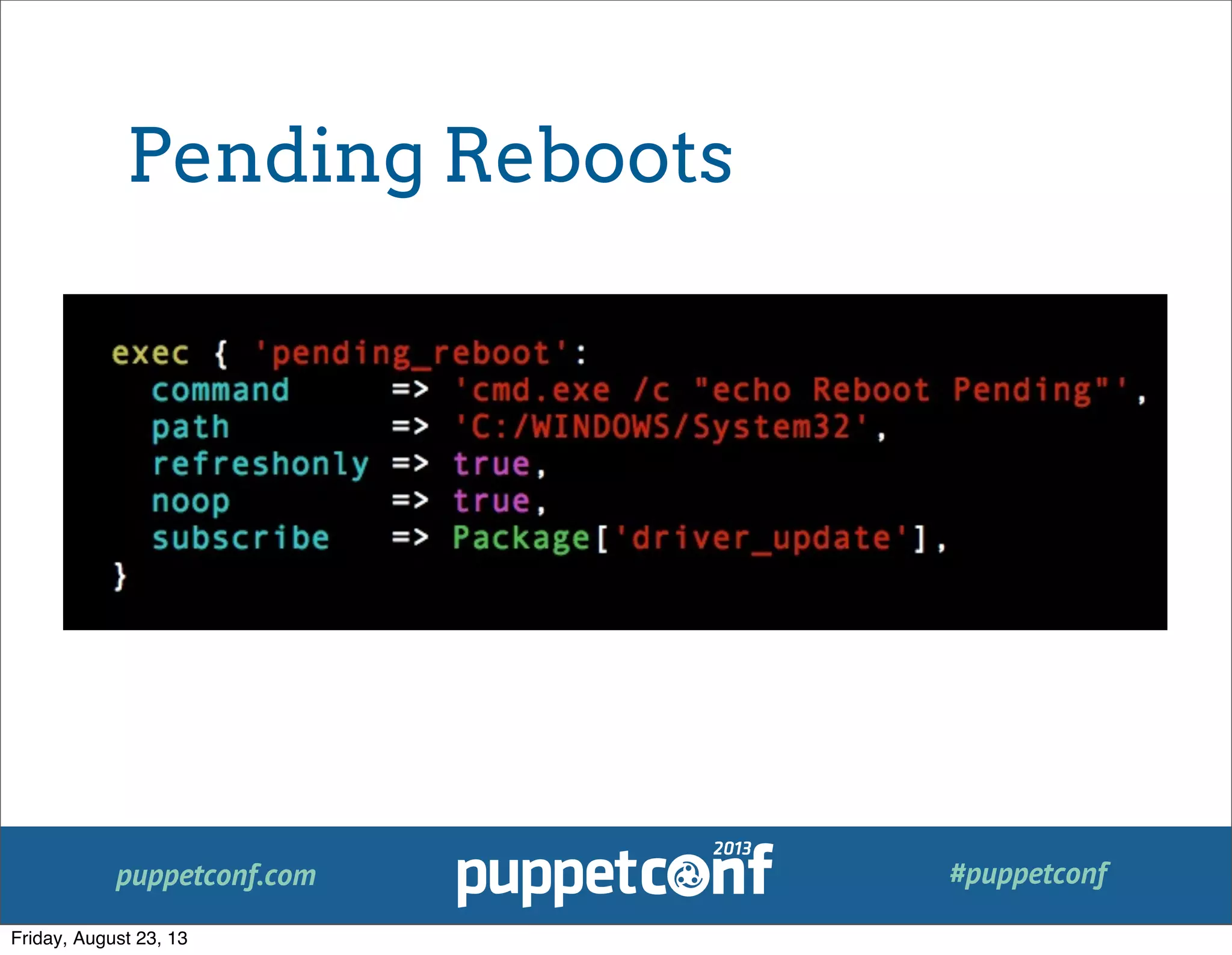

Pending Reboots

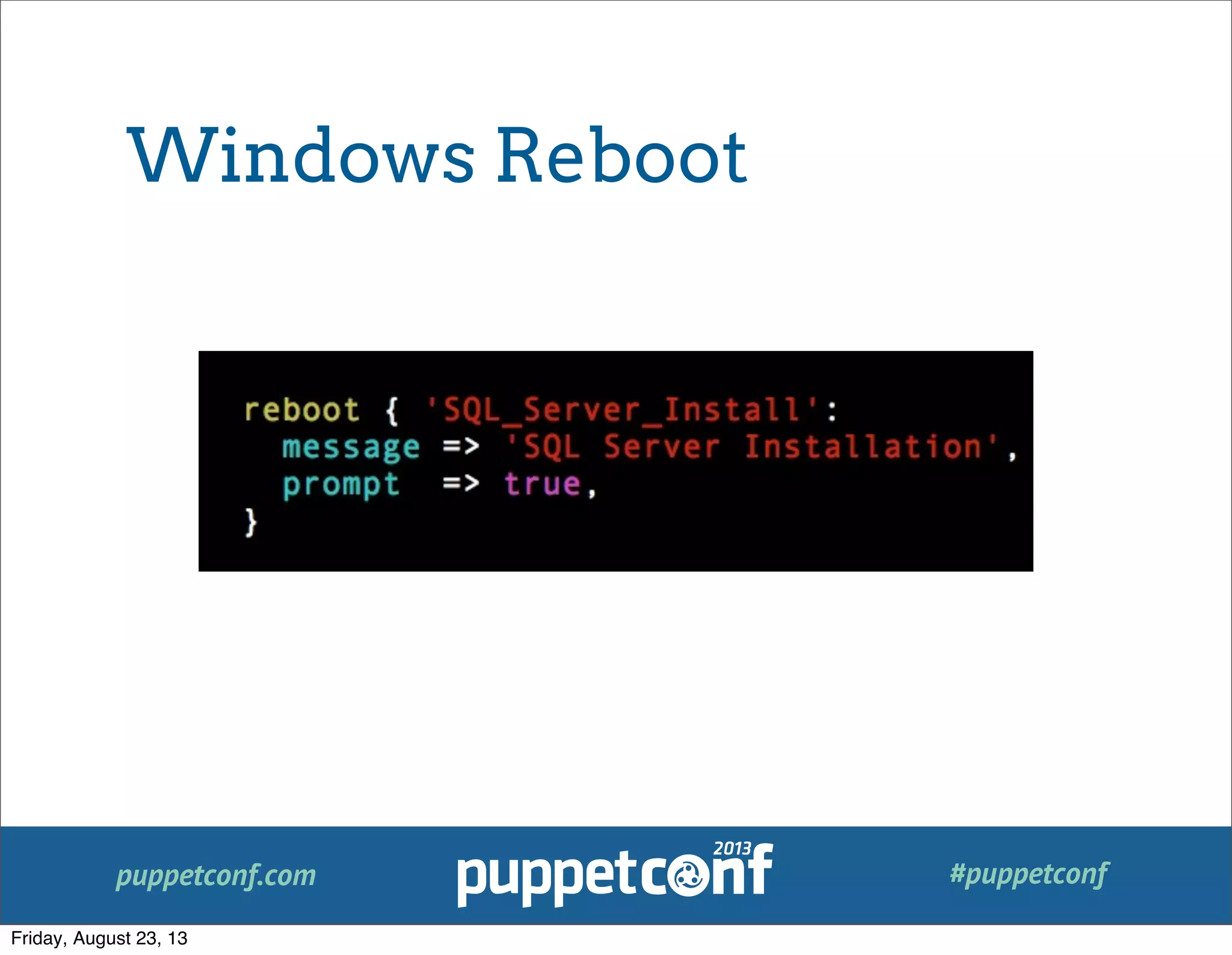

Windows Reboot

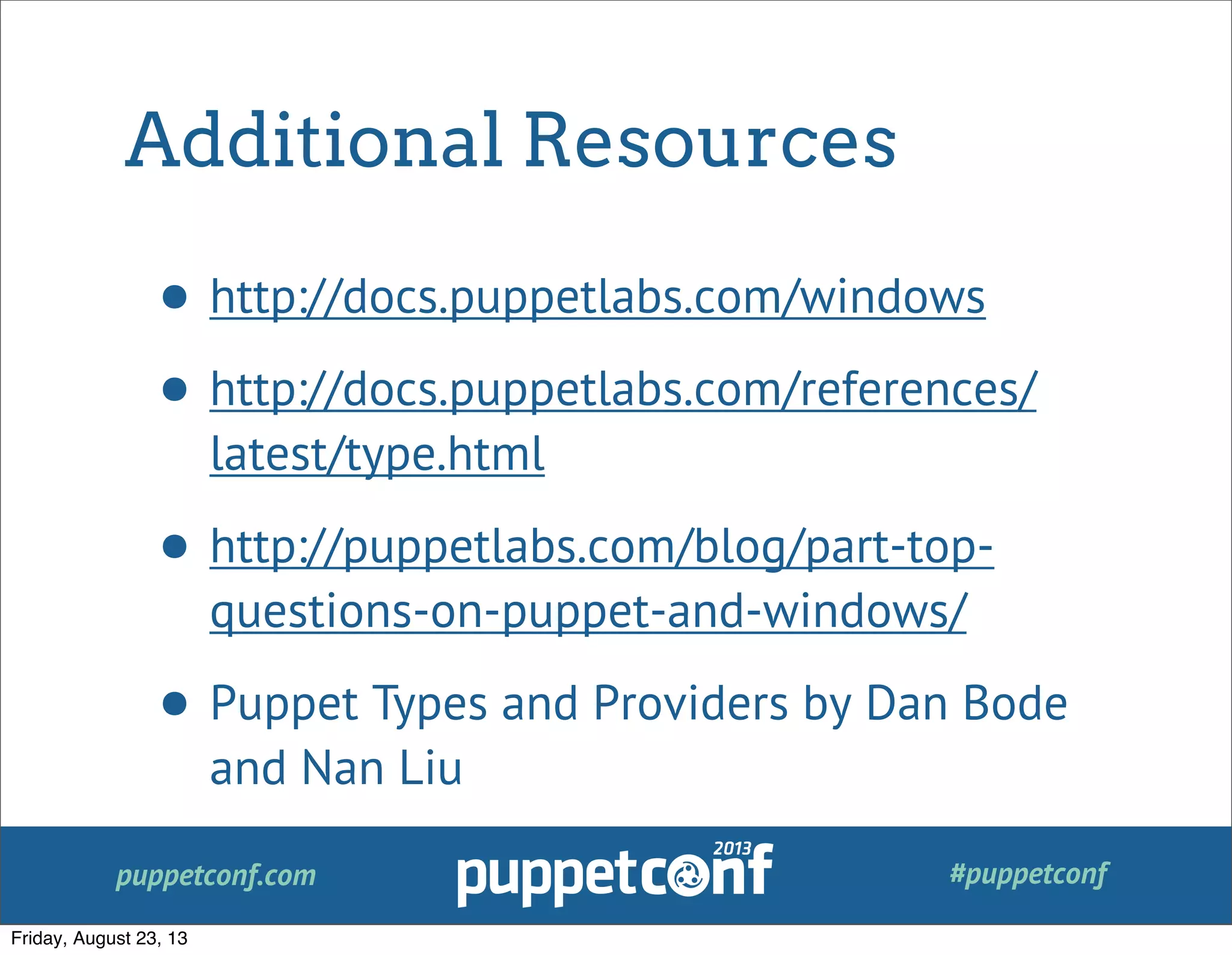

Additional Resources
• http://docs.puppetlabs.com/windows
• http://docs.puppetlabs.com/references/
latest/type.html
• http://puppetlabs.com/blog/part-top-
questions-on-puppet-and-windows/
• Puppet Types and Providers by Dan Bode
and Nan Liu

Thank You - Questions?
James Sweeny
Professional Services | Puppet Labs
james.sweeny@puppetlabs.com
supercow on irc.freenode.net
@jsween_y
Collaborate. Automate. Ship.

Follow us on Twitter @puppetlabs
youtube.com/puppetlabsinc
slideshare.net/puppetlabs
Collaborate. Automate. Ship.
