The document discusses the cathode ray oscilloscope. It describes the cathode ray oscilloscope as an electronic voltmeter used to display and measure peak voltage, frequency, phase difference, pulse width, delay time, rise time, and fall time. It outlines the topics of cathode ray tube construction, electrostatic lens, electrostatic deflection, and phase and frequency measurement. Lissajous patterns are discussed for measuring phase differences and frequencies.

1. Electrical and Electronic Measurement
Cathode Ray Oscilloscope
Parveen Malik
Assistant Professor
School of Electronics Engineering
KIIT University
parveen.malikfet@kiit.ac.in
October 30, 2019
Parveen Malik () E and EM October 30, 2019 1 / 16

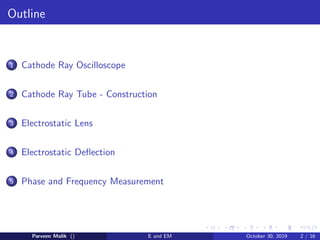

2. Outline
1 Cathode Ray Oscilloscope
2 Cathode Ray Tube - Construction
3 Electrostatic Lens
4 Electrostatic Deflection
5 Phase and Frequency Measurement
Parveen Malik () E and EM October 30, 2019 2 / 16

3. Cathode Ray Oscilloscope

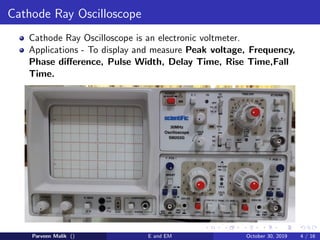

4. Cathode Ray Oscilloscope
Cathode Ray Oscilloscope is an electronic voltmeter.
Applications - To display and measure Peak voltage, Frequency,
Phase difference, Pulse Width, Delay Time, Rise Time,Fall
Time.
Parveen Malik () E and EM October 30, 2019 4 / 16

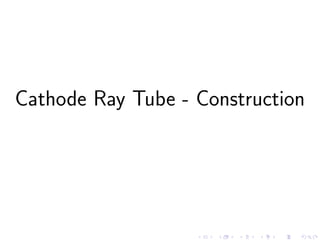

5. Cathode Ray Tube - Construction

6. Cathode Ray Oscilloscope
CRT Construction
Cathode Ray Tube
Parveen Malik () E and EM October 30, 2019 6 / 16

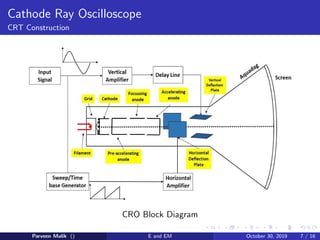

7. Cathode Ray Oscilloscope
CRT Construction
CRO Block Diagram
Parveen Malik () E and EM October 30, 2019 7 / 16

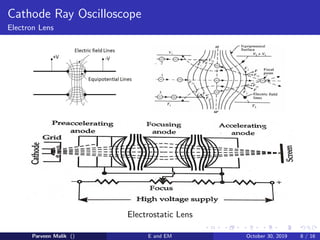

8. Cathode Ray Oscilloscope
Electron Lens
Electrostatic Lens
Parveen Malik () E and EM October 30, 2019 8 / 16

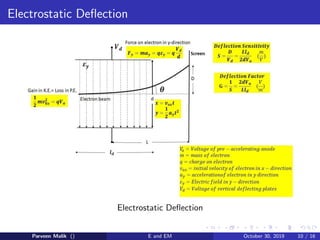

9. Electrostatic Deflection

10. Electrostatic Deflection
Electrostatic Deflection
Parveen Malik () E and EM October 30, 2019 10 / 16

11. Phase and Frequency
Measurement

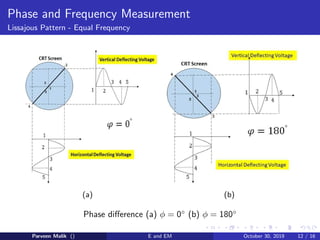

12. Phase and Frequency Measurement
Lissajous Pattern - Equal Frequency
(a) (b)
Phase difference (a) φ = 0◦
(b) φ = 180◦
Parveen Malik () E and EM October 30, 2019 12 / 16

13. Phase and Frequency Measurement
Lissajous Pattern- Equal Frequency
(a) (b)
Phase difference (a) φ = 90◦
(b) φ
Parveen Malik () E and EM October 30, 2019 13 / 16

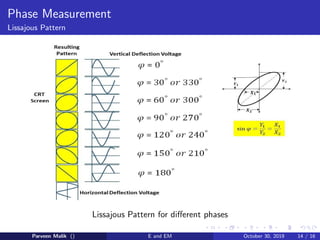

14. Phase Measurement
Lissajous Pattern
Lissajous Pattern for different phases
Parveen Malik () E and EM October 30, 2019 14 / 16

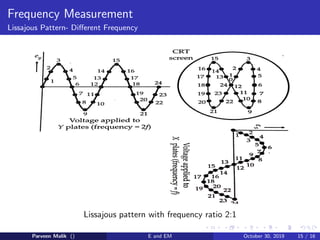

15. Frequency Measurement
Lissajous Pattern- Different Frequency
Lissajous pattern with frequency ratio 2:1
Parveen Malik () E and EM October 30, 2019 15 / 16

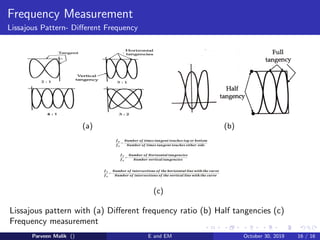

16. Frequency Measurement
Lissajous Pattern- Different Frequency
(a) (b)
(c)
Lissajous pattern with (a) Different frequency ratio (b) Half tangencies (c)
Frequency measurement
Parveen Malik () E and EM October 30, 2019 16 / 16
