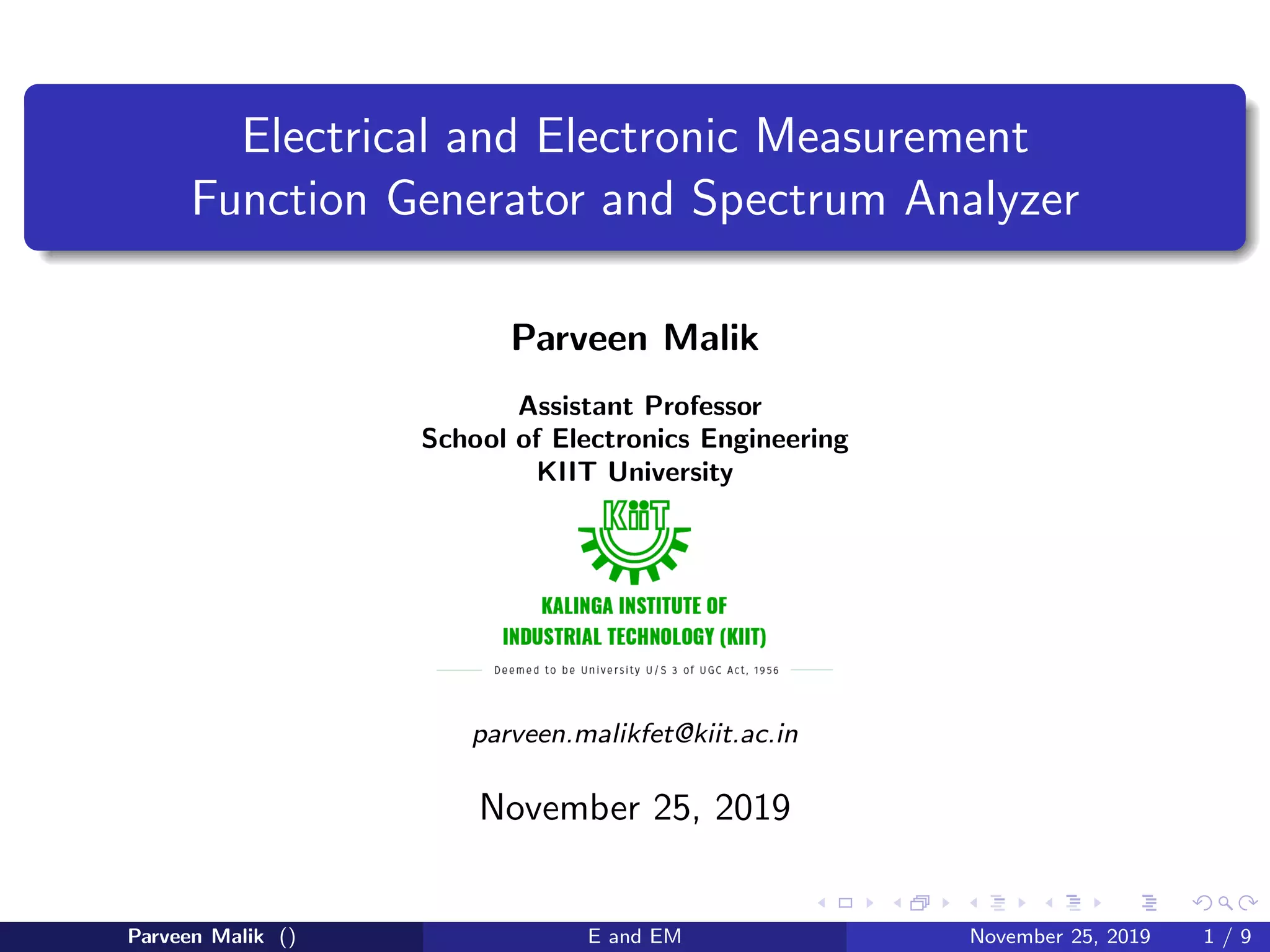

Electrical and Electronic Measurement
Function Generator and Spectrum Analyzer
Parveen Malik
Assistant Professor
School of Electronics Engineering
KIIT University
parveen.malikfet@kiit.ac.in
November 25, 2019
Parveen Malik () E and EM November 25, 2019 1 / 9

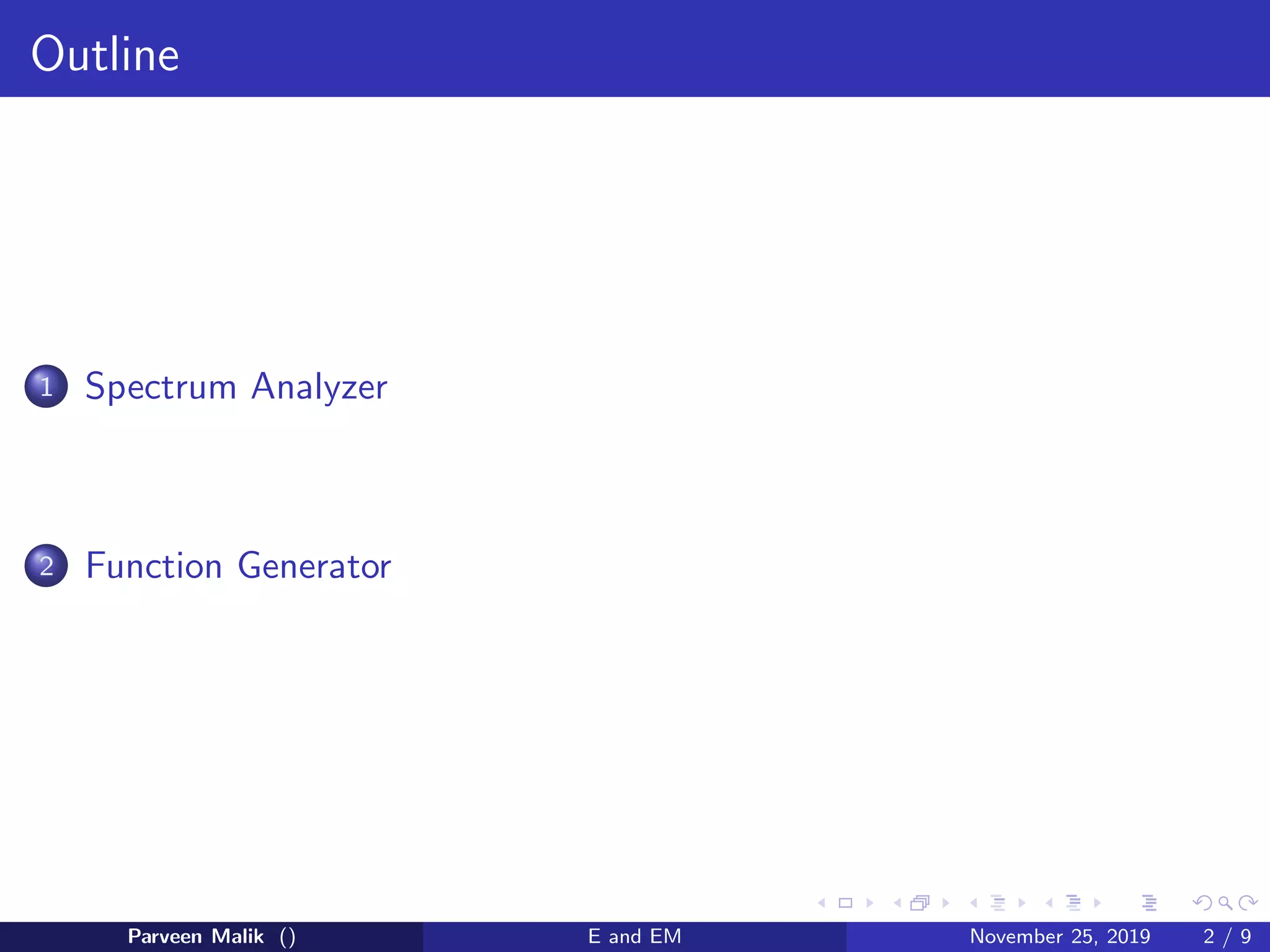

Outline
1 Spectrum Analyzer
2 Function Generator
Parveen Malik () E and EM November 25, 2019 2 / 9
Spectrum Analyzer
Spectrum Analyzer

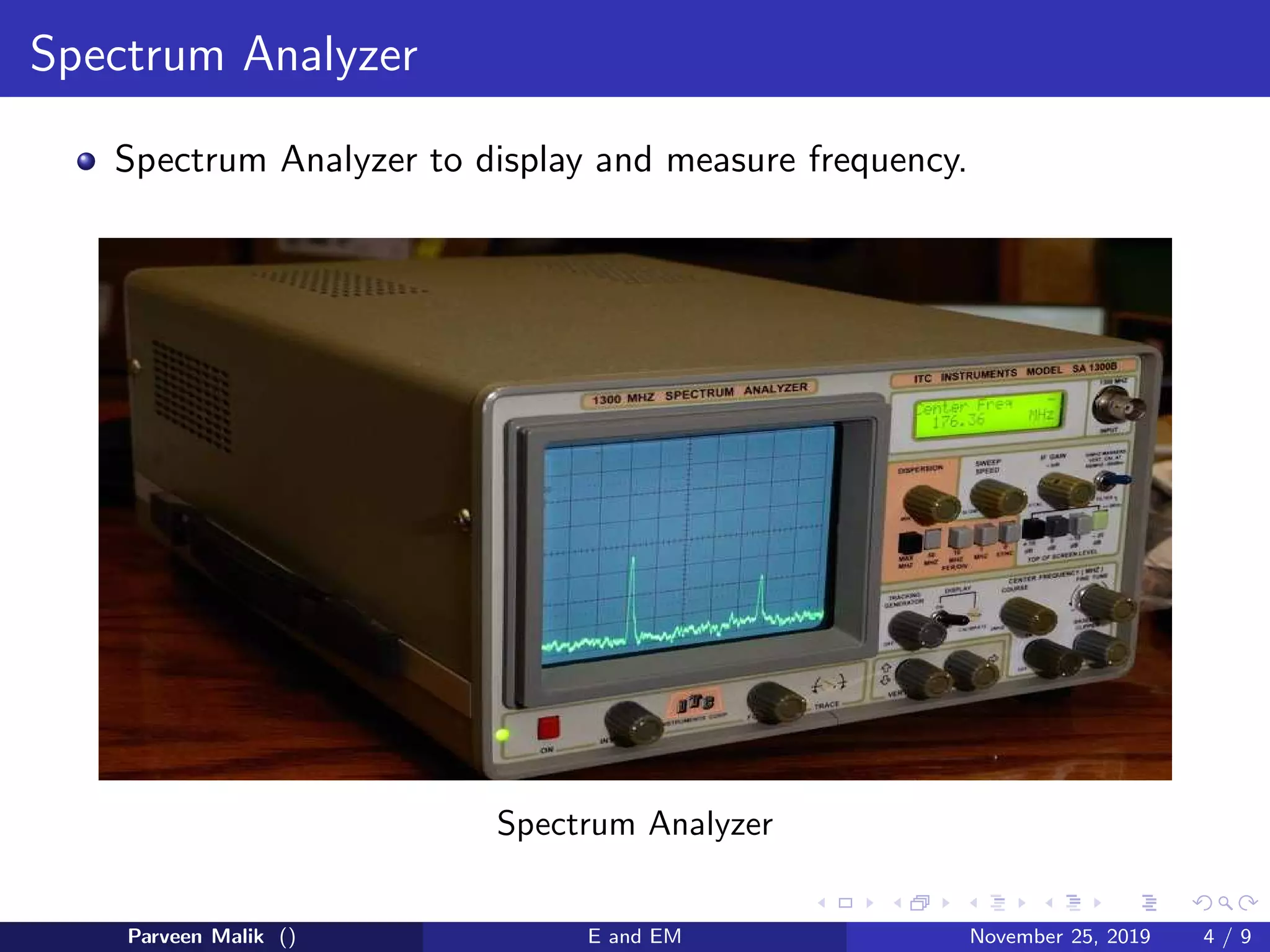

Spectrum Analyzer to display and measure frequency.
Spectrum Analyzer
Parveen Malik () E and EM November 25, 2019 4 / 9
Spectrum Analyzer

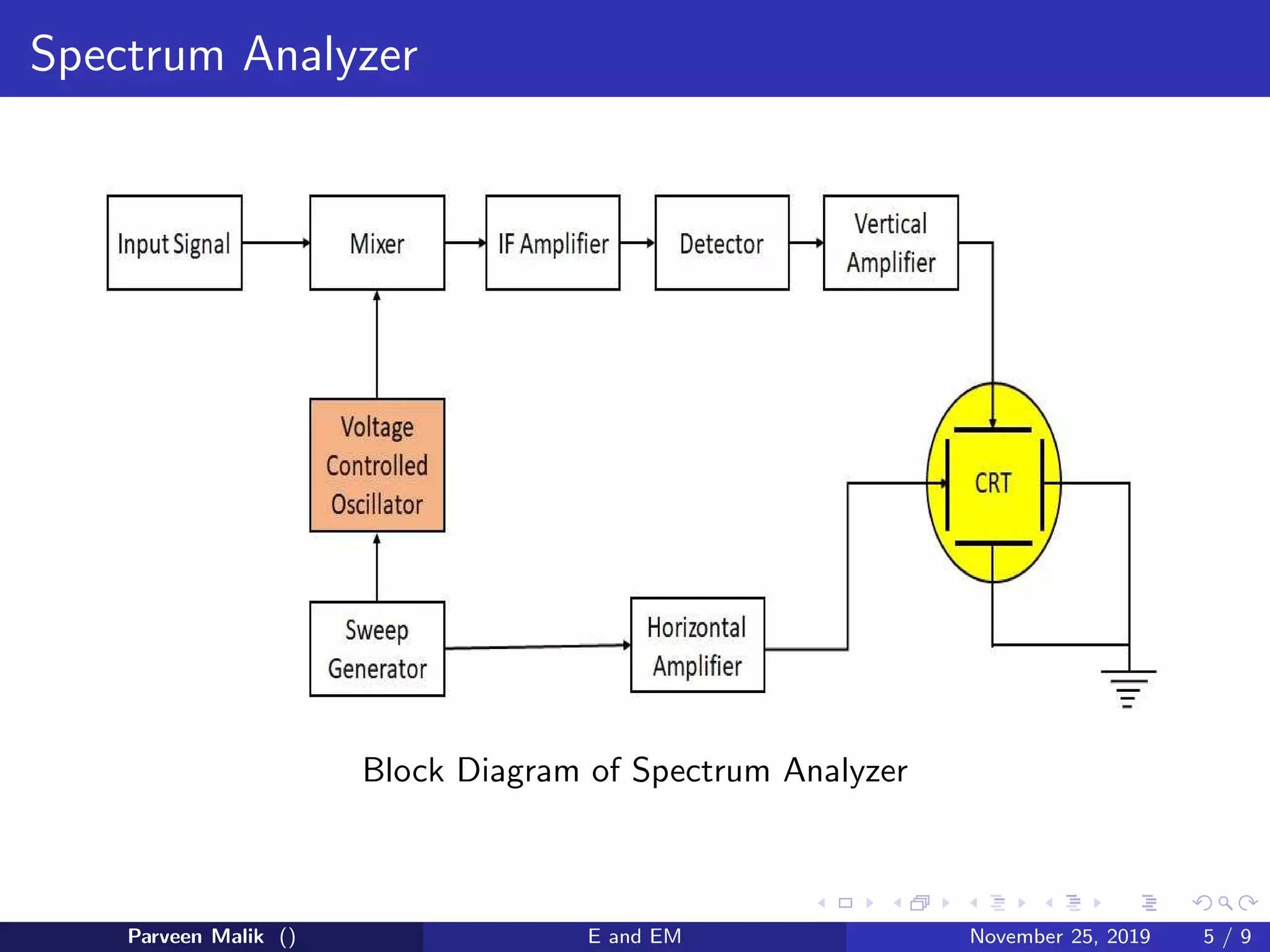

Block Diagram of Spectrum Analyzer
Parveen Malik () E and EM November 25, 2019 5 / 9
Spectrum Analyzer

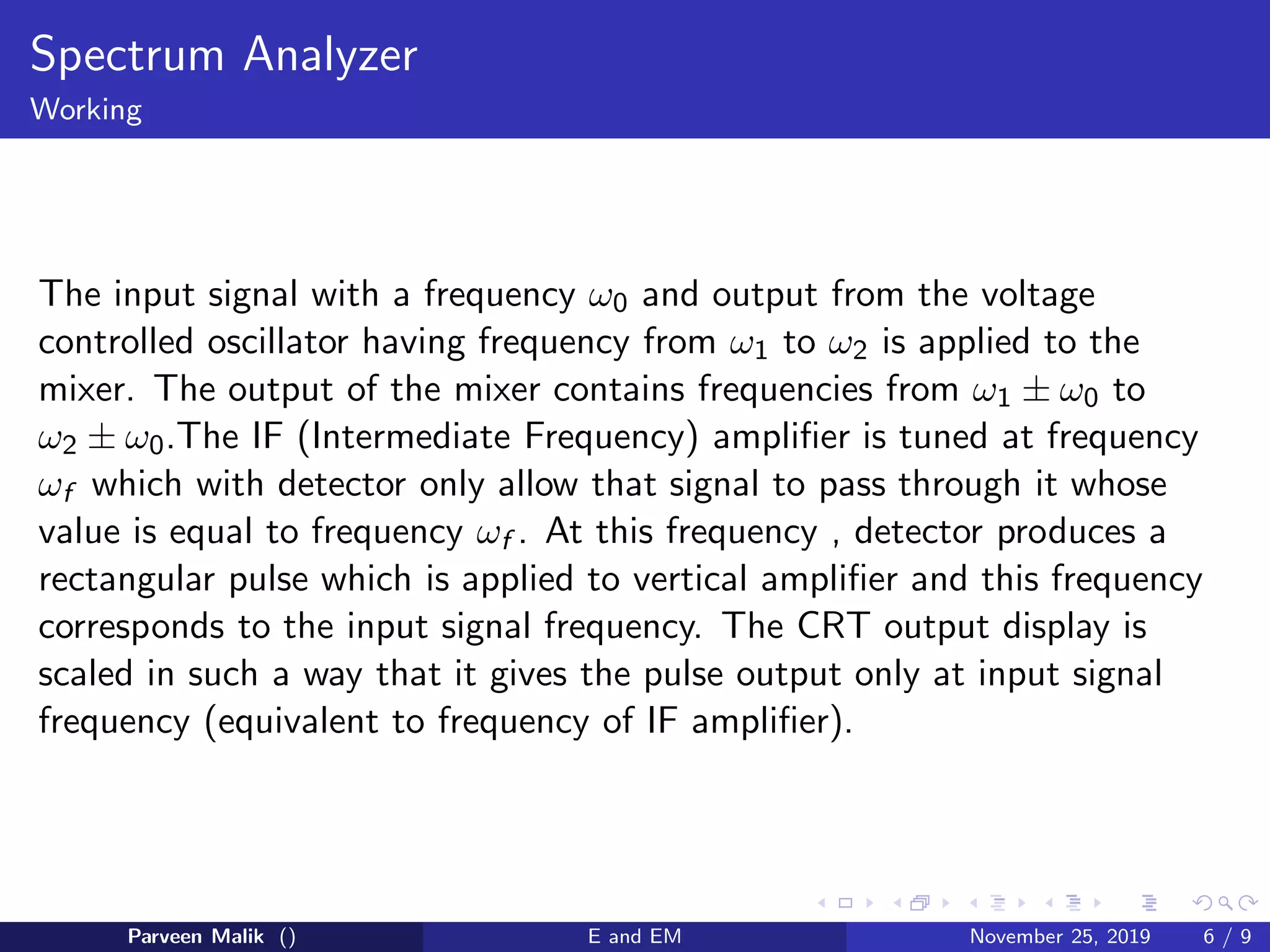

Working
The input signal with a frequency ω0 and output from the voltage
controlled oscillator having frequency from ω1 to ω2 is applied to the
mixer. The output of the mixer contains frequencies from ω1 ± ω0 to
ω2 ± ω0.The IF (Intermediate Frequency) amplifier is tuned at frequency
ωf which with detector only allow that signal to pass through it whose
value is equal to frequency ωf . At this frequency , detector produces a
rectangular pulse which is applied to vertical amplifier and this frequency
corresponds to the input signal frequency. The CRT output display is
scaled in such a way that it gives the pulse output only at input signal
frequency (equivalent to frequency of IF amplifier).
Parveen Malik () E and EM November 25, 2019 6 / 9
Function Generator

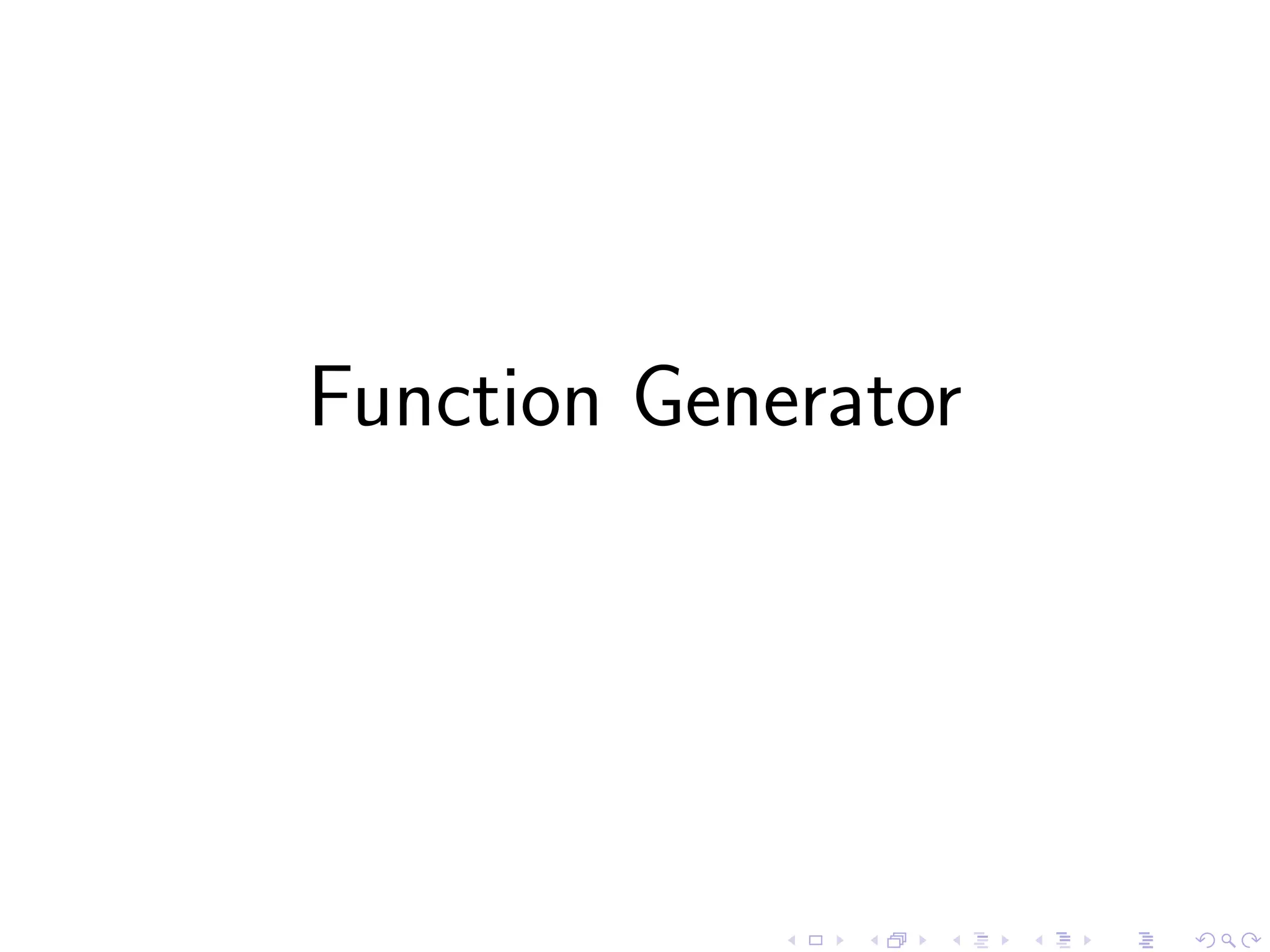

Function Generator
Function generator generates the different types of signals like sine
wave, square wave and triangular wave.
Frequency can be adjusted from Hz to MHz range.
Positive feedback oscillators (RC,LC ,Wien bridge, phase shift
oscillators).
Function Generator
Parveen Malik () E and EM November 25, 2019 8 / 9
Function Generator
Block Diagram

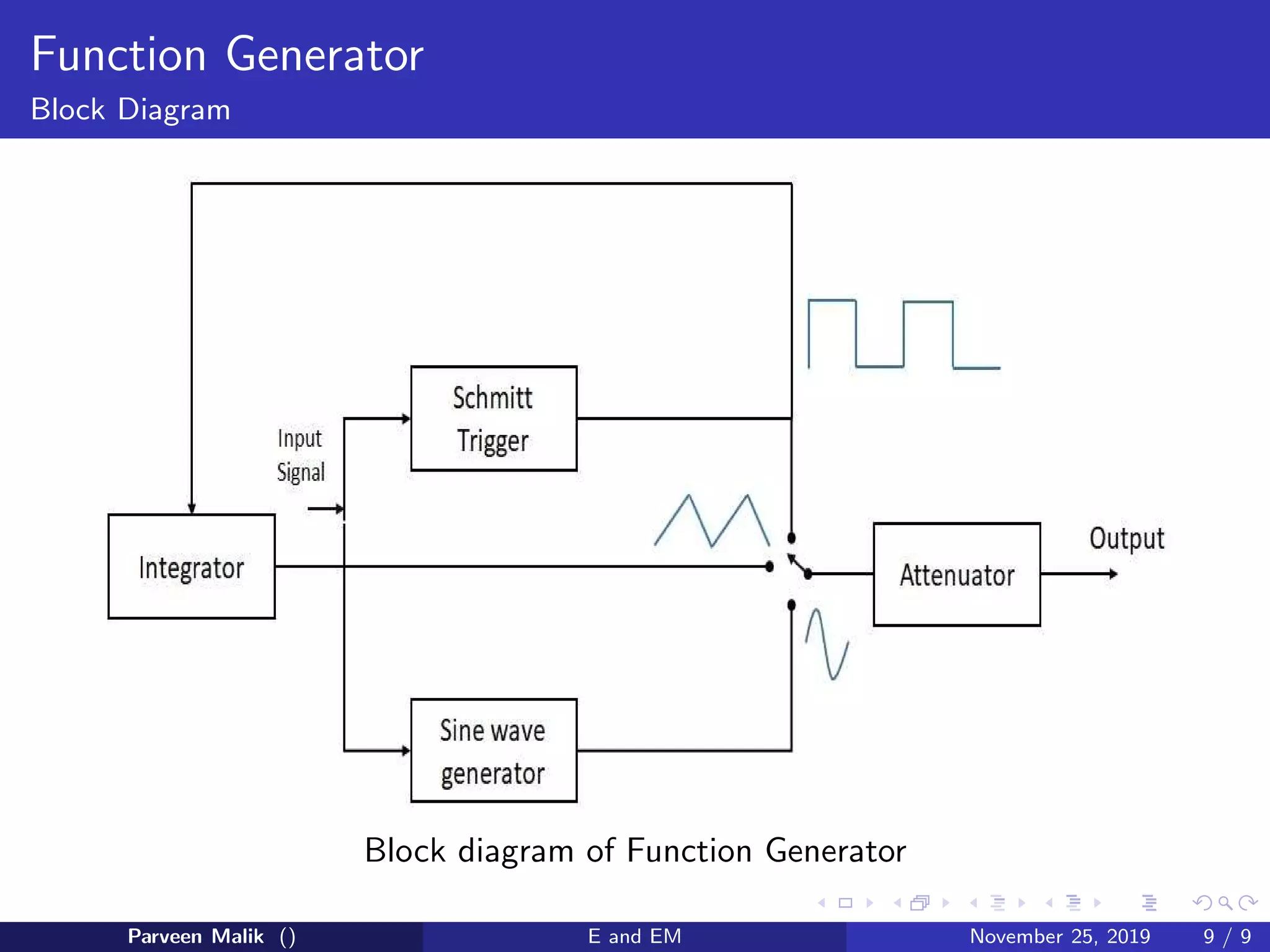

Block diagram of Function Generator
Parveen Malik () E and EM November 25, 2019 9 / 9

Chapter8

  • 1.
    Electrical and ElectronicMeasurement Function Generator and Spectrum Analyzer Parveen Malik Assistant Professor School of Electronics Engineering KIIT University parveen.malikfet@kiit.ac.in November 25, 2019 Parveen Malik () E and EM November 25, 2019 1 / 9
  • 2.
    Outline 1 Spectrum Analyzer 2Function Generator Parveen Malik () E and EM November 25, 2019 2 / 9
  • 3.
  • 4.
    Spectrum Analyzer Spectrum Analyzerto display and measure frequency. Spectrum Analyzer Parveen Malik () E and EM November 25, 2019 4 / 9
  • 5.
    Spectrum Analyzer Block Diagramof Spectrum Analyzer Parveen Malik () E and EM November 25, 2019 5 / 9
  • 6.
    Spectrum Analyzer Working The inputsignal with a frequency ω0 and output from the voltage controlled oscillator having frequency from ω1 to ω2 is applied to the mixer. The output of the mixer contains frequencies from ω1 ± ω0 to ω2 ± ω0.The IF (Intermediate Frequency) amplifier is tuned at frequency ωf which with detector only allow that signal to pass through it whose value is equal to frequency ωf . At this frequency , detector produces a rectangular pulse which is applied to vertical amplifier and this frequency corresponds to the input signal frequency. The CRT output display is scaled in such a way that it gives the pulse output only at input signal frequency (equivalent to frequency of IF amplifier). Parveen Malik () E and EM November 25, 2019 6 / 9
  • 7.
  • 8.
    Function Generator Function generatorgenerates the different types of signals like sine wave, square wave and triangular wave. Frequency can be adjusted from Hz to MHz range. Positive feedback oscillators (RC,LC ,Wien bridge, phase shift oscillators). Function Generator Parveen Malik () E and EM November 25, 2019 8 / 9
  • 9.
    Function Generator Block Diagram Blockdiagram of Function Generator Parveen Malik () E and EM November 25, 2019 9 / 9
