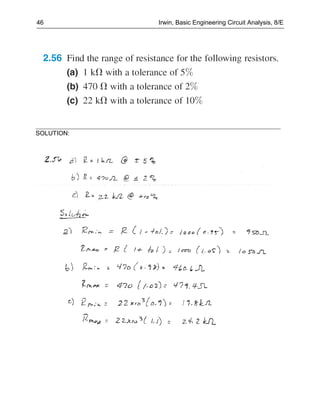

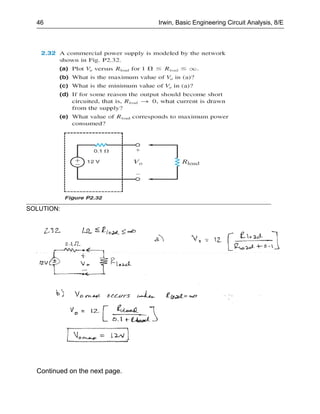

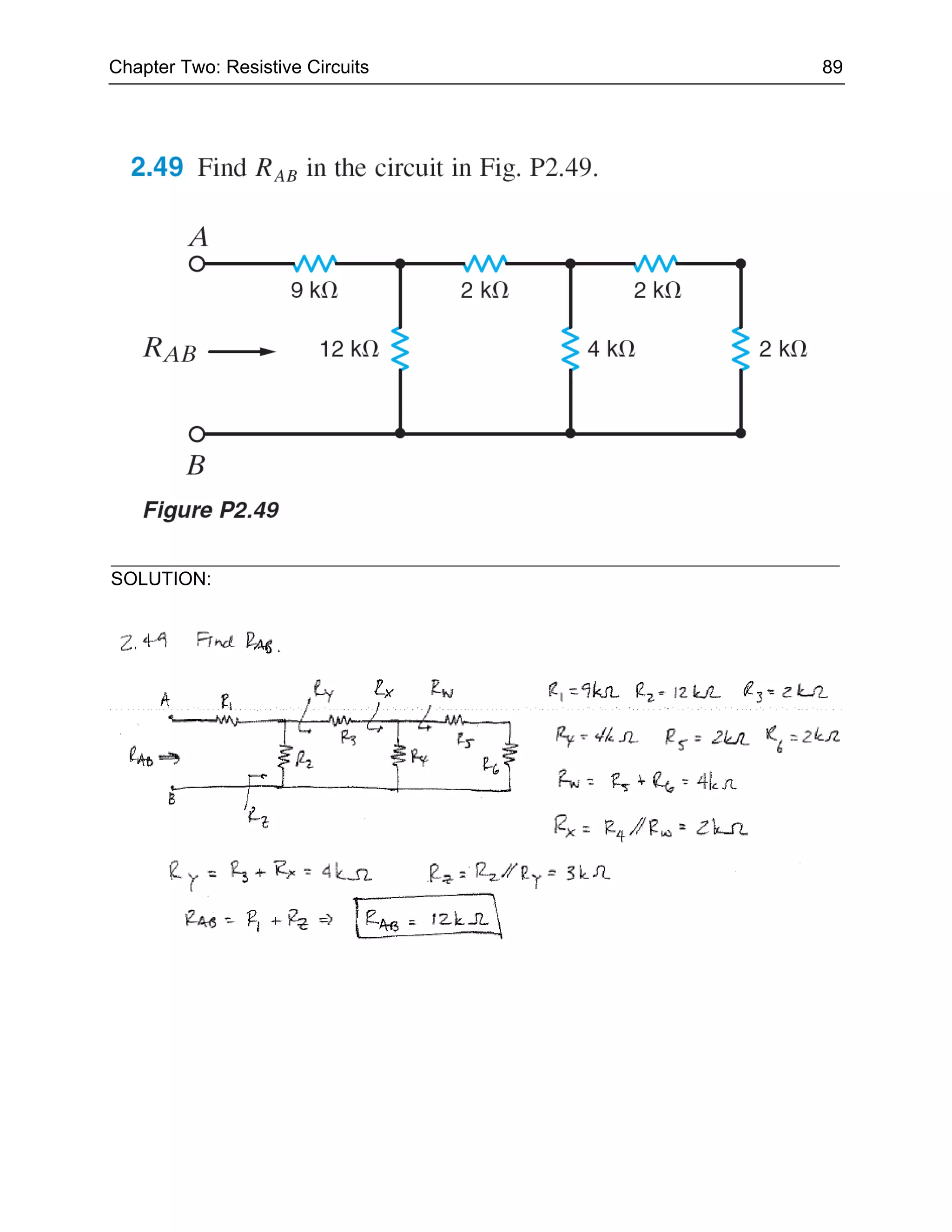

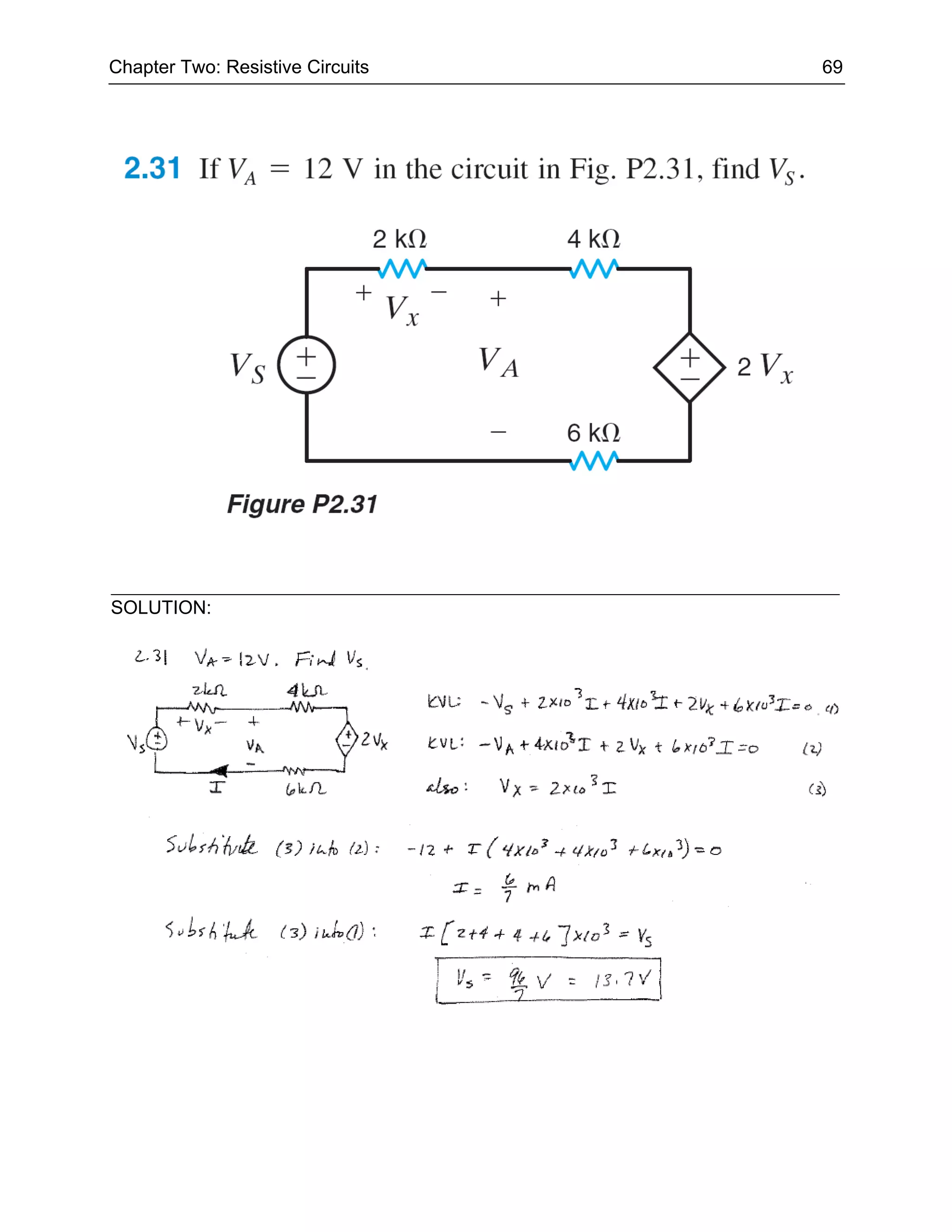

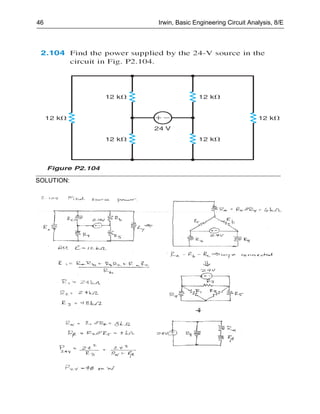

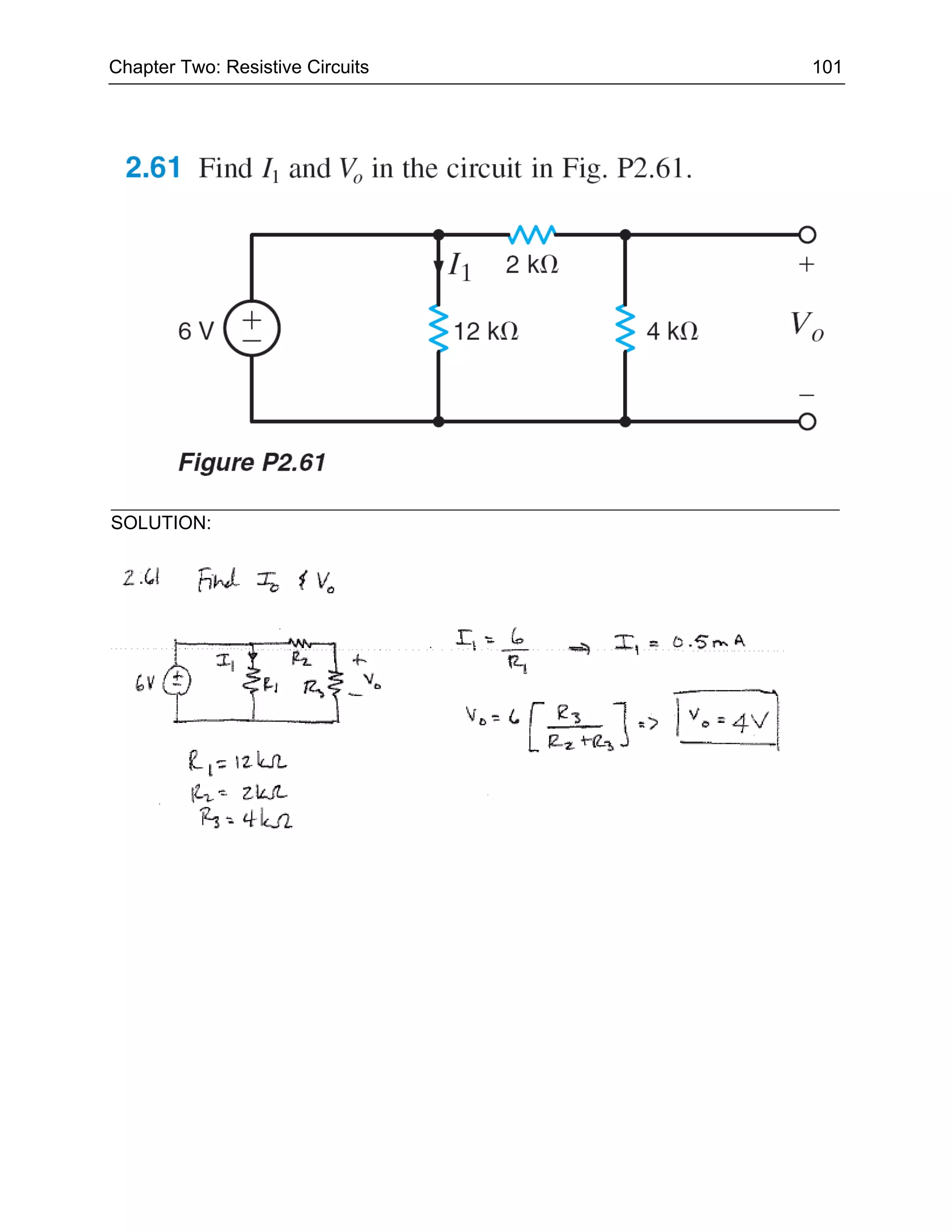

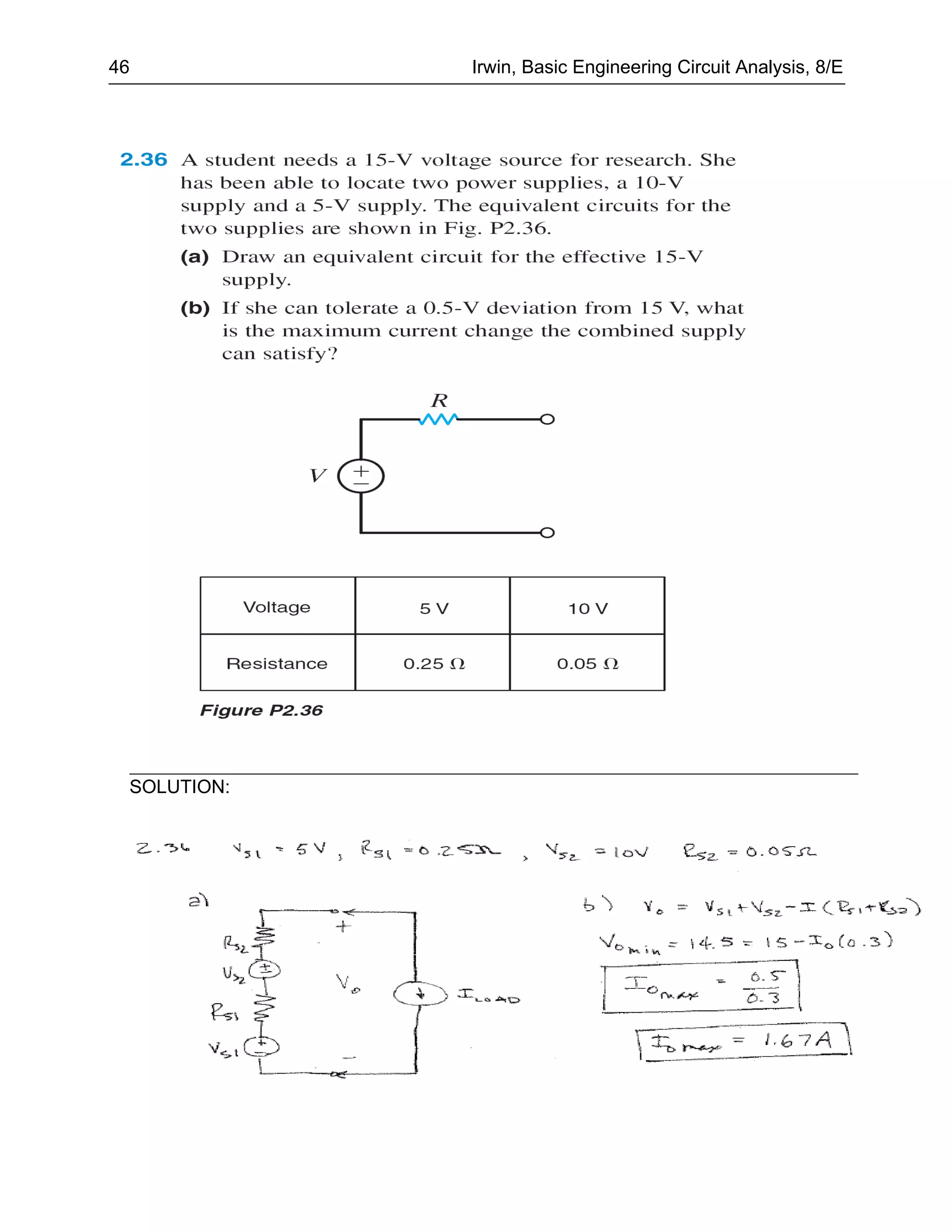

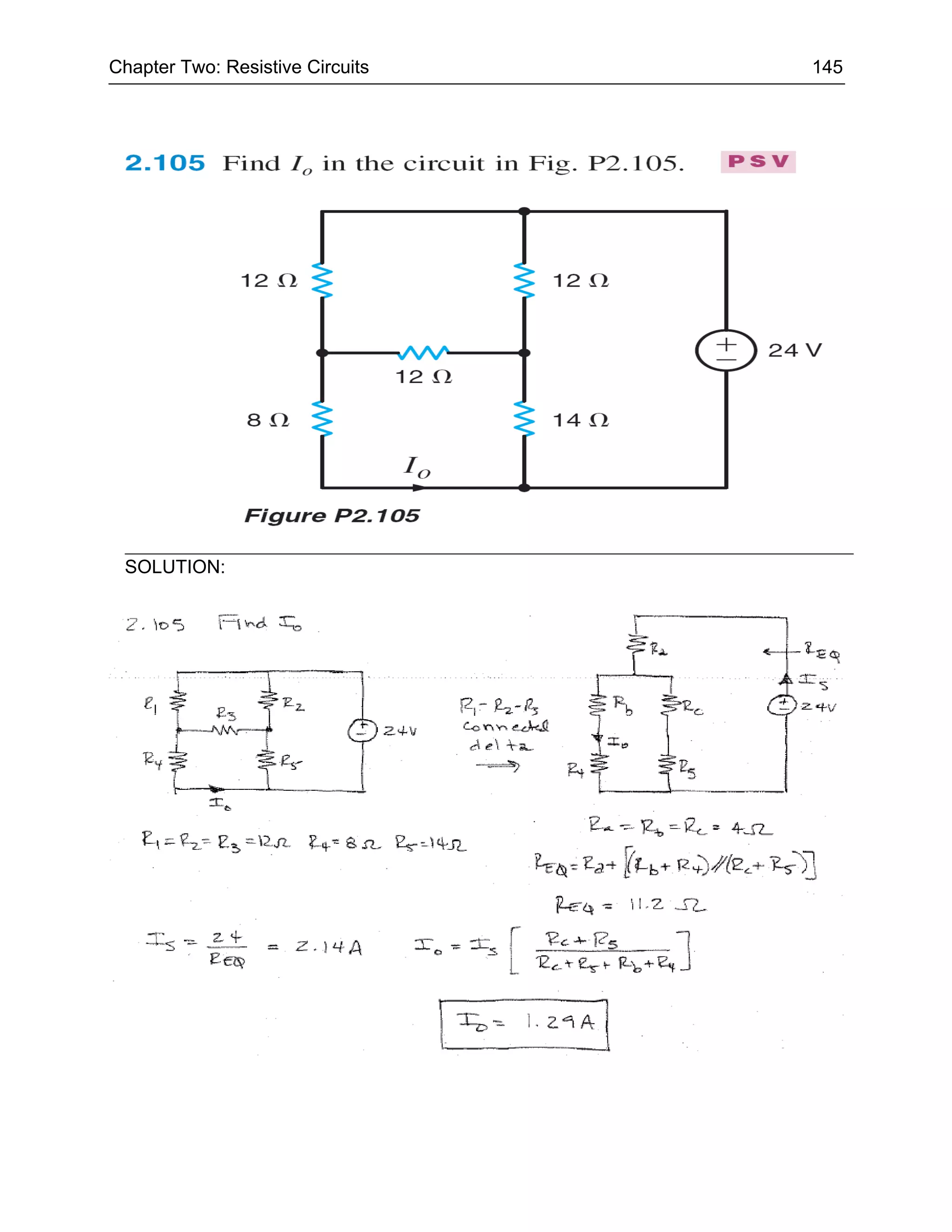

This document appears to be from Chapter 2 of the textbook "Basic Engineering Circuit Analysis" by Irwin. It discusses resistive circuits and provides solutions to example problems involving resistors. Each page contains a circuit diagram, the given information, and the calculated solution. This continues for over 150 pages, with the format and content remaining consistent throughout.

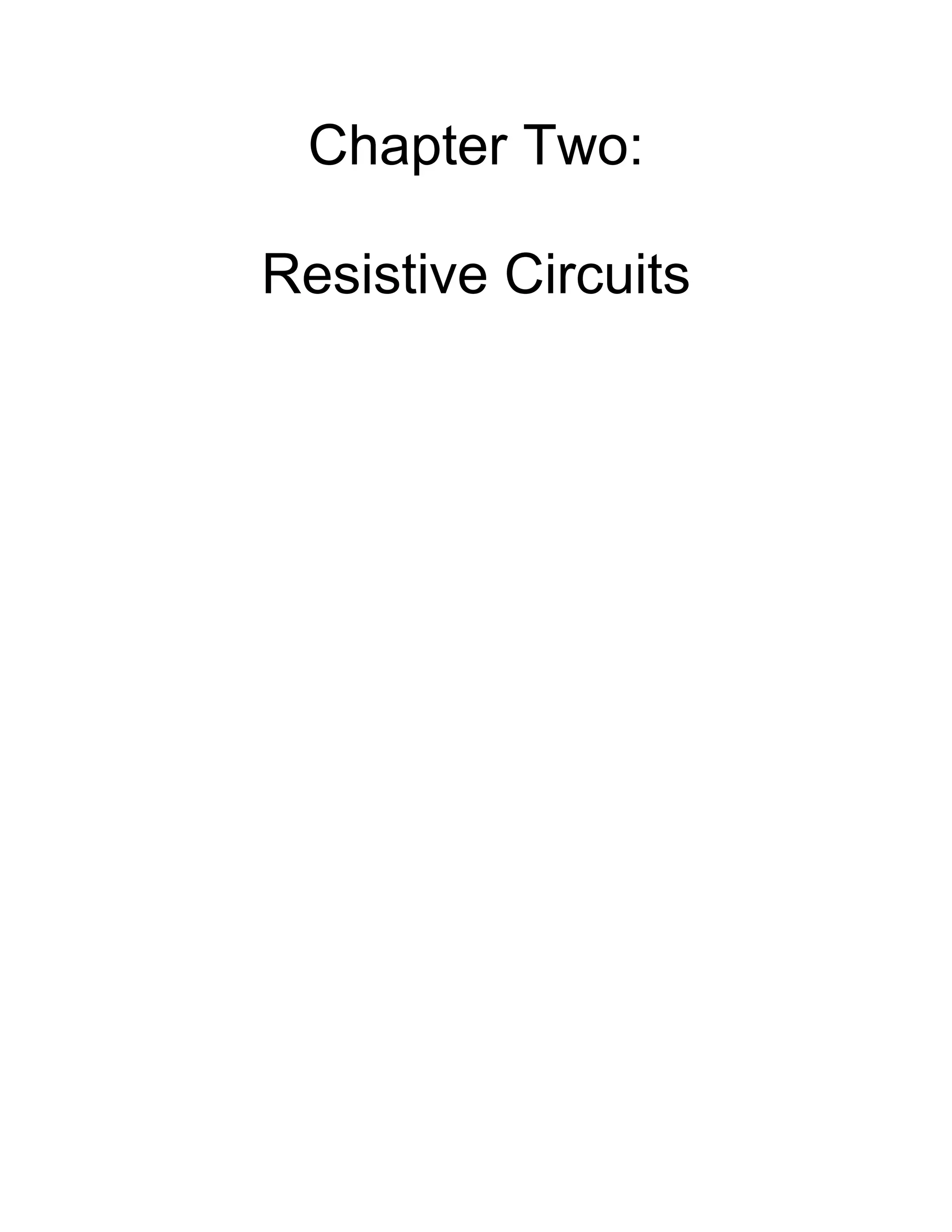

1. Chapter Two:
Resistive Circuits

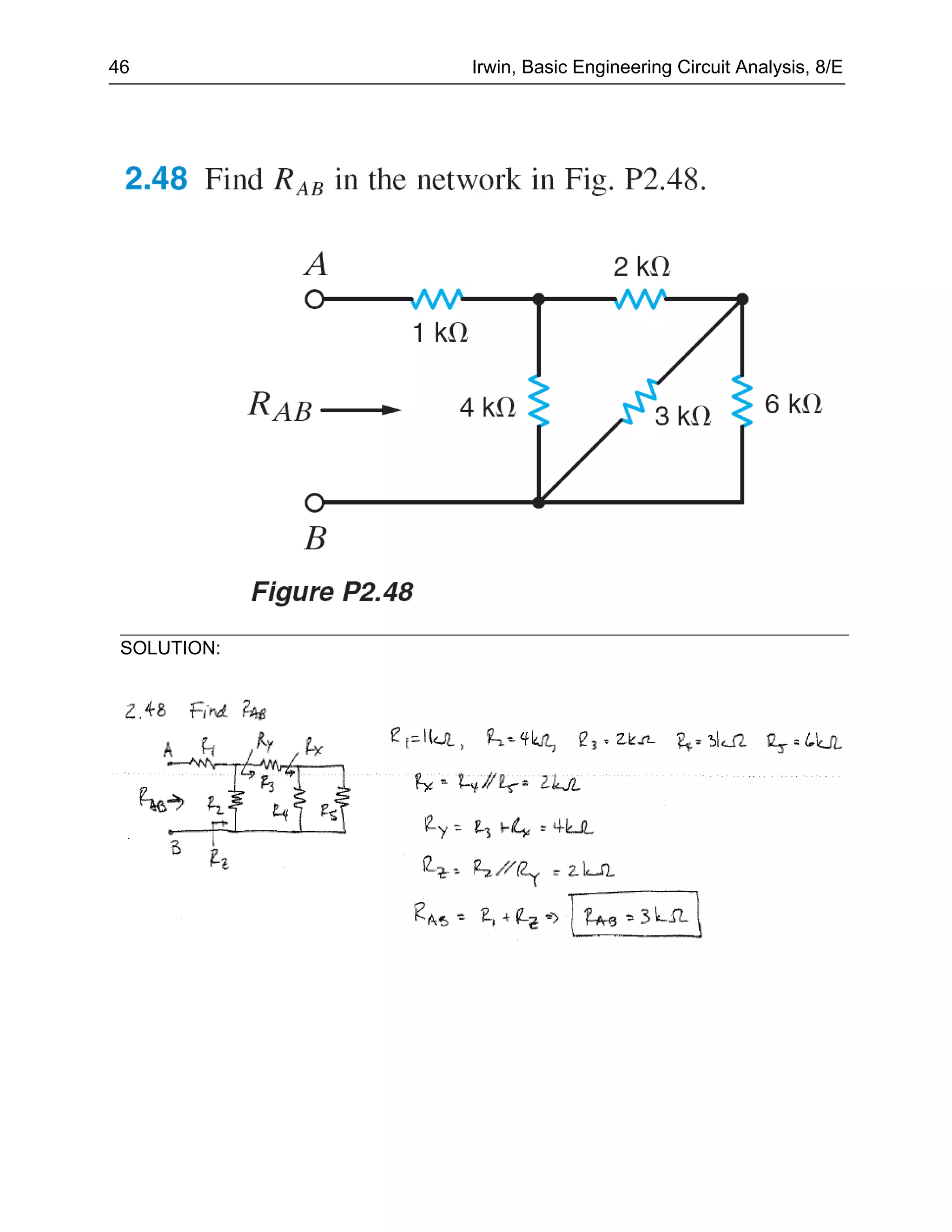

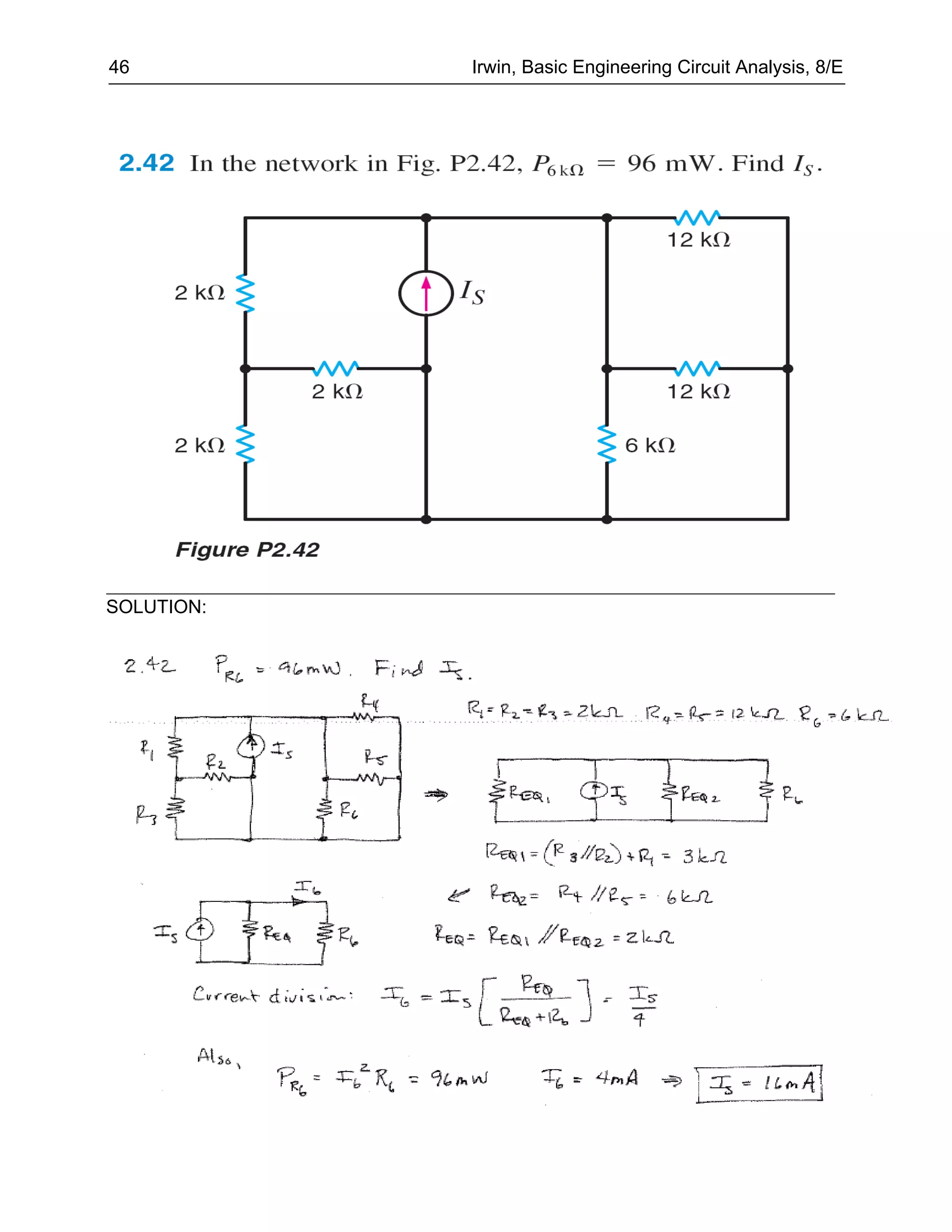

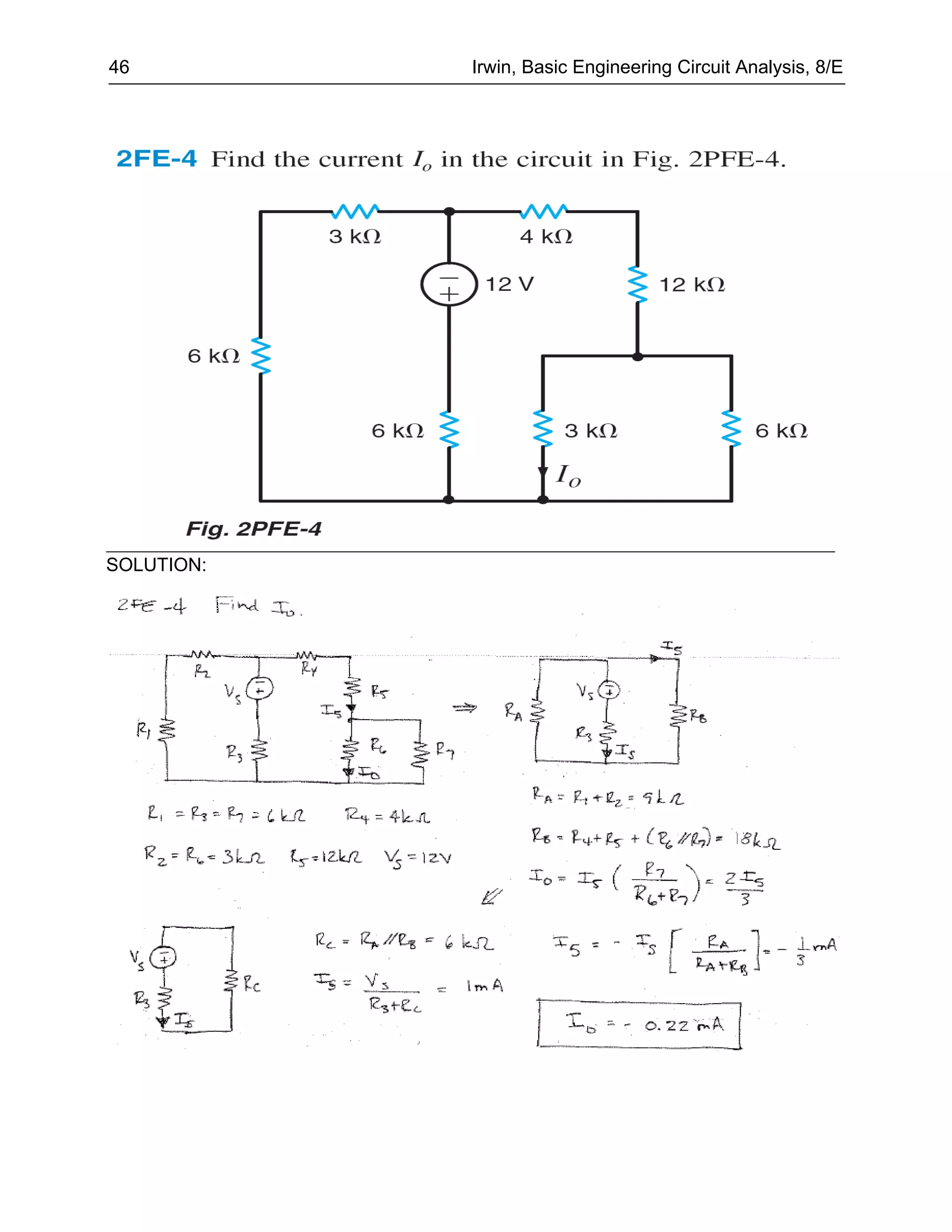

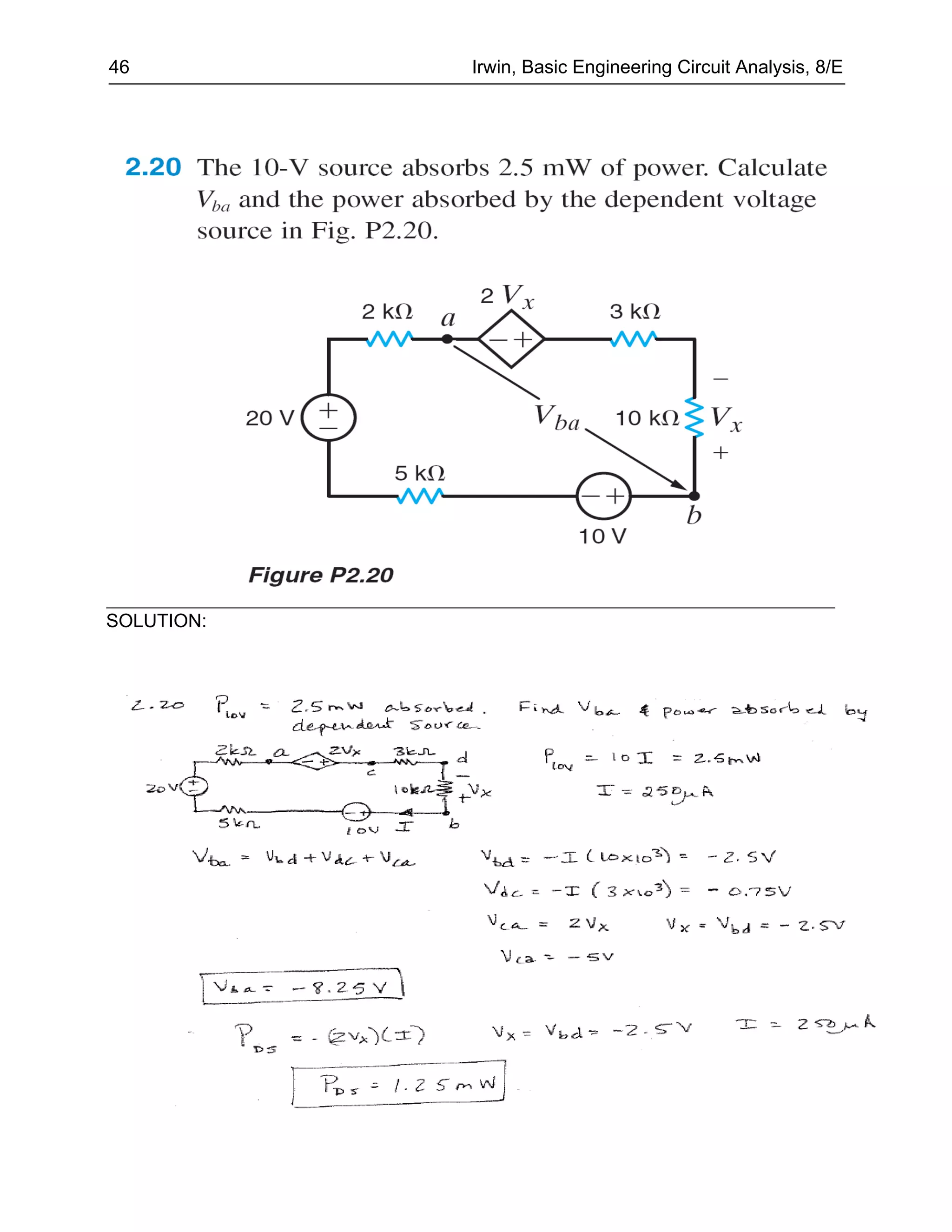

2. 46 Irwin, Basic Engineering Circuit Analysis, 8/E

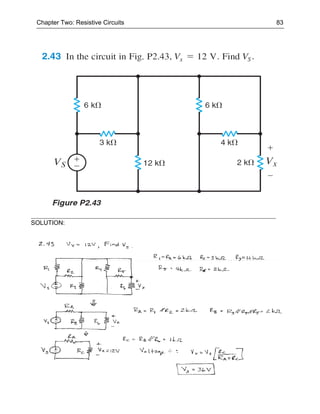

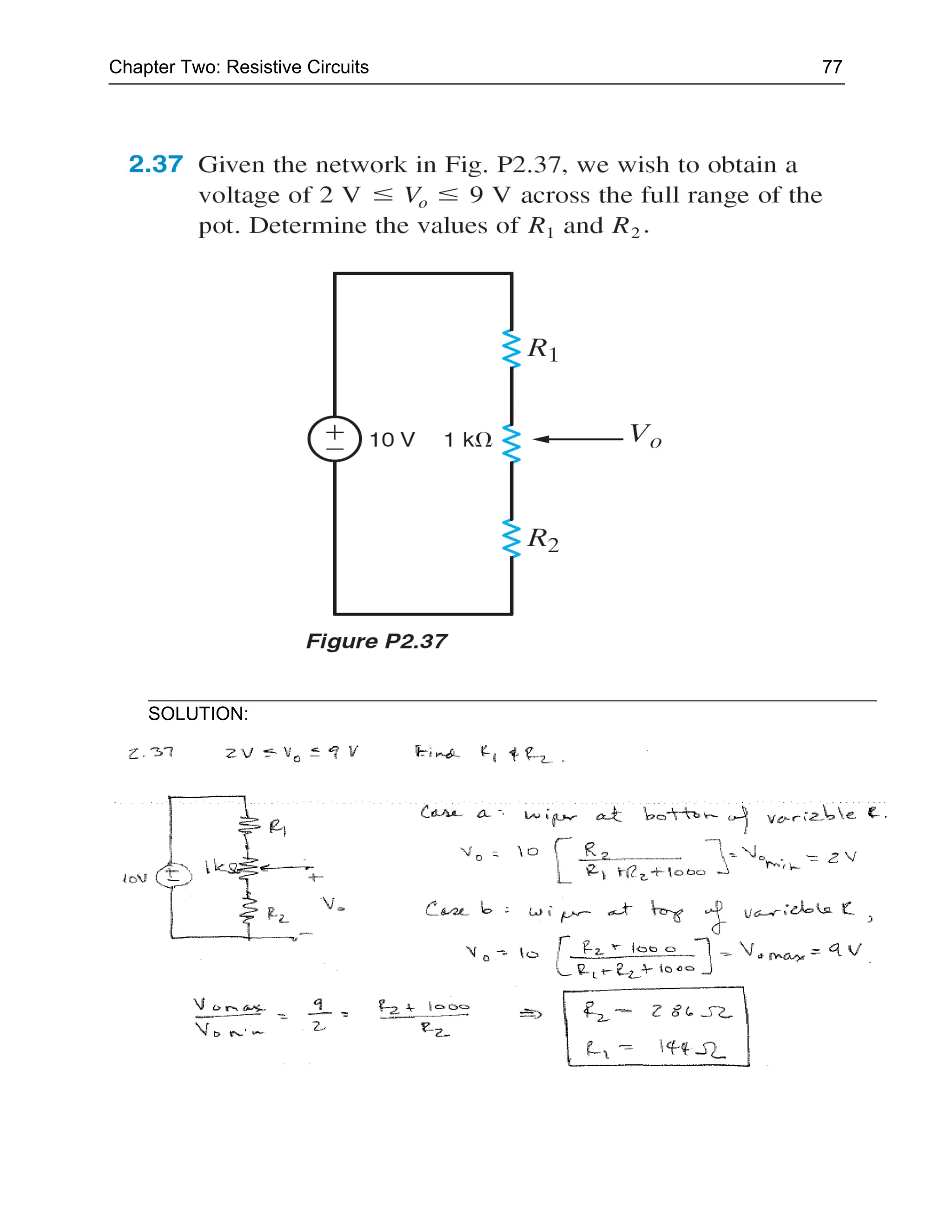

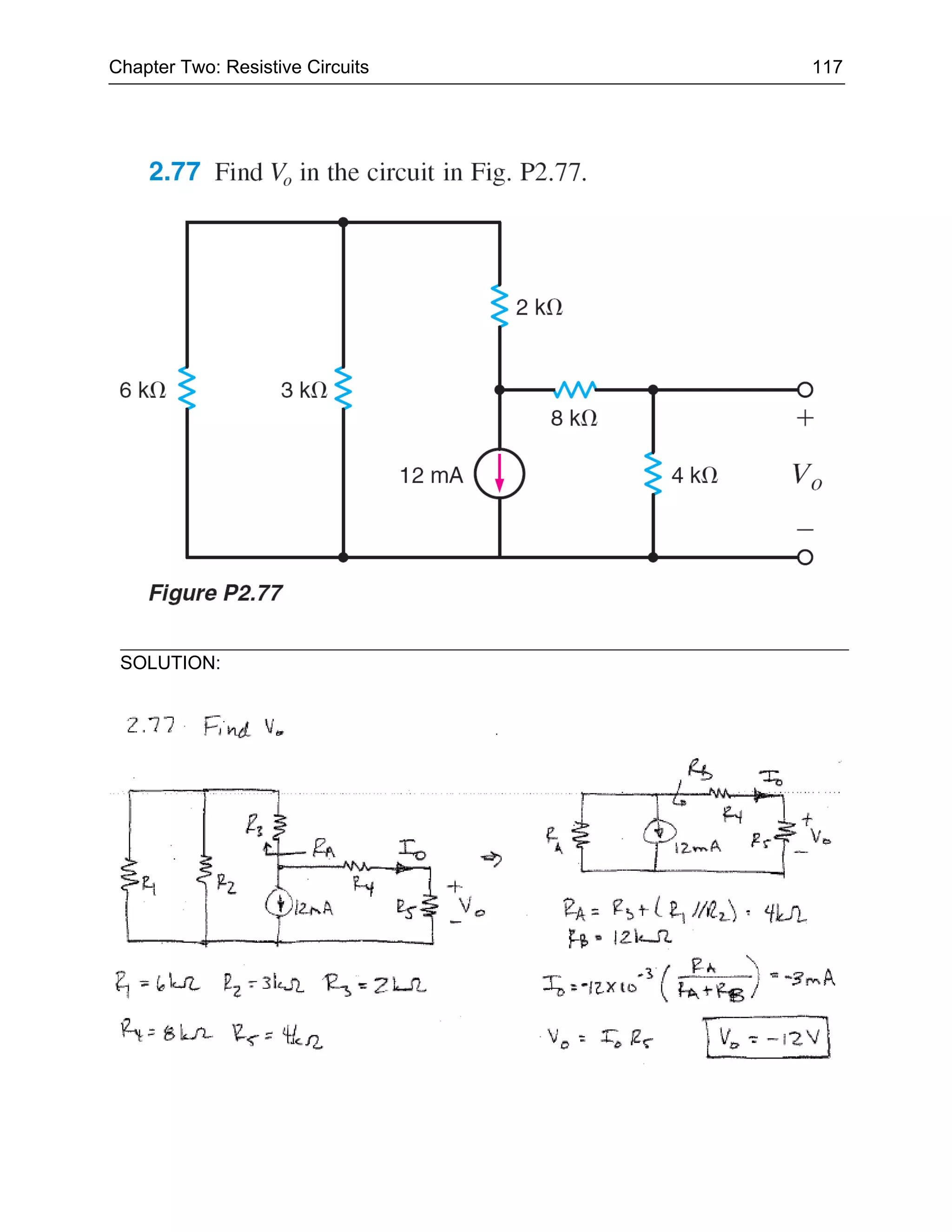

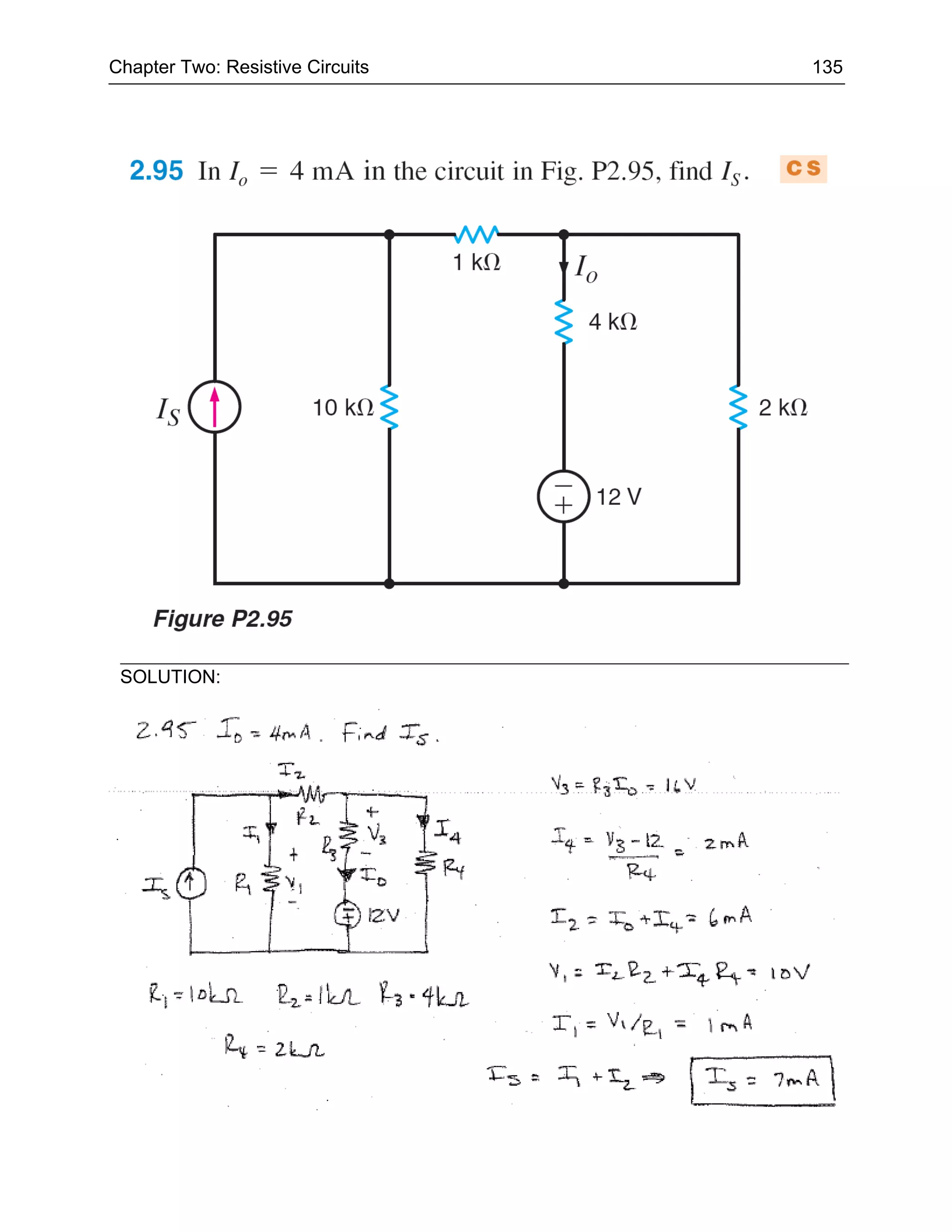

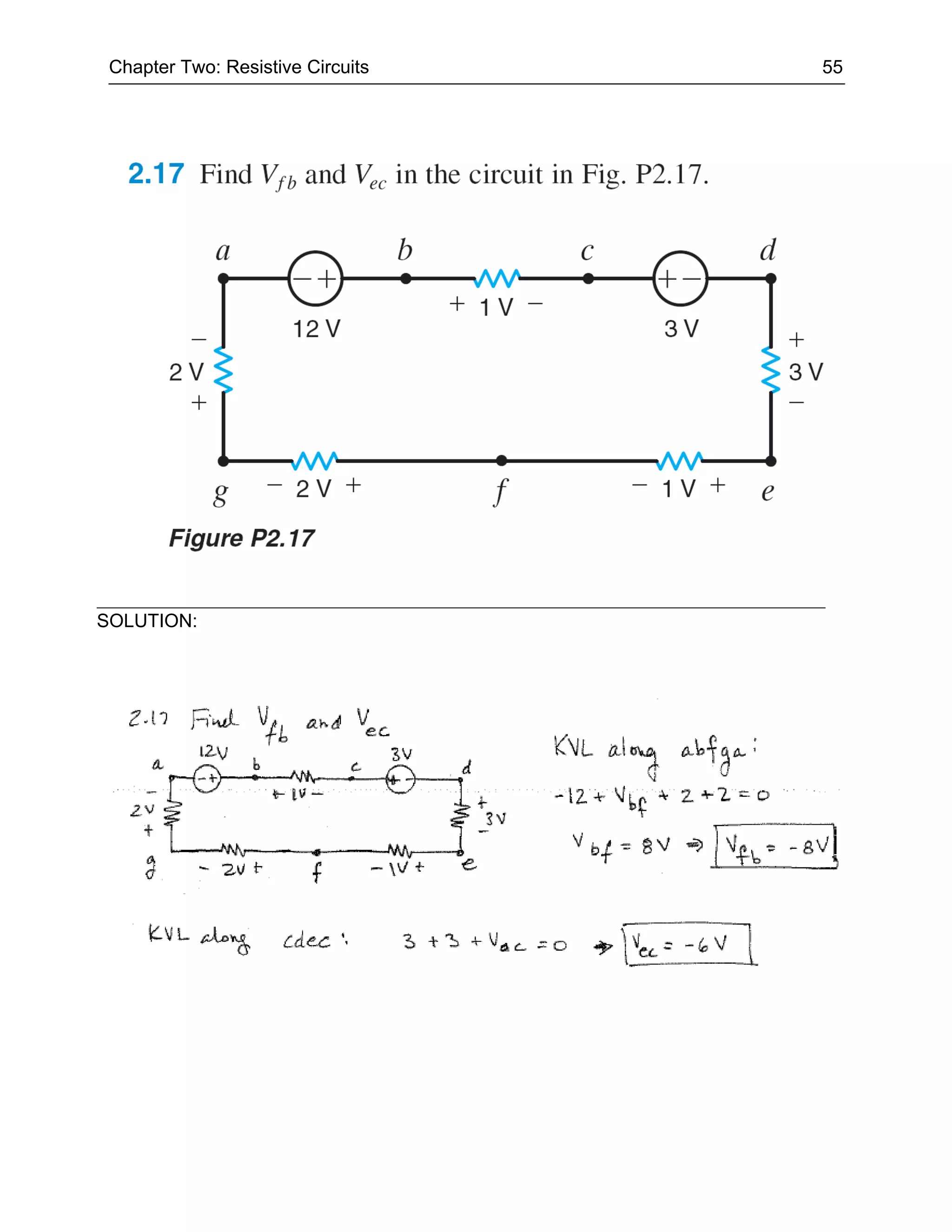

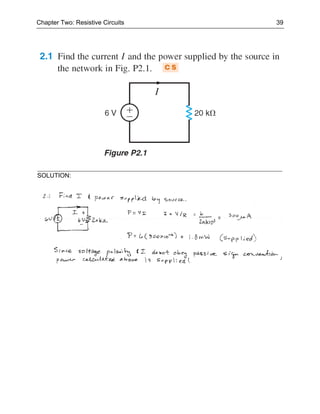

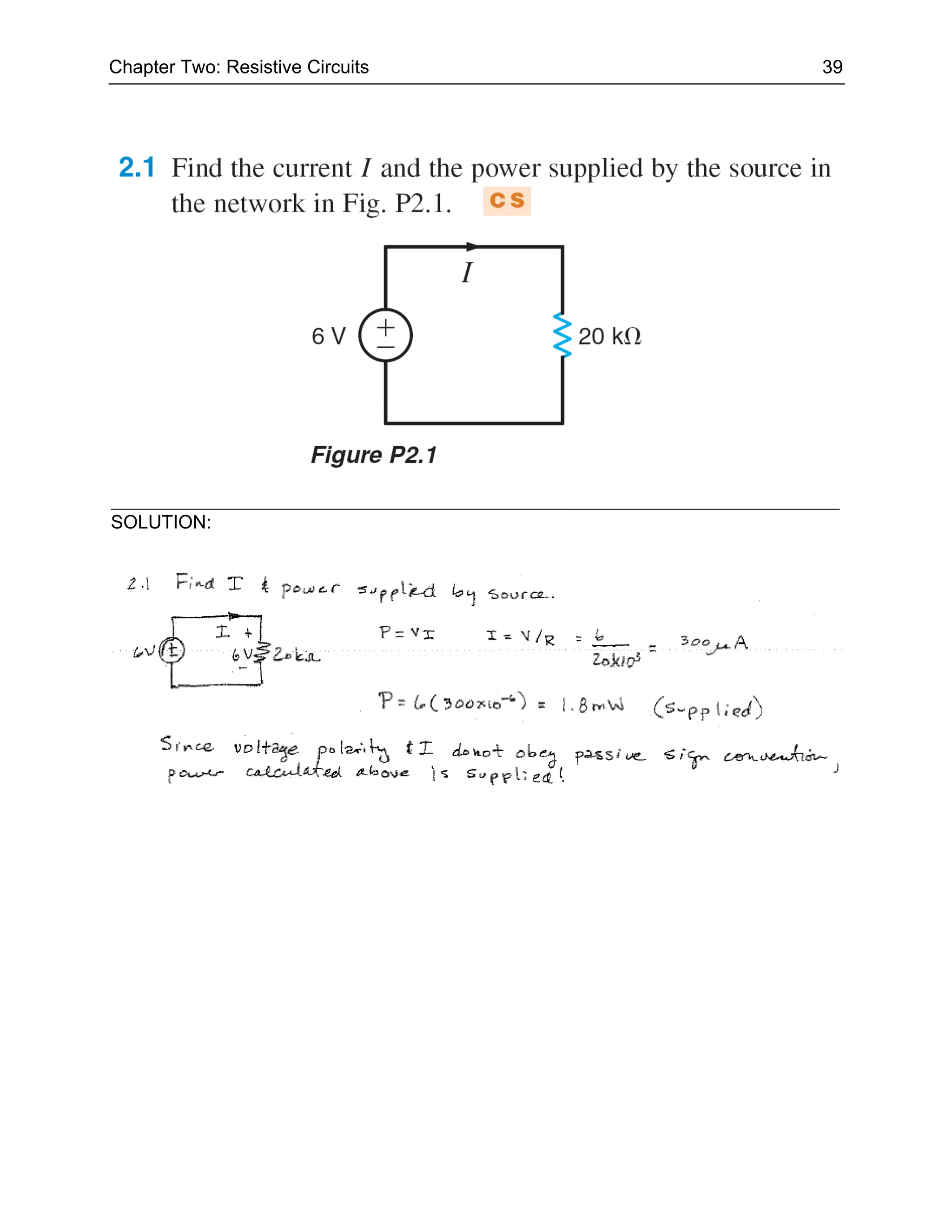

3. Chapter Two: Resistive Circuits 39

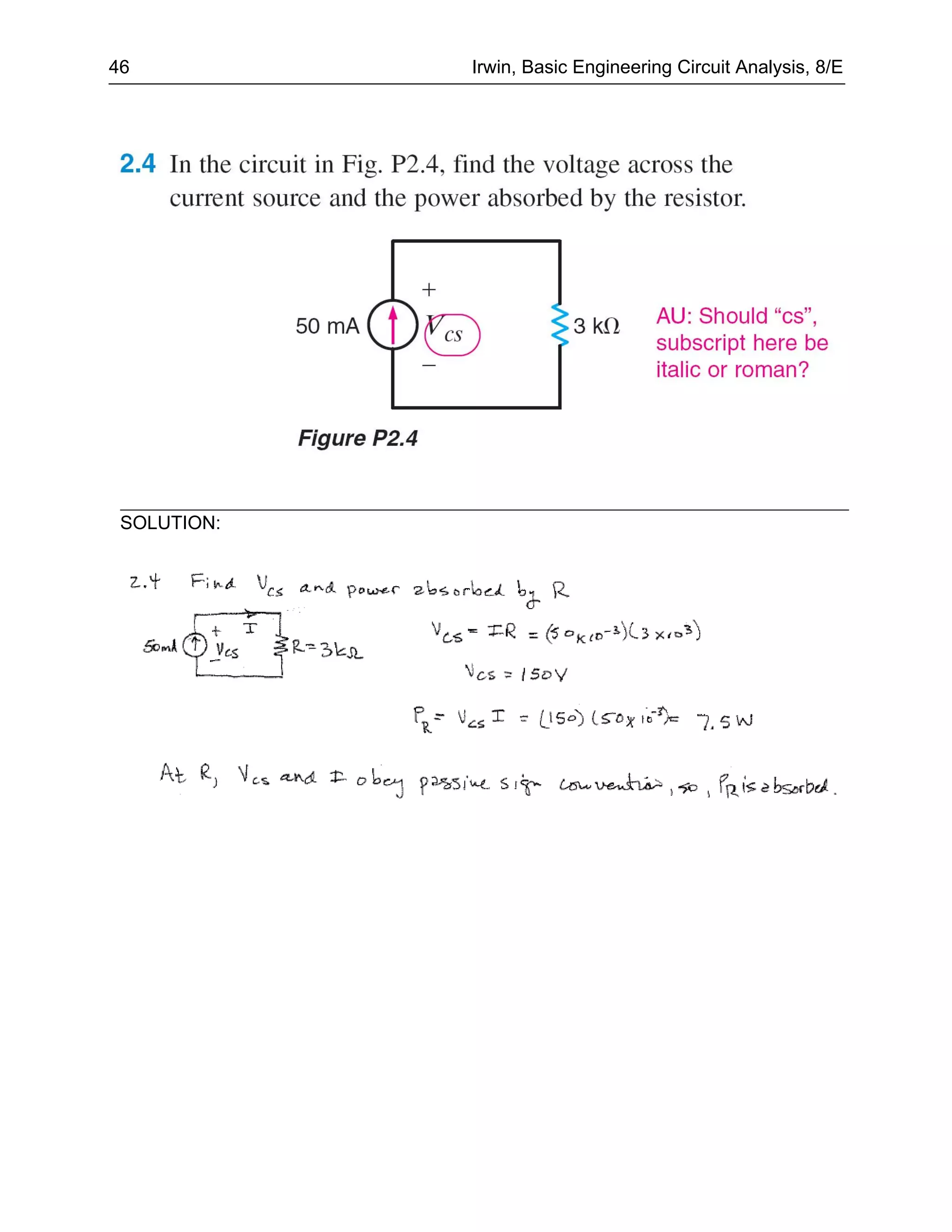

SOLUTION:

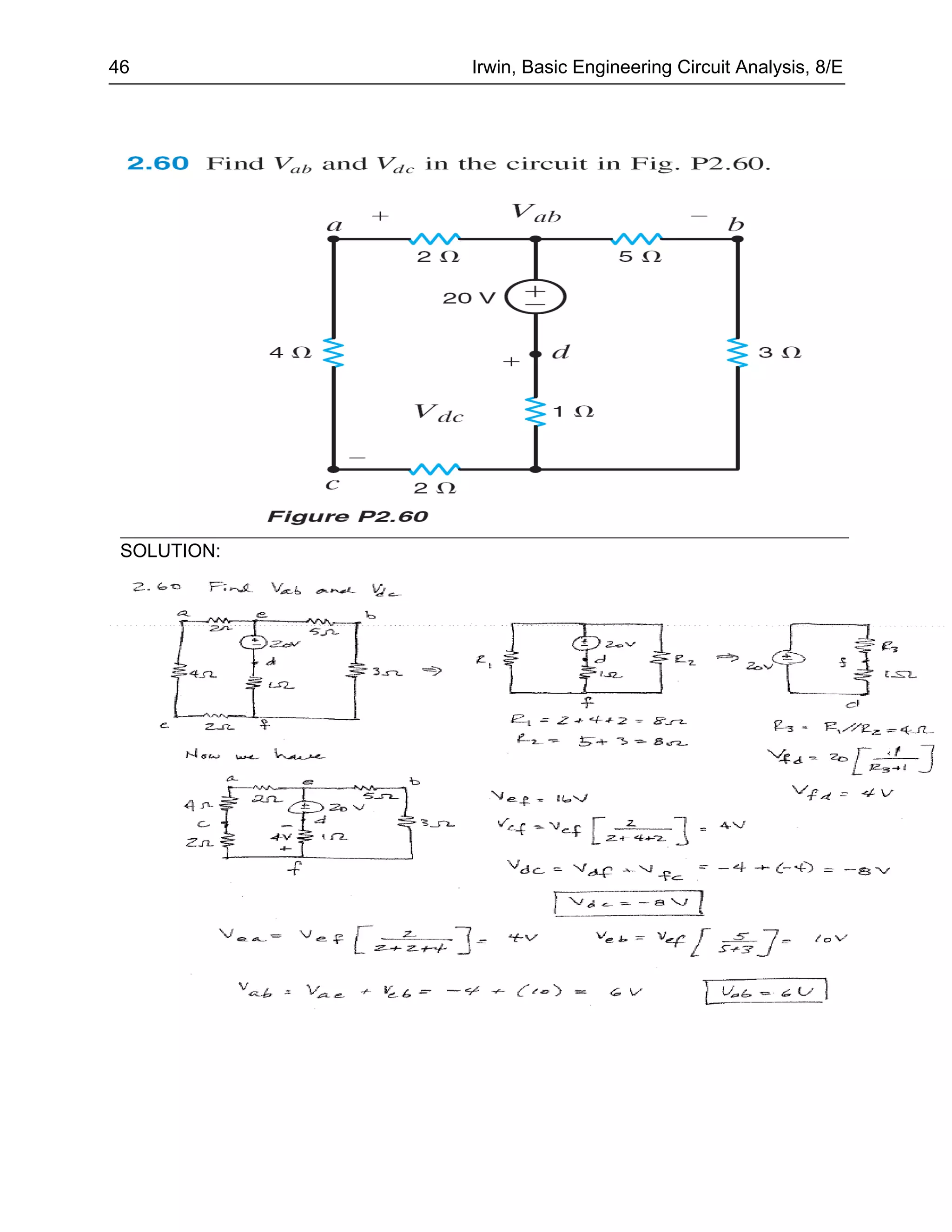

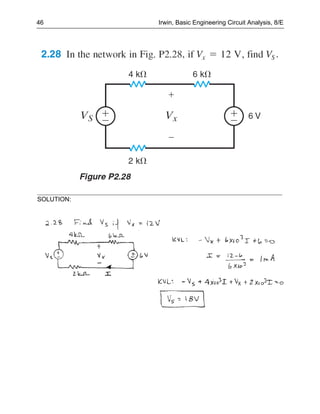

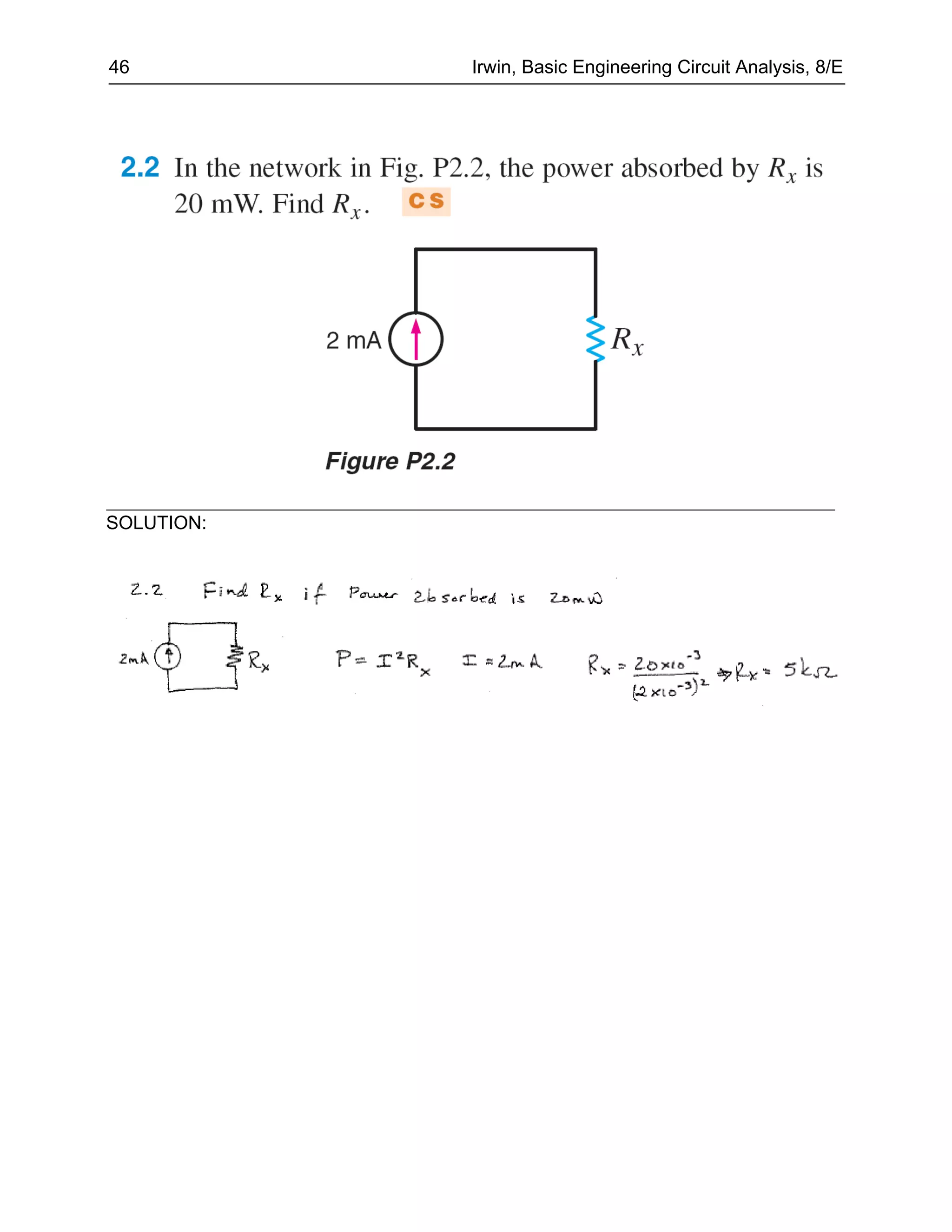

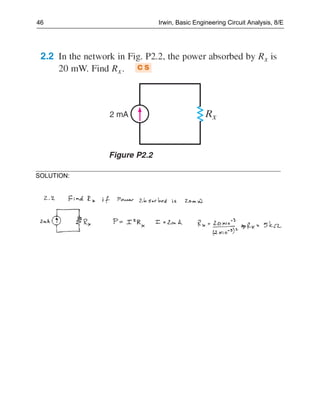

4. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

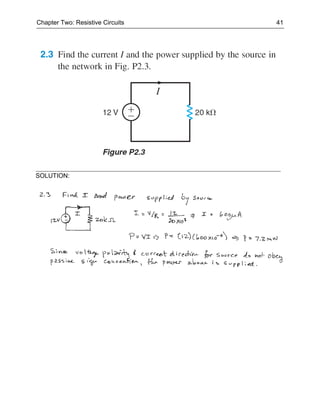

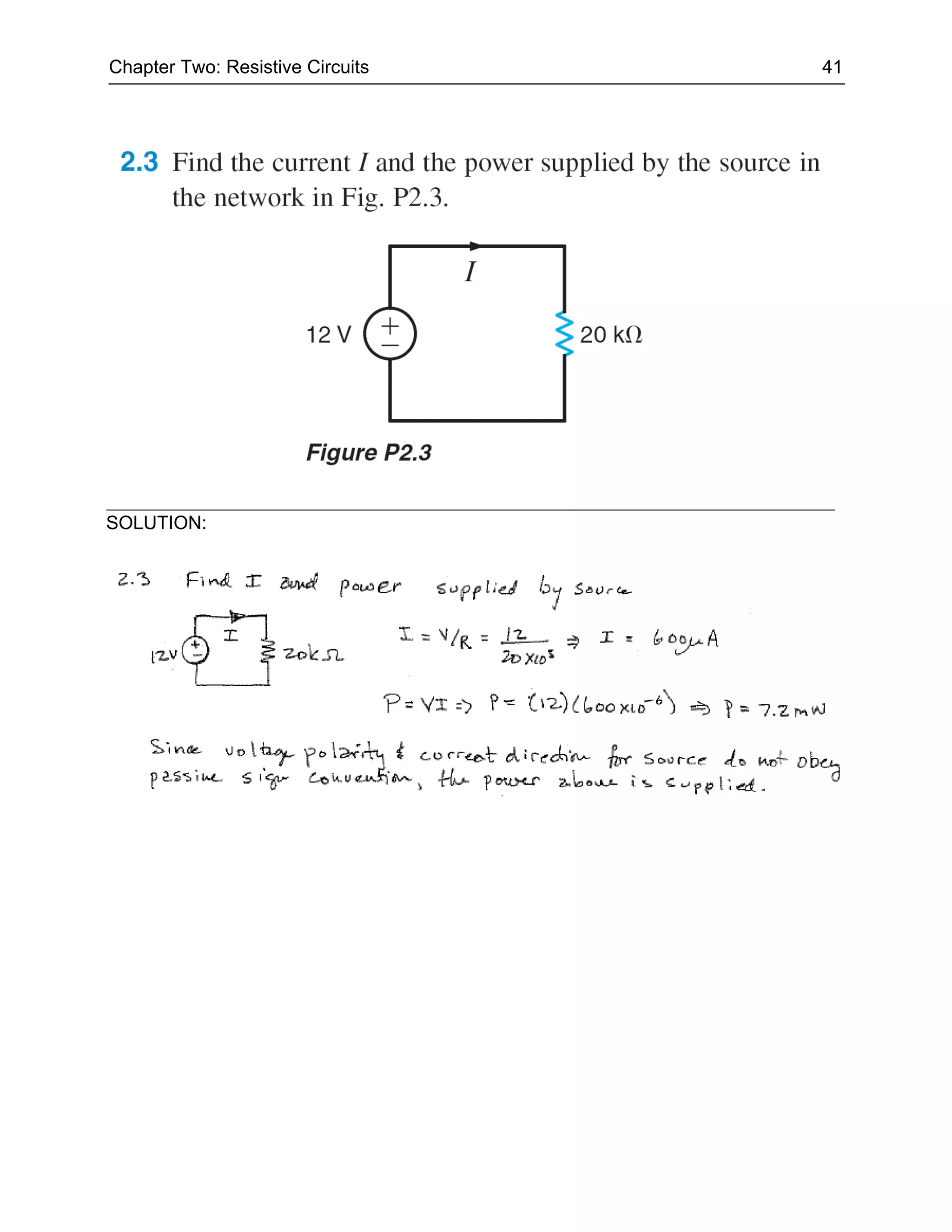

5. Chapter Two: Resistive Circuits 41
SOLUTION:

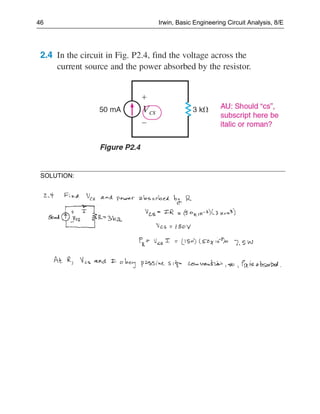

6. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

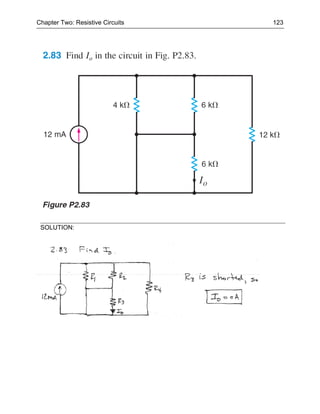

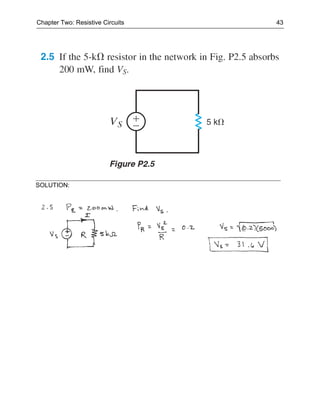

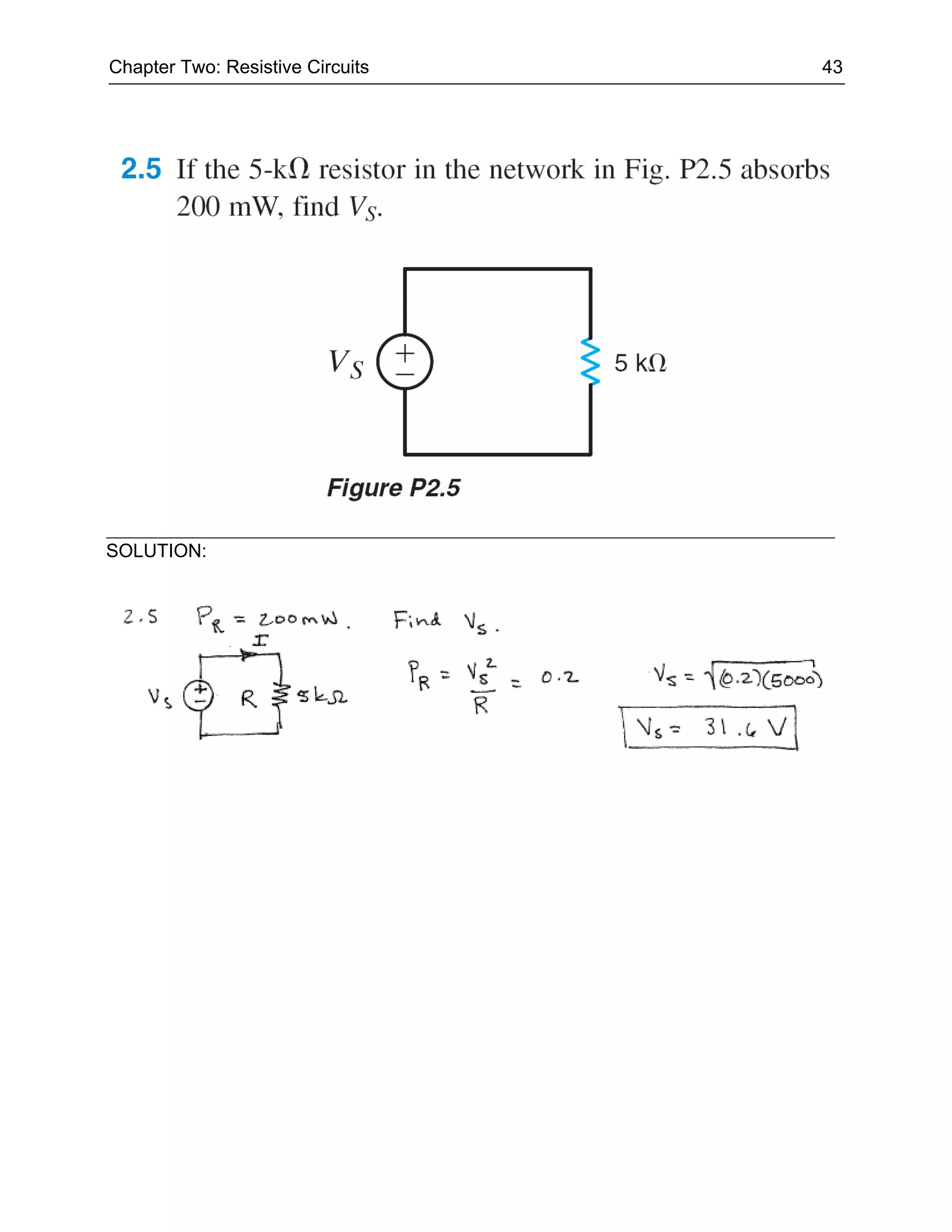

7. Chapter Two: Resistive Circuits 43
SOLUTION:

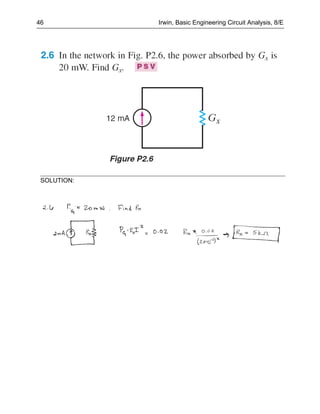

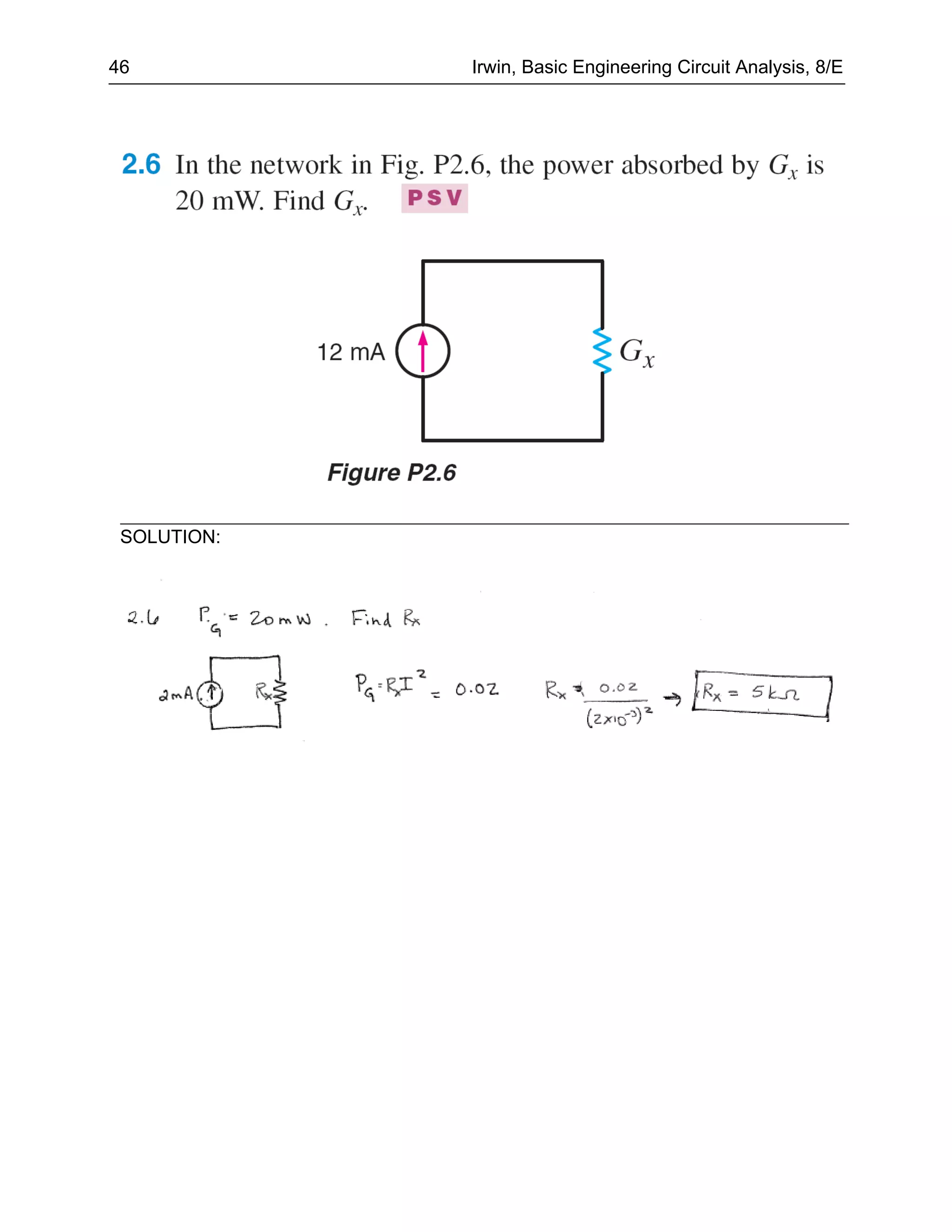

8. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

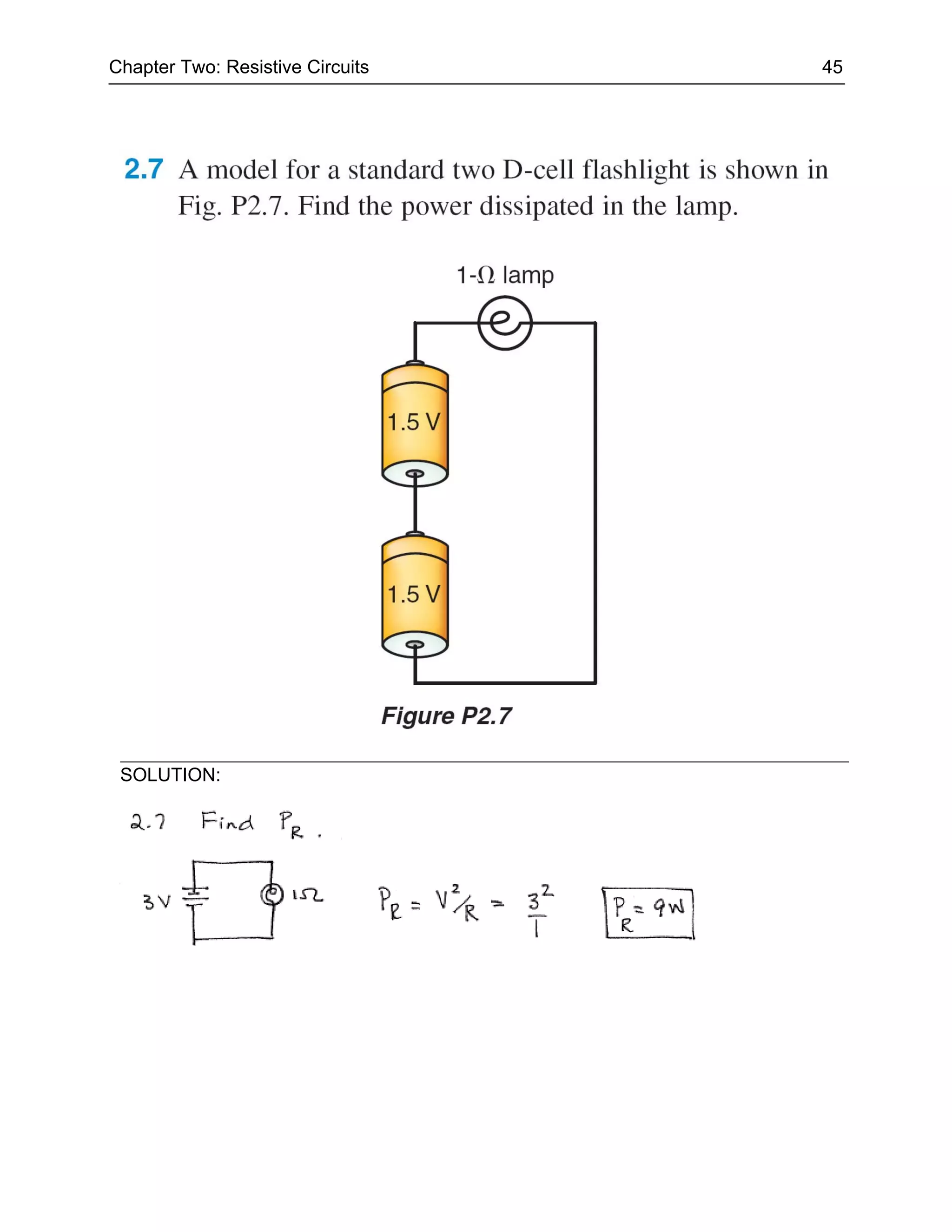

9. Chapter Two: Resistive Circuits 45
SOLUTION:

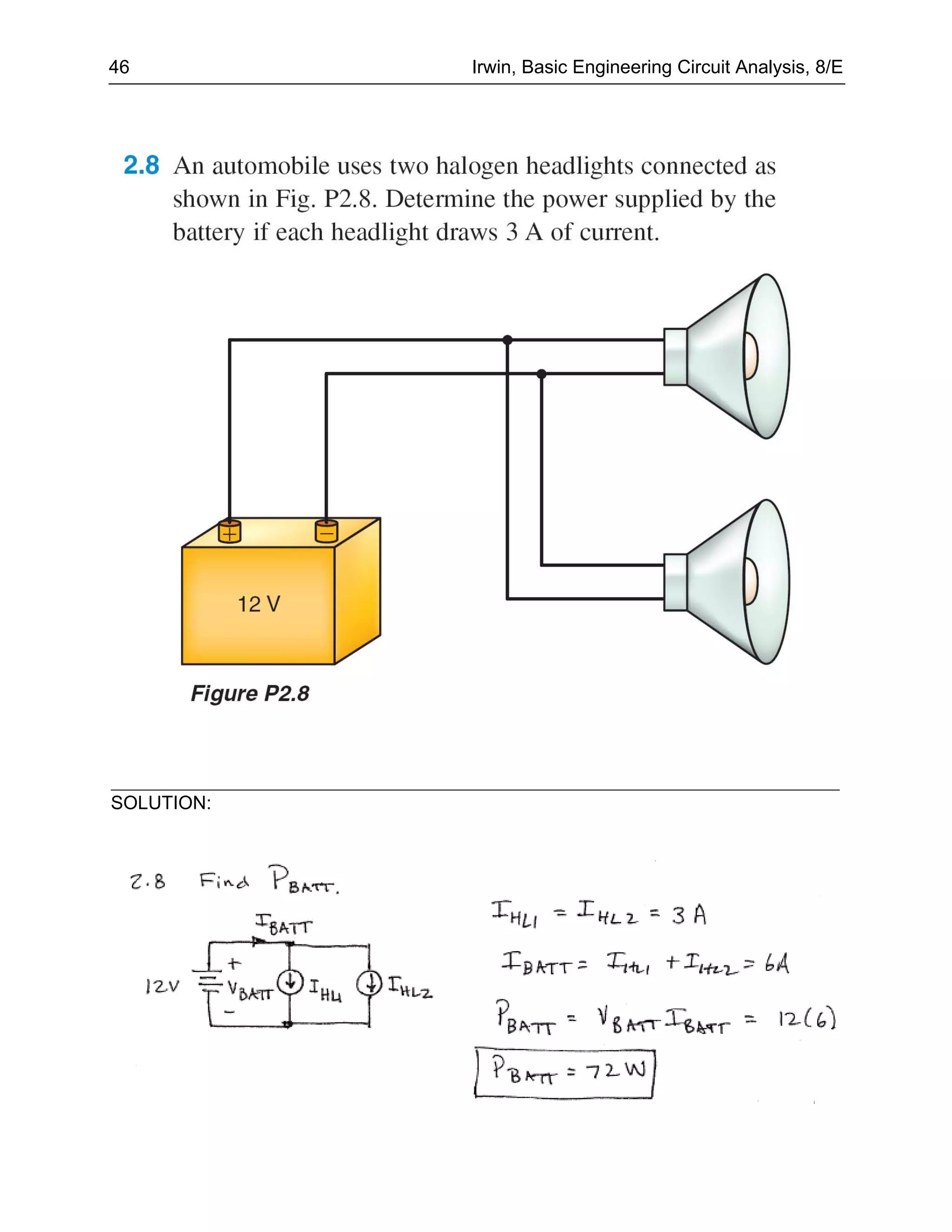

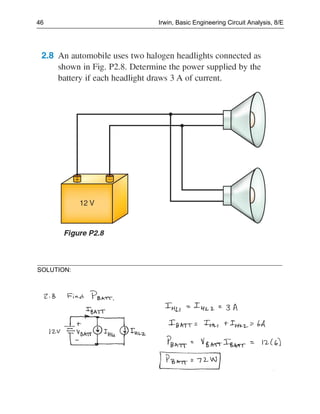

10. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

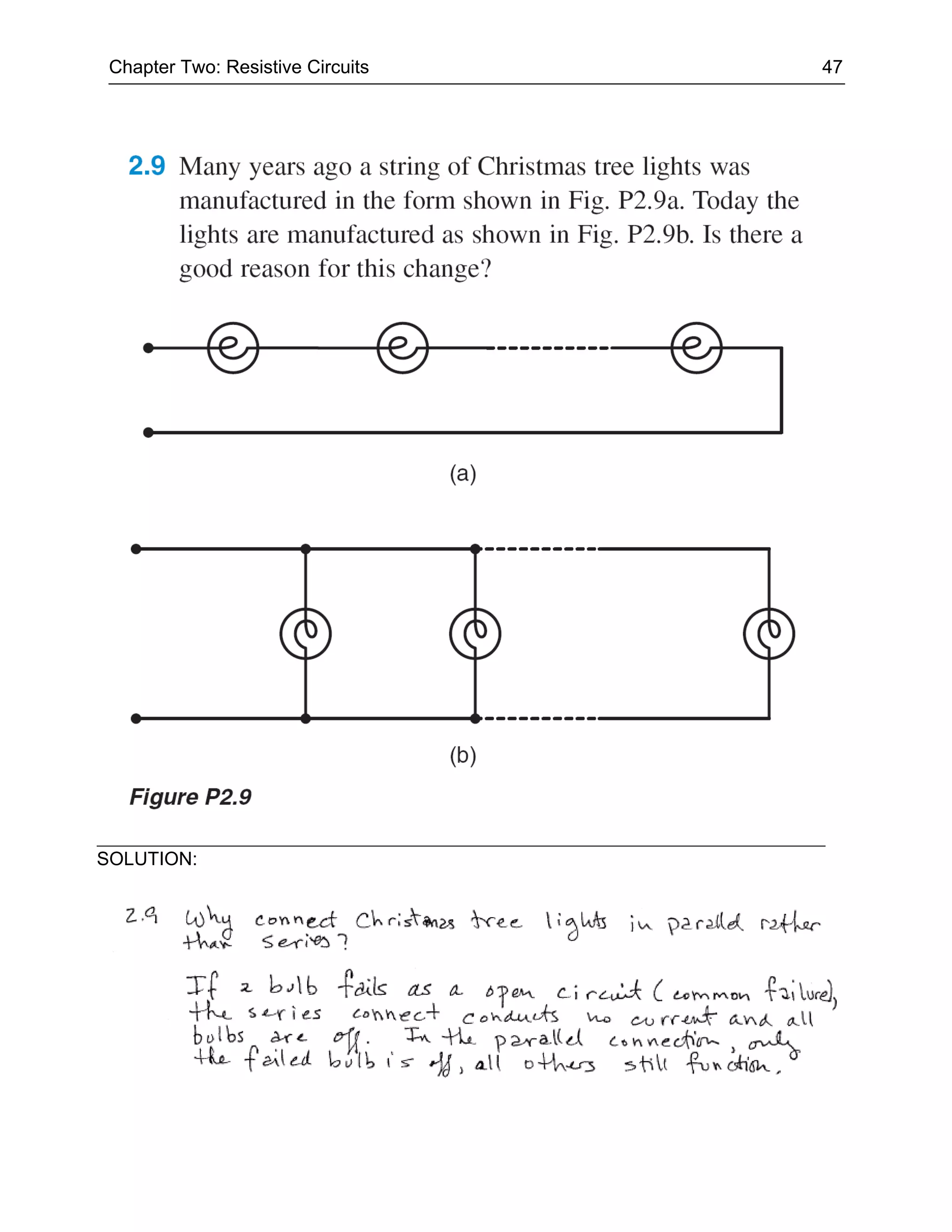

11. Chapter Two: Resistive Circuits 47
SOLUTION:

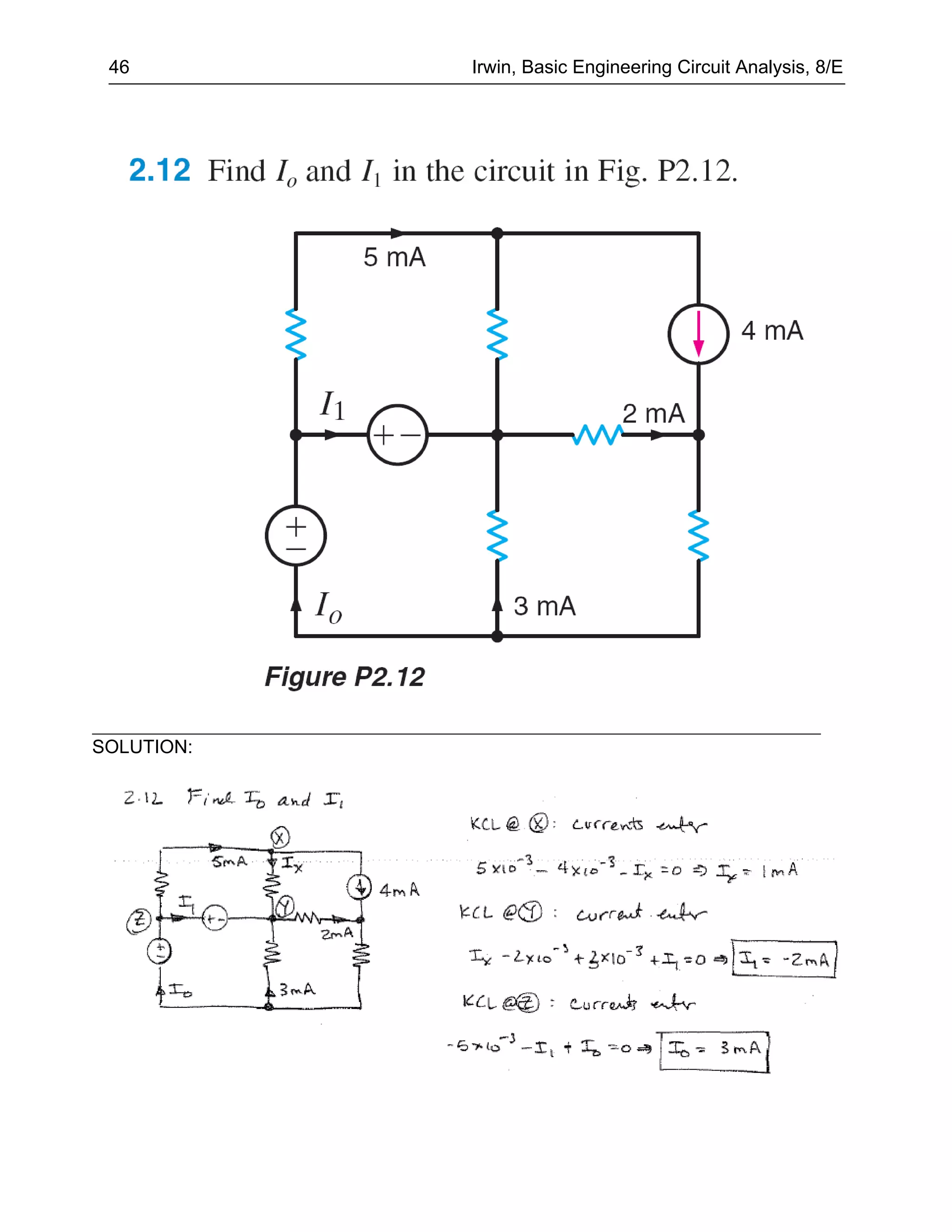

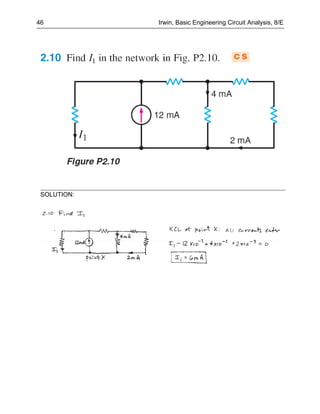

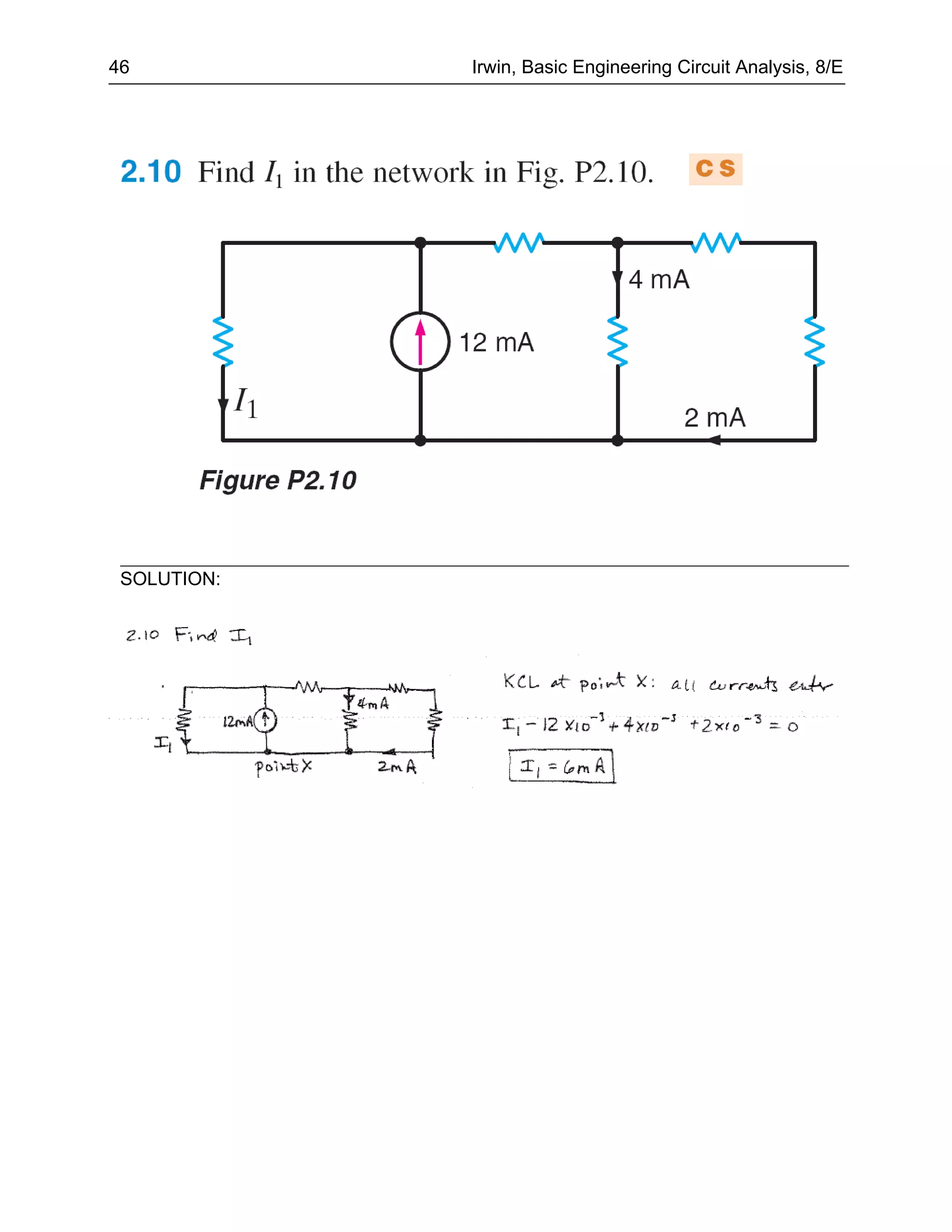

12. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

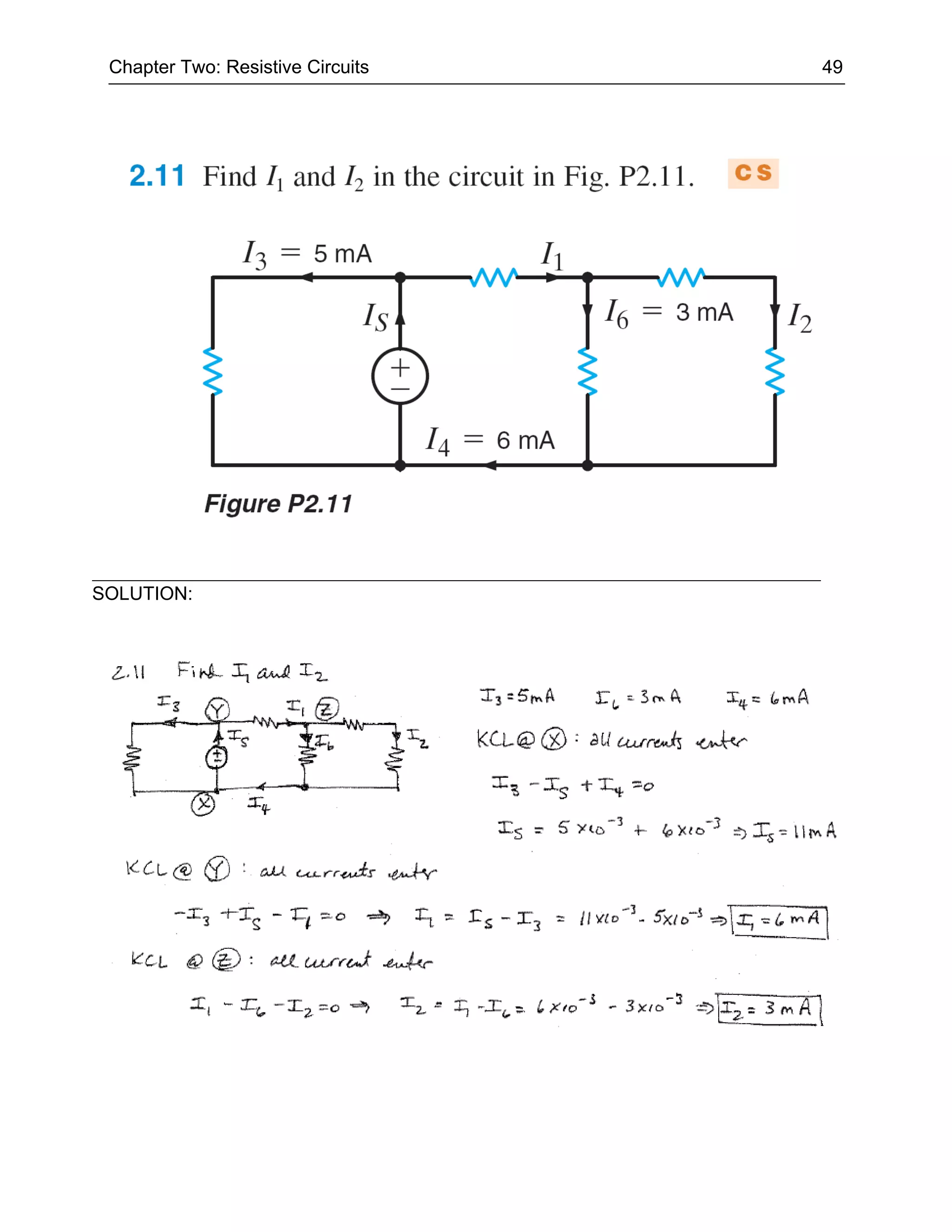

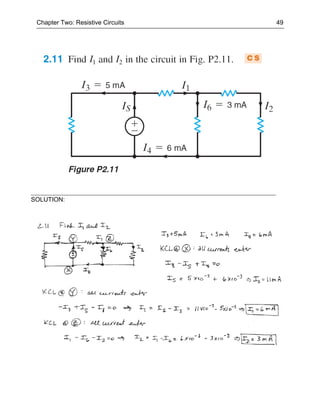

13. Chapter Two: Resistive Circuits 49
SOLUTION:

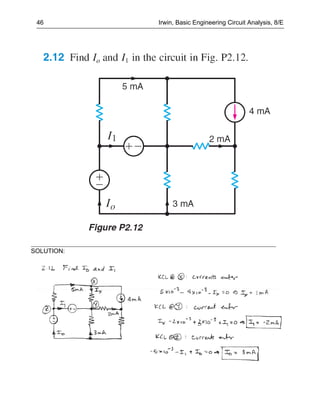

14. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

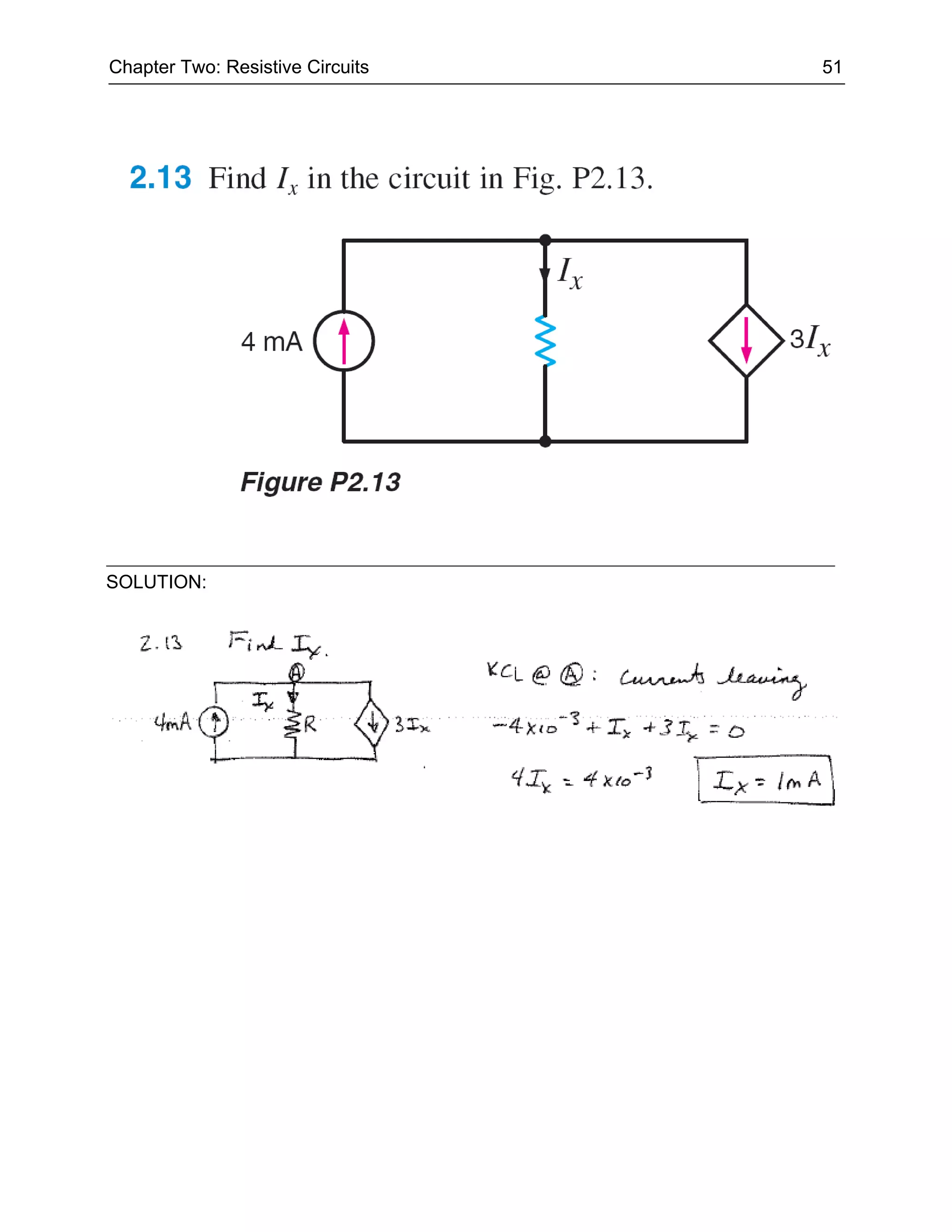

15. Chapter Two: Resistive Circuits 51
SOLUTION:

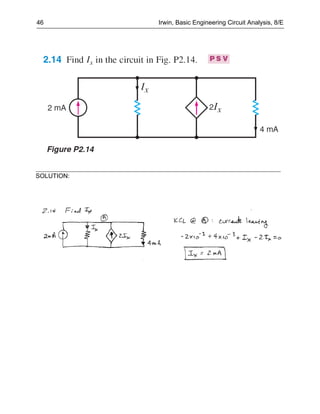

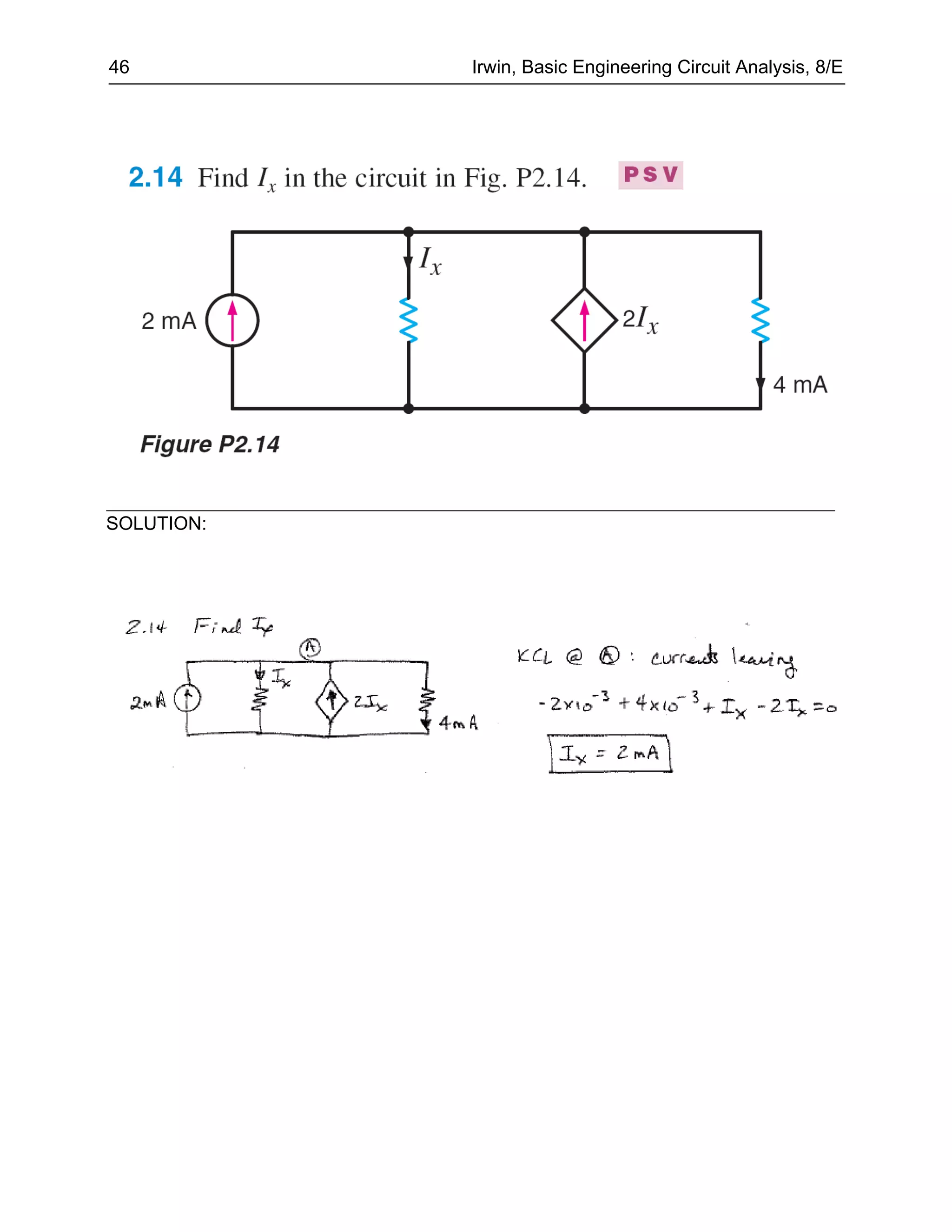

16. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

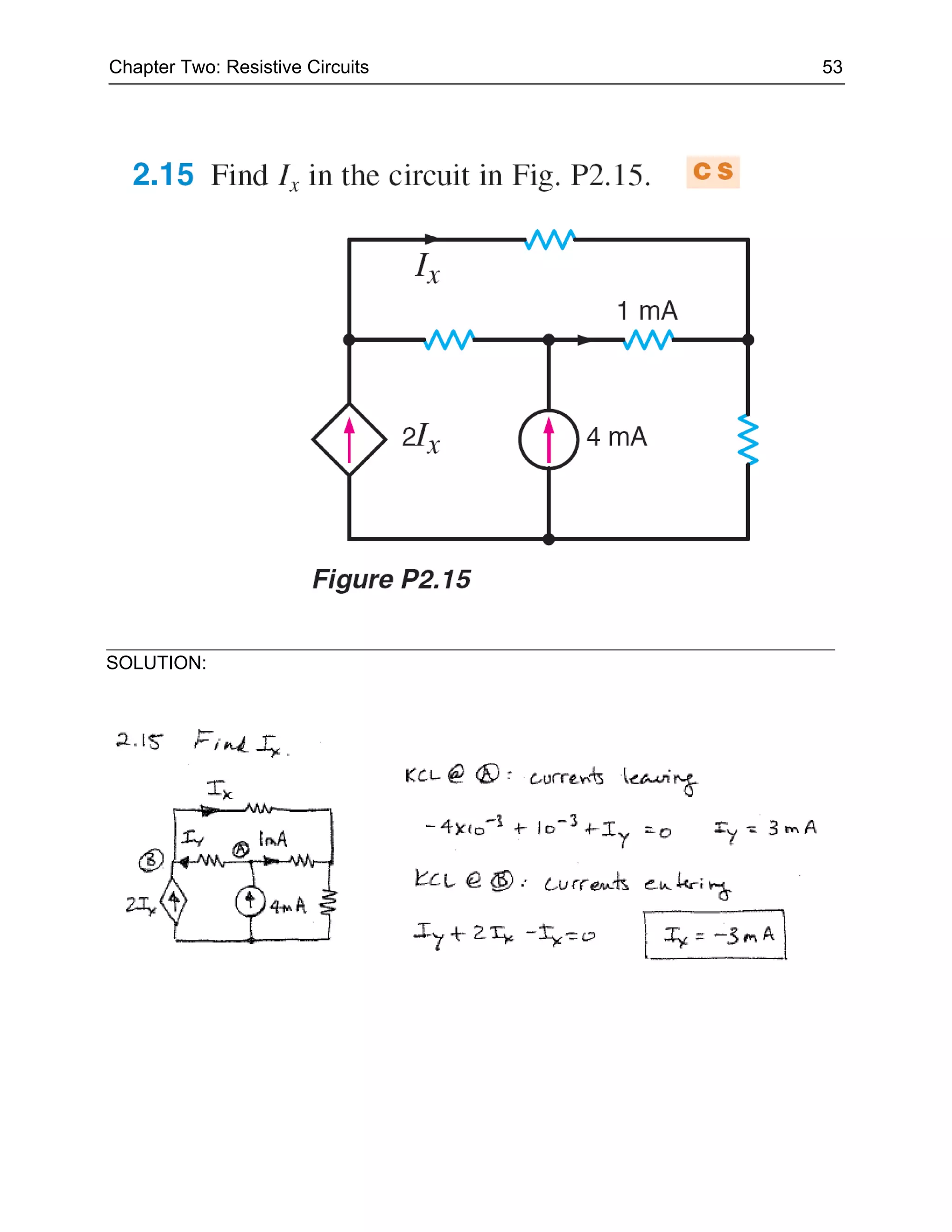

17. Chapter Two: Resistive Circuits 53
SOLUTION:

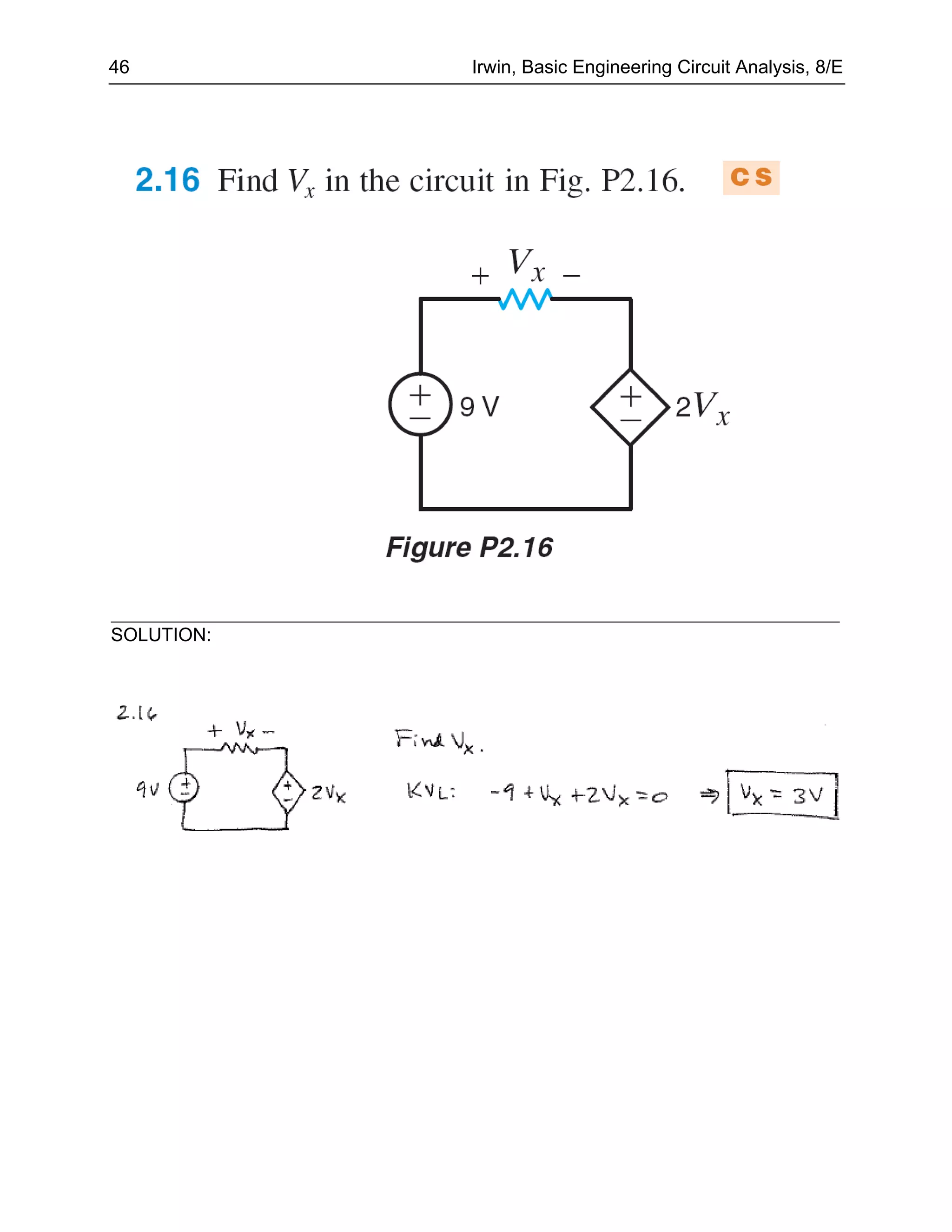

18. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

19. Chapter Two: Resistive Circuits 55
SOLUTION:

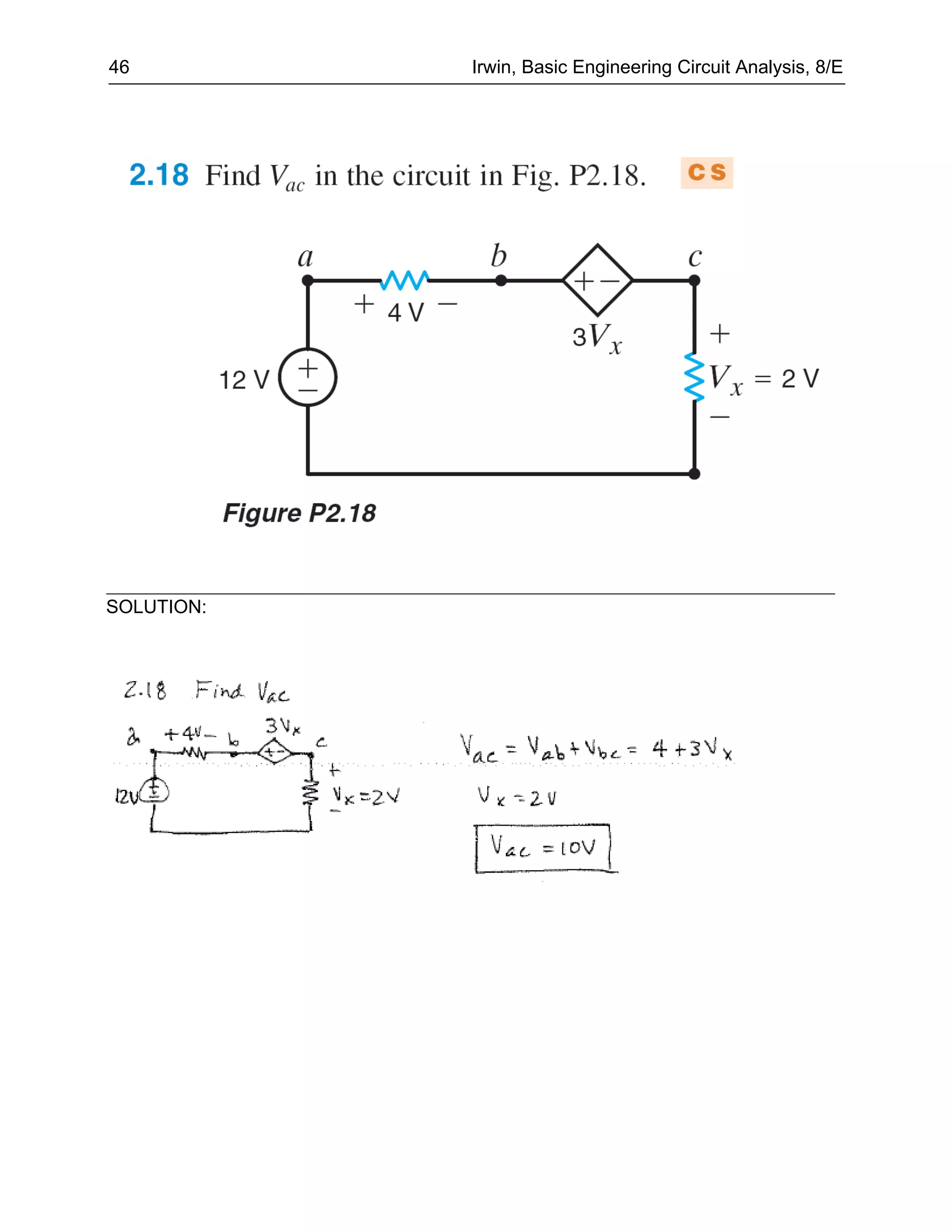

20. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

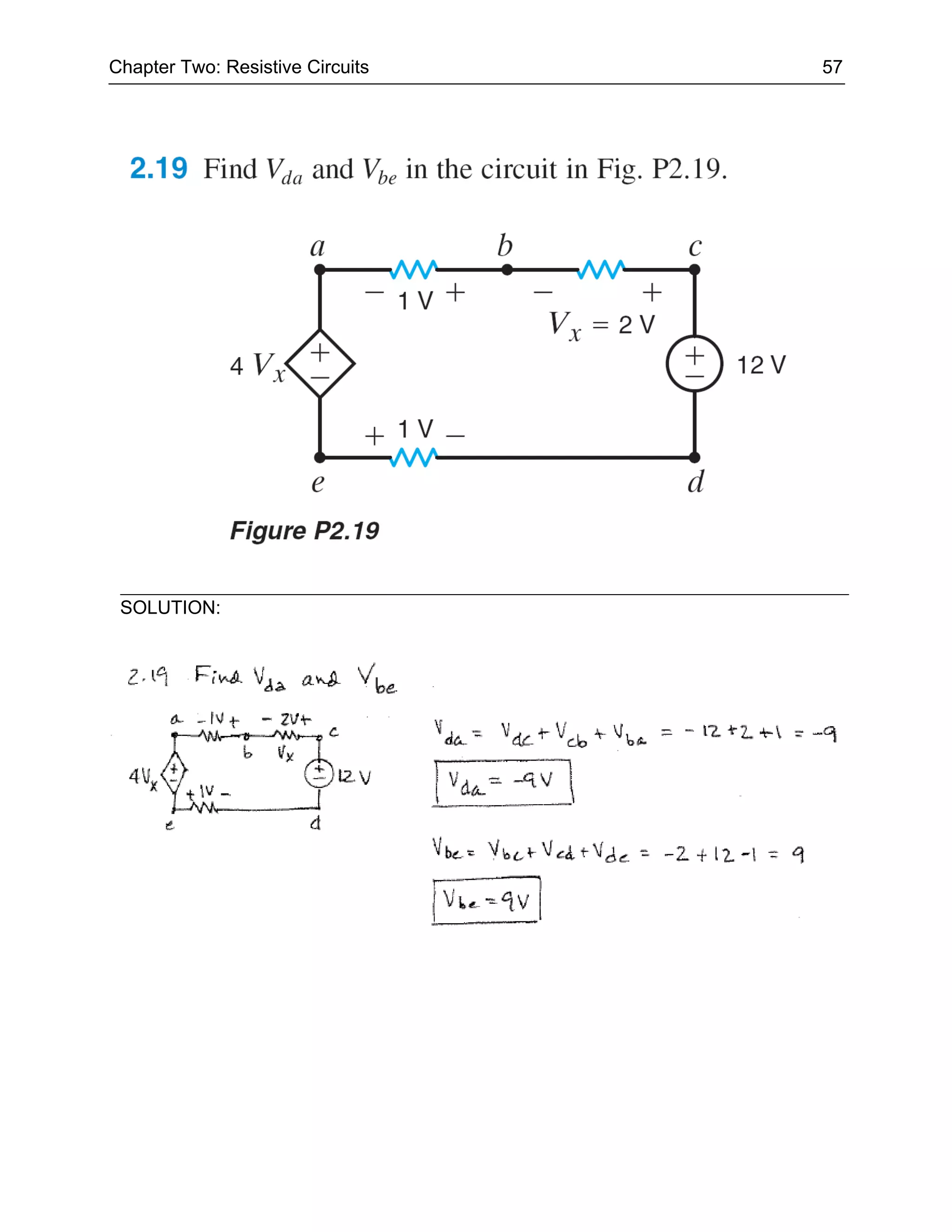

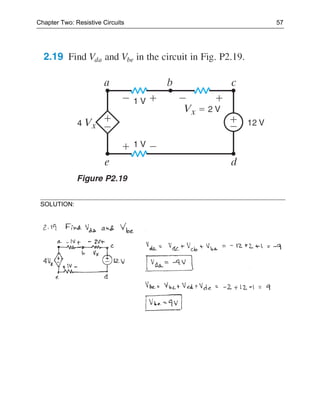

21. Chapter Two: Resistive Circuits 57
SOLUTION:

22. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

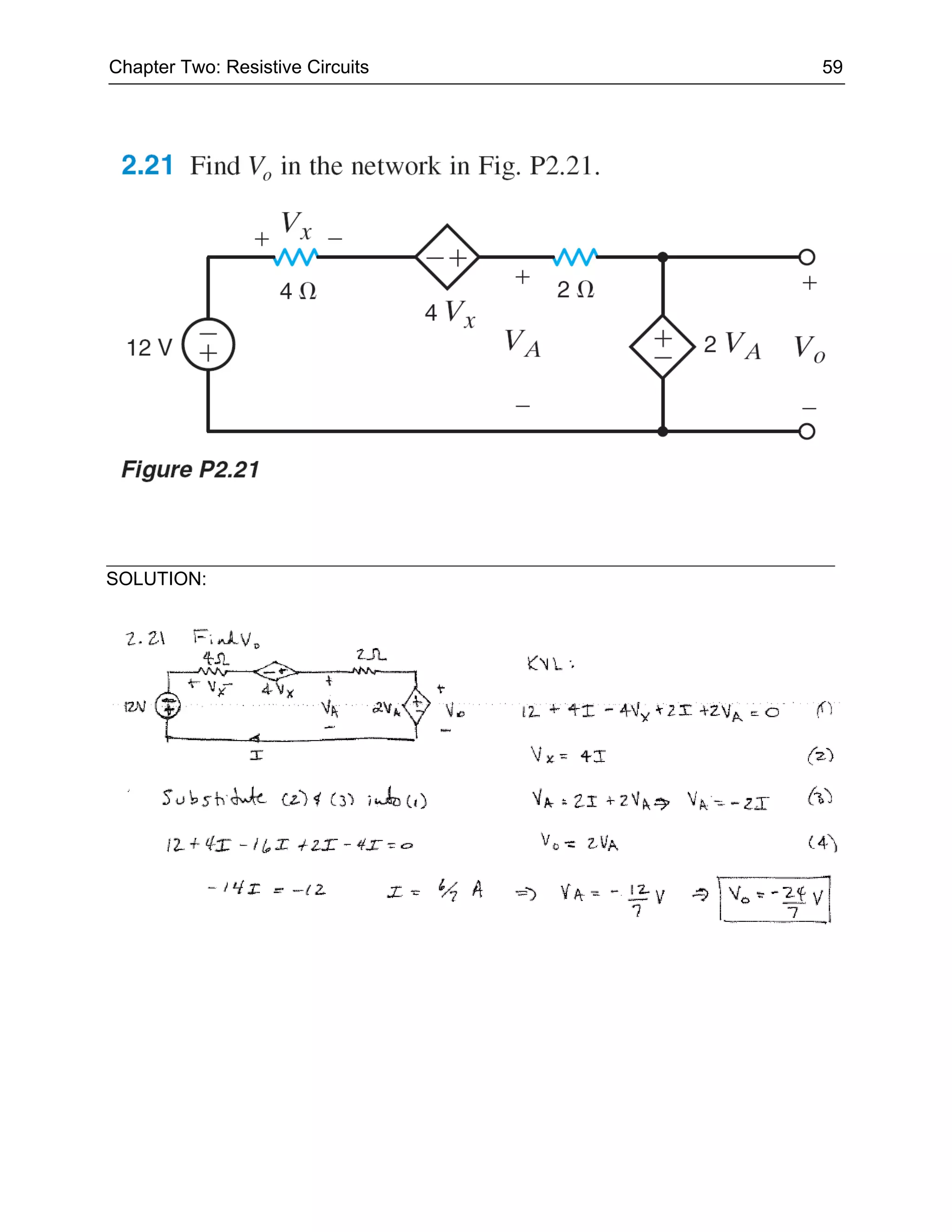

23. Chapter Two: Resistive Circuits 59
SOLUTION:

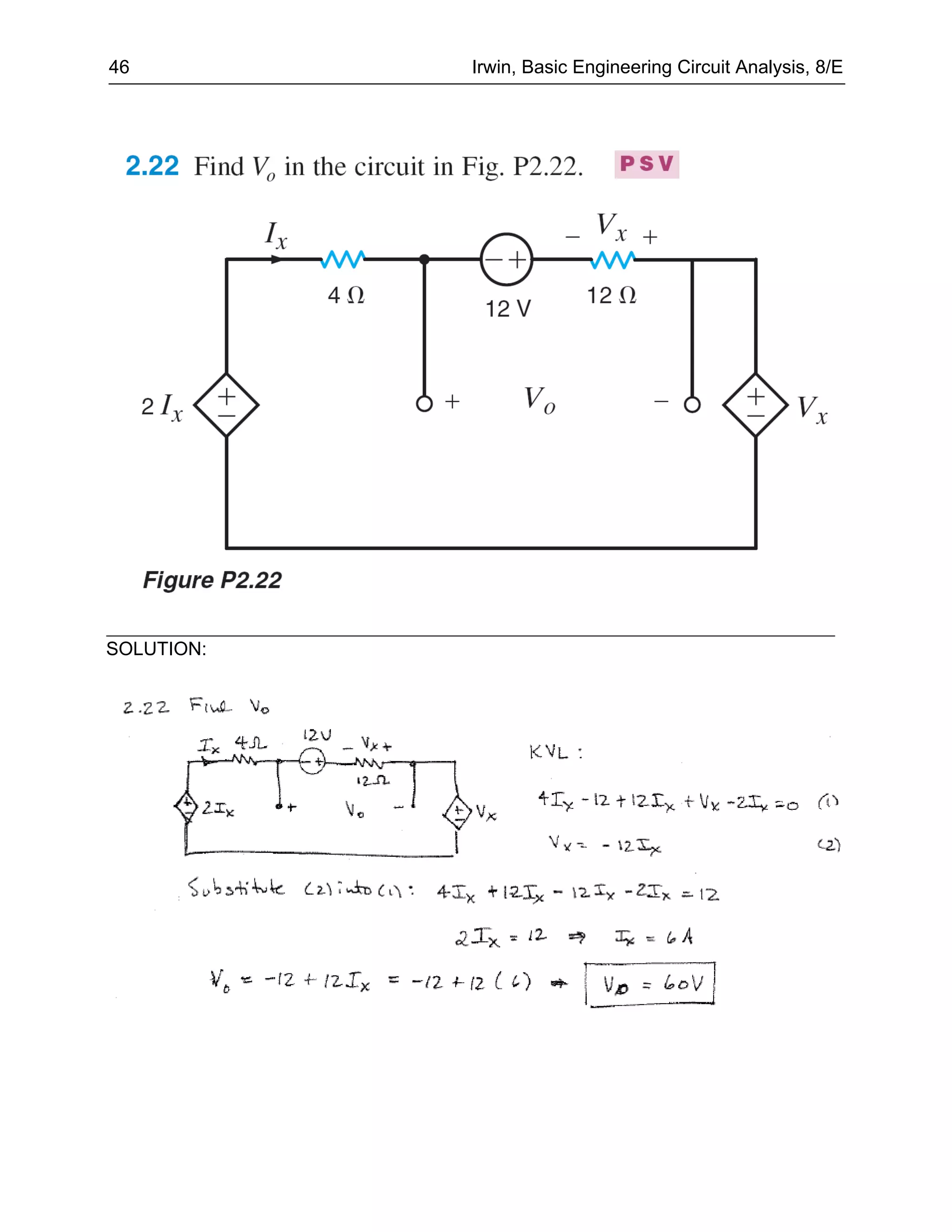

24. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

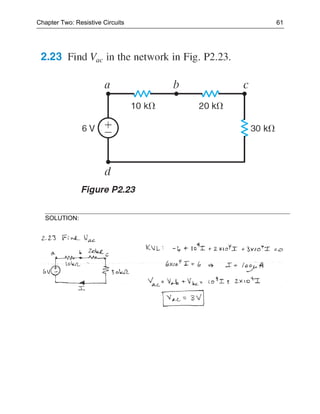

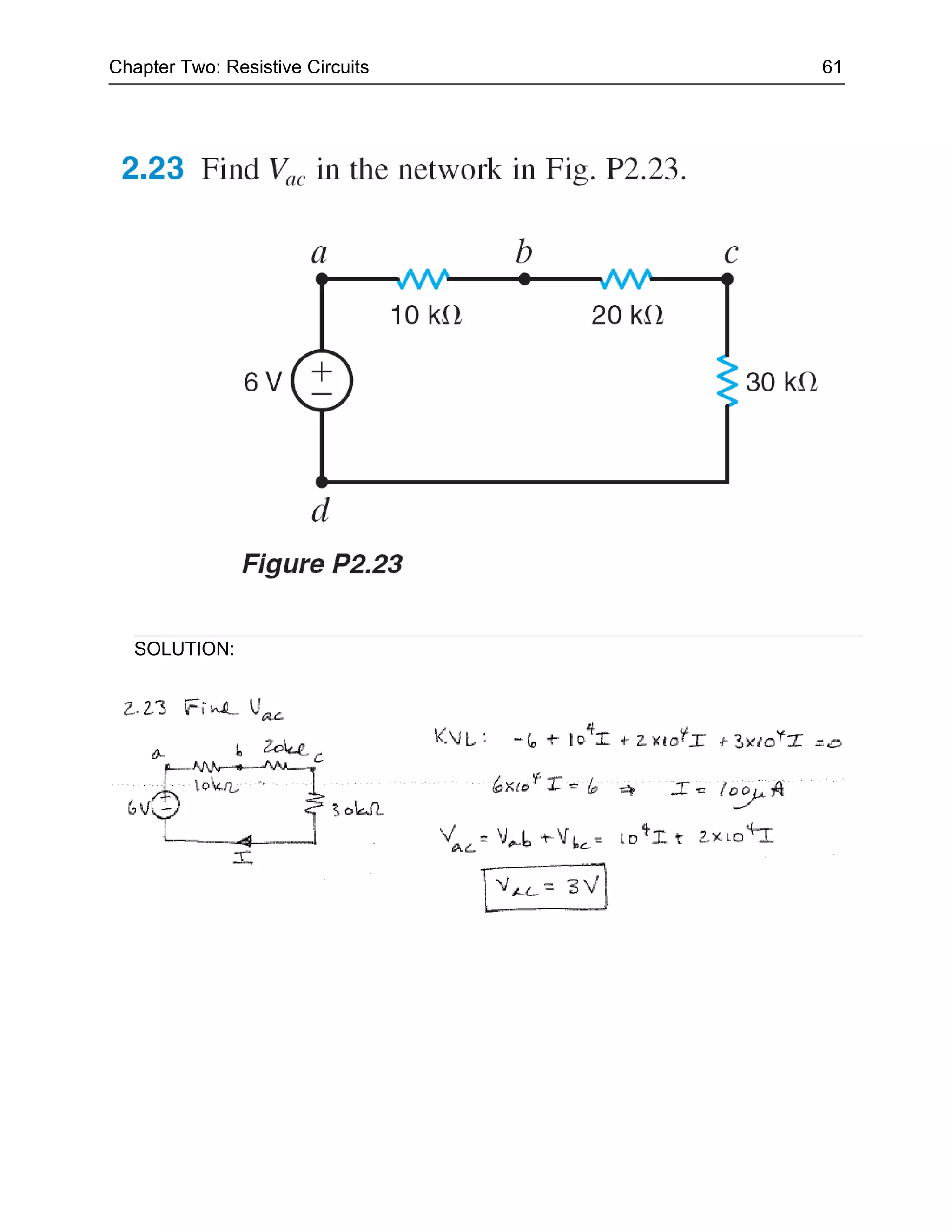

25. Chapter Two: Resistive Circuits 61
SOLUTION:

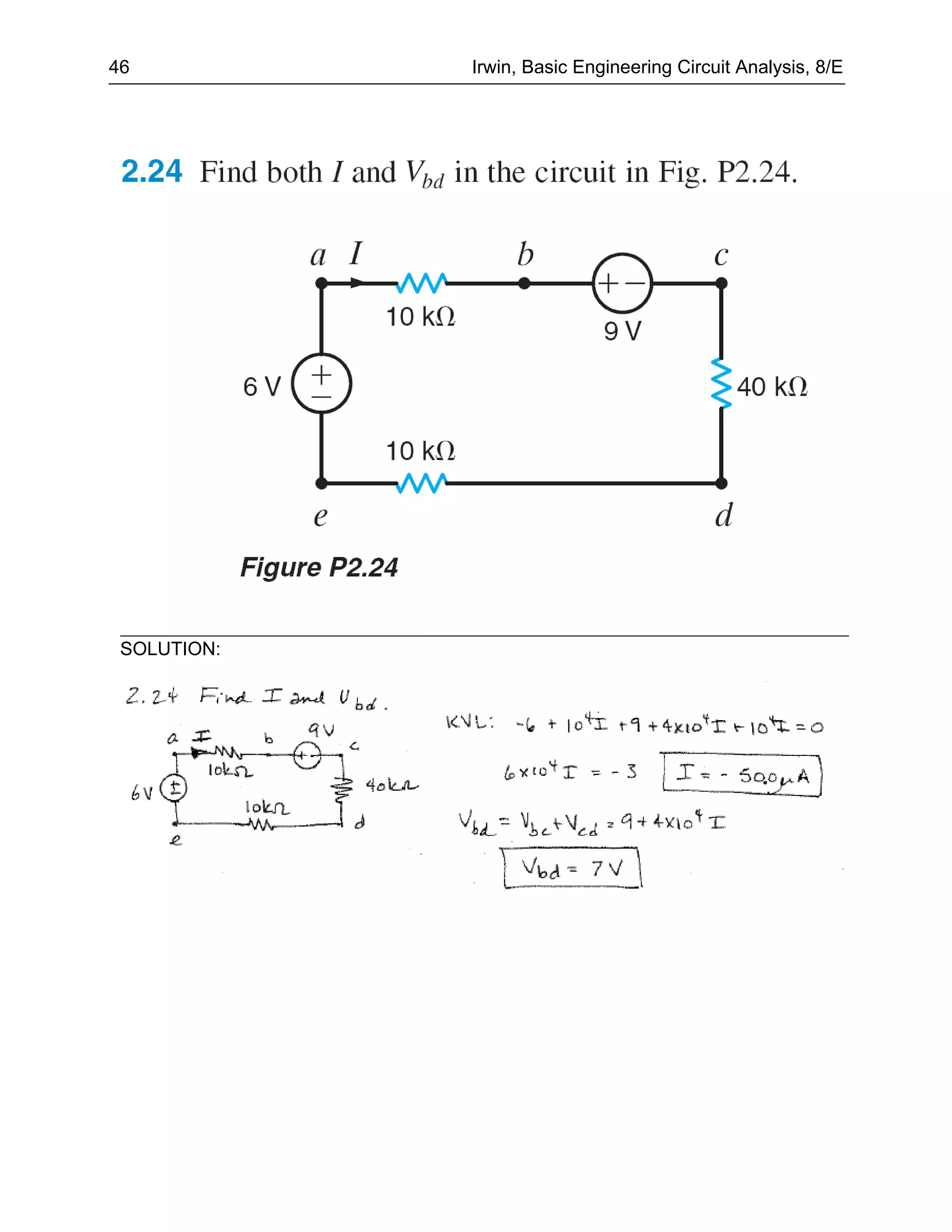

26. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

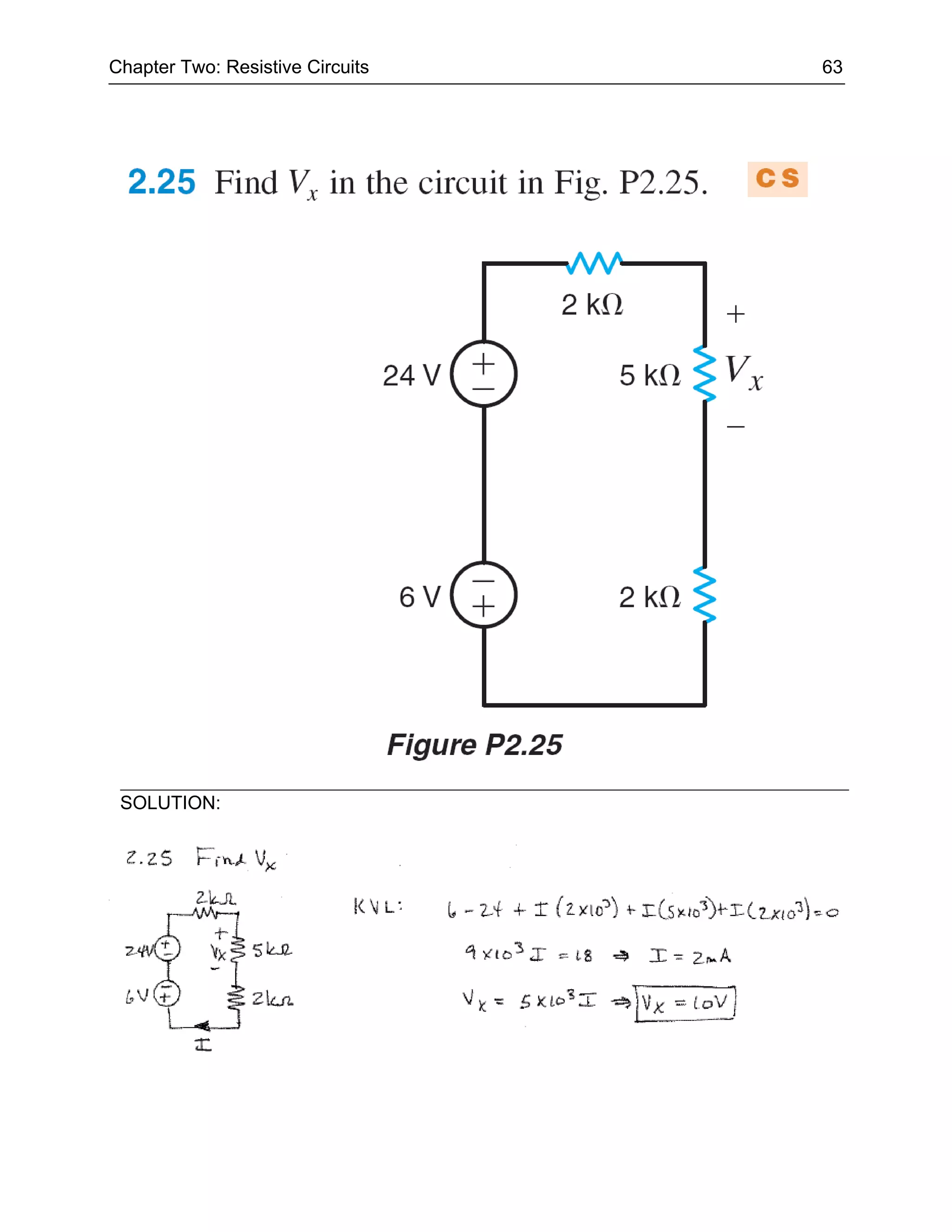

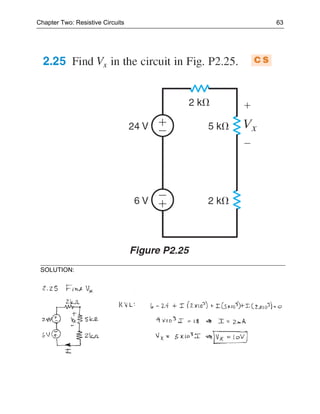

27. Chapter Two: Resistive Circuits 63
SOLUTION:

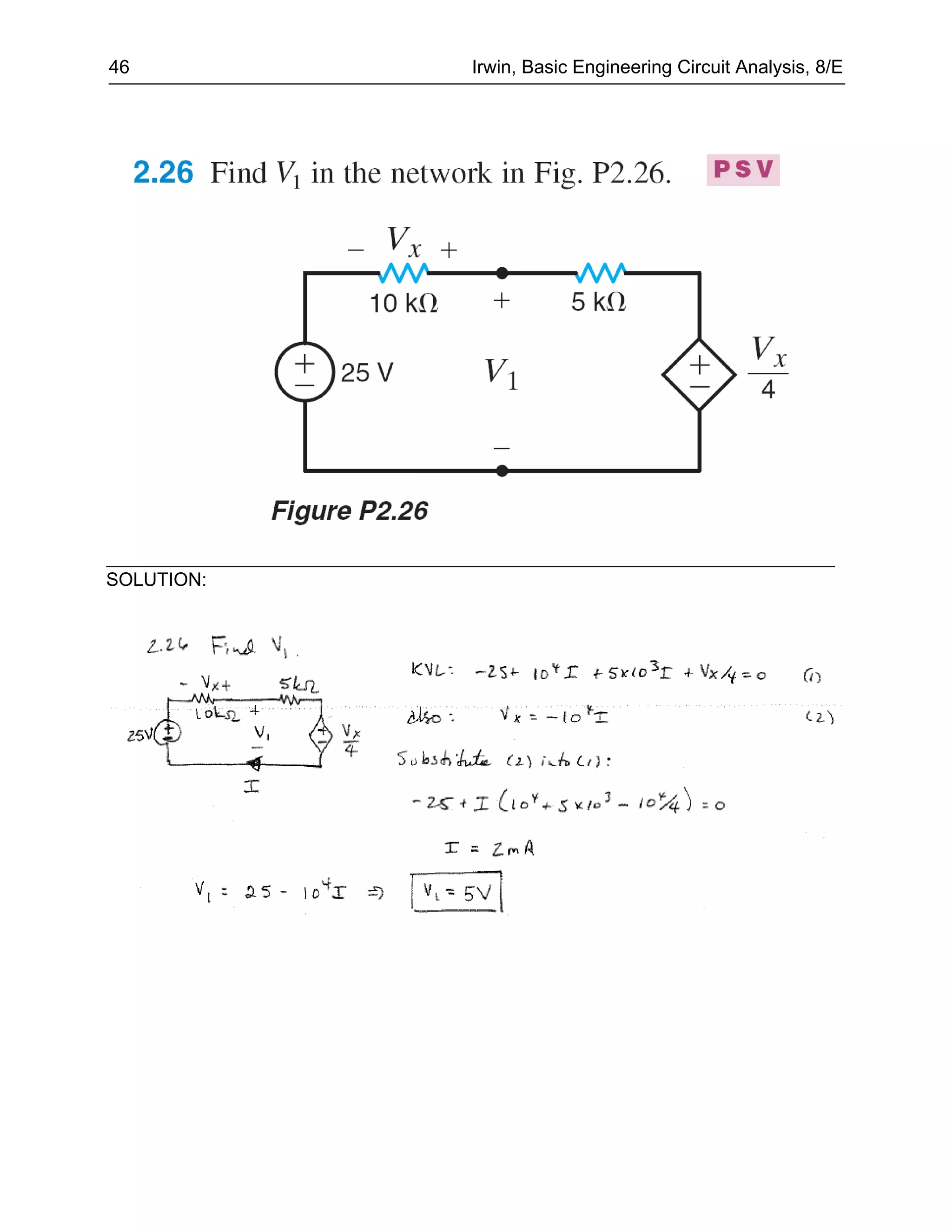

28. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

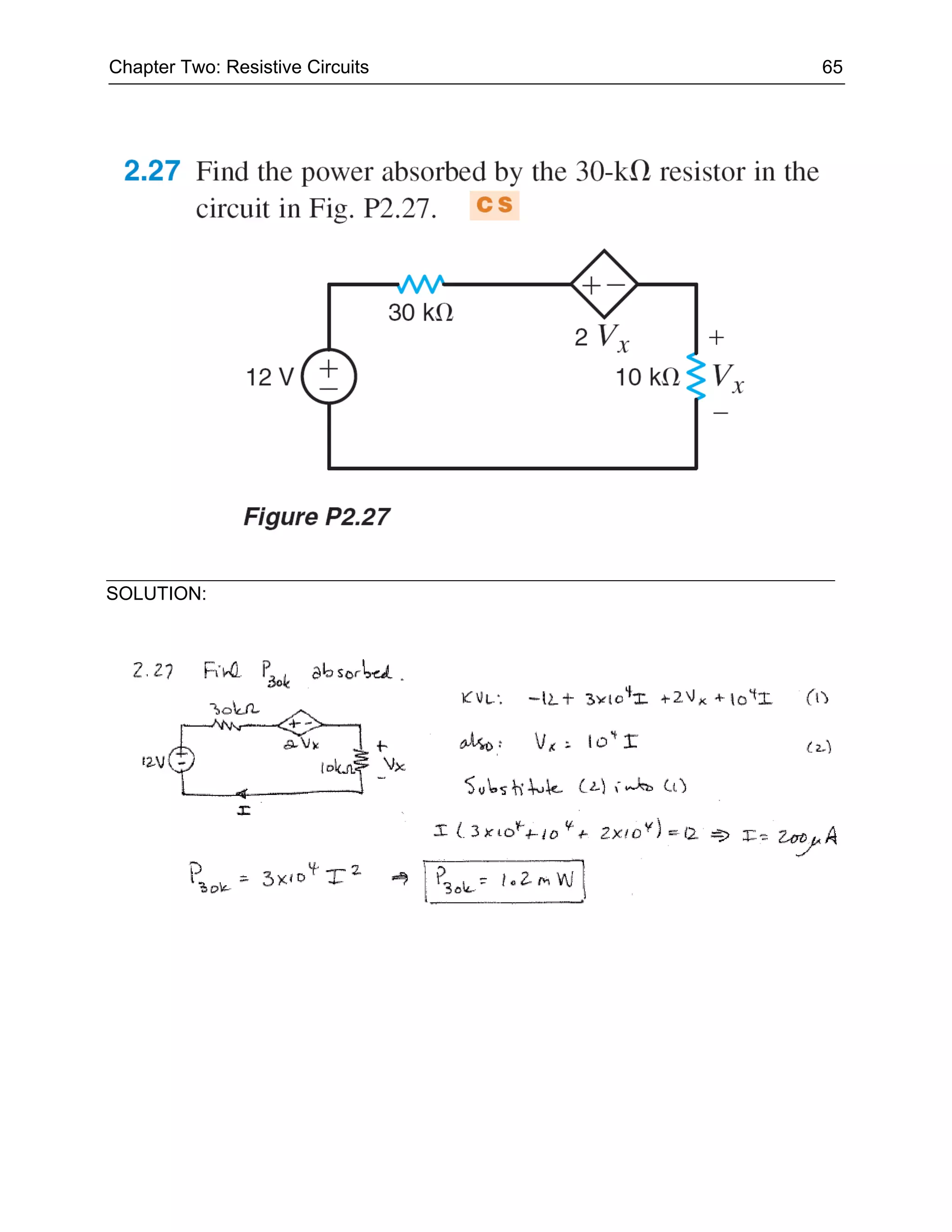

29. Chapter Two: Resistive Circuits 65
SOLUTION:

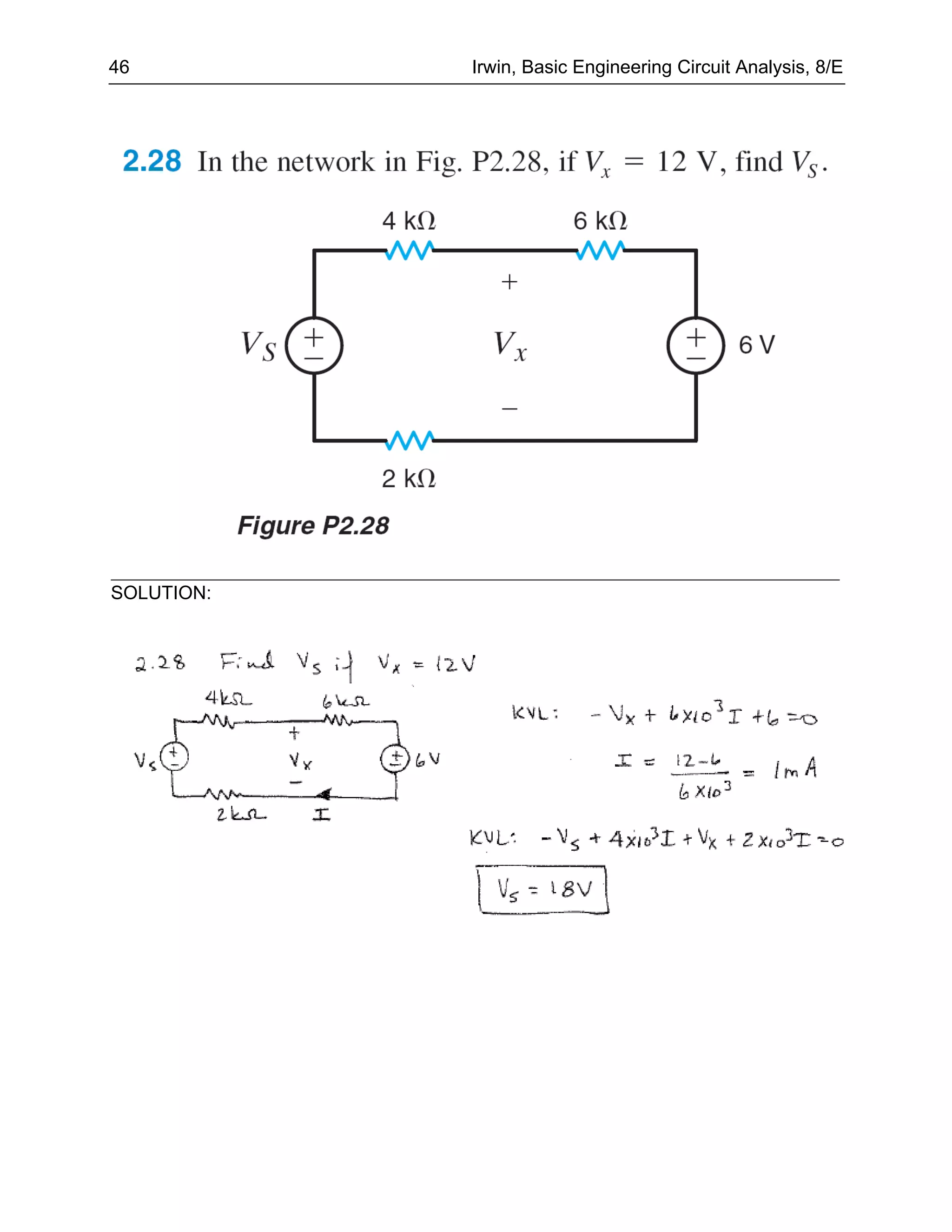

30. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

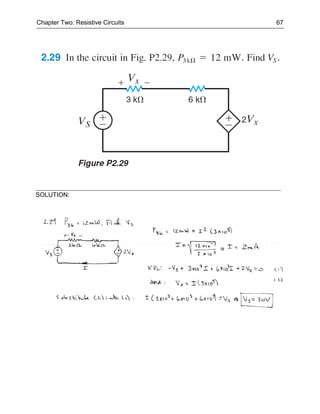

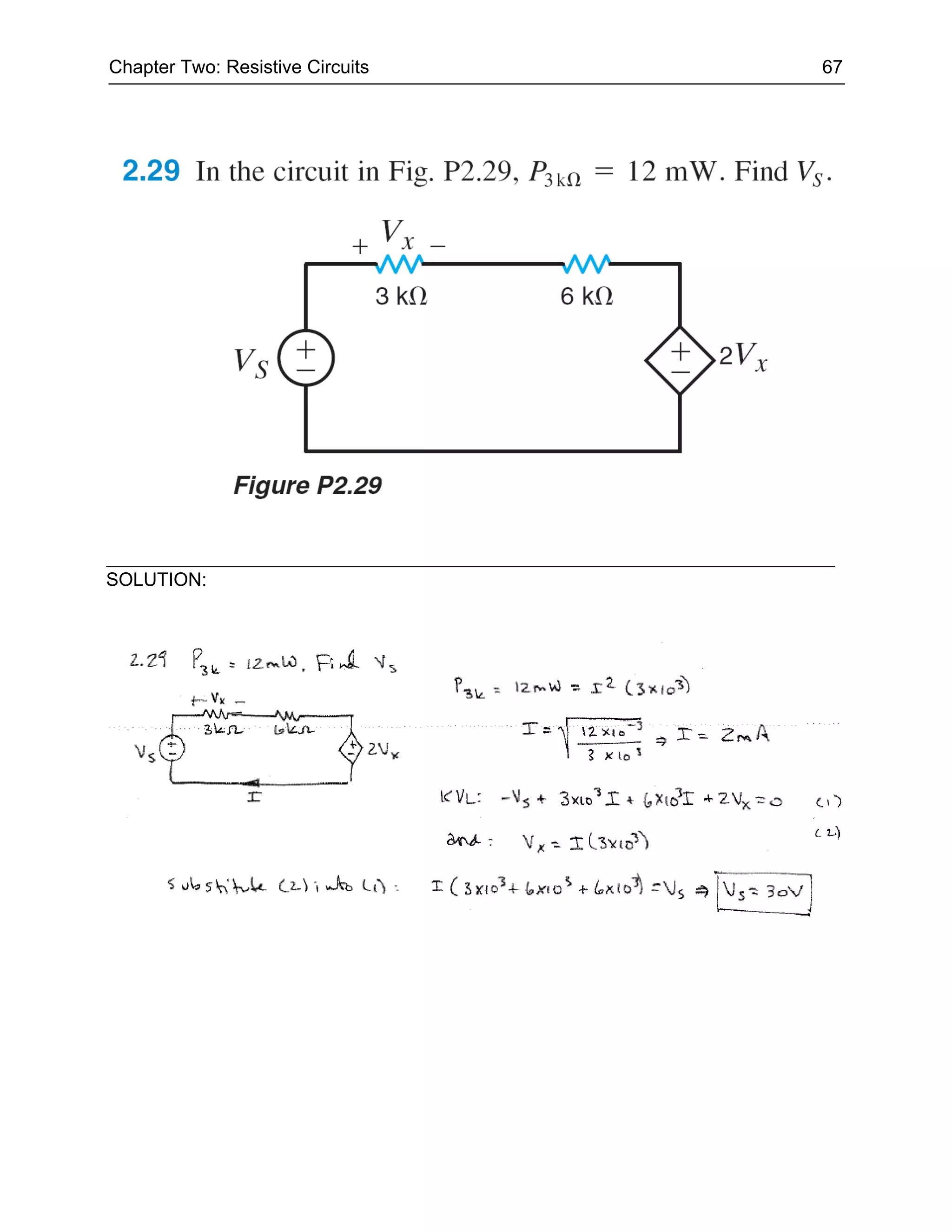

31. Chapter Two: Resistive Circuits 67
SOLUTION:

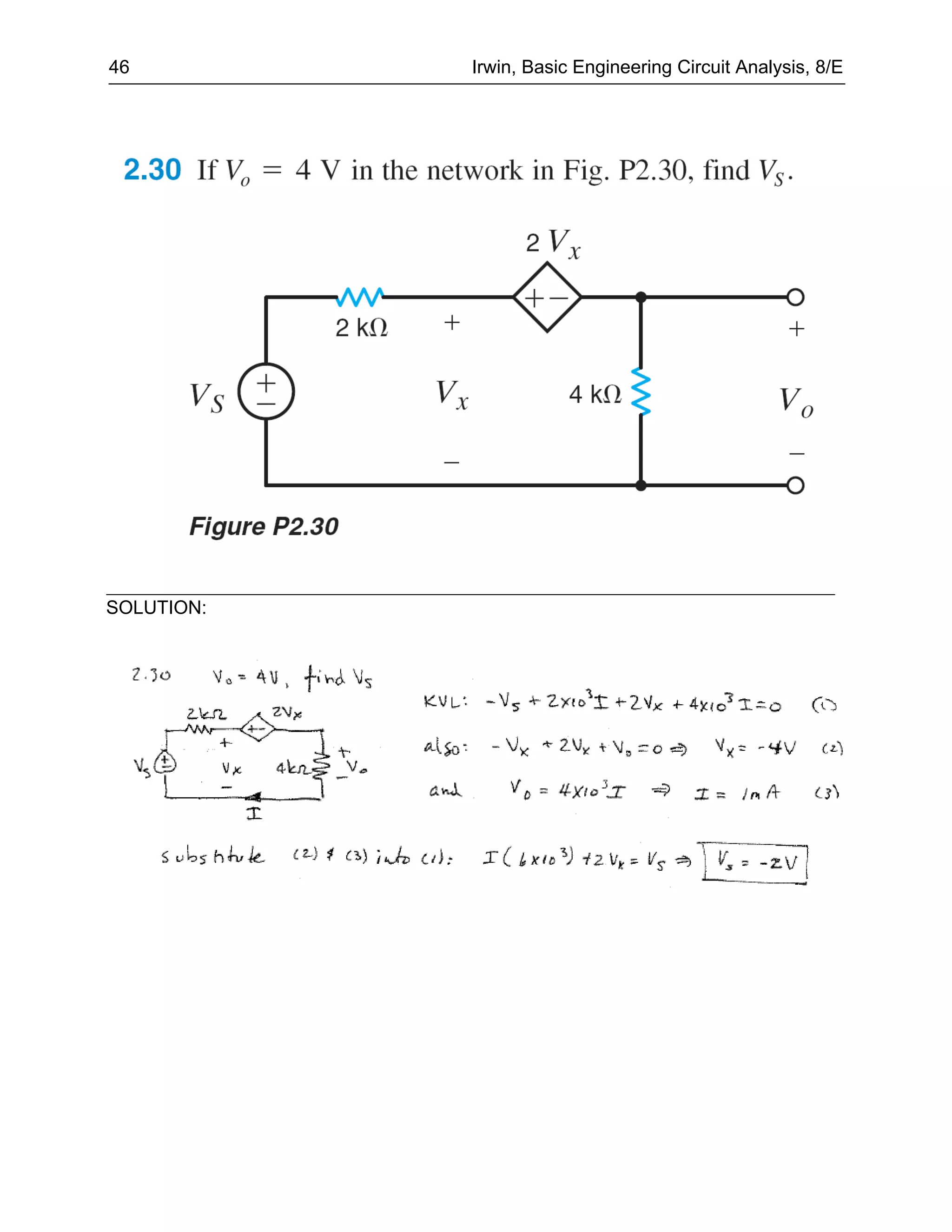

32. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

33. Chapter Two: Resistive Circuits 69
SOLUTION:

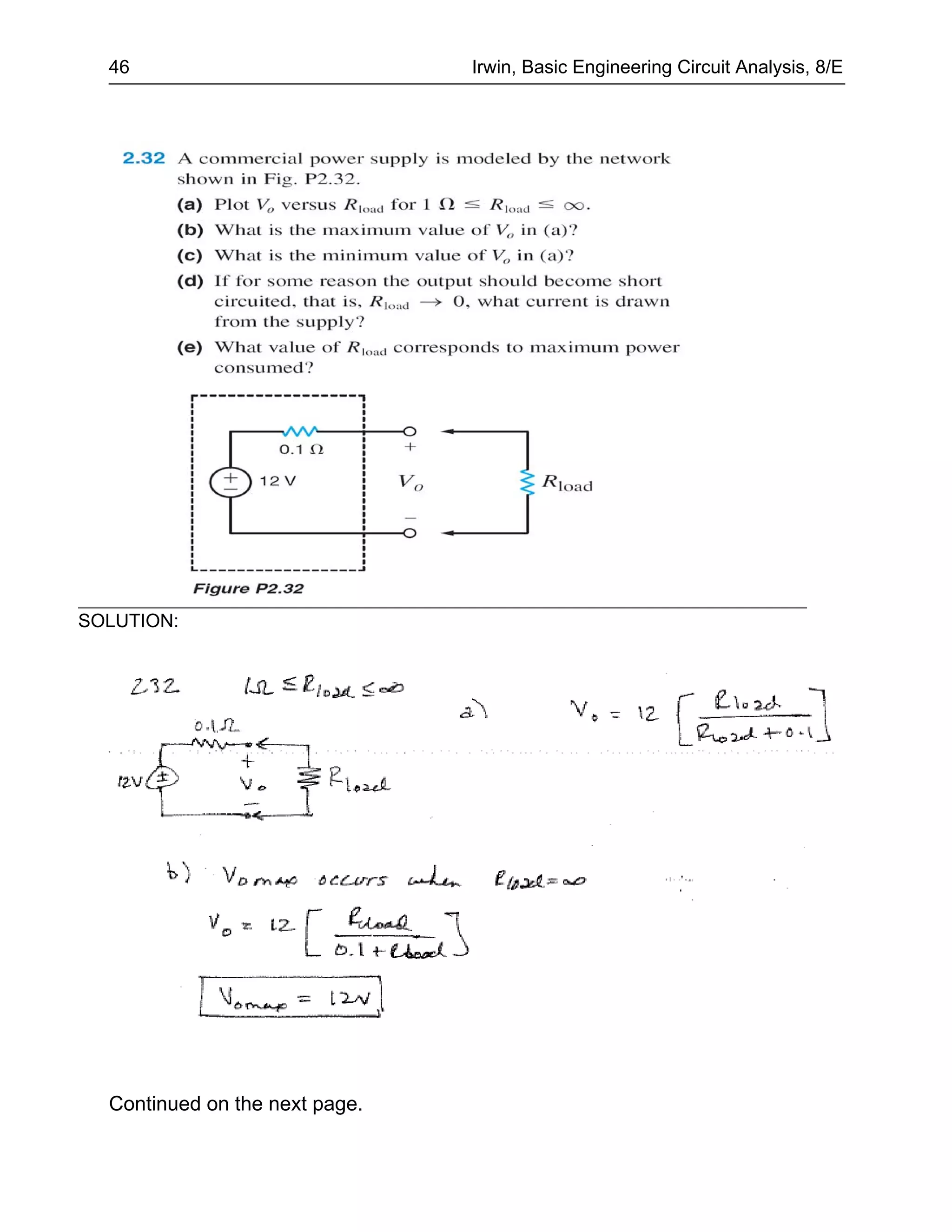

34. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:
Continued on the next page.

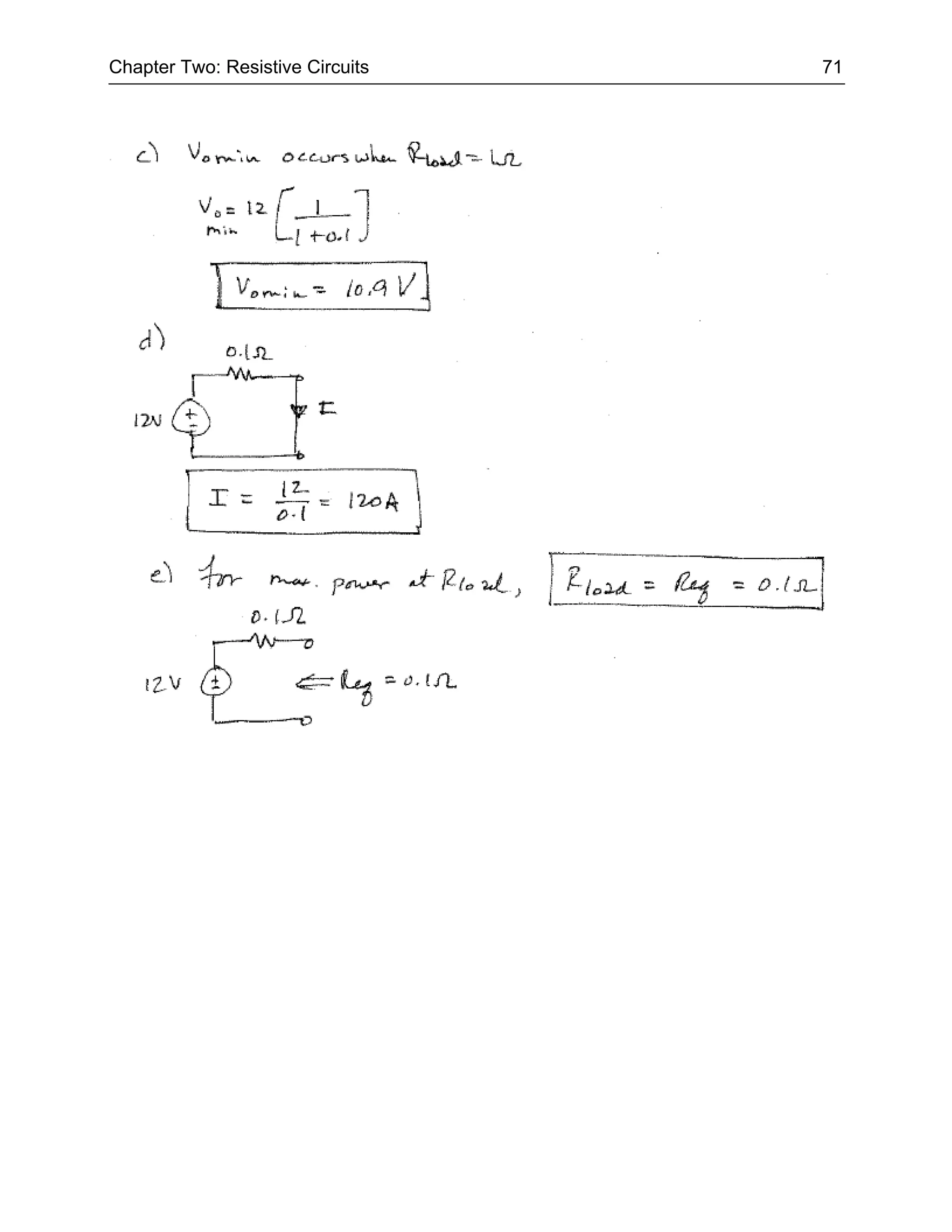

35. Chapter Two: Resistive Circuits 71

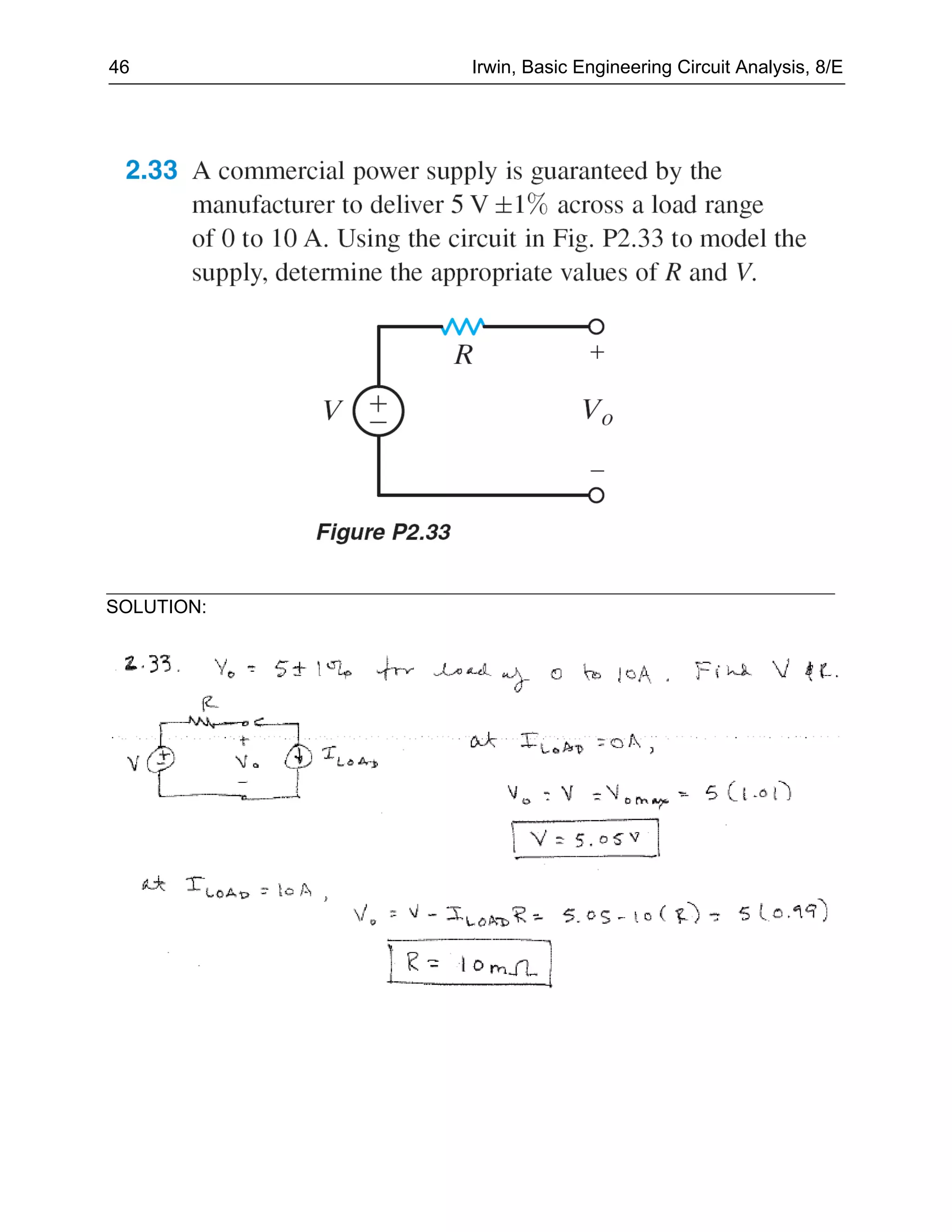

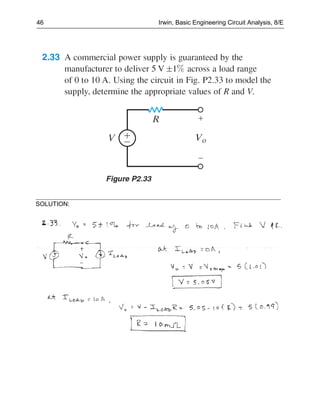

36. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

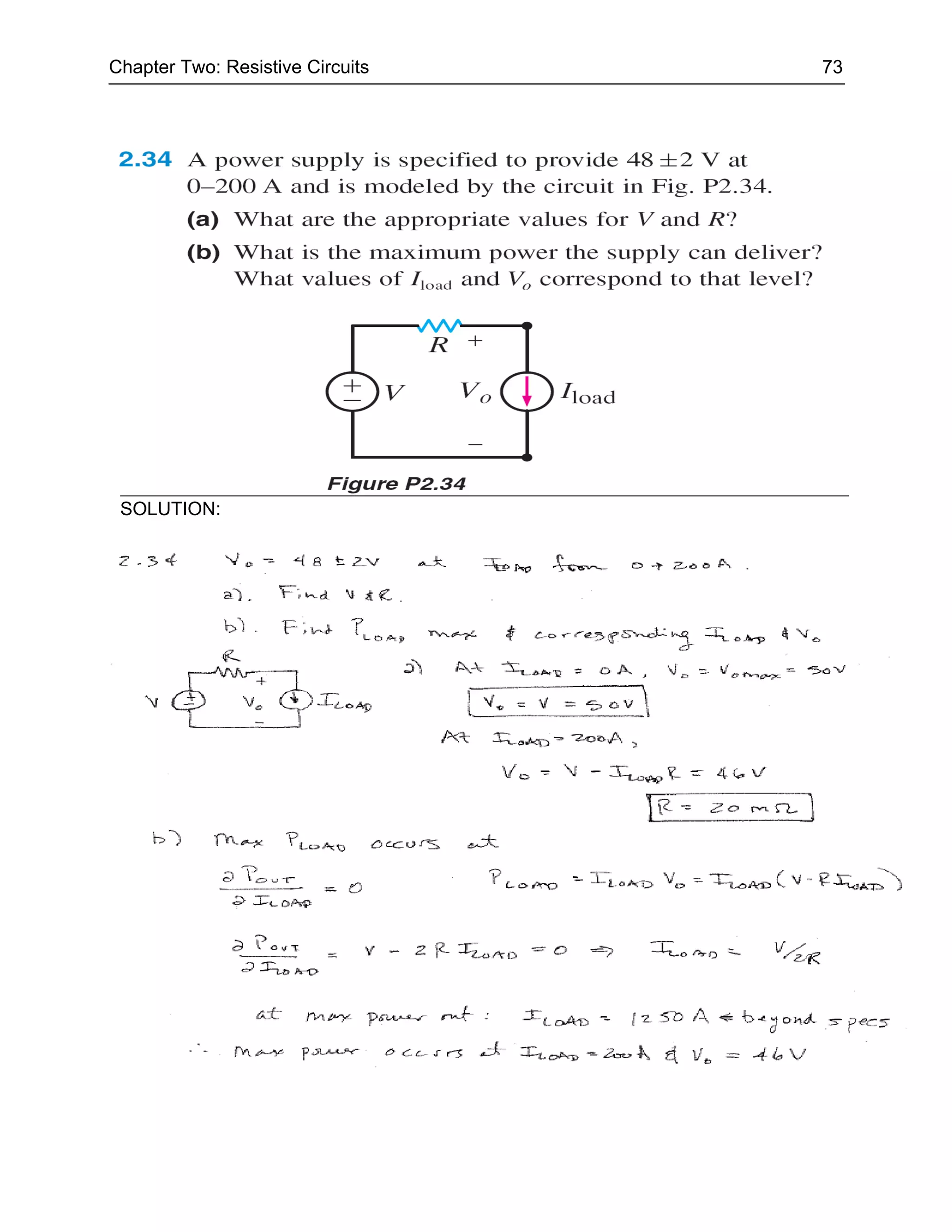

37. Chapter Two: Resistive Circuits 73
SOLUTION:

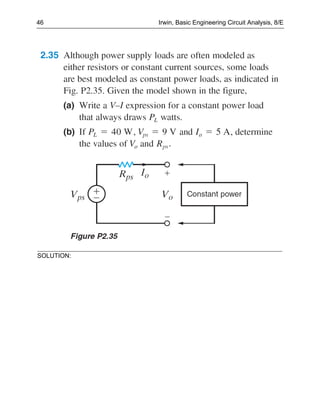

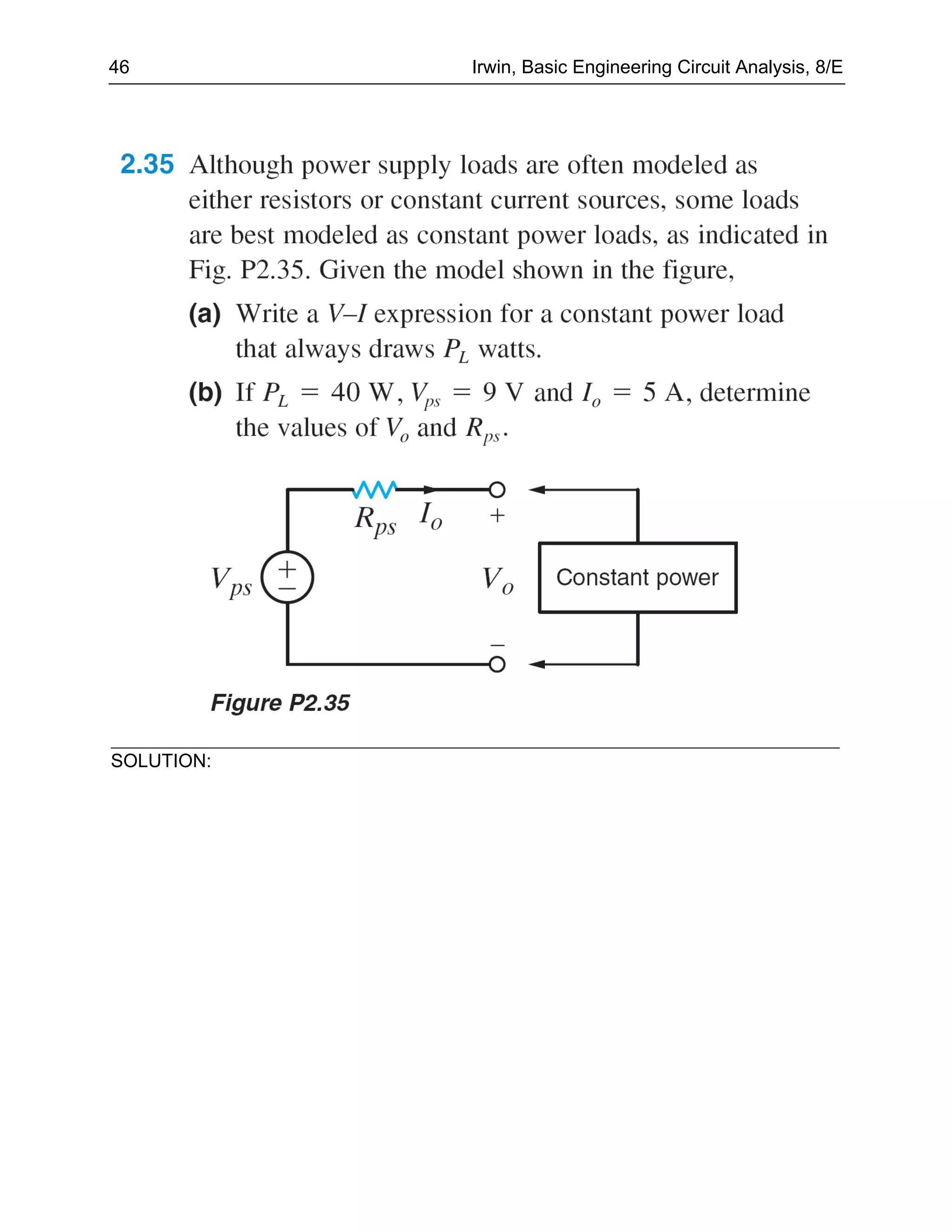

38. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

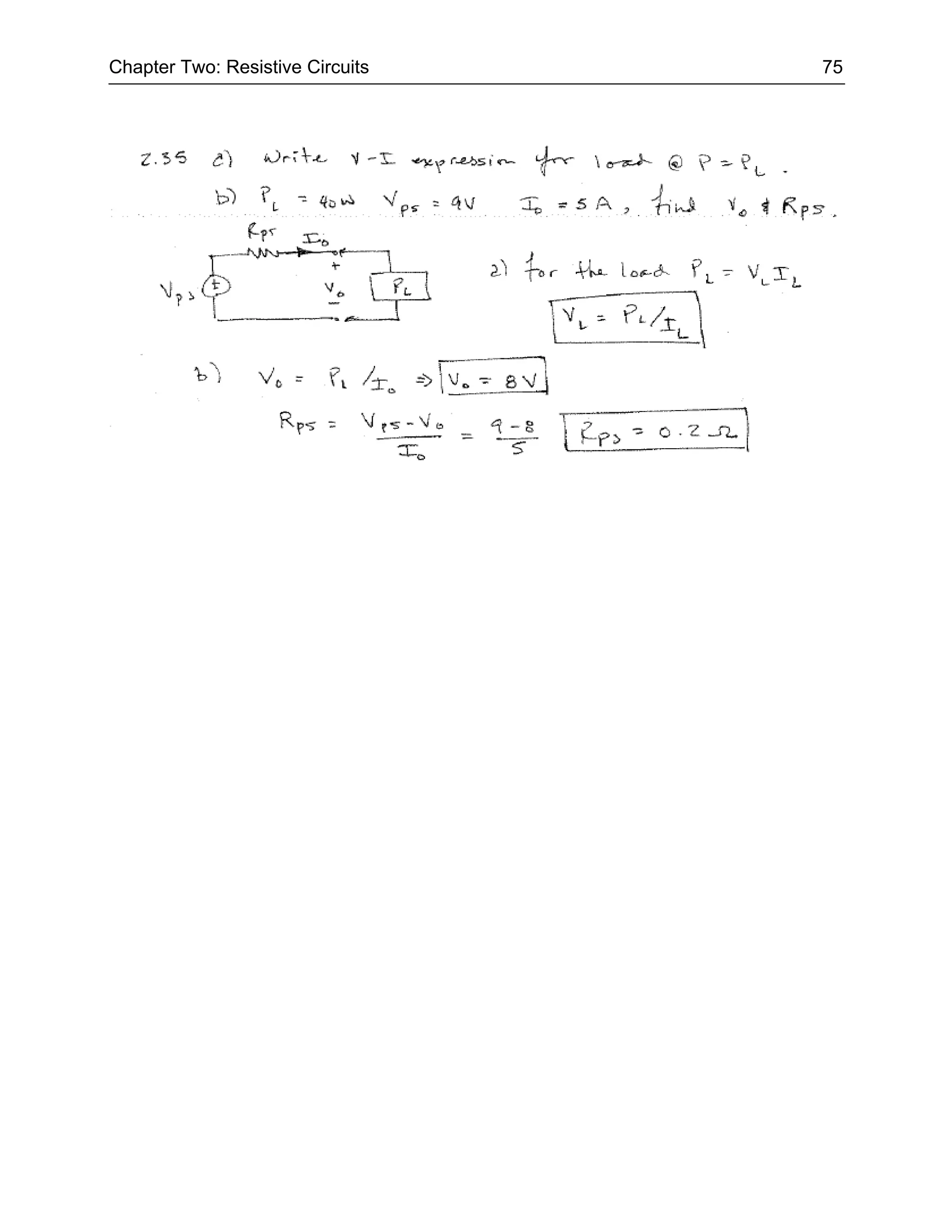

39. Chapter Two: Resistive Circuits 75

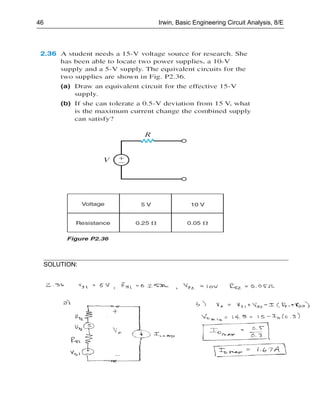

40. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

41. Chapter Two: Resistive Circuits 77
SOLUTION:

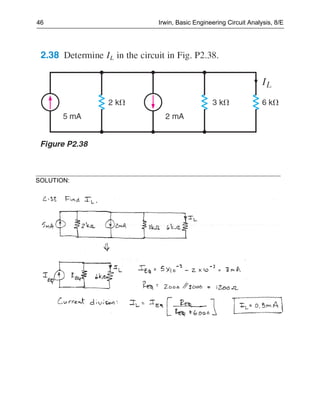

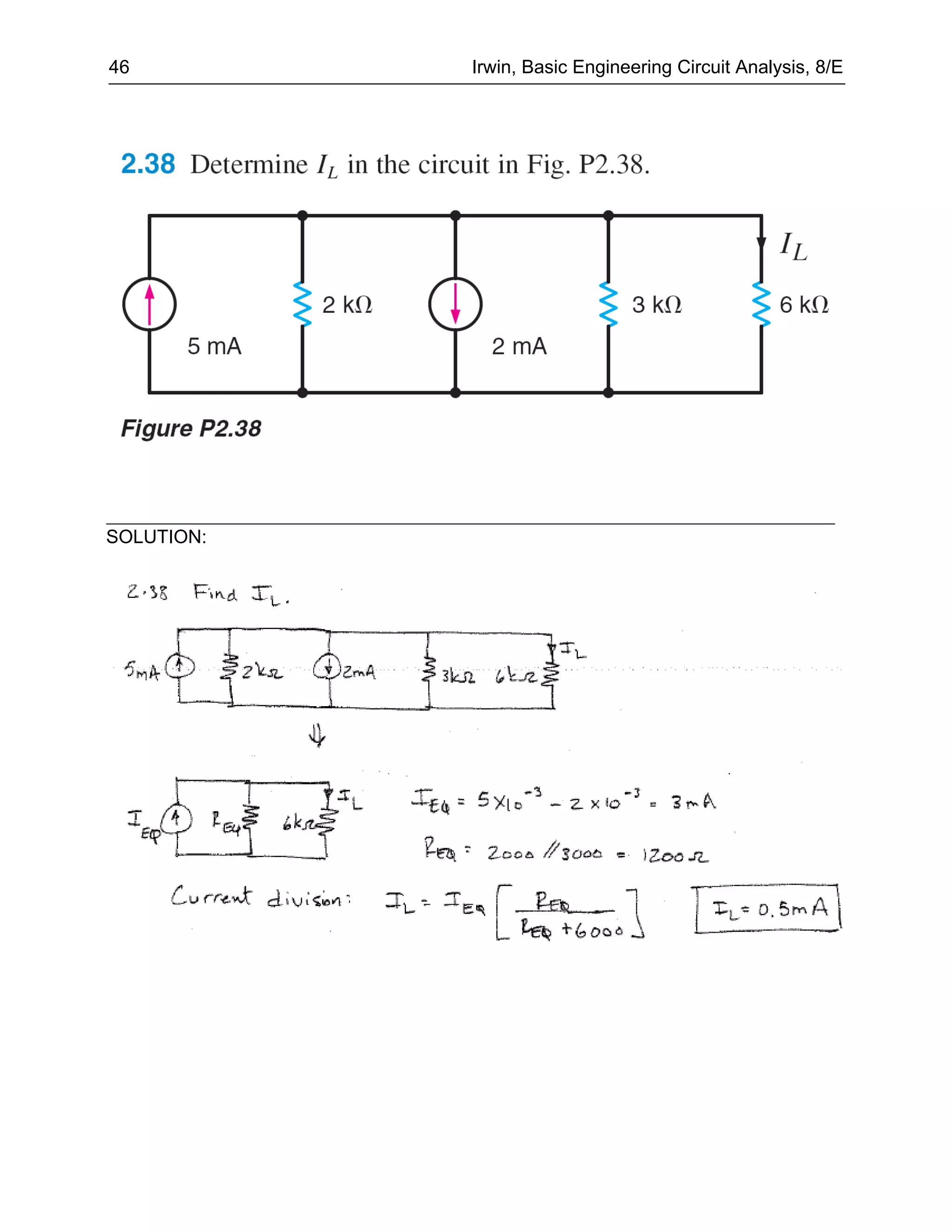

42. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

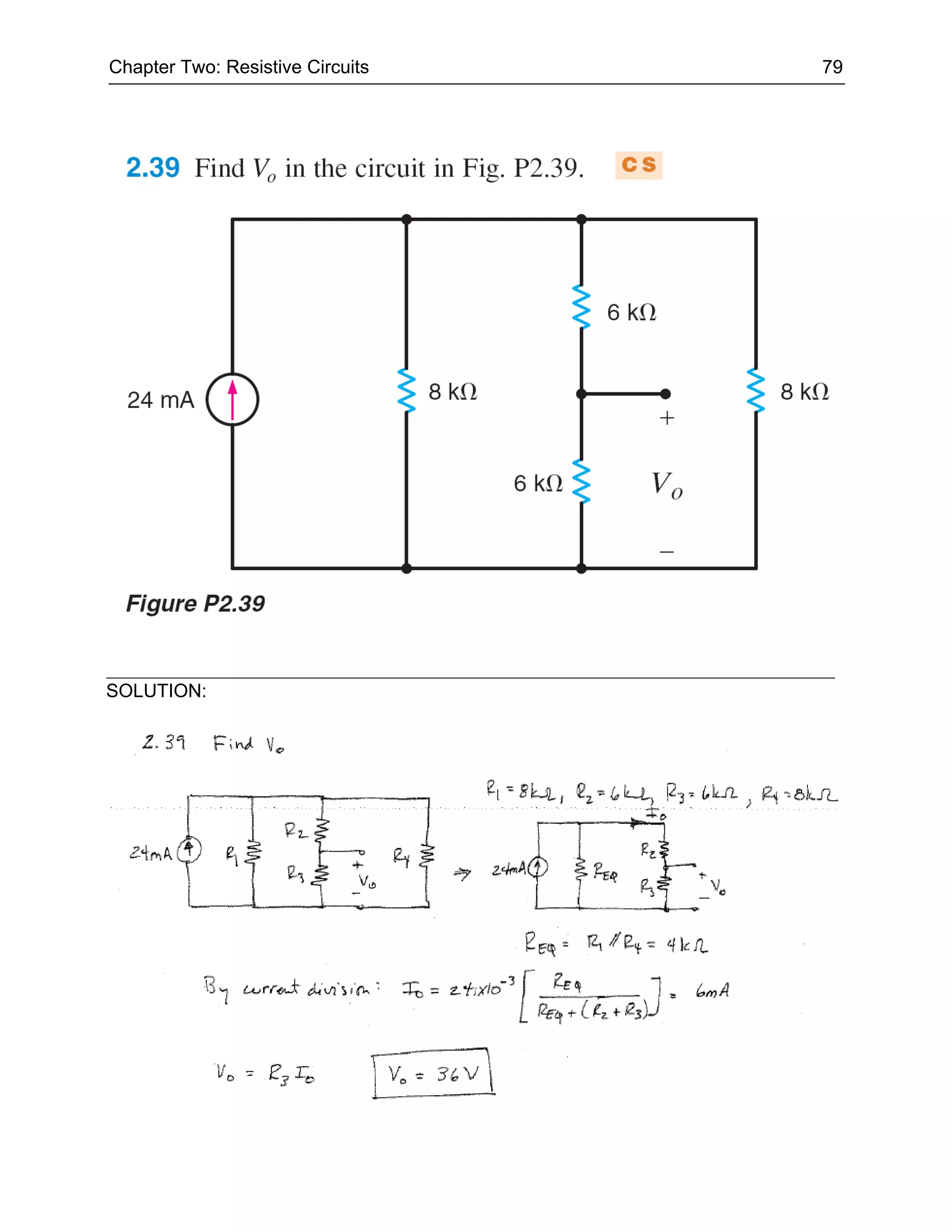

43. Chapter Two: Resistive Circuits 79
SOLUTION:

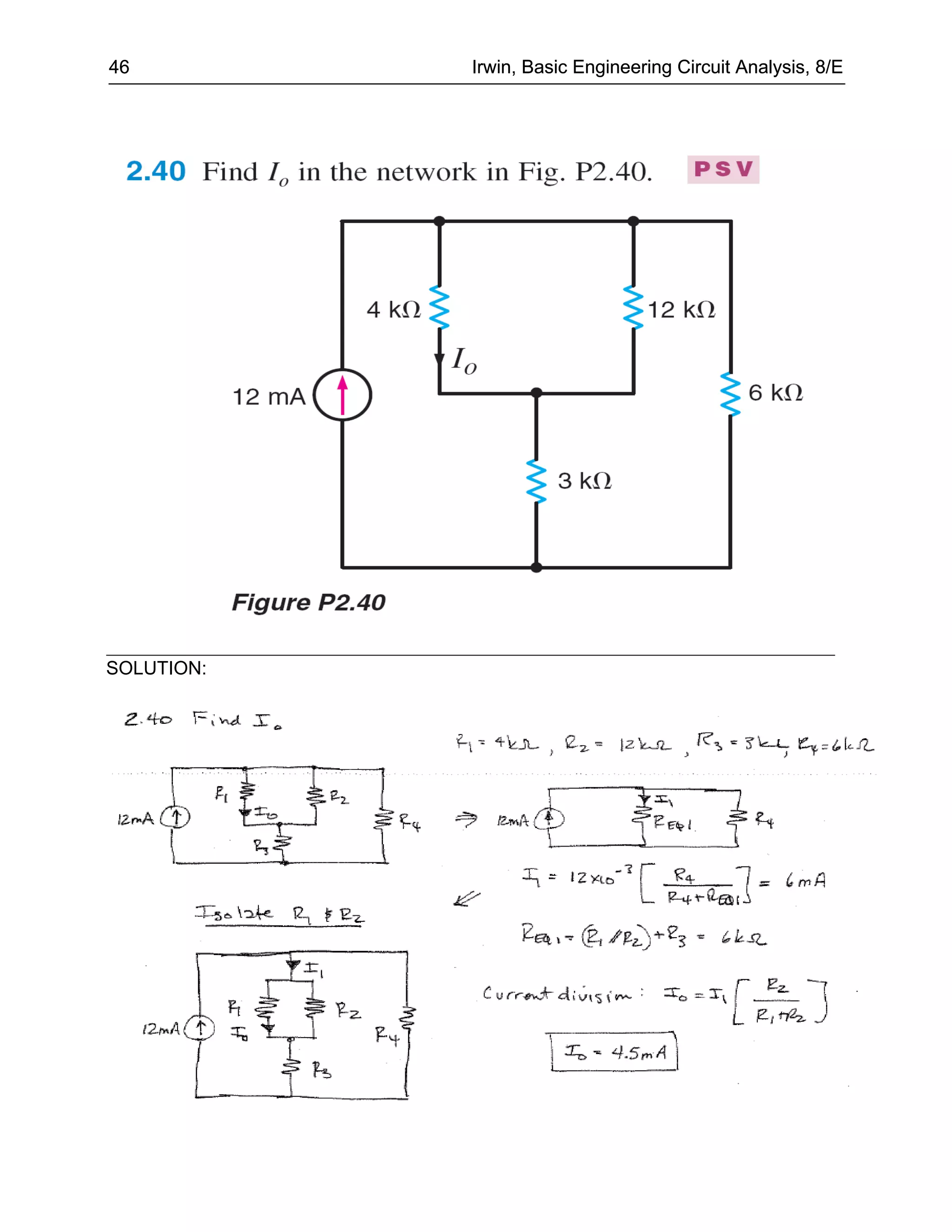

44. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

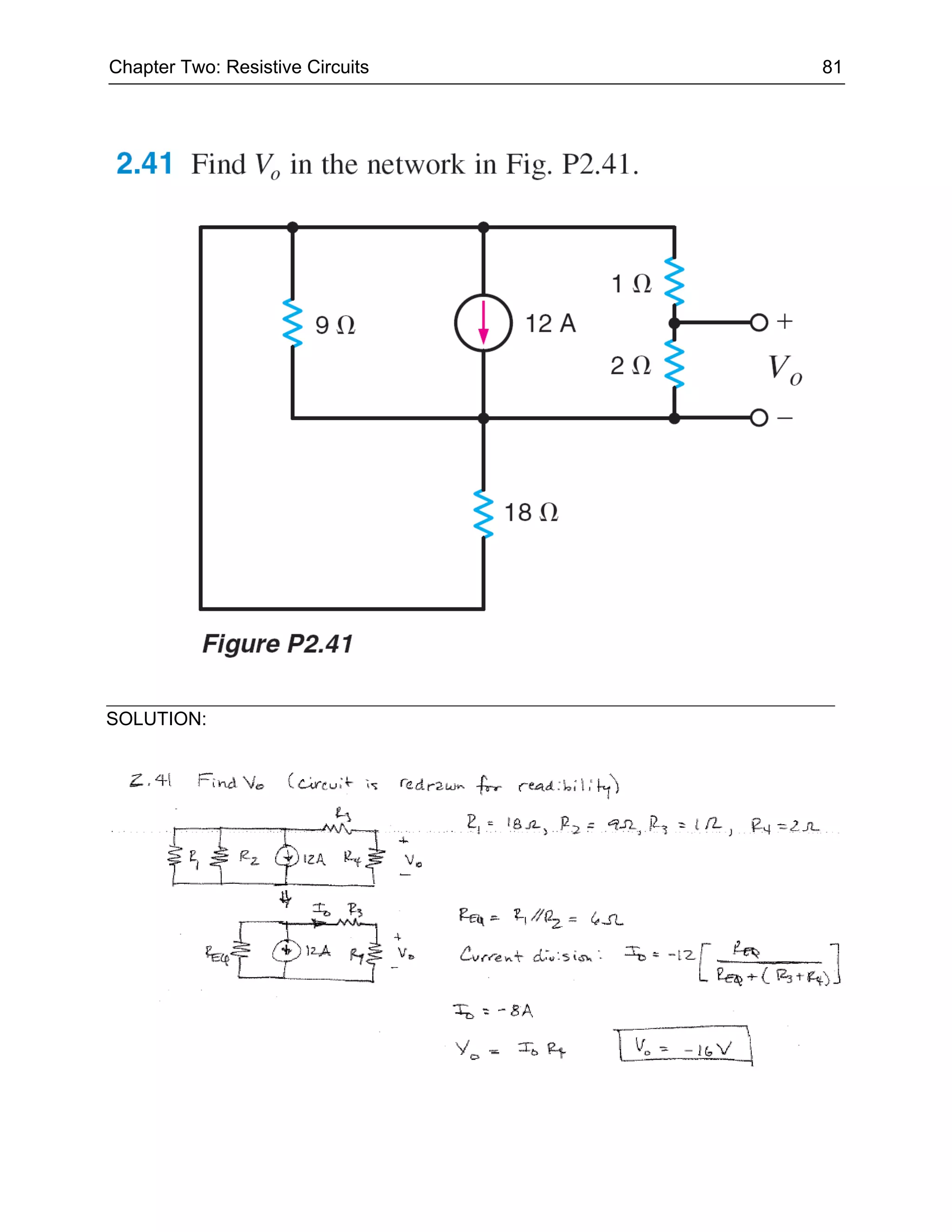

45. Chapter Two: Resistive Circuits 81
SOLUTION:

46. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

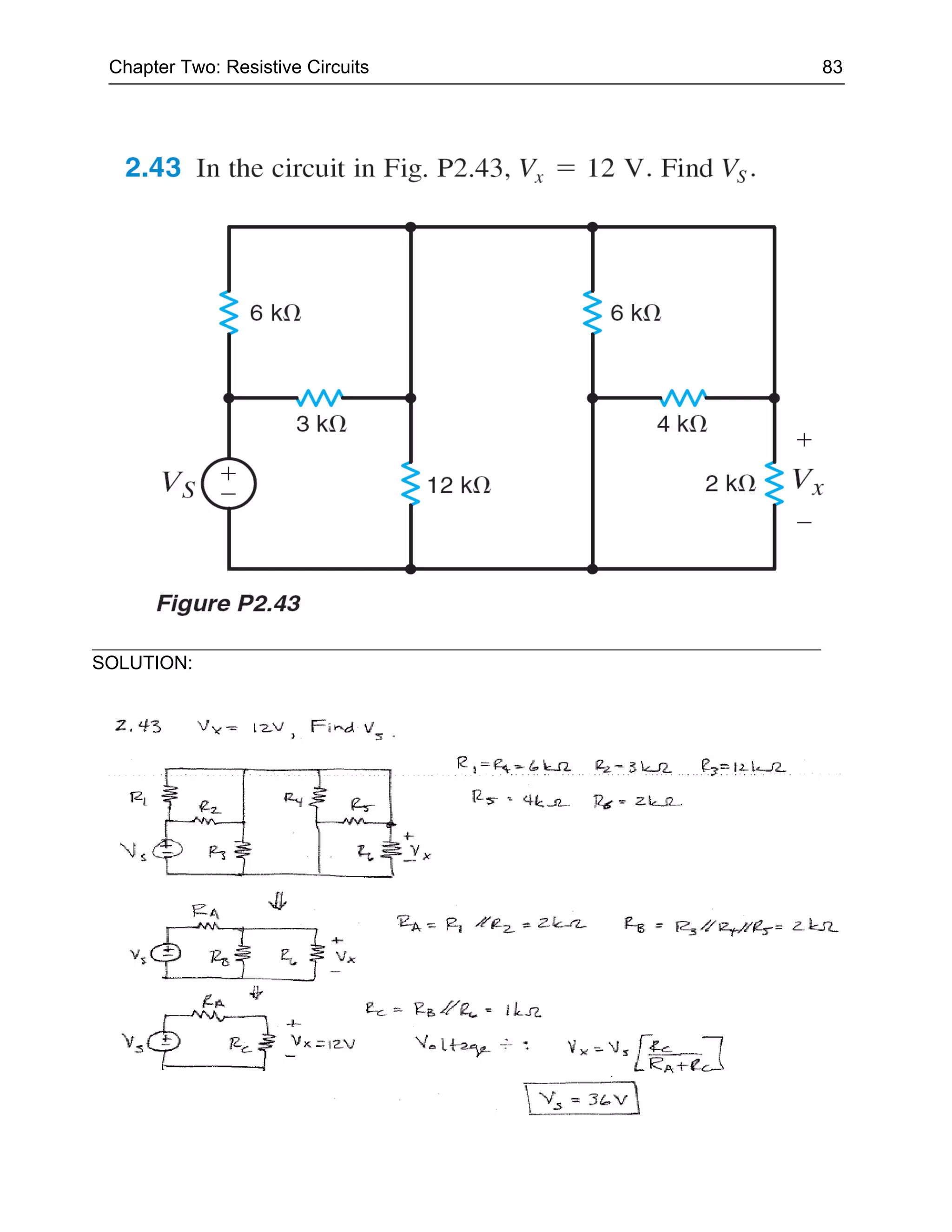

47. Chapter Two: Resistive Circuits 83
SOLUTION:

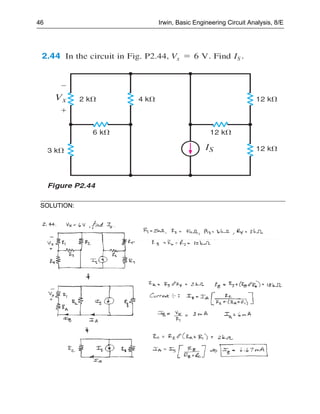

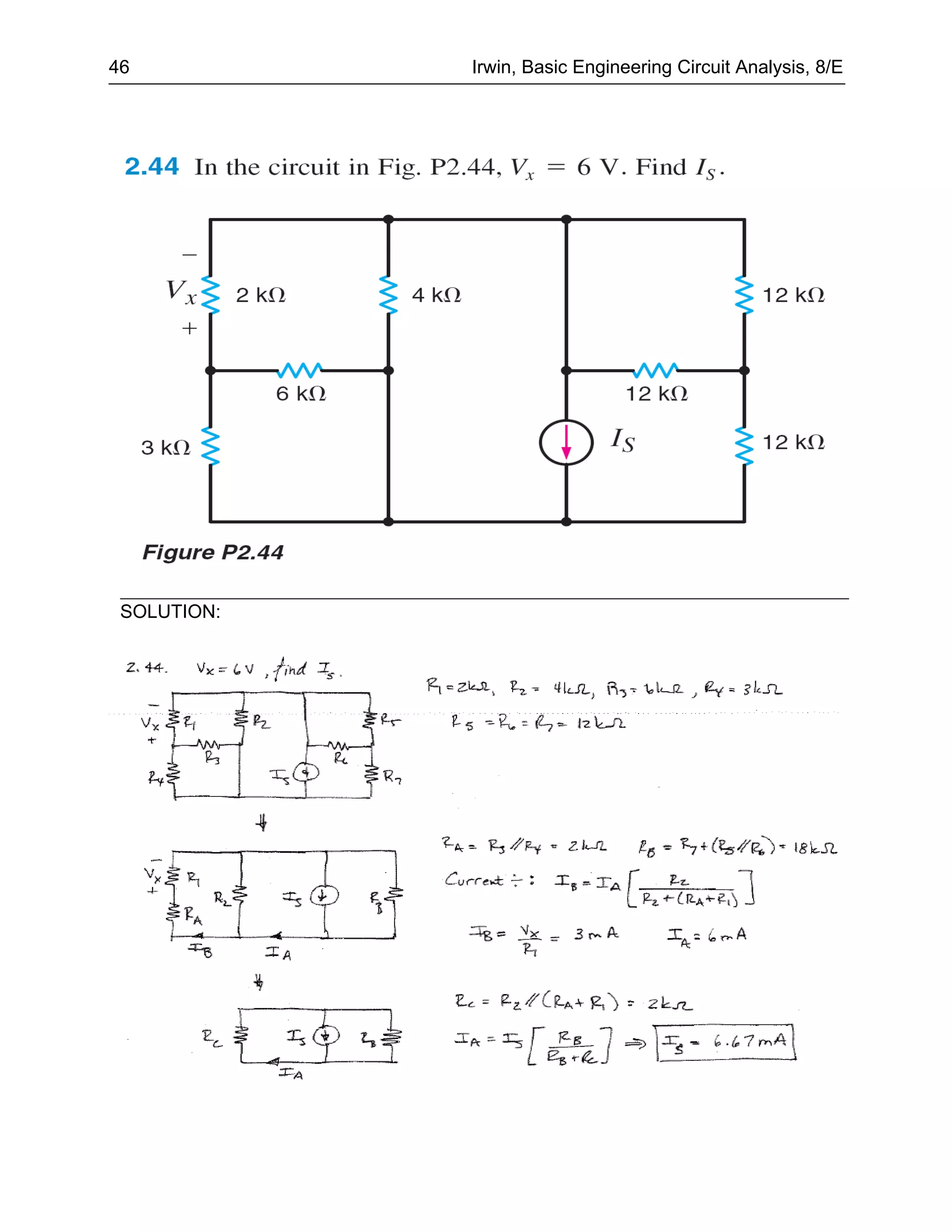

48. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

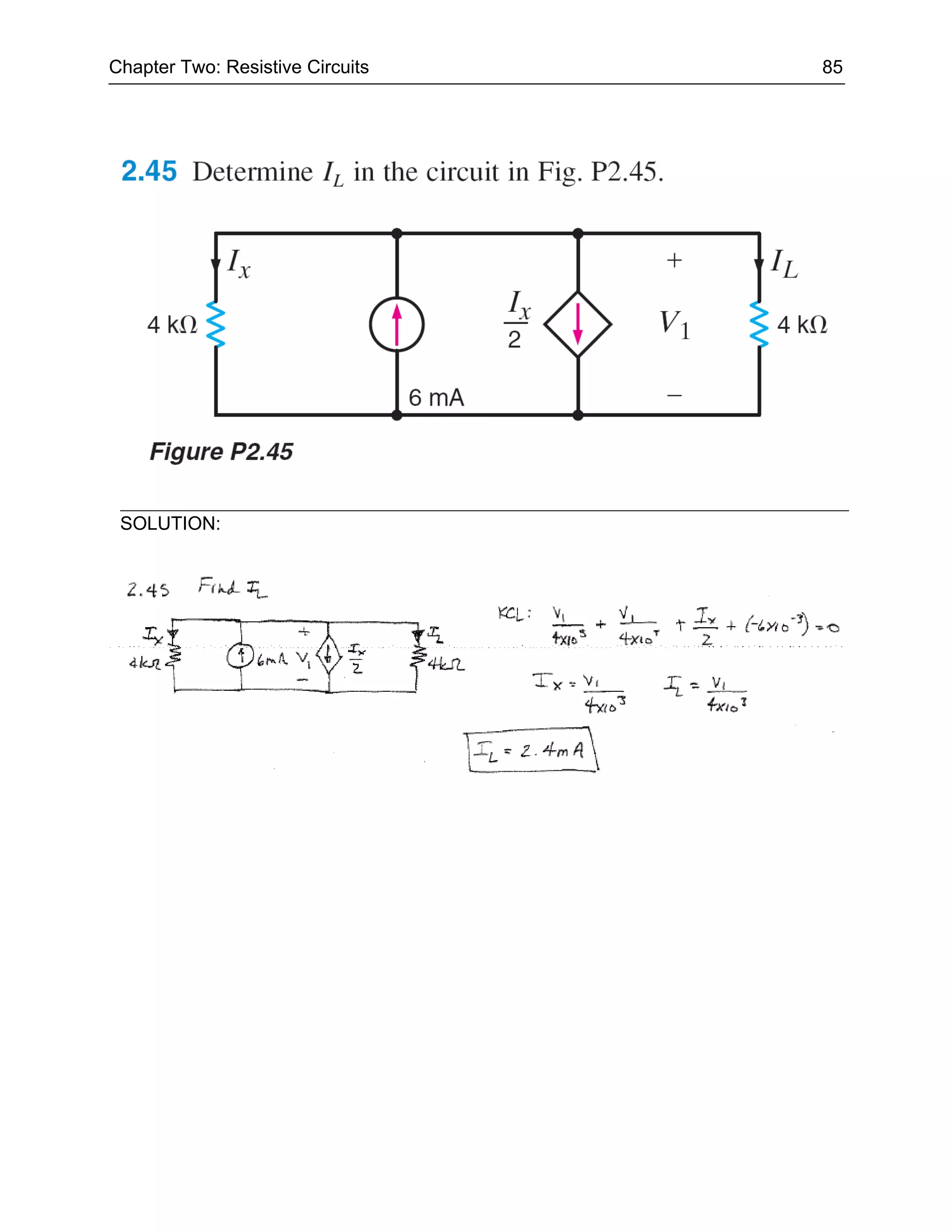

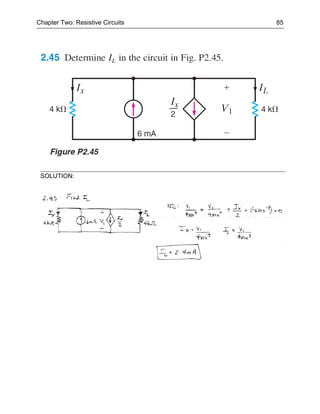

49. Chapter Two: Resistive Circuits 85
SOLUTION:

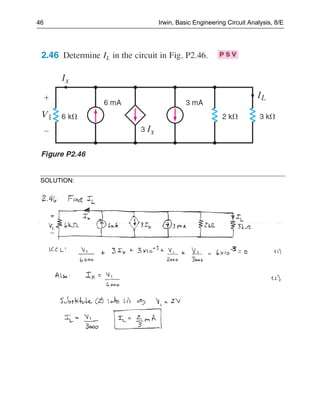

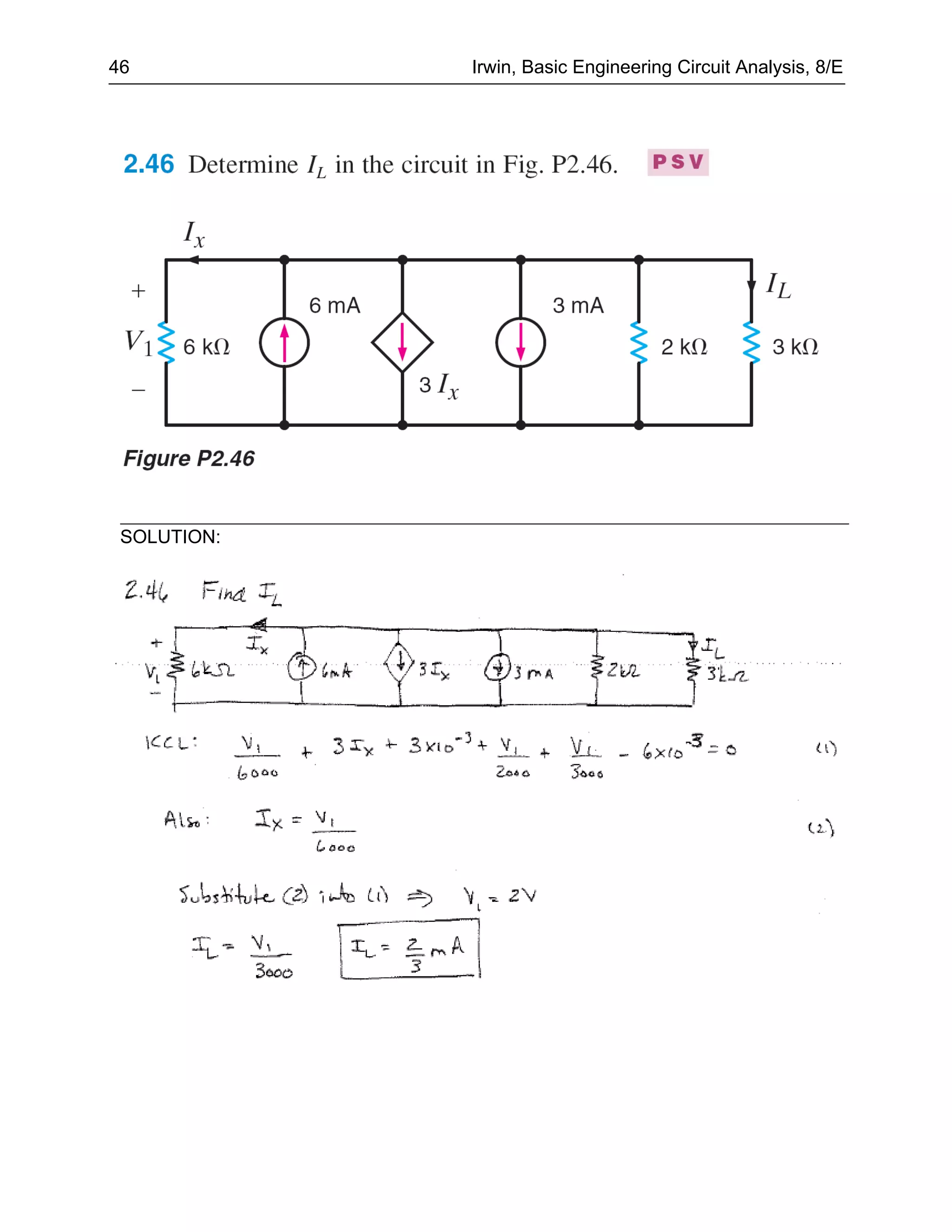

50. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

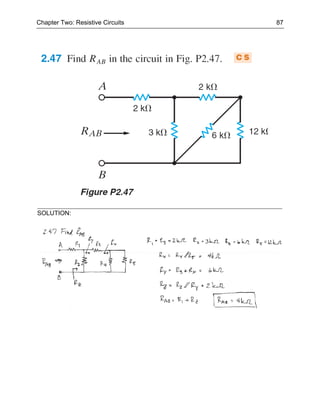

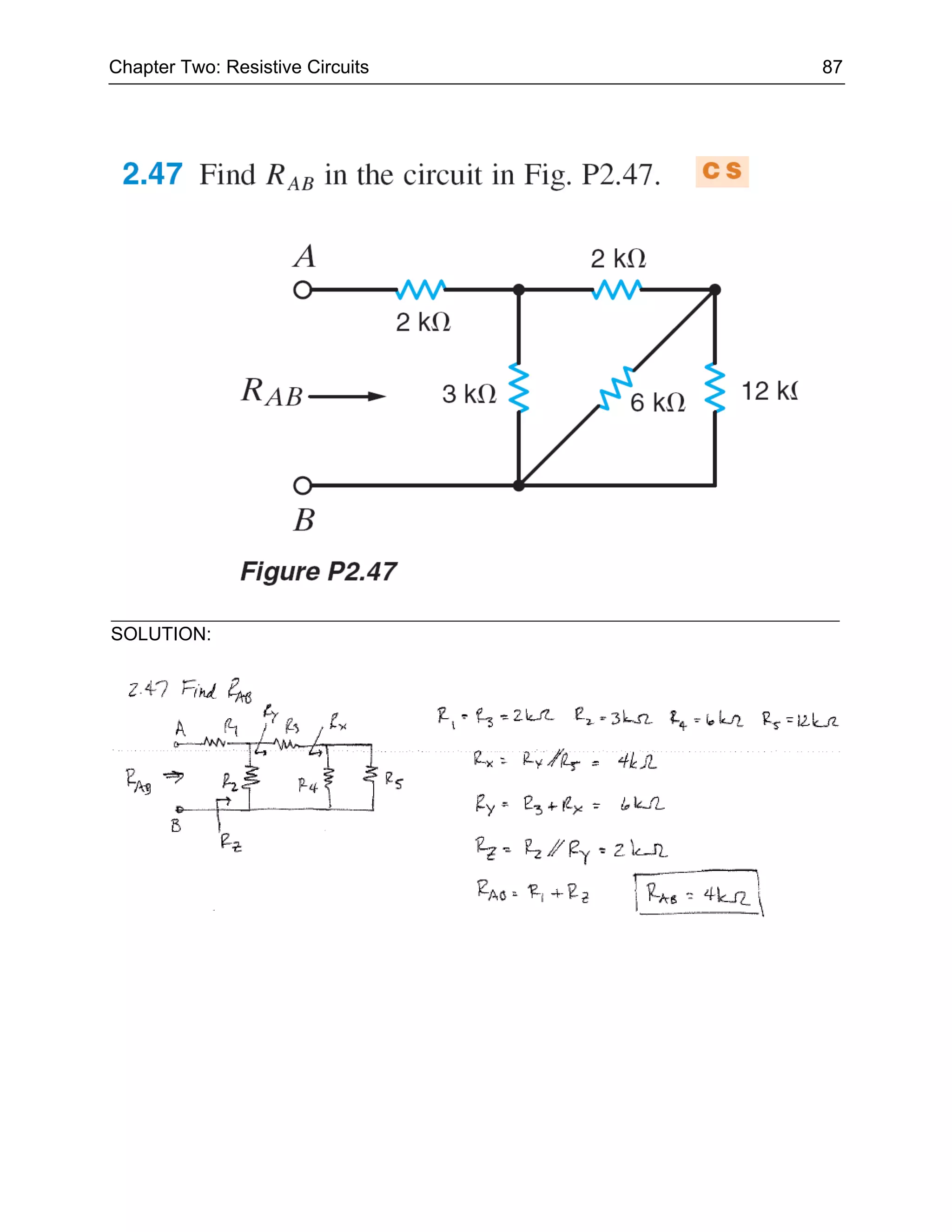

51. Chapter Two: Resistive Circuits 87
SOLUTION:

52. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

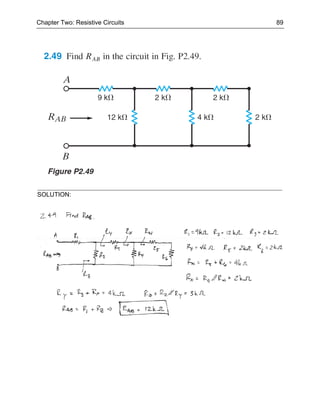

53. Chapter Two: Resistive Circuits 89
SOLUTION:

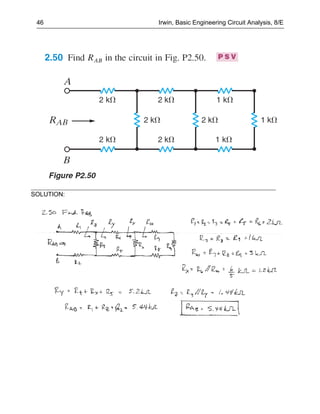

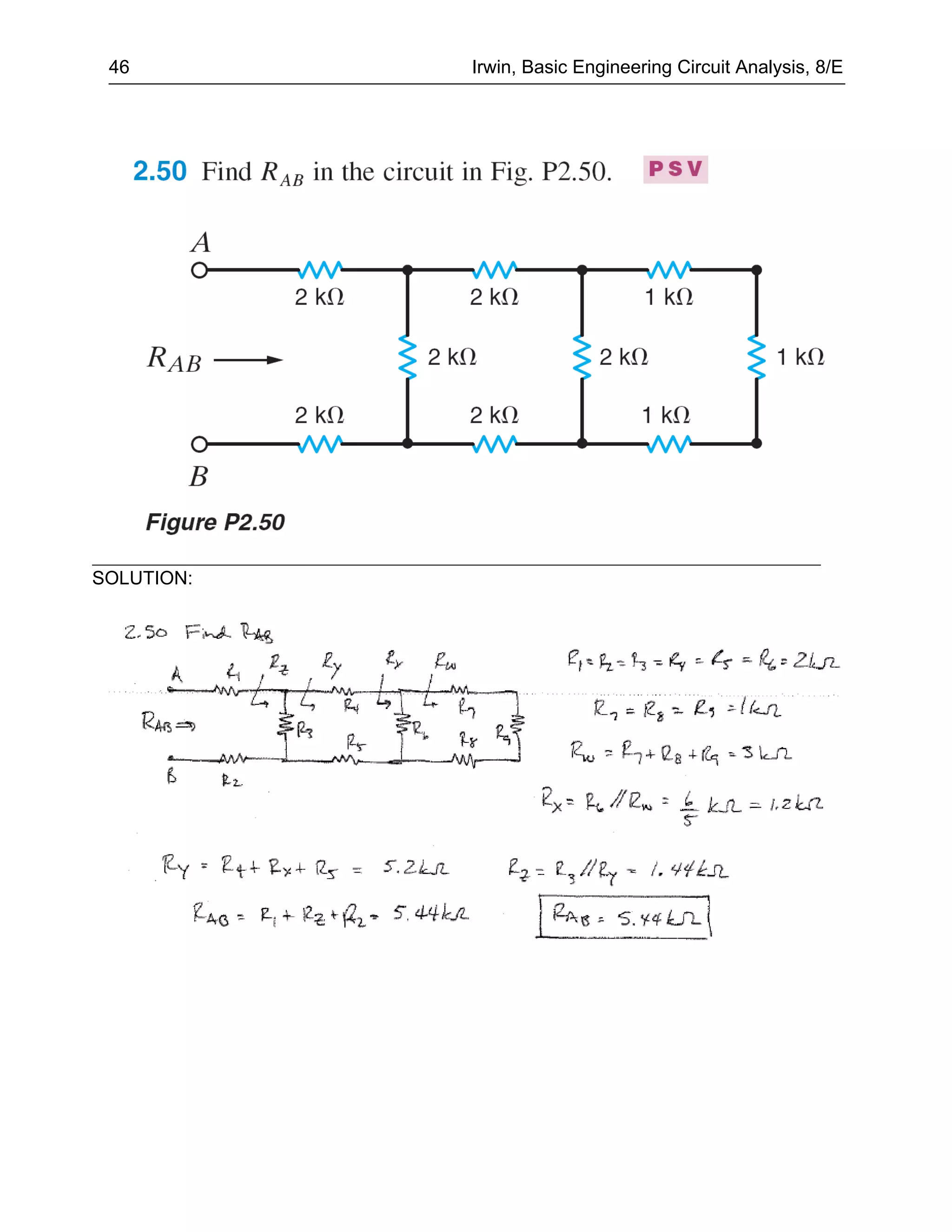

54. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

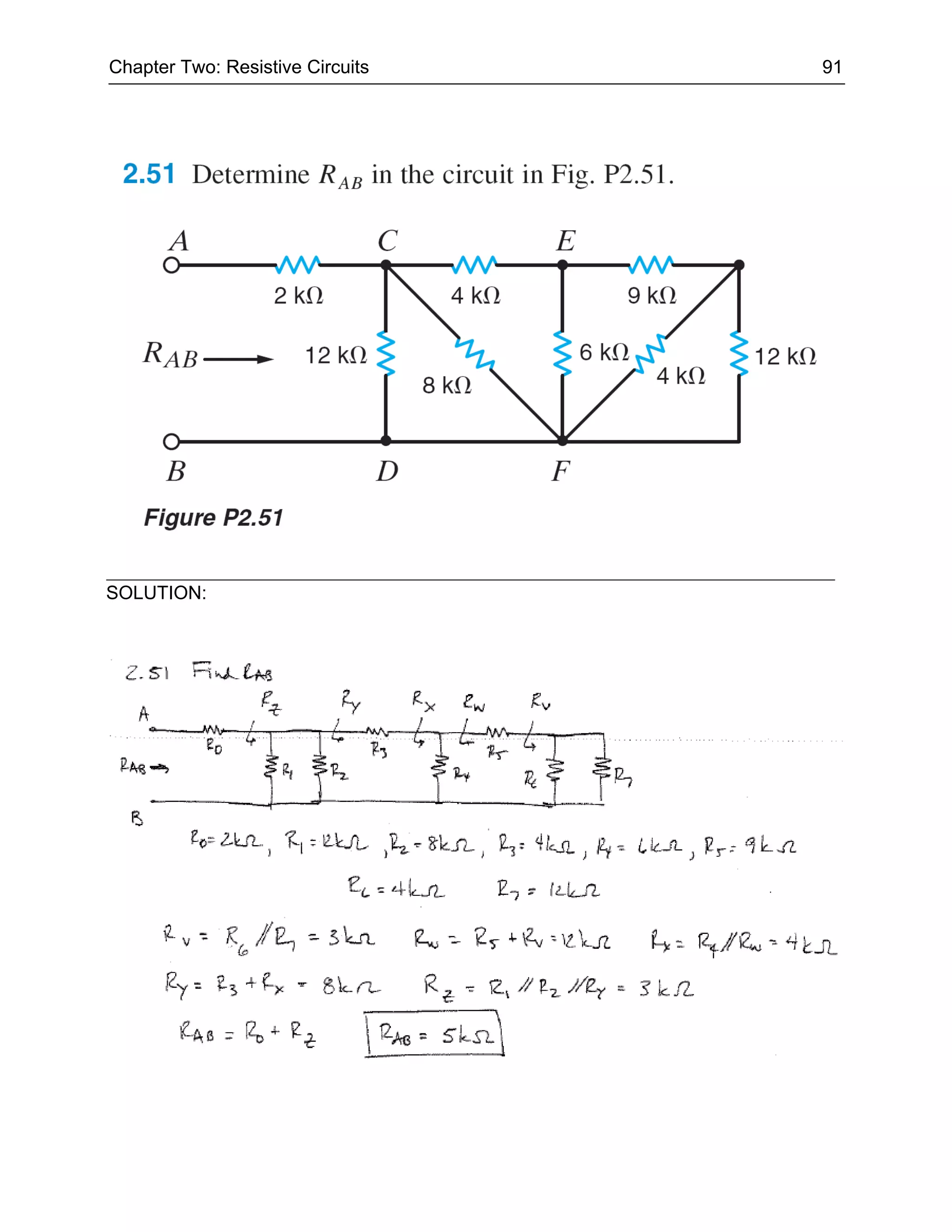

55. Chapter Two: Resistive Circuits 91
SOLUTION:

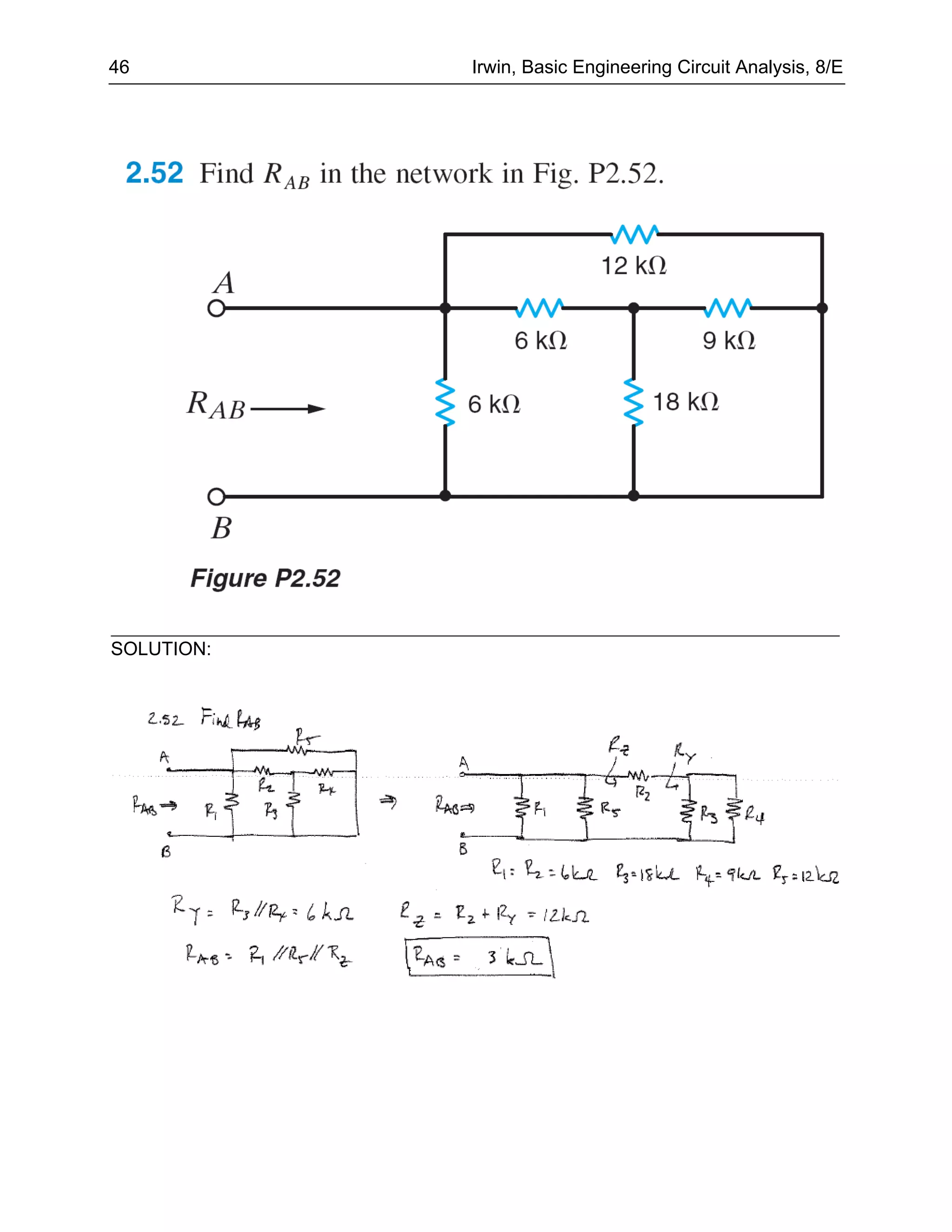

56. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

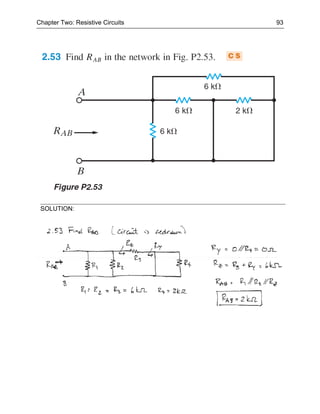

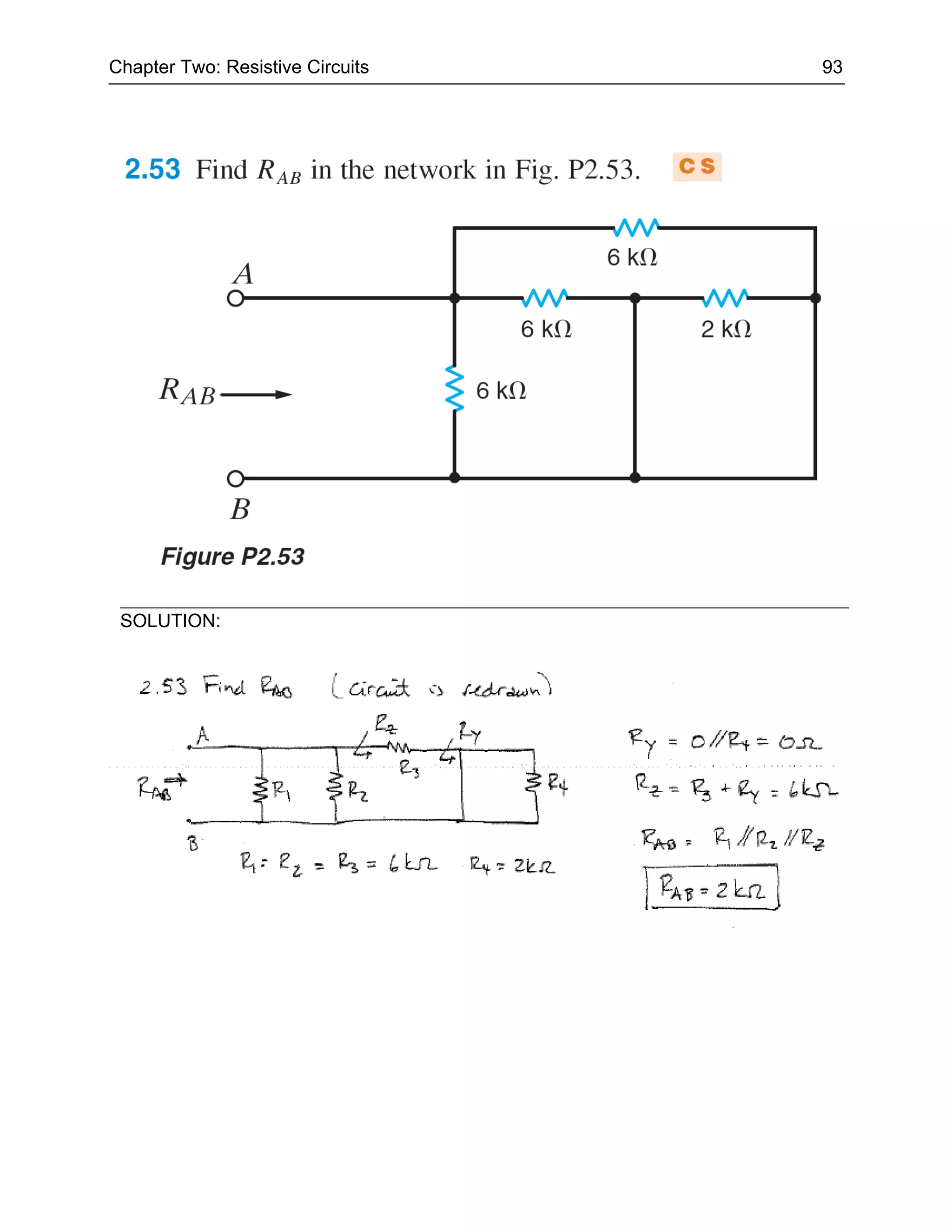

57. Chapter Two: Resistive Circuits 93
SOLUTION:

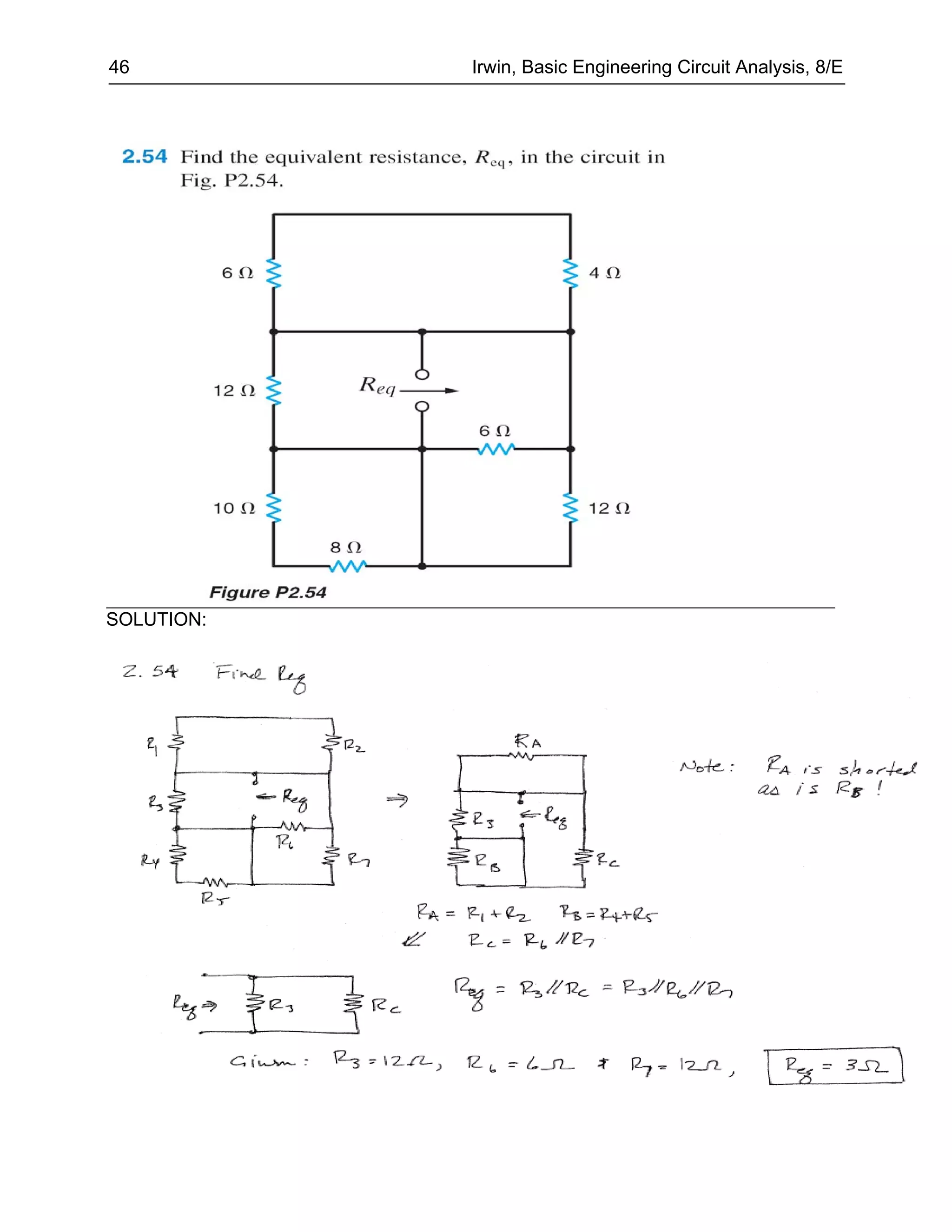

58. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

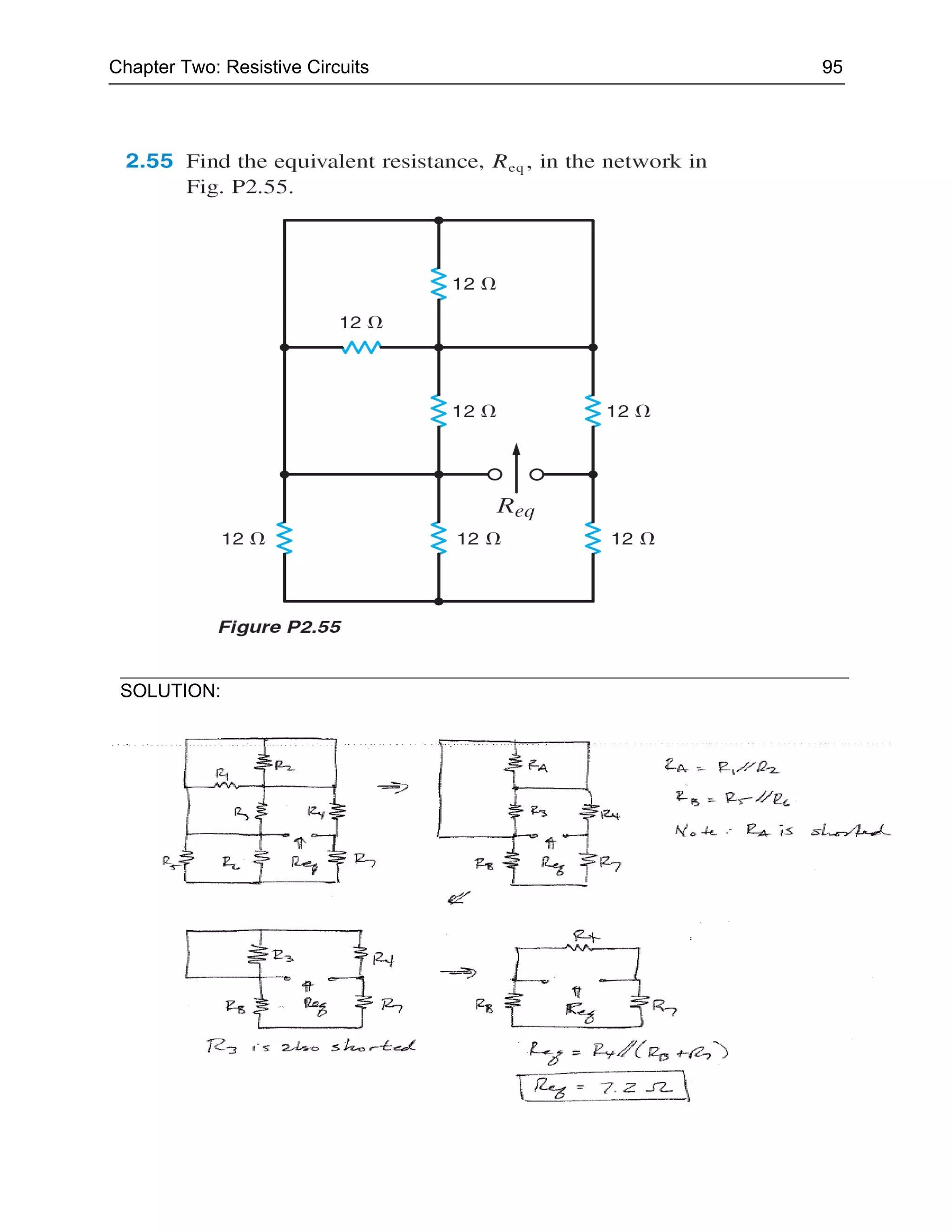

59. Chapter Two: Resistive Circuits 95
SOLUTION:

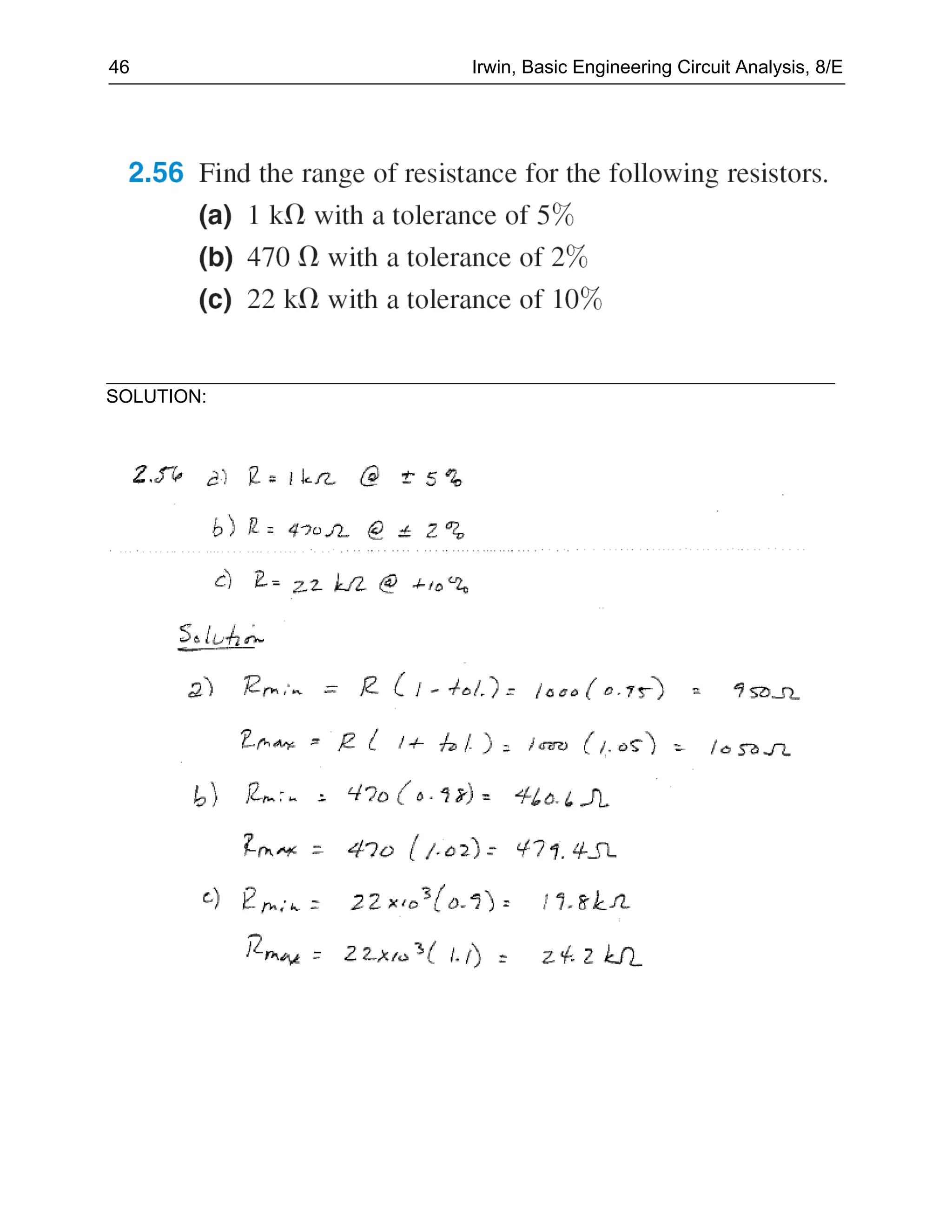

60. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

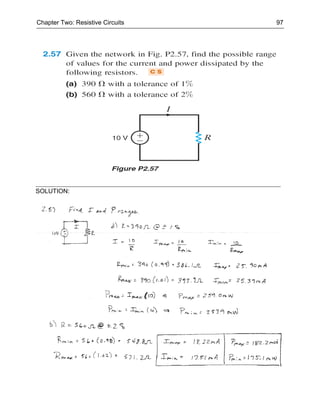

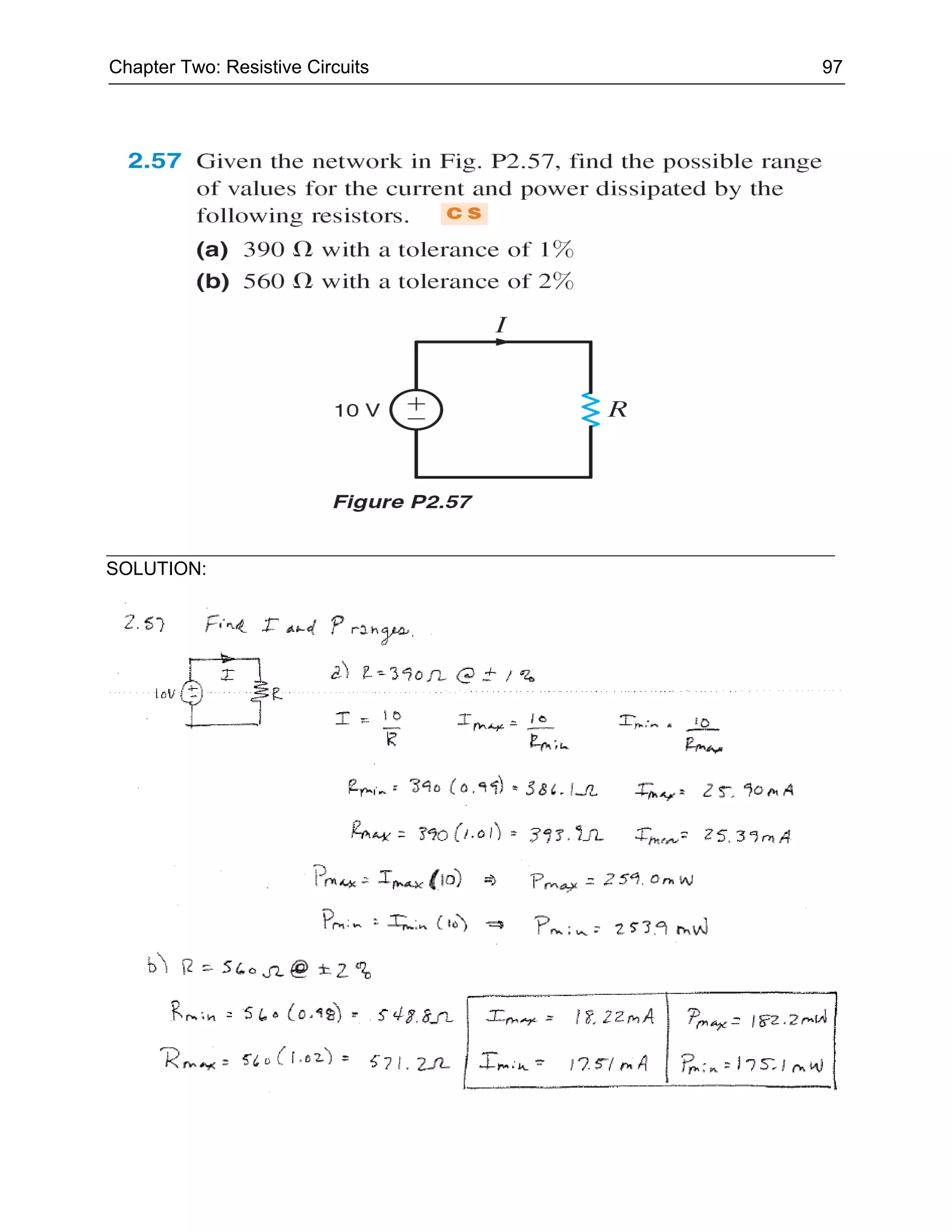

61. Chapter Two: Resistive Circuits 97
SOLUTION:

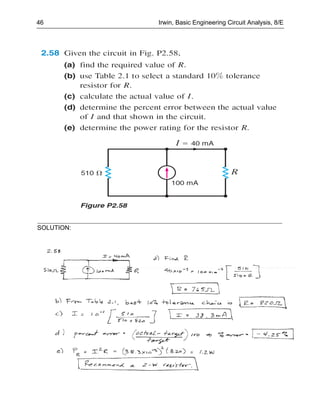

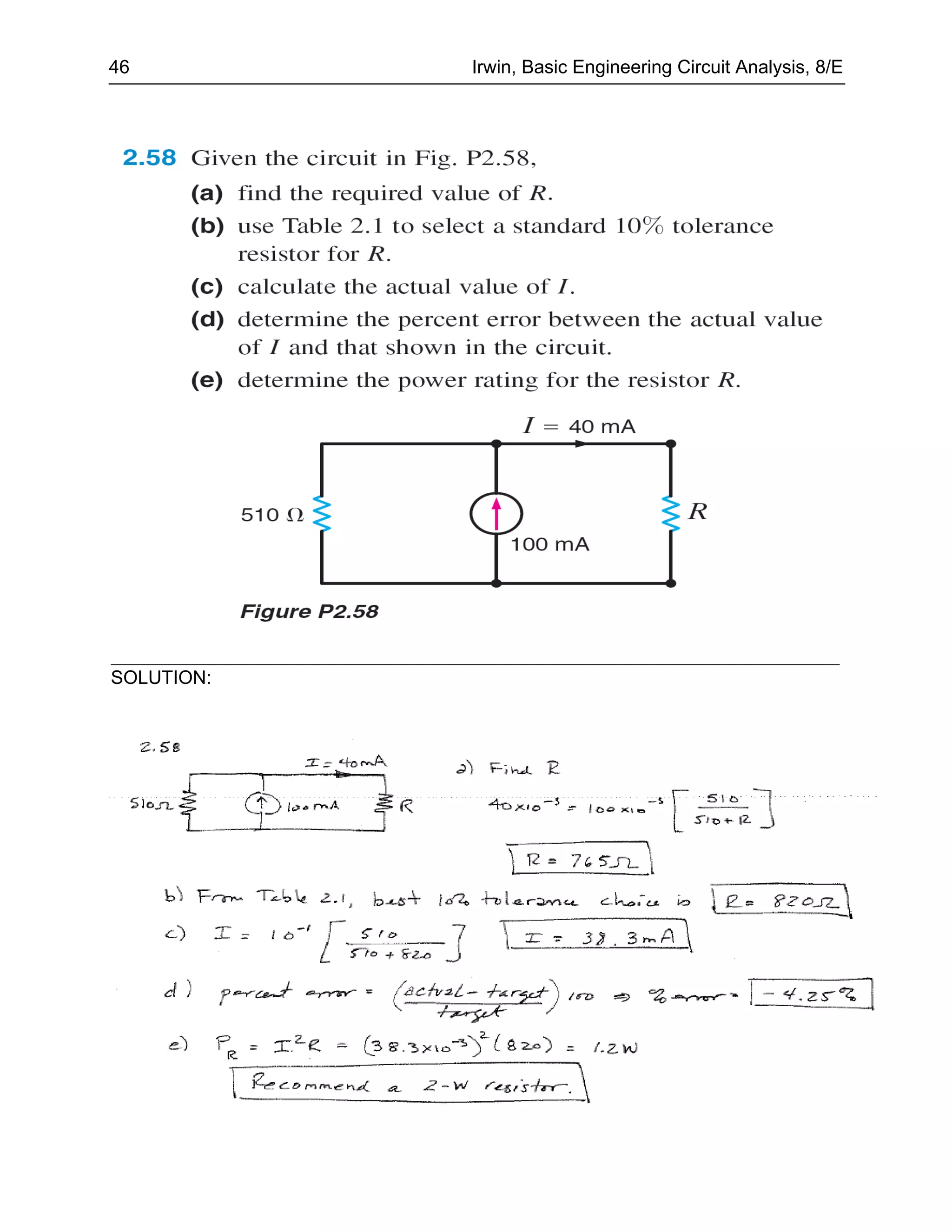

62. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

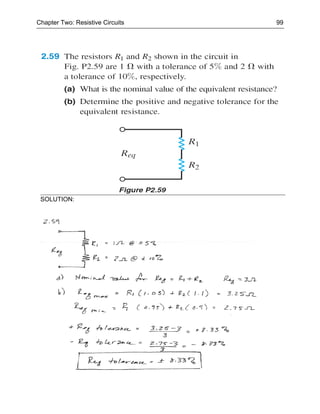

63. Chapter Two: Resistive Circuits 99
SOLUTION:

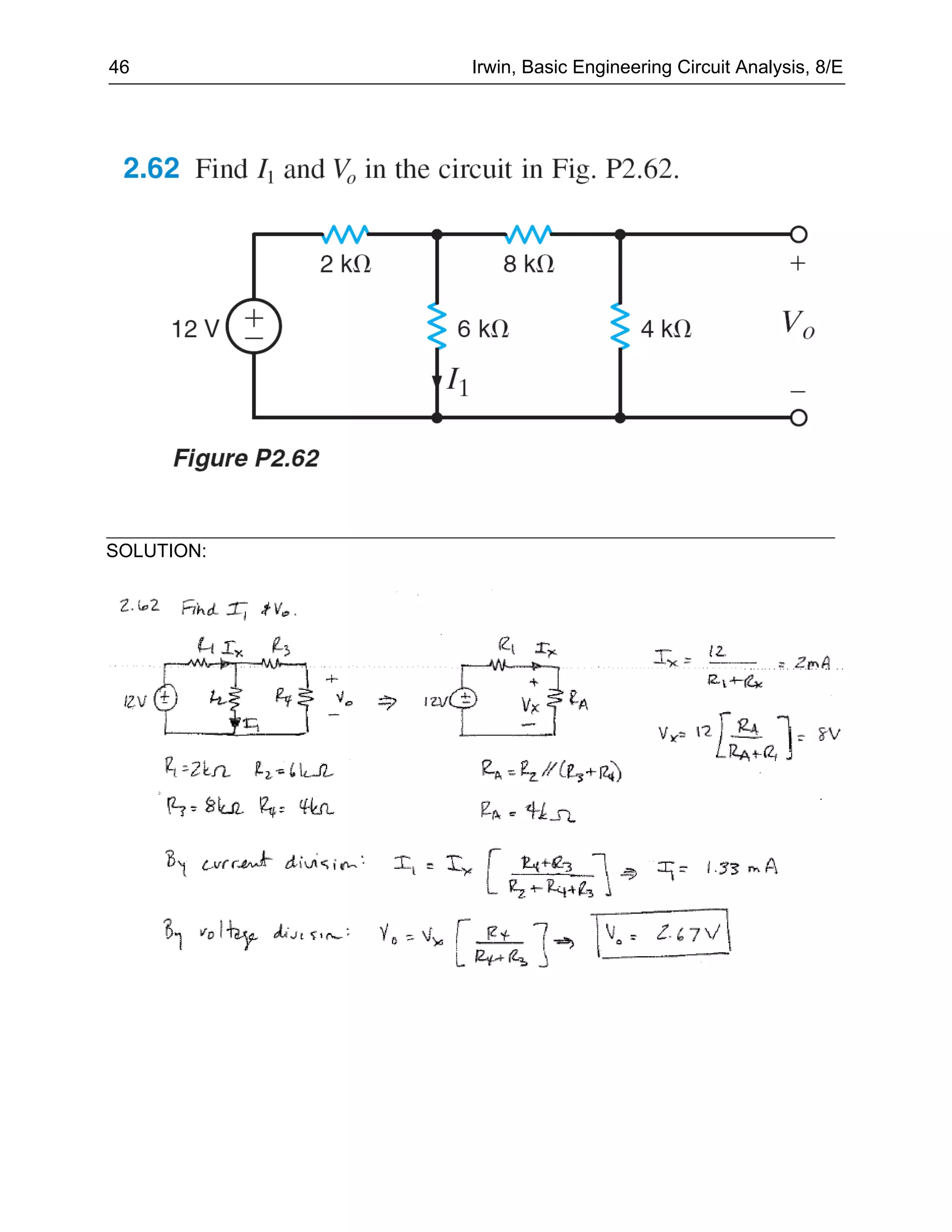

64. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

65. Chapter Two: Resistive Circuits 101
SOLUTION:

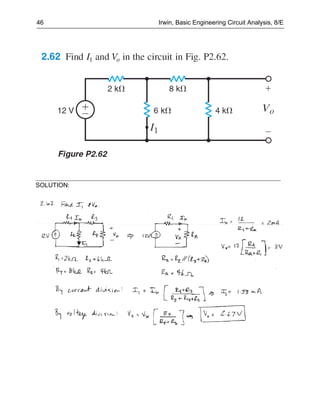

66. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

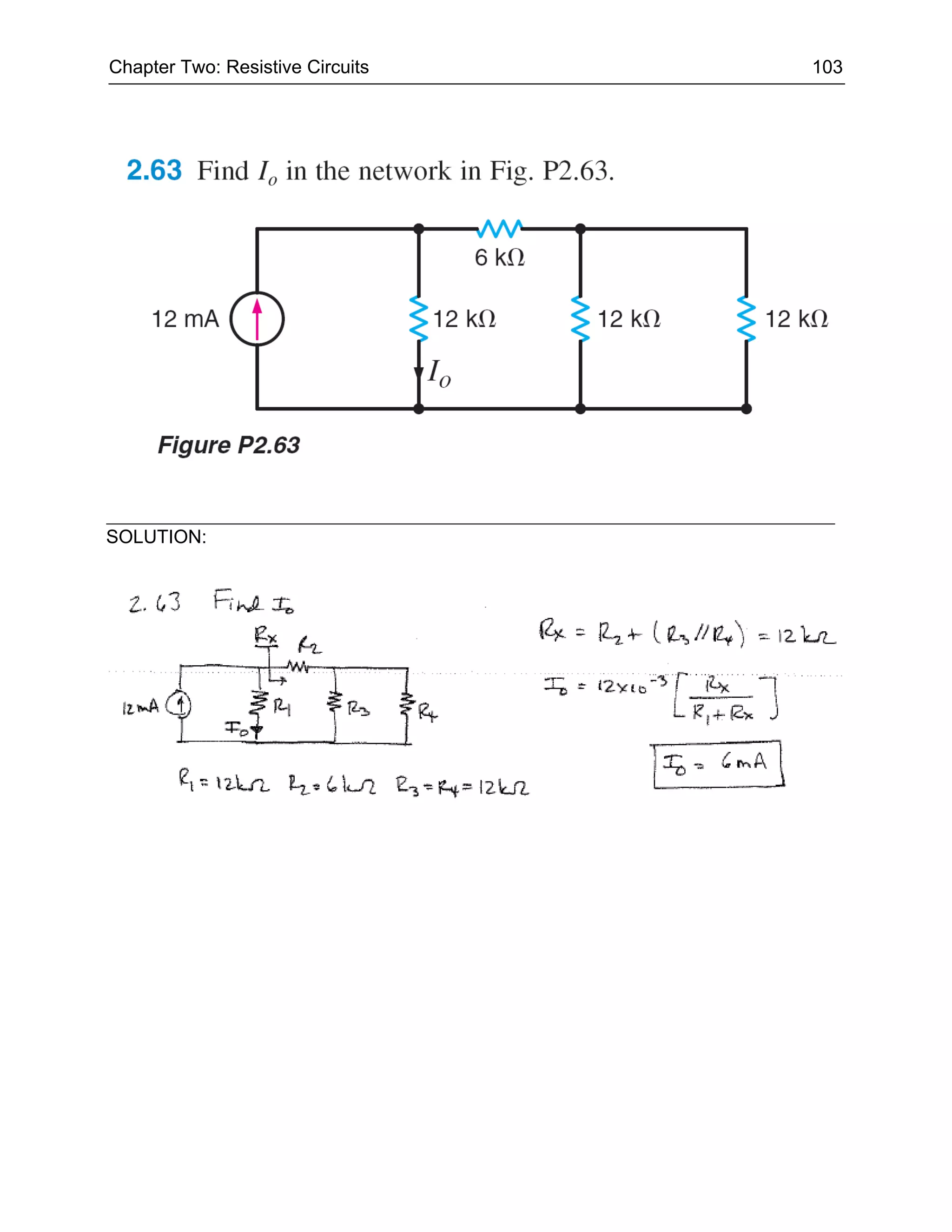

67. Chapter Two: Resistive Circuits 103
SOLUTION:

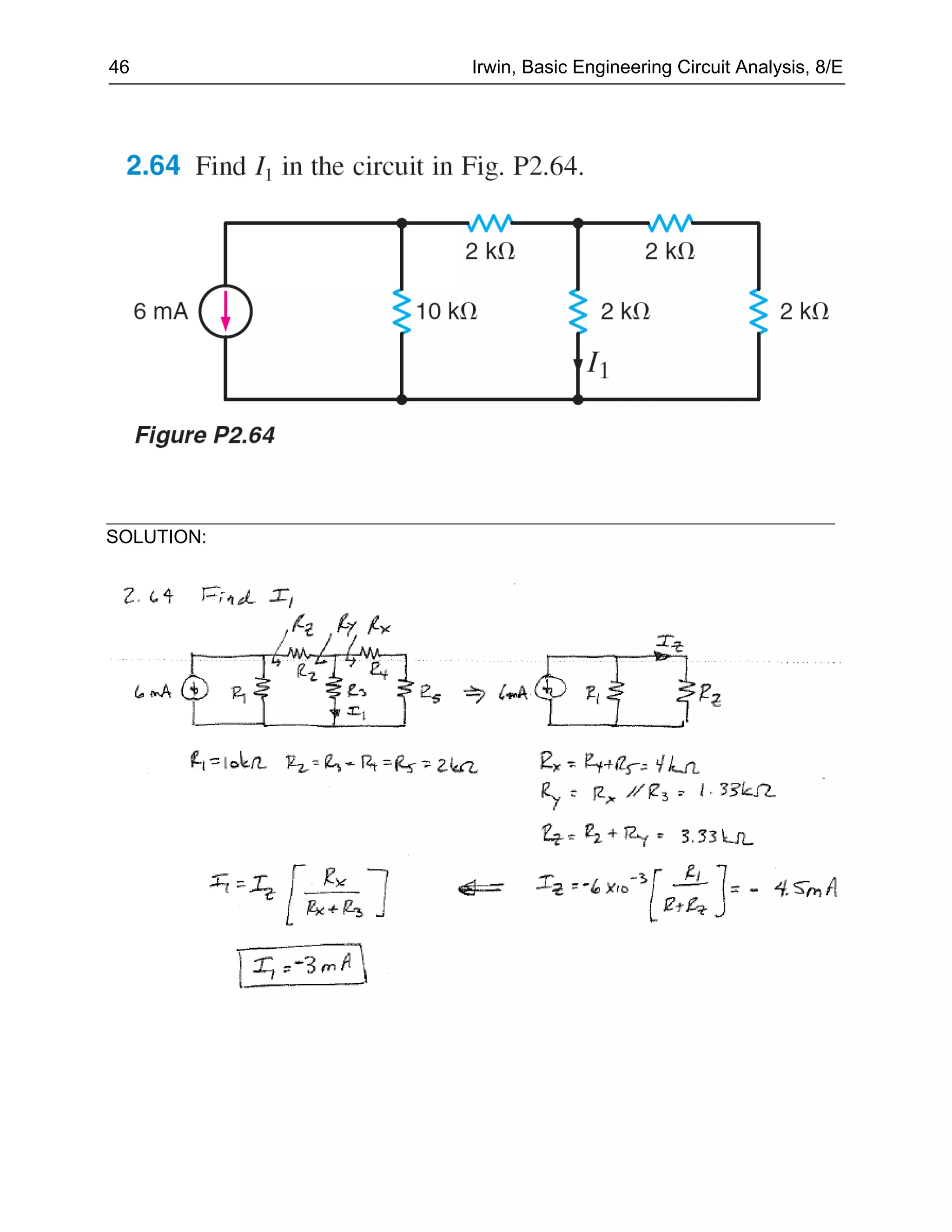

68. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

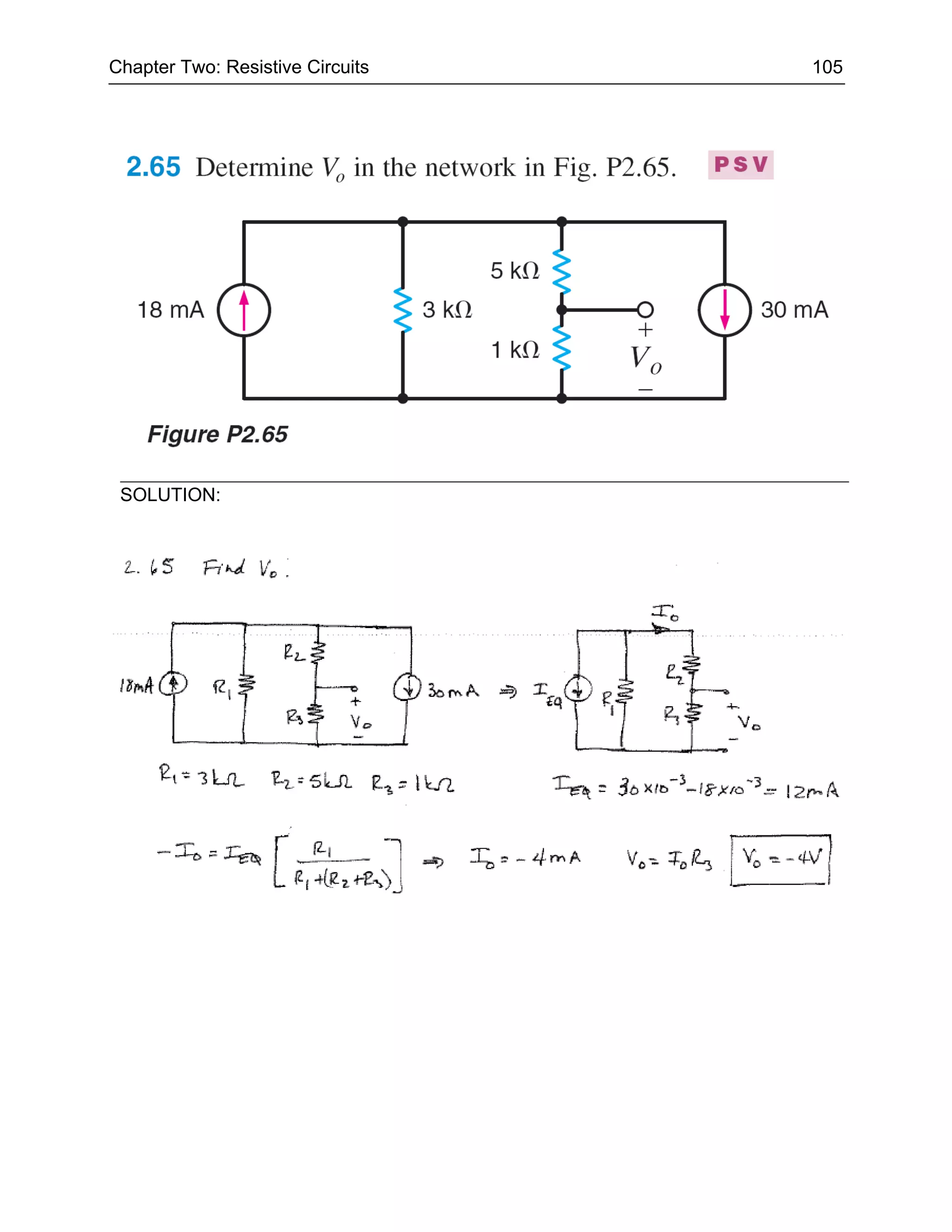

69. Chapter Two: Resistive Circuits 105
SOLUTION:

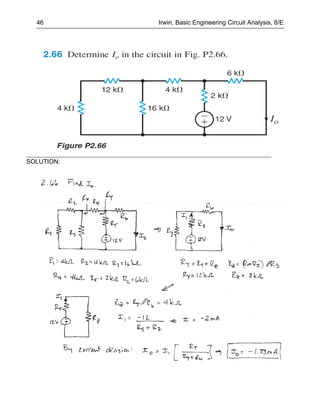

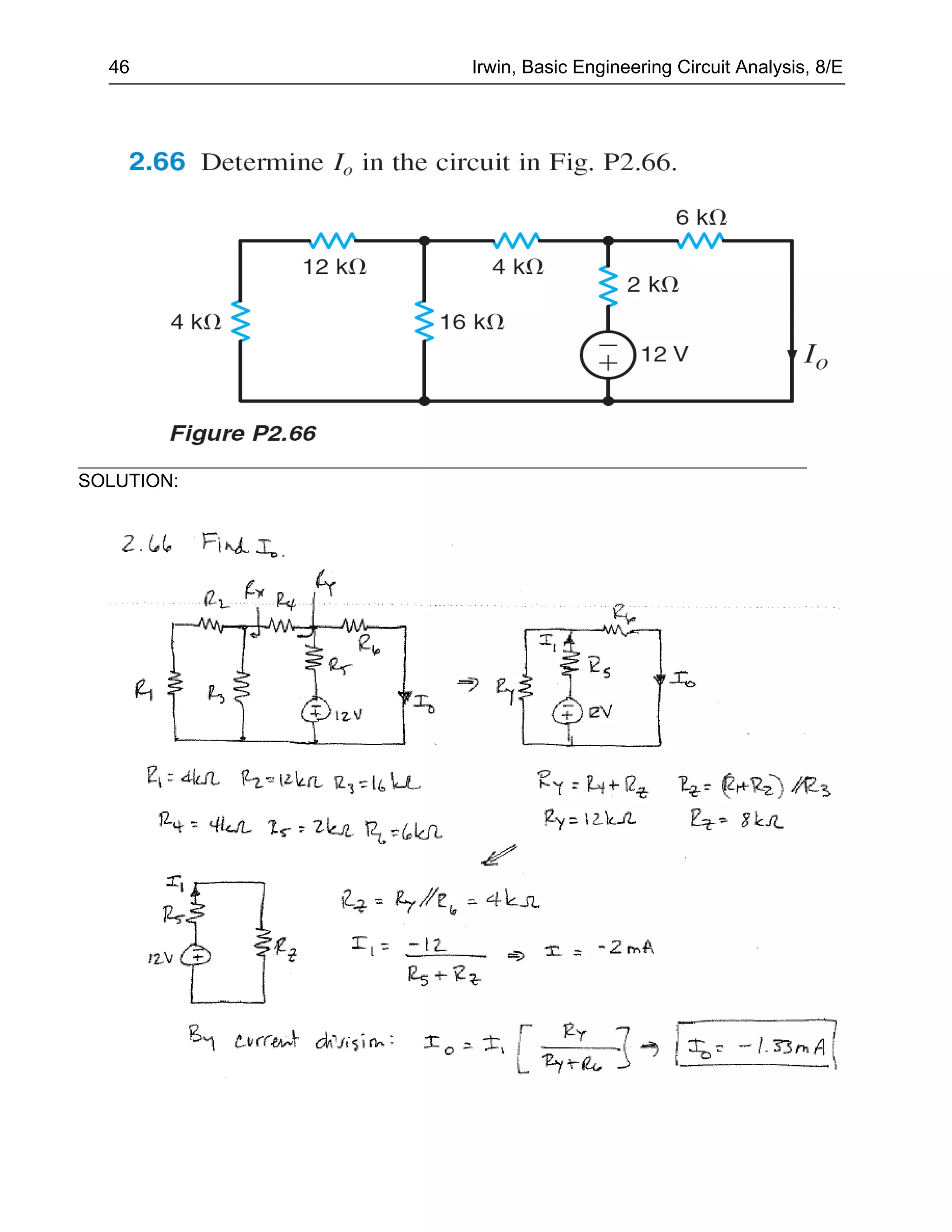

70. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

71. Chapter Two: Resistive Circuits 107
SOLUTION:

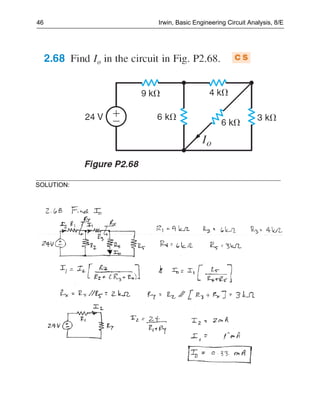

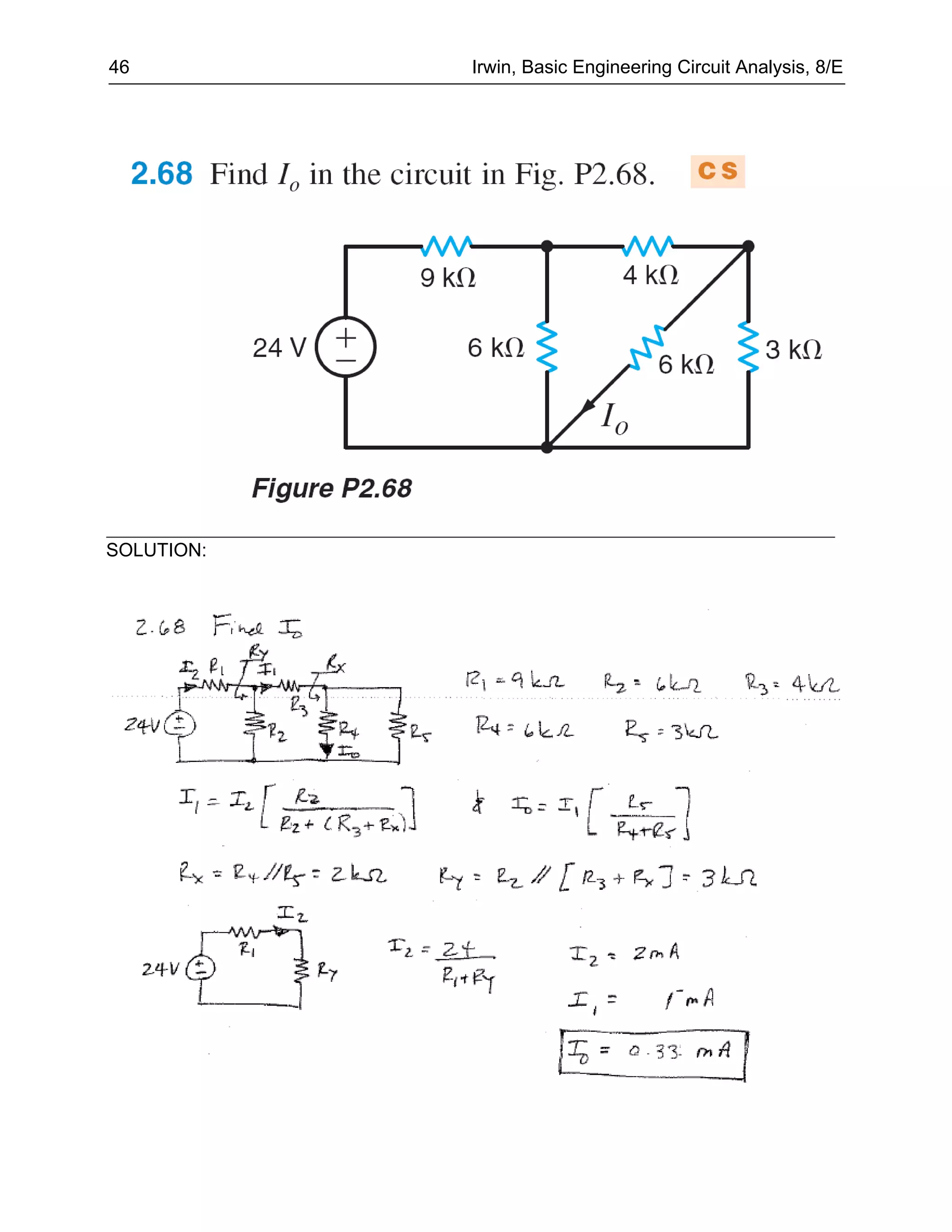

72. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

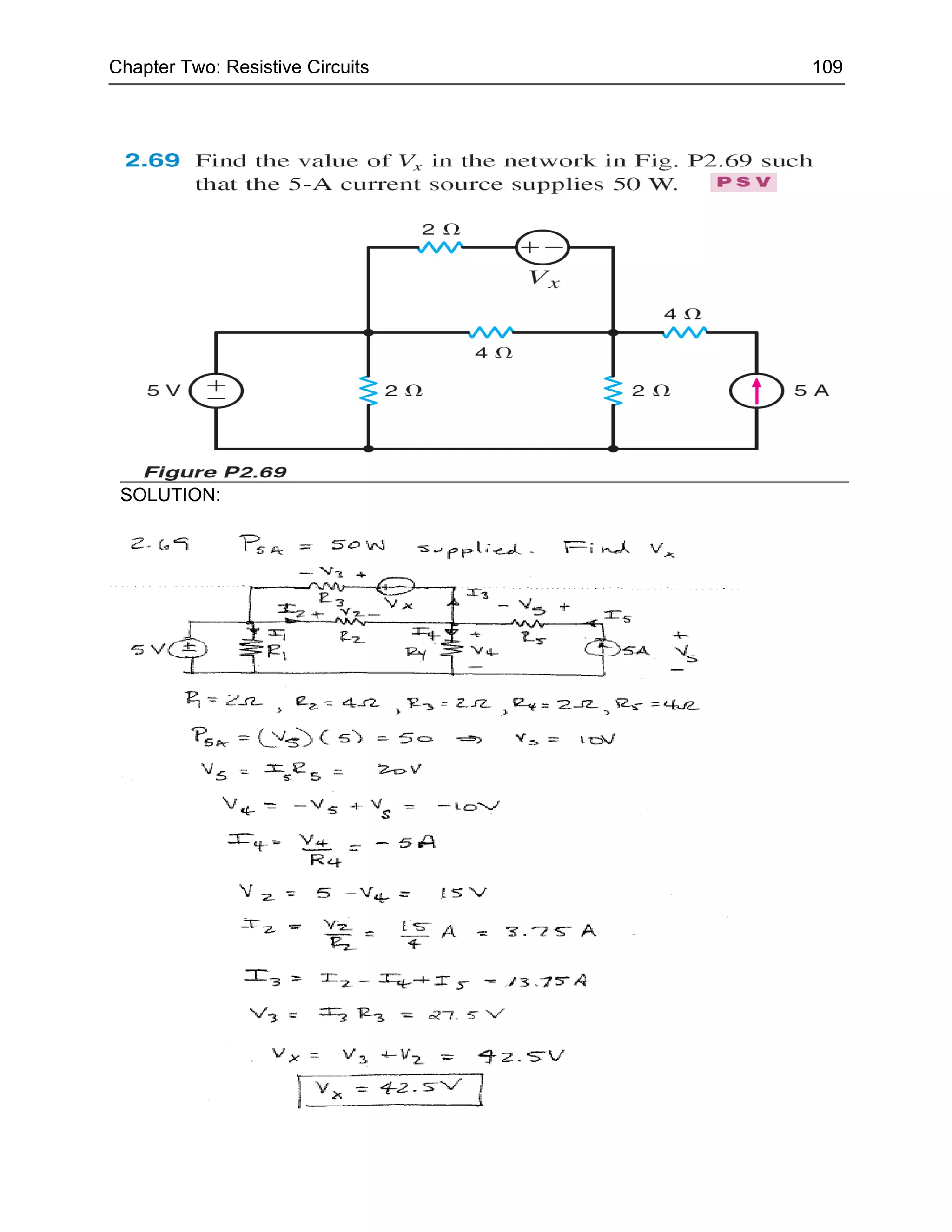

73. Chapter Two: Resistive Circuits 109
SOLUTION:

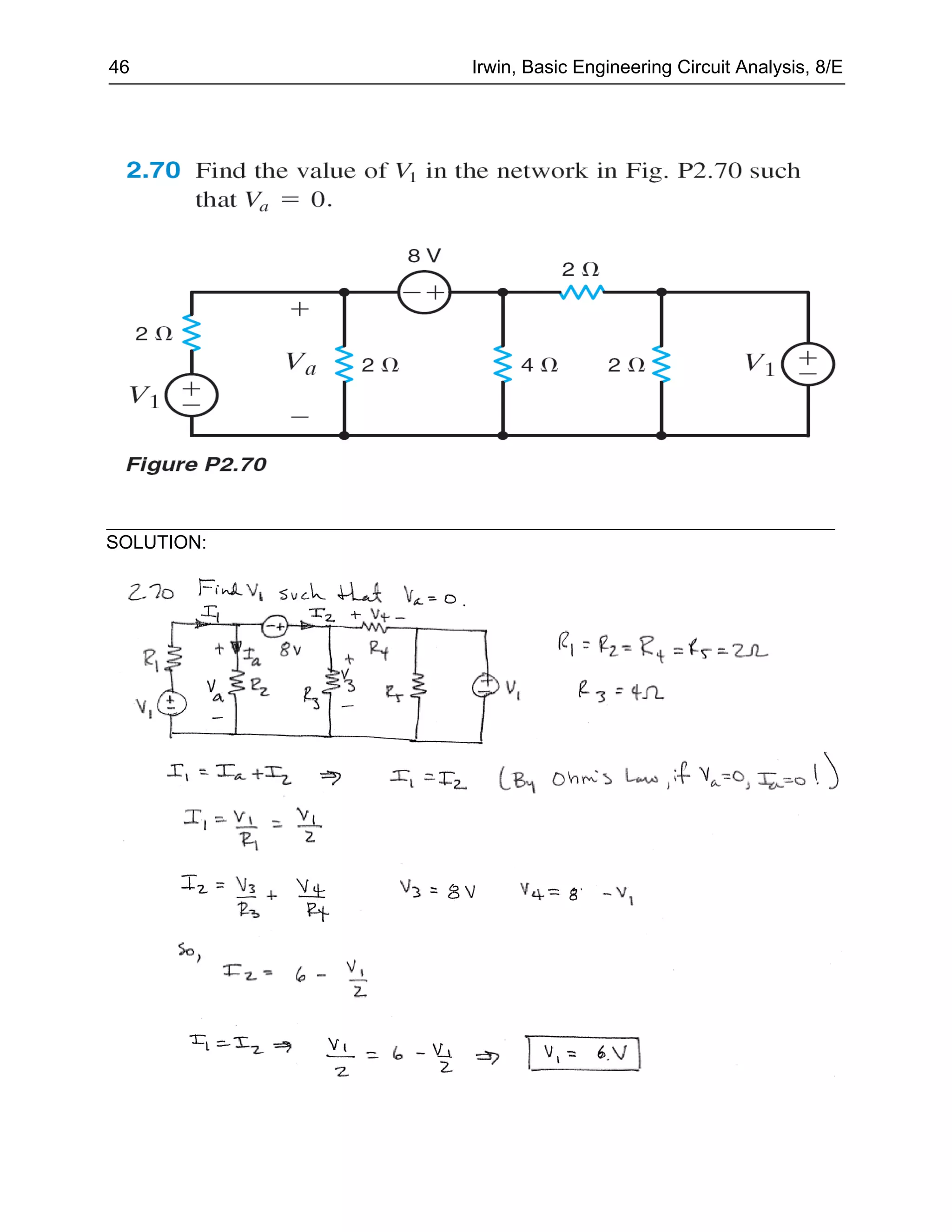

74. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

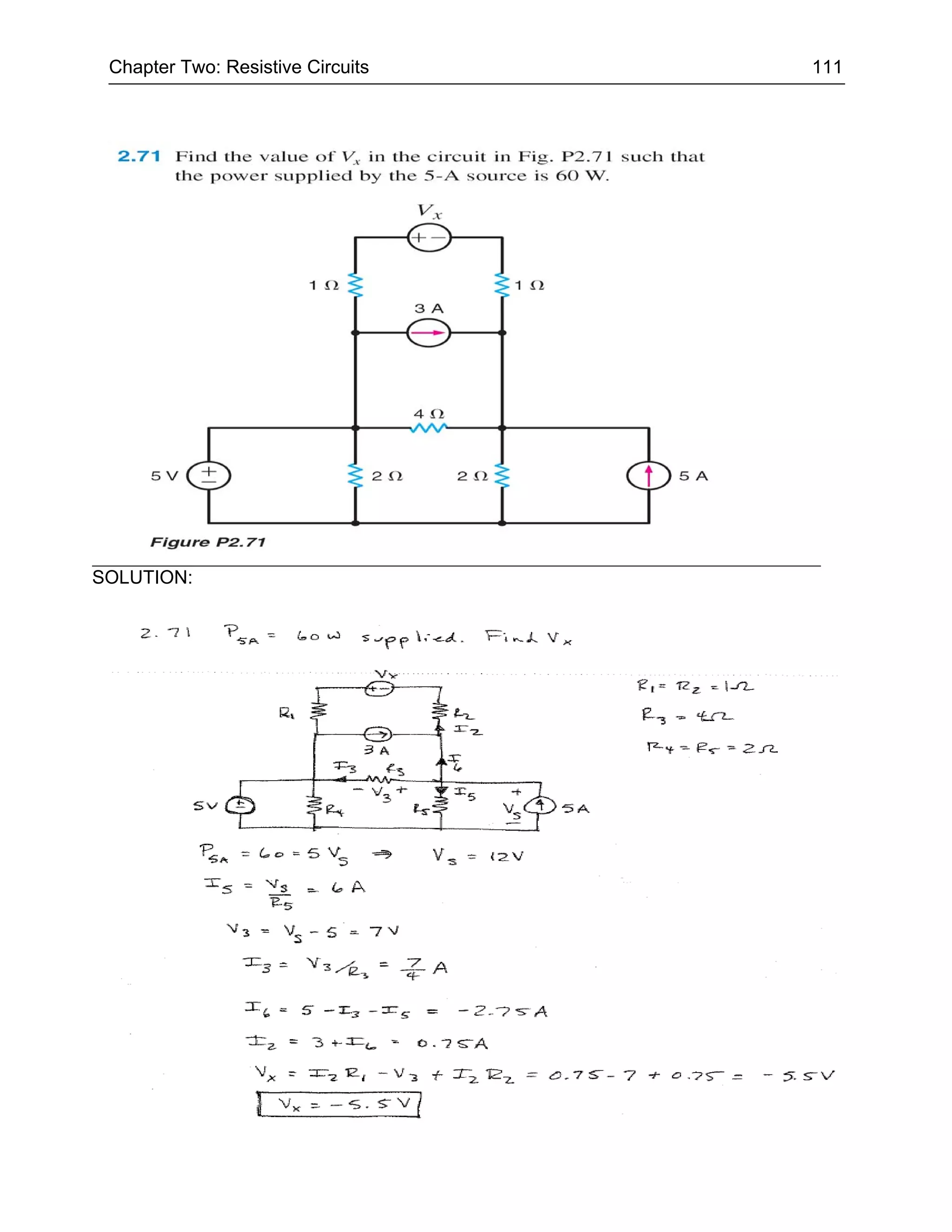

75. Chapter Two: Resistive Circuits 111
SOLUTION:

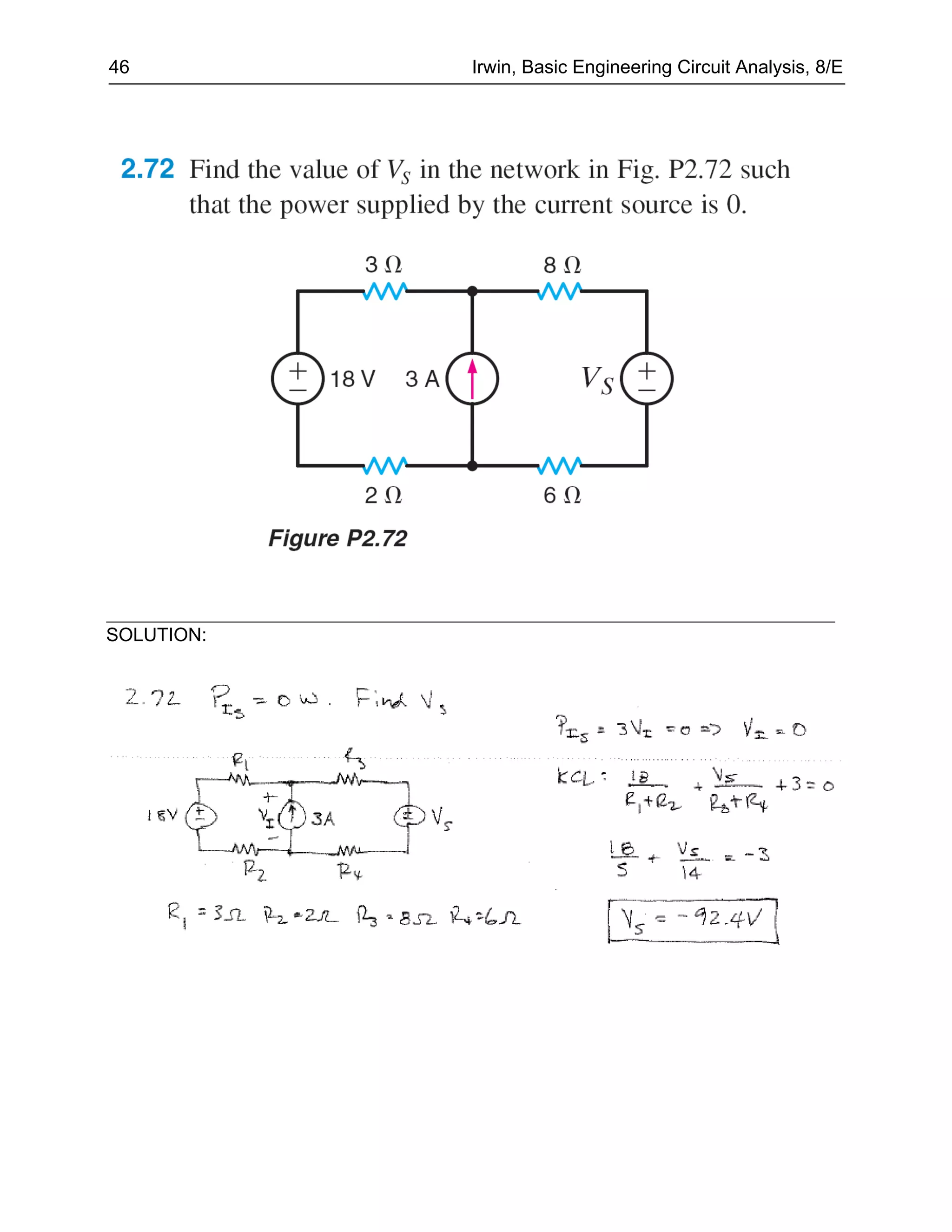

76. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

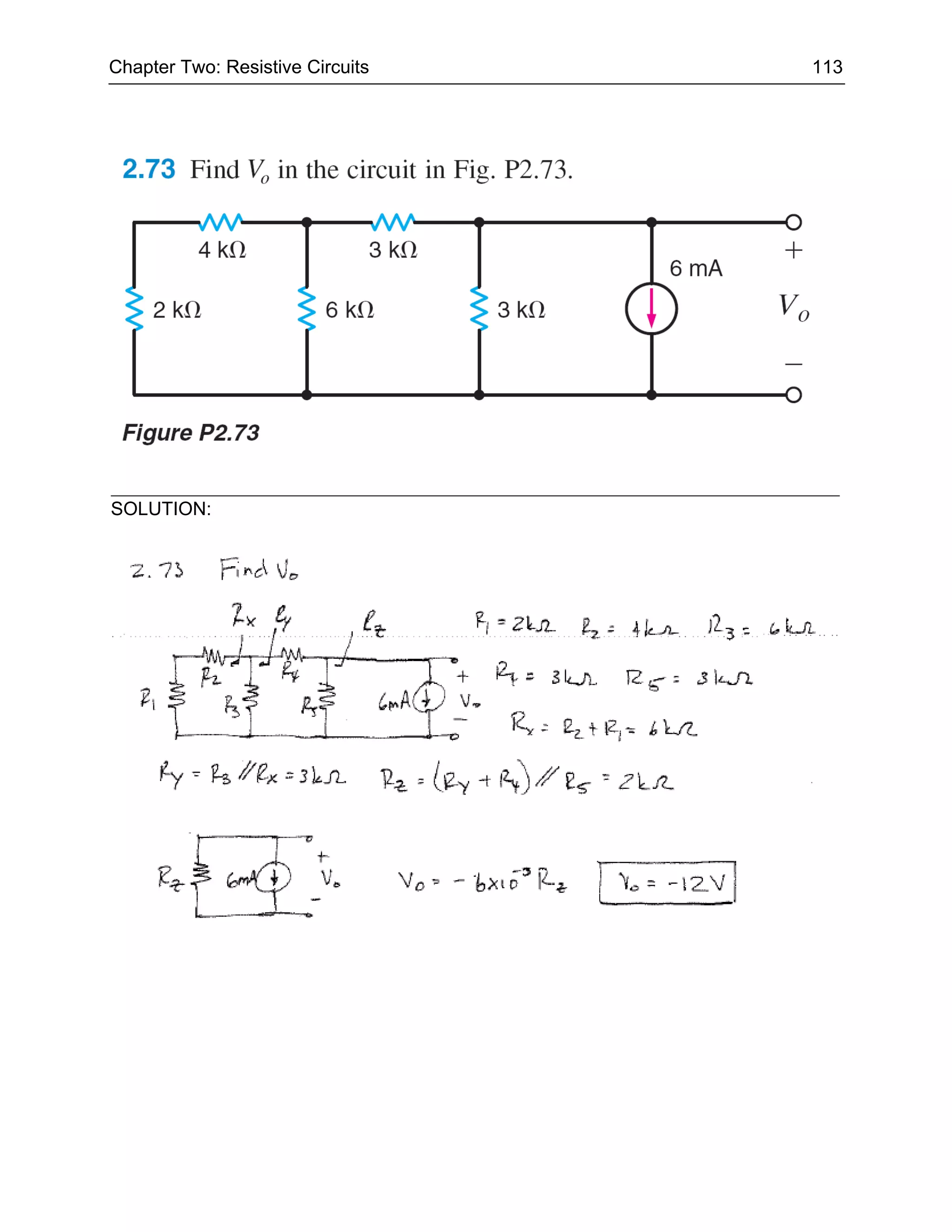

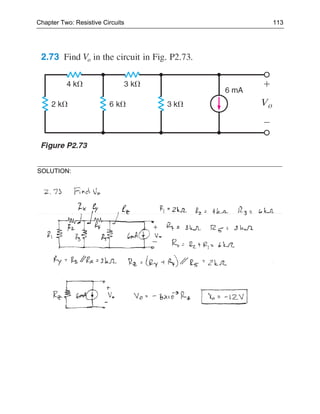

77. Chapter Two: Resistive Circuits 113
SOLUTION:

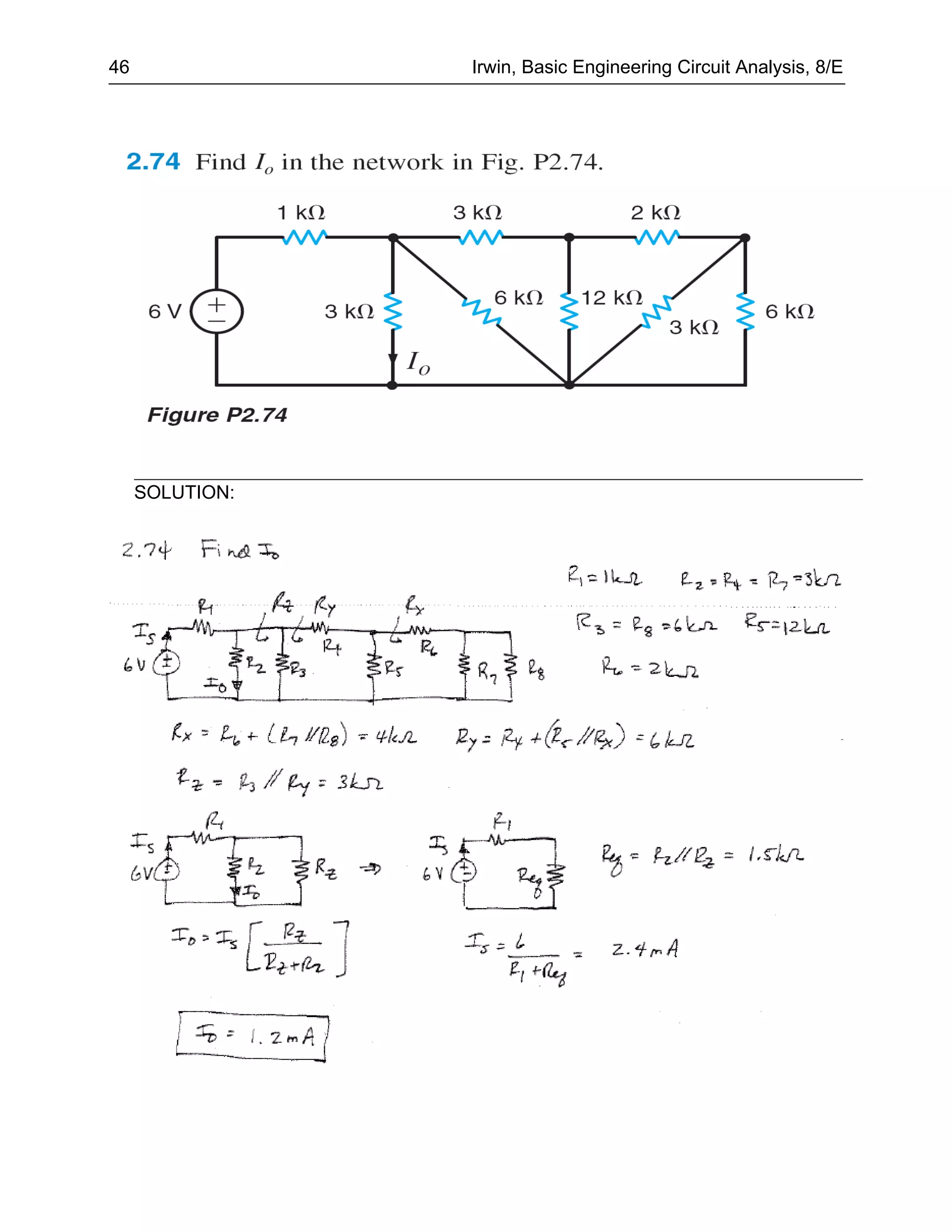

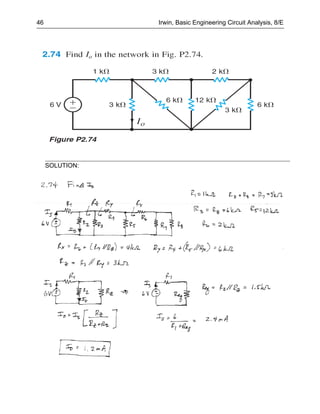

78. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

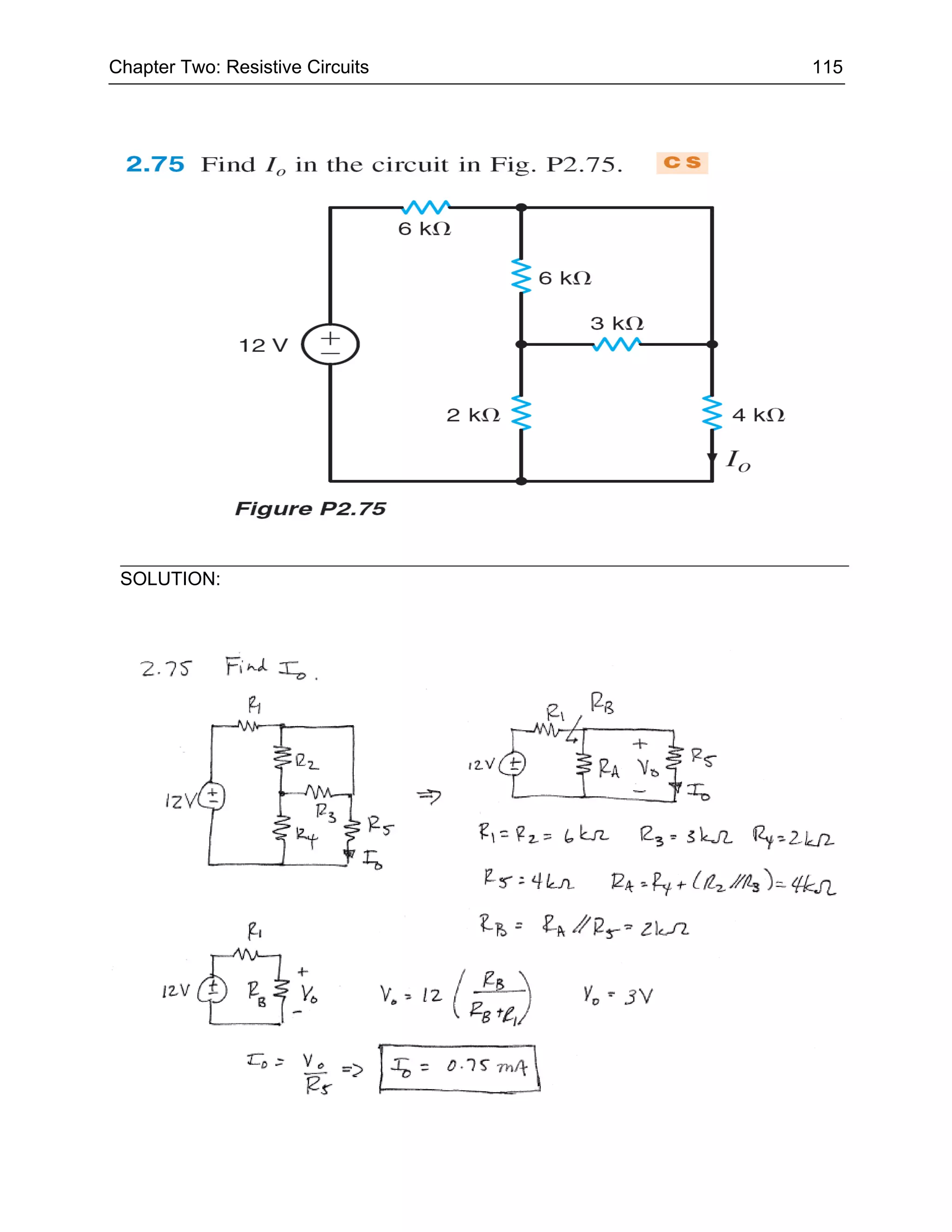

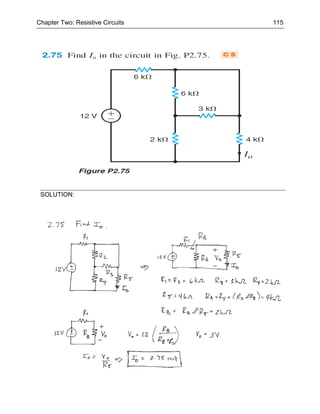

79. Chapter Two: Resistive Circuits 115
SOLUTION:

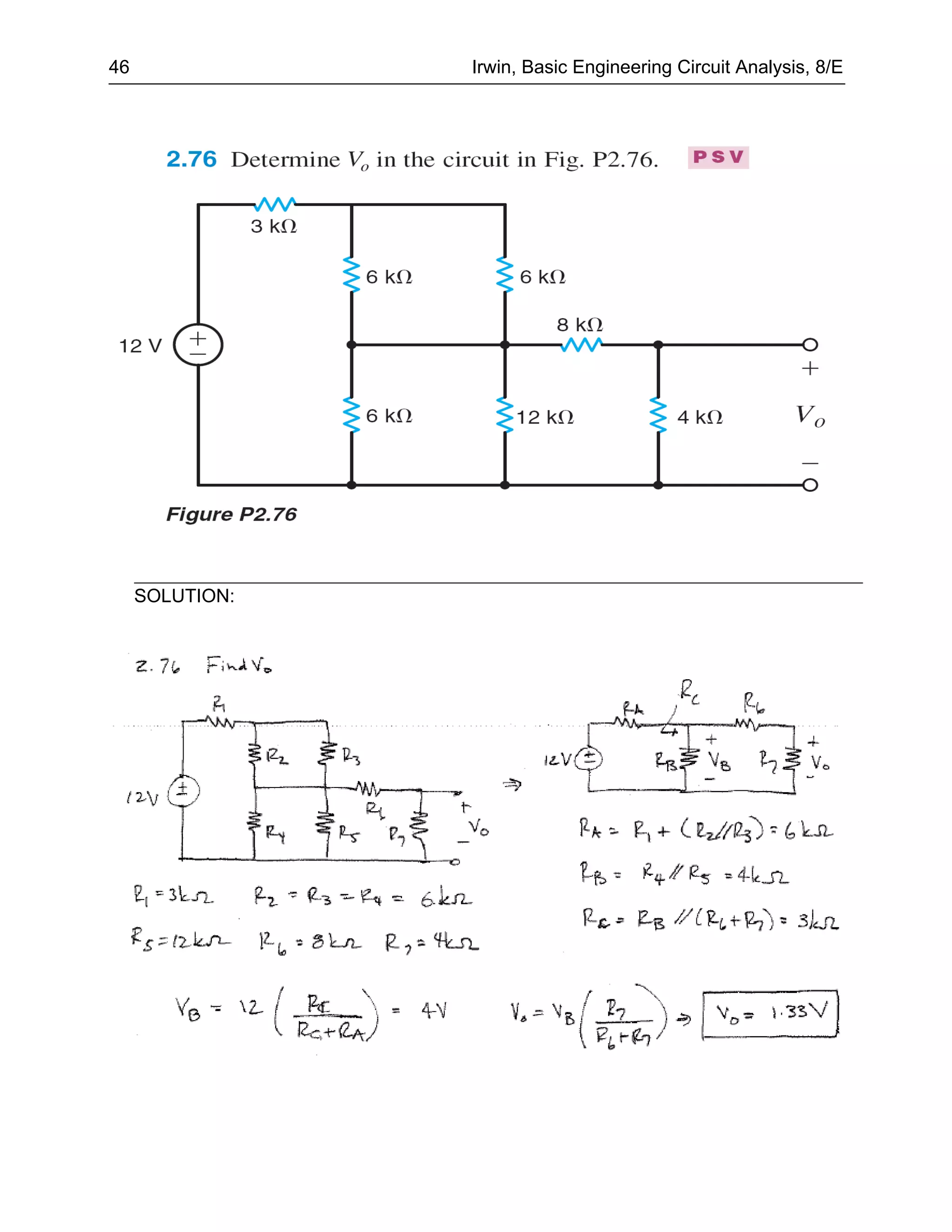

80. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

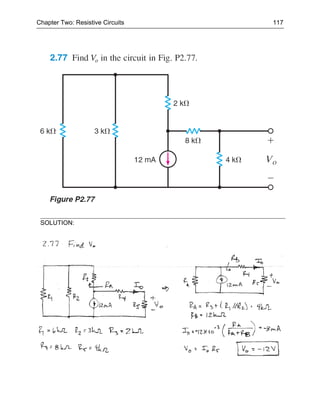

81. Chapter Two: Resistive Circuits 117
SOLUTION:

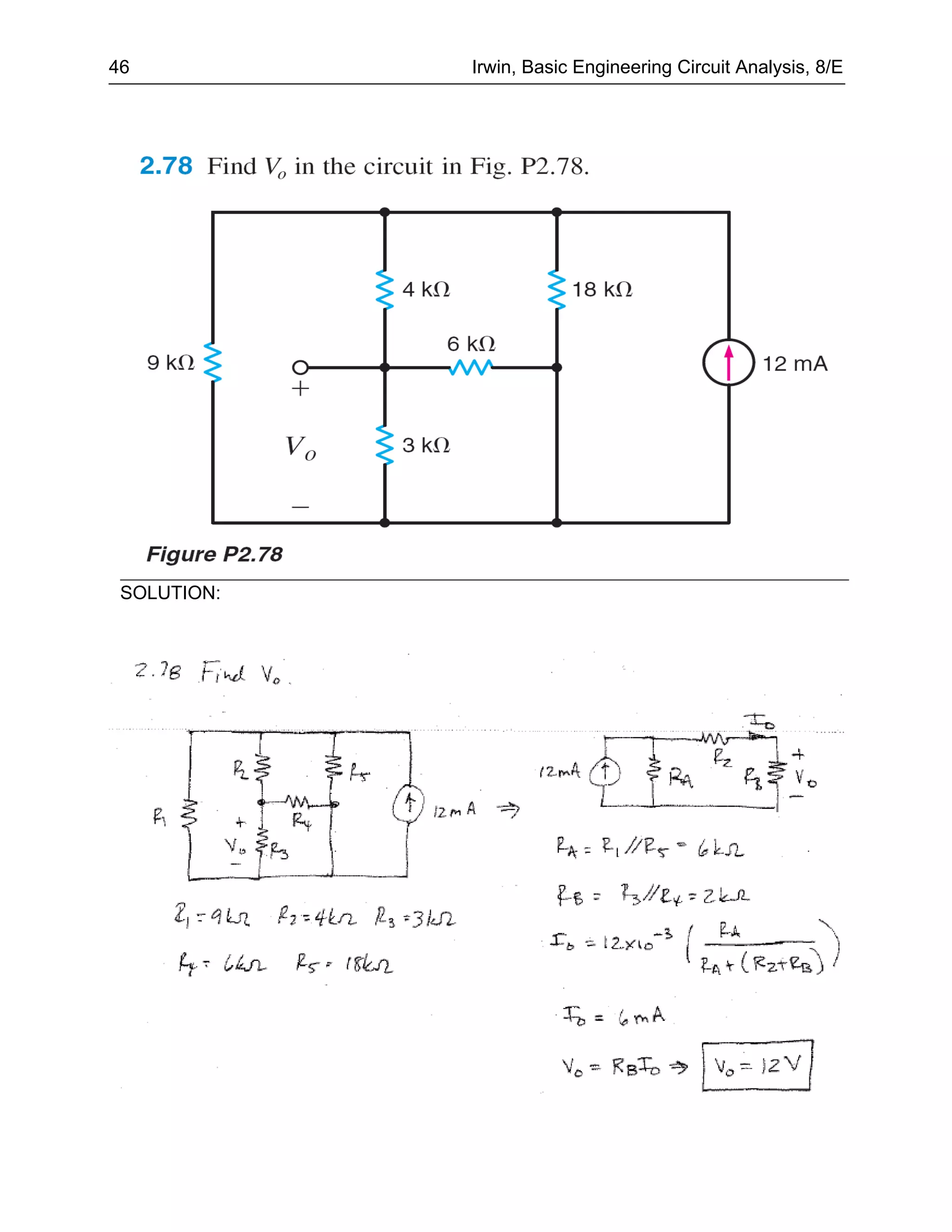

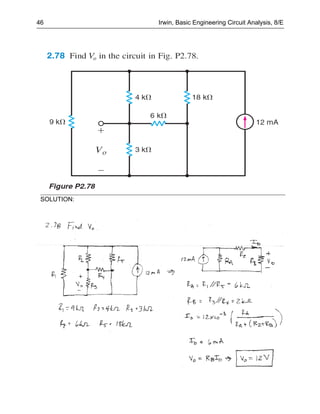

82. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

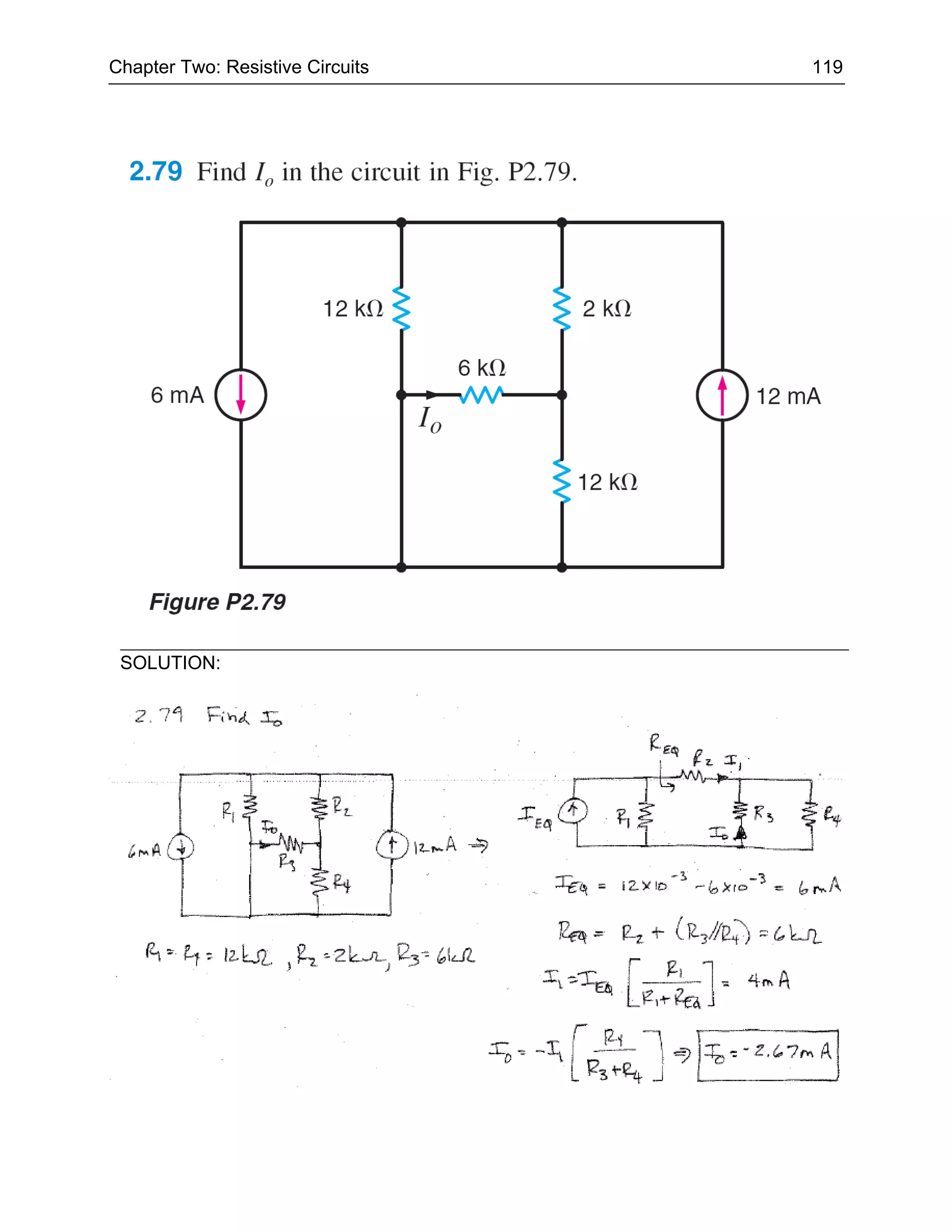

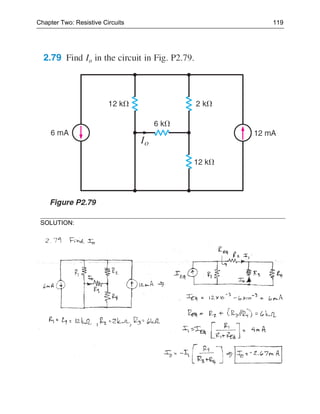

83. Chapter Two: Resistive Circuits 119
SOLUTION:

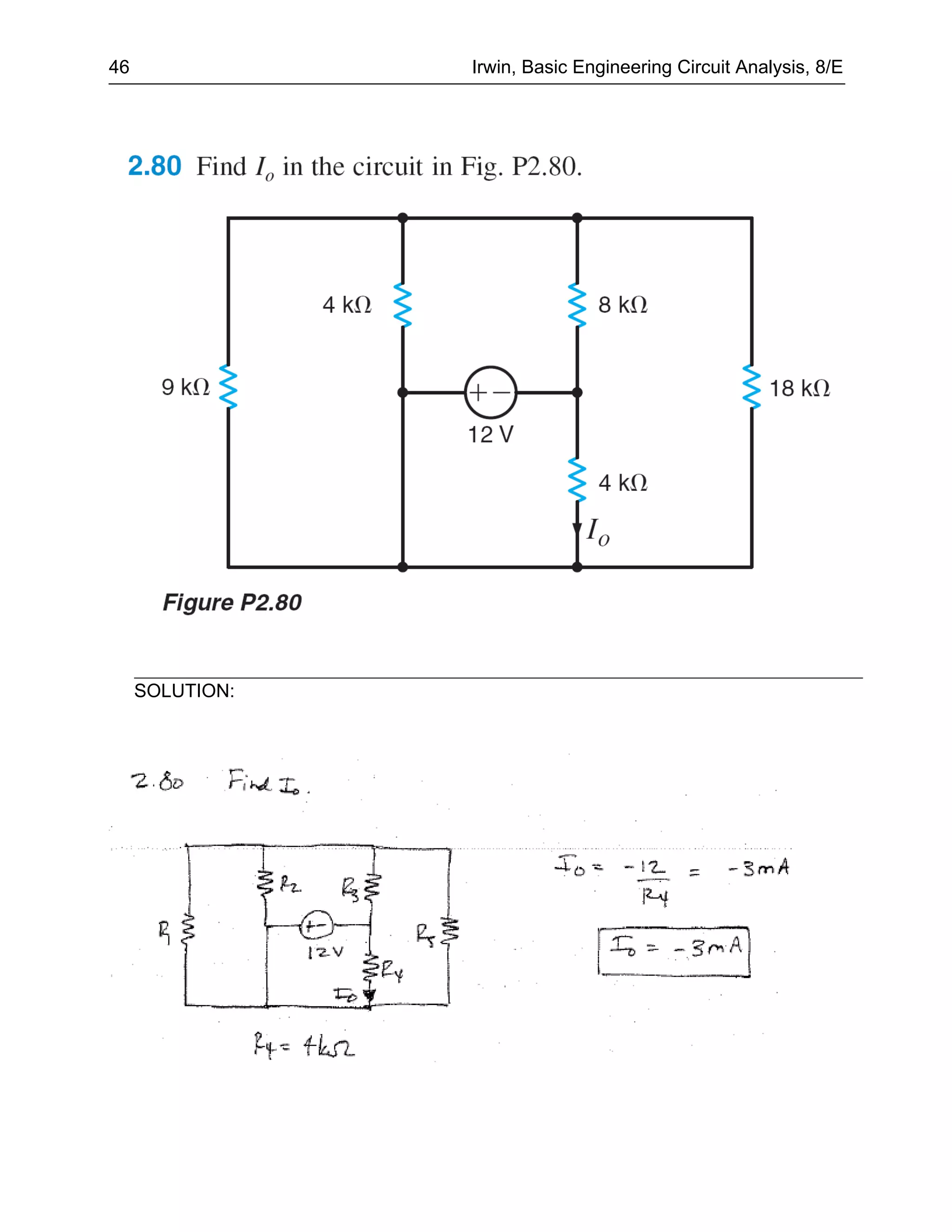

84. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

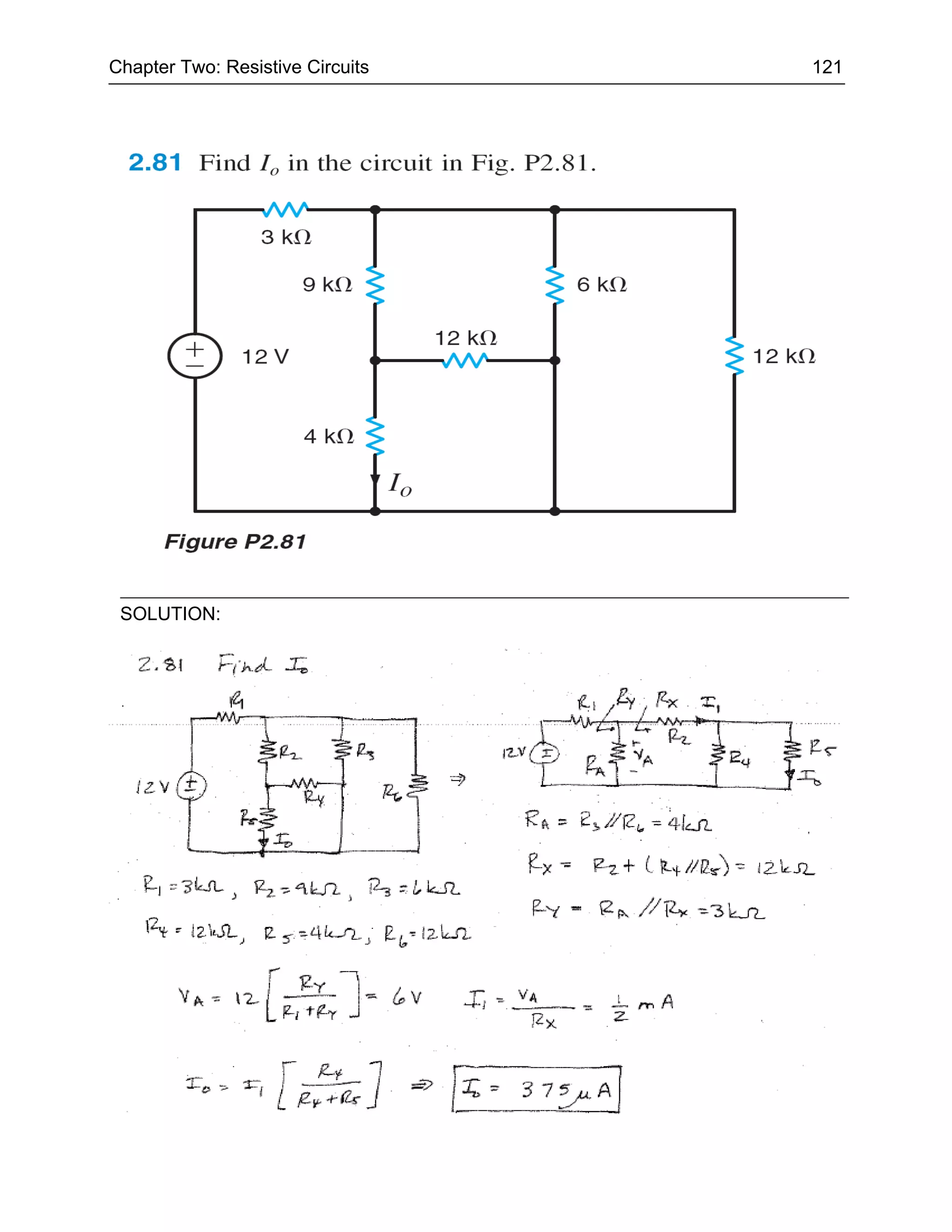

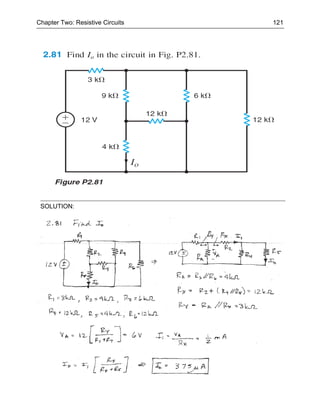

85. Chapter Two: Resistive Circuits 121
SOLUTION:

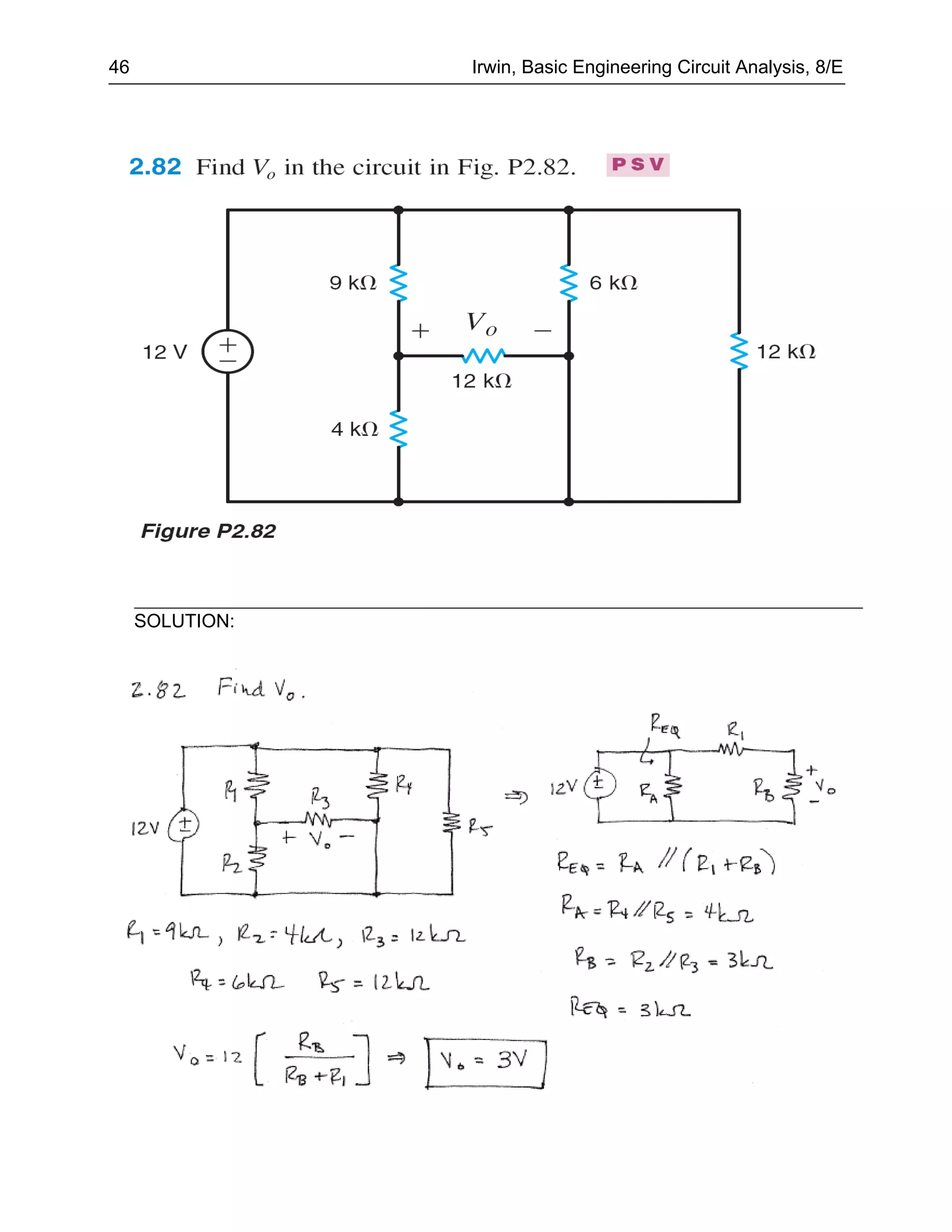

86. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

87. Chapter Two: Resistive Circuits 123
SOLUTION:

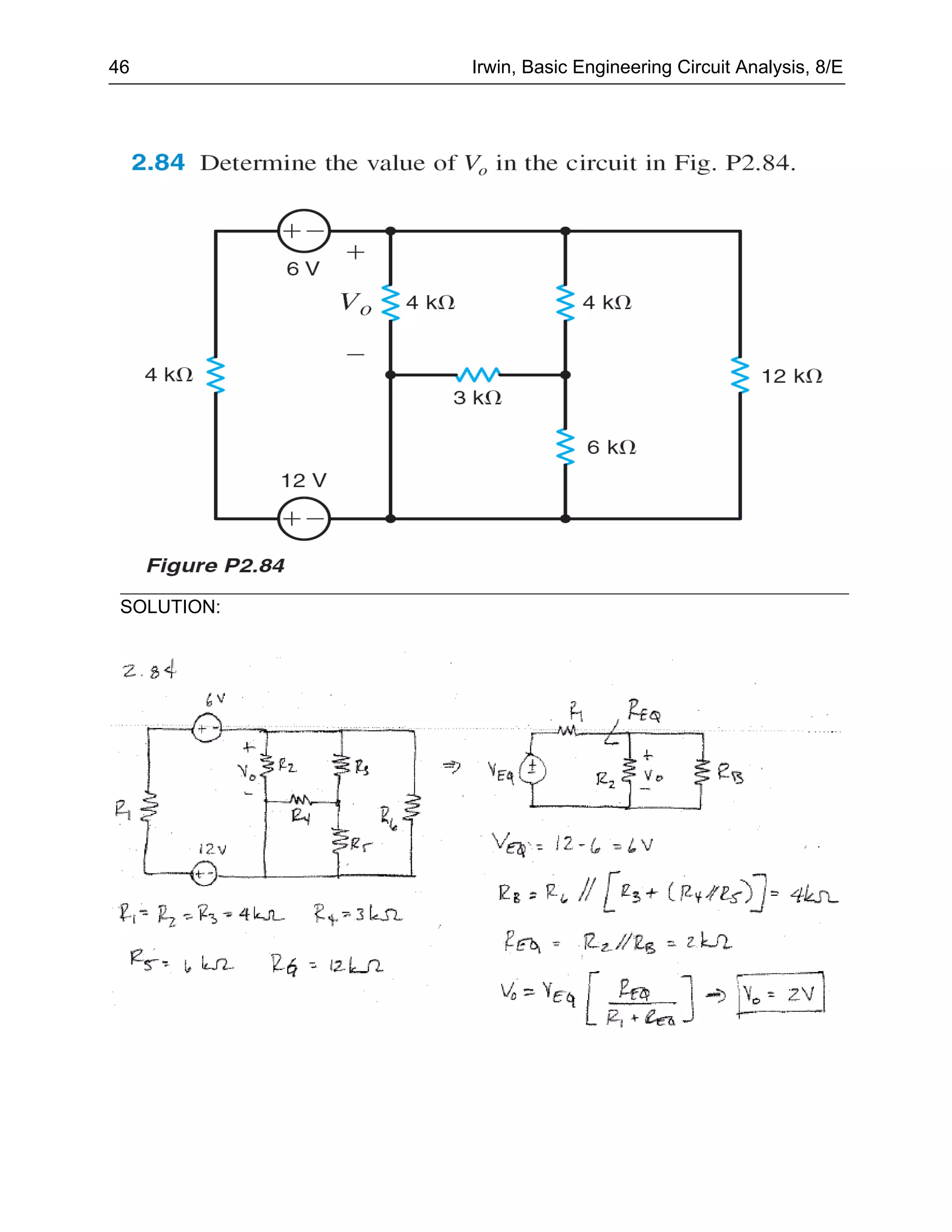

88. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

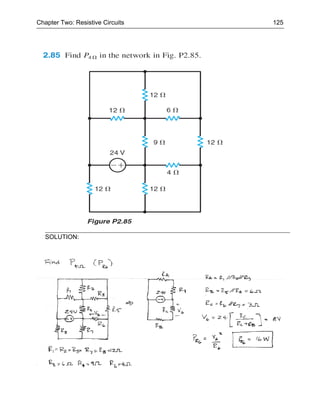

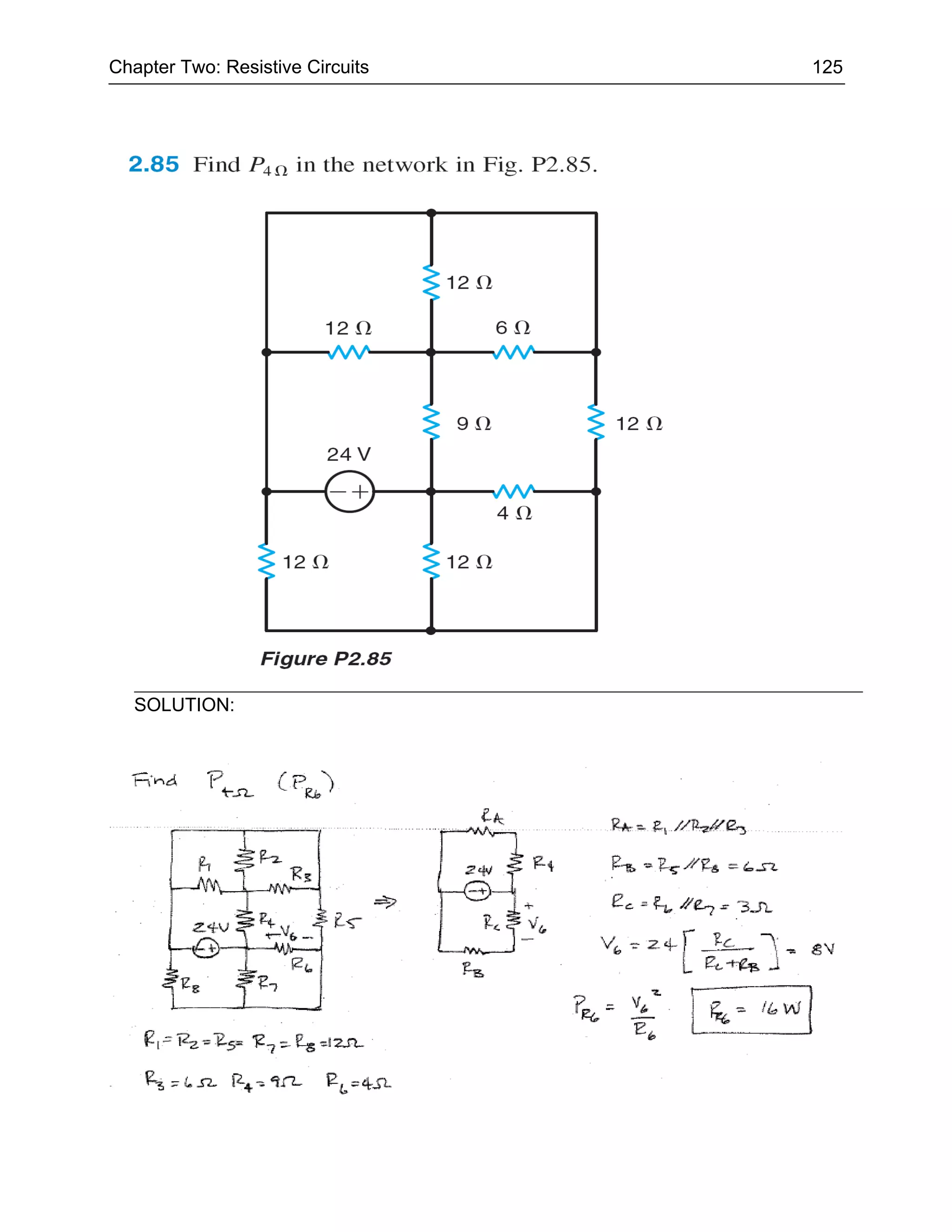

89. Chapter Two: Resistive Circuits 125
SOLUTION:

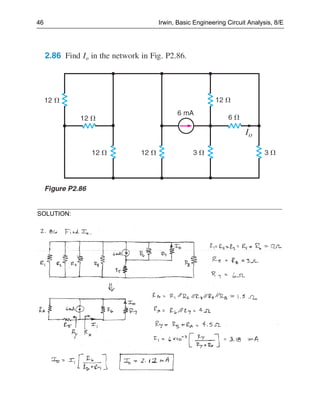

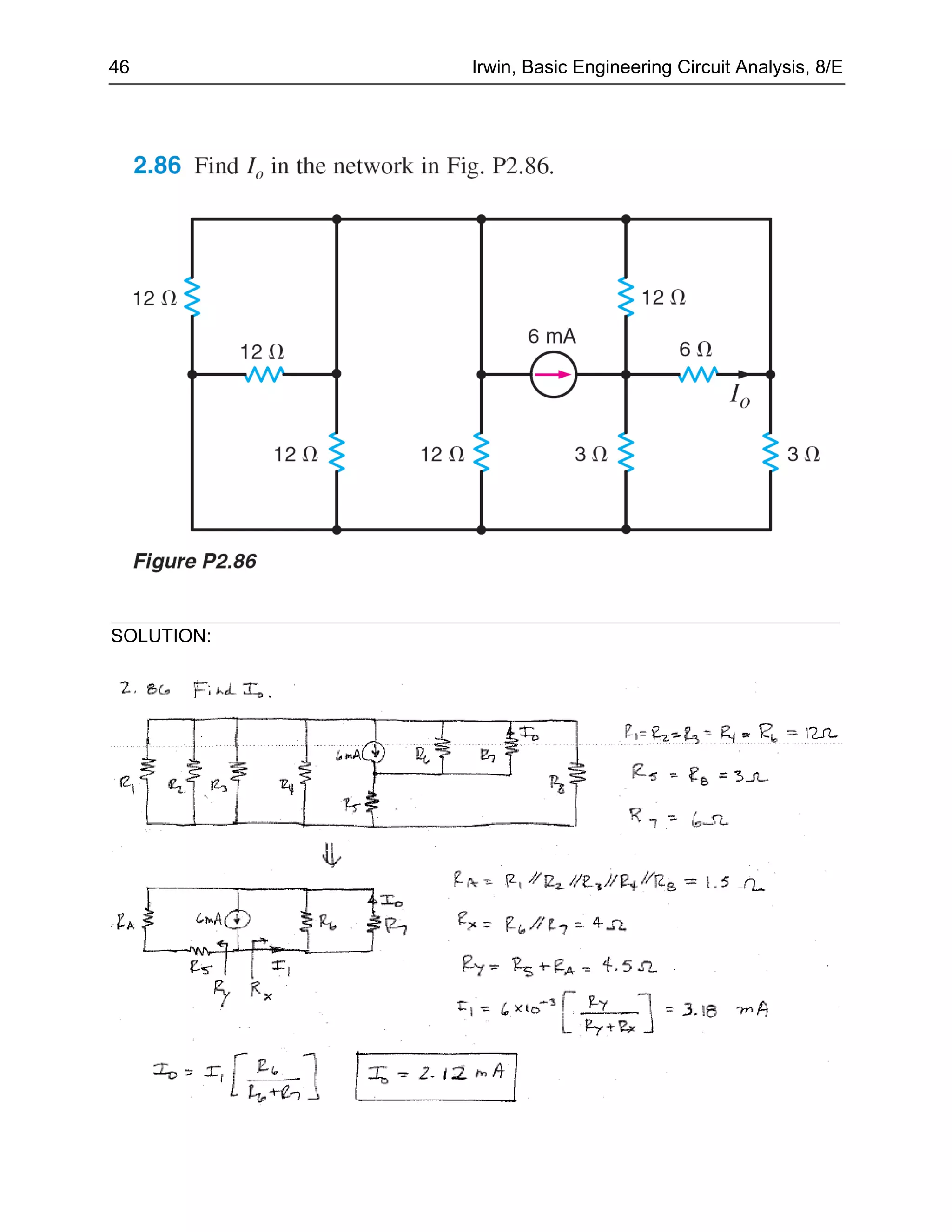

90. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

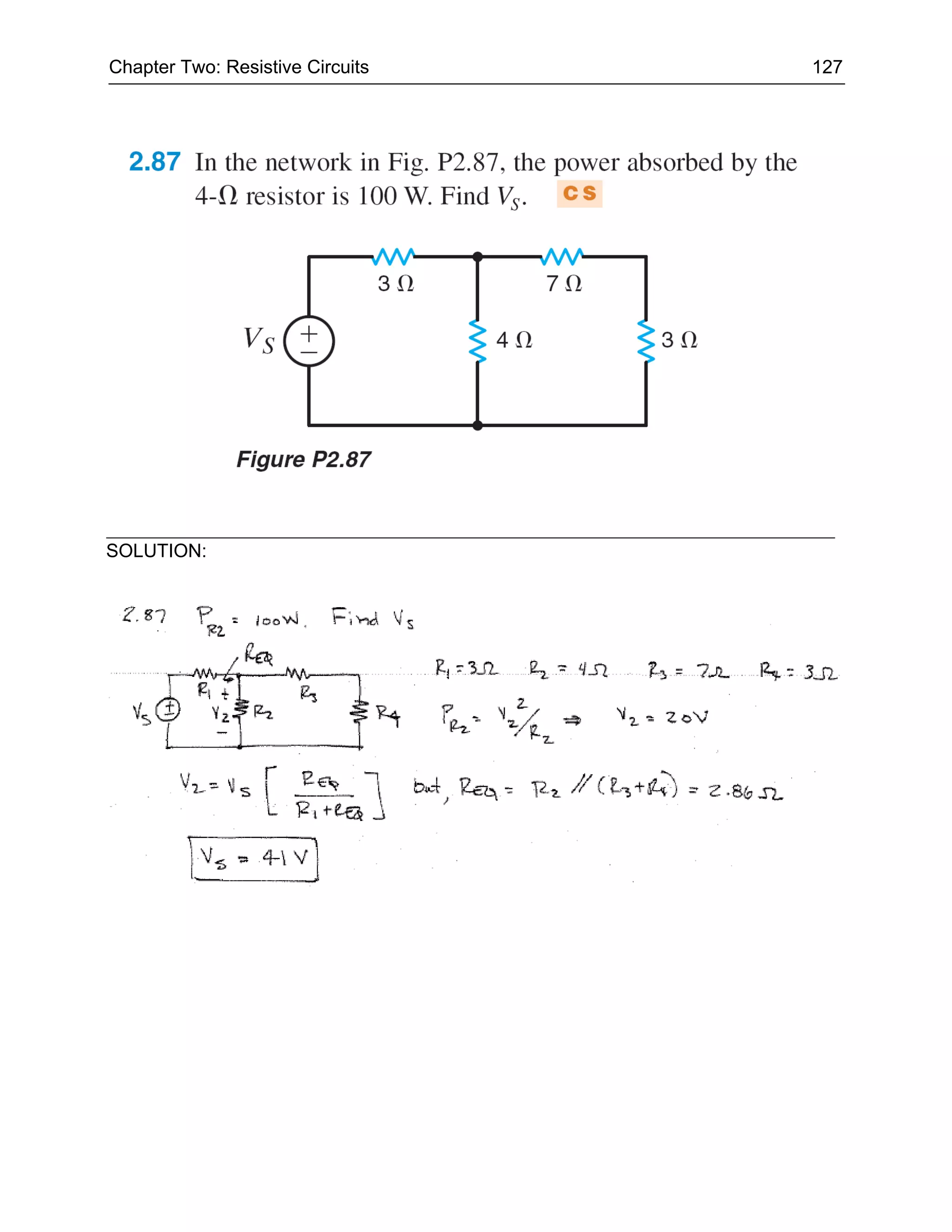

91. Chapter Two: Resistive Circuits 127
SOLUTION:

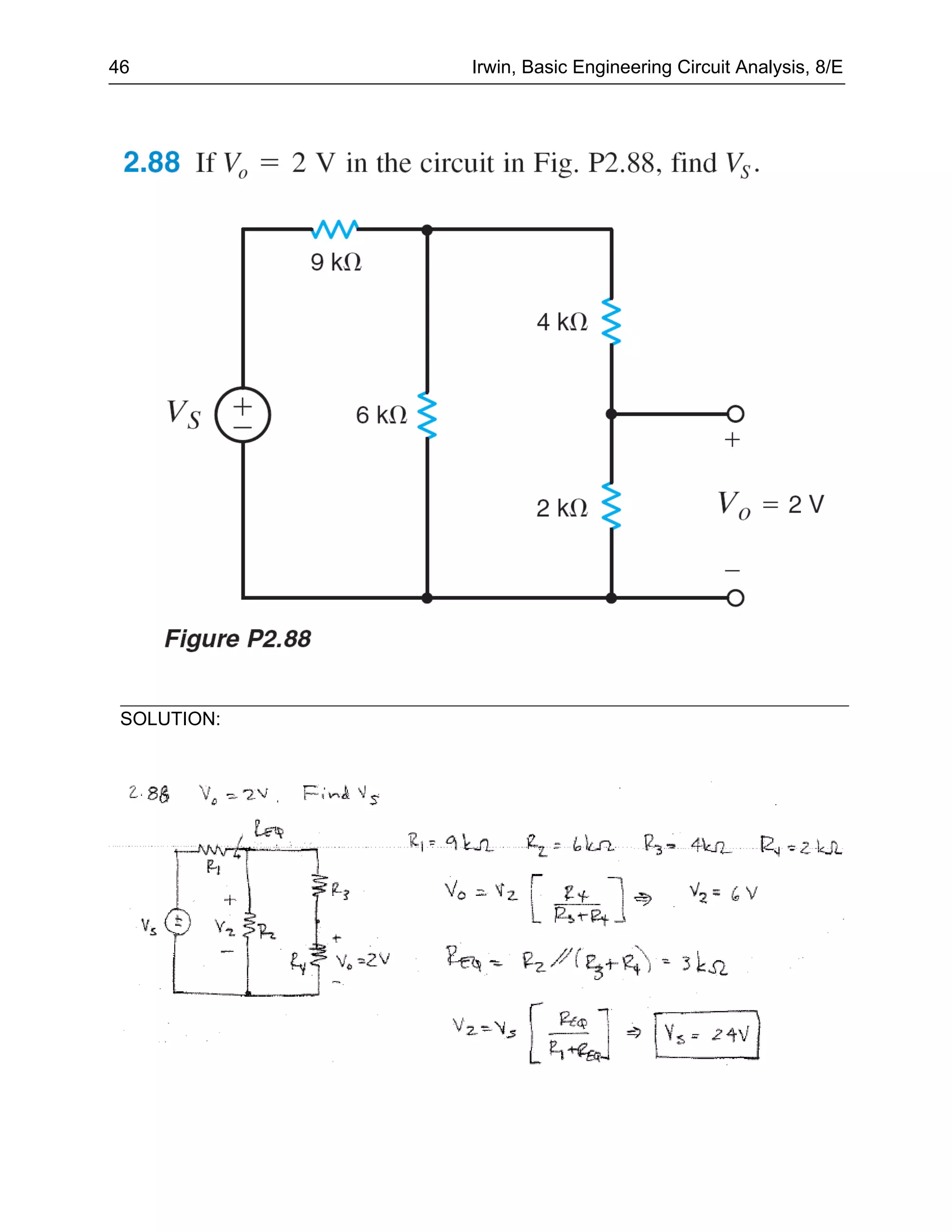

92. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

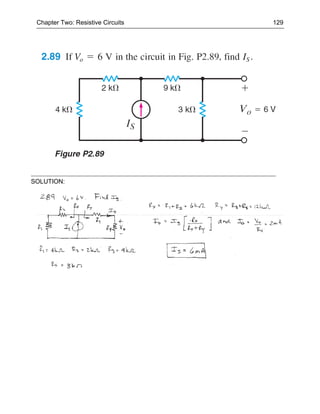

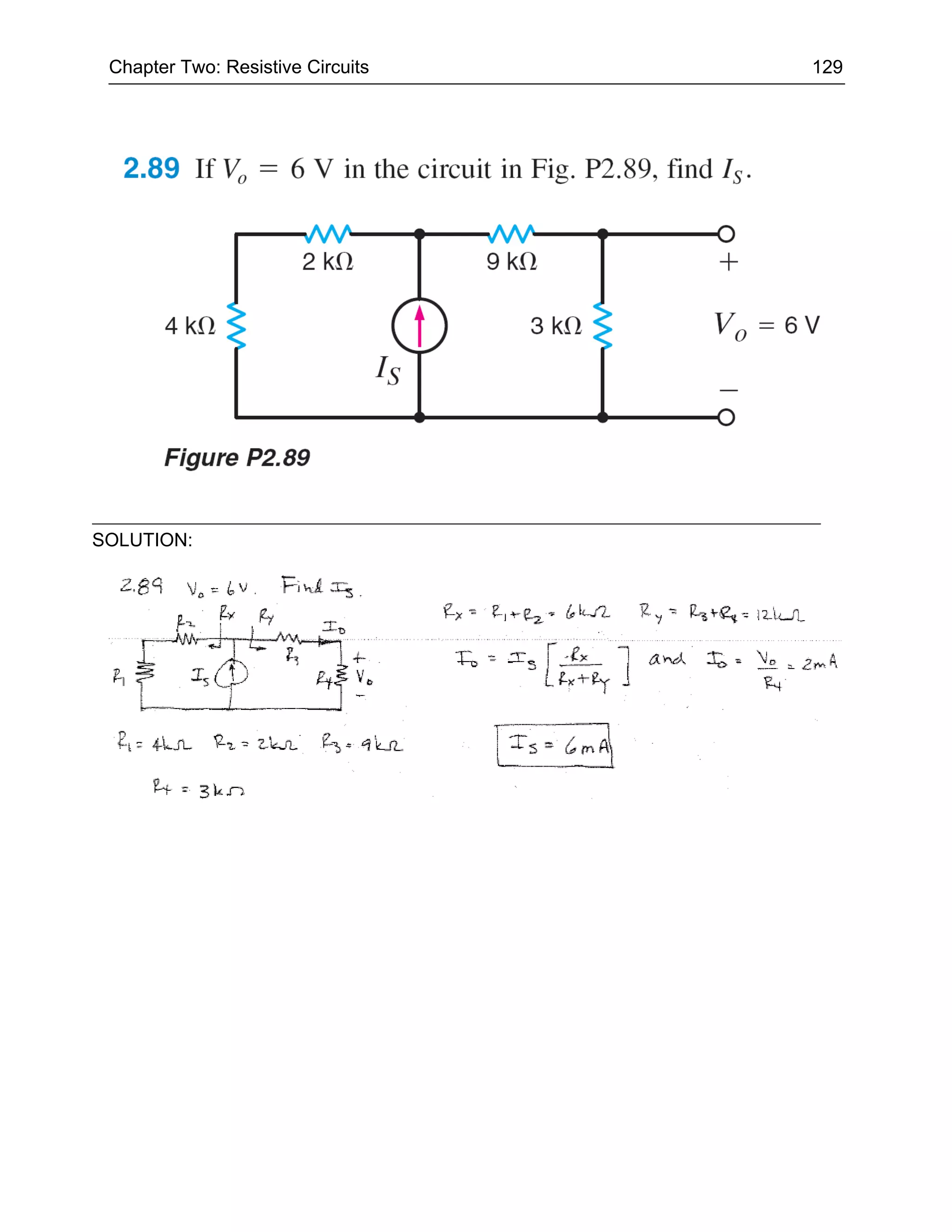

93. Chapter Two: Resistive Circuits 129
SOLUTION:

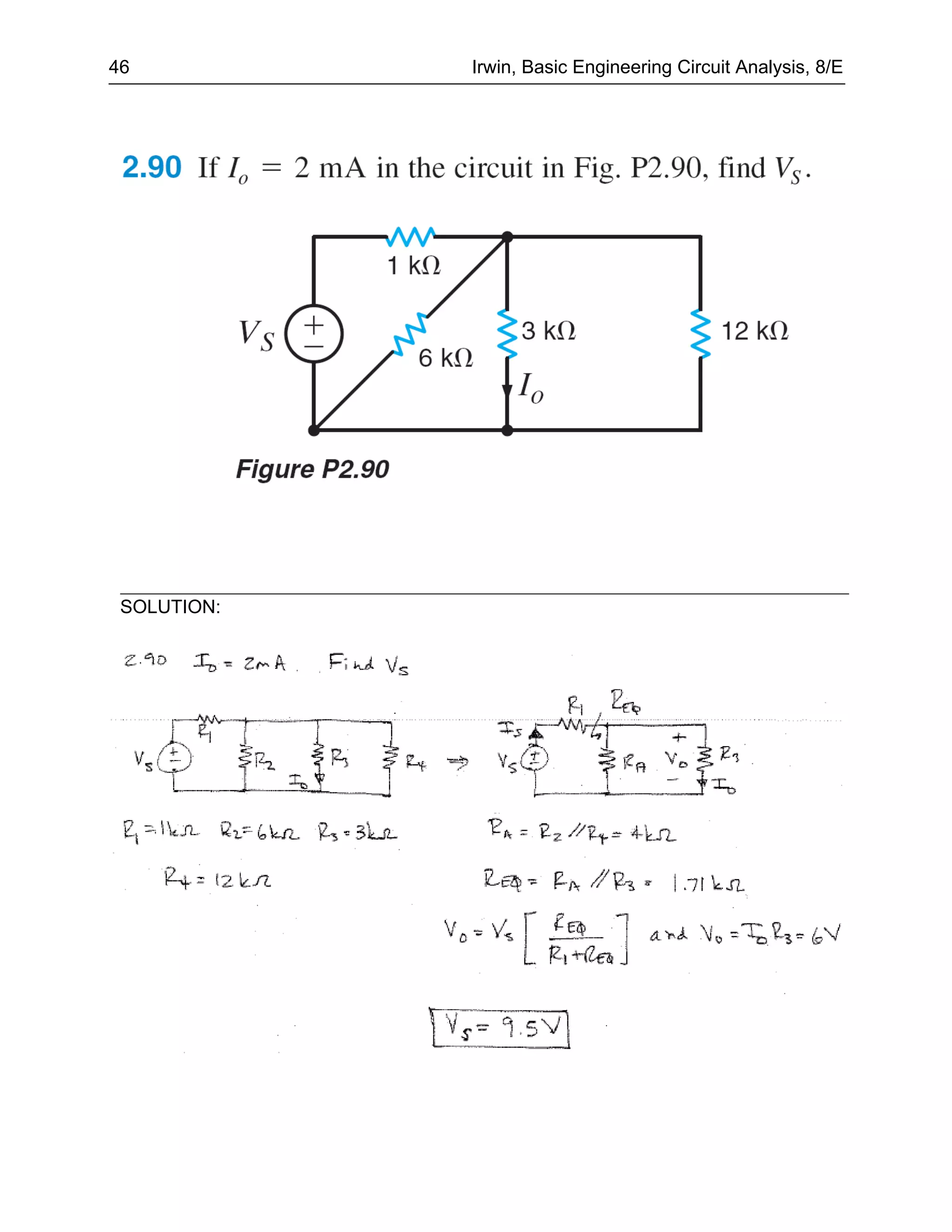

94. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

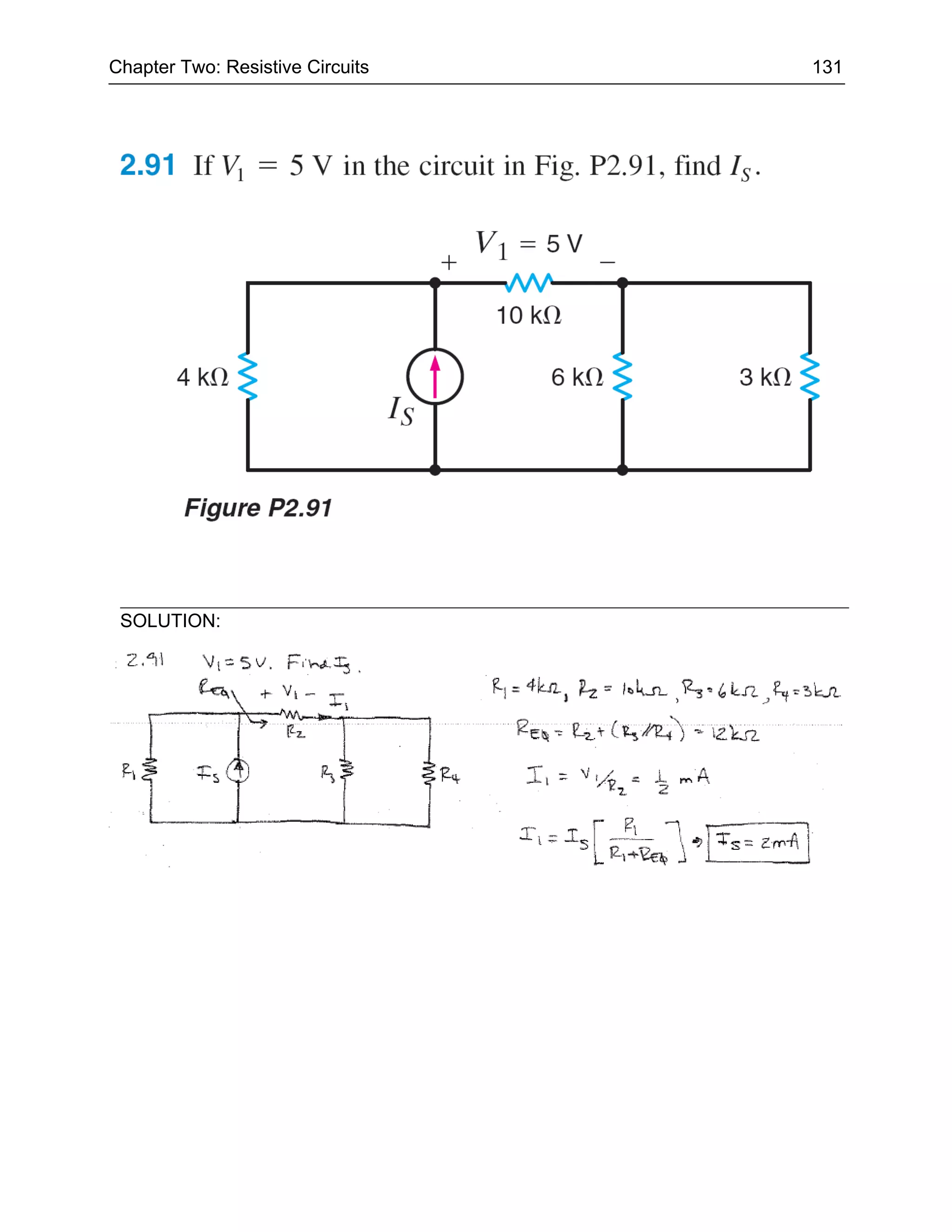

95. Chapter Two: Resistive Circuits 131
SOLUTION:

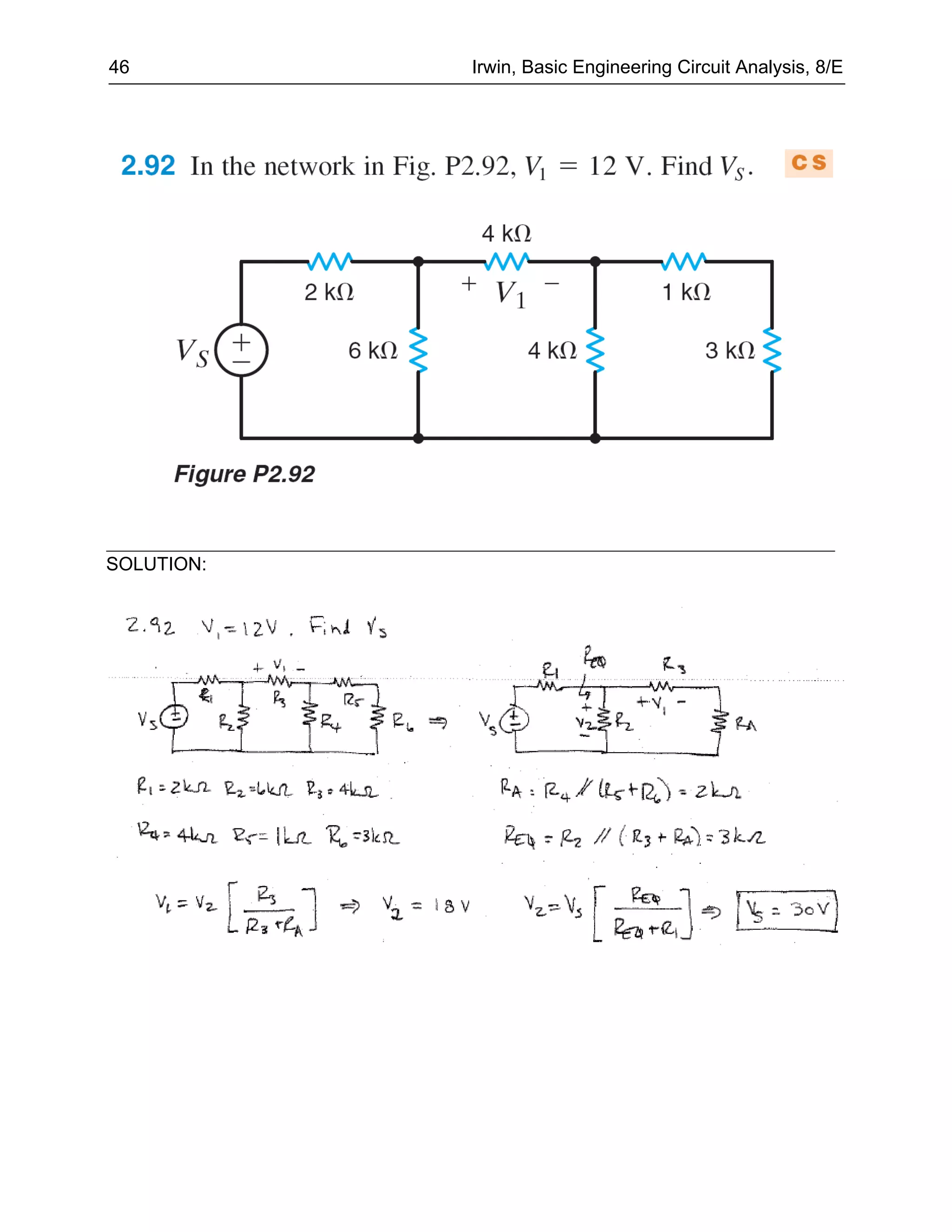

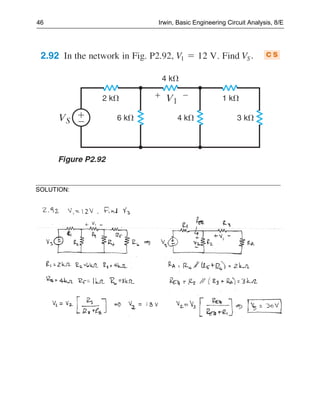

96. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

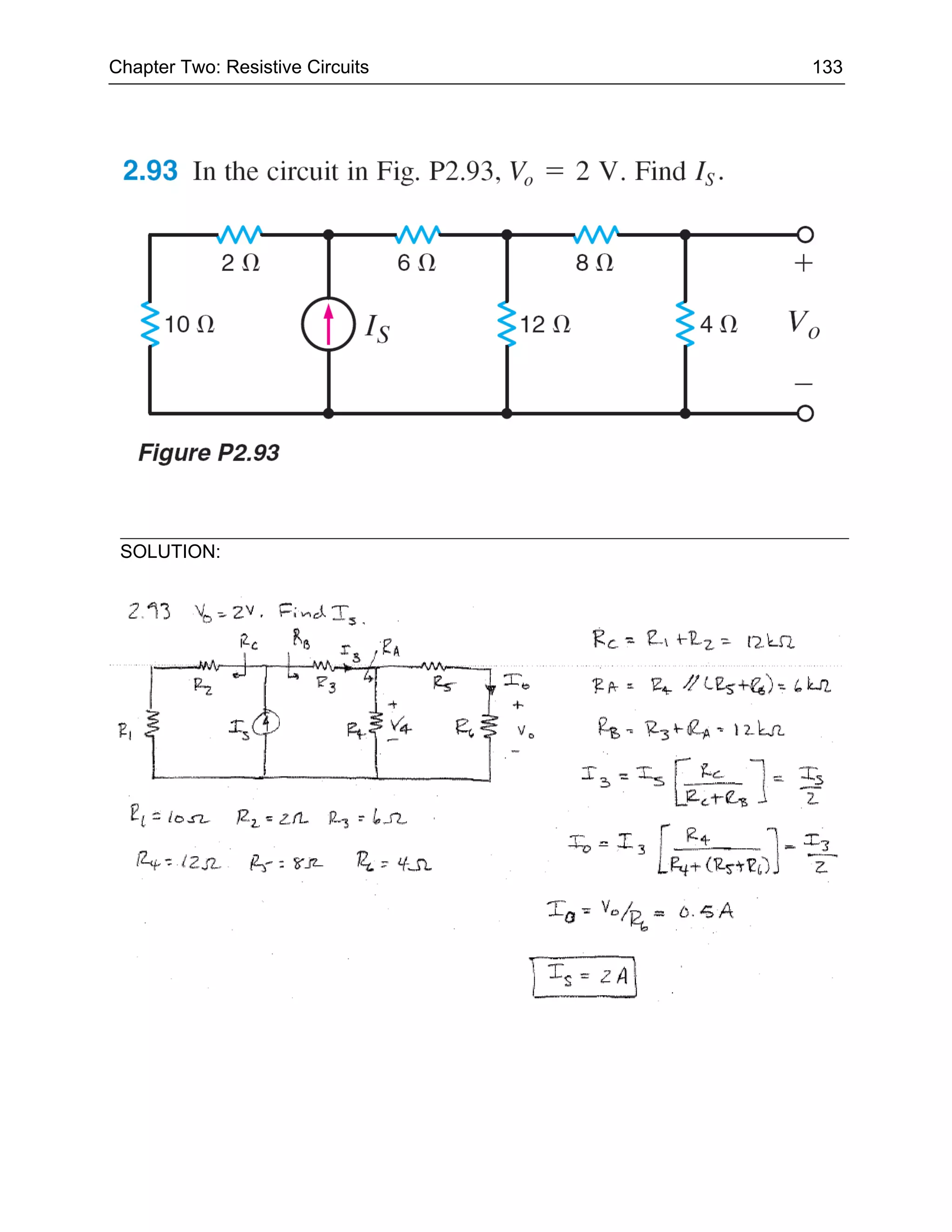

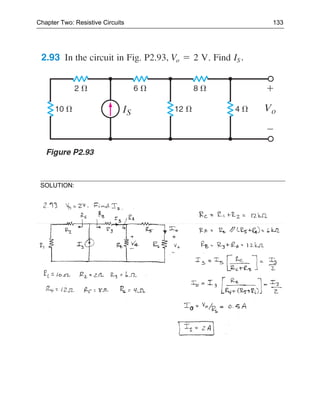

97. Chapter Two: Resistive Circuits 133
SOLUTION:

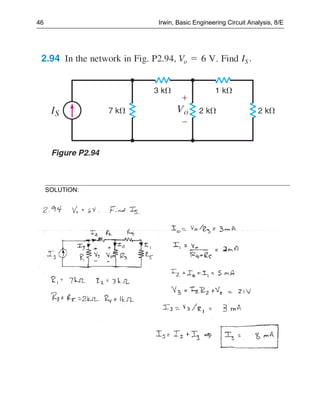

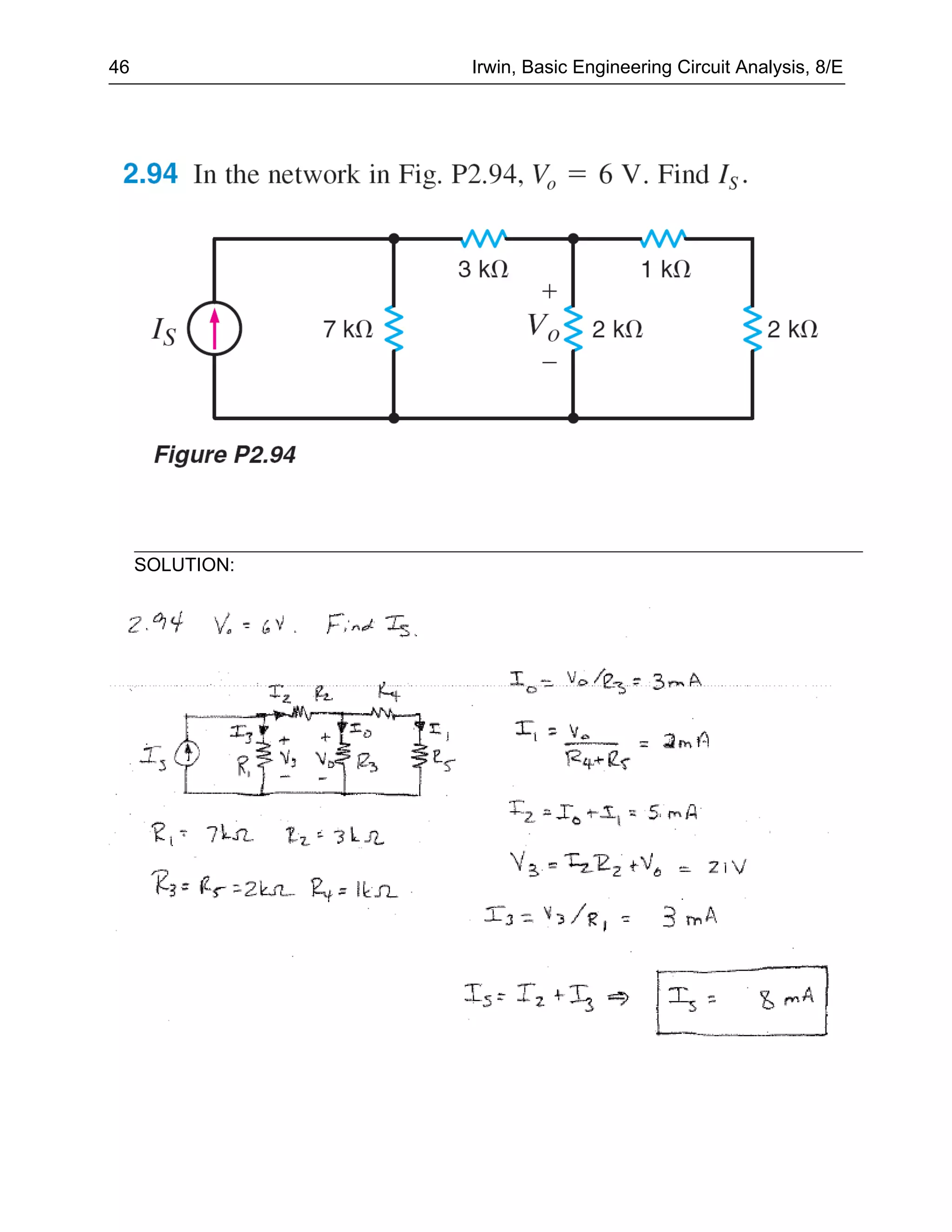

98. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

99. Chapter Two: Resistive Circuits 135
SOLUTION:

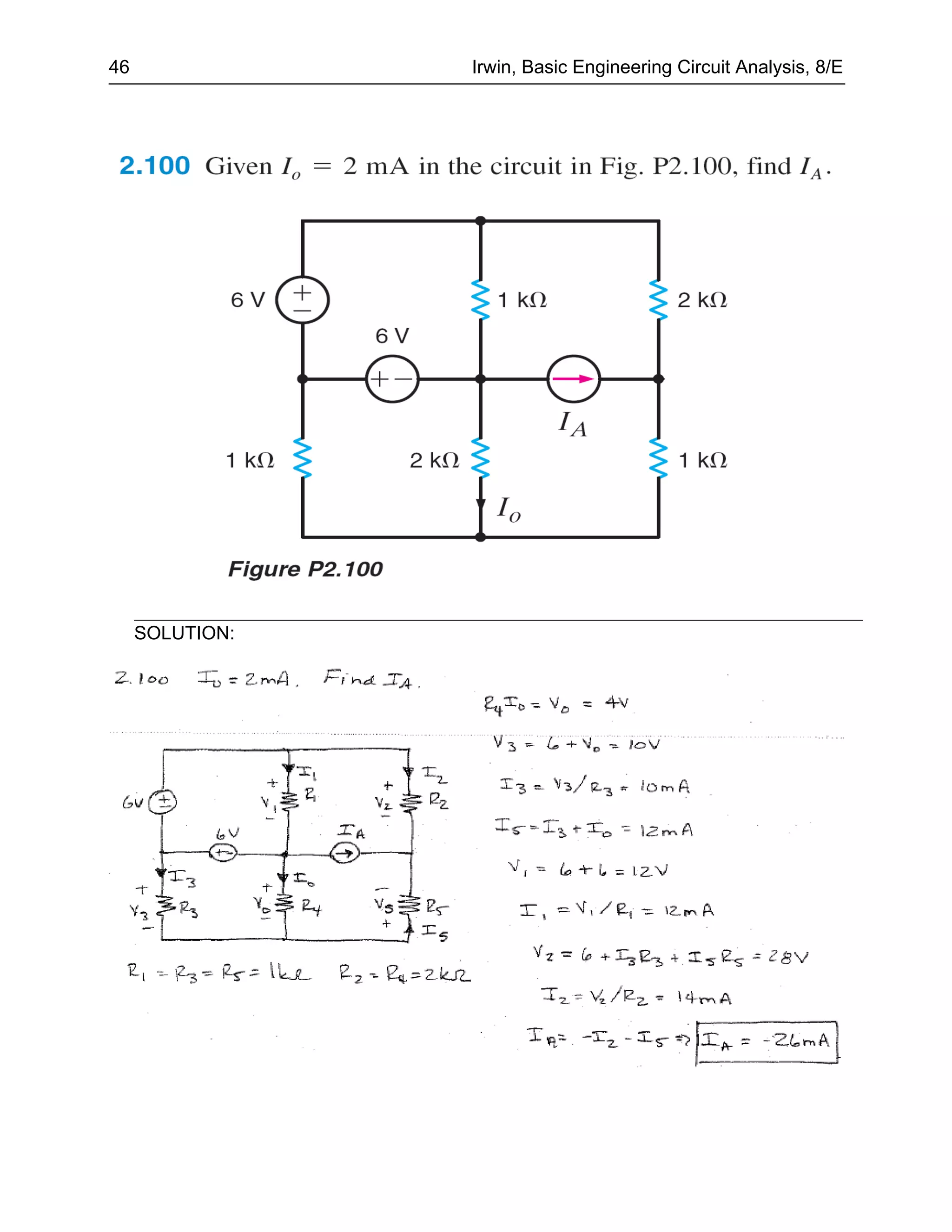

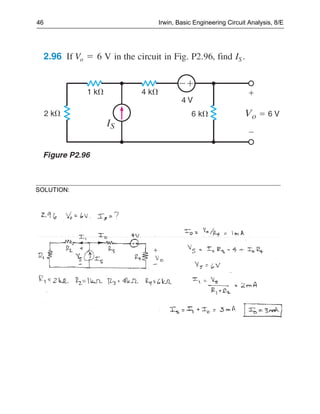

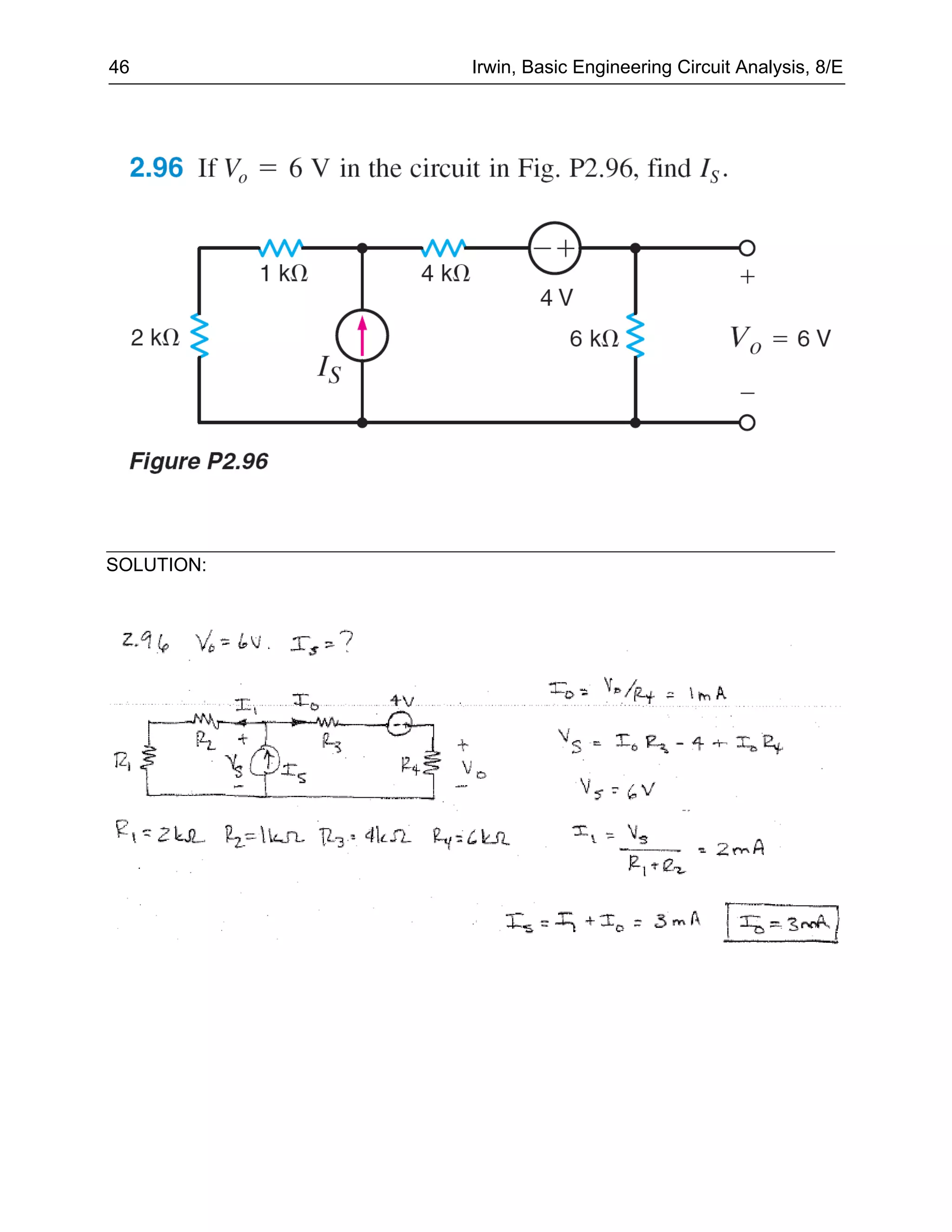

100. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

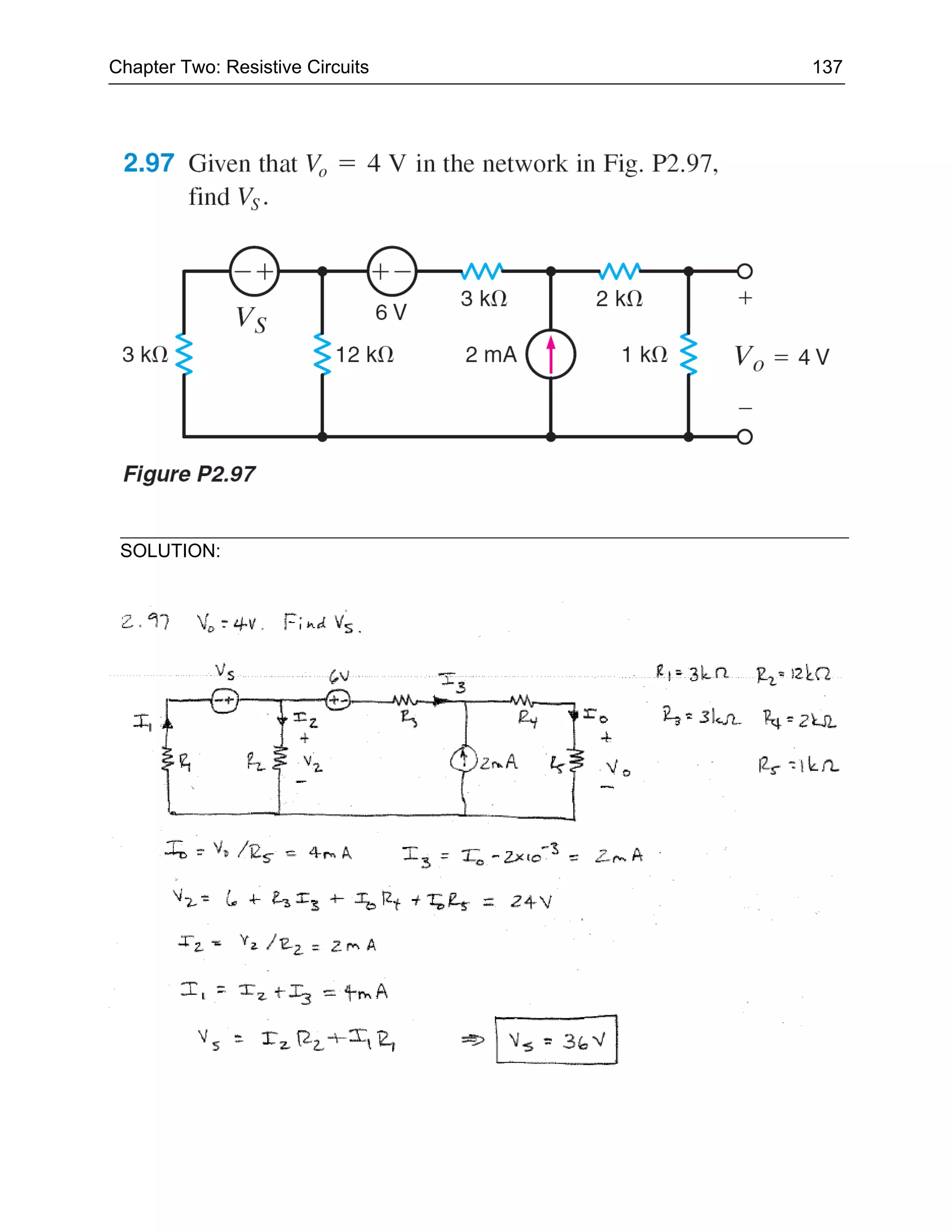

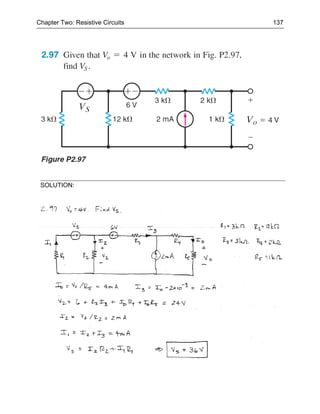

101. Chapter Two: Resistive Circuits 137
SOLUTION:

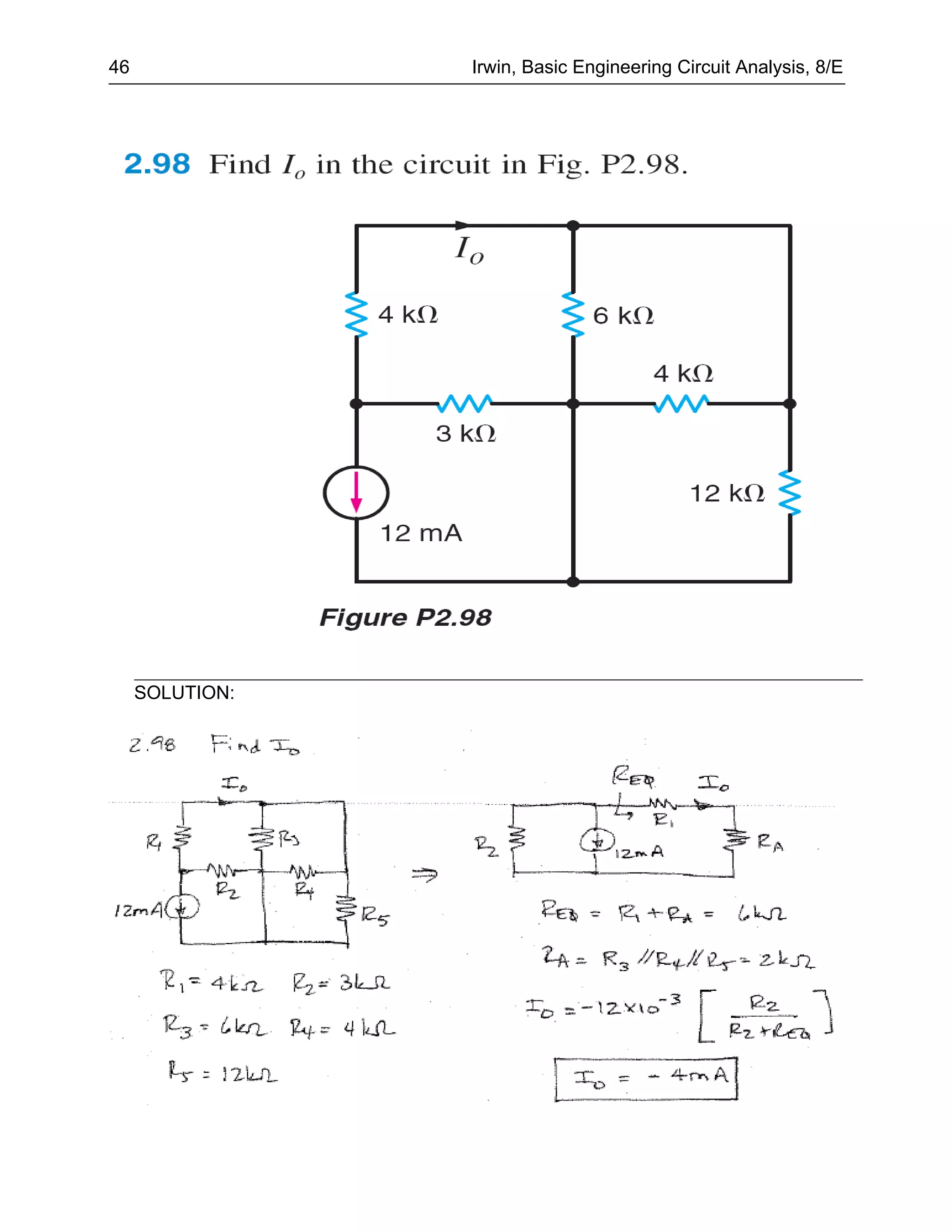

102. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

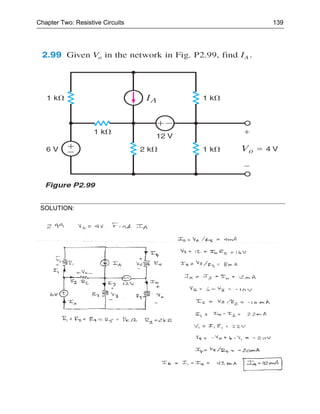

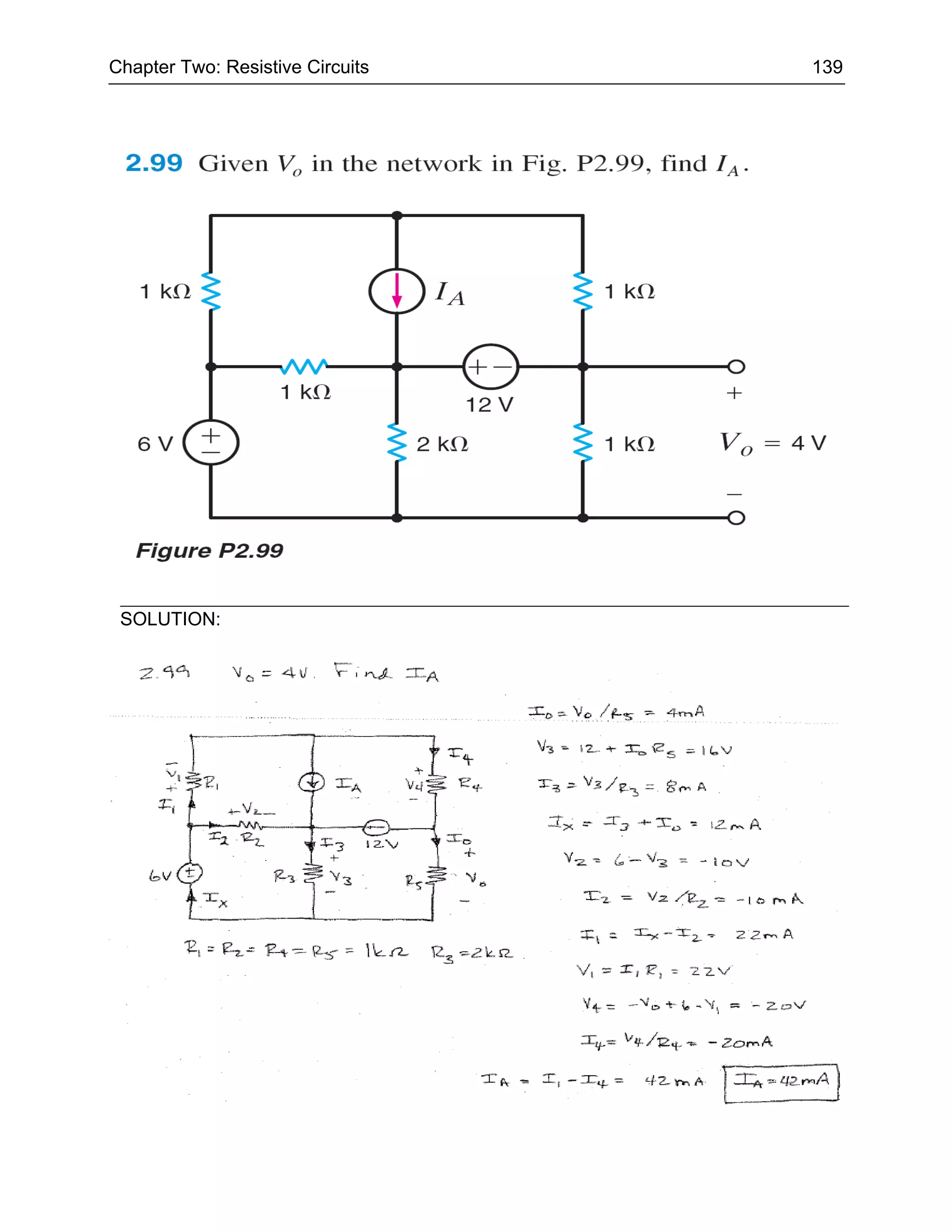

103. Chapter Two: Resistive Circuits 139
SOLUTION:

104. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

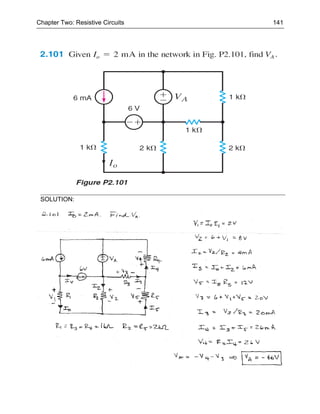

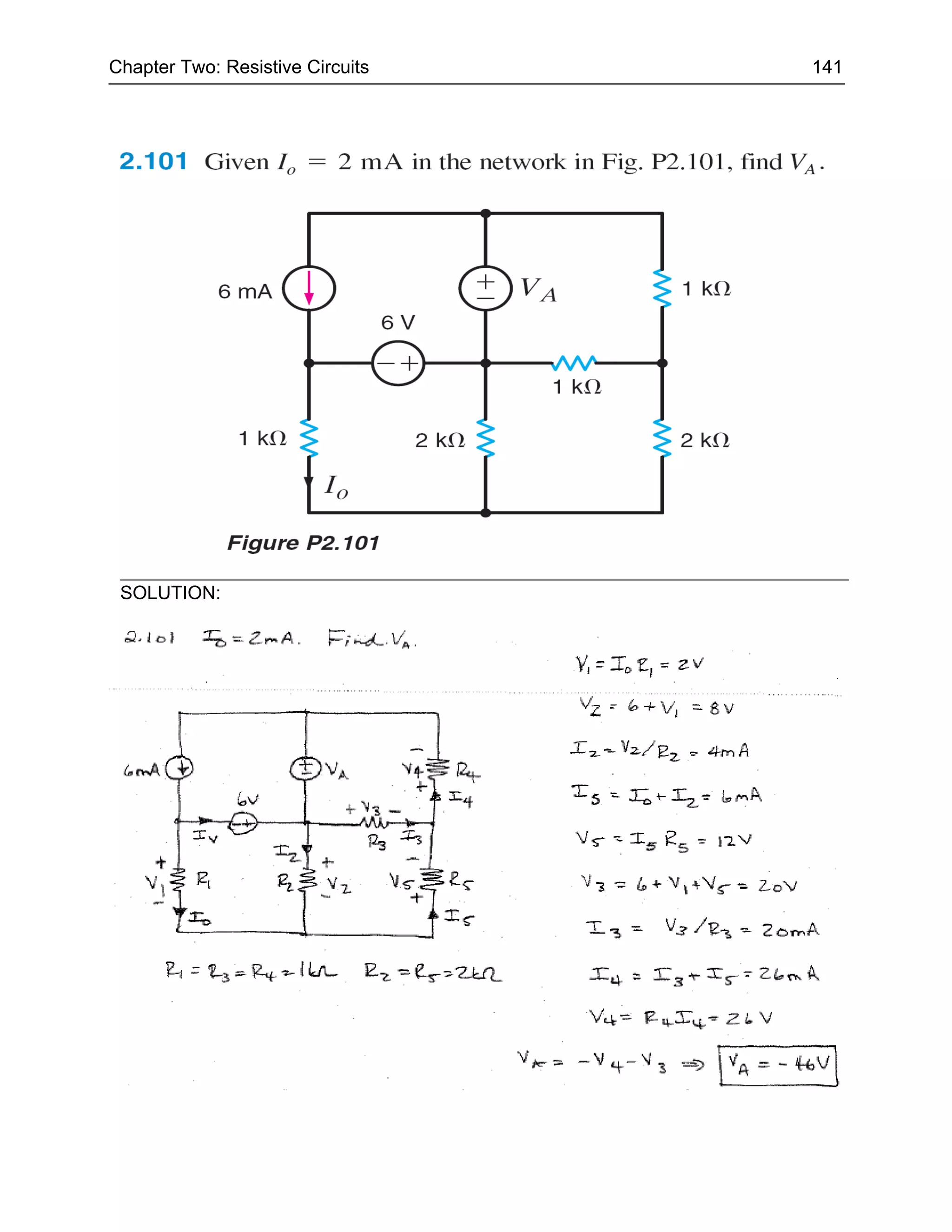

105. Chapter Two: Resistive Circuits 141
SOLUTION:

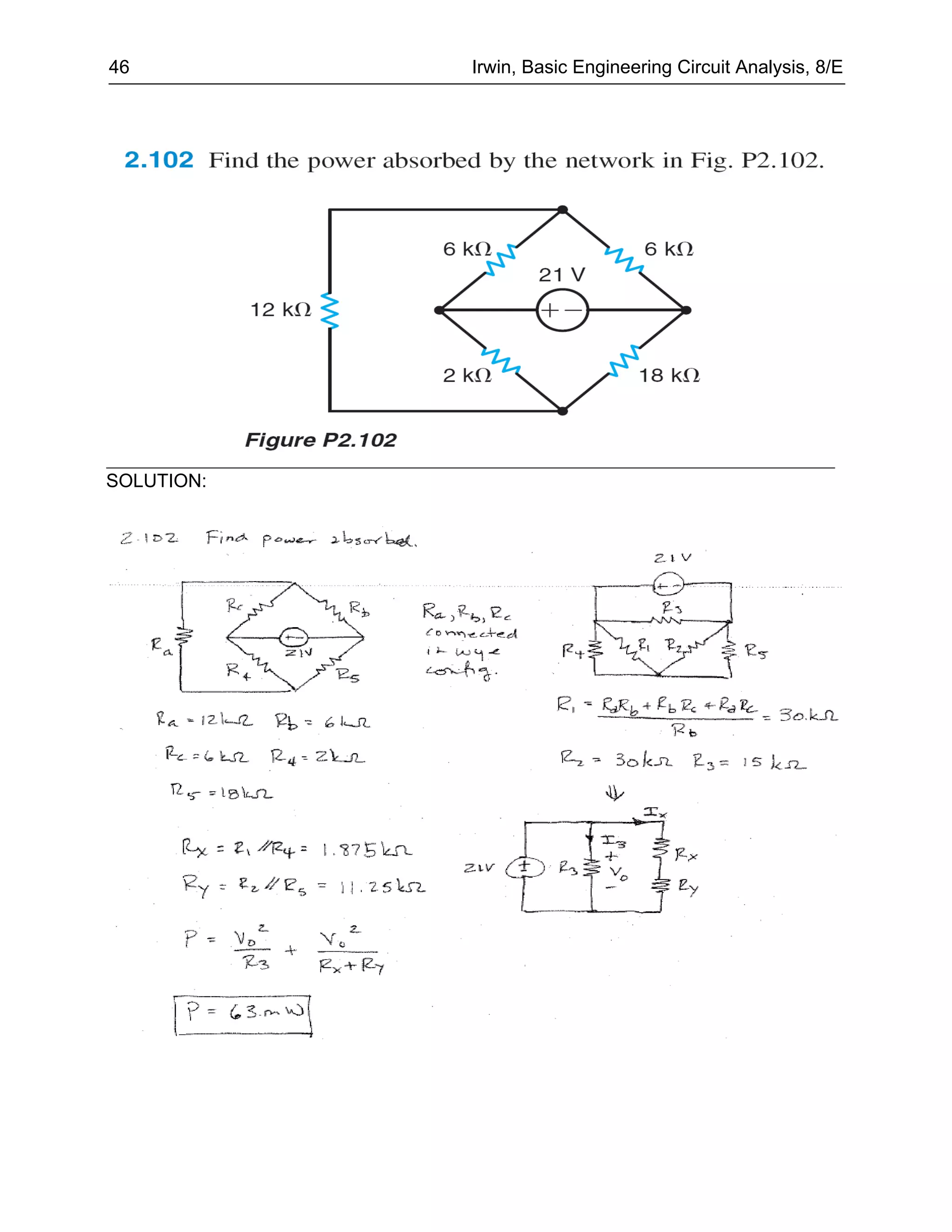

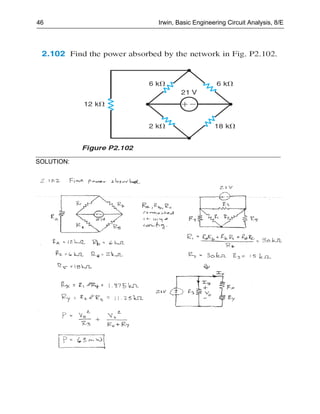

106. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

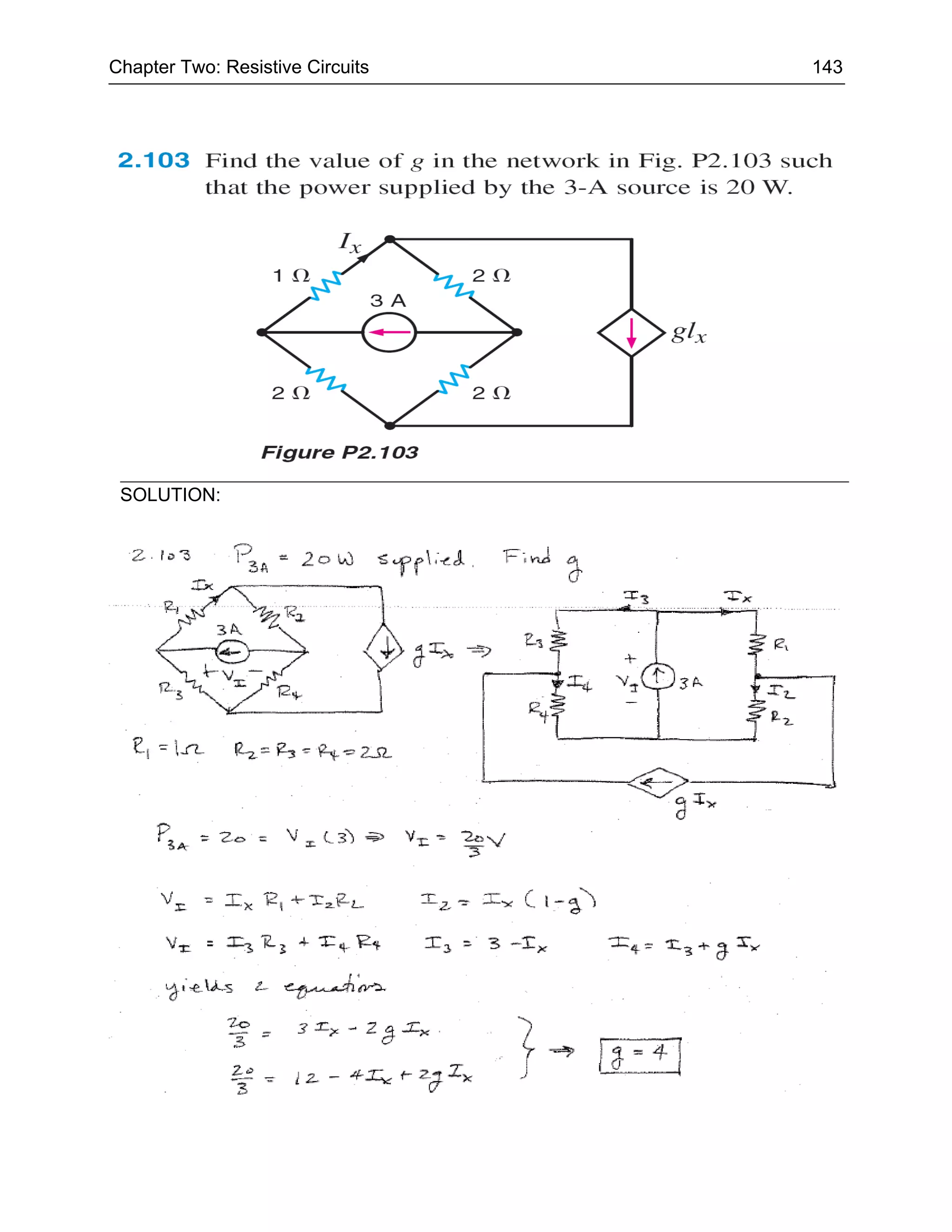

107. Chapter Two: Resistive Circuits 143
SOLUTION:

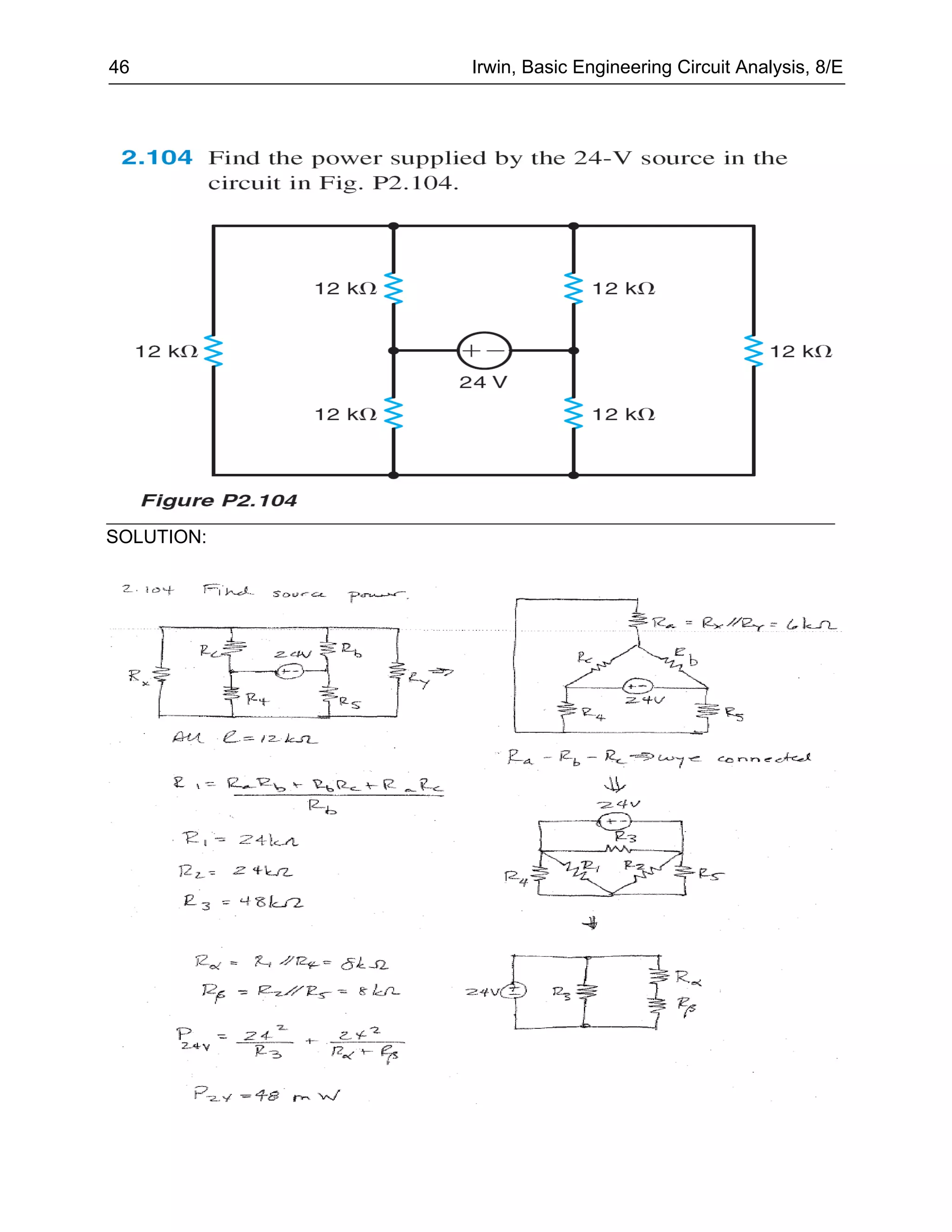

108. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

109. Chapter Two: Resistive Circuits 145
SOLUTION:

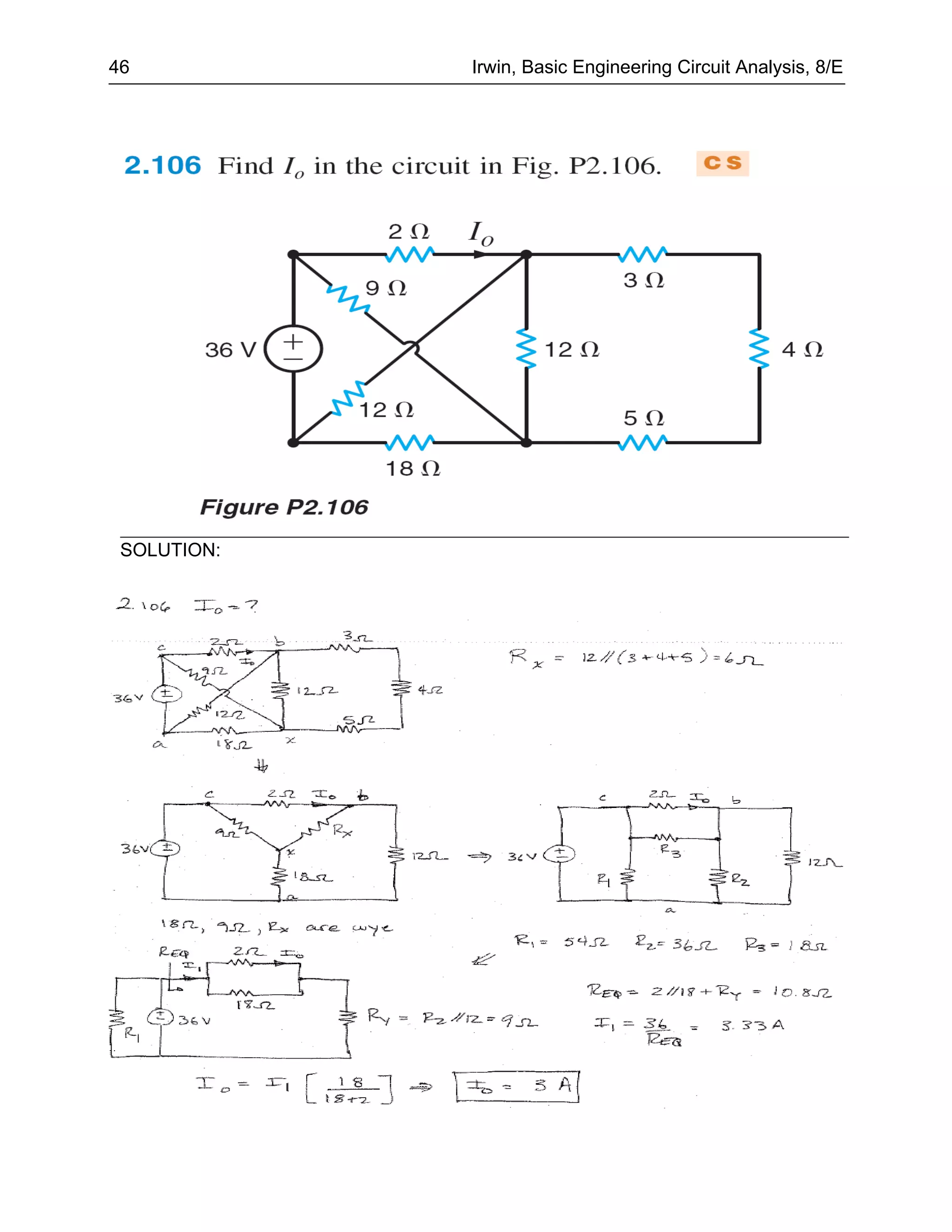

110. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

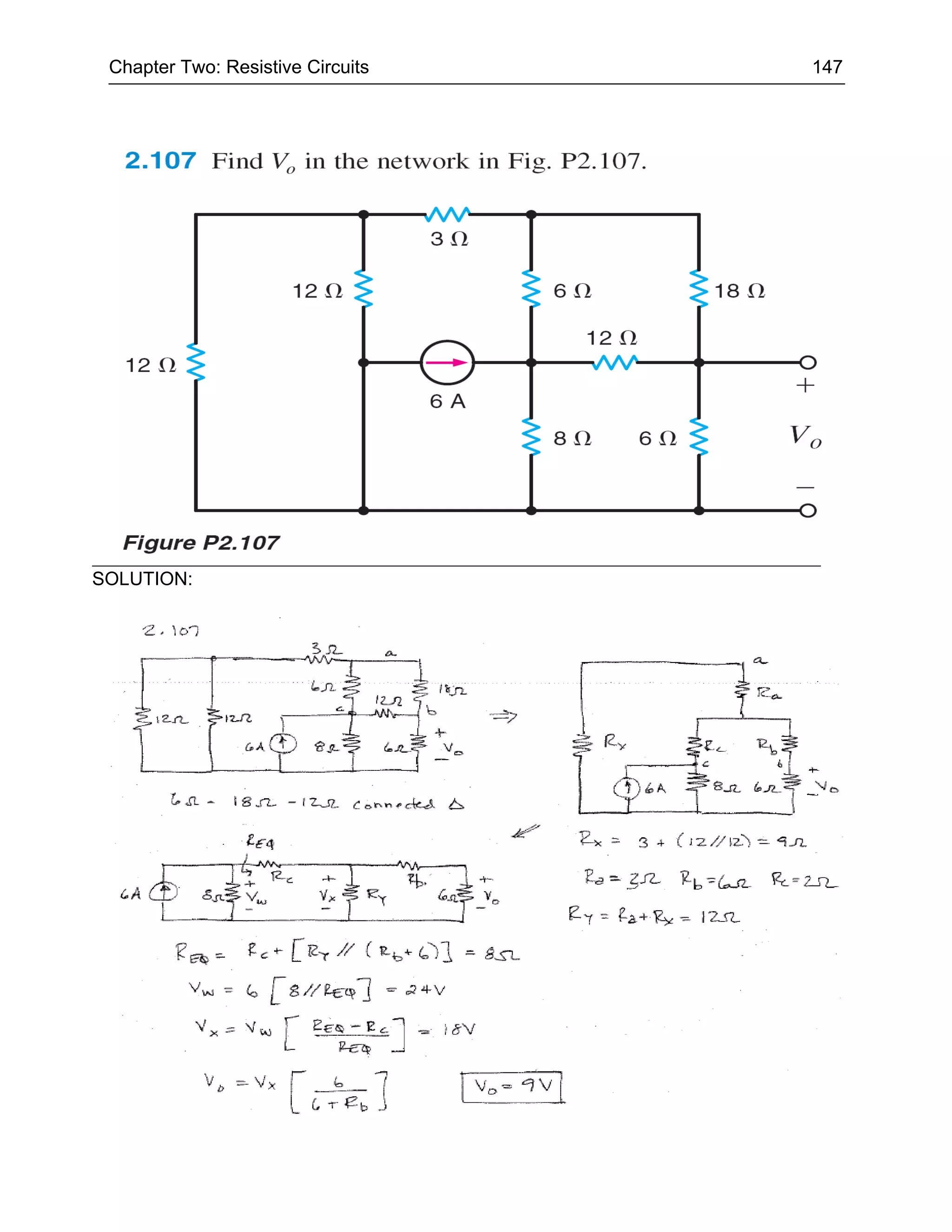

111. Chapter Two: Resistive Circuits 147
SOLUTION:

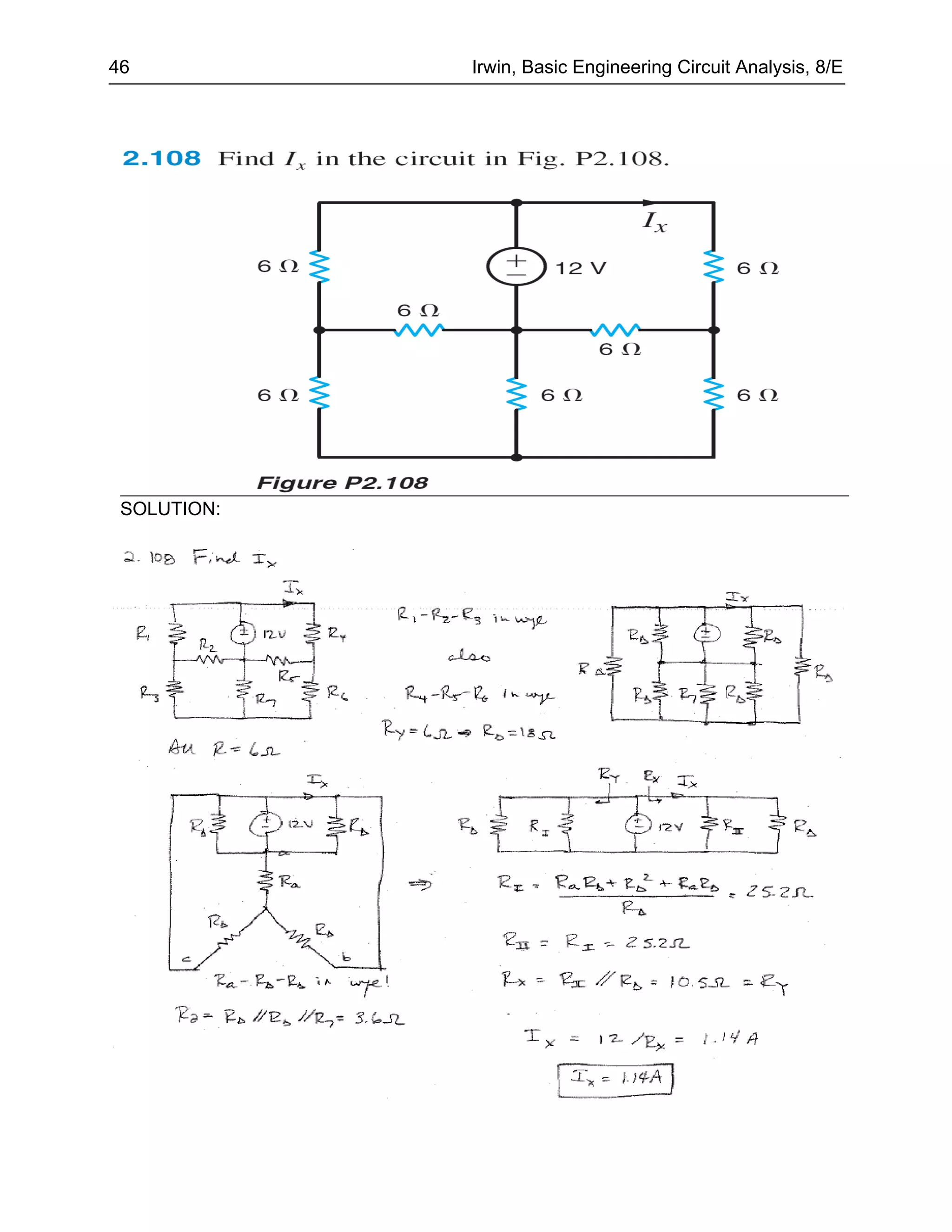

112. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

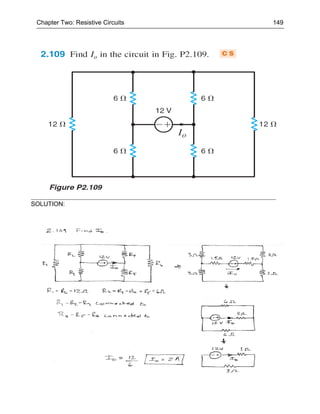

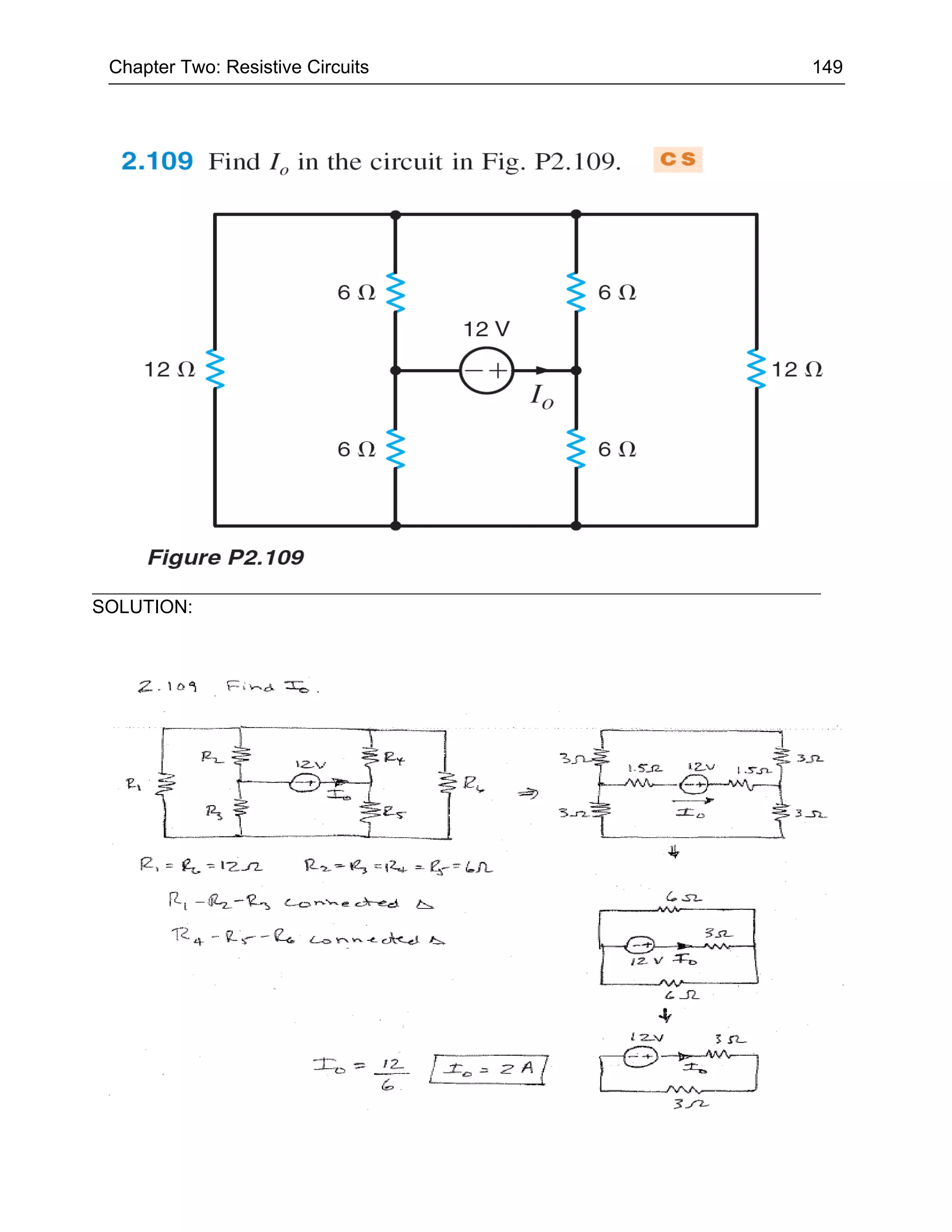

113. Chapter Two: Resistive Circuits 149
SOLUTION:

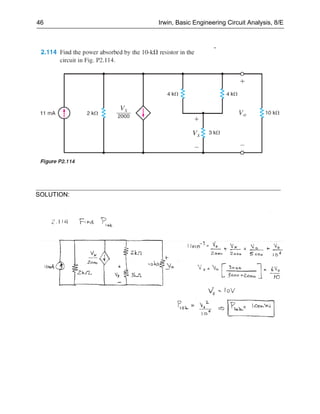

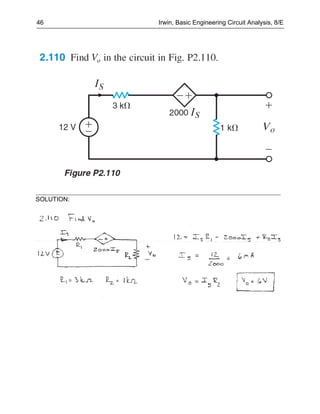

114. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

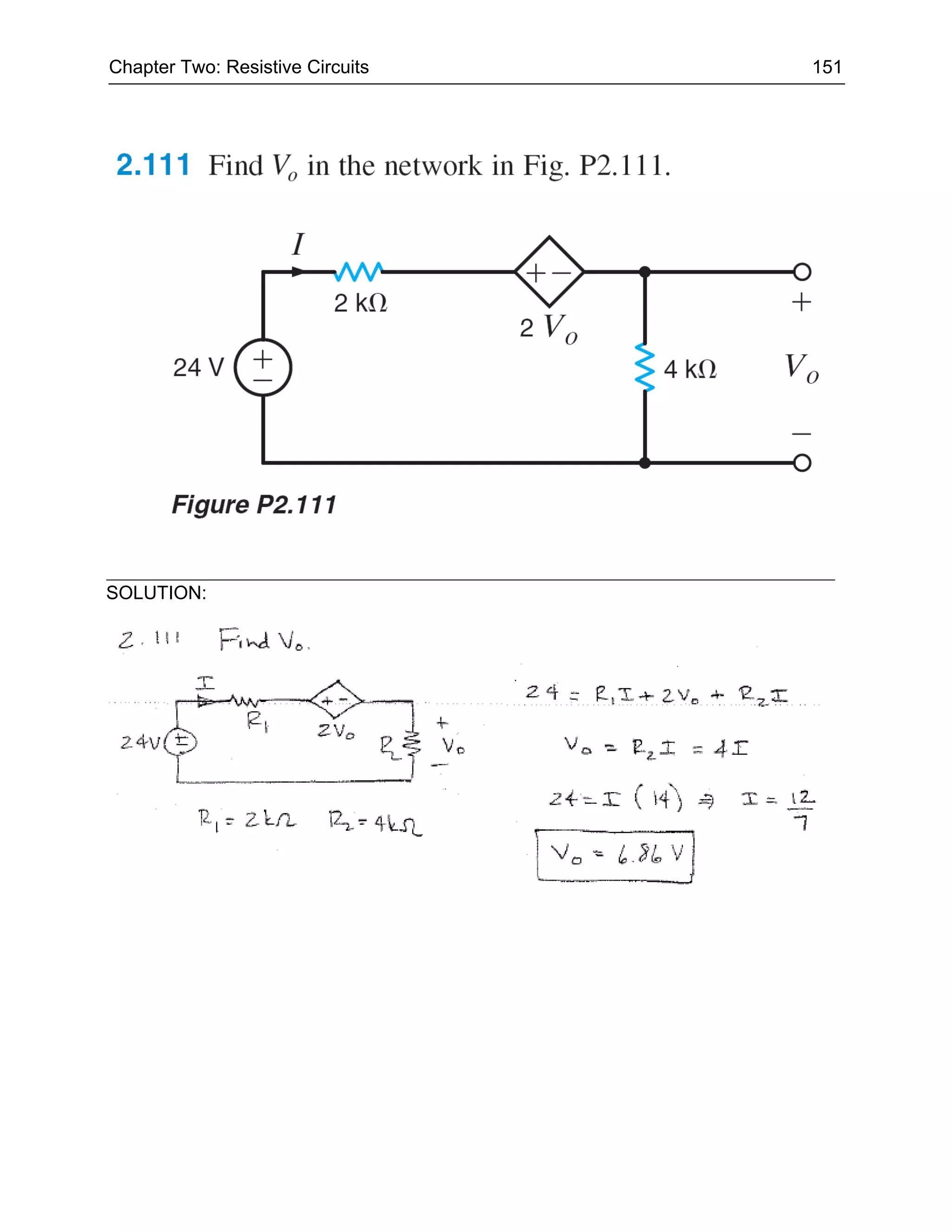

115. Chapter Two: Resistive Circuits 151
SOLUTION:

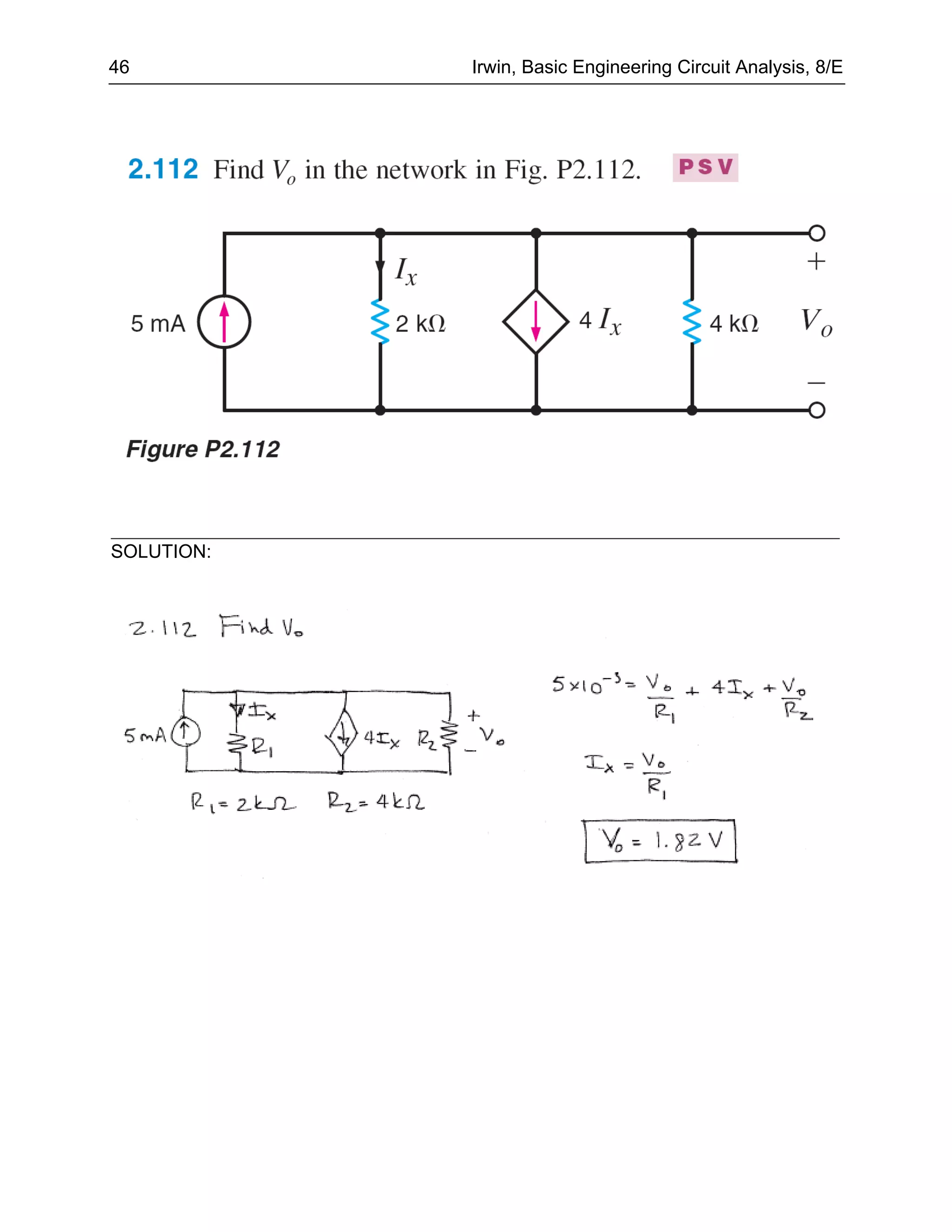

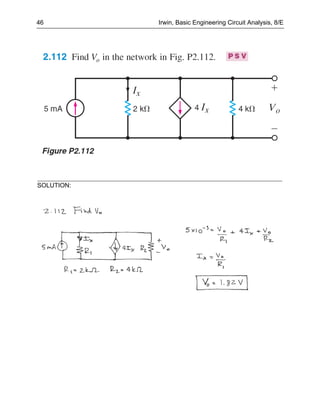

116. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

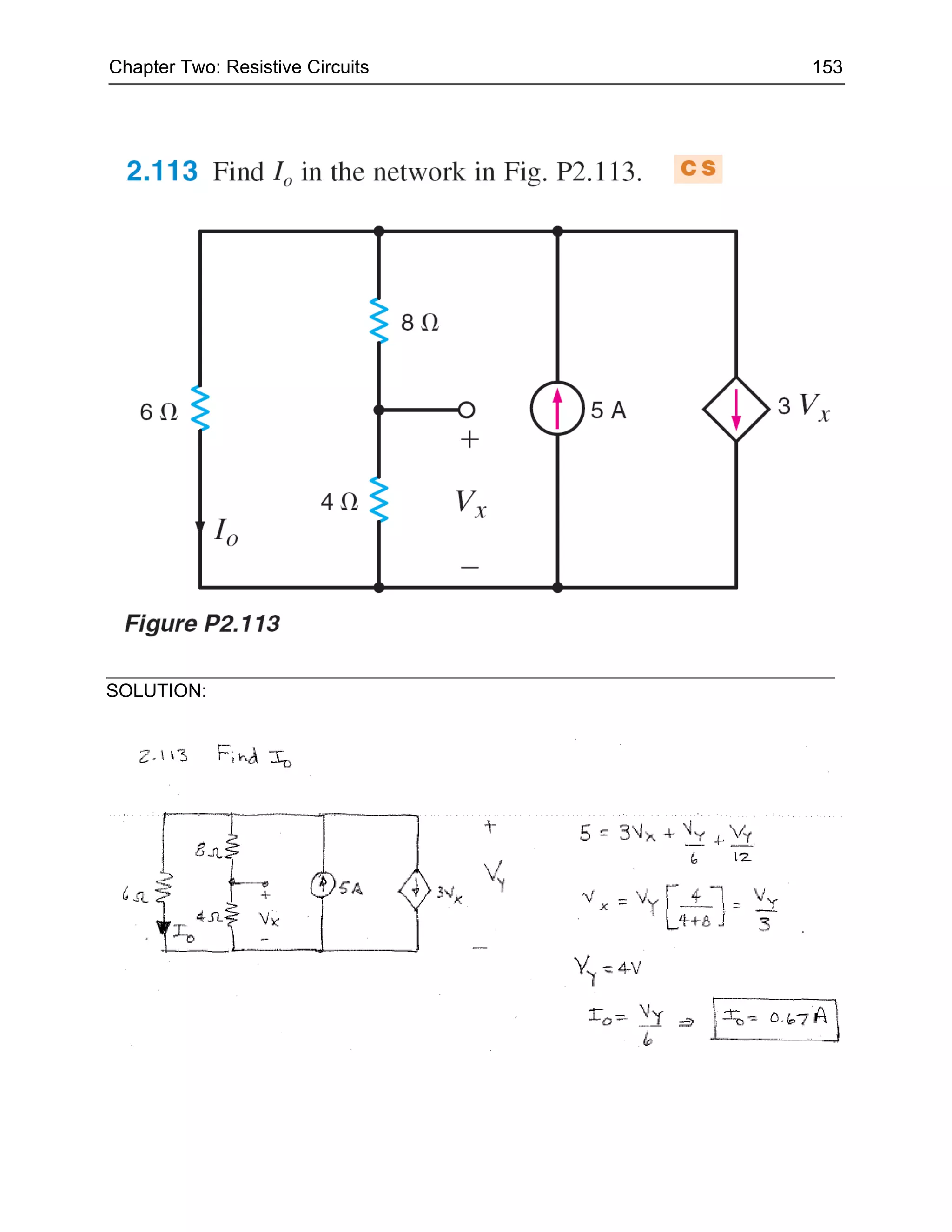

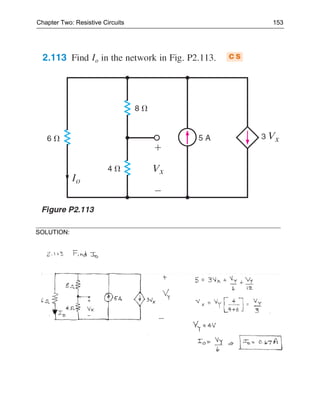

117. Chapter Two: Resistive Circuits 153
SOLUTION:

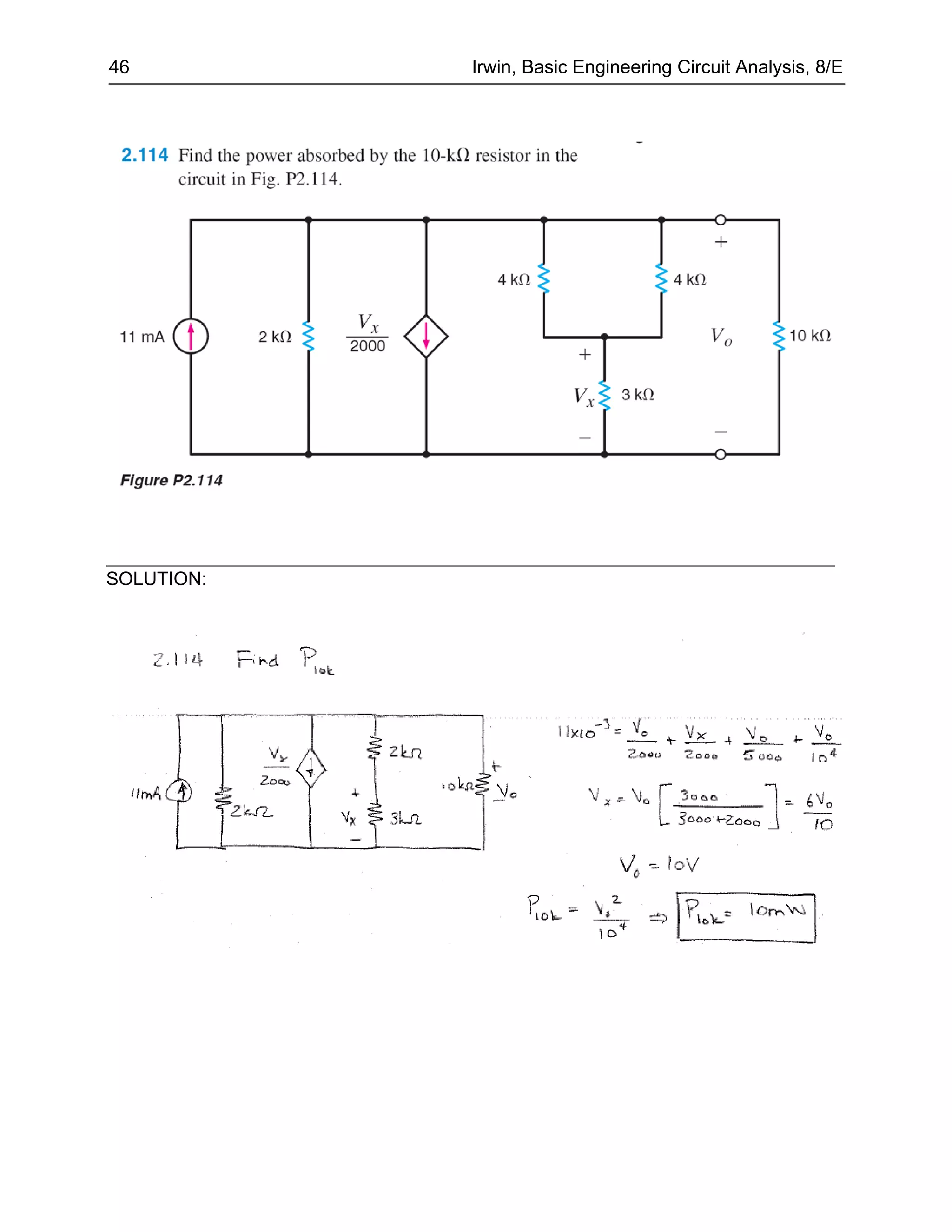

118. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

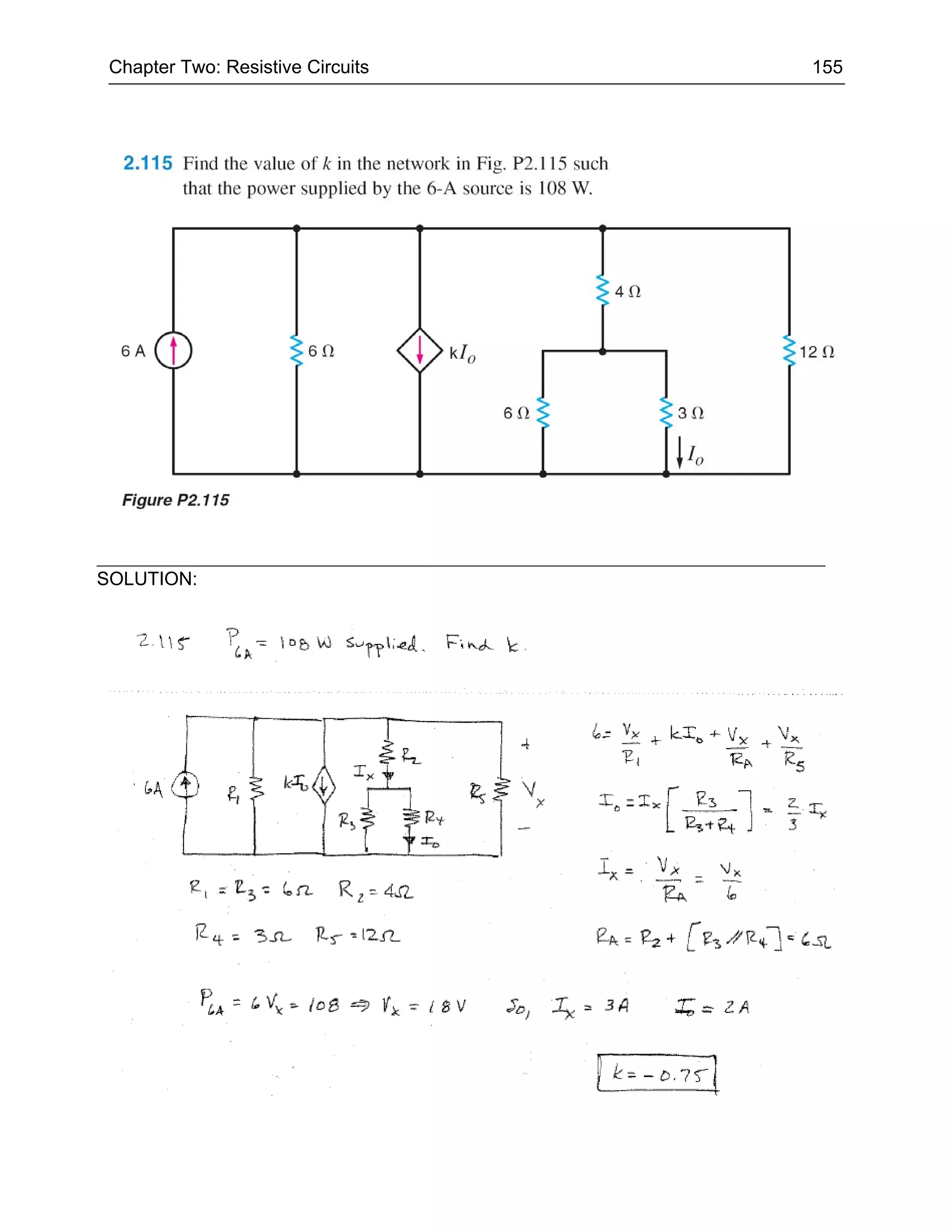

119. Chapter Two: Resistive Circuits 155
SOLUTION:

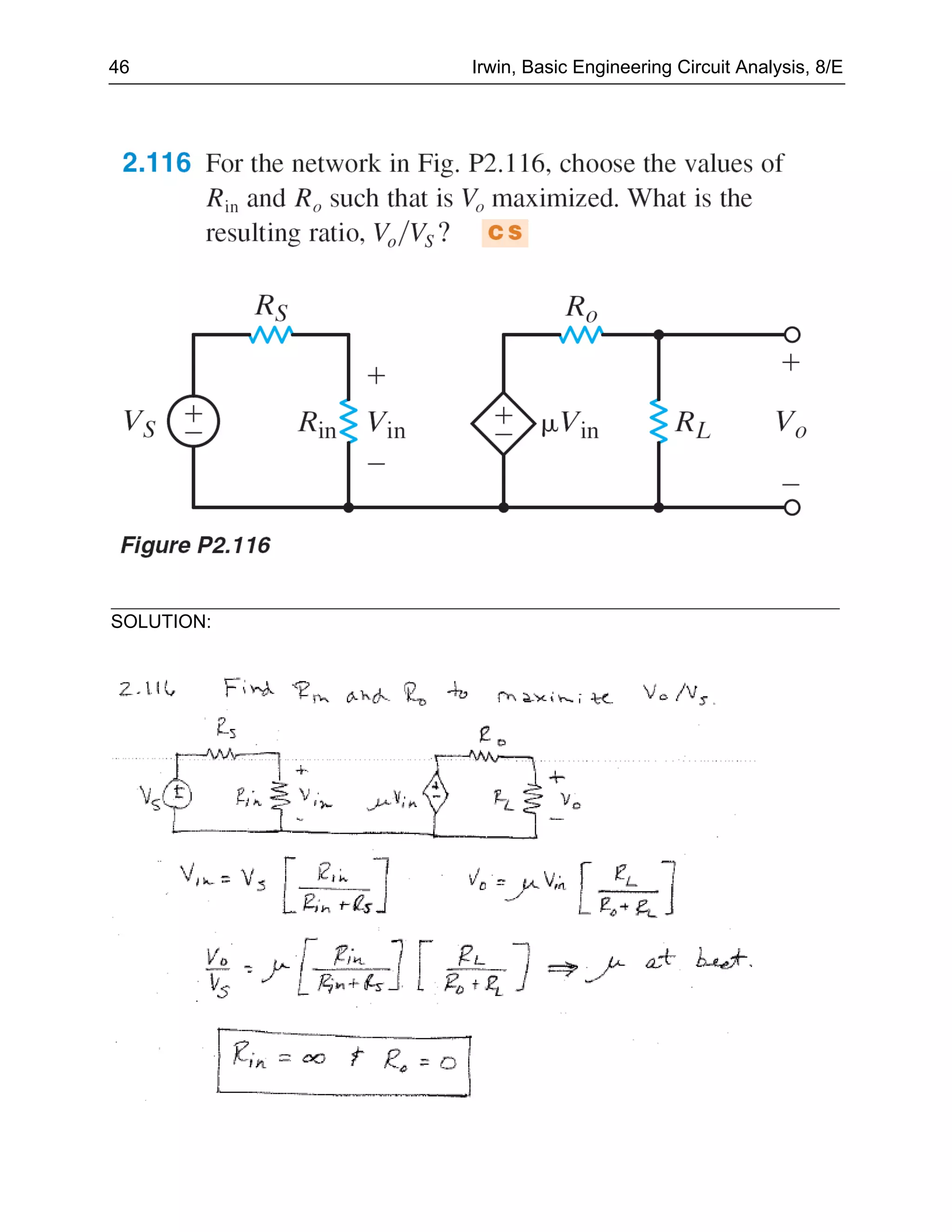

120. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

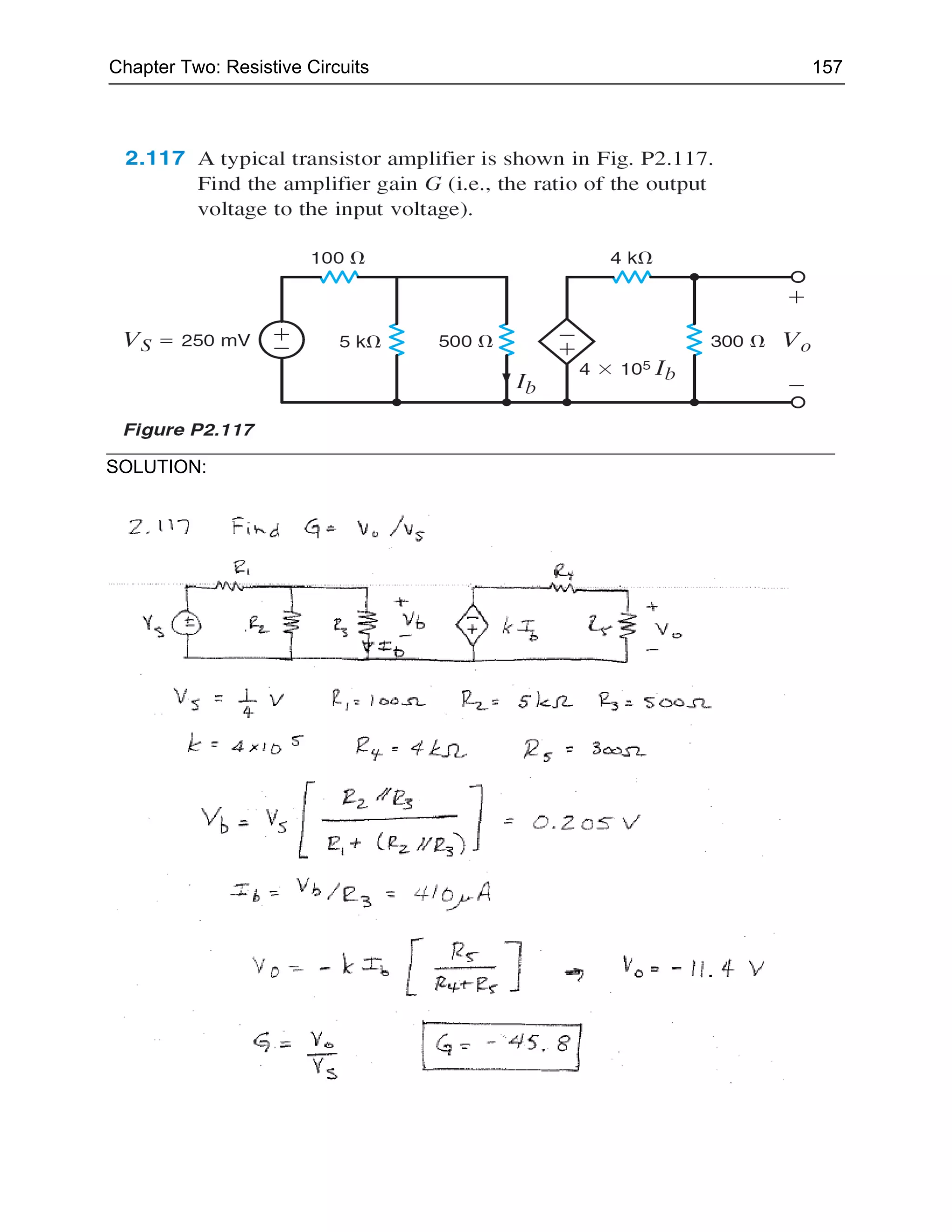

121. Chapter Two: Resistive Circuits 157
SOLUTION:

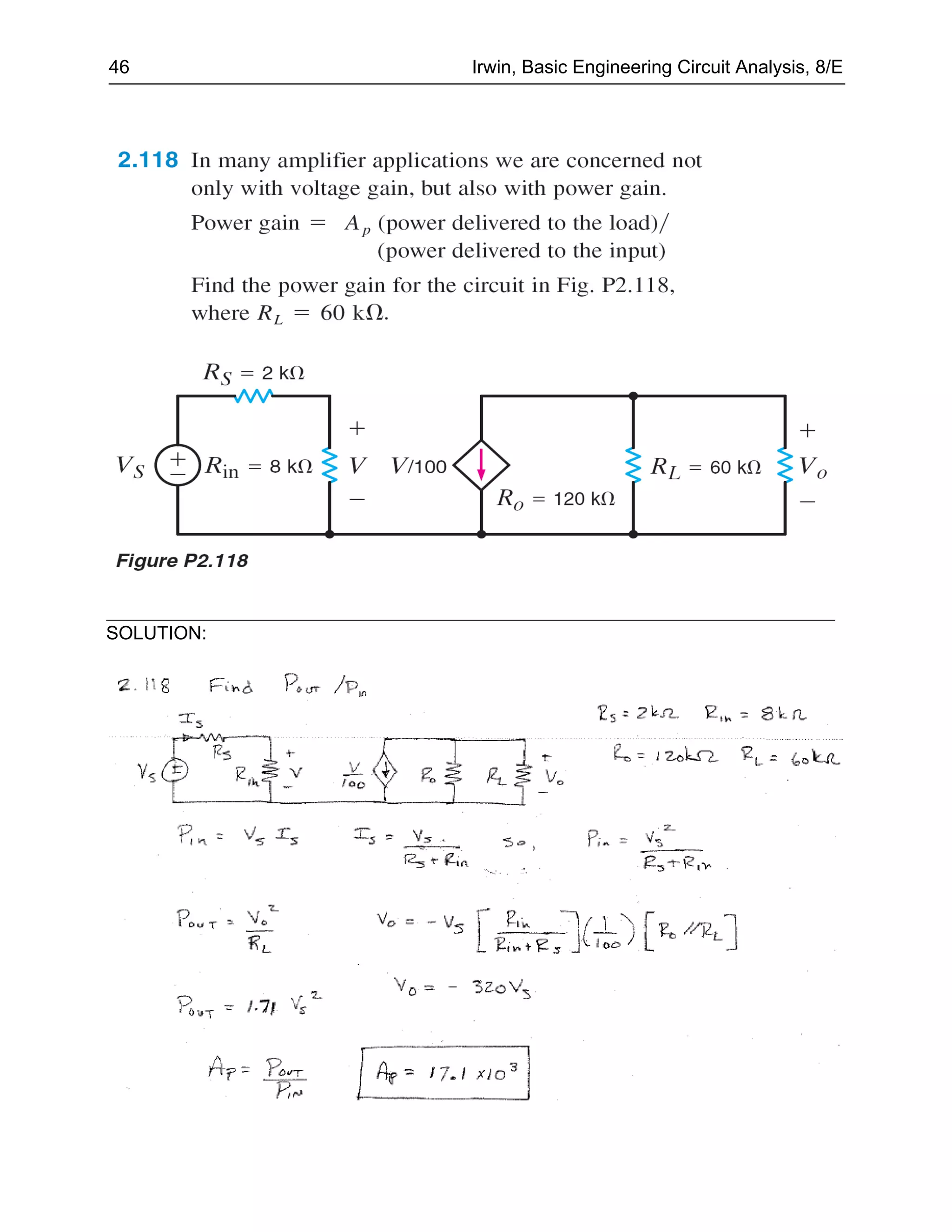

122. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

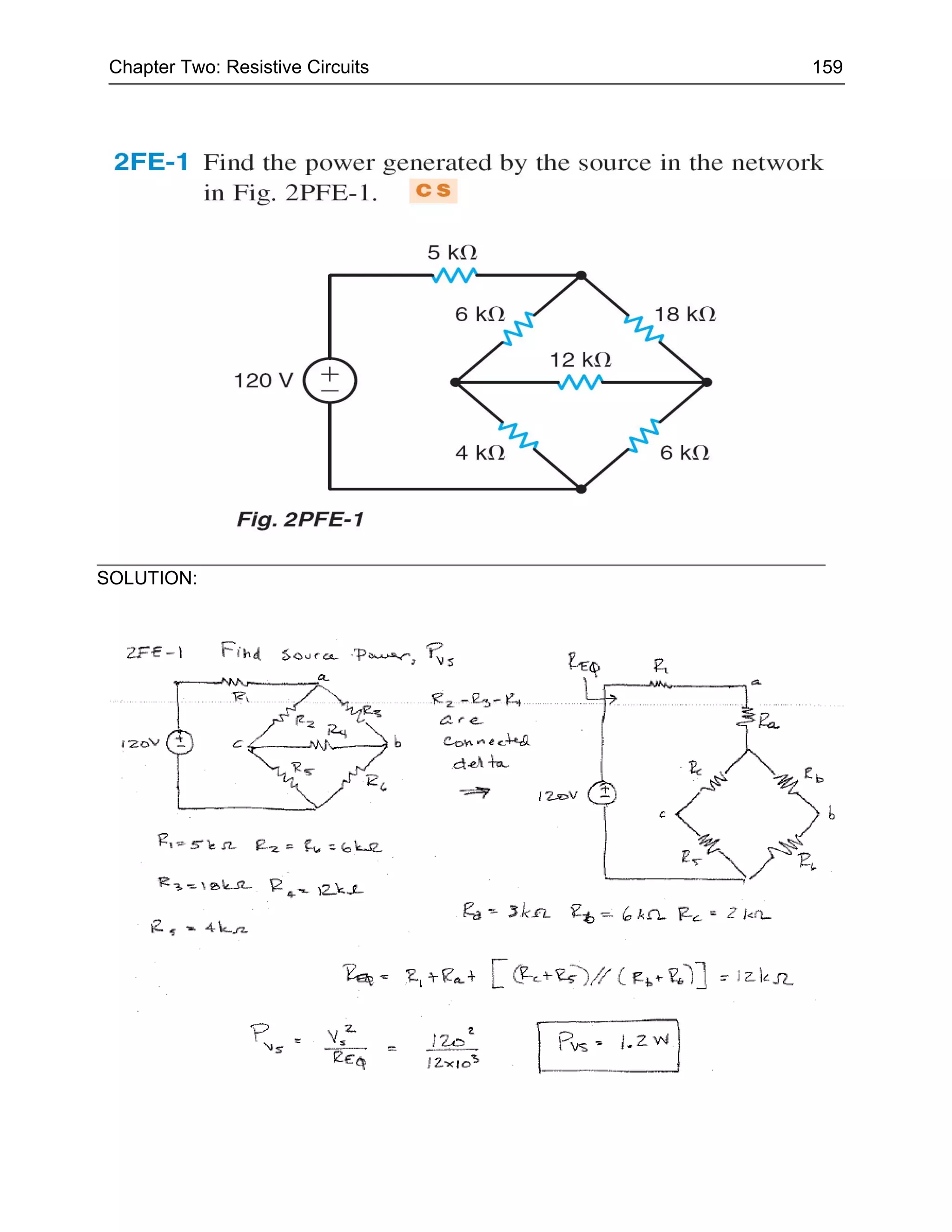

123. Chapter Two: Resistive Circuits 159
SOLUTION:

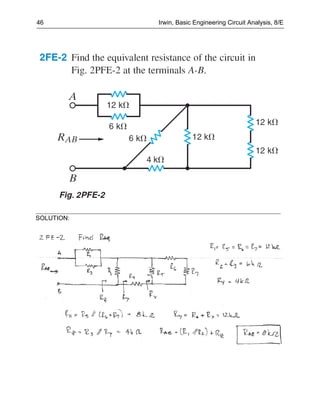

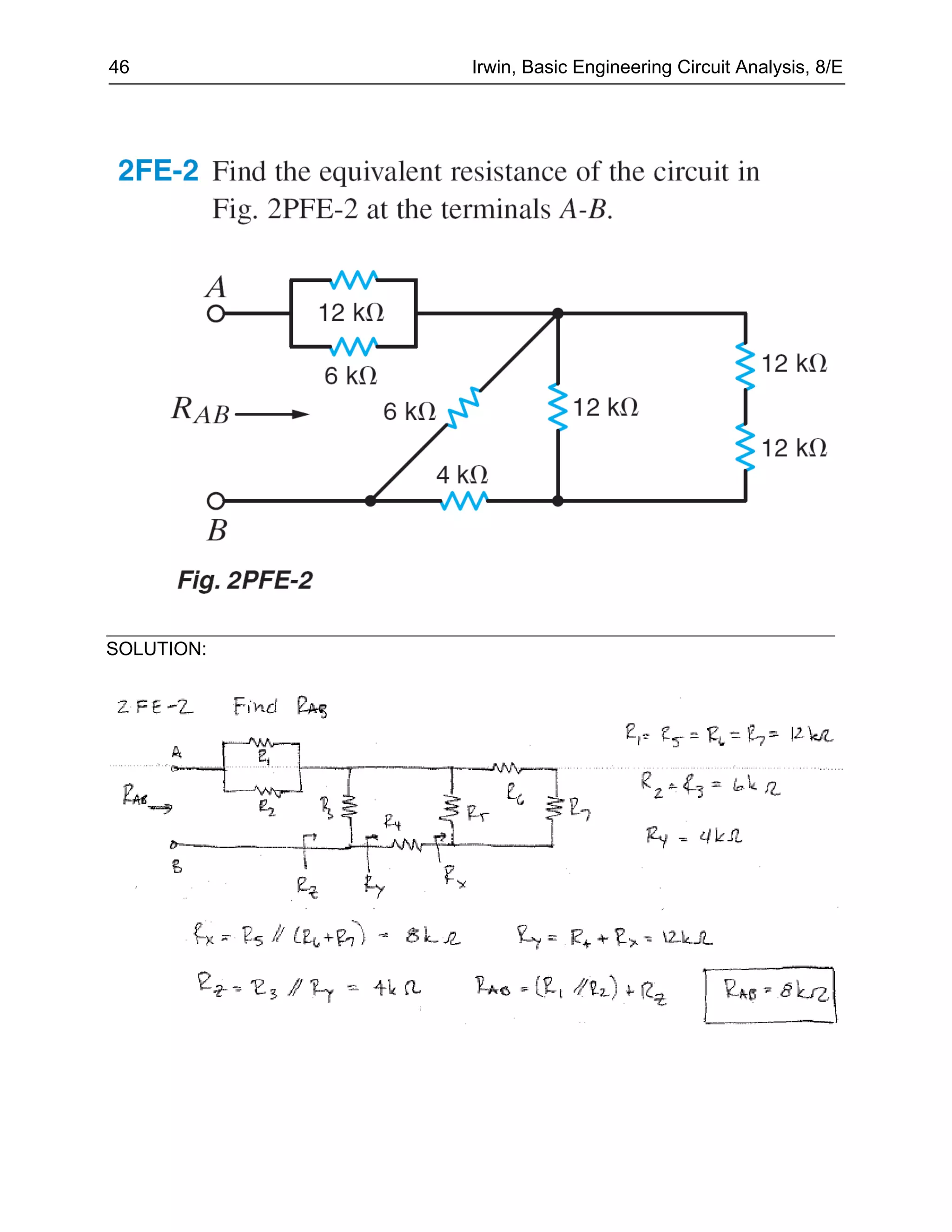

124. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:

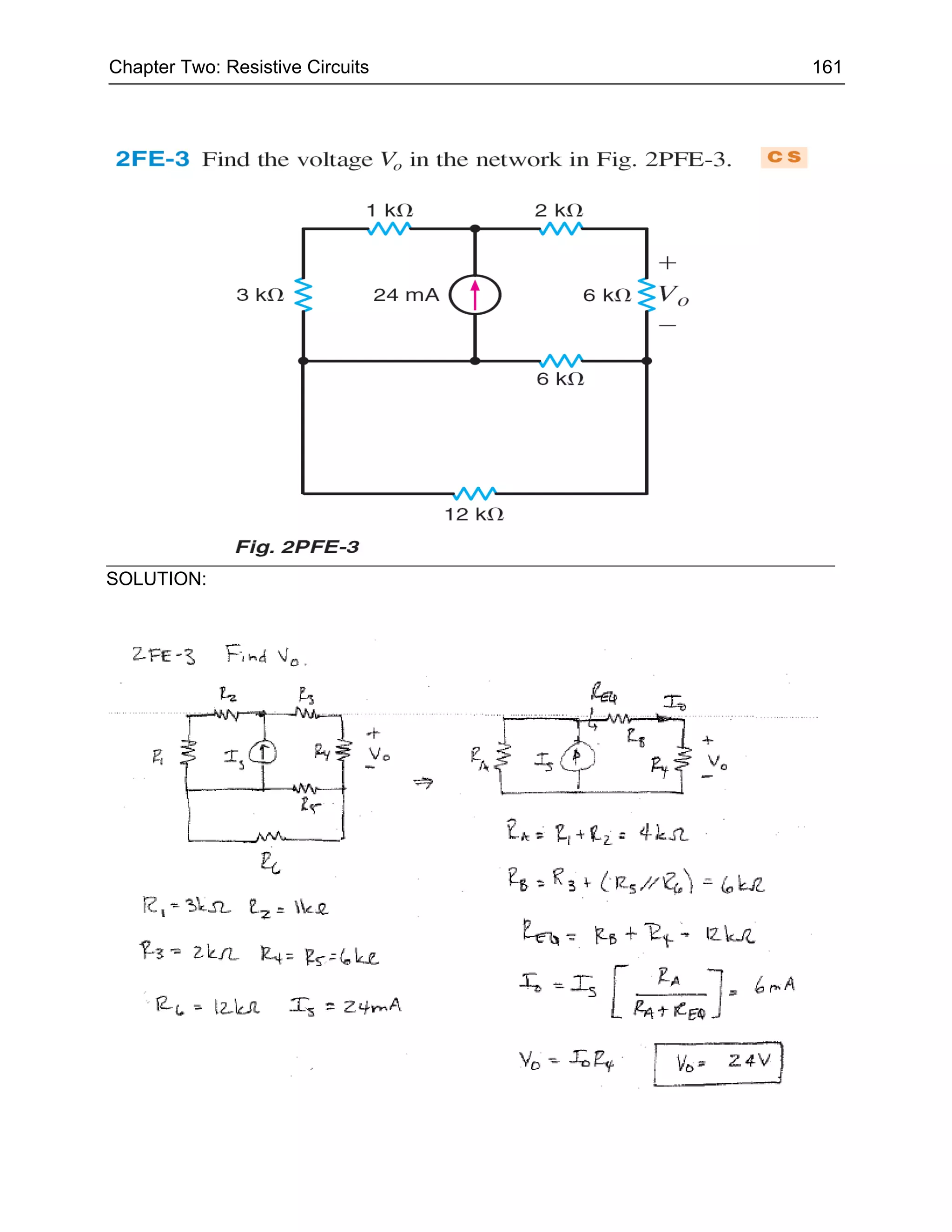

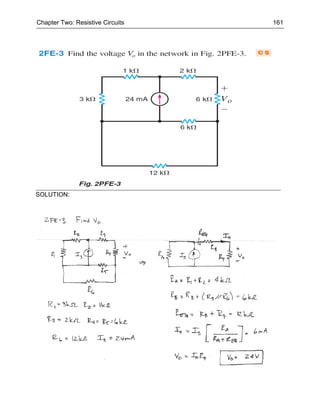

125. Chapter Two: Resistive Circuits 161
SOLUTION:

126. 46 Irwin, Basic Engineering Circuit Analysis, 8/E
SOLUTION:
