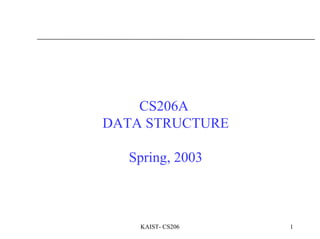

1. KAIST- CS206 1
CS206A
DATA STRUCTURE
Spring, 2003

2. KAIST- CS206 2
Instructor: 김태환
tkim@cs.kaist.ac.kr x3542
조교: webpage (http://vlsisyn.kaist.ac.kr/course/cs206) 참조
Text: Fundamentals of Data Structures in C++
E. Horowitz, et al.
강의는 text 전 내용을 거의 모두 cover함.
매주 1 chapter 씩 진도 나가는 것으로 보면 됨.
Grading: Homework/Quiz/Participation 30%,
Mid-exam: 30%, Final: 40%
주의: 대리출석, 숙제copy, 시험부정행위는 무조건 F 학점

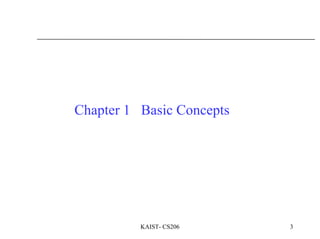

3. KAIST- CS206 3
Chapter 1 Basic Concepts

4. KAIST- CS206 4

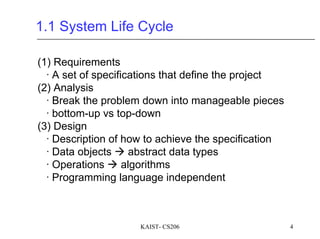

1.1 System Life Cycle
(1) Requirements
∙ A set of specifications that define the project
(2) Analysis
∙ Break the problem down into manageable pieces
∙ bottom-up vs top-down
(3) Design
∙ Description of how to achieve the specification
∙ Data objects abstract data types
∙ Operations algorithms
∙ Programming language independent

5. KAIST- CS206 5

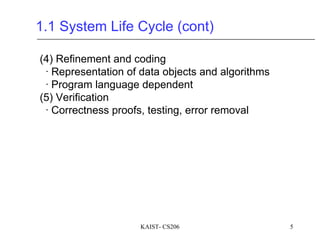

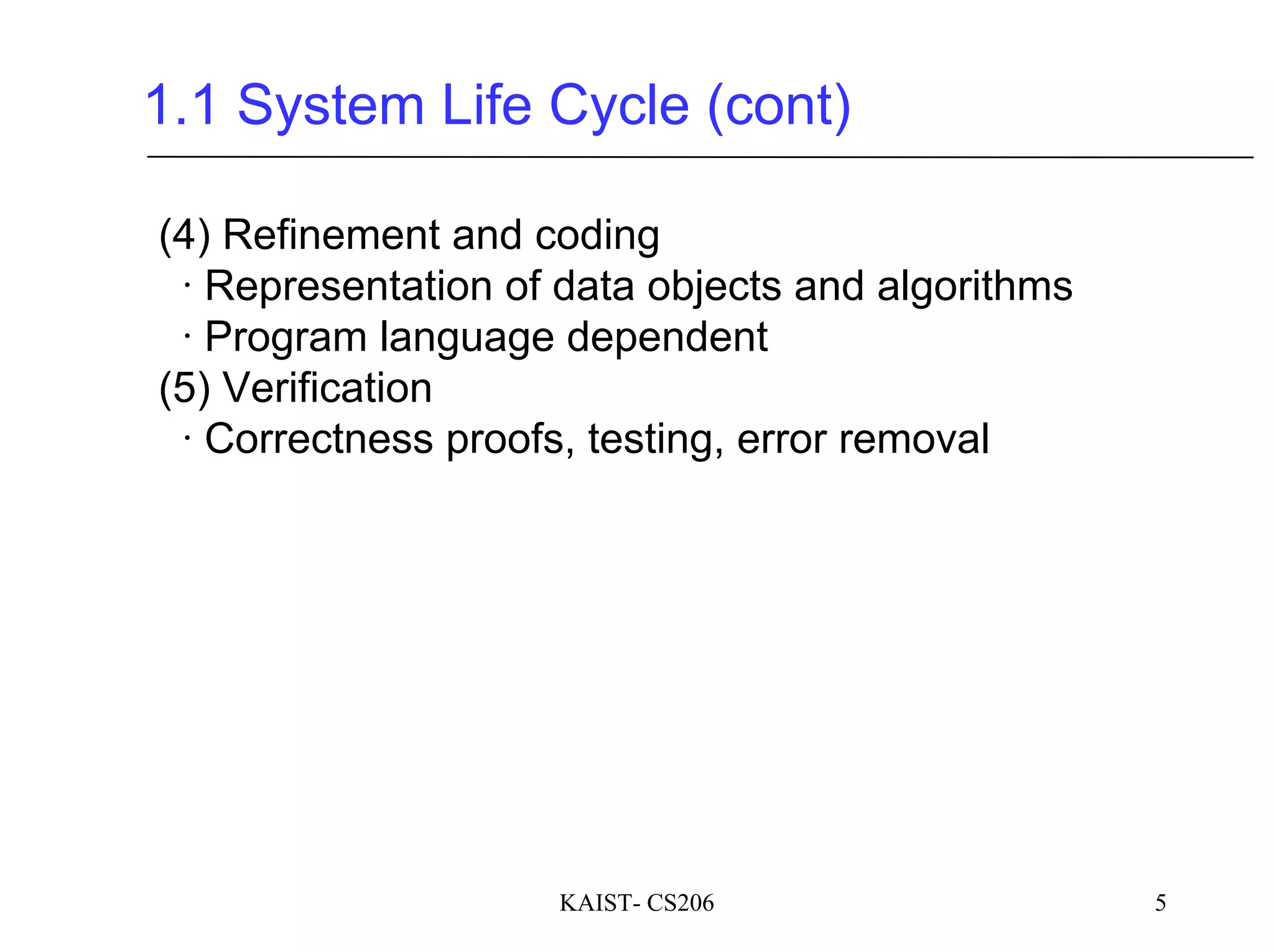

1.1 System Life Cycle (cont)
(4) Refinement and coding
∙ Representation of data objects and algorithms
∙ Program language dependent
(5) Verification
∙ Correctness proofs, testing, error removal

6. KAIST- CS206 6
1.2 Algorithm Specification
1.2.1 Introduction
Algorithm: input, output, definiteness, finiteness,
effectiveness
∙ Representation of data objects and algorithms
∙ Program language dependent
Example 1.1 [Selection sort]
for (i=0; i<n; i++) {
interchange list[i] and list[min];
}
Example 1.2 [Binary search]

7. KAIST- CS206 7

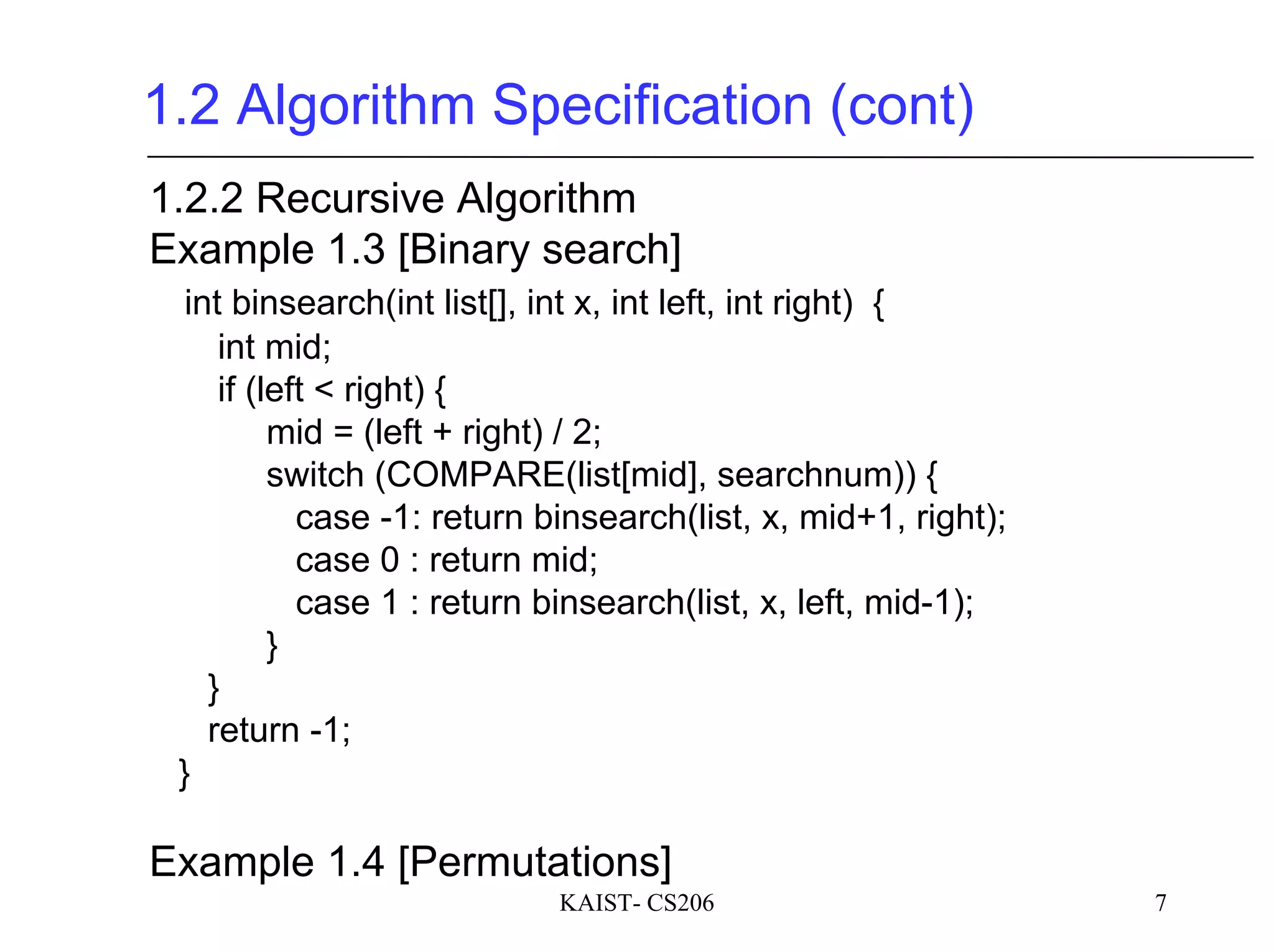

1.2 Algorithm Specification (cont)
1.2.2 Recursive Algorithm
Example 1.3 [Binary search]
int binsearch(int list[], int x, int left, int right) {
int mid;
if (left < right) {
mid = (left + right) / 2;
switch (COMPARE(list[mid], searchnum)) {
case -1: return binsearch(list, x, mid+1, right);
case 0 : return mid;
case 1 : return binsearch(list, x, left, mid-1);
}
}
return -1;
}
Example 1.4 [Permutations]

8. KAIST- CS206 8

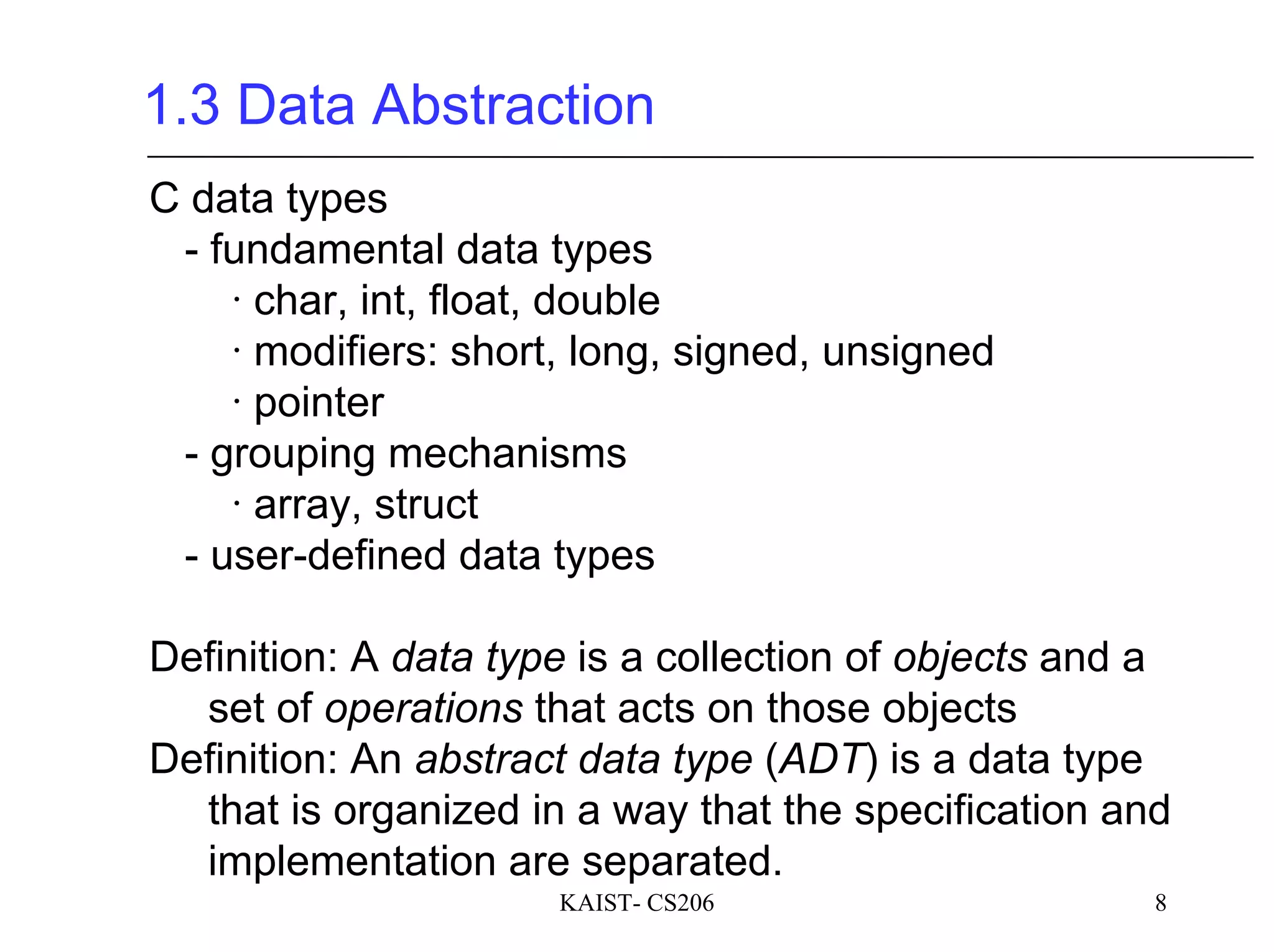

1.3 Data Abstraction
C data types
- fundamental data types
∙ char, int, float, double
∙ modifiers: short, long, signed, unsigned
∙ pointer
- grouping mechanisms
∙ array, struct
- user-defined data types
Definition: A data type is a collection of objects and a
set of operations that acts on those objects
Definition: An abstract data type (ADT) is a data type
that is organized in a way that the specification and
implementation are separated.

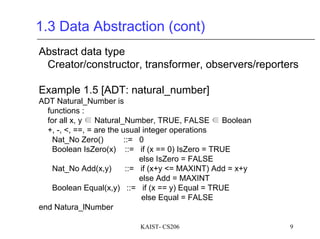

9. KAIST- CS206 9

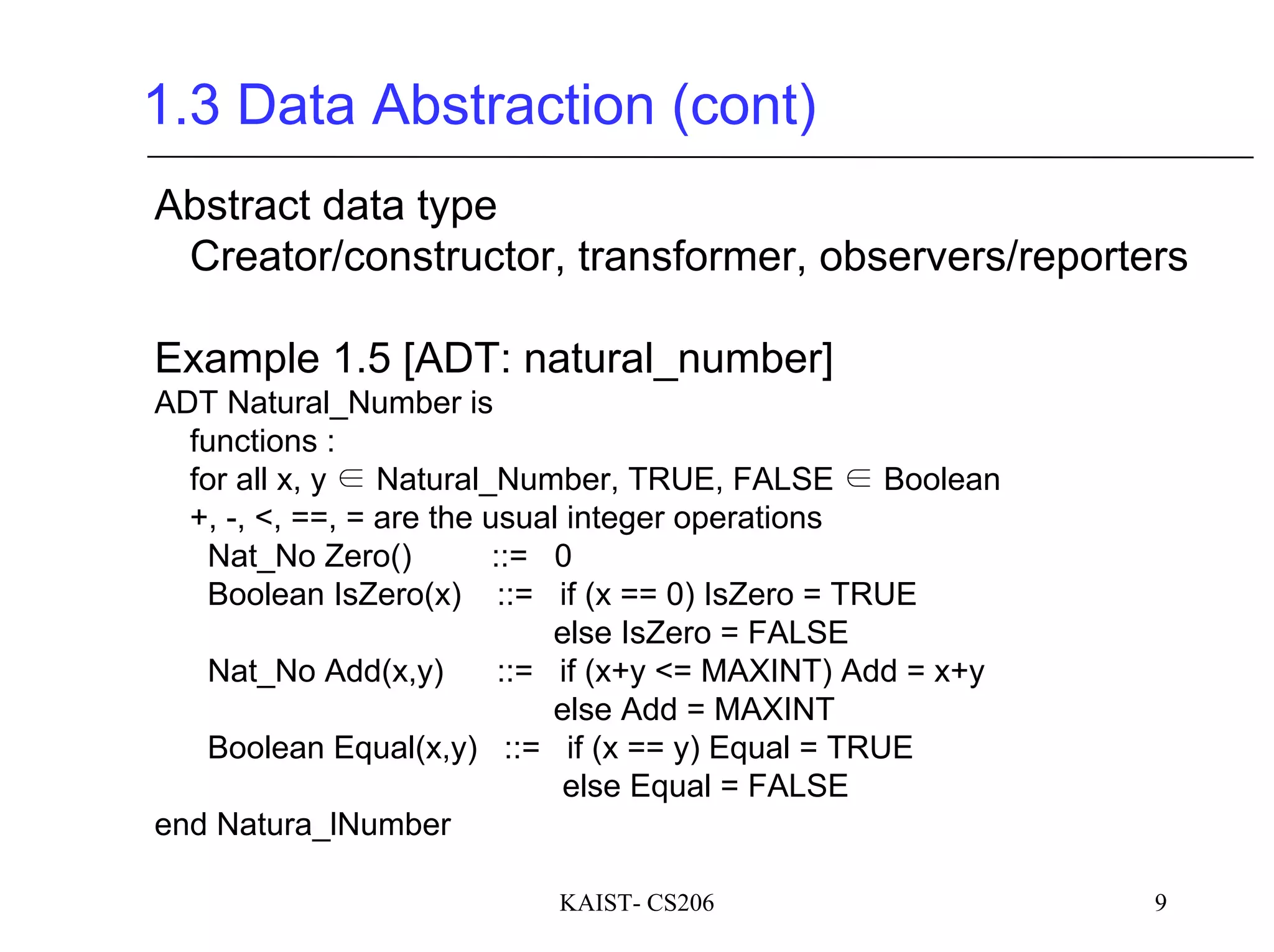

1.3 Data Abstraction (cont)
Abstract data type
Creator/constructor, transformer, observers/reporters
Example 1.5 [ADT: natural_number]
ADT Natural_Number is
functions :
for all x, y ∈ Natural_Number, TRUE, FALSE ∈ Boolean
+, -, <, ==, = are the usual integer operations
Nat_No Zero() ::= 0
Boolean IsZero(x) ::= if (x == 0) IsZero = TRUE
else IsZero = FALSE
Nat_No Add(x,y) ::= if (x+y <= MAXINT) Add = x+y
else Add = MAXINT
Boolean Equal(x,y) ::= if (x == y) Equal = TRUE
else Equal = FALSE
end Natura_lNumber

10. KAIST- CS206 10

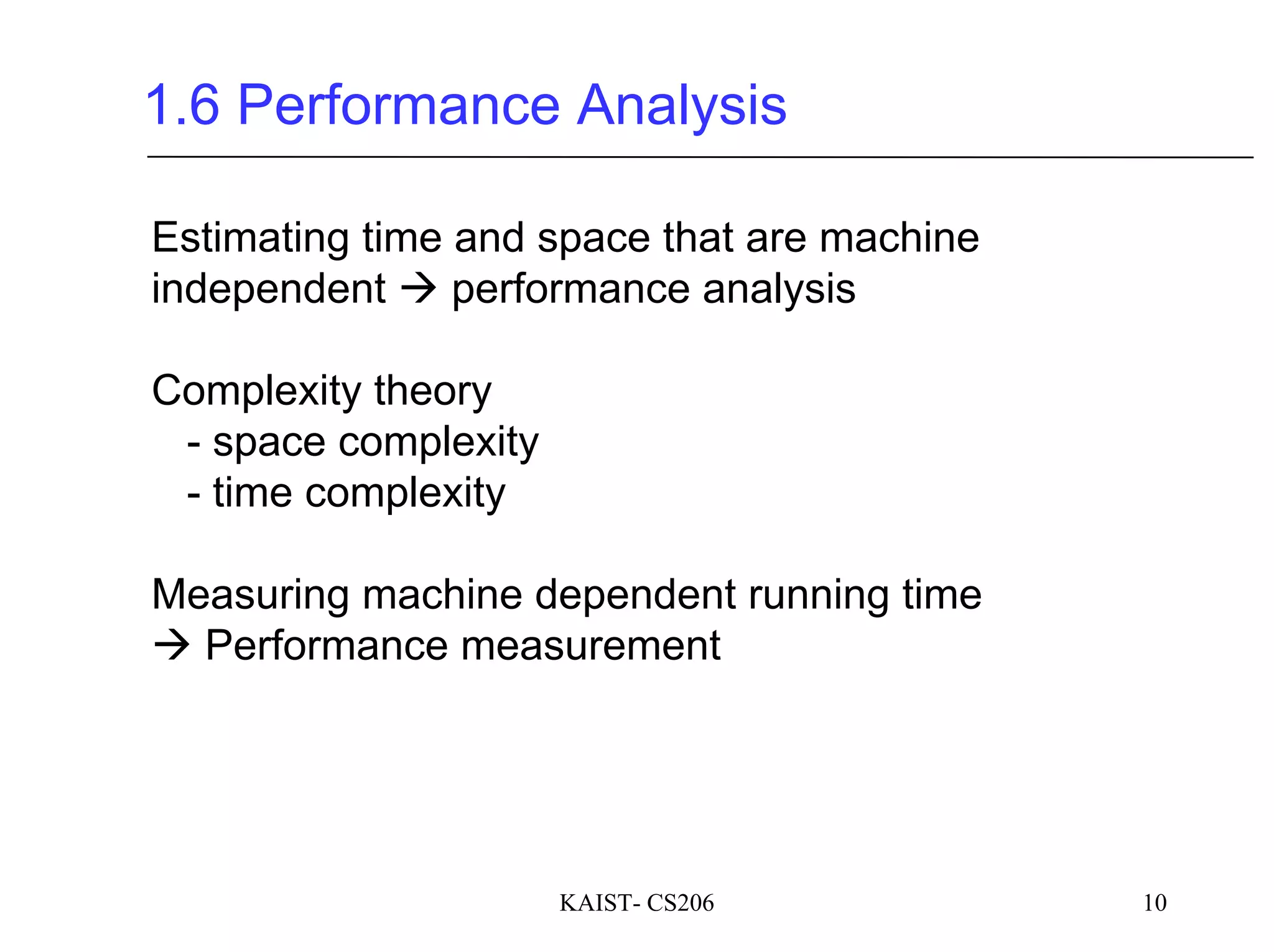

1.6 Performance Analysis
Estimating time and space that are machine
independent performance analysis
Complexity theory
- space complexity
- time complexity
Measuring machine dependent running time
Performance measurement

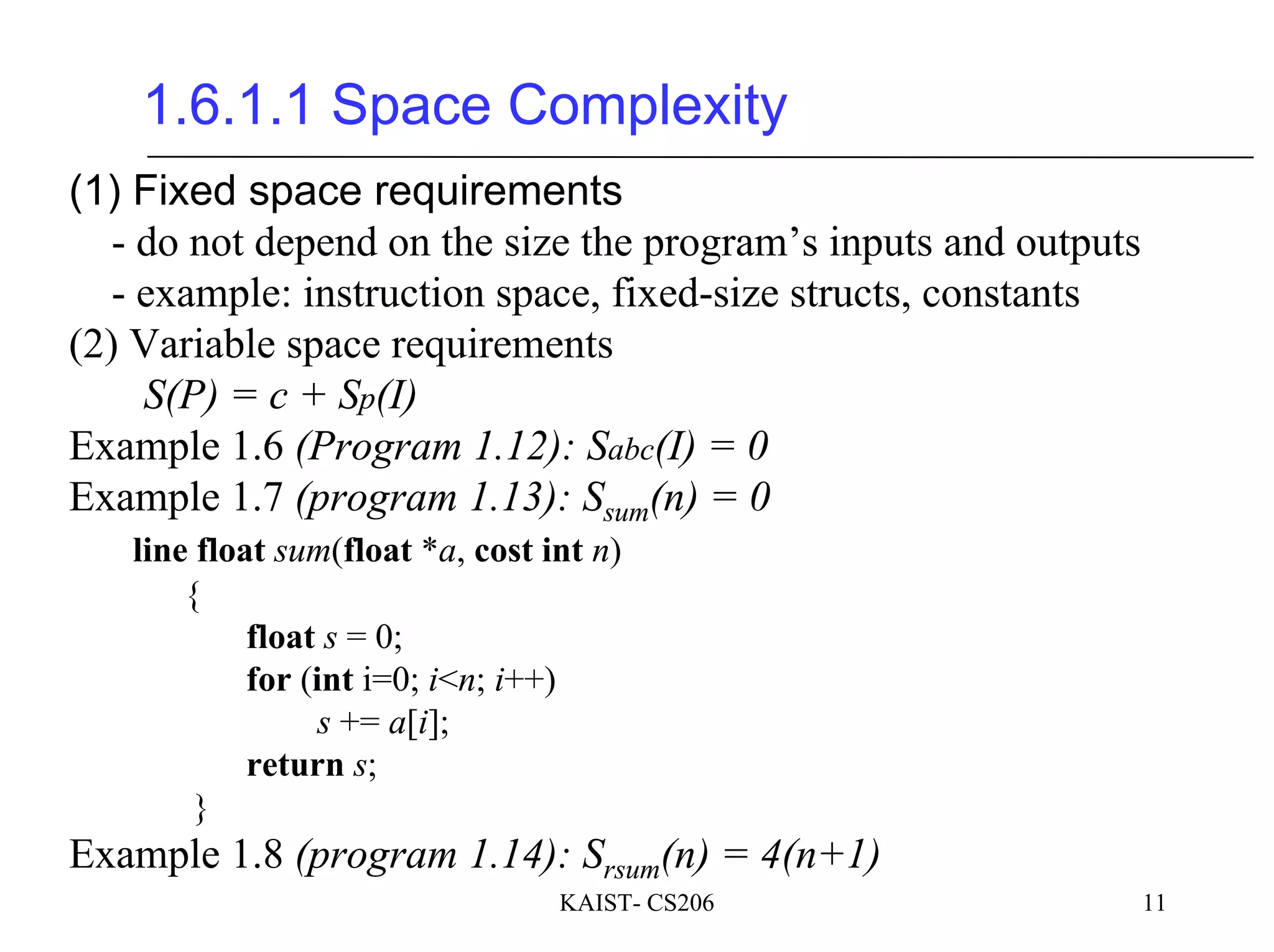

11. KAIST- CS206 11
1.6.1.1 Space Complexity
(1) Fixed space requirements
- do not depend on the size the program’s inputs and outputs
- example: instruction space, fixed-size structs, constants
(2) Variable space requirements
S(P) = c + Sp(I)
Example 1.6 (Program 1.12): Sabc(I) = 0
Example 1.7 (program 1.13): Ssum(n) = 0
line float sum(float *a, cost int n)
{
float s = 0;
for (int i=0; i<n; i++)
s += a[i];
return s;
}
Example 1.8 (program 1.14): Srsum(n) = 4(n+1)

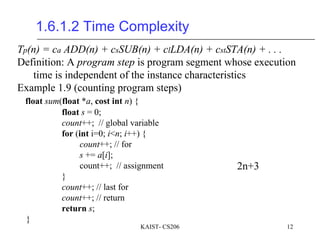

12. KAIST- CS206 12

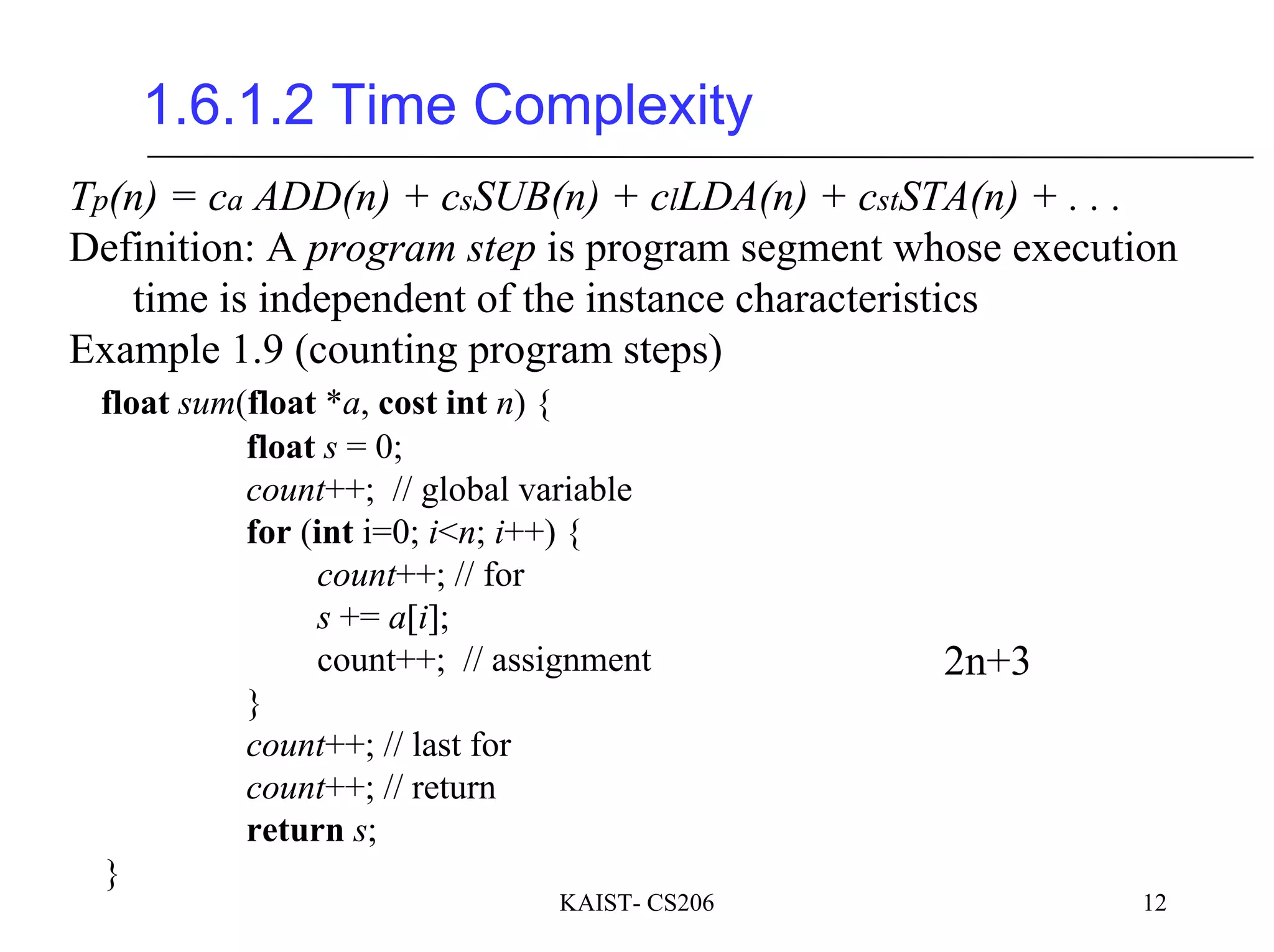

1.6.1.2 Time Complexity
Tp(n) = ca ADD(n) + csSUB(n) + clLDA(n) + cstSTA(n) + . . .
Definition: A program step is program segment whose execution
time is independent of the instance characteristics
Example 1.9 (counting program steps)
float sum(float *a, cost int n) {
float s = 0;
count++; // global variable
for (int i=0; i<n; i++) {
count++; // for
s += a[i];
count++; // assignment
}
count++; // last for
count++; // return
return s;
}
2n+3

13. KAIST- CS206 13
1.6.1.2 Time Complexity (count)
Example 1.9 (using step table) s/e freq. total steps
1 float sum(float *a, cost int n) { 0
2 float s = 0; 1 1 1
3 for (int i=0; i<n; i++) 1 n+1 n+1
4 s += a[i]; 1 n n
5 return s; 1 1 1
6 } 0 1 0
-----------
2n+3

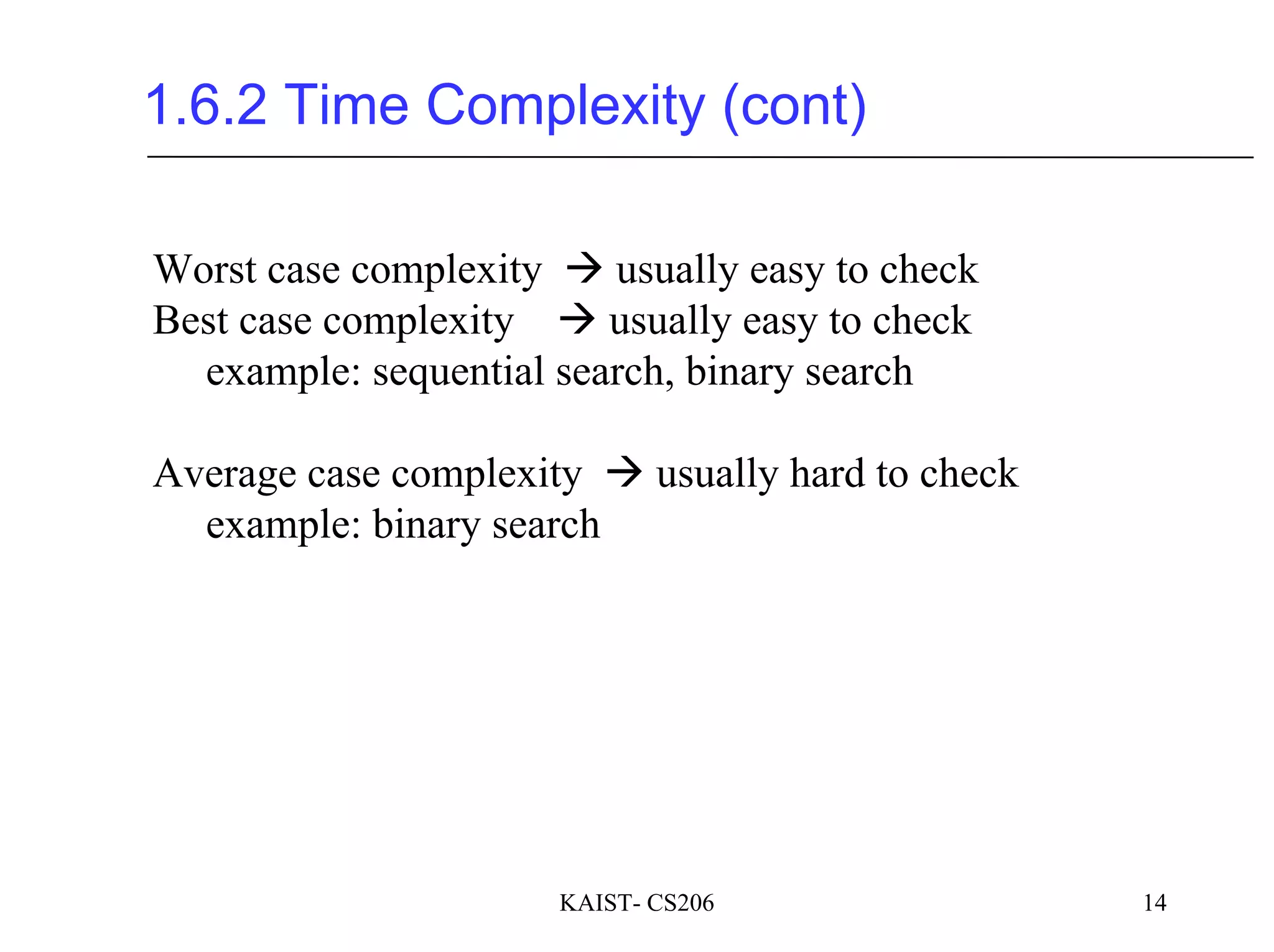

14. KAIST- CS206 14
1.6.2 Time Complexity (cont)
Worst case complexity usually easy to check
Best case complexity usually easy to check
example: sequential search, binary search
Average case complexity usually hard to check
example: binary search

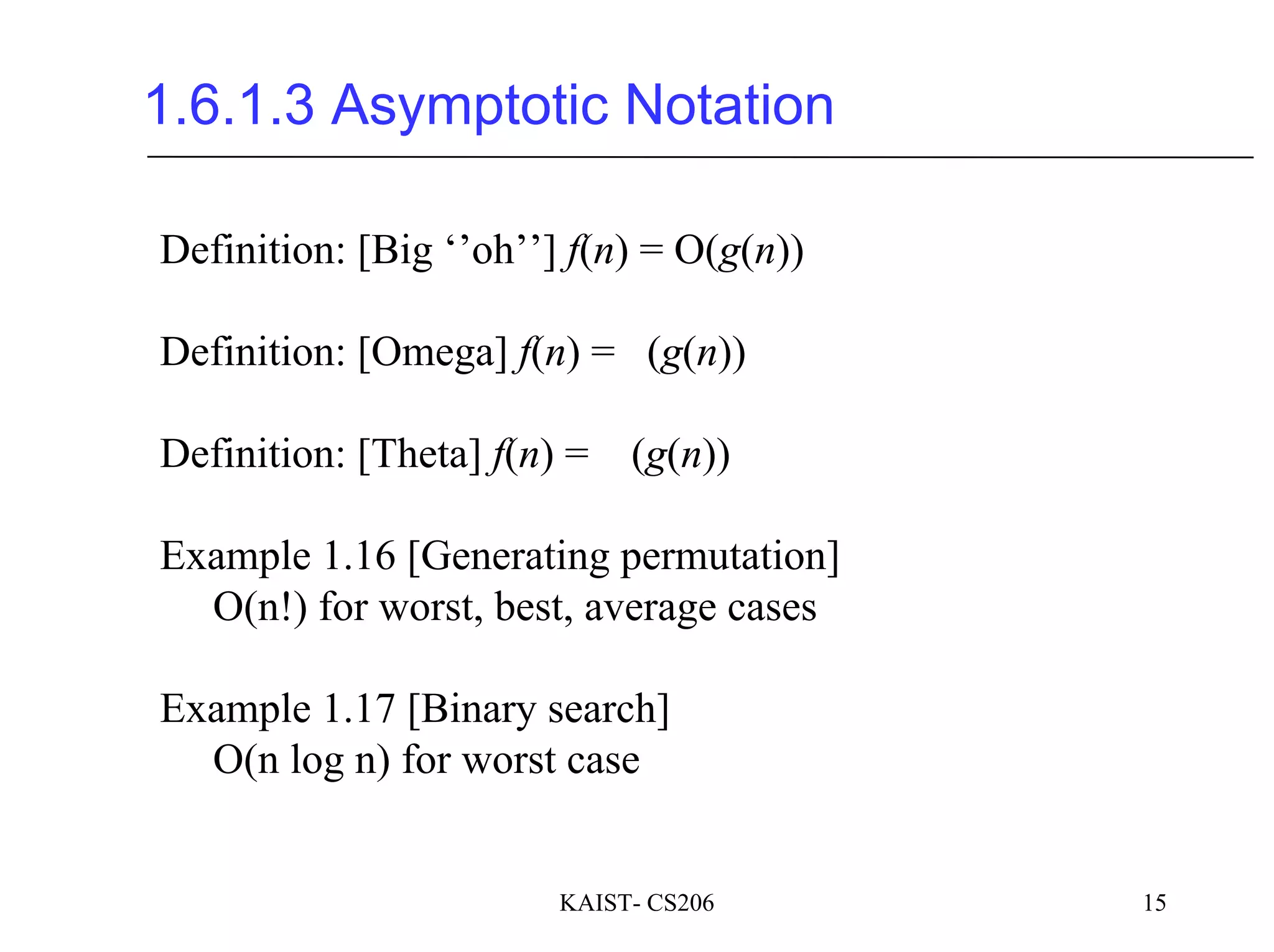

15. KAIST- CS206 15
1.6.1.3 Asymptotic Notation
Definition: [Big ‘’oh’’] f(n) = O(g(n))
Definition: [Omega] f(n) = (g(n))
Definition: [Theta] f(n) = (g(n))
Example 1.16 [Generating permutation]
O(n!) for worst, best, average cases
Example 1.17 [Binary search]
O(n log n) for worst case

16. KAIST- CS206 16

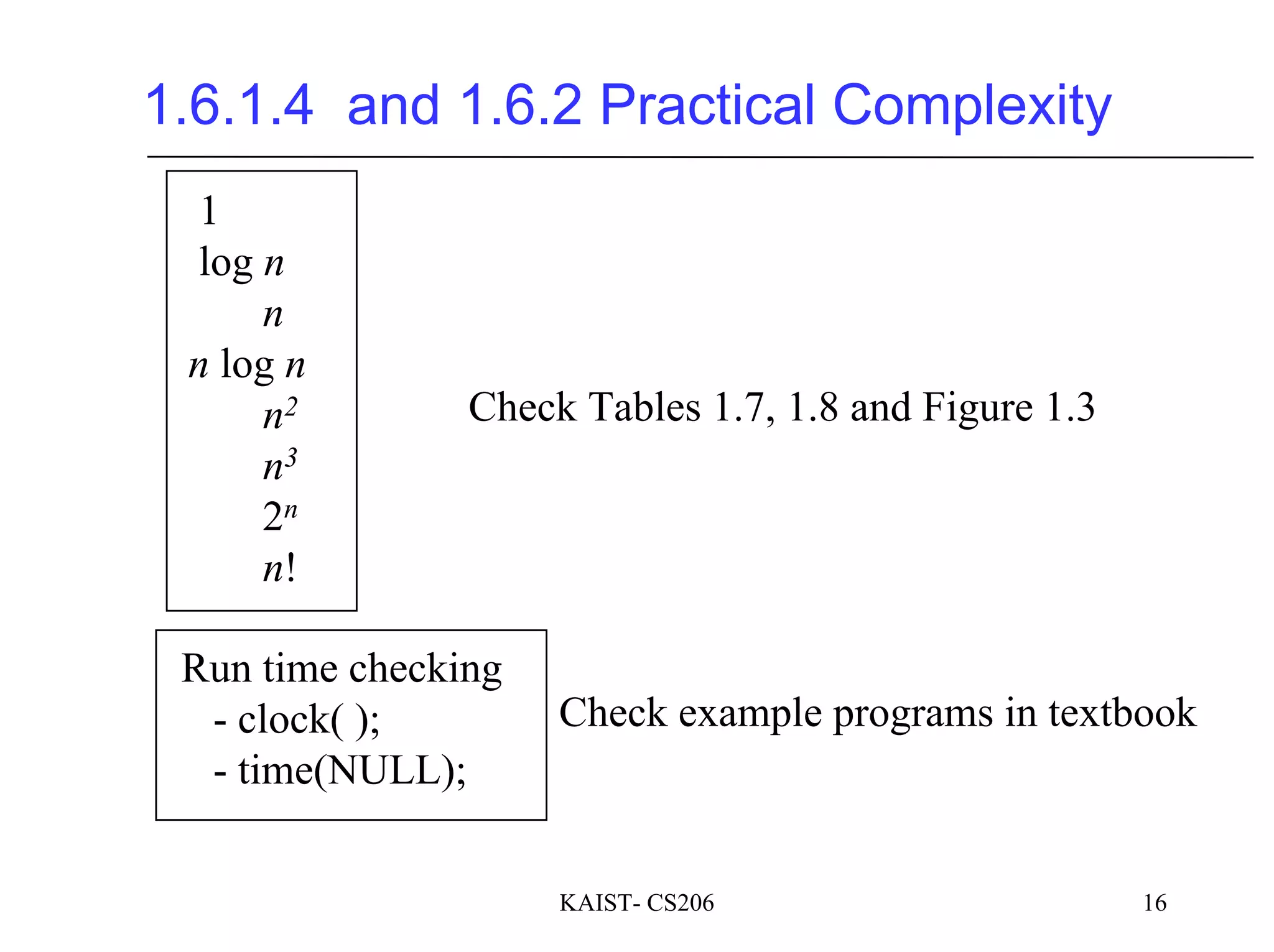

1.6.1.4 and 1.6.2 Practical Complexity
1
log n
n
n log n
n2
n3
2n
n!
Check Tables 1.7, 1.8 and Figure 1.3
Run time checking
- clock( );
- time(NULL);
Check example programs in textbook
