1. CHANNELIZATION SCHEME IN:
AMPS & GSM
Subject:-OverView Of Mobile communication
GAURAV BISWAS
BIT MESRA
09-04-20191

2.  AMPS
 CHANNELIZATION SCHEME IN AMPS
 PARAMETERS OF AMPS SYSTEM
 GSM SYSTEM ARCHITECTURE & VARIOUS SUB SYSTEMS
AND
 CHANNELIZATION SCHEME IN GSM 900
CONTENT
09-04-20192

3. AMPS(ADVANCE MOILE PHONE SYSTEM) -:

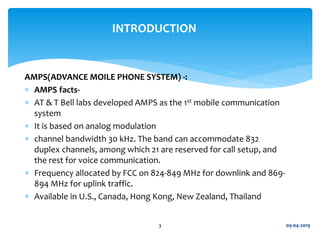

 AMPS facts-
 AT & T Bell labs developed AMPS as the 1st mobile communication
system
 It is based on analog modulation
 channel bandwidth 30 kHz. The band can accommodate 832
duplex channels, among which 21 are reserved for call setup, and
the rest for voice communication.
 Frequency allocated by FCC on 824-849 MHz for downlink and 869-
894 MHz for uplink traffic.
 Available in U.S., Canada, Hong Kong, New Zealand, Thailand
09-04-20193
INTRODUCTION

4. Figure:- channelization scheme in amps[1]
09-04-20194
CHANNELIZATION SCHEME IN AMPS

5.  AMPS used two kinds of channels:
 Voice channel
 Control channel
 Voice channel :-are used to transmit voice signal using frequency
modulation
 Control channel :-are used for signaling information & are transmitted using
FSK(frequency shift key)
 Various channel used in AMPS system :
 FCC(forward control channel)
 RCC(reverse control channel)
 FVC(forward voice channel)
 RVC(reverse voice channel
09-04-20195
CHANNELIZATION SCHEME IN AMPS

6. Table-Typical AMPS Parameter[1]
09-04-20196
PARAMETERS OF AMPS

7. 

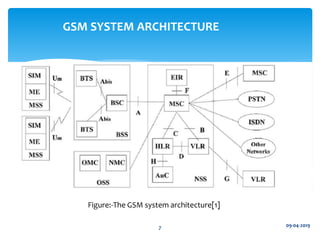

Figure:-The GSM system architecture[1]
09-04-20197
GSM SYSTEM ARCHITECTURE

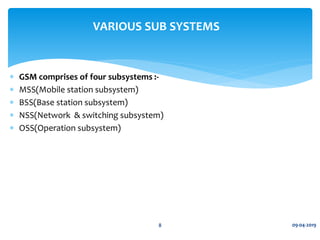

8.  GSM comprises of four subsystems :-
 MSS(Mobile station subsystem)
 BSS(Base station subsystem)
 NSS(Network & switching subsystem)
 OSS(Operation subsystem)
09-04-20198
VARIOUS SUB SYSTEMS

9. Figure:- The channelization scheme in GSM[1]
09-04-20199
CHANNELIZATION SCHEME IN GSM 900

10.  In GSM 900 :-
 25 MHz bandwidth(in uplink as well as downlink)
 UL frequency band 890-915 MHz
 DL frequency band 935-960 MHz
 UL & DL frequency spacing 45 MHz
 Channel bandwidth 200 kHz
09-04-201910
CHANNELIZATION SCHEME IN GSM 900

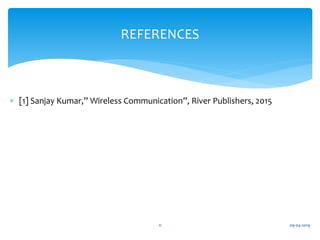

11.  [1] Sanjay Kumar,” Wireless Communication”, River Publishers, 2015
