Cloudify workshop at CCCEU 2014
The document discusses Cloudify, an open source platform for deploying, managing, and scaling complex multi-tier applications on cloud infrastructures. It introduces key concepts of Cloudify including topologies defined using TOSCA, workflows written in Python, policies defined in YAML, and how Cloudify ties various automation tools together across the deployment continuum. The document also provides demonstrations of uploading a blueprint to Cloudify and installing an application using workflows, and discusses how Cloudify collects logs, metrics and handles events during workflow execution.
More Related Content
Similar to Cloudify workshop at CCCEU 2014
Cloudify workshop at CCCEU 2014
- 1. Cloudify 3 Workshop #ccceu Budapest 2014 Uri Cohen - @uri1803
- 2. INTRODUCTION (OR WHYWE NEED THIS AT ALL…)
- 3. The World Is about Services & Apps
- 4. Automation Is Keyfor: • Testability • Consistency • Agility • Stability

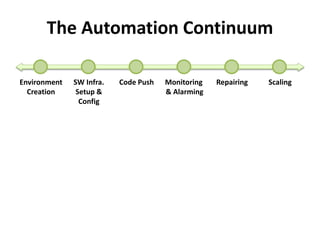

- 5. The Automation Continuum Environment Creation SW Infra. Setup & Config Code Push Monitoring & Alarming Repairing Scaling

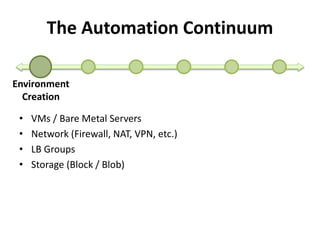

- 6. The Automation Continuum Environment Creation • VMs / Bare Metal Servers • Network (Firewall, NAT, VPN, etc.) • LB Groups • Storage (Block / Blob)
- 7. The Automation Continuum SW Infrastructure Setup & Configuration • OS Configuration (e.g. ulimit, useradd, permissions, etc.) • Installation of packages and middleware components • Startup orchestration • Update (not very frequent)

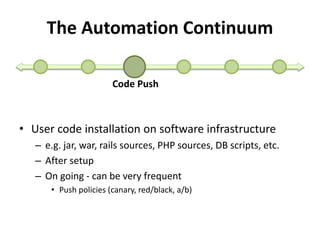

- 8. The Automation Continuum Code Push • User code installation on software infrastructure – e.g. jar, war, rails sources, PHP sources, DB scripts, etc. – After setup – On going - can be very frequent • Push policies (canary, red/black, a/b)

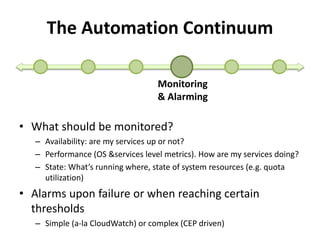

- 9. The Automation Continuum Monitoring & Alarming • What should be monitored? – Availability: are my services up or not? – Performance (OS &services level metrics). How are my services doing? – State: What’s running where, state of system resources (e.g. quota utilization) • Alarms upon failure or when reaching certain thresholds – Simple (a-la CloudWatch) or complex (CEP driven)
- 10. The Automation Continuum Repairing • Various types of failures – Service level – service not responding, process failed – VM / Node failure – Infrastructure failure (disk, network) • Automation tools can go a certain way – Resiliency should also be part of the SW stack

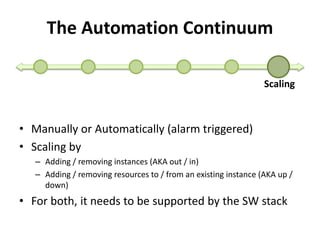

- 11. The Automation Continuum Scaling • Manually or Automatically (alarm triggered) • Scaling by – Adding / removing instances (AKA out / in) – Adding / removing resources to / from an existing instance (AKA up / down) • For both, it needs to be supported by the SW stack
- 12. Let’s Look at Some Tools

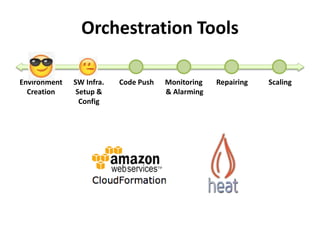

- 13. Orchestration Tools Environment Creation SW Infra. Setup & Config Code Push Monitoring & Alarming Repairing Scaling
- 14. CM Tools Environment Creation SW Infra. Setup & Config Code Push Monitoring & Alarming Repairing Scaling

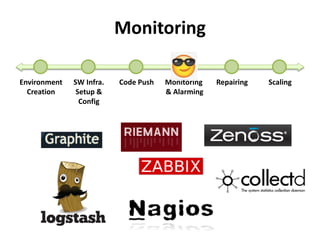

- 15. Monitoring Environment Creation SW Infra. Setup & Config Code Push Monitoring & Alarming Repairing Scaling
- 16. Tying The Pieces Together Usually Looks Like This
- 17. A Way totie all the pieces on the Automation Continuum together • Use what works best, not reinvent each piece from scratch
- 18. Open Source Platform for Deploying, Managing and Scaling Complex Multi-Tier Applications on the Cloud
- 19. So You CanHave This Environment Creation SW Infra. Setup & Config Code Push Monitoring & Alarming Repairing Scaling
- 20. Main Functions •Deployment modeling using TOSCA • Automated resource creation, placement, configuration and startup • Metric and log collection • Monitoring • Auto-repairing • Auto-scaling • Deployment updates (infra and app code)

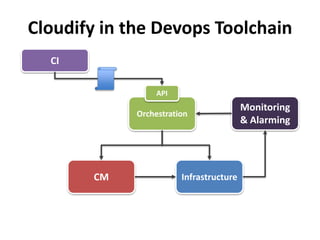

- 21. Cloudify in theDevops Toolchain API Orchestration CI Monitoring & Alarming CM Infrastructure

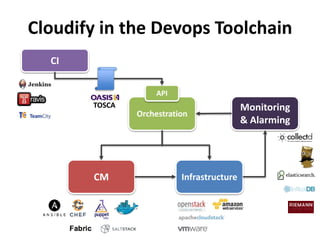

- 22. Cloudify in theDevops Toolchain API Orchestration CI Monitoring & Alarming TOSCA CM Infrastructure

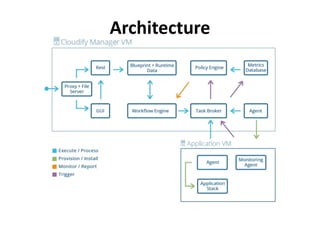

- 23.

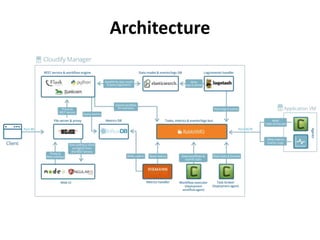

- 24.

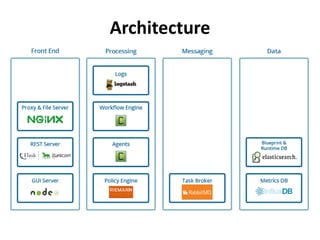

- 25.
- 26. Demo 1 Setupup a Manager on CloudStack
- 27. CLOUDIFY 3 BLUEPRINTS– DOING IT THE TOSCA WAY

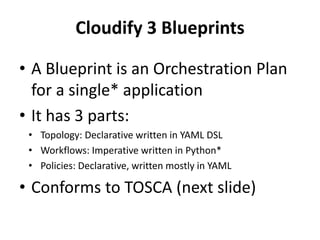

- 28. Cloudify 3 Blueprints • A Blueprint is an Orchestration Plan for a single* application • It has 3 parts: • Topology: Declarative written in YAML DSL • Workflows: Imperative written in Python* • Policies: Declarative, written mostly in YAML • Conforms to TOSCA (next slide)

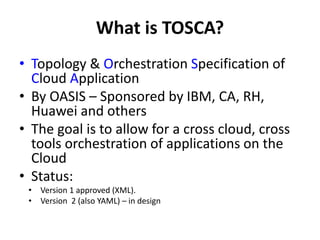

- 29. What is TOSCA? • Topology & Orchestration Specification of Cloud Application • By OASIS – Sponsored by IBM, CA, RH, Huawei and others • The goal is to allow for a cross cloud, cross tools orchestration of applications on the Cloud • Status: • Version 1 approved (XML). • Version 2 (also YAML) – in design
- 30. TOSCA-Inspired Application Blueprints Application Topologies Workflows Policies

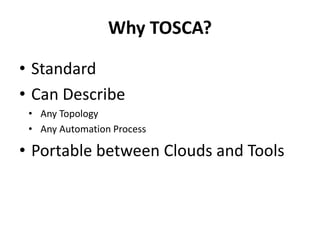

- 31. Why TOSCA? •Standard • Can Describe • Any Topology • Any Automation Process • Portable between Clouds and Tools
- 32. So here’s anapplication
- 33. What do wesee here? Host Middleware App module connection

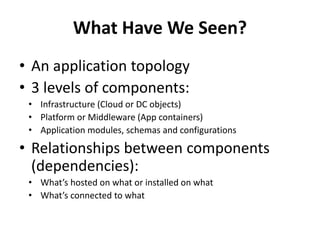

- 34. What Have WeSeen? • An application topology • 3 levels of components: • Infrastructure (Cloud or DC objects) • Platform or Middleware (App containers) • Application modules, schemas and configurations • Relationships between components (dependencies): • What’s hosted on what or installed on what • What’s connected to what

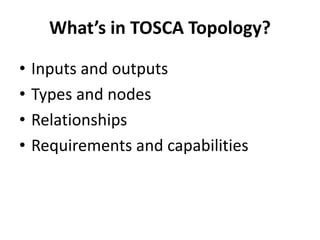

- 35. What’s in TOSCATopology? • Inputs and outputs • Types and nodes • Relationships • Requirements and capabilities

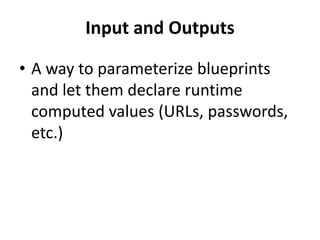

- 36. Input and Outputs • A way to parameterize blueprints and let them declare runtime computed values (URLs, passwords, etc.)

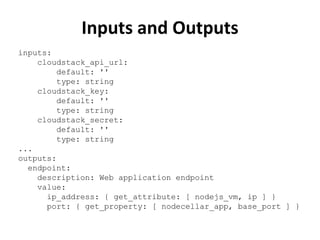

- 37. Inputs and Outputs inputs: cloudstack_api_url: default: '' type: string cloudstack_key: default: '' type: string cloudstack_secret: default: '' type: string ... outputs: endpoint: description: Web application endpoint value: ip_address: { get_attribute: [ nodejs_vm, ip ] } port: { get_property: [ nodecellar_app, base_port ] }

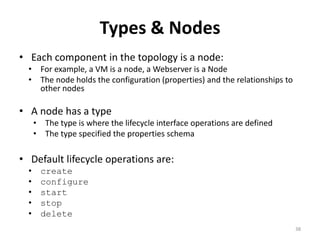

- 38. Types & Nodes • Each component in the topology is a node: • For example, a VM is a node, a Webserver is a Node • The node holds the configuration (properties) and the relationships to other nodes • A node has a type • The type is where the lifecycle interface operations are defined • The type specified the properties schema • Default lifecycle operations are: • create • configure • start • stop • delete 38

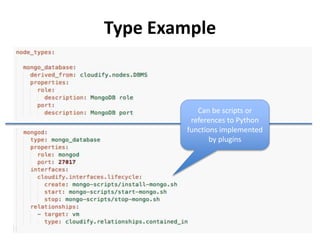

- 39. Type Example 39 Can be scripts or references to Python functions implemented by plugins

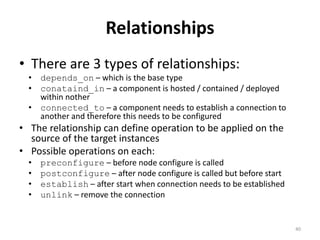

- 40. Relationships • Thereare 3 types of relationships: • depends_on – which is the base type • conataind_in – a component is hosted / contained / deployed within nother • connected_to – a component needs to establish a connection to another and therefore this needs to be configured • The relationship can define operation to be applied on the source of the target instances • Possible operations on each: • preconfigure – before node configure is called • postconfigure – after node configure is called but before start • establish – after start when connection needs to be established • unlink – remove the connection 40

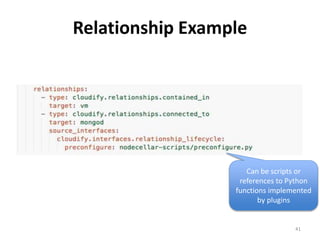

- 41. Relationship Example Canbe scripts or references to Python functions implemented 41 by plugins
- 42.

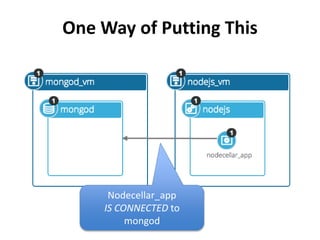

- 43. One Way ofPutting This Nodecellar_app IS CONNECTED to mongod

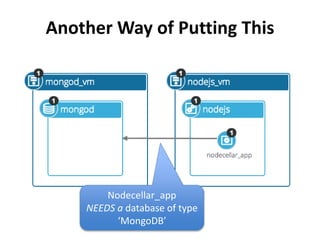

- 44. Another Way ofPutting This Nodecellar_app NEEDS a database of type ‘MongoDB’

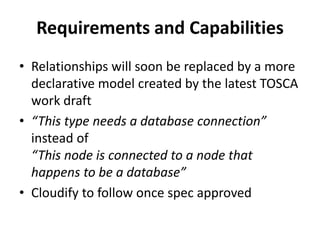

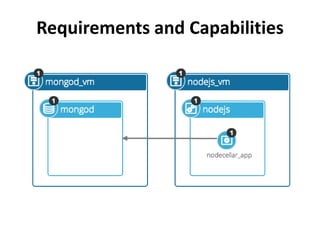

- 45. Requirements and Capabilities • Relationships will soon be replaced by a more declarative model created by the latest TOSCA work draft • “This type needs a database connection” instead of “This node is connected to a node that happens to be a database” • Cloudify to follow once spec approved

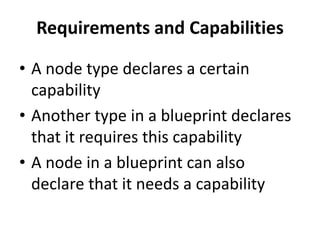

- 46. Requirements and Capabilities • A node type declares a certain capability • Another type in a blueprint declares that it requires this capability • A node in a blueprint can also declare that it needs a capability

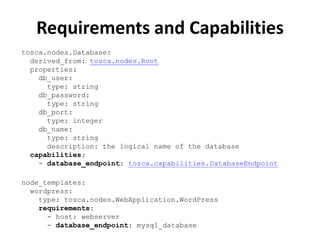

- 47. Requirements and Capabilities tosca.nodes.Database: derived_from: tosca.nodes.Root properties: db_user: type: string db_password: type: string db_port: type: integer db_name: type: string description: the logical name of the database capabilities: - database_endpoint: tosca.capabilities.DatabaseEndpoint node_templates: wordpress: type: tosca.nodes.WebApplication.WordPress requirements: - host: webserver - database_endpoint: mysql_database
- 48. A Word AboutBlueprint Portability • Cloudify blueprint support the notion of abstract types – Kind of like abstract classes in OOD • Blueprints can be composed of multiple files • To achieve portability: – Topologies should be defined using portable types – Concrete types are then wired at blueprint creation time • Kind of like dependency injection

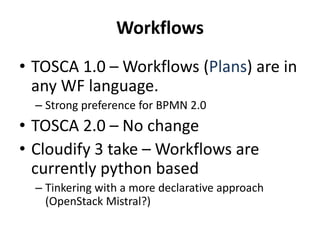

- 49. Workflows • TOSCA1.0 –Workflows (Plans) are in any WF language. – Strong preference for BPMN 2.0 • TOSCA 2.0 – No change • Cloudify 3 take – Workflows are currently python based – Tinkering with a more declarative approach (OpenStack Mistral?)

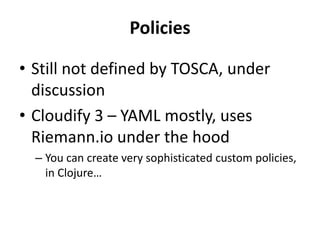

- 50. Policies • Stillnot defined by TOSCA, under discussion • Cloudify 3 – YAML mostly, uses Riemann.io under the hood – You can create very sophisticated custom policies, in Clojure…

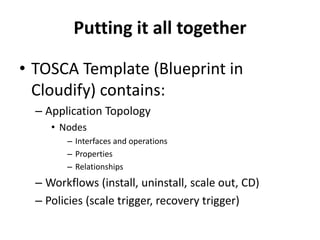

- 51. Putting it alltogether • TOSCA Template (Blueprint in Cloudify) contains: – Application Topology • Nodes – Interfaces and operations – Properties – Relationships – Workflows (install, uninstall, scale out, CD) – Policies (scale trigger, recovery trigger)
- 52. Demo 2 Uploada blueprint and install it
- 53. WHAT REALLY HAPPENEDHERE?
- 54. We Triggered aFew Processes • Blueprint and deployment creation • Workflow execution • Availability reporting • Log and metric collection
- 55. BLUEPRINT AND DEPLOYMENT CREATION

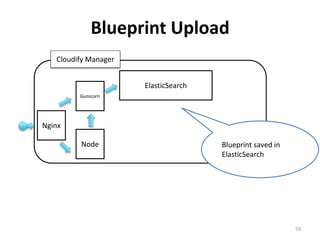

- 56. Blueprint Upload 59 Gunicorn Node ElasticSearch Cloudify Manager Nginx Blueprint saved in ElasticSearch

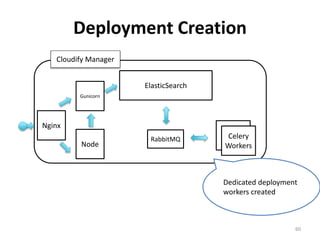

- 57. Deployment Creation 60 Gunicorn Node ElasticSearch Cloudify Manager Nginx Celery Worker Celery Workers Dedicated deployment workers created RabbitMQ
- 58.

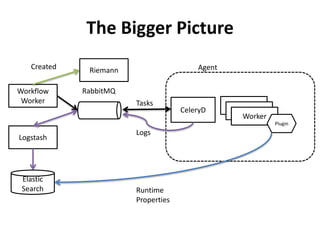

- 59. The Bigger Picture Agent CeleryD Worker Worker Worker Plugin RabbitMQ Tasks Logs Workflow Worker Logstash Elastic Search Runtime Properties Created Riemann

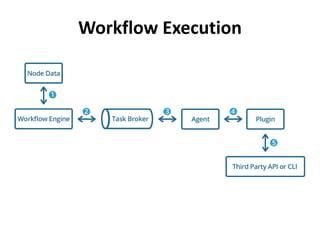

- 60.
- 61.

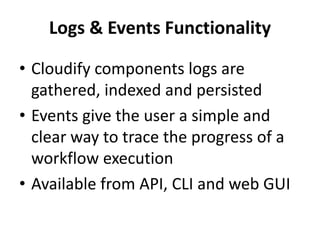

- 62. Logs & EventsFunctionality • Cloudify components logs are gathered, indexed and persisted • Events give the user a simple and clear way to trace the progress of a workflow execution • Available from API, CLI and web GUI

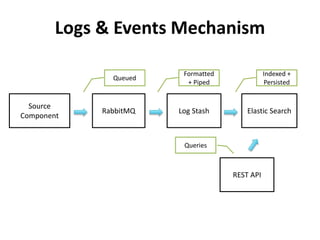

- 63. Logs & EventsMechanism Source Component RabbitMQ Log Stash Elastic Search REST API Queued Formatted + Piped Indexed + Persisted Queries

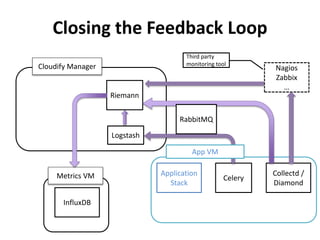

- 64. Closing the FeedbackLoop Celery Collectd / Diamond RabbitMQ Application Stack Nagios Zabbix … Riemann Cloudify Manager Third party monitoring tool Metrics VM InfluxDB Logstash App VM

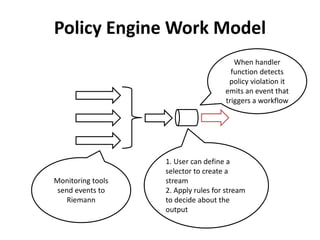

- 65. Policy Engine WorkModel When handler function detects policy violation it emits an event that triggers a workflow 1. User can define a selector to create a stream 2. Apply rules for stream to decide about the output Monitoring tools send events to Riemann
- 66.
- 67. If You Want to Dive Deeper • Plugins – IaaS: CloudStack, OpenStack, AWS (libcloud), vSphere, vCloud, SoftLayer – Chef, Puppet, Salt, Fabric, Docker – Role your own • Workflows • Policies
- 68. References • Cloudifyhome: getcloudify.org • Github: github.com/cloudify-cosmo • CloudStack integration (in the works): github.com/cloudify-cosmo/?query=cloudstack • TOSCA: https://www.oasis-open.org/committees/tosca/
