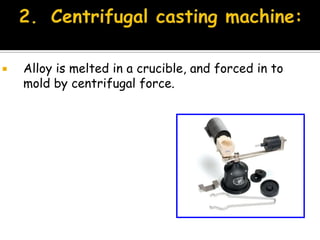

Taggart devised centrifugal casting machine under the principle of lost wax technique

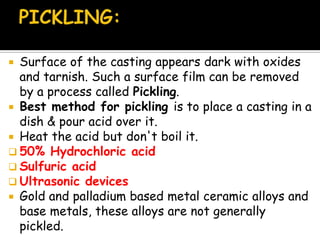

Pickling is heating the discolored casting in an acid.
The best pickling solutions for gypsum bonded investments is a 50% hydrochloric acid solution.
The hydrochloric acid aids in the removal of any residual investment, as well as of the oxide coating.
The disadvantage of hydrochloric acid is that the fumes from the acid are likely to corrode laboratory metal furnishings. In addition, these fumes are a health hazard and should be vented via a fume hood.
A solution of sulfuric acid may also be more advantageous in this respect.
Ultrasonics are also useful for cleaning the casting.
THIS STUDY MATERIAL IS RELATED WITH ONE OF THE TYPE OF MANUFACTURING PROCESSES CALLED CASTING.THIS IS VERY GOOD MATERIAL . CASTING IS BASIC MANUFACTURING PROCESS.EVERY MECHANICAL ENGINEERING STUDENT MUST KNOW CASTING PROCESS,ITS TYPES ,PATTERN ,PATTERN TYPES,PATTERN MAKING ALLOWANCES,DIE CASTING INVESTMENT CASTING.ALL THESE POINTS ARE COVERED IN THIS PPT.
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...Levi Shapiro
Letter from the Congress of the United States regarding Anti-Semitism sent June 3rd to MIT President Sally Kornbluth, MIT Corp Chair, Mark Gorenberg
Dear Dr. Kornbluth and Mr. Gorenberg,
The US House of Representatives is deeply concerned by ongoing and pervasive acts of antisemitic
harassment and intimidation at the Massachusetts Institute of Technology (MIT). Failing to act decisively to ensure a safe learning environment for all students would be a grave dereliction of your responsibilities as President of MIT and Chair of the MIT Corporation.
This Congress will not stand idly by and allow an environment hostile to Jewish students to persist. The House believes that your institution is in violation of Title VI of the Civil Rights Act, and the inability or
unwillingness to rectify this violation through action requires accountability.
Postsecondary education is a unique opportunity for students to learn and have their ideas and beliefs challenged. However, universities receiving hundreds of millions of federal funds annually have denied
students that opportunity and have been hijacked to become venues for the promotion of terrorism, antisemitic harassment and intimidation, unlawful encampments, and in some cases, assaults and riots.
The House of Representatives will not countenance the use of federal funds to indoctrinate students into hateful, antisemitic, anti-American supporters of terrorism. Investigations into campus antisemitism by the Committee on Education and the Workforce and the Committee on Ways and Means have been expanded into a Congress-wide probe across all relevant jurisdictions to address this national crisis. The undersigned Committees will conduct oversight into the use of federal funds at MIT and its learning environment under authorities granted to each Committee.
• The Committee on Education and the Workforce has been investigating your institution since December 7, 2023. The Committee has broad jurisdiction over postsecondary education, including its compliance with Title VI of the Civil Rights Act, campus safety concerns over disruptions to the learning environment, and the awarding of federal student aid under the Higher Education Act.
• The Committee on Oversight and Accountability is investigating the sources of funding and other support flowing to groups espousing pro-Hamas propaganda and engaged in antisemitic harassment and intimidation of students. The Committee on Oversight and Accountability is the principal oversight committee of the US House of Representatives and has broad authority to investigate “any matter” at “any time” under House Rule X.
• The Committee on Ways and Means has been investigating several universities since November 15, 2023, when the Committee held a hearing entitled From Ivory Towers to Dark Corners: Investigating the Nexus Between Antisemitism, Tax-Exempt Universities, and Terror Financing. The Committee followed the hearing with letters to those institutions on January 10, 202
Embracing GenAI - A Strategic ImperativePeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Honest Reviews of Tim Han LMA Course Program.pptxtimhan337
Personal development courses are widely available today, with each one promising life-changing outcomes. Tim Han’s Life Mastery Achievers (LMA) Course has drawn a lot of interest. In addition to offering my frank assessment of Success Insider’s LMA Course, this piece examines the course’s effects via a variety of Tim Han LMA course reviews and Success Insider comments.

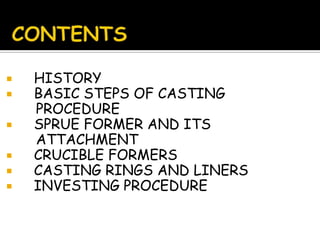

2. HISTORY

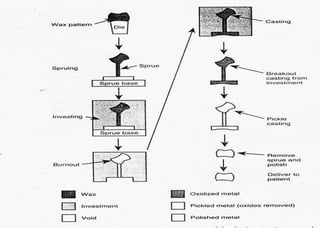

BASIC STEPS OF CASTING
PROCEDURE
SPRUE FORMER AND ITS
ATTACHMENT
CRUCIBLE FORMERS

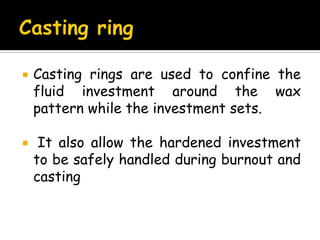

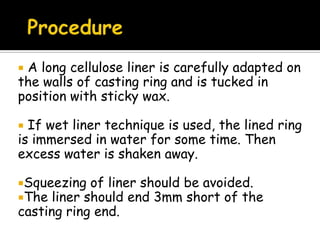

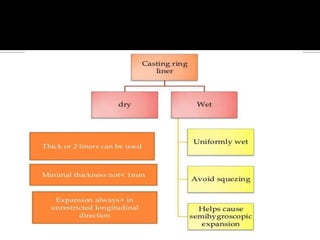

CASTING RINGS AND LINERS

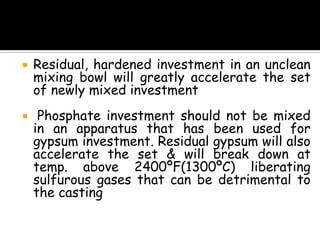

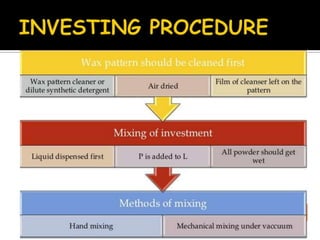

INVESTING PROCEDURE

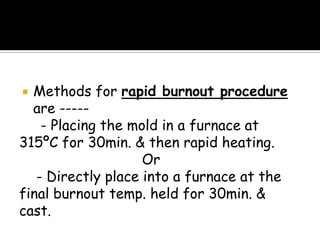

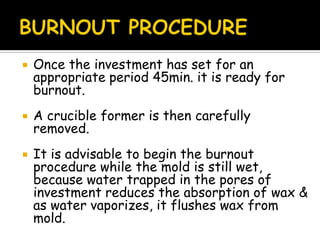

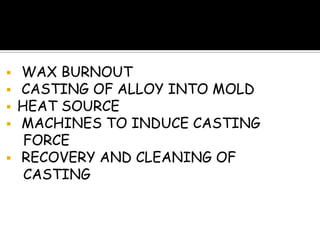

3. WAX BURNOUT
CASTING OF ALLOY INTO MOLD

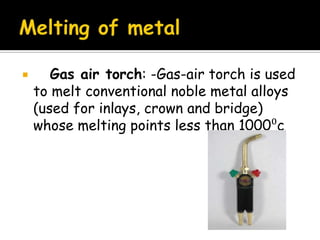

HEAT SOURCE
MACHINES TO INDUCE CASTING
FORCE

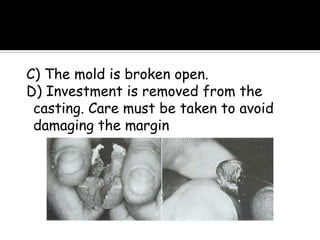

RECOVERY AND CLEANING OF
CASTING

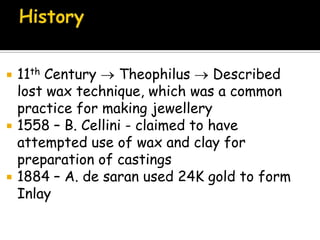

4. 11th Century Theophilus Described
lost wax technique, which was a common
practice for making jewellery
1558 – B. Cellini - claimed to have
attempted use of wax and clay for
preparation of castings
1884 – A. de saran used 24K gold to form
Inlay
5. 1897 - Phillibrook described a method of
casting metal filling
1907 -Taggart -devised a practically useful
casting machine.
1959 - Strickland et al stated the
importance of the type, shape location &
direction other than the size of the sprue
Apart from this various studies conducted on
the properties of investment materials and
casting alloys have lead a path for a better,
practical and useful processing methods.

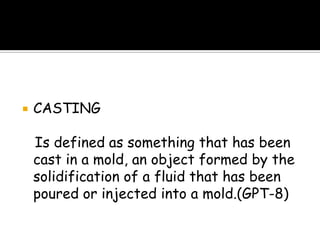

6. CASTING
Is defined as something that has been
cast in a mold, an object formed by the
solidification of a fluid that has been
poured or injected into a mold.(GPT-8)
7.
8. 1) To heat the alloy as quickly as possible
to a completely molten condition.
2) To prevent oxidation by heating the
metal with a well adjusted torch.
3) To produce a casting with sharp details
by having adequate pressure to the well
melted metal to force into the mold

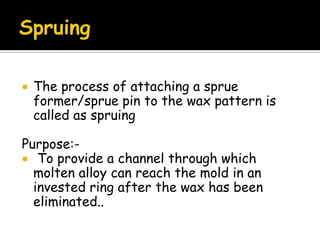

9. The process of attaching a sprue
former/sprue pin to the wax pattern is
called as spruing
Purpose:-
To provide a channel through which
molten alloy can reach the mold in an
invested ring after the wax has been
eliminated..

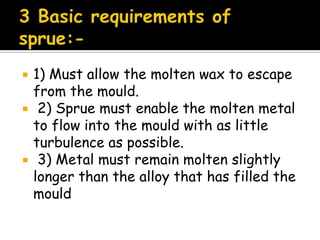

10. 1) Must allow the molten wax to escape
from the mould.
2) Sprue must enable the molten metal
to flow into the mould with as little
turbulence as possible.
3) Metal must remain molten slightly
longer than the alloy that has filled the
mould

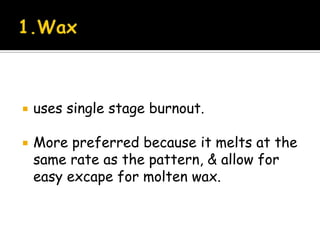

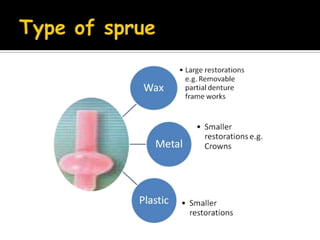

13. uses single stage burnout.
More preferred because it melts at the
same rate as the pattern, & allow for
easy excape for molten wax.

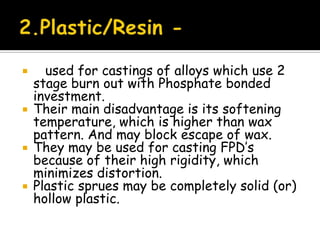

14. used for castings of alloys which use 2
stage burn out with Phosphate bonded
investment.
Their main disadvantage is its softening
temperature, which is higher than wax
pattern. And may block escape of wax.
They may be used for casting FPD’s
because of their high rigidity, which
minimizes distortion.
Plastic sprues may be completely solid (or)
hollow plastic.

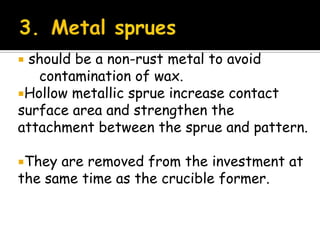

15. should be a non-rust metal to avoid
contamination of wax.
Hollow metallic sprue increase contact
surface area and strengthen the
attachment between the sprue and pattern.
They are removed from the investment at
the same time as the crucible former.
16. A d v a n t a g e s o f h o l l o w
s p r u e f o r m e r :
I t i n c r e a s e s t h e
c o n t a c t a r e a .
I t h o l d s l e s s h e a t
t h a n t h e s o l i d s p r u e
f o r m e r .
“C a r e m u s t b e t a k e n t o
e x a m i n e t h e o r i f i c e
f o r s m a l l p a r t i c l e s

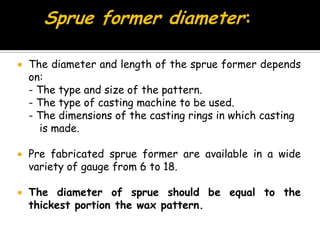

17. The diameter and length of the sprue former depends
on:
- The type and size of the pattern.
- The type of casting machine to be used.
- The dimensions of the casting rings in which casting
is made.
Pre fabricated sprue former are available in a wide
variety of gauge from 6 to 18.
The diameter of sprue should be equal to the
thickest portion the wax pattern.

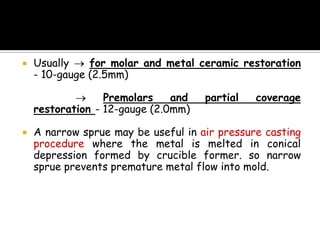

18. Usually for molar and metal ceramic restoration
- 10-gauge (2.5mm)
Premolars and partial coverage
restoration - 12-gauge (2.0mm)
A narrow sprue may be useful in air pressure casting
procedure where the metal is melted in conical
depression formed by crucible former. so narrow
sprue prevents premature metal flow into mold.
19. Large diameter sprue:
this improves the flow of molten metal
into the mould.
less diameter sprue:

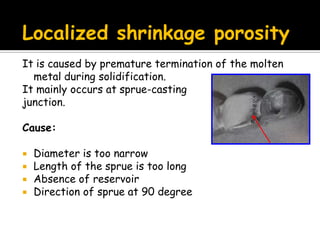

causes localized shrinkage porosity

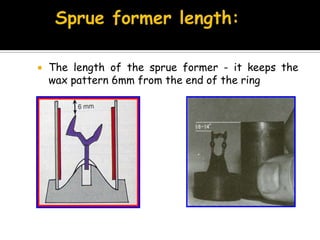

20. The length of the sprue former - it keeps the
wax pattern 6mm from the end of the ring
21. Very short sprue : porosity in casting
at the junction of sprue and pattern.
Very long sprue : sprue solidifies first
leading to casting shrinkage and
incomplete casting

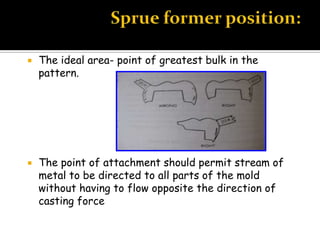

22. The ideal area- point of greatest bulk in the
pattern.
The point of attachment should permit stream of
metal to be directed to all parts of the mold
without having to flow opposite the direction of
casting force

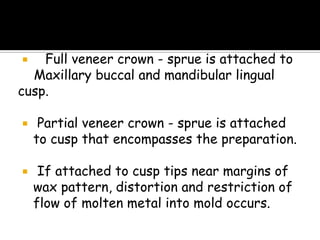

23. Full veneer crown - sprue is attached to
Maxillary buccal and mandibular lingual
cusp.
Partial veneer crown - sprue is attached
to cusp that encompasses the preparation.
If attached to cusp tips near margins of
wax pattern, distortion and restriction of
flow of molten metal into mold occurs.

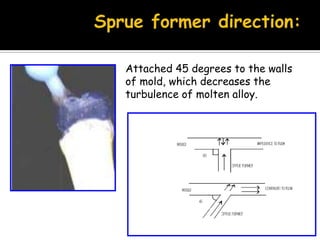

24. Attached 45 degrees to the walls
of mold, which decreases the
turbulence of molten alloy.

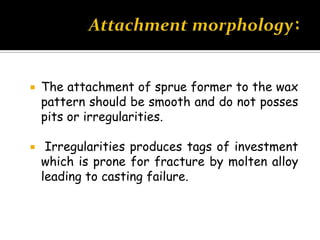

25. The attachment of sprue former to the wax
pattern should be smooth and do not posses
pits or irregularities.
Irregularities produces tags of investment
which is prone for fracture by molten alloy
leading to casting failure.

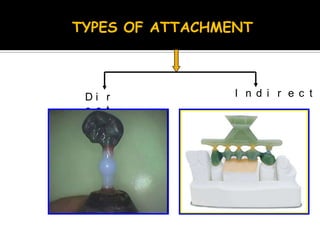

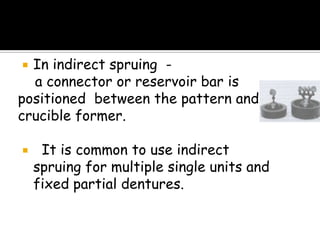

27. In indirect spruing -
a connector or reservoir bar is
positioned between the pattern and
crucible former.
It is common to use indirect
spruing for multiple single units and
fixed partial dentures.

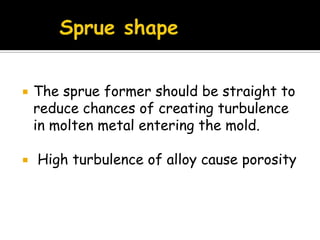

28. The sprue former should be straight to
reduce chances of creating turbulence
in molten metal entering the mold.
High turbulence of alloy cause porosity

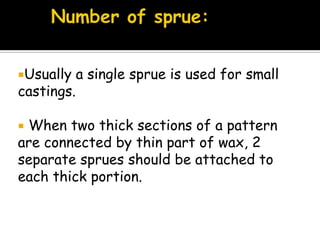

29. Usually a single sprue is used for small
castings.
When two thick sections of a pattern
are connected by thin part of wax, 2
separate sprues should be attached to
each thick portion.

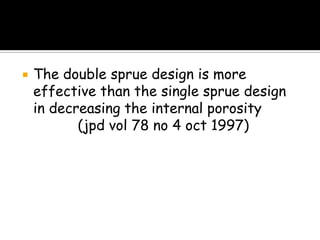

30. The double sprue design is more
effective than the single sprue design
in decreasing the internal porosity
(jpd vol 78 no 4 oct 1997)

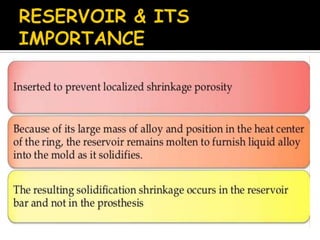

31. Reservoir is a small amount of additional
wax which is added to the sprue former
near the junction of wax pattern
It prevents localized shrinkage porosity
as the alloy in this part solidifies last
after the solidification of metal in mold

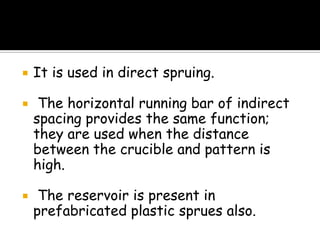

32. It is used in direct spruing.
The horizontal running bar of indirect
spacing provides the same function;
they are used when the distance
between the crucible and pattern is
high.
The reservoir is present in
prefabricated plastic sprues also.
33.

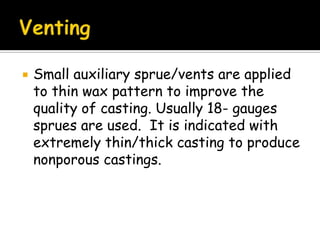

34. Small auxiliary sprue/vents are applied
to thin wax pattern to improve the
quality of casting. Usually 18- gauges
sprues are used. It is indicated with
extremely thin/thick casting to produce
nonporous castings.

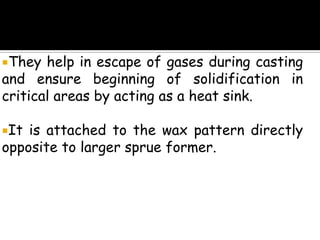

35. They help in escape of gases during casting
and ensure beginning of solidification in
critical areas by acting as a heat sink.
It is attached to the wax pattern directly
opposite to larger sprue former.

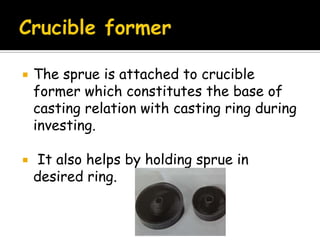

36. The sprue is attached to crucible
former which constitutes the base of
casting relation with casting ring during
investing.
It also helps by holding sprue in
desired ring.

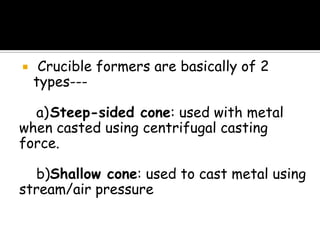

37. Crucible formers are basically of 2
types---
a)Steep-sided cone: used with metal
when casted using centrifugal casting
force.
b)Shallow cone: used to cast metal using
stream/air pressure

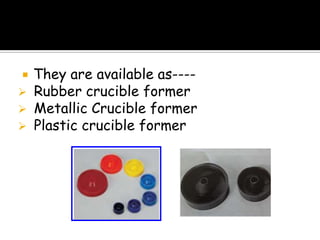

38. They are available as----
Rubber crucible former
Metallic Crucible former
Plastic crucible former

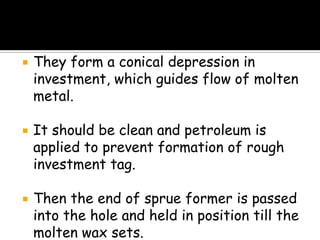

39. They form a conical depression in
investment, which guides flow of molten
metal.
It should be clean and petroleum is
applied to prevent formation of rough
investment tag.
Then the end of sprue former is passed
into the hole and held in position till the
molten wax sets.
40. Casting rings are used to confine the
fluid investment around the wax
pattern while the investment sets.
It also allow the hardened investment
to be safely handled during burnout and
casting
41. They are available as---
1) Shapes - Round
- Oval
2) Complete rings
I) - Rigid
- Metal (stainless steel)
- Plastic
II) Flexible - Rubber
3) Split rings
I) metal
II) plastic

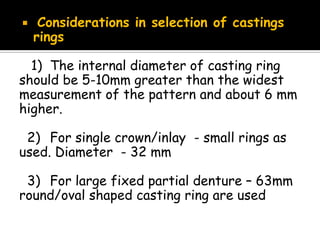

42. Considerations in selection of castings
rings
1) The internal diameter of casting ring
should be 5-10mm greater than the widest
measurement of the pattern and about 6 mm
higher.
2) For single crown/inlay - small rings as
used. Diameter - 32 mm
3) For large fixed partial denture – 63mm
round/oval shaped casting ring are used

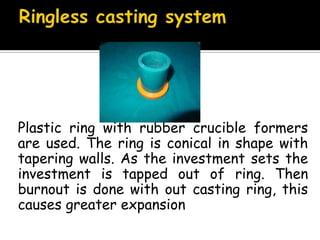

43. Plastic ring with rubber crucible formers
are used. The ring is conical in shape with
tapering walls. As the investment sets the
investment is tapped out of ring. Then
burnout is done with out casting ring, this
causes greater expansion

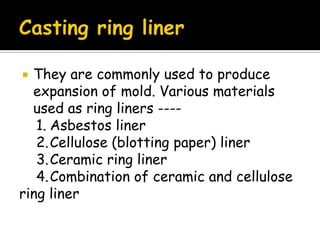

44. They are commonly used to produce
expansion of mold. Various materials
used as ring liners ----
1. Asbestos liner
2.Cellulose (blotting paper) liner
3.Ceramic ring liner
4.Combination of ceramic and cellulose
ring liner

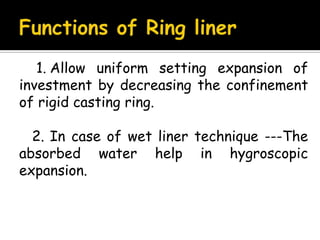

45. 1. Allow uniform setting expansion of
investment by decreasing the confinement
of rigid casting ring.
2. In case of wet liner technique ---The
absorbed water help in hygroscopic
expansion.
46. 3.Thickness of the liner should be < 1mm
4.The amount of expansion depends on
the number of liners used. The expansion
seen with 2 liners is greater than one liner

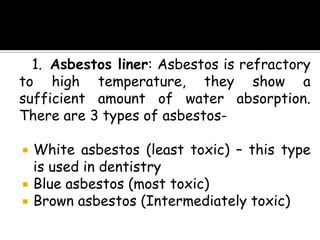

47. 1. Asbestos liner: Asbestos is refractory
to high temperature, they show a
sufficient amount of water absorption.
There are 3 types of asbestos-
White asbestos (least toxic) – this type
is used in dentistry
Blue asbestos (most toxic)
Brown asbestos (Intermediately toxic)

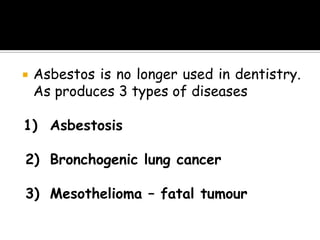

48. Asbestos is no longer used in dentistry.
As produces 3 types of diseases
1) Asbestosis
2) Bronchogenic lung cancer
3) Mesothelioma – fatal tumour
49. This material shows adequate water
absorption.
It is burnt during burnout procedure.
So to keep the investment in contact
with ring after burnout,the liner is kept
3mm short of ring ends.
This also restricts the longitudinal
setting and hygroscopic expansion.
50. A long cellulose liner is carefully adapted on
the walls of casting ring and is tucked in
position with sticky wax.
If wet liner technique is used, the lined ring
is immersed in water for some time. Then
excess water is shaken away.
Squeezing of liner should be avoided.
The liner should end 3mm short of the
casting ring end.

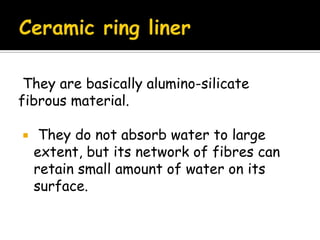

51. They are basically alumino-silicate
fibrous material.
They do not absorb water to large
extent, but its network of fibres can
retain small amount of water on its
surface.

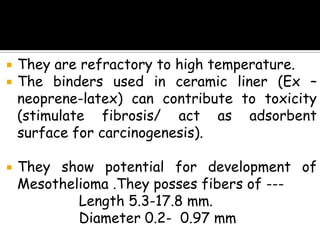

52. They are refractory to high temperature.
The binders used in ceramic liner (Ex –
neoprene-latex) can contribute to toxicity
(stimulate fibrosis/ act as adsorbent
surface for carcinogenesis).
They show potential for development of
Mesothelioma .They posses fibers of ---
Length 5.3-17.8 mm.
Diameter 0.2- 0.97 mm
53.
54.

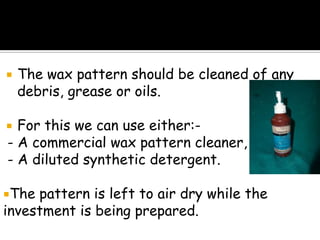

55. The wax pattern should be cleaned of any
debris, grease or oils.
For this we can use either:-
- A commercial wax pattern cleaner, or,
- A diluted synthetic detergent.
The pattern is left to air dry while the
investment is being prepared.
56. T h i n f i l m o f c l e a n e r
o n p a t t e r n
a )r e d u c e s
s u r f a c e t e n s i o n o f
w a x
b )b e t t e r
“w e t t i n g ” o f w a x
p a t t e r n b y t h e
i n v e s t m e n t
The wax pattern should not stand for
more than 20-30 min before being
57. Mixing of investment may be done
either by ----
i) Vacuum mixing
ii) Hand mixing
The incidence of bubble free casting
with different investing technique
– Open investing - 17%
– Vacuum investing - 95%

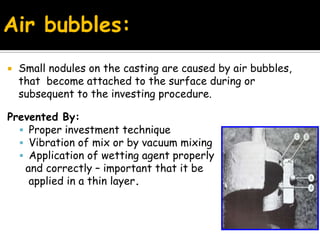

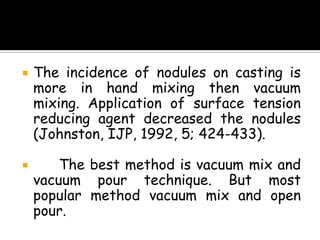

58. The incidence of nodules on casting is
more in hand mixing then vacuum
mixing. Application of surface tension
reducing agent decreased the nodules
(Johnston, IJP, 1992, 5; 424-433).
The best method is vacuum mix and
vacuum pour technique. But most
popular method vacuum mix and open
pour.

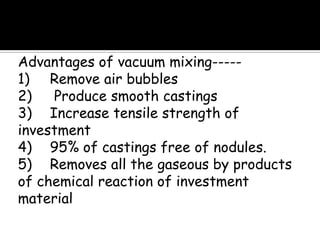

59. Advantages of vacuum mixing-----
1) Remove air bubbles
2) Produce smooth castings
3) Increase tensile strength of
investment
4) 95% of castings free of nodules.
5) Removes all the gaseous by products
of chemical reaction of investment
material
60. Hand mix for 15 seconds
Vacuum mix for 60 seconds
Working time: 2-3 minutes
61. Mixing Ratios General ---
•
•More investment liquid, less water =more
expansion
• Less investment liquid, more water =less
expansion
• Begin with a dry bowl Use a maximum of
27ml of liquid
Using more liquid results in a
weak mold
• For 100gms of investment:-
Crowns/veneers: 22ml liquid,
5ml distilled water

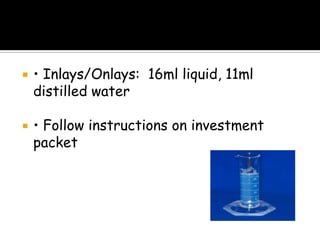

62. • Inlays/Onlays: 16ml liquid, 11ml
distilled water
• Follow instructions on investment
packet

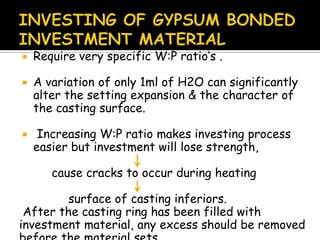

64. Require very specific W:P ratio’s .
A variation of only 1ml of H2O can significantly
alter the setting expansion & the character of
the casting surface.
Increasing W:P ratio makes investing process
easier but investment will lose strength,
cause cracks to occur during heating
surface of casting inferiors.
After the casting ring has been filled with
investment material, any excess should be removed

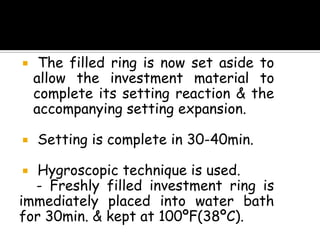

65. The filled ring is now set aside to
allow the investment material to
complete its setting reaction & the
accompanying setting expansion.
Setting is complete in 30-40min.
Hygroscopic technique is used.
- Freshly filled investment ring is
immediately placed into water bath
for 30min. & kept at 100ºF(38ºC).

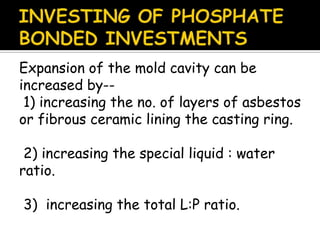

66. Expansion of the mold cavity can be
increased by--
1) increasing the no. of layers of asbestos
or fibrous ceramic lining the casting ring.
2) increasing the special liquid : water
ratio.
3) increasing the total L:P ratio.

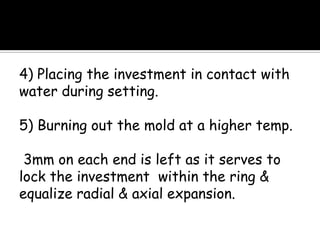

67. 4) Placing the investment in contact with
water during setting.
5) Burning out the mold at a higher temp.
3mm on each end is left as it serves to
lock the investment within the ring &
equalize radial & axial expansion.
68. Residual, hardened investment in an unclean
mixing bowl will greatly accelerate the set
of newly mixed investment
Phosphate investment should not be mixed
in an apparatus that has been used for
gypsum investment. Residual gypsum will also
accelerate the set & will break down at
temp. above 2400ºF(1300ºC) liberating
sulfurous gases that can be detrimental to
the casting

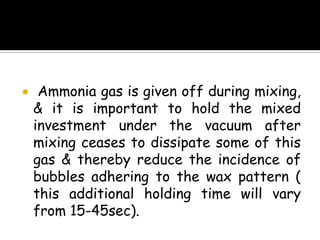

69. Ammonia gas is given off during mixing,
& it is important to hold the mixed
investment under the vacuum after
mixing ceases to dissipate some of this
gas & thereby reduce the incidence of
bubbles adhering to the wax pattern (
this additional holding time will vary
from 15-45sec).

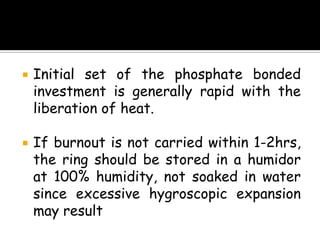

70. Initial set of the phosphate bonded
investment is generally rapid with the
liberation of heat.
If burnout is not carried within 1-2hrs,
the ring should be stored in a humidor
at 100% humidity, not soaked in water
since excessive hygroscopic expansion
may result

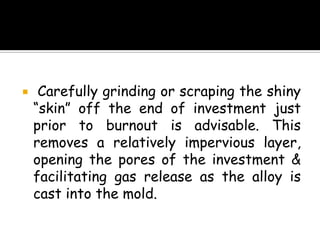

71. Carefully grinding or scraping the shiny
“skin” off the end of investment just
prior to burnout is advisable. This
removes a relatively impervious layer,
opening the pores of the investment &
facilitating gas release as the alloy is
cast into the mold.
72. Once the investment has set for an
appropriate period 45min. it is ready for
burnout.
A crucible former is then carefully
removed.
It is advisable to begin the burnout
procedure while the mold is still wet,
because water trapped in the pores of
investment reduces the absorption of wax &
as water vaporizes, it flushes wax from
mold.

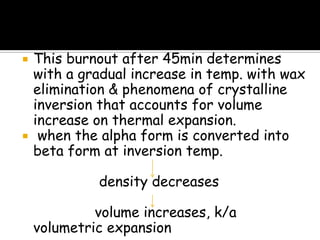

73. This burnout after 45min determines
with a gradual increase in temp. with wax
elimination & phenomena of crystalline
inversion that accounts for volume
increase on thermal expansion.
when the alpha form is converted into
beta form at inversion temp.
density decreases
volume increases, k/a
volumetric expansion

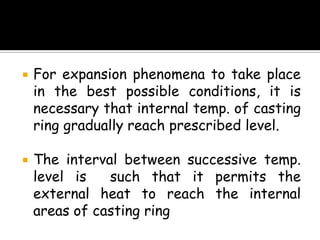

74. For expansion phenomena to take place
in the best possible conditions, it is
necessary that internal temp. of casting
ring gradually reach prescribed level.
The interval between successive temp.
level is such that it permits the
external heat to reach the internal
areas of casting ring

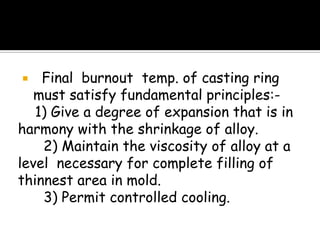

75. Final burnout temp. of casting ring
must satisfy fundamental principles:-
1) Give a degree of expansion that is in
harmony with the shrinkage of alloy.
2) Maintain the viscosity of alloy at a
level necessary for complete filling of
thinnest area in mold.
3) Permit controlled cooling.

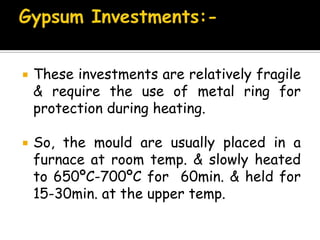

76. These investments are relatively fragile
& require the use of metal ring for
protection during heating.
So, the mould are usually placed in a
furnace at room temp. & slowly heated
to 650ºC-700ºC for 60min. & held for
15-30min. at the upper temp.

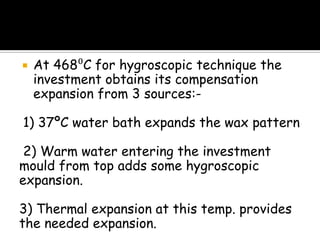

77. At 468⁰C for hygroscopic technique the
investment obtains its compensation
expansion from 3 sources:-
1) 37ºC water bath expands the wax pattern
2) Warm water entering the investment
mould from top adds some hygroscopic
expansion.
3) Thermal expansion at this temp. provides
the needed expansion.

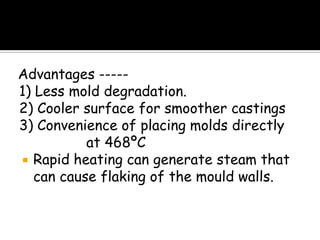

78. Advantages -----
1) Less mold degradation.
2) Cooler surface for smoother castings
3) Convenience of placing molds directly
at 468ºC
Rapid heating can generate steam that
can cause flaking of the mould walls.
79. Too rapid heating may also cause cracking
of the investment. In such case, outside
layer of the investment becomes heated
before the centre sections.
Outside layer starts to expand thermally,
resulting in compressive stress in the
outside layer that counteracts the tensile
stresses in the middle regions of the mold.

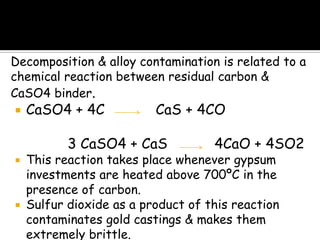

80. Decomposition & alloy contamination is related to a
chemical reaction between residual carbon &
CaSO4 binder.
CaSO4 + 4C CaS + 4CO
3 CaSO4 + CaS 4CaO + 4SO2
This reaction takes place whenever gypsum
investments are heated above 700ºC in the
presence of carbon.
Sulfur dioxide as a product of this reaction
contaminates gold castings & makes them
extremely brittle.
81. Methods for rapid burnout procedure
are -----
- Placing the mold in a furnace at
315ºC for 30min. & then rapid heating.
Or
- Directly place into a furnace at the
final burnout temp. held for 30min. &
cast.

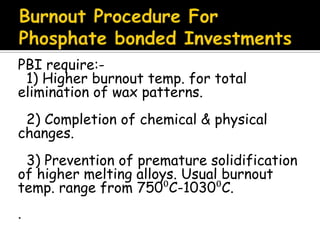

82. PBI require:-
1) Higher burnout temp. for total
elimination of wax patterns.
2) Completion of chemical & physical
changes.
3) Prevention of premature solidification
of higher melting alloys. Usual burnout
temp. range from 750⁰C-1030⁰C.
.

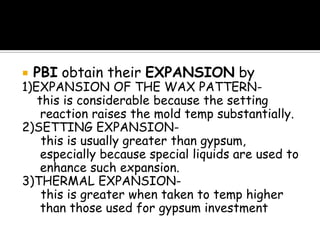

83. PBI obtain their EXPANSION by
1)EXPANSION OF THE WAX PATTERN-
this is considerable because the setting
reaction raises the mold temp substantially.
2)SETTING EXPANSION-
this is usually greater than gypsum,
especially because special liquids are used to
enhance such expansion.
3)THERMAL EXPANSION-
this is greater when taken to temp higher
than those used for gypsum investment

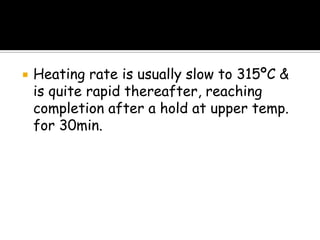

84. Heating rate is usually slow to 315ºC &
is quite rapid thereafter, reaching
completion after a hold at upper temp.
for 30min.

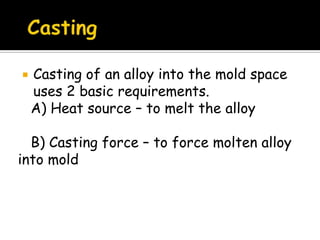

85. Casting of an alloy into the mold space
uses 2 basic requirements.
A) Heat source – to melt the alloy
B) Casting force – to force molten alloy
into mold

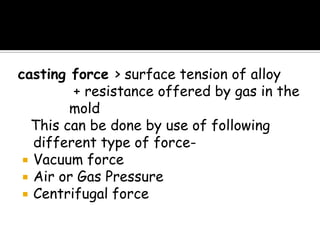

86. casting force > surface tension of alloy
+ resistance offered by gas in the
mold
This can be done by use of following
different type of force-
Vacuum force
Air or Gas Pressure
Centrifugal force

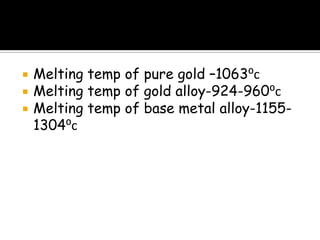

87. Melting temp of pure gold –1063⁰c
Melting temp of gold alloy-924-960⁰c
Melting temp of base metal alloy-1155-
1304⁰c
88. A) Heat Source: Different types of
materials and method are used as heat
source to melt alloy. Two basic modes are
by using
1) Torch flame--
Gas air
Gas oxygen
Air acetylene
Oxygen acetylene.
hydrogen oxygen generator
2) Electricity --

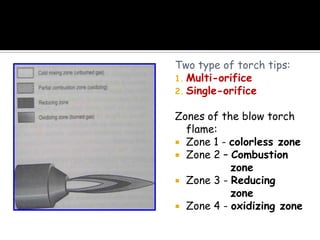

89. Two type of torch tips:
1. Multi-orifice
2. Single-orifice
Zones of the blow torch
flame:
Zone 1 - colorless zone
Zone 2 – Combustion
zone
Zone 3 - Reducing
zone
Zone 4 - oxidizing zone
90. Gas air torch: -Gas-air torch is used
to melt conventional noble metal alloys
(used for inlays, crown and bridge)
whose melting points less than 1000⁰c

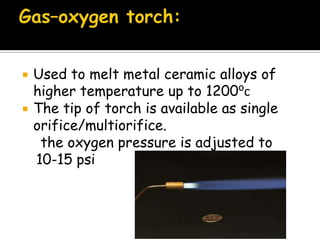

91. Used to melt metal ceramic alloys of
higher temperature up to 1200⁰c
The tip of torch is available as single
orifice/multiorifice.
the oxygen pressure is adjusted to
10-15 psi

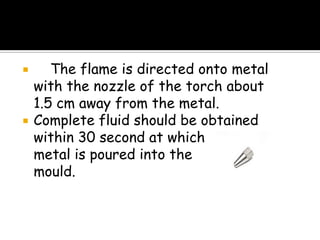

92. The flame is directed onto metal
with the nozzle of the torch about
1.5 cm away from the metal.
Complete fluid should be obtained
within 30 second at which point the
metal is poured into the
mould.

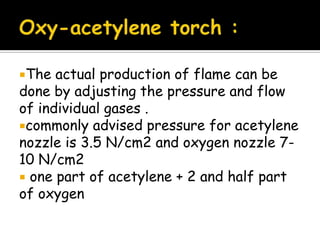

93. The actual production of flame can be
done by adjusting the pressure and flow
of individual gases .
commonly advised pressure for acetylene
nozzle is 3.5 N/cm2 and oxygen nozzle 7-
10 N/cm2
one part of acetylene + 2 and half part
of oxygen

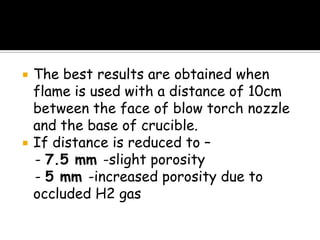

94. The best results are obtained when
flame is used with a distance of 10cm
between the face of blow torch nozzle
and the base of crucible.
If distance is reduced to –
- 7.5 mm -slight porosity
- 5 mm -increased porosity due to
occluded H2 gas

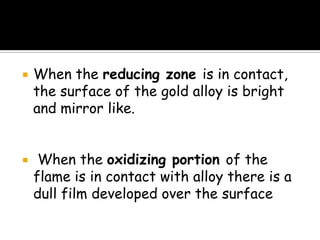

95. When the reducing zone is in contact,
the surface of the gold alloy is bright
and mirror like.
When the oxidizing portion of the
flame is in contact with alloy there is a
dull film developed over the surface

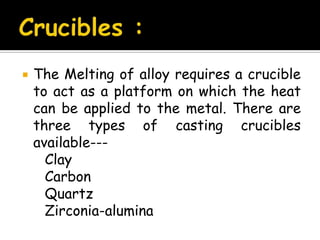

96. The Melting of alloy requires a crucible
to act as a platform on which the heat
can be applied to the metal. There are
three types of casting crucibles
available---
Clay
Carbon
Quartz
Zirconia-alumina

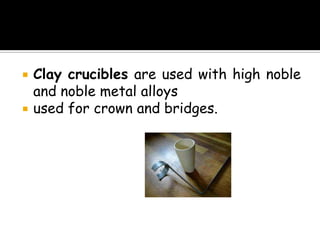

97. Clay crucibles are used with high noble
and noble metal alloys
used for crown and bridges.

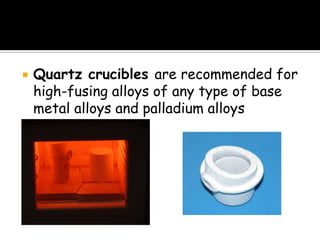

98. Quartz crucibles are recommended for
high-fusing alloys of any type of base
metal alloys and palladium alloys

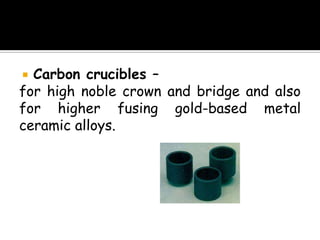

99. Carbon crucibles –
for high noble crown and bridge and also
for higher fusing gold-based metal
ceramic alloys.

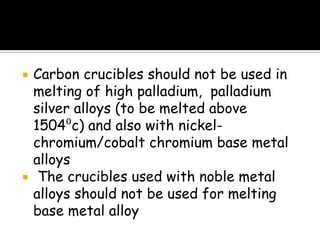

100. Carbon crucibles should not be used in
melting of high palladium, palladium
silver alloys (to be melted above
1504⁰c) and also with nickel-
chromium/cobalt chromium base metal
alloys
The crucibles used with noble metal
alloys should not be used for melting
base metal alloy

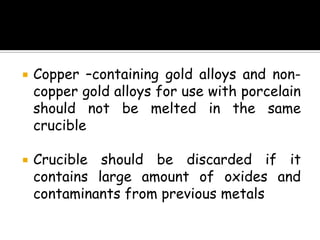

101. Copper –containing gold alloys and non-
copper gold alloys for use with porcelain
should not be melted in the same
crucible
Crucible should be discarded if it
contains large amount of oxides and
contaminants from previous metals

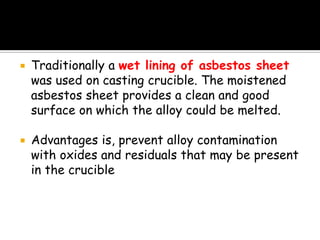

102. Traditionally a wet lining of asbestos sheet
was used on casting crucible. The moistened
asbestos sheet provides a clean and good
surface on which the alloy could be melted.
Advantages is, prevent alloy contamination
with oxides and residuals that may be present
in the crucible

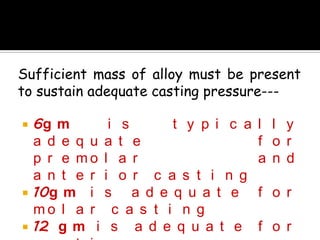

103. Sufficient mass of alloy must be present
to sustain adequate casting pressure---
6g m i s t y p i c a l l y
a d e q u a t e f o r
p r e m o l a r a n d
a n t e r i o r c a s t i n g
10g m i s a d e q u a t e f o r
m o l a r c a s t i n g
12 g m i s a d e q u a t e f o r
104. A) Electrical resistance-
It is used to melt ceramic alloys. Here
the alloy is automatically melted in
graphite crucible.
Provides best means of temperature
control. It is quite convenient as
compared to blow torch.

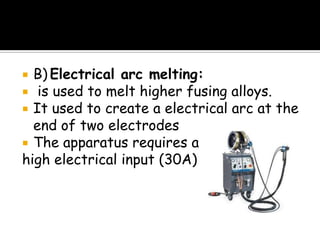

105. B) Electrical arc melting:
is used to melt higher fusing alloys.
It used to create a electrical arc at the
end of two electrodes
The apparatus requires a
high electrical input (30A)
106. Device for forcing the molten alloy into
the mould under pressure after wax has
been eliminated

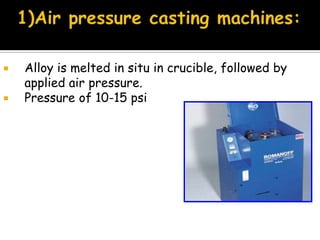

107. Alloy is melted in situ in crucible, followed by
applied air pressure.
Pressure of 10-15 psi
108. Alloy is melted in a crucible, and forced in to
mold by centrifugal force.

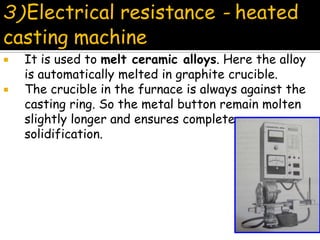

109. It is used to melt ceramic alloys. Here the alloy
is automatically melted in graphite crucible.
The crucible in the furnace is always against the
casting ring. So the metal button remain molten
slightly longer and ensures complete
solidification.
3)Electrical resistance - heated
casting machine

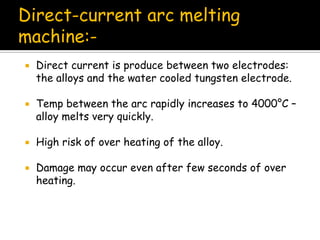

110. Direct current is produce between two electrodes:
the alloys and the water cooled tungsten electrode.
Temp between the arc rapidly increases to 4000°C –
alloy melts very quickly.
High risk of over heating of the alloy.
Damage may occur even after few seconds of over
heating.
Direct-current arc melting
machine:-

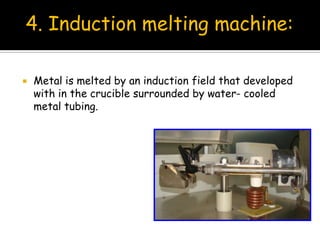

111. Metal is melted by an induction field that developed
with in the crucible surrounded by water- cooled
metal tubing.
4. Induction melting machine:
112. The electric induction furnace is a transformer in which
an alternating current flows through the primary
winding coil and generates a variable magnetic field in
the location of the alloy to be melted in a crucible
It is more commonly used for melting base metal
alloys not been used for noble alloy casting as much as
other machines

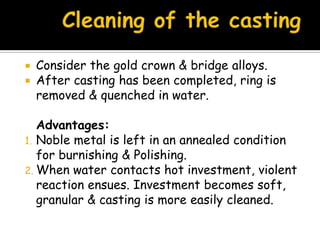

113. Consider the gold crown & bridge alloys.
After casting has been completed, ring is
removed & quenched in water.
Advantages:
1. Noble metal is left in an annealed condition
for burnishing & Polishing.
2. When water contacts hot investment, violent
reaction ensues. Investment becomes soft,
granular & casting is more easily cleaned.

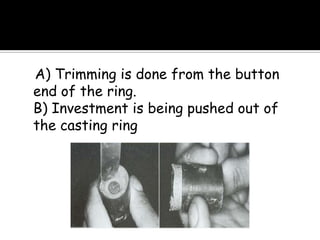

114. A) Trimming is done from the button
end of the ring.
B) Investment is being pushed out of
the casting ring
115. C) The mold is broken open.
D) Investment is removed from the
casting. Care must be taken to avoid
damaging the margin

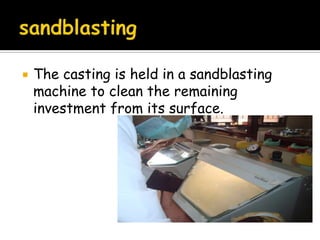

116. The casting is held in a sandblasting
machine to clean the remaining
investment from its surface.
117. Surface of the casting appears dark with oxides
and tarnish. Such a surface film can be removed
by a process called Pickling.
Best method for pickling is to place a casting in a
dish & pour acid over it.
Heat the acid but don't boil it.
50% Hydrochloric acid
Sulfuric acid
Ultrasonic devices
Gold and palladium based metal ceramic alloys and
base metals, these alloys are not generally
pickled.
118. Pickling solution should be renewed
frequently, since it is likely to become
contaminated
Precious alloys(Gold-Platinum-Palladium)
can be soaked with hydroflouric acid
Nickel Chromium should never be placed
in acid because of high reactivity

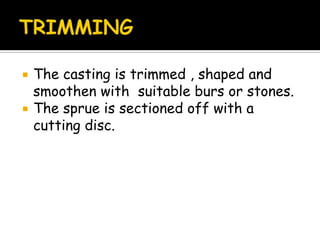

119. The casting is trimmed , shaped and
smoothen with suitable burs or stones.
The sprue is sectioned off with a
cutting disc.

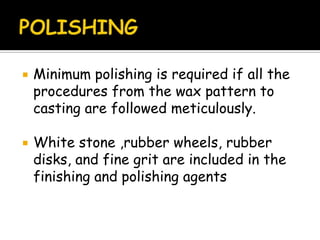

120. Minimum polishing is required if all the
procedures from the wax pattern to
casting are followed meticulously.
White stone ,rubber wheels, rubber
disks, and fine grit are included in the
finishing and polishing agents
122. Error in the procedure often results in
defective casting, these defects are
known as casting defects.

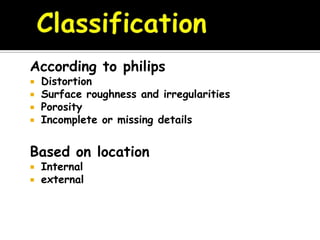

123. According to philips
Distortion
Surface roughness and irregularities
Porosity
Incomplete or missing details
Based on location
Internal
external

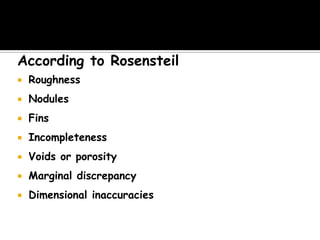

124. According to Rosensteil
Roughness
Nodules
Fins
Incompleteness
Voids or porosity
Marginal discrepancy
Dimensional inaccuracies

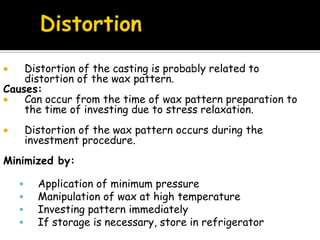

125. Distortion of the casting is probably related to
distortion of the wax pattern.
Causes:
Can occur from the time of wax pattern preparation to
the time of investing due to stress relaxation.
Distortion of the wax pattern occurs during the
investment procedure.
Minimized by:
Application of minimum pressure
Manipulation of wax at high temperature
Investing pattern immediately
If storage is necessary, store in refrigerator

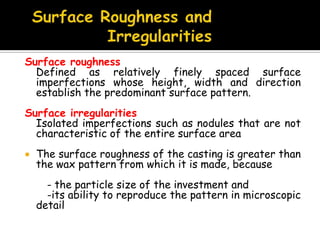

126. Surface roughness
Defined as relatively finely spaced surface
imperfections whose height, width and direction
establish the predominant surface pattern.
Surface irregularities
Isolated imperfections such as nodules that are not
characteristic of the entire surface area
The surface roughness of the casting is greater than
the wax pattern from which it is made, because
- the particle size of the investment and
-its ability to reproduce the pattern in microscopic
detail
127. Small nodules on the casting are caused by air bubbles,
that become attached to the surface during or
subsequent to the investing procedure.
Prevented By:
Proper investment technique
Vibration of mix or by vacuum mixing
Application of wetting agent properly
and correctly – important that it be
applied in a thin layer.
Air bubbles:

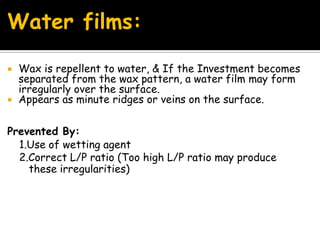

128. Water films:
Wax is repellent to water, & If the Investment becomes
separated from the wax pattern, a water film may form
irregularly over the surface.
Appears as minute ridges or veins on the surface.
Prevented By:
1.Use of wetting agent
2.Correct L/P ratio (Too high L/P ratio may produce
these irregularities)
129. Rapid Heating Rates
It produces
Fins or spines on the casting
Cause-
because of Flaking of the investment
Prevented by:
Heat gradually at least 60min from room
temperature to 700 c.
Greater the bulk – more slowly heated.

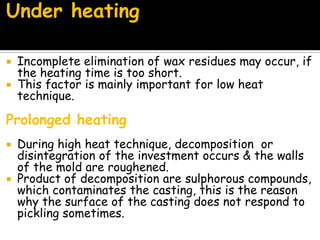

130. Under heating
Incomplete elimination of wax residues may occur, if
the heating time is too short.
This factor is mainly important for low heat
technique.
Prolonged heating
During high heat technique, decomposition or
disintegration of the investment occurs & the walls
of the mold are roughened.
Product of decomposition are sulphorous compounds,
which contaminates the casting, this is the reason
why the surface of the casting does not respond to
pickling sometimes.

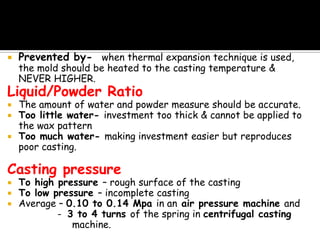

131. Prevented by- when thermal expansion technique is used,
the mold should be heated to the casting temperature &
NEVER HIGHER.
Liquid/Powder Ratio
The amount of water and powder measure should be accurate.
Too little water- investment too thick & cannot be applied to
the wax pattern
Too much water- making investment easier but reproduces
poor casting.
Casting pressure
To high pressure – rough surface of the casting
To low pressure – incomplete casting
Average – 0.10 to 0.14 Mpa in an air pressure machine and
- 3 to 4 turns of the spring in centrifugal casting
machine.

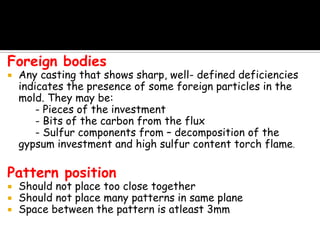

132. Foreign bodies
Any casting that shows sharp, well- defined deficiencies
indicates the presence of some foreign particles in the
mold. They may be:
- Pieces of the investment
- Bits of the carbon from the flux
- Sulfur components from – decomposition of the
gypsum investment and high sulfur content torch flame.
Pattern position
Should not place too close together
Should not place many patterns in same plane
Space between the pattern is atleast 3mm

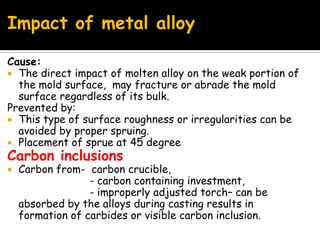

133. Impact of metal alloy
Cause:
The direct impact of molten alloy on the weak portion of
the mold surface, may fracture or abrade the mold
surface regardless of its bulk.
Prevented by:
This type of surface roughness or irregularities can be
avoided by proper spruing.
Placement of sprue at 45 degree
Carbon inclusions
Carbon from- carbon crucible,
- carbon containing investment,
- improperly adjusted torch– can be
absorbed by the alloys during casting results in
formation of carbides or visible carbon inclusion.
134. Classified as follows:
I. Solidification defects
A. localized shrinkage porosity
B. Micro porosity
II. Trapped gases
A. pin hole porosity
B. gas inclusion porosity
C. sub surface porosity
III. Residual air
135. Localized shrinkage porosity
It is caused by premature termination of the molten
metal during solidification.
It mainly occurs at sprue-casting
junction.
Cause:
Diameter is too narrow
Length of the sprue is too long
Absence of reservoir
Direction of sprue at 90 degree

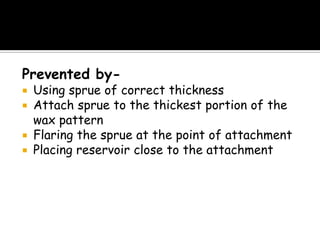

136. Prevented by-
Using sprue of correct thickness
Attach sprue to the thickest portion of the
wax pattern
Flaring the sprue at the point of attachment
Placing reservoir close to the attachment
137. A hot spot is created by the hot metal impinging on the
mold wall near the sprue.
This hot spot causes this region to FREEZE LAST
Since the sprue is already solidified, NO MORE MOLTEN
MATERIAL IS AVAILABLE, resulting in
shrinkage k/a SUCK BACK POROSITY
Suck back porosity

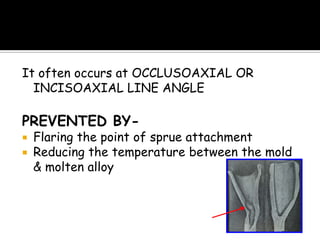

138. It often occurs at OCCLUSOAXIAL OR
INCISOAXIAL LINE ANGLE
PREVENTED BY-
Flaring the point of sprue attachment
Reducing the temperature between the mold
& molten alloy

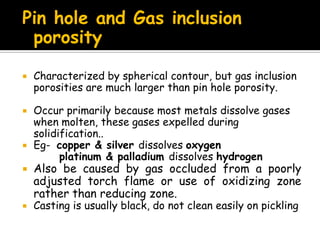

139. Pin hole and Gas inclusion
porosity
Characterized by spherical contour, but gas inclusion
porosities are much larger than pin hole porosity.
Occur primarily because most metals dissolve gases
when molten, these gases expelled during
solidification..
Eg- copper & silver dissolves oxygen
platinum & palladium dissolves hydrogen
Also be caused by gas occluded from a poorly
adjusted torch flame or use of oxidizing zone
rather than reducing zone.
Casting is usually black, do not clean easily on pickling

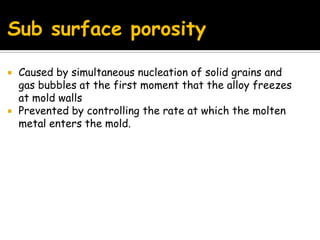

140. Sub surface porosity
Caused by simultaneous nucleation of solid grains and
gas bubbles at the first moment that the alloy freezes
at mold walls
Prevented by controlling the rate at which the molten
metal enters the mold.
141. Back pressure porosity
Some times referred to as entrapped-air
porosity.
found on the outer surface of the casting when
the casting or mold temperature is low, that
solidification occurs before the trapped air can
escape.

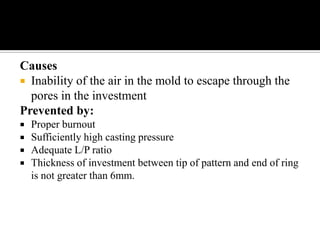

142. Causes
Inability of the air in the mold to escape through the
pores in the investment
Prevented by:
Proper burnout
Sufficiently high casting pressure
Adequate L/P ratio
Thickness of investment between tip of pattern and end of ring
is not greater than 6mm.

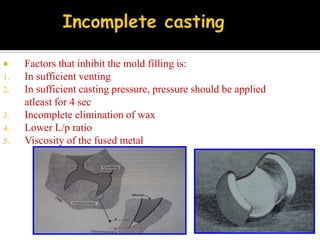

143. Factors that inhibit the mold filling is:
1. In sufficient venting
2. In sufficient casting pressure, pressure should be applied
atleast for 4 sec
3. Incomplete elimination of wax
4. Lower L/p ratio
5. Viscosity of the fused metal
