1. SUPERTECH
E SQUARE
SUBMITTED BY – GROUPA1-
6(CPM)
SIDDHARTH PRAJAPATI
ANUJ KUMAR SIKARWAR

2. • PROJECT INTRODUCTION
• NEED OR PURPOSE OF THE PROJECT
• LOCATION AND RELEVANCE
• DISTINCT FEATURES OF THE PROJECT
• STAKEHOLDERS INVOLVED
• DIFFERENT STAGES OF PROJECT
• CHALLENGES AND RISK
• LOGISTIC PLANNING AND SITE LAYOUT
• CRITICAL COMPONENTS OF THE PROJECT
• DIFFERENT CONSTRUCTION MATERIALS IN THOSE COMPONENTS
• MODERN CONSTRUCTION MATERIALS FROM THESE COMPONENTS
• ANALYSIS OF THE APPLICATION OF MODERN CONSTRUCTION MATERIALS
• RECOMMENDATION AND LEARNINGS
CONTENTS

3. PROJECT INTRODUCTION
• Supertech E – Square is an ambitious and a commercial project launched by Supertech limited which is placed in
sector – 96 of Noida at Noida expressway .
• It was launched by Supertech limited in the year 2016.
• E – square is spread over an area of around 7724 sq. mts of land .
• The project is strategically located in terms of convenience and comfort with world class facilities for the
inhabitants of the residential sectors in the vicinity.
• The project is a mix of retail , upscale offices and entertainment zone .
• Supertech E Square will have every major amenity and feature one can think of and thus the development will
have everything like business lounge, hospitality brands, food court, restaurants, conference halls, and etc.
• It is registered under UPRERA
Area of the project : 7724
Built up area : 606164
Salable area : 487117
Building height : 03B + 03G + 03S + 25floors
Ingredients : supermarket/food and beverages/café area/food court/banquet hall/ office square

4. NEED OR PURPOSE OF THE PROJECT
► The project is designed to free your mind from usual irritants like parking , security , environment, lack of
recreation , electricity ,water and unthoughtful design.
► The greater Noida expressway is an IT – BPO company’s destination. Right now the requirement of good
location commercial office spaces in this area is very high, and supply of the good and approachable location
offices spaces is limited .
► E square offers premium office space with an integrated retail and entertainment zone, which involves
cafeteria, garden, gym, shopping arcade, bank ATM etc.
► Ideal destination for most of the MNC’s and for the residents in the vicinity.

5. LOCATION OF THE PROJECT

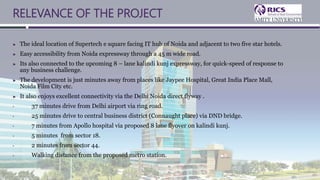

6. RELEVANCE OF THE PROJECT
► The ideal location of Supertech e square facing IT hub of Noida and adjacent to two five star hotels.
► Easy accessibility from Noida expressway through a 45 m wide road.
► Its also connected to the upcoming 8 – lane kalindi kunj expressway, for quick-speed of response to
any business challenge.
► The development is just minutes away from places like Jaypee Hospital, Great India Place Mall,
Noida Film City etc.
► It also enjoys excellent connectivity via the Delhi Noida direct flyway .
• 37 minutes drive from Delhi airport via ring road.
• 25 minutes drive to central business district (Connaught place) via DND bridge.
• 7 minutes from Apollo hospital via proposed 8 lane flyover on kalindi kunj.
• 5 minutes from sector 18.
• 2 minutes from sector 44.
• Walking distance from the proposed metro station.

7. DISTINCT FEATURES OF THE PROJECT
► Four-side open plot ringed with ornamental trees.
► Facing IT hub of Noida.
► Excellent connectivity to metro stations, commercial institutions and prime locations in Noida city.
► Glass view offering bird's eye view of Noida Expressway on one side & greens on the other.
► Scalable office spaces spanning 520 sq. ft. to 15,000 sq. ft. in single floor plate
► Earthquake resistant RCC frame structure .
► Double height entrance lobby.
► 100% power backup .
► CCTV in common area to enhance security coverage.
► Public address system.
► High quality of marble in lobby/foyer.
► Ample parking space for at least 600 vehicles.
► High speed elevators.
► A development project with a mix of retail, commercial and entertainment zone .

8. STAKEHOLDERS INVOLVED
• Supertech limited
• Hotshot developers private limited

9. DIFFERENT STAGES OF PROJECT
• Initiation  Objectives, Scope, Purpose and deliverables
• Planning  Designed drawings and permit application
• Execution  Foundation, Framing, Interior and exterior work
• Performance and monitoring Detailed finishing
• Closure  Clean up and final touches, Owner occupancy

13. PHASES OF THE PROJECT
Design concept of the project Contracts and bid document Bidding
Completion Construction payments Construction work

14. CHALLENGES AND RISK
Challenges and risk faced during execution phase were :
• Managing project schedule – allocating tasks to right person at the right time , to complete on schedule .
• Manage budget
• Communication
• Quality management
• Safety

15. LOGISTIC PLANNINNG AND SITE LAYOUT
entry
exit
Labour
hutments
Batching
plant
Material
stacking
Reinforcement
stacking machinery
storage
Security
check
Tower
crane
Site
office

16. Critical components of the project
Management point of view:
• Managing and controlling of system change
• Lifecycle of the project
• Changing technology
• Managing stake holders
Technical point of view :
• Construction of RCC walls
• Formwork
• Operating of crane tower

17. DIFFERENT CONSTRUCTION MATERIALS
• Concrete: M:16& M:22 – walls
M:26 – columns
M:30 – beams & slabs
• Coarse sand
• Bricks
• Mortar
• Stone
• Tile stone
• Granite
• Kerb stone
• MST hollow tubes
• Aluminum : used in doors & windows
• TMT bars: used steel bars in construction of diameter about (8-32)mm.
• Cement

18. MODERN CONSTRUCTION MATERIALS
• Fly ash : Used in cement & in brick work in boundary Walls.
• Gypsum : used in ceilings as per design
• Granite : used in lift lobby cladding
• Glass : Used in windows of about 10mm.
• Kota stone : Used in stair case.
• MST hollow tubes
• AAC blocks

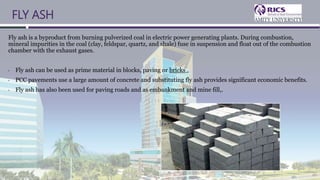

19. FLY ASH
Fly ash is a byproduct from burning pulverized coal in electric power generating plants. During combustion,
mineral impurities in the coal (clay, feldspar, quartz, and shale) fuse in suspension and float out of the combustion
chamber with the exhaust gases.
• Fly ash can be used as prime material in blocks, paving or bricks .
• PCC pavements use a large amount of concrete and substituting fly ash provides significant economic benefits.
• Fly ash has also been used for paving roads and as embankment and mine fill,.

20. AAC BLOCKS
It is a lightweight, precast, foam concrete building material invented in the mid-1920s that simultaneously
provides structure, insulation, and fire- and mold-resistance. AAC products include blocks, wall panels, floor and
roof panels, cladding (façade) panels and lintels.
• Light weighted
• Super strong
• Fire resistant
• Earthquake resistant
• Acoustics properties
• Thermal insulation
• Water barrier
• Pest resistant

21. Recommendations and learnings
• Enforce programs in construction site safety to keep the workplace and jobsite safe.
• Encouraging construction and safety programs will help reduce preventable injury, illness and death as well as
reduce financial difficulties.
• A few safety steps include training employees on :
 How to identify and control hazards
 How to properly inspect the jobsite
 How to recognize problems with equipment and materials
 Develop responses and a plan of action in advance for emergencies
• Management Leadership
• Worker Participation
• Hazard Identification & Assessment
• Hazard Prevention & Control
• Education & Training
• Program Evaluation & Imporvement
• Communication & Coordination for Employers on Multiemployer Worksites

22. REFERENCES
► Wikipedia.org
► www.Supertechlimited.com
► http://www.supertechlimited.com/commercial/e-square-
noida/index.php#/?a=specificationshttps://www.thebalancesmb.com/fly-ash-applications-844761
► http://www.finecrete.in/aac-blocks.html
