1. Business 2.0 Business and IT fusion Lecture 5: ArchitectureDr Raymond Young (MBA, GAICD) Raymond.young@canberra.edu.au

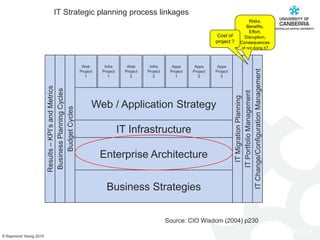

2. IT Strategic planning process linkagesRisks,Benefits,Effort, Disruption,Consequences of not doing it?Cost of project ?Infra Project 2Apps Project 1Apps Project 2Apps Project 3Web Project 1Infra Project 1Web Project 2Budget CyclesBusiness Planning CyclesResults – KPI’s and MetricsIT Change/Configuration ManagementIT Portfolio ManagementIT Migration PlanningWeb / Application StrategyIT InfrastructureEnterprise ArchitectureBusiness StrategiesSource: CIO Wisdom (2004) p230

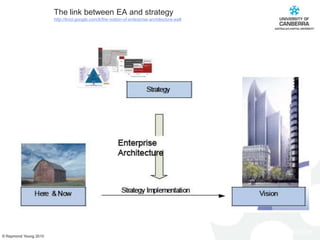

3. The link between EA and strategyhttp://knol.google.com/k/the-notion-of-enterprise-architecture-ea#

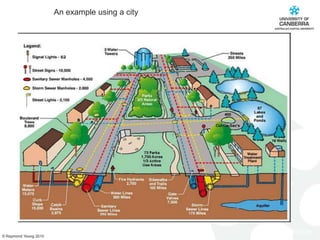

4. An example using a city

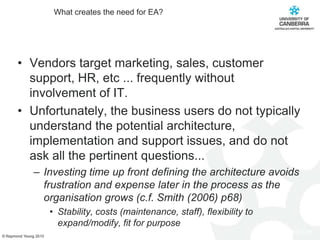

5. What creates the need for EA?Vendors target marketing, sales, customer support, HR, etc ... frequently without involvement of IT.Unfortunately, the business users do not typically understand the potential architecture, implementation and support issues, and do not ask all the pertinent questions...Investing time up front defining the architecture avoids frustration and expense later in the process as the organisation grows (c.f. Smith (2006) p68)Stability, costs (maintenance, staff), flexibility to expand/modify, fit for purpose

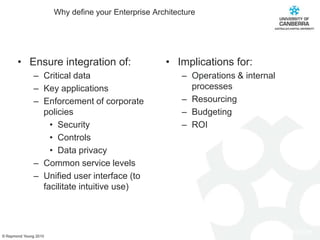

6. Why define your Enterprise ArchitectureEnsure integration of:Critical dataKey applicationsEnforcement of corporate policiesSecurityControlsData privacyCommon service levelsUnified user interface (to facilitate intuitive use)Implications for:Operations & internal processesResourcingBudgeting ROI

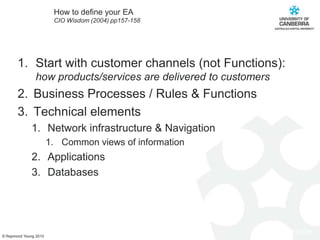

7. How to define your EACIO Wisdom (2004) pp157-158Start with customer channels (not Functions): how products/services are delivered to customersBusiness Processes / Rules & FunctionsTechnical elementsNetwork infrastructure & NavigationCommon views of informationApplicationsDatabases

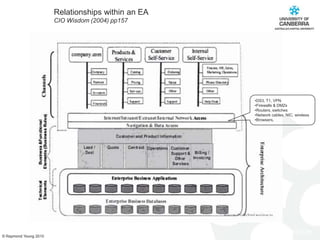

8. Relationships within an EACIO Wisdom (2004) pp157DS3, T1, VPN

9. Firewalls & DMZs

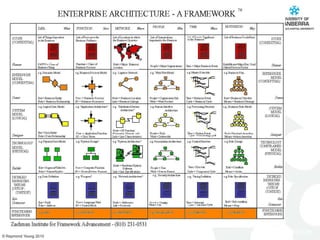

10. Routers, switches

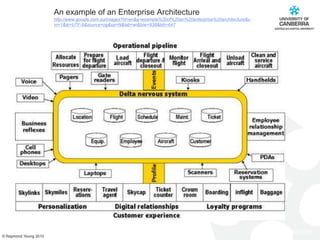

11. Network cables, NIC, wireless

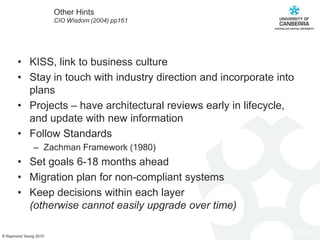

12. Browsers,Other HintsCIO Wisdom (2004) pp161KISS, link to business cultureStay in touch with industry direction and incorporate into plansProjects – have architectural reviews early in lifecycle, and update with new informationFollow StandardsZachman Framework (1980)Set goals 6-18 months aheadMigration plan for non-compliant systemsKeep decisions within each layer (otherwise cannot easily upgrade over time)
