1. Building Automation : Residence
Group Members
Devvrat Chowdhary
Nabarun Dutta
Shrivan Wattamwar
Kapil Sinha
Piyush Verma
Abhinav Bhargava
Anil Choudhary
19 Sept 2014

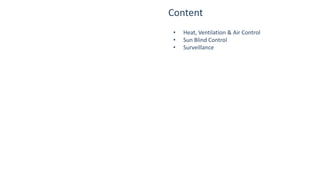

2. Content
• Heat, Ventilation & Air Control
• Sun Blind Control
• Surveillance

3. Heat, Ventilation & Air Control
• Task
A residence requires a central control system as well as remote control for ventilation and air controlling. Special
focus is on maintaining the values of air quality.
• Function
•Visualization is used for central operation and provides user with the operating status and messages.
•Settings for lighting, air conditioning and ventilation can be set automatically.
•When the lock system registers contact from the locking bolts, the operating status, such as ‘standby’ or ‘comfort
temperature’ for the respective building area will be set automatically.
•Monitoring of the air quality in the archives, Data for CO2, humidity and temperature are recorded.
• Advantages
•Easy installation
•Flexibility in terms of change in user programs

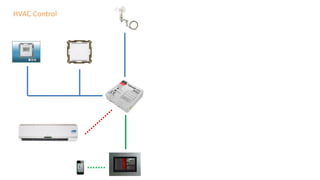

4. HVAC Control

5. HVAC Control
Model No. : SCN-WS3HW.01
Type :Home
Installation: Outdoor installation on wall or
pole, integrated BCU
Weather Station
•3 channels for sun protection to control blind/shutter
•Sun protection up to 3 facades
•Offers wide functions to control facades (2 switching treshold,
teach in function)
•Central shutter control for Up/Down via brightness value
(with time delay)
•Brightness value for east, south, west, twilight
• Wind speed value, alarm if wind speed exceeds limit,
temperature value
• Suited to control facades at home
•Installation on wall or pole, 5m connection cable
•No additional power supply required
•Integrated bus coupling unit

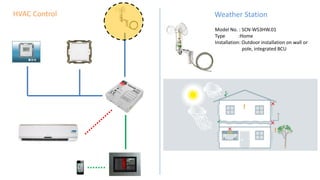

6. HVAC Control
Model No. : SCN-WS3HW.01
Type :Home
Installation: Outdoor installation on wall or
pole, integrated BCU
Weather Station

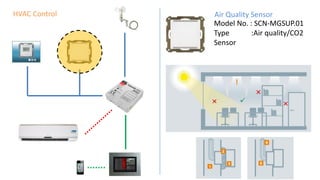

7. HVAC Control
Model No. : SCN-MGSUP.01
Type :Air quality/CO2
Sensor
Air Quality Sensor

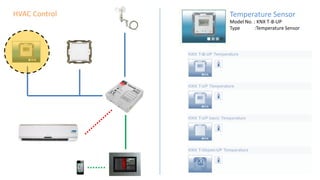

8. HVAC Control
Model No. : KNX T-B-UP
Type :Temperature Sensor
Temperature Sensor

9. Model No. : ZN1CL-IRSC
Description : A/c Unit Control Module.
IRSC is a KNX infrared air conditioner controller
able to manage more than 300 A/C unit
models.
Air Conditioner
Controller
HVAC Control

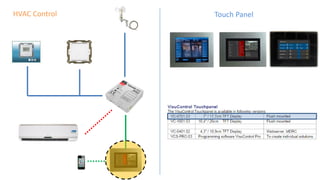

10. Touch PanelHVAC Control

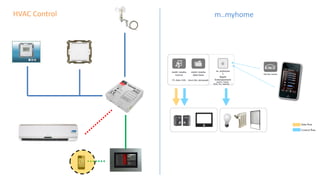

11. HVAC Control m..myhome

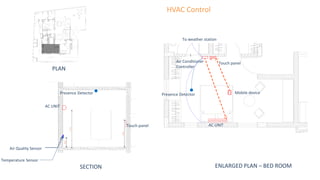

12. PLAN
ENLARGED PLAN – BED ROOMSECTION
HVAC Control
AC UNIT
Air Conditioner
Controller
Air Quality Sensor
Temperature Sensor
Touch panel
Mobile device
To weather station
AC UNIT
Touch panel
Presence DetectorPresence Detector

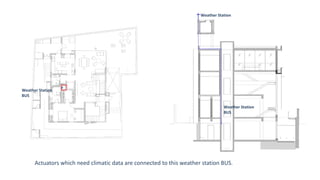

13. Weather Station
BUS
Weather Station
BUS
Weather Station
Actuators which need climatic data are connected to this weather station BUS.

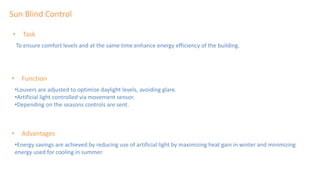

14. Sun Blind Control
• Task
To ensure comfort levels and at the same time enhance energy efficiency of the building.
• Function
•Louvers are adjusted to optimize daylight levels, avoiding glare.
•Artificial light controlled via movement sensor.
•Depending on the seasons controls are sent.
• Advantages
•Energy savings are achieved by reducing use of artificial light by maximizing heat gain in winter and minimizing
energy used for cooling in summer.

15. Sun Blind Actuator
− Anti-glare protection (e.g. PC workstations)
− Utilization of daylight by tracking the sun‘s position and
directing available daylight
− Protecting furniture and carpets from fading,
− Regulating the room temperature (overheating protection
in summer; harvesting the available energy on cold days)
− Providing protection from people looking in from the
outside
− Protection against intruders.
Make: MDT TechnologiesSun Blind Control

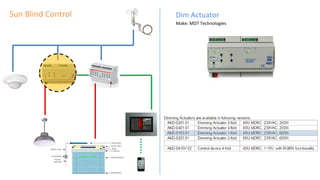

16. Dim Actuator
Make: MDT Technologies
Sun Blind Control

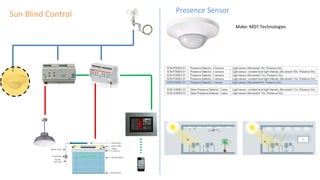

17. Presence Sensor
Make: MDT Technologies
Sun Blind Control

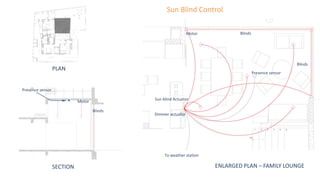

18. Motor
Dimmer actuator
Sun blind Actuator
Presence sensor
Blinds
Blinds
To weather station
PLAN
ENLARGED PLAN – FAMILY LOUNGESECTION
Blinds
Motor
Sun Blind Control
Presence sensor

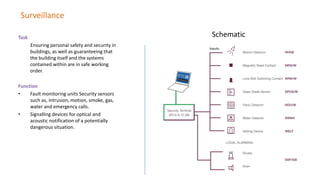

19. Surveillance
Task
Ensuring personal safety and security in
buildings, as well as guaranteeing that
the building itself and the systems
contained within are in safe working
order.
Function
• Fault monitoring units Security sensors
such as, intrusion, motion, smoke, gas,
water and emergency calls.
• Signalling devices for optical and
acoustic notification of a potentially
dangerous situation.
Schematic

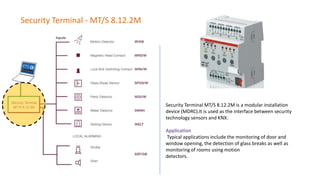

20. Security Terminal - MT/S 8.12.2M
Security Terminal MT/S 8.12.2M is a modular installation
device (MDRC).It is used as the interface between security
technology sensors and KNX.
Application
Typical applications include the monitoring of door and
window opening, the detection of glass breaks as well as
monitoring of rooms using motion
detectors.

21. Motion Detector- IR/KB
The Passive Infra-Red Detector IR/K is an intrusion detector (VdS
class B) that detects and signals motion within its detection
range.
Features
Range: 15 m
The detector features undervoltage monitoring and is fitted with
a walk test LED.
LOCATION
DEVICE

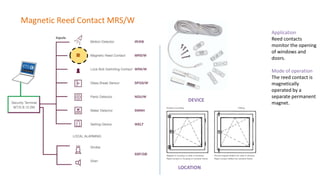

22. Magnetic Reed Contact MRS/W
LOCATION
DEVICE
Application
Reed contacts
monitor the opening
of windows and
doors.
Mode of operation
The reed contact is
magnetically
operated by a
separate permanent
magnet.

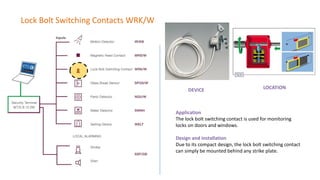

23. Lock Bolt Switching Contacts WRK/W
DEVICE LOCATION
Application
The lock bolt switching contact is used for monitoring
locks on doors and windows.
Design and installation
Due to its compact design, the lock bolt switching contact
can simply be mounted behind any strike plate.

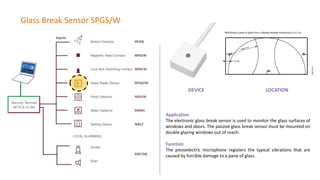

24. Glass Break Sensor SPGS/W
DEVICE LOCATION
Application
The electronic glass break sensor is used to monitor the glass surfaces of
windows and doors. The passive glass break sensor must be mounted on
double glazing windows out of reach.
Function
The piezoelectric microphone registers the typical vibrations that are
caused by forcible damage to a pane of glass.

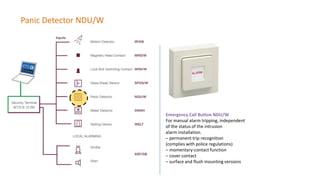

25. Panic Detector NDU/W
DEVICE
Emergency Call Button NDU/W
For manual alarm tripping, independent
of the status of the intrusion
alarm installation.
– permanent trip recognition
(complies with police regulations)
– momentary-contact function
– cover contact
– surface and flush mounting versions

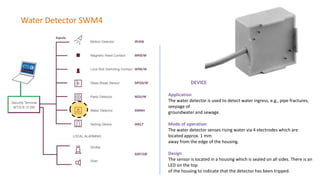

26. Water Detector SWM4
DEVICE
Application
The water detector is used to detect water ingress, e.g., pipe fractures,
seepage of
groundwater and sewage.
Mode of operation
The water detector senses rising water via 4 electrodes which are
located approx. 1 mm
away from the edge of the housing.
Design
The sensor is located in a housing which is sealed on all sides. There is an
LED on the top
of the housing to indicate that the detector has been tripped.

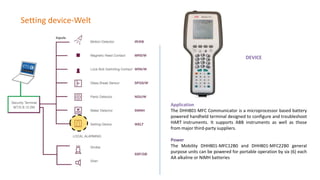

27. Setting device-Welt
DEVICE
Application
The DHH801-MFC Communicator is a microprocessor based battery
powered handheld terminal designed to configure and troubleshoot
HART instruments. It supports ABB instruments as well as those
from major third-party suppliers.
Power
The Mobility DHH801-MFC12B0 and DHH801-MFC22B0 general
purpose units can be powered for portable operation by six (6) each
AA alkaline or NiMH batteries

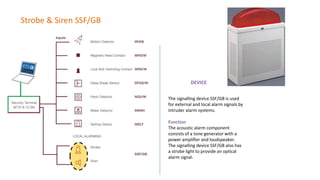

28. Strobe & Siren SSF/GB
DEVICE
The signalling device SSF/GB is used
for external and local alarm signals by
intruder alarm systems.
Function
The acoustic alarm component
consists of a tone generator with a
power amplifier and loudspeaker.
The signalling device SSF/GB also has
a strobe light to provide an optical
alarm signal.

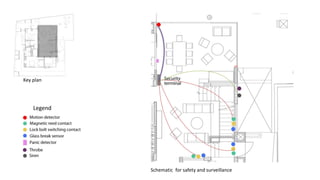

29. Key plan
Legend
Schematic for safety and surveillance

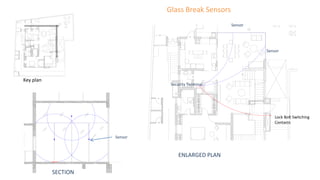

30. Key plan
ENLARGED PLAN
SECTION
Sensor
Sensor
Sensor
Security Terminal
Lock Bolt Switching
Contacts
Glass Break Sensors
