This presentation is about the security which is the utmost priority and need now. The perimeter security covers our surroundings and keep us safe from the vulnerabilities and mishap to be happen. We have described the security systems in detail.

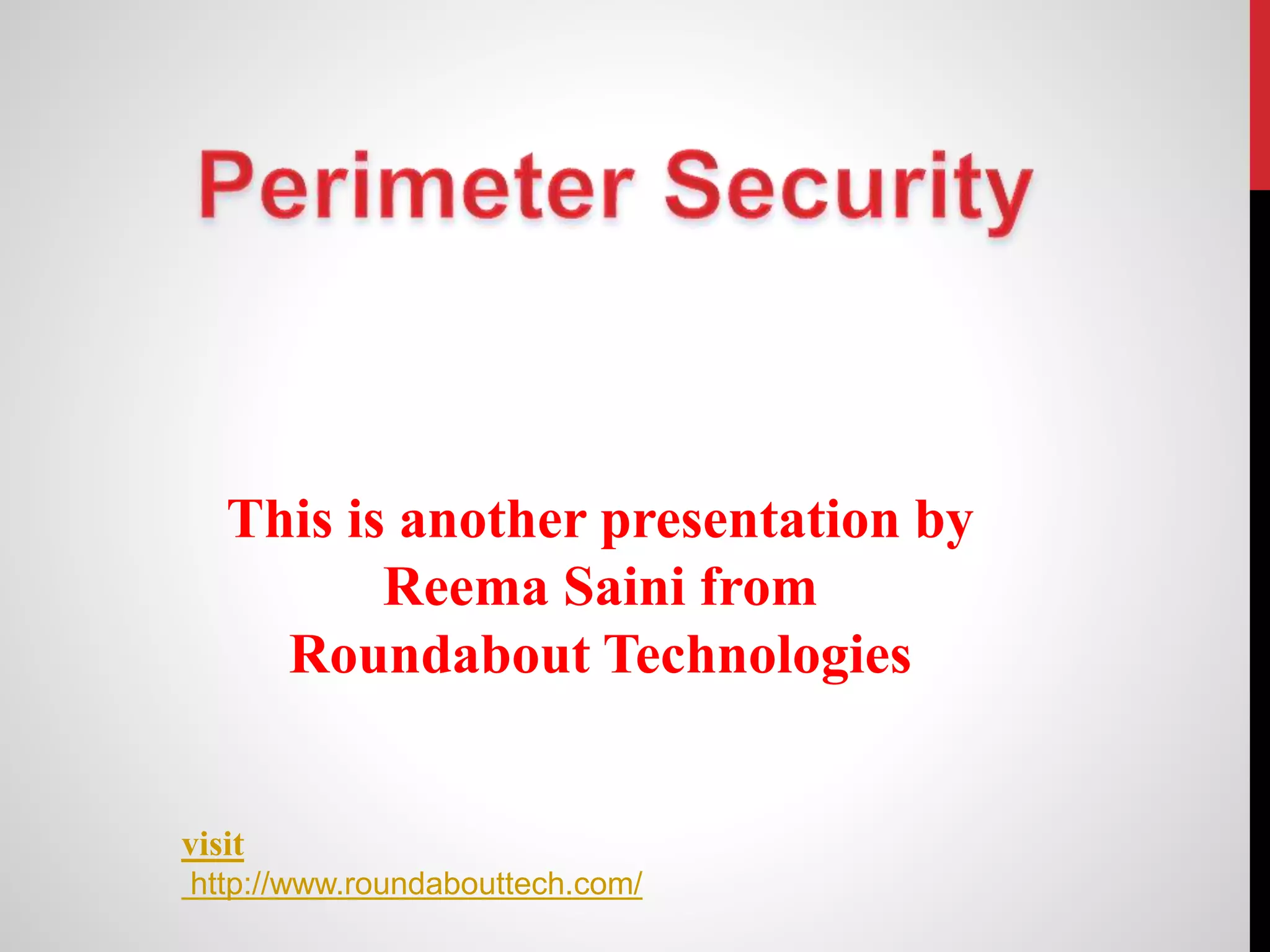

1. This is another presentation by
Reema Saini from
Roundabout Technologies
visit
http://www.roundabouttech.com/

2. Perimeter Security System
The Next Generation Security System
1

3. Physical / Guarded Security is always a risk to life and cost
inefficient.
Guarded security may not notice the intrusion in time and may not
figure out the right spot in short time.
Under certain circumstances guarded security is not feasible like
hills, borders and places with extreme conditions.
3
On top of all, Guarded security at times is not efficient which may
lead to disasters.
1
2
3
4
PROBLEM STATEMENT

4. Why COMPROMISE ?
Perimeter Security System
Is the solution……………
“A The Next Generation Security System”
4

5. 1
2
3
4
INTRODUCTION
Microwave Security system uses the bi-static Microwave sensor which provides
high-security, outdoor electronic perimeter security systems.
This Security System combines patented technology with microprocessor power
and laptop computer convenience. It is a sophisticated perimeter security system
which provides precise location of alarms.
This Security System protects many of the world’s highest security sites across wide-ranging
vertical markets and can customize a high-performance solution for your
infrastructure, asset and personal protection challenges.
5
This Security System is based on Micro Point cable technology which detects any
fence disturbance and locates it to within 10 feet. Precise location allows proprietary
digital signal processing (DSP) algorithms to detect any attempt to cut or climb the
fence while ignoring distributed noise from wind, rain or heavy vehicles. Reliable
detection is assured.
This Security System also transmits alarm signals and operating power to all
Microwave Security System modules and auxiliary sensors along the perimeter
eliminating the need for extra wiring. Microwave Security System software interfaces
directly with a personal computer (PC) so that your Installed cost is very low.
5

6. 1
FEATURES
• MicroPoint Detection with location to 10 feet Sensitivity
Levelling for varying fence conditions.
2
• Free Format Zoning eliminates hardware constraints in
system design
3
• Point Impact Discrimination increases detection without
increasing nuisance alarms
4
• MicroPoint cable with integrated power and data for
reduced installation costs
5
• Windows® based PC installation
6

7. PROPOSED SOLUTION OTHER SENSORS
 MicroPoint Detection and Assessment
7
YES Locates alarms within 10 feet
✔ Intruder stands out from wind/rain
✔ Digital processing increases Pd
✔ Focused CCTV assessment
NO Only detects presence.
NO Intruder buried in wind/rain
$$ External processors required
$$ Many more processors needed
NO Hardware defined zones
NO Only 1 zone per cable
$$ Requires more processors
$$ Requires reinstallation
NO Responds equally to all disturbances
NO Sensitivity to Wind, rain, vehicles
 Free Format Zoning
YES Software Controlled Zones
✔ Multiple zones per cable
✔ Easy to add zones
✔ Easy to change zone boundaries
 Point Impact Discrimination
YES Ignores noise from wind, rain
✔ Recognizes local disturbances

8. Security Systems Division
Perimeter Intrusion Detection Systems
 Perimeter Fence Detection Systems
 Buried Cable Detection Systems
 Alarm Monitoring and Control Systems
 Microwave T/R Links
 Microwave Transceivers
 Relocatable Microwave Sensors
 Explosion Proof Microwave Sensors
 Outdoor Infrared Sensors
8
Product List

9.  Pinpoints Intrusions to Within 10 ft. (3 m)
 Invisible Detection Field
 Terrain-Following Capability
 Site-adaptive Sensitivity Levelling™
Solution has buried cable detection system for applications where covert
perimeter protection is essential. This volumetric, terrain-following sensor
precisely locates walking, running or crawling intruders to within 10 ft. (3 m).
9
Buried Cable Detection Systems

10.  Pinpoints Intrusions to Within 10 ft (3 m).
 Solves Nuisance Alarm Problems
 Software Controlled Zone Assignment
 Power, Data and Detection on a Single
Cable
Solution offers fence mounted protection system detects both cutting and
climbing attempts and provides precise location of alarms. Alarm zones
can be set at any location along the cable. Built-in power distribution and
alarm multiplexing permit full integration of auxiliary sensors, cameras
and alarm contacts. Features Windows®-based Site Manager software
for ease of system programming.
10
Perimeter Fence Detection Systems

11.  Intuitive, Touch Screen GUI
 High Resolution Graphics
 Easy ‘Drag and Drop’ Configuration
 Comprehensive Reporting Tools
 Live Screen Camera Control
 Open Architecture
 Powerful Migrating Host Server
Perimeter Security Manager is an intelligent security management
system that integrates, monitors and controls Southwest Microwave’s
complete range of perimeter detection equipment, plus a broad range of
third party security devices such as CCTV cameras, DVRs and auxiliary
sensors.
11
Alarm Monitoring & Control Systems

12.  600 ft. (183 m) Range Field Selectable
Patterns
 Field Selectable Patterns
 Low Current
 X Band
Fully weatherproof outdoor microwave intrusion link. Detection pattern
width is adjustable from 2 to 40 feet (.61 to 12.2 m). Installation, set
up, and alignment is quick and easy.
12
Transmitter / Receiver Links Bistatic
Microwave Intrusion Detection Sensors

13. M.I.L. PAC Temporary or Rapid
Deployment Sensors
 European Rated
 800 ft. (244 m) Range
 Wireless Alarm Reporting
 K Band
 135 Hour Battery Life
Solution offers a portable microwave Transmitter / Receiver link, ideal
for protection of VIPs, critical mobile assets and other temporary high
security requirements. Lightweight tripods and tampered, weatherproof
external controls for easy set up.
13
Relocatable Sensors

14. Microwave Intrusion Detection for Hazmat
Areas
 Bi-static T/R Link
 328 Foot (100 meter) Range
 Explosion proof Rated
 K-Band
 PLL Signal Processing
Reliable intrusion detection in the presence of flammable, combustible
or easily ignitable materials. Specifically designed to operate at oil
refineries, chemical and petrochemical plants, petroleum or chemical
storage facilities and other sites where hazardous materials are
handled, processed or stored.
14
Explosion Proof Sensors

15.  165 ft. (50 m) Outdoor Detection Range
 Integrated Alignment System
 Solves Nuisance Alarm Problems
 Compact Design
Ideal for gate and wall-top applications, the Model 455 is a cost-effective,
short-range sensor designed for the reliable detection of walking or
climbing intruders. Multiple beam paths must be broken simultaneously,
reducing environmentally- caused nuisance alarms.
15
Outdoor Active Infrared Sensors
