This document provides an overview of a smart home system from Nanjing Wulian IOT Technology. The system uses a ZigBee wireless protocol and allows control of home electronics, lighting, appliances, security sensors, and more from a mobile device. It features global control of functions like lighting, sensors, appliances and more. The system includes various smart devices like switches, sockets, lights, sensors, locks and cameras that integrate with the wireless network and app. The company aims to make smart home systems as common as internet access today.

1. Authorized Exclusive Dealer of
Nanjing Wulian IOT Technology Co,
Ltd PR China

2. Put your entire home electronics
system in the palm of your hand

3. “In the near future Smart Home System
will become as common as the internet
today, otherwise it will be outdated just
like a home without internet connection
today” Bill Gates

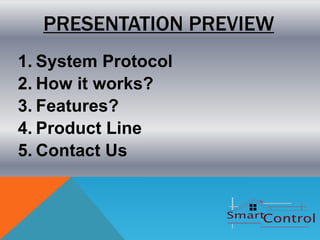

4. PRESENTATION PREVIEW
1. System Protocol
2. How it works?
3. Features?
4. Product Line
5. Contact Us

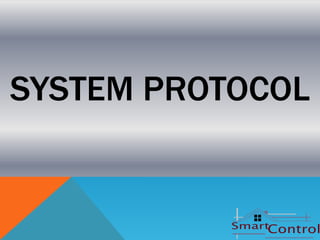

5. SYSTEM PROTOCOL

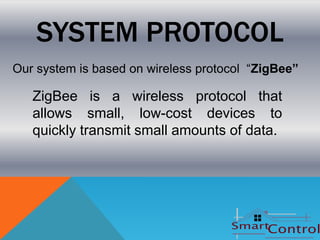

6. SYSTEM PROTOCOL
Our system is based on wireless protocol “ZigBee”
ZigBee is a wireless protocol that
allows small, low-cost devices to
quickly transmit small amounts of data.

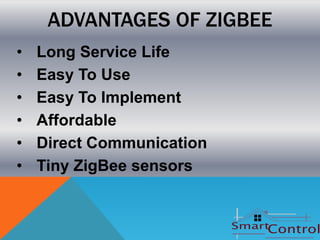

7. ADVANTAGES OF ZIGBEE
• Long Service Life
• Easy To Use
• Easy To Implement
• Affordable
• Direct Communication
• Tiny ZigBee sensors

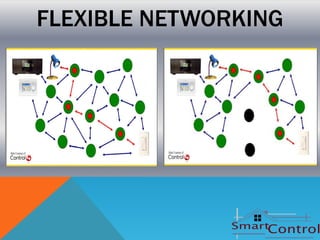

8. FLEXIBLE NETWORKING

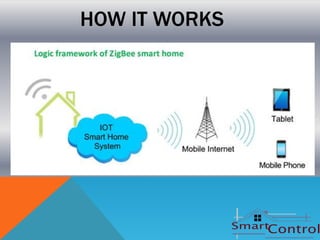

9. HOW IT WORKS

10. MAIN FEATURES
• Global Control • Climate Control
• Manage Lighting • Hazard Control
• Manage Sensors • Control Irrigation
• Control Appliances • Security Integration
• Control Audio/Video • Monitor Netcams
• Control Door Locks • Detect Occupancy
• Control Garage Doors • Energy Management

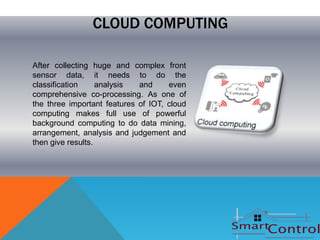

11. CLOUD COMPUTING
After collecting huge and complex front
sensor data, it needs to do the
classification analysis and even
comprehensive co-processing. As one of
the three important features of IOT, cloud
computing makes full use of powerful
background computing to do data mining,
arrangement, analysis and judgement and
then give results.

13. NOW SMART CONTROL CAN
PERFECTLY OPTIMIZE AND
IMPROVE YOUR HOME SYSTEM
Software

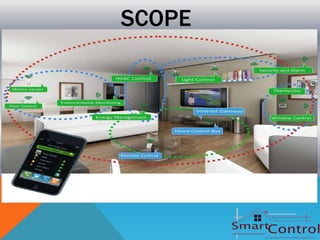

14. SCOPE

15. PRODUCT LINE
• Smart Basic Equipment
• Smart lighting and home appliances
• Smart security sys
• Smart environment and health sys
• Smart Irrigation System

16. SMART
BASIC EQUIPMENT

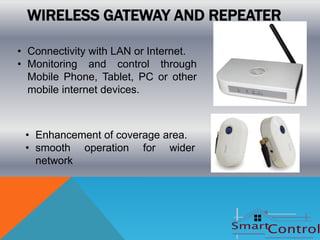

17. WIRELESS GATEWAY AND REPEATER
• Connectivity with LAN or Internet.
• Monitoring and control through
Mobile Phone, Tablet, PC or other
mobile internet devices.
• Enhancement of coverage area.
• smooth operation for wider
network

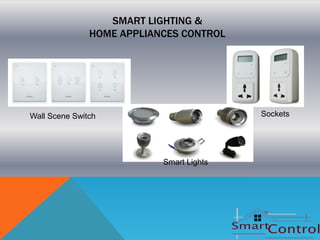

18. SMART LIGHTING &
HOME APPLIANCES CONTROL
Wall Scene Switch Sockets
Smart Lights

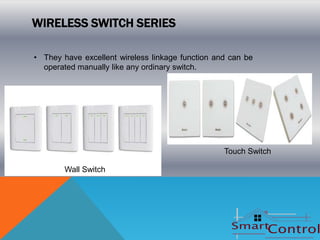

19. WIRELESS SWITCH SERIES
• They have excellent wireless linkage function and can be
operated manually like any ordinary switch.
Touch Switch
Wall Switch

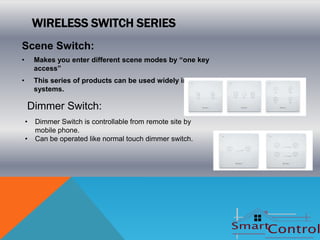

20. WIRELESS SWITCH SERIES
Scene Switch:
• Makes you enter different scene modes by “one key
access”
• This series of products can be used widely in various
systems.
Dimmer Switch:
• Dimmer Switch is controllable from remote site by
mobile phone.
• Can be operated like normal touch dimmer switch.

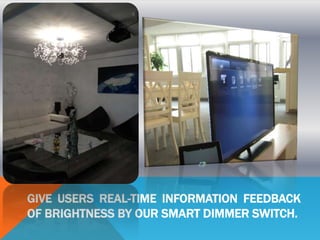

21. GIVE USERS REAL-TIME INFORMATION FEEDBACK
OF BRIGHTNESS BY OUR SMART DIMMER SWITCH.

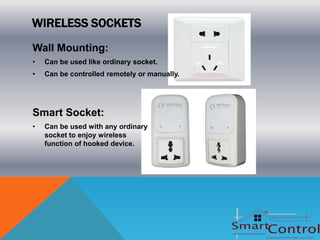

22. WIRELESS SOCKETS
Wall Mounting:
• Can be used like ordinary socket.
• Can be controlled remotely or manually.
Smart Socket:
• Can be used with any ordinary
socket to enjoy wireless
function of hooked device.

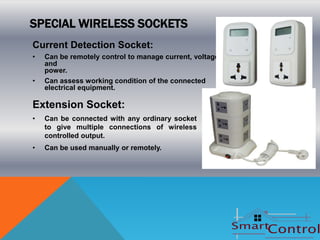

23. SPECIAL WIRELESS SOCKETS
Current Detection Socket:
• Can be remotely control to manage current, voltage
and
power.
• Can assess working condition of the connected
electrical equipment.
Extension Socket:
• Can be connected with any ordinary socket
to give multiple connections of wireless
controlled output.
• Can be used manually or remotely.

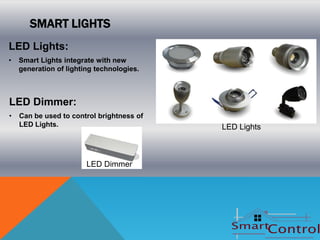

24. SMART LIGHTS
LED Lights:
• Smart Lights integrate with new
generation of lighting technologies.
LED Dimmer:
• Can be used to control brightness of
LED Lights. LED Lights
LED Dimmer

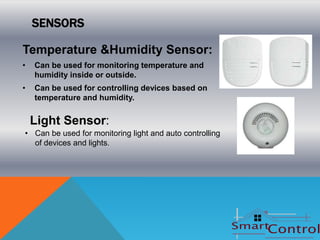

25. SENSORS
Temperature &Humidity Sensor:
• Can be used for monitoring temperature and
humidity inside or outside.
• Can be used for controlling devices based on
temperature and humidity.
Light Sensor:
• Can be used for monitoring light and auto controlling
of devices and lights.

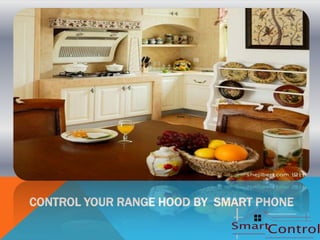

26. CONTROL YOUR RANGE HOOD BY SMART PHONE

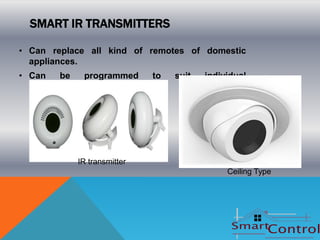

27. SMART IR TRANSMITTERS
• Can replace all kind of remotes of domestic
appliances.
• Can be programmed to suit individual
requirements.
IR transmitter
Ceiling Type

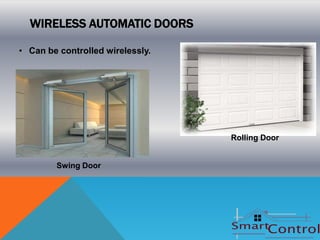

28. WIRELESS AUTOMATIC DOORS
• Can be controlled wirelessly.
Rolling Door
Swing Door

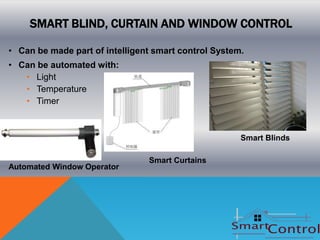

29. SMART BLIND, CURTAIN AND WINDOW CONTROL
• Can be made part of intelligent smart control System.
• Can be automated with:
• Light
• Temperature
• Timer
Smart Blinds
Smart Curtains
Automated Window Operator

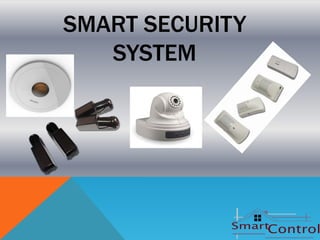

30. SMART SECURITY
SYSTEM

31. VACANT HOME CAPABILITIES:
Feed and watch pets
Water plants
 Interior and Exterior
Presence Simulation
 Lighting, TV, anything –
pre-programmed schedule

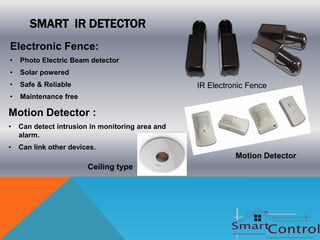

32. SMART IR DETECTOR
Electronic Fence:
• Photo Electric Beam detector
• Solar powered
• Safe & Reliable IR Electronic Fence
• Maintenance free
Motion Detector :
• Can detect intrusion in monitoring area and
alarm.
• Can link other devices.
Motion Detector
Ceiling type

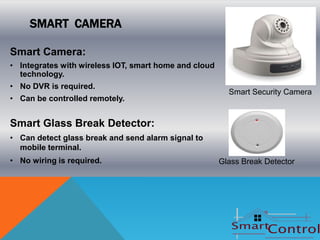

33. SMART CAMERA
Smart Camera:
• Integrates with wireless IOT, smart home and cloud
technology.
• No DVR is required.
Smart Security Camera
• Can be controlled remotely.
Smart Glass Break Detector:
• Can detect glass break and send alarm signal to
mobile terminal.
• No wiring is required. Glass Break Detector

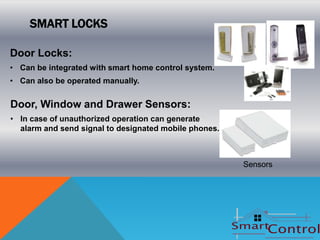

34. SMART LOCKS
Door Locks:
• Can be integrated with smart home control system.
• Can also be operated manually.
Door, Window and Drawer Sensors:
• In case of unauthorized operation can generate
alarm and send signal to designated mobile phones.
Sensors

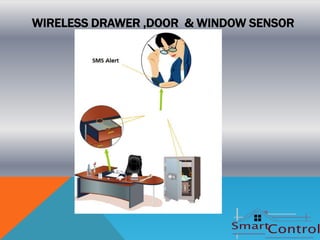

35. WIRELESS DRAWER ,DOOR & WINDOW SENSOR

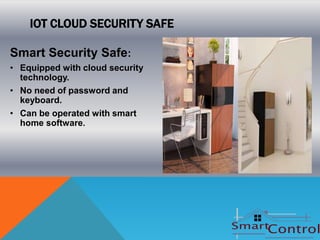

36. IOT CLOUD SECURITY SAFE
Smart Security Safe:
• Equipped with cloud security
technology.
• No need of password and
keyboard.
• Can be operated with smart
home software.

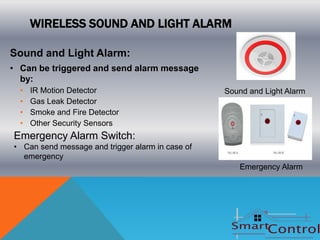

37. WIRELESS SOUND AND LIGHT ALARM
Sound and Light Alarm:
• Can be triggered and send alarm message
by:
• IR Motion Detector Sound and Light Alarm
• Gas Leak Detector
• Smoke and Fire Detector
• Other Security Sensors
Emergency Alarm Switch:
• Can send message and trigger alarm in case of
emergency
Emergency Alarm

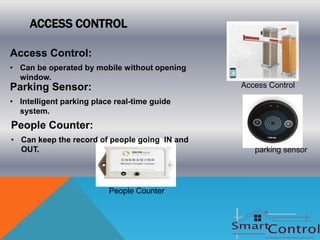

38. ACCESS CONTROL
Access Control:
• Can be operated by mobile without opening
window.
Parking Sensor: Access Control
• Intelligent parking place real-time guide
system.
People Counter:
• Can keep the record of people going IN and
OUT. parking sensor
People Counter

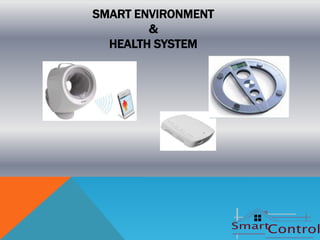

39. SMART ENVIRONMENT
&
HEALTH SYSTEM

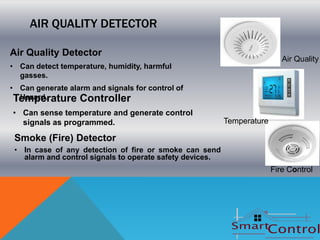

40. AIR QUALITY DETECTOR
Air Quality Detector
Air Quality
• Can detect temperature, humidity, harmful
gasses.
• Can generate alarm and signals for control of
Temperature Controller
Hazard.
• Can sense temperature and generate control
signals as programmed. Temperature
Smoke (Fire) Detector
• In case of any detection of fire or smoke can send
alarm and control signals to operate safety devices.
Fire Control

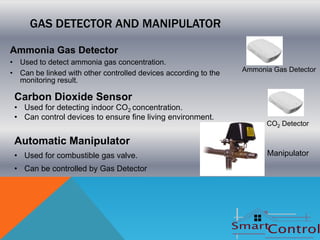

41. GAS DETECTOR AND MANIPULATOR
Ammonia Gas Detector
• Used to detect ammonia gas concentration.
Ammonia Gas Detector
• Can be linked with other controlled devices according to the
monitoring result.
Carbon Dioxide Sensor
• Used for detecting indoor CO2 concentration.
• Can control devices to ensure fine living environment.
CO2 Detector
Automatic Manipulator
• Used for combustible gas valve. Manipulator
• Can be controlled by Gas Detector

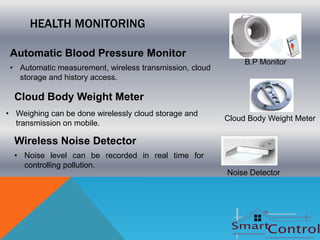

42. HEALTH MONITORING
Automatic Blood Pressure Monitor
B.P Monitor
• Automatic measurement, wireless transmission, cloud
storage and history access.
Cloud Body Weight Meter
• Weighing can be done wirelessly cloud storage and
Cloud Body Weight Meter
transmission on mobile.
Wireless Noise Detector
• Noise level can be recorded in real time for
controlling pollution.
Noise Detector

43. SMART CONTROL
IRRIGATION SYSTEM

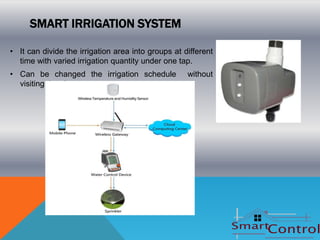

44. SMART IRRIGATION SYSTEM
• It can divide the irrigation area into groups at different
time with varied irrigation quantity under one tap.
• Can be changed the irrigation schedule without
visiting the site.

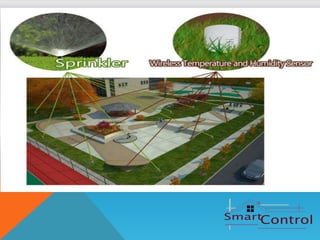

48. SUPERIOR CARE OF LAWN

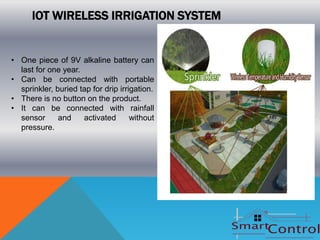

49. IOT WIRELESS IRRIGATION SYSTEM
• One piece of 9V alkaline battery can
last for one year.
• Can be connected with portable
sprinkler, buried tap for drip irrigation.
• There is no button on the product.
• It can be connected with rainfall
sensor and activated without
pressure.

50. CONTACT US
Web: http://www.smartcontrol.pk
Face Book: http://www.facebook.com/smartcontrol.pk
Email: control@smartcontrol.pk
Address: 24-C, Street # 27
Margalla View Housing Scheme
D-17/2, Islamabad Pakistan
Phone: +92-51-2576789; +92-323-8556644

51. THANK YOU
