The IS216 and IS216T are passive infrared motion sensors that offer quality detection in an attractive white housing. They feature temperature compensation, microprocessor control, and adjustable sensitivity levels. The IS216T additionally contains a tamper switch. Both sensors are flexible to install, mounting easily on walls or corners, and provide coverage of 40' x 40' with wide angle detection zones.

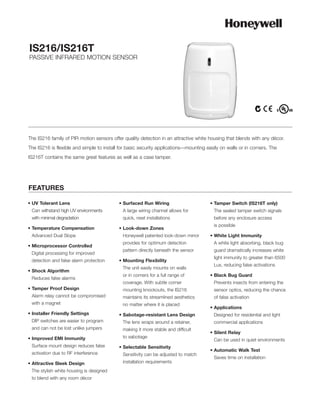

1. IS216/IS216T
PASSIVE INFRARED MOTION SENSOR
The IS216 family of PIR motion sensors offer quality detection in an attractive white housing that blends with any décor.
The IS216 is flexible and simple to install for basic security applications—mounting easily on walls or in corners. The
IS216T contains the same great features as well as a case tamper.
FEATURES
• UV Tolerant Lens • Surfaced Run Wiring • Tamper Switch (IS216T only)
Can withstand high UV environments A large wiring channel allows for The sealed tamper switch signals
with minimal degradation quick, neat installations before any enclosure access
is possible
• Temperature Compensation • Look-down Zones
Advanced Dual Slope Honeywell patented look-down mirror • White Light Immunity
provides for optimum detection A white light absorbing, black bug
• Microprocessor Controlled
pattern directly beneath the sensor guard dramatically increases white
Digital processing for improved
light immunity to greater than 6500
detection and false alarm protection • Mounting Flexibility
Lux, reducing false activations
The unit easily mounts on walls
• Shock Algorithm
or in corners for a full range of • Black Bug Guard
Reduces false alarms
coverage. With subtle corner Prevents insects from entering the
• Tamper Proof Design mounting knockouts, the IS216 sensor optics, reducing the chance
Alarm relay cannot be compromised maintains its streamlined aesthetics of false activation
with a magnet no matter where it is placed
• Applications
• Installer Friendly Settings • Sabotage-resistant Lens Design Designed for residential and light
DIP switches are easier to program The lens wraps around a retainer, commercial applications
and can not be lost unlike jumpers making it more stable and difficult
• Silent Relay
• Improved EMI Immunity to sabotage
Can be used in quiet environments
Surface mount design reduces false • Selectable Sensitivity
• Automatic Walk Test
activation due to RF interference Sensitivity can be adjusted to match
Saves time on installation
• Attractive Sleek Design installation requirements
The stylish white housing is designed
to blend with any room décor

2. IS216/IS216T
PASSIVE INFRARED MOTION SENSOR

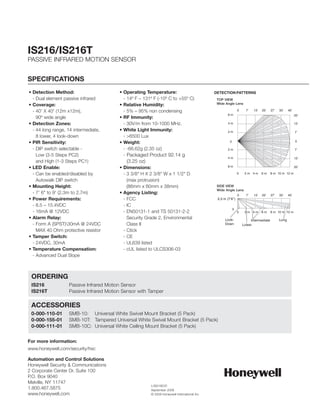

SPECIFICATIONS
• Detection Method: • Operating Temperature: DETECTION PATTERNS
- Dual element passive infrared - 14º F – 131º F (-10º C to +55º C) TOP VIEW
• Coverage: • Relative Humidity: Wide Angle Lens
- 40' X 40' (12m x12m), - 5% – 95% non condensing
90º wide angle • RF Immunity:
• Detection Zones: - 30V/m from 10-1000 MHz.
- 44 long range, 14 intermediate, • White Light Immunity:
8 lower, 4 look-down - >6500 Lux
• PIR Sensitivity: • Weight:
- DIP switch selectable - - -66.62g (2.35 oz)
Low (3-5 Steps PC2) - Packaged Product 92.14 g
and High (1-3 Steps PC1) (3.25 oz)
• LED Enable: • Dimensions:
- Can be enabled/disabled by - 3 3/8" H X 2 3/8" W x 1 1/2" D
Autowalk DIP switch (max protrusion)
• Mounting Height: (86mm x 60mm x 38mm) SIDE VIEW
Wide Angle Lens
- 7' 6" to 9' (2.3m to 2.7m) • Agency Listing:
• Power Requirements: - FCC
- 8.5 – 15.4VDC - IC
- 16mA @ 12VDC - EN50131-1 and TS 50131-2-2
• Alarm Relay: Security Grade 2, Environmental
- Form A (SPST)30mA @ 24VDC Class II
MAX 40 Ohm protective resistor - Ctick
• Tamper Switch: - CE
- 24VDC, 30mA - UL639 listed
• Temperature Compensation: - cUL listed to ULCS306-03
- Advanced Dual Slope
ORDERING
IS216 Passive Infrared Motion Sensor
IS216T Passive Infrared Motion Sensor with Tamper
ACCESSORIES
0-000-110-01 SMB-10: Universal White Swivel Mount Bracket (5 Pack)
0-000-155-01 SMB-10T: Tampered Universal White Swivel Mount Bracket (5 Pack)
0-000-111-01 SMB-10C: Universal White Ceiling Mount Bracket (5 Pack)
