RTI QuickStart Training
Build it Fast:
5 Steps from Concept to Working
Distributed System
Rajive Joshi, Ph.D.
Principal Solution Architect
Webinar
Real-Time Innovations Inc.
September 25, 2013
Once Upon a Late Night …

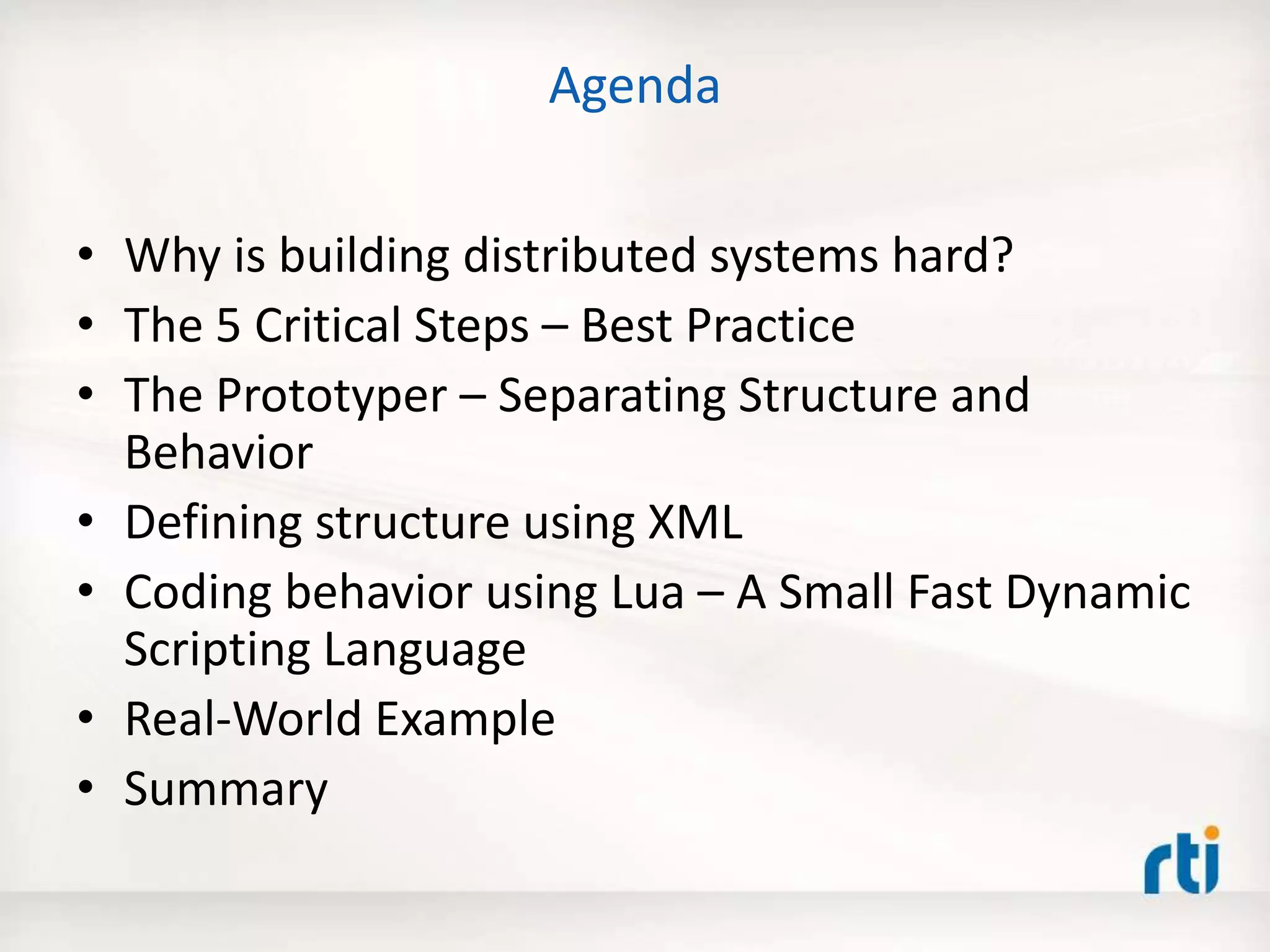

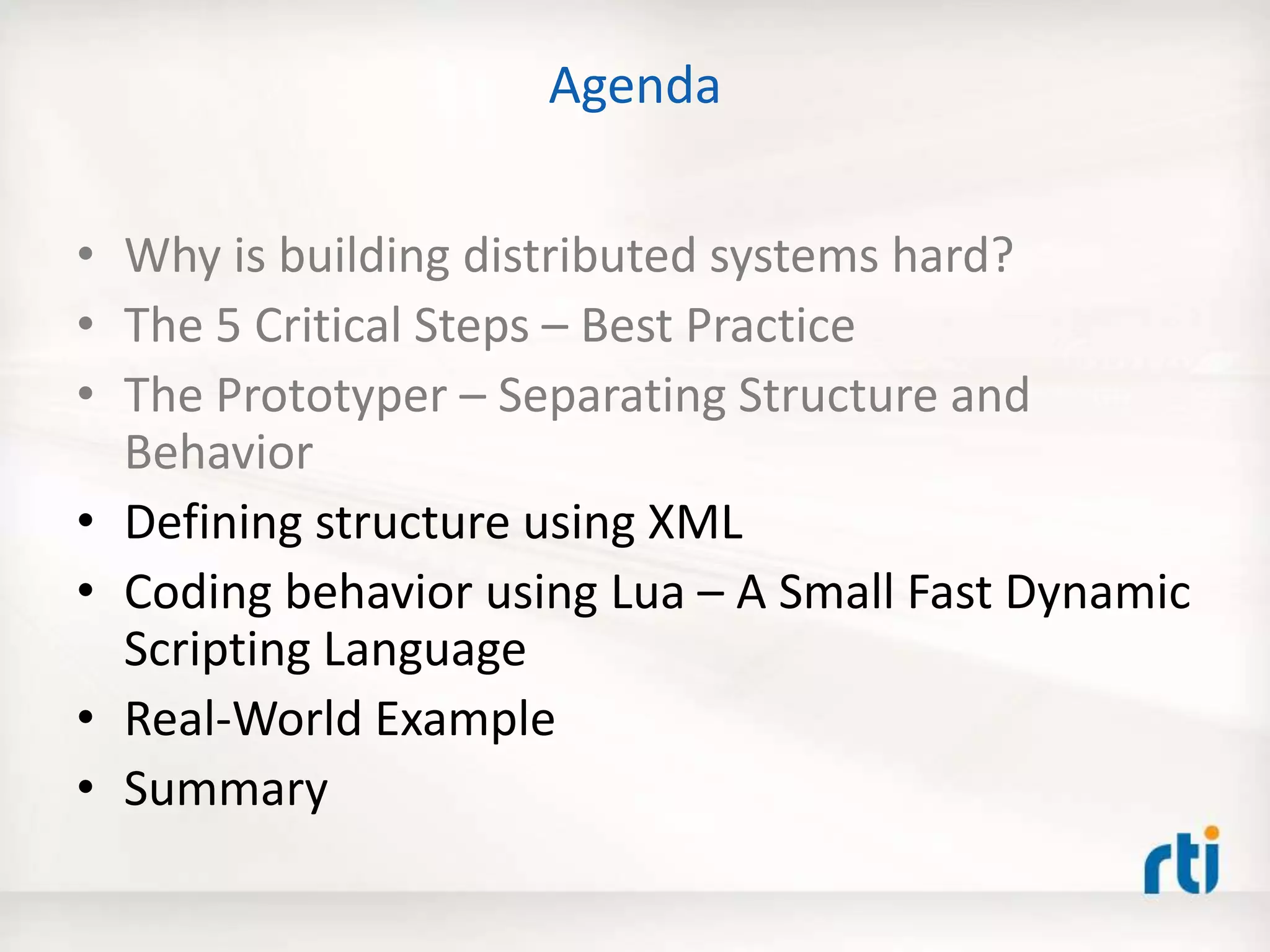

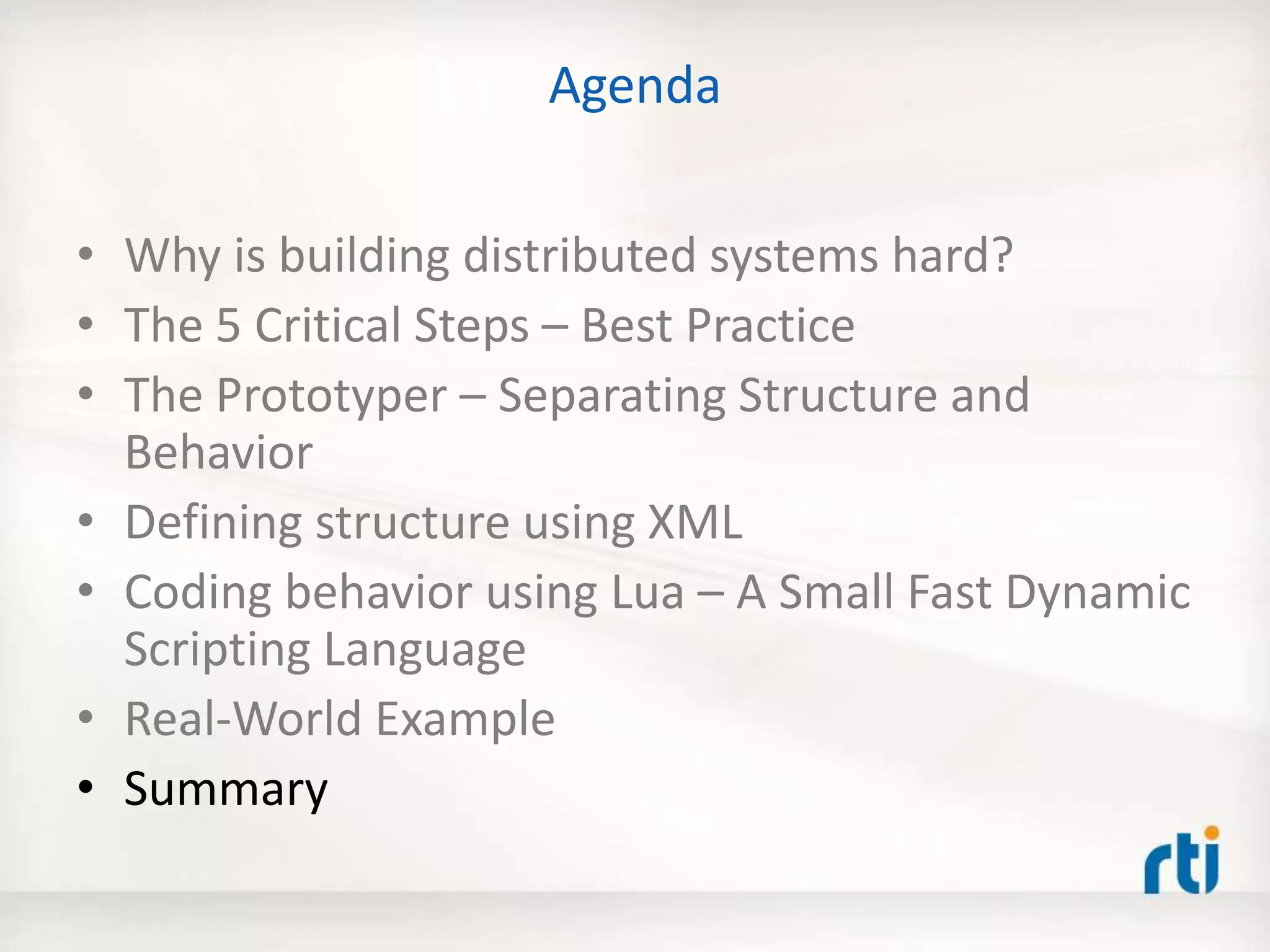

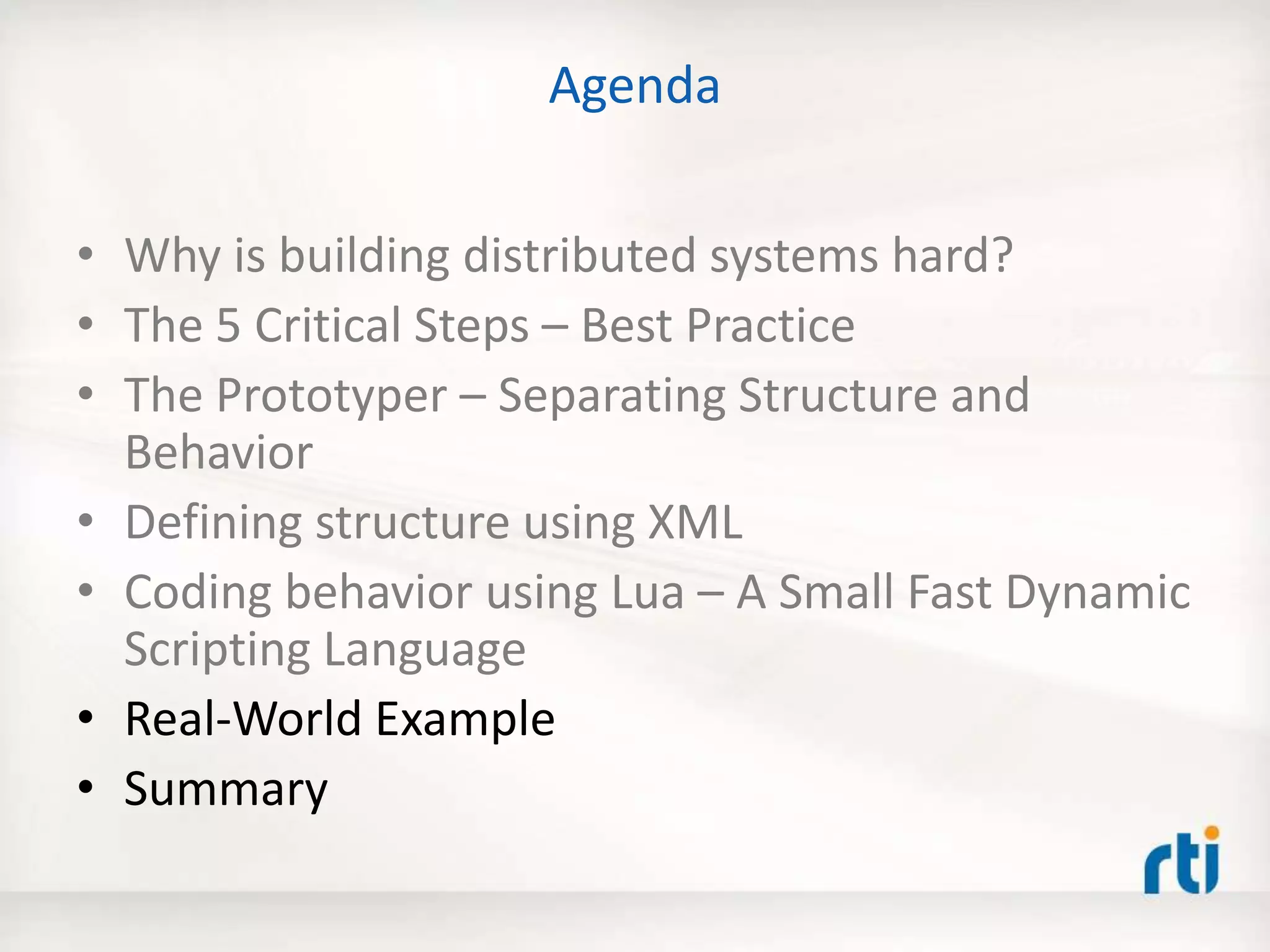

Agenda
• Why is building distributed systems hard?
• The 5 Critical Steps – Best Practice
• The Prototyper – Separating Structure and
Behavior

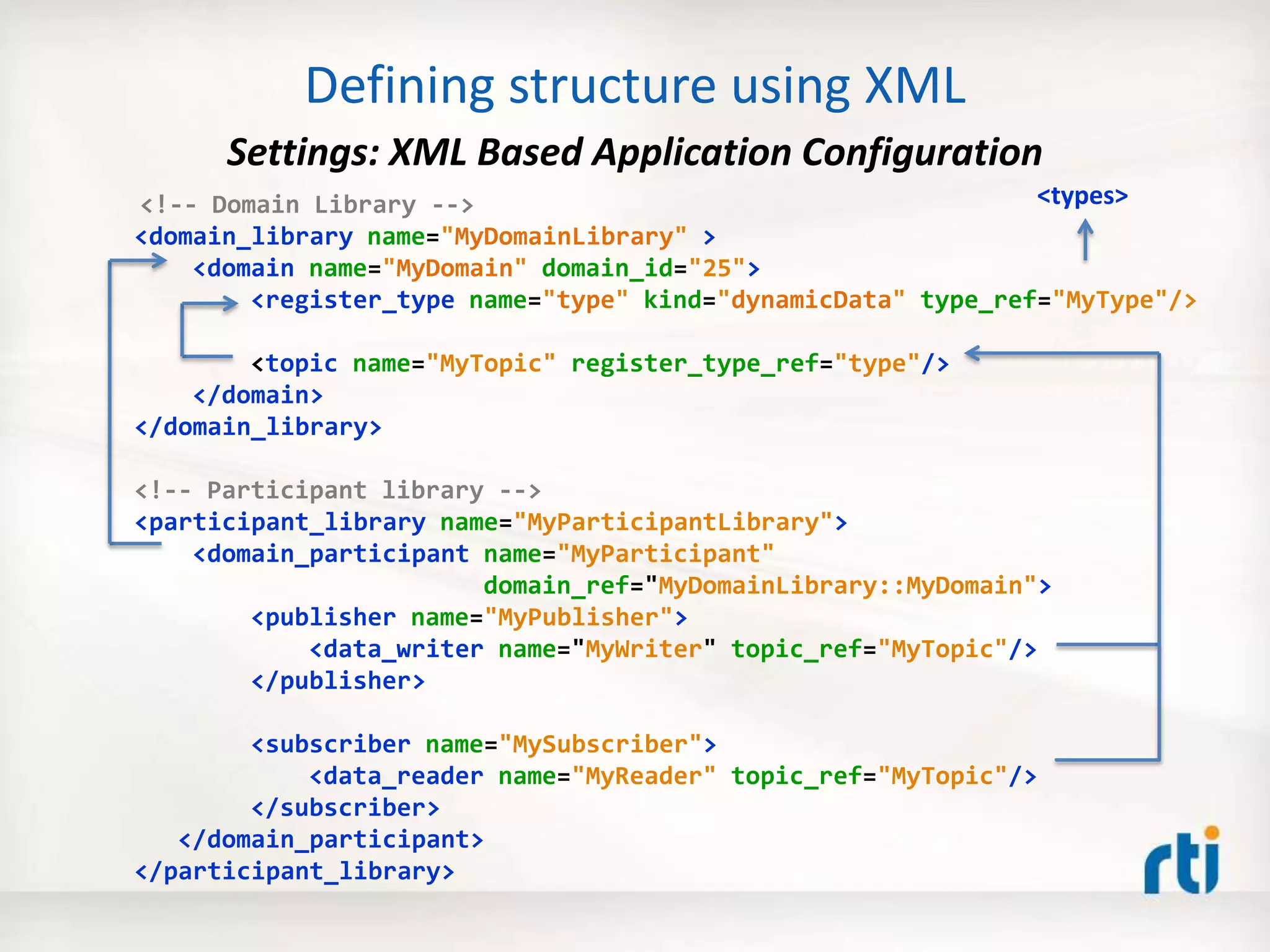

• Defining structure using XML
• Coding behavior using Lua – A Small Fast Dynamic
Scripting Language

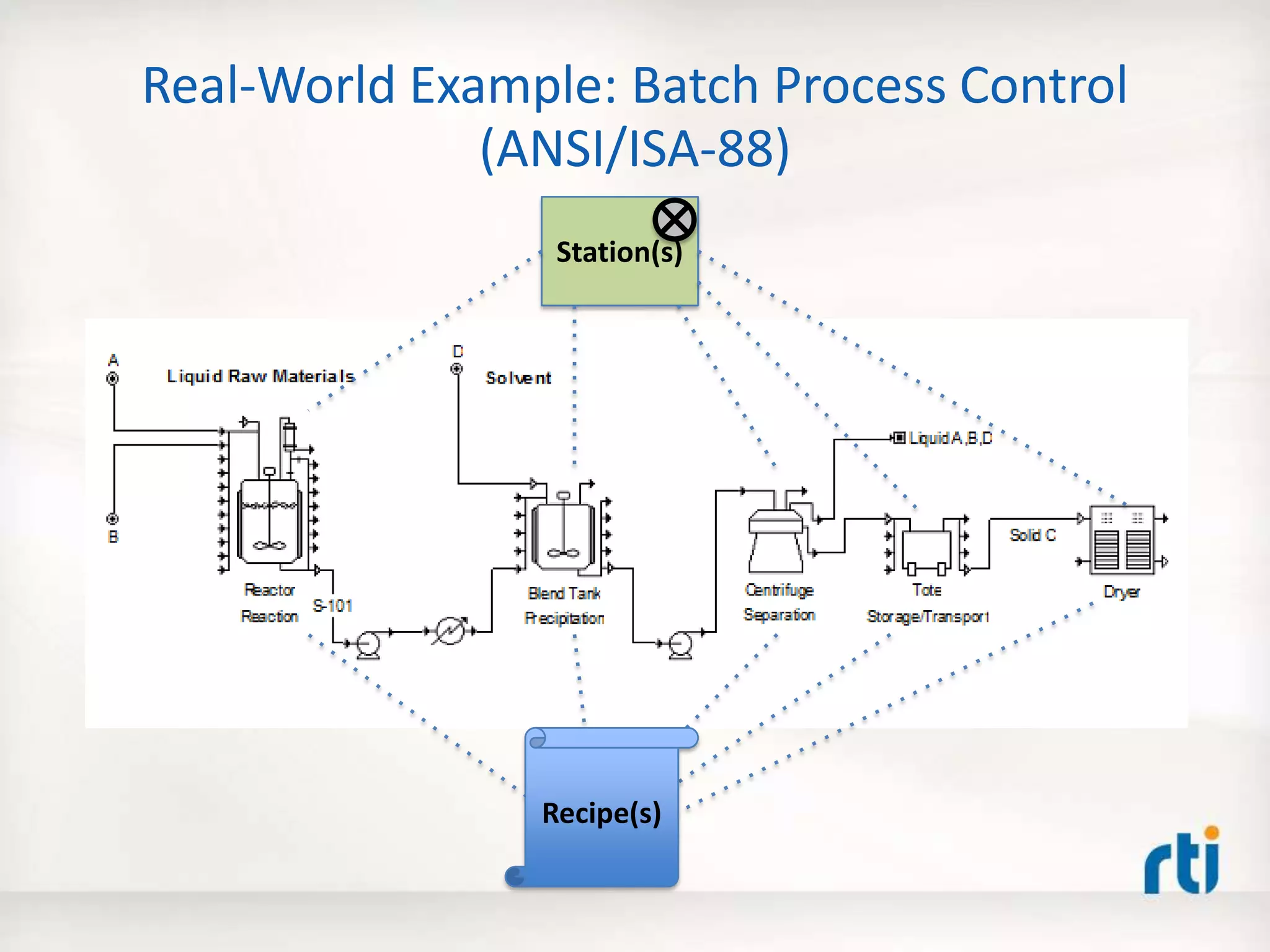

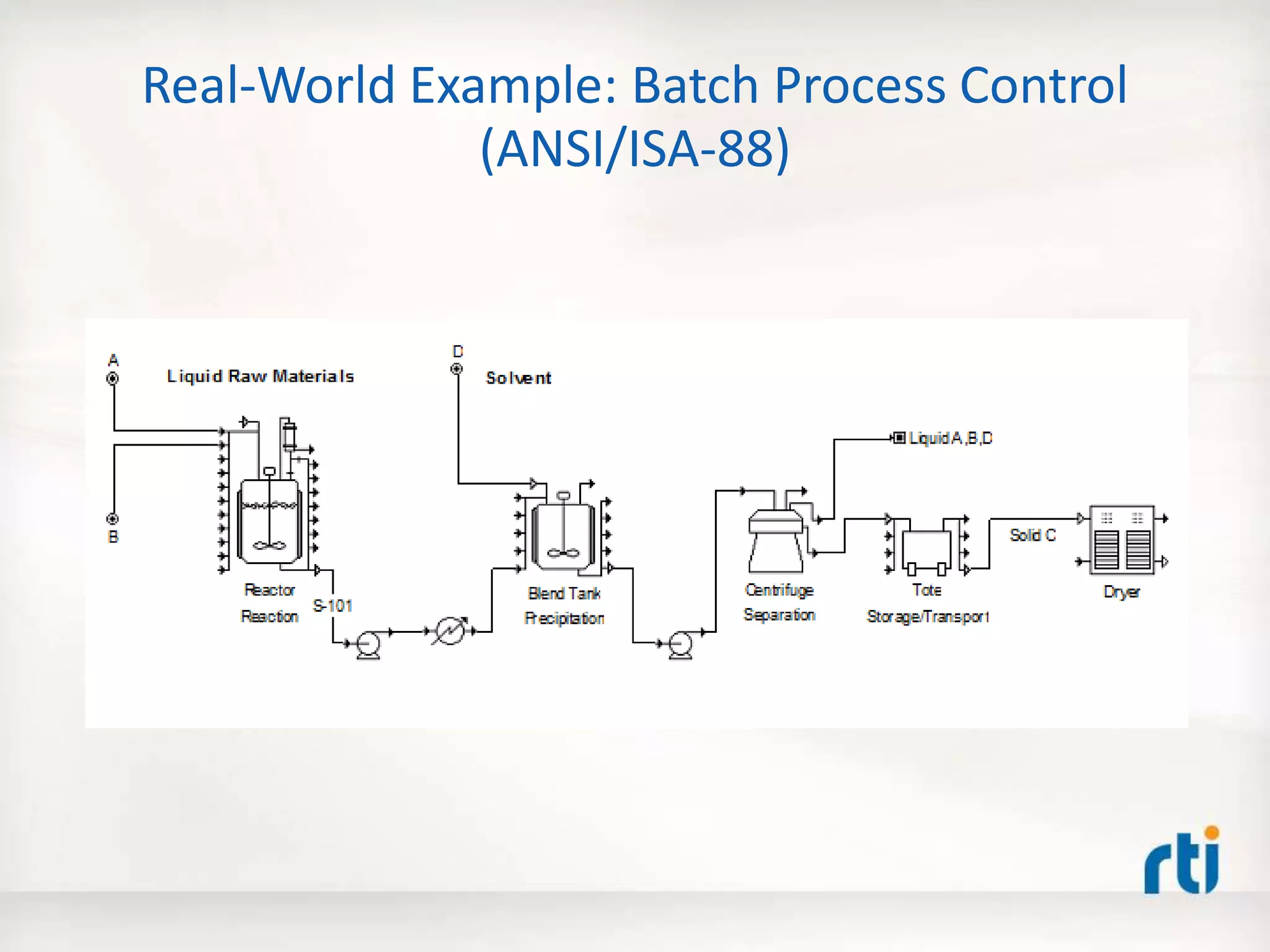

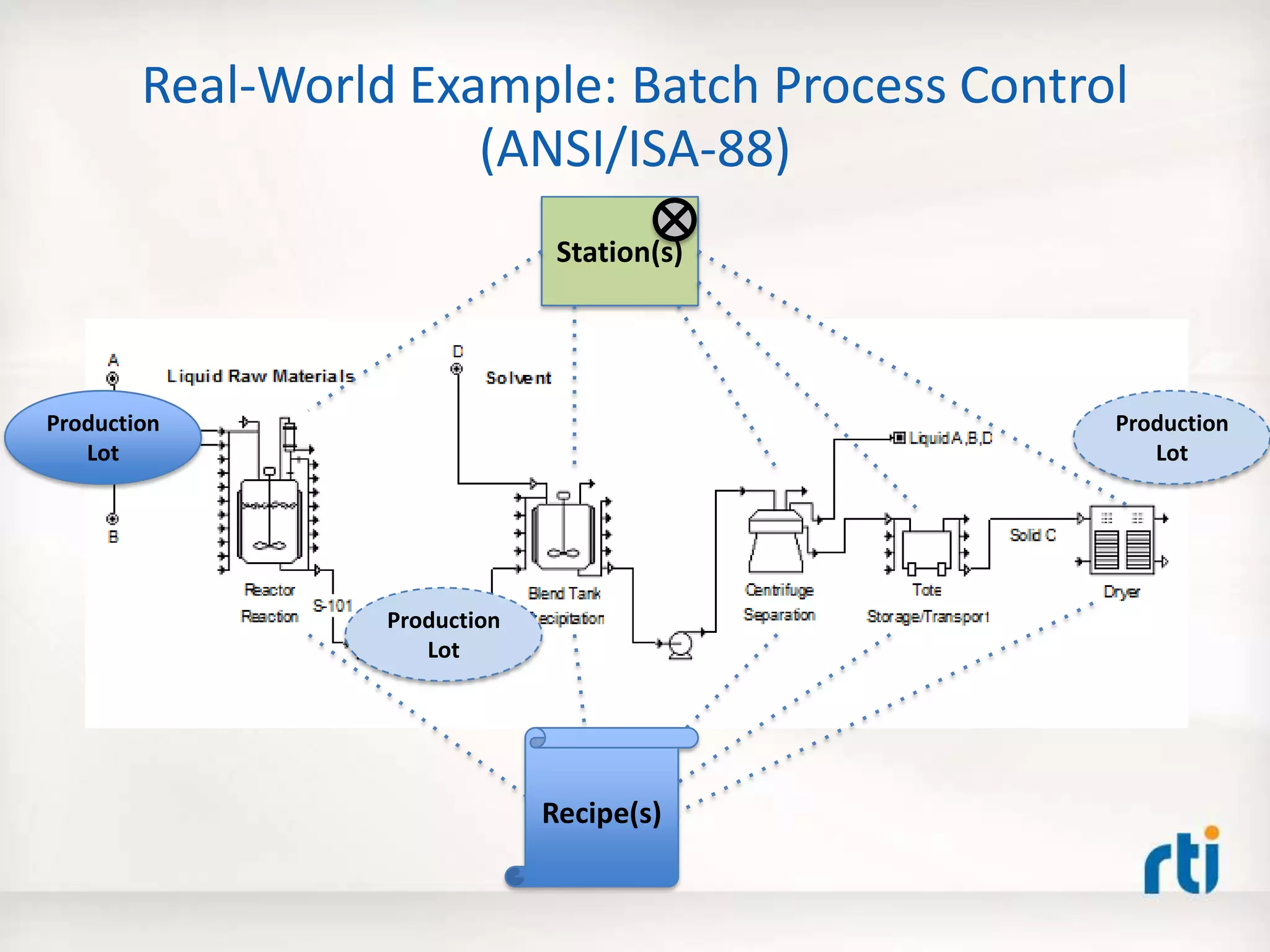

• Real-World Example
• Summary

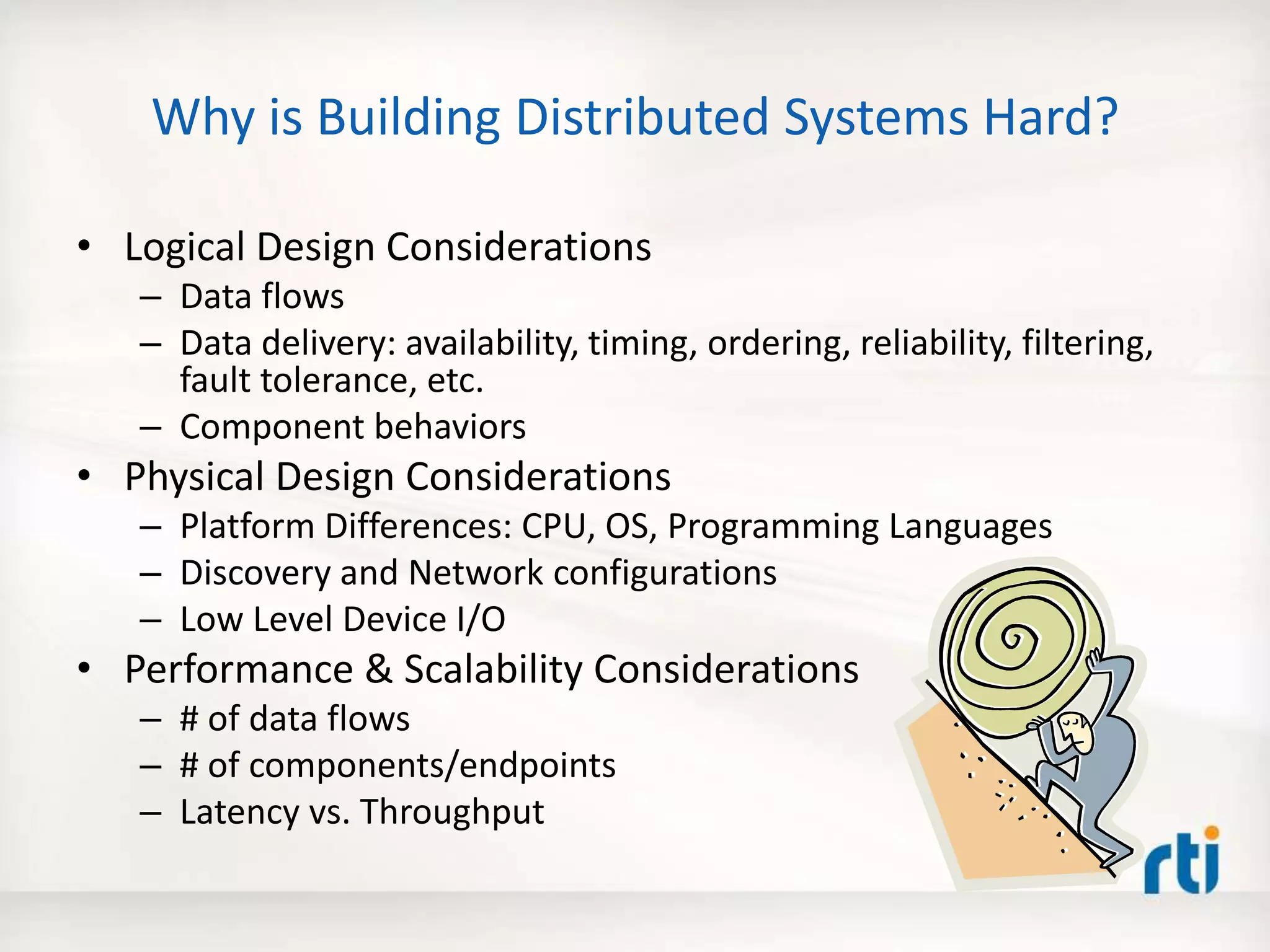

Why is Building Distributed Systems Hard?
• Logical Design Considerations
– Data flows
– Data delivery: availability, timing, ordering, reliability, filtering,
fault tolerance, etc.
– Component behaviors
• Physical Design Considerations
– Platform Differences: CPU, OS, Programming Languages
– Discovery and Network configurations

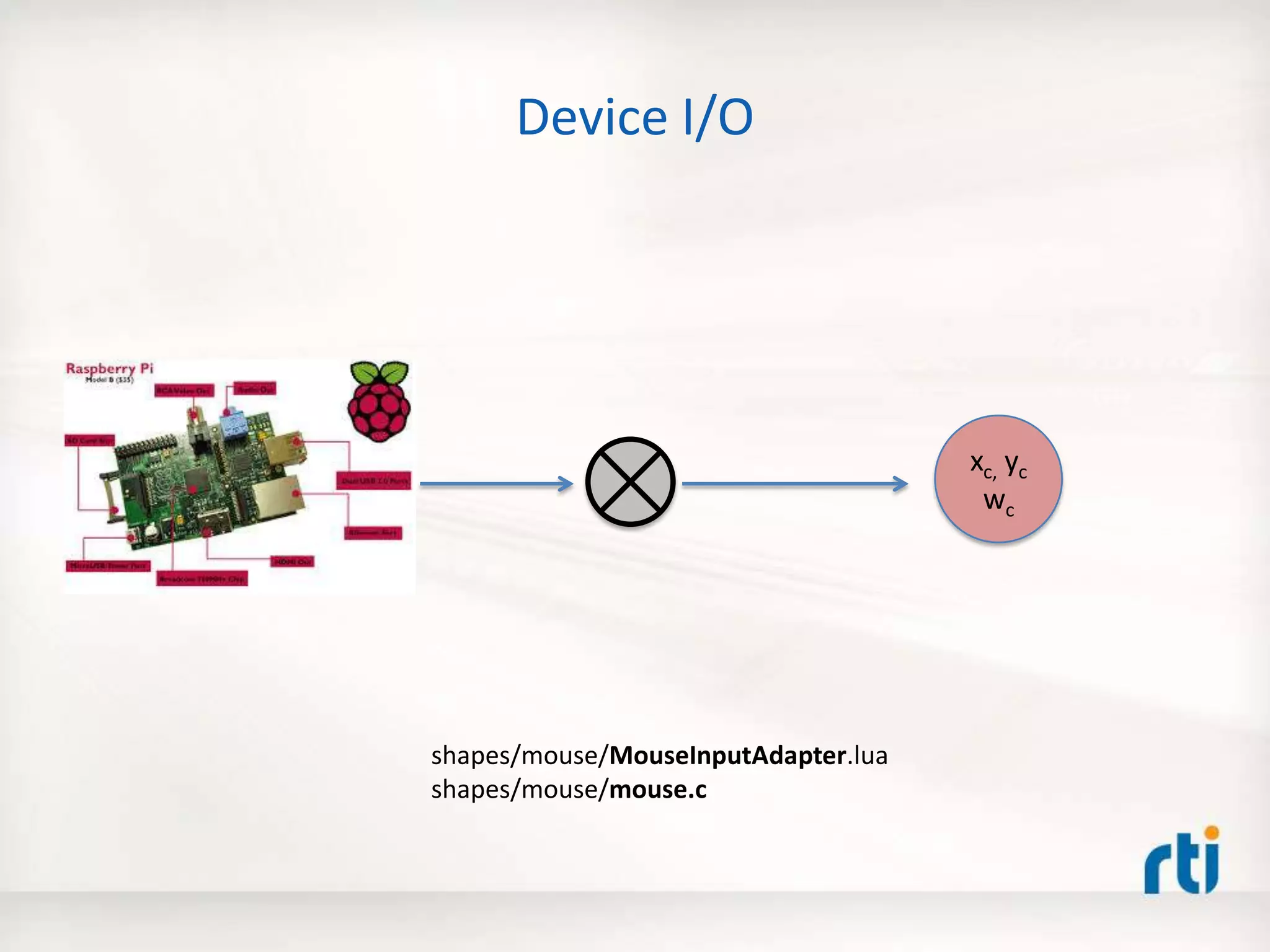

– Low Level Device I/O
• Performance & Scalability Considerations
– # of data flows
– # of components/endpoints
– Latency vs. Throughput

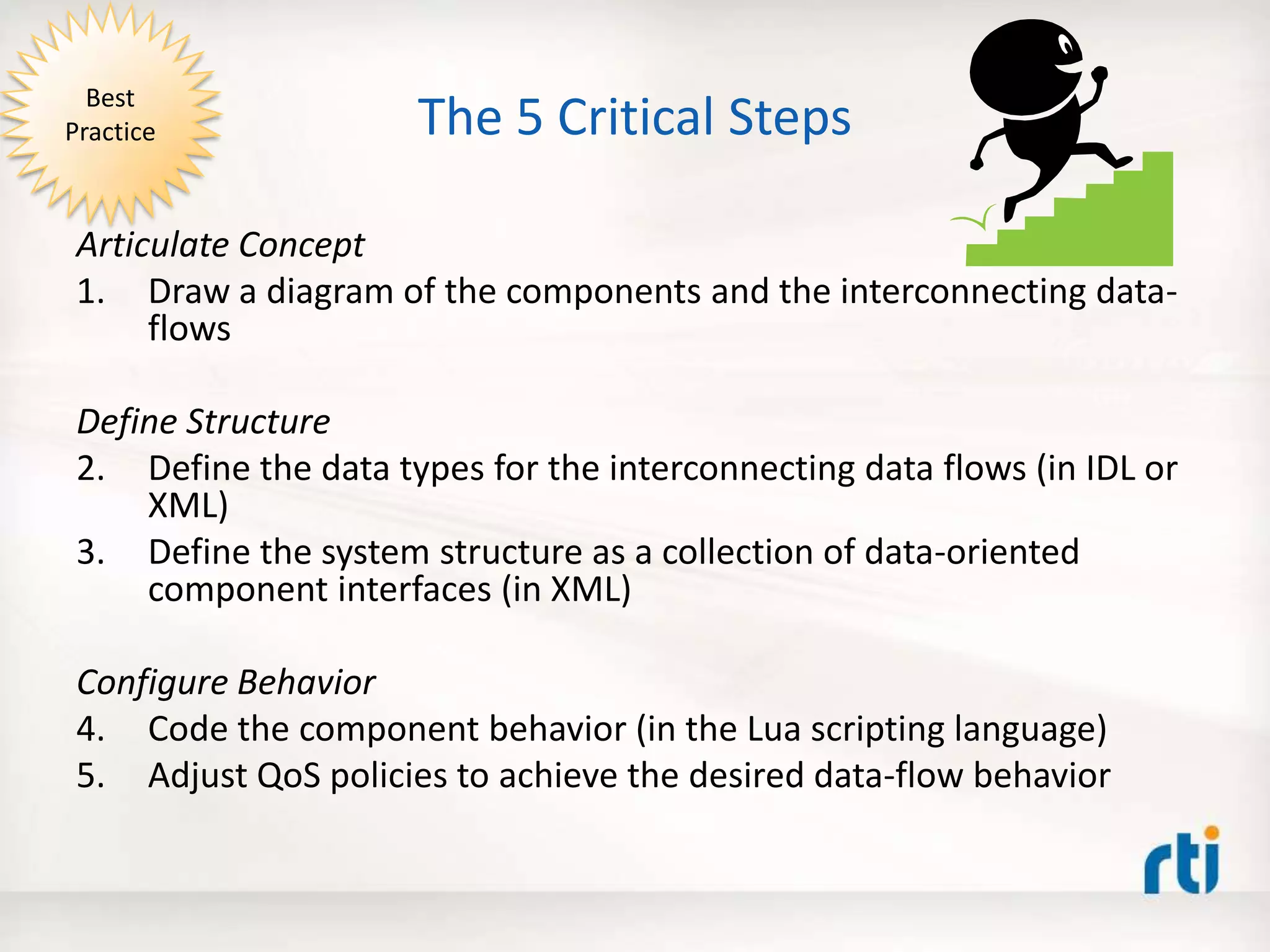

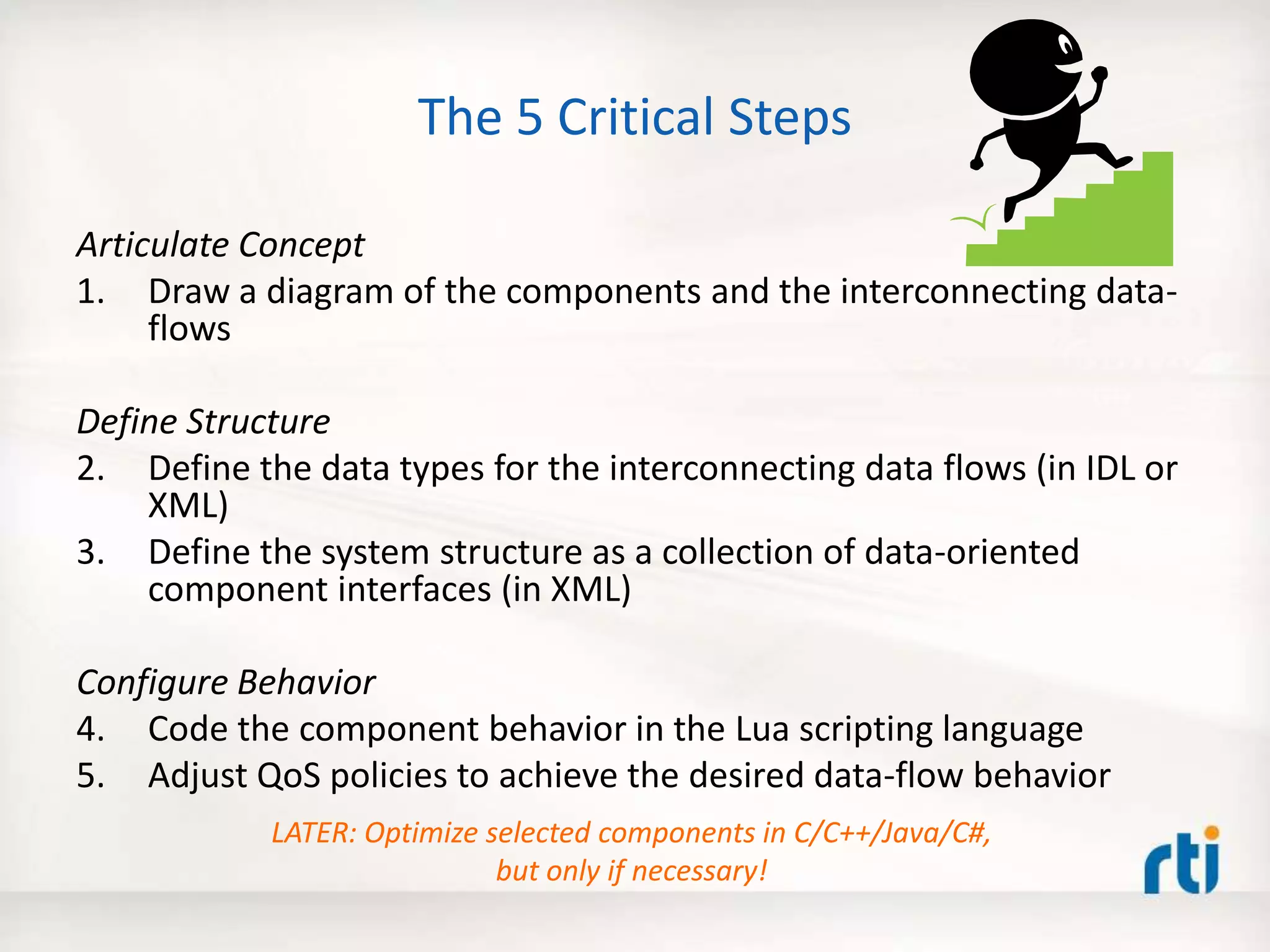

The 5 Critical Steps
Articulate Concept

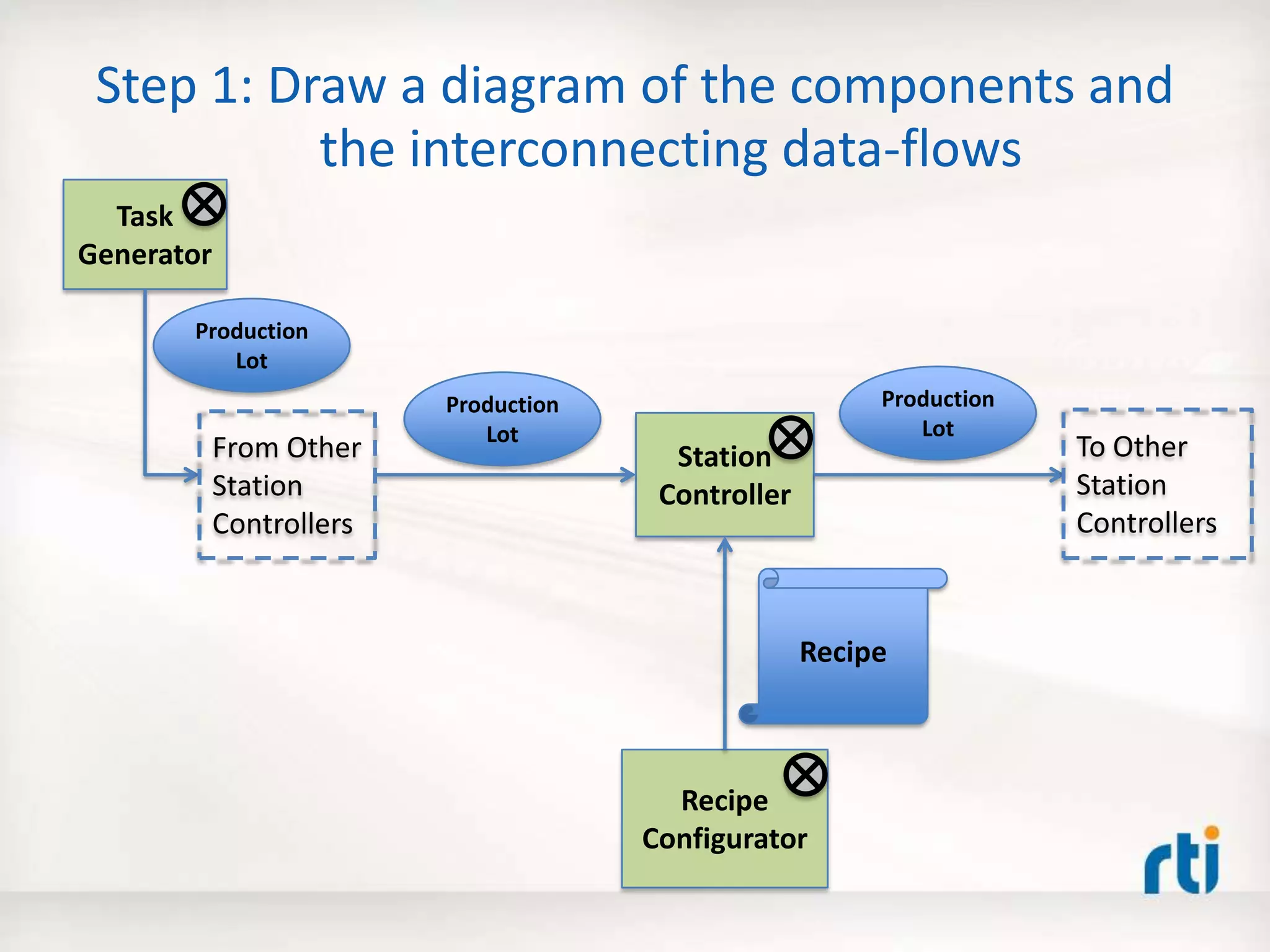

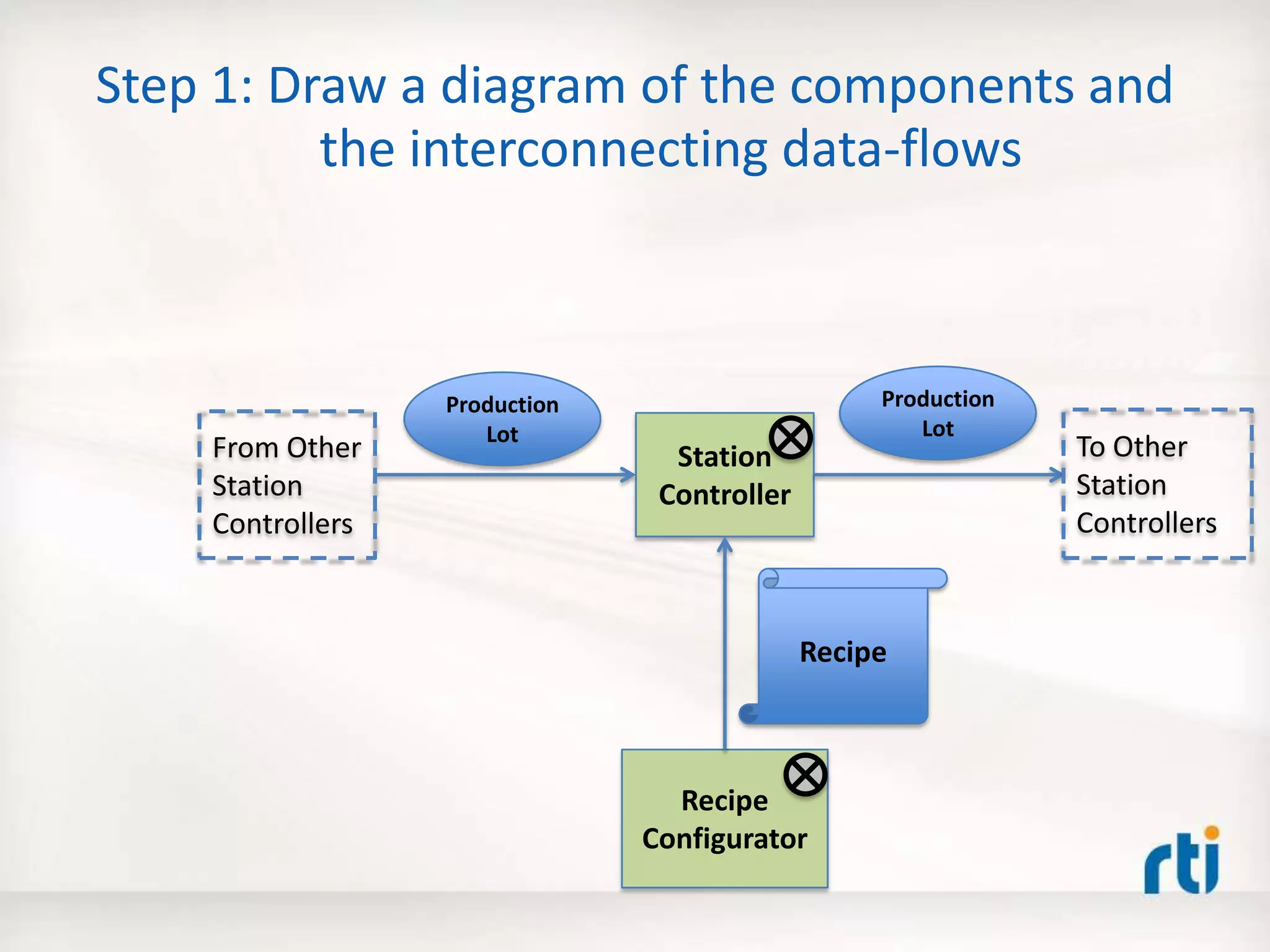

1. Draw a diagram of the components and the interconnecting data-
flows
Define Structure

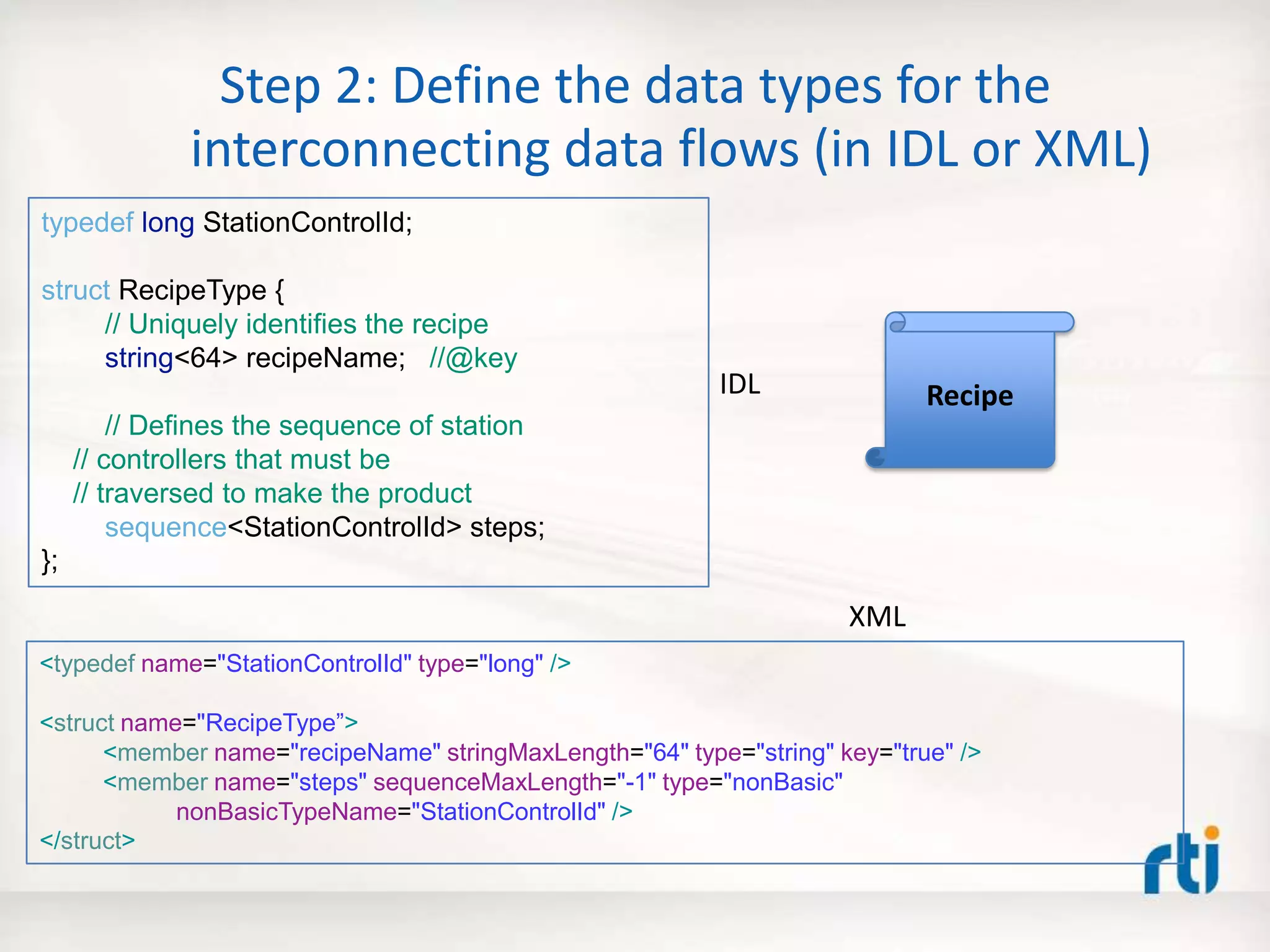

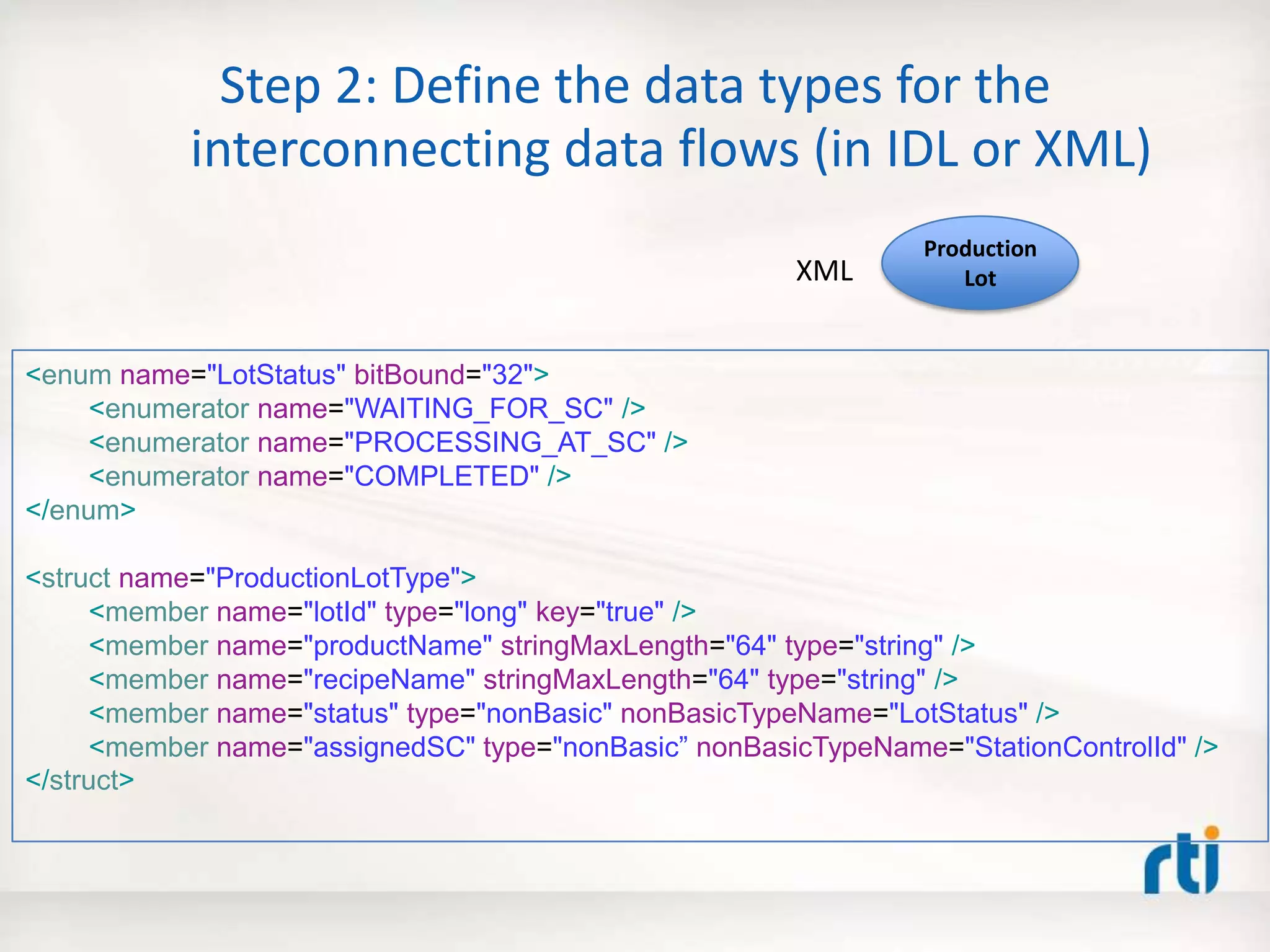

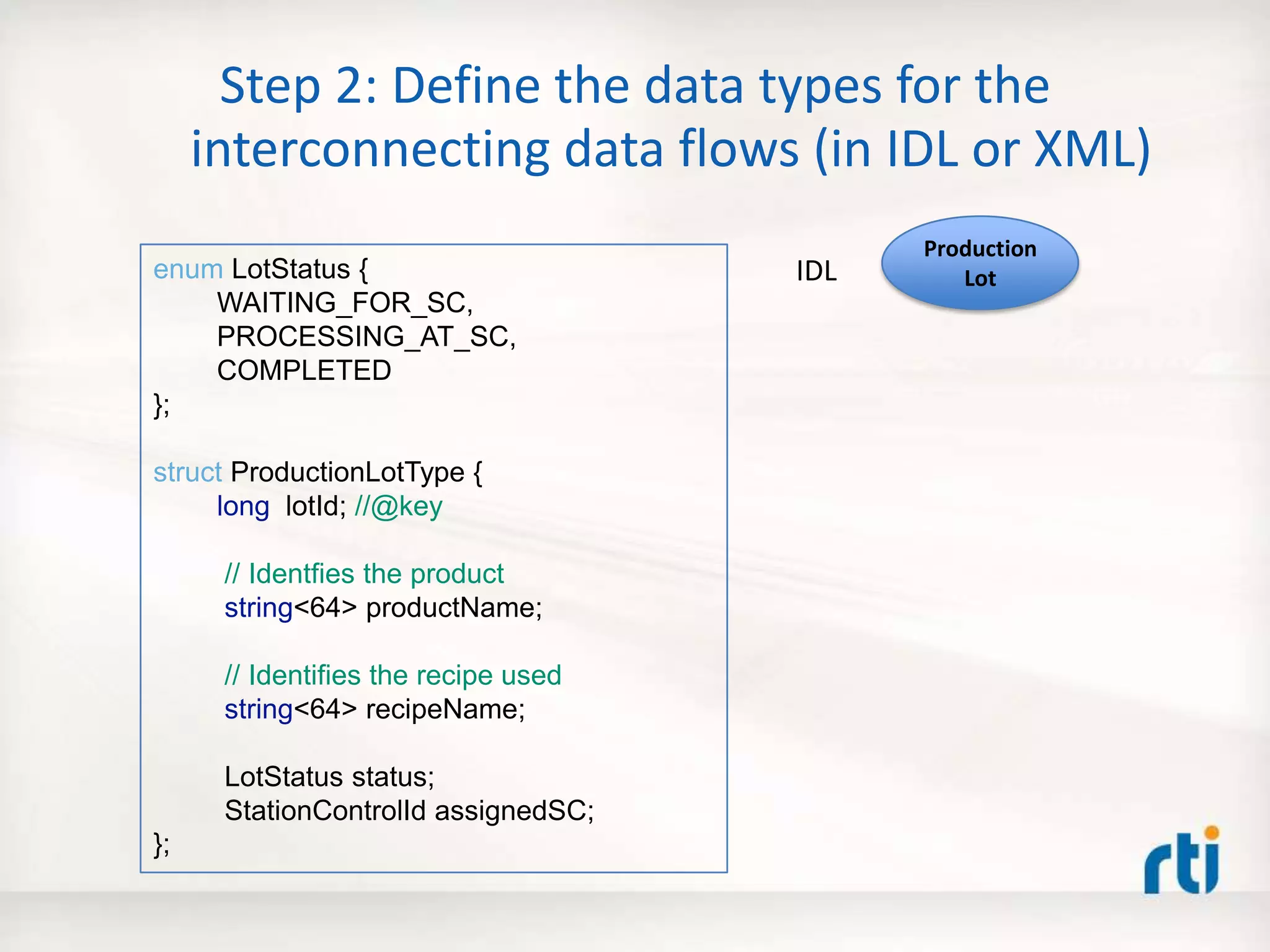

2. Define the data types for the interconnecting data flows (in IDL or
XML)

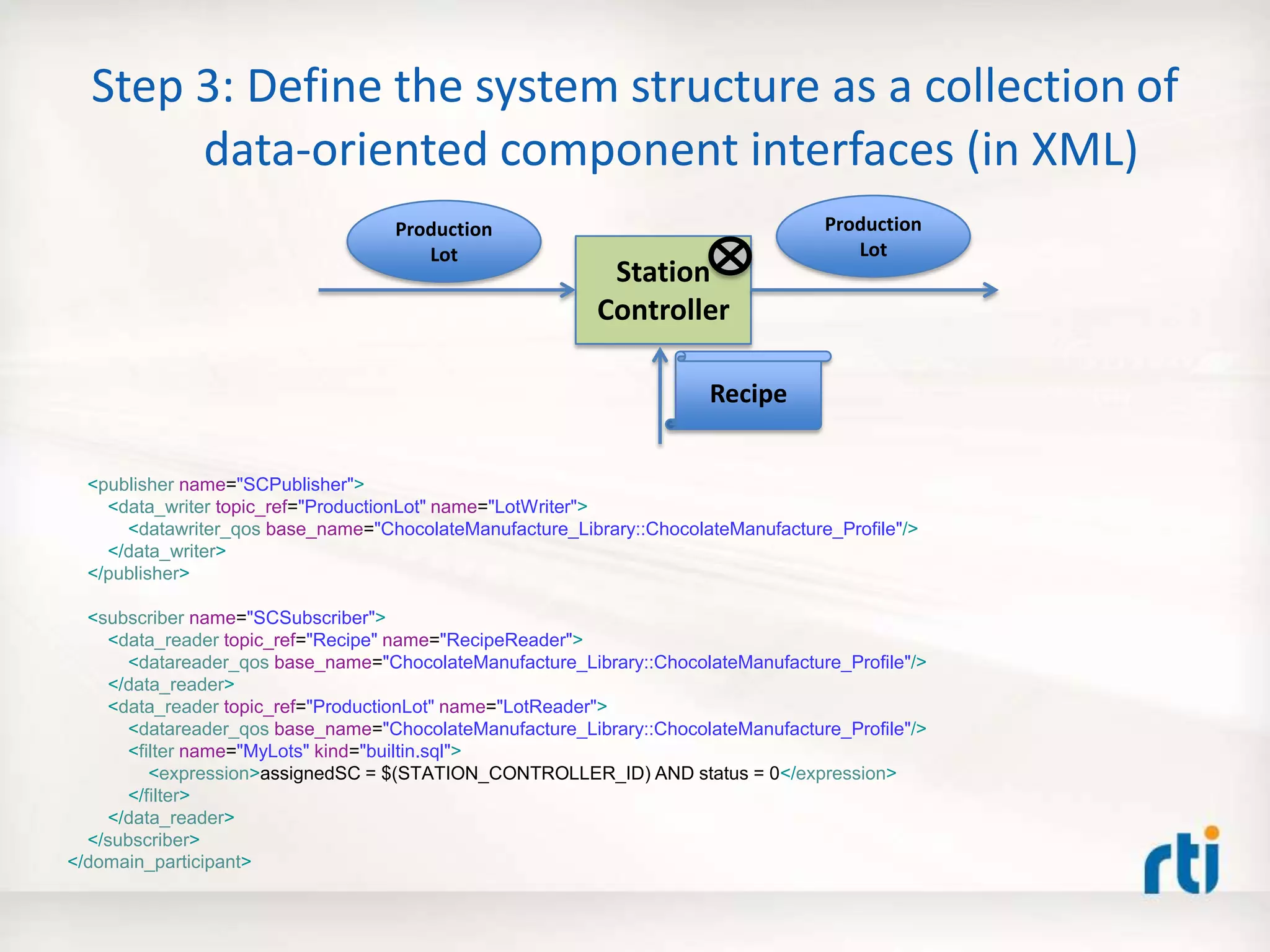

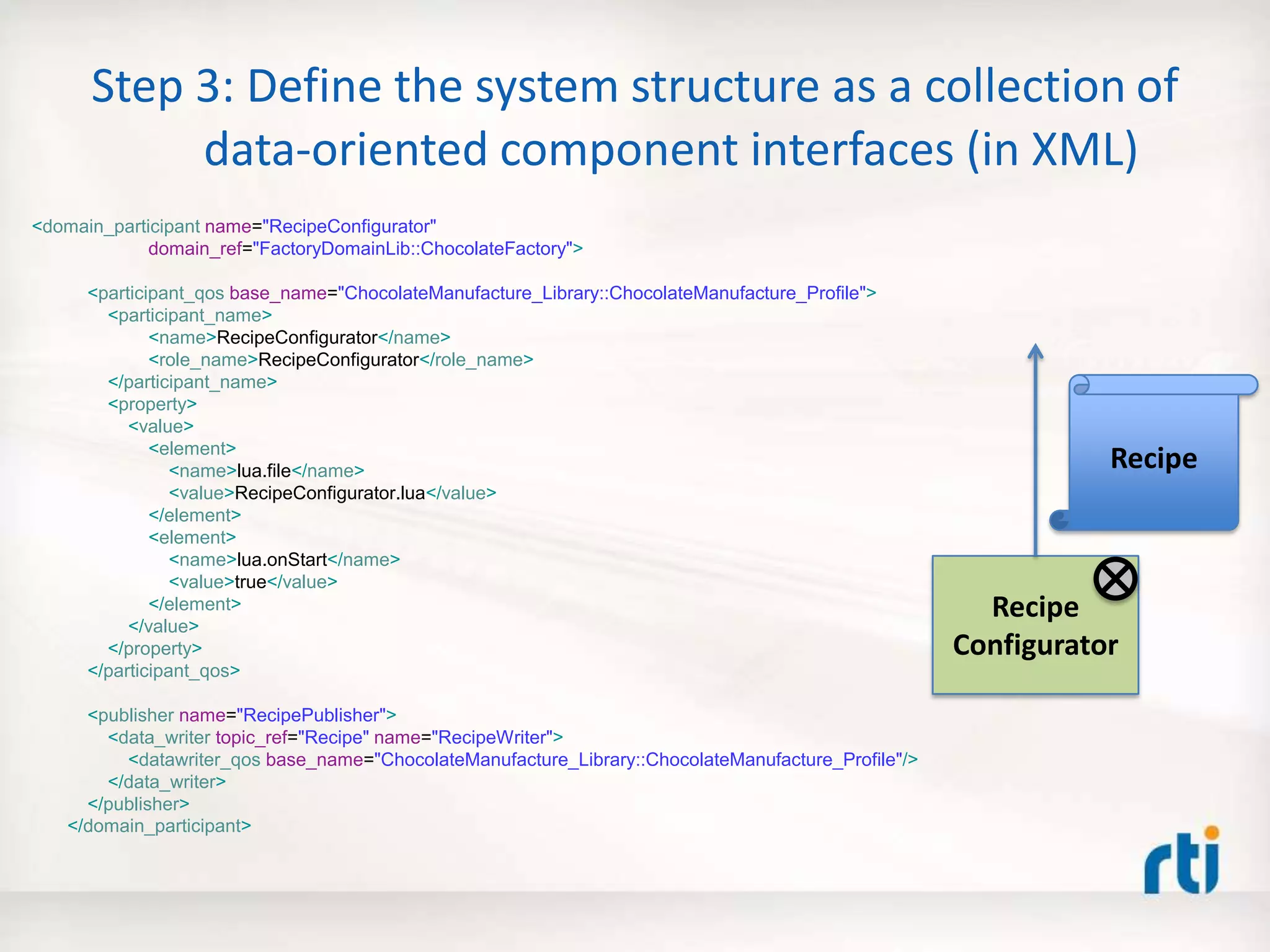

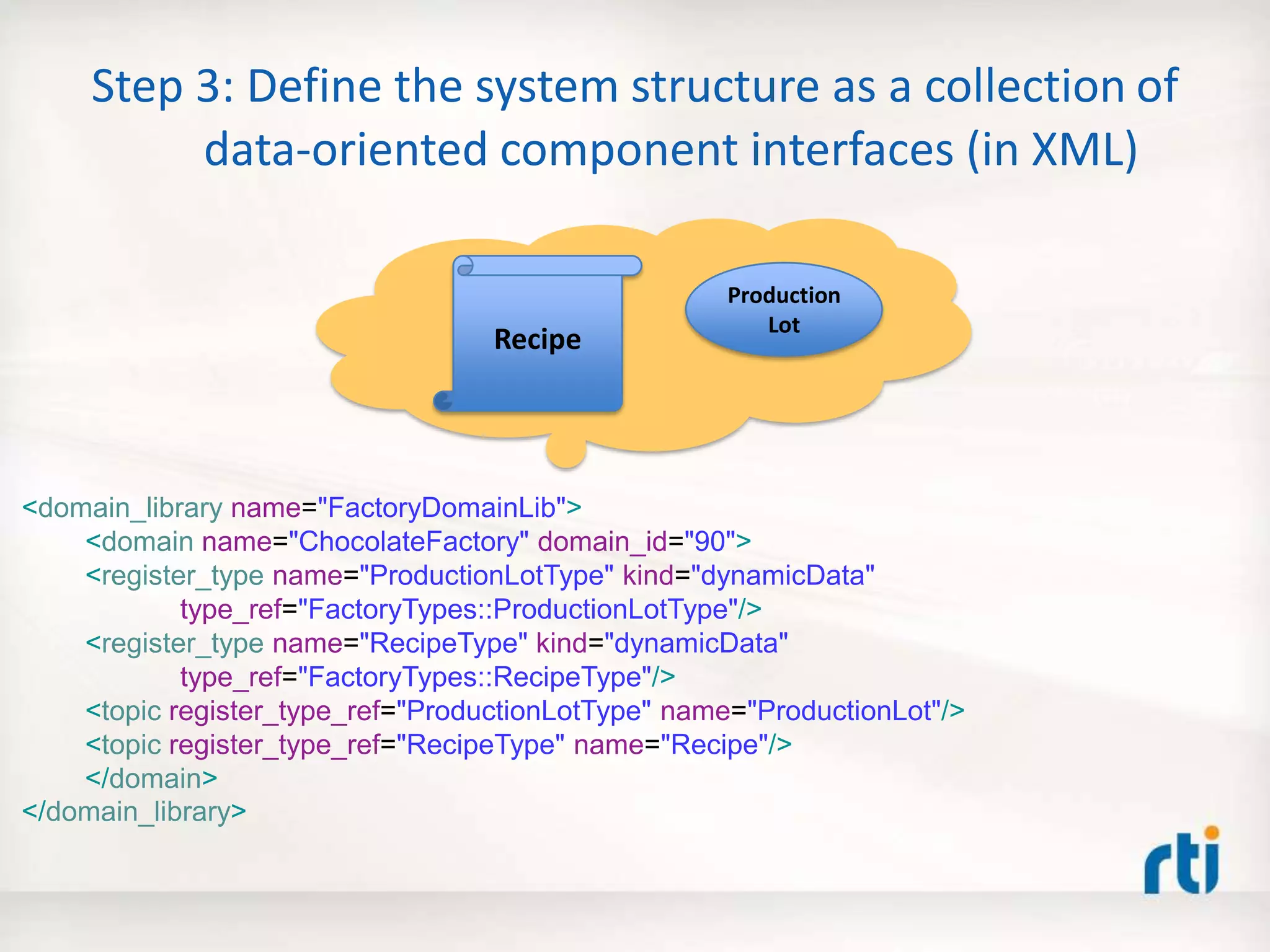

3. Define the system structure as a collection of data-oriented
component interfaces (in XML)
Configure Behavior

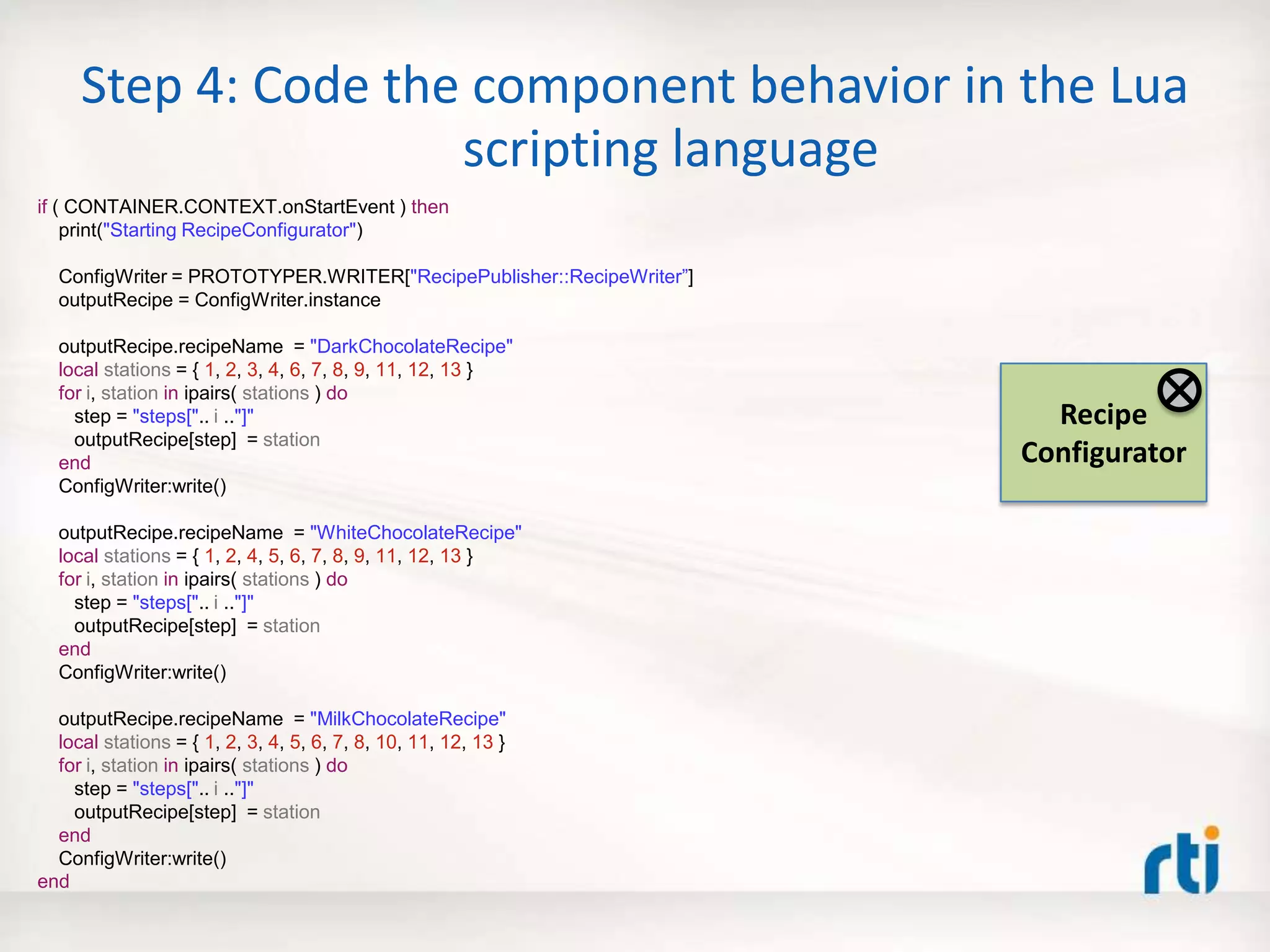

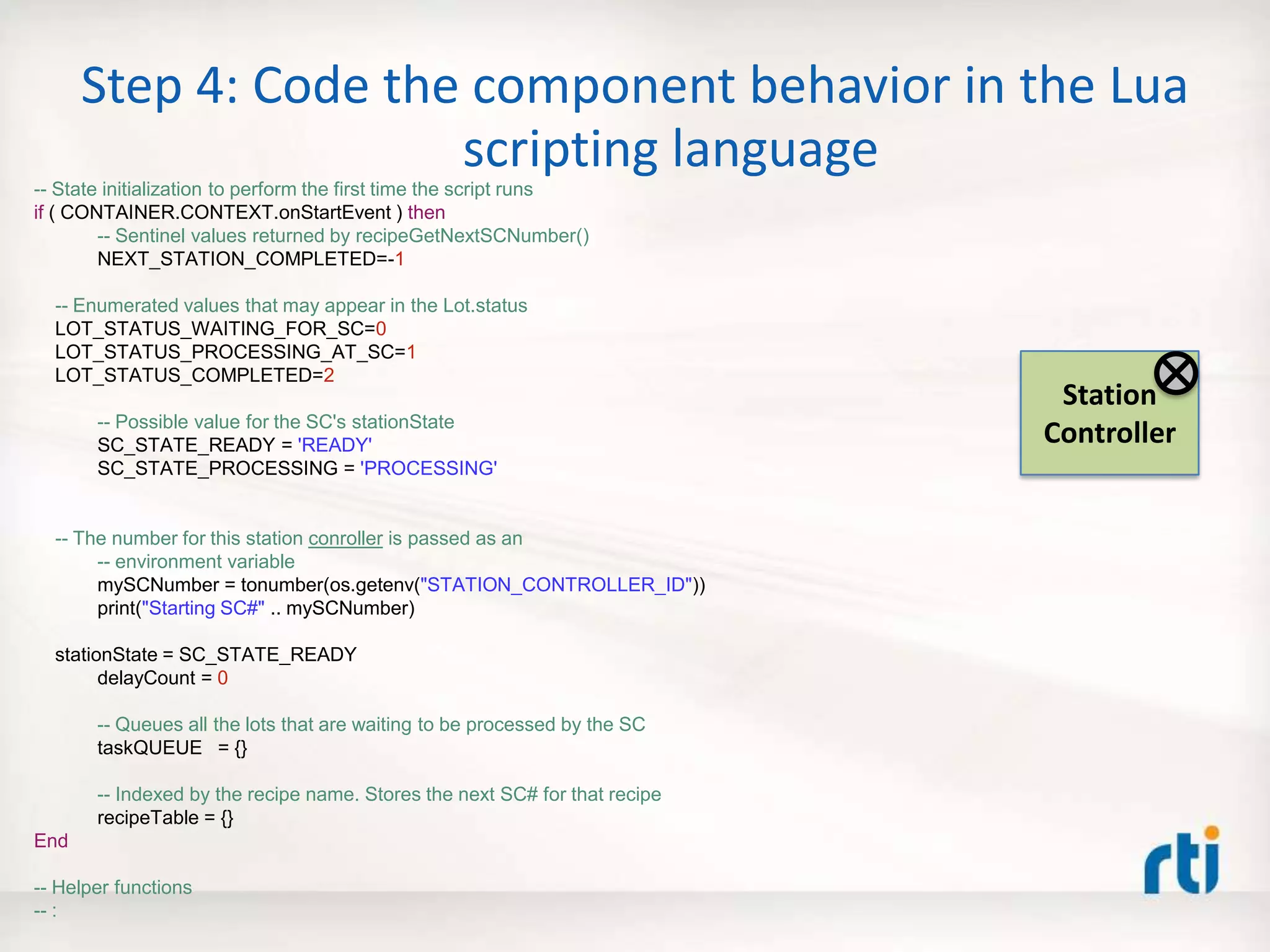

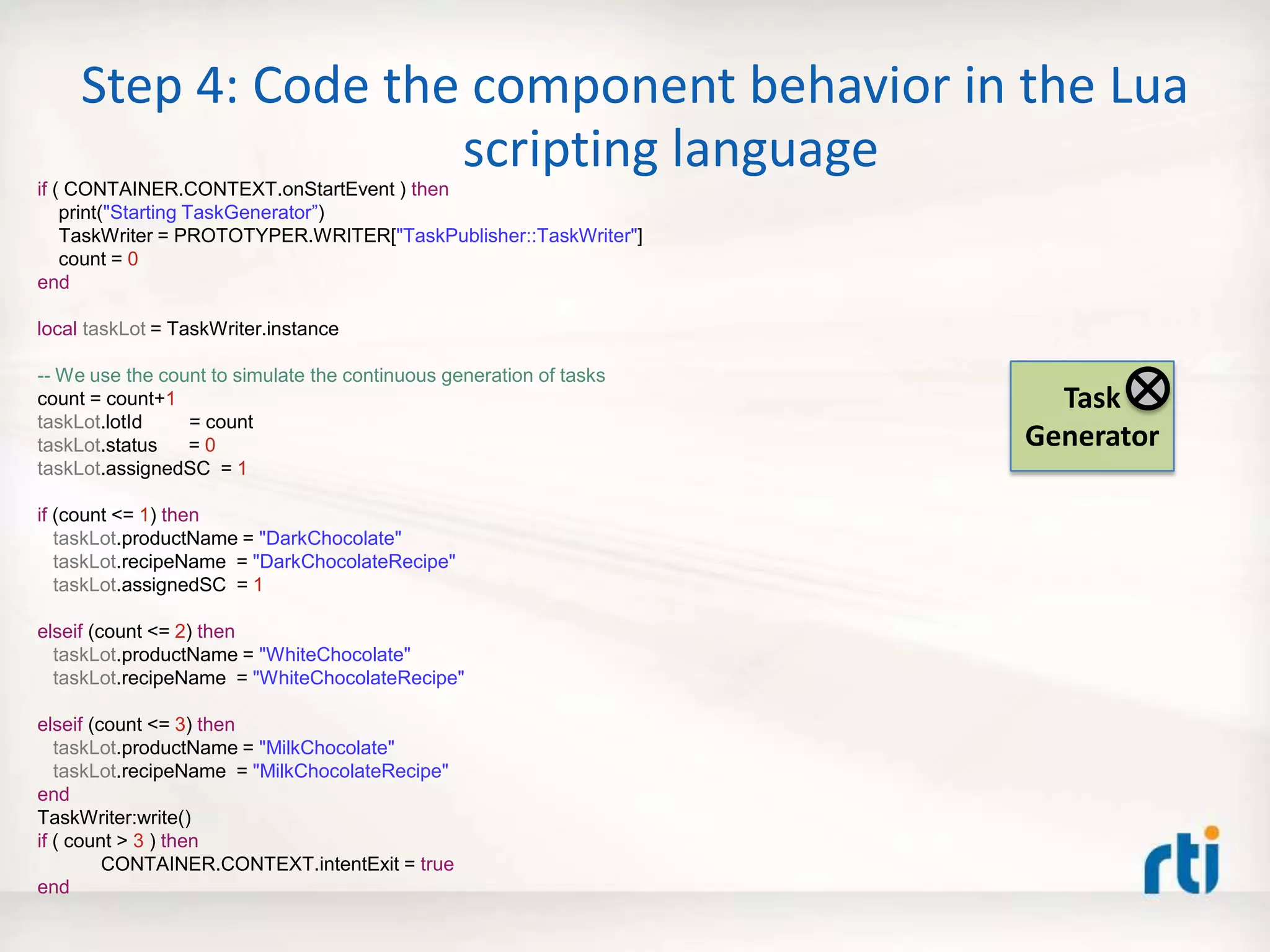

4. Code the component behavior (in the Lua scripting language)

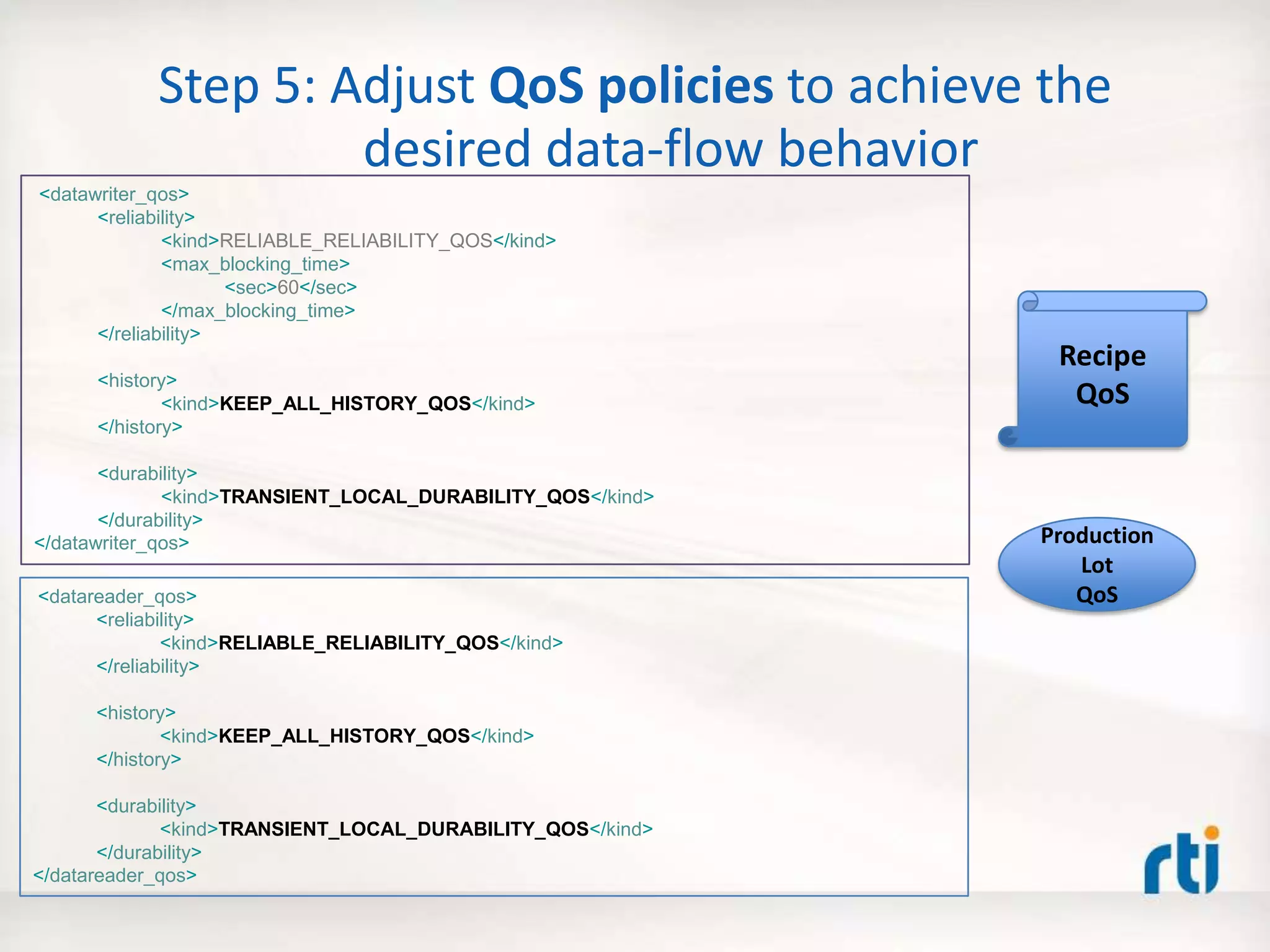

5. Adjust QoS policies to achieve the desired data-flow behavior
Best
Practice
The RTI Connext Platform Continues to Grow…
C/C++/Java/C#/Ada
• Code Generation
• Edit/Compile/Link/Run
Lua Scripting (in RTI Prototyper Runtime)
• Edit/Run(live update)
New!

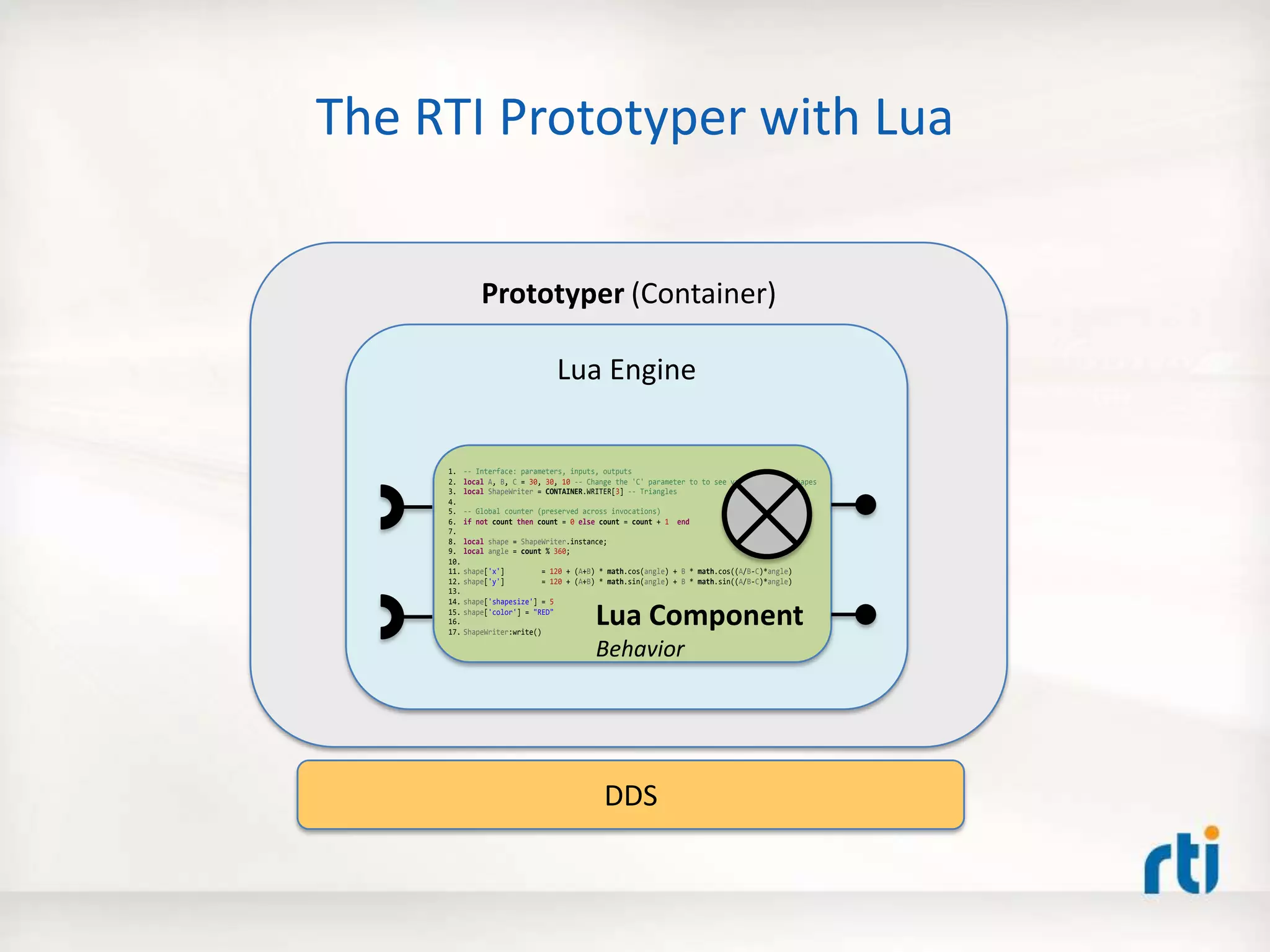

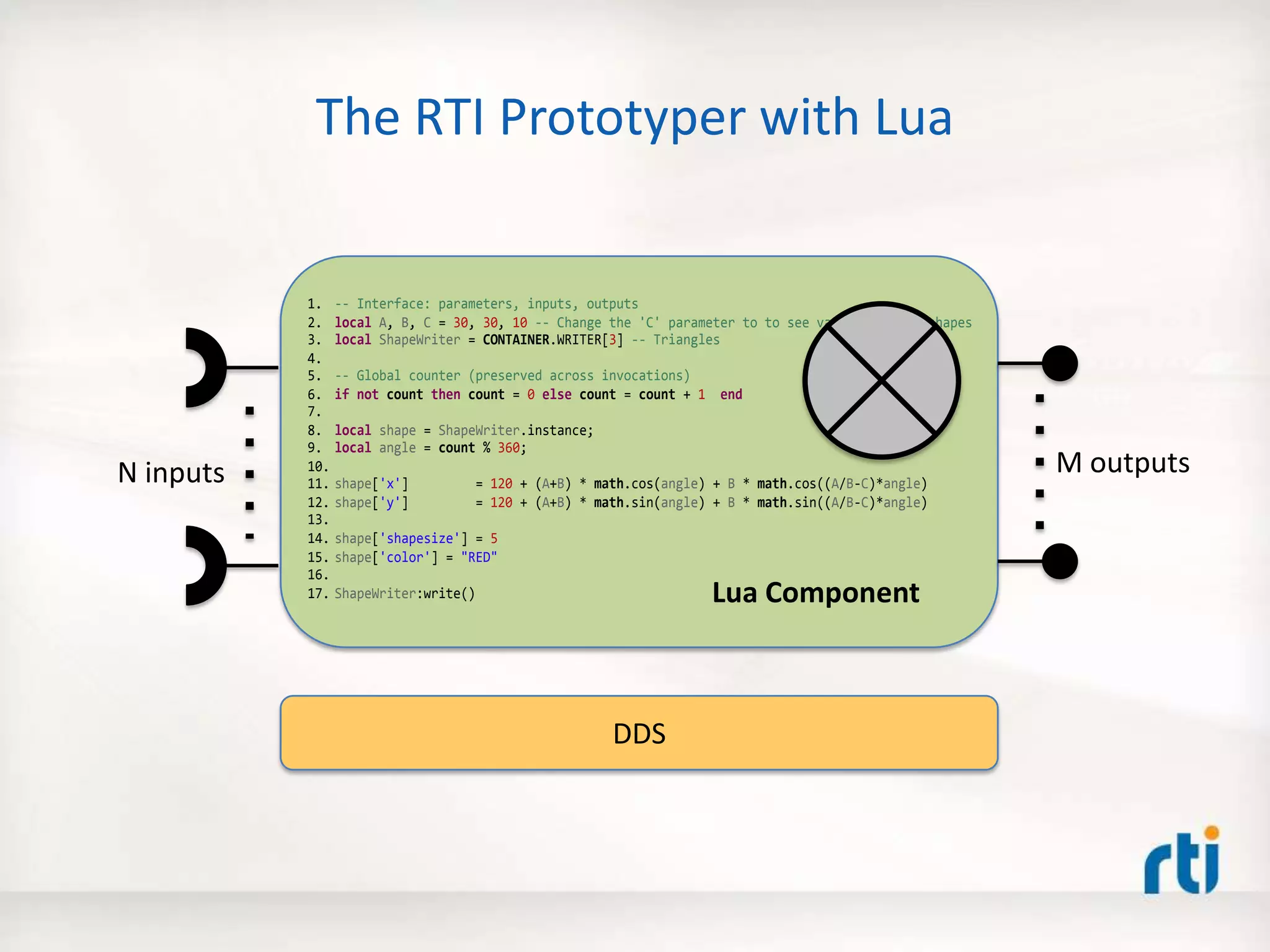

The RTI Prototyper with Lua
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write() Lua Component
N inputs M outputs
DDS
Prototyper (Container)
The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
DDS
Lua Component
Behavior
Prototyper (Container)
The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
Lua Component
Behavior
DDS
Settings
(Structure/
Wiring)
Bind the
Component
Interface
(to data-space)
Prototyper (Container)

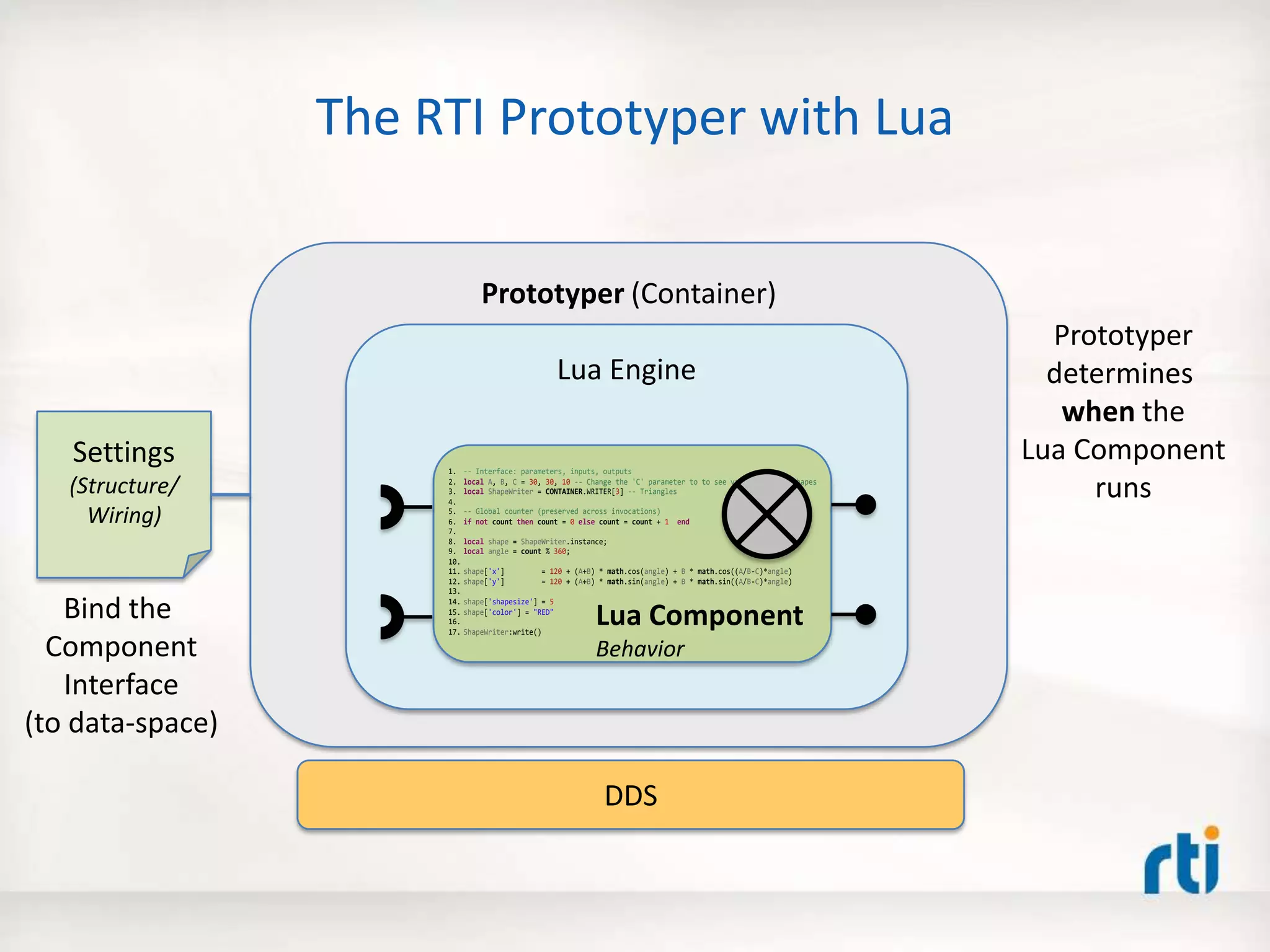

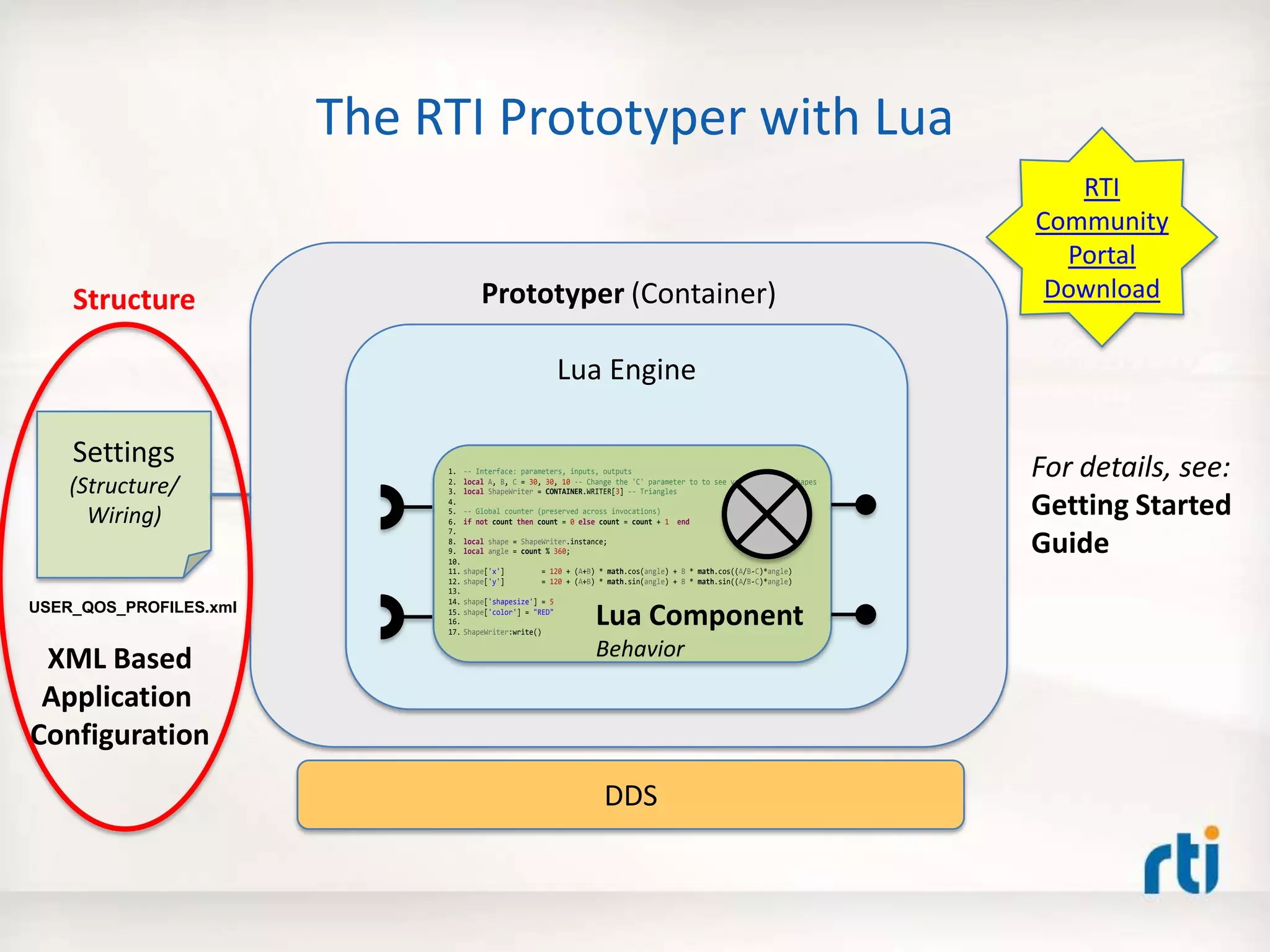

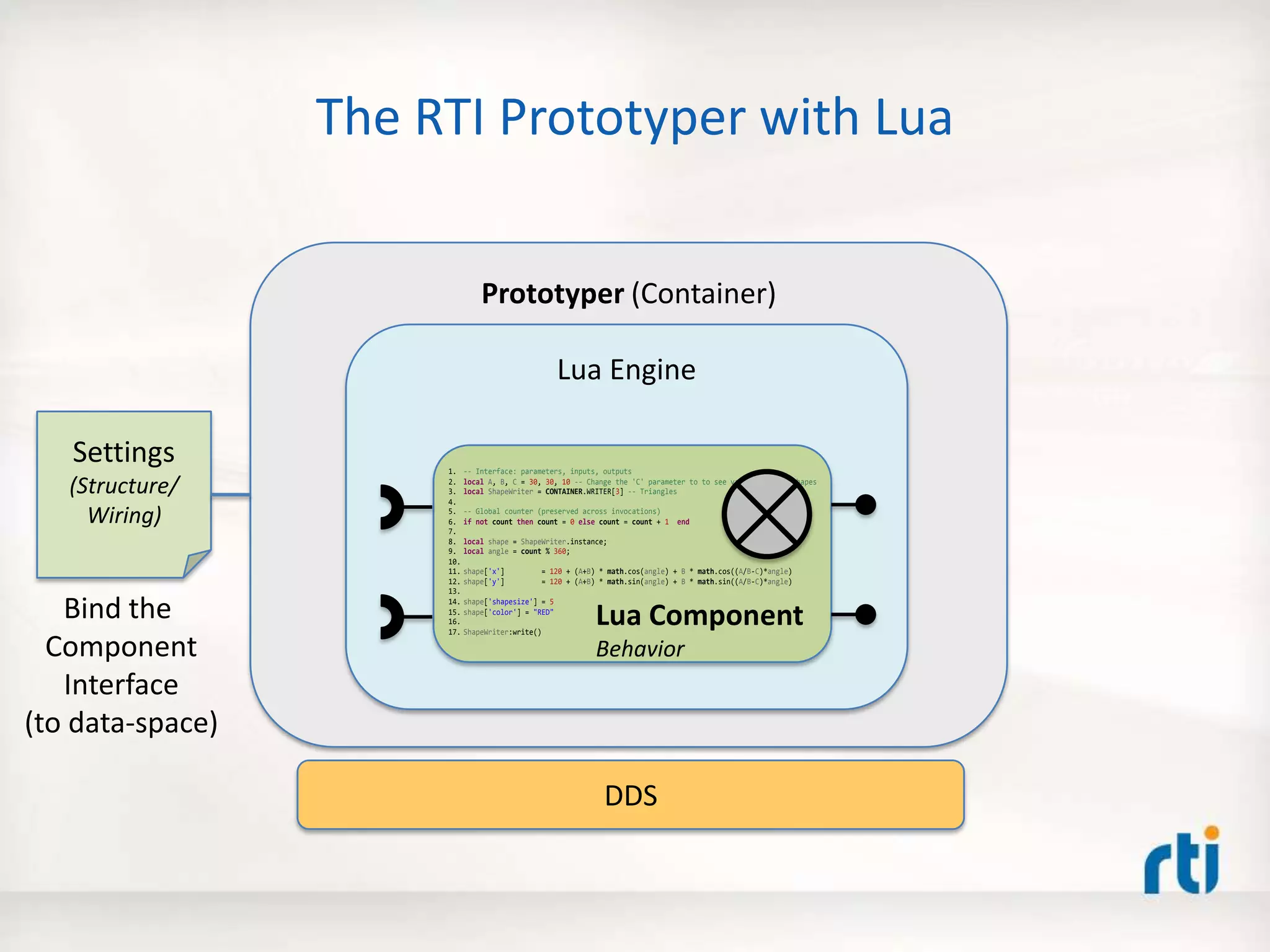

The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
Lua Component
Behavior
DDS
Settings
(Structure/
Wiring)
Bind the
Component
Interface
(to data-space)

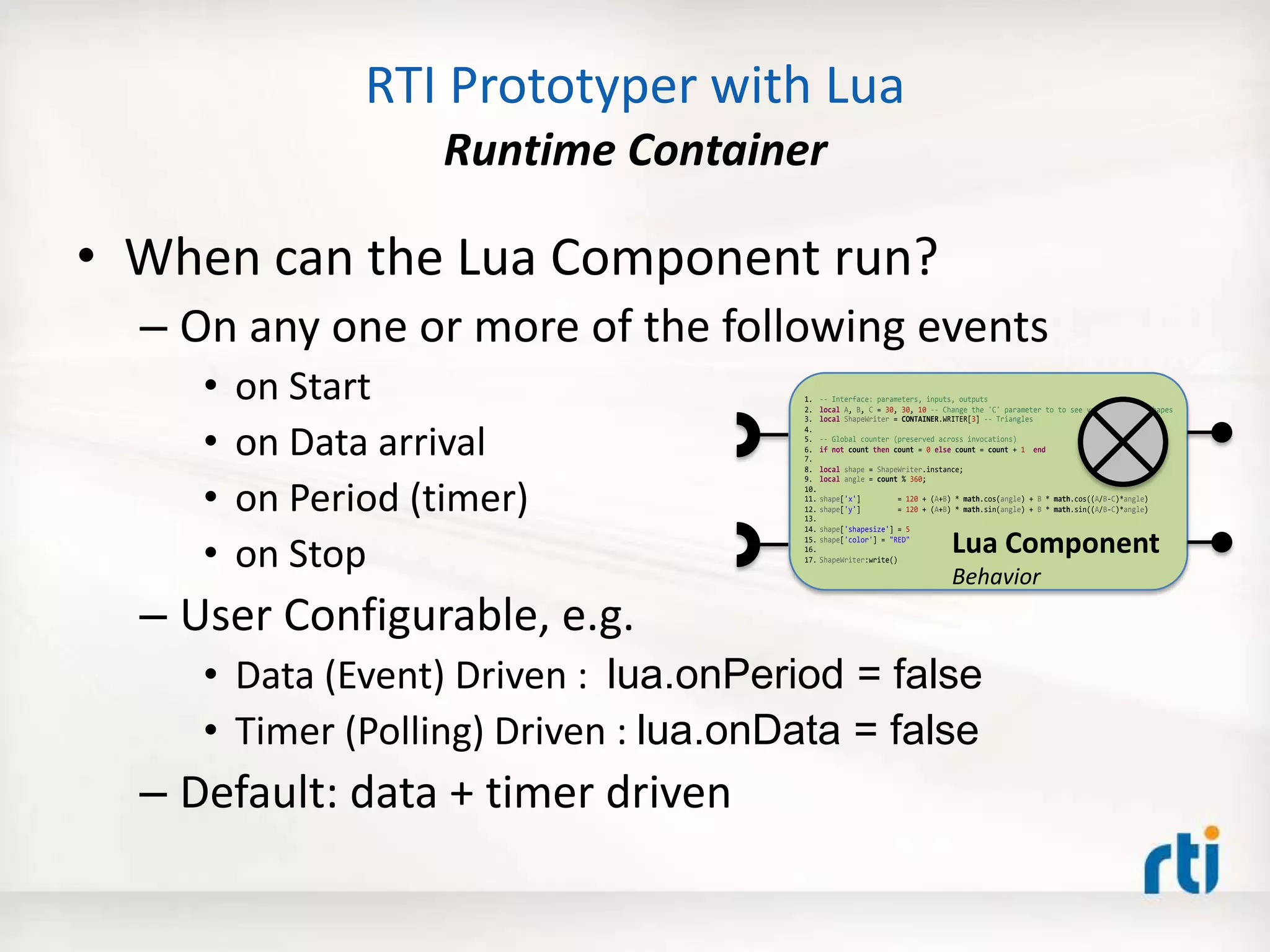

Prototyper
determines
when the
Lua Component
runs
Prototyper (Container)

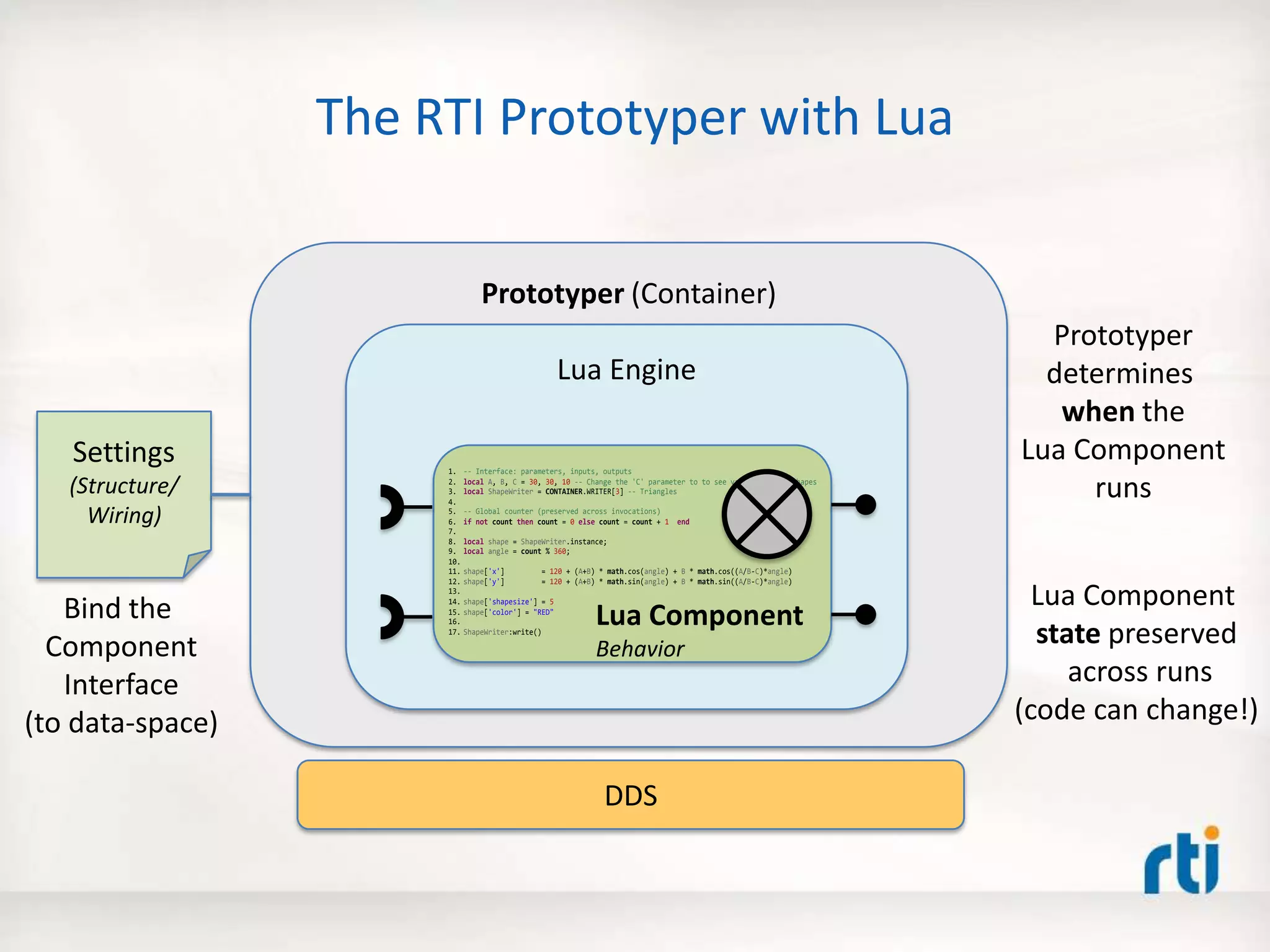

The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
Lua Component
Behavior
DDS
Settings
(Structure/
Wiring)
Bind the
Component
Interface
(to data-space)
Prototyper
determines
when the
Lua Component
runs
Lua Component
state preserved
across runs
(code can change!)
Prototyper (Container)

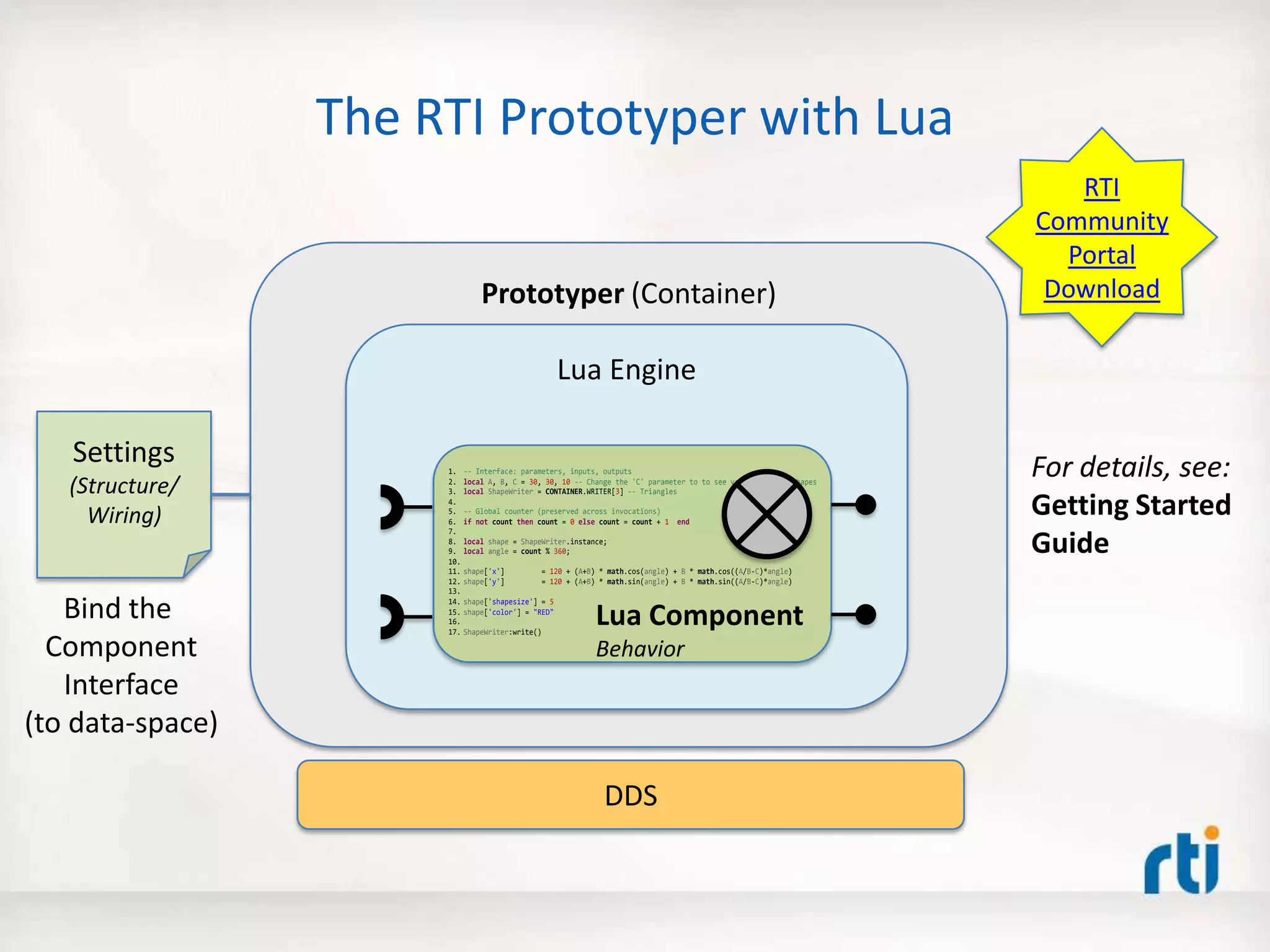

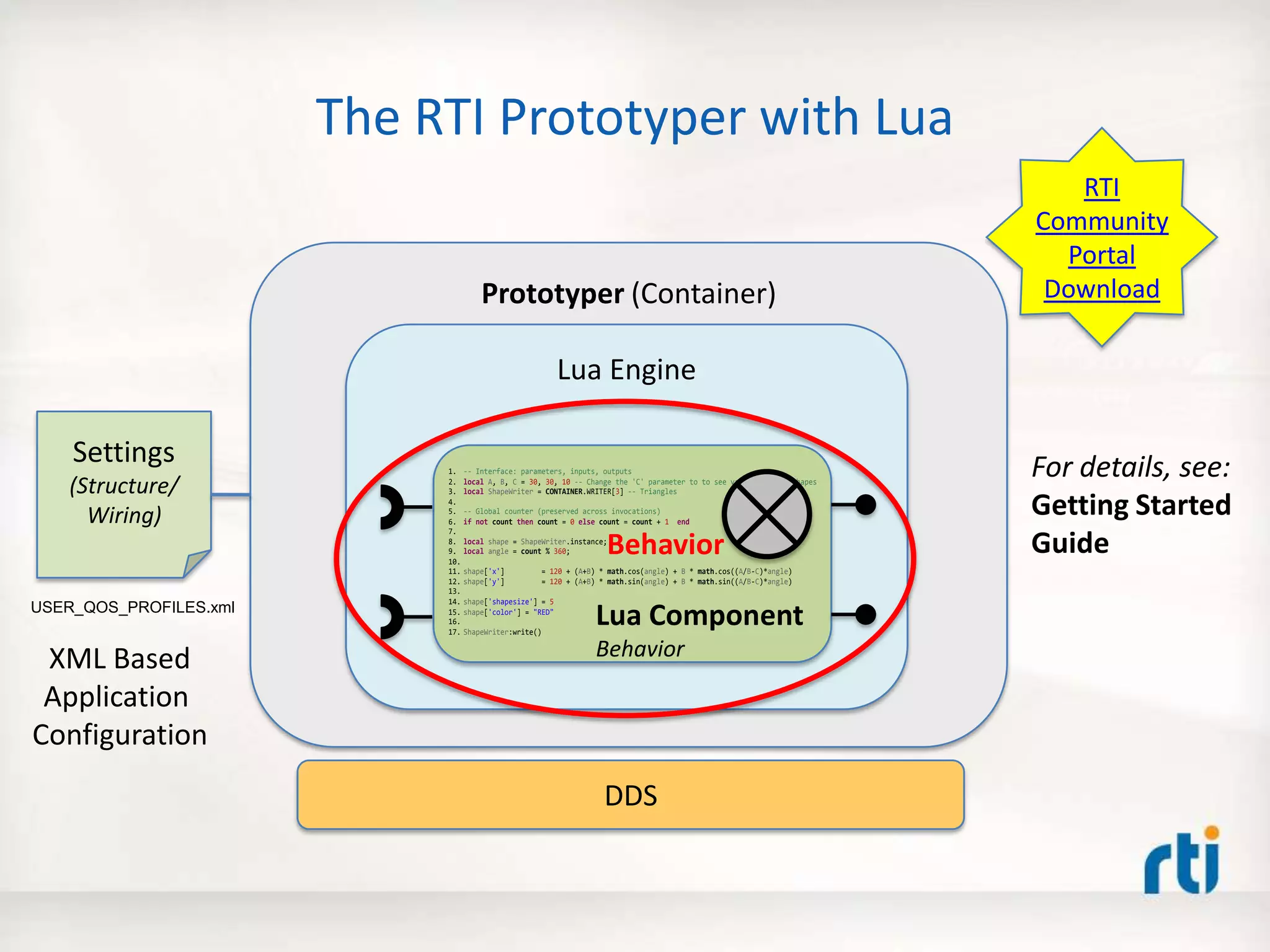

The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
DDS
Settings
(Structure/
Wiring)
RTI
Community
Portal
Download
Lua Component
Behavior
For details, see:
Getting Started
Guide
Bind the
Component
Interface
(to data-space)

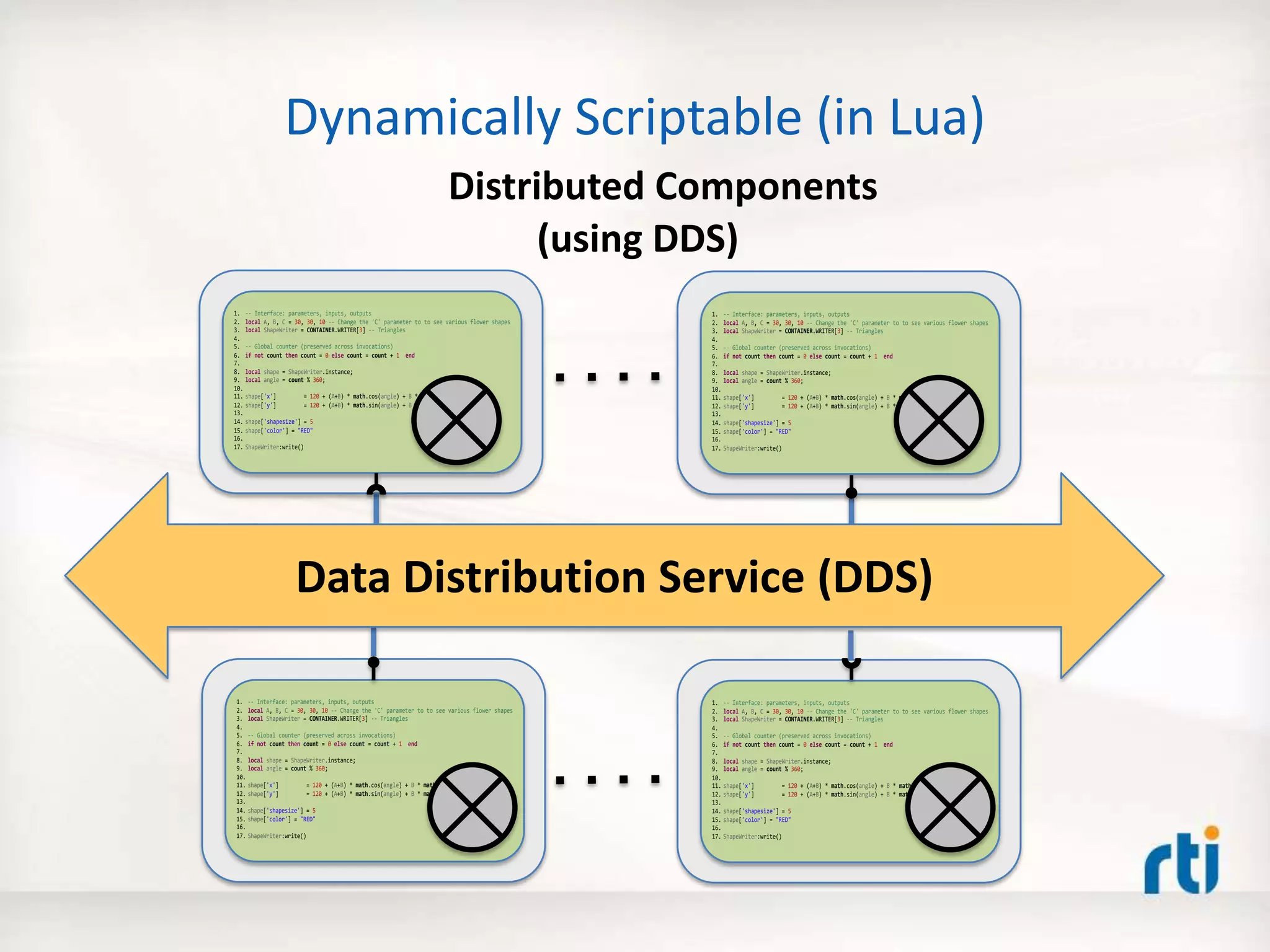

Dynamically Scriptable (in Lua)
Distributed Components
(using DDS)
Data Distribution Service (DDS)
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
The Outcome
Rapid
Application
Development

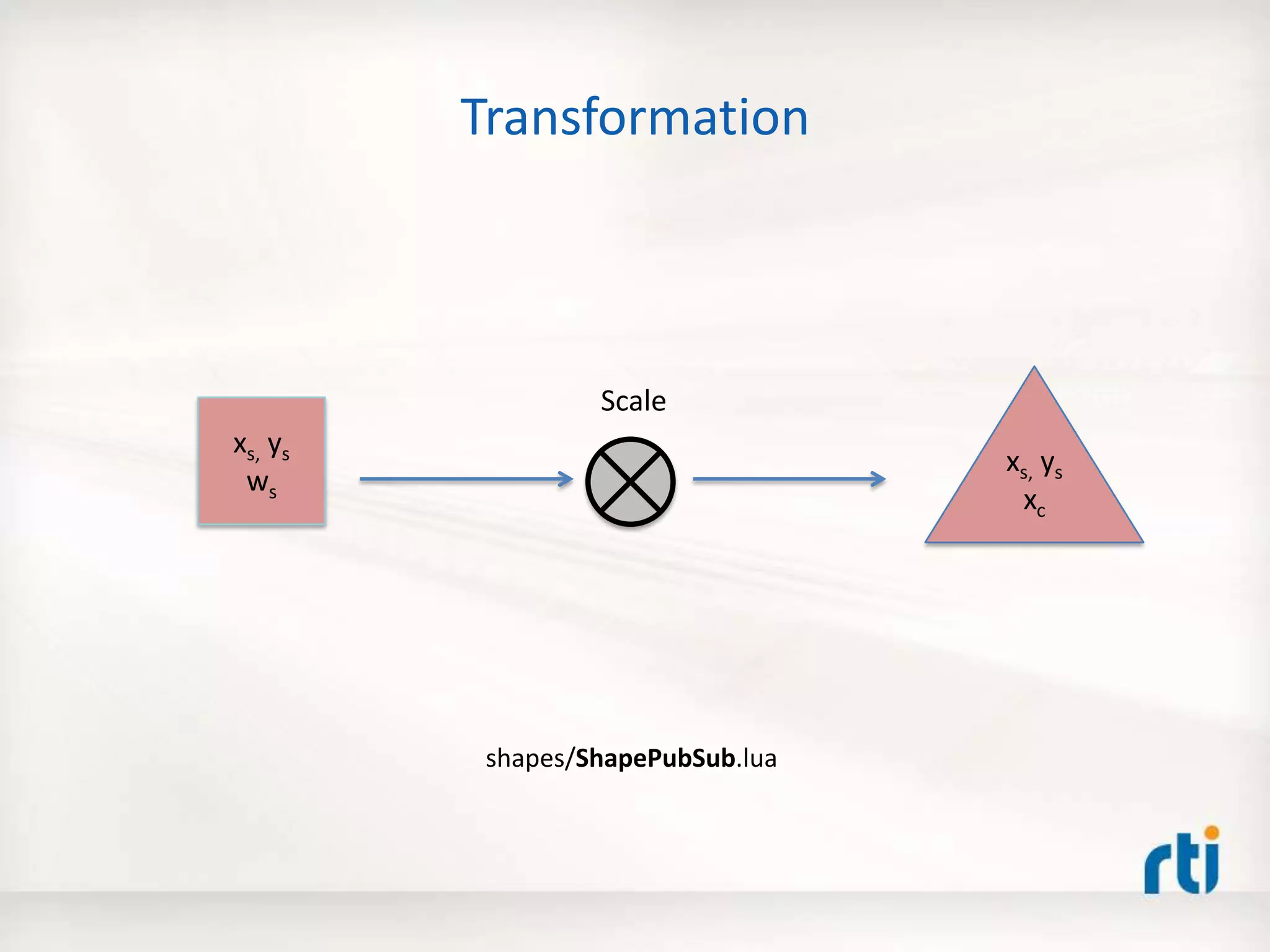

Transformation
xs, ys
ws
xs, ys
xc
shapes/ShapePubSub.lua

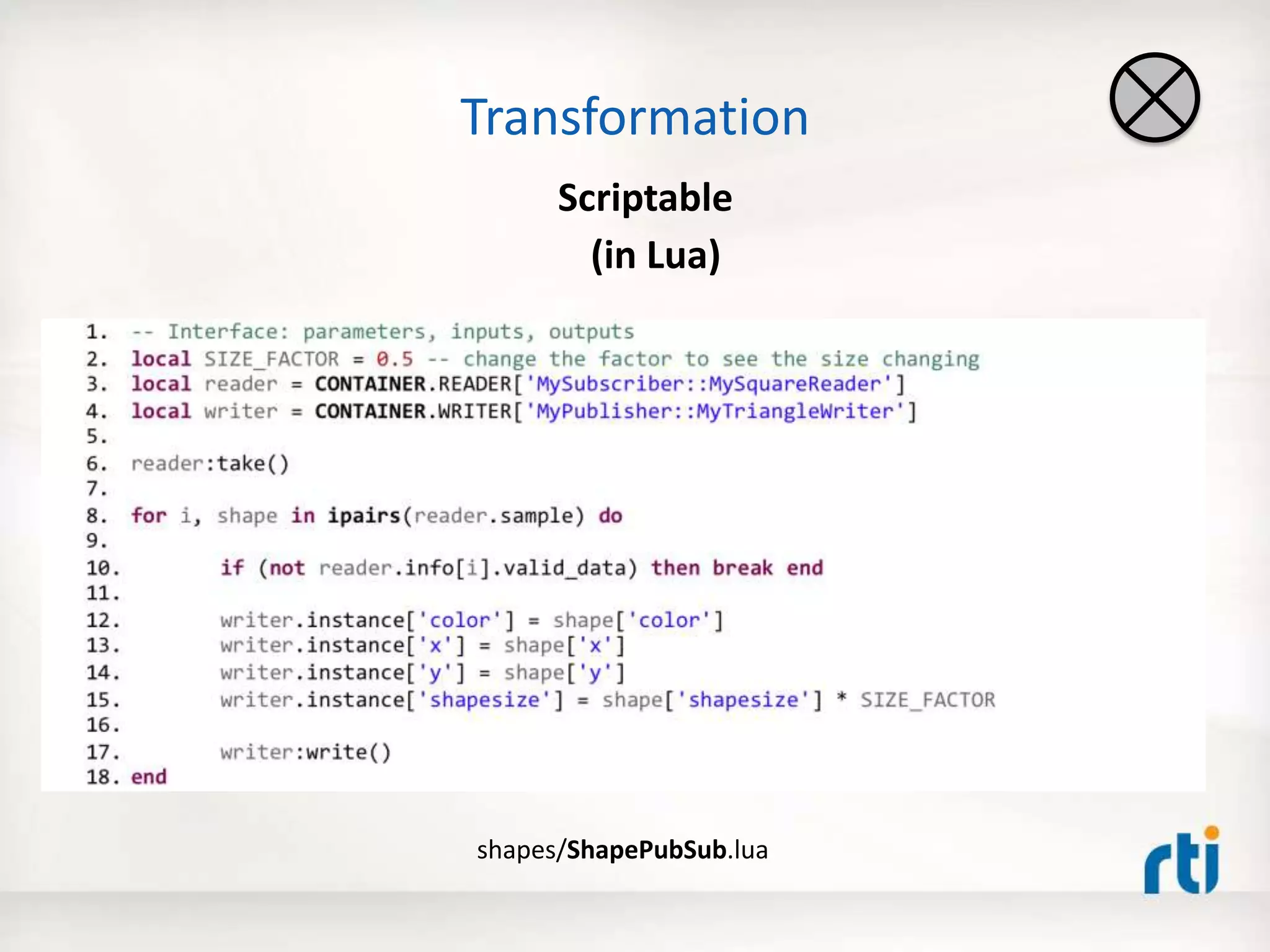

Scale
Transformation
Scriptable
(in Lua)
shapes/ShapePubSub.lua
Transformation - Try it Out Yourself
1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing
2. local reader = CONTAINER.READER[1] -- input
3. local writer = CONTAINER.WRITER[1] -- output
4.
5. reader:take() -- take all the samples on from the data-space
6.
7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples
8.
9. if (not reader.info[i].valid_data) then break end -- skip invalid content
10.
11. writer.instance['color'] = shape['color']
12. writer.instance['x'] = shape['x']
13. writer.instance['y'] = shape['y']
14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform
15.
16. writer:write() -- output transformed sample
17. end
Data Distribution Service (DDS)
Prototyper:
shapes/ShapePubSub.lua
Subscriber
(Shapes Demo)
Publisher
(Shapes Demo)

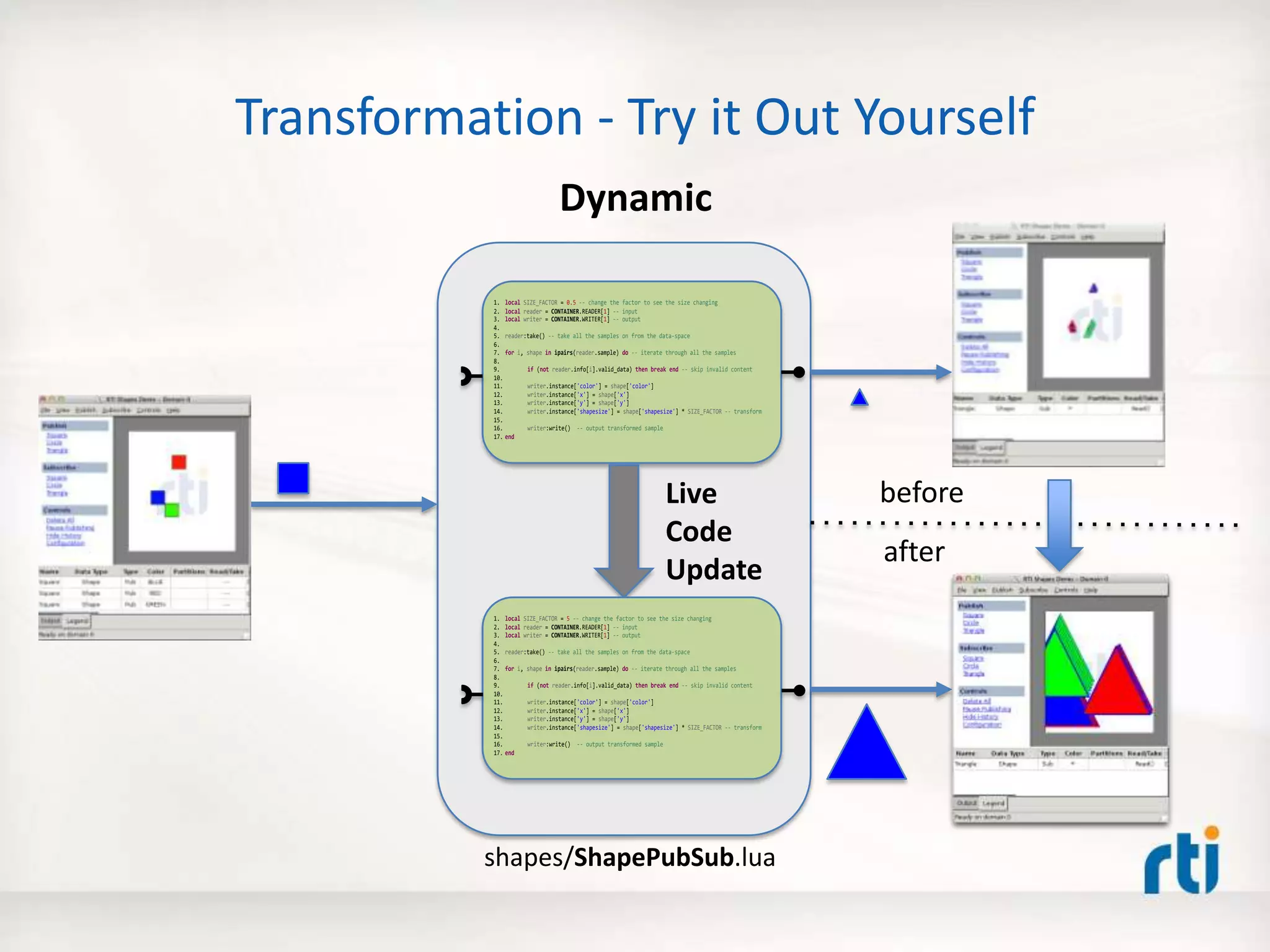

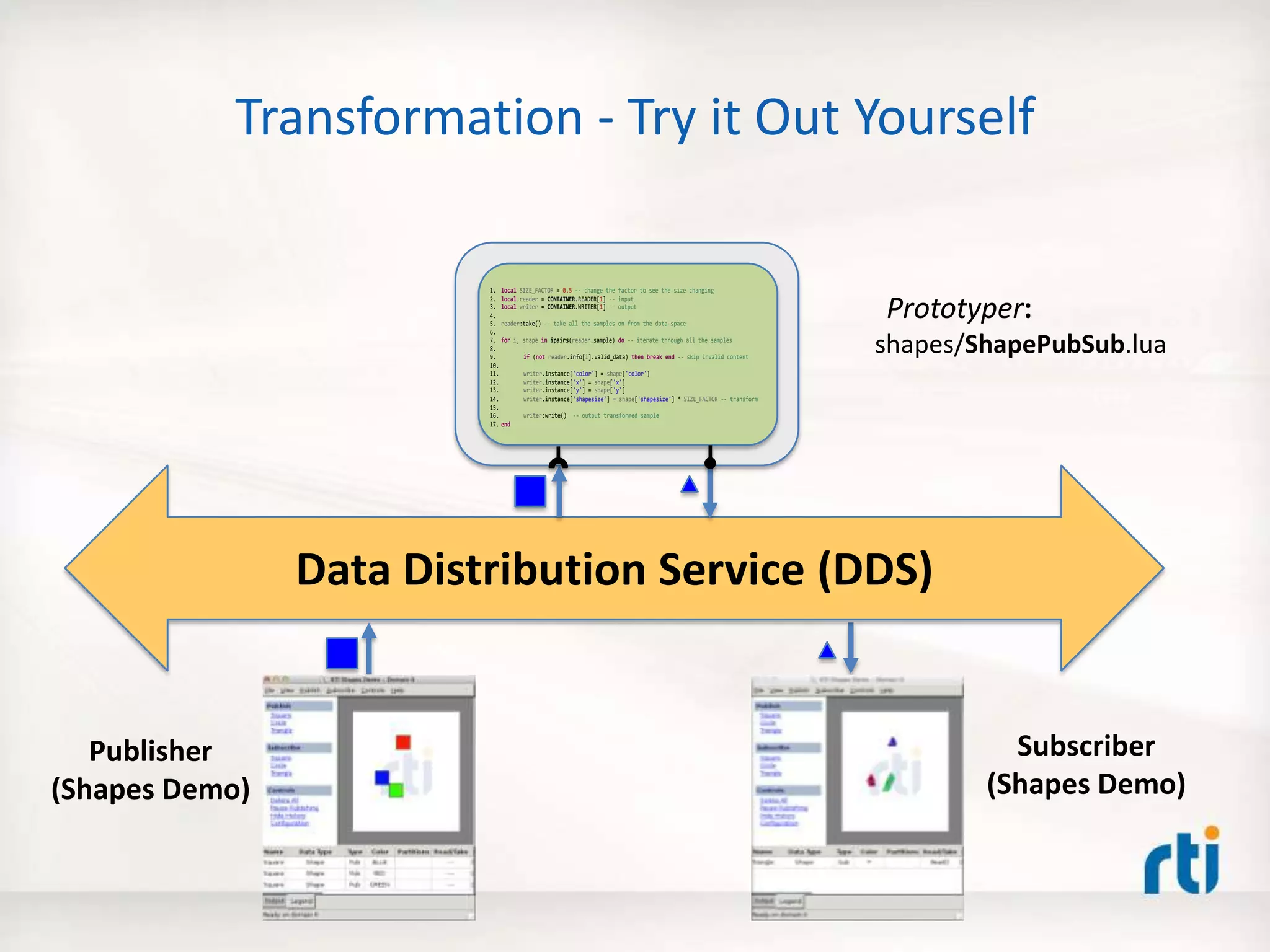

Transformation - Try it Out Yourself
Dynamic
Live
Code
Update
1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing
2. local reader = CONTAINER.READER[1] -- input
3. local writer = CONTAINER.WRITER[1] -- output
4.
5. reader:take() -- take all the samples on from the data-space
6.
7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples
8.
9. if (not reader.info[i].valid_data) then break end -- skip invalid content
10.
11. writer.instance['color'] = shape['color']
12. writer.instance['x'] = shape['x']
13. writer.instance['y'] = shape['y']
14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform
15.
16. writer:write() -- output transformed sample
17. end
1. local SIZE_FACTOR = 5 -- change the factor to see the size changing
2. local reader = CONTAINER.READER[1] -- input
3. local writer = CONTAINER.WRITER[1] -- output
4.
5. reader:take() -- take all the samples on from the data-space
6.
7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples
8.
9. if (not reader.info[i].valid_data) then break end -- skip invalid content
10.
11. writer.instance['color'] = shape['color']
12. writer.instance['x'] = shape['x']
13. writer.instance['y'] = shape['y']
14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform
15.
16. writer:write() -- output transformed sample
17. end
before
after
shapes/ShapePubSub.lua

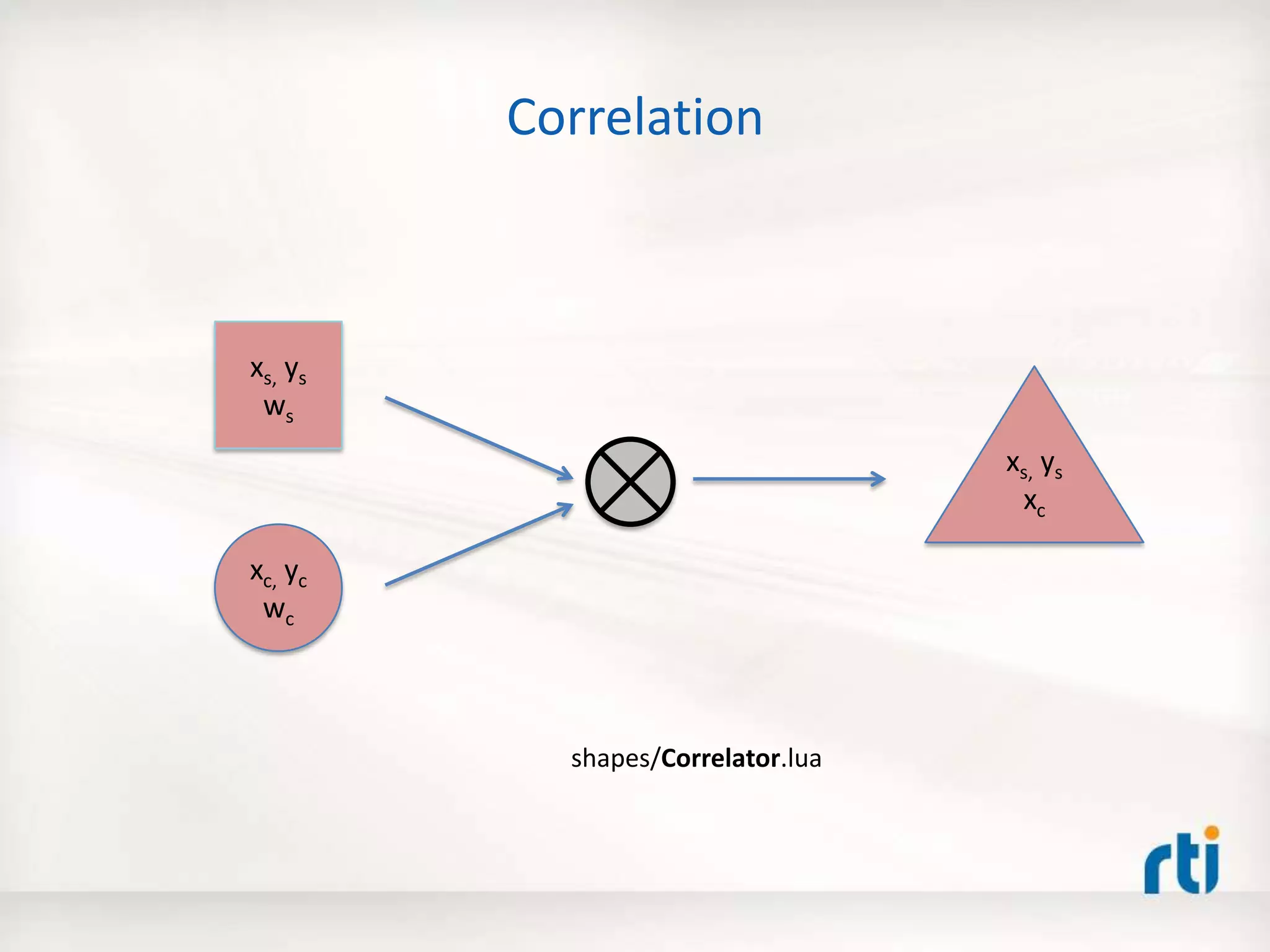

Correlation
xs, ys
ws
xc, yc
wc
xs, ys
xc

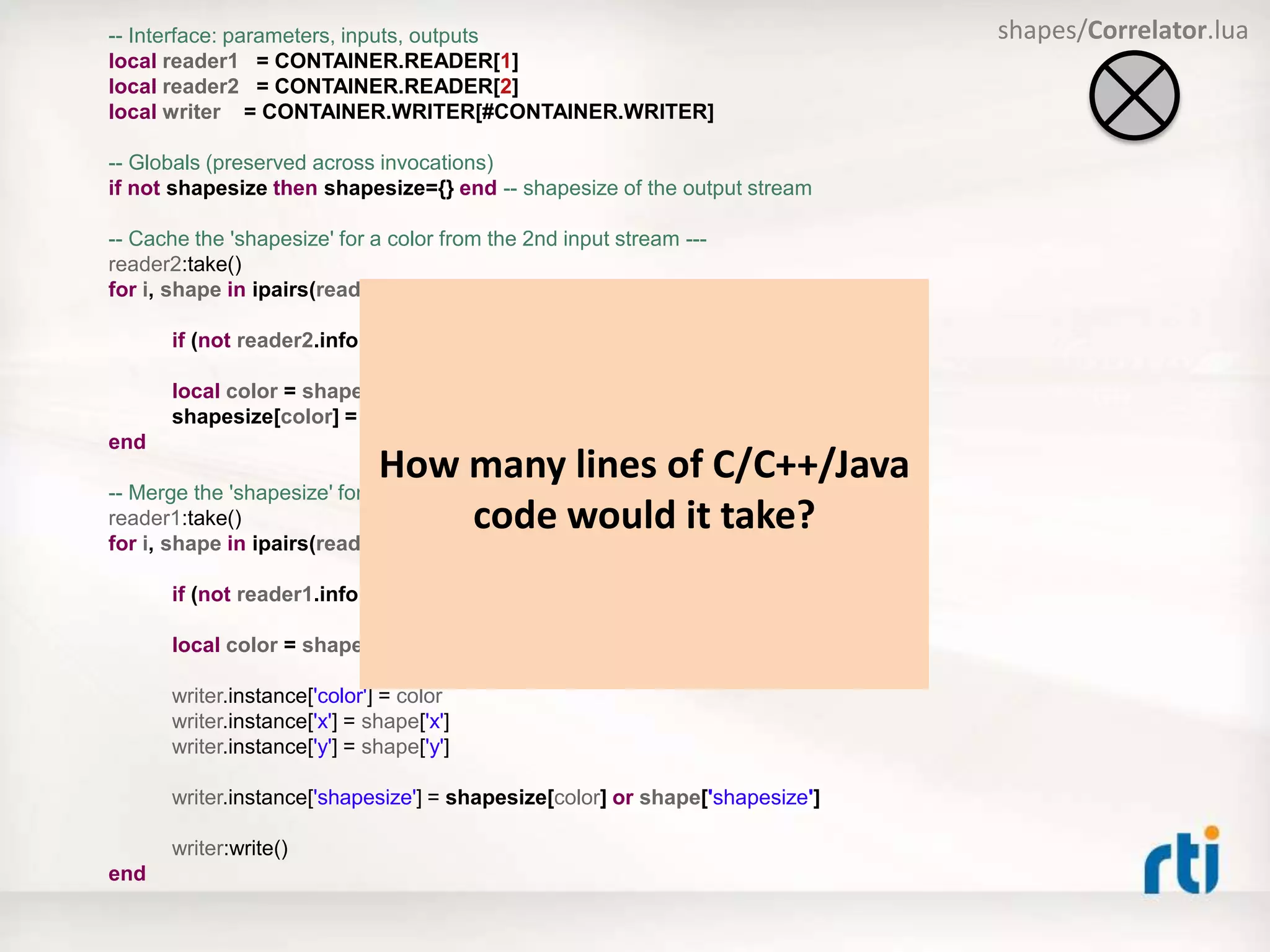

shapes/Correlator.lua
-- Interface: parameters, inputs, outputs
local reader1 = CONTAINER.READER[1]
local reader2 = CONTAINER.READER[2]
local writer = CONTAINER.WRITER[#CONTAINER.WRITER]
-- Globals (preserved across invocations)
if not shapesize then shapesize={} end -- shapesize of the output stream
-- Cache the 'shapesize' for a color from the 2nd input stream ---
reader2:take()
for i, shape in ipairs(reader2.sample) do
if (not reader2.info[i].valid_data) then break end
local color = shape['color']
shapesize[color] = shape['x']
end
-- Merge the 'shapesize' for a color with x and y from the 1st input stream ---
reader1:take()
for i, shape in ipairs(reader1.sample) do
if (not reader1.info[i].valid_data) then break end
local color = shape['color’]
writer.instance['color'] = color
writer.instance['x'] = shape['x']
writer.instance['y'] = shape['y']
writer.instance['shapesize'] = shapesize[color] or shape['shapesize']
writer:write()
end
shapes/Correlator.lua
How many lines of C/C++/Java
code would it take?

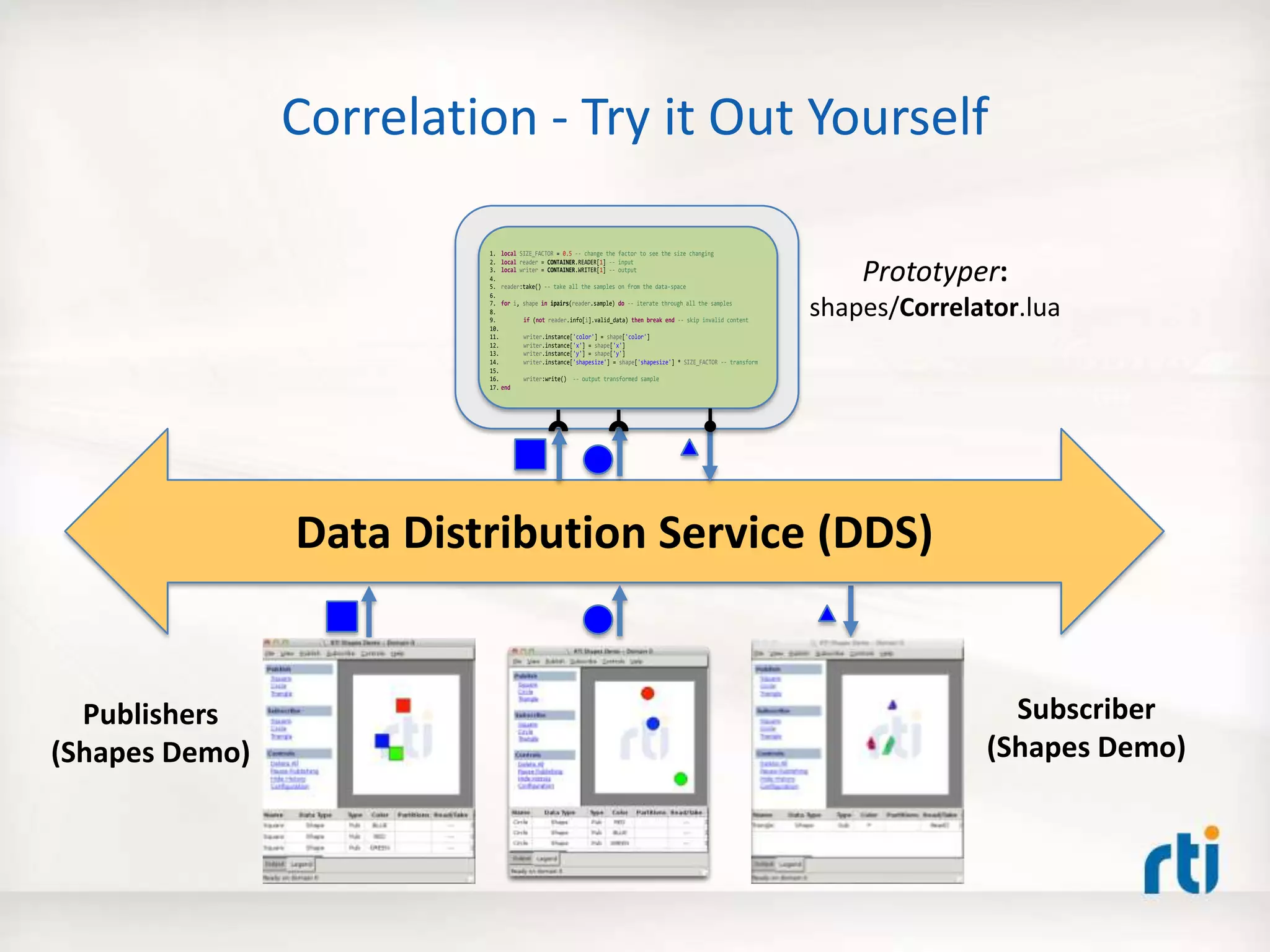

Correlation - Try it Out Yourself
1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing
2. local reader = CONTAINER.READER[1] -- input
3. local writer = CONTAINER.WRITER[1] -- output
4.
5. reader:take() -- take all the samples on from the data-space
6.
7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples
8.
9. if (not reader.info[i].valid_data) then break end -- skip invalid content
10.
11. writer.instance['color'] = shape['color']
12. writer.instance['x'] = shape['x']
13. writer.instance['y'] = shape['y']
14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform
15.
16. writer:write() -- output transformed sample
17. end
Data Distribution Service (DDS)
Prototyper:
shapes/Correlator.lua
Subscriber
(Shapes Demo)
Publishers
(Shapes Demo)

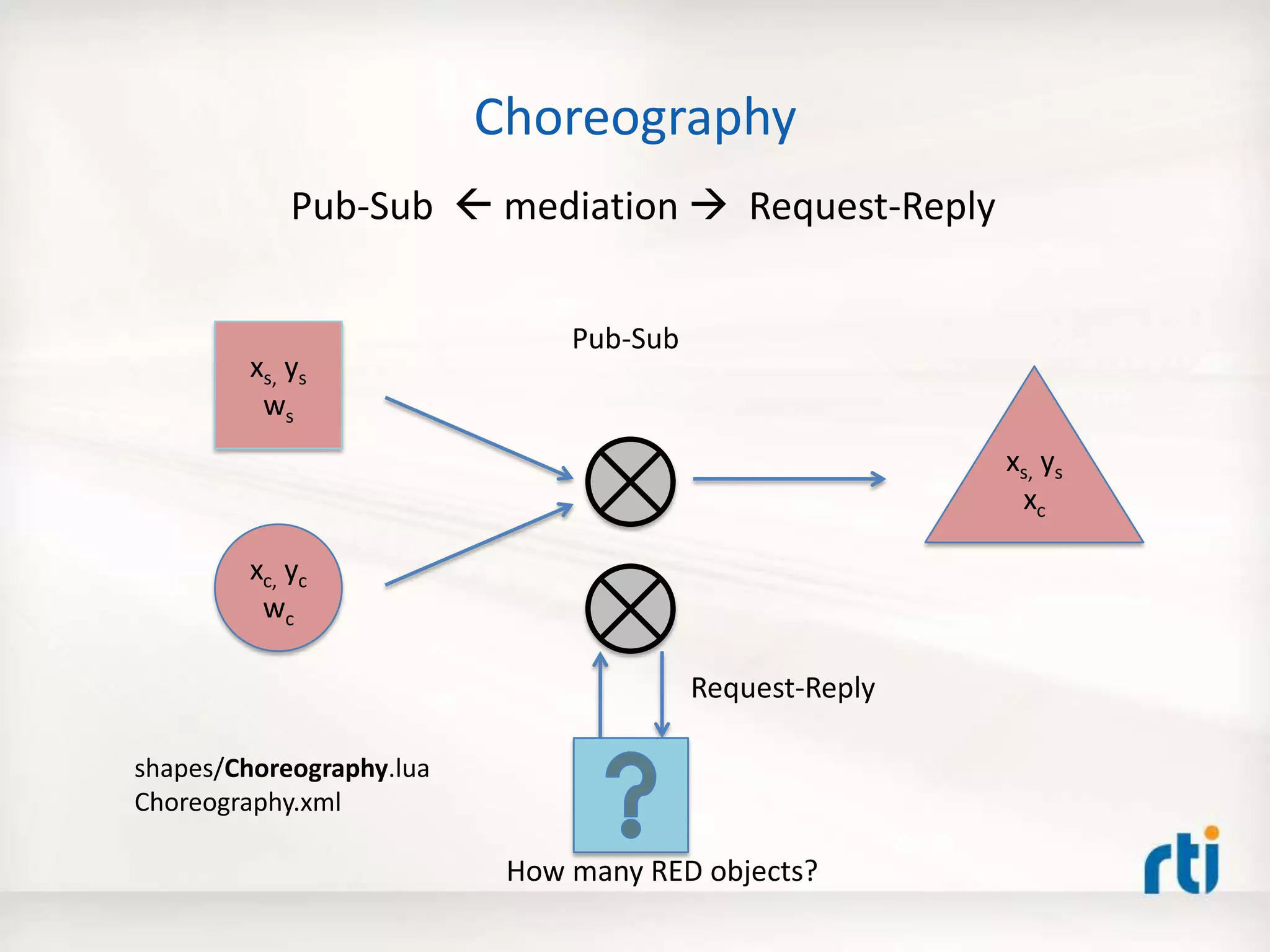

Choreography
xs, ys
ws
xc, yc
wc
xs, ys
xc
Pub-Sub  mediation  Request-Reply
Pub-Sub
Request-Reply
How many RED objects?
shapes/Choreography.lua
Choreography.xml
Splitting
xs, ys
ws
xs, ys
ws
xs, ys
ws
shapes/SplitterDelayNAverage.lua
Delay by
N samples
Average over
N samples

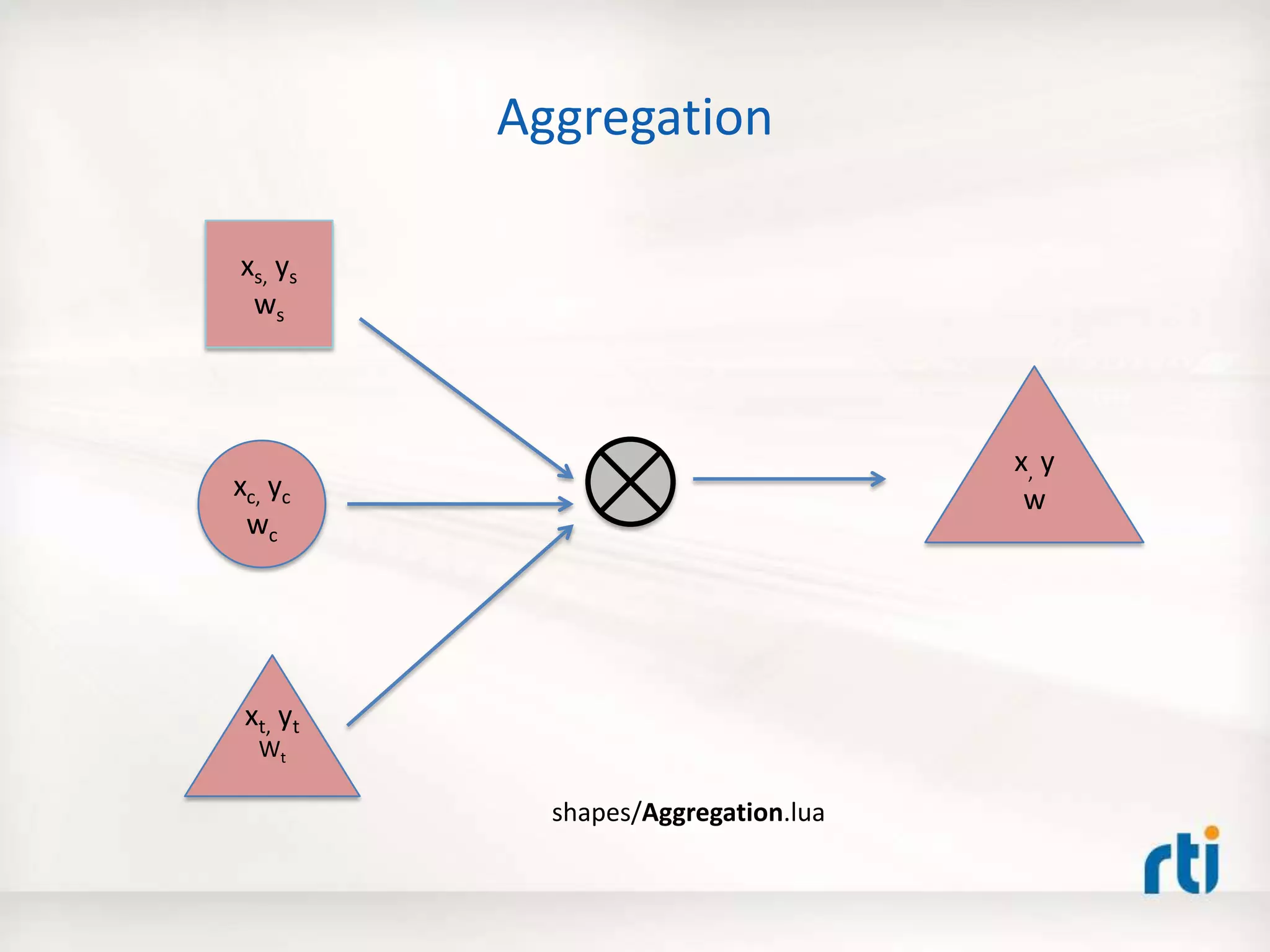

Aggregation
xs, ys
ws
xc, yc
wc
x, y
w
xt, yt
Wt
shapes/Aggregation.lua

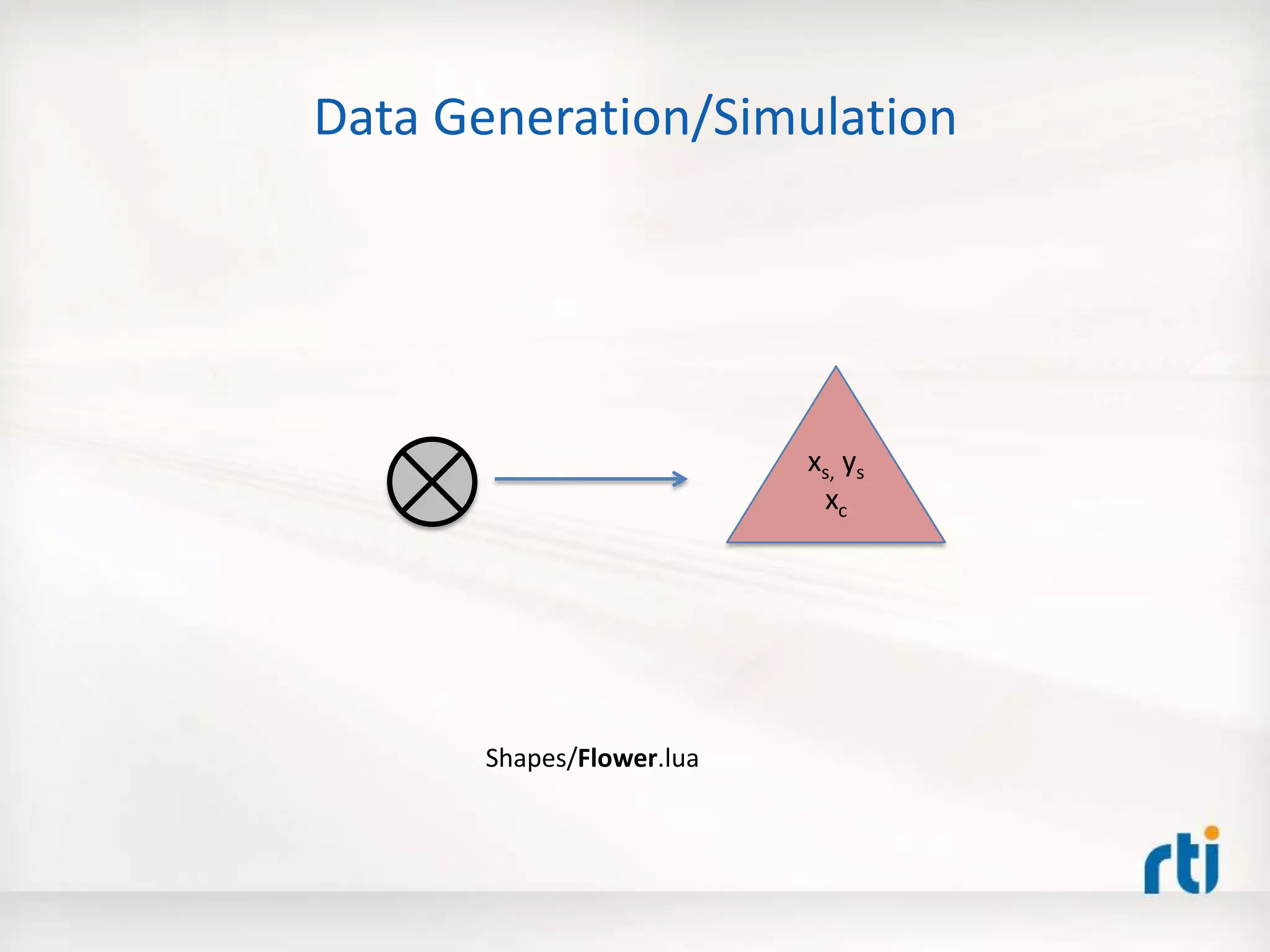

Data Generation/Simulation
Shapes/Flower.lua
xs, ys
xc
Device I/O
xc, yc
wc
shapes/mouse/MouseInputAdapter.lua
shapes/mouse/mouse.c

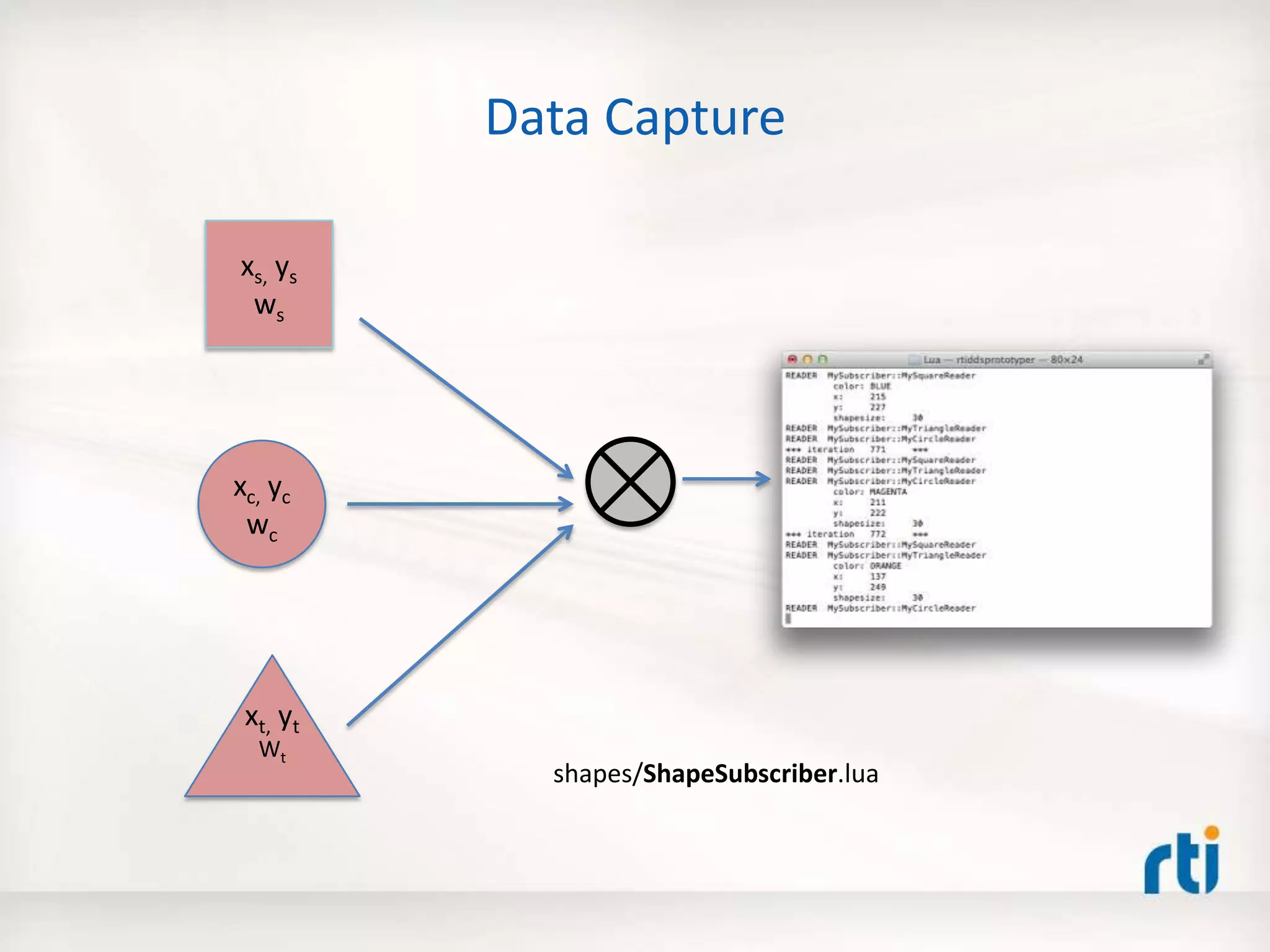

Data Capture
xs, ys
ws
xc, yc
wc
xt, yt
Wt
shapes/ShapeSubscriber.lua

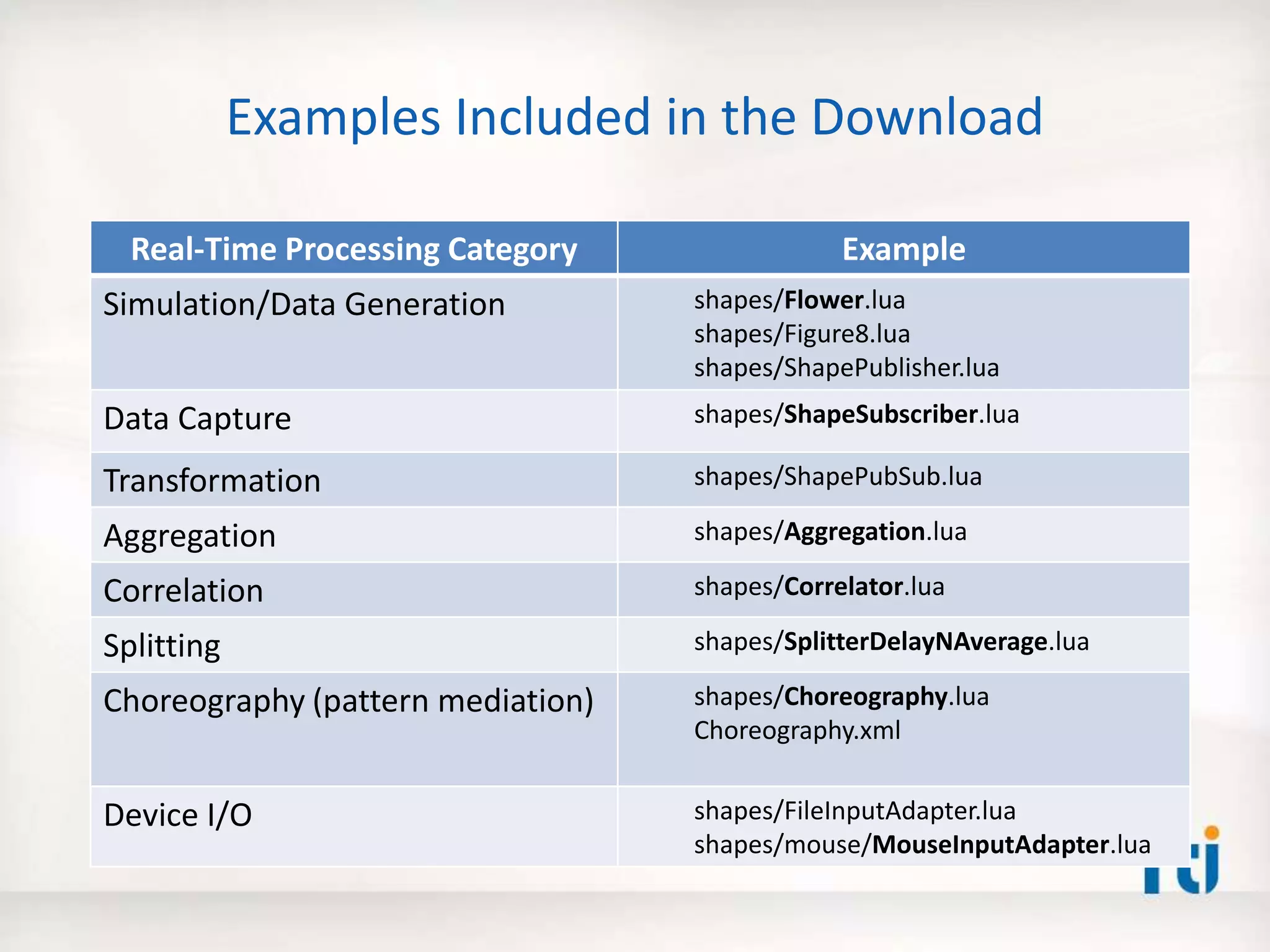

Examples Included in the Download
Real-Time Processing Category Example
Simulation/Data Generation shapes/Flower.lua
shapes/Figure8.lua
shapes/ShapePublisher.lua
Data Capture shapes/ShapeSubscriber.lua
Transformation shapes/ShapePubSub.lua
Aggregation shapes/Aggregation.lua
Correlation shapes/Correlator.lua
Splitting shapes/SplitterDelayNAverage.lua
Choreography (pattern mediation) shapes/Choreography.lua
Choreography.xml
Device I/O shapes/FileInputAdapter.lua
shapes/mouse/MouseInputAdapter.lua

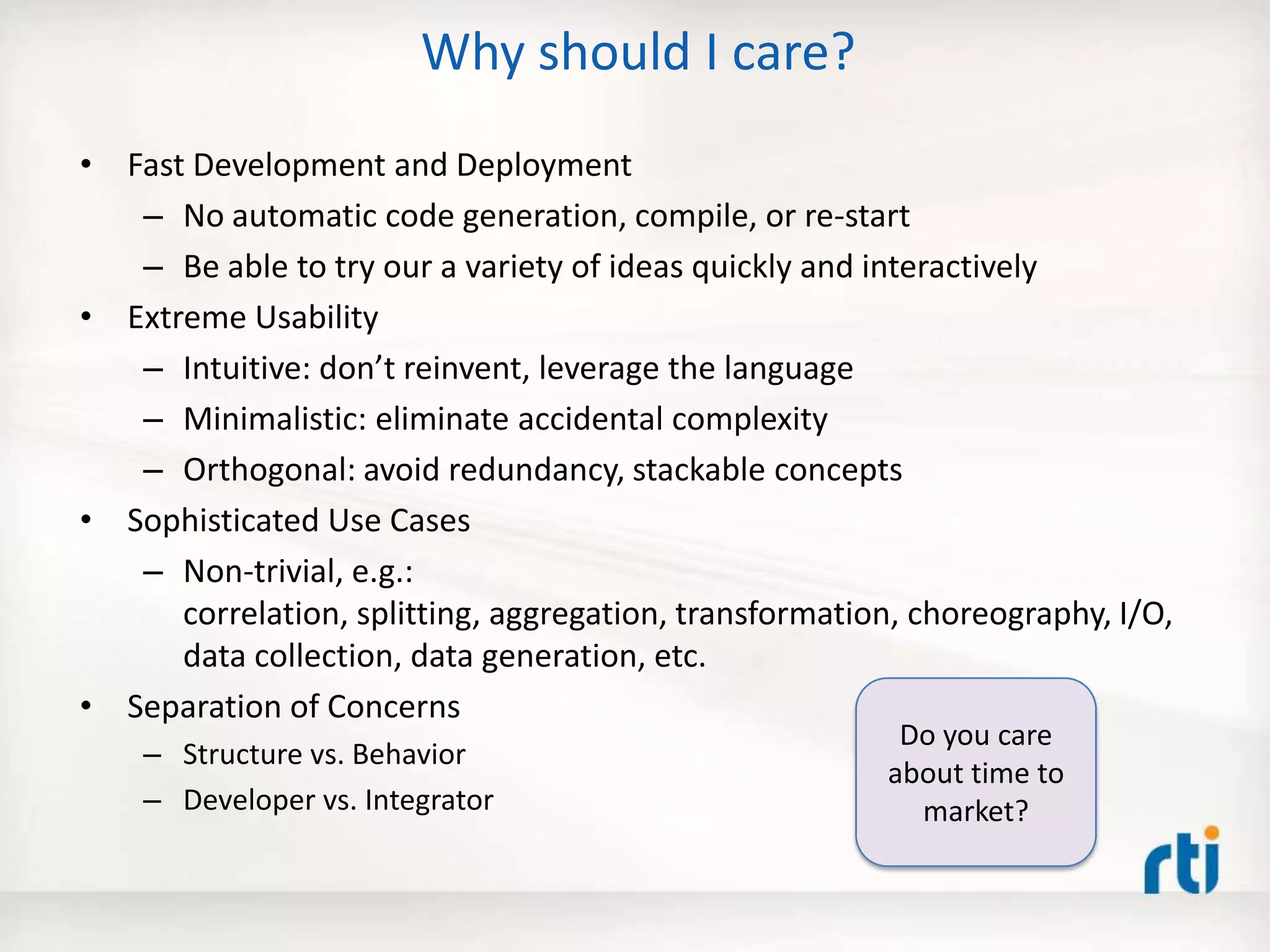

Why should I care?
• Fast Development and Deployment
– No automatic code generation, compile, or re-start
– Be able to try our a variety of ideas quickly and interactively
• Extreme Usability
– Intuitive: don’t reinvent, leverage the language
– Minimalistic: eliminate accidental complexity
– Orthogonal: avoid redundancy, stackable concepts
• Sophisticated Use Cases
– Non-trivial, e.g.:
correlation, splitting, aggregation, transformation, choreography, I/O,
data collection, data generation, etc.
• Separation of Concerns
– Structure vs. Behavior
– Developer vs. Integrator
Do you care
about time to
market?
Agenda
• Why is building distributed systems hard?
• The 5 Critical Steps – Best Practice
• The Prototyper – Separating Structure and
Behavior
• Defining structure using XML
• Coding behavior using Lua – A Small Fast Dynamic
Scripting Language
• Real-World Example
• Summary
Prototyper (Container)
The RTI Prototyper with Lua
Lua Engine
DDS
Settings
(Structure/
Wiring)
USER_QOS_PROFILES.xml
XML Based
Application
Configuration
RTI
Community
Portal
Download
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
Lua Component
Behavior
For details, see:
Getting Started
Guide
Structure
<!-- Domain Library -->
<domain_library name="MyDomainLibrary" >
<domain name="MyDomain" domain_id="25">
<register_type name="type" kind="dynamicData" type_ref="MyType"/>
<topic name="MyTopic" register_type_ref="type"/>
</domain>
</domain_library>
<!-- Participant library -->
<participant_library name="MyParticipantLibrary">
<domain_participant name="MyParticipant"
domain_ref="MyDomainLibrary::MyDomain">
<publisher name="MyPublisher">
<data_writer name="MyWriter" topic_ref="MyTopic"/>
</publisher>
<subscriber name="MySubscriber">
<data_reader name="MyReader" topic_ref="MyTopic"/>
</subscriber>
</domain_participant>
</participant_library>
<types>
Defining structure using XML
Settings: XML Based Application Configuration
Prototyper (Container)
The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
DDS
Settings
(Structure/
Wiring)
USER_QOS_PROFILES.xml
XML Based
Application
Configuration
RTI
Community
Portal
Download
Lua Component
Behavior
For details, see:
Getting Started
GuideBehavior

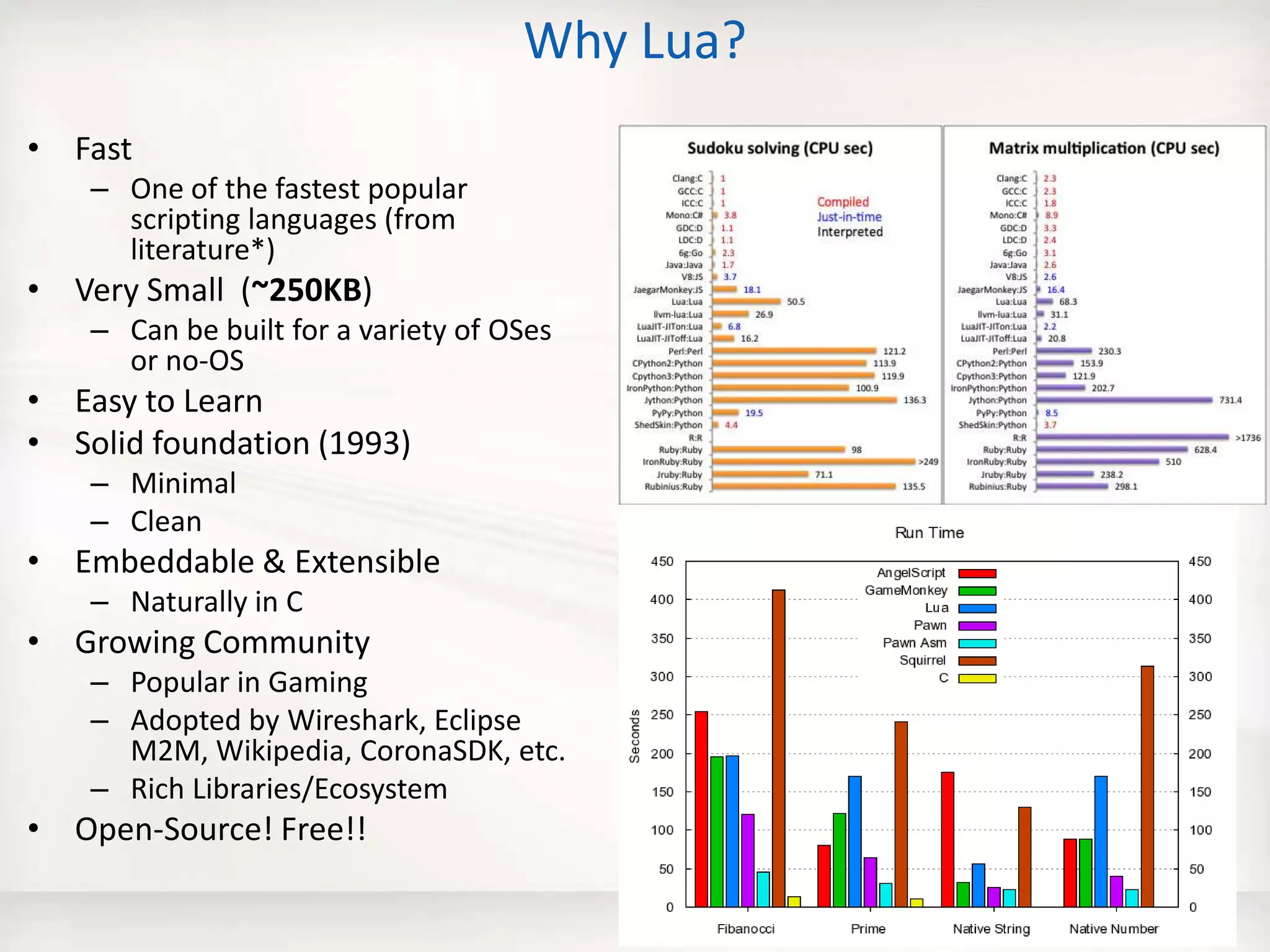

Why Lua?
• Fast
– One of the fastest popular
scripting languages (from
literature*)
• Very Small (~250KB)
– Can be built for a variety of OSes
or no-OS
• Easy to Learn
• Solid foundation (1993)
– Minimal
– Clean
• Embeddable & Extensible
– Naturally in C
• Growing Community
– Popular in Gaming
– Adopted by Wireshark, Eclipse
M2M, Wikipedia, CoronaSDK, etc.
– Rich Libraries/Ecosystem
• Open-Source! Free!!
Where can I learn Lua?
www.lua.org
Don’t worry. It’s easy!

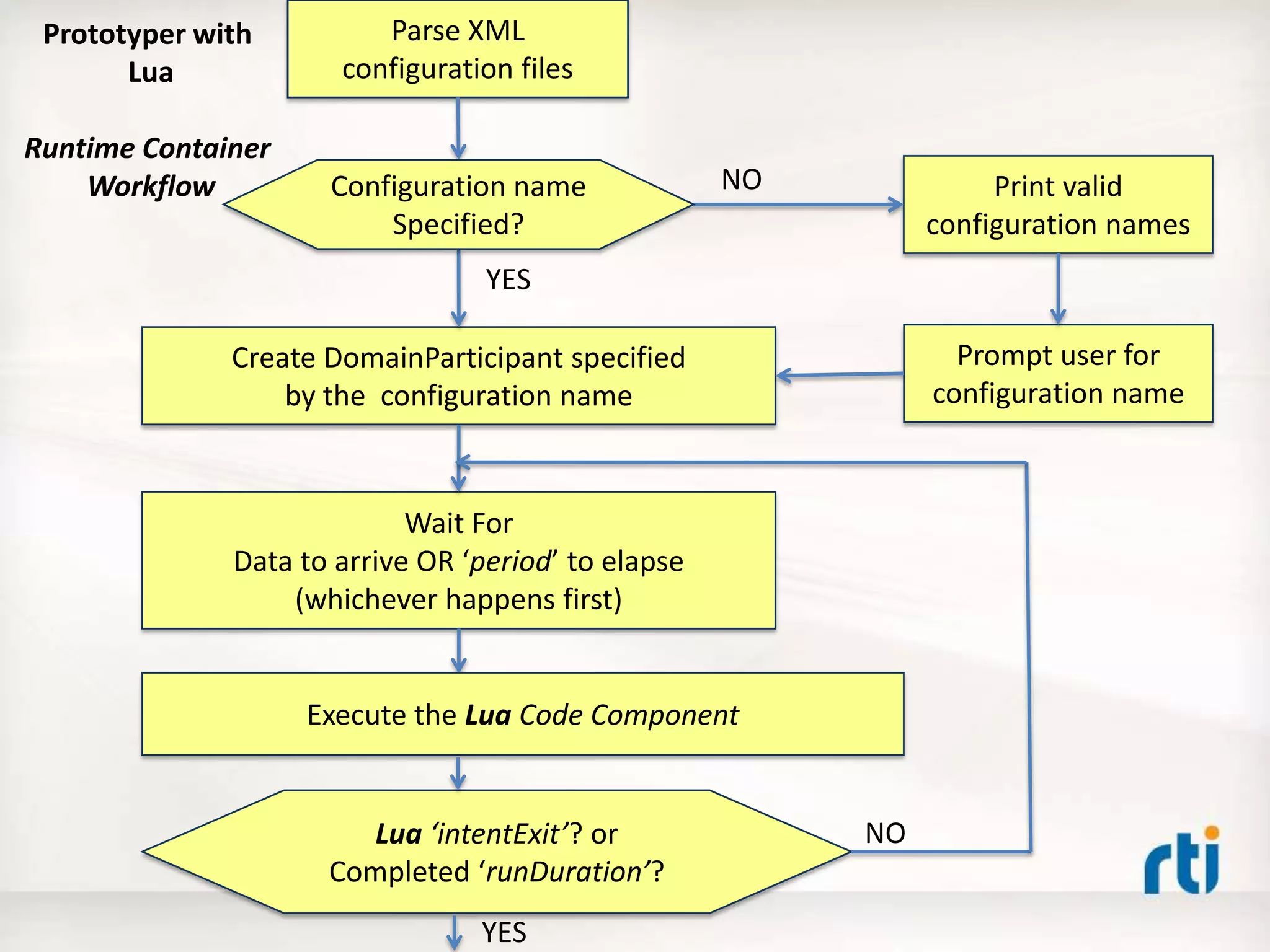

Parse XML
configuration files
Create DomainParticipant specified
by the configuration name
Print valid
configuration names
Prompt user for
configuration name
Wait For
Data to arrive OR ‘period’ to elapse
(whichever happens first)
Execute the Lua Code Component
Lua ‘intentExit’? or
Completed ‘runDuration’?
Configuration name
Specified?
NO
YES
NO
YES
Prototyper with
Lua
Runtime Container
Workflow
RTI Prototyper with Lua
Runtime Container
• When can the Lua Component run?
– On any one or more of the following events
• on Start
• on Data arrival
• on Period (timer)
• on Stop
– User Configurable, e.g.
• Data (Event) Driven : lua.onPeriod = false
• Timer (Polling) Driven : lua.onData = false
– Default: data + timer driven
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
Lua Component
Behavior

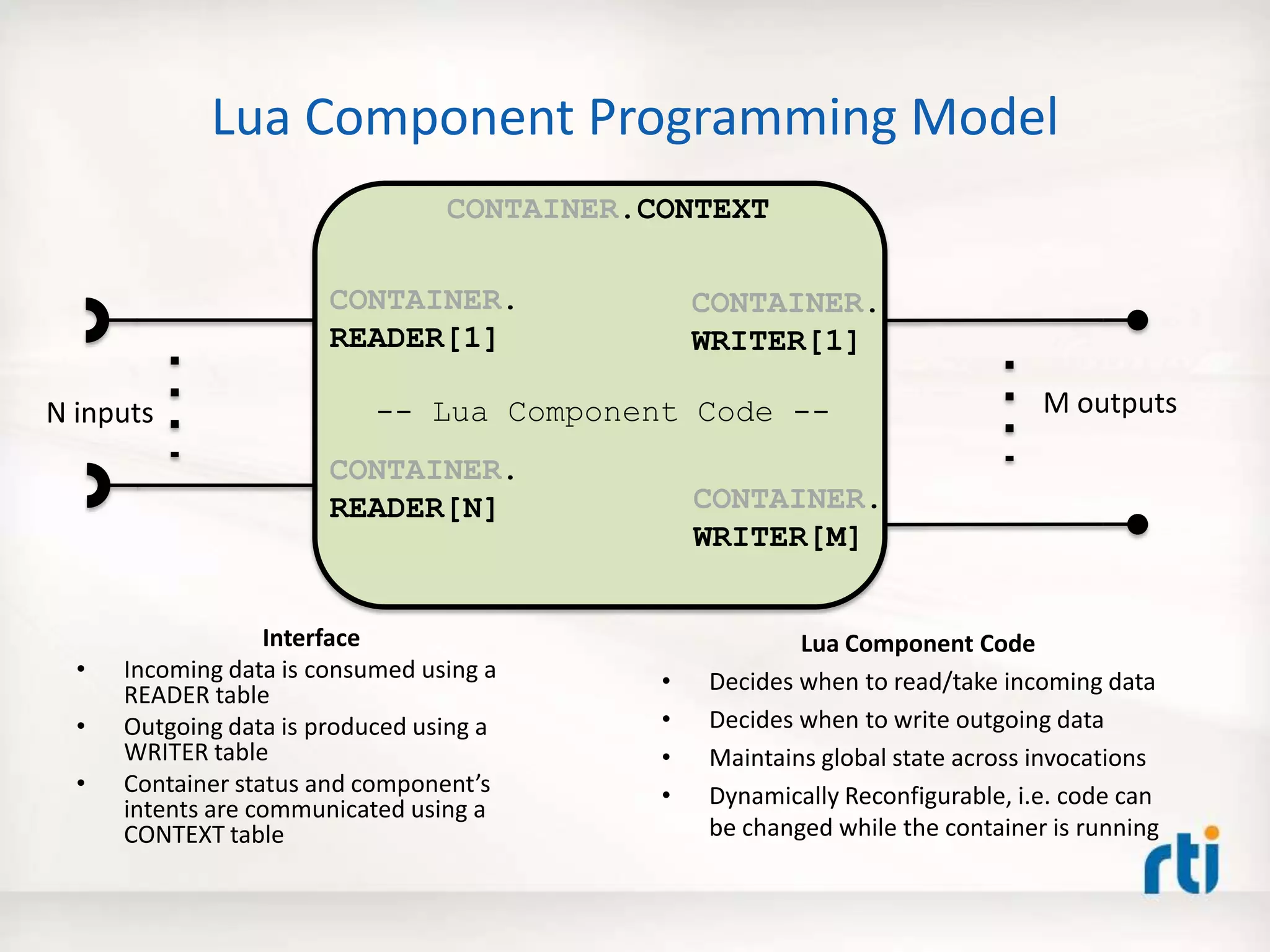

Lua Component Programming Model
Interface
• Incoming data is consumed using a
READER table
• Outgoing data is produced using a
WRITER table
• Container status and component’s
intents are communicated using a
CONTEXT table
N inputs M outputs
CONTAINER.
READER[1]
CONTAINER.
WRITER[1]
CONTAINER.
READER[N] CONTAINER.
WRITER[M]
-- Lua Component Code --
CONTAINER.CONTEXT
Lua Component Code
• Decides when to read/take incoming data
• Decides when to write outgoing data
• Maintains global state across invocations
• Dynamically Reconfigurable, i.e. code can
be changed while the container is running

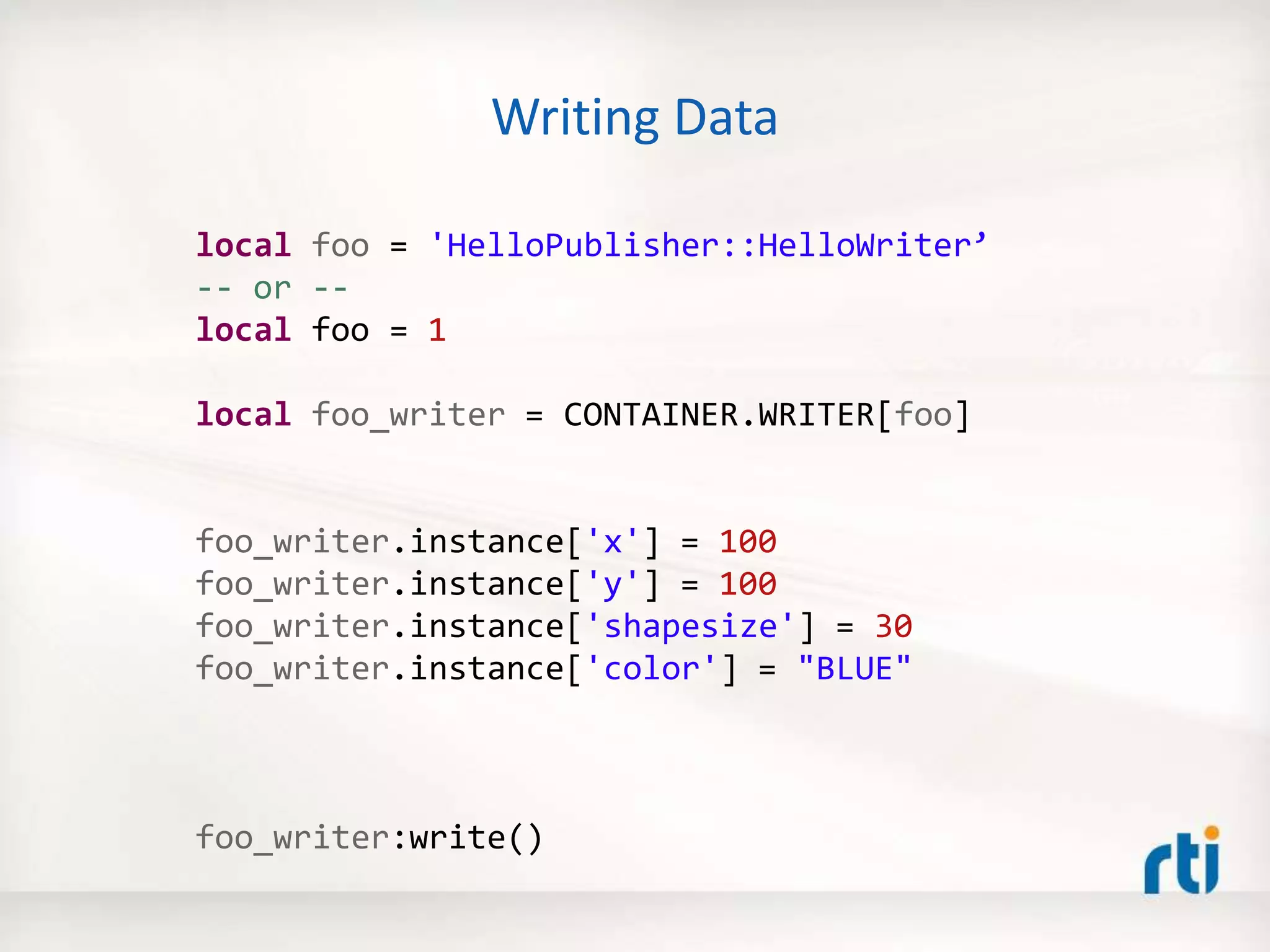

Writing Data
local foo = 'HelloPublisher::HelloWriter’
-- or --
local foo = 1
local foo_writer = CONTAINER.WRITER[foo]
foo_writer.instance['x'] = 100
foo_writer.instance['y'] = 100
foo_writer.instance['shapesize'] = 30
foo_writer.instance['color'] = "BLUE"
foo_writer:write()

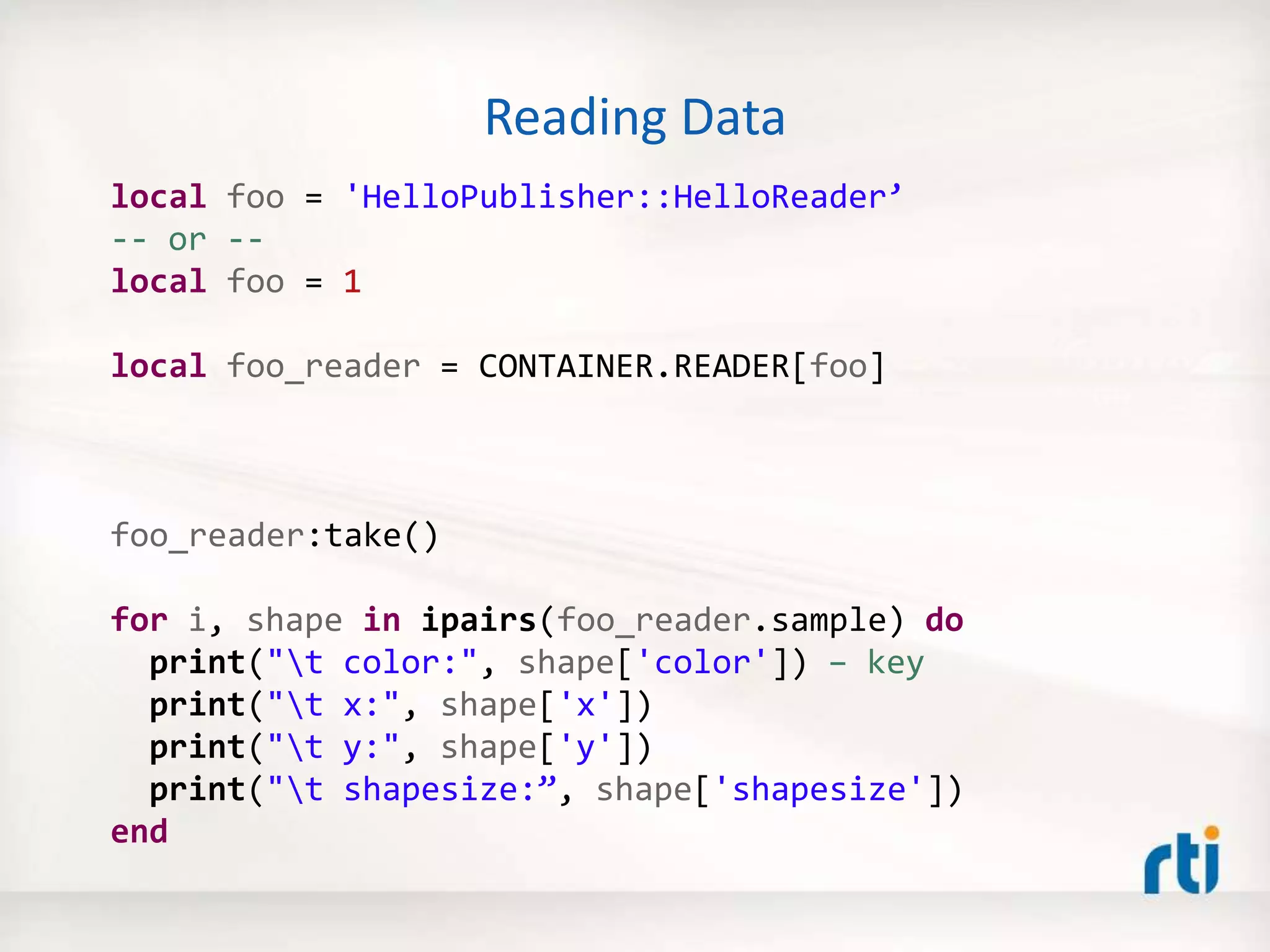

Reading Data
local foo = 'HelloPublisher::HelloReader’
-- or --
local foo = 1
local foo_reader = CONTAINER.READER[foo]
foo_reader:take()
for i, shape in ipairs(foo_reader.sample) do
print("t color:", shape['color']) – key
print("t x:", shape['x'])
print("t y:", shape['y'])
print("t shapesize:”, shape['shapesize'])
end
Agenda
• Why is building distributed systems hard?
• The 5 Critical Steps – Best Practice
• The Prototyper – Separating Structure and
Behavior
• Defining structure using XML
• Coding behavior using Lua – A Small Fast Dynamic
Scripting Language
• Real-World Example
• Summary
Real-World Example: Batch Process Control
(ANSI/ISA-88)
Real-World Example: Batch Process Control
(ANSI/ISA-88)
Station(s)

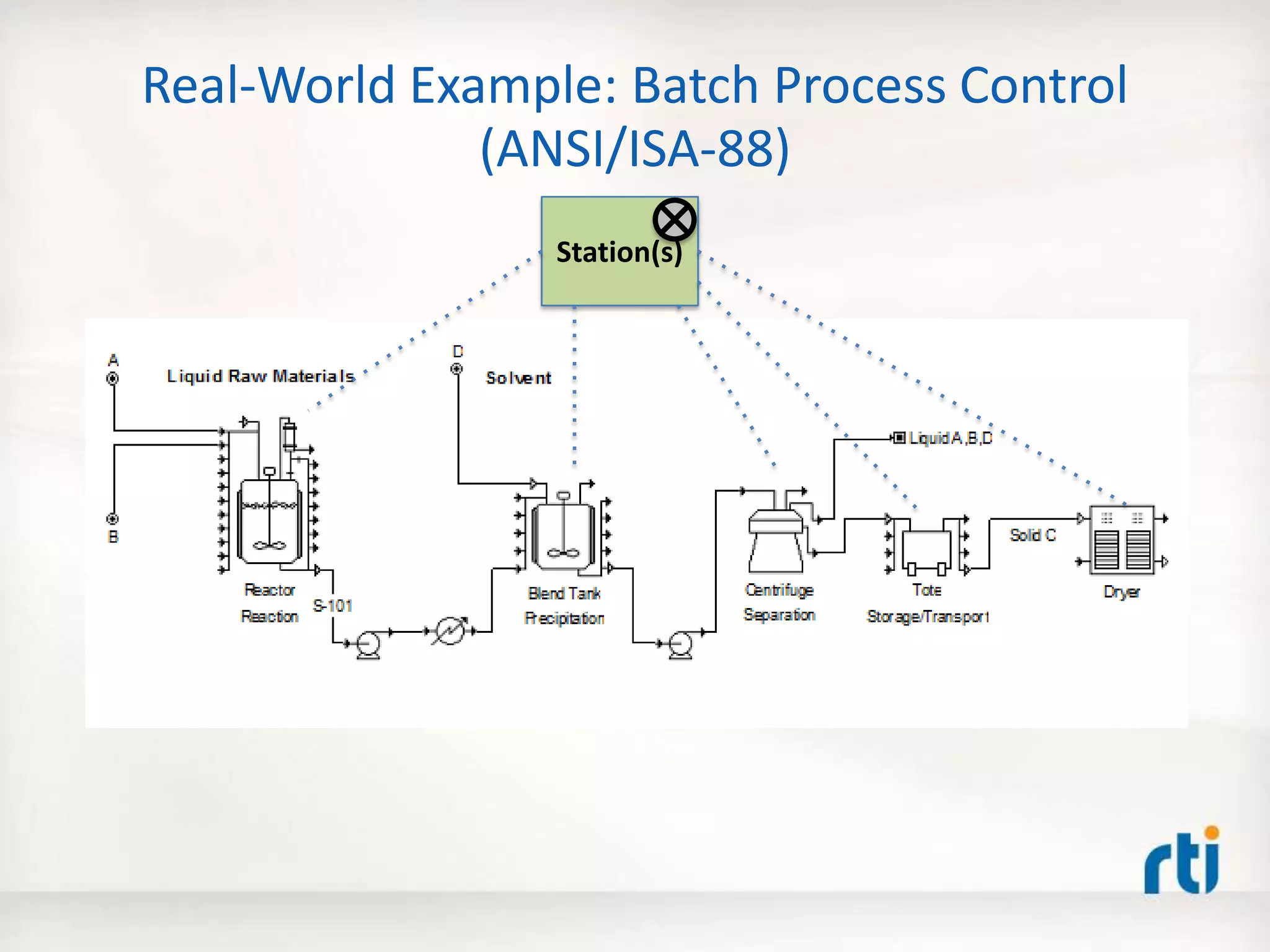

Real-World Example: Batch Process Control
(ANSI/ISA-88)
Station(s)
Recipe(s)
Real-World Example: Batch Process Control
(ANSI/ISA-88)
Station(s)
Recipe(s)
Production
Lot
Production
Lot
Production
Lot

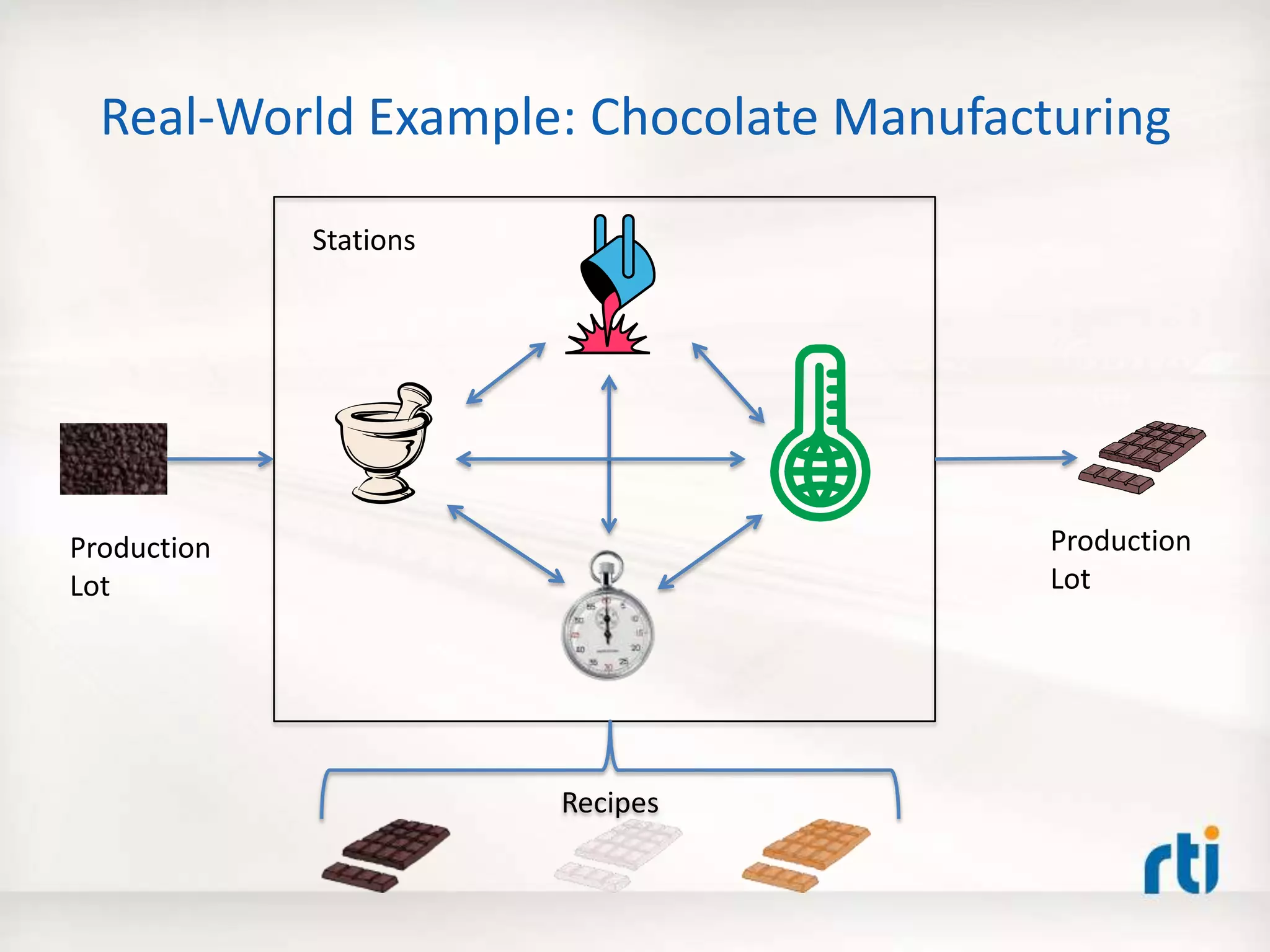

Real-World Example: Chocolate Manufacturing
Recipes
Production
Lot
Stations
Production
Lot
Step 1: Draw a diagram of the components and
the interconnecting data-flows
Station
Controller
Production
Lot
Recipe
Recipe
Configurator
To Other
Station
Controllers
From Other
Station
Controllers
Production
Lot
Step 1: Draw a diagram of the components and
the interconnecting data-flows
Station
Controller
Production
Lot
Recipe
Recipe
Configurator
Production
Lot
Task
Generator
Production
Lot
To Other
Station
Controllers
From Other
Station
Controllers
Step 2: Define the data types for the
interconnecting data flows (in IDL or XML)
Recipe
typedef long StationControlId;
struct RecipeType {
// Uniquely identifies the recipe
string<64> recipeName; //@key
// Defines the sequence of station
// controllers that must be
// traversed to make the product
sequence<StationControlId> steps;
};
<typedef name="StationControlId" type="long" />
<struct name="RecipeType”>
<member name="recipeName" stringMaxLength="64" type="string" key="true" />
<member name="steps" sequenceMaxLength="-1" type="nonBasic"
nonBasicTypeName="StationControlId" />
</struct>
XML
IDL
Step 2: Define the data types for the
interconnecting data flows (in IDL or XML)
enum LotStatus {
WAITING_FOR_SC,
PROCESSING_AT_SC,
COMPLETED
};
struct ProductionLotType {
long lotId; //@key
// Identfies the product
string<64> productName;
// Identifies the recipe used
string<64> recipeName;
LotStatus status;
StationControlId assignedSC;
};
Production
LotIDL
Step 2: Define the data types for the
interconnecting data flows (in IDL or XML)
<enum name="LotStatus" bitBound="32">
<enumerator name="WAITING_FOR_SC" />
<enumerator name="PROCESSING_AT_SC" />
<enumerator name="COMPLETED" />
</enum>
<struct name="ProductionLotType">
<member name="lotId" type="long" key="true" />
<member name="productName" stringMaxLength="64" type="string" />
<member name="recipeName" stringMaxLength="64" type="string" />
<member name="status" type="nonBasic" nonBasicTypeName="LotStatus" />
<member name="assignedSC" type="nonBasic” nonBasicTypeName="StationControlId" />
</struct>
Production
LotXML
Step 3: Define the system structure as a collection of
data-oriented component interfaces (in XML)
<domain_library name="FactoryDomainLib">
<domain name="ChocolateFactory" domain_id="90">
<register_type name="ProductionLotType" kind="dynamicData"
type_ref="FactoryTypes::ProductionLotType"/>
<register_type name="RecipeType" kind="dynamicData"
type_ref="FactoryTypes::RecipeType"/>
<topic register_type_ref="ProductionLotType" name="ProductionLot"/>
<topic register_type_ref="RecipeType" name="Recipe"/>
</domain>
</domain_library>
Production
Lot
Recipe
Step 3: Define the system structure as a collection of
data-oriented component interfaces (in XML)
<domain_participant name="RecipeConfigurator"
domain_ref="FactoryDomainLib::ChocolateFactory">
<participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile">
<participant_name>
<name>RecipeConfigurator</name>
<role_name>RecipeConfigurator</role_name>
</participant_name>
<property>
<value>
<element>
<name>lua.file</name>
<value>RecipeConfigurator.lua</value>
</element>
<element>
<name>lua.onStart</name>
<value>true</value>
</element>
</value>
</property>
</participant_qos>
<publisher name="RecipePublisher">
<data_writer topic_ref="Recipe" name="RecipeWriter">
<datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/>
</data_writer>
</publisher>
</domain_participant>
Recipe
Recipe
Configurator
Step 3: Define the system structure as a collection of
data-oriented component interfaces (in XML)
<participant_library name="FactoryParticipantLib">
<domain_participant name="TaskGenerator"
domain_ref="FactoryDomainLib::ChocolateFactory">
<participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile">
<participant_name>
<name>TaskGenerator</name>
<role_name>TaskGenerator</role_name>
</participant_name>
<property>
<value>
<element>
<name>lua.file</name>
<value>TaskGenerator.lua</value>
</element>
<element>
<name>lua.onStart</name>
<value>true</value>
</element>
</value>
</property>
</participant_qos>
<publisher name="TaskPublisher">
<data_writer topic_ref="ProductionLot" name="TaskWriter">
<datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/>
</data_writer>
</publisher>
</domain_participant>
Task
Generator
Production
Lot

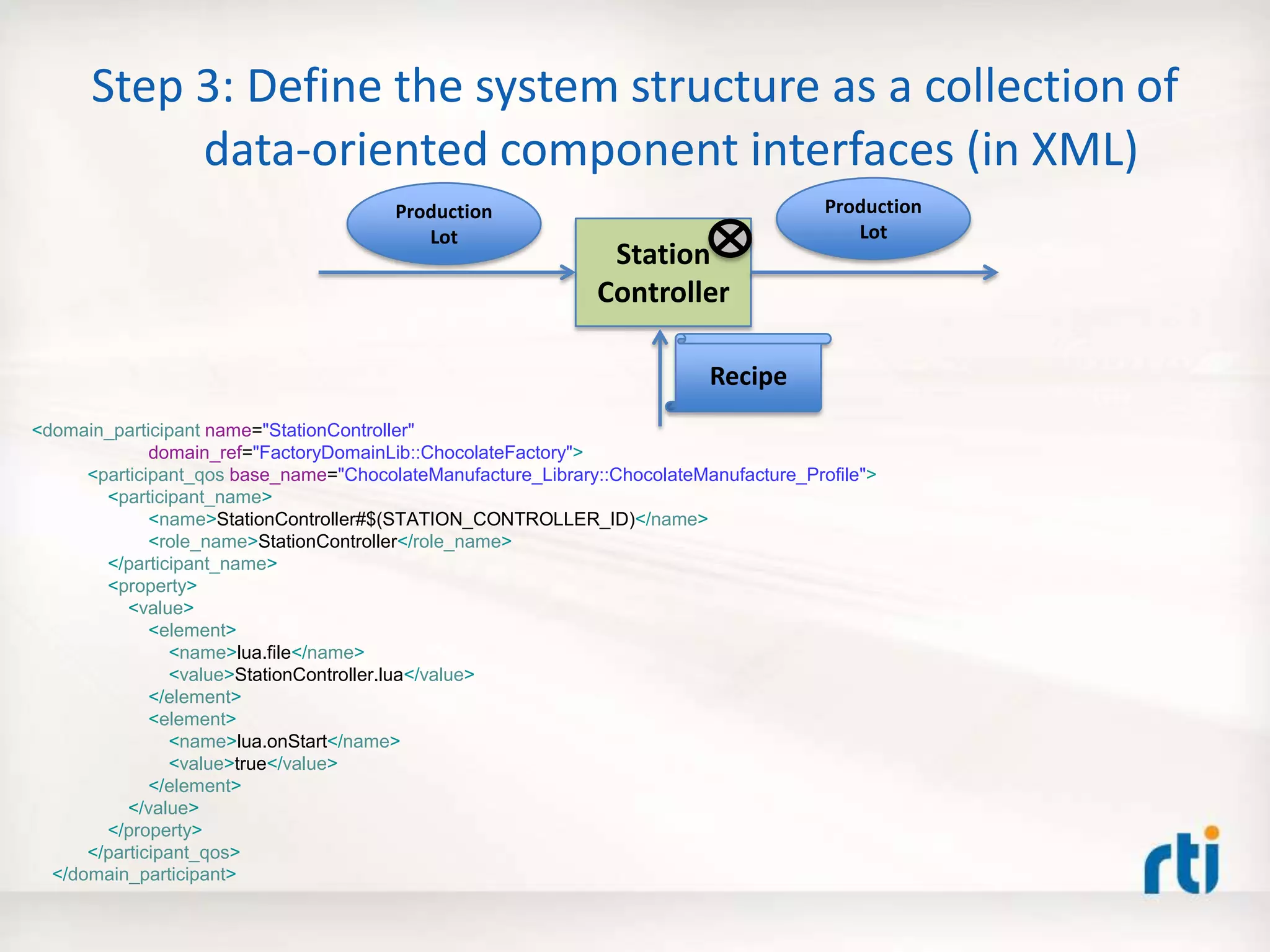

Step 3: Define the system structure as a collection of
data-oriented component interfaces (in XML)
<domain_participant name="StationController"
domain_ref="FactoryDomainLib::ChocolateFactory">
<participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile">
<participant_name>
<name>StationController#$(STATION_CONTROLLER_ID)</name>
<role_name>StationController</role_name>
</participant_name>
<property>
<value>
<element>
<name>lua.file</name>
<value>StationController.lua</value>
</element>
<element>
<name>lua.onStart</name>
<value>true</value>
</element>
</value>
</property>
</participant_qos>
</domain_participant>
Station
Controller
Production
Lot
Production
Lot
Recipe
Step 3: Define the system structure as a collection of
data-oriented component interfaces (in XML)
<publisher name="SCPublisher">
<data_writer topic_ref="ProductionLot" name="LotWriter">
<datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/>
</data_writer>
</publisher>
<subscriber name="SCSubscriber">
<data_reader topic_ref="Recipe" name="RecipeReader">
<datareader_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/>
</data_reader>
<data_reader topic_ref="ProductionLot" name="LotReader">
<datareader_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/>
<filter name="MyLots" kind="builtin.sql">
<expression>assignedSC = $(STATION_CONTROLLER_ID) AND status = 0</expression>
</filter>
</data_reader>
</subscriber>
</domain_participant>
Station
Controller
Production
Lot
Production
Lot
Recipe
Step 4: Code the component behavior in the Lua
scripting language
Recipe
Configurator
if ( CONTAINER.CONTEXT.onStartEvent ) then
print("Starting RecipeConfigurator")
ConfigWriter = PROTOTYPER.WRITER["RecipePublisher::RecipeWriter”]
outputRecipe = ConfigWriter.instance
outputRecipe.recipeName = "DarkChocolateRecipe"
local stations = { 1, 2, 3, 4, 6, 7, 8, 9, 11, 12, 13 }
for i, station in ipairs( stations ) do
step = "steps[".. i .."]"
outputRecipe[step] = station
end
ConfigWriter:write()
outputRecipe.recipeName = "WhiteChocolateRecipe"
local stations = { 1, 2, 4, 5, 6, 7, 8, 9, 11, 12, 13 }
for i, station in ipairs( stations ) do
step = "steps[".. i .."]"
outputRecipe[step] = station
end
ConfigWriter:write()
outputRecipe.recipeName = "MilkChocolateRecipe"
local stations = { 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13 }
for i, station in ipairs( stations ) do
step = "steps[".. i .."]"
outputRecipe[step] = station
end
ConfigWriter:write()
end
Step 4: Code the component behavior in the Lua
scripting language
if ( CONTAINER.CONTEXT.onStartEvent ) then
print("Starting TaskGenerator”)
TaskWriter = PROTOTYPER.WRITER["TaskPublisher::TaskWriter"]
count = 0
end
local taskLot = TaskWriter.instance
-- We use the count to simulate the continuous generation of tasks
count = count+1
taskLot.lotId = count
taskLot.status = 0
taskLot.assignedSC = 1
if (count <= 1) then
taskLot.productName = "DarkChocolate"
taskLot.recipeName = "DarkChocolateRecipe"
taskLot.assignedSC = 1
elseif (count <= 2) then
taskLot.productName = "WhiteChocolate"
taskLot.recipeName = "WhiteChocolateRecipe"
elseif (count <= 3) then
taskLot.productName = "MilkChocolate"
taskLot.recipeName = "MilkChocolateRecipe"
end
TaskWriter:write()
if ( count > 3 ) then
CONTAINER.CONTEXT.intentExit = true
end
Task
Generator
Step 4: Code the component behavior in the Lua
scripting language
-- State initialization to perform the first time the script runs
if ( CONTAINER.CONTEXT.onStartEvent ) then
-- Sentinel values returned by recipeGetNextSCNumber()
NEXT_STATION_COMPLETED=-1
-- Enumerated values that may appear in the Lot.status
LOT_STATUS_WAITING_FOR_SC=0
LOT_STATUS_PROCESSING_AT_SC=1
LOT_STATUS_COMPLETED=2
-- Possible value for the SC's stationState
SC_STATE_READY = 'READY'
SC_STATE_PROCESSING = 'PROCESSING'
-- The number for this station conroller is passed as an
-- environment variable
mySCNumber = tonumber(os.getenv("STATION_CONTROLLER_ID"))
print("Starting SC#" .. mySCNumber)
stationState = SC_STATE_READY
delayCount = 0
-- Queues all the lots that are waiting to be processed by the SC
taskQUEUE = {}
-- Indexed by the recipe name. Stores the next SC# for that recipe
recipeTable = {}
End
-- Helper functions
-- :
Station
Controller
Step 5: Adjust QoS policies to achieve the
desired data-flow behavior
Recipe
QoS
<datawriter_qos>
<reliability>
<kind>RELIABLE_RELIABILITY_QOS</kind>
<max_blocking_time>
<sec>60</sec>
</max_blocking_time>
</reliability>
<history>
<kind>KEEP_ALL_HISTORY_QOS</kind>
</history>
<durability>
<kind>TRANSIENT_LOCAL_DURABILITY_QOS</kind>
</durability>
</datawriter_qos>
<datareader_qos>
<reliability>
<kind>RELIABLE_RELIABILITY_QOS</kind>
</reliability>
<history>
<kind>KEEP_ALL_HISTORY_QOS</kind>
</history>
<durability>
<kind>TRANSIENT_LOCAL_DURABILITY_QOS</kind>
</durability>
</datareader_qos>
Production
Lot
QoS

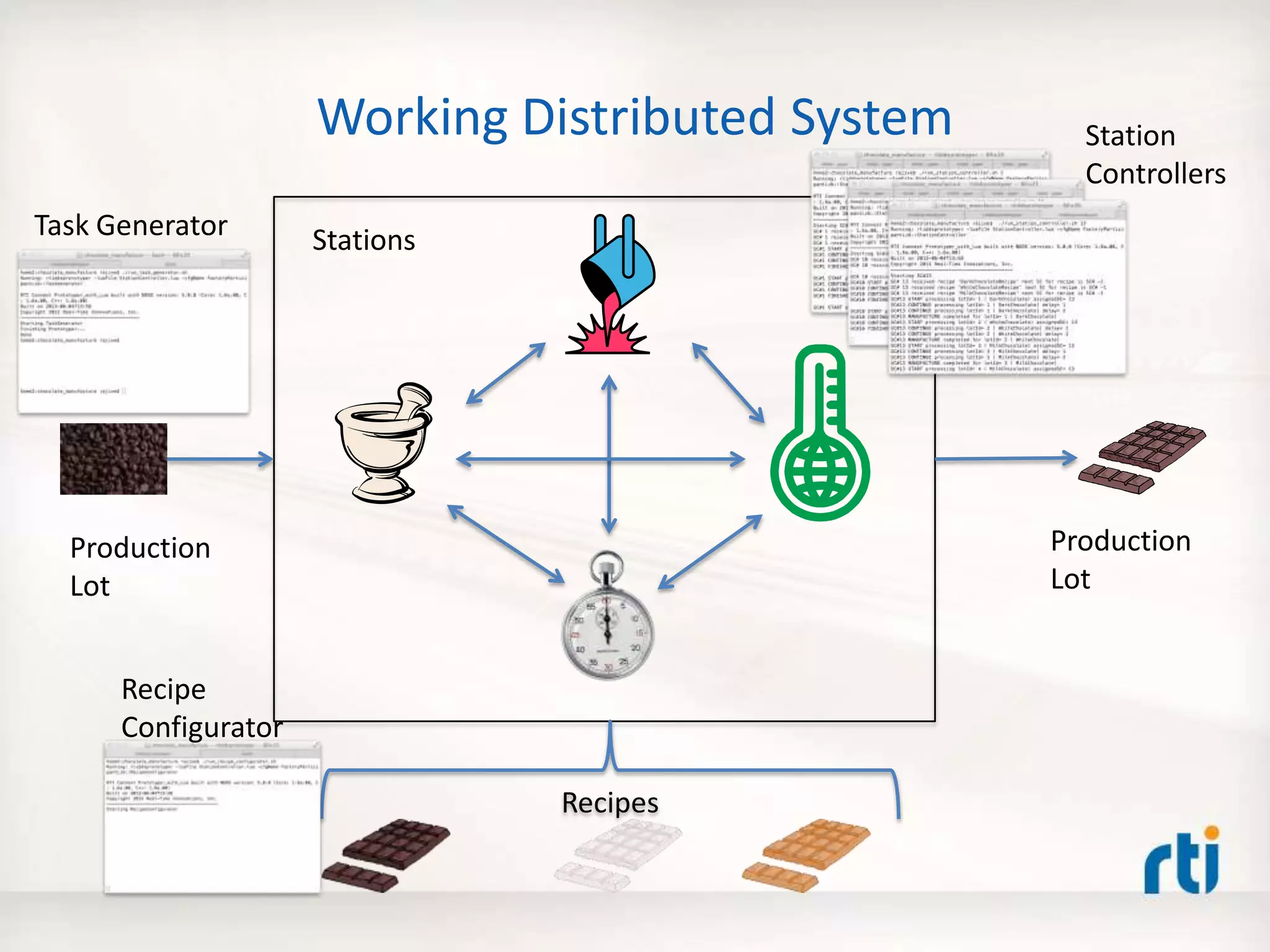

Working Distributed System
Recipes
Production
Lot
Stations
Production
Lot
Station
Controllers
Task Generator
Recipe
Configurator
Agenda
• Why is building distributed systems hard?
• The 5 Critical Steps – Best Practice
• The Prototyper – Separating Structure and
Behavior
• Defining structure using XML
• Coding behavior using Lua – A Small Fast Dynamic
Scripting Language
• Real-World Example
• Summary
Prototyper (Container)
The RTI Prototyper with Lua
Lua Engine
1. -- Interface: parameters, inputs, outputs
2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes
3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles
4.
5. -- Global counter (preserved across invocations)
6. if not count then count = 0 else count = count + 1 end
7.
8. local shape = ShapeWriter.instance;
9. local angle = count % 360;
10.
11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle)
12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle)
13.
14. shape['shapesize'] = 5
15. shape['color'] = "RED"
16.
17. ShapeWriter:write()
DDS
Settings
(Structure/
Wiring)
USER_QOS_PROFILES.xml
XML Based
Application
Configuration
RTI
Community
Portal
Download
Lua Component
Behavior
For details, see:
Getting Started
Guide

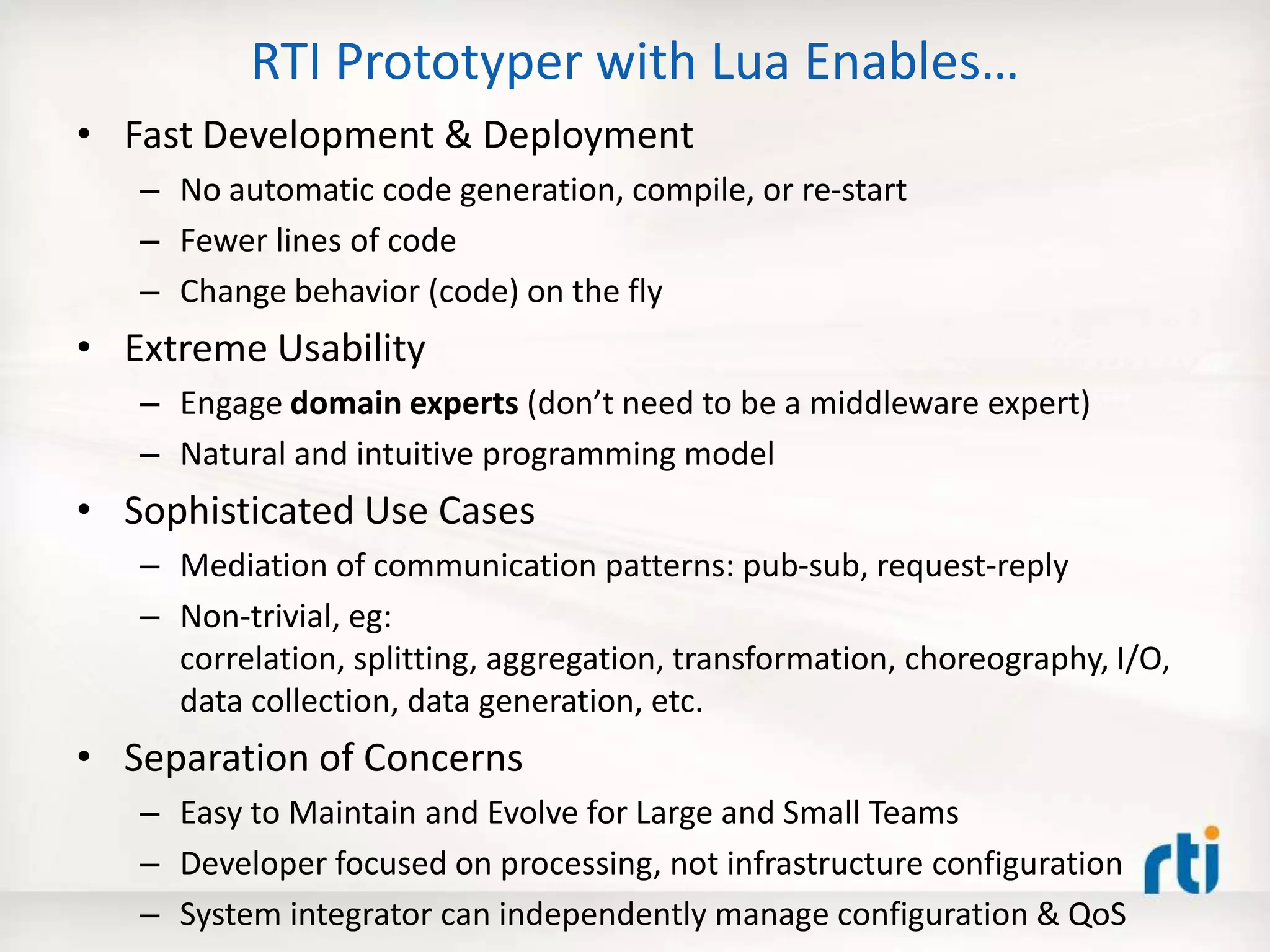

RTI Prototyper with Lua Enables…
• Fast Development & Deployment
– No automatic code generation, compile, or re-start
– Fewer lines of code
– Change behavior (code) on the fly
• Extreme Usability
– Engage domain experts (don’t need to be a middleware expert)
– Natural and intuitive programming model
• Sophisticated Use Cases
– Mediation of communication patterns: pub-sub, request-reply
– Non-trivial, eg:
correlation, splitting, aggregation, transformation, choreography, I/O,
data collection, data generation, etc.
• Separation of Concerns
– Easy to Maintain and Evolve for Large and Small Teams
– Developer focused on processing, not infrastructure configuration
– System integrator can independently manage configuration & QoS
The 5 Critical Steps
Articulate Concept
1. Draw a diagram of the components and the interconnecting data-
flows
Define Structure
2. Define the data types for the interconnecting data flows (in IDL or
XML)
3. Define the system structure as a collection of data-oriented
component interfaces (in XML)
Configure Behavior
4. Code the component behavior in the Lua scripting language
5. Adjust QoS policies to achieve the desired data-flow behavior
LATER: Optimize selected components in C/C++/Java/C#,
but only if necessary!
Key Benefits
• Get stuff done fast(er)!
• Quickly try out new ideas, and show a working proof
of concept.
• Get more done with the same staff.
• Ease into the learning curve of DDS by getting
something up and running first, and then learn more as
you need to.
• Explore tradeoff between data-model choices.
• Experiment with QoS policies for a given data model.
• Script test scenarios for existing DDS system!
• Test and validate an existing system. Build your own
test harness.

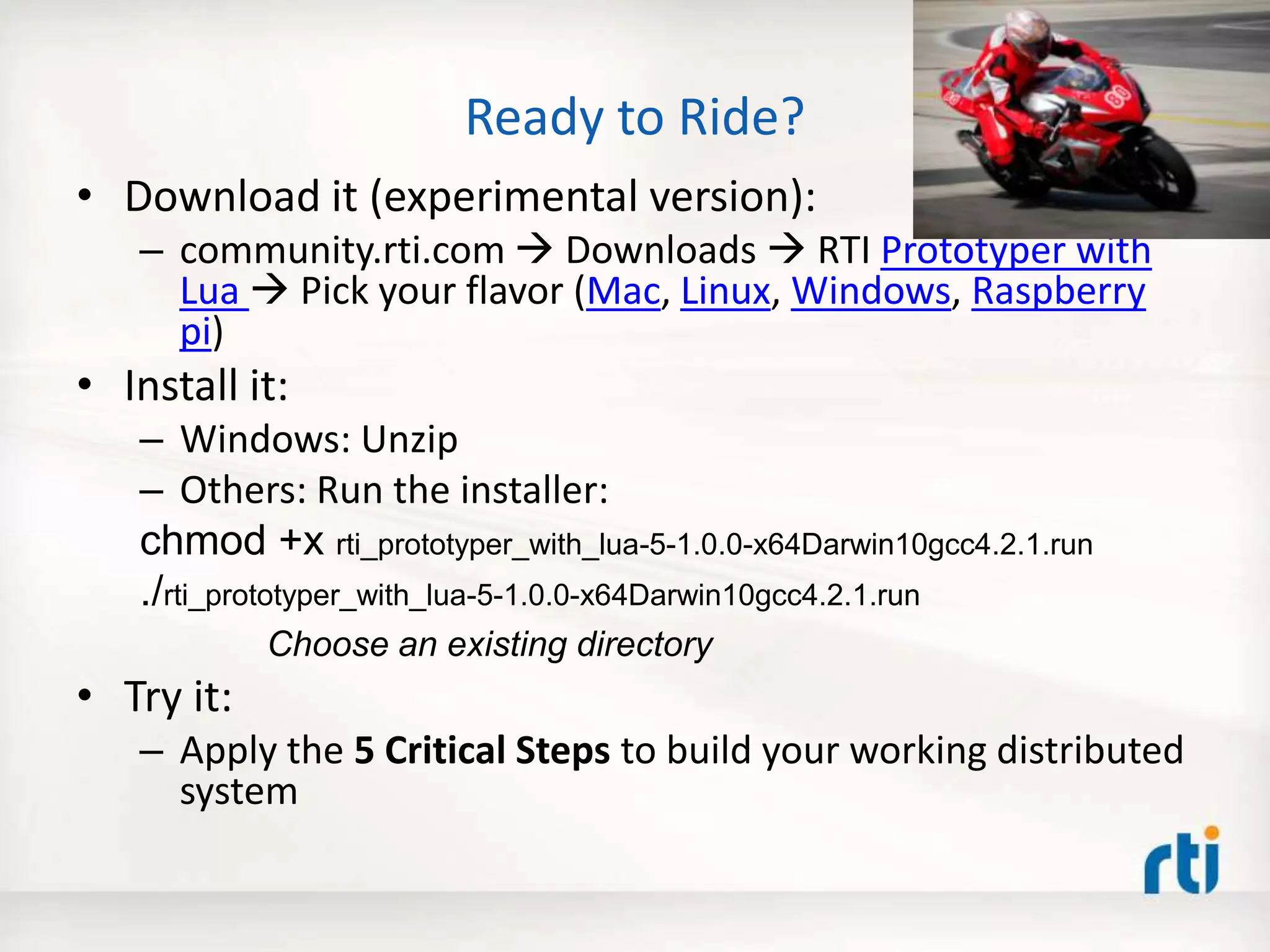

Ready to Ride?
• Download it (experimental version):
– community.rti.com  Downloads  RTI Prototyper with
Lua  Pick your flavor (Mac, Linux, Windows, Raspberry
pi)
• Install it:
– Windows: Unzip
– Others: Run the installer:
chmod +x rti_prototyper_with_lua-5-1.0.0-x64Darwin10gcc4.2.1.run
./rti_prototyper_with_lua-5-1.0.0-x64Darwin10gcc4.2.1.run
Choose an existing directory
• Try it:
– Apply the 5 Critical Steps to build your working distributed
system
…Late Nights No More!
THANK YOU
http://blogs.rti.com/tag/lua/
http://community.rti.com/search/site/lua

More Related Content

What's hot

Introduction to Data Science With R Lab Record
Introduction to Data Science With R Lab RecordIntroduction to Data Science With R Lab Record
Introduction to Data Science With R Lab Record
Lakshmi Sarvani Videla

Computer graphics practical(jainam)
Computer graphics practical(jainam)Computer graphics practical(jainam)
Computer graphics practical(jainam)
JAINAM KAPADIYA

Preparing for BIT – IT2301 Database Management Systems 2001f
Preparing for BIT – IT2301 Database Management Systems 2001fPreparing for BIT – IT2301 Database Management Systems 2001f
Preparing for BIT – IT2301 Database Management Systems 2001f
Gihan Wikramanayake

Baby-step tutorial on adding Dynamism in Chats (Ms Excel)
Baby-step tutorial on adding Dynamism in Chats (Ms Excel)Baby-step tutorial on adding Dynamism in Chats (Ms Excel)
Baby-step tutorial on adding Dynamism in Chats (Ms Excel)
Amit Panasara

Computer graphics lab manual
Computer graphics lab manualComputer graphics lab manual
Computer graphics lab manual
Ankit Kumar

Parametric surface visualization in Directx 11 and C++
Parametric surface visualization in Directx 11 and C++Parametric surface visualization in Directx 11 and C++
Parametric surface visualization in Directx 11 and C++
Alejandro Cosin Ayerbe

Lecture on graphics
Lecture on graphicsLecture on graphics
Lecture on graphics
Rafi_Dar

Computer graphics
Computer graphics Computer graphics
Computer graphics
shafiq sangi

Matlab introduction
Matlab introductionMatlab introduction
Matlab introduction
ssuser2797e4

R, Scikit-Learn and Apache Spark ML - What difference does it make?
R, Scikit-Learn and Apache Spark ML - What difference does it make?R, Scikit-Learn and Apache Spark ML - What difference does it make?
R, Scikit-Learn and Apache Spark ML - What difference does it make?
Villu Ruusmann

Introduction to graphics programming in c
Introduction to graphics programming in cIntroduction to graphics programming in c
Introduction to graphics programming in c
baabtra.com - No. 1 supplier of quality freshers


What's hot (11)

Introduction to Data Science With R Lab Record
Introduction to Data Science With R Lab RecordIntroduction to Data Science With R Lab Record
Introduction to Data Science With R Lab Record

Computer graphics practical(jainam)
Computer graphics practical(jainam)Computer graphics practical(jainam)
Computer graphics practical(jainam)

Preparing for BIT – IT2301 Database Management Systems 2001f
Preparing for BIT – IT2301 Database Management Systems 2001fPreparing for BIT – IT2301 Database Management Systems 2001f
Preparing for BIT – IT2301 Database Management Systems 2001f

Baby-step tutorial on adding Dynamism in Chats (Ms Excel)
Baby-step tutorial on adding Dynamism in Chats (Ms Excel)Baby-step tutorial on adding Dynamism in Chats (Ms Excel)
Baby-step tutorial on adding Dynamism in Chats (Ms Excel)

Computer graphics lab manual
Computer graphics lab manualComputer graphics lab manual
Computer graphics lab manual

Parametric surface visualization in Directx 11 and C++
Parametric surface visualization in Directx 11 and C++Parametric surface visualization in Directx 11 and C++
Parametric surface visualization in Directx 11 and C++

Lecture on graphics
Lecture on graphicsLecture on graphics
Lecture on graphics

Computer graphics
Computer graphics Computer graphics
Computer graphics

Matlab introduction
Matlab introductionMatlab introduction
Matlab introduction

R, Scikit-Learn and Apache Spark ML - What difference does it make?
R, Scikit-Learn and Apache Spark ML - What difference does it make?R, Scikit-Learn and Apache Spark ML - What difference does it make?
R, Scikit-Learn and Apache Spark ML - What difference does it make?

Introduction to graphics programming in c
Introduction to graphics programming in cIntroduction to graphics programming in c
Introduction to graphics programming in c


Similar to Build It Fast: 5 Steps from Concept to Working Distributed System

Serverless+Redis!= Stateless Avner Braverman
Serverless+Redis!= Stateless Avner BravermanServerless+Redis!= Stateless Avner Braverman
Serverless+Redis!= Stateless Avner Braverman
Redis Labs

EnrichmentWeek Binus Computer Vision
EnrichmentWeek Binus Computer VisionEnrichmentWeek Binus Computer Vision
EnrichmentWeek Binus Computer Vision
giamuhammad

R Programming Intro
R Programming IntroR Programming Intro
R Programming Intro
062MayankSinghal

Graph computation
Graph computationGraph computation
Graph computation
Sigmoid

Oops presentation
Oops presentationOops presentation
Oops presentation
sushamaGavarskar1

Multiple graphs in openCypher
Multiple graphs in openCypherMultiple graphs in openCypher
Multiple graphs in openCypher
openCypher

All I know about rsc.io/c2go
All I know about rsc.io/c2goAll I know about rsc.io/c2go
All I know about rsc.io/c2go
Moriyoshi Koizumi

Apache big-data-2017-scala-sql
Apache big-data-2017-scala-sqlApache big-data-2017-scala-sql
Apache big-data-2017-scala-sql
Jayesh Thakrar

Rainer Grimm, “Functional Programming in C++11”
Rainer Grimm, “Functional Programming in C++11”Rainer Grimm, “Functional Programming in C++11”
Rainer Grimm, “Functional Programming in C++11”
Platonov Sergey

Svcc 2013-d3
Svcc 2013-d3Svcc 2013-d3
Svcc 2013-d3
Oswald Campesato

SVCC 2013 D3.js Presentation (10/05/2013)
SVCC 2013 D3.js Presentation (10/05/2013)SVCC 2013 D3.js Presentation (10/05/2013)
SVCC 2013 D3.js Presentation (10/05/2013)
Oswald Campesato

R meets Hadoop
R meets HadoopR meets Hadoop
R meets Hadoop
Hidekazu Tanaka

SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD
SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERDSAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD
SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD
The Children's Hospital of Philadelphia

Rethinking metrics: metrics 2.0 @ Lisa 2014
Rethinking metrics: metrics 2.0 @ Lisa 2014Rethinking metrics: metrics 2.0 @ Lisa 2014
Rethinking metrics: metrics 2.0 @ Lisa 2014
Dieter Plaetinck

Solidworks
SolidworksSolidworks
Solidworks
Pawan Kumar

Grouping & Summarizing Data in R
Grouping & Summarizing Data in RGrouping & Summarizing Data in R
Grouping & Summarizing Data in R
Jeffrey Breen

Business Dashboards using Bonobo ETL, Grafana and Apache Airflow
Business Dashboards using Bonobo ETL, Grafana and Apache AirflowBusiness Dashboards using Bonobo ETL, Grafana and Apache Airflow
Business Dashboards using Bonobo ETL, Grafana and Apache Airflow
Romain Dorgueil

Presentation
PresentationPresentation
Presentation
Dimitris Stripelis

Monitoring Your ISP Using InfluxDB Cloud and Raspberry Pi
Monitoring Your ISP Using InfluxDB Cloud and Raspberry PiMonitoring Your ISP Using InfluxDB Cloud and Raspberry Pi
Monitoring Your ISP Using InfluxDB Cloud and Raspberry Pi
InfluxData

Scala.io
Scala.ioScala.io
Scala.io
Steve Gury


Similar to Build It Fast: 5 Steps from Concept to Working Distributed System (20)

Serverless+Redis!= Stateless Avner Braverman
Serverless+Redis!= Stateless Avner BravermanServerless+Redis!= Stateless Avner Braverman
Serverless+Redis!= Stateless Avner Braverman

EnrichmentWeek Binus Computer Vision
EnrichmentWeek Binus Computer VisionEnrichmentWeek Binus Computer Vision
EnrichmentWeek Binus Computer Vision

R Programming Intro
R Programming IntroR Programming Intro
R Programming Intro

Graph computation
Graph computationGraph computation
Graph computation

Oops presentation
Oops presentationOops presentation
Oops presentation

Multiple graphs in openCypher
Multiple graphs in openCypherMultiple graphs in openCypher
Multiple graphs in openCypher

All I know about rsc.io/c2go
All I know about rsc.io/c2goAll I know about rsc.io/c2go
All I know about rsc.io/c2go

Apache big-data-2017-scala-sql
Apache big-data-2017-scala-sqlApache big-data-2017-scala-sql
Apache big-data-2017-scala-sql

Rainer Grimm, “Functional Programming in C++11”
Rainer Grimm, “Functional Programming in C++11”Rainer Grimm, “Functional Programming in C++11”
Rainer Grimm, “Functional Programming in C++11”

Svcc 2013-d3
Svcc 2013-d3Svcc 2013-d3
Svcc 2013-d3

SVCC 2013 D3.js Presentation (10/05/2013)
SVCC 2013 D3.js Presentation (10/05/2013)SVCC 2013 D3.js Presentation (10/05/2013)
SVCC 2013 D3.js Presentation (10/05/2013)

R meets Hadoop
R meets HadoopR meets Hadoop
R meets Hadoop

SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD
SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERDSAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD
SAMSTAR: A Semi-automated Lexical Method to generate Star Schemas from an ERD

Rethinking metrics: metrics 2.0 @ Lisa 2014
Rethinking metrics: metrics 2.0 @ Lisa 2014Rethinking metrics: metrics 2.0 @ Lisa 2014
Rethinking metrics: metrics 2.0 @ Lisa 2014

Solidworks
SolidworksSolidworks
Solidworks

Grouping & Summarizing Data in R
Grouping & Summarizing Data in RGrouping & Summarizing Data in R
Grouping & Summarizing Data in R

Business Dashboards using Bonobo ETL, Grafana and Apache Airflow
Business Dashboards using Bonobo ETL, Grafana and Apache AirflowBusiness Dashboards using Bonobo ETL, Grafana and Apache Airflow
Business Dashboards using Bonobo ETL, Grafana and Apache Airflow

Presentation
PresentationPresentation
Presentation

Monitoring Your ISP Using InfluxDB Cloud and Raspberry Pi
Monitoring Your ISP Using InfluxDB Cloud and Raspberry PiMonitoring Your ISP Using InfluxDB Cloud and Raspberry Pi
Monitoring Your ISP Using InfluxDB Cloud and Raspberry Pi

Scala.io
Scala.ioScala.io
Scala.io


More from Real-Time Innovations (RTI)

A Tour of RTI Applications
A Tour of RTI ApplicationsA Tour of RTI Applications
A Tour of RTI Applications
Real-Time Innovations (RTI)

Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...
Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...
Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...
Real-Time Innovations (RTI)

The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...
The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...
The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...
Real-Time Innovations (RTI)

Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...
Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...
Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...
Real-Time Innovations (RTI)

The Inside Story: Leveraging the IIC's Industrial Internet Security Framework
The Inside Story: Leveraging the IIC's Industrial Internet Security FrameworkThe Inside Story: Leveraging the IIC's Industrial Internet Security Framework
The Inside Story: Leveraging the IIC's Industrial Internet Security Framework
Real-Time Innovations (RTI)

ISO 26262 Approval of Automotive Software Components
ISO 26262 Approval of Automotive Software ComponentsISO 26262 Approval of Automotive Software Components
ISO 26262 Approval of Automotive Software Components
Real-Time Innovations (RTI)

The Low-Risk Path to Building Autonomous Car Architectures
The Low-Risk Path to Building Autonomous Car ArchitecturesThe Low-Risk Path to Building Autonomous Car Architectures
The Low-Risk Path to Building Autonomous Car Architectures
Real-Time Innovations (RTI)

Introduction to RTI DDS
Introduction to RTI DDSIntroduction to RTI DDS
Introduction to RTI DDS
Real-Time Innovations (RTI)

How to Design Distributed Robotic Control Systems
How to Design Distributed Robotic Control SystemsHow to Design Distributed Robotic Control Systems
How to Design Distributed Robotic Control Systems
Real-Time Innovations (RTI)

Fog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of ThingsFog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of Things
Real-Time Innovations (RTI)

The Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems
The Inside Story: How OPC UA and DDS Can Work Together in Industrial SystemsThe Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems
The Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems
Real-Time Innovations (RTI)

Cyber Security for the Connected Car
Cyber Security for the Connected Car Cyber Security for the Connected Car
Cyber Security for the Connected Car
Real-Time Innovations (RTI)

Space Rovers and Surgical Robots: System Architecture Lessons from Mars
Space Rovers and Surgical Robots: System Architecture Lessons from MarsSpace Rovers and Surgical Robots: System Architecture Lessons from Mars
Space Rovers and Surgical Robots: System Architecture Lessons from Mars
Real-Time Innovations (RTI)

Advancing Active Safety for Next-Gen Automotive
Advancing Active Safety for Next-Gen AutomotiveAdvancing Active Safety for Next-Gen Automotive
Advancing Active Safety for Next-Gen Automotive
Real-Time Innovations (RTI)

Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...
Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...
Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...
Real-Time Innovations (RTI)

How the fusion of time sensitive networking, time-triggered ethernet and data...
How the fusion of time sensitive networking, time-triggered ethernet and data...How the fusion of time sensitive networking, time-triggered ethernet and data...
How the fusion of time sensitive networking, time-triggered ethernet and data...
Real-Time Innovations (RTI)

Secrets of Autonomous Car Design
Secrets of Autonomous Car DesignSecrets of Autonomous Car Design
Secrets of Autonomous Car Design
Real-Time Innovations (RTI)

Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...
Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...
Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...
Real-Time Innovations (RTI)

Data Distribution Service Security and the Industrial Internet of Things
Data Distribution Service Security and the Industrial Internet of ThingsData Distribution Service Security and the Industrial Internet of Things
Data Distribution Service Security and the Industrial Internet of Things
Real-Time Innovations (RTI)

The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...
The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...
The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...
Real-Time Innovations (RTI)


More from Real-Time Innovations (RTI) (20)

A Tour of RTI Applications
A Tour of RTI ApplicationsA Tour of RTI Applications
A Tour of RTI Applications

Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...
Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...
Precise, Predictive, and Connected: DDS and OPC UA – Real-Time Connectivity A...

The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...
The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...
The Inside Story: How the IIC’s Connectivity Framework Guides IIoT Connectivi...

Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...
Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...
Upgrade Your System’s Security - Making the Jump from Connext DDS Professiona...

The Inside Story: Leveraging the IIC's Industrial Internet Security Framework
The Inside Story: Leveraging the IIC's Industrial Internet Security FrameworkThe Inside Story: Leveraging the IIC's Industrial Internet Security Framework
The Inside Story: Leveraging the IIC's Industrial Internet Security Framework

ISO 26262 Approval of Automotive Software Components
ISO 26262 Approval of Automotive Software ComponentsISO 26262 Approval of Automotive Software Components
ISO 26262 Approval of Automotive Software Components

The Low-Risk Path to Building Autonomous Car Architectures
The Low-Risk Path to Building Autonomous Car ArchitecturesThe Low-Risk Path to Building Autonomous Car Architectures
The Low-Risk Path to Building Autonomous Car Architectures

Introduction to RTI DDS
Introduction to RTI DDSIntroduction to RTI DDS
Introduction to RTI DDS

How to Design Distributed Robotic Control Systems
How to Design Distributed Robotic Control SystemsHow to Design Distributed Robotic Control Systems
How to Design Distributed Robotic Control Systems

Fog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of ThingsFog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of Things

The Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems
The Inside Story: How OPC UA and DDS Can Work Together in Industrial SystemsThe Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems
The Inside Story: How OPC UA and DDS Can Work Together in Industrial Systems

Cyber Security for the Connected Car
Cyber Security for the Connected Car Cyber Security for the Connected Car
Cyber Security for the Connected Car

Space Rovers and Surgical Robots: System Architecture Lessons from Mars
Space Rovers and Surgical Robots: System Architecture Lessons from MarsSpace Rovers and Surgical Robots: System Architecture Lessons from Mars
Space Rovers and Surgical Robots: System Architecture Lessons from Mars

Advancing Active Safety for Next-Gen Automotive
Advancing Active Safety for Next-Gen AutomotiveAdvancing Active Safety for Next-Gen Automotive
Advancing Active Safety for Next-Gen Automotive

Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...
Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...
Learn About FACE Aligned Reference Platform: Built on COTS and DO-178C Certif...

How the fusion of time sensitive networking, time-triggered ethernet and data...
How the fusion of time sensitive networking, time-triggered ethernet and data...How the fusion of time sensitive networking, time-triggered ethernet and data...
How the fusion of time sensitive networking, time-triggered ethernet and data...

Secrets of Autonomous Car Design
Secrets of Autonomous Car DesignSecrets of Autonomous Car Design
Secrets of Autonomous Car Design

Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...
Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...
Cybersecurity Spotlight: Looking under the Hood at Data Breaches and Hardenin...

Data Distribution Service Security and the Industrial Internet of Things
Data Distribution Service Security and the Industrial Internet of ThingsData Distribution Service Security and the Industrial Internet of Things
Data Distribution Service Security and the Industrial Internet of Things

The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...
The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...
The Inside Story: GE Healthcare's Industrial Internet of Things (IoT) Archite...


Recently uploaded

LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...
LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...
LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...
DanBrown980551

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
LizaNolte

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...
Fwdays

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles
DianaGray10

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Neo4j

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Neo4j

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
FilipTomaszewski5

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture
ScyllaDB

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
Jason Yip

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx
BibashShahi

"Scaling RAG Applications to serve millions of users", Kevin Goedecke
"Scaling RAG Applications to serve millions of users",  Kevin Goedecke"Scaling RAG Applications to serve millions of users",  Kevin Goedecke
"Scaling RAG Applications to serve millions of users", Kevin Goedecke
Fwdays

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
Fwdays


Recently uploaded (20)

LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...
LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...
LF Energy Webinar: Carbon Data Specifications: Mechanisms to Improve Data Acc...

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx

"Scaling RAG Applications to serve millions of users", Kevin Goedecke
"Scaling RAG Applications to serve millions of users",  Kevin Goedecke"Scaling RAG Applications to serve millions of users",  Kevin Goedecke
"Scaling RAG Applications to serve millions of users", Kevin Goedecke

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba


Build It Fast: 5 Steps from Concept to Working Distributed System

  • 1. RTI QuickStart Training Build it Fast: 5 Steps from Concept to Working Distributed System Rajive Joshi, Ph.D. Principal Solution Architect Webinar Real-Time Innovations Inc. September 25, 2013
  • 2. Once Upon a Late Night …
  • 3. Agenda • Why is building distributed systems hard? • The 5 Critical Steps – Best Practice • The Prototyper – Separating Structure and Behavior • Defining structure using XML • Coding behavior using Lua – A Small Fast Dynamic Scripting Language • Real-World Example • Summary
  • 4. Why is Building Distributed Systems Hard? • Logical Design Considerations – Data flows – Data delivery: availability, timing, ordering, reliability, filtering, fault tolerance, etc. – Component behaviors • Physical Design Considerations – Platform Differences: CPU, OS, Programming Languages – Discovery and Network configurations – Low Level Device I/O • Performance & Scalability Considerations – # of data flows – # of components/endpoints – Latency vs. Throughput
  • 5. The 5 Critical Steps Articulate Concept 1. Draw a diagram of the components and the interconnecting data- flows Define Structure 2. Define the data types for the interconnecting data flows (in IDL or XML) 3. Define the system structure as a collection of data-oriented component interfaces (in XML) Configure Behavior 4. Code the component behavior (in the Lua scripting language) 5. Adjust QoS policies to achieve the desired data-flow behavior Best Practice
  • 6. The RTI Connext Platform Continues to Grow… C/C++/Java/C#/Ada • Code Generation • Edit/Compile/Link/Run Lua Scripting (in RTI Prototyper Runtime) • Edit/Run(live update) New!
  • 7. The RTI Prototyper with Lua 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component N inputs M outputs DDS
  • 8. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() DDS Lua Component Behavior
  • 9. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component Behavior DDS Settings (Structure/ Wiring) Bind the Component Interface (to data-space)
  • 10. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component Behavior DDS Settings (Structure/ Wiring) Bind the Component Interface (to data-space) Prototyper determines when the Lua Component runs
  • 11. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component Behavior DDS Settings (Structure/ Wiring) Bind the Component Interface (to data-space) Prototyper determines when the Lua Component runs Lua Component state preserved across runs (code can change!)
  • 12. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() DDS Settings (Structure/ Wiring) RTI Community Portal Download Lua Component Behavior For details, see: Getting Started Guide Bind the Component Interface (to data-space)
  • 13. Dynamically Scriptable (in Lua) Distributed Components (using DDS) Data Distribution Service (DDS) 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write()
  • 17. Transformation - Try it Out Yourself 1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing 2. local reader = CONTAINER.READER[1] -- input 3. local writer = CONTAINER.WRITER[1] -- output 4. 5. reader:take() -- take all the samples on from the data-space 6. 7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples 8. 9. if (not reader.info[i].valid_data) then break end -- skip invalid content 10. 11. writer.instance['color'] = shape['color'] 12. writer.instance['x'] = shape['x'] 13. writer.instance['y'] = shape['y'] 14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform 15. 16. writer:write() -- output transformed sample 17. end Data Distribution Service (DDS) Prototyper: shapes/ShapePubSub.lua Subscriber (Shapes Demo) Publisher (Shapes Demo)
  • 18. Transformation - Try it Out Yourself Dynamic Live Code Update 1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing 2. local reader = CONTAINER.READER[1] -- input 3. local writer = CONTAINER.WRITER[1] -- output 4. 5. reader:take() -- take all the samples on from the data-space 6. 7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples 8. 9. if (not reader.info[i].valid_data) then break end -- skip invalid content 10. 11. writer.instance['color'] = shape['color'] 12. writer.instance['x'] = shape['x'] 13. writer.instance['y'] = shape['y'] 14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform 15. 16. writer:write() -- output transformed sample 17. end 1. local SIZE_FACTOR = 5 -- change the factor to see the size changing 2. local reader = CONTAINER.READER[1] -- input 3. local writer = CONTAINER.WRITER[1] -- output 4. 5. reader:take() -- take all the samples on from the data-space 6. 7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples 8. 9. if (not reader.info[i].valid_data) then break end -- skip invalid content 10. 11. writer.instance['color'] = shape['color'] 12. writer.instance['x'] = shape['x'] 13. writer.instance['y'] = shape['y'] 14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform 15. 16. writer:write() -- output transformed sample 17. end before after shapes/ShapePubSub.lua
  • 19. Correlation xs, ys ws xc, yc wc xs, ys xc shapes/Correlator.lua
  • 20. -- Interface: parameters, inputs, outputs local reader1 = CONTAINER.READER[1] local reader2 = CONTAINER.READER[2] local writer = CONTAINER.WRITER[#CONTAINER.WRITER] -- Globals (preserved across invocations) if not shapesize then shapesize={} end -- shapesize of the output stream -- Cache the 'shapesize' for a color from the 2nd input stream --- reader2:take() for i, shape in ipairs(reader2.sample) do if (not reader2.info[i].valid_data) then break end local color = shape['color'] shapesize[color] = shape['x'] end -- Merge the 'shapesize' for a color with x and y from the 1st input stream --- reader1:take() for i, shape in ipairs(reader1.sample) do if (not reader1.info[i].valid_data) then break end local color = shape['color’] writer.instance['color'] = color writer.instance['x'] = shape['x'] writer.instance['y'] = shape['y'] writer.instance['shapesize'] = shapesize[color] or shape['shapesize'] writer:write() end shapes/Correlator.lua How many lines of C/C++/Java code would it take?
  • 21. Correlation - Try it Out Yourself 1. local SIZE_FACTOR = 0.5 -- change the factor to see the size changing 2. local reader = CONTAINER.READER[1] -- input 3. local writer = CONTAINER.WRITER[1] -- output 4. 5. reader:take() -- take all the samples on from the data-space 6. 7. for i, shape in ipairs(reader.sample) do -- iterate through all the samples 8. 9. if (not reader.info[i].valid_data) then break end -- skip invalid content 10. 11. writer.instance['color'] = shape['color'] 12. writer.instance['x'] = shape['x'] 13. writer.instance['y'] = shape['y'] 14. writer.instance['shapesize'] = shape['shapesize'] * SIZE_FACTOR -- transform 15. 16. writer:write() -- output transformed sample 17. end Data Distribution Service (DDS) Prototyper: shapes/Correlator.lua Subscriber (Shapes Demo) Publishers (Shapes Demo)
  • 22. Choreography xs, ys ws xc, yc wc xs, ys xc Pub-Sub  mediation  Request-Reply Pub-Sub Request-Reply How many RED objects? shapes/Choreography.lua Choreography.xml
  • 23. Splitting xs, ys ws xs, ys ws xs, ys ws shapes/SplitterDelayNAverage.lua Delay by N samples Average over N samples
  • 24. Aggregation xs, ys ws xc, yc wc x, y w xt, yt Wt shapes/Aggregation.lua
  • 27. Data Capture xs, ys ws xc, yc wc xt, yt Wt shapes/ShapeSubscriber.lua
  • 28. Examples Included in the Download Real-Time Processing Category Example Simulation/Data Generation shapes/Flower.lua shapes/Figure8.lua shapes/ShapePublisher.lua Data Capture shapes/ShapeSubscriber.lua Transformation shapes/ShapePubSub.lua Aggregation shapes/Aggregation.lua Correlation shapes/Correlator.lua Splitting shapes/SplitterDelayNAverage.lua Choreography (pattern mediation) shapes/Choreography.lua Choreography.xml Device I/O shapes/FileInputAdapter.lua shapes/mouse/MouseInputAdapter.lua
  • 29. Why should I care? • Fast Development and Deployment – No automatic code generation, compile, or re-start – Be able to try our a variety of ideas quickly and interactively • Extreme Usability – Intuitive: don’t reinvent, leverage the language – Minimalistic: eliminate accidental complexity – Orthogonal: avoid redundancy, stackable concepts • Sophisticated Use Cases – Non-trivial, e.g.: correlation, splitting, aggregation, transformation, choreography, I/O, data collection, data generation, etc. • Separation of Concerns – Structure vs. Behavior – Developer vs. Integrator Do you care about time to market?
  • 30. Agenda • Why is building distributed systems hard? • The 5 Critical Steps – Best Practice • The Prototyper – Separating Structure and Behavior • Defining structure using XML • Coding behavior using Lua – A Small Fast Dynamic Scripting Language • Real-World Example • Summary
  • 31. Prototyper (Container) The RTI Prototyper with Lua Lua Engine DDS Settings (Structure/ Wiring) USER_QOS_PROFILES.xml XML Based Application Configuration RTI Community Portal Download 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component Behavior For details, see: Getting Started Guide Structure
  • 32. <!-- Domain Library --> <domain_library name="MyDomainLibrary" > <domain name="MyDomain" domain_id="25"> <register_type name="type" kind="dynamicData" type_ref="MyType"/> <topic name="MyTopic" register_type_ref="type"/> </domain> </domain_library> <!-- Participant library --> <participant_library name="MyParticipantLibrary"> <domain_participant name="MyParticipant" domain_ref="MyDomainLibrary::MyDomain"> <publisher name="MyPublisher"> <data_writer name="MyWriter" topic_ref="MyTopic"/> </publisher> <subscriber name="MySubscriber"> <data_reader name="MyReader" topic_ref="MyTopic"/> </subscriber> </domain_participant> </participant_library> <types> Defining structure using XML Settings: XML Based Application Configuration
  • 33. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() DDS Settings (Structure/ Wiring) USER_QOS_PROFILES.xml XML Based Application Configuration RTI Community Portal Download Lua Component Behavior For details, see: Getting Started GuideBehavior
  • 34. Why Lua? • Fast – One of the fastest popular scripting languages (from literature*) • Very Small (~250KB) – Can be built for a variety of OSes or no-OS • Easy to Learn • Solid foundation (1993) – Minimal – Clean • Embeddable & Extensible – Naturally in C • Growing Community – Popular in Gaming – Adopted by Wireshark, Eclipse M2M, Wikipedia, CoronaSDK, etc. – Rich Libraries/Ecosystem • Open-Source! Free!!
  • 35. Where can I learn Lua? www.lua.org Don’t worry. It’s easy!
  • 36. Parse XML configuration files Create DomainParticipant specified by the configuration name Print valid configuration names Prompt user for configuration name Wait For Data to arrive OR ‘period’ to elapse (whichever happens first) Execute the Lua Code Component Lua ‘intentExit’? or Completed ‘runDuration’? Configuration name Specified? NO YES NO YES Prototyper with Lua Runtime Container Workflow
  • 37. RTI Prototyper with Lua Runtime Container • When can the Lua Component run? – On any one or more of the following events • on Start • on Data arrival • on Period (timer) • on Stop – User Configurable, e.g. • Data (Event) Driven : lua.onPeriod = false • Timer (Polling) Driven : lua.onData = false – Default: data + timer driven 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() Lua Component Behavior
  • 38. Lua Component Programming Model Interface • Incoming data is consumed using a READER table • Outgoing data is produced using a WRITER table • Container status and component’s intents are communicated using a CONTEXT table N inputs M outputs CONTAINER. READER[1] CONTAINER. WRITER[1] CONTAINER. READER[N] CONTAINER. WRITER[M] -- Lua Component Code -- CONTAINER.CONTEXT Lua Component Code • Decides when to read/take incoming data • Decides when to write outgoing data • Maintains global state across invocations • Dynamically Reconfigurable, i.e. code can be changed while the container is running
  • 39. Writing Data local foo = 'HelloPublisher::HelloWriter’ -- or -- local foo = 1 local foo_writer = CONTAINER.WRITER[foo] foo_writer.instance['x'] = 100 foo_writer.instance['y'] = 100 foo_writer.instance['shapesize'] = 30 foo_writer.instance['color'] = "BLUE" foo_writer:write()
  • 40. Reading Data local foo = 'HelloPublisher::HelloReader’ -- or -- local foo = 1 local foo_reader = CONTAINER.READER[foo] foo_reader:take() for i, shape in ipairs(foo_reader.sample) do print("t color:", shape['color']) – key print("t x:", shape['x']) print("t y:", shape['y']) print("t shapesize:”, shape['shapesize']) end
  • 41. Agenda • Why is building distributed systems hard? • The 5 Critical Steps – Best Practice • The Prototyper – Separating Structure and Behavior • Defining structure using XML • Coding behavior using Lua – A Small Fast Dynamic Scripting Language • Real-World Example • Summary
  • 42. Real-World Example: Batch Process Control (ANSI/ISA-88)
  • 43. Real-World Example: Batch Process Control (ANSI/ISA-88) Station(s)
  • 44. Real-World Example: Batch Process Control (ANSI/ISA-88) Station(s) Recipe(s)
  • 45. Real-World Example: Batch Process Control (ANSI/ISA-88) Station(s) Recipe(s) Production Lot Production Lot Production Lot
  • 46. Real-World Example: Chocolate Manufacturing Recipes Production Lot Stations Production Lot
  • 47. Step 1: Draw a diagram of the components and the interconnecting data-flows Station Controller Production Lot Recipe Recipe Configurator To Other Station Controllers From Other Station Controllers Production Lot
  • 48. Step 1: Draw a diagram of the components and the interconnecting data-flows Station Controller Production Lot Recipe Recipe Configurator Production Lot Task Generator Production Lot To Other Station Controllers From Other Station Controllers
  • 49. Step 2: Define the data types for the interconnecting data flows (in IDL or XML) Recipe typedef long StationControlId; struct RecipeType { // Uniquely identifies the recipe string<64> recipeName; //@key // Defines the sequence of station // controllers that must be // traversed to make the product sequence<StationControlId> steps; }; <typedef name="StationControlId" type="long" /> <struct name="RecipeType”> <member name="recipeName" stringMaxLength="64" type="string" key="true" /> <member name="steps" sequenceMaxLength="-1" type="nonBasic" nonBasicTypeName="StationControlId" /> </struct> XML IDL
  • 50. Step 2: Define the data types for the interconnecting data flows (in IDL or XML) enum LotStatus { WAITING_FOR_SC, PROCESSING_AT_SC, COMPLETED }; struct ProductionLotType { long lotId; //@key // Identfies the product string<64> productName; // Identifies the recipe used string<64> recipeName; LotStatus status; StationControlId assignedSC; }; Production LotIDL
  • 51. Step 2: Define the data types for the interconnecting data flows (in IDL or XML) <enum name="LotStatus" bitBound="32"> <enumerator name="WAITING_FOR_SC" /> <enumerator name="PROCESSING_AT_SC" /> <enumerator name="COMPLETED" /> </enum> <struct name="ProductionLotType"> <member name="lotId" type="long" key="true" /> <member name="productName" stringMaxLength="64" type="string" /> <member name="recipeName" stringMaxLength="64" type="string" /> <member name="status" type="nonBasic" nonBasicTypeName="LotStatus" /> <member name="assignedSC" type="nonBasic” nonBasicTypeName="StationControlId" /> </struct> Production LotXML
  • 52. Step 3: Define the system structure as a collection of data-oriented component interfaces (in XML) <domain_library name="FactoryDomainLib"> <domain name="ChocolateFactory" domain_id="90"> <register_type name="ProductionLotType" kind="dynamicData" type_ref="FactoryTypes::ProductionLotType"/> <register_type name="RecipeType" kind="dynamicData" type_ref="FactoryTypes::RecipeType"/> <topic register_type_ref="ProductionLotType" name="ProductionLot"/> <topic register_type_ref="RecipeType" name="Recipe"/> </domain> </domain_library> Production Lot Recipe
  • 53. Step 3: Define the system structure as a collection of data-oriented component interfaces (in XML) <domain_participant name="RecipeConfigurator" domain_ref="FactoryDomainLib::ChocolateFactory"> <participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"> <participant_name> <name>RecipeConfigurator</name> <role_name>RecipeConfigurator</role_name> </participant_name> <property> <value> <element> <name>lua.file</name> <value>RecipeConfigurator.lua</value> </element> <element> <name>lua.onStart</name> <value>true</value> </element> </value> </property> </participant_qos> <publisher name="RecipePublisher"> <data_writer topic_ref="Recipe" name="RecipeWriter"> <datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/> </data_writer> </publisher> </domain_participant> Recipe Recipe Configurator
  • 54. Step 3: Define the system structure as a collection of data-oriented component interfaces (in XML) <participant_library name="FactoryParticipantLib"> <domain_participant name="TaskGenerator" domain_ref="FactoryDomainLib::ChocolateFactory"> <participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"> <participant_name> <name>TaskGenerator</name> <role_name>TaskGenerator</role_name> </participant_name> <property> <value> <element> <name>lua.file</name> <value>TaskGenerator.lua</value> </element> <element> <name>lua.onStart</name> <value>true</value> </element> </value> </property> </participant_qos> <publisher name="TaskPublisher"> <data_writer topic_ref="ProductionLot" name="TaskWriter"> <datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/> </data_writer> </publisher> </domain_participant> Task Generator Production Lot
  • 55. Step 3: Define the system structure as a collection of data-oriented component interfaces (in XML) <domain_participant name="StationController" domain_ref="FactoryDomainLib::ChocolateFactory"> <participant_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"> <participant_name> <name>StationController#$(STATION_CONTROLLER_ID)</name> <role_name>StationController</role_name> </participant_name> <property> <value> <element> <name>lua.file</name> <value>StationController.lua</value> </element> <element> <name>lua.onStart</name> <value>true</value> </element> </value> </property> </participant_qos> </domain_participant> Station Controller Production Lot Production Lot Recipe
  • 56. Step 3: Define the system structure as a collection of data-oriented component interfaces (in XML) <publisher name="SCPublisher"> <data_writer topic_ref="ProductionLot" name="LotWriter"> <datawriter_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/> </data_writer> </publisher> <subscriber name="SCSubscriber"> <data_reader topic_ref="Recipe" name="RecipeReader"> <datareader_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/> </data_reader> <data_reader topic_ref="ProductionLot" name="LotReader"> <datareader_qos base_name="ChocolateManufacture_Library::ChocolateManufacture_Profile"/> <filter name="MyLots" kind="builtin.sql"> <expression>assignedSC = $(STATION_CONTROLLER_ID) AND status = 0</expression> </filter> </data_reader> </subscriber> </domain_participant> Station Controller Production Lot Production Lot Recipe
  • 57. Step 4: Code the component behavior in the Lua scripting language Recipe Configurator if ( CONTAINER.CONTEXT.onStartEvent ) then print("Starting RecipeConfigurator") ConfigWriter = PROTOTYPER.WRITER["RecipePublisher::RecipeWriter”] outputRecipe = ConfigWriter.instance outputRecipe.recipeName = "DarkChocolateRecipe" local stations = { 1, 2, 3, 4, 6, 7, 8, 9, 11, 12, 13 } for i, station in ipairs( stations ) do step = "steps[".. i .."]" outputRecipe[step] = station end ConfigWriter:write() outputRecipe.recipeName = "WhiteChocolateRecipe" local stations = { 1, 2, 4, 5, 6, 7, 8, 9, 11, 12, 13 } for i, station in ipairs( stations ) do step = "steps[".. i .."]" outputRecipe[step] = station end ConfigWriter:write() outputRecipe.recipeName = "MilkChocolateRecipe" local stations = { 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13 } for i, station in ipairs( stations ) do step = "steps[".. i .."]" outputRecipe[step] = station end ConfigWriter:write() end
  • 58. Step 4: Code the component behavior in the Lua scripting language if ( CONTAINER.CONTEXT.onStartEvent ) then print("Starting TaskGenerator”) TaskWriter = PROTOTYPER.WRITER["TaskPublisher::TaskWriter"] count = 0 end local taskLot = TaskWriter.instance -- We use the count to simulate the continuous generation of tasks count = count+1 taskLot.lotId = count taskLot.status = 0 taskLot.assignedSC = 1 if (count <= 1) then taskLot.productName = "DarkChocolate" taskLot.recipeName = "DarkChocolateRecipe" taskLot.assignedSC = 1 elseif (count <= 2) then taskLot.productName = "WhiteChocolate" taskLot.recipeName = "WhiteChocolateRecipe" elseif (count <= 3) then taskLot.productName = "MilkChocolate" taskLot.recipeName = "MilkChocolateRecipe" end TaskWriter:write() if ( count > 3 ) then CONTAINER.CONTEXT.intentExit = true end Task Generator
  • 59. Step 4: Code the component behavior in the Lua scripting language -- State initialization to perform the first time the script runs if ( CONTAINER.CONTEXT.onStartEvent ) then -- Sentinel values returned by recipeGetNextSCNumber() NEXT_STATION_COMPLETED=-1 -- Enumerated values that may appear in the Lot.status LOT_STATUS_WAITING_FOR_SC=0 LOT_STATUS_PROCESSING_AT_SC=1 LOT_STATUS_COMPLETED=2 -- Possible value for the SC's stationState SC_STATE_READY = 'READY' SC_STATE_PROCESSING = 'PROCESSING' -- The number for this station conroller is passed as an -- environment variable mySCNumber = tonumber(os.getenv("STATION_CONTROLLER_ID")) print("Starting SC#" .. mySCNumber) stationState = SC_STATE_READY delayCount = 0 -- Queues all the lots that are waiting to be processed by the SC taskQUEUE = {} -- Indexed by the recipe name. Stores the next SC# for that recipe recipeTable = {} End -- Helper functions -- : Station Controller
  • 60. Step 5: Adjust QoS policies to achieve the desired data-flow behavior Recipe QoS <datawriter_qos> <reliability> <kind>RELIABLE_RELIABILITY_QOS</kind> <max_blocking_time> <sec>60</sec> </max_blocking_time> </reliability> <history> <kind>KEEP_ALL_HISTORY_QOS</kind> </history> <durability> <kind>TRANSIENT_LOCAL_DURABILITY_QOS</kind> </durability> </datawriter_qos> <datareader_qos> <reliability> <kind>RELIABLE_RELIABILITY_QOS</kind> </reliability> <history> <kind>KEEP_ALL_HISTORY_QOS</kind> </history> <durability> <kind>TRANSIENT_LOCAL_DURABILITY_QOS</kind> </durability> </datareader_qos> Production Lot QoS
  • 62. Agenda • Why is building distributed systems hard? • The 5 Critical Steps – Best Practice • The Prototyper – Separating Structure and Behavior • Defining structure using XML • Coding behavior using Lua – A Small Fast Dynamic Scripting Language • Real-World Example • Summary
  • 63. Prototyper (Container) The RTI Prototyper with Lua Lua Engine 1. -- Interface: parameters, inputs, outputs 2. local A, B, C = 30, 30, 10 -- Change the 'C' parameter to to see various flower shapes 3. local ShapeWriter = CONTAINER.WRITER[3] -- Triangles 4. 5. -- Global counter (preserved across invocations) 6. if not count then count = 0 else count = count + 1 end 7. 8. local shape = ShapeWriter.instance; 9. local angle = count % 360; 10. 11. shape['x'] = 120 + (A+B) * math.cos(angle) + B * math.cos((A/B-C)*angle) 12. shape['y'] = 120 + (A+B) * math.sin(angle) + B * math.sin((A/B-C)*angle) 13. 14. shape['shapesize'] = 5 15. shape['color'] = "RED" 16. 17. ShapeWriter:write() DDS Settings (Structure/ Wiring) USER_QOS_PROFILES.xml XML Based Application Configuration RTI Community Portal Download Lua Component Behavior For details, see: Getting Started Guide
  • 64. RTI Prototyper with Lua Enables… • Fast Development & Deployment – No automatic code generation, compile, or re-start – Fewer lines of code – Change behavior (code) on the fly • Extreme Usability – Engage domain experts (don’t need to be a middleware expert) – Natural and intuitive programming model • Sophisticated Use Cases – Mediation of communication patterns: pub-sub, request-reply – Non-trivial, eg: correlation, splitting, aggregation, transformation, choreography, I/O, data collection, data generation, etc. • Separation of Concerns – Easy to Maintain and Evolve for Large and Small Teams – Developer focused on processing, not infrastructure configuration – System integrator can independently manage configuration & QoS
  • 65. The 5 Critical Steps Articulate Concept 1. Draw a diagram of the components and the interconnecting data- flows Define Structure 2. Define the data types for the interconnecting data flows (in IDL or XML) 3. Define the system structure as a collection of data-oriented component interfaces (in XML) Configure Behavior 4. Code the component behavior in the Lua scripting language 5. Adjust QoS policies to achieve the desired data-flow behavior LATER: Optimize selected components in C/C++/Java/C#, but only if necessary!
  • 66. Key Benefits • Get stuff done fast(er)! • Quickly try out new ideas, and show a working proof of concept. • Get more done with the same staff. • Ease into the learning curve of DDS by getting something up and running first, and then learn more as you need to. • Explore tradeoff between data-model choices. • Experiment with QoS policies for a given data model. • Script test scenarios for existing DDS system! • Test and validate an existing system. Build your own test harness.
  • 67. Ready to Ride? • Download it (experimental version): – community.rti.com  Downloads  RTI Prototyper with Lua  Pick your flavor (Mac, Linux, Windows, Raspberry pi) • Install it: – Windows: Unzip – Others: Run the installer: chmod +x rti_prototyper_with_lua-5-1.0.0-x64Darwin10gcc4.2.1.run ./rti_prototyper_with_lua-5-1.0.0-x64Darwin10gcc4.2.1.run Choose an existing directory • Try it: – Apply the 5 Critical Steps to build your working distributed system
