This is the slides of the UCLA School of Engineering Matlab workshop on Matlab graphics.
Learning Matlab graphics by examples:
- In 2 hours, you will be able to create publication-quality plots.
- Starts from the basic 2D line plots to more advanced 3D plots.
- You will also learn some advanced topics like fine-tuning the appearance of your figure and the concept of handles.
- You will be able to create amazing animations: we use 2D wave equation and Lorentz attractor as examples.
2. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Outline
1 2D Plots
2 The Graphical User Interface
3 Advanced Topics
4 Animation
5 3D Plots
6 More Plots
7 Extra
2 / 76
3. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 1
2D Plots
3 / 76
4. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Figure: create
Syntax
• To create an empty figure, call
figure();
• You can also number your figure like
figure(42);
4 / 76
5. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Figure: close
Syntax
• Close a specific figure
close(42);
• Close all figures
close all;
5 / 76
6. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Plot
Syntax
• To create a line plot of vector y versus vector t, use
plot(t,y);
• What happen if you don’t provide the x-axis data? Try
plot(y);
6 / 76
7. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Multiple Lines
Syntax
• You can input more vector pairs like
plot(t1,y1,t2,y2);
7 / 76
8. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Multiple Lines
Visualize three elementary functions on 0 ≤ t ≤ 2π:
y1 = sin(t)
y2 = cos(t)
y3 = e−t
Plot them on the same figure.
8 / 76
9. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Adding Labels
Syntax
• Adding labels on axis
xlabel(’x label’);
ylabel(’y label’);
• Adding title
title(’title for the figure’);
• Adding legends
legend(’first’,’second’,...);
9 / 76
10. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Grid
Syntax
• Turn on/off the grid lines
grid on;
grid off;
10 / 76
11. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Changing the Axes Limits
Syntax
• Set the limits of each axis
axis([xmin xmax ymin ymax]);
• If you want to adjust only x-axis or y-axis,
xlim([xmin xmax]);
ylim([ymin ymax]);
11 / 76
12. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Customize Plots
• Using the string specifier to change the line style.
• The string specifiers contains
• Line style: {’-’,’--’,’:’,’-.’,’none’}
• Marker symbol: {’+’,’o’,’*’,’.’,’x’} and more.
• Color: {’r’,’g’,’b’,’w’,’k’}.
• For example,
plot(t,x,’--or’);
plot(t,x,’r’,t,y,’-.xk’);
12 / 76
13. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: The Envelop
Please duplicate the figure shown below:
0 5 10
−1
−0.5
0
0.5
1
The blue line is
x = t2
cos(5t)e−t
. (1)
The envelope of x(t) is
y = ±t2
e−t
. (2)
13 / 76
14. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Plot Matrix Data
Syntax
• By default plot(Y) will plot each column of Y.
• When specifying the x vector,
plot(x,Y);
will try to match the dimension of x and Y.
14 / 76
15. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Plot Matrix Data
Let
Y = [ y1; y2; y3 ];
• What is the dimension of Y?
• Try plot(t,Y) and plot(Y). Can you anticipate the
outputs?
15 / 76
16. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Plot Complex Data
Syntax
• To plot complex array x, use
plot(x);
• It is equivalent to
plot(real(x),imag(x));
16 / 76
17. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: The Eigenvalues of Random Matrices
Gaussian Random Matrix
A Gaussian Random Matrix H is a matrix with standard normal
components hij
d
= N (0, 1).
h11
h22
h12 h21
TX1
TX2
RX1
RX2
• Arises in many applications.
• Wireless communication.
• Channel gain hij is random.
17 / 76
18. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: The Eigenvalues of Random Matrices
Visualizing the distribution of the
eigenvalues of random matrices.
• Generate H = randn(n,n).
• [V,D] = eig(H).
• Plot its eigenvalues as dots on the
complex plane.
• Increase n form 10 to 1, 000. Can
you tell what’s the pattern of the
eigenvalues?
18 / 76
19. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Plotting Multiple Lines On the Same Axes
• If you call plot twice, the first plot will be erased.
• To retain current graph when adding new graph, tell Matlab to
hold on;
• If you want different lines to have different color, use
hold all;
• The default is
hold off;
19 / 76
20. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Exponent and Convexity
0 0.2 0.4 0.6 0.8 1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
x
x
n
0.1
0.5
1
2
10
• The function xα is convex
when α ≥ 1.
• When 0 < α < 1 is it
concave.
• Use a for loop and hold to
verify this.
• α = {0.1, 0.5, 1, 2, 10}.
20 / 76
21. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 2
The Graphical User Interface
21 / 76
22. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
The GUI
22 / 76
23. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Saving and Loading
Some tips:
• Save your file in vector formats, such as .eps and .pdf.
• Use ‘copy figure’ between applications.
• Keep a .fig copy so you can edit it later.
23 / 76
24. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra

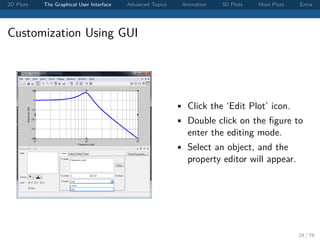

Customization Using GUI
• Click the ‘Edit Plot’ icon.
• Double click on the figure to
enter the editing mode.
• Select an object, and the
property editor will appear.
24 / 76
25. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Frequency Response
• The transfer function of a second order system has the form
H(s) =
ω2
n
s2 + 2ζωns + ω2
n
,
where ζ is the damping ratio and ωn is the natural frequency.
• The frequency response of a system is characterized by
• The magnitude |H(ω)|
• The phase ∠H(ω)
25 / 76
26. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Frequency Response
10
−1
10
0
10
1
−100
−50
0
50
Frequency (rad)
Magnitude(dB)
10
−1
10
0
10
1
−π
−π/2
0
Frequency (rad)
Phase(rad)
• Let ωn = 1, ζ = 0.2.
• Frequencies from 10−1 to 10
(rad).
• The unit imaginary number
in Matlab is 1j and 1i.
• Note the magnitude
response is defined as
20 log(|H(ω)|).
• You may want to use
angle and logspace.
26 / 76
27. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Graded Task 1
The Bessel functions Jα(x) of the first kind and order α is the
solution to the
Bessel’s Equation
x2 d2y
dx2
+ x
dy
dx
+ (x2
− α2
)y = 0.
• Separable solution to many important PDE in cylindrical
coordinate.
• Useful in physics, signal processing and statistics.
27 / 76
28. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Graded Task 1
Bessel function has the following representation
Bessel Functions of the First Kind
Jα(x) =
∞
m=0
(−1)m
m! Γ(m + α + 1)
1
2 x
2m+α
.
Matlab has built-in function for Jα(x)
Syntax
J = besselj(alpha, x);
28 / 76
29. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Graded Task 1
Visualizing Jα(x) with different α. Please create a figure like this:
0 1 2 3 10 15
0.0
1.0
x
Jα(x)
α = 0
α = 1
α = 2
α = 3
α = 10
• α = {0, 1, 2, 3, 10}.
• 0 ≤ x ≤ 15. Note that some
tick labels are omitted.
• Use alpha for α.
• Insert a text box near the
maximum amplitude of each
function.
29 / 76
30. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exploring Data
• Change view point, zoom
in/out, pan.
• Create multiple datatips.
• Select/Brush Data tool.
30 / 76
31. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Select And Linking Data
• Open the Variable Editor.
• Click the ‘Link Plot’ icon.
• Click the ‘Select/Brush
Data’ icon.
• Select the data of interest.
31 / 76
32. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Wave Editing
• Load the chirp.mat file.
• Type sound(y,Fs) to
play it.
• Use data selection tool to
select and ‘mute’ the chirps.
• Play the modified recording.
32 / 76
33. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 3
Advanced Topics
33 / 76
34. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Why Learning Commands?
• Almost everything can be adjusted using GUI, why learning
commands?
• If you only need to edit a figure or two, use GUI.
• If you have a dozen of figures, let computers do the work.
• To create an animation, you have to know the commands.
• Programmer’s pride.
34 / 76
35. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Hierarchy of The Graphic Objects
A Matlab plot is composed of (at least) three objects:
(a) Figure window. (b) Axis object. (c) Line series object.
35 / 76
36. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Get a Handle on Objects
• Each object has a unique identifier, called the handle.
• You can ask Matlab to get and set the properties of the object
with its handle.
• To get the handle of the current figure, type
h_fig = gcf;
• To get the handle of the current axis, type
h_ax = gca;
• To get the handle of the line series, use
h = plot(t,x);
36 / 76
37. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Get and Set Property
• Get the value of the property:
value = get(h,’PropertyName’);
• Set using property-value pair:
set(h,’PropertyName’,value);
37 / 76
38. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Batch Process
• The command
saveas(h_fig, ’file_name’, ’fig’);
will save the figure h fig as file name.fig.
• You can replace the third argument by other format. Type
help saveas for more information.
• Write a script that does the following:
• For each frequency ω = {1, 2, . . . , 10}, plot sin(ωt) on
0 ≤ t ≤ 2π in 10 separate figures.
• Save and name them as freq1.fig, freq2.fig,...
freq10.fig files.
• Hint: the command sprintf(’freq%d.fig’,I) will
generate the desired file name, where I is an integer.
38 / 76
39. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Subplot
Syntax
subplot(m,n,1);
plot(t,x);
Will create a m-by-n subplot and place the plot of x versus t at
location 1.
39 / 76
40. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Sine Wave Matrix
Create 25 subplots of sine wave with increasing frequency.
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
40 / 76
41. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 4
Animation
41 / 76
42. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Making Animated Sequences
• The simplest way: continually erase and redraw your figure.
• Key ingredients:
• Loop.
• Update data.
• Erase and redraw.
• Pause.
Example
for I = 1:N % Loop.
x = sin(t-I); % Update data.
plot(t,x); % Erase and Redraw.
pause(0.1); % Pause for 0.1 sec.
end
42 / 76
43. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Example: Vibrating String
Standing Wave
As oppose to a travelling wave, a standing wave oscillates in place
without propagating.
Mathematically it is described by
y = A cos(ωt) sin(kx),
where ω is the angular frequency
and k is the wave number.
• Let ω = 5, k = 1.5, A = 2.
• Let 0 ≤ x ≤ 2π.
• Make an animation of such
a standing wave.
43 / 76
44. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Graded Task 2
Standing Wave
A standing wave y can be seen as the result of interference
between two waves y1 and y2 travelling in opposite directions.
Mathematically,
y1 = A sin(kx − ωt)
y2 = A sin(kx + ωt)
and
y = A sin(kx−ωt)+A sin(kx+ωt).
• A: amplitude.
• k: wave number.
• ω: angular velocity.
44 / 76
45. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Graded Task 2
Create an animation of a standing wave.
0 2 4 6 8 10
−2
−1.5
−1
−0.5
0
0.5
1
1.5
2
• A = 1, k = 1, ω = 3.
• Red wave: from left to right.
• Blue wave: from right to
left.
• Black wave: the resulting
standing wave.
• Try update rate dt = 0.05.
• Add a reference line x = 0.
• Bonus problem: labelling the
nodes. (the red circles)
45 / 76
46. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 5
3D Plots
46 / 76
47. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
3D Line Plot
For parametric data (x(t), y(t), z(t)), we can use the 3D version
of the plot function.
Syntax
• Plot lines in 3D
plot3(x,y,z);
47 / 76
48. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Brownian Motion
−50
0
50
−20
0
20
−20
0
20
The position vector xn of a
Brownian particle at time n is
given by
xn = xn−1 + v,
where v is a standard normal
random vector.
• Simulate the path of two
Brownian particles starting
at the origin.
• Take N = 500 steps.
48 / 76
49. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Representing Matrix Data
−10
0
10
−10
0
10
−0.5
0
0.5
1
• Line series are represented
by vectors.
• Data with 2D indices are
represented by matrices.
• Think of the values of
matrix Z as “height”.
• The indices of x-axis and
y-axis are stored in matrix X
and Y.
49 / 76
50. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Mesh Grid and Surface Plot
To visualize a function f (x, y) on (x, y) ∈ [a, b] × [c, d],
• First we need to create a rectangular grid.
• Matlab provides a useful function to create such a grid:
[X,Y] = meshgrid(x,y);
where x and y are the sampling points on both axis.
• Then we can use
surf(X,Y,f(X,Y));
to produce a surface plot.
50 / 76
51. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: The 3D Sinc Function
3D Sinc Function
sinc(r) :=
sin(r)
r
, where r2 = x2 + y2.
• Visualize the 3D sinc function on (x, y) ∈ [−8, 8] × [−8, 8].
• One way to avoid the divided-by-zero error is to use
sin(r)./(r+esp) instead of sin(r)./r.
• esp is the smallest representable floating point number in
Matlab.
51 / 76
52. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Contour Plot
• Surface plot is fancy but not suitable for putting in your paper!
• Contour plot might be more appropriate.
Syntax
• The basic syntax is
contour(Z);
• You can specify the number of contour level
contour(Z, n_level);
52 / 76
53. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Scalar Field
Let
f (x, y) = x2
− 3 sin(xy).
Use contour plot to visualize f (x, y) on [−2, 2] × [−2, 2].
53 / 76
54. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Vector Field
A 2D vector field is a vector-valued function
z(x, y) =
zx (x)
zy (y)
.
Matlab provides a function to visualize vector files.
Syntax
• Plot the vector field Zx and Zy as a function of X and Y
quiver(X,Y,Zx,Zy);
54 / 76
55. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Scalar Field and its Gradient
• The gradient of a scalar field f (x, y) is defined as
f =
∂
∂x f
∂
∂y f
.
• Numerically, we can approximate the partial derivative by
∂
∂x
f (x, y) ≈
f (x + h, y) − f (x, y)
h
for some small number h.
• In Matlab, we can use gradient(F) to find the gradient of
the scalar field F. See help for more detail.
55 / 76
56. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Scalar Field and its Gradient
−2 −1 0 1
−2
−1
0
1
• Find the gradient of the
scalar field
f (x, y) = x2
− 3 sin(xy).
• Plot f (x, y) using
contour().
• Plot its gradient using
gradient() in the same
figure.
56 / 76
57. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 6
More Plots
57 / 76
58. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Histogram
Histogram is useful to visualize the distribution of univariate data.
Syntax
• Create a histogram of data vector x
hist(x);
• To specify number of bins, use
hist(x,m);
58 / 76
59. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Random Number Generators
• Two important random number generators in Matlab:
• Uniform between 0 and 1: rand().
• Standard normal: randn().
• Exercise:
• Generate N random samples from rand().
• Use hist to visualize the distribution.
• Experiment with different N and different number of bins.
• How many samples are required to produce a good
approximation of it distribution?
• Repeat for randn().
59 / 76
60. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra

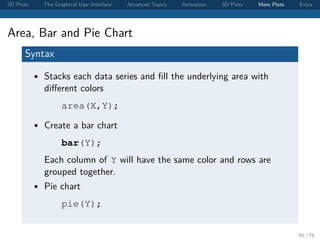

Area, Bar and Pie Chart
Syntax
• Stacks each data series and fill the underlying area with
different colors
area(X,Y);
• Create a bar chart
bar(Y);
Each column of Y will have the same color and rows are
grouped together.
• Pie chart
pie(Y);
60 / 76
61. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Operating System War!
• Go to http://www.netmarketshare.com/ and
download the operating system share trend data (Excel file).
• Import it into workspace.
• Create the following plots:
• Line plot.
• Area chart.
• Bar chart.
• Pie chart on April, 2012.
61 / 76
62. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Scatter Plot
Scatter plot is used to visualize the distribution of two dimensional
data.
Syntax
• To generate the scatter plot for the data vector X and Y
scatter(X,Y)
62 / 76
63. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Basic Regression
• Suppose we are given a data set x and y.
• It is assumed that y = ax + b + noise.
• Find the best linear fit ˆy = ˆax + ˆb.
0 0.5 1
2
3
4
5
6
x
y
ˆy = 2.0x + 3.0
63 / 76
64. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Section 7
Extra
64 / 76
65. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Solving Differential Equations
• Differential equation involves derivatives of a function in its
independent variables.
• Almost everything is described by some differential equation.
• Mostafa will talk about solving differential equations using
powerful tools provided by Matlab.
• We can create a poor man’s differential equation solver.
• The idea of Finite Difference Method (FDM):
∂u
∂t
≈
u(t + h) − u(t)
h
for small h.
65 / 76
66. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
The Finite Difference Method
• Consider the wave equation
utt = c2
∆u − but,
where the Laplacian operator ∆ is defined as
∆u = uxx + uyy .
• Use finite difference to approximate derivatives:
ut ≈
u(t + ∆t) − u(t)
∆t
utt ≈
u(t + ∆t) − 2u(t) + u(t − ∆t)
∆t2
.
Similarly for uxx and uyy .
66 / 76
67. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
The Finite Difference Method
• In Matlab, we can use the discrete Laplacian function del2
to approximate
∆u ≈
4
h2
del2(u),
where h is the spacing in the spatial grid.
• Substitute the derivatives by their finite difference
approximation, we get (verify this!)
u(t+∆t) ≈ 2u(t)−u(t−∆t)+h2
∆u(t)−b∆t(u(t)−u(t−∆t)).
(3)
• Provide the initial data of u and ut at t = 0 and the boundary
condition, we can approximate the solution of the wave
equation by recursively solving (3).
67 / 76
68. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Demo: 2D Wave Equation
−4
−2
0
2
4
−4
−2
0
2
4
0
2
4
6
8
10
Figure: The simulated solution to the wave equation.
68 / 76
69. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Linear Congruential Generator (LCG)
• LCG is a popular (and old) Pseudo-Random Numbers
Generator.
• Simple and efficient to compute.
• Poor choice of parameters lead to bad performance.
LCG
xn+1 ≡ (axn + b) (mod m), (4)
• m > 0: the modulus
• a > 0: the multiplier
• b ≥ 0: the increment
• x0: the seed
69 / 76
70. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Histogram
0 10 20 30
0
5
10
15
• Try different parameters and use
hist to evaluate its performance.
• If you can’t figure out what
combination of parameters would
work, try
• a = 3
• b = 0
• m = 31
• x0 = 1
70 / 76
71. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Polar Plot
• Sometimes it is easier to express coordinate in the polar form.
• Let (x, y) be the coordinates in the Cartesian coordinate
system, its corresponding polar coordinates is given by
r = x2 + y2 (5)
θ = tan−1
(y/x). (6)
Syntax
• Plot r versus theta in the polar coordinate
polar(theta,r);
71 / 76
72. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Butterfly Curve
The butterfly fly curve, discovered by Temple H. Fay, is generated
by the equations
r = esin θ
− 2 cos(4θ) + sin5 2θ − π
24
. (7)
2
4
6
30
210
60
240
90
270
120
300
150
330
180 0
72 / 76
73. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Demo: Lorenz Attractor
Lorenz system is a simplified model for atmospheric convection, it
is modeled by the ordinary differential equations
dx
dt
= σ(y − x), (8)
dy
dt
= x(ρ − z) − y, (9)
dz
dt
= xy − βz, (10)
where x, y and z are the coordinate of the state, t represents time,
ρ, σ and β are parameters.
73 / 76
74. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
3D Line Plot
Example Lorenz Attractor
−20 0 20
−50
0
50
0
20
40
60
x
y
z
74 / 76
75. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra

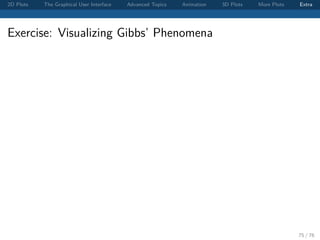

Exercise: Visualizing Gibbs’ Phenomena
75 / 76
76. 2D Plots The Graphical User Interface Advanced Topics Animation 3D Plots More Plots Extra
Exercise: Complex Data as 2D Representation
Plot the Hypocycloid.
76 / 76
