When a large group of people change their habits, it can be tricky for infrastructures! Working from home and spending time indoor today means attending video calls and streaming movies and tv shows. This leads to increased internet traffic that can create congestion on the network infrastructure. So how do you get real-time visibility into your ISP connection? In this meetup, Mirko presents his setup based on a time series database and Raspberry Pi to better understand his ISP connection quality and speed — including upload and download speeds. Join us to discover how he does it using Telegraf, InfluxDB Cloud, Astro Pi, Telegram and Grafana! Finally, proof that your ISP connection is (or is not) as fast as it promises.

1. April 7, 2021

3. • Travel addict
• Photography enthusiast
• Tech interested
• Robotics/Industrial engineer

4. Why are we here?

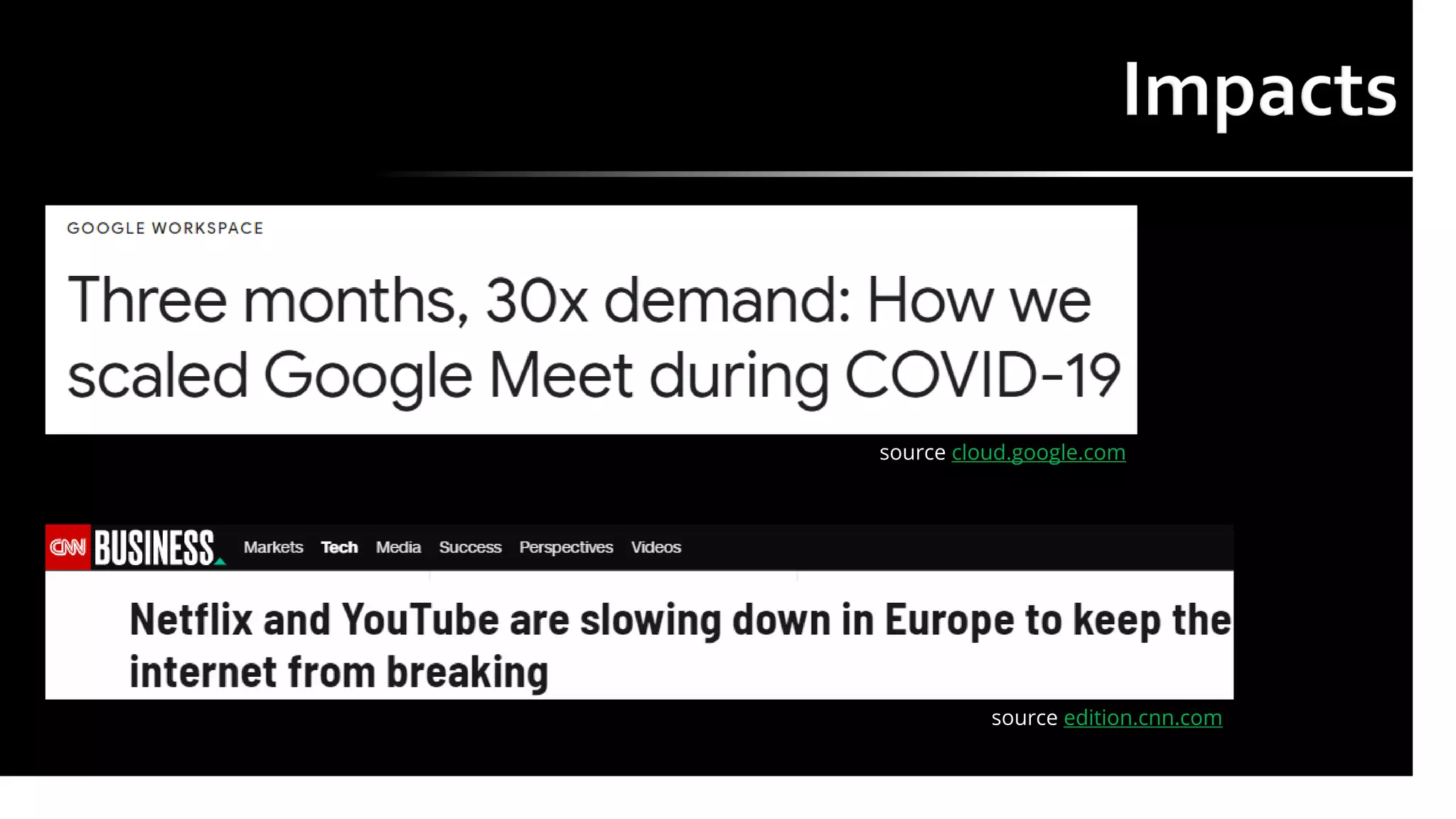

8. source cloud.google.com
source edition.cnn.com

9. What is going on at my place?

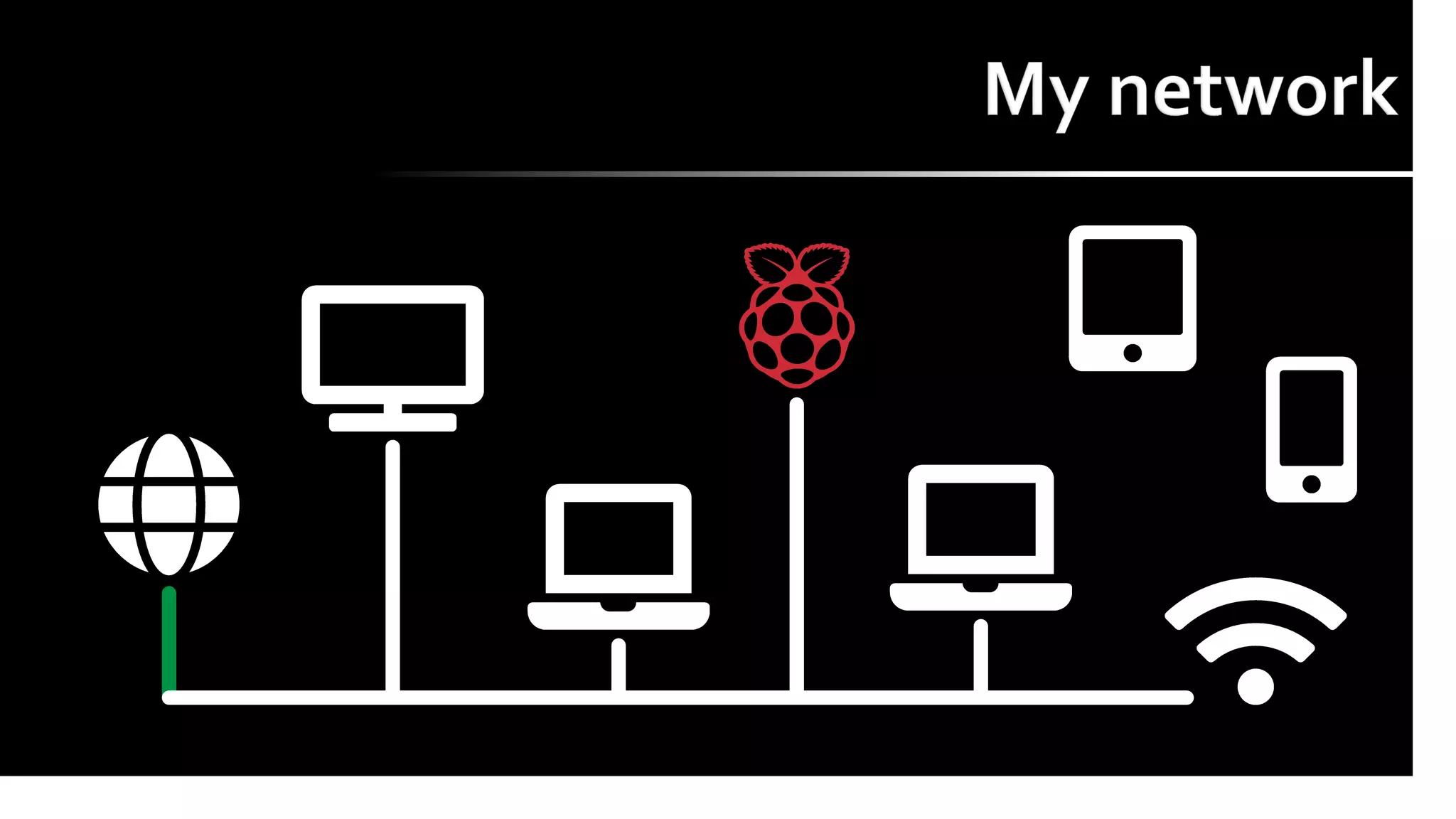

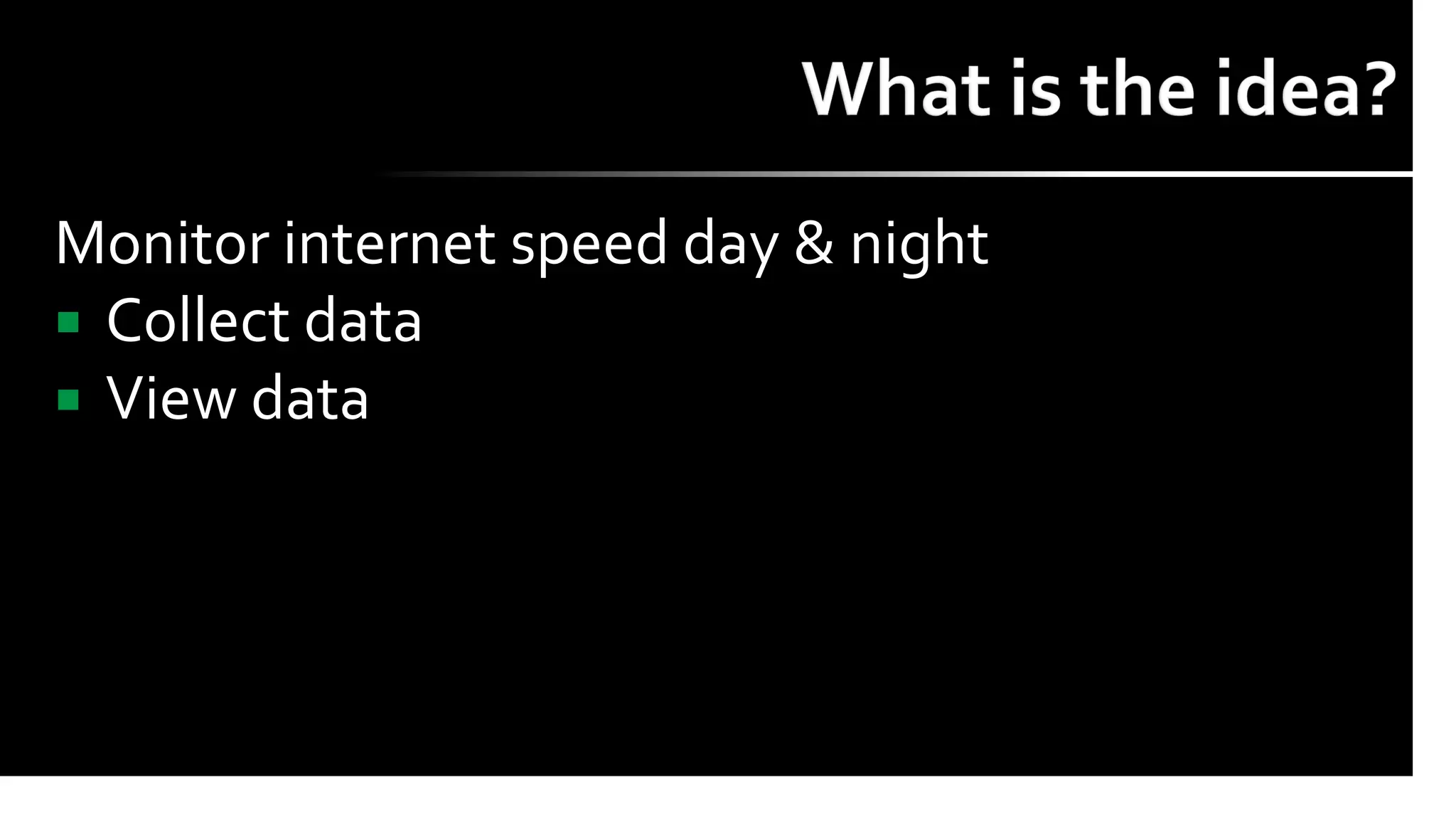

11. Monitor internet speed day & night
 Collect data
 View data

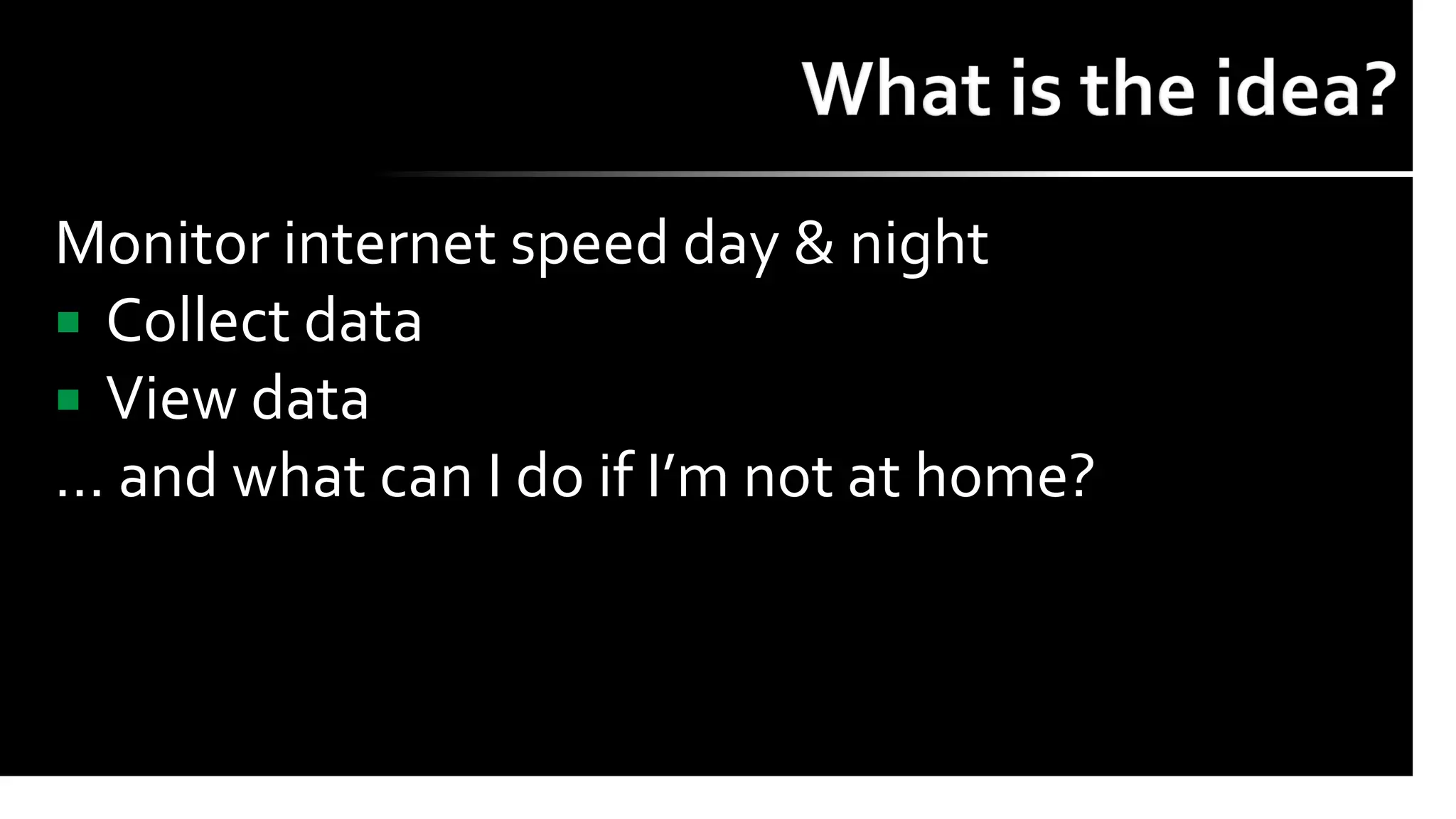

12. Monitor internet speed day & night
 Collect data
 View data
… and what can I do if I’m not at home?

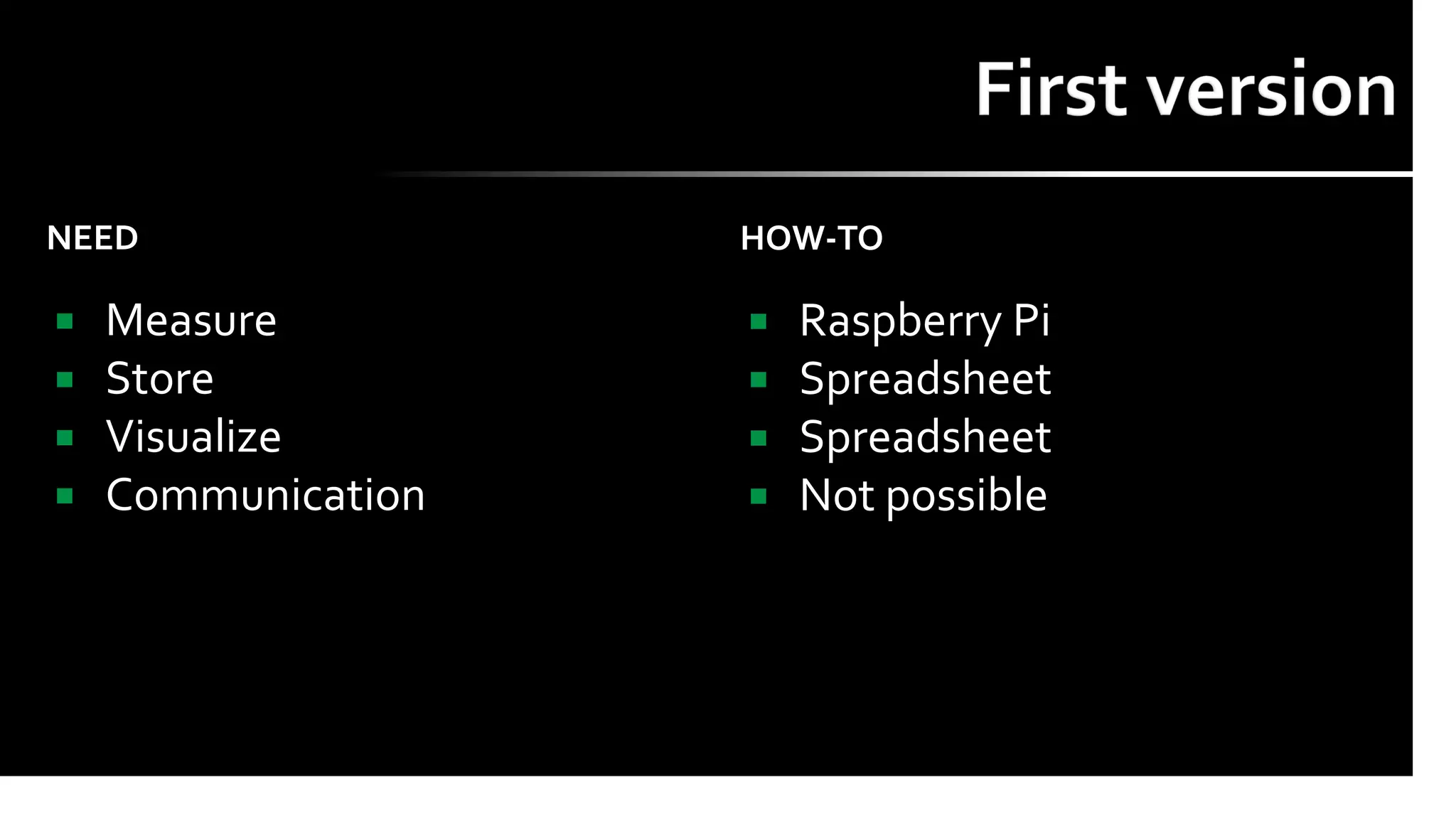

13. NEED
 Measure
 Store
 Visualize
 Communication
HOW-TO
 Raspberry Pi
 Spreadsheet
 Spreadsheet
 Not possible

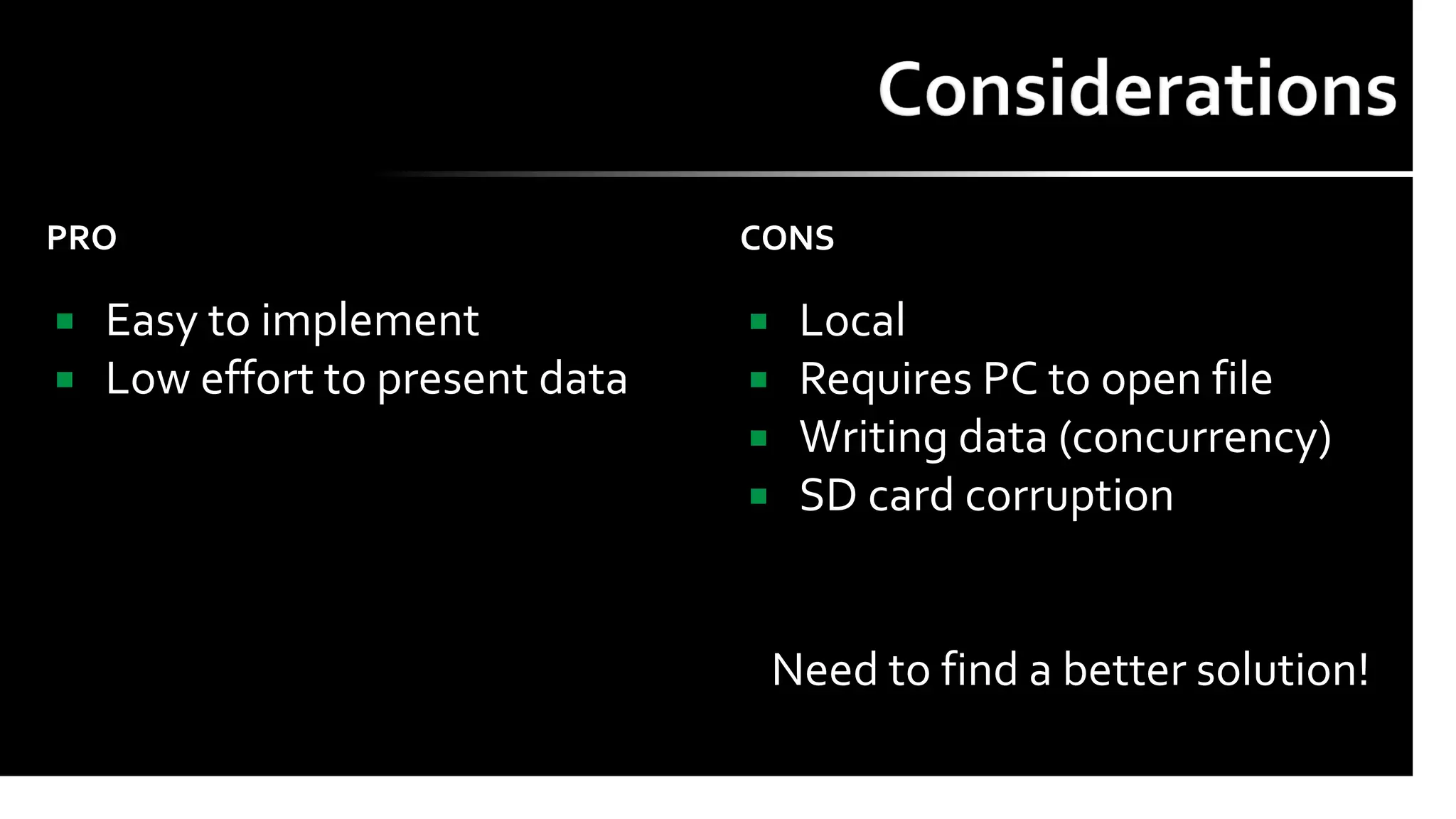

14. PRO
 Easy to implement
 Low effort to present data
CONS
 Local
 Requires PC to open file
 Writing data (concurrency)
 SD card corruption
Need to find a better solution!

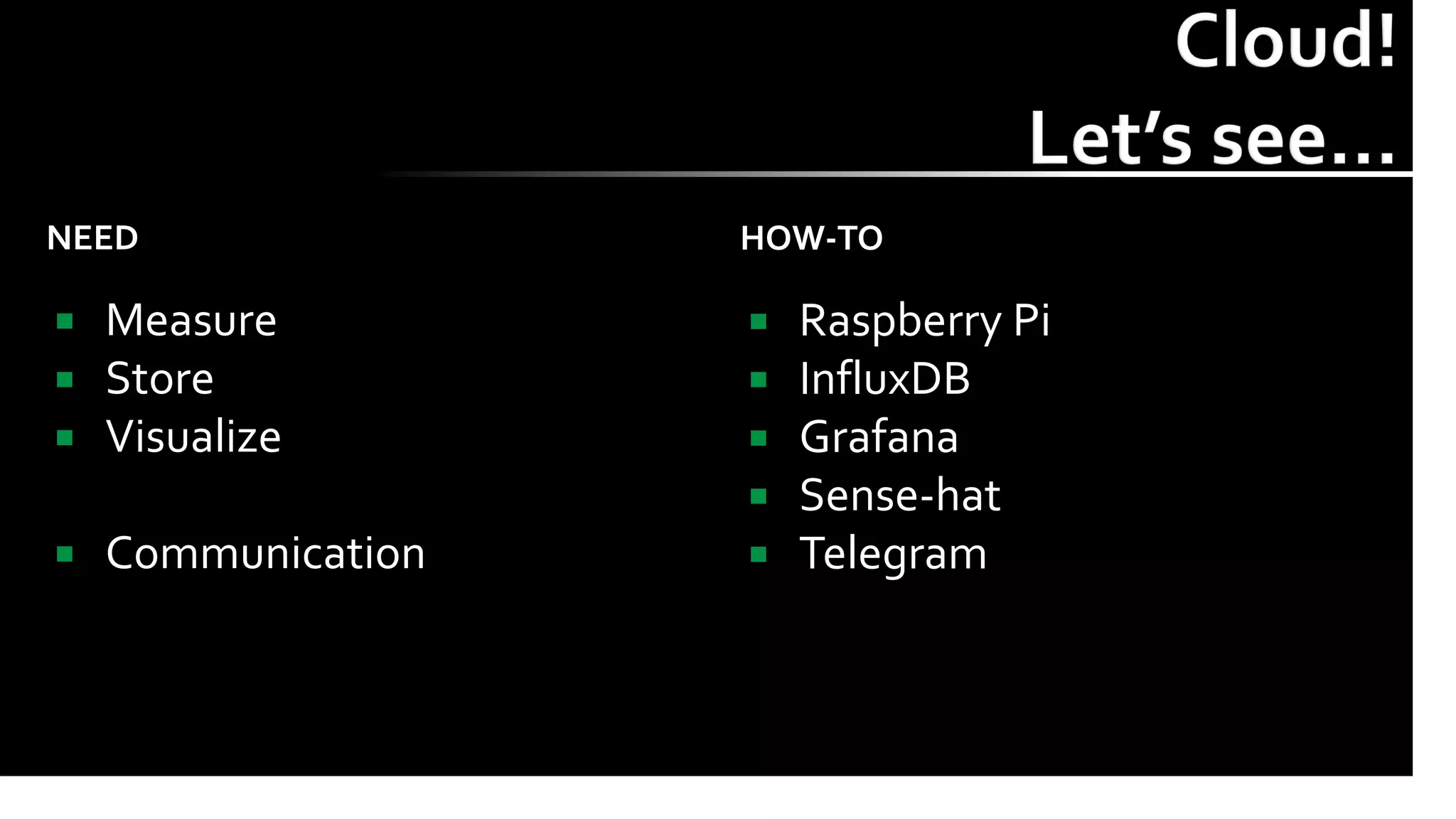

15. NEED
 Measure
 Store
 Visualize
 Communication
HOW-TO
 Raspberry Pi
 InfluxDB
 Grafana
 Sense-hat
 Telegram

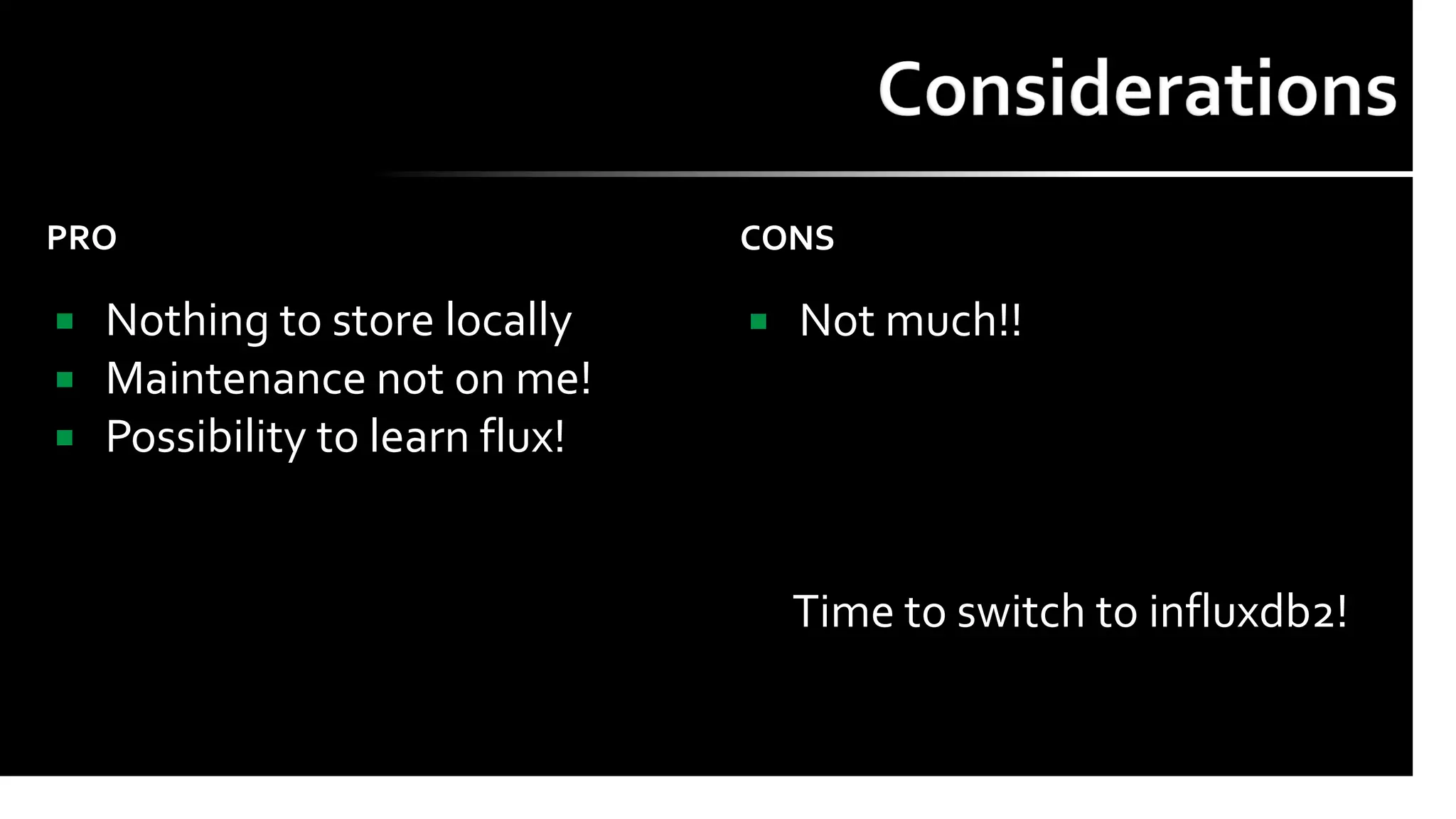

16. PRO
 Nothing to store locally
 Maintenance not on me!
 Possibility to learn flux!
CONS
 Not much!!
Time to switch to influxdb2!

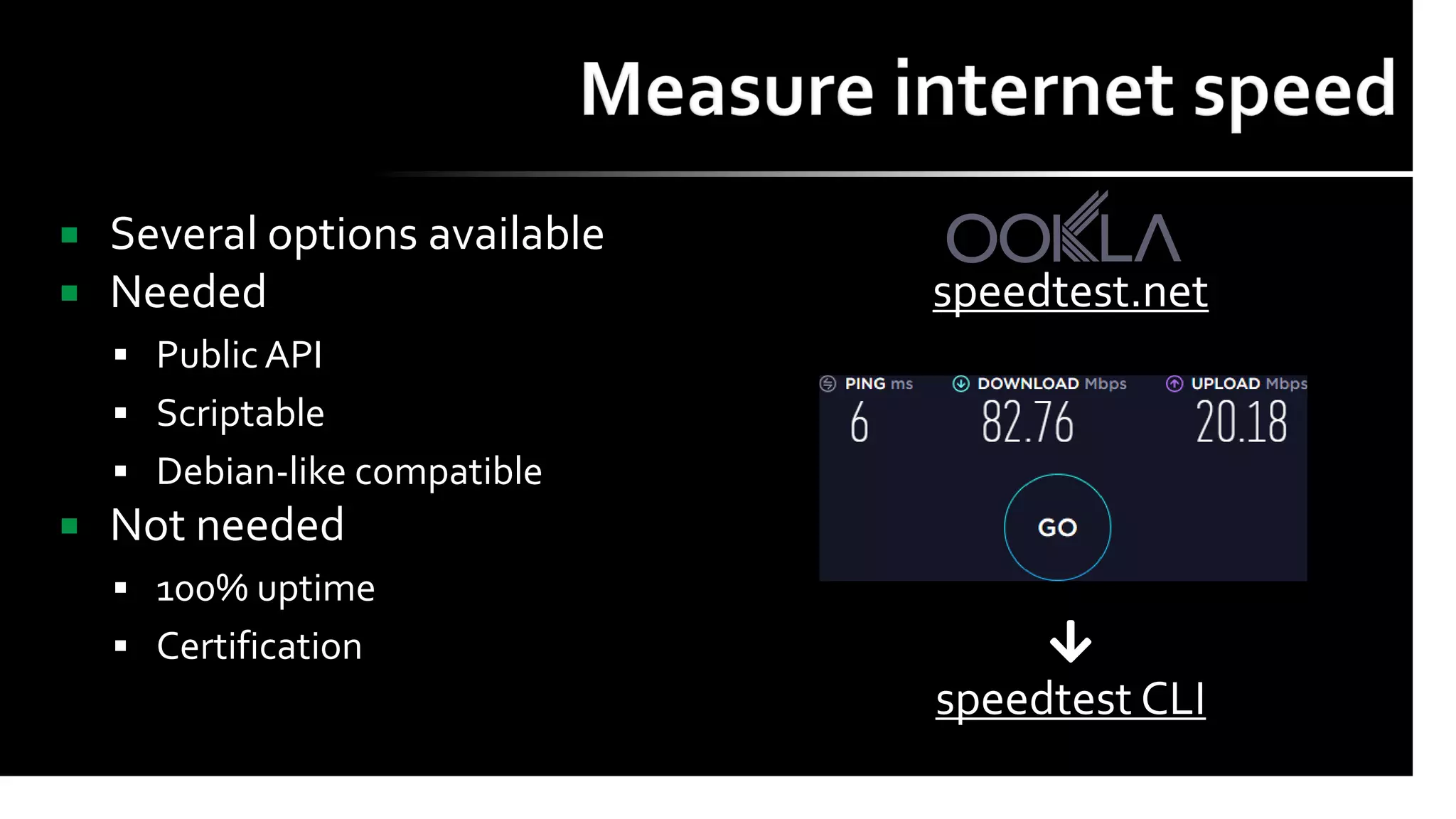

17.  Several options available
 Needed
▪ PublicAPI
▪ Scriptable
▪ Debian-like compatible
 Not needed
▪ 100% uptime
▪ Certification
speedtest.net
speedtest CLI

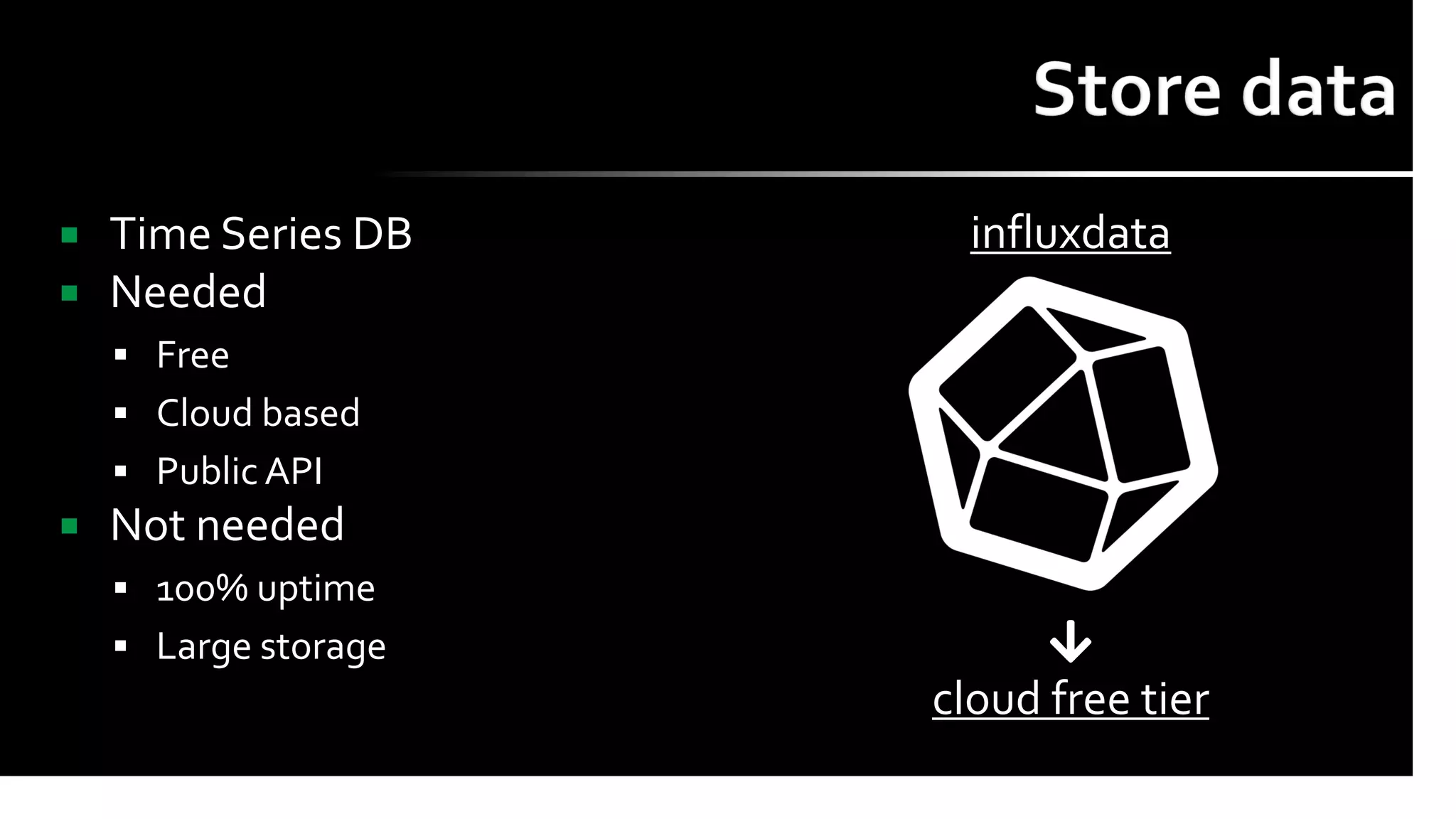

18.  Time Series DB
 Needed
▪ Free
▪ Cloud based
▪ Public API
 Not needed
▪ 100% uptime
▪ Large storage
influxdata
cloud free tier

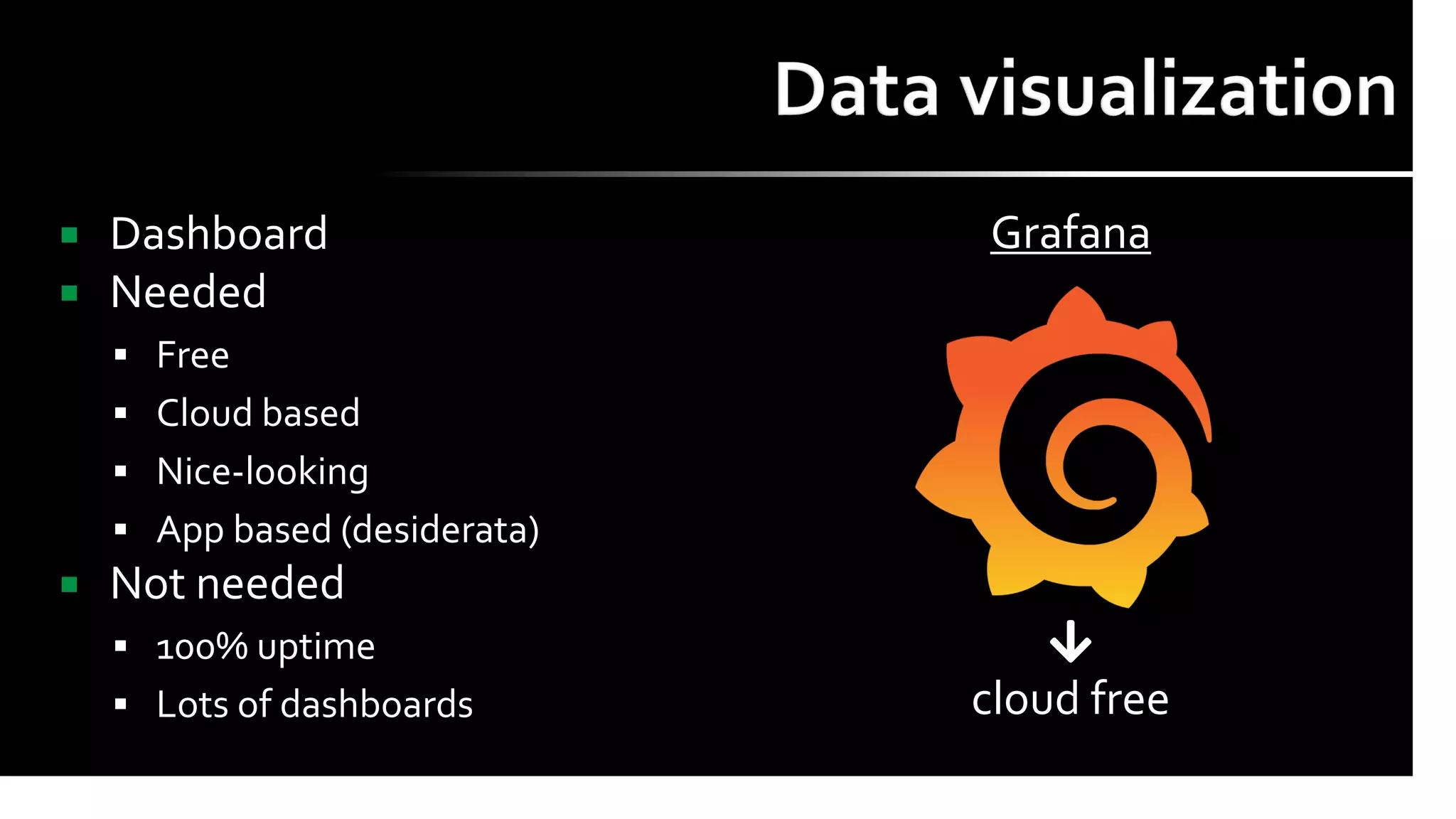

19.  Dashboard
 Needed
▪ Free
▪ Cloud based
▪ Nice-looking
▪ App based (desiderata)
 Not needed
▪ 100% uptime
▪ Lots of dashboards
Grafana
cloud free

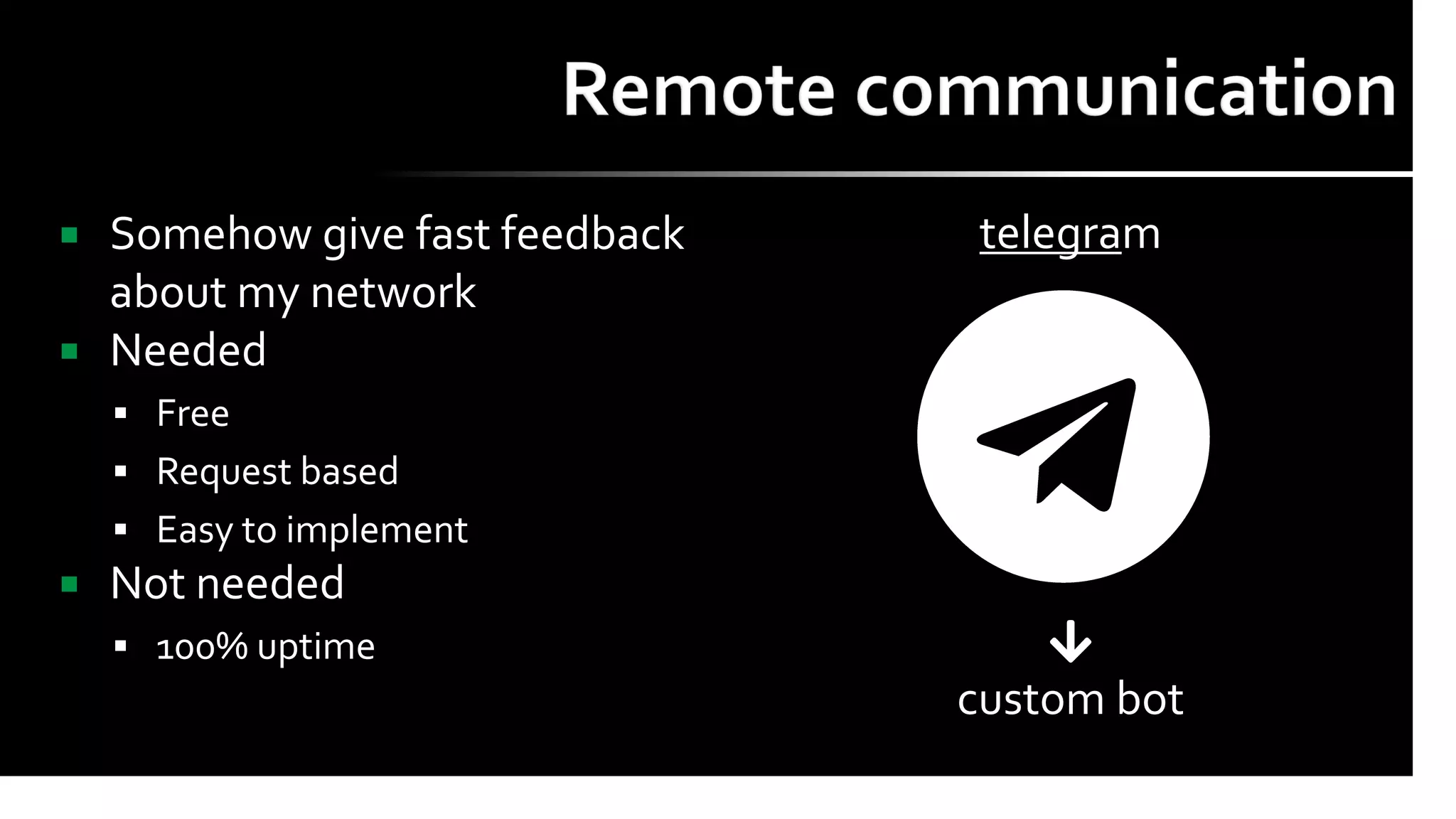

20.  Somehow give fast feedback
about my network
 Needed
▪ Free
▪ Request based
▪ Easy to implement
 Not needed
▪ 100% uptime
telegram
custom bot

21. Let’s look at the implementation

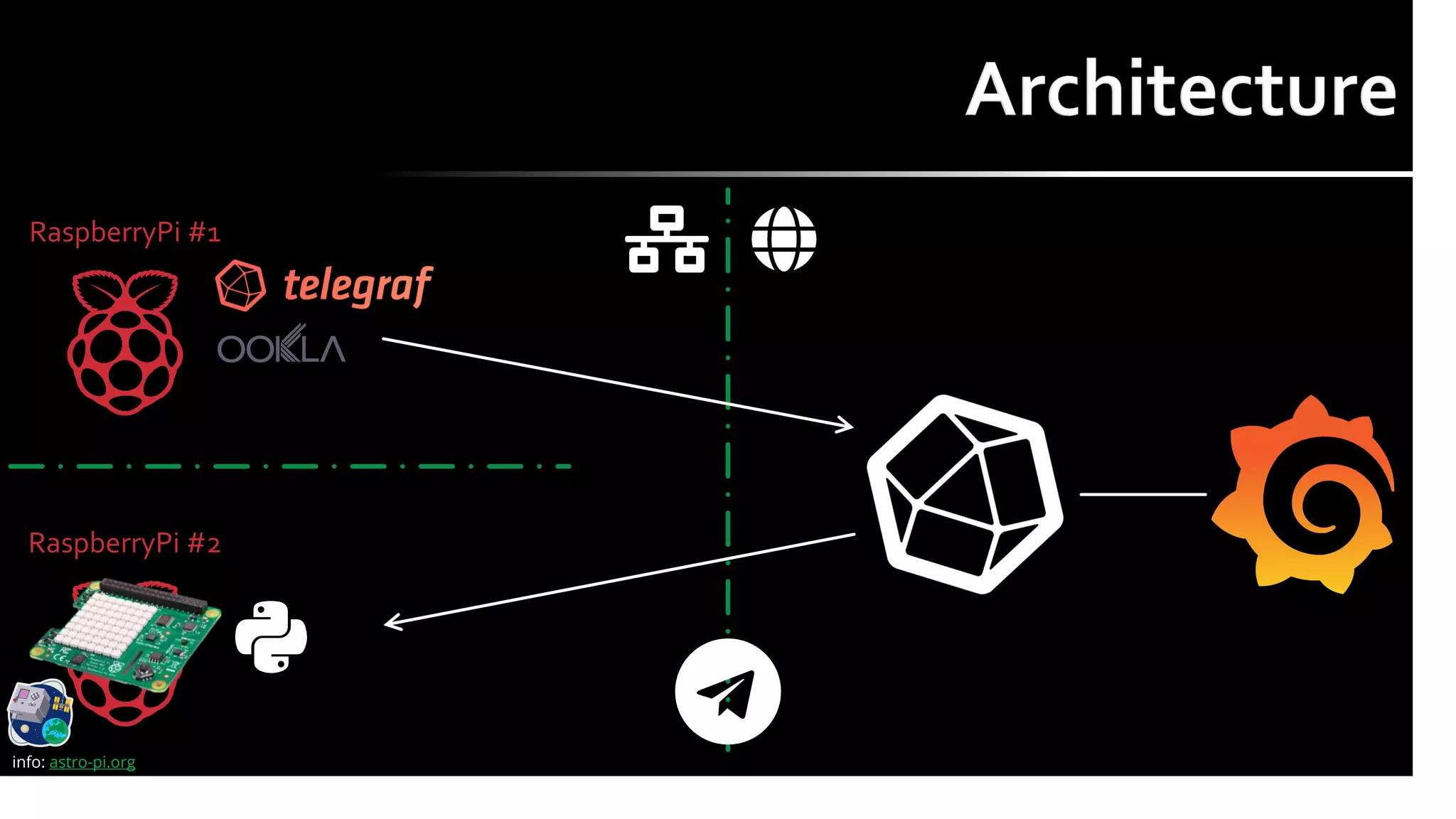

22. RaspberryPi #1
RaspberryPi #2
info: astro-pi.org

23. INTERACTIVE
$ speedtest
Speedtest by Ookla
Server: <Server Name> (id = <Server ID>)
ISP: <ISP>
Latency: 6.87 ms (1.95 ms jitter)
Download: 77.37 Mbps (data used: 62.7 MB)
Upload: 19.98 Mbps (data used: 9.0 MB)
Packet Loss: 0.0%
Result URL: https://www.speedtest.net/result/c/<UUID>
SCRIPTED
$ speedtest --format json
{ "type": "result",
"timestamp": "2021-04-07T18:00:00Z",
"ping":
{ "jitter": 0.696,
"latency": 6.645 },
"download":
{ "bandwidth": 7662563,
"bytes": 47087360,
"elapsed": 5914 },
"upload":
{ "bandwidth": 2197125,
"bytes": 7004736,
"elapsed": 3607 },
"packetLoss": 0,
"isp": "<ISP>",
"interface":
{ "internalIp": "<LAN ip>",
"name": "<LAN interface name>",
"macAddr": "<LAN interface MAC>",
"isVpn": false,
"externalIp": "<Public IP>" },
"server":
{ "id": <Server ID>,
"name": "<Server Name>",
"location": "<Server Location>",
"valcountry": "Italy",
"host": "<Server Host>",
"port": 8080,
"ip": "<Server IP>" },
"result":
{ "id": "<UUID>",
"url": https://www.speedtest.net/result/c/<UUID>}
}

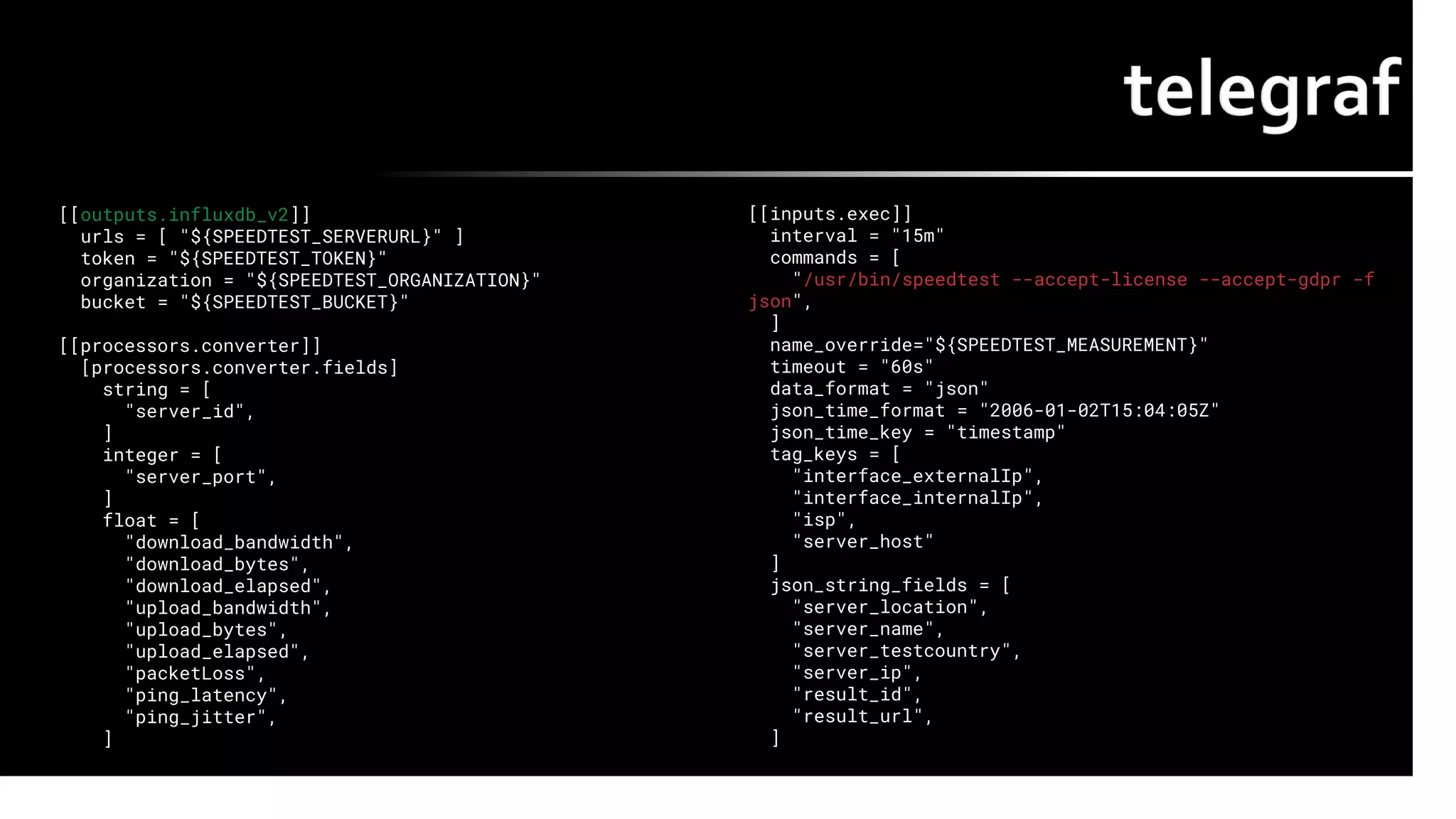

24. [[outputs.influxdb_v2]]
urls = [ "${SPEEDTEST_SERVERURL}" ]
token = "${SPEEDTEST_TOKEN}"
organization = "${SPEEDTEST_ORGANIZATION}"
bucket = "${SPEEDTEST_BUCKET}"
[[processors.converter]]
[processors.converter.fields]
string = [
"server_id",
]
integer = [
"server_port",
]
float = [
"download_bandwidth",
"download_bytes",
"download_elapsed",
"upload_bandwidth",
"upload_bytes",
"upload_elapsed",
"packetLoss",
"ping_latency",
"ping_jitter",
]
[[inputs.exec]]
interval = "15m"
commands = [
"/usr/bin/speedtest --accept-license --accept-gdpr -f
json",
]
name_override="${SPEEDTEST_MEASUREMENT}"
timeout = "60s"
data_format = "json"
json_time_format = "2006-01-02T15:04:05Z"
json_time_key = "timestamp"
tag_keys = [
"interface_externalIp",
"interface_internalIp",
"isp",
"server_host"
]
json_string_fields = [
"server_location",
"server_name",
"server_testcountry",
"server_ip",
"result_id",
"result_url",
]

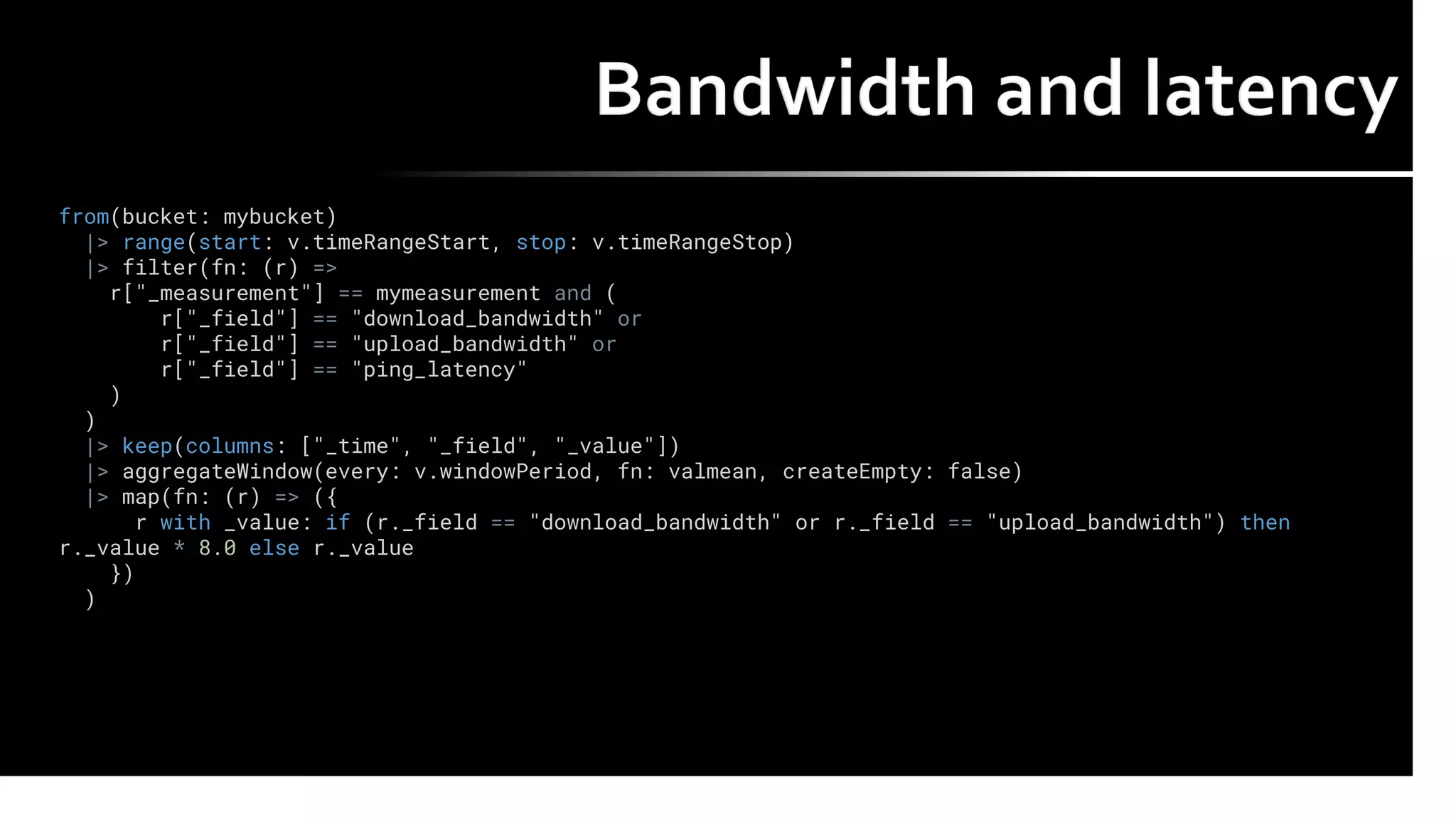

25. from(bucket: mybucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) =>
r["_measurement"] == mymeasurement and (
r["_field"] == "download_bandwidth" or
r["_field"] == "upload_bandwidth" or
r["_field"] == "ping_latency"
)
)
|> keep(columns: ["_time", "_field", "_value"])
|> aggregateWindow(every: v.windowPeriod, fn: valmean, createEmpty: false)
|> map(fn: (r) => ({
r with _value: if (r._field == "download_bandwidth" or r._field == "upload_bandwidth") then
r._value * 8.0 else r._value
})
)

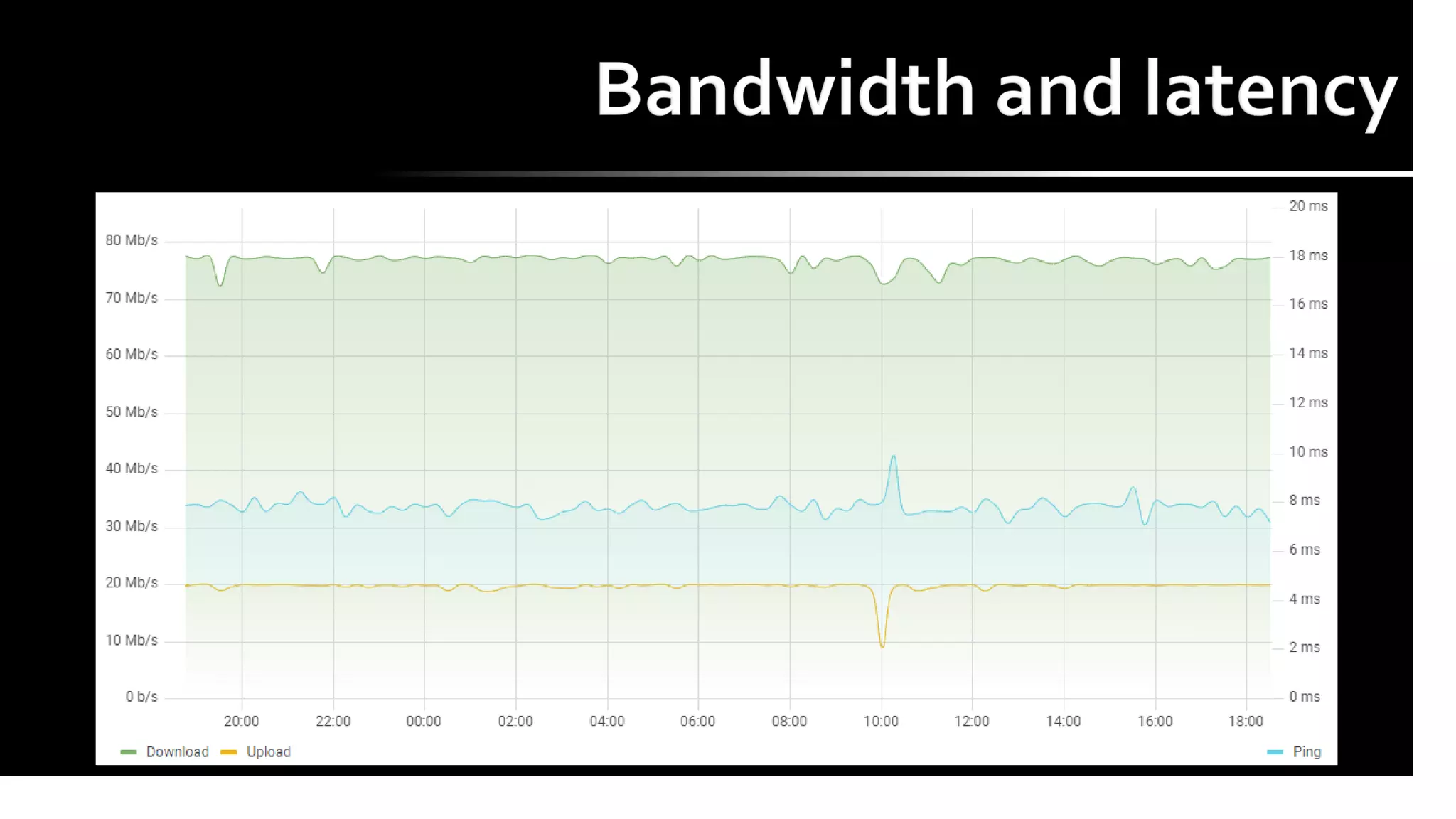

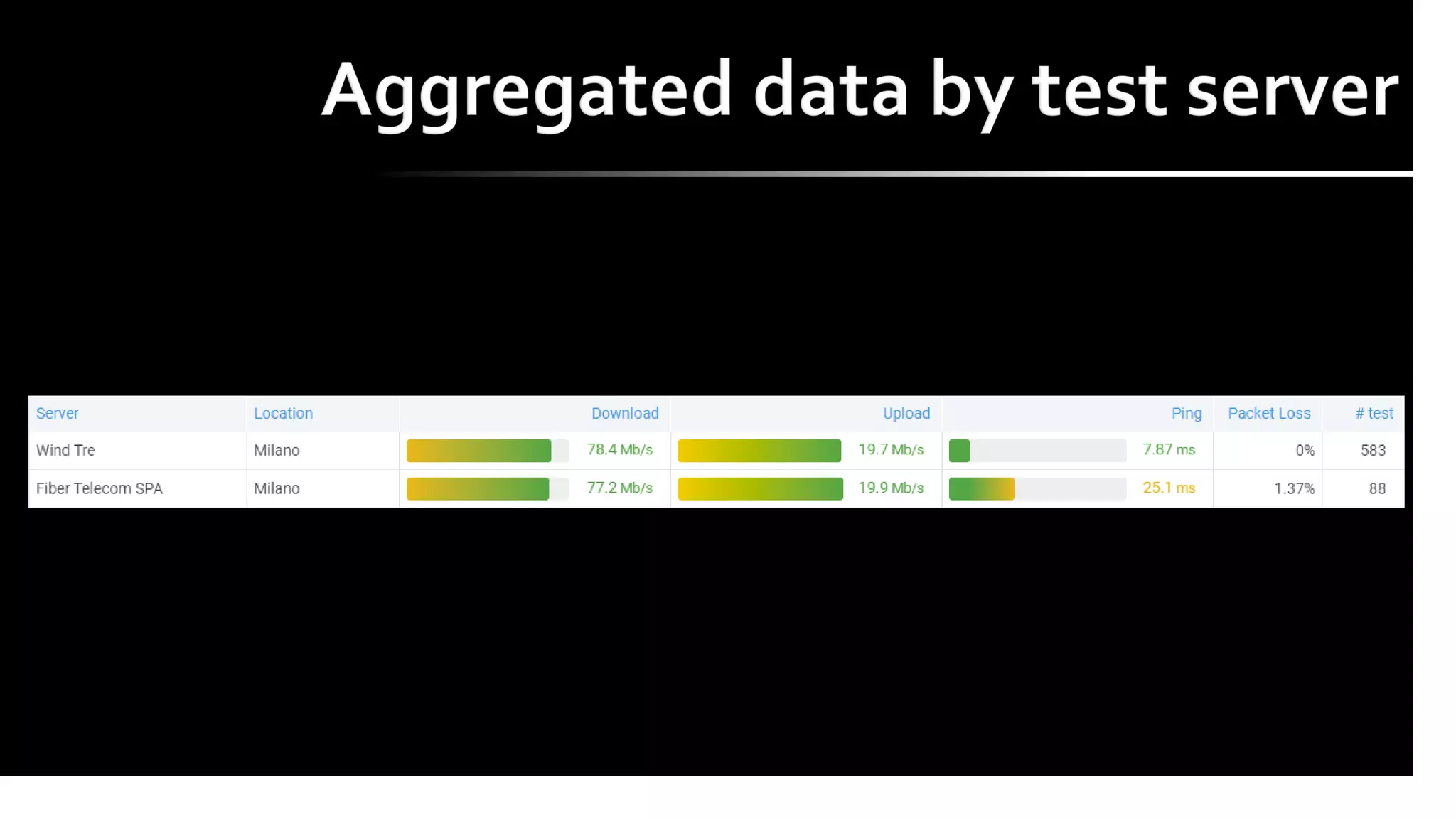

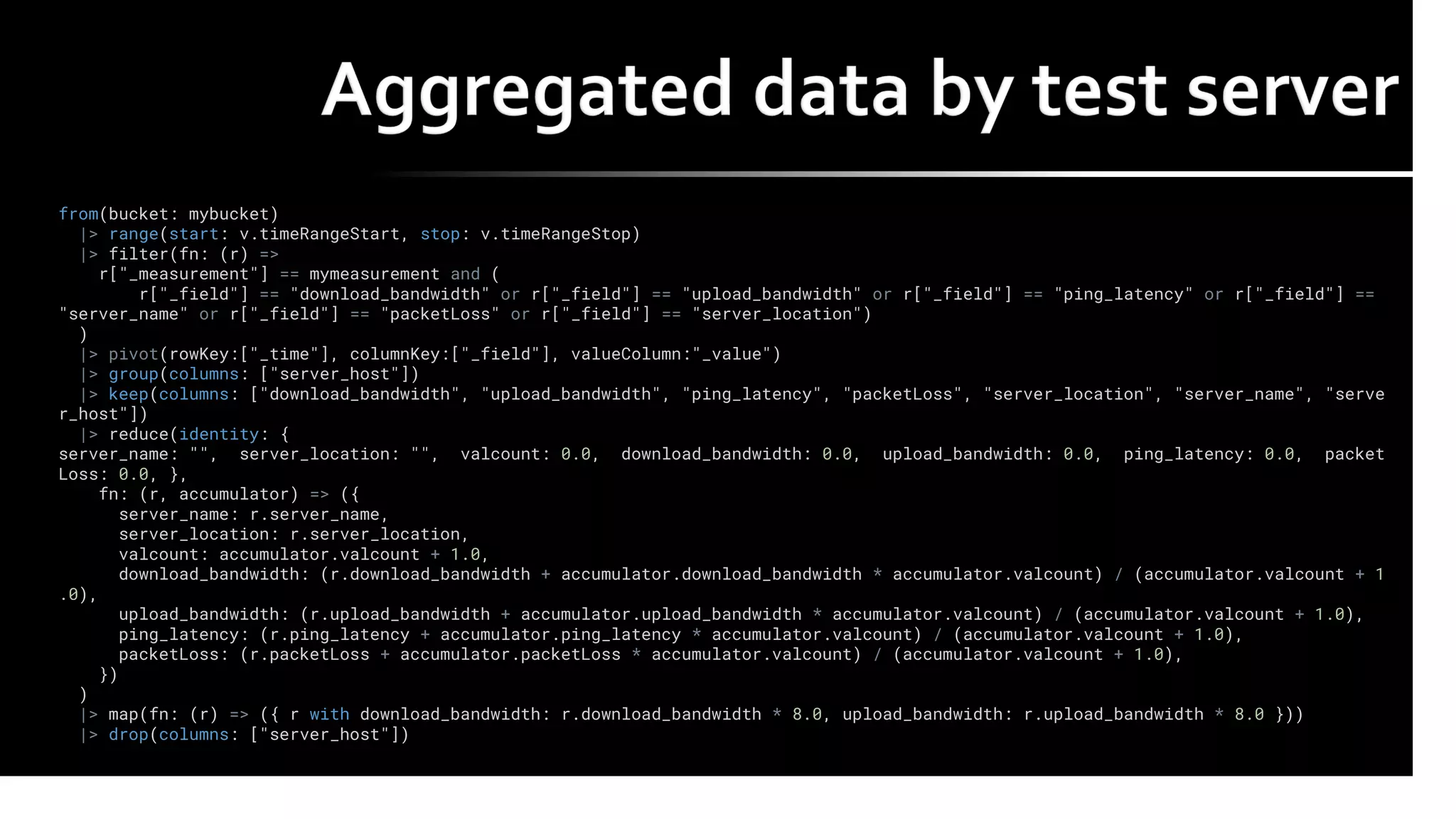

27. from(bucket: mybucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) =>
r["_measurement"] == mymeasurement and (
r["_field"] == "download_bandwidth" or r["_field"] == "upload_bandwidth" or r["_field"] == "ping_latency" or r["_field"] ==
"server_name" or r["_field"] == "packetLoss" or r["_field"] == "server_location")
)
|> pivot(rowKey:["_time"], columnKey:["_field"], valueColumn:"_value")
|> group(columns: ["server_host"])
|> keep(columns: ["download_bandwidth", "upload_bandwidth", "ping_latency", "packetLoss", "server_location", "server_name", "serve
r_host"])
|> reduce(identity: {
server_name: "", server_location: "", valcount: 0.0, download_bandwidth: 0.0, upload_bandwidth: 0.0, ping_latency: 0.0, packet
Loss: 0.0, },
fn: (r, accumulator) => ({
server_name: r.server_name,
server_location: r.server_location,
valcount: accumulator.valcount + 1.0,
download_bandwidth: (r.download_bandwidth + accumulator.download_bandwidth * accumulator.valcount) / (accumulator.valcount + 1
.0),
upload_bandwidth: (r.upload_bandwidth + accumulator.upload_bandwidth * accumulator.valcount) / (accumulator.valcount + 1.0),
ping_latency: (r.ping_latency + accumulator.ping_latency * accumulator.valcount) / (accumulator.valcount + 1.0),
packetLoss: (r.packetLoss + accumulator.packetLoss * accumulator.valcount) / (accumulator.valcount + 1.0),
})
)
|> map(fn: (r) => ({ r with download_bandwidth: r.download_bandwidth * 8.0, upload_bandwidth: r.upload_bandwidth * 8.0 }))
|> drop(columns: ["server_host"])

29. from(bucket: mybucket)
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) =>
r["_measurement"] == mymeasurement and (
r["_field"] == "results_id" or
r["_field"] == "server_name" or
r["_field"] == "server_location"
)
)
|> keep(columns: ["_time", "_field", "_value"])
|> sort(columns: ["_time"], desc: true)

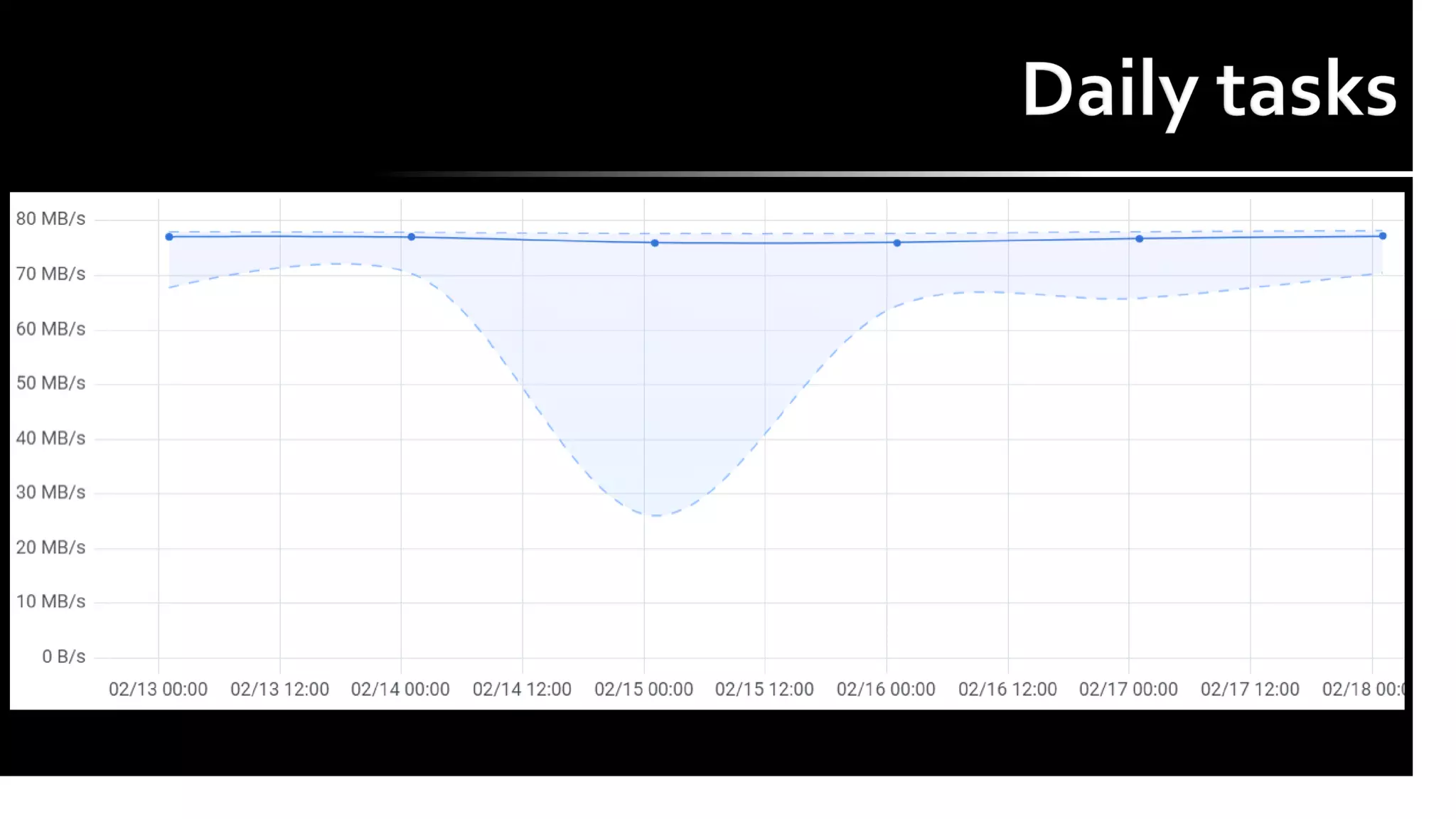

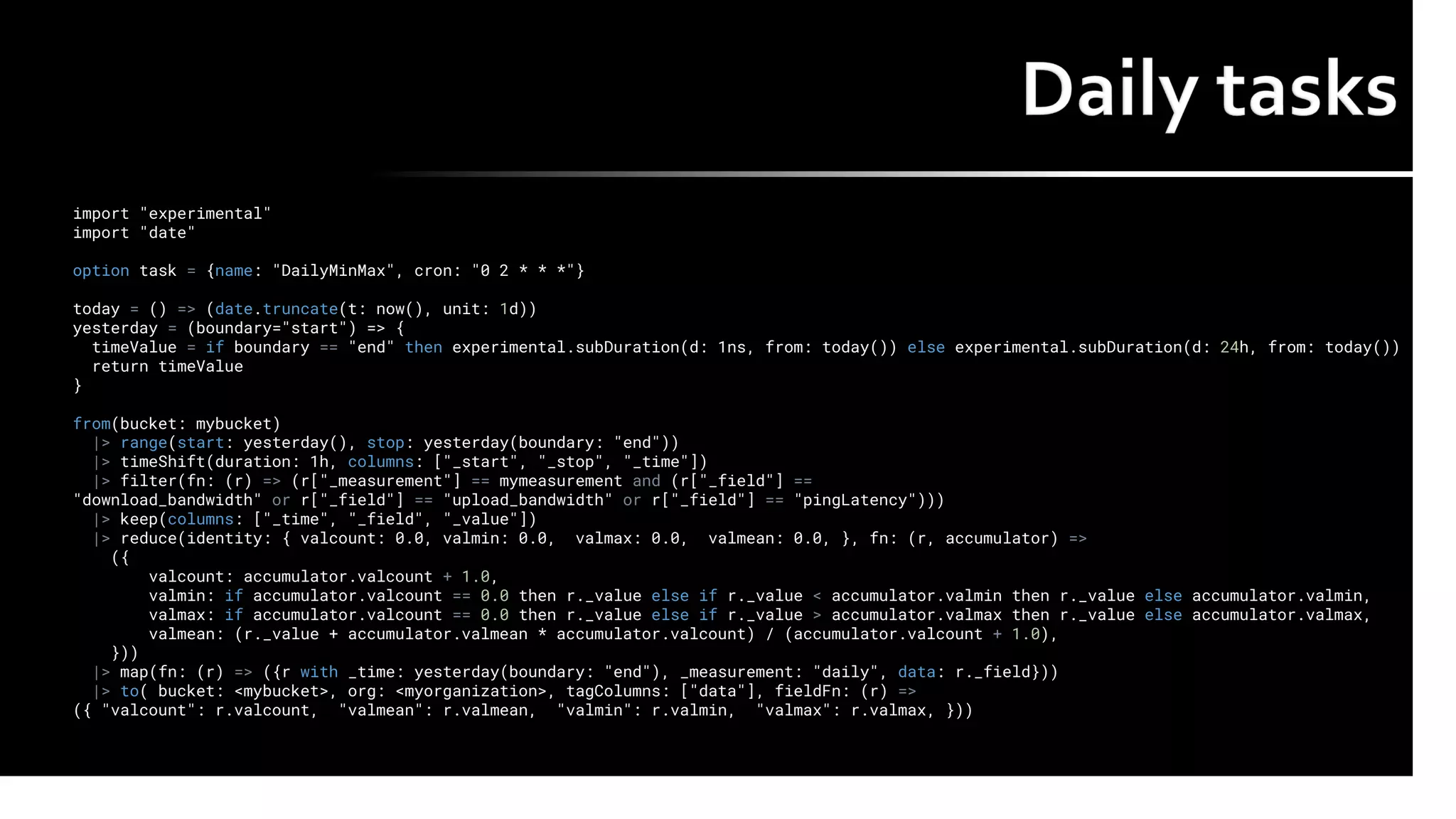

31. import "experimental"
import "date"
option task = {name: "DailyMinMax", cron: "0 2 * * *"}
today = () => (date.truncate(t: now(), unit: 1d))
yesterday = (boundary="start") => {
timeValue = if boundary == "end" then experimental.subDuration(d: 1ns, from: today()) else experimental.subDuration(d: 24h, from: today())
return timeValue
}
from(bucket: mybucket)
|> range(start: yesterday(), stop: yesterday(boundary: "end"))
|> timeShift(duration: 1h, columns: ["_start", "_stop", "_time"])
|> filter(fn: (r) => (r["_measurement"] == mymeasurement and (r["_field"] ==
"download_bandwidth" or r["_field"] == "upload_bandwidth" or r["_field"] == "pingLatency")))
|> keep(columns: ["_time", "_field", "_value"])
|> reduce(identity: { valcount: 0.0, valmin: 0.0, valmax: 0.0, valmean: 0.0, }, fn: (r, accumulator) =>
({
valcount: accumulator.valcount + 1.0,
valmin: if accumulator.valcount == 0.0 then r._value else if r._value < accumulator.valmin then r._value else accumulator.valmin,
valmax: if accumulator.valcount == 0.0 then r._value else if r._value > accumulator.valmax then r._value else accumulator.valmax,
valmean: (r._value + accumulator.valmean * accumulator.valcount) / (accumulator.valcount + 1.0),
}))
|> map(fn: (r) => ({r with _time: yesterday(boundary: "end"), _measurement: "daily", data: r._field}))
|> to( bucket: <mybucket>, org: <myorganization>, tagColumns: ["data"], fieldFn: (r) =>
({ "valcount": r.valcount, "valmean": r.valmean, "valmin": r.valmin, "valmax": r.valmax, }))

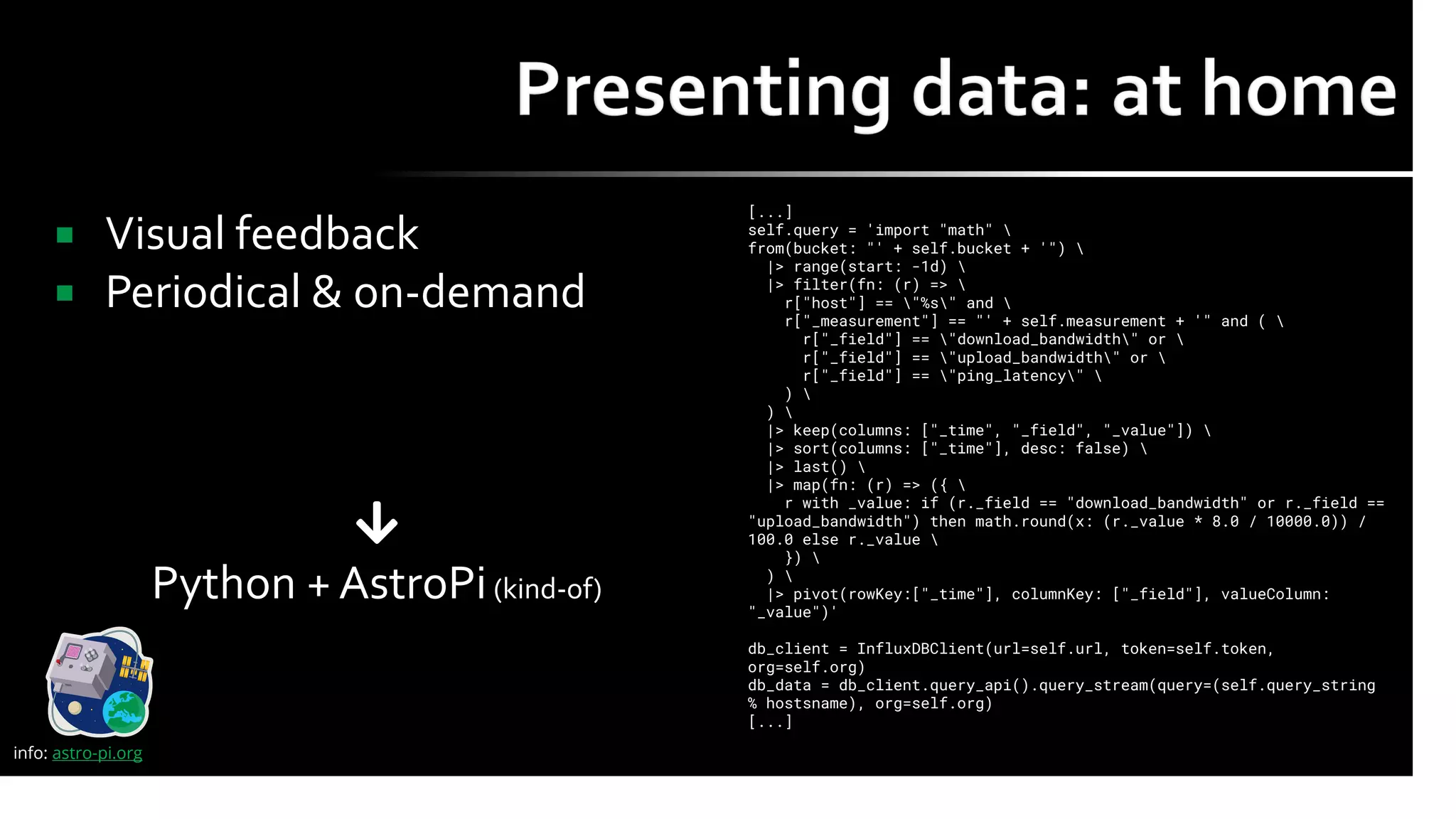

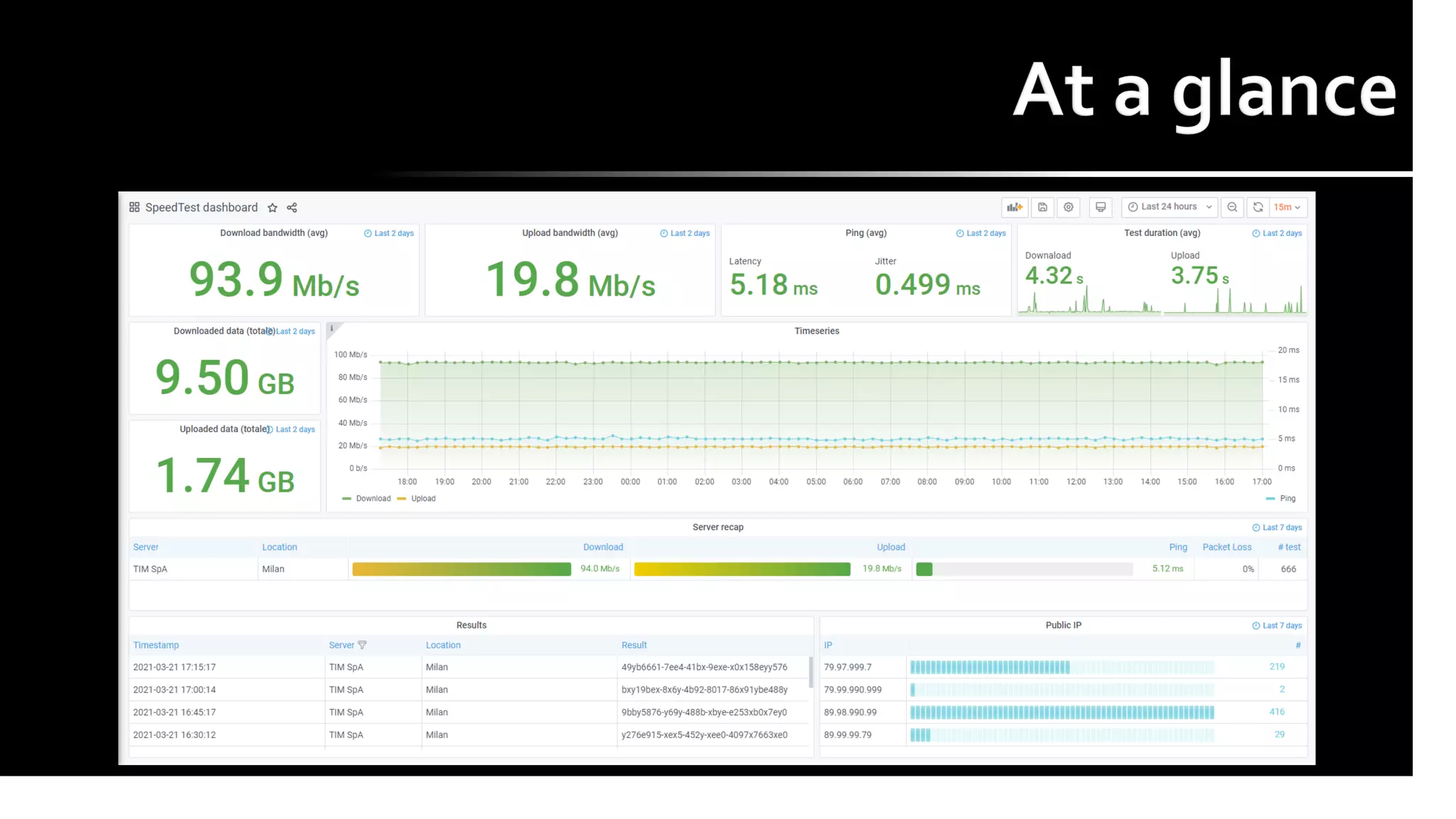

34.  Visual feedback
 Periodical & on-demand
Python + AstroPi(kind-of)
info: astro-pi.org
[...]
self.query = 'import "math"
from(bucket: "' + self.bucket + '")
|> range(start: -1d)
|> filter(fn: (r) =>
r["host"] == "%s" and
r["_measurement"] == "' + self.measurement + '" and (
r["_field"] == "download_bandwidth" or
r["_field"] == "upload_bandwidth" or
r["_field"] == "ping_latency"
)
)
|> keep(columns: ["_time", "_field", "_value"])
|> sort(columns: ["_time"], desc: false)
|> last()
|> map(fn: (r) => ({
r with _value: if (r._field == "download_bandwidth" or r._field ==
"upload_bandwidth") then math.round(x: (r._value * 8.0 / 10000.0)) /
100.0 else r._value
})
)
|> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn:
"_value")'
db_client = InfluxDBClient(url=self.url, token=self.token,
org=self.org)
db_data = db_client.query_api().query_stream(query=(self.query_string
% hostsname), org=self.org)
[...]

35.  Visual feedback
 Periodical & on-demand
Python + AstroPi(kind-of)
info: astro-pi.org
[...]
self.query = 'import "math"
from(bucket: "' + self.bucket + '")
|> range(start: -1d)
|> filter(fn: (r) =>
r["host"] == "%s" and
r["_measurement"] == "' + self.measurement + '" and (
r["_field"] == "download_bandwidth" or
r["_field"] == "upload_bandwidth" or
r["_field"] == "ping_latency"
)
)
|> keep(columns: ["_time", "_field", "_value"])
|> sort(columns: ["_time"], desc: false)
|> last()
|> map(fn: (r) => ({
r with _value: if (r._field == "download_bandwidth" or r._field ==
"upload_bandwidth") then math.round(x: (r._value * 8.0 / 10000.0)) /
100.0 else r._value
})
)
|> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn:
"_value")'
db_client = InfluxDBClient(url=self.url, token=self.token,
org=self.org)
db_data = db_client.query_api().query_stream(query=(self.query_string
% hostsname), org=self.org)
[...]

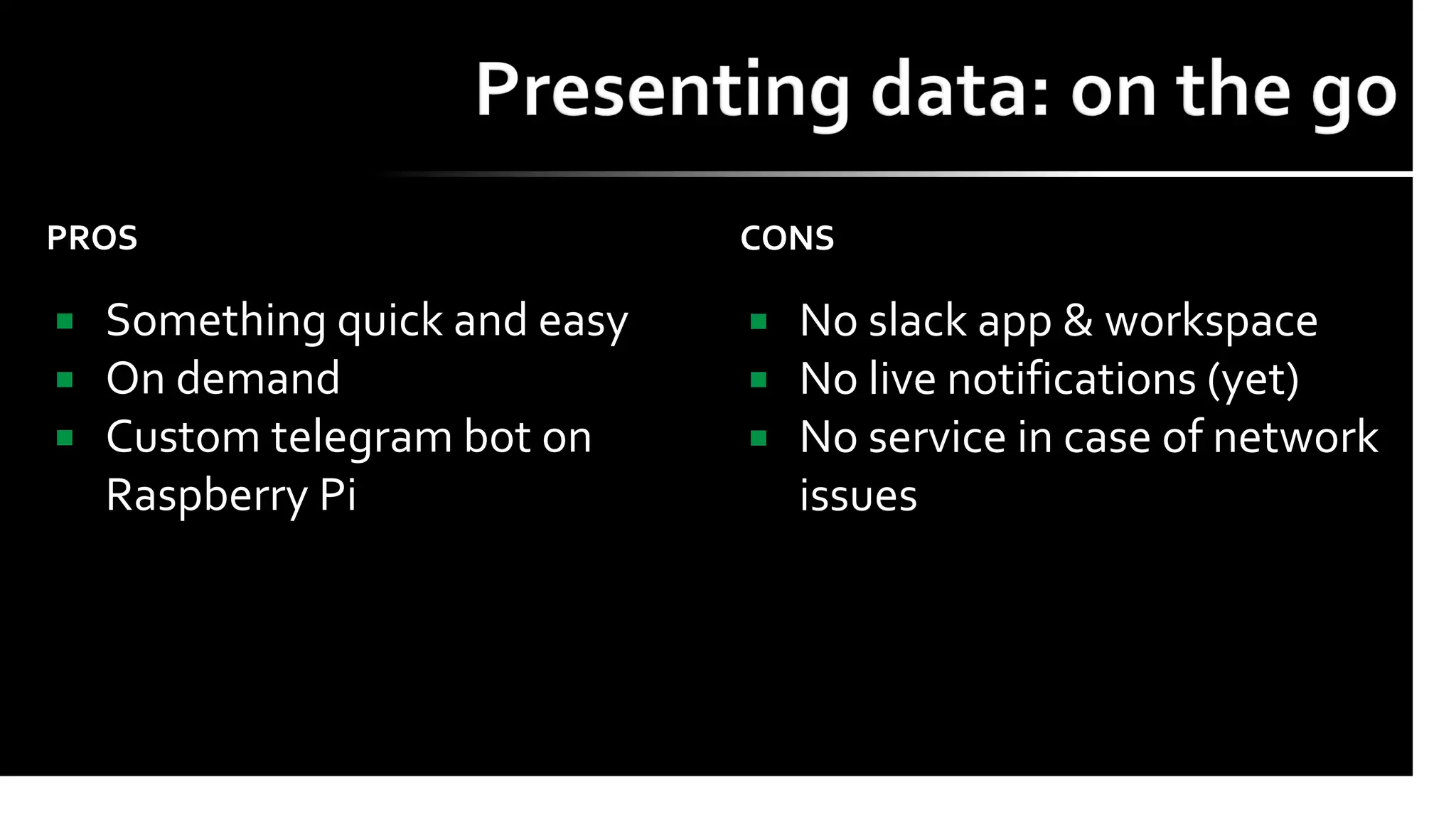

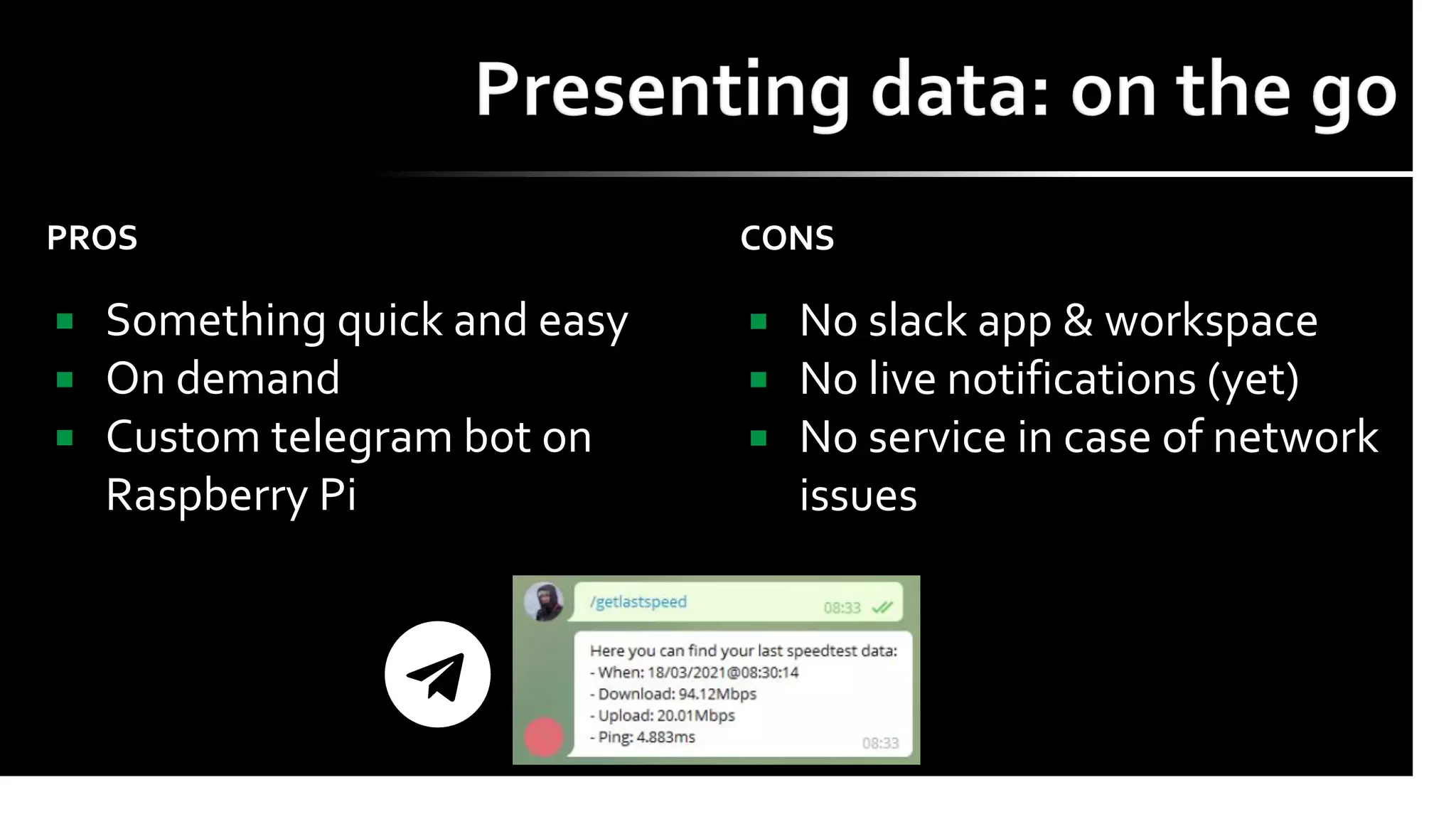

36. PROS
 Something quick and easy
 On demand
 Custom telegram bot on
Raspberry Pi
CONS
 No slack app & workspace
 No live notifications (yet)
 No service in case of network
issues

37. PROS
 Something quick and easy
 On demand
 Custom telegram bot on
Raspberry Pi
CONS
 No slack app & workspace
 No live notifications (yet)
 No service in case of network
issues

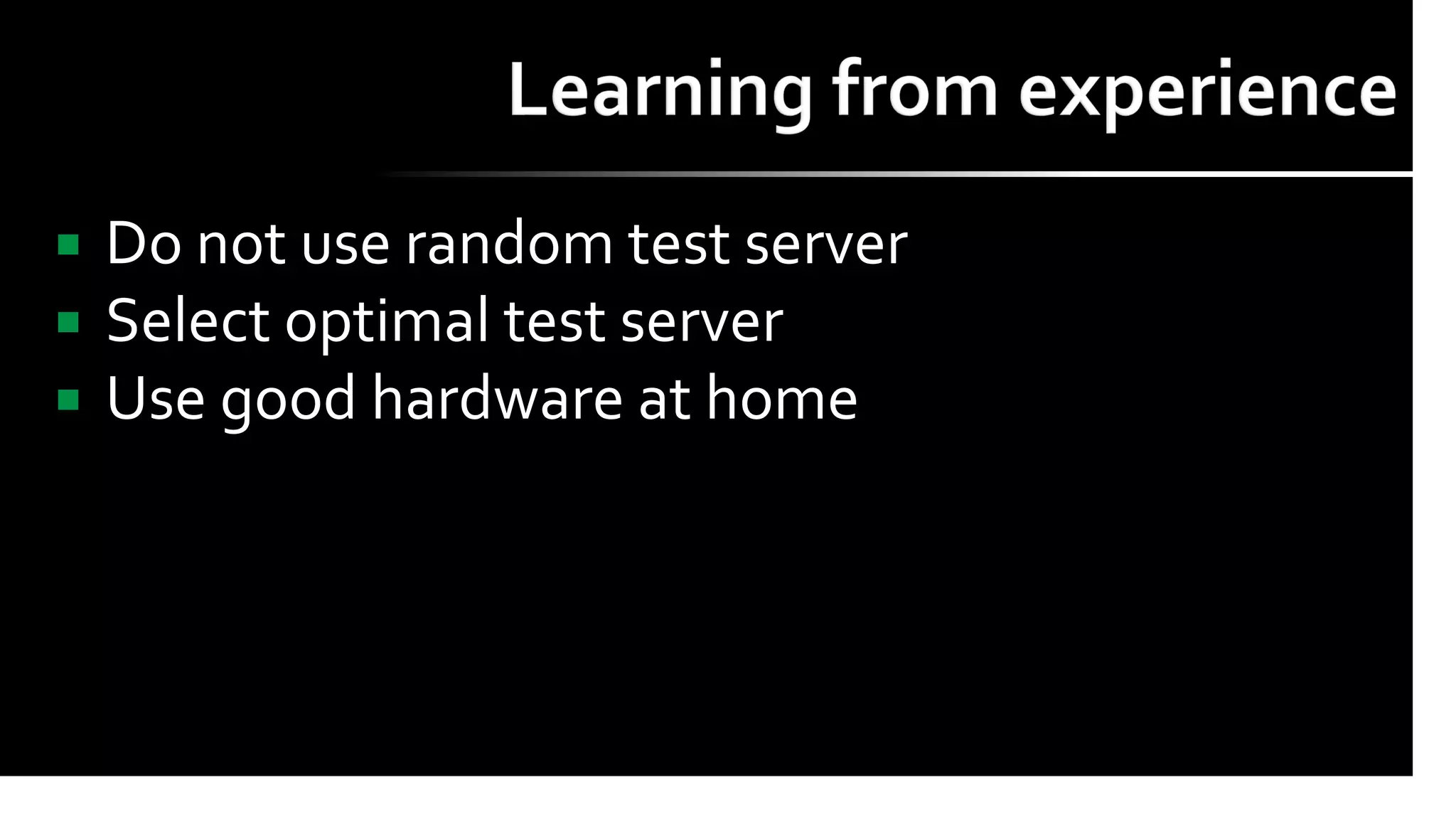

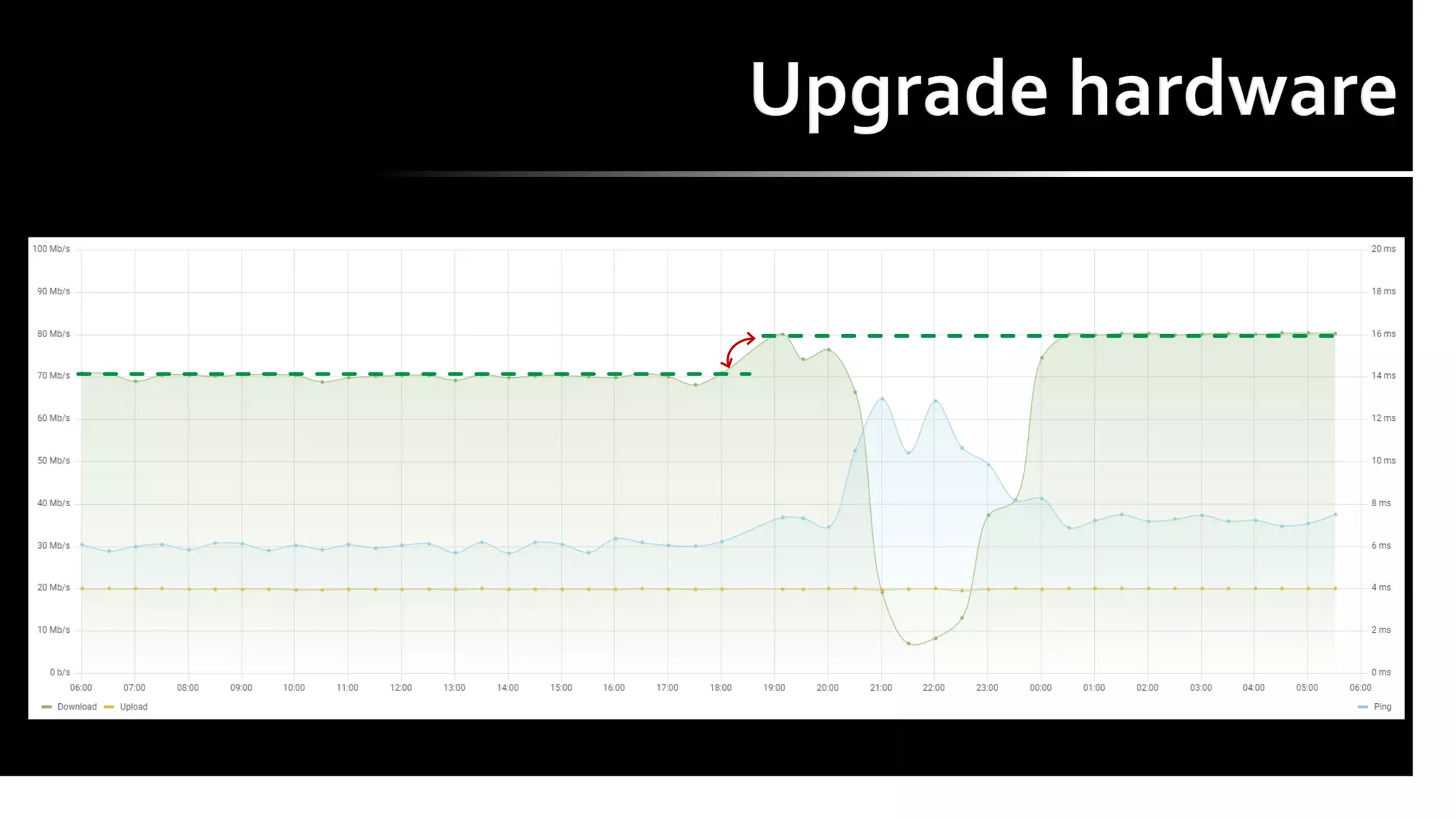

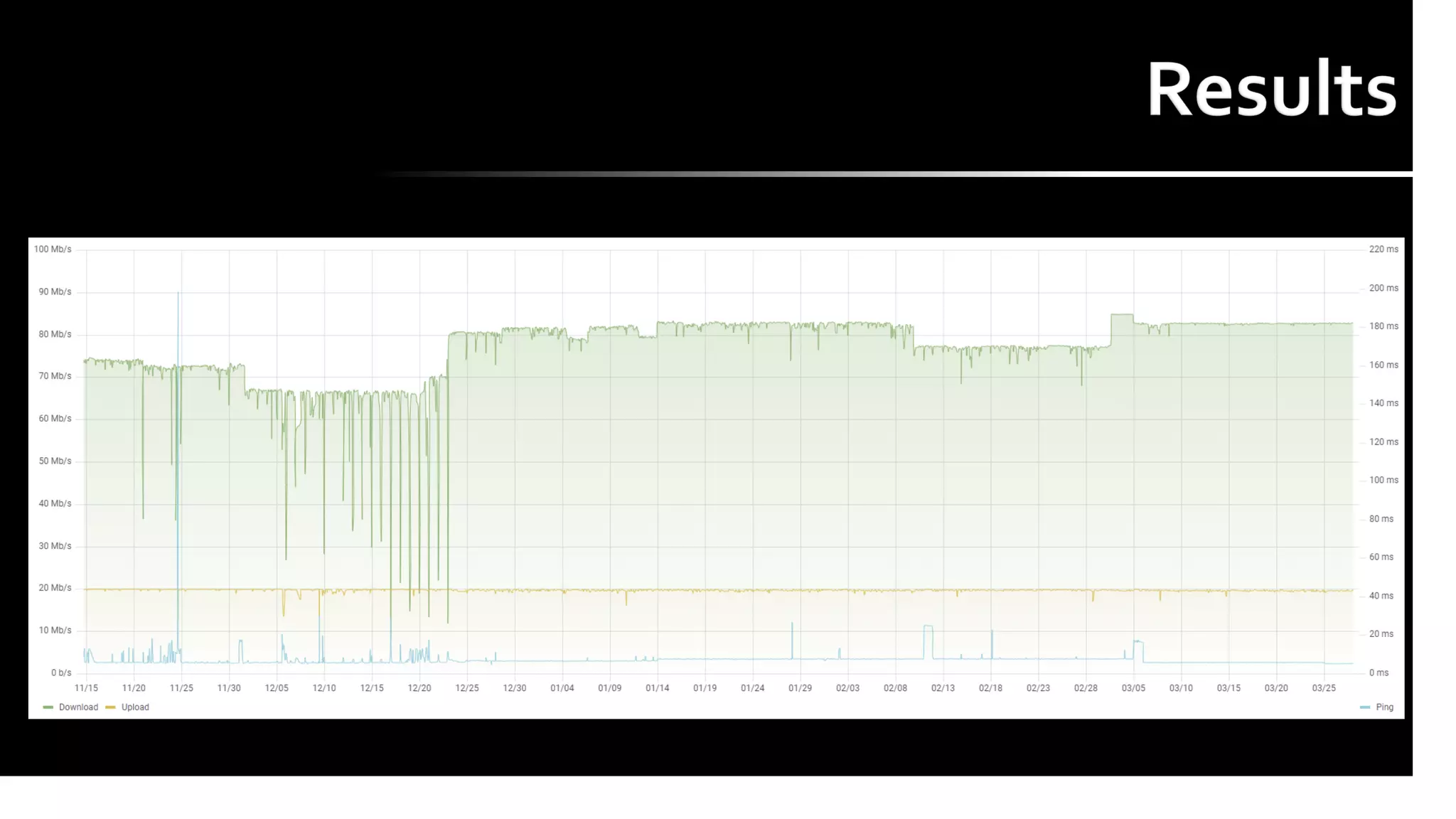

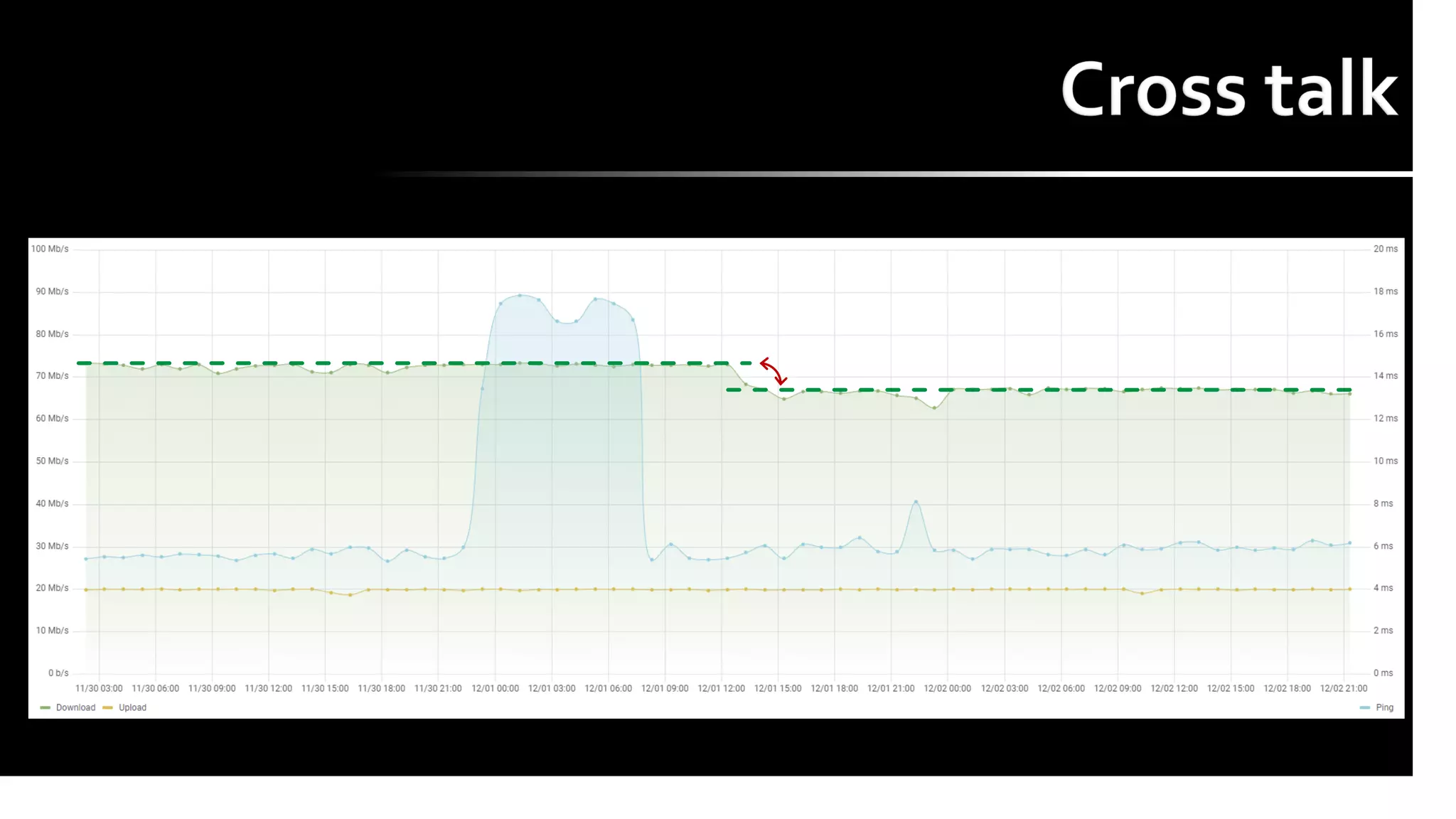

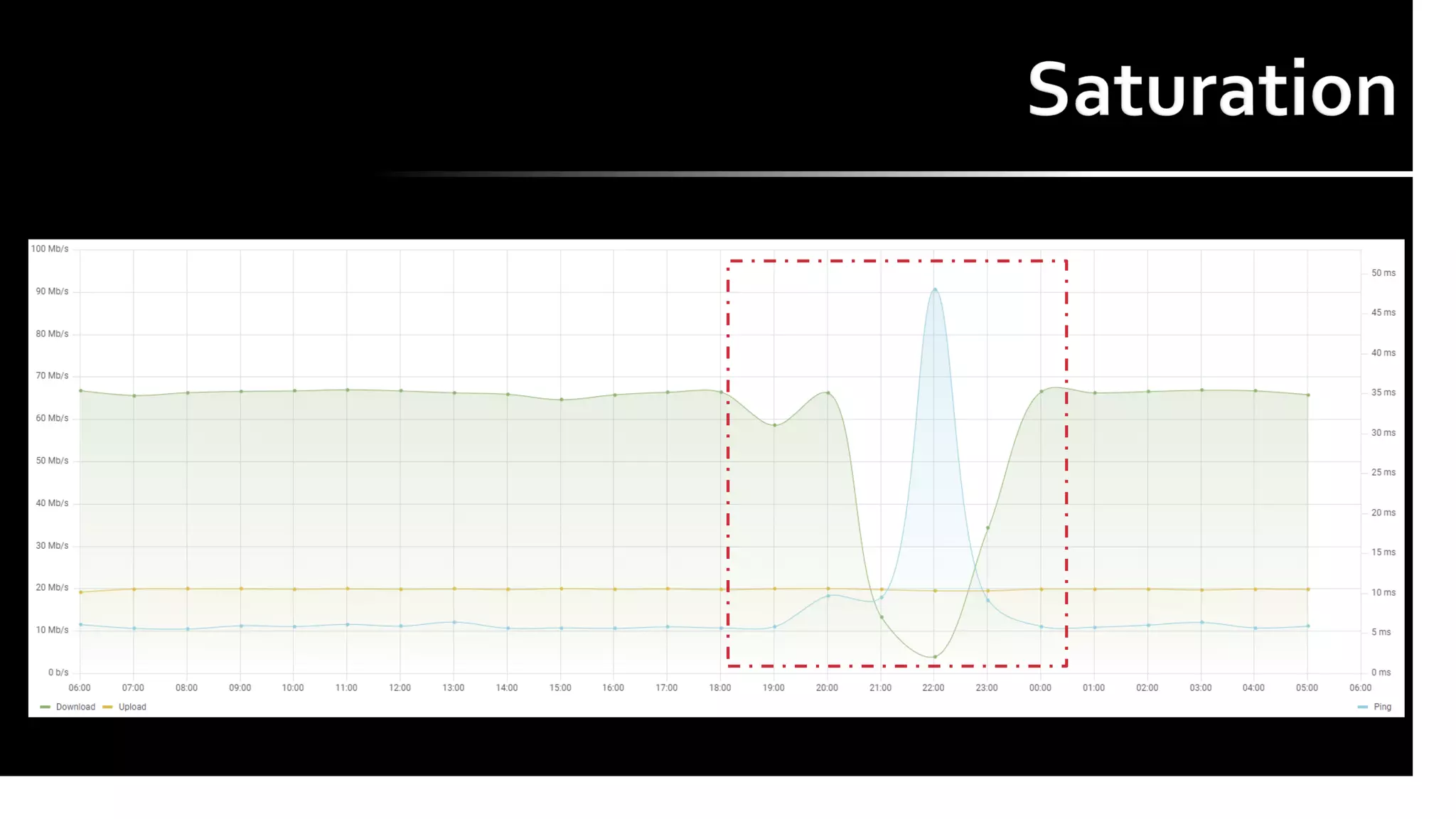

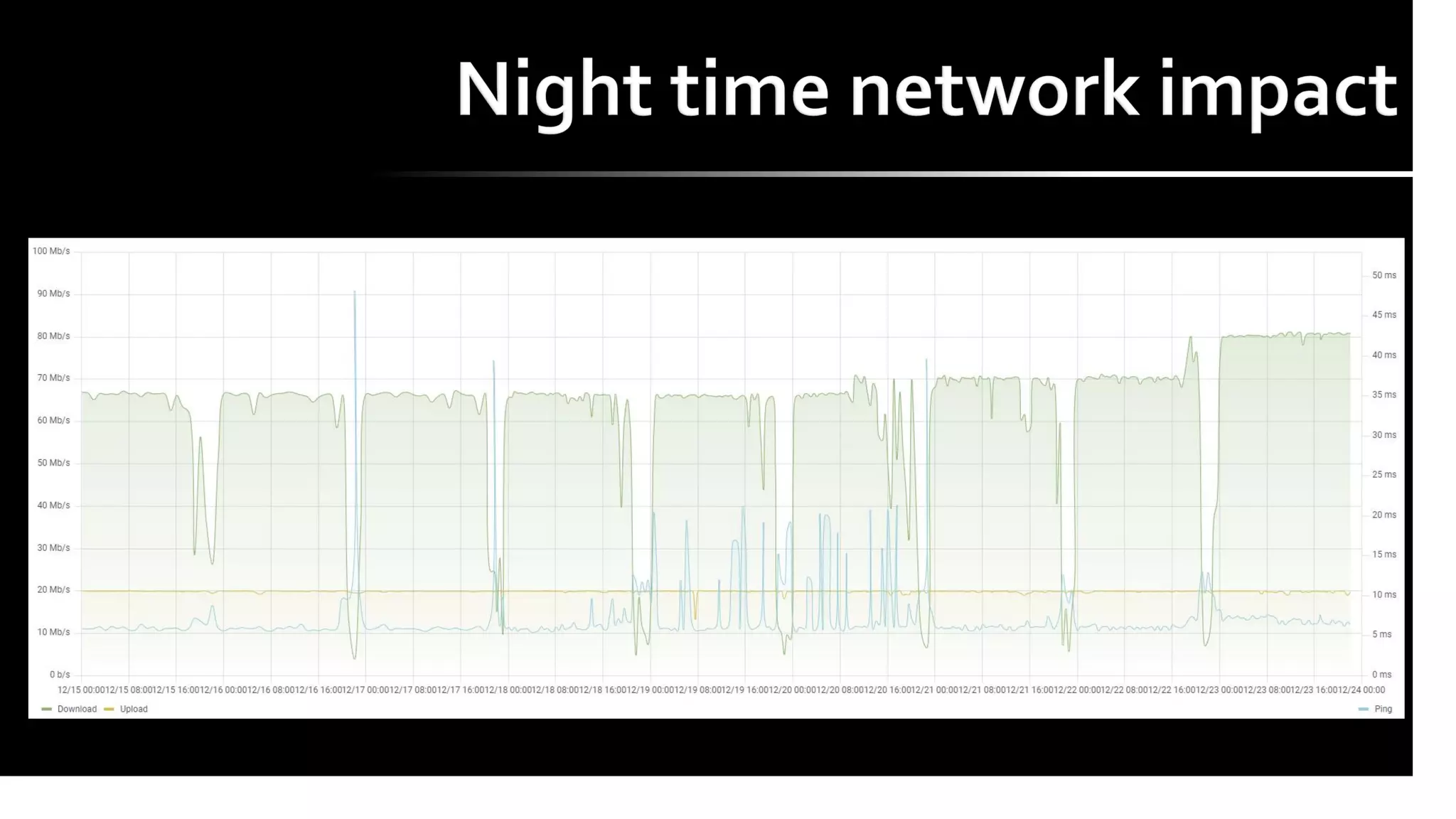

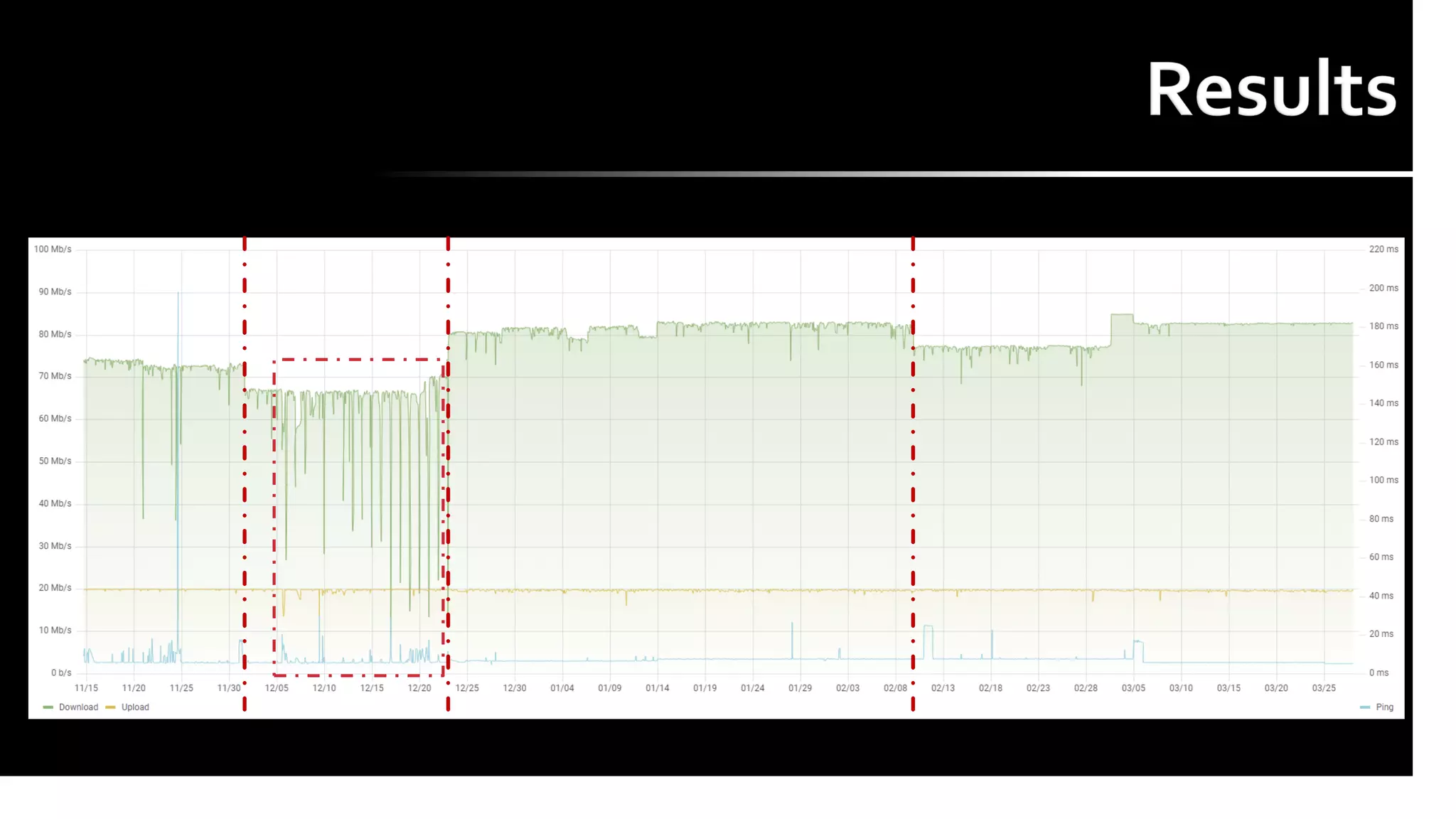

44.  Do not use random test server
 Select optimal test server
 Use good hardware at home

45.  Integration with Smart Speakers (?)
 Automatic daily reporting
 Event notifications
 …

46. github.com/mirkodcomparetti/
