The document discusses Cloud Connect, a product that synchronizes user identities and access between an on-premises Active Directory and cloud SaaS applications like Salesforce. It provides: 1) Automatic provisioning of user accounts in cloud applications based on user attributes and groups in Active Directory. 2) Synchronization of user lifecycle events like attribute changes, deprovisioning, and reprovisioning between Active Directory and cloud applications. 3) Single sign-on for users to access cloud applications using their on-premises credentials. 4) An configuration interface to map attributes, groups, rules for user account associations, and schedule synchronization jobs.

1. IRM Summit 2014
Bridge SPE
Matthias Tristl

2. 2IRM Summit 2014

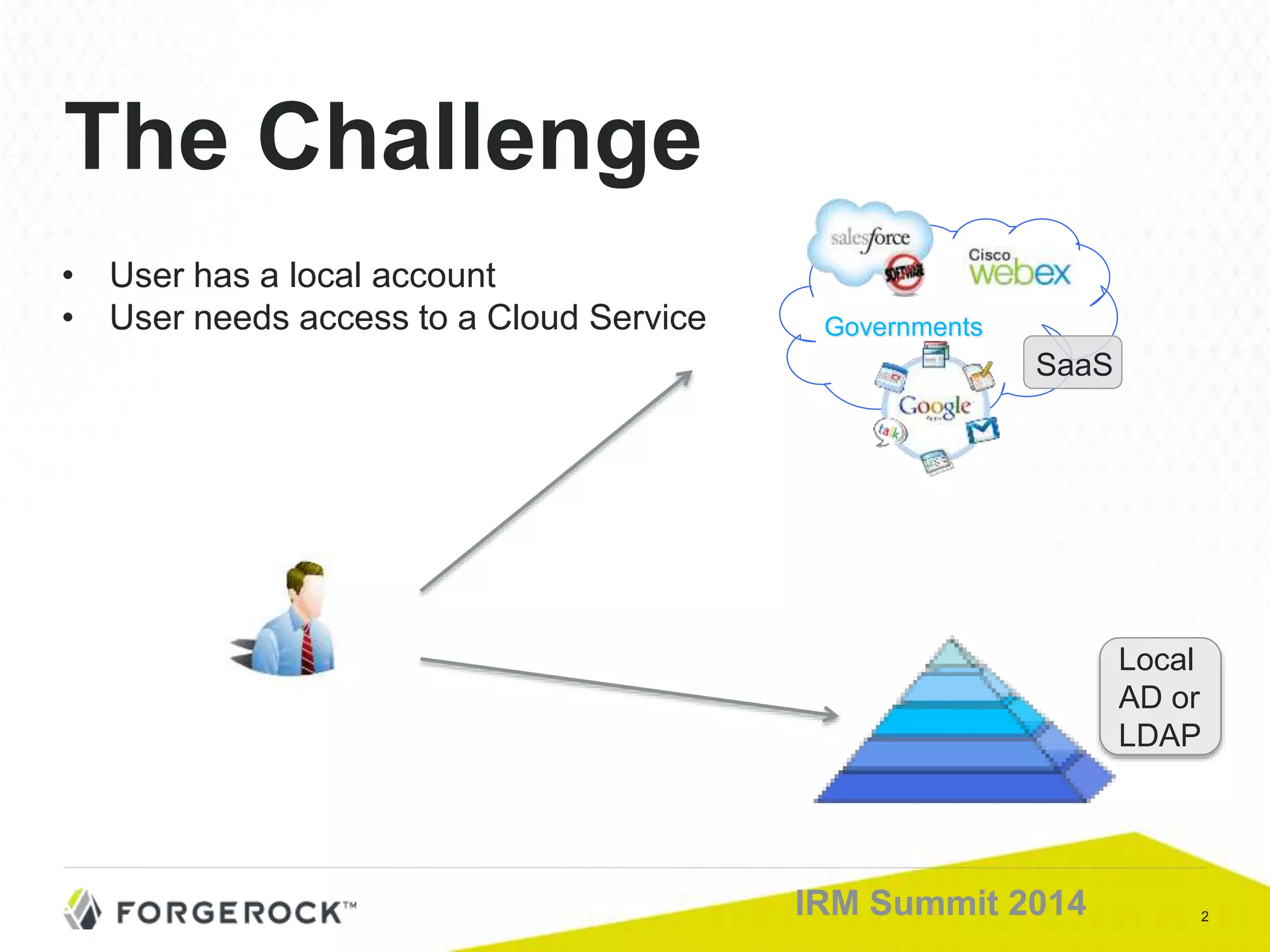

The Challenge
• User has a local account
• User needs access to a Cloud Service Governments
SaaS
Local
AD or
LDAP

3. 3IRM Summit 2014

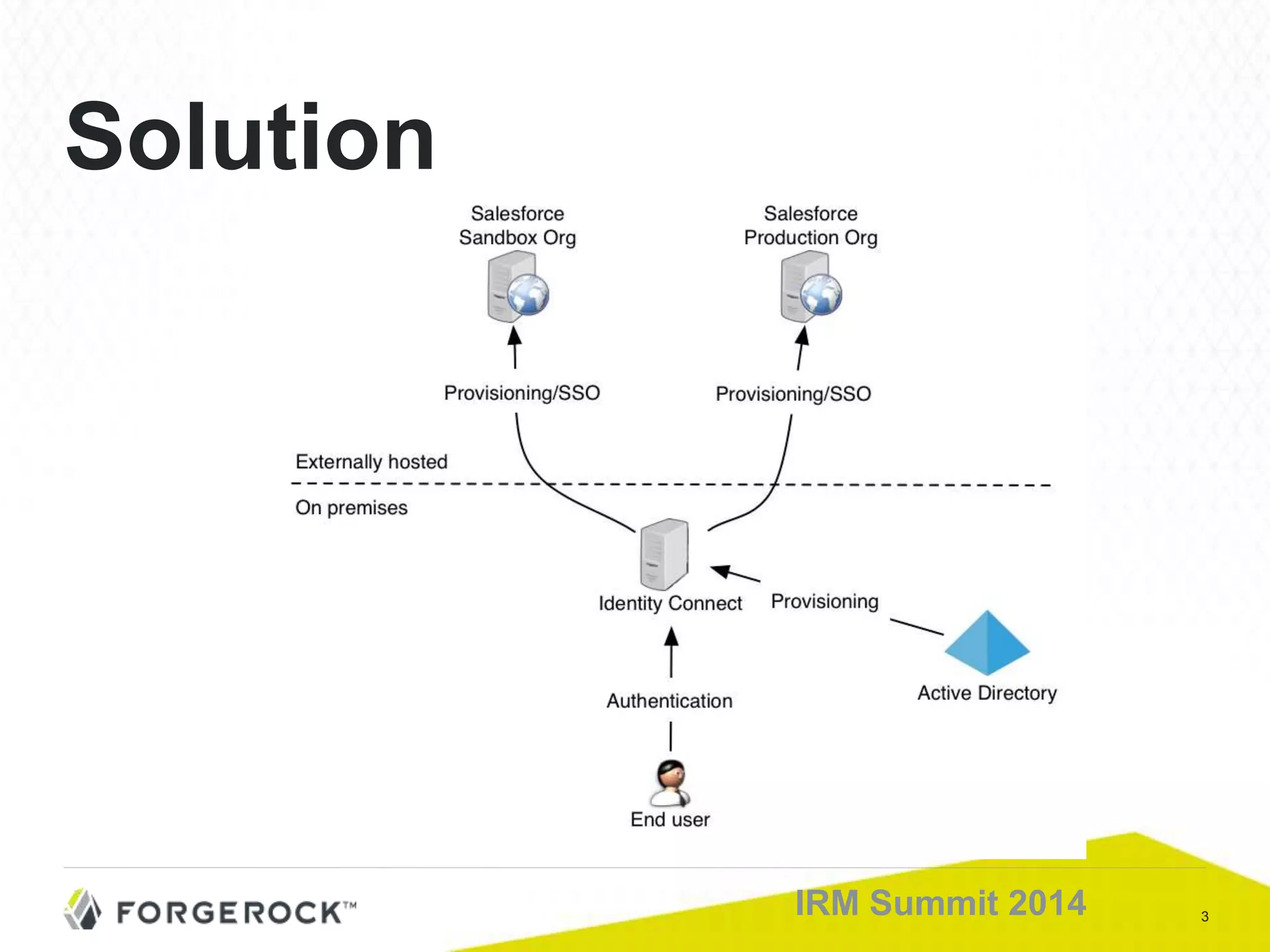

Solution

4. 4IRM Summit 2014

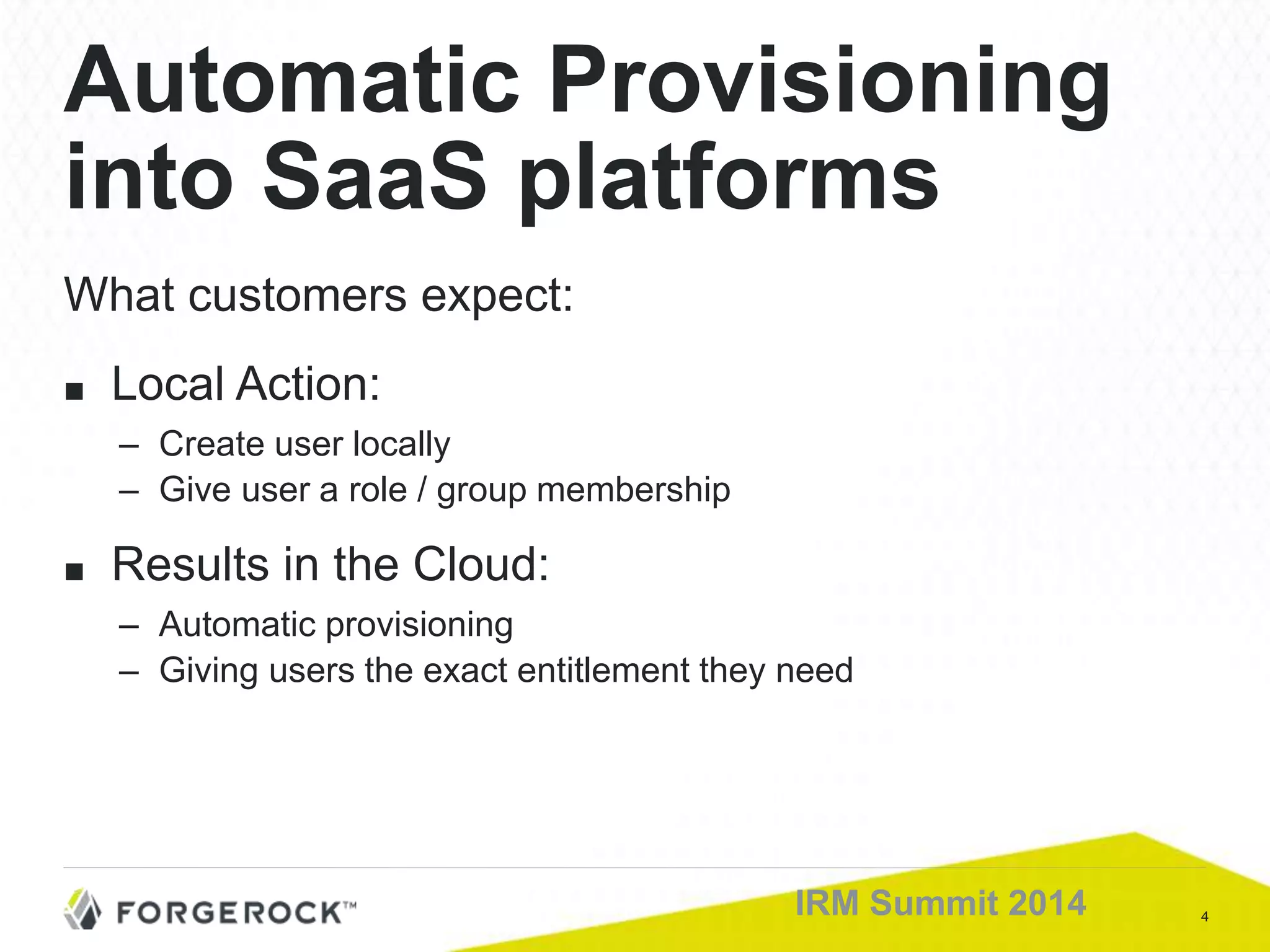

What customers expect:
■ Local Action:
– Create user locally
– Give user a role / group membership
■ Results in the Cloud:
– Automatic provisioning
– Giving users the exact entitlement they need
Automatic Provisioning
into SaaS platforms

5. 5IRM Summit 2014

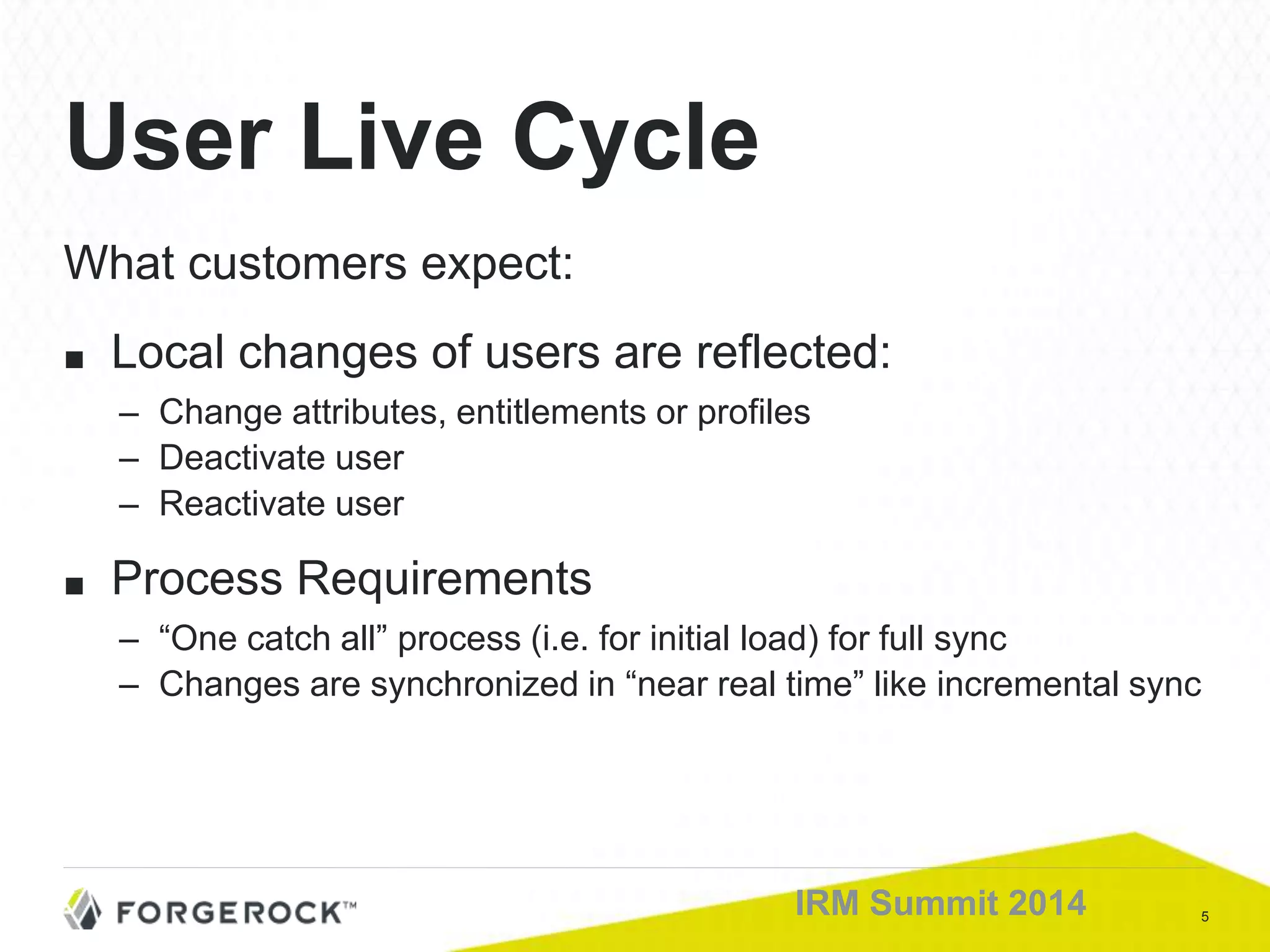

What customers expect:
■ Local changes of users are reflected:
– Change attributes, entitlements or profiles
– Deactivate user
– Reactivate user
■ Process Requirements
– “One catch all” process (i.e. for initial load) for full sync
– Changes are synchronized in “near real time” like incremental sync
User Live Cycle

6. 6IRM Summit 2014

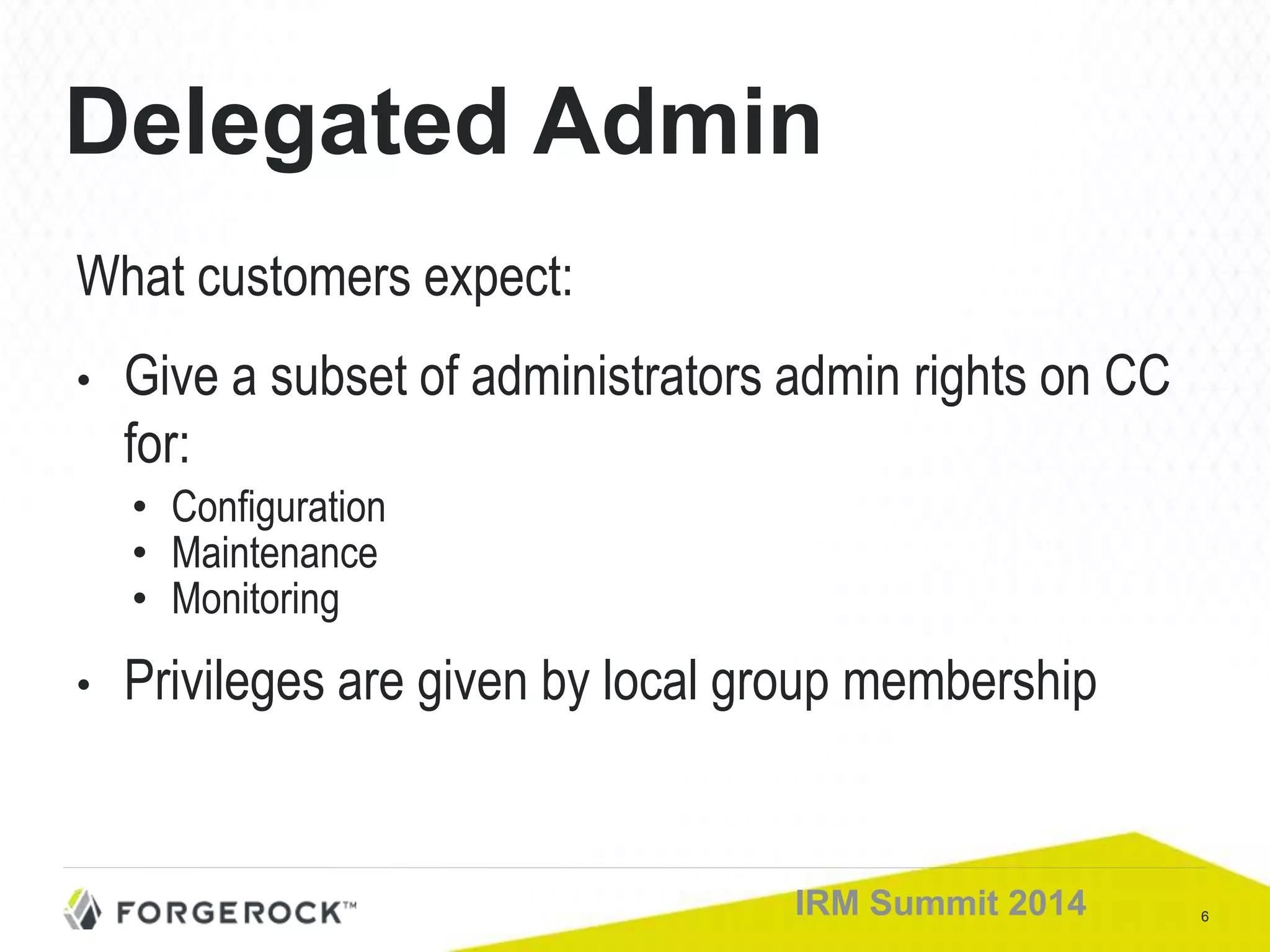

Delegated Admin
What customers expect:
• Give a subset of administrators admin rights on CC
for:
• Configuration
• Maintenance
• Monitoring
• Privileges are given by local group membership

7. 7IRM Summit 2014

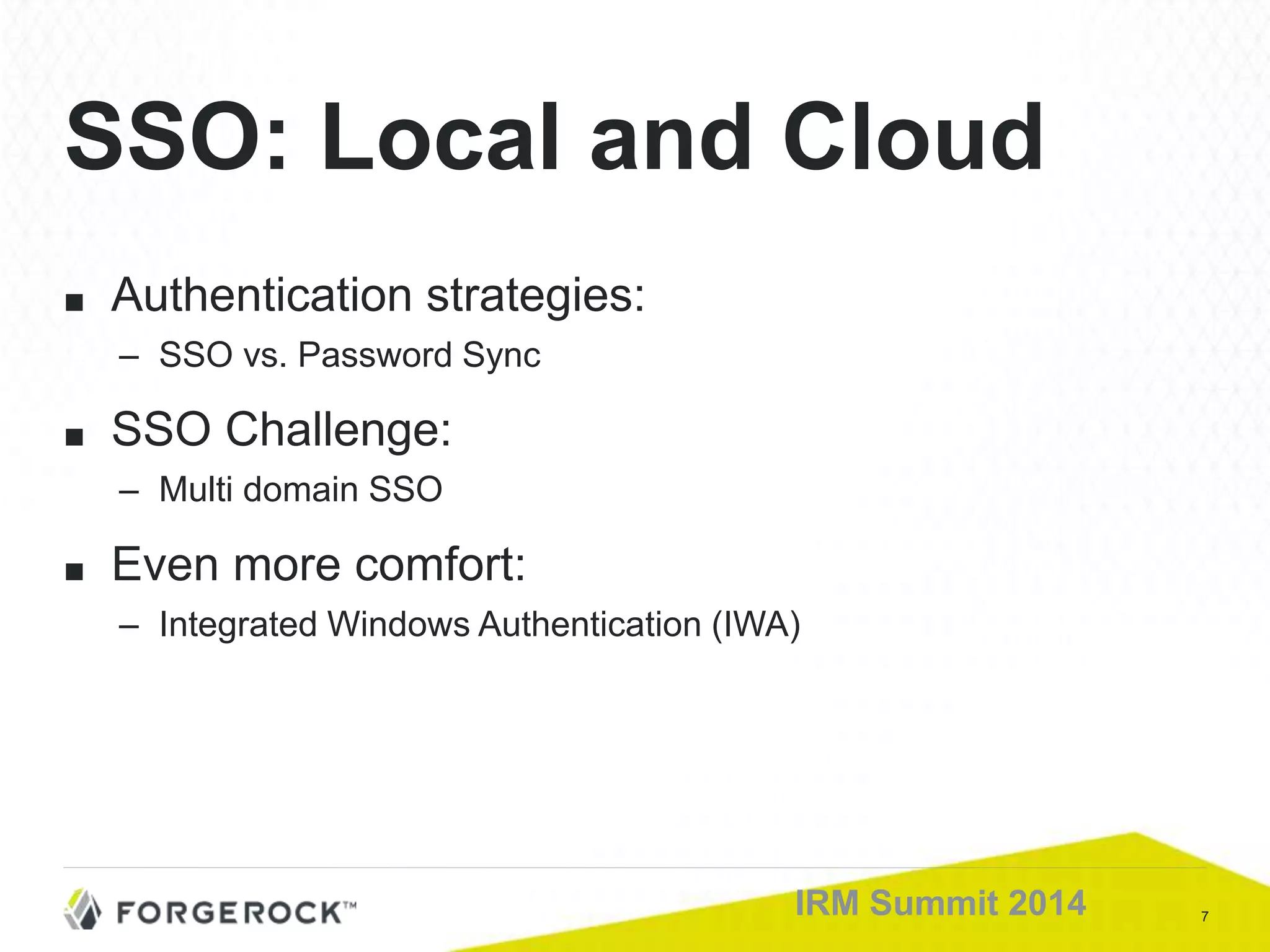

■ Authentication strategies:
– SSO vs. Password Sync
■ SSO Challenge:
– Multi domain SSO
■ Even more comfort:
– Integrated Windows Authentication (IWA)
SSO: Local and Cloud

8. 8IRM Summit 2014

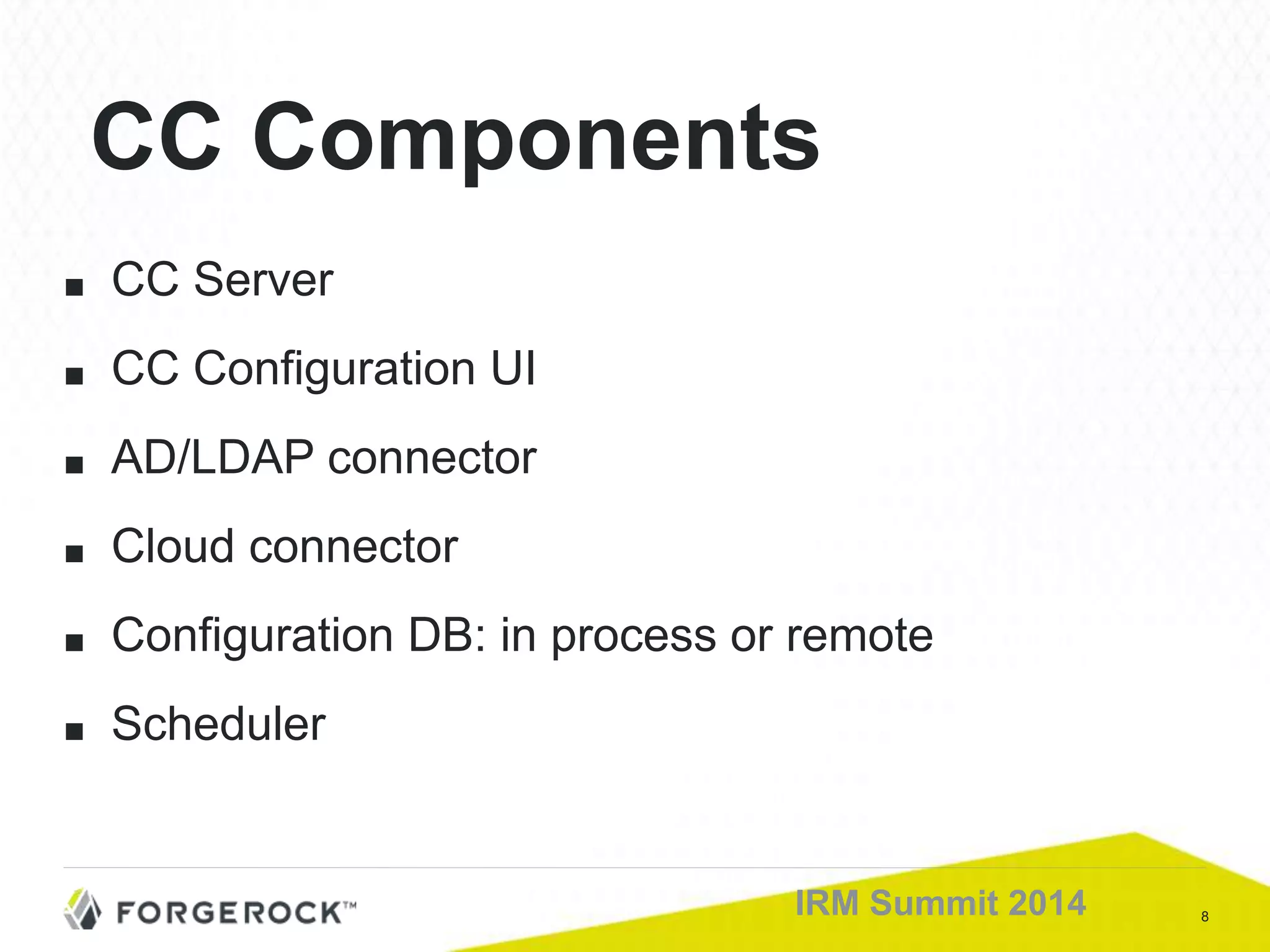

■ CC Server
■ CC Configuration UI
■ AD/LDAP connector
■ Cloud connector
■ Configuration DB: in process or remote
■ Scheduler
CC Components

9. 9IRM Summit 2014

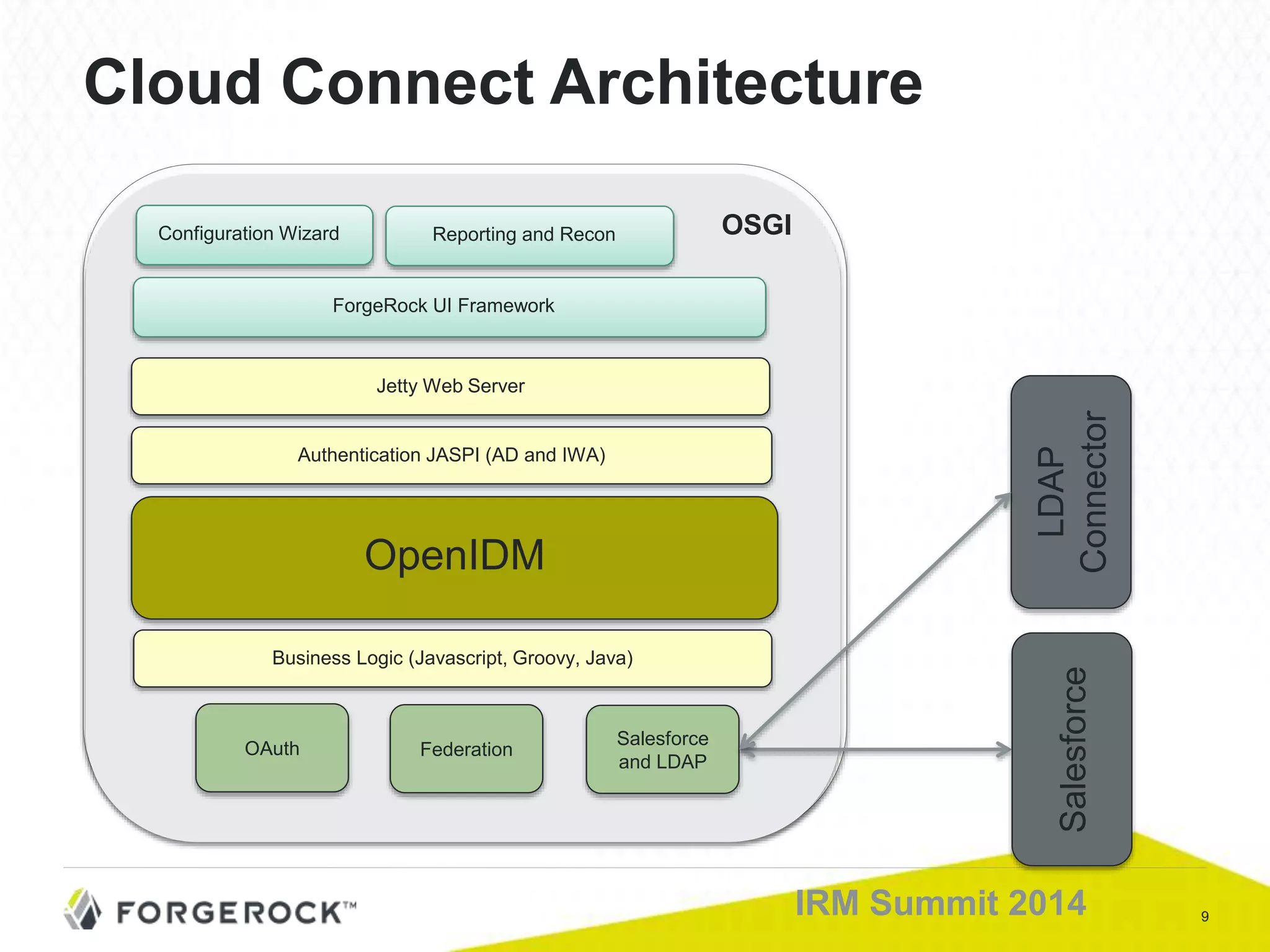

Cloud Connect Architecture
OSGIConfiguration Wizard
OpenIDM
Business Logic (Javascript, Groovy, Java)
Authentication JASPI (AD and IWA)
Jetty Web Server
Salesforce
and LDAP
OAuth
Salesforce
LDAP
Connector
Federation
ForgeRock UI Framework
Reporting and Recon

10. 10IRM Summit 2014

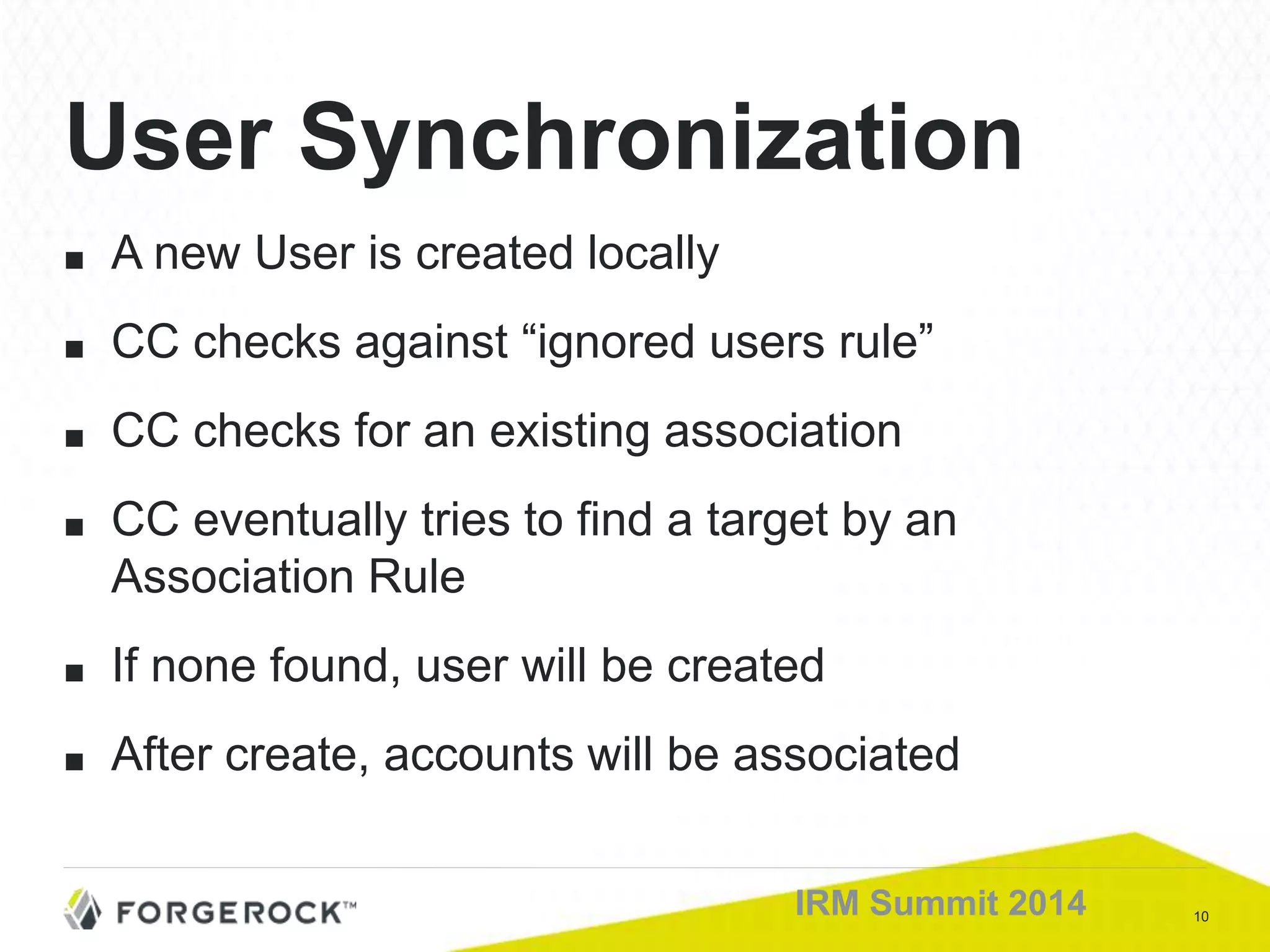

■ A new User is created locally
■ CC checks against “ignored users rule”
■ CC checks for an existing association
■ CC eventually tries to find a target by an
Association Rule
■ If none found, user will be created
■ After create, accounts will be associated
User Synchronization

11. 11IRM Summit 2014

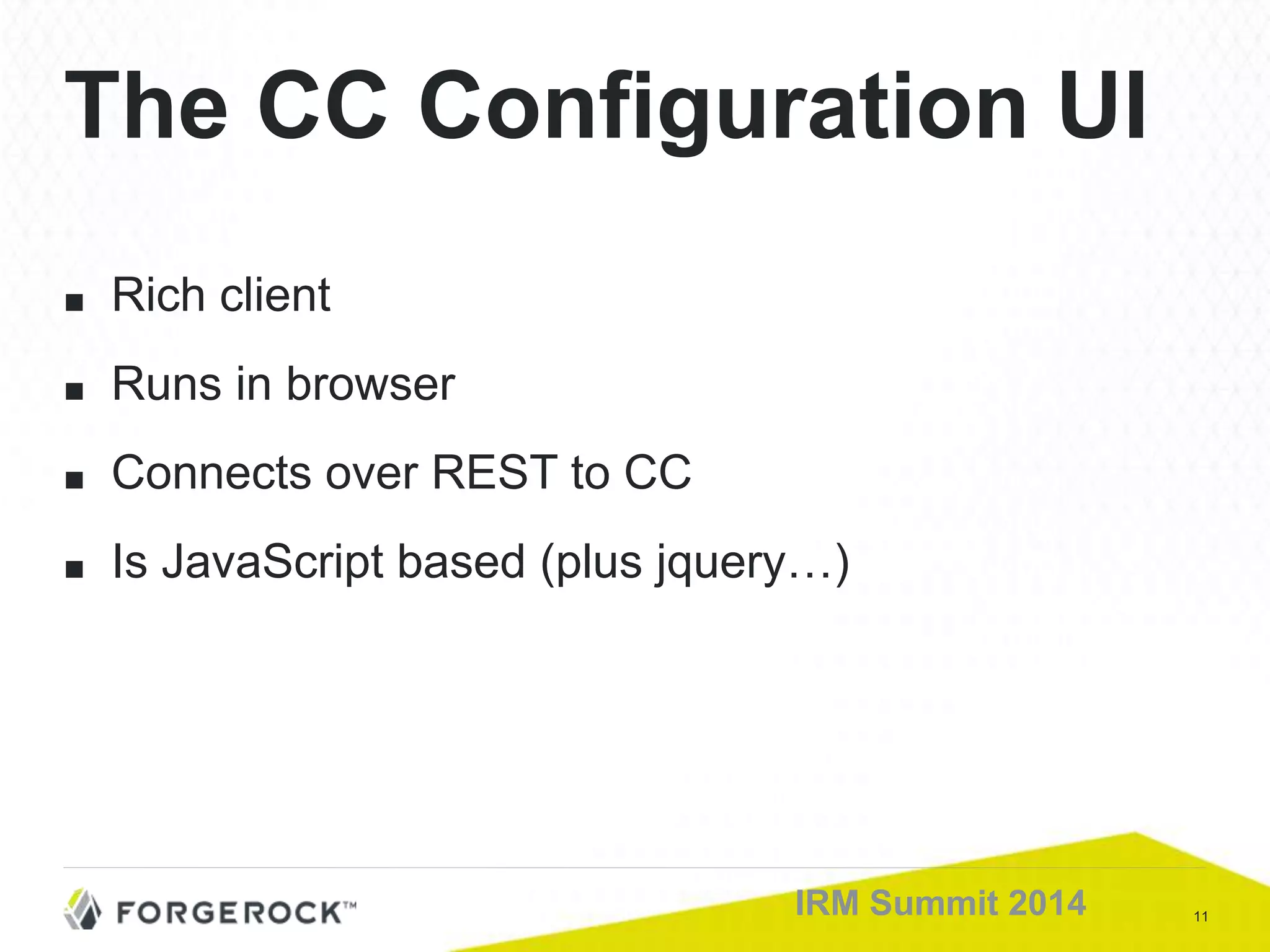

■ Rich client
■ Runs in browser
■ Connects over REST to CC
■ Is JavaScript based (plus jquery…)
The CC Configuration UI

12. 12IRM Summit 2014

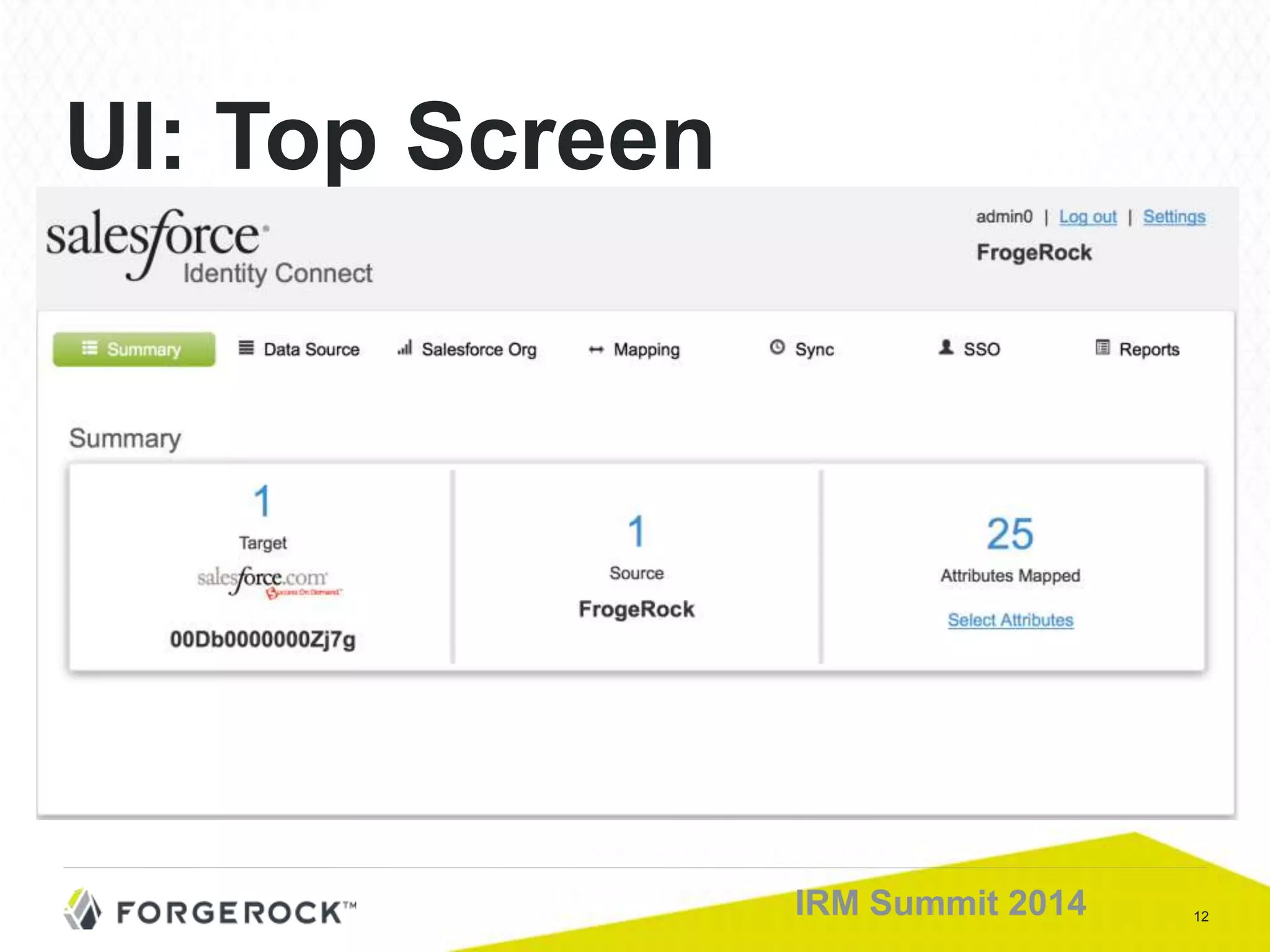

UI: Top Screen

13. 13IRM Summit 2014

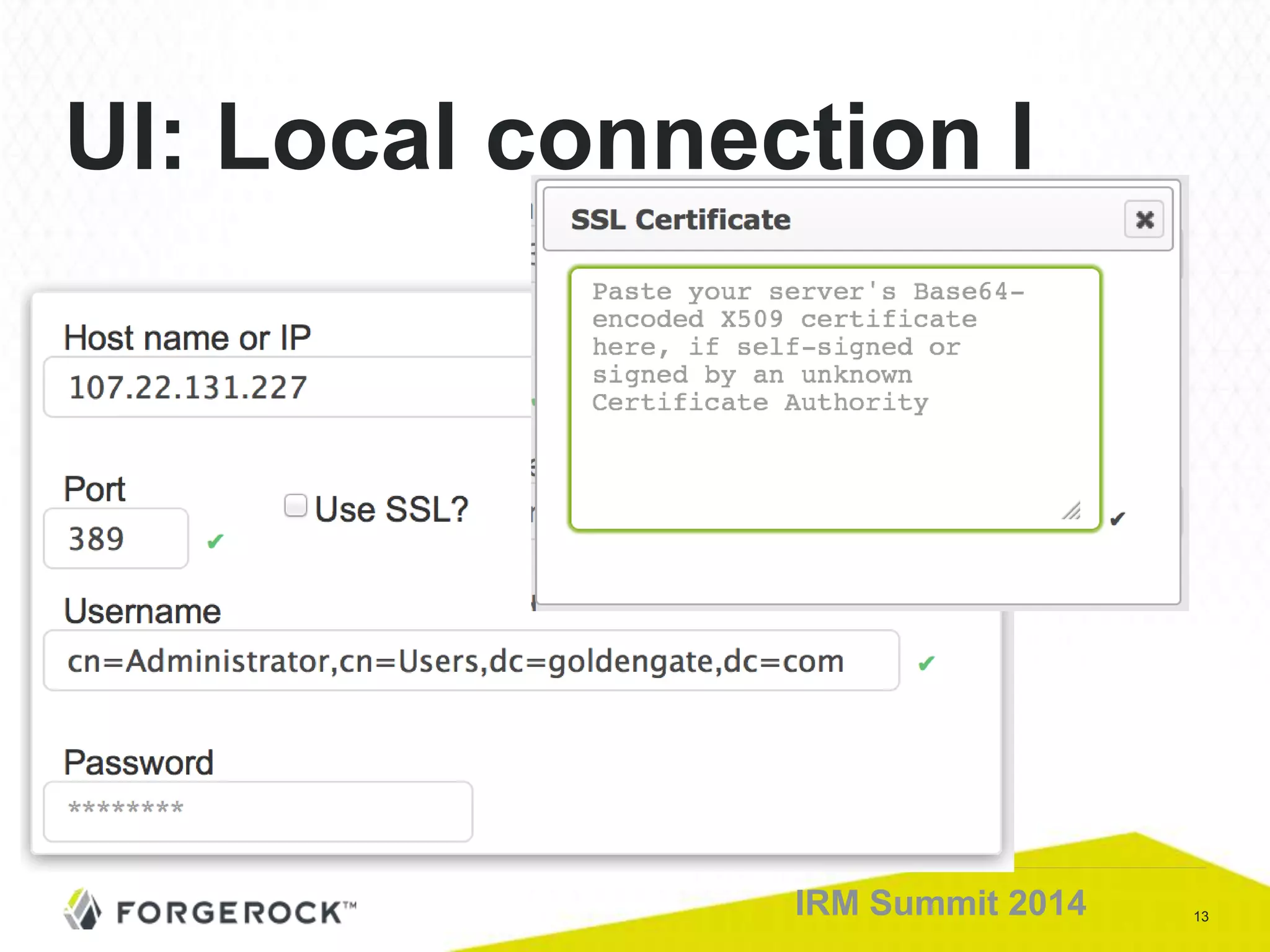

UI: Local connection I

14. 14IRM Summit 2014

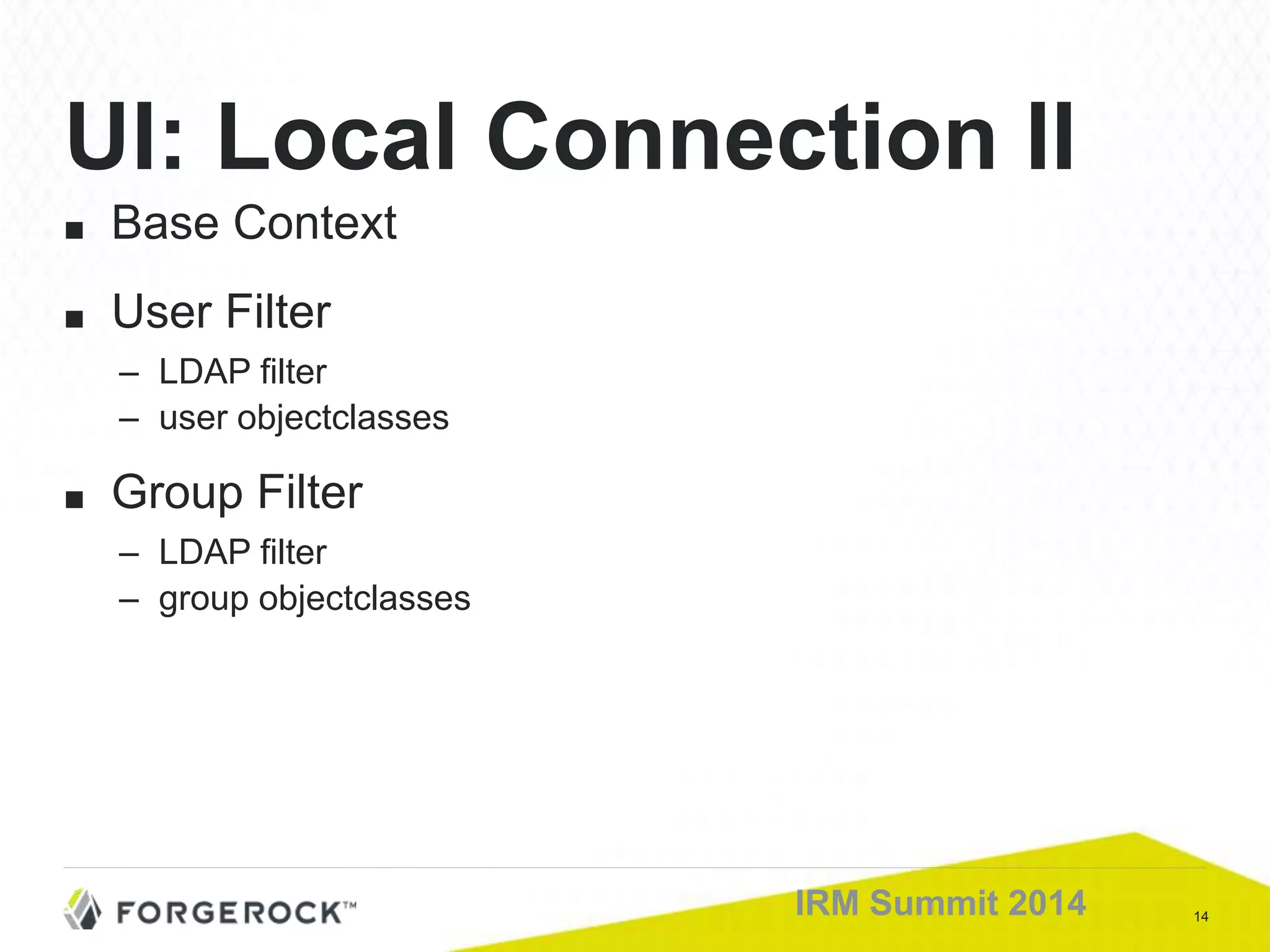

■ Base Context
■ User Filter
– LDAP filter
– user objectclasses
■ Group Filter
– LDAP filter
– group objectclasses
UI: Local Connection II

15. 15IRM Summit 2014

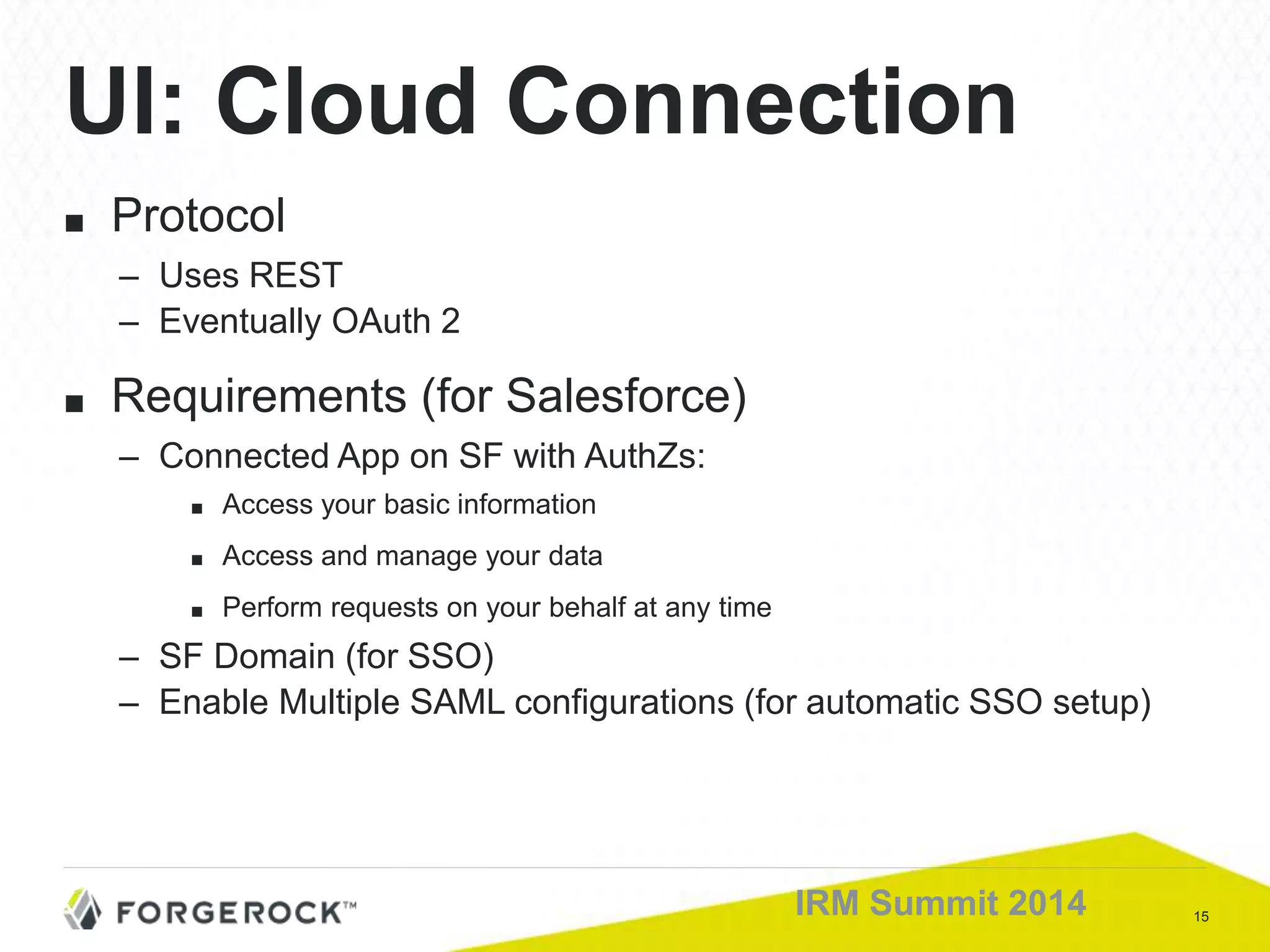

■ Protocol
– Uses REST
– Eventually OAuth 2
■ Requirements (for Salesforce)
– Connected App on SF with AuthZs:
■ Access your basic information
■ Access and manage your data
■ Perform requests on your behalf at any time
– SF Domain (for SSO)
– Enable Multiple SAML configurations (for automatic SSO setup)
UI: Cloud Connection

16. 16IRM Summit 2014

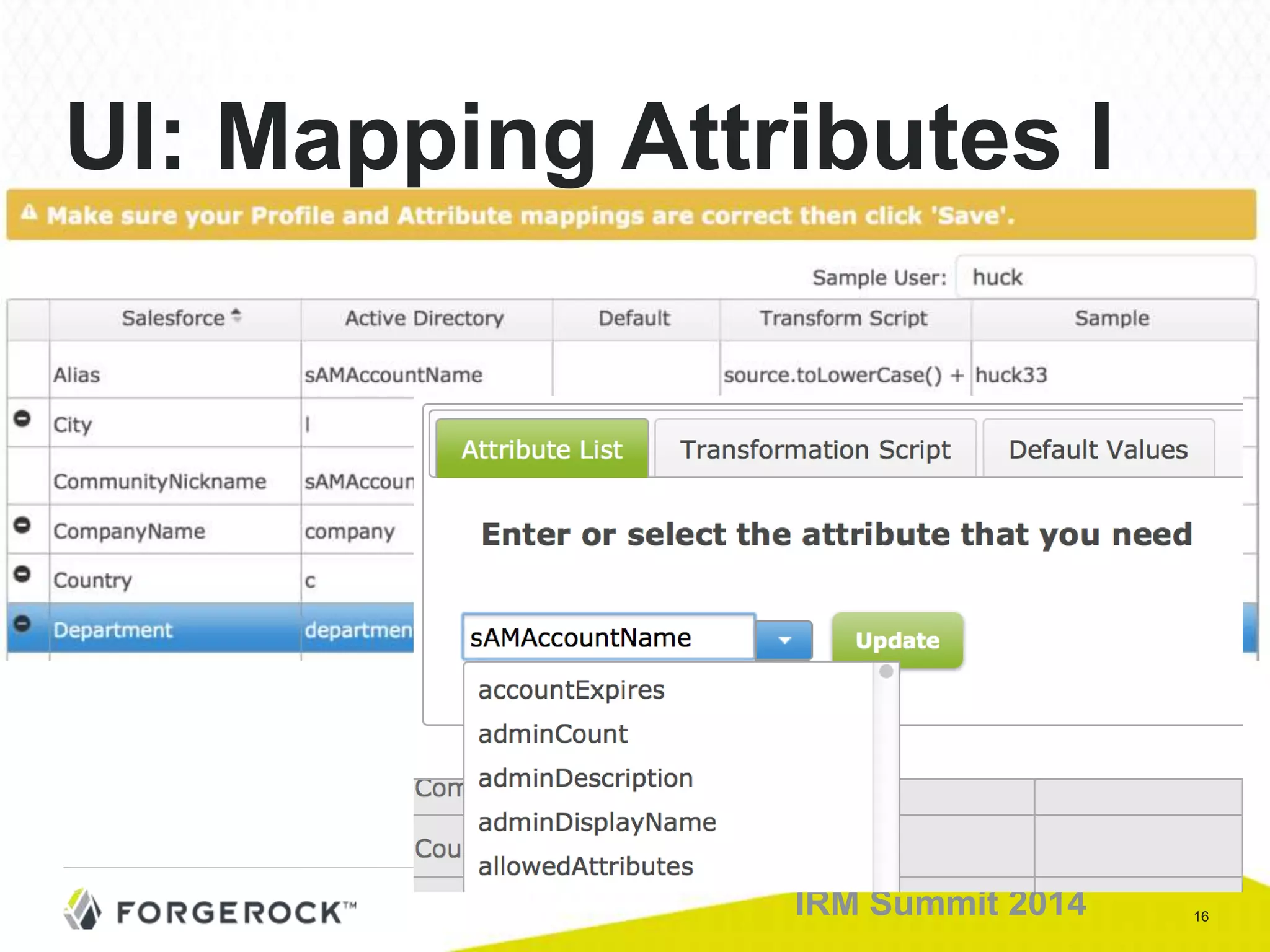

UI: Mapping Attributes I

17. 17IRM Summit 2014

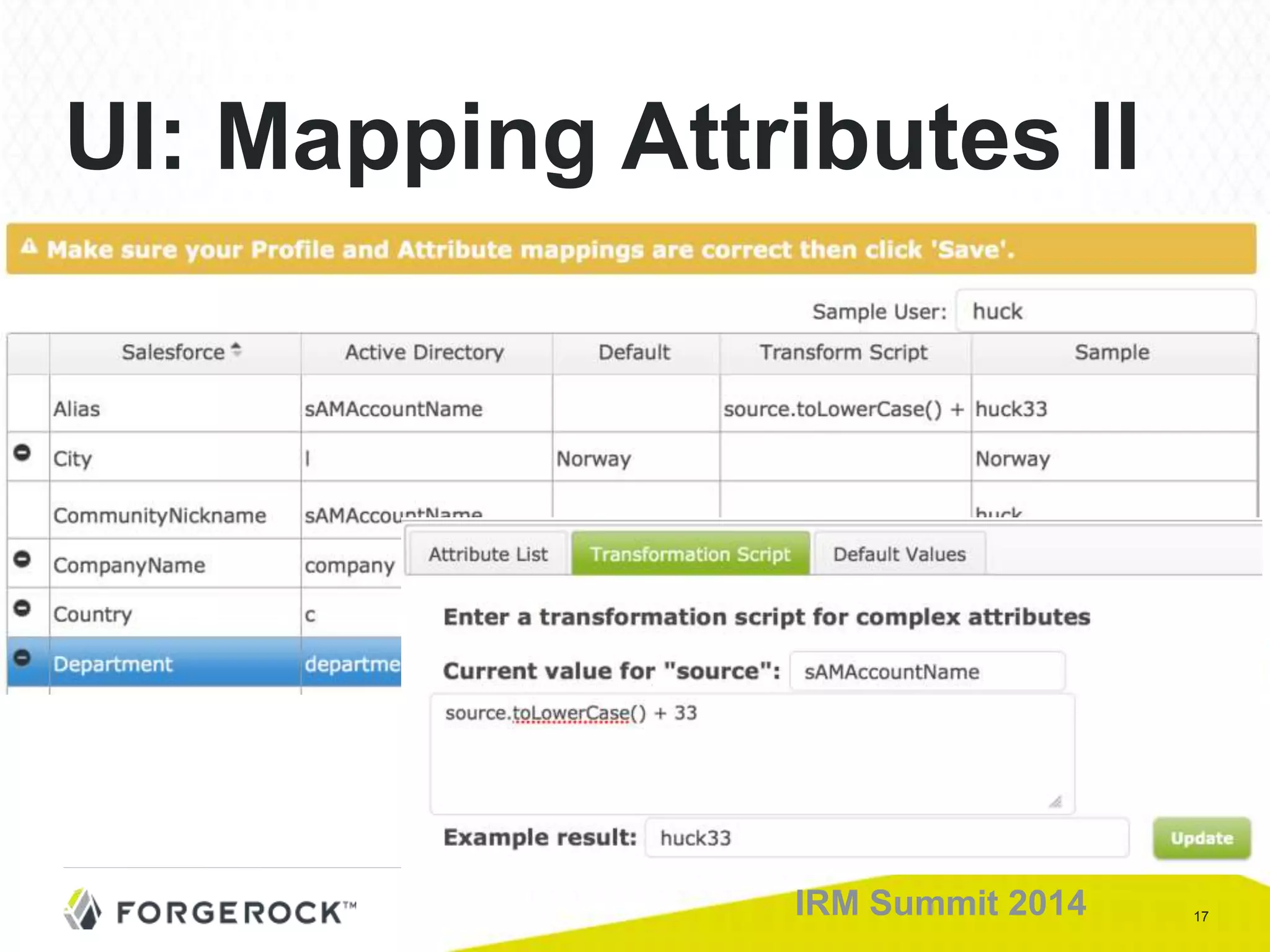

UI: Mapping Attributes II

18. 18IRM Summit 2014

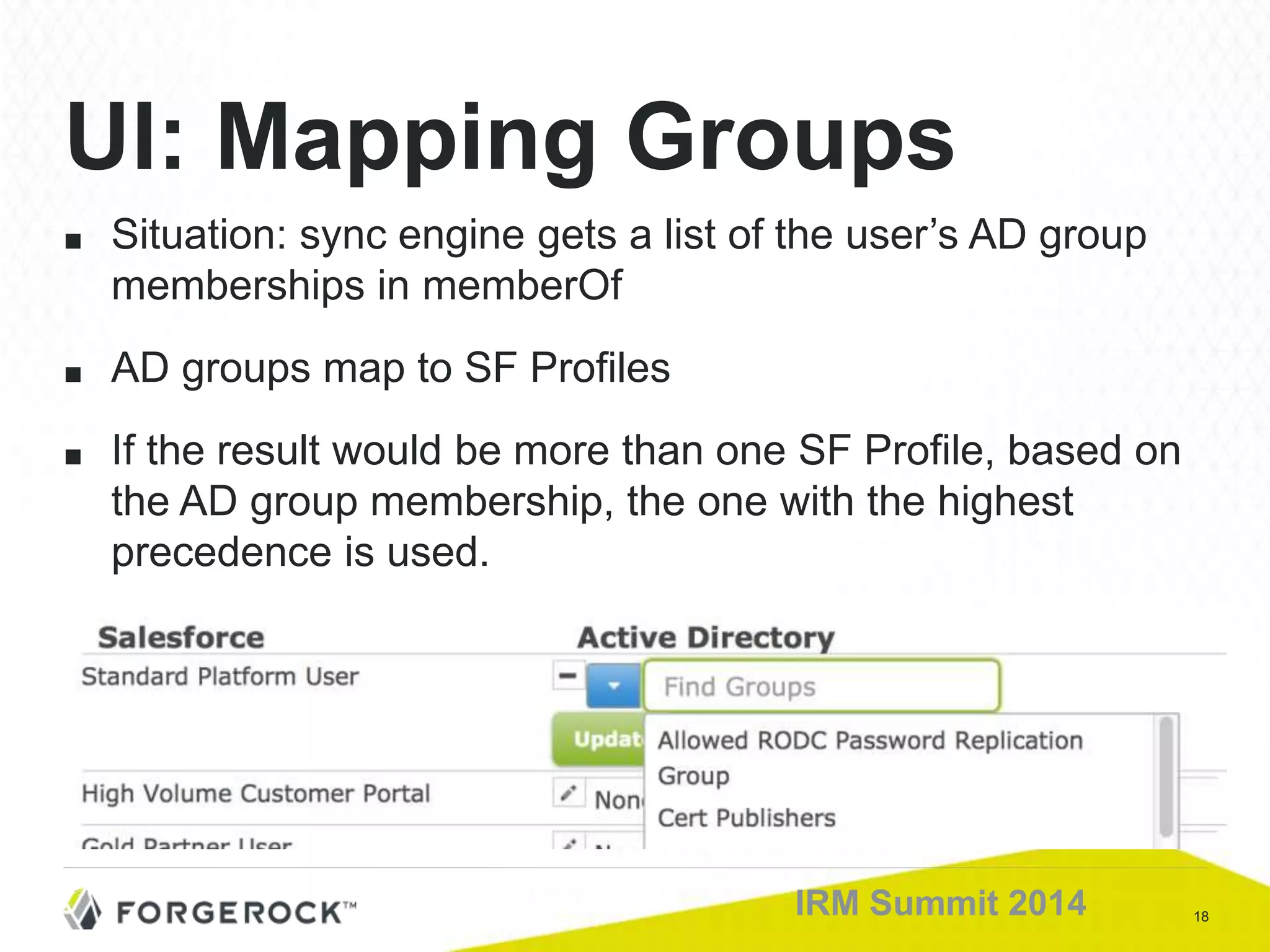

■ Situation: sync engine gets a list of the user’s AD group
memberships in memberOf
■ AD groups map to SF Profiles
■ If the result would be more than one SF Profile, based on
the AD group membership, the one with the highest
precedence is used.
UI: Mapping Groups

19. 19IRM Summit 2014

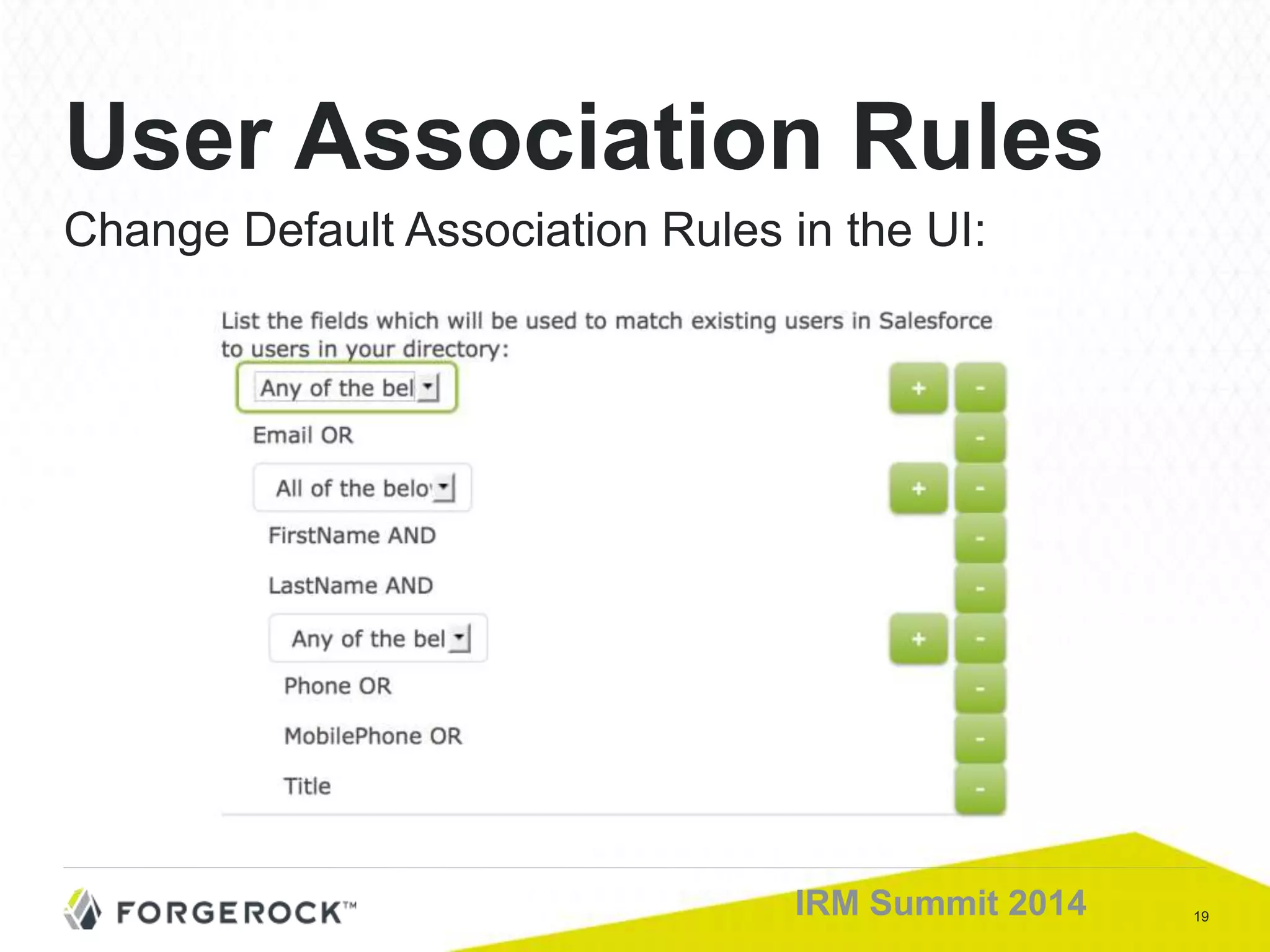

Change Default Association Rules in the UI:
User Association Rules

20. 20IRM Summit 2014

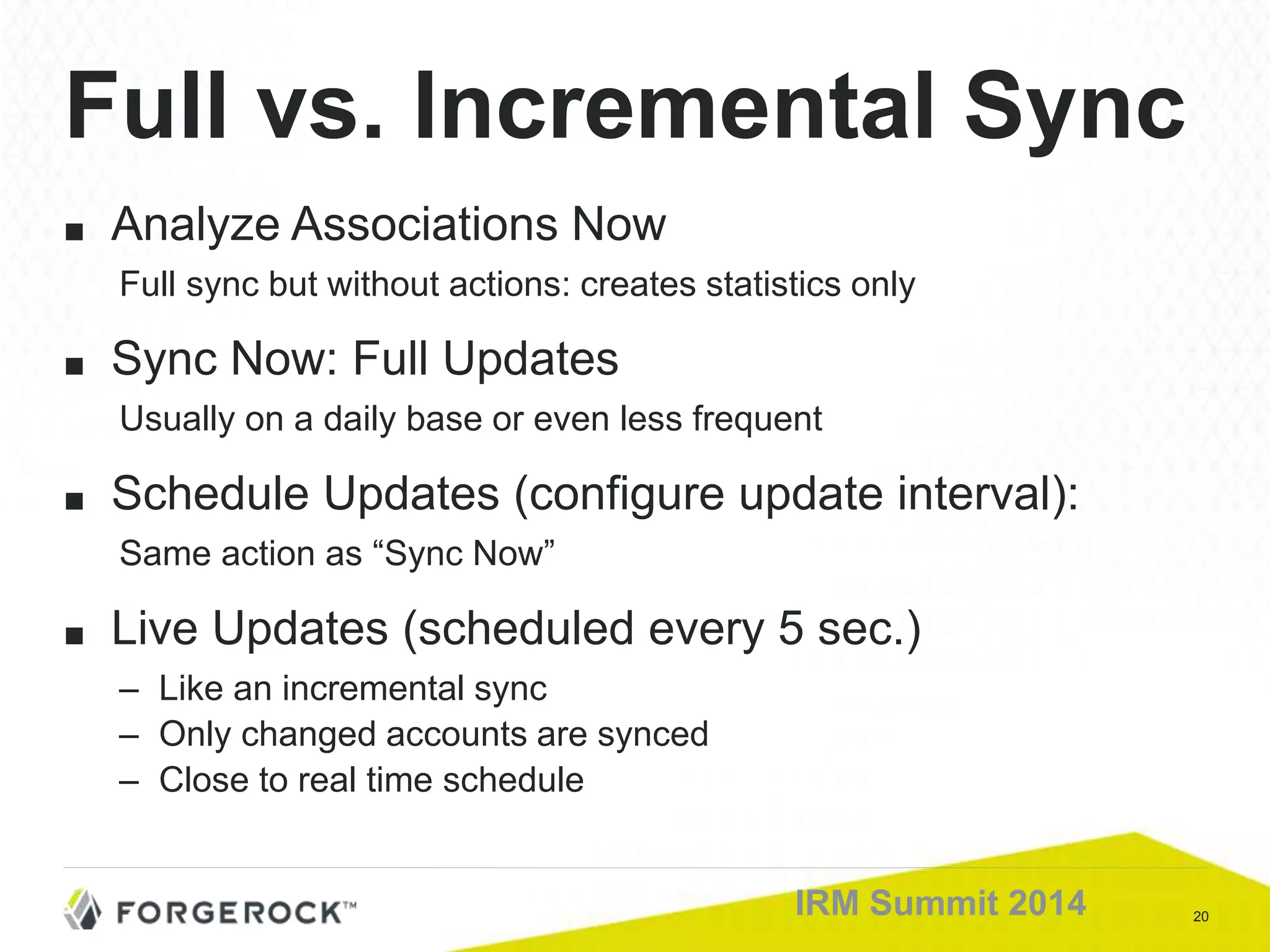

■ Analyze Associations Now
Full sync but without actions: creates statistics only
■ Sync Now: Full Updates
Usually on a daily base or even less frequent
■ Schedule Updates (configure update interval):
Same action as “Sync Now”
■ Live Updates (scheduled every 5 sec.)
– Like an incremental sync
– Only changed accounts are synced
– Close to real time schedule
Full vs. Incremental Sync

21. 21IRM Summit 2014

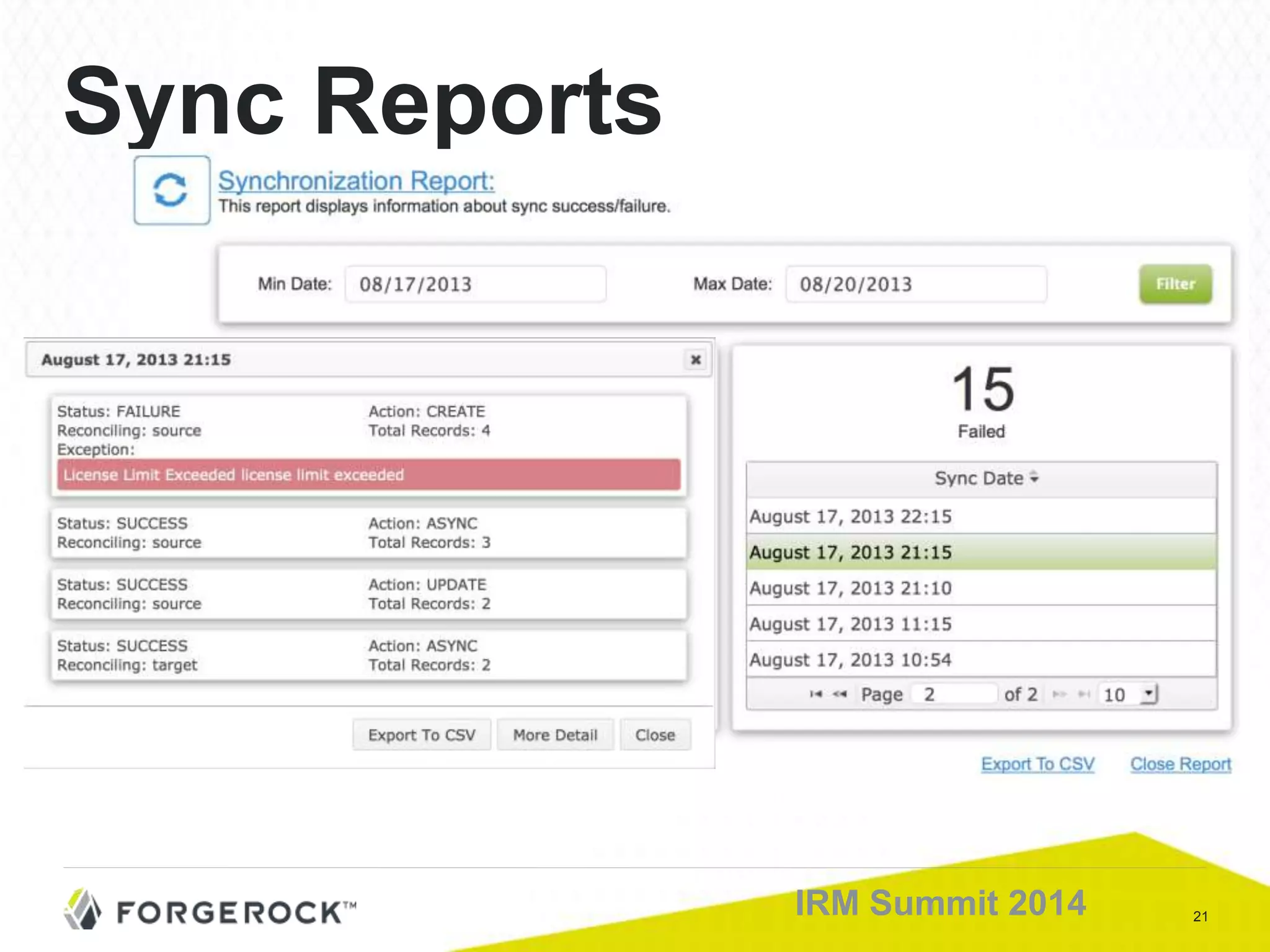

Sync Reports

22. 22IRM Summit 2014

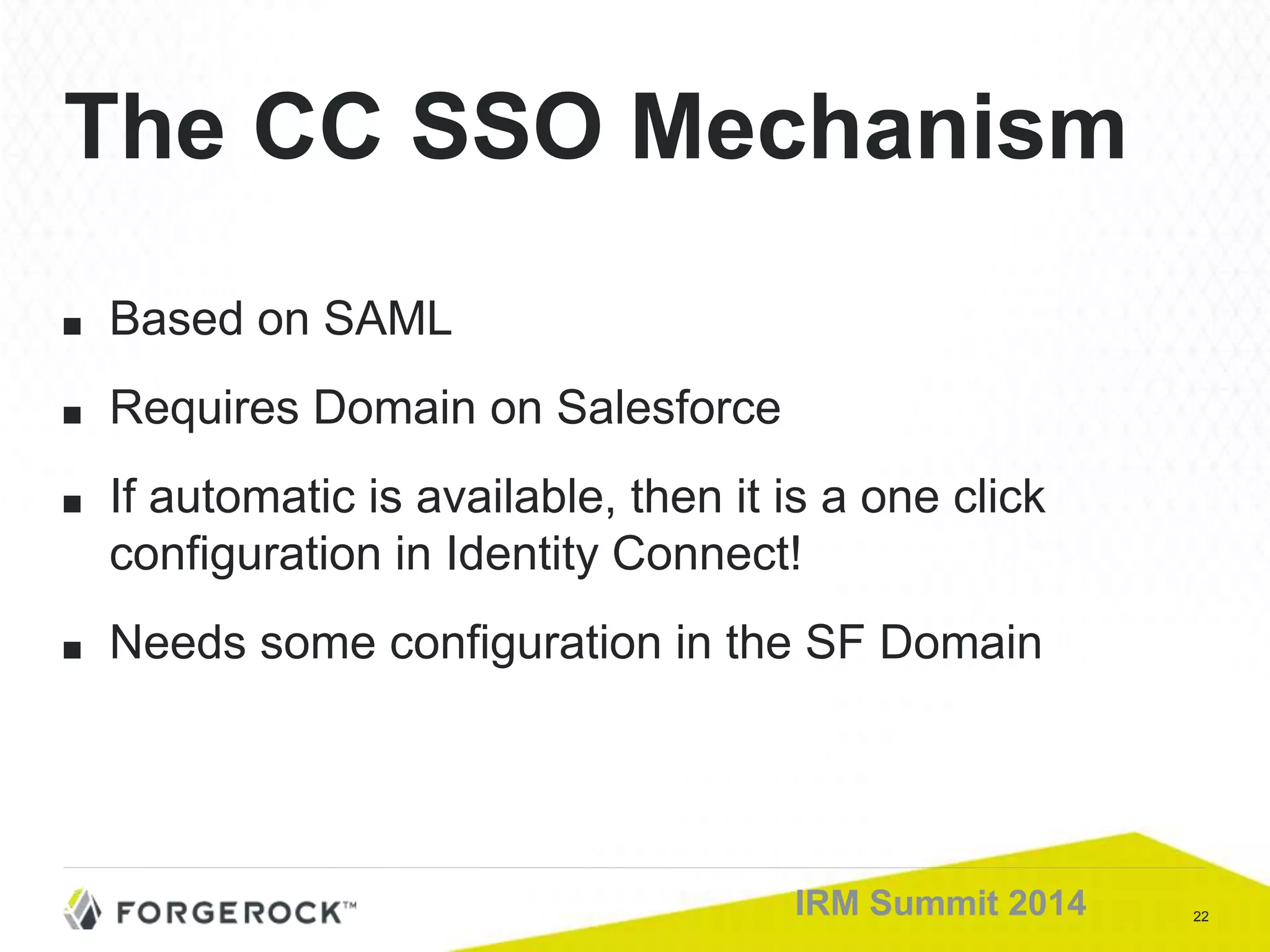

■ Based on SAML
■ Requires Domain on Salesforce
■ If automatic is available, then it is a one click
configuration in Identity Connect!
■ Needs some configuration in the SF Domain
The CC SSO Mechanism

23. 23IRM Summit 2014

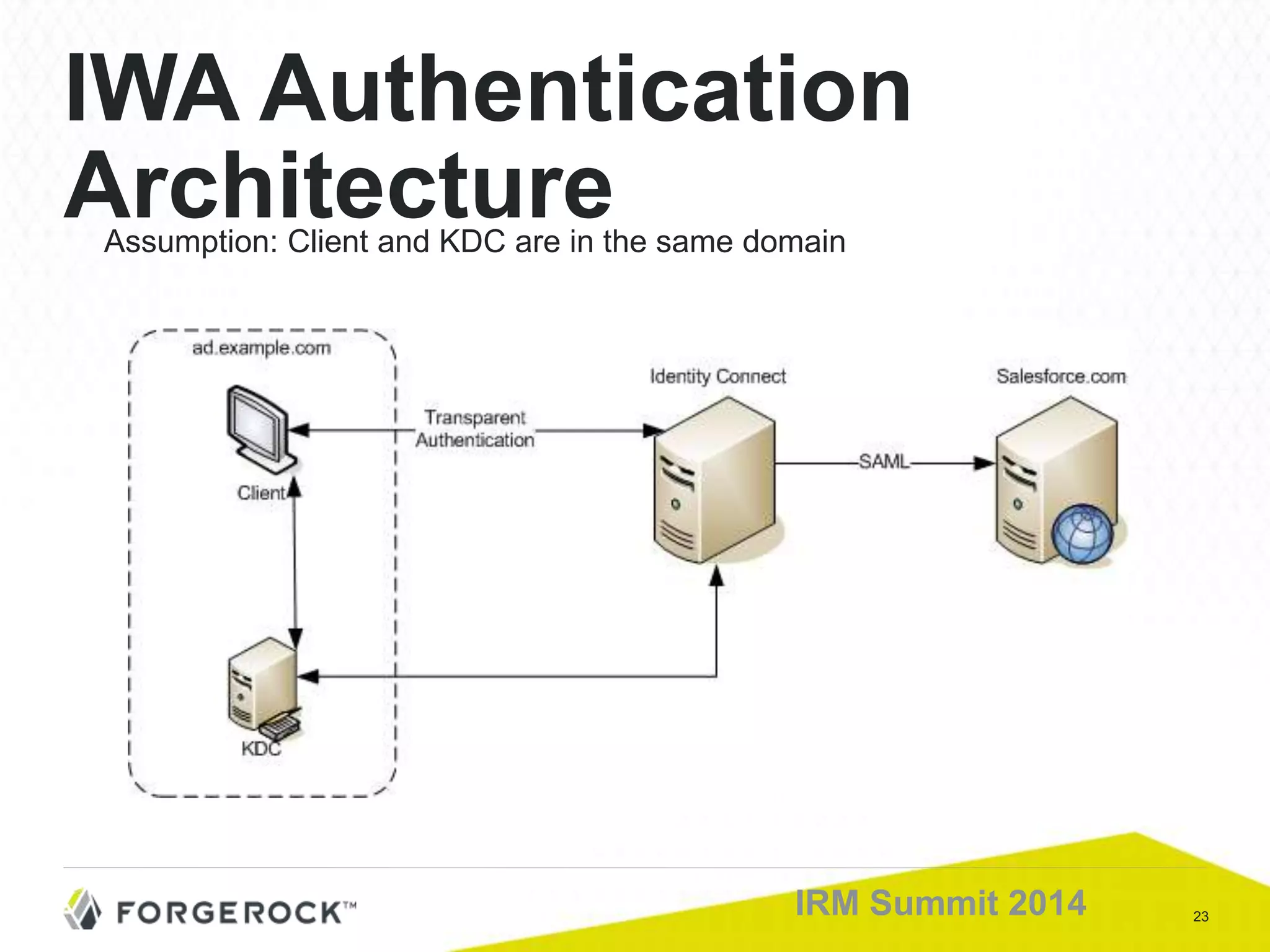

IWA Authentication
ArchitectureAssumption: Client and KDC are in the same domain

24. 24IRM Summit 2014

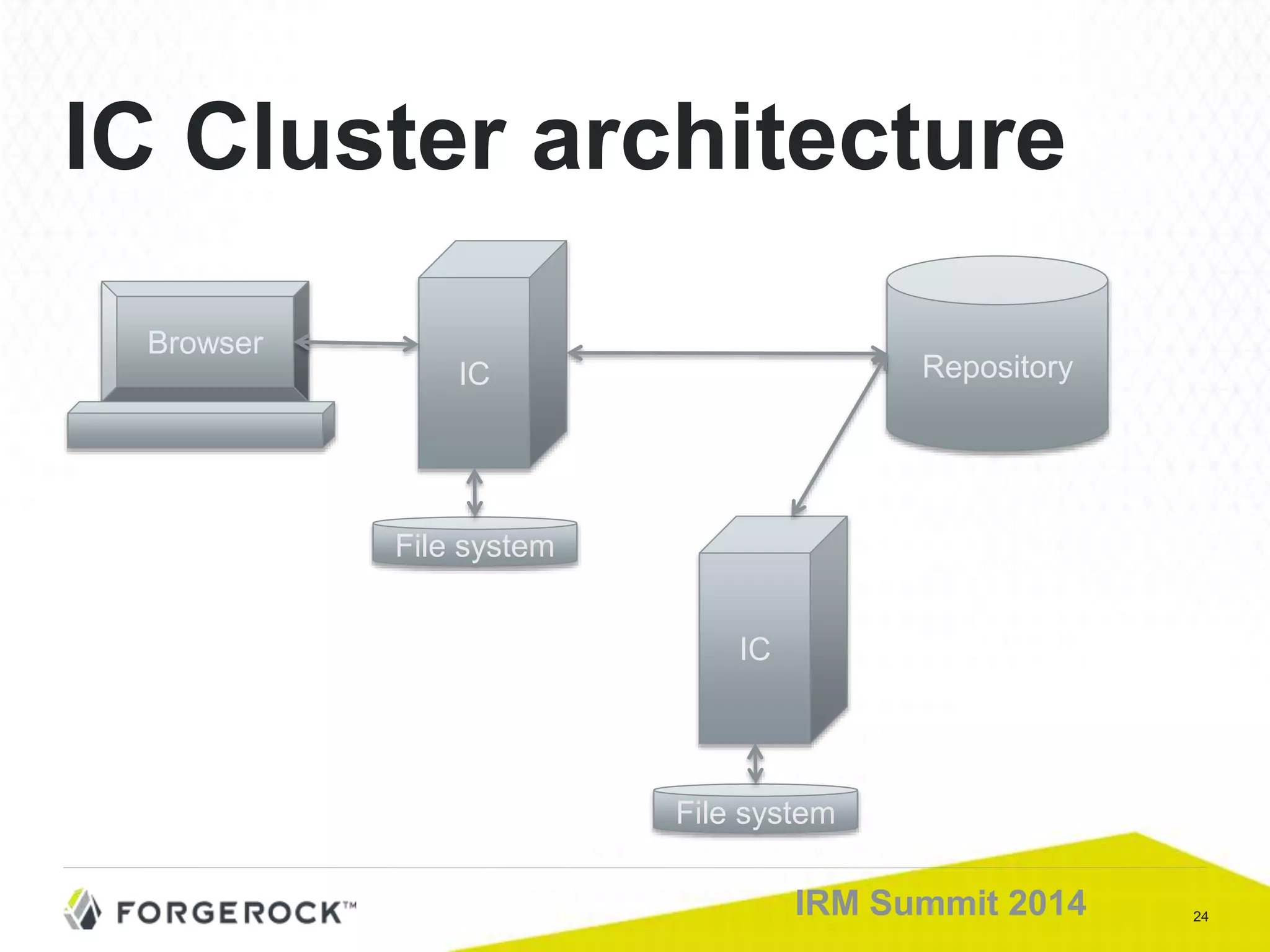

IC Cluster architecture
RepositoryIC
File system
IC
File system
Browser

25. 25IRM Summit 2014

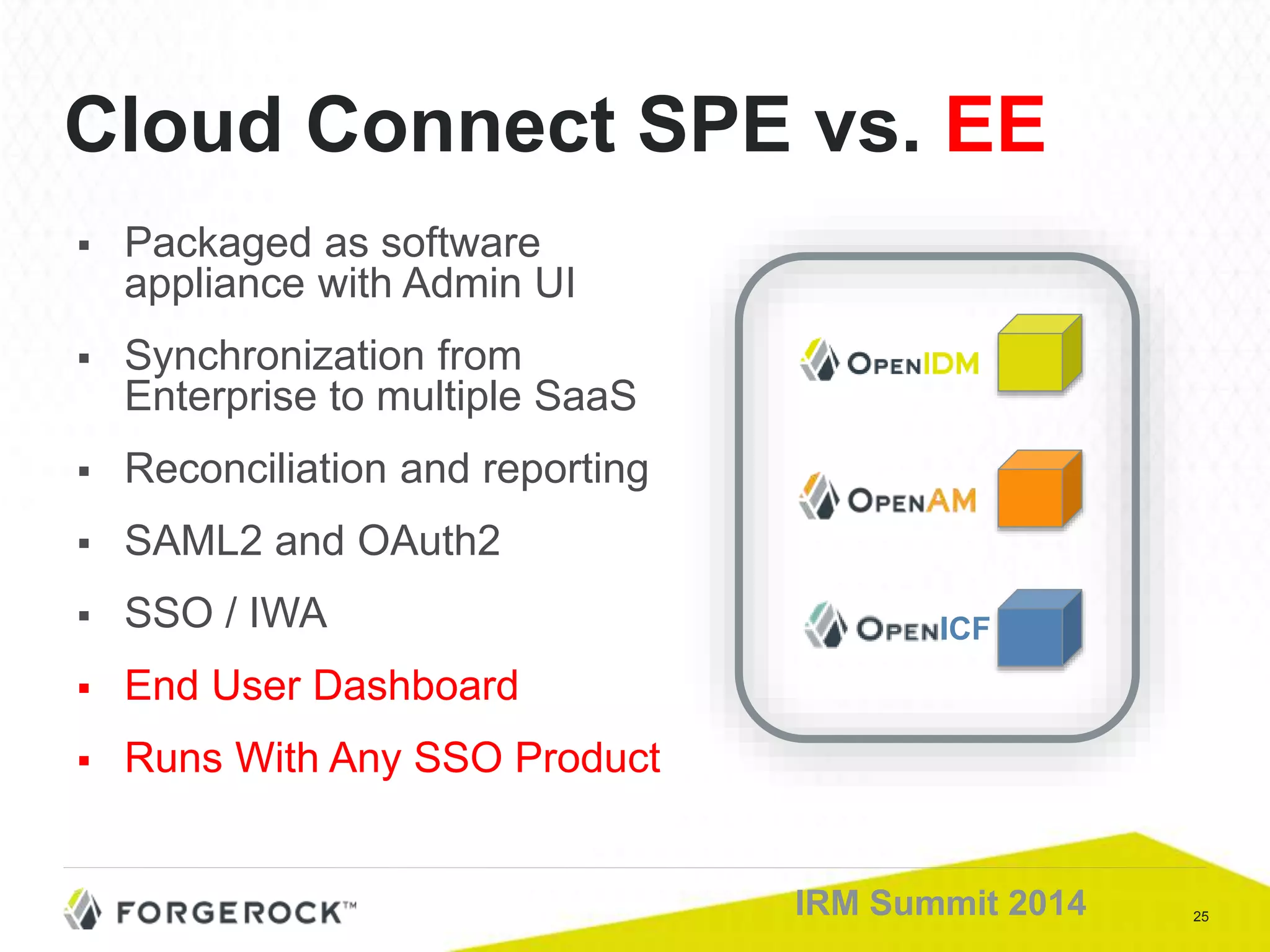

Cloud Connect SPE vs. EE
 Packaged as software
appliance with Admin UI
 Synchronization from
Enterprise to multiple SaaS
 Reconciliation and reporting
 SAML2 and OAuth2
 SSO / IWA
 End User Dashboard
 Runs With Any SSO Product
ICF
