Get the Exact Identity Solution you Need in the Cloud - Deep Dive
- 1. HUBCITYMEDIA! Get the ExactIAM Solution You Need ! In the Cloud Deep Dive - Containerized IAM on Amazon Web Services (Webcast 2 of 3) ! HUBCITYMEDIA!
- 2. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. 2! Introductions

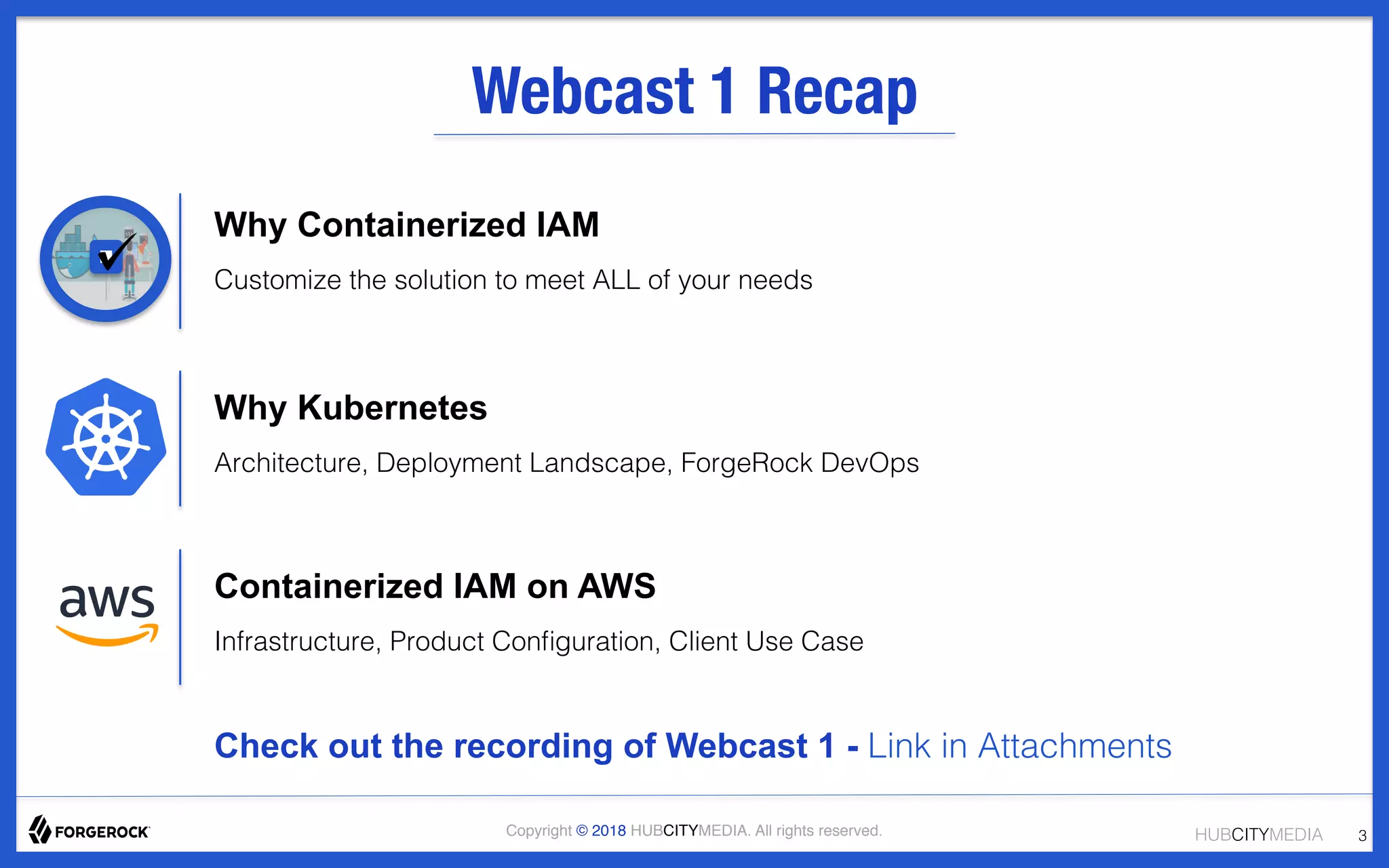

- 3. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. 3! Webcast 1 Recap Why Containerized IAM Customize the solution to meet ALL of your needs! ! ! Why Kubernetes Architecture, Deployment Landscape, ForgeRock DevOps! ! ! Containerized IAM on AWS Infrastructure, Product Configuration, Client Use Case ! ! ! Check out the recording of Webcast 1 - Link in Attachments! ! !
- 4. HUBCITYMEDIA! ForgeOps Recap: What is it?! Platform Configuration Strategyand Helm ! Demo: Deploying ForgeRock AM! Architecture Review: Cloud Deployments! Continuous Integration Strategies! ! Q&A! Monitoring Strategies! Kops and ForgeOps Customizations!

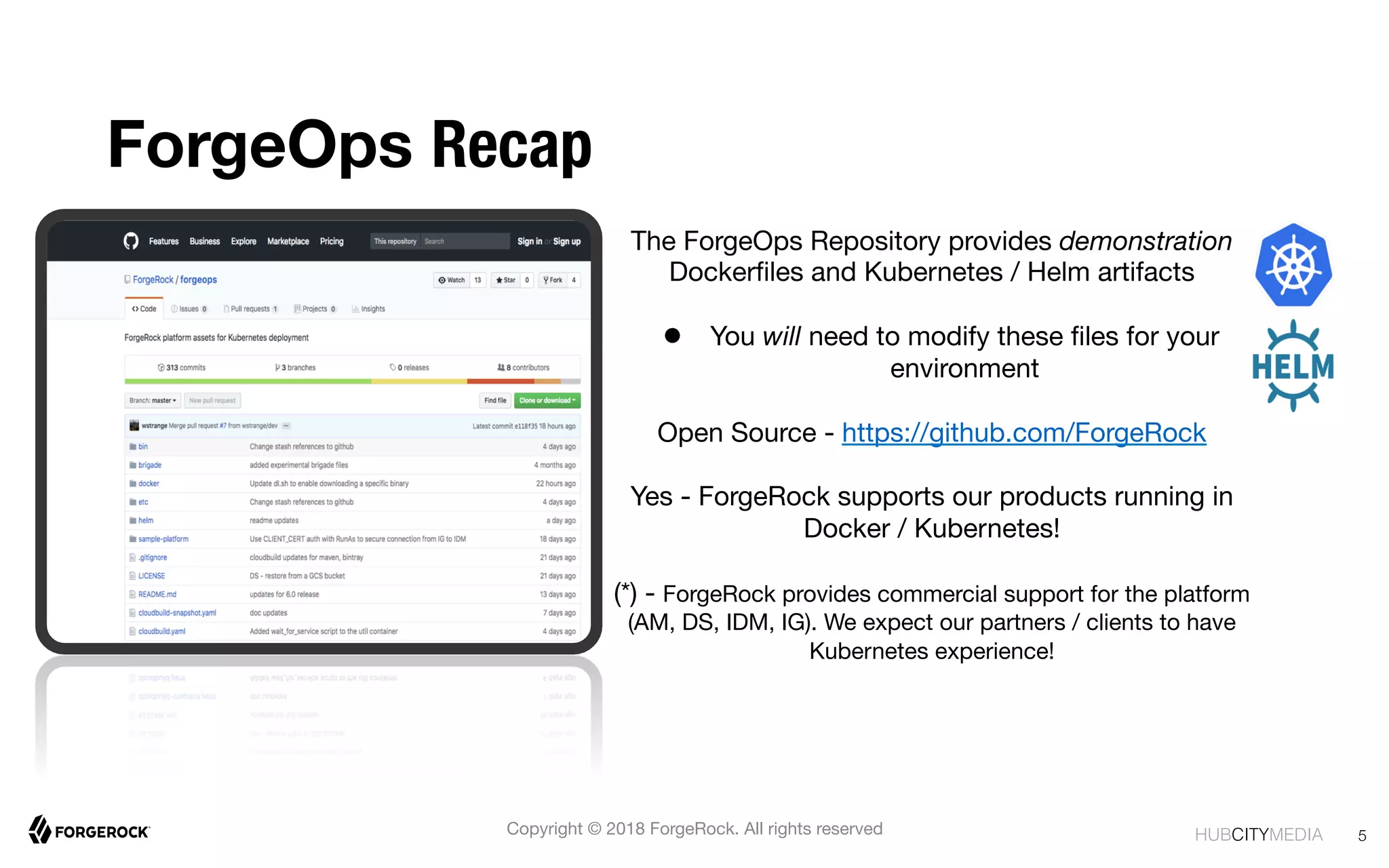

- 5. HUBCITYMEDIA! ForgeOps Recap The ForgeOpsRepository provides demonstration Dockerfiles and Kubernetes / Helm artifacts ● You will need to modify these files for your environment Open Source - https://github.com/ForgeRock Yes - ForgeRock supports our products running in Docker / Kubernetes! (*) - ForgeRock provides commercial support for the platform (AM, DS, IDM, IG). We expect our partners / clients to have Kubernetes experience! 5 Copyright © 2018 ForgeRock. All rights reserved

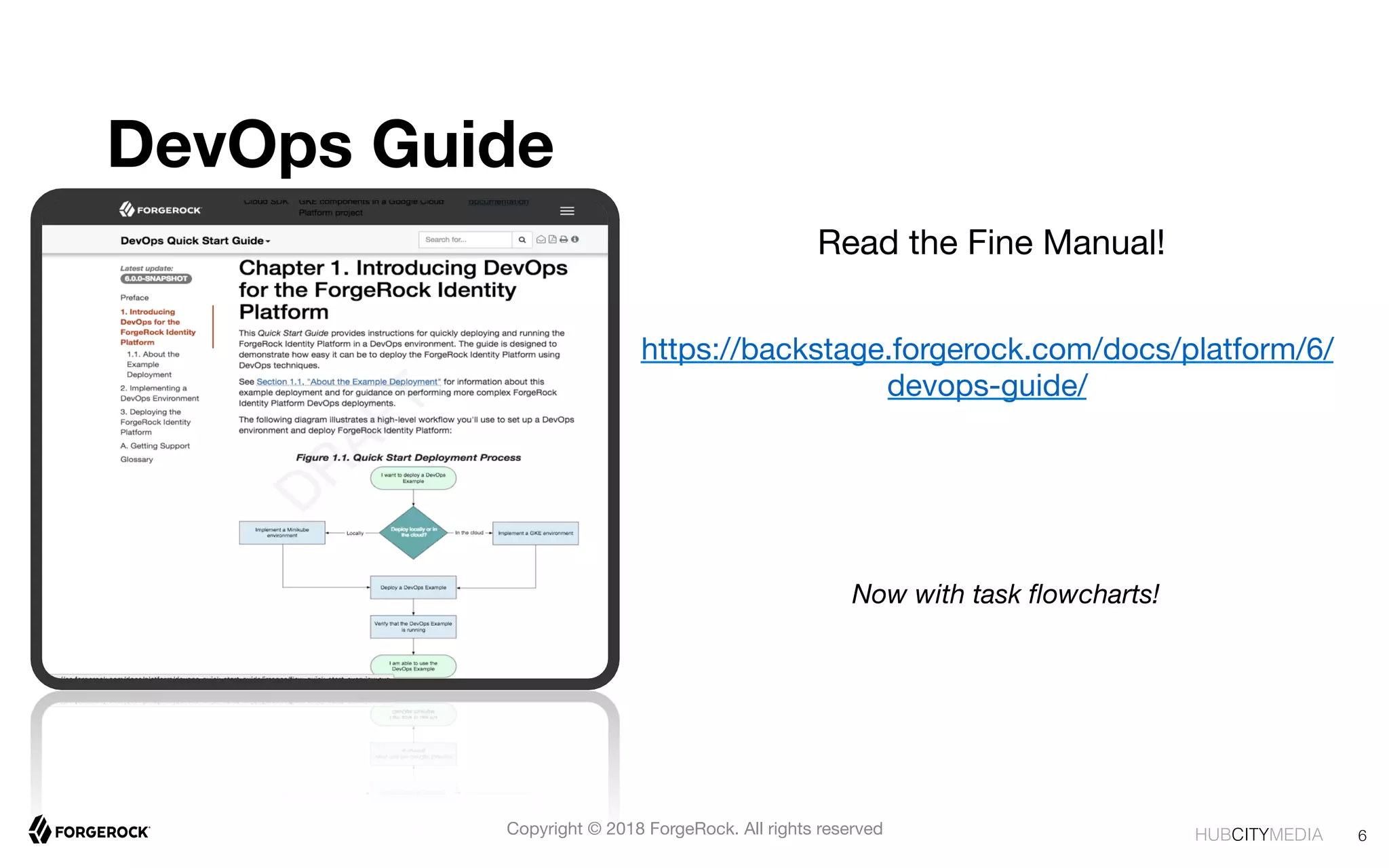

- 6. HUBCITYMEDIA! DevOps Guide https://backstage.forgerock.com/docs/platform/6/ devops-guide/ Readthe Fine Manual! Now with task flowcharts! 6 Copyright © 2018 ForgeRock. All rights reserved

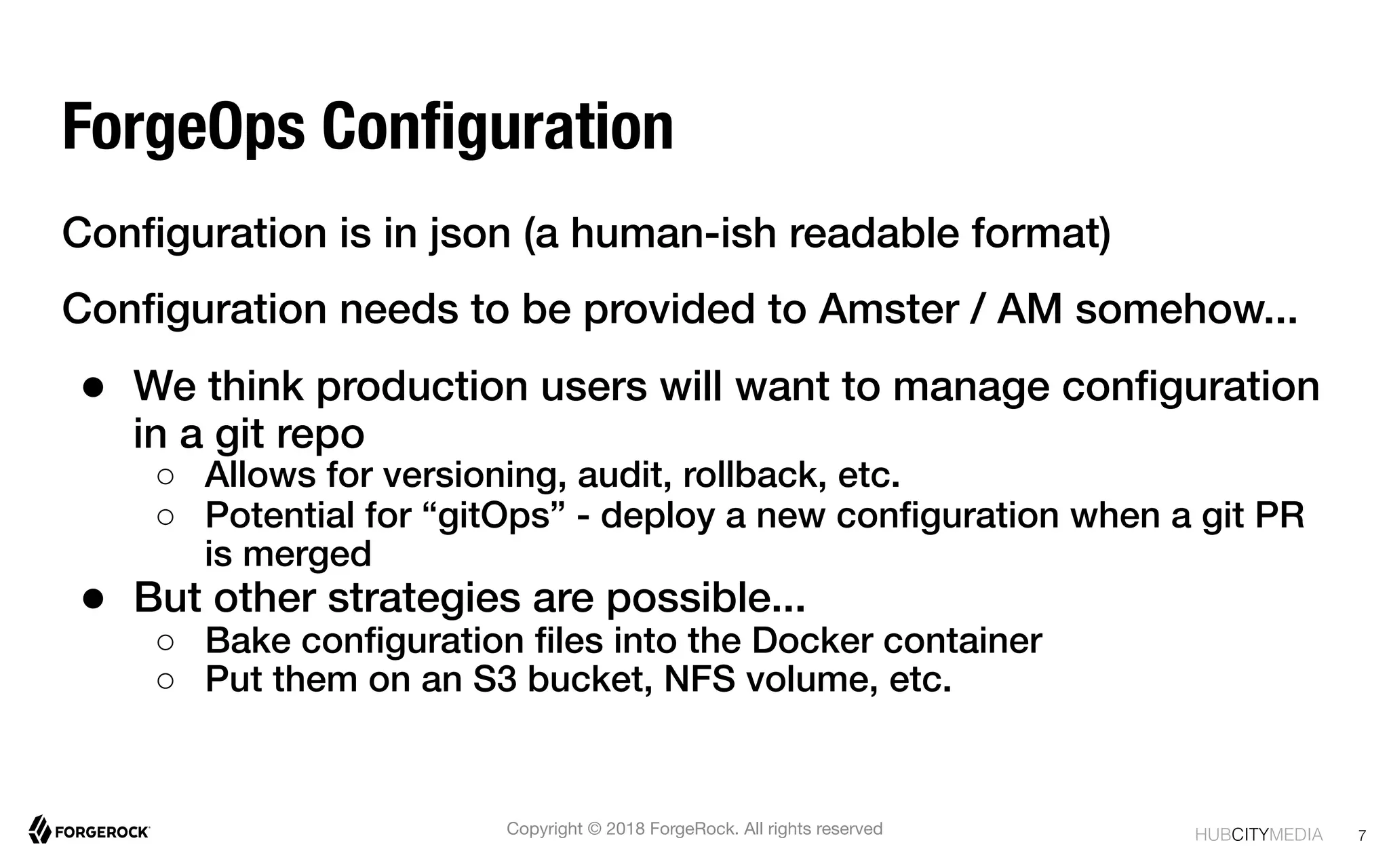

- 7. HUBCITYMEDIA! ForgeOps Configuration Configuration isin json (a human-ish readable format)! Configuration needs to be provided to Amster / AM somehow...! ● We think production users will want to manage configuration in a git repo! ○ Allows for versioning, audit, rollback, etc.! ○ Potential for “gitOps” - deploy a new configuration when a git PR is merged! ● But other strategies are possible...! ○ Bake configuration files into the Docker container ! ○ Put them on an S3 bucket, NFS volume, etc.! ! 7 Copyright © 2018 ForgeRock. All rights reserved

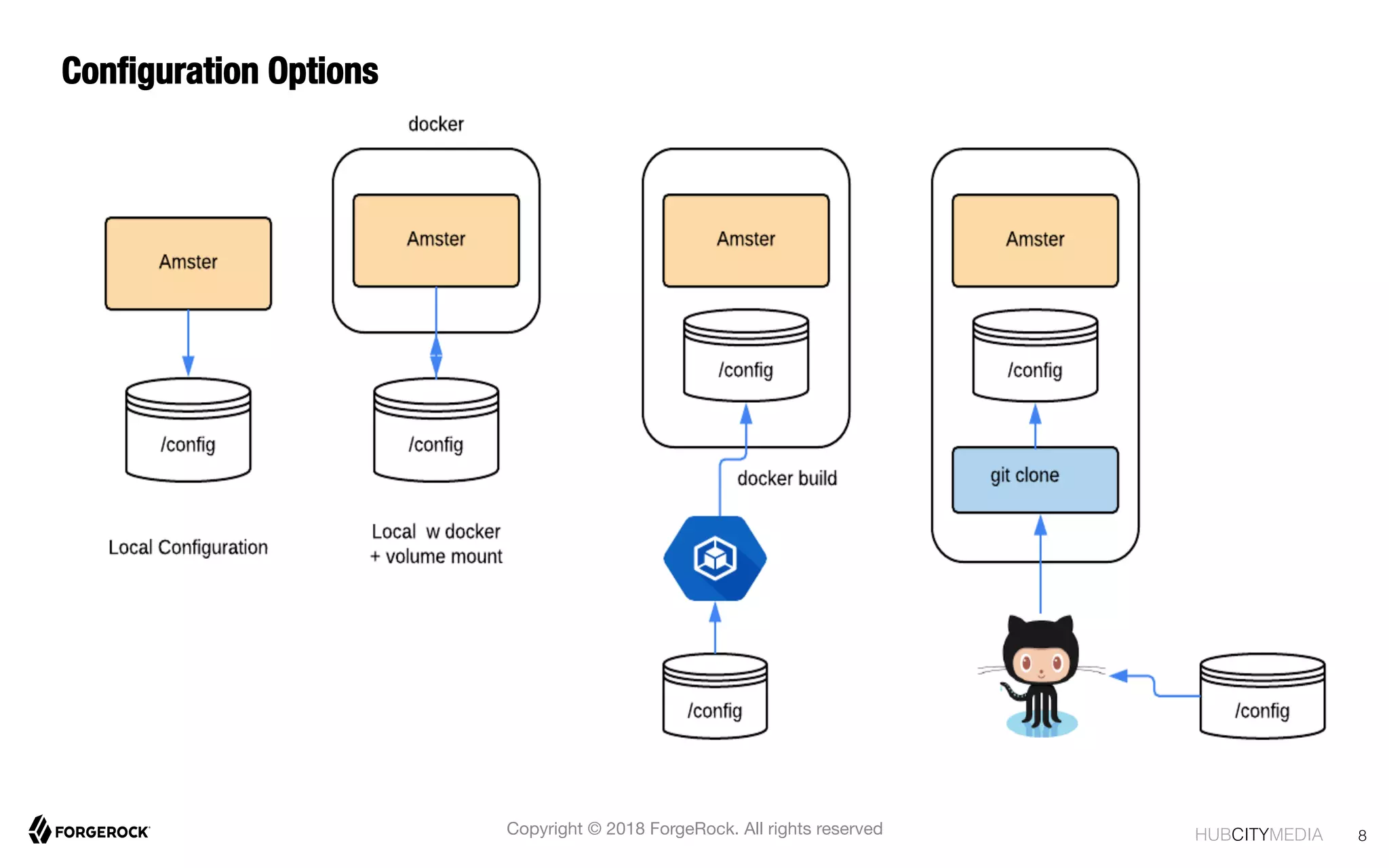

- 8. HUBCITYMEDIA! Configuration Options 8 Copyright ©2018 ForgeRock. All rights reserved

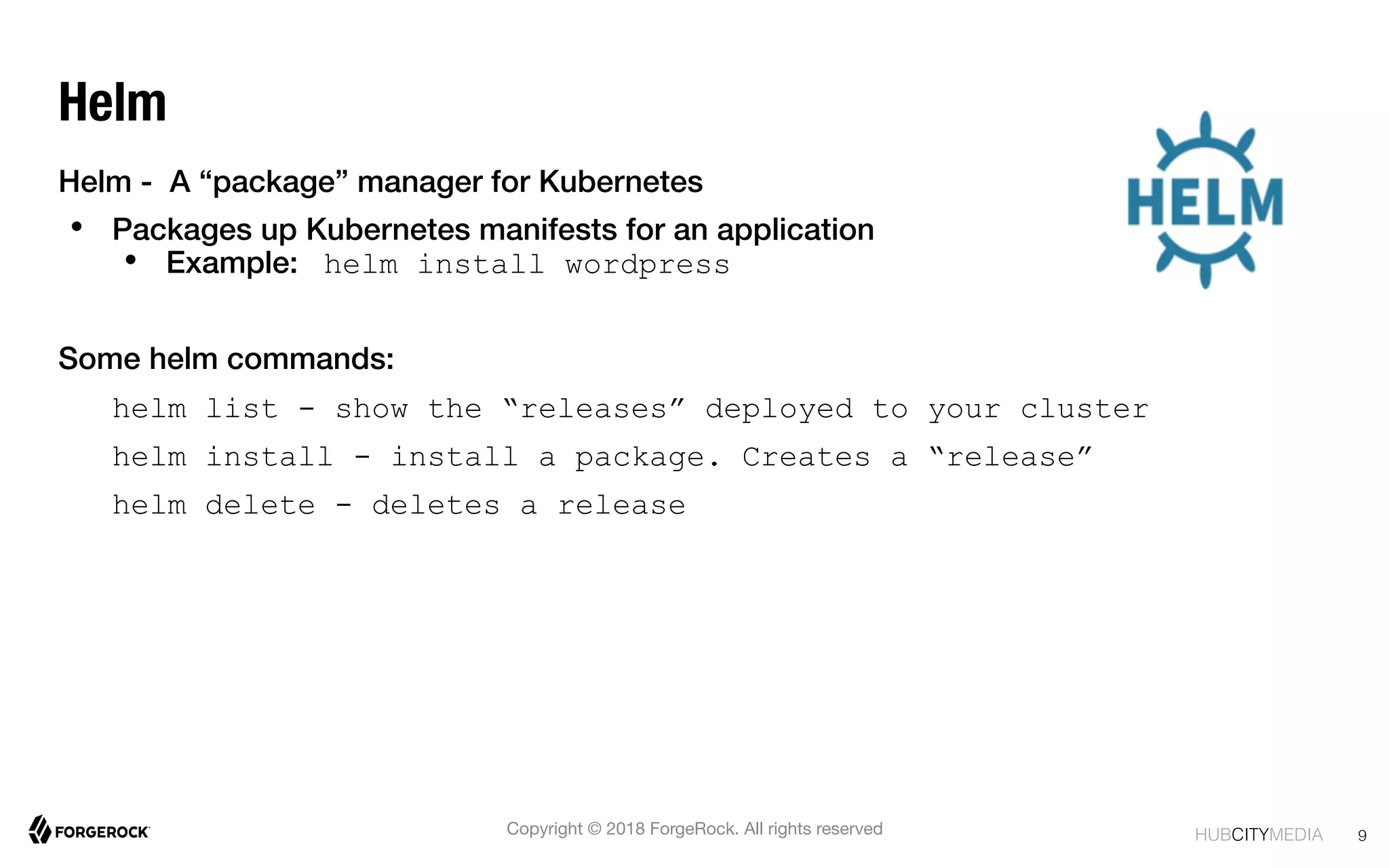

- 9. HUBCITYMEDIA! 9 Copyright ©2018 ForgeRock. All rights reserved Helm Helm - A “package” manager for Kubernetes ! • Packages up Kubernetes manifests for an application! • Example: helm install wordpress Some helm commands: helm list - show the “releases” deployed to your cluster helm install - install a package. Creates a “release” helm delete - deletes a release

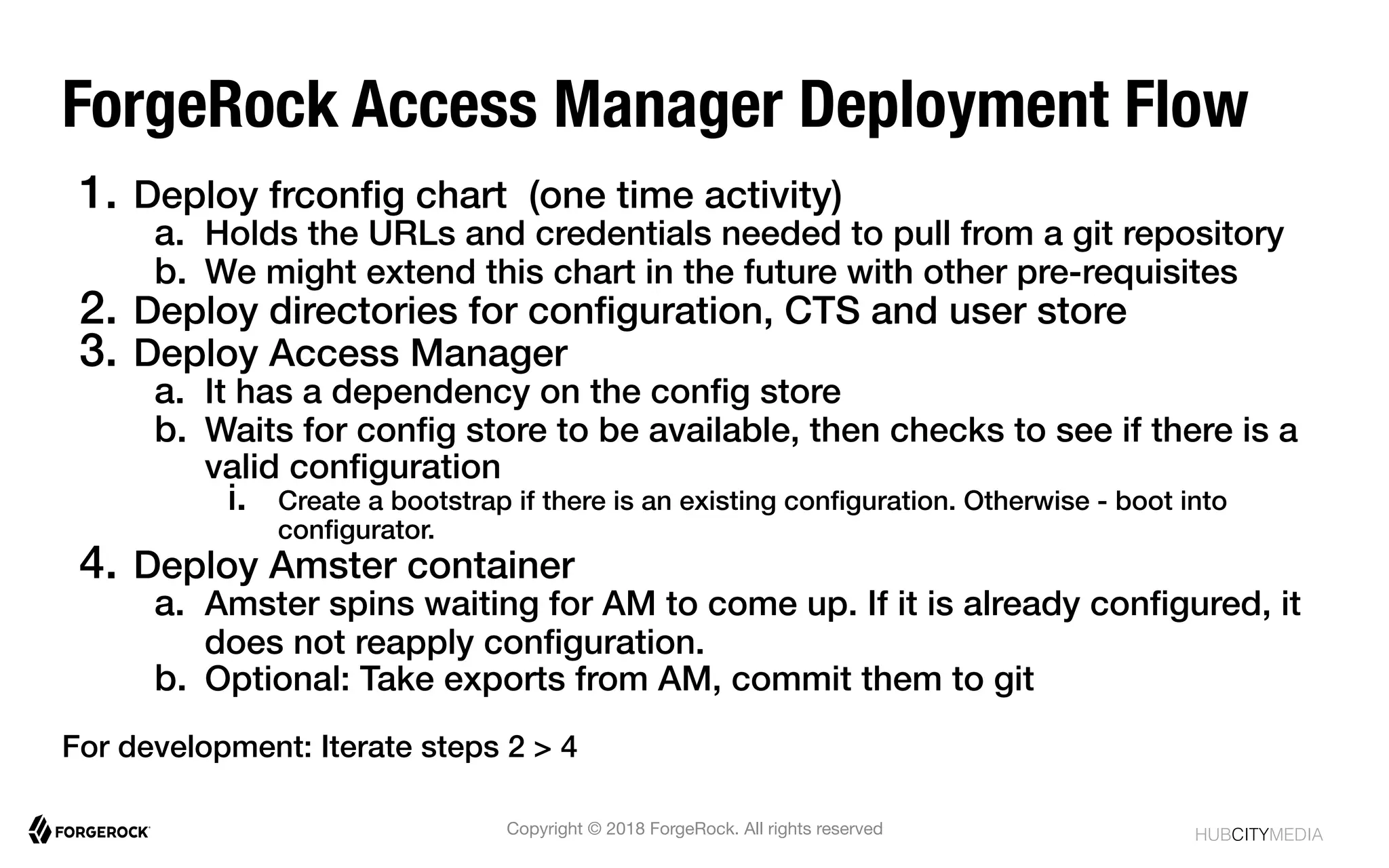

- 10. HUBCITYMEDIA! ForgeRock Access ManagerDeployment Flow 1. Deploy frconfig chart (one time activity)! a. Holds the URLs and credentials needed to pull from a git repository! b. We might extend this chart in the future with other pre-requisites! 2. Deploy directories for configuration, CTS and user store! 3. Deploy Access Manager! a. It has a dependency on the config store ! b. Waits for config store to be available, then checks to see if there is a valid configuration! i. Create a bootstrap if there is an existing configuration. Otherwise - boot into configurator.! 4. Deploy Amster container! a. Amster spins waiting for AM to come up. If it is already configured, it does not reapply configuration.! b. Optional: Take exports from AM, commit them to git! For development: Iterate steps 2 > 4! Copyright © 2018 ForgeRock. All rights reserved
- 11.

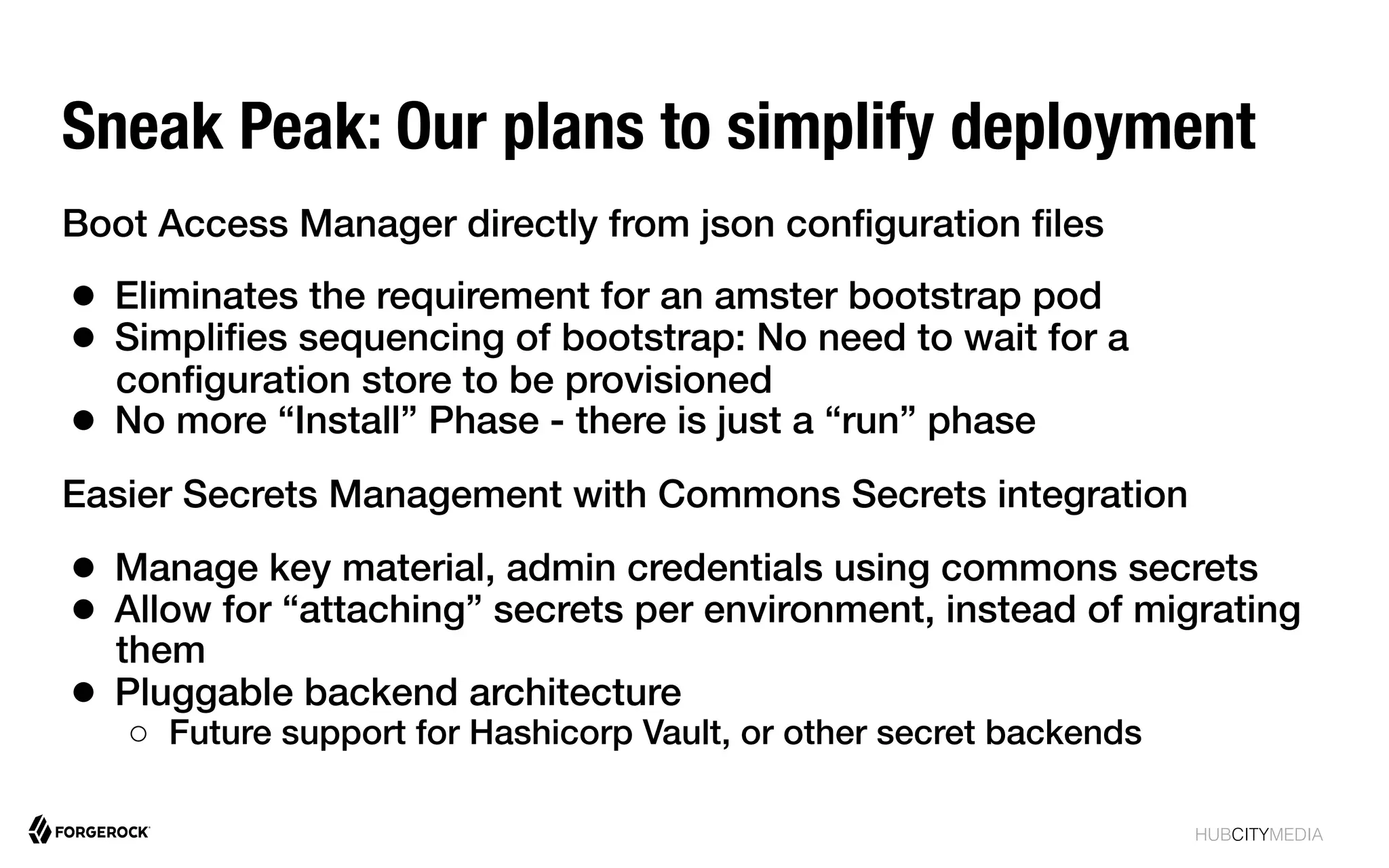

- 12. HUBCITYMEDIA! Sneak Peak: Ourplans to simplify deployment Boot Access Manager directly from json configuration files! ● Eliminates the requirement for an amster bootstrap pod! ● Simplifies sequencing of bootstrap: No need to wait for a configuration store to be provisioned! ● No more “Install” Phase - there is just a “run” phase! Easier Secrets Management with Commons Secrets integration! ● Manage key material, admin credentials using commons secrets! ● Allow for “attaching” secrets per environment, instead of migrating them! ● Pluggable backend architecture! ○ Future support for Hashicorp Vault, or other secret backends! !

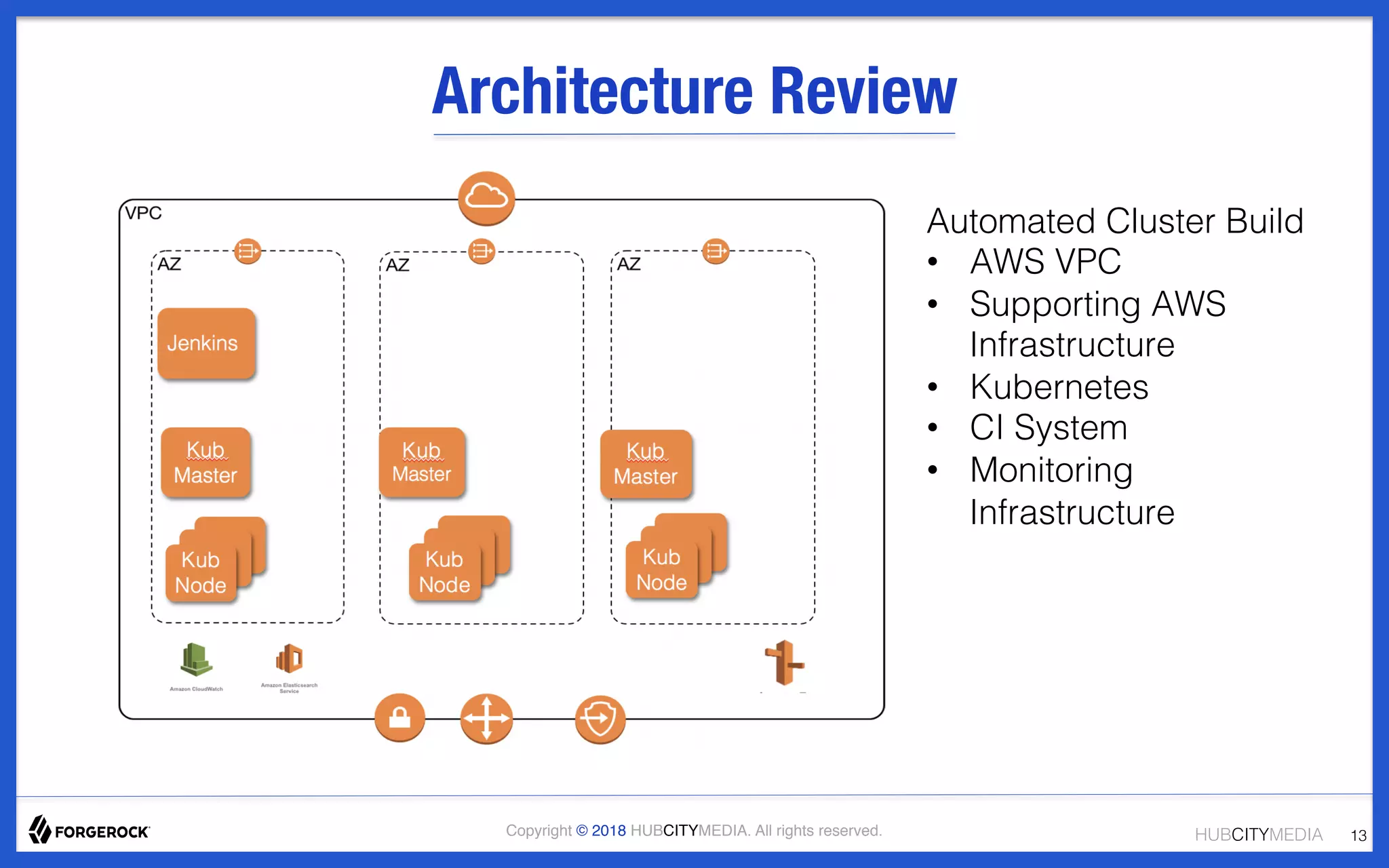

- 13. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Architecture Review 13! Automated Cluster Build! • AWS VPC! • Supporting AWS Infrastructure! • Kubernetes! • CI System! • Monitoring Infrastructure!

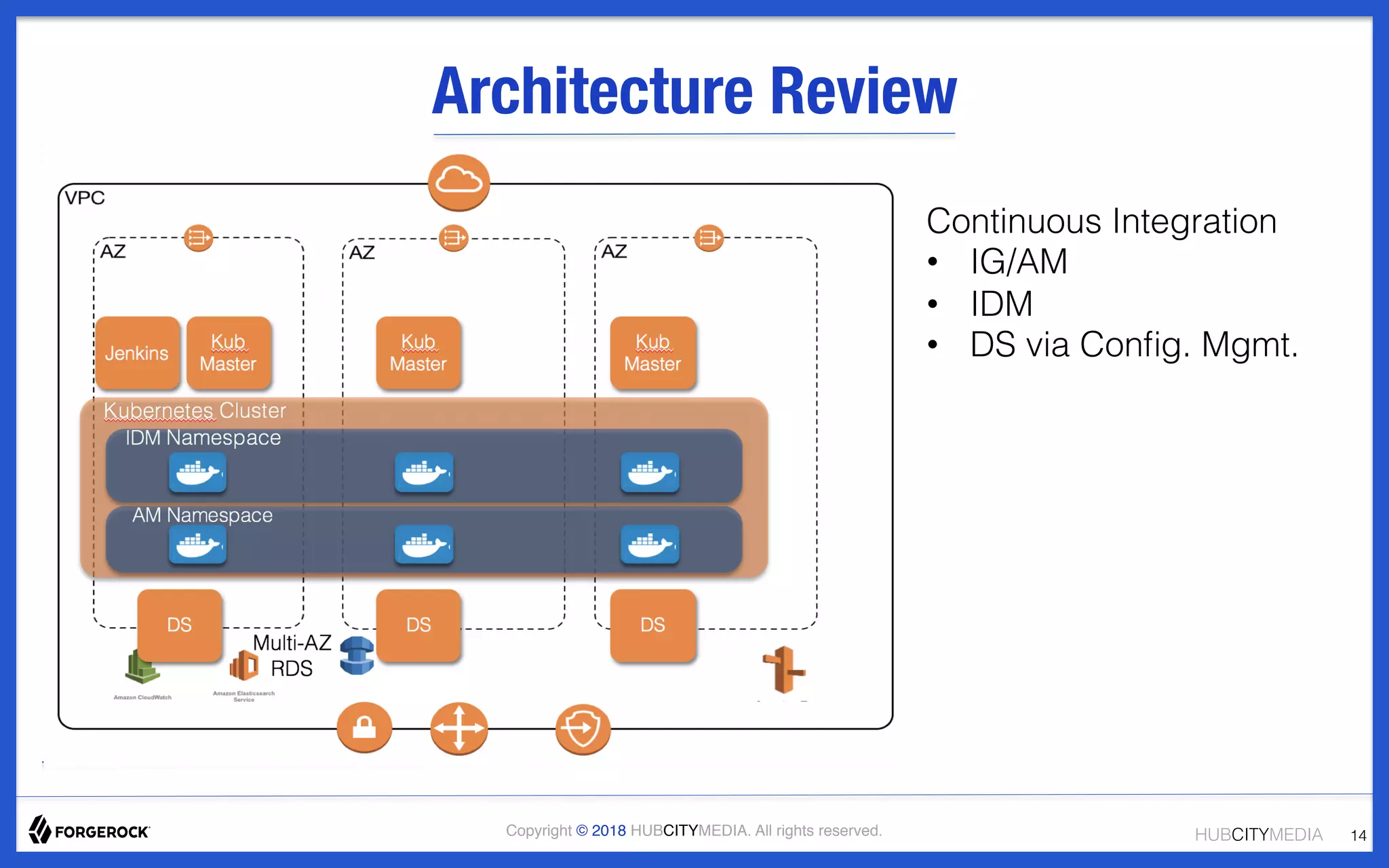

- 14. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Architecture Review 14! Continuous Integration! • IG/AM! • IDM! • DS via Config. Mgmt.!

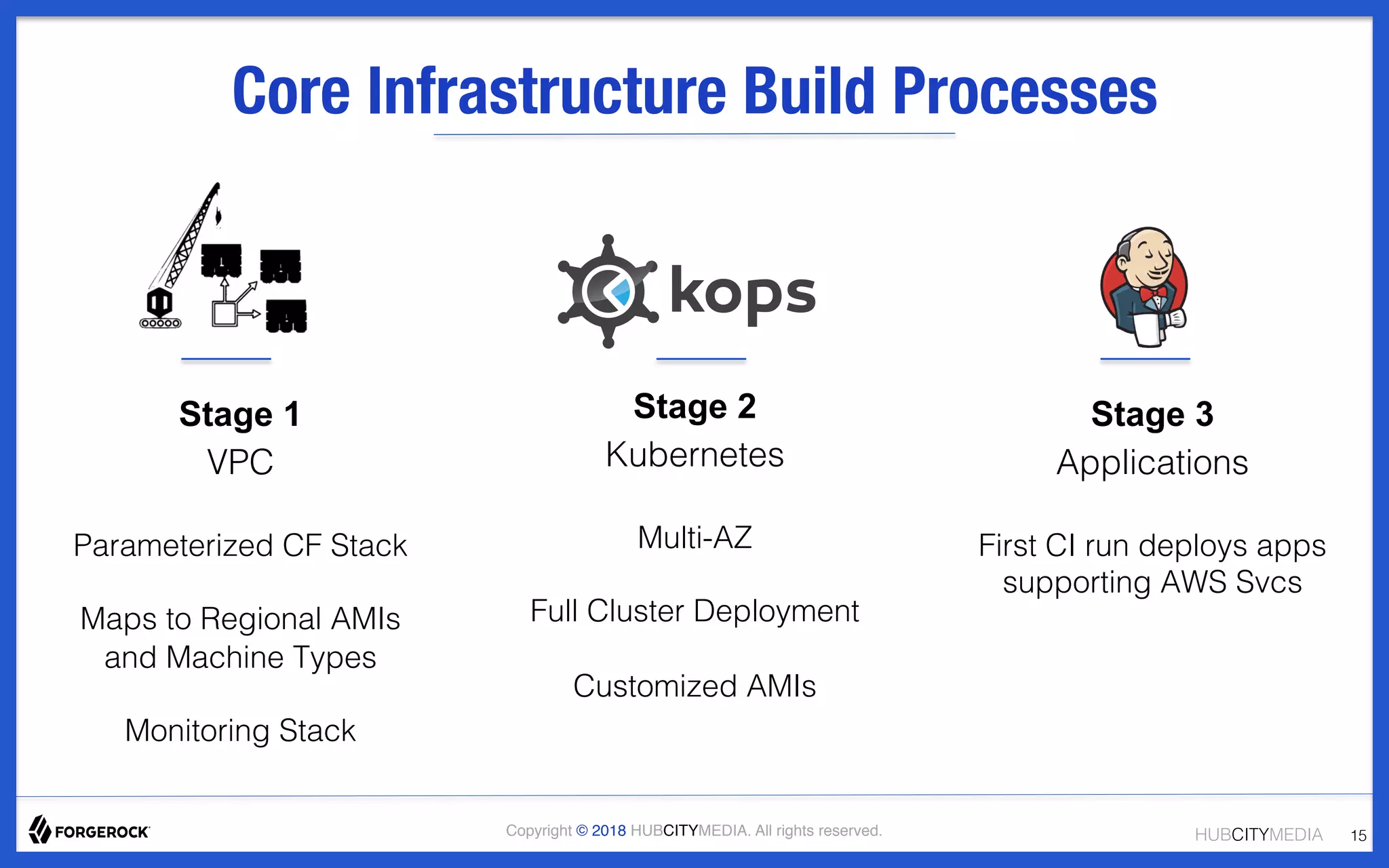

- 15. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Core Infrastructure Build Processes 15! Stage 1 VPC! ! Parameterized CF Stack! ! Maps to Regional AMIs and Machine Types! ! Monitoring Stack! ! ! Stage 2 Kubernetes! ! Multi-AZ! ! Full Cluster Deployment! ! Customized AMIs! ! Stage 3 Applications! ! First CI run deploys apps! supporting AWS Svcs! ! !

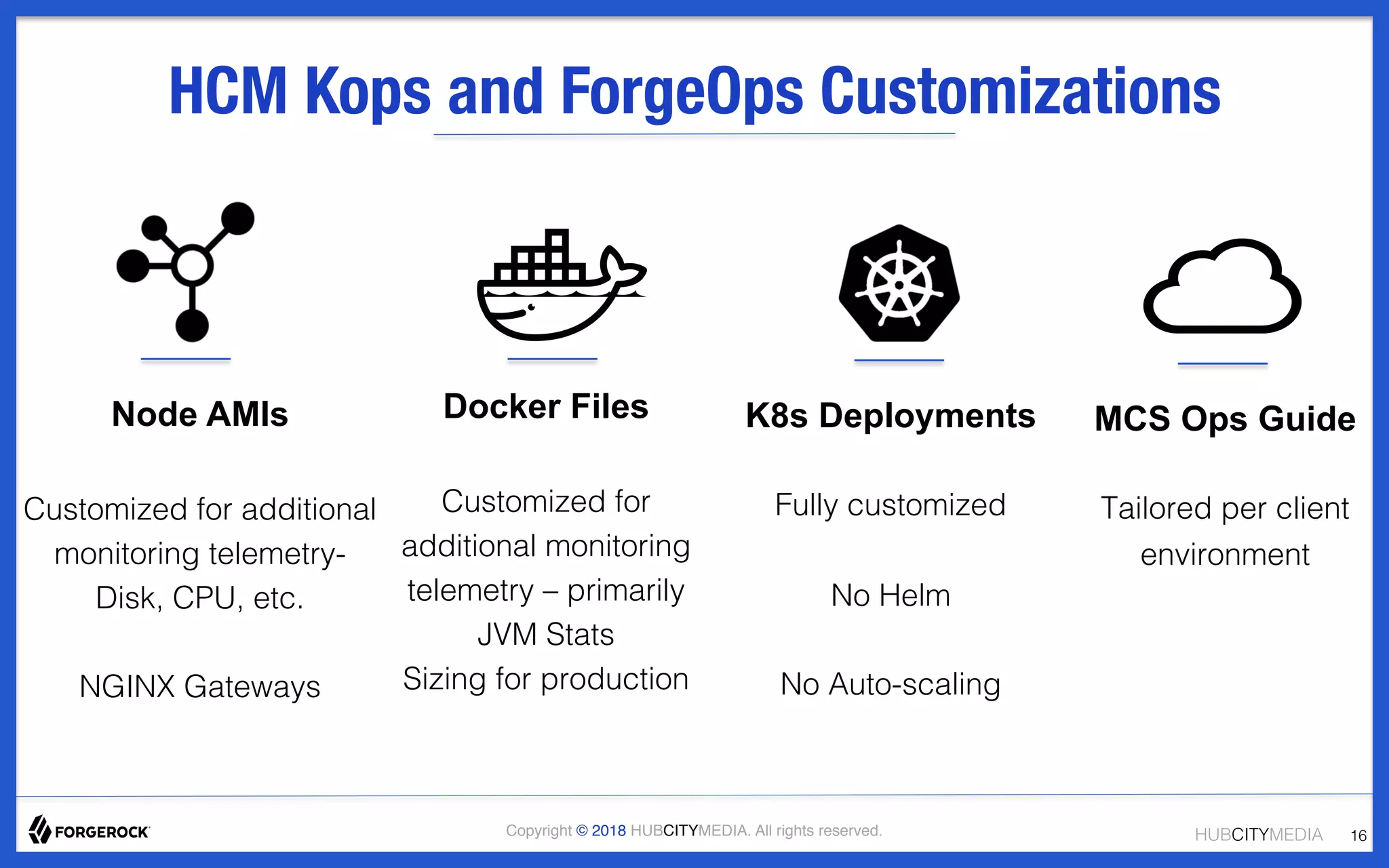

- 16. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. 16! Node AMIs ! Customized for additional monitoring telemetry- Disk, CPU, etc.! ! NGINX Gateways! ! ! Docker Files ! Customized for additional monitoring telemetry – primarily JVM Stats! Sizing for production! ! K8s Deployments! ! Fully customized! ! No Helm! ! No Auto-scaling! ! ! MCS Ops Guide Tailored per client environment! ! ! HCM Kops and ForgeOps Customizations

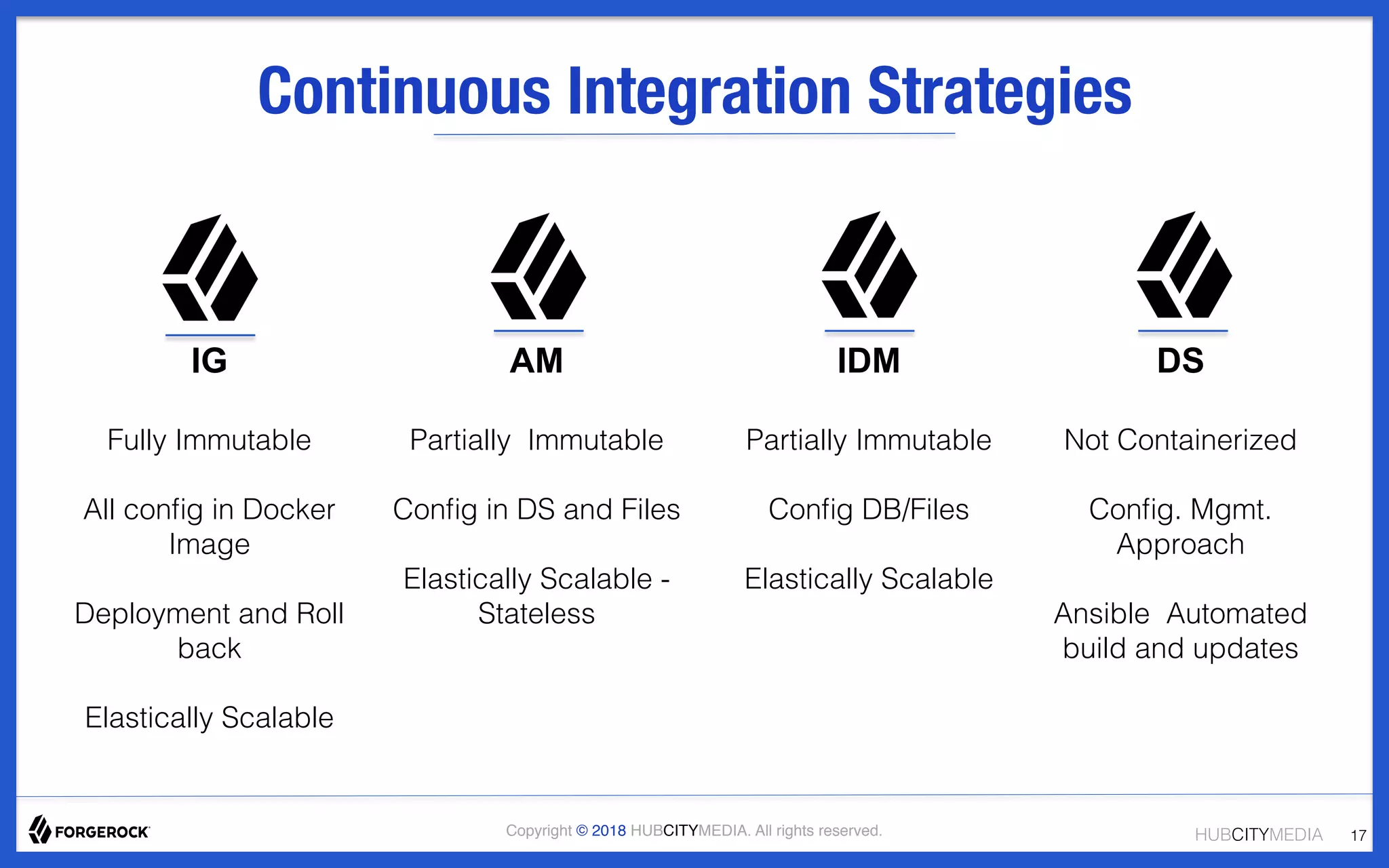

- 17. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Continuous Integration Strategies 17! IG ! Fully Immutable! ! All config in Docker Image! ! Deployment and Roll back ! ! Elastically Scalable! ! ! AM ! Partially Immutable! ! Config in DS and Files! ! Elastically Scalable - Stateless! ! ! IDM ! Partially Immutable! ! Config DB/Files! ! Elastically Scalable! ! ! DS ! Not Containerized! ! Config. Mgmt. Approach! ! Ansible Automated build and updates! ! !

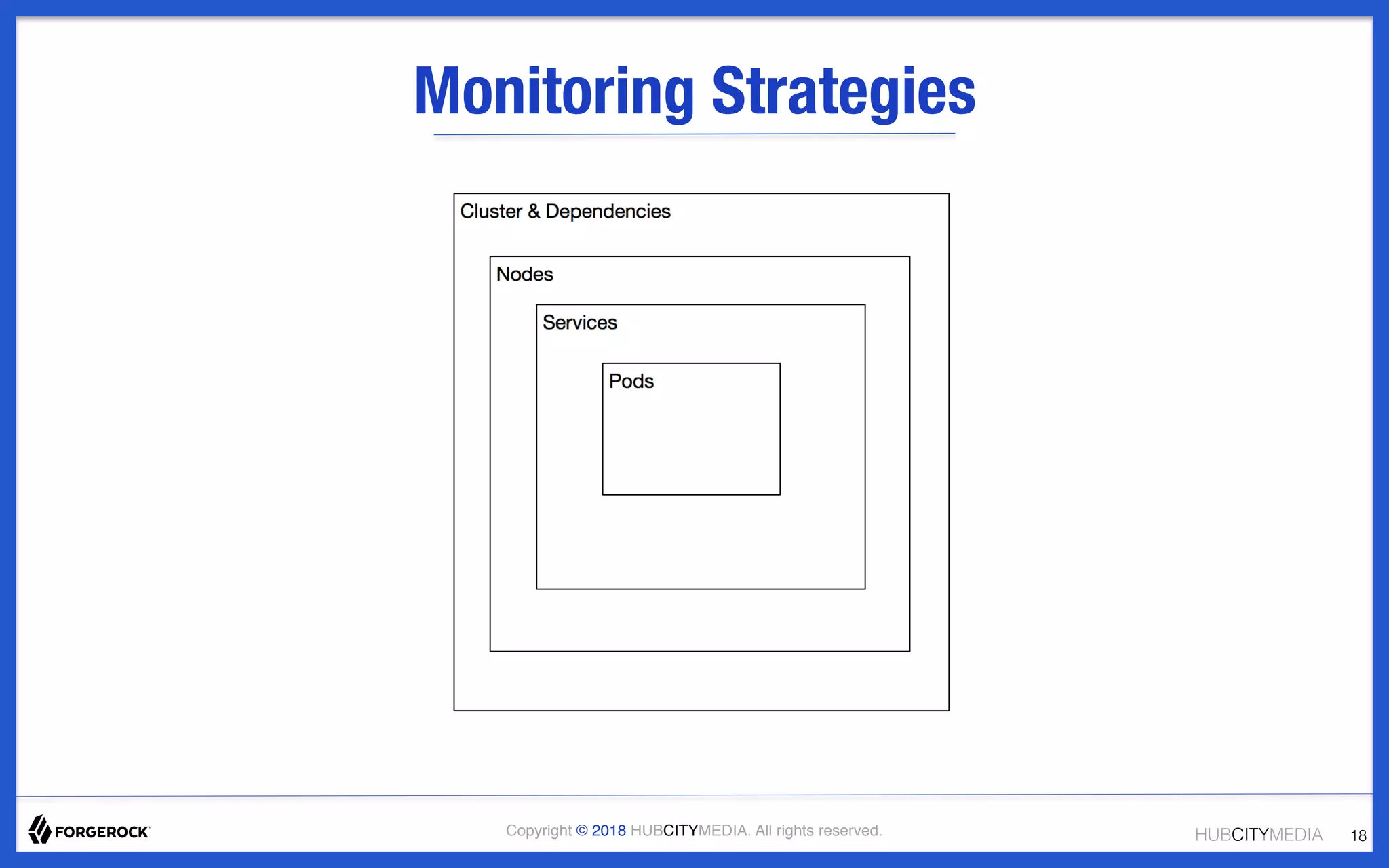

- 18. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Monitoring Strategies 18!

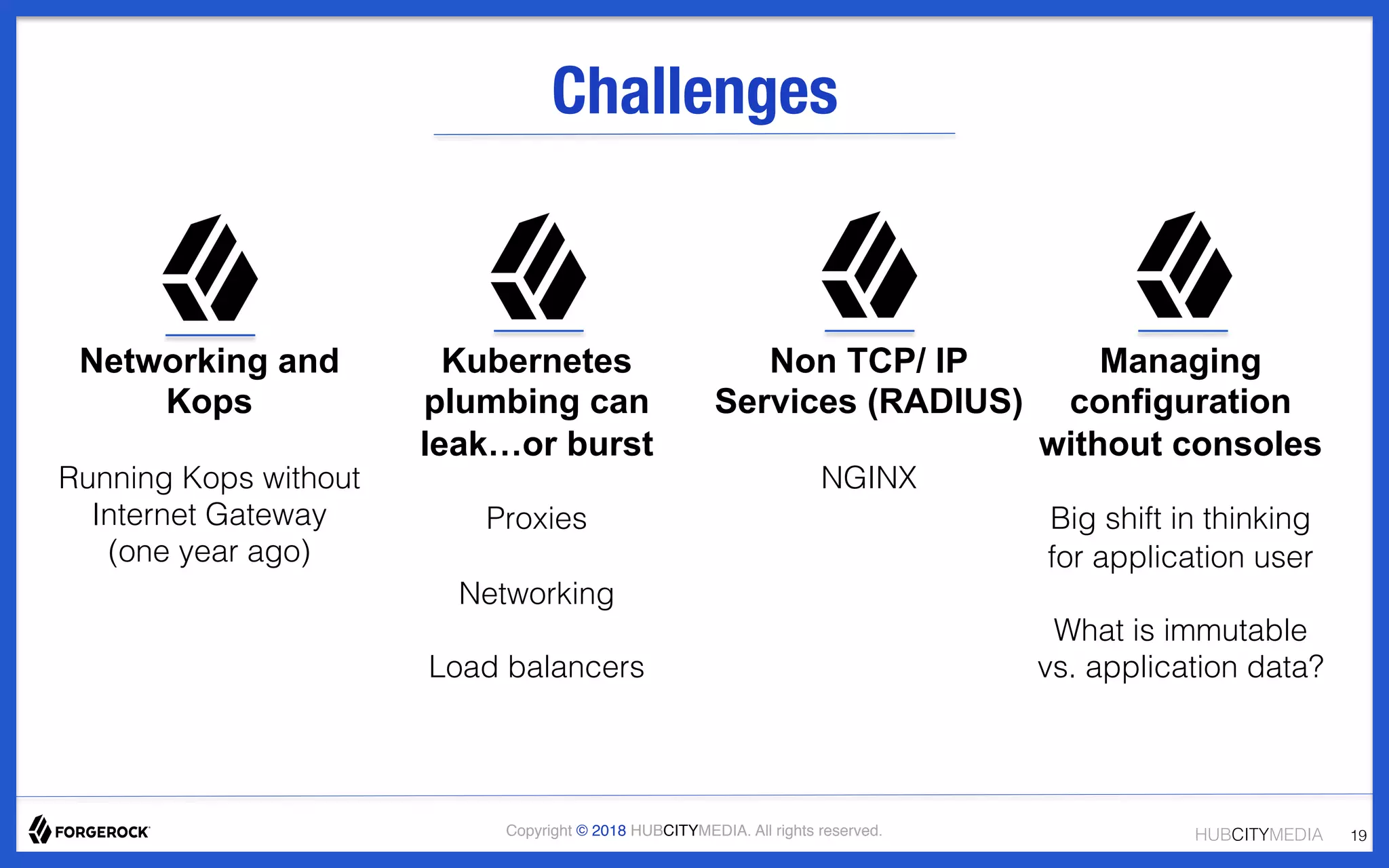

- 19. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Challenges 19! Networking and Kops Running Kops without Internet Gateway ! (one year ago)! ! ! Kubernetes plumbing can leak…or burst ! Proxies! ! Networking! ! Load balancers! ! ! Non TCP/ IP Services (RADIUS) NGINX! ! ! Managing configuration without consoles ! Big shift in thinking for application user! ! What is immutable vs. application data?! ! !
- 20. HUBCITYMEDIA! What you need beforetaking this on in AWS! FINAL WORDS!
- 21.
- 22. HUBCITYMEDIA!Copyright © 2018HUBCITYMEDIA. All rights reserved. Webcast Series POSSIBILITIES! ARCHITECTURE! DEVOPS! Thank you for joining us!! September 12, 2018! 2:00pm-3:00pm EST! 22!
- 23.
