Scoping for BMC Discovery (ADDM) Deployment by Traversys Limited
BMC Discovery is an agentless discovery and dependency mapping tool that automatically discovers configuration and relationship data across an IT infrastructure. It provides visibility into hardware, software, applications and their dependencies. BMC Discovery works by running scans from a virtual appliance using supplied credentials to retrieve configuration information. It analyzes the data to map relationships and can integrate with a CMDB. Security features include encrypted credential storage and secure communications. Prerequisites for deployment include virtual appliances, a Windows proxy server, and credentials for systems being discovered.
More Related Content
Similar to Scoping for BMC Discovery (ADDM) Deployment by Traversys Limited
Scoping for BMC Discovery (ADDM) Deployment by Traversys Limited
- 1. Scoping for BMCDiscovery (ADDM) WES FITZPATRICK 2017-08-19

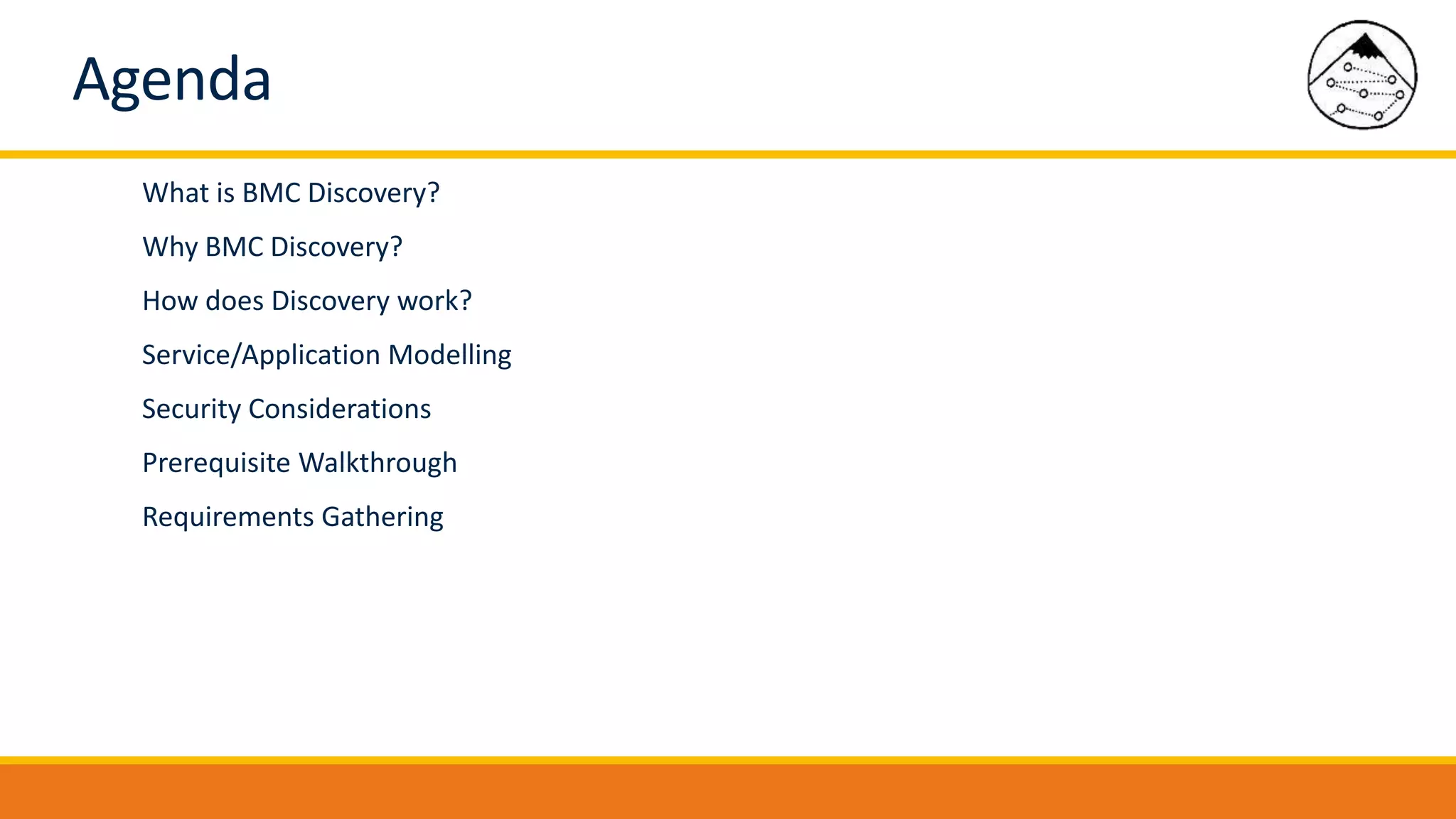

- 2. Agenda What is BMCDiscovery? Why BMC Discovery? How does Discovery work? Service/Application Modelling Security Considerations Prerequisite Walkthrough Requirements Gathering
- 3. What is BMCDiscovery?

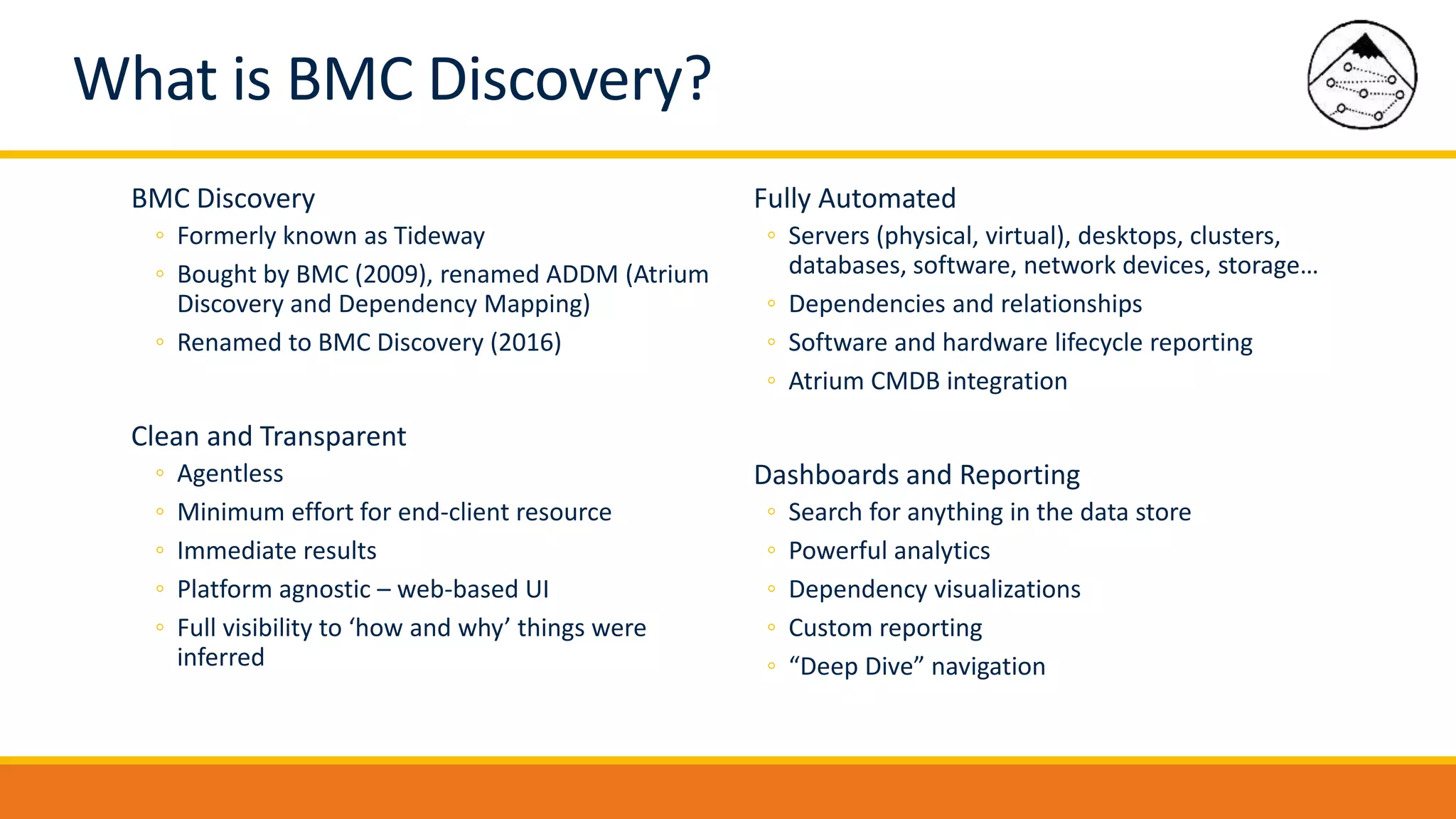

- 4. BMC Discovery ◦ Formerlyknown as Tideway ◦ Bought by BMC (2009), renamed ADDM (Atrium Discovery and Dependency Mapping) ◦ Renamed to BMC Discovery (2016) Clean and Transparent ◦ Agentless ◦ Minimum effort for end-client resource ◦ Immediate results ◦ Platform agnostic – web-based UI ◦ Full visibility to ‘how and why’ things were inferred Fully Automated ◦ Servers (physical, virtual), desktops, clusters, databases, software, network devices, storage… ◦ Dependencies and relationships ◦ Software and hardware lifecycle reporting ◦ Atrium CMDB integration Dashboards and Reporting ◦ Search for anything in the data store ◦ Powerful analytics ◦ Dependency visualizations ◦ Custom reporting ◦ “Deep Dive” navigation What is BMC Discovery?

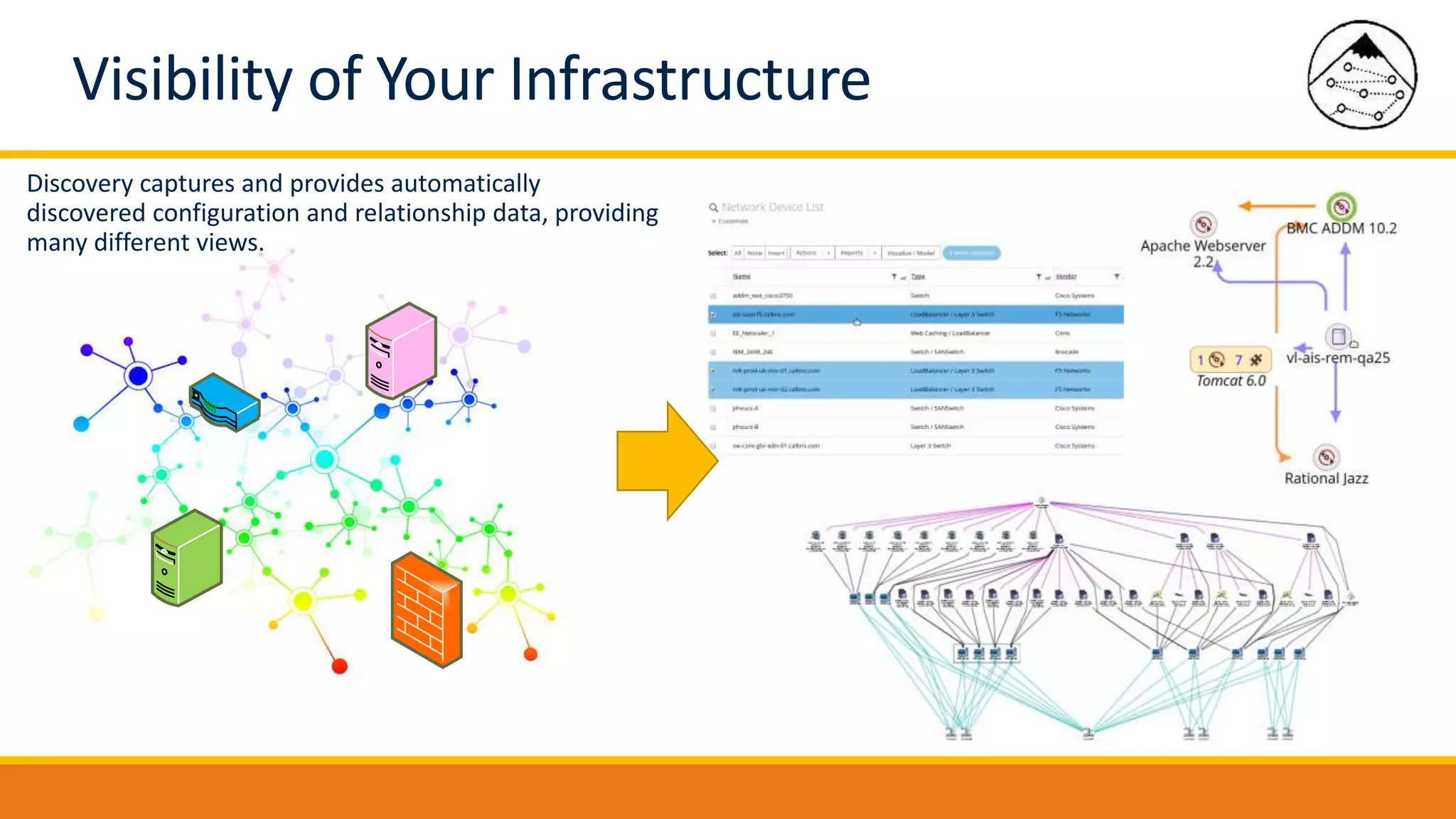

- 5. Visibility of YourInfrastructure Discovery captures and provides automatically discovered configuration and relationship data, providing many different views.
- 6.

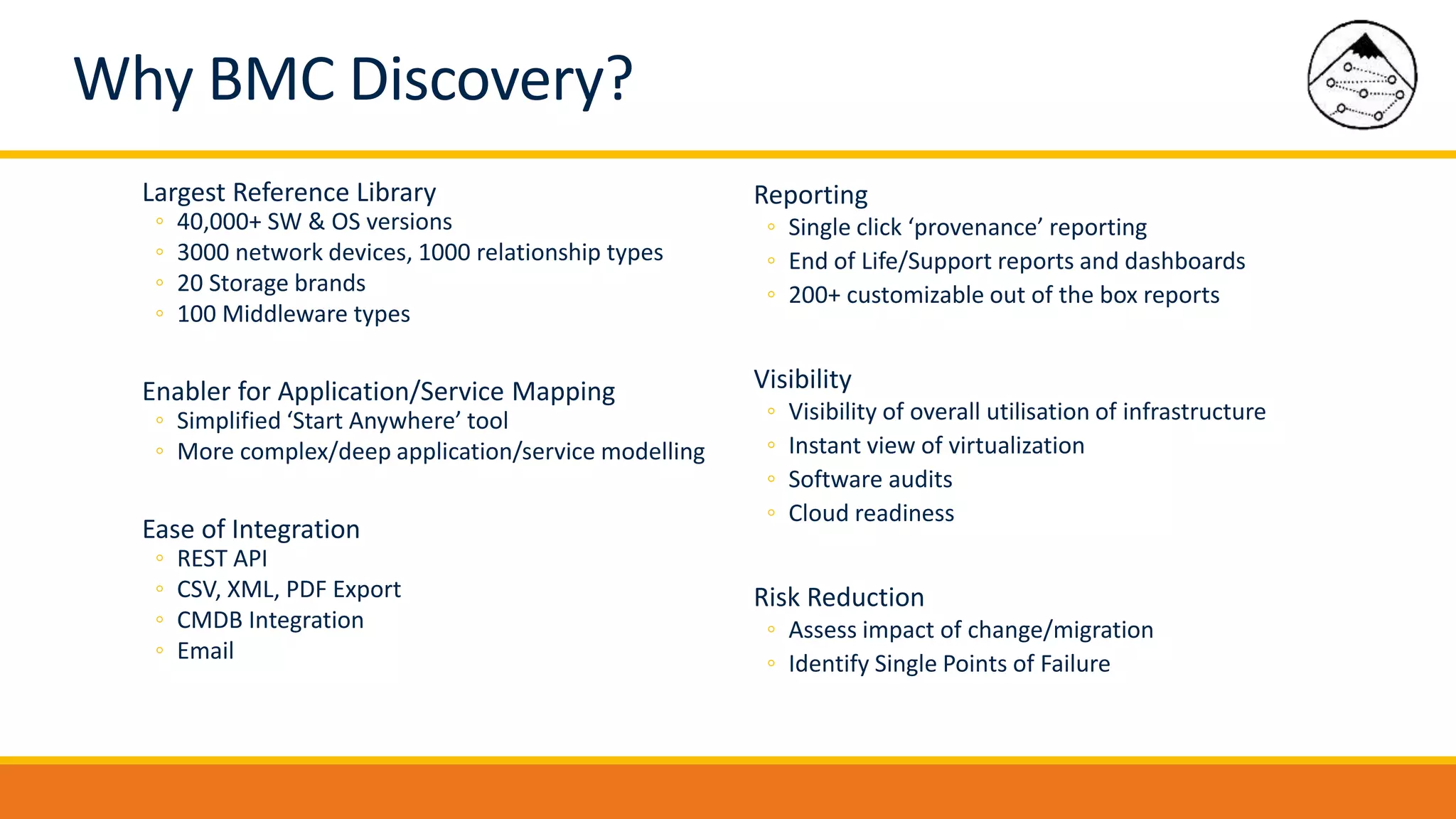

- 7. Largest Reference Library ◦40,000+ SW & OS versions ◦ 3000 network devices, 1000 relationship types ◦ 20 Storage brands ◦ 100 Middleware types Enabler for Application/Service Mapping ◦ Simplified ‘Start Anywhere’ tool ◦ More complex/deep application/service modelling Ease of Integration ◦ REST API ◦ CSV, XML, PDF Export ◦ CMDB Integration ◦ Email Reporting ◦ Single click ‘provenance’ reporting ◦ End of Life/Support reports and dashboards ◦ 200+ customizable out of the box reports Visibility ◦ Visibility of overall utilisation of infrastructure ◦ Instant view of virtualization ◦ Software audits ◦ Cloud readiness Risk Reduction ◦ Assess impact of change/migration ◦ Identify Single Points of Failure Why BMC Discovery?

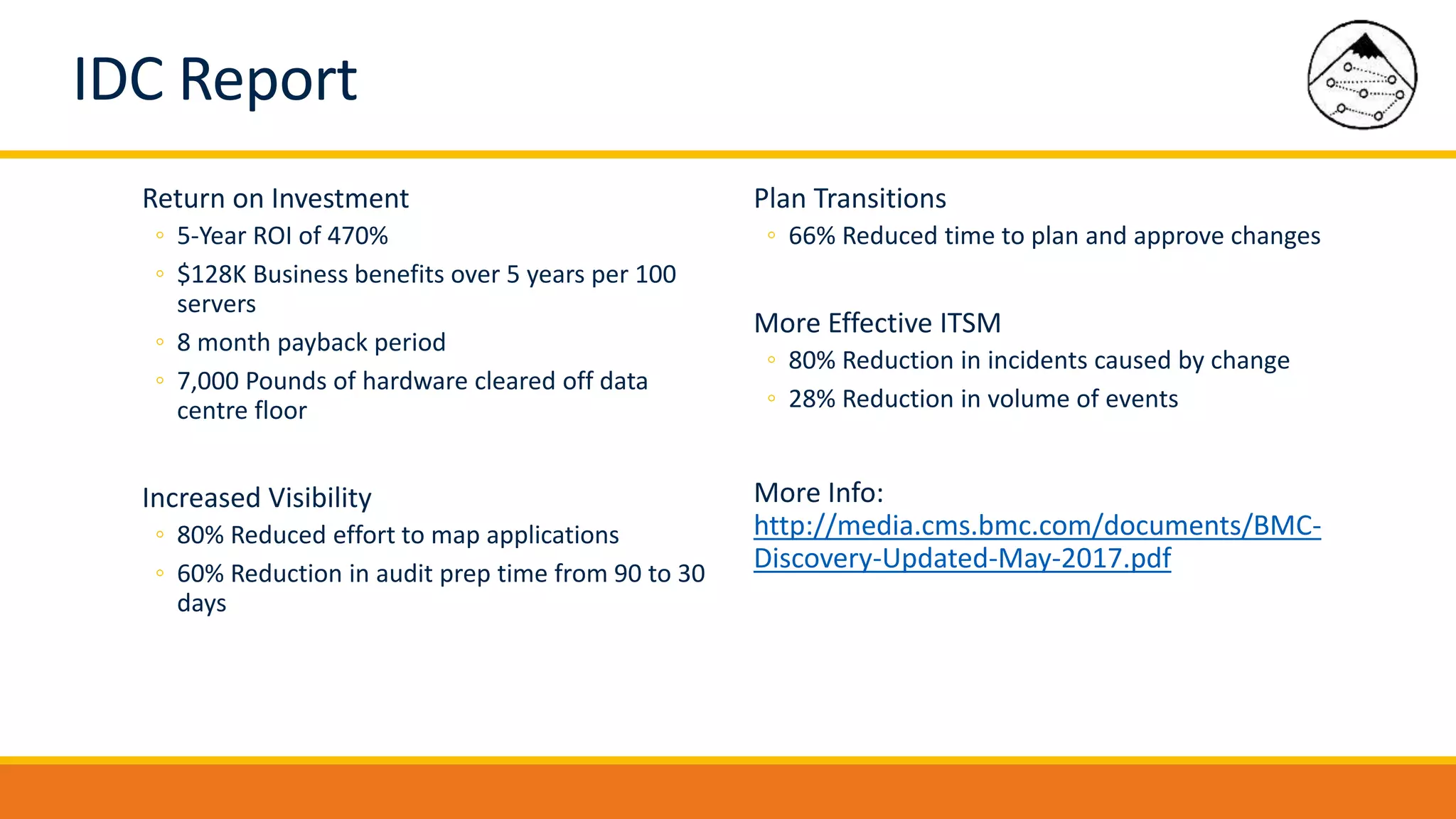

- 8. Return on Investment ◦5-Year ROI of 470% ◦ $128K Business benefits over 5 years per 100 servers ◦ 8 month payback period ◦ 7,000 Pounds of hardware cleared off data centre floor Increased Visibility ◦ 80% Reduced effort to map applications ◦ 60% Reduction in audit prep time from 90 to 30 days Plan Transitions ◦ 66% Reduced time to plan and approve changes More Effective ITSM ◦ 80% Reduction in incidents caused by change ◦ 28% Reduction in volume of events More Info: http://media.cms.bmc.com/documents/BMC- Discovery-Updated-May-2017.pdf IDC Report

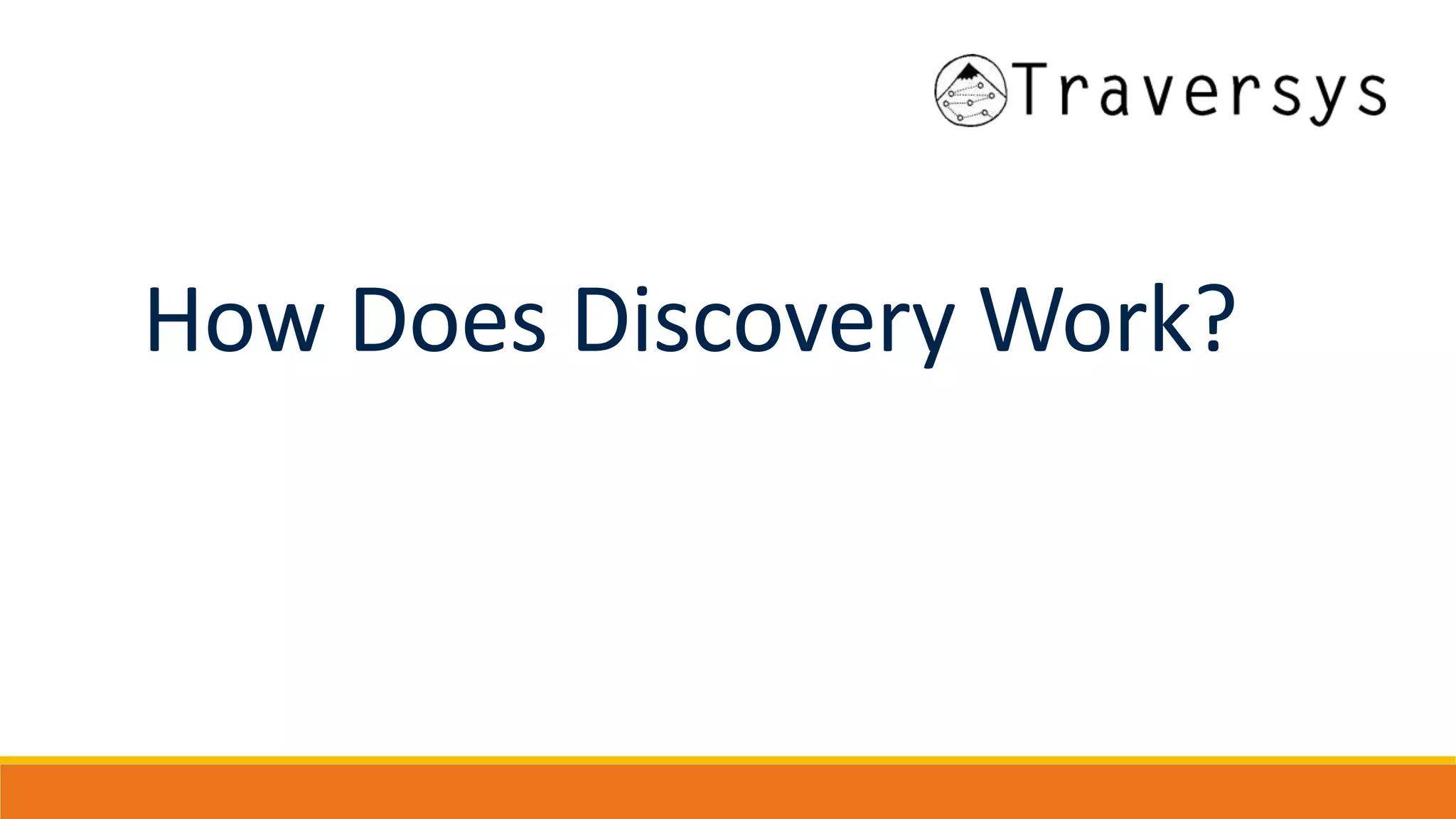

- 9. How Does DiscoveryWork?

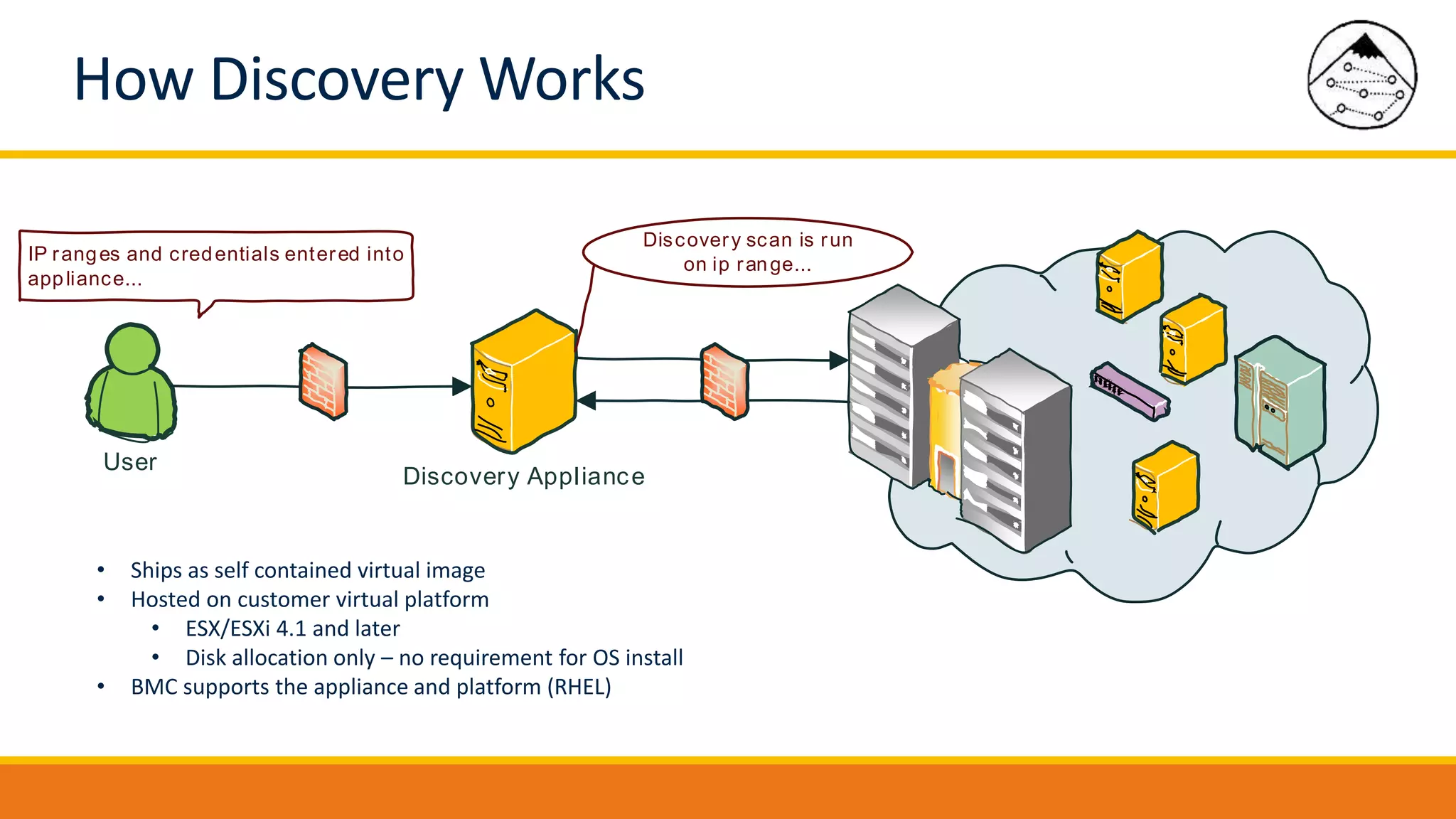

- 10. How Discovery Works User DiscoveryAppliance Discovery scan is run on ip range... IP ranges and credentials entered into appliance... • Ships as self contained virtual image • Hosted on customer virtual platform • ESX/ESXi 4.1 and later • Disk allocation only – no requirement for OS install • BMC supports the appliance and platform (RHEL)

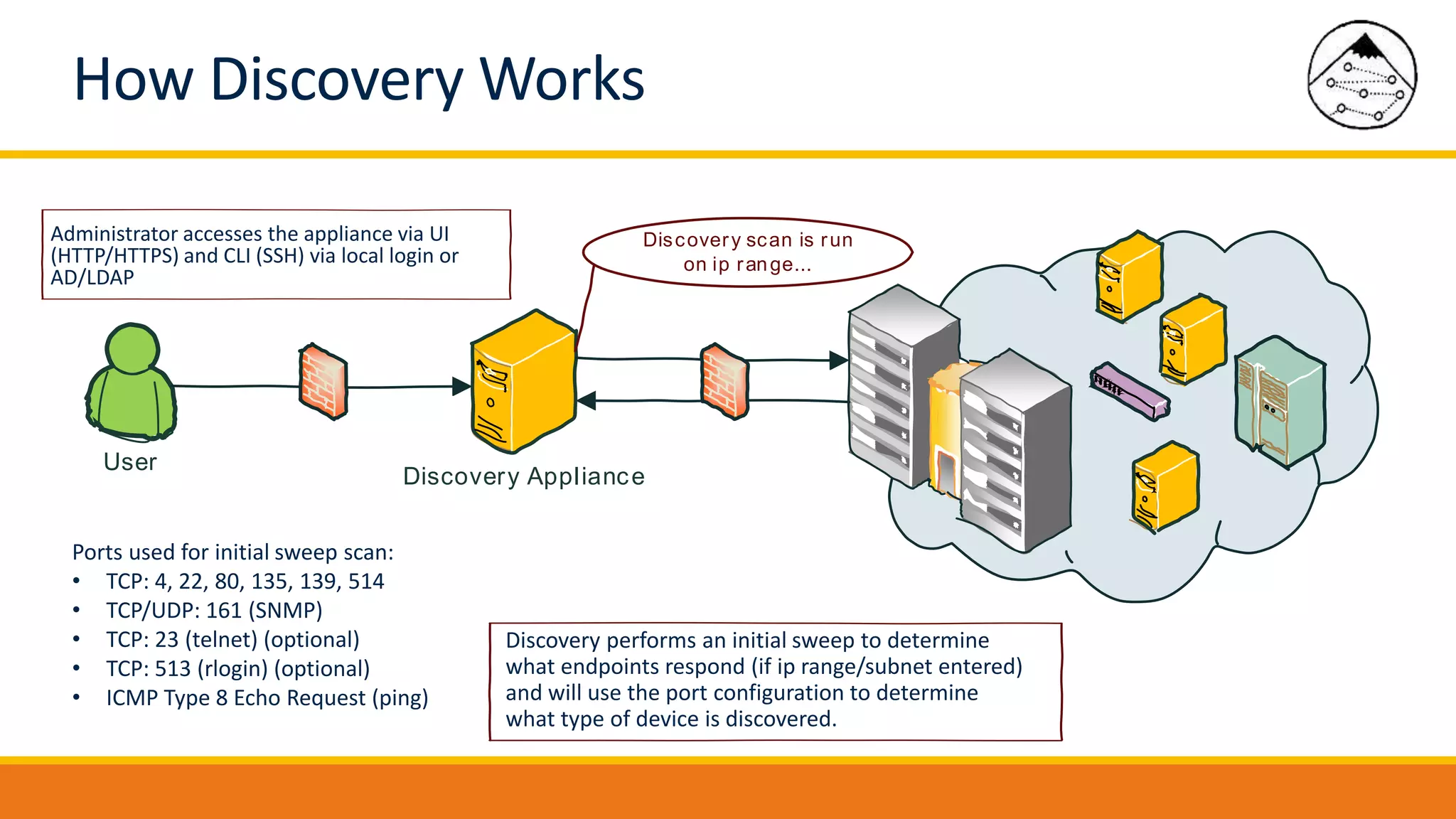

- 11. User Discovery Appliance Discovery scanis run on ip range... How Discovery Works Administrator accesses the appliance via UI (HTTP/HTTPS) and CLI (SSH) via local login or AD/LDAP Ports used for initial sweep scan: • TCP: 4, 22, 80, 135, 139, 514 • TCP/UDP: 161 (SNMP) • TCP: 23 (telnet) (optional) • TCP: 513 (rlogin) (optional) • ICMP Type 8 Echo Request (ping) Discovery performs an initial sweep to determine what endpoints respond (if ip range/subnet entered) and will use the port configuration to determine what type of device is discovered.

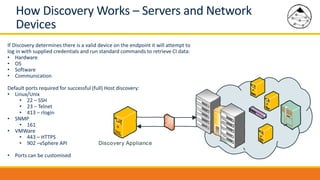

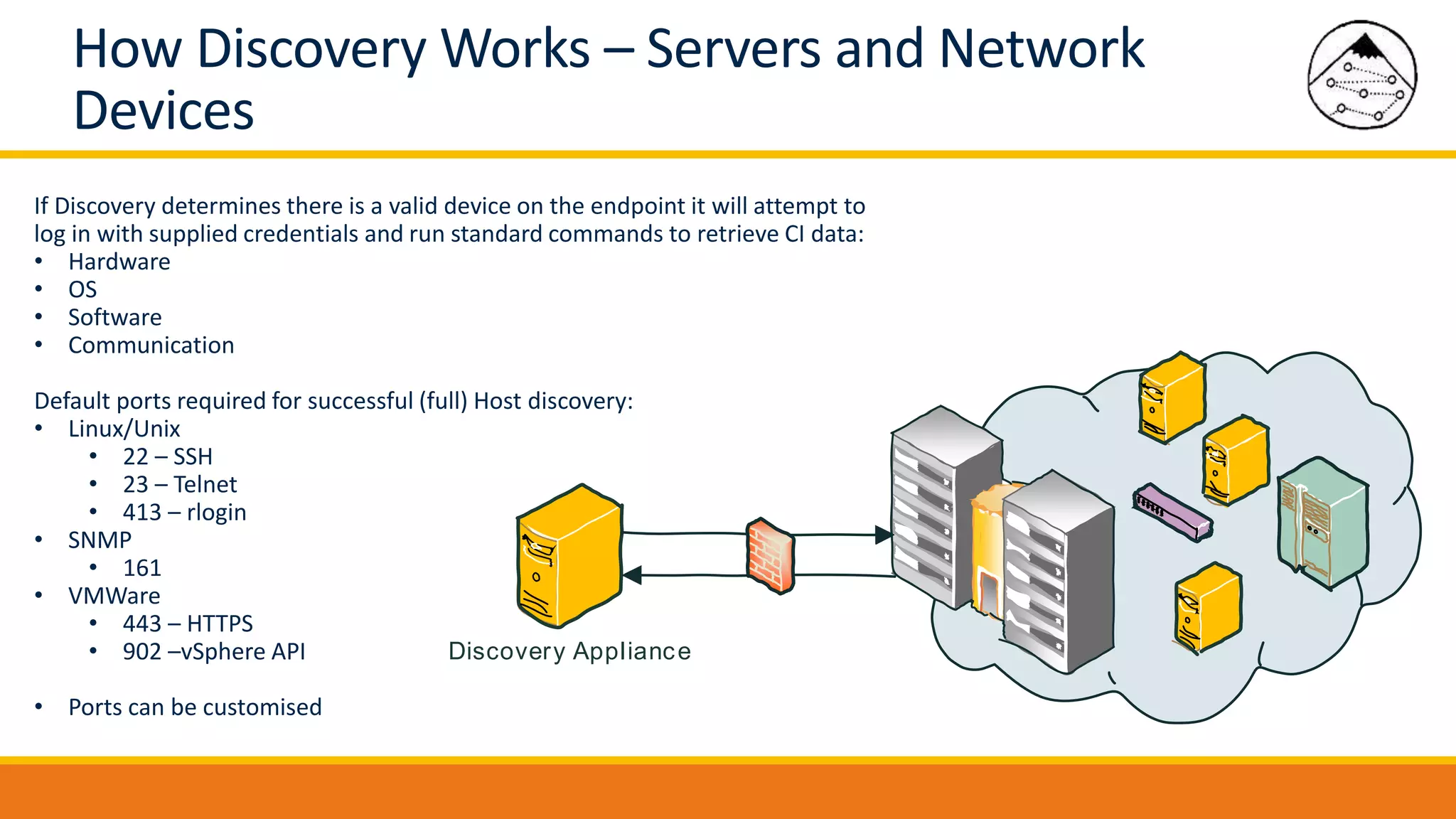

- 12. How Discovery Works– Servers and Network Devices If Discovery determines there is a valid device on the endpoint it will attempt to log in with supplied credentials and run standard commands to retrieve CI data: • Hardware • OS • Software • Communication Default ports required for successful (full) Host discovery: • Linux/Unix • 22 – SSH • 23 – Telnet • 413 – rlogin • SNMP • 161 • VMWare • 443 – HTTPS • 902 –vSphere API • Ports can be customised Discovery Appliance

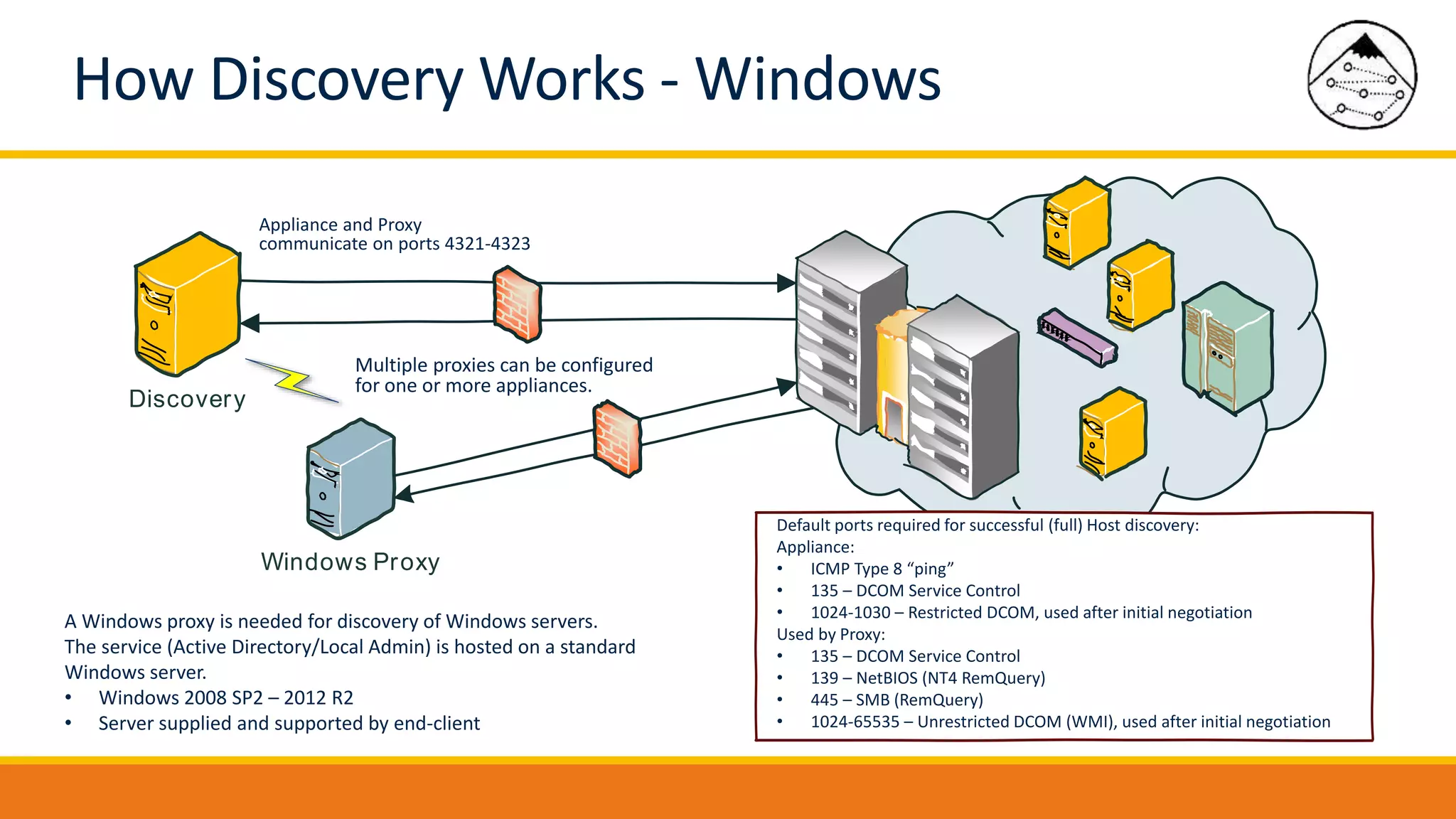

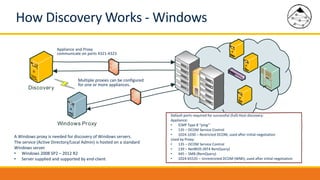

- 13. Discovery Windows Proxy How DiscoveryWorks - Windows Default ports required for successful (full) Host discovery: Appliance: • ICMP Type 8 “ping” • 135 – DCOM Service Control • 1024-1030 – Restricted DCOM, used after initial negotiation Used by Proxy: • 135 – DCOM Service Control • 139 – NetBIOS (NT4 RemQuery) • 445 – SMB (RemQuery) • 1024-65535 – Unrestricted DCOM (WMI), used after initial negotiation A Windows proxy is needed for discovery of Windows servers. The service (Active Directory/Local Admin) is hosted on a standard Windows server. • Windows 2008 SP2 – 2012 R2 • Server supplied and supported by end-client Multiple proxies can be configured for one or more appliances. Appliance and Proxy communicate on ports 4321-4323

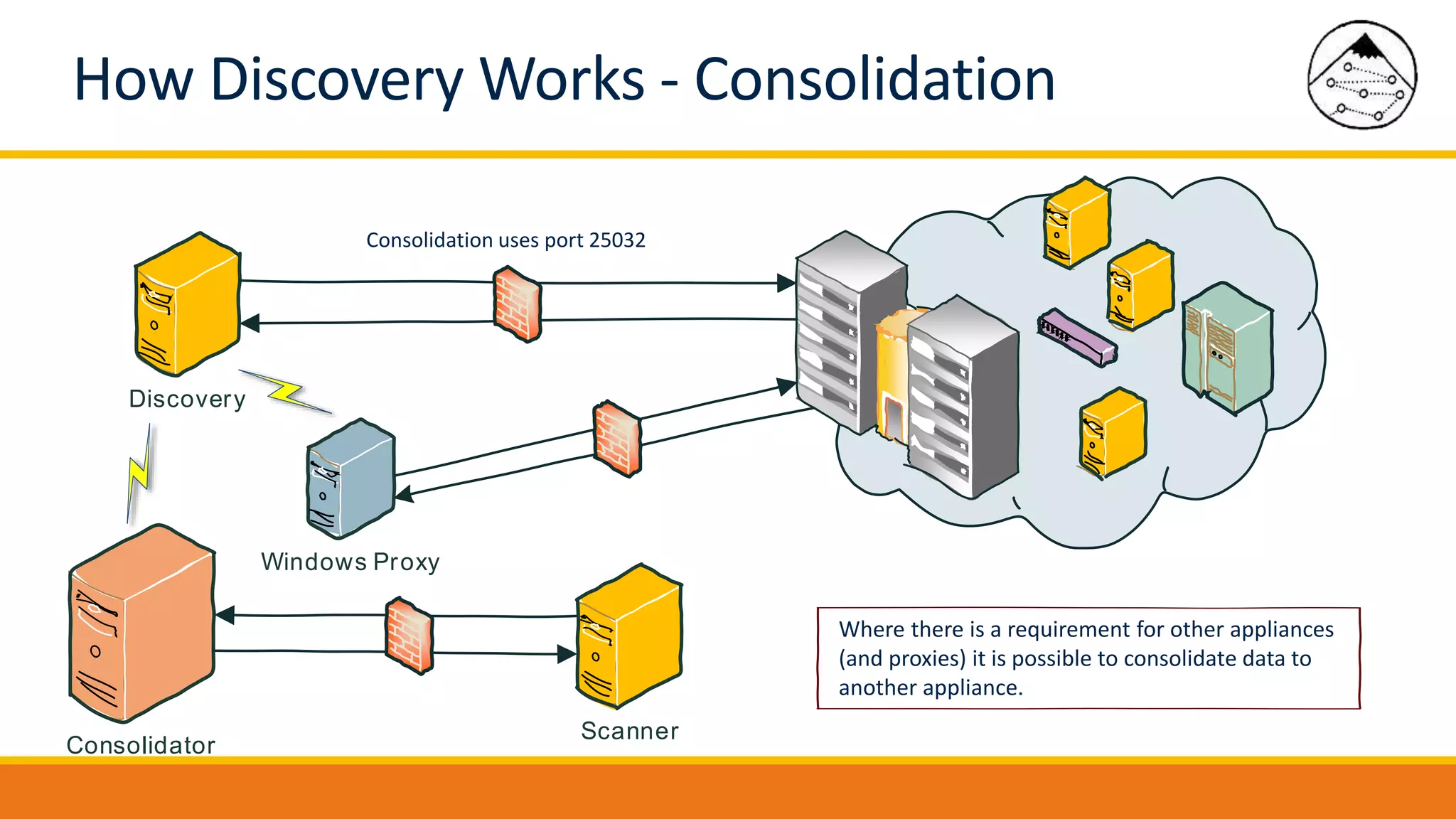

- 14. Discovery Windows Proxy How DiscoveryWorks - Consolidation Where there is a requirement for other appliances (and proxies) it is possible to consolidate data to another appliance. Consolidation uses port 25032 Consolidator Scanner

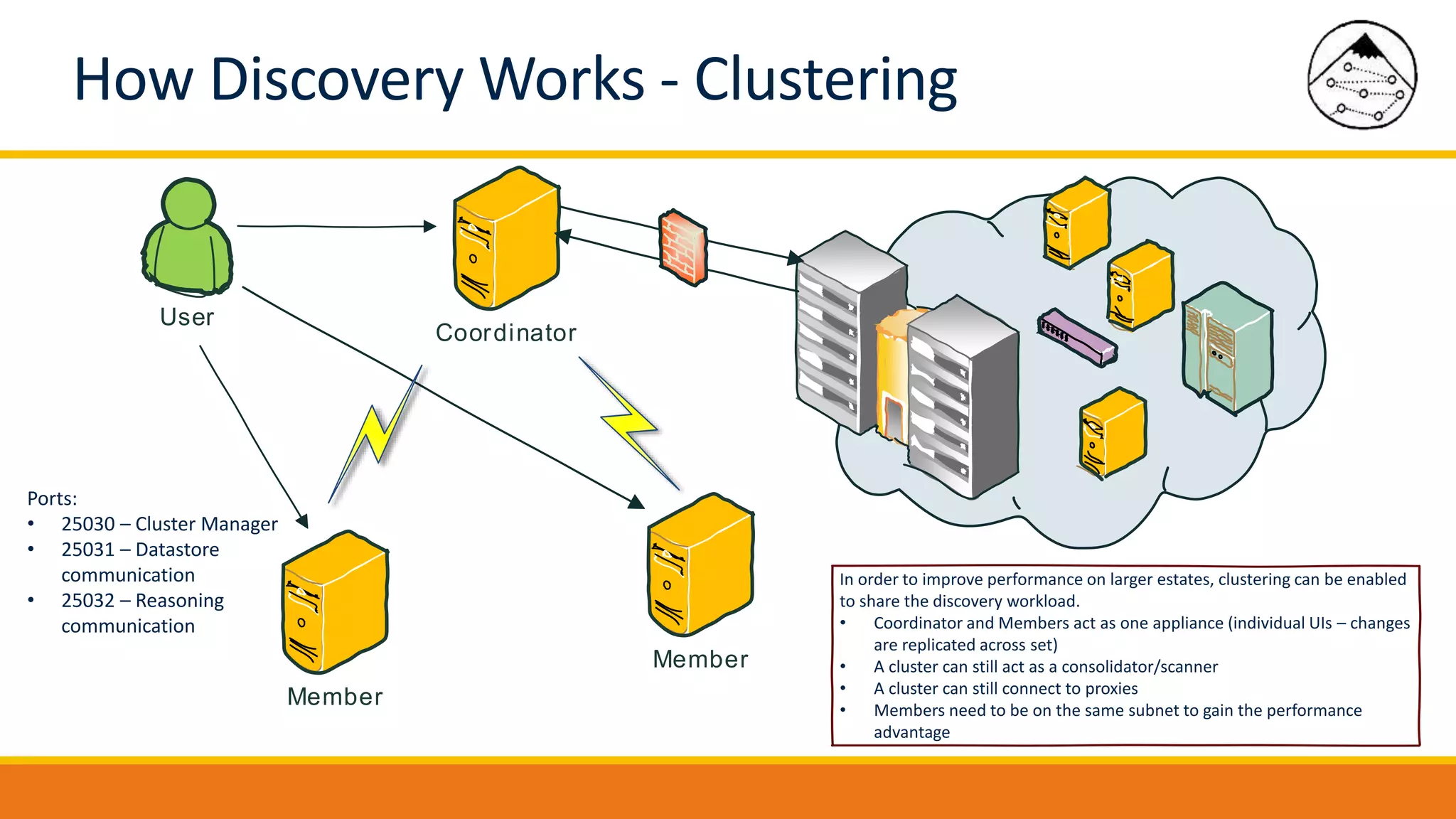

- 15. How Discovery Works- Clustering In order to improve performance on larger estates, clustering can be enabled to share the discovery workload. • Coordinator and Members act as one appliance (individual UIs – changes are replicated across set) • A cluster can still act as a consolidator/scanner • A cluster can still connect to proxies • Members need to be on the same subnet to gain the performance advantage User Coordinator Member Member Ports: • 25030 – Cluster Manager • 25031 – Datastore communication • 25032 – Reasoning communication

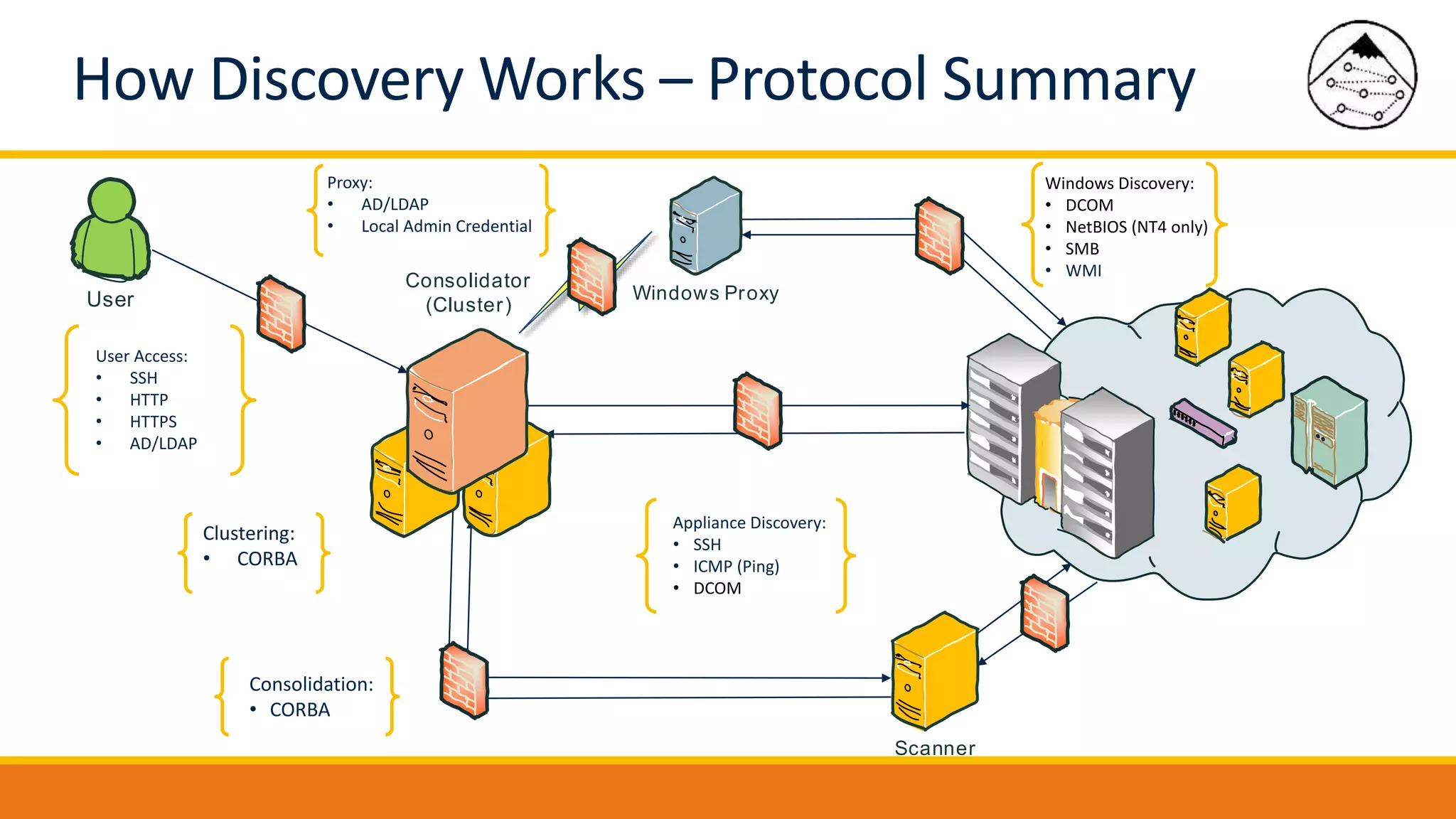

- 16. How Discovery Works– Protocol Summary Scanner Consolidator (Cluster)User Windows Proxy Appliance Discovery: • SSH • ICMP (Ping) • DCOM Consolidation: • CORBA Clustering: • CORBA User Access: • SSH • HTTP • HTTPS • AD/LDAP Proxy: • AD/LDAP • Local Admin Credential Windows Discovery: • DCOM • NetBIOS (NT4 only) • SMB • WMI

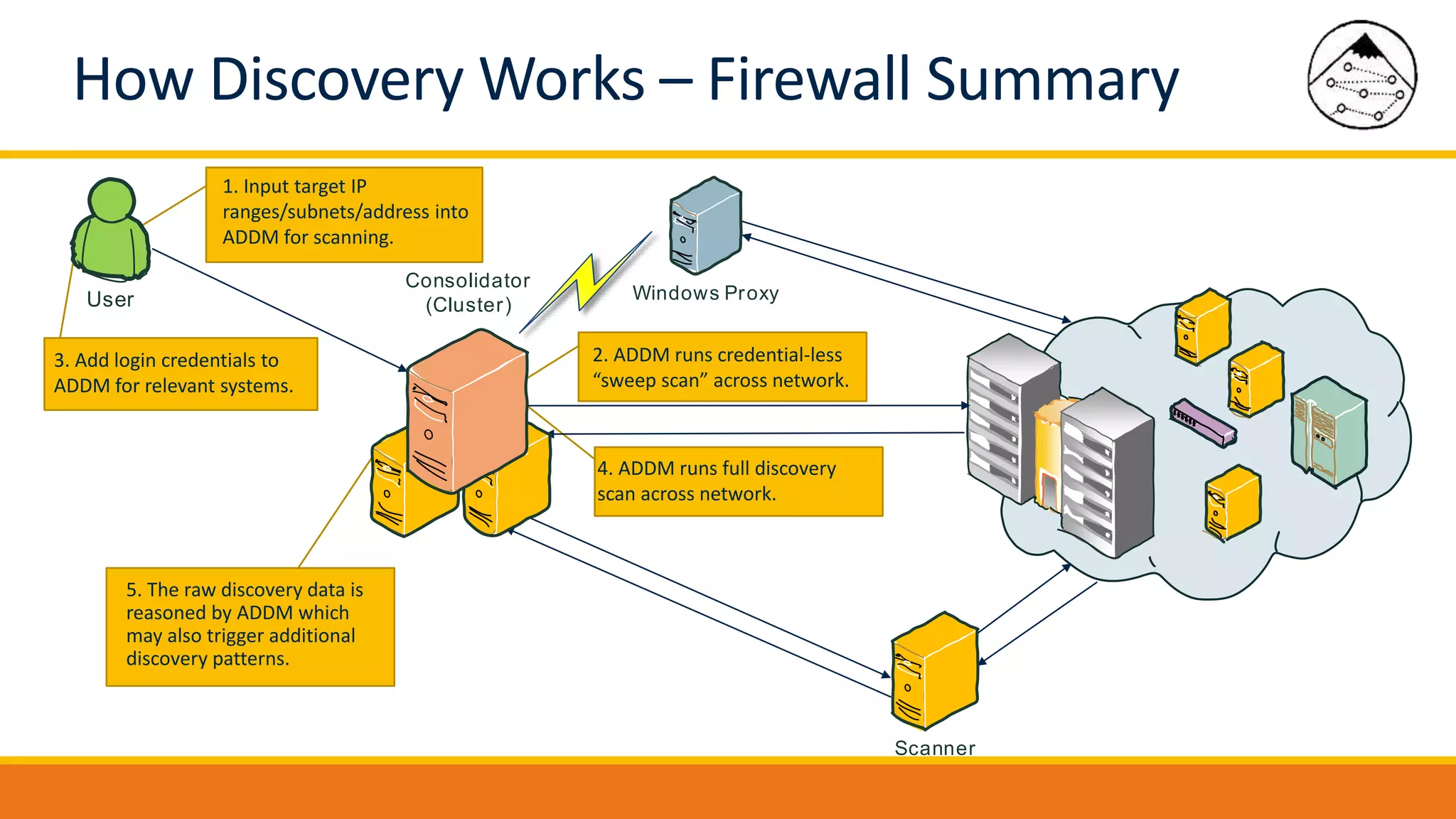

- 17. How Discovery Works– Firewall Summary Scanner Consolidator (Cluster)User Windows Proxy 1. Input target IP ranges/subnets/address into ADDM for scanning. 2. ADDM runs credential-less “sweep scan” across network. 3. Add login credentials to ADDM for relevant systems. 5. The raw discovery data is reasoned by ADDM which may also trigger additional discovery patterns. 4. ADDM runs full discovery scan across network.
- 18.

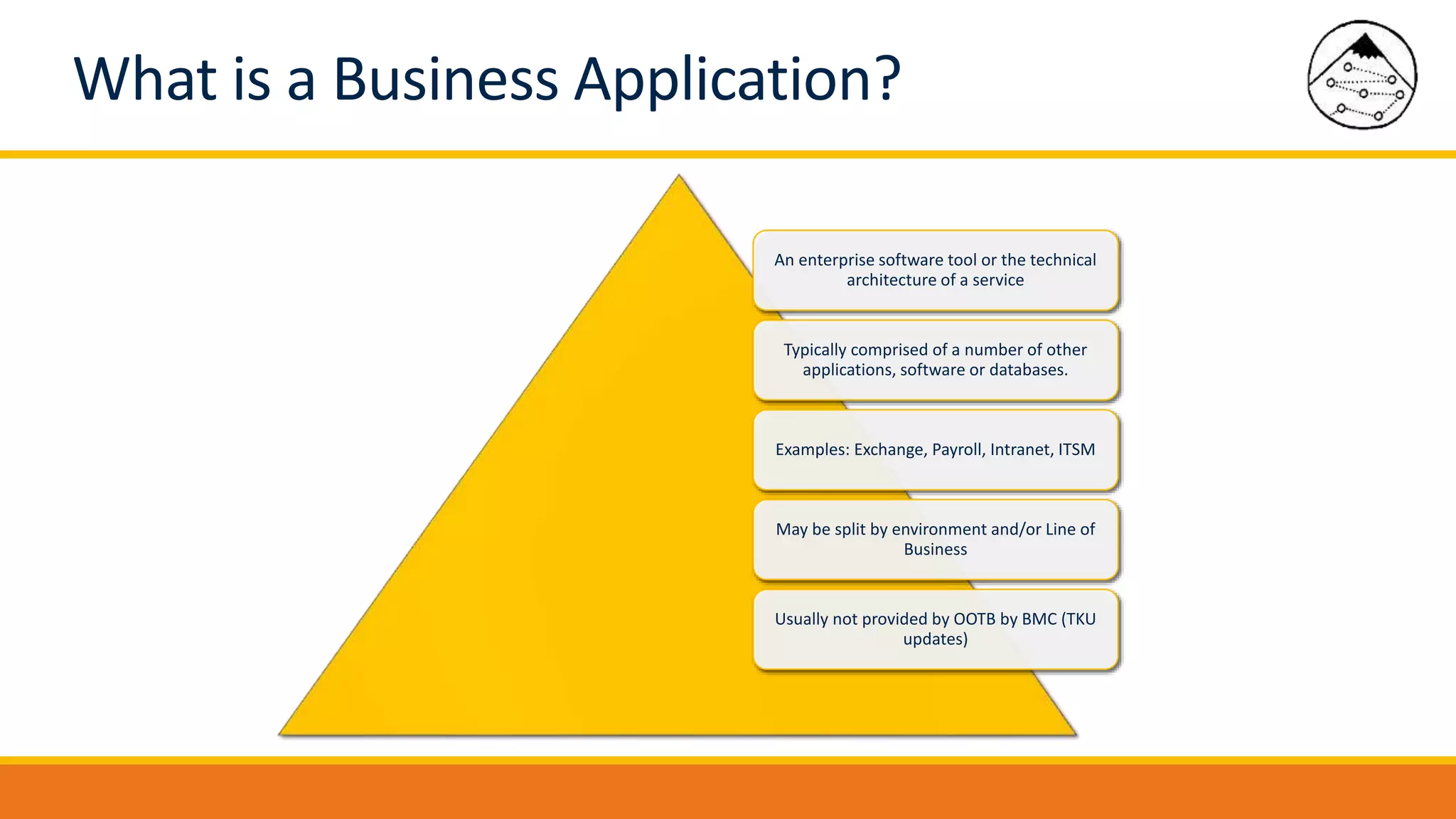

- 19. What is aBusiness Application? An enterprise software tool or the technical architecture of a service Typically comprised of a number of other applications, software or databases. Examples: Exchange, Payroll, Intranet, ITSM May be split by environment and/or Line of Business Usually not provided by OOTB by BMC (TKU updates)

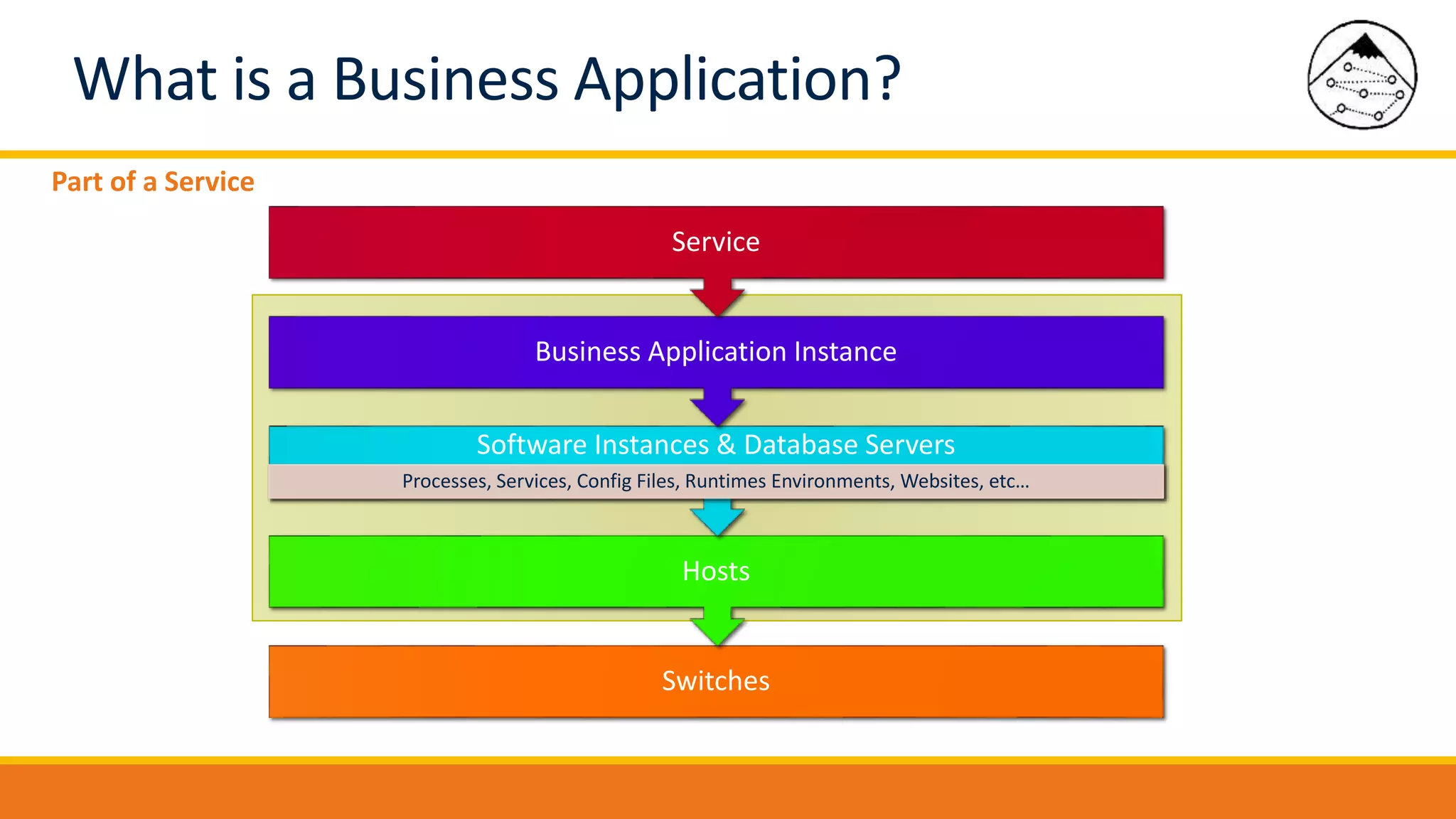

- 20. What is aBusiness Application? Part of a Service Switches Hosts Software Instances & Database Servers Processes, Services, Config Files, Runtimes Environments, Websites, etc… Business Application Instance Service

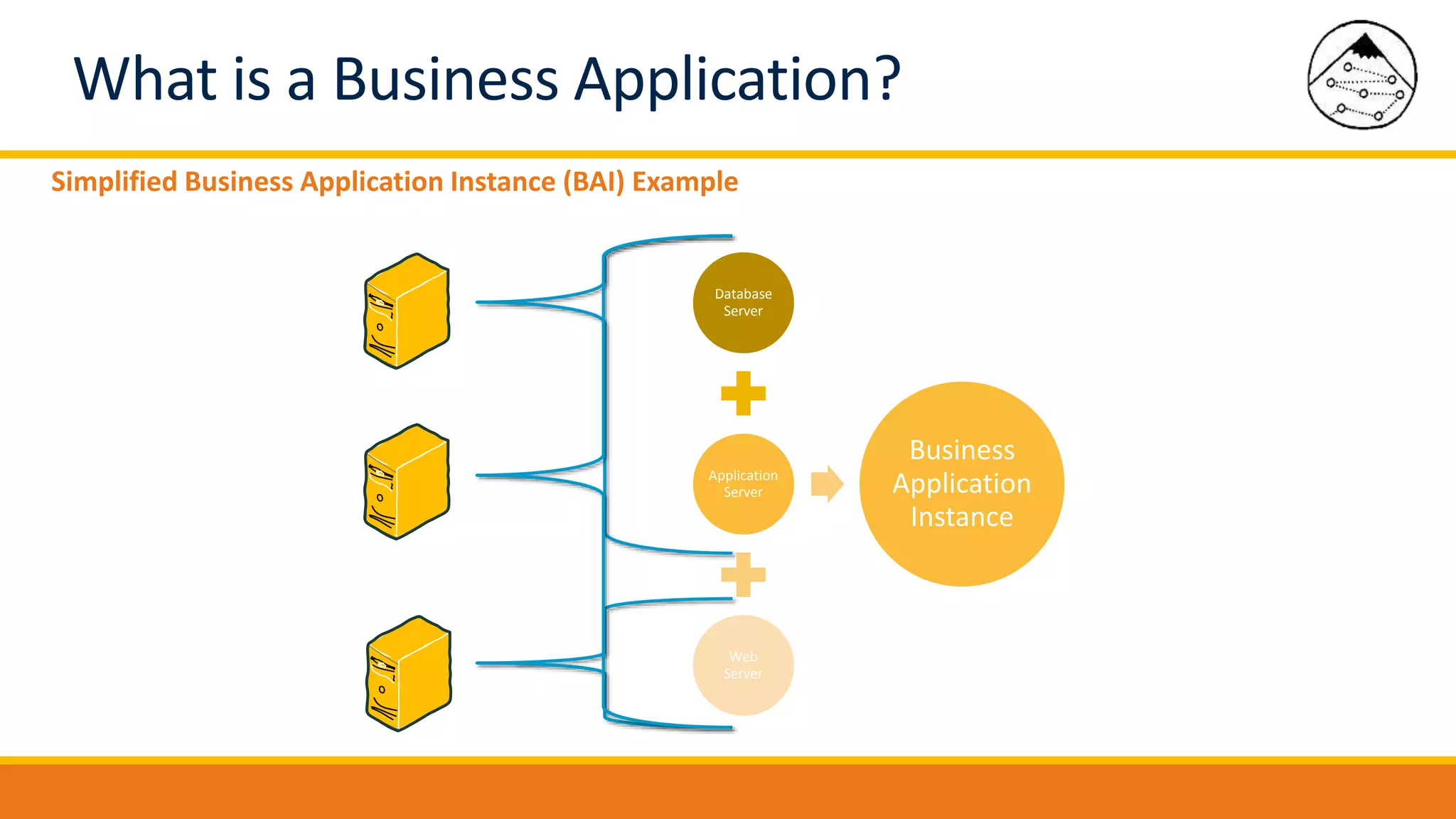

- 21. What is aBusiness Application? Database Server Application Server Web Server Business Application Instance Simplified Business Application Instance (BAI) Example

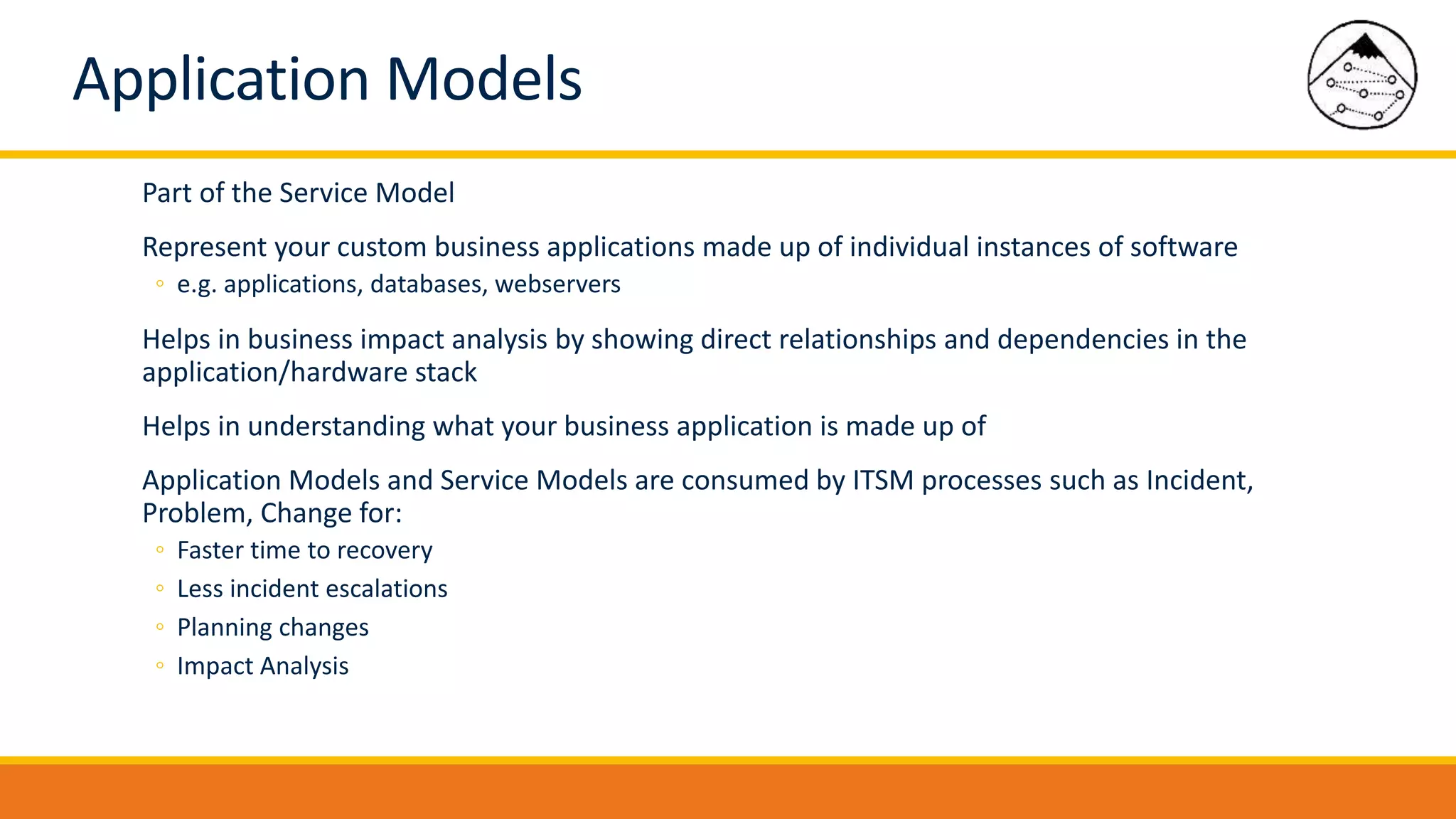

- 22. Application Models Part ofthe Service Model Represent your custom business applications made up of individual instances of software ◦ e.g. applications, databases, webservers Helps in business impact analysis by showing direct relationships and dependencies in the application/hardware stack Helps in understanding what your business application is made up of Application Models and Service Models are consumed by ITSM processes such as Incident, Problem, Change for: ◦ Faster time to recovery ◦ Less incident escalations ◦ Planning changes ◦ Impact Analysis
- 23.

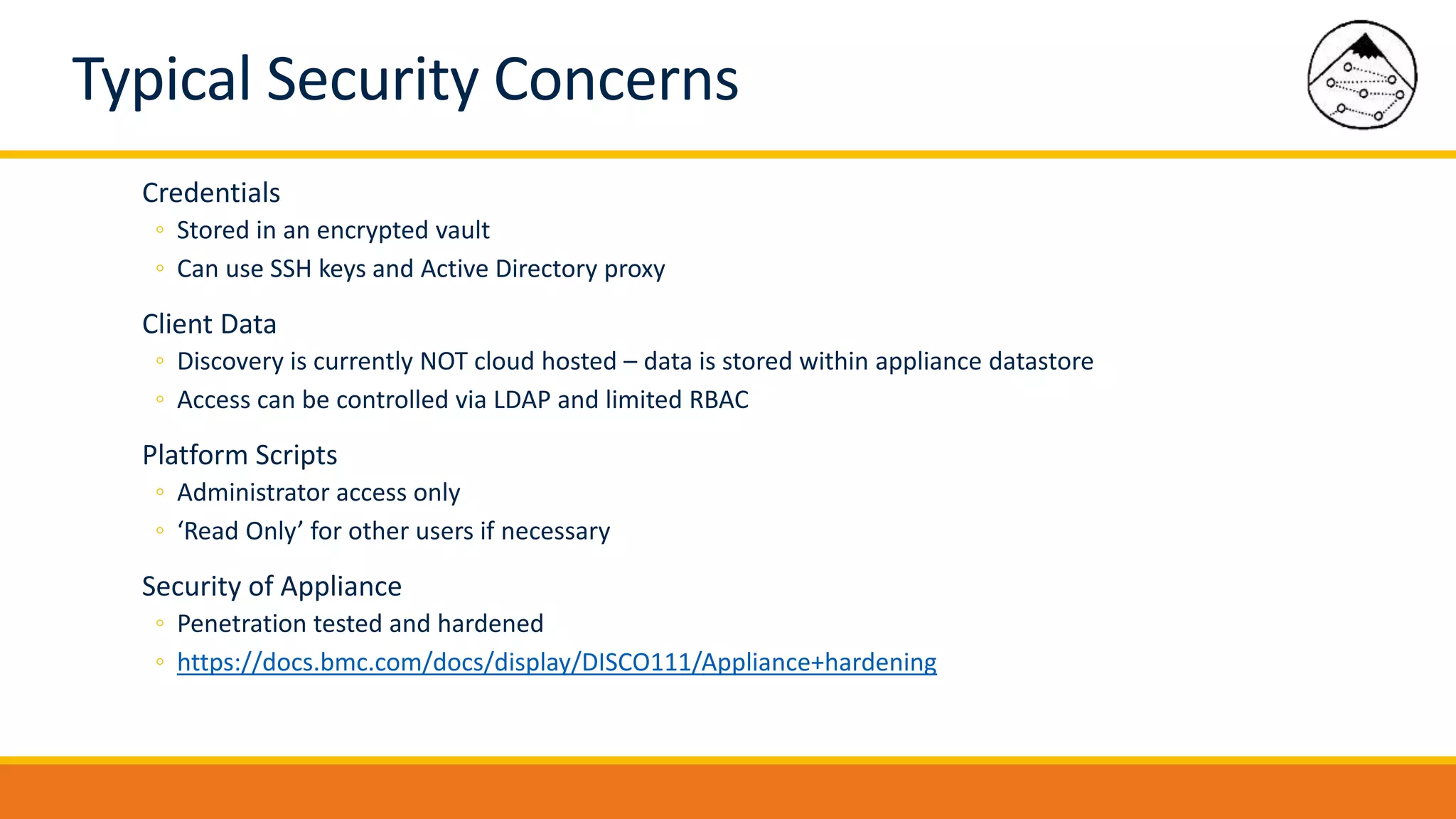

- 24. Typical Security Concerns Credentials ◦Stored in an encrypted vault ◦ Can use SSH keys and Active Directory proxy Client Data ◦ Discovery is currently NOT cloud hosted – data is stored within appliance datastore ◦ Access can be controlled via LDAP and limited RBAC Platform Scripts ◦ Administrator access only ◦ ‘Read Only’ for other users if necessary Security of Appliance ◦ Penetration tested and hardened ◦ https://docs.bmc.com/docs/display/DISCO111/Appliance+hardening

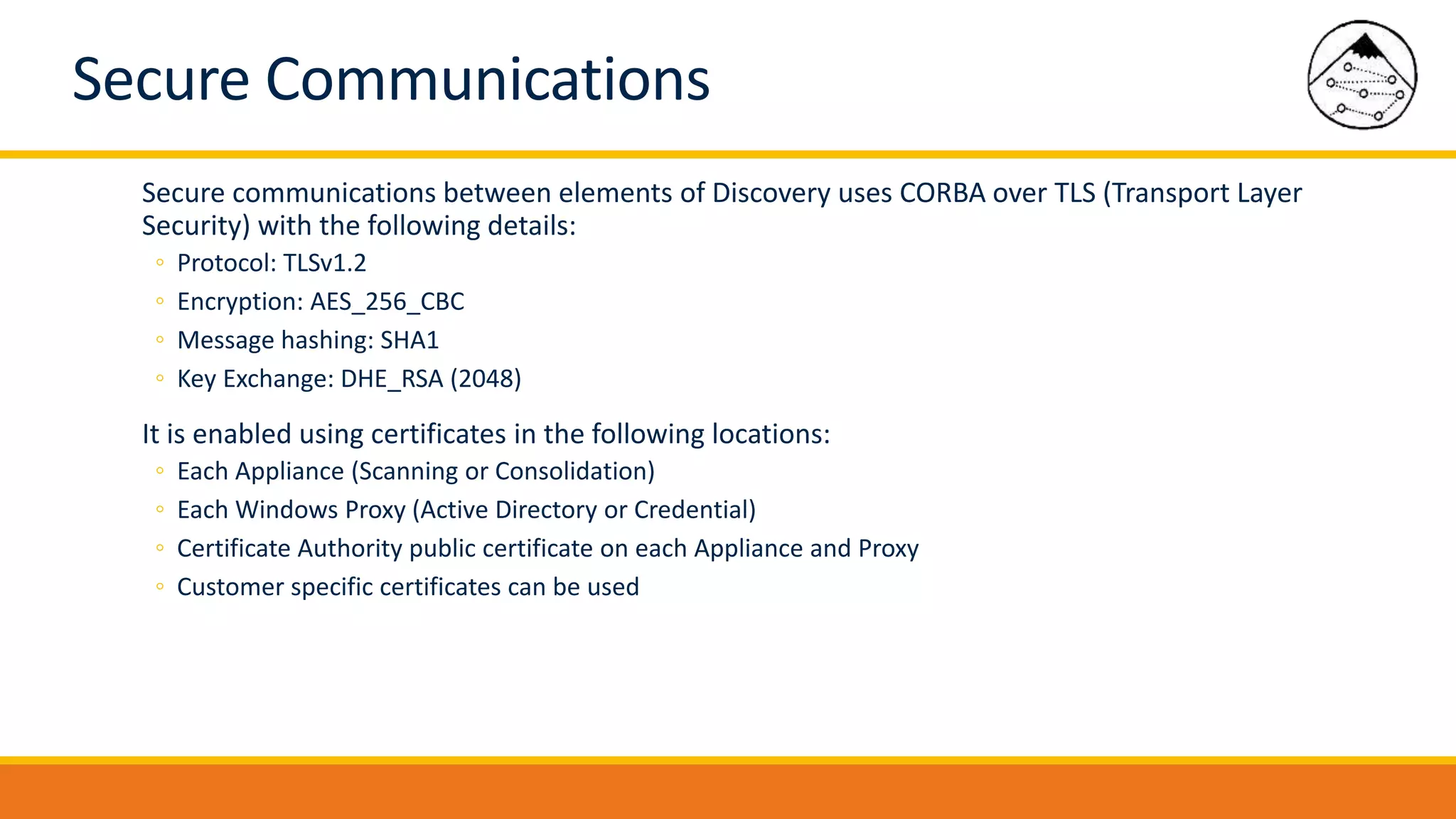

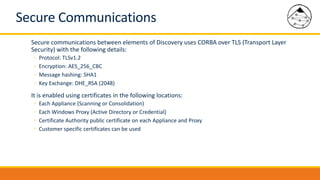

- 25. Secure Communications Secure communicationsbetween elements of Discovery uses CORBA over TLS (Transport Layer Security) with the following details: ◦ Protocol: TLSv1.2 ◦ Encryption: AES_256_CBC ◦ Message hashing: SHA1 ◦ Key Exchange: DHE_RSA (2048) It is enabled using certificates in the following locations: ◦ Each Appliance (Scanning or Consolidation) ◦ Each Windows Proxy (Active Directory or Credential) ◦ Certificate Authority public certificate on each Appliance and Proxy ◦ Customer specific certificates can be used
- 26.

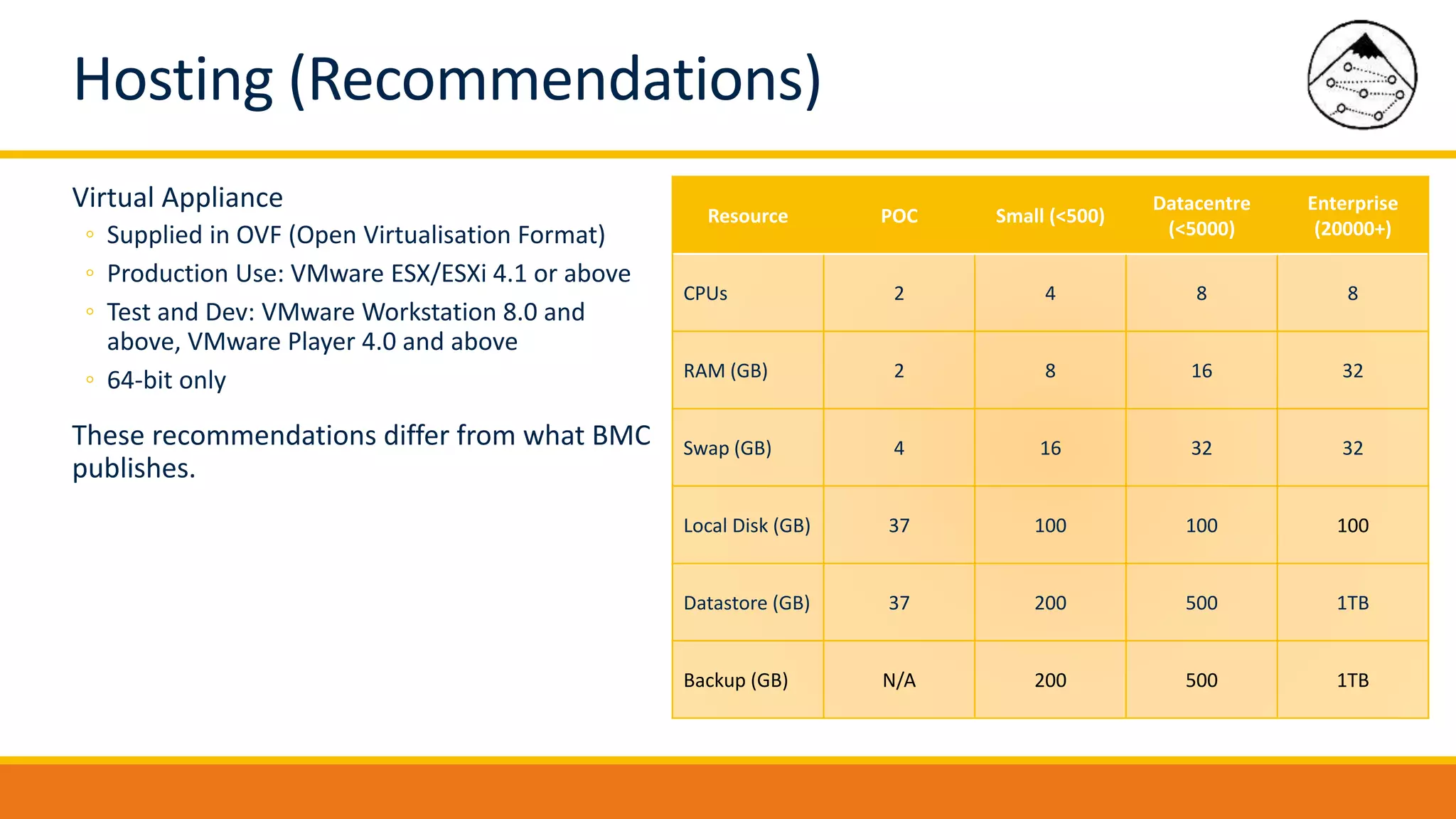

- 27. Virtual Appliance ◦ Suppliedin OVF (Open Virtualisation Format) ◦ Production Use: VMware ESX/ESXi 4.1 or above ◦ Test and Dev: VMware Workstation 8.0 and above, VMware Player 4.0 and above ◦ 64-bit only These recommendations differ from what BMC publishes. Hosting (Recommendations) Resource POC Small (<500) Datacentre (<5000) Enterprise (20000+) CPUs 2 4 8 8 RAM (GB) 2 8 16 32 Swap (GB) 4 16 32 32 Local Disk (GB) 37 100 100 100 Datastore (GB) 37 200 500 1TB Backup (GB) N/A 200 500 1TB

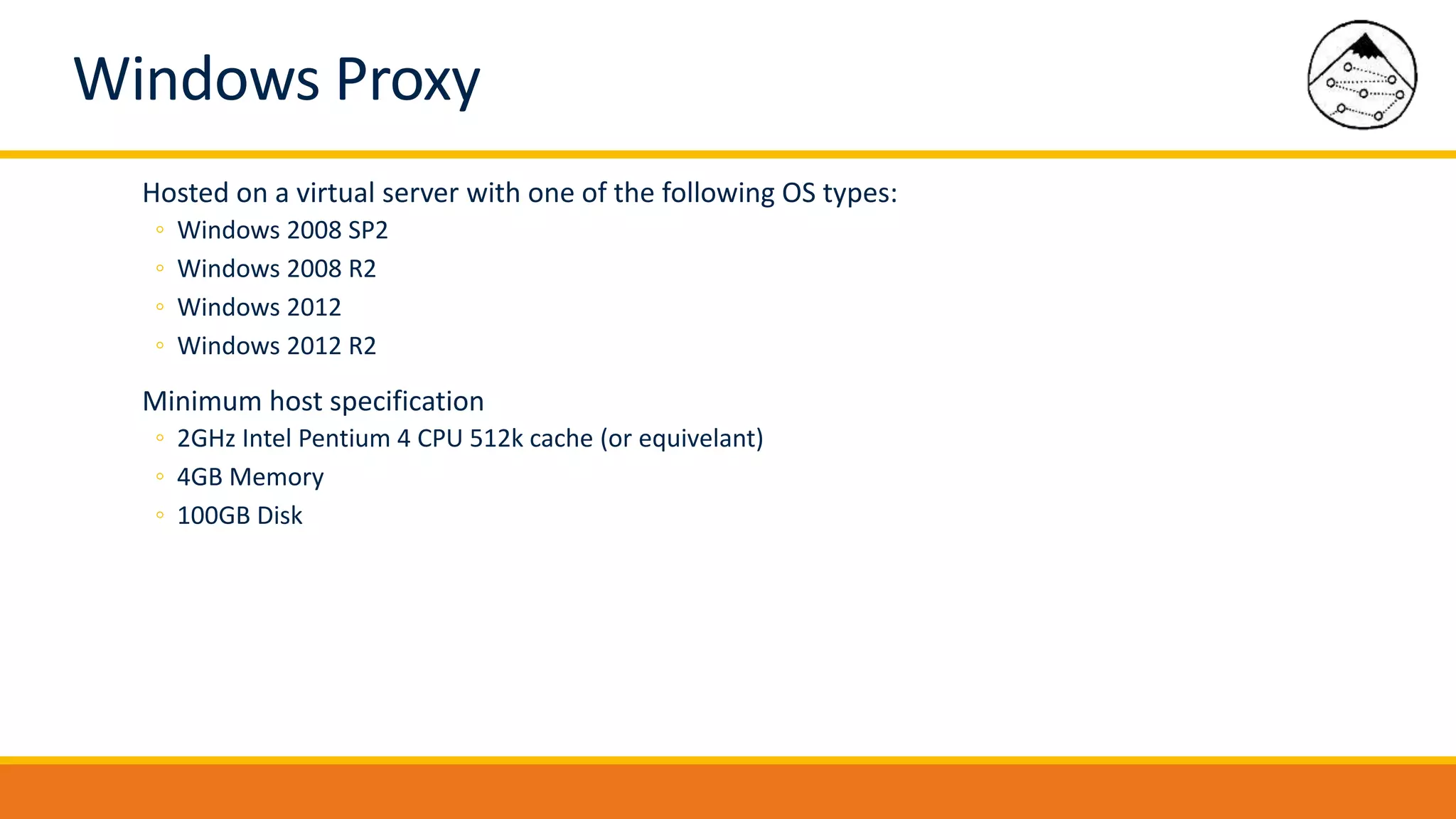

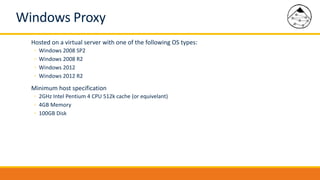

- 28. Windows Proxy Hosted ona virtual server with one of the following OS types: ◦ Windows 2008 SP2 ◦ Windows 2008 R2 ◦ Windows 2012 ◦ Windows 2012 R2 Minimum host specification ◦ 2GHz Intel Pentium 4 CPU 512k cache (or equivelant) ◦ 4GB Memory ◦ 100GB Disk

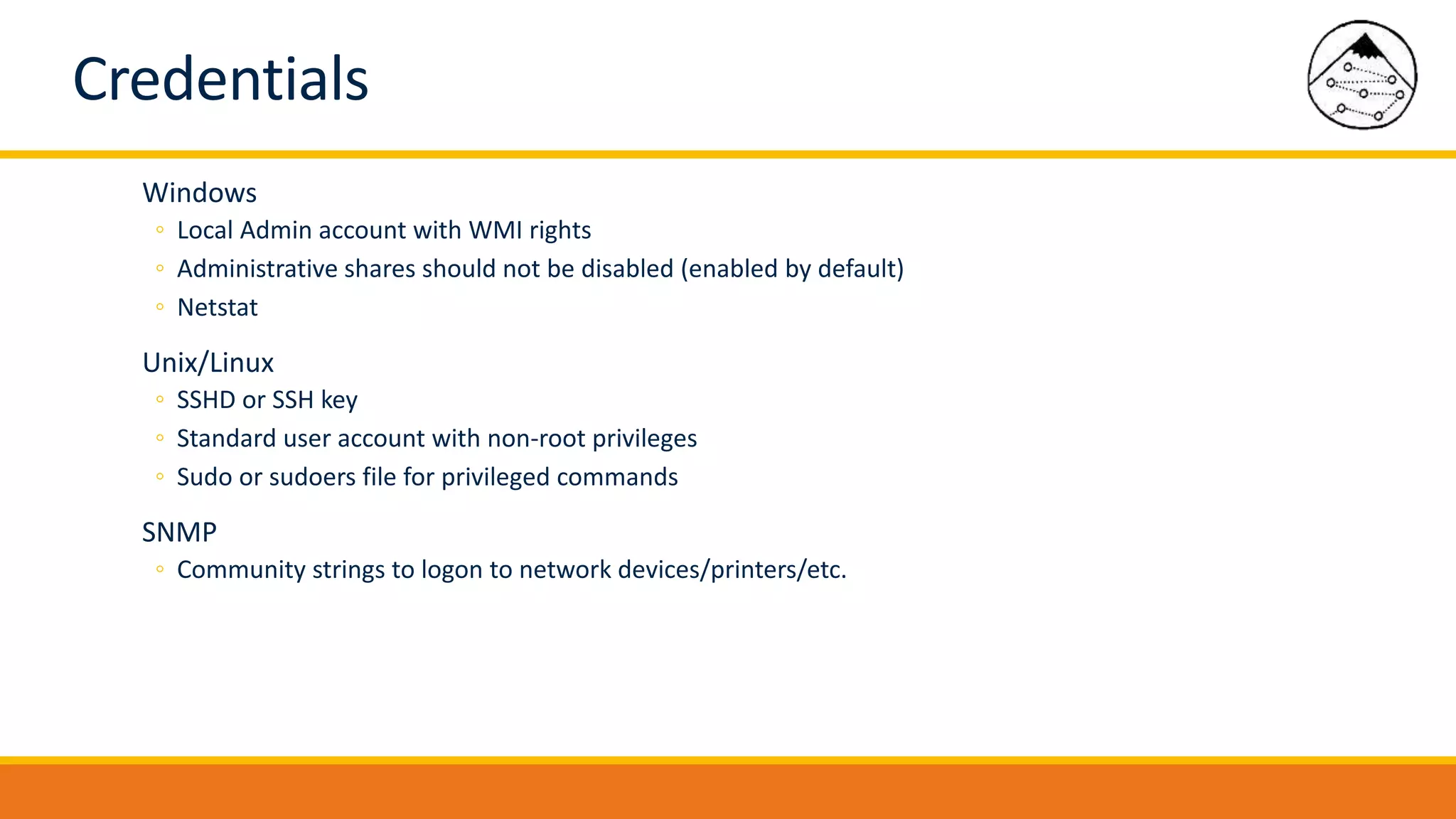

- 29. Credentials Windows ◦ Local Adminaccount with WMI rights ◦ Administrative shares should not be disabled (enabled by default) ◦ Netstat Unix/Linux ◦ SSHD or SSH key ◦ Standard user account with non-root privileges ◦ Sudo or sudoers file for privileged commands SNMP ◦ Community strings to logon to network devices/printers/etc.

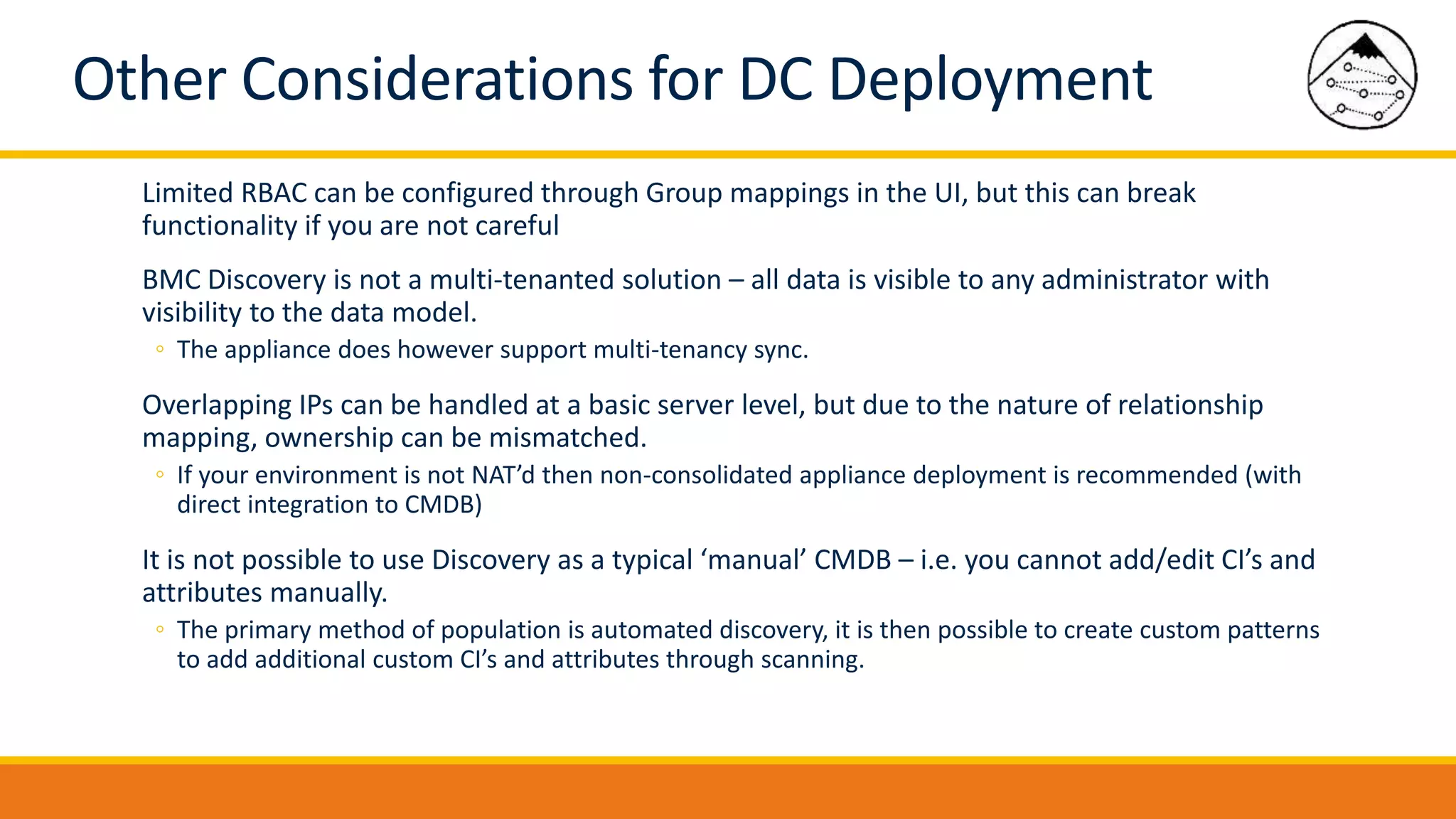

- 30. Other Considerations forDC Deployment Limited RBAC can be configured through Group mappings in the UI, but this can break functionality if you are not careful BMC Discovery is not a multi-tenanted solution – all data is visible to any administrator with visibility to the data model. ◦ The appliance does however support multi-tenancy sync. Overlapping IPs can be handled at a basic server level, but due to the nature of relationship mapping, ownership can be mismatched. ◦ If your environment is not NAT’d then non-consolidated appliance deployment is recommended (with direct integration to CMDB) It is not possible to use Discovery as a typical ‘manual’ CMDB – i.e. you cannot add/edit CI’s and attributes manually. ◦ The primary method of population is automated discovery, it is then possible to create custom patterns to add additional custom CI’s and attributes through scanning.

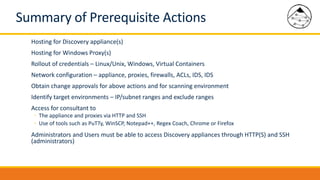

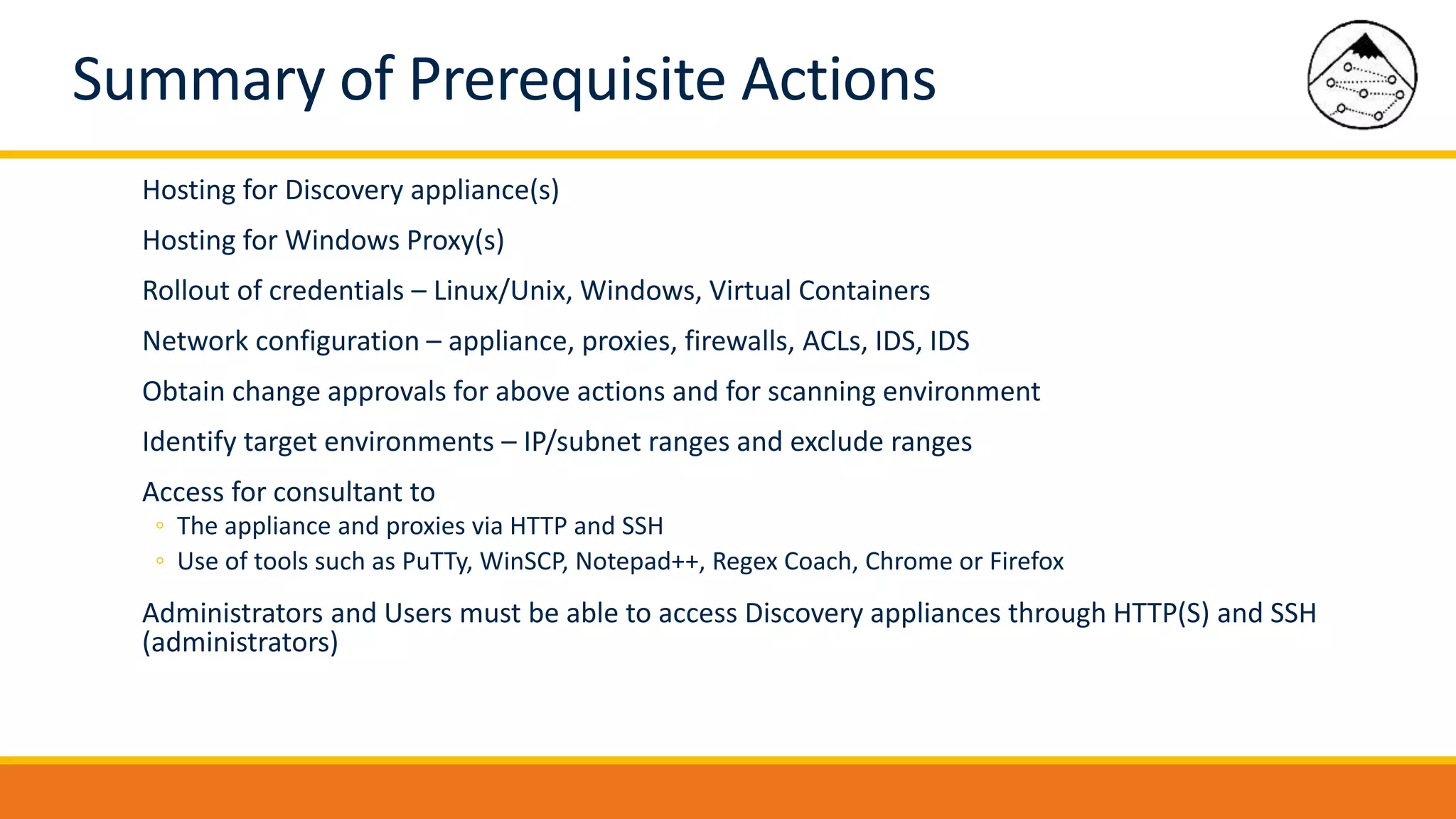

- 31. Summary of PrerequisiteActions Hosting for Discovery appliance(s) Hosting for Windows Proxy(s) Rollout of credentials – Linux/Unix, Windows, Virtual Containers Network configuration – appliance, proxies, firewalls, ACLs, IDS, IDS Obtain change approvals for above actions and for scanning environment Identify target environments – IP/subnet ranges and exclude ranges Access for consultant to ◦ The appliance and proxies via HTTP and SSH ◦ Use of tools such as PuTTy, WinSCP, Notepad++, Regex Coach, Chrome or Firefox Administrators and Users must be able to access Discovery appliances through HTTP(S) and SSH (administrators)
- 32.

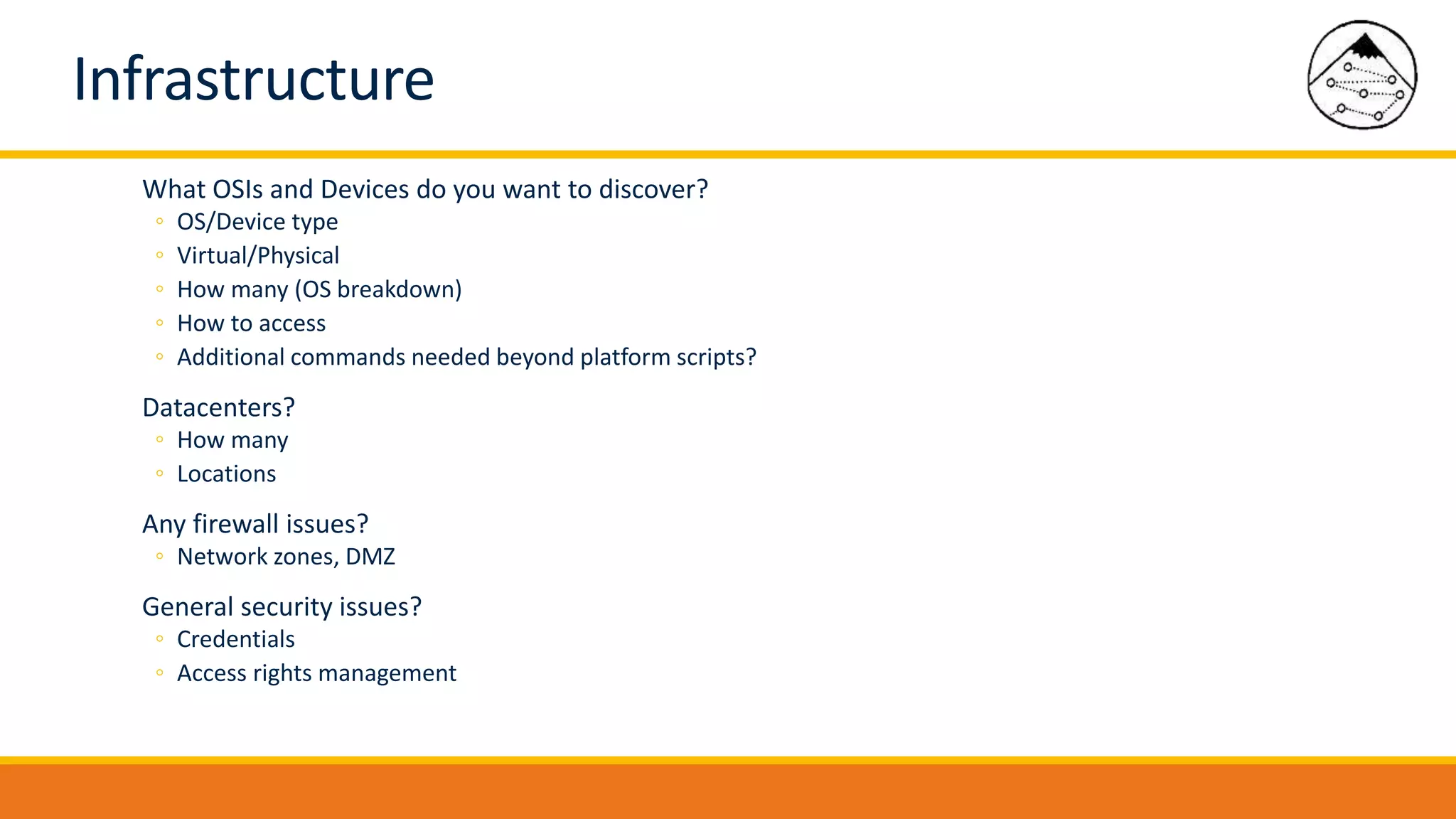

- 33. Infrastructure What OSIs andDevices do you want to discover? ◦ OS/Device type ◦ Virtual/Physical ◦ How many (OS breakdown) ◦ How to access ◦ Additional commands needed beyond platform scripts? Datacenters? ◦ How many ◦ Locations Any firewall issues? ◦ Network zones, DMZ General security issues? ◦ Credentials ◦ Access rights management
- 34.
Editor's Notes
- #13 UNIX Credentials sshd or ssh key or standard user account Public-key cryptography where "encryption and decryption using separate keys Not possible to derive the encryption key from the encryption key Appliance holds private key publice key deployed to target hosts Credentials stored in a vault Blowfish encryption Secured with a passphrase Passwords never exposed ADDM team, operators or Users Sudo used for privilege escalation Commands and arguments specified to prevent spawning any arbitrary commands
- #20 Naming convention tends to be abstract, custom names designated by the business or high-level function.
- #21 1. A service is supported by one or more Business Applications 2. A BAI depends on Software and Databases 3. Software and Databases depend on processes, services and other components running on Hosts 4. Hosts depend on switches for connectivity === This top down view in Discovery is referred to as ‘provenance’. Where a node within Discovery can be drilled down by it’s provenance to see underlying dependencies and associations. BAM only requires us to look at the Hosts, Software and Application levels.
- #22 In Discovery terminology we refer to a discovered or inferred component as an “Instance”. === This is a fairly common example, many business applications take this form, with or without a webserver, but it should not always be assumed to be the case. === In some cases these may reside on the same server. Discovery has a Database (Berkley DB), Webserver (Apache) and Application (based on Python) – but these all run from 1 virtual machine.
