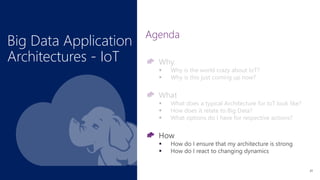

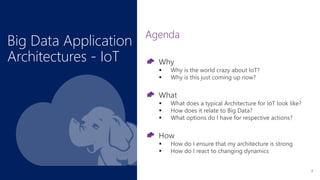

- 1. Big Data Application Architectures- IoT Nishant Thacker Technical Product Manager – Big Data Microsoft @nishantthacker
- 2.
- 3.
- 4. “Information is theoil of the 21st century, and analytics is the combustion engine.” - Peter Sondergaard - Gartner

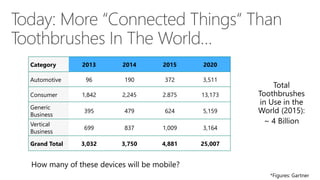

- 5. Today: More “ConnectedThings“ Than Toothbrushes In The World… Category 2013 2014 2015 2020 Automotive 96 190 372 3,511 Consumer 1,842 2,245 2.875 13,173 Generic Business 395 479 624 5,159 Vertical Business 699 837 1,009 3,164 Grand Total 3,032 3,750 4,881 25,007

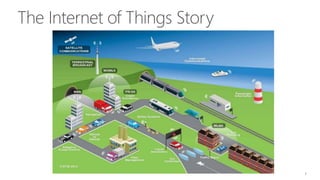

- 6. The Internet ofThings Story 3

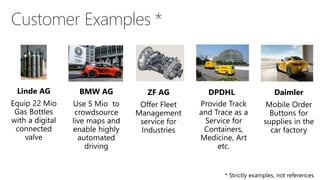

- 7.
- 9. From the $1 WiFi Module… 1 x CPU 160 MHz 80 kByte usable RAM

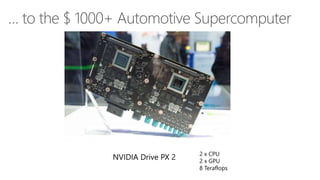

- 10. … to the$ 1000+ Automotive Supercomputer 2 x CPU 2 x GPU 8 Teraflops
- 11. Get To KnowYour Things! Device Supplier Processor Memory IOs Network OS Price* ESP8266 modules Espressif 1 x 160 MHz 128 kB RAM, 1 MB flash 12 GPIO 1 ADC, I2C, I2C WiFi 2.4 GHz n/a $ 2.5 Photon Particle.io 1 x 120 MHz 128 kB RAM, 1 MB flash 18 GPIO, 2 SPI, I2S, I2C, CAN, USB, 9 PWM, ADC, DAC WiFi 2.4 GHz n/a $ 19 Electron Particle.io 1 x 120 MHz 128 kB RAM 1 MB flash 28 GPIO 3G UMTS n/a $ 39 WiLink 8 family Texas Instruments n/a n/a n/a WiFi 2.4/5 GHz, Bluetooth 4.1 LE n/a $ 10 – 25 (industrial grade) Arduino Leonardo Arduino LLC, Arduino Sarl 1 x 16 MHz 2.5 kB RAM 32 KB flash 20 GPIO, 7 PWM, 10 ADC, USB - n/a $ 10 Raspberry Pi Zero Raspberry Pi Foundation 1 x 1 GHz 512 MB RAM micro-SD 10 GPIO, Mini HDMI, USB - Linux $ 5 Raspberry Pi 2 Raspberry Pi Foundation 4 x 900 MHz, GPU 1 GB RAM Micro-SD 40 GPIO, 1 PWM, 1 ADC, HDMI, 4 USB Ethernet Windows 10, Linux, RiscOS $ 35 Beaglebone Black Beagleboard.o rg 1 x 1 GHz 512 MB RAM, 4 GB flash 69 GPIO, 2 CAN, 10 ADC, 8 PWM, HDMI, USB Ethernet Linux $ 55 Drive PX 2 (H2/CY16) NVIDIA 2 x CPU 2 x GPU 8 Tflops tbd 12 cameras, LIDAR, RADAR, Ultrasonic, … Tbd tbd $ 1000+ ?
- 12.

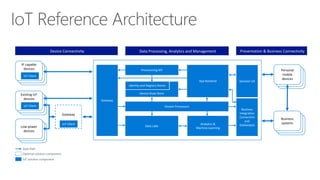

- 13. IoT Reference Architecture Lowpower devices Existing IoT devices IoT Client Solution UX Provisioning API Identity and Registry Stores Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Gateway Data Lake Gateway App Backend Data Path Optional solution component IoT solution component IoT Client Presentation & Business ConnectivityData Processing, Analytics and ManagementDevice Connectivity Personal mobile devices IP capable devices IoT Client Business systems
- 14. Reference Architecture &Azure Services Low power devices Existing IoT devices IoT Client Solution UX Provisioning API Device Registry Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Gateway Data Lake Gateway App Backend IoT Client Personal mobile devices IP capable devices IoT Client Business systems Data Path Optional solution component Azure IoT solution component Presentation & Business ConnectivityData Processing, Analytics and ManagementDevice Connectivity

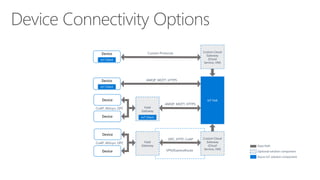

- 15. Device Connectivity Options Field Gateway CoAP,AllJoyn, OPC Custom Cloud Gateway (Cloud Service, VM)VPN/ExpressRoute OPC, HTTP, CoAP Field Gateway CoAP, AllJoyn, OPC IoT Hub Custom Cloud Gateway (Cloud Service, VM) AMQP, MQTT, HTTPS Custom Protocols Data Path Optional solution component Azure IoT solution component Device IoT Client Device IoT Client Device IoT ClientDevice Device Device AMQP, MQTT, HTTPS

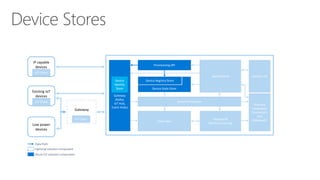

- 16. Device Stores App BackendSolution UX Provisioning API Device Registry Store Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Data Lake Gateway (Kafka, IoT Hub, Event Hubs) Gateway IP capable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Device Identity Store

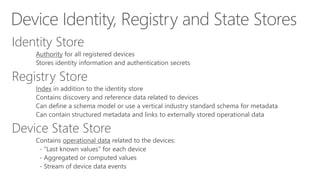

- 17. Device Identity, Registryand State Stores Identity Store Authority for all registered devices Stores identity information and authentication secrets Registry Store Index in addition to the identity store Contains discovery and reference data related to devices Can define a schema model or use a vertical industry standard schema for metadata Can contain structured metadata and links to externally stored operational data Device State Store Contains operational data related to the devices: - “Last known values” for each device - Aggregated or computed values - Stream of device data events
- 18. Device Provisioning Provisioning APIis the common external interface for changes on device identity and device registry stores. Workflow for processing individual and bulk requests: Registering new devices Updating or removing existing devices Activation or access control May also include interactions with external systems: Billing systems Business support systems Connectivity management systems

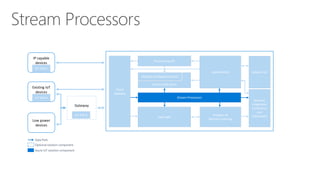

- 19. Stream Processors App Backend Gateway IPcapable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Solution UX Provisioning API Identity and Registry Stores Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Data Lake Cloud Gateway

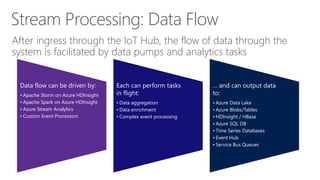

- 20. Stream Processing: DataFlow After ingress through the IoT Hub, the flow of data through the system is facilitated by data pumps and analytics tasks Data flow can be driven by: • Apache Storm on Azure HDInsight • Apache Spark on Azure HDInsight • Azure Stream Analytics • Custom Event Processors Each can perform tasks in flight: • Data aggregation • Data enrichment • Complex event processing … and can output data to: • Azure Data Lake • Azure Blobs/Tables • HDInsight / HBase • Azure SQL DB • Time Series Databases • Event Hub • Service Bus Queues

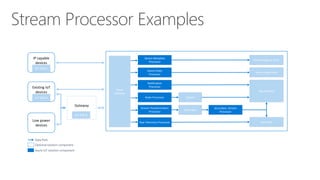

- 21. Stream Processor Examples Queue Gateway IPcapable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Device Registry Store Device Metadata Processor Data Lake Cloud Gateway Device State Store Device State Processor Notification Processor Raw Telemetry Processor App Backend Rules Processor Event Hub Stream Transformation Processor Secondary Stream Processor

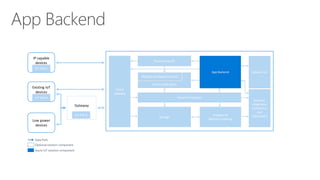

- 22. App Backend App Backend Gateway IPcapable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Solution UX Provisioning API Identity and Registry Stores Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Storage Cloud Gateway

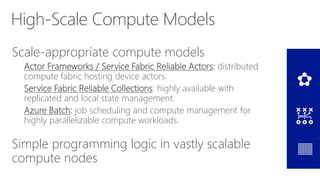

- 23. High-Scale Compute Models Scale-appropriatecompute models Actor Frameworks / Service Fabric Reliable Actors: distributed compute fabric hosting device actors. Service Fabric Reliable Collections: highly available with replicated and local state management. Azure Batch: job scheduling and compute management for highly parallelizable compute workloads. Simple programming logic in vastly scalable compute nodes

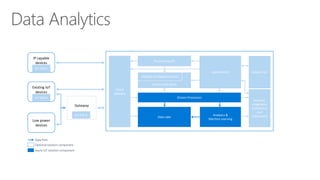

- 24. Data Analytics App Backend Gateway IPcapable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Solution UX Provisioning API Identity and Registry Stores Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Data Lake Cloud Gateway

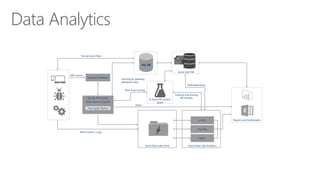

- 25. Data Analytics Ingestion Gateway StreamProcessing (ASA, Storm or Spark) Batch Events / Logs Fetching & Updating Reference Data Interceptor (Rules) Spark Hive/Pig U-SQL Azure Data Lake Store Azure Data Lake Analytics SQL DB R, Azure ML and/or Spark Reports and Dashboards Real Time Scoring Training and Scoring ML Models Azure SQL DW Federated Query NRT Events Transactional Data Alerts

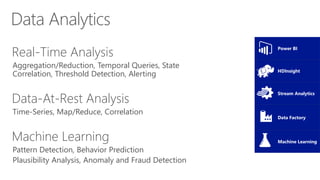

- 26. Data Analytics Real-Time Analysis Aggregation/Reduction,Temporal Queries, State Correlation, Threshold Detection, Alerting Data-At-Rest Analysis Time-Series, Map/Reduce, Correlation Machine Learning Pattern Detection, Behavior Prediction Plausibility Analysis, Anomaly and Fraud Detection Power BI HDInsight Stream Analytics Data Factory Machine Learning

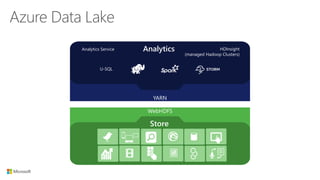

- 27. WebHDFS YARN U-SQL Analytics Service HDInsight (managedHadoop Clusters) Analytics Store Azure Data Lake

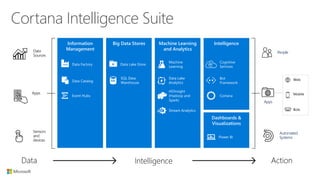

- 28. Cortana Intelligence Suite Action People Automated Systems Apps Web Mobile Bots Intelligence Dashboards& Visualizations Cortana Bot Framework Cognitive Services Power BI Information Management Event Hubs Data Catalog Data Factory Machine Learning and Analytics HDInsight (Hadoop and Spark) Stream Analytics Intelligence Data Lake Analytics Machine Learning Big Data Stores SQL Data Warehouse Data Lake Store Data Sources Apps Sensors and devices Data

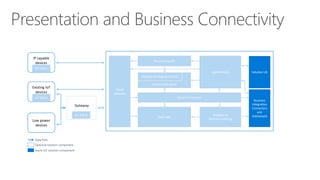

- 29. Presentation and BusinessConnectivity App Backend Gateway IP capable devices IoT Client Data Path Optional solution component Azure IoT solution component IoT Client Existing IoT devices IoT Client Low power devices Solution UX Provisioning API Identity and Registry Stores Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Data Lake Cloud Gateway

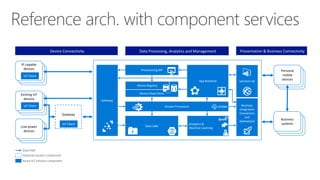

- 30. Reference arch. withcomponent services Low power devices Existing IoT devices IoT Client Solution UX Provisioning API Device Registry Stream Processors Analytics & Machine Learning Business Integration Connectors and Gateway(s) Device State Store Gateway Data Lake Gateway App Backend IoT Client Personal mobile devices IP capable devices IoT Client Business systems Data Path Optional solution component Azure IoT solution component Presentation & Business ConnectivityData Processing, Analytics and ManagementDevice Connectivity
- 31.

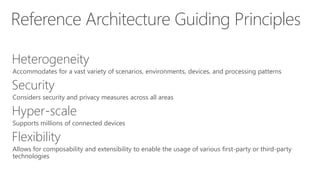

- 32. Reference Architecture GuidingPrinciples Heterogeneity Accommodates for a vast variety of scenarios, environments, devices, and processing patterns Security Considers security and privacy measures across all areas Hyper-scale Supports millions of connected devices Flexibility Allows for composability and extensibility to enable the usage of various first-party or third-party technologies
- 33.
- 36.
- 37. © 2016 MicrosoftCorporation. All rights reserved.
