Azure IoT Suite

•Samir Arezki - Exakis
• Software Architect
• MVP Azure
• @itfana
•Nicolas Humann - Exakis
• Business Solution Manager – Technical Leader
• Microsoft Regional Director
• @nicolashumann

Shared responsibilities
On-
Premises
Storage
Servers
Networking
O/S
Middleware
Virtualization
Applications
Data
Runtime
Youmanage
Infrastructure
(as a Service)
Storage
Servers
Networking
O/S
Middleware
Virtualization
Applications
Data
Runtime
MicrosoftManages
Youmanage
Platform
(as a Service)
MicrosoftManages
Youmanage
Storage
Servers
Networking
O/S
Middleware
Virtualization
Data
Runtime
Applications
Software
(as a Service)
MicrosoftManages
Storage
Servers
Networking
O/S
Middleware
Virtualization
Data
Runtime
Applications

Revenue from
Start-ups and ISVs
New Azure customer
subscriptions/month
SQL databases
in Azure
Storage objects
in Azure
Developers registered
with Visual Studio Online
Azure Active
Directory Users
Azure momentum

Hyper scale Infrastructure is the enabler
28 Regions Worldwide, 22 ONLINE…huge capacity around the world…growing every year
 100+ datacenters
 Top 3 networks in the world
 2.5x AWS, 7x Google DC Regions
 G Series – Largest VM in World, 32 cores, 448GB Ram, SSD…
Operational
Announced/Not Operational
Central US
Iowa
West US
California
East US
Virginia
US Gov
Virginia
North Central US
Illinois
US Gov
Iowa
South Central US
Texas
Brazil South
Sao Paulo State
West Europe
Netherlands
China North *
Beijing
China South *
Shanghai
Japan East
Tokyo, Saitama
Japan West
Osaka
India South
Chennai
East Asia
Hong Kong
SE Asia
Singapore
Australia South East
Victoria
Australia East
New South Wales
* Operated by 21Vianet ** Operated by Deutsche Telekom
India Central
Pune
Canada East
Quebec City
Canada Central
Toronto
India West
Mumbai
Germany North East **
Magdeburg
Germany Central **
Frankfurt
North Europe
Ireland
East US 2
Virginia
United Kingdom
RegionsUnited Kingdom
Regions

Datacenter buildings are about
one football field in size

…large enough to hold two jumbo
jets

That’s up to 600,000 servers in
each Azure region
And there are 16 buildings per region…

Platform Services
Infrastructure Services
Web Apps
Mobile
Apps
API
Management
API Apps
Logic Apps
Notification
Hubs
Content
Delivery
Network (CDN)
Media
Services
BizTalk
Services
Hybrid
Connections
Service Bus
Storage
Queues
Hybrid
Operations
Backup
StorSimple
Azure Site
Recovery
Import/Export
SQL
Database
DocumentDB
Redis
Cache
Azure
Search
Storage
Tables
Data
Warehouse Azure AD
Health Monitoring
AD Privileged
Identity
Management
Operational
Analytics
Cloud
Services
Batch
RemoteApp
Service
Fabric
Visual Studio
App
Insights
Azure
SDK
VS Online
Domain Services
HDInsight Machine
Learning
Stream
Analytics
Data
Factory
Event
Hubs
Mobile
Engagement
Data
Lake
IoT Hub
Data
Catalog
Security &
Management
Azure Active
Directory
Multi-Factor
Authentication
Automation
Portal
Key Vault
Store/
Marketplace
VM Image Gallery
& VM Depot
Azure AD
B2C
Scheduler

Introducing Azure IoT Suite
Get started quickly with preconfigured solutions for common
IoT scenarios.
Leverage a worldwide ecosystem of experienced IoT partners to
tailor IoT solutions to your needs.
Azure IoT Suite
Connect millions of devices and integrate your business systems
with new insights to transform your business.

Analyze and act
on new data
Integrate and transform
business processes
Connect and scale
with efficiency

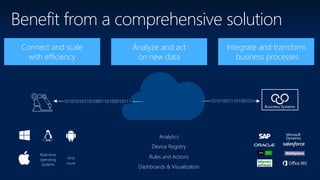

Benefit from a comprehensive solution
And
more
Real-time
operating
systems
Device Registry
Rules and Actions
Analytics
Dashboards & Visualization

Microsoft Azure IoT Suite
Preconfigured solutions
Heterogeneous agents
Connect and control
Event processing
Predictive analytics
Data visualization
Workflow integration
Push and broadcast
notifications
ID and access
management
Analyze and act
on new data
Integrate and transform
business processes
Connect and scale
with efficiency

Predictive
Maintenance
Remote
Monitoring
Asset
Management
Preconfigured Solutions:
Remote
Monitoring

Devices
Azure IoT Suite Remote Monitoring

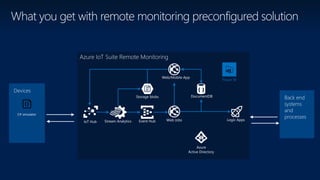

What you get with remote monitoring preconfigured solution
Back end
systems
and
processes
C# simulator
Event Hub
Storage blobs DocumentDB
Web/Mobile App
Stream Analytics Logic Apps
Azure
Active Directory
IoT Hub Web Jobs
Power BI

Heterogeneous Agents
Agent Libraries

Agent Library
SDK, agent libraries
Easily accessible libraries in GitHub
Cross platform support
Choose real time OS, platform and language
Device support
IP and access control capabilities
Connect IP, and non-IP devices
Support for direct connection devices and resource
strained or non-IP devices via gateway and field
protocols
Open source framework
Develop custom agents for your devices
Secure communication
Simple and secure D2C and C2D connectivity
for messaging, device management and
command and control.
OS support
RTOS, Linux, Windows, Android, iOS etc.

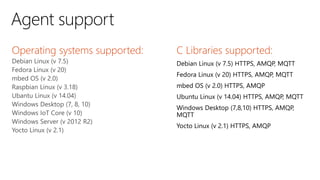

Agent support
Operating systems supported:
Debian Linux (v 7.5)
Fedora Linux (v 20)
mbed OS (v 2.0)
Raspbian Linux (v 3.18)
Ubantu Linux (v 14.04)
Windows Desktop (7, 8, 10)
Windows IoT Core (v 10)
Windows Server (v 2012 R2)
Yocto Linux (v 2.1)
C Libraries supported:

Documentation, SDK support
Node.js library:
Node.js (v 4.1.0) HTTPS
Java library:
C# libraries supported:

Connect & Control
Azure IoT Hub

Azure IoT Hub
Designed for IoT
Connect up to 10 million devices
Service assisted communications
Secure bi-directional communication
Command and control
Cloud-scale messaging
Device-to-cloud and Cloud-to-device
Durable messages (at least once semantics)
Cloud-facing telemetry ingestion
Delivery receipts, expired messages
Device communication errors
Per-device authentication
Individual device identities and credentials
Connection multiplexing
Single device-cloud connection for all
communications (C2D, D2C)
Multi-protocol support
Natively supports AMQP, HTTP
Designed for extensibility to custom
protocols
Multi-platform
Device SDKs available for multiple platforms
(e.g. RTOS, Linux, Windows)
Multi-platform Service SDK.

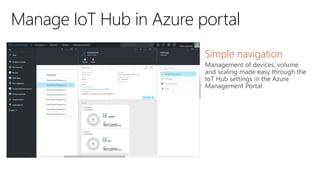

Manage IoT Hub in Azure portal
Simple navigation
Management of devices, volume
and scaling made easy through the
IoT Hub settings in the Azure
Management Portal

Event Processing
Azure Stream
Analytics

Real time event processing
High volume
Analyze millions of data points per second
Highly scalable
Enterprise grade, predictable solution.
Uncover real time insights
Perform real time analytics across multiple streams
Rapid Deployment
Use simple SQL syntax, auto distributed for scale
Mission critical reliability
Fully managed, low latency, high throughput
Create real time alerts
Flag alerts and alarms for attention

Add or edit jobs using simple ASA
interface
Rule based interface
Simple implementation and rule
development using ASA UI.
Multi-channel
Analyze multiple channels of
information simultaneously, in real
time.

Predictive Analytics
Azure Machine
Learning

Integrated predictive analytics
Empower with proactive analysis
Machine learning solutions allow for powerful predictive analytics solutions, leveraging historical
data and real time device ingestion input.

Cloud based predictive analytics
ML API service
Models available as URL, call from any
endpoint
Use ML studio to create
Access and prepare data,
Create, test and train models
Rapid deployment
Single click deploy to production via API service
Drag and drop algorithms
Simple UI for straightforward algorithm creation
Algorithm libraries
Utilize library of preconfigured algorithm solutions

AML - Drag & Drop + Best in Class Algorithms

Data visualization with PowerBI
Real time capabilities
Ingest, analyze and display data as it
happens
Secure access
Secure, live communication with data
source
Query data
Intuitive, natural language query tool
Integrated systems
Integrate with other business systems and
enrich device data with intelligence from
other business systems, eg: CRM, ERP
Highly accessible analytics
Cloud based dashboard and analytics tool,
360º view of business KPI’s
Cross platform support
View data via web platform, on any device
Pre-built dashboards
Utilize standard dashboards for rapid deployment,
based on popular solution demands.

Data visualization with PowerBI
Rich visuals
Standard and custom graphing options
Custom dashboards
Build heat maps and visually track data
External data
Integrate external data feeds to add value
to device data, or pull in external
information such as weather or market
information.

Workflow Integration
Logic Apps

Integrate with business systems
Line of business integration
Push intelligence, alerts and alarms to
existing LoB dashboards or solutions.
Highly automated
Automate EA, B2B and business processes
Create workflows
Visually create processes and workflow, automated
actions and trigger responses
Cross platform
Connect to on-premises data
Utilize on-prem/cloud hybrid integration solutions
Standard and custom connectors
Library of supported external connectors, or create
custom ones.

Integrate with business systems
Standard connectors
Custom connectors
Premium connectors

Drag and drop connector integration
Drag and drop UI
Simple connector integration
Authentication
Enter product keys and authentication data

Push & Broadcast Notifications
Notification Hubs

Broadcast notifications to any backend
Scale instantly
Ramp up and deploy to millions of devices
without the need to rearchitect the solution
Secure communication
PNS managed authentication credentials
per device, per message.
Receipt telemetry
PNS managed authentication credentials
per device, per message.
Reach all major platforms
Support across iOS, Android, Windows, Kindle etc
Broadcast from major backends
High capacity
Broadcast to millions of devices from a single API
call
Customize audience
Target devices based on location, language, status

Push Notifications
Register device handle at app launch
Client app retrieves handle from Platform Notification Service (PNS)
App passes the handle to the back-end
Send Notification
App back-end sends notification to Platform Notification Service (PNS), uses
PNS credentials to authenticate
PNS pushes the notification to the app on the device
Maintain device handles
Backend deletes expired handles when PNS rejects them
Maintain mapping between logical users/groups and device handles
1
2
3
4
5
6
Platform
Notification
Service
App back-end
Client app
1
2
3
4
5
6

ID & Access Management
Azure Active
Directory

Sharing and access control
Mobile security
Enable secure mobile access to on-premesis
applications.
Secure access
Easily manage credential based access to
dashboards
Access control
Multi-factor authentication
Increased security via multi-factor authentication
Monitor usage
See who is using the solution, when and for what
purpose

Microsoft Azure IoT Suite
Azure IoT Suite

Tailor Azure IoT Suite to your needs using preconfigured solutions
Modify existing rules and alerts
Fine-tuned to specific assets and processes
Integrate with back-end systems
Highly visual for your real-time operational data
Get started in minutes
Add your devices and begin tailor to your needs

Azure IoT Suite

More Related Content

What's hot

Viewers also liked

Similar to Azure IoT Suite

More from Samir Arezki ☁

Recently uploaded

Azure IoT Suite
