1. +
Reference Architecture for
the Internet of Things
Charles Gibbons
architect @ apicrazy.com
19th December 2014

2. +

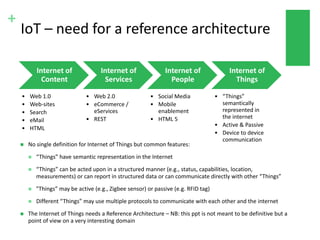

IoT – need for a reference architecture
Internet of
Content
• Web 1.0
• Web-sites
• Search
• eMail
• HTML
Internet of
Services
• Web 2.0
• eCommerce /
eServices
• REST
Internet of
People
• Social Media
• Mobile
enablement
• HTML 5
Internet of
Things
• “Things”
semantically
represented in
the internet
• Active & Passive
• Device to device
communication
 No single definition for Internet of Things but common features:
 “Things” have semantic representation in the Internet
 “Things” can be acted upon in a structured manner (e.g., status, capabilities, location,
measurements) or can report in structured data or can communicate directly with other “Things”
 "Things” may be active (e.g., Zigbee sensor) or passive (e.g. RFID tag)
 Different “Things” may use multiple protocols to communicate with each other and the internet
 The Internet of Things needs a Reference Architecture – NB: this ppt is not meant to be definitive but a
point of view on a very interesting domain

3. +

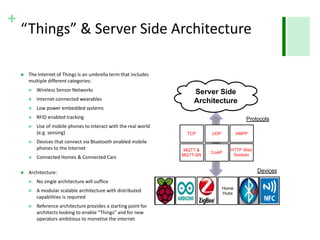

“Things” & Server Side Architecture
 The Internet of Things is an umbrella term that includes
multiple different categories:
 Wireless Sensor Networks
 Internet-connected wearables
 Low power embedded systems
 RFID enabled tracking
 Use of mobile phones to interact with the real world
(e.g. sensing)
 Devices that connect via Bluetooth enabled mobile
phones to the Internet
 Connected Homes & Connected Cars
 Architecture:
 No single architecture will suffice
 A modular scalable architecture with distributed
capabilities is required
 Reference architecture provides a starting point for
architects looking to enable “Things” and for new
operators ambitious to monetise the internet
TCP UDP
MQTT &
MQTT-SN
CoAP
HTTP Web
Sockets
XMPP
Home
Hubs
Server Side
Architecture
Devices
Protocols

4. +

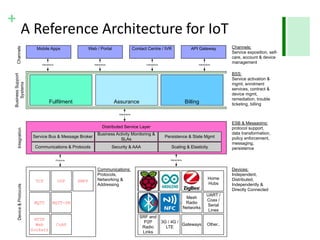

A Reference Architecture for IoT
Distributed Service Layer
Service Bus & Message Broker
Business Activity Monitoring &
SLAs
Persistence & State Mgmt
Communications & Protocols Security & AAA Scaling & Elasticity
..
Fulfilment Assurance Billing
Mobile Apps Web / Portal Contact Centre / IVR API Gateway Channels:
Service exposition, self-
care, account & device
management
BSS:
Service activation &
mgmt, enrolment
services, contract &
device mgmt,
remediation, trouble
ticketing, billing
Interactions Interactions Interactions Interactions
TCP UDP
MQTT MQTT-SN
CoAP
HTTP
Web
Sockets
XMPP
Communications:
Protocols,
Networking &
Addressing
Device&Protocols
ESB & Messaging:
protocol support,
data transformation,
policy enforcement,
messaging,
persistence
Integration
BusinessSupport
Systems
Channels
Interactions
Interactions
Mesh
Radio
Networks
UART /
Coax /
Serial
Lines
SRF and
P2P
Radio
Links
Home
Hubs
3G / 4G /
LTE
Gateways Other..
Devices:
Independent,
Distributed,
Independently &
Directly Connected
..
Protocols

5. +

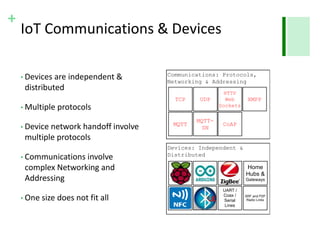

IoT Communications & Devices
• Devices are independent &
distributed
• Multiple protocols
• Device network handoff involve
multiple protocols
• Communications involve
complex Networking and
Addressing
• One size does not fit all
Communications: Protocols,
Networking & Addressing
Devices: Independent &
Distributed
SRF and P2P
Radio Links
UART /
Coax /
Serial
Lines
Home
Hubs &
Gateways
TCP UDP
MQTT
MQTT-
SN
CoAP
HTTP
Web
Sockets
XMPP

6. +

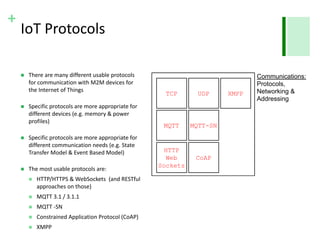

IoT Protocols
 There are many different usable protocols
for communication with M2M devices for
the Internet of Things
 Specific protocols are more appropriate for
different devices (e.g. memory & power
profiles)
 Specific protocols are more appropriate for
different communication needs (e.g. State
Transfer Model & Event Based Model)
 The most usable protocols are:
 HTTP/HTTPS & WebSockets (and RESTful
approaches on those)
 MQTT 3.1 / 3.1.1
 MQTT -SN
 Constrained Application Protocol (CoAP)
 XMPP
..
TCP UDP
MQTT MQTT-SN
CoAP
HTTP
Web
Sockets
XMPP
Communications:
Protocols,
Networking &
Addressing

7. +

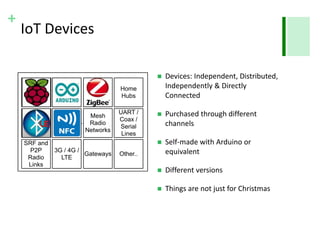

IoT Devices
 Devices: Independent, Distributed,
Independently & Directly
Connected
 Purchased through different
channels
 Self-made with Arduino or
equivalent
 Different versions
 Things are not just for Christmas
Mesh
Radio
Networks
UART /
Coax /
Serial
Lines
SRF and
P2P
Radio
Links
Home
Hubs
3G / 4G /
LTE
Gateways Other..
Devices:
Independent,
Distributed,
Independently &
Directly Connected
..

8. +

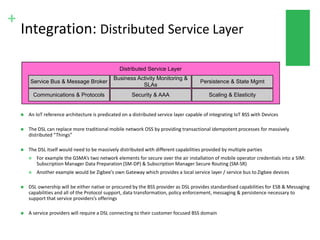

Integration: Distributed Service Layer
 An IoT reference architecture is predicated on a distributed service layer capable of integrating IoT BSS with Devices
 The DSL can replace more traditional mobile network OSS by providing transactional idempotent processes for massively
distributed “Things”
 The DSL itself would need to be massively distributed with different capabilities provided by multiple parties
 For example the GSMA’s two network elements for secure over the air installation of mobile operator credentials into a SIM:
Subscription Manager Data Preparation (SM-DP) & Subscription Manager Secure Routing (SM-SR)
 Another example would be Zigbee’s own Gateway which provides a local service layer / service bus to Zigbee devices
 DSL ownership will be either native or procured by the BSS provider as DSL provides standardised capabilities for ESB & Messaging
capabilities and all of the Protocol support, data transformation, policy enforcement, messaging & persistence necessary to
support that service providers’s offerings
 A service providers will require a DSL connecting to their customer focused BSS domain

9. +

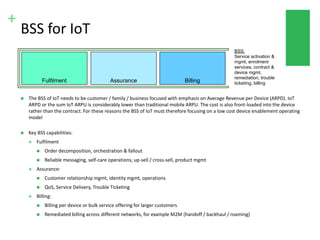

BSS for IoT
 The BSS of IoT needs to be customer / family / business focused with emphasis on Average Revenue per Device (ARPD). IoT
ARPD or the sum IoT ARPU is considerably lower than traditional mobile ARPU. The cost is also front-loaded into the device
rather than the contract. For these reasons the BSS of IoT must therefore focusing on a low cost device enablement operating
model
 Key BSS capabilities:
 Fulfilment
 Order decomposition, orchestration & fallout
 Reliable messaging, self-care operations, up-sell / cross-sell, product mgmt
 Assurance:
 Customer relationship mgmt, identity mgmt, operations
 QoS, Service Delivery, Trouble Ticketing
 Billing:
 Billing per device or bulk service offering for larger customers
 Remediated billing across different networks, for example M2M (handoff / backhaul / roaming)
Fulfilment Assurance Billing
BSS:
Service activation &
mgmt, enrolment
services, contract &
device mgmt,
remediation, trouble
ticketing, billing

10. +

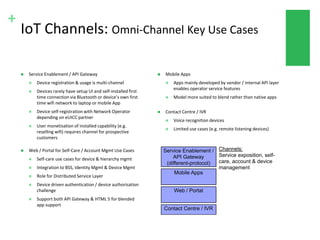

IoT Channels: Omni-Channel Key Use Cases
 Web / Portal for Self-Care / Account Mgmt Use Cases
 Self-care use cases for device & hierarchy mgmt
 Integration to BSS, Identity Mgmt & Device Mgmt
 Role for Distributed Service Layer
 Device driven authentication / device authorisation
challenge
 Support both API Gateway & HTML 5 for blended
app support
 Mobile Apps
 Apps mainly developed by vendor / internal API layer
enables operator service features
 Model more suited to blend rather than native apps
 Contact Centre / IVR
 Voice recognition devices
 Limited use cases (e.g. remote listening devices)
 Service Enablement / API Gateway
 Device registration & usage is multi-channel
 Devices rarely have setup UI and self-installed first
time connection via Bluetooth or device’s own first
time wifi network to laptop or mobile App
 Device self-registration with Network Operator
depending on eUICC partner
 User monetisation of installed capability (e.g.
reselling wifi) requires channel for prospective
customers
Mobile Apps
Web / Portal
Contact Centre / IVR
Service Enablement /
API Gateway
(different-protocol)
Channels:
Service exposition, self-
care, account & device
management

11. +
Identity & Device Management
 User / party identity and device identity management cascade
through an IoT architecture
 The device identity is what allows “Things” to be semantically
represented in the internet
 User / party identity is necessary for channels & BSS usage but
can cascade to the device for lowest level authorisation
 User / party identity to device identity mapping can be
delivered at a BSS layer or via a trusted externalised identity
provider of the user’s choosing
 An example of M2M Identity Mgmt is the Telecommunications
Industry Association functional standard for Authentication,
Authorization and Accounting for Smart Device (AAA-SD TIA)
 An example of device management supporting M2M use cases
with no human intervention for secure over the air installation
of mobile operator credentials into a SIM requires two key
network elements have been specified by the GSMA:
 Subscription Manager Data Preparation (SM-DP)
 Subscription Manager Secure Routing (SM-SR)
Distributed Service Layer
..
TCP UDP
MQTT MQTT-SN
CoAP
HTTP
Web
Sockets
XMPP
Mesh
Radio
Networks
UART /
Coax /
Serial
Lines
SRF and
P2P Radio
Links
Home
Hubs
3G / 4G /
LTE
Gateways Other..
..
Identity&AccessManagement
DeviceManagement
BSS
Channels

12. +

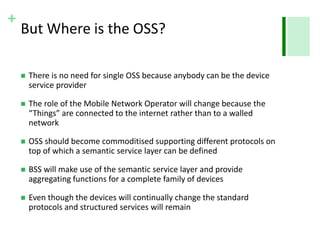

But Where is the OSS?
 There is no need for single OSS because anybody can be the device
service provider
 The role of the Mobile Network Operator will change because the
“Things” are connected to the internet rather than to a walled
network
 OSS should become commoditised supporting different protocols on
top of which a semantic service layer can be defined
 BSS will make use of the semantic service layer and provide
aggregating functions for a complete family of devices
 Even though the devices will continually change the standard
protocols and structured services will remain

13. +
Conclusion: IoT Reference Architeture
 Any IoT reference architecture has to scale for the increasing number of interconnected devices:
 Smart “Things” (e.g. Internet-connected wearables)
 Interconnected “Things” (e.g. Smart Home)
 System of “Things” (e.g. Smart City / national grid)
 Communication between Interconnected “Things” which aggregate to form a System of “Things” will not always
necessarily communicate through the centralised service layer. Devices will standardise towards providing their own
communication layer (e.g. Zigbee Gateway, SM-SR/-SD).
 Interconnected devices will use the most appropriate protocol (e.g. memory & power profiles) and the most appropriate
communication mechanism (e.g. State Transfer Model & Event Based Model)
 Intelligent devices will seek to hand-off to the lowest cost network (RFID, Bluetooth, Wifi, Mobile Network) while
maintaining the QoS
 The role of the service provider will be to provide intelligence on top of a massively distributed service layer
 Traditional mobile network OSS will be replaced by core capabilities on a service provider’s Distributed Service Layer
