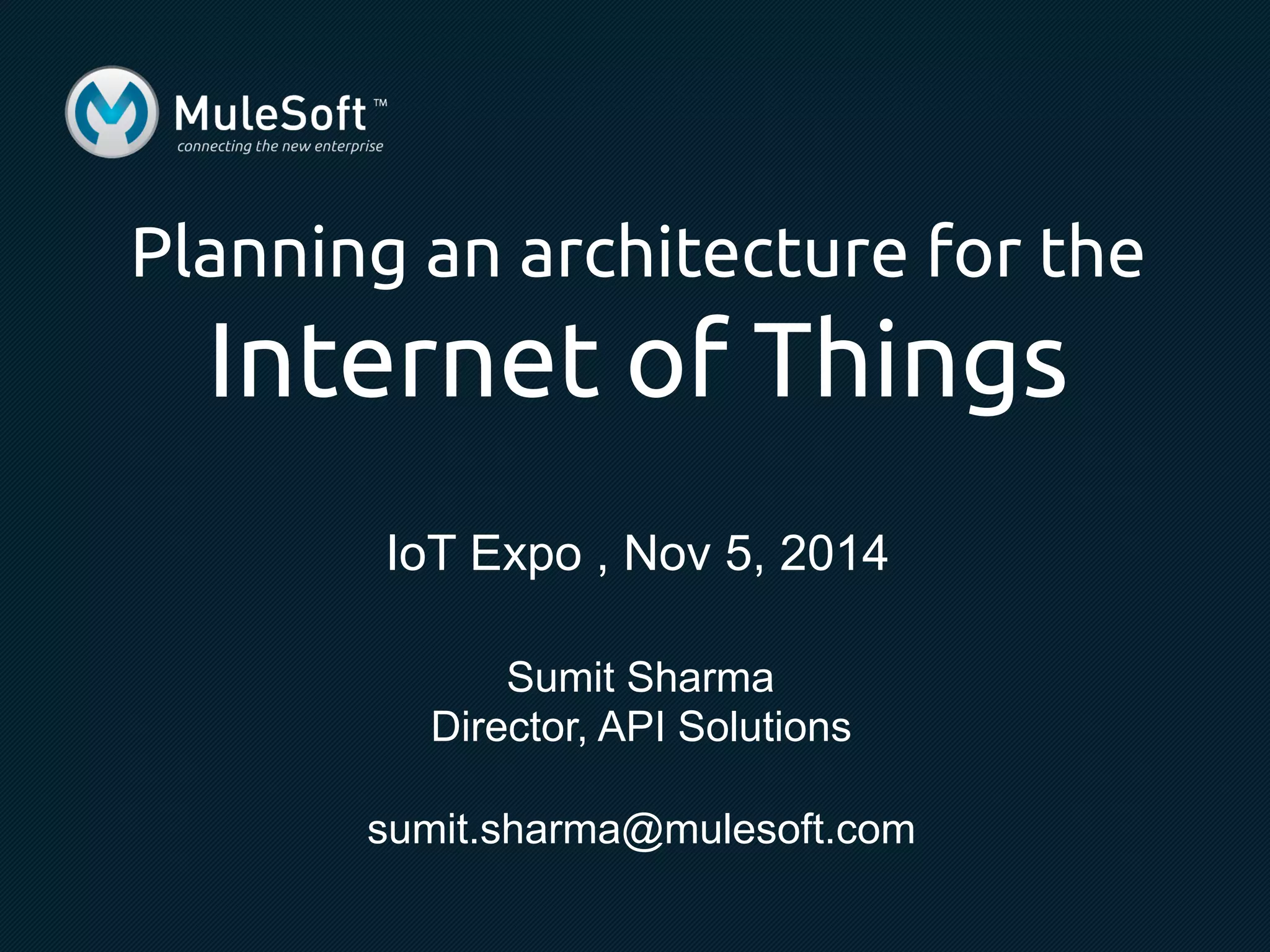

Planning an architecture for the
Internet of Things
IoT Expo , Nov 5, 2014
Sumit Sharma
Director, API Solutions
sumit.sharma@mulesoft.com

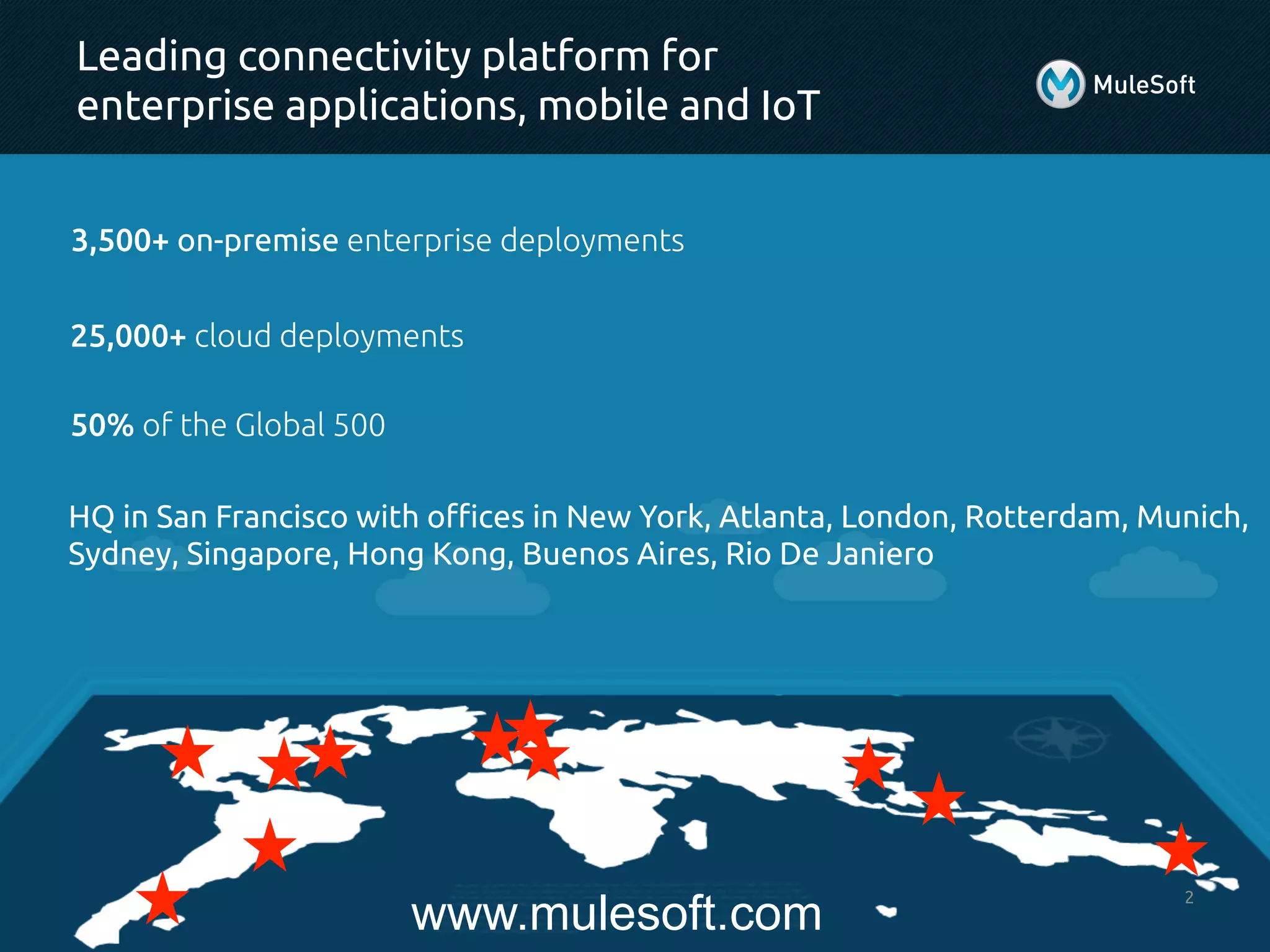

Leading connectivity platform for
enterprise applications, mobile and IoT
HQ in San Francisco with offices in New York, Atlanta, London, Rotterdam, Munich,
Sydney, Singapore, Hong Kong, Buenos Aires, Rio De Janiero
2
3,500+ on-premise enterprise deployments
25,000+ cloud deployments
50% of the Global 500
www.mulesoft.com
MuleSoft’s mission
To connect the world’s
applications, data and devices
MuleSoft’s mission
To connect the world’s
applications, data and devices
Agenda for today’s session
Business
drivers of
IoT
Architectural
Patterns in an
IoT Stack
All contents Copyright © 2014, MuleSoft Inc. 5
Why plan for an
IoT stack?
MuleSoft Confidential - please do not share/distribute 6
Everything needs to connect
7
7
50,000,000,000+
connected devices
All contents Copyright © 2013, MuleSoft Inc.
Connecting the physical world to the Web
8
8
Building
Management
Healthcare
Social
& Local
Energy Grid
Personalized
Insurance
Logistics &
Shipping
Connected
Car
Home
Automation
Environmental
Identity &
Tracking
Farming
All contents Copyright © 2013, MuleSoft Inc.
Architectural patterns
in an
IoT stack
MuleSoft Confidential - please do not share/distribute 9
At a high level this is the general IoT stack
App
Data Processing and
Platform
Edge
Thing / Device
Breaking down the
IoT stack
MuleSoft Confidential - please do not share/distribute 11
The IoT Stack
Mobile apps
Mobile aPaaS
Application PaaS ( aPaaS )
Data Management and Intelligence
Device
Management
Hardware / Firmware
API
Design / Build
Sensors
Device
Hub/Gateway
API runtime
management
iPaaS
Middle-ware
Websites
Industry specific
( e.g., appliances, touch
console etc.)
IoT Stack: Devices / Things
Sensors
Hardware / Firmware
All contents Copyright © 2013, MuleSoft Inc. 13
Devices: Many chipsets / platforms to choose from.
( Becoming more and more vertically integrated with
software stacks).
Big focus on prototyping:
Lots of tools to cater to the makers and tinkerers
Integrated SDKs to speed development, testing and optimization.
Dragonboard based on Snapdragon processor ( many more
like this from many vendors )
Sensors: Smart or Simple
Smart Sensors
Simple Sensors
Receive Notifications
Send Data / Events
Onboarding
Receive Config
Device
Management
Sensors
Hardware / Firmware
IoT Stack: Device Edge
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 18
Key charter is to establish and maintain a
secure, robust, fault-tolerant connection
between the cloud and the edge devices in
order to:
• Collect and aggregate device data
• Manage the device
Device
Management
Sensors
Hardware / Firmware
IoT Stack: Device Edge
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 19
Typically a combination of a localized gateway, and a
cloud based gateway, at the edge
Reference capabilities for a gateway
Connectivity
Routing
Enable scalable, real-time, dependable, high-performance
and interoperable data and
device management related exchanges
between publishers and subscribers
Registry
Software mgmt
Control Events Actuator
Aggregation Transformation Provisioning
Device, and Device gateway sprawl is going to be a challenge
Too many disparate
ecosystems. Too
many gateways,
hubs, protocols, apps.
Solution to the sprawl: A hub of all hubs
Need interoperability
between devices/
machines so they can
all talk to each other.
Solution to the sprawl: A hub of all hubs
IoT Stack: Data management and
intelligence
Data Management and Intelligence
Device
Management
Sensors
Hardware / Firmware
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 25
Capabilities required for Data Management and
Intelligence
• Data collection, storage, and analysis of sensor data
• Run rules on data streams
• Trigger alerts
• Advanced analytics/machine learning
• Expose HTTP (REST) APIs
Data, HTTP,
connectivity
Real time event
processing
Batch processing
Data enrichment
Routing and
Orchestration
BigData solution
connectivity
Pattern Discovery/
Model re-training
Driving Forces
Identification
Predictive Analysis
IoT Stack: API lifecycle tooling and platform
API
Design / Build
API runtime
management
Data Management and Intelligence
Device
Management
Sensors
Hardware / Firmware
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 27
API lifecycle tooling can be split between
design time and runtime
Rapidly design, deploy and publish APIs
API
API runtime
Design / Build
management
API lifecycle: Design time capabilities
Rapidly design, deploy and publish APIs
API spec
creation
API design
lifecycle
API mocking/
modelling
Reusable API
patterns
Deployment
automation
API
Design / Build
API runtime
management
Outside In API development: What if we could
whiteboard an API ? Springboard for optimizing “APX”
API
Design / Build
l All contents Copyright 30 © 2014, MuleSoft Inc.
APX Design Lifecycle
• Modify API design as
appropriate based on
developer feedback.
• Continue to validate
Validate!
• Mock up the API
• Publish interactive console
• Create Notebook use cases
• Receive developer feedback
l All contents Copyright 31 © 2014, MuleSoft Inc.
Iterate!
• Identify process and biz reqs
• Create logical data model
• Translate into logical service/API
groupings
• Model API resource models
• API operations/methods
• Request/response payload/codes
• Create and implement
orchestration logic for
backend connectivity
APX
Design
lifecycle
API
Design / Build
API lifecycle: Runtime capabilities
Rapidly design, deploy and publish APIs
Rate limiting /
Throttling
API SLA
management
Custom policy
engine
Multi-tenant org /
RBAC support
Deployment
automation
API and data
security
API
Design / Build
API runtime
management
API runtime management
API runtime
management
Developer Portal
App Developer
Discover,
understand, and
sign-up to use API
Make ..…"
app
API Gateway
• Rate limit
• Throttle
• OAuth2
• LDAP/AD auth
• IP whitelisting
• Transformations
etc.
API API API
Publish,
Document APIs
All contents Copyright © 2013, MuleSoft Inc. 33
IoT Stack: Application PaaS ( aPaaS )
Application PaaS ( aPaaS )
API
Design / Build
API runtime
management
Data Management and Intelligence
Device
Management
Sensors
Hardware / Firmware
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 34
aPaaS capabilities
OS/DB, Storage, Server,
Network
Routing, transform,
orchestration services
• Hosted in the cloud
• Provides platform to build
applications.
Design and
Development tooling
Web, Database,
Application Server
Management and
analytics tooling
Administrative portal
Application PaaS ( aPaaS )
IoT Stack: End applications
Mobile apps
Mobile aPaaS
Websites
Industry specific
( e.g., appliances, touch
console etc.)
Application PaaS ( aPaaS )
API
Design / Build
API runtime
management
Data Management and Intelligence
Device
Management
Sensors
Hardware / Firmware
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 36
IoT/IoE is a driver of mobile / tablet interfaces
All contents Copyright © 2013, MuleSoft Inc. 37
IoT Stack: iPaaS integration – middleware:
Don’t forget to integrate!
Mobile apps
Mobile aPaaS
Websites
Industry specific
( e.g., appliances, touch
console etc.)
Application PaaS ( aPaaS )
API
Design / Build
API runtime
management
Data Management and Intelligence
Device
Management
Sensors
Hardware / Firmware
Device
Hub/Gateway
iPaaS
Middle-ware
iPaaS
middleware
All contents Copyright © 2013, MuleSoft Inc. 38
iPaaS Capabilities: Don’t forget to
integrate!
Summary
IoT Stack
Mobile apps
Mobile aPaaS
Industry specific
( e.g., appliances, touch
console etc.)
Application PaaS ( aPaaS ) middleware
Websites
API
Design / Build
API runtime
management
Data Management
iPaaS
Device
Management
Sensors
Device
Hub/Gateway
All contents Copyright © 2013, MuleSoft Inc. 41
One final thought: the stack as it exists today is also
converging…
App
Data Processing and
Platform
Edge
Thing / Device
Scenarios where the middleware and edge have converged
( i.e., MuleSoft Anypoint Edge )
AApppsp
Data Processing
and Platform
Edge
Thing / Device
And there are also scenarios where the app layer is directly
connected to the Thing/Device layer ( i.e., embedded
Android, Java, Javascript etc. )
Data Processing
and Platform
Edge
Apps
Thing / Device
Thank you!
Questions?
sumit.sharma@mulesoft.com

More Related Content

What's hot

Iot ppt
Iot pptIot ppt
Iot ppt
piyuu7


What's hot (20)

Internet of Things (IoT) - IK
Internet of Things (IoT) - IKInternet of Things (IoT) - IK
Internet of Things (IoT) - IK

IoT Communication Protocols
IoT Communication ProtocolsIoT Communication Protocols
IoT Communication Protocols

IoT Networking
IoT NetworkingIoT Networking
IoT Networking

Introduction to Internet of Things (IoT)
Introduction to Internet of Things (IoT)Introduction to Internet of Things (IoT)
Introduction to Internet of Things (IoT)

Iot ppt
Iot pptIot ppt
Iot ppt

Internet of things (IoT)
Internet of things (IoT)Internet of things (IoT)
Internet of things (IoT)

Internet of Things (IoT)
Internet of Things (IoT)Internet of Things (IoT)
Internet of Things (IoT)

WSN IN IOT
WSN IN IOTWSN IN IOT
WSN IN IOT

Internet of Things (IoT) - Introduction ppt
Internet of Things (IoT) - Introduction ppt Internet of Things (IoT) - Introduction ppt
Internet of Things (IoT) - Introduction ppt

Zigbee Presentation
Zigbee PresentationZigbee Presentation
Zigbee Presentation

Ppt 3 - IOT logic design
Ppt   3 - IOT logic designPpt   3 - IOT logic design
Ppt 3 - IOT logic design

Introduction to IoT Architectures and Protocols
Introduction to IoT Architectures and ProtocolsIntroduction to IoT Architectures and Protocols
Introduction to IoT Architectures and Protocols

Introduction to IoT Architecture
Introduction to IoT ArchitectureIntroduction to IoT Architecture
Introduction to IoT Architecture

Internet of things
Internet of thingsInternet of things
Internet of things

RFID with INTERNET OF THINGS
RFID with INTERNET OF THINGSRFID with INTERNET OF THINGS
RFID with INTERNET OF THINGS

Iot
IotIot
Iot

IOT Unit-1 (Introduction to IOT) by Durgacharan
IOT Unit-1 (Introduction to IOT) by DurgacharanIOT Unit-1 (Introduction to IOT) by Durgacharan
IOT Unit-1 (Introduction to IOT) by Durgacharan

The Internet of Things (IoT) and its evolution
The Internet of Things (IoT) and its evolutionThe Internet of Things (IoT) and its evolution
The Internet of Things (IoT) and its evolution

IoT and m2m
IoT and m2mIoT and m2m
IoT and m2m

Internet of Things (IOT) - Technology and Applications
Internet of Things (IOT) - Technology and ApplicationsInternet of Things (IOT) - Technology and Applications
Internet of Things (IOT) - Technology and Applications


Viewers also liked

IoT Cloud architecture
IoT Cloud architectureIoT Cloud architecture
IoT Cloud architecture
MachinePulse

"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...
"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ..."Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...
"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...
Edge AI and Vision Alliance

8085 microprocessor architecture ppt
8085 microprocessor architecture ppt8085 microprocessor architecture ppt
8085 microprocessor architecture ppt
Parvesh Gautam


Viewers also liked (20)

IoT Cloud architecture
IoT Cloud architectureIoT Cloud architecture
IoT Cloud architecture

What is next for IoT and IIoT
What is next for IoT and IIoTWhat is next for IoT and IIoT
What is next for IoT and IIoT

Cloud Platform for IoT
Cloud Platform for IoTCloud Platform for IoT
Cloud Platform for IoT

IOT Platform as a Service
IOT Platform as a ServiceIOT Platform as a Service
IOT Platform as a Service

"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...
"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ..."Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...
"Deep Learning and Vision Algorithm Development in MATLAB Targeting Embedded ...

Introduction to Digital Image Processing Using MATLAB
Introduction to Digital Image Processing Using MATLABIntroduction to Digital Image Processing Using MATLAB
Introduction to Digital Image Processing Using MATLAB

IoT Applications and Networks
IoT Applications and NetworksIoT Applications and Networks
IoT Applications and Networks

Internet of things (iot)
Internet of things (iot)Internet of things (iot)
Internet of things (iot)

Image Processing Basics
Image Processing BasicsImage Processing Basics
Image Processing Basics

8085 Paper Presentation slides,ppt,microprocessor 8085 ,guide, instruction set
8085 Paper Presentation slides,ppt,microprocessor 8085 ,guide, instruction set8085 Paper Presentation slides,ppt,microprocessor 8085 ,guide, instruction set
8085 Paper Presentation slides,ppt,microprocessor 8085 ,guide, instruction set

8085 microprocessor architecture ppt
8085 microprocessor architecture ppt8085 microprocessor architecture ppt
8085 microprocessor architecture ppt

Internet of things (IoT)
Internet of things (IoT)Internet of things (IoT)
Internet of things (IoT)

Technology Management and Strategy [Part III]
Technology Management and Strategy [Part III]Technology Management and Strategy [Part III]
Technology Management and Strategy [Part III]

Internet of Things (IoT) Business & Technology & Patent Integrated Strategy
Internet of Things (IoT) Business & Technology & Patent Integrated StrategyInternet of Things (IoT) Business & Technology & Patent Integrated Strategy
Internet of Things (IoT) Business & Technology & Patent Integrated Strategy

Internet of Things (IoT) Strategic Patent Development and Monetization for Ne...
Internet of Things (IoT) Strategic Patent Development and Monetization for Ne...Internet of Things (IoT) Strategic Patent Development and Monetization for Ne...
Internet of Things (IoT) Strategic Patent Development and Monetization for Ne...

사물인터넷 비즈니스 어프로치 (Internet of Things (IoT) Business Approach)
사물인터넷 비즈니스 어프로치 (Internet of Things (IoT) Business Approach)사물인터넷 비즈니스 어프로치 (Internet of Things (IoT) Business Approach)
사물인터넷 비즈니스 어프로치 (Internet of Things (IoT) Business Approach)

Technology Management and Strategy [Part II]
Technology Management and Strategy [Part II]Technology Management and Strategy [Part II]
Technology Management and Strategy [Part II]

Critical Considerations for Mobile and IoT Strategy
Critical Considerations for Mobile and IoT StrategyCritical Considerations for Mobile and IoT Strategy
Critical Considerations for Mobile and IoT Strategy

Technology Management and Strategy [Part I]
Technology Management and Strategy [Part I]Technology Management and Strategy [Part I]
Technology Management and Strategy [Part I]

Technology Management and Strategy [Part IV]
Technology Management and Strategy [Part IV]Technology Management and Strategy [Part IV]
Technology Management and Strategy [Part IV]


Similar to IoT architecture

Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...
Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...
Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...
mfrancis


Similar to IoT architecture (20)

iot
iotiot
iot

MicroEJ, the OS for IoT
MicroEJ, the OS for IoTMicroEJ, the OS for IoT
MicroEJ, the OS for IoT

MicroEJ OS for IoT devices
MicroEJ OS for IoT devicesMicroEJ OS for IoT devices
MicroEJ OS for IoT devices

IoT meets AI in the Clouds
IoT meets AI in the CloudsIoT meets AI in the Clouds
IoT meets AI in the Clouds

InduSoft IoTView
InduSoft IoTViewInduSoft IoTView
InduSoft IoTView

Role of cloud and analytics in IoT
Role of cloud and analytics in IoTRole of cloud and analytics in IoT
Role of cloud and analytics in IoT

Ultimate list of 50 Best IoT platforms of 2019
Ultimate list of 50 Best  IoT platforms of 2019Ultimate list of 50 Best  IoT platforms of 2019
Ultimate list of 50 Best IoT platforms of 2019

Bevywise - IoT / IIoT Portfolio
Bevywise - IoT / IIoT  PortfolioBevywise - IoT / IIoT  Portfolio
Bevywise - IoT / IIoT Portfolio

Eclipse IOT [IoT World Santa Clara]
Eclipse IOT  [IoT World Santa Clara]Eclipse IOT  [IoT World Santa Clara]
Eclipse IOT [IoT World Santa Clara]

Developing Interoperable Components for an Open IoT Foundation
Developing Interoperable Components for an Open IoT Foundation Developing Interoperable Components for an Open IoT Foundation
Developing Interoperable Components for an Open IoT Foundation

Mulesoft Connections to different companies, and different services
Mulesoft Connections to different companies, and different servicesMulesoft Connections to different companies, and different services
Mulesoft Connections to different companies, and different services

MuleSoft Surat Virtual Meetup#25 - Anypoint Platform Features and Capabilitie...
MuleSoft Surat Virtual Meetup#25 - Anypoint Platform Features and Capabilitie...MuleSoft Surat Virtual Meetup#25 - Anypoint Platform Features and Capabilitie...
MuleSoft Surat Virtual Meetup#25 - Anypoint Platform Features and Capabilitie...

Eclipse IoT Overview
Eclipse IoT OverviewEclipse IoT Overview
Eclipse IoT Overview

Innovating with IoT: A Toolkit Approach
Innovating with IoT: A Toolkit ApproachInnovating with IoT: A Toolkit Approach
Innovating with IoT: A Toolkit Approach

Going Beyond the Device Heart Beat
Going Beyond the Device Heart BeatGoing Beyond the Device Heart Beat
Going Beyond the Device Heart Beat

Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...
Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...
Providing a Holistic, Service-Oriented Infrastructure for Integration of Real...

DDDP 2019 - Brown to Green
DDDP 2019  - Brown to GreenDDDP 2019  - Brown to Green
DDDP 2019 - Brown to Green

3 Software Stacks for IoT Solutions
3 Software Stacks for IoT Solutions3 Software Stacks for IoT Solutions
3 Software Stacks for IoT Solutions

IoT
IoT IoT
IoT

IOT, Streaming Analytics and Machine Learning
IOT, Streaming Analytics and Machine Learning IOT, Streaming Analytics and Machine Learning
IOT, Streaming Analytics and Machine Learning


Recently uploaded

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf
UK Journal


Recently uploaded (20)

ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage Intacct

AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System Strategy

Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfLinux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf

TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...

1111 ChatGPT Prompts PDF Free Download - Prompts for ChatGPT
1111 ChatGPT Prompts PDF Free Download - Prompts for ChatGPT1111 ChatGPT Prompts PDF Free Download - Prompts for ChatGPT
1111 ChatGPT Prompts PDF Free Download - Prompts for ChatGPT

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdf

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024

Your enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4jYour enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4j

Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...

Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...
Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...
Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf

BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptxBT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx


IoT architecture

  • 1. Planning an architecture for the Internet of Things IoT Expo , Nov 5, 2014 Sumit Sharma Director, API Solutions sumit.sharma@mulesoft.com
  • 2. Leading connectivity platform for enterprise applications, mobile and IoT HQ in San Francisco with offices in New York, Atlanta, London, Rotterdam, Munich, Sydney, Singapore, Hong Kong, Buenos Aires, Rio De Janiero 2 3,500+ on-premise enterprise deployments 25,000+ cloud deployments 50% of the Global 500 www.mulesoft.com
  • 3. MuleSoft’s mission To connect the world’s applications, data and devices
  • 4. MuleSoft’s mission To connect the world’s applications, data and devices
  • 5. Agenda for today’s session Business drivers of IoT Architectural Patterns in an IoT Stack All contents Copyright © 2014, MuleSoft Inc. 5
  • 6. Why plan for an IoT stack? MuleSoft Confidential - please do not share/distribute 6
  • 7. Everything needs to connect 7 7 50,000,000,000+ connected devices All contents Copyright © 2013, MuleSoft Inc.
  • 8. Connecting the physical world to the Web 8 8 Building Management Healthcare Social & Local Energy Grid Personalized Insurance Logistics & Shipping Connected Car Home Automation Environmental Identity & Tracking Farming All contents Copyright © 2013, MuleSoft Inc.
  • 9. Architectural patterns in an IoT stack MuleSoft Confidential - please do not share/distribute 9
  • 10. At a high level this is the general IoT stack App Data Processing and Platform Edge Thing / Device
  • 11. Breaking down the IoT stack MuleSoft Confidential - please do not share/distribute 11
  • 12. The IoT Stack Mobile apps Mobile aPaaS Application PaaS ( aPaaS ) Data Management and Intelligence Device Management Hardware / Firmware API Design / Build Sensors Device Hub/Gateway API runtime management iPaaS Middle-ware Websites Industry specific ( e.g., appliances, touch console etc.)
  • 13. IoT Stack: Devices / Things Sensors Hardware / Firmware All contents Copyright © 2013, MuleSoft Inc. 13
  • 14. Devices: Many chipsets / platforms to choose from. ( Becoming more and more vertically integrated with software stacks).
  • 15. Big focus on prototyping: Lots of tools to cater to the makers and tinkerers Integrated SDKs to speed development, testing and optimization.
  • 16. Dragonboard based on Snapdragon processor ( many more like this from many vendors )
  • 17. Sensors: Smart or Simple Smart Sensors Simple Sensors Receive Notifications Send Data / Events Onboarding Receive Config
  • 18. Device Management Sensors Hardware / Firmware IoT Stack: Device Edge Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 18
  • 19. Key charter is to establish and maintain a secure, robust, fault-tolerant connection between the cloud and the edge devices in order to: • Collect and aggregate device data • Manage the device Device Management Sensors Hardware / Firmware IoT Stack: Device Edge Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 19
  • 20. Typically a combination of a localized gateway, and a cloud based gateway, at the edge
  • 21. Reference capabilities for a gateway Connectivity Routing Enable scalable, real-time, dependable, high-performance and interoperable data and device management related exchanges between publishers and subscribers Registry Software mgmt Control Events Actuator Aggregation Transformation Provisioning
  • 22. Device, and Device gateway sprawl is going to be a challenge Too many disparate ecosystems. Too many gateways, hubs, protocols, apps.
  • 23. Solution to the sprawl: A hub of all hubs Need interoperability between devices/ machines so they can all talk to each other.
  • 24. Solution to the sprawl: A hub of all hubs
  • 25. IoT Stack: Data management and intelligence Data Management and Intelligence Device Management Sensors Hardware / Firmware Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 25
  • 26. Capabilities required for Data Management and Intelligence • Data collection, storage, and analysis of sensor data • Run rules on data streams • Trigger alerts • Advanced analytics/machine learning • Expose HTTP (REST) APIs Data, HTTP, connectivity Real time event processing Batch processing Data enrichment Routing and Orchestration BigData solution connectivity Pattern Discovery/ Model re-training Driving Forces Identification Predictive Analysis
  • 27. IoT Stack: API lifecycle tooling and platform API Design / Build API runtime management Data Management and Intelligence Device Management Sensors Hardware / Firmware Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 27
  • 28. API lifecycle tooling can be split between design time and runtime Rapidly design, deploy and publish APIs API API runtime Design / Build management
  • 29. API lifecycle: Design time capabilities Rapidly design, deploy and publish APIs API spec creation API design lifecycle API mocking/ modelling Reusable API patterns Deployment automation API Design / Build API runtime management
  • 30. Outside In API development: What if we could whiteboard an API ? Springboard for optimizing “APX” API Design / Build l All contents Copyright 30 © 2014, MuleSoft Inc.
  • 31. APX Design Lifecycle • Modify API design as appropriate based on developer feedback. • Continue to validate Validate! • Mock up the API • Publish interactive console • Create Notebook use cases • Receive developer feedback l All contents Copyright 31 © 2014, MuleSoft Inc. Iterate! • Identify process and biz reqs • Create logical data model • Translate into logical service/API groupings • Model API resource models • API operations/methods • Request/response payload/codes • Create and implement orchestration logic for backend connectivity APX Design lifecycle API Design / Build
  • 32. API lifecycle: Runtime capabilities Rapidly design, deploy and publish APIs Rate limiting / Throttling API SLA management Custom policy engine Multi-tenant org / RBAC support Deployment automation API and data security API Design / Build API runtime management
  • 33. API runtime management API runtime management Developer Portal App Developer Discover, understand, and sign-up to use API Make ..…" app API Gateway • Rate limit • Throttle • OAuth2 • LDAP/AD auth • IP whitelisting • Transformations etc. API API API Publish, Document APIs All contents Copyright © 2013, MuleSoft Inc. 33
  • 34. IoT Stack: Application PaaS ( aPaaS ) Application PaaS ( aPaaS ) API Design / Build API runtime management Data Management and Intelligence Device Management Sensors Hardware / Firmware Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 34
  • 35. aPaaS capabilities OS/DB, Storage, Server, Network Routing, transform, orchestration services • Hosted in the cloud • Provides platform to build applications. Design and Development tooling Web, Database, Application Server Management and analytics tooling Administrative portal Application PaaS ( aPaaS )
  • 36. IoT Stack: End applications Mobile apps Mobile aPaaS Websites Industry specific ( e.g., appliances, touch console etc.) Application PaaS ( aPaaS ) API Design / Build API runtime management Data Management and Intelligence Device Management Sensors Hardware / Firmware Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 36
  • 37. IoT/IoE is a driver of mobile / tablet interfaces All contents Copyright © 2013, MuleSoft Inc. 37
  • 38. IoT Stack: iPaaS integration – middleware: Don’t forget to integrate! Mobile apps Mobile aPaaS Websites Industry specific ( e.g., appliances, touch console etc.) Application PaaS ( aPaaS ) API Design / Build API runtime management Data Management and Intelligence Device Management Sensors Hardware / Firmware Device Hub/Gateway iPaaS Middle-ware iPaaS middleware All contents Copyright © 2013, MuleSoft Inc. 38
  • 39. iPaaS Capabilities: Don’t forget to integrate!
  • 41. IoT Stack Mobile apps Mobile aPaaS Industry specific ( e.g., appliances, touch console etc.) Application PaaS ( aPaaS ) middleware Websites API Design / Build API runtime management Data Management iPaaS Device Management Sensors Device Hub/Gateway All contents Copyright © 2013, MuleSoft Inc. 41
  • 42. One final thought: the stack as it exists today is also converging… App Data Processing and Platform Edge Thing / Device
  • 43. Scenarios where the middleware and edge have converged ( i.e., MuleSoft Anypoint Edge ) AApppsp Data Processing and Platform Edge Thing / Device
  • 44. And there are also scenarios where the app layer is directly connected to the Thing/Device layer ( i.e., embedded Android, Java, Javascript etc. ) Data Processing and Platform Edge Apps Thing / Device
  • 45. Thank you! Questions? sumit.sharma@mulesoft.com
