Better API Security With A SecDevOps Approach
- 1. The API Security Platform for the Enterprise ISABELLE MAUNY - CHIEF PRODUCT OFFICER & CO-FOUNDER ISABELLE@42CRUNCH.COM BETTER SECURITY WITH AN AUTOMATED APPROACH

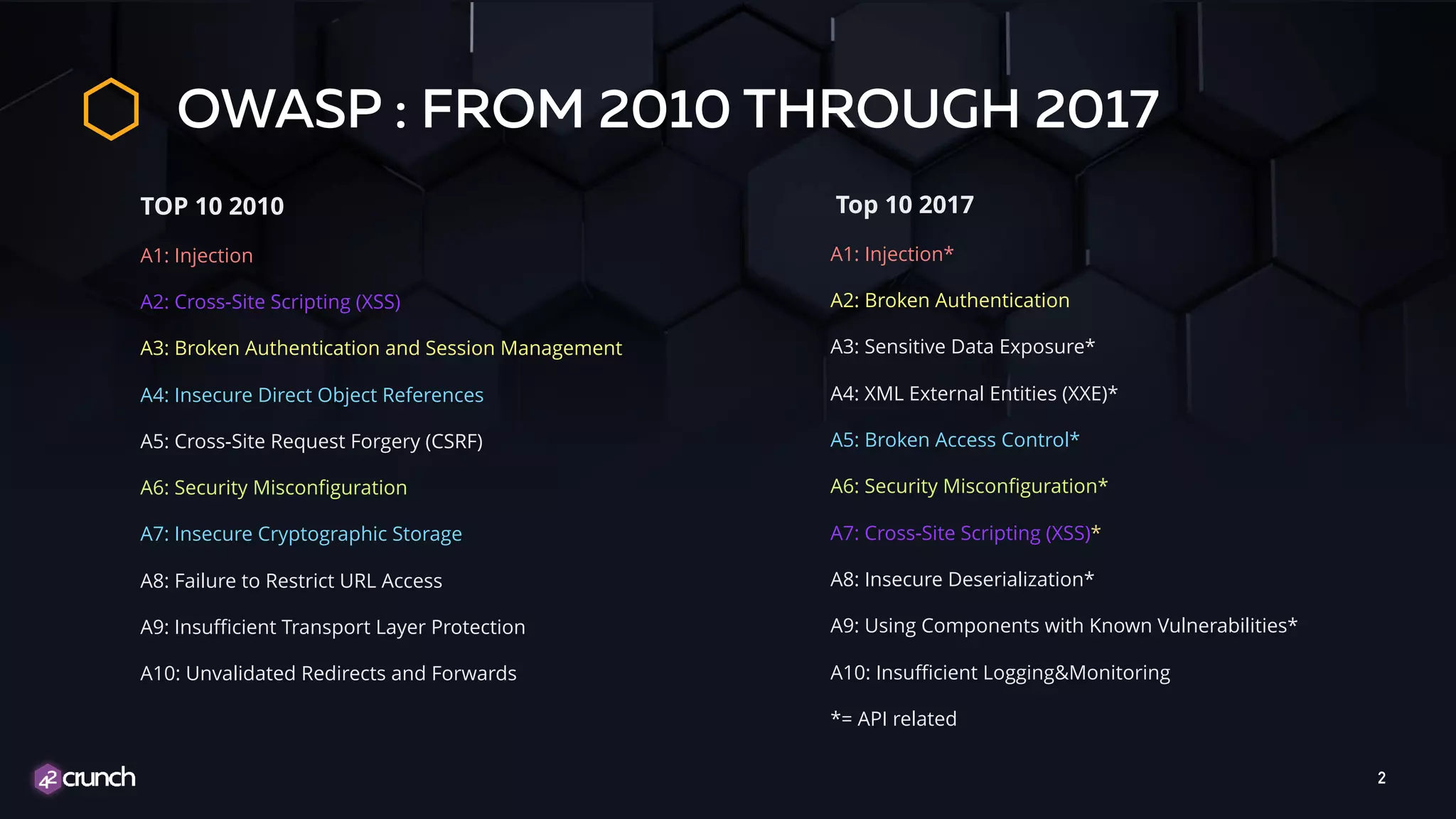

- 2. OWASP : FROM 2010 THROUGH 2017 2 TOP 10 2010 A1: Injection A2: Cross-Site Scripting (XSS) A3: Broken Authentication and Session Management A4: Insecure Direct Object References A5: Cross-Site Request Forgery (CSRF) A6: Security Misconfiguration A7: Insecure Cryptographic Storage A8: Failure to Restrict URL Access A9: Insufficient Transport Layer Protection A10: Unvalidated Redirects and Forwards Top 10 2017 A1: Injection* A2: Broken Authentication A3: Sensitive Data Exposure* A4: XML External Entities (XXE)* A5: Broken Access Control* A6: Security Misconfiguration* A7: Cross-Site Scripting (XSS)* A8: Insecure Deserialization* A9: Using Components with Known Vulnerabilities* A10: Insufficient Logging&Monitoring *= API related

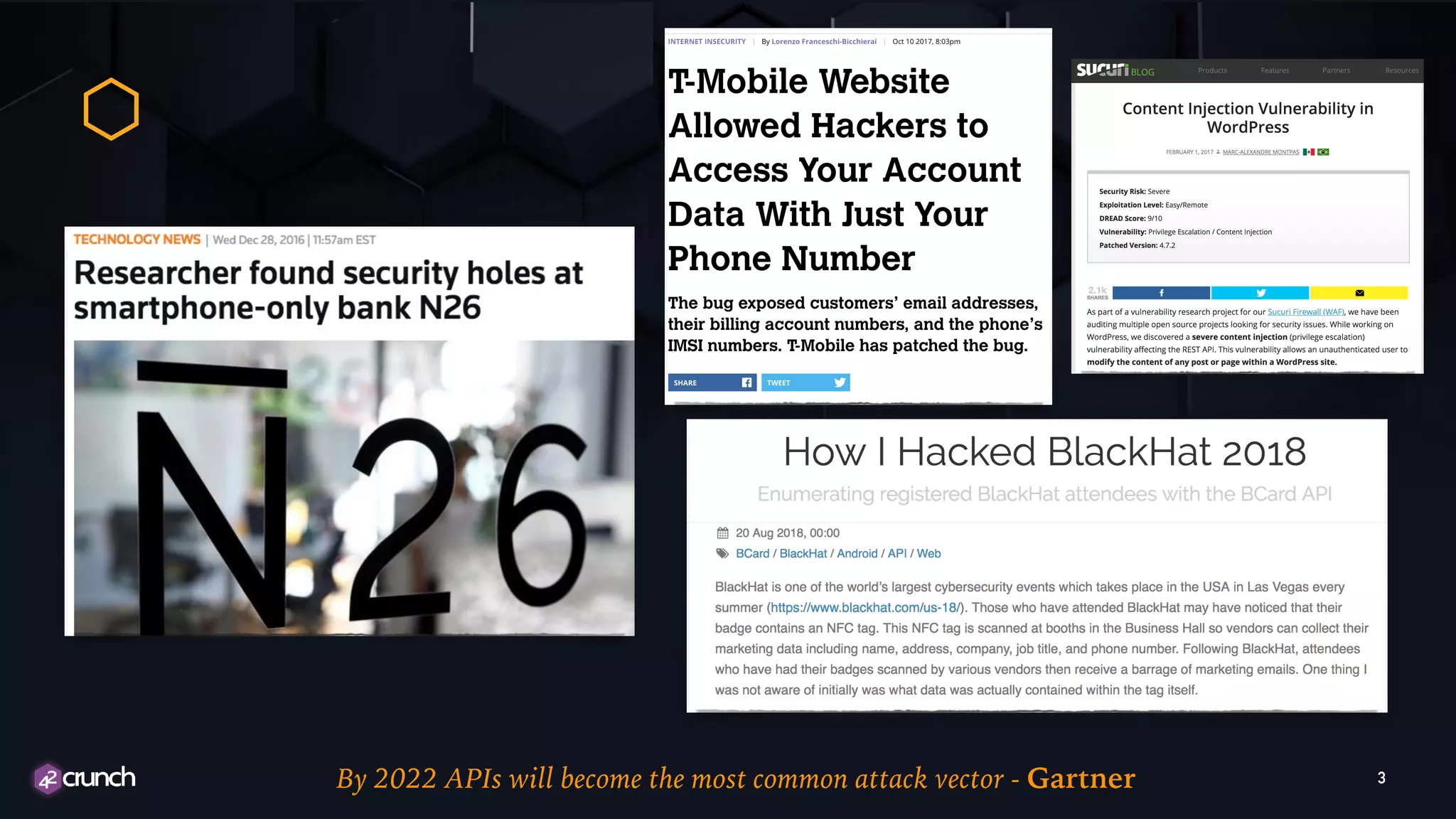

- 3. 3By 2022 APIs will become the most common attack vector - Gartner
- 4. HOW DID WE GET THERE? 4
- 6. 6
- 8. 8

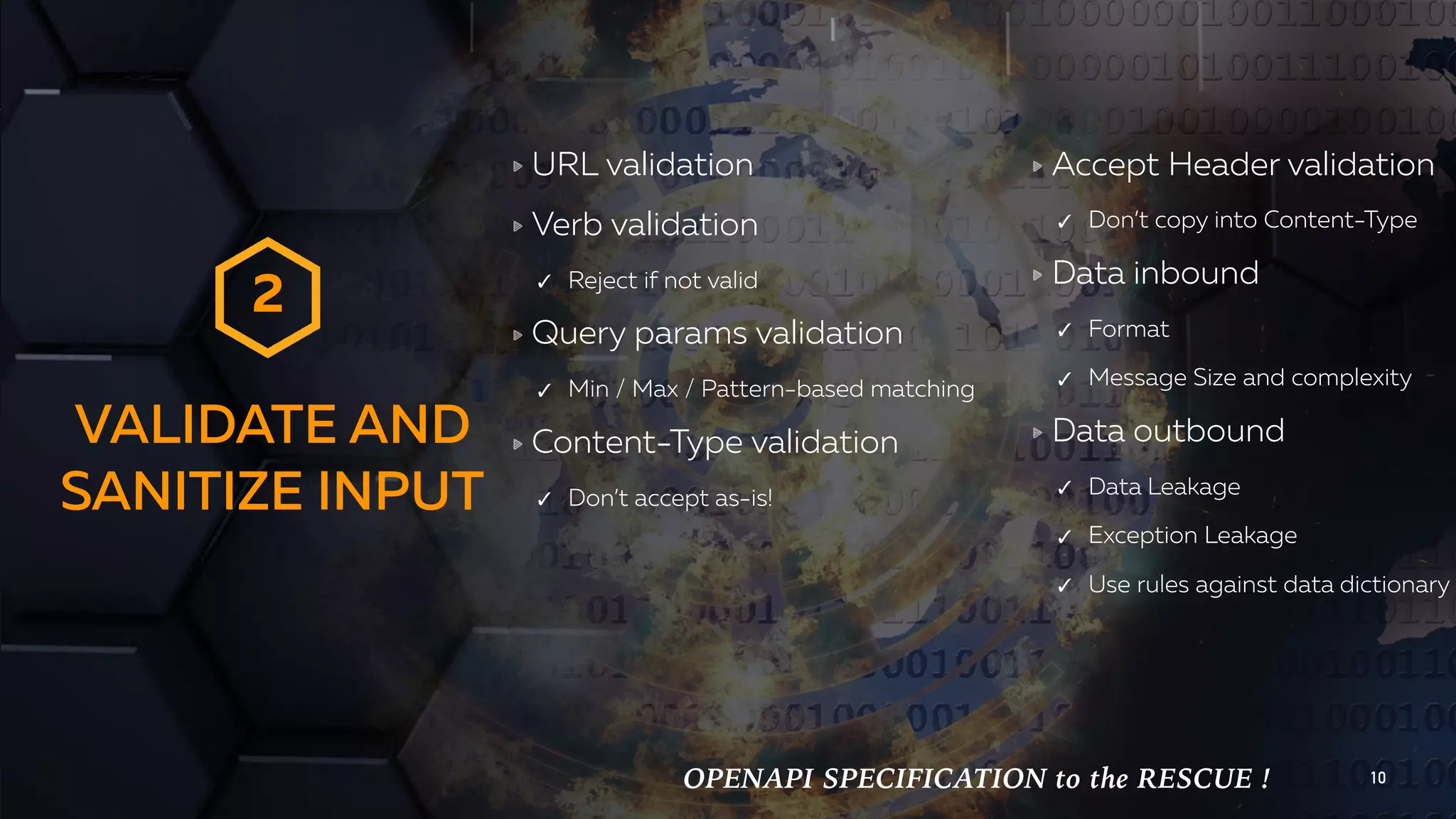

- 10. VALIDATE AND SANITIZE INPUT 10 URL validation Verb validation ✓ Reject if not valid Query params validation ✓ Min / Max / Pattern-based matching Content-Type validation ✓ Don’t accept as-is! Accept Header validation ✓ Don’t copy into Content-Type Data inbound ✓ Format ✓ Message Size and complexity Data outbound ✓ Data Leakage ✓ Exception Leakage ✓ Use rules against data dictionary 2 OPENAPI SPECIFICATION to the RESCUE !

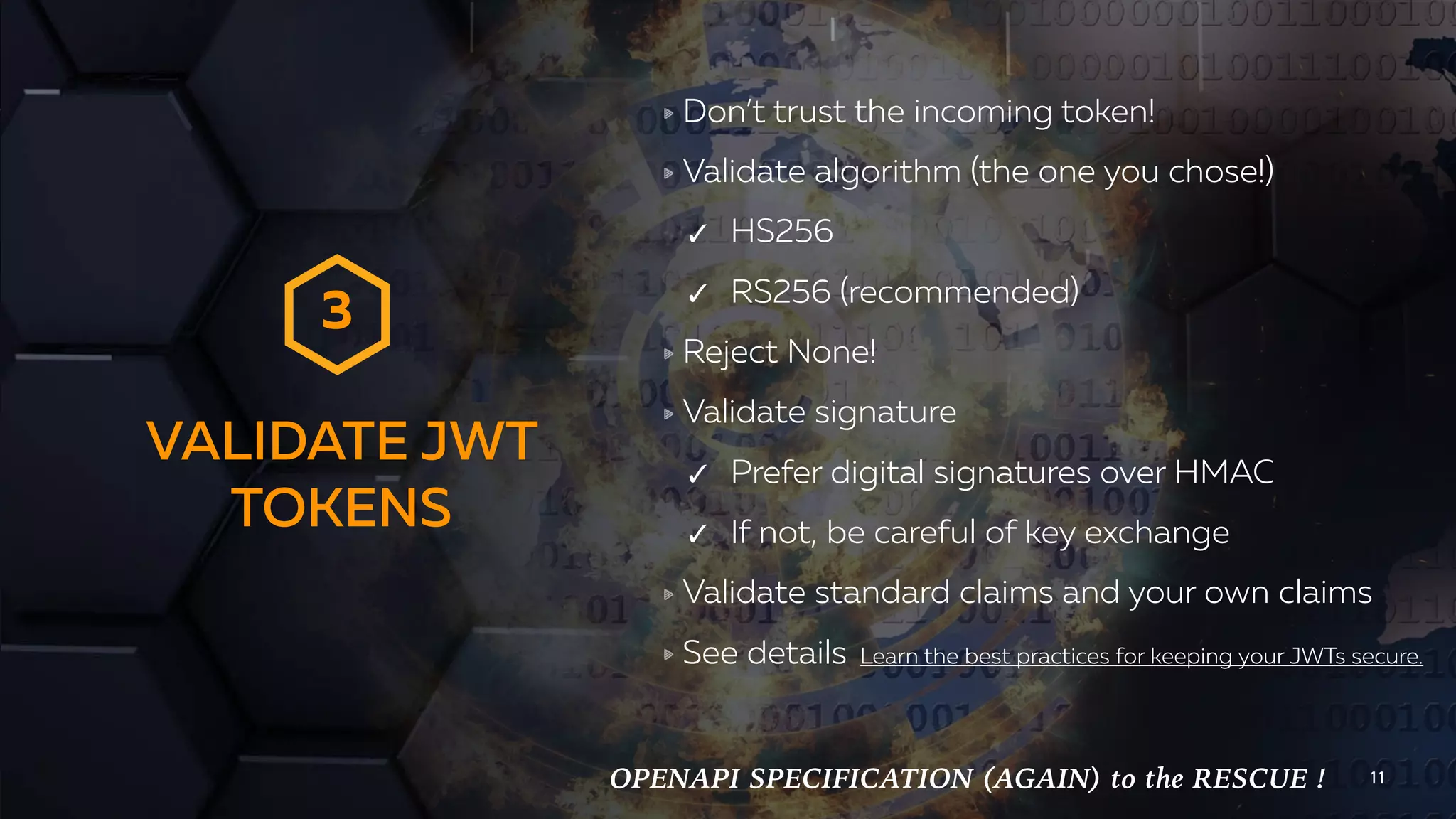

- 11. VALIDATE JWT TOKENS 11 Don’t trust the incoming token! Validate algorithm (the one you chose!) ✓ HS256 ✓ RS256 (recommended) Reject None! Validate signature ✓ Prefer digital signatures over HMAC ✓ If not, be careful of key exchange Validate standard claims and your own claims See details Learn the best practices for keeping your JWTs secure. 3 OPENAPI SPECIFICATION (AGAIN) to the RESCUE !
- 12. FINE-GRAIN AUTHORIZATION 12 Who is calling ? ✓ Is it your own app ? ✓ Is it a trusted user ? What can they do ? Example: T-Mobile number Scopes are often not enough ! ✓ Need ABAC solution (XACML!) 4

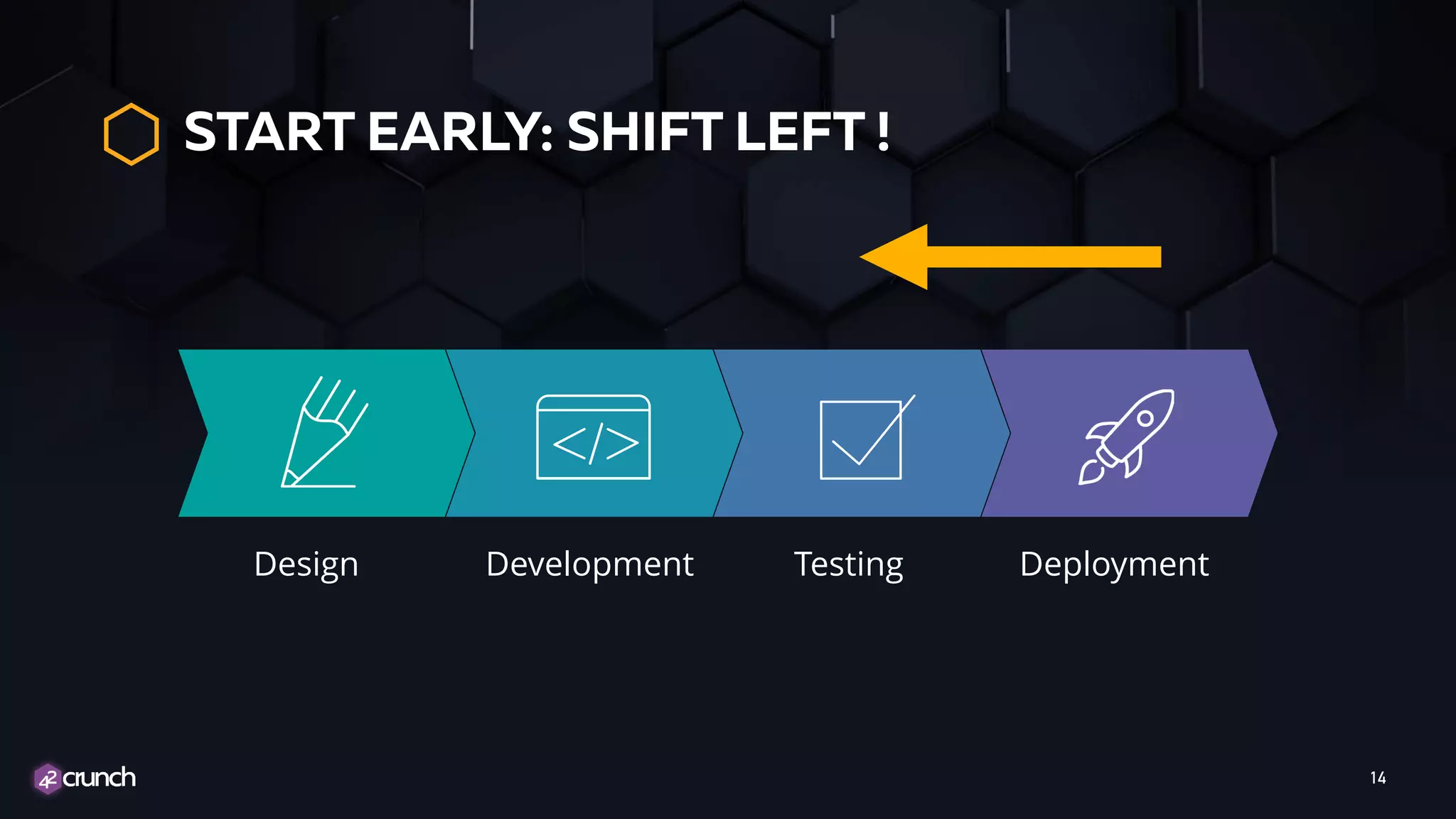

- 14. START EARLY: SHIFT LEFT ! 14 DeploymentTestingDevelopmentDesign

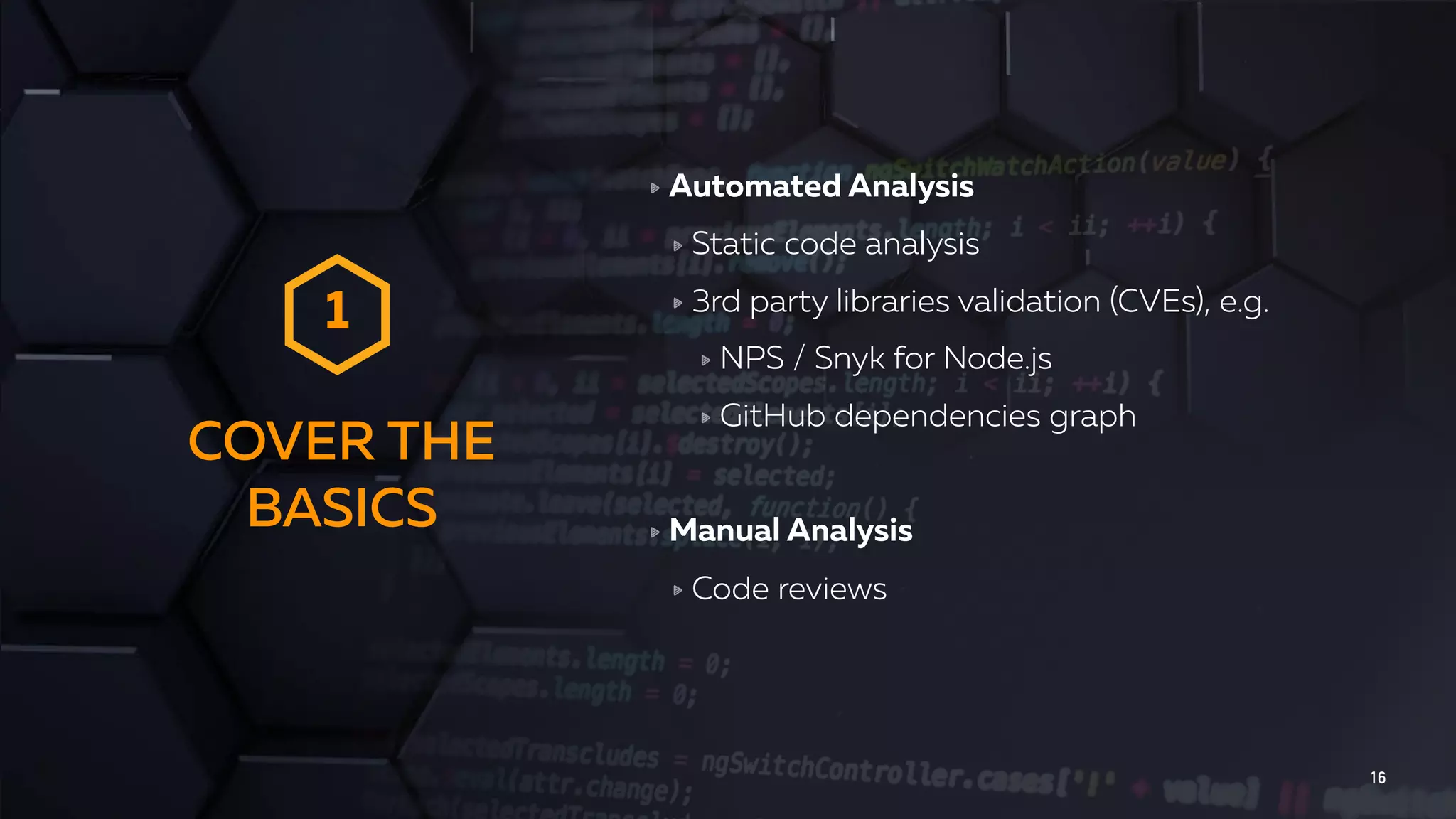

- 16. COVER THE BASICS 16 Automated Analysis Static code analysis 3rd party libraries validation (CVEs), e.g. NPS / Snyk for Node.js GitHub dependencies graph Manual Analysis Code reviews 1

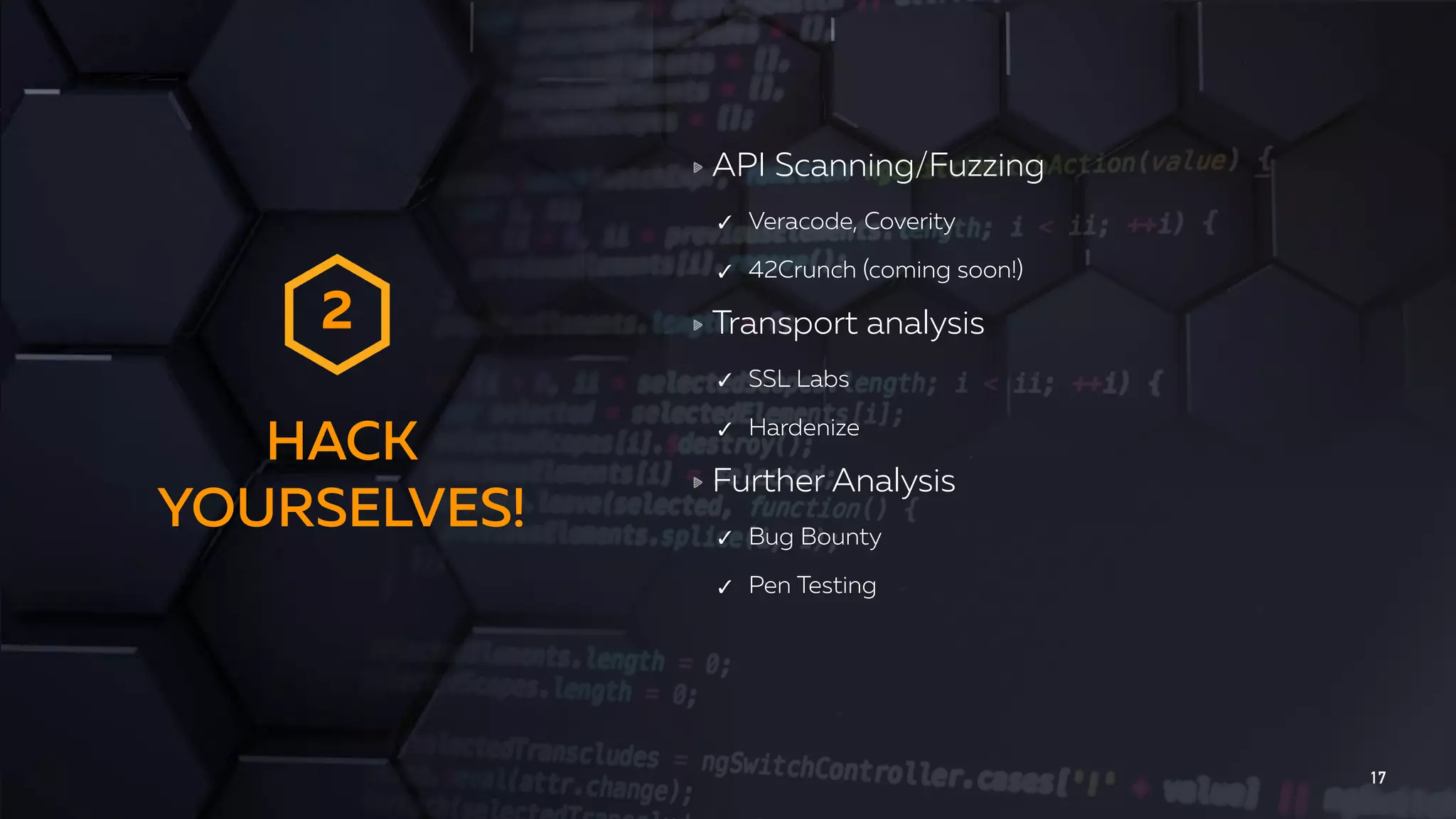

- 17. HACK YOURSELVES! 17 API Scanning/Fuzzing ✓ Veracode, Coverity ✓ 42Crunch (coming soon!) Transport analysis ✓ SSL Labs ✓ Hardenize Further Analysis ✓ Bug Bounty ✓ Pen Testing 2
- 18. 18 PROTECT YOUR APIS 3 Protect all APIs ( public, private, SaaS) AUTOMATICALLY deploy security measures such as API Security Gateways/Firewalls ✓ Enforce Rate Limiting • Brute force attacks (see N26!) • DOS attacks ✓ Data Validation / JWT Validation / Auth / Azn ✓ Serves as Virtual Patching (as a WAF does for applications) ✓ Deploy at the edge and/or close to APIs (microservices architecture)

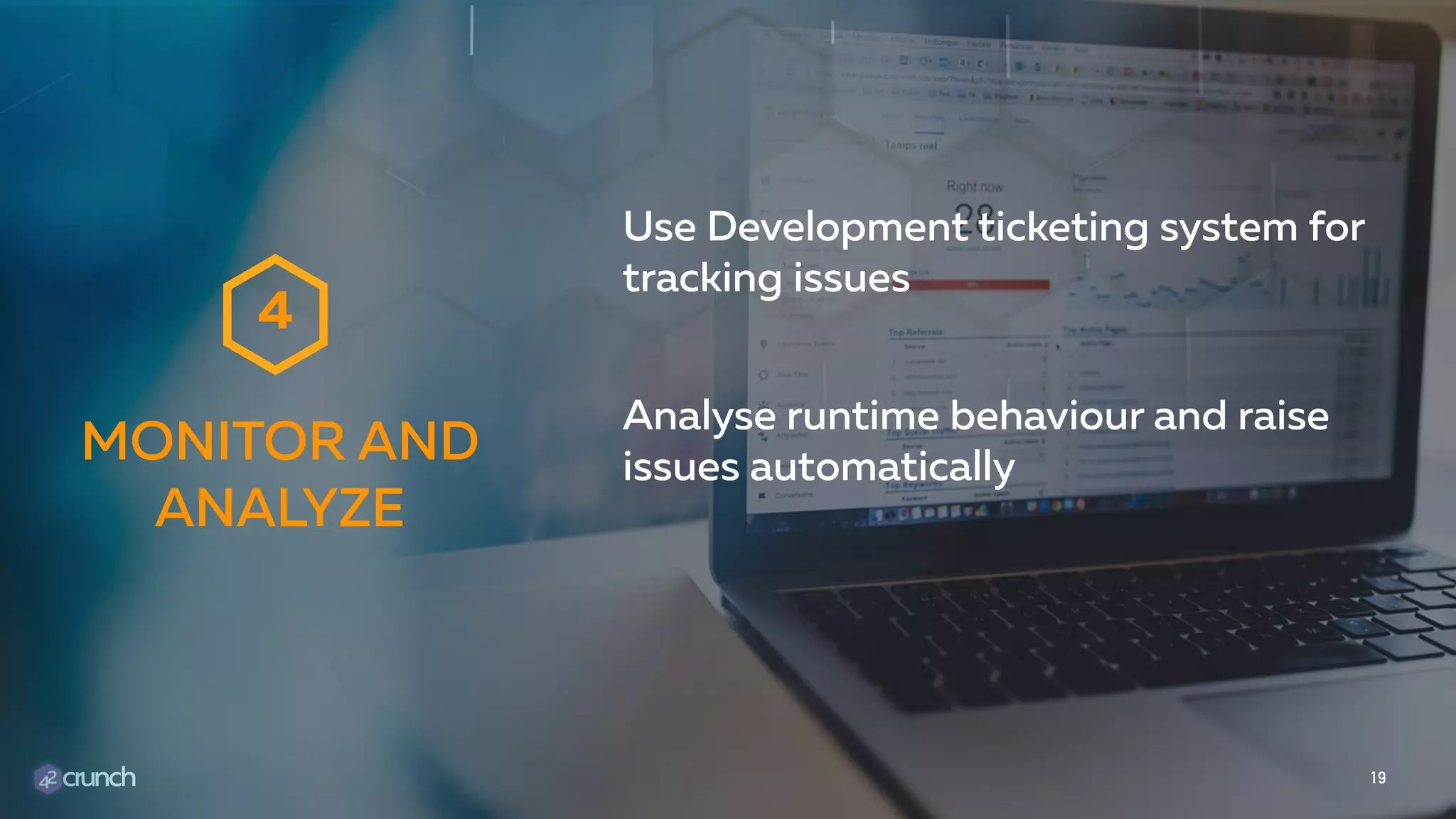

- 19. Use Development ticketing system for tracking issues Analyse runtime behaviour and raise issues automatically 19 MONITOR AND ANALYZE 4
- 20. JOIN THE MAILING LIST ! APISECURITY.IO NEWS AND TOOLS FOR BETTER API SECURITY

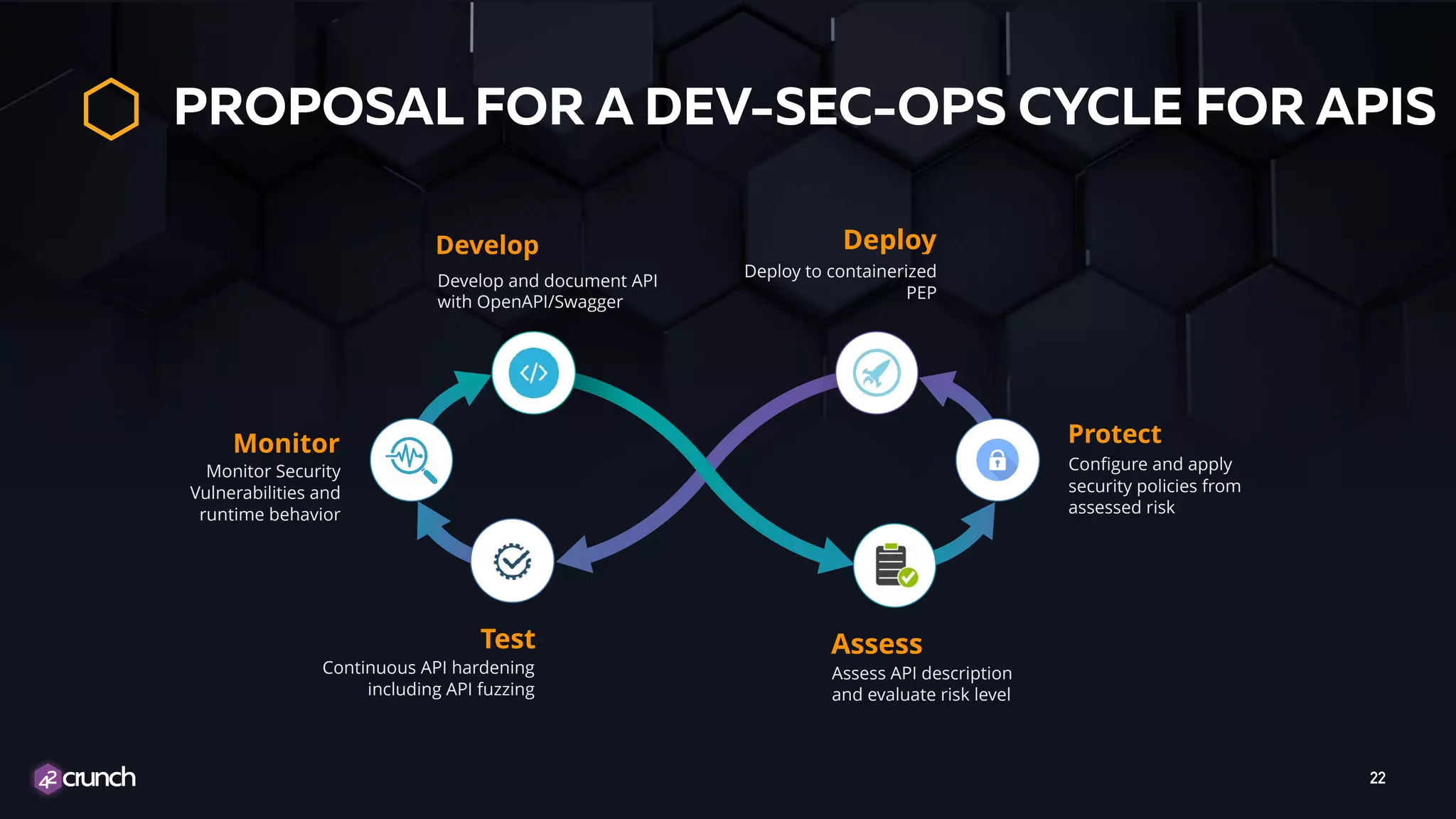

- 22. PROPOSAL FOR A DEV-SEC-OPS CYCLE FOR APIS 22 Monitor Assess Protect Test Develop Deploy Monitor Security Vulnerabilities and runtime behavior Continuous API hardening including API fuzzing Deploy to containerized PEP Configure and apply security policies from assessed risk Assess API description and evaluate risk level Develop and document API with OpenAPI/Swagger

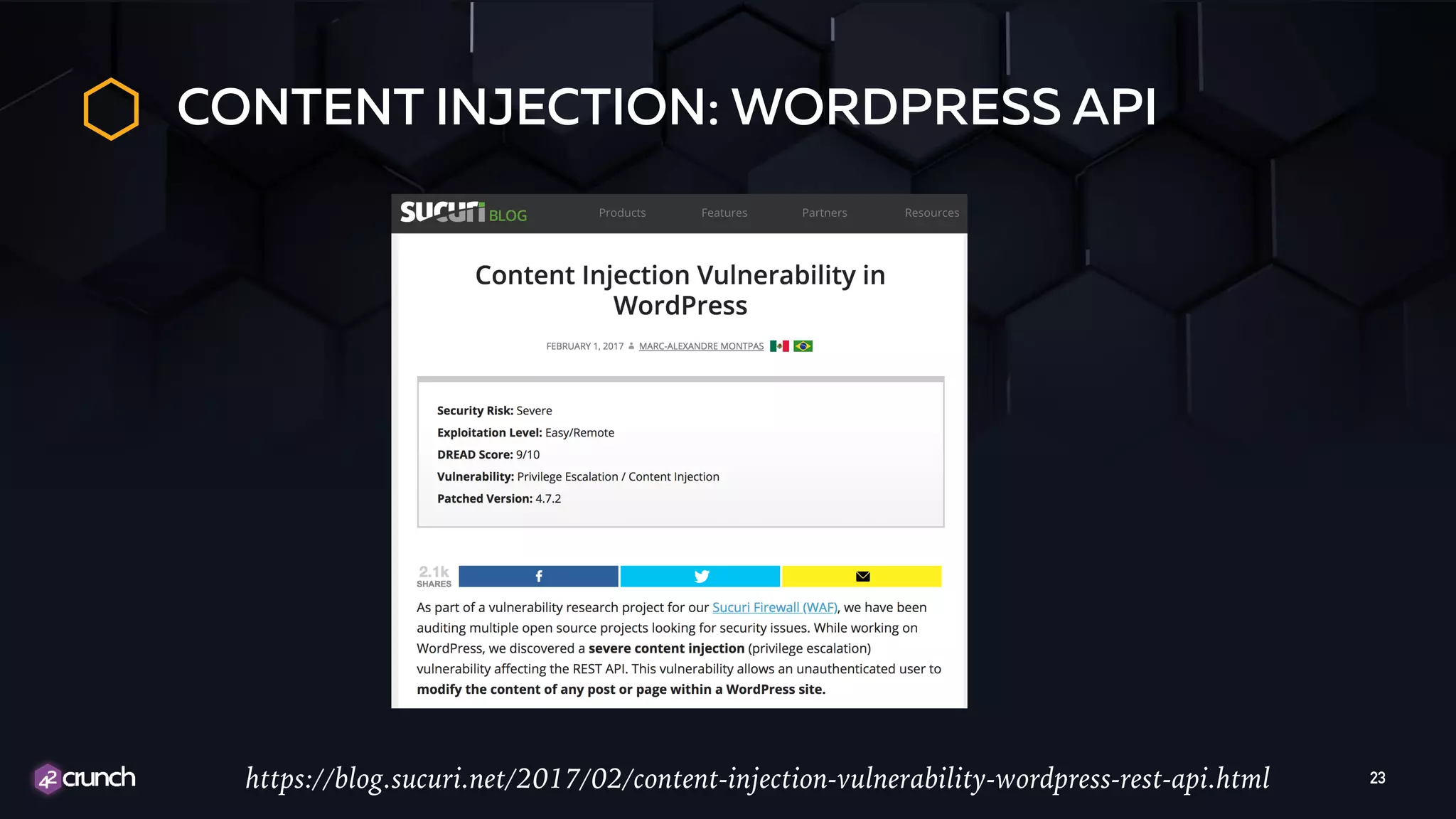

- 23. CONTENT INJECTION: WORDPRESS API 23https://blog.sucuri.net/2017/02/content-injection-vulnerability-wordpress-rest-api.html

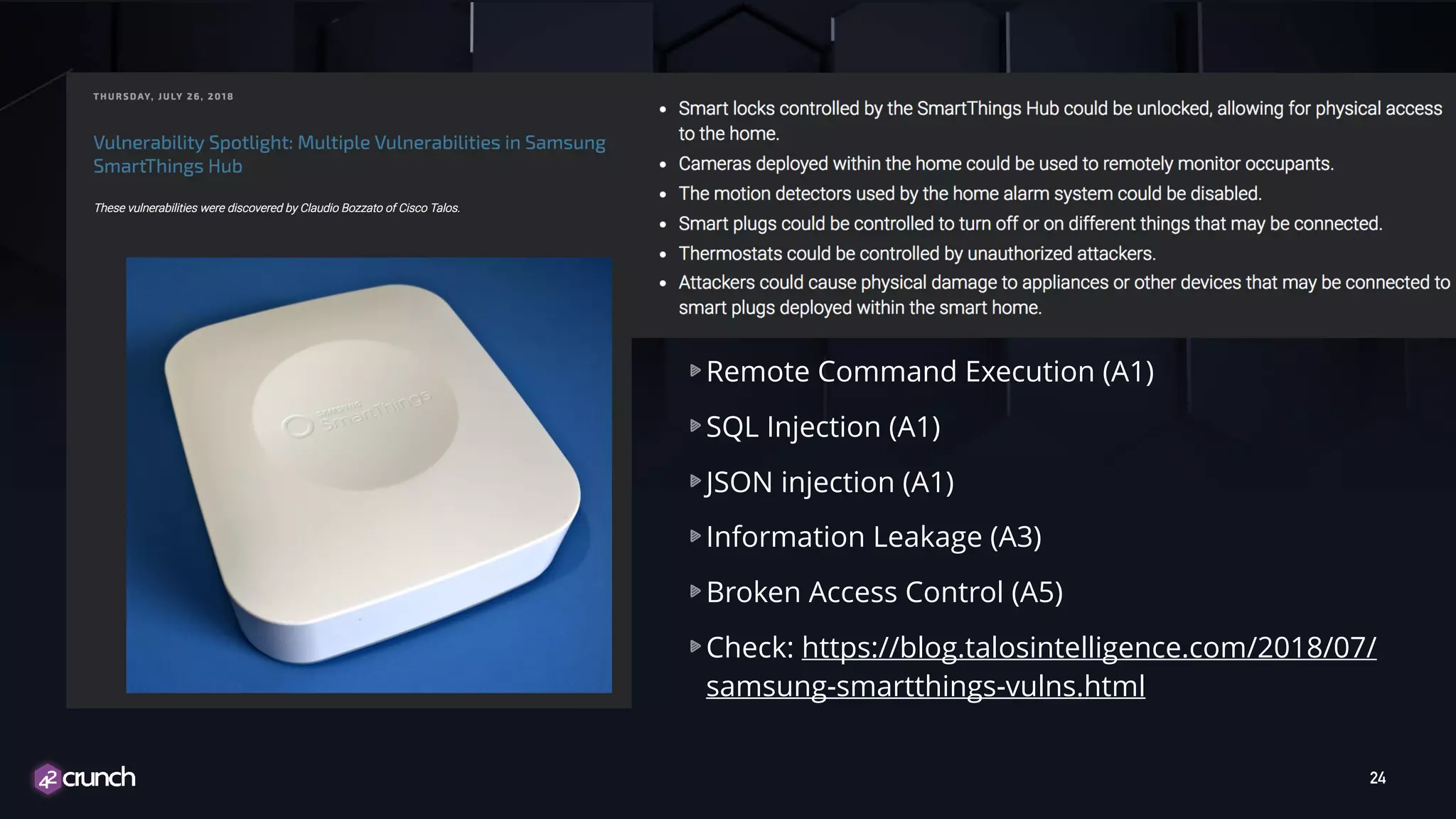

- 24. TITLE TEXT Remote Command Execution (A1) SQL Injection (A1) JSON injection (A1) Information Leakage (A3) Broken Access Control (A5) Check: https://blog.talosintelligence.com/2018/07/ samsung-smartthings-vulns.html 24

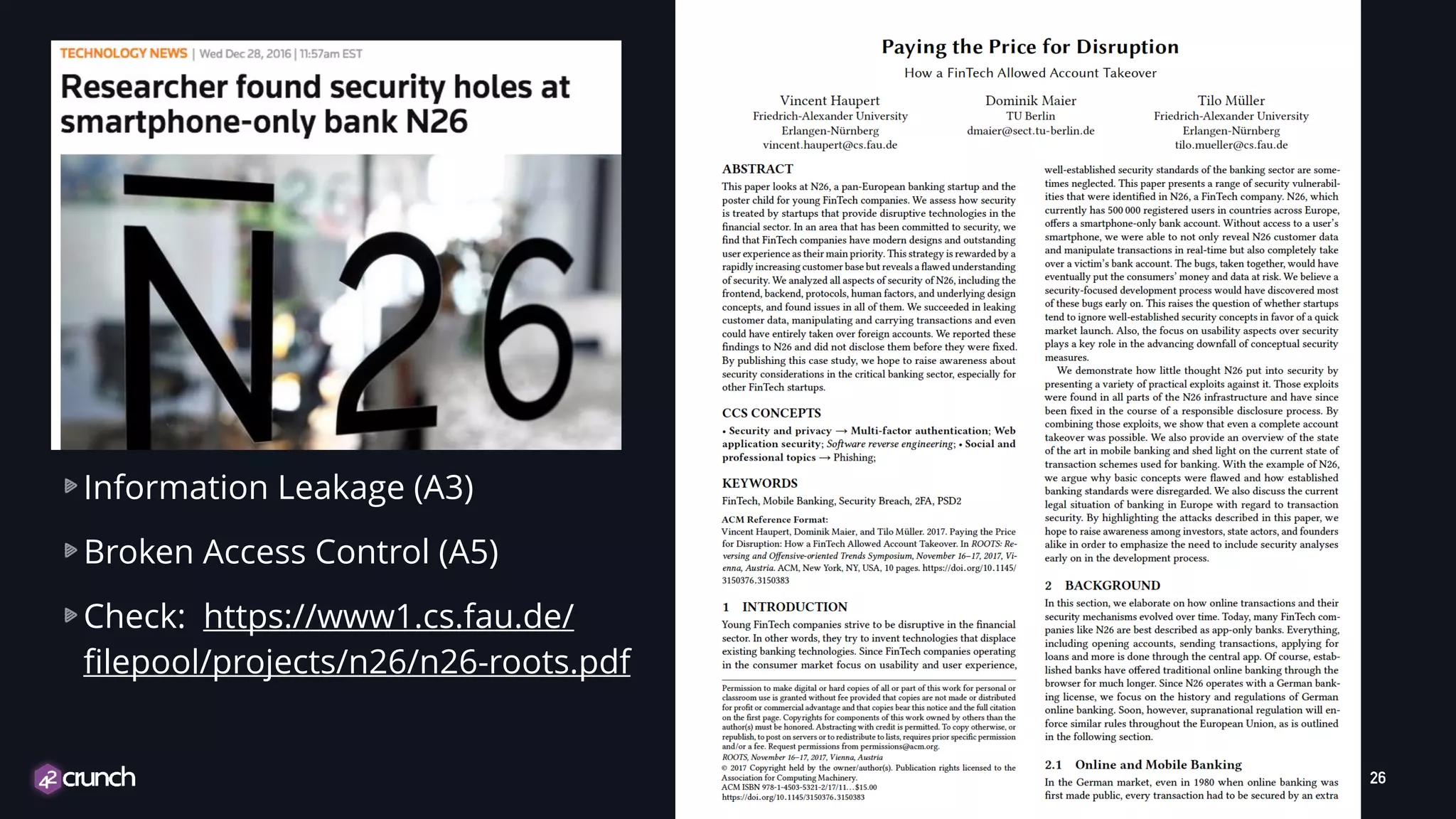

- 26. 26 Information Leakage (A3) Broken Access Control (A5) Check: https://www1.cs.fau.de/ filepool/projects/n26/n26-roots.pdf

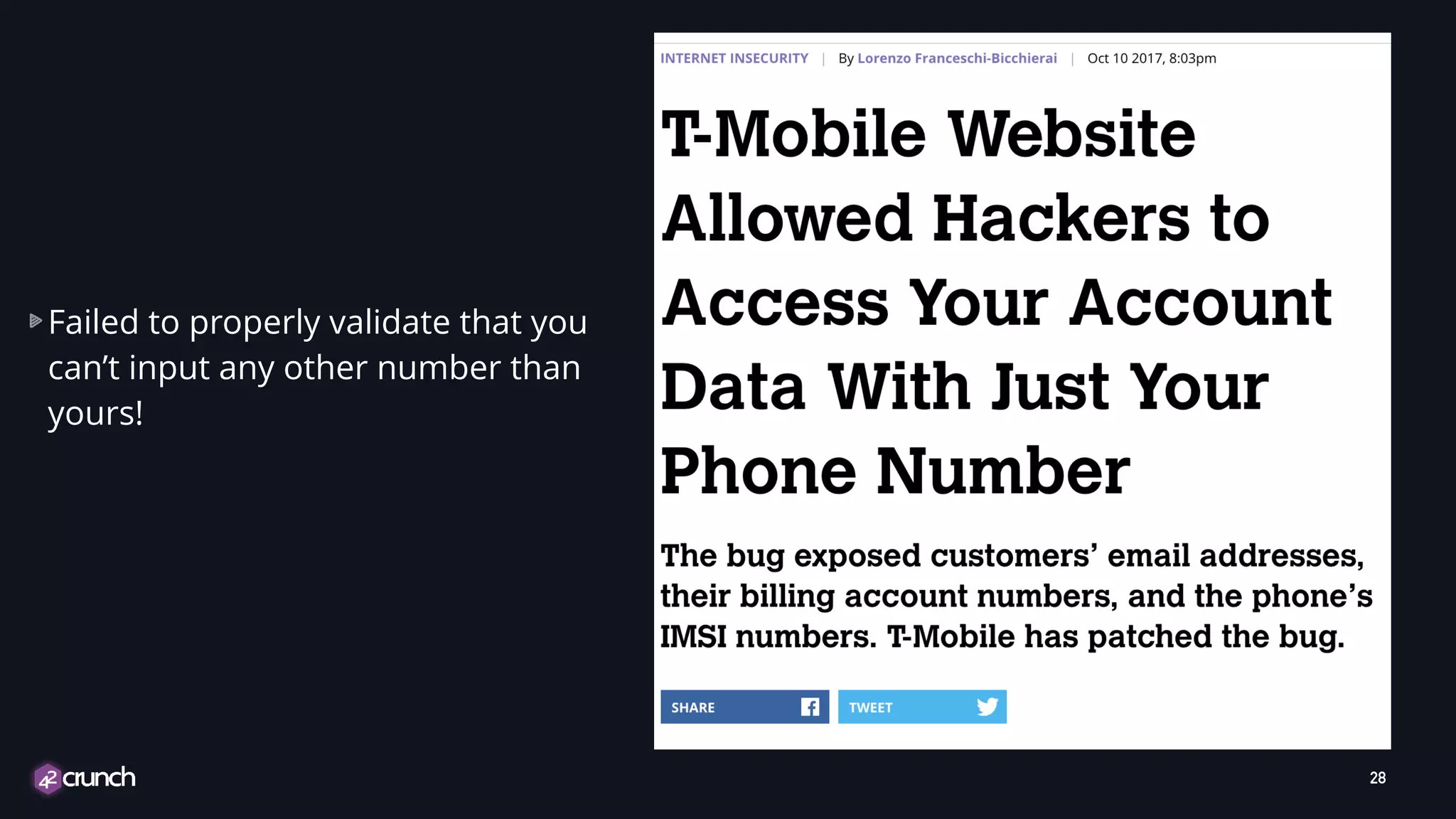

- 28. 28 Failed to properly validate that you can’t input any other number than yours!

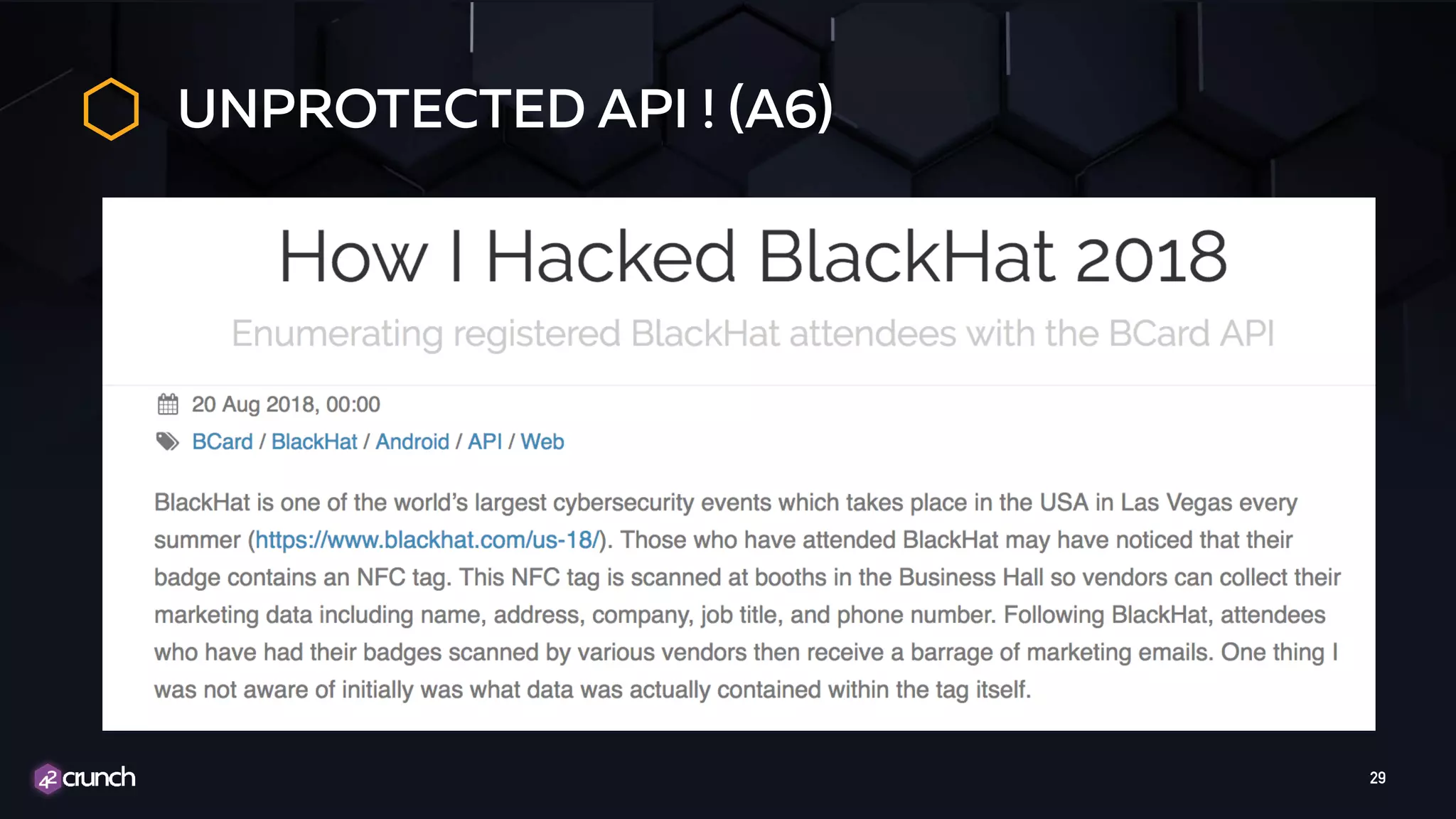

- 29. UNPROTECTED API ! (A6) Remote Command Execution SQL Injection Buffer Overflow JSON injection Information Leakage Check: https://blog.talosintelligence.com/2018/07/samsung- smartthings-vulns.html 29

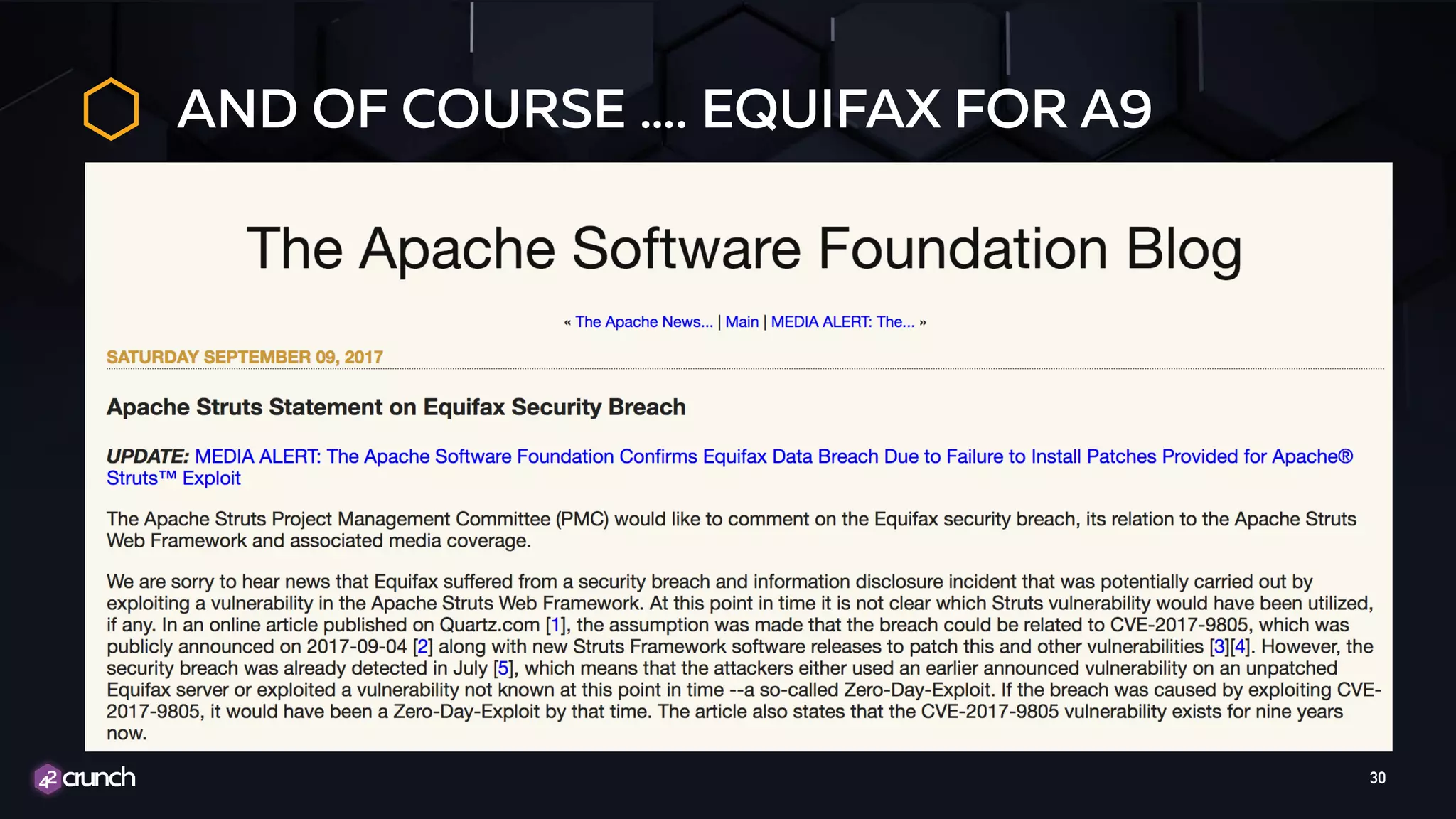

- 30. AND OF COURSE …. EQUIFAX FOR A9 30

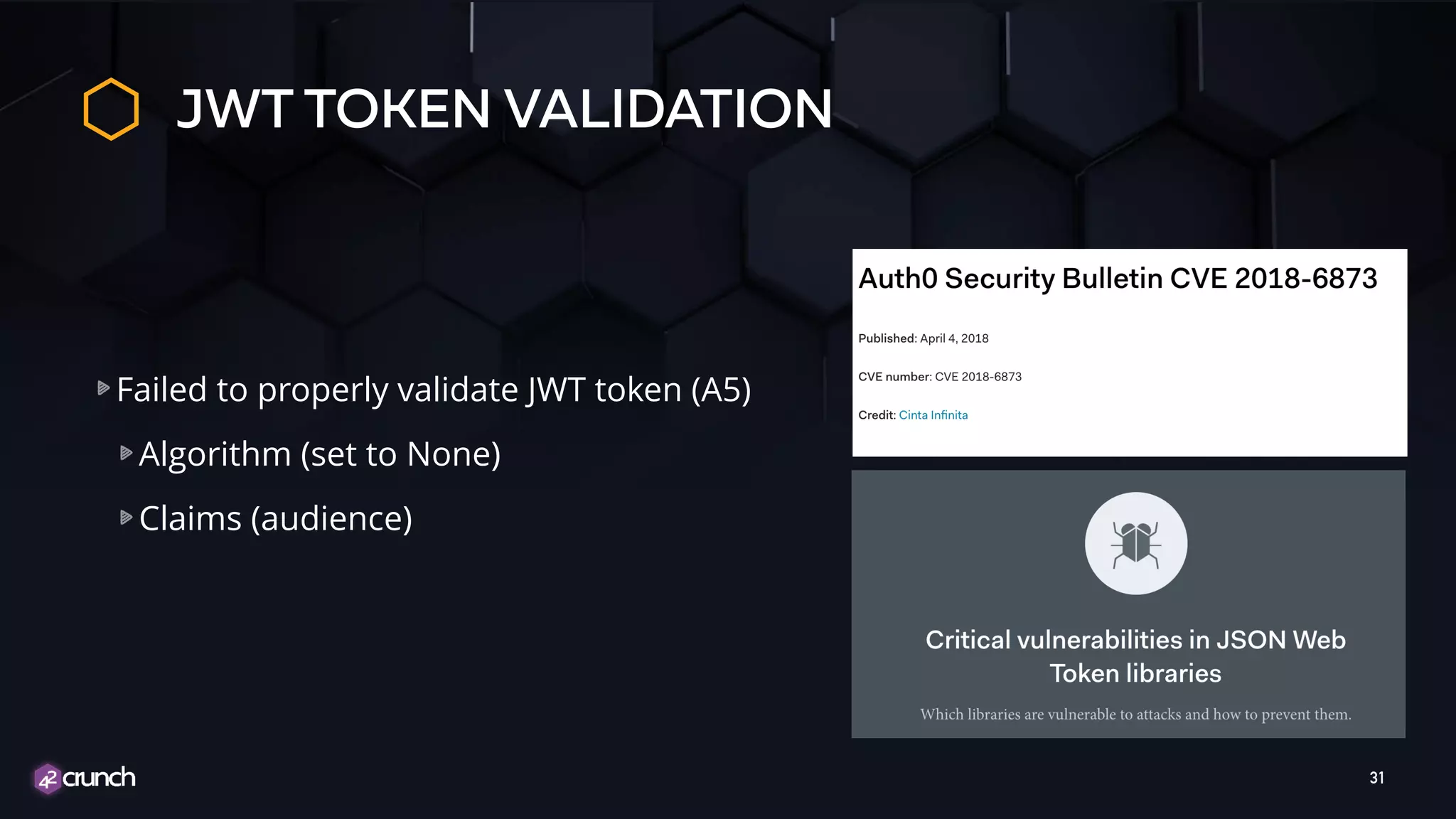

- 31. JWT TOKEN VALIDATION 31 Failed to properly validate JWT token (A5) Algorithm (set to None) Claims (audience)

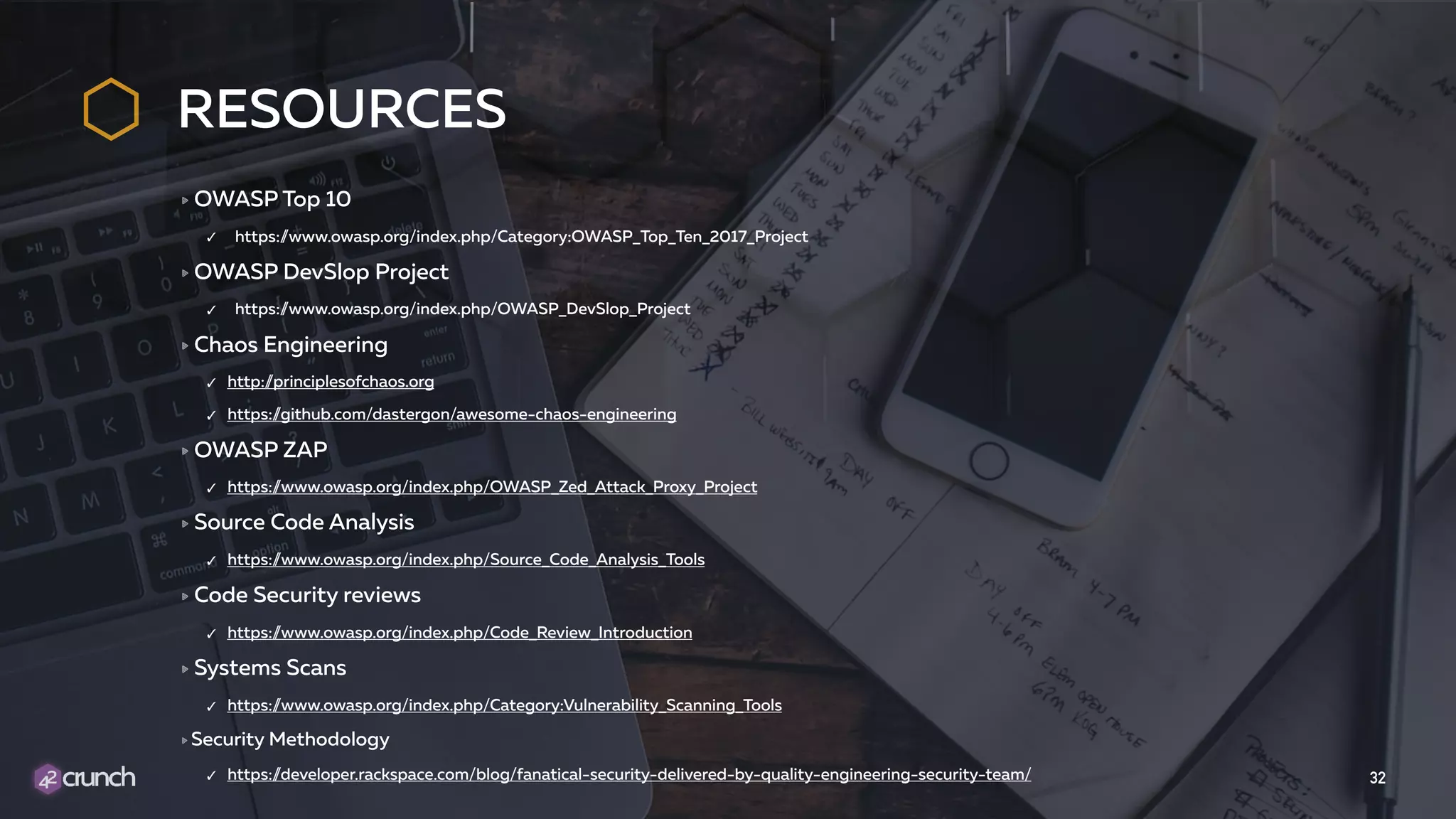

- 32. RESOURCES OWASP Top 10 ✓ https://www.owasp.org/index.php/Category:OWASP_Top_Ten_2017_Project OWASP DevSlop Project ✓ https://www.owasp.org/index.php/OWASP_DevSlop_Project Chaos Engineering ✓ http://principlesofchaos.org ✓ https://github.com/dastergon/awesome-chaos-engineering OWASP ZAP ✓ https://www.owasp.org/index.php/OWASP_Zed_Attack_Proxy_Project Source Code Analysis ✓ https://www.owasp.org/index.php/Source_Code_Analysis_Tools Code Security reviews ✓ https://www.owasp.org/index.php/Code_Review_Introduction Systems Scans ✓ https://www.owasp.org/index.php/Category:Vulnerability_Scanning_Tools Security Methodology ✓ https://developer.rackspace.com/blog/fanatical-security-delivered-by-quality-engineering-security-team/ 32

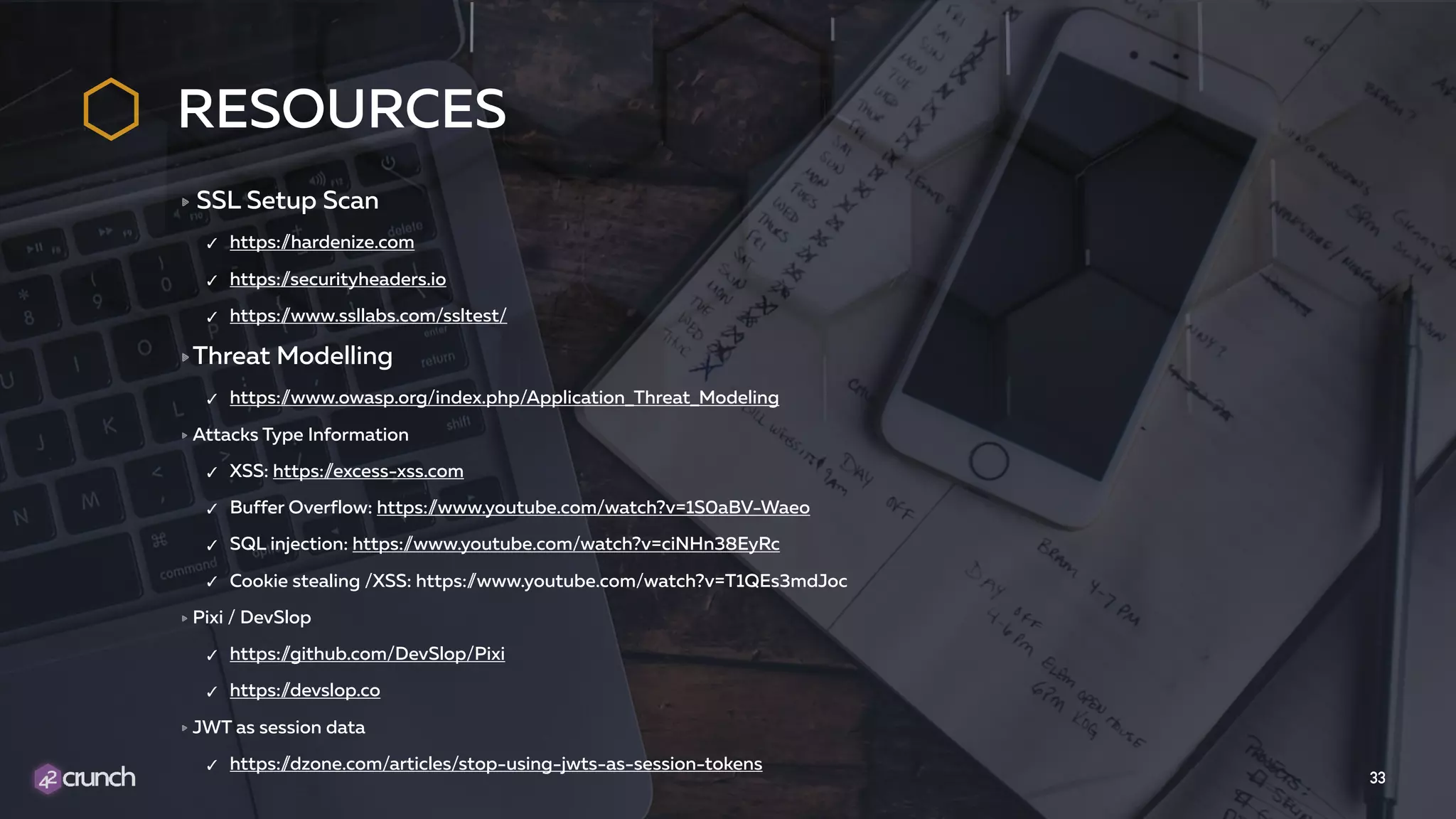

- 33. RESOURCES SSL Setup Scan ✓ https://hardenize.com ✓ https://securityheaders.io ✓ https://www.ssllabs.com/ssltest/ Threat Modelling ✓ https://www.owasp.org/index.php/Application_Threat_Modeling Attacks Type Information ✓ XSS: https://excess-xss.com ✓ Buffer Overflow: https://www.youtube.com/watch?v=1S0aBV-Waeo ✓ SQL injection: https://www.youtube.com/watch?v=ciNHn38EyRc ✓ Cookie stealing /XSS: https://www.youtube.com/watch?v=T1QEs3mdJoc Pixi / DevSlop ✓ https://github.com/DevSlop/Pixi ✓ https://devslop.co JWT as session data ✓ https://dzone.com/articles/stop-using-jwts-as-session-tokens 33
