Xen Functional Safety -
Update
Michal Orzel – AMD
Ayan Kumar Halder - AMD
2 |

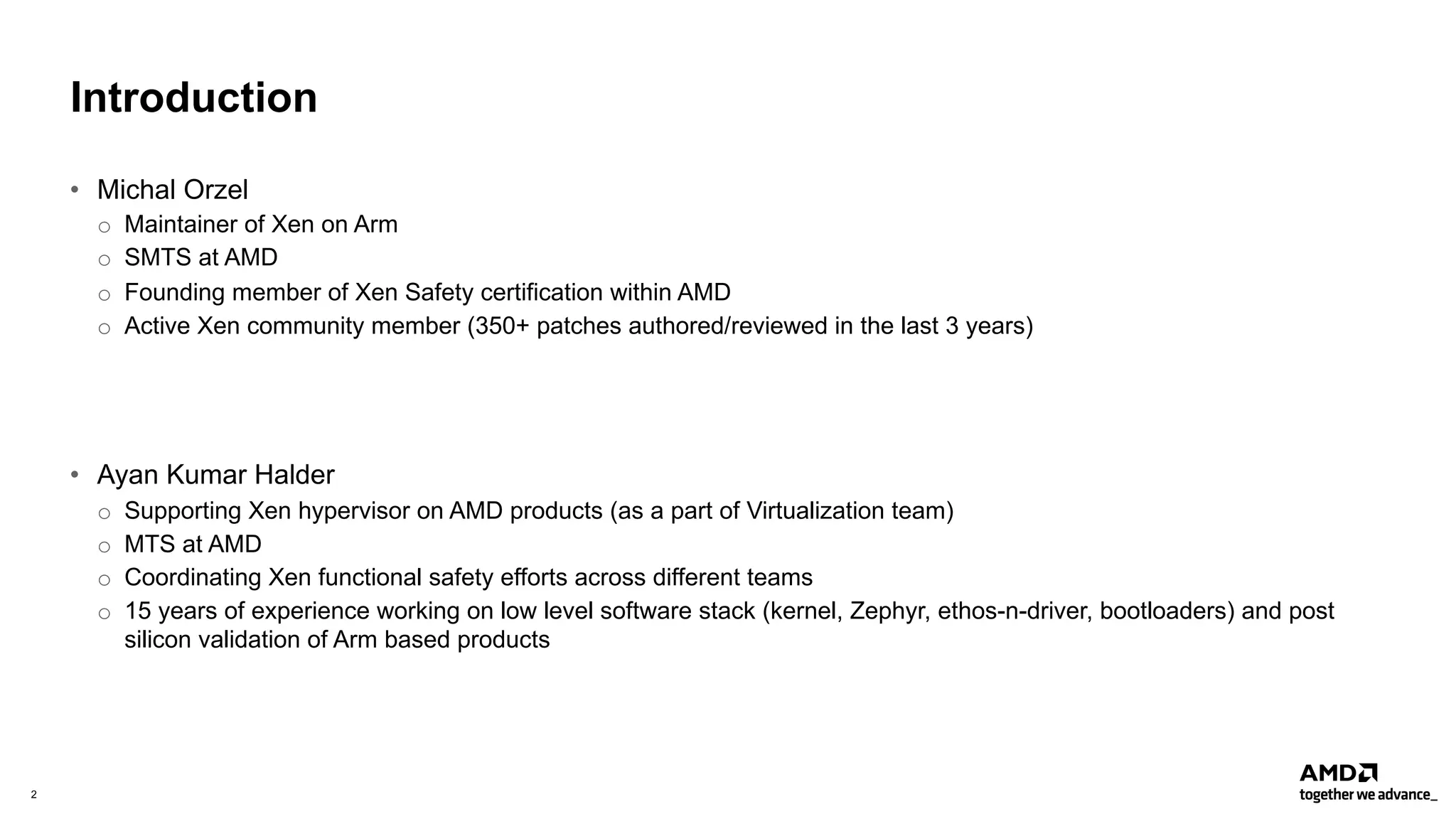

Introduction
• Michal Orzel
o Maintainer of Xen on Arm
o SMTS at AMD
o Founding member of Xen Safety certification within AMD
o Active Xen community member (350+ patches authored/reviewed in the last 3 years)
• Ayan Kumar Halder
o Supporting Xen hypervisor on AMD products (as a part of Virtualization team)
o MTS at AMD
o Coordinating Xen functional safety efforts across different teams
o 15 years of experience working on low level software stack (kernel, Zephyr, ethos-n-driver, bootloaders) and post
silicon validation of Arm based products
3 |

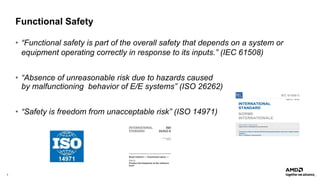

Functional Safety
• “Functional safety is part of the overall safety that depends on a system or
equipment operating correctly in response to its inputs.” (IEC 61508)
• “Absence of unreasonable risk due to hazards caused
by malfunctioning behavior of E/E systems” (ISO 26262)
• “Safety is freedom from unacceptable risk” (ISO 14971)
4 |
However, it provides benefits beyond safety
Safety
Quality
Usability
Maintainability
Upgradability
Diverse
Opensource
Community Safety Certification
Efforts
5 |
Safety certifying Xen Hypervisor
• AMD is working on making Xen safety-certifiable for AMD platforms
• ARM and AMD x86 platforms
• IEC 61508 SIL 3 (Systematic Capability 3) & ISO 26262 ASIL D
• Certification based on Xen upstream community processes and upstream codebase
• Not working with a private fork -- Ability to update the certification with limited efforts
• Certification docs & artifacts available for AMD customers
• Open to collaborations with other community members upstreaming
• Assumptions and Scope
• Common code and core components in Xen
• AMD x86: AMD-v, AMD-Vi, IOMMU, HPET, vPCI
• ARM: SMMUv3, GICv3, Arch Timer, Hypervisor Extensions, vPCI
• Easy to port to future generations of hardware
• Xen enabling components for Virtio and Xen PV Drivers
• Safe memory sharing using Virtio with grant table;
• Virtio with grant table enables Virtio frontends in Safe VMs
• No OS/hypervisor dependencies: run (multiple) Safe VMs and QM VMs of your choice
6 |
Core features of Xen for safety certification
• Microkernel architecture
• Small code size (less than 50K LOC on Arm)
• Dom0less
• Static partitioning
• Each domain has direct hardware access (IOMMU protected)
• Real-time
• Strong isolation between the domains
• Real-time isolation
• Failure isolation
• By default, each component has only enough privilege to do what it needs
to do
o Parallel boot
• Dom0 becomes optional
• Faster time to boot/service
• Real-time with the null scheduler
• Cache isolation with cache coloring
Xen
SafeOS
e.g. Zephyr
QM
e.g. Linux
HW
HW partition
HW partition
create create
access access
QM == Non-Safe
7 |

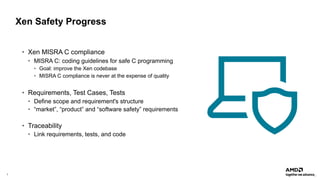

Xen Safety Progress
• Xen MISRA C compliance
• MISRA C: coding guidelines for safe C programming
• Goal: improve the Xen codebase
• MISRA C compliance is never at the expense of quality
• Requirements, Test Cases, Tests
• Define scope and requirement's structure
• “market”, “product” and “software safety” requirements
• Traceability
• Link requirements, tests, and code
8 |

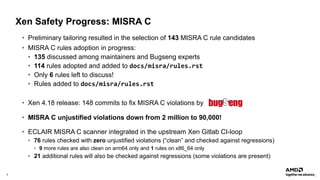

Xen Safety Progress: MISRA C
• Preliminary tailoring resulted in the selection of 143 MISRA C rule candidates
• MISRA C rules adoption in progress:
• 135 discussed among maintainers and Bugseng experts
• 114 rules adopted and added to docs/misra/rules.rst
• Only 6 rules left to discuss!
• Rules added to docs/misra/rules.rst
• Xen 4.18 release: 148 commits to fix MISRA C violations by
• MISRA C unjustified violations down from 2 million to 90,000!
• ECLAIR MISRA C scanner integrated in the upstream Xen Gitlab CI-loop
• 76 rules checked with zero unjustified violations (“clean” and checked against regressions)
• 9 more rules are also clean on arm64 only and 1 rules on x86_64 only
• 21 additional rules will also be checked against regressions (some violations are present)
9 |

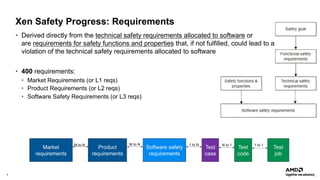

Xen Safety Progress: Requirements
• Derived directly from the technical safety requirements allocated to software or
are requirements for safety functions and properties that, if not fulfilled, could lead to a
violation of the technical safety requirements allocated to software
• 400 requirements:
• Market Requirements (or L1 reqs)
• Product Requirements (or L2 reqs)
• Software Safety Requirements (or L3 reqs)
Market
requirements
Product
requirements
Software safety
requirements
Test
case
Test
code
Test
job
M to N M to N 1 to N N to 1 1 to 1
10 |

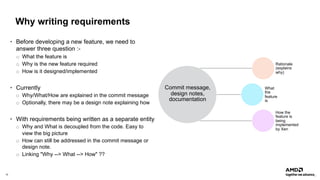

Why writing requirements
• Before developing a new feature, we need to
answer three question :-
o What the feature is
o Why is the new feature required
o How is it designed/implemented
• Currently
o Why/What/How are explained in the commit message
o Optionally, there may be a design note explaining how
• With requirements being written as a separate entity
o Why and What is decoupled from the code. Easy to
view the big picture
o How can still be addressed in the commit message or
design note.
o Linking "Why --> What --> How" ??
Commit message,
design notes,
documentation
Rationale
(explains
why)
What
the
feature
is
How the
feature is
being
implemented
by Xen
11 |
Market Requirements
• Identify the scope of the safety certification for Xen
• Defines the expectations of Xen for automotive and embedded use cases
o So, this is mostly of interest to the product marketing or FAE folks who have expectations from a hypervisor.
• Written with a high-level view of the system
• Example:
Name Description
Static VM definition Xen shall specify the resources required to boot and
run safe and non-safe VMs.
Run Arm64 and AMD-x86 VMs Xen shall run Arm64 and AMD x86 VMs.
VM device assignment Xen shall be able to assign devices to each VM. For
e.g.: it should be able to assign GPU to VM1, MMC to
VM2. Only the VM assigned to a device shall have
exclusive access to the device.
12 |

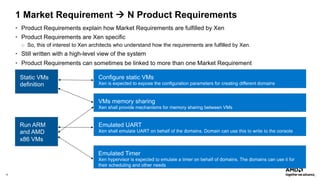

1 Market Requirement à N Product Requirements
• Product Requirements explain how Market Requirements are fulfilled by Xen
• Product Requirements are Xen specific
o So, this of interest to Xen architects who understand how the requirements are fulfilled by Xen.
• Still written with a high-level view of the system
• Product Requirements can sometimes be linked to more than one Market Requirement
Emulated UART
13 |

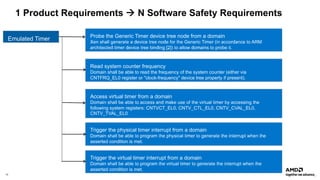

1 Product Requirements à N Software Safety Requirements
Domain shall be able to read the frequency of the system counter (either via
CNTFRQ_EL0 register or "clock-frequency" device tree property if present).
Access virtual timer from a domain
Trigger the physical timer interrupt from a domain
Trigger the virtual timer interrupt from a domain
14 |

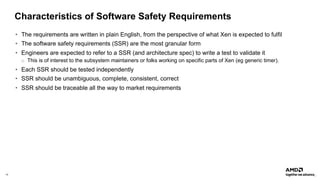

Characteristics of Software Safety Requirements
• The requirements are written in plain English, from the perspective of what Xen is expected to fulfil
• The software safety requirements (SSR) are the most granular form
• Engineers are expected to refer to a SSR (and architecture spec) to write a test to validate it
o This is of interest to the subsystem maintainers or folks working on specific parts of Xen (eg generic timer).
• Each SSR should be tested independently
• SSR should be unambiguous, complete, consistent, correct
• SSR should be traceable all the way to market requirements
15 |

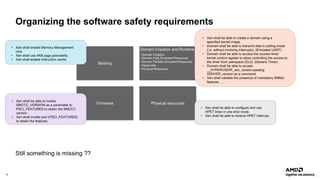

Organizing the software safety requirements
Booting
Domain Creation and Runtime
•Domain Creation
•Domain Fully Emulated Resources
•Domain Partially Emulated Resources
•Hypercalls
•Physical Resources
Firmware Physical resources
• Xen shall be able to create a domain using a
specified kernel image.
• Domain shall be able to transmit data in polling mode
(i.e. without involving interrupts). (Emulated UART)
• Domain shall be able to access the counter-timer
kernel control register to allow controlling the access to
the timer from userspace (EL0). (Generic Timer)
• Domain shall be able to access
__HYPERVISOR_xen_version passing
XENVER_version as a command.
• Xen shall validate the presence of mandatory SMMU
features ….
• Xen shall be able to configure and use
HPET timer in one shot mode.
• Xen shall be able to receive HPET interrupt.
• Xen shall be able to invoke
SMCCC_VERSION as a parameter to
PSCI_FEATURES to obtain the SMCCC
version.
• Xen shall invoke psci (PSCI_FEATURES)
to obtain the features.
• Xen shall enable Memory Management
Unit.
• Xen shall use 4KB page granularity.
• Xen shall enable instruction cache.
Still something is missing ??
16 |

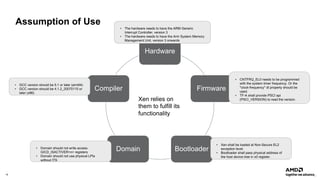

Assumption of Use
Hardware
Firmware
Bootloader
Domain
Compiler
Xen relies on
them to fulfill its
functionality
• GCC version should be 5.1 or later (arm64)
• GCC version should be 4.1.2_20070115 or
later (x86)
• Xen shall be loaded at Non-Secure EL2
exception level.
• Bootloader shall pass physical address of
the host device tree in x0 register.
• The hardware needs to have the ARM Generic
Interrupt Controller, version 3
• The hardware needs to have the Arm System Memory
Management Unit, version 3 onwards
• Domain should not write access
GICD_ISACTIVER<n> registers
• Domain should not use physical LPIs
without ITS
• CNTFRQ_EL0 needs to be programmed
with the system timer frequency. Or the
"clock-frequency" dt property should be
used.
• TF-A shall provide PSCI api
(PSCI_VERSION) to read the version.
17 |
Software Architecture Specification
• Defines the major elements and subsystems of the
software, how they are interconnected, and how the
required attributes, particularly safety integrity, will be
achieved
• Defines the overall behaviour of the software, and how
software elements interface and interact
• Satisfies both safety and non-safety requirements
• Initial version of the document written
18 |
Software Validation Test Cases
• Validation - "confirmation by examination and provision of objective evidence that the particular
requirements for a specific intended use are fulfilled" (IEC 61508)
• 120 test cases (written as RST docs):
• Define:
§ test objectives
§ test prerequisites
§ steps required to achieve the objectives
§ test pass/fail criteria
Methods
ASIL
A B C D
1a Analysis of requirements ++ ++ ++ ++
1b Generation and analysis of equivalence classes + ++ ++ ++
1c Analysis of boundary values + + ++ ++
1d Error guessing based on knowledge of experience + + ++ ++
1e Analysis of functional dependencies + + ++ ++
1f Analysis of operational use cases + ++ ++ ++
19 |
Software Validation Tests
• 160 tests
• Verification criteria:
o Compliance with software design spec
o Correct implementation of the functionality
o Robustness check
o Absence of unintended functionality
• 3 types of tests:
o Linux
§ designed for high-level functionality testing through a black-
box approach
§ tests written as userspace apps, kernel modules
§ example: device tree parsing testing
o Zephyr
§ target mid-level functionalities with a focus on components
such as UART, Timer, etc.
§ tests written as Zephyr applications
§ example: emulated UART testing
o XTF
§ designed for low-level functionality suited for examining the
core functionalities such as hypercalls
§ tests written as XTF guests
§ example: event channel hypercall testing
Methods
ASIL
A B C D
1a Requirements based test ++ ++ ++ ++
1b Interface test ++ ++ ++ ++
1c Fault injection test + + ++ ++
1d Resource usage evaluation ++ ++ ++ ++
1e Back-to-back comparison test between model and code, if
applicable
+ + ++ ++
1f Verification of the control flow and data flow + + ++ ++
1g Static code analysis ++ ++ ++ ++
1h Static analysis based on abstract interpretation + + + +
20 |
Xen Safety Progress: Traceability
• OFT (OpenFastTrace) selected as a requirements management tool
• Requirements-as-Code methodology
• Detect missing dependencies (missing links)
• Detect obsolete requirements (old versions)
• Generate traceability reports
21 |
• Keep doing the stringent code reviews
• Writing and Upstreaming requirements
• Writing and Upstreaming architecture specs
Community Collaboration
How can the community participate How does the community benefit
• Better code quality
• Ease of onboarding new engineers
• Easier to explain to customers, FAE, management
22
Thank you

More Related Content

Similar to Using Xen Hypervisor for Functional Safety

Thesis presentation
Thesis presentationThesis presentation
Thesis presentation
CHIACHE lee

XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...
XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...
XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...
The Linux Foundation

Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4
Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4
Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4
Qualcomm Developer Network

LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...
LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...
LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...
The Linux Foundation

Mces MOD 1.pptx
Mces MOD 1.pptxMces MOD 1.pptx
Mces MOD 1.pptx
RadhaC10

Using SoC Vendor HALs in the Zephyr Project - SFO17-112
Using SoC Vendor HALs in the Zephyr Project - SFO17-112Using SoC Vendor HALs in the Zephyr Project - SFO17-112
Using SoC Vendor HALs in the Zephyr Project - SFO17-112
Linaro

z/OS Authorized Code Scanner
z/OS Authorized Code Scannerz/OS Authorized Code Scanner
z/OS Authorized Code Scanner
Luigi Perrone

Virtualization in cloud
Virtualization in cloudVirtualization in cloud
Virtualization in cloud
Ashok Kumar

Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen HypervisorSafety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Stefano Stabellini

08680982.pdfArchitectures for Security A comparative anal.docx
08680982.pdfArchitectures for Security A comparative anal.docx08680982.pdfArchitectures for Security A comparative anal.docx
08680982.pdfArchitectures for Security A comparative anal.docx
croftsshanon

Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022
Stefano Stabellini

QNX Sales Engineering Presentation
QNX Sales Engineering PresentationQNX Sales Engineering Presentation
QNX Sales Engineering Presentation
Robert-Emmanuel Mayssat

Project ACRN CSE Virtualization
Project ACRN CSE VirtualizationProject ACRN CSE Virtualization
Project ACRN CSE Virtualization
Project ACRN

Server virtualization
Server virtualizationServer virtualization
Server virtualization
Kingston Smiler

Unit-3-Virtualization.pptx
Unit-3-Virtualization.pptxUnit-3-Virtualization.pptx
Unit-3-Virtualization.pptx
SupriyaPeerapur

LFCollab14: Xen vs Xen Automotive
LFCollab14: Xen vs Xen AutomotiveLFCollab14: Xen vs Xen Automotive
LFCollab14: Xen vs Xen Automotive
The Linux Foundation

XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...
XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...
XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...
The Linux Foundation

Ibm spectrum scale fundamentals workshop for americas part 1 components archi...
Ibm spectrum scale fundamentals workshop for americas part 1 components archi...Ibm spectrum scale fundamentals workshop for americas part 1 components archi...
Ibm spectrum scale fundamentals workshop for americas part 1 components archi...
xKinAnx

Hardware_root_trust_x86.pptx
Hardware_root_trust_x86.pptxHardware_root_trust_x86.pptx
Hardware_root_trust_x86.pptx
Atul Vaish

Faults inside System Software
Faults inside System SoftwareFaults inside System Software
Faults inside System Software
National Cheng Kung University


Similar to Using Xen Hypervisor for Functional Safety (20)

Thesis presentation
Thesis presentationThesis presentation
Thesis presentation

XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...
XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...
XPDDS17: Dedicated Secure Domain as Approach for Certification of Automotive ...

Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4
Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4
Developing for Industrial IoT with Linux OS on DragonBoard™ 410c: Session 4

LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...
LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...
LCNA14: Why Use Xen for Large Scale Enterprise Deployments? - Konrad Rzeszute...

Mces MOD 1.pptx
Mces MOD 1.pptxMces MOD 1.pptx
Mces MOD 1.pptx

Using SoC Vendor HALs in the Zephyr Project - SFO17-112
Using SoC Vendor HALs in the Zephyr Project - SFO17-112Using SoC Vendor HALs in the Zephyr Project - SFO17-112
Using SoC Vendor HALs in the Zephyr Project - SFO17-112

z/OS Authorized Code Scanner
z/OS Authorized Code Scannerz/OS Authorized Code Scanner
z/OS Authorized Code Scanner

Virtualization in cloud
Virtualization in cloudVirtualization in cloud
Virtualization in cloud

Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen HypervisorSafety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen Hypervisor

08680982.pdfArchitectures for Security A comparative anal.docx
08680982.pdfArchitectures for Security A comparative anal.docx08680982.pdfArchitectures for Security A comparative anal.docx
08680982.pdfArchitectures for Security A comparative anal.docx

Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022

QNX Sales Engineering Presentation
QNX Sales Engineering PresentationQNX Sales Engineering Presentation
QNX Sales Engineering Presentation

Project ACRN CSE Virtualization
Project ACRN CSE VirtualizationProject ACRN CSE Virtualization
Project ACRN CSE Virtualization

Server virtualization
Server virtualizationServer virtualization
Server virtualization

Unit-3-Virtualization.pptx
Unit-3-Virtualization.pptxUnit-3-Virtualization.pptx
Unit-3-Virtualization.pptx

LFCollab14: Xen vs Xen Automotive
LFCollab14: Xen vs Xen AutomotiveLFCollab14: Xen vs Xen Automotive
LFCollab14: Xen vs Xen Automotive

XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...
XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...
XPDDS18: Design Session - SGX deep dive and SGX Virtualization Discussion, Ka...

Ibm spectrum scale fundamentals workshop for americas part 1 components archi...
Ibm spectrum scale fundamentals workshop for americas part 1 components archi...Ibm spectrum scale fundamentals workshop for americas part 1 components archi...
Ibm spectrum scale fundamentals workshop for americas part 1 components archi...

Hardware_root_trust_x86.pptx
Hardware_root_trust_x86.pptxHardware_root_trust_x86.pptx
Hardware_root_trust_x86.pptx

Faults inside System Software
Faults inside System SoftwareFaults inside System Software
Faults inside System Software


Recently uploaded

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
ashiklo9823

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series
Philip Schwarz

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
onemonitarsoftware

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django
akshesh doshi

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
OnePlan Solutions

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
mohitd6

bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Deliverybangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning
VishrutGoyani1

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
kiara pandey

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups
SOCRadar

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
shanihomely

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024
TaskSprint | Employee Efficiency Software

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
902basic

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
45unexpected

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation
NYGGS Construction ERP Software

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
ThousandEyes

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)
miso_uam

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
rachitkumar09887

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Natsoft Corporation


Recently uploaded (20)

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf

bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Deliverybangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf


Using Xen Hypervisor for Functional Safety

  • 1. 1 | Xen Functional Safety - Update Michal Orzel – AMD Ayan Kumar Halder - AMD
  • 2. 2 | Introduction • Michal Orzel o Maintainer of Xen on Arm o SMTS at AMD o Founding member of Xen Safety certification within AMD o Active Xen community member (350+ patches authored/reviewed in the last 3 years) • Ayan Kumar Halder o Supporting Xen hypervisor on AMD products (as a part of Virtualization team) o MTS at AMD o Coordinating Xen functional safety efforts across different teams o 15 years of experience working on low level software stack (kernel, Zephyr, ethos-n-driver, bootloaders) and post silicon validation of Arm based products
  • 3. 3 | Functional Safety • “Functional safety is part of the overall safety that depends on a system or equipment operating correctly in response to its inputs.” (IEC 61508) • “Absence of unreasonable risk due to hazards caused by malfunctioning behavior of E/E systems” (ISO 26262) • “Safety is freedom from unacceptable risk” (ISO 14971)
  • 4. 4 | However, it provides benefits beyond safety Safety Quality Usability Maintainability Upgradability Diverse Opensource Community Safety Certification Efforts
  • 5. 5 | Safety certifying Xen Hypervisor • AMD is working on making Xen safety-certifiable for AMD platforms • ARM and AMD x86 platforms • IEC 61508 SIL 3 (Systematic Capability 3) & ISO 26262 ASIL D • Certification based on Xen upstream community processes and upstream codebase • Not working with a private fork -- Ability to update the certification with limited efforts • Certification docs & artifacts available for AMD customers • Open to collaborations with other community members upstreaming • Assumptions and Scope • Common code and core components in Xen • AMD x86: AMD-v, AMD-Vi, IOMMU, HPET, vPCI • ARM: SMMUv3, GICv3, Arch Timer, Hypervisor Extensions, vPCI • Easy to port to future generations of hardware • Xen enabling components for Virtio and Xen PV Drivers • Safe memory sharing using Virtio with grant table; • Virtio with grant table enables Virtio frontends in Safe VMs • No OS/hypervisor dependencies: run (multiple) Safe VMs and QM VMs of your choice
  • 6. 6 | Core features of Xen for safety certification • Microkernel architecture • Small code size (less than 50K LOC on Arm) • Dom0less • Static partitioning • Each domain has direct hardware access (IOMMU protected) • Real-time • Strong isolation between the domains • Real-time isolation • Failure isolation • By default, each component has only enough privilege to do what it needs to do o Parallel boot • Dom0 becomes optional • Faster time to boot/service • Real-time with the null scheduler • Cache isolation with cache coloring Xen SafeOS e.g. Zephyr QM e.g. Linux HW HW partition HW partition create create access access QM == Non-Safe
  • 7. 7 | Xen Safety Progress • Xen MISRA C compliance • MISRA C: coding guidelines for safe C programming • Goal: improve the Xen codebase • MISRA C compliance is never at the expense of quality • Requirements, Test Cases, Tests • Define scope and requirement's structure • “market”, “product” and “software safety” requirements • Traceability • Link requirements, tests, and code
  • 8. 8 | Xen Safety Progress: MISRA C • Preliminary tailoring resulted in the selection of 143 MISRA C rule candidates • MISRA C rules adoption in progress: • 135 discussed among maintainers and Bugseng experts • 114 rules adopted and added to docs/misra/rules.rst • Only 6 rules left to discuss! • Rules added to docs/misra/rules.rst • Xen 4.18 release: 148 commits to fix MISRA C violations by • MISRA C unjustified violations down from 2 million to 90,000! • ECLAIR MISRA C scanner integrated in the upstream Xen Gitlab CI-loop • 76 rules checked with zero unjustified violations (“clean” and checked against regressions) • 9 more rules are also clean on arm64 only and 1 rules on x86_64 only • 21 additional rules will also be checked against regressions (some violations are present)
  • 9. 9 | Xen Safety Progress: Requirements • Derived directly from the technical safety requirements allocated to software or are requirements for safety functions and properties that, if not fulfilled, could lead to a violation of the technical safety requirements allocated to software • 400 requirements: • Market Requirements (or L1 reqs) • Product Requirements (or L2 reqs) • Software Safety Requirements (or L3 reqs) Market requirements Product requirements Software safety requirements Test case Test code Test job M to N M to N 1 to N N to 1 1 to 1
  • 10. 10 | Why writing requirements • Before developing a new feature, we need to answer three question :- o What the feature is o Why is the new feature required o How is it designed/implemented • Currently o Why/What/How are explained in the commit message o Optionally, there may be a design note explaining how • With requirements being written as a separate entity o Why and What is decoupled from the code. Easy to view the big picture o How can still be addressed in the commit message or design note. o Linking "Why --> What --> How" ?? Commit message, design notes, documentation Rationale (explains why) What the feature is How the feature is being implemented by Xen
  • 11. 11 | Market Requirements • Identify the scope of the safety certification for Xen • Defines the expectations of Xen for automotive and embedded use cases o So, this is mostly of interest to the product marketing or FAE folks who have expectations from a hypervisor. • Written with a high-level view of the system • Example: Name Description Static VM definition Xen shall specify the resources required to boot and run safe and non-safe VMs. Run Arm64 and AMD-x86 VMs Xen shall run Arm64 and AMD x86 VMs. VM device assignment Xen shall be able to assign devices to each VM. For e.g.: it should be able to assign GPU to VM1, MMC to VM2. Only the VM assigned to a device shall have exclusive access to the device.
  • 12. 12 | 1 Market Requirement à N Product Requirements • Product Requirements explain how Market Requirements are fulfilled by Xen • Product Requirements are Xen specific o So, this of interest to Xen architects who understand how the requirements are fulfilled by Xen. • Still written with a high-level view of the system • Product Requirements can sometimes be linked to more than one Market Requirement Emulated UART
  • 13. 13 | 1 Product Requirements à N Software Safety Requirements Domain shall be able to read the frequency of the system counter (either via CNTFRQ_EL0 register or "clock-frequency" device tree property if present). Access virtual timer from a domain Trigger the physical timer interrupt from a domain Trigger the virtual timer interrupt from a domain
  • 14. 14 | Characteristics of Software Safety Requirements • The requirements are written in plain English, from the perspective of what Xen is expected to fulfil • The software safety requirements (SSR) are the most granular form • Engineers are expected to refer to a SSR (and architecture spec) to write a test to validate it o This is of interest to the subsystem maintainers or folks working on specific parts of Xen (eg generic timer). • Each SSR should be tested independently • SSR should be unambiguous, complete, consistent, correct • SSR should be traceable all the way to market requirements
  • 15. 15 | Organizing the software safety requirements Booting Domain Creation and Runtime •Domain Creation •Domain Fully Emulated Resources •Domain Partially Emulated Resources •Hypercalls •Physical Resources Firmware Physical resources • Xen shall be able to create a domain using a specified kernel image. • Domain shall be able to transmit data in polling mode (i.e. without involving interrupts). (Emulated UART) • Domain shall be able to access the counter-timer kernel control register to allow controlling the access to the timer from userspace (EL0). (Generic Timer) • Domain shall be able to access __HYPERVISOR_xen_version passing XENVER_version as a command. • Xen shall validate the presence of mandatory SMMU features …. • Xen shall be able to configure and use HPET timer in one shot mode. • Xen shall be able to receive HPET interrupt. • Xen shall be able to invoke SMCCC_VERSION as a parameter to PSCI_FEATURES to obtain the SMCCC version. • Xen shall invoke psci (PSCI_FEATURES) to obtain the features. • Xen shall enable Memory Management Unit. • Xen shall use 4KB page granularity. • Xen shall enable instruction cache. Still something is missing ??
  • 16. 16 | Assumption of Use Hardware Firmware Bootloader Domain Compiler Xen relies on them to fulfill its functionality • GCC version should be 5.1 or later (arm64) • GCC version should be 4.1.2_20070115 or later (x86) • Xen shall be loaded at Non-Secure EL2 exception level. • Bootloader shall pass physical address of the host device tree in x0 register. • The hardware needs to have the ARM Generic Interrupt Controller, version 3 • The hardware needs to have the Arm System Memory Management Unit, version 3 onwards • Domain should not write access GICD_ISACTIVER<n> registers • Domain should not use physical LPIs without ITS • CNTFRQ_EL0 needs to be programmed with the system timer frequency. Or the "clock-frequency" dt property should be used. • TF-A shall provide PSCI api (PSCI_VERSION) to read the version.
  • 17. 17 | Software Architecture Specification • Defines the major elements and subsystems of the software, how they are interconnected, and how the required attributes, particularly safety integrity, will be achieved • Defines the overall behaviour of the software, and how software elements interface and interact • Satisfies both safety and non-safety requirements • Initial version of the document written
  • 18. 18 | Software Validation Test Cases • Validation - "confirmation by examination and provision of objective evidence that the particular requirements for a specific intended use are fulfilled" (IEC 61508) • 120 test cases (written as RST docs): • Define: § test objectives § test prerequisites § steps required to achieve the objectives § test pass/fail criteria Methods ASIL A B C D 1a Analysis of requirements ++ ++ ++ ++ 1b Generation and analysis of equivalence classes + ++ ++ ++ 1c Analysis of boundary values + + ++ ++ 1d Error guessing based on knowledge of experience + + ++ ++ 1e Analysis of functional dependencies + + ++ ++ 1f Analysis of operational use cases + ++ ++ ++
  • 19. 19 | Software Validation Tests • 160 tests • Verification criteria: o Compliance with software design spec o Correct implementation of the functionality o Robustness check o Absence of unintended functionality • 3 types of tests: o Linux § designed for high-level functionality testing through a black- box approach § tests written as userspace apps, kernel modules § example: device tree parsing testing o Zephyr § target mid-level functionalities with a focus on components such as UART, Timer, etc. § tests written as Zephyr applications § example: emulated UART testing o XTF § designed for low-level functionality suited for examining the core functionalities such as hypercalls § tests written as XTF guests § example: event channel hypercall testing Methods ASIL A B C D 1a Requirements based test ++ ++ ++ ++ 1b Interface test ++ ++ ++ ++ 1c Fault injection test + + ++ ++ 1d Resource usage evaluation ++ ++ ++ ++ 1e Back-to-back comparison test between model and code, if applicable + + ++ ++ 1f Verification of the control flow and data flow + + ++ ++ 1g Static code analysis ++ ++ ++ ++ 1h Static analysis based on abstract interpretation + + + +
  • 20. 20 | Xen Safety Progress: Traceability • OFT (OpenFastTrace) selected as a requirements management tool • Requirements-as-Code methodology • Detect missing dependencies (missing links) • Detect obsolete requirements (old versions) • Generate traceability reports
  • 21. 21 | • Keep doing the stringent code reviews • Writing and Upstreaming requirements • Writing and Upstreaming architecture specs Community Collaboration How can the community participate How does the community benefit • Better code quality • Ease of onboarding new engineers • Easier to explain to customers, FAE, management
