As more and more enterprises are adapting to utilize hadoop, integrating the enterprise users into the hadoop environment and enabling these users to access hadoop services and clusters becomes critical. Typically, enterprises manage the users and groups through directory servers and Hadoop services need to integrate with these enterprise directory servers (like Active Directory, LDAP etc...). This process presents its own unique set of challenges. In this session, the speakers review the background of user and group management for Hadoop as well as covers various scenarios supported in Apache Ranger while interacting with AD or LDAP servers. This session also examines various use cases and some of the common challenges faced in the enterprise environments while interacting with Active Directory or LDAP server including filtering out users and/or groups to be brought into Hadoop from AD or LDAP servers, restricting access to a set of users and/or groups from AD, etc…

1. 1 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
BEST PRACTICES FOR ENTERPRISE
USER MANAGEMENT IN HADOOP
ENVIRONMENT
Sailaja Polavarapu
Sr. Software Engineer
Hortonworks
Dataworks Summit 2017 Munich
Don Bosco Durai
Cofounder &
Chief Security Architect
Privacera

2. 2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

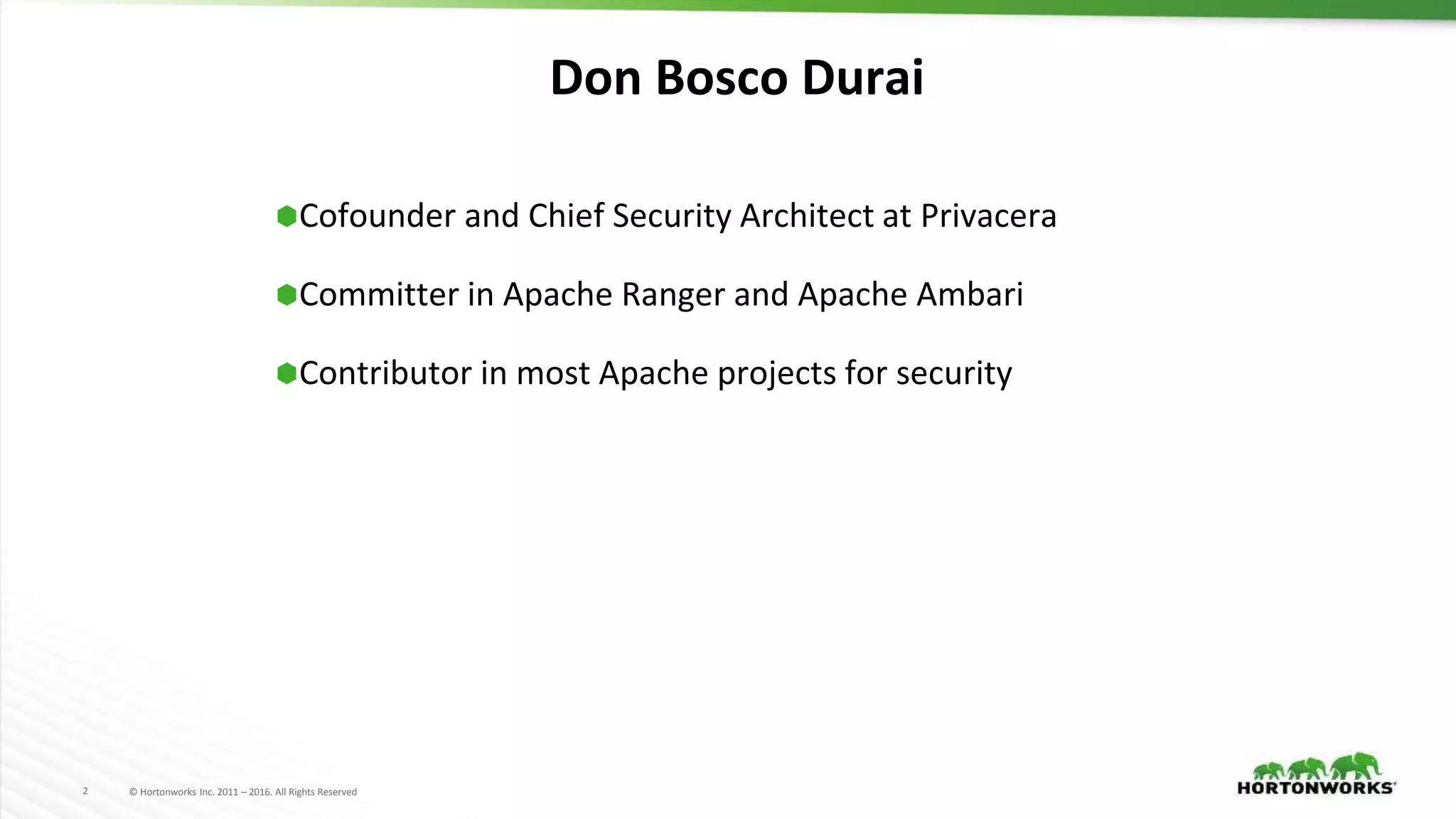

Don Bosco Durai
⬢Cofounder and Chief Security Architect at Privacera
⬢Committer in Apache Ranger and Apache Ambari
⬢Contributor in most Apache projects for security

3. 3 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Sailaja Polavarapu
⬢ Apache Ranger contributor since 2015
⬢ Apache Ranger Committer
⬢ Contributed major improvements for Usersync module in
Ranger
⬢Currently working at Hortonworks Security Team
⬢ Contact: spolavarapu@apache.org

4. 4 © Hortonworks Inc. 2011 – 2016. All Rights Reserved4 © Hortonworks Inc. 2011 – 2017. All Rights Reserved

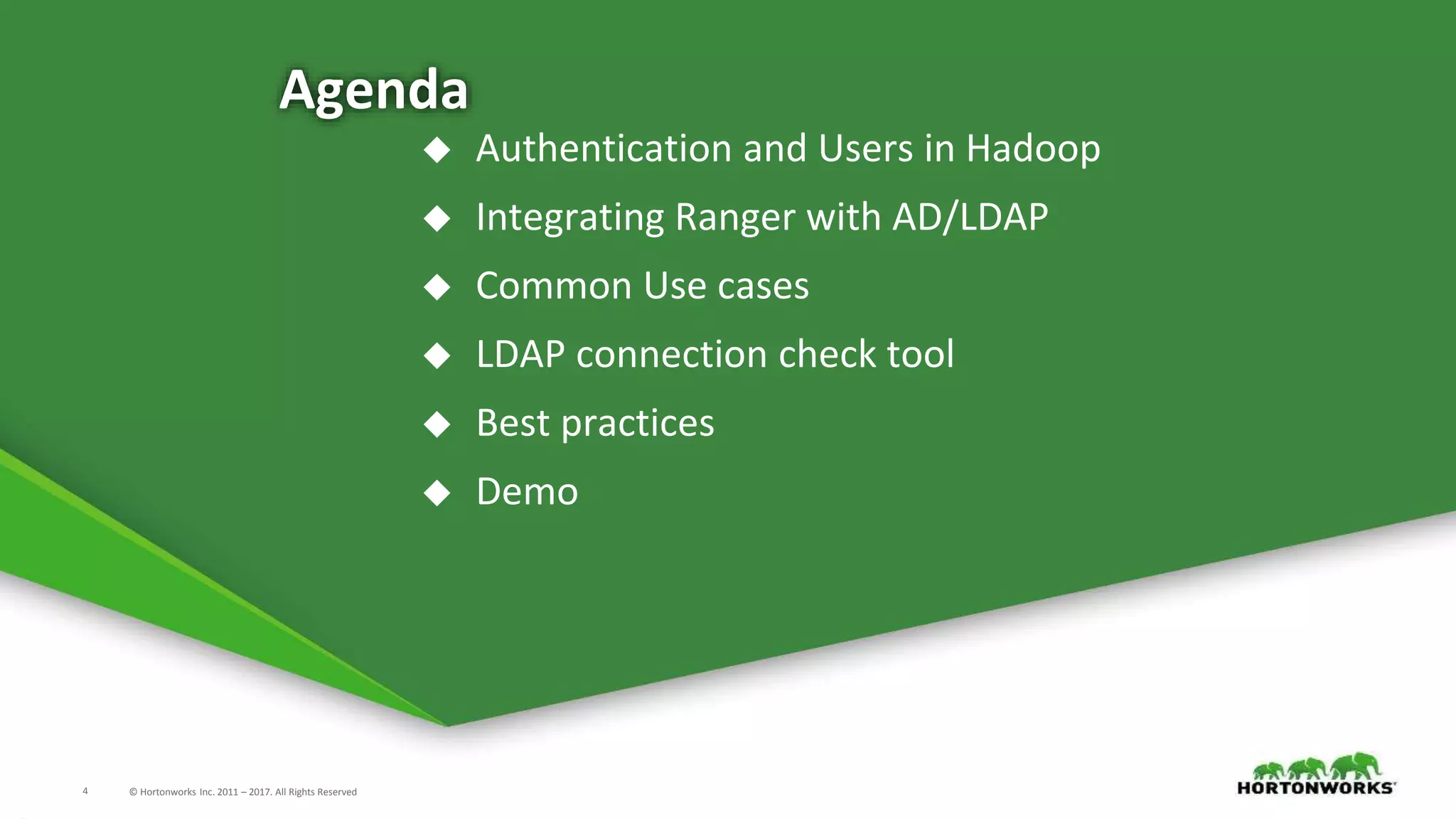

Agenda
◆ Authentication and Users in Hadoop
◆ Integrating Ranger with AD/LDAP
◆ Common Use cases
◆ LDAP connection check tool
◆ Best practices
◆ Demo

5. 5 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Most commonly asked question
If I have Ranger, do I need Kerberos?

6. 6 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

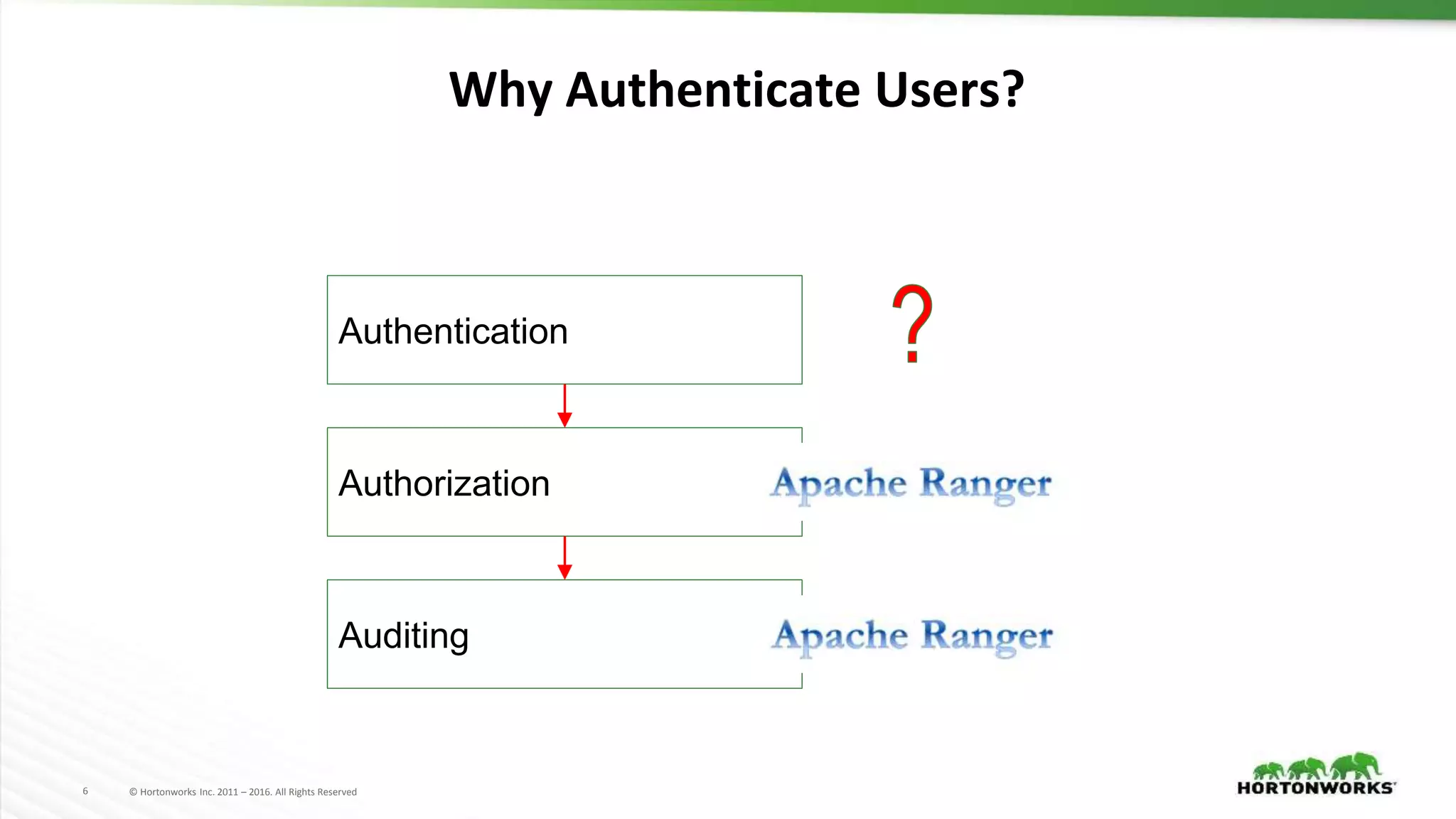

Why Authenticate Users?
Authentication
Authorization
Auditing

7. 7 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

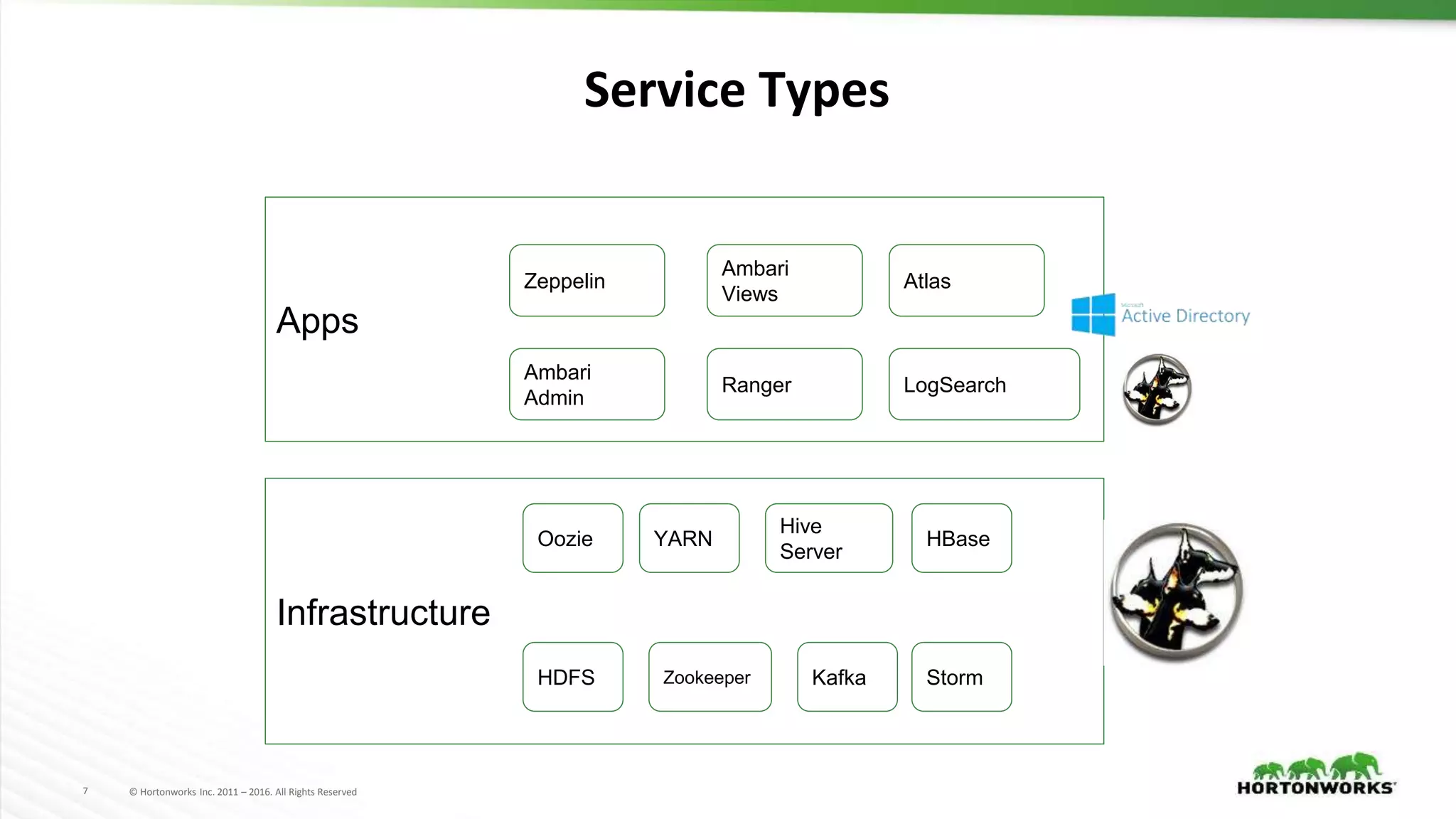

Service Types
Infrastructure
HDFS
Oozie
Storm
YARN
Hive
Server
HBase
Zookeeper Kafka
Apps
Zeppelin
Ambari
Views
Ambari
Admin
Ranger
Atlas
LogSearch

8. 8 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

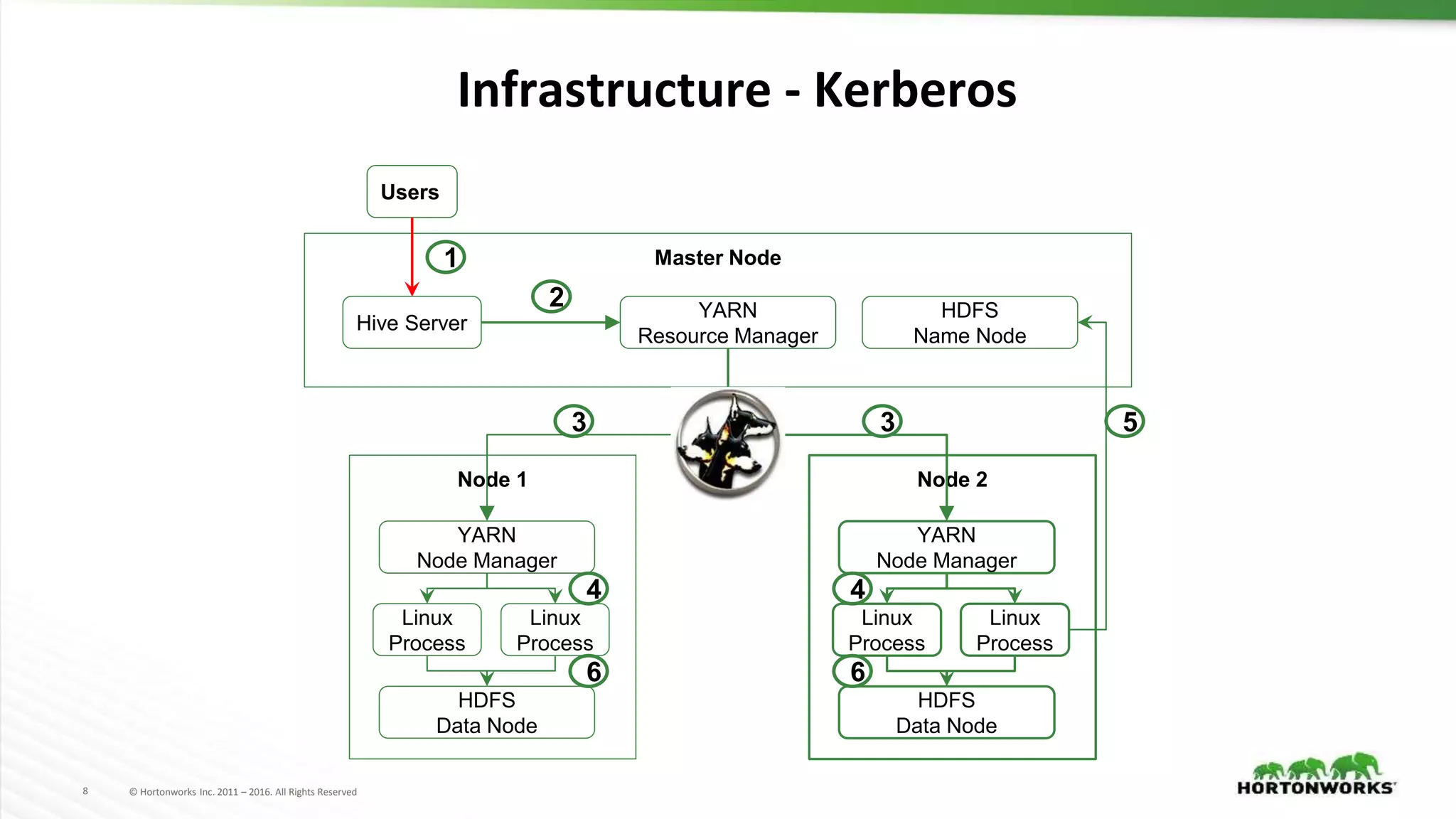

Master Node
Infrastructure - Kerberos
YARN
Resource Manager
Hive Server
HDFS
Name Node
Node 1
YARN
Node Manager
HDFS
Data Node
Linux
Process
Linux
Process
Node 2
YARN
Node Manager
HDFS
Data Node
Linux
Process
Linux
Process
2
3 3
4 4
5
6 6
Users
1

9. 9 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

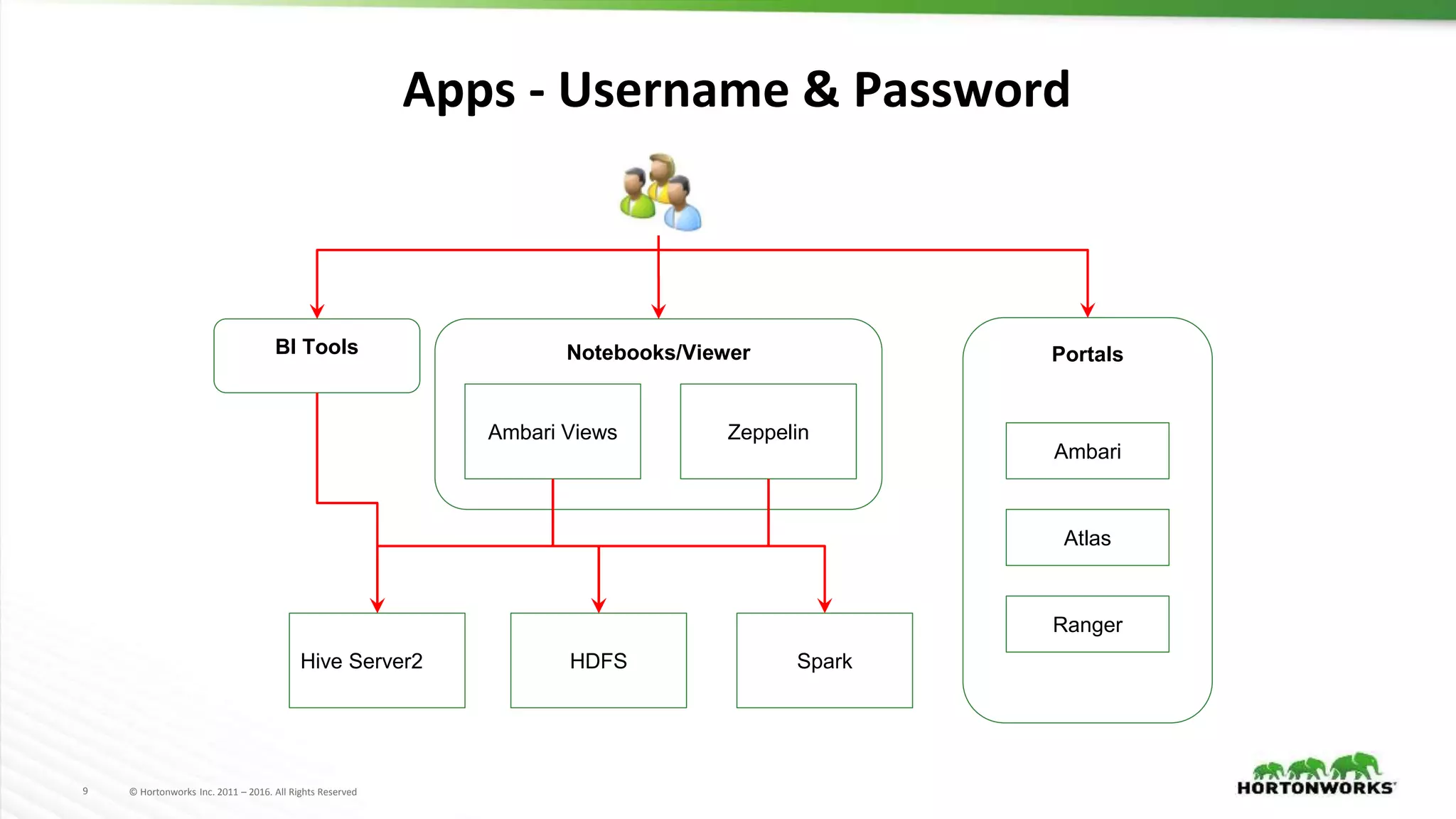

PortalsNotebooks/Viewer
Apps - Username & Password
Hive Server2
ZeppelinAmbari Views
HDFS
Ambari
Atlas
Ranger
BI Tools
Spark

10. 10 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

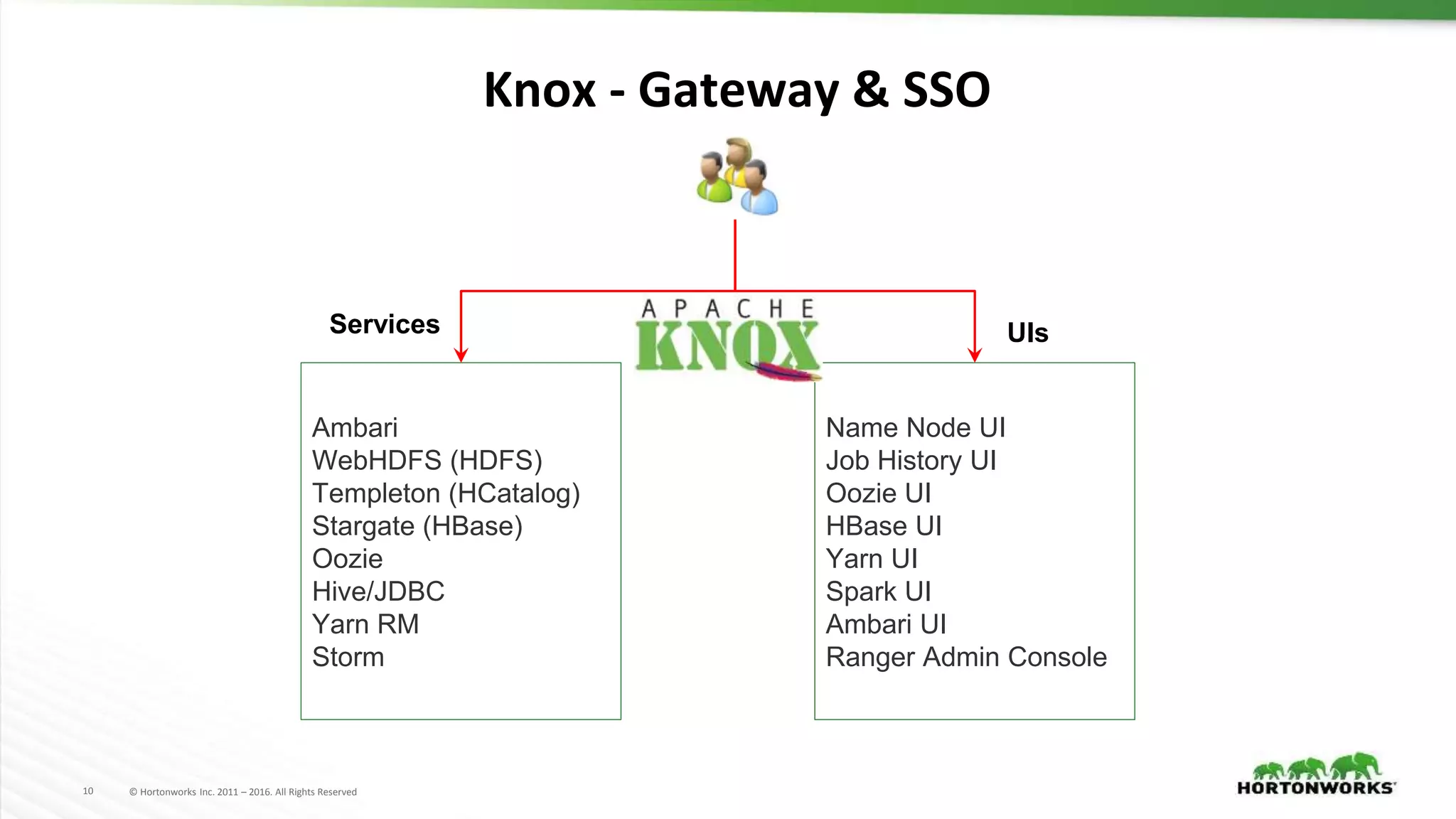

Knox - Gateway & SSO
Ambari
WebHDFS (HDFS)
Templeton (HCatalog)
Stargate (HBase)
Oozie
Hive/JDBC
Yarn RM
Storm
Name Node UI
Job History UI
Oozie UI
HBase UI
Yarn UI
Spark UI
Ambari UI
Ranger Admin Console
Services UIs

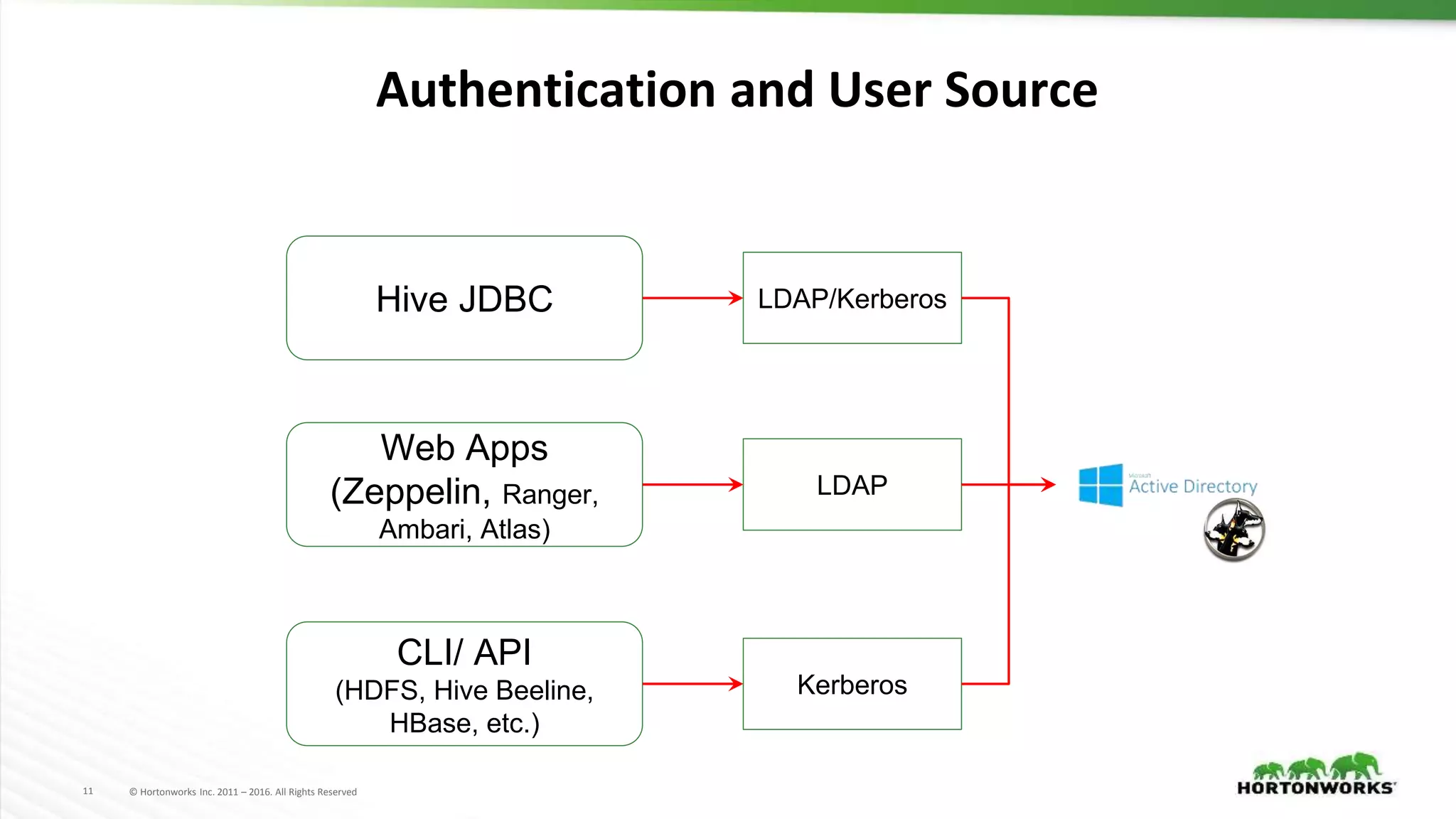

11. 11 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Authentication and User Source
Hive JDBC
Web Apps
(Zeppelin, Ranger,
Ambari, Atlas)
CLI/ API
(HDFS, Hive Beeline,
HBase, etc.)
LDAP/Kerberos
LDAP
Kerberos

12. 12 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

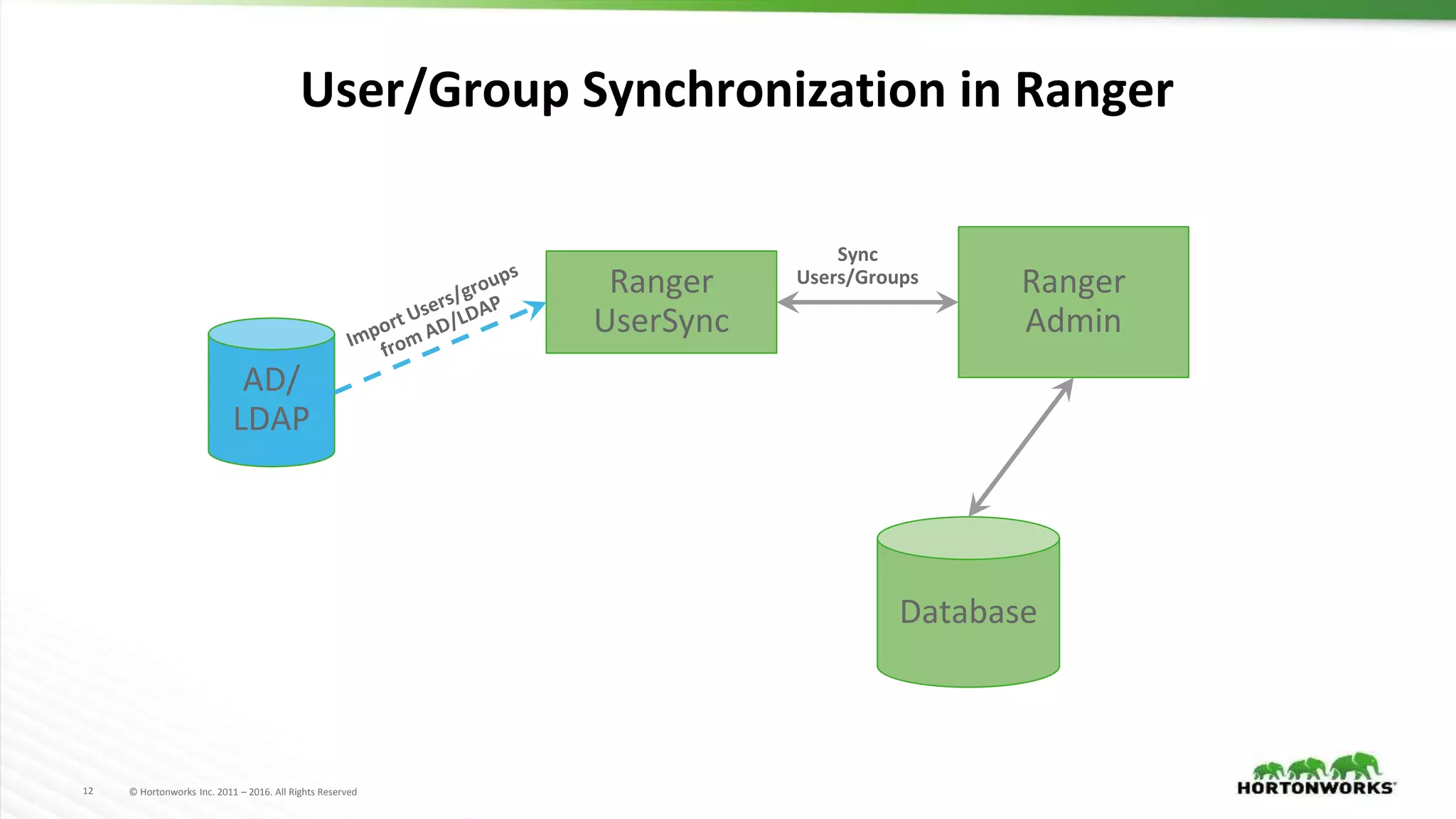

Ranger
UserSync
Ranger
Admin
Database
AD/
LDAP
Sync
Users/Groups
User/Group Synchronization in Ranger

13. 13 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

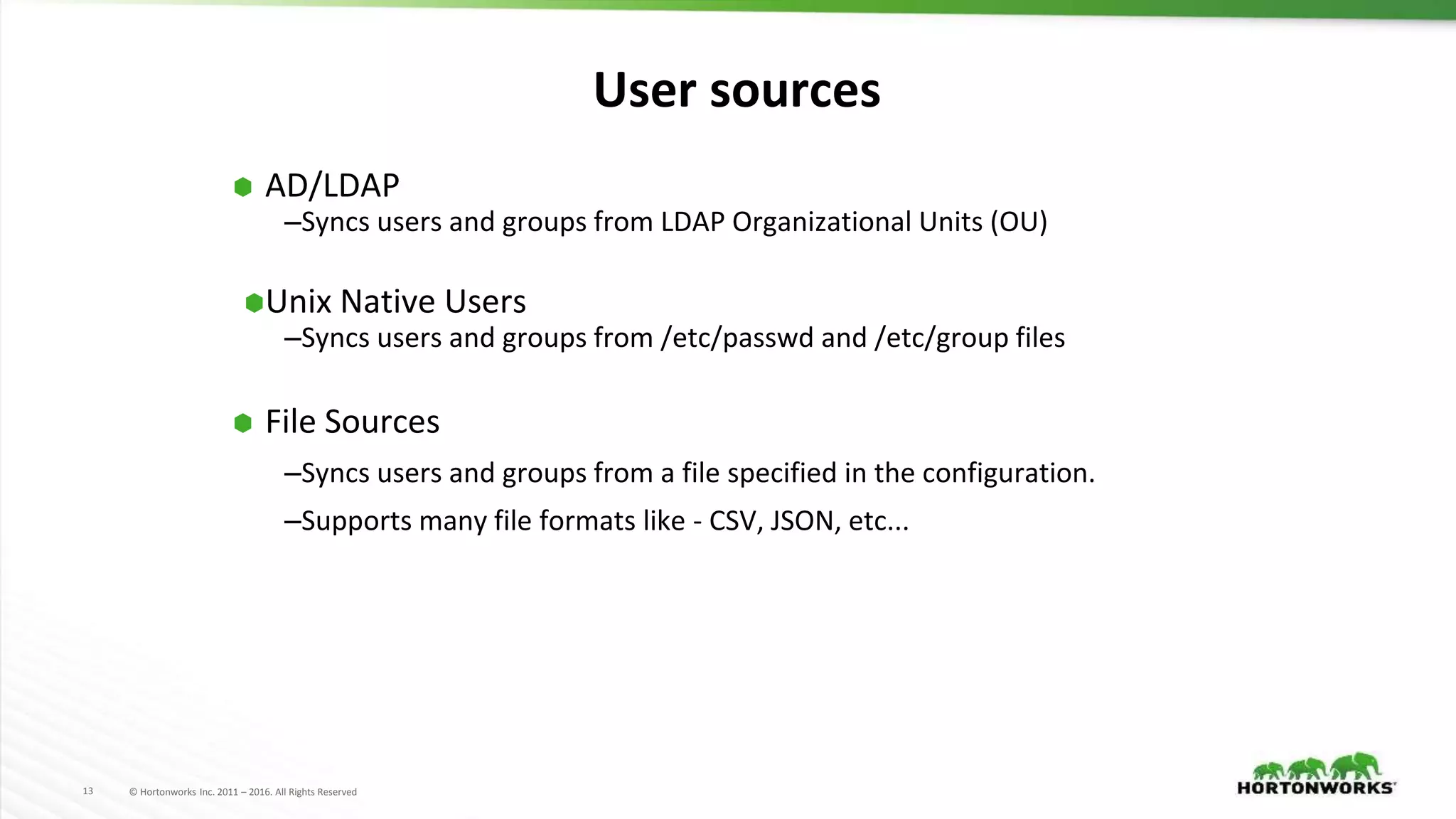

User sources
⬢ AD/LDAP
–Syncs users and groups from LDAP Organizational Units (OU)
⬢Unix Native Users
–Syncs users and groups from /etc/passwd and /etc/group files
⬢ File Sources
–Syncs users and groups from a file specified in the configuration.
–Supports many file formats like - CSV, JSON, etc...

14. 14 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

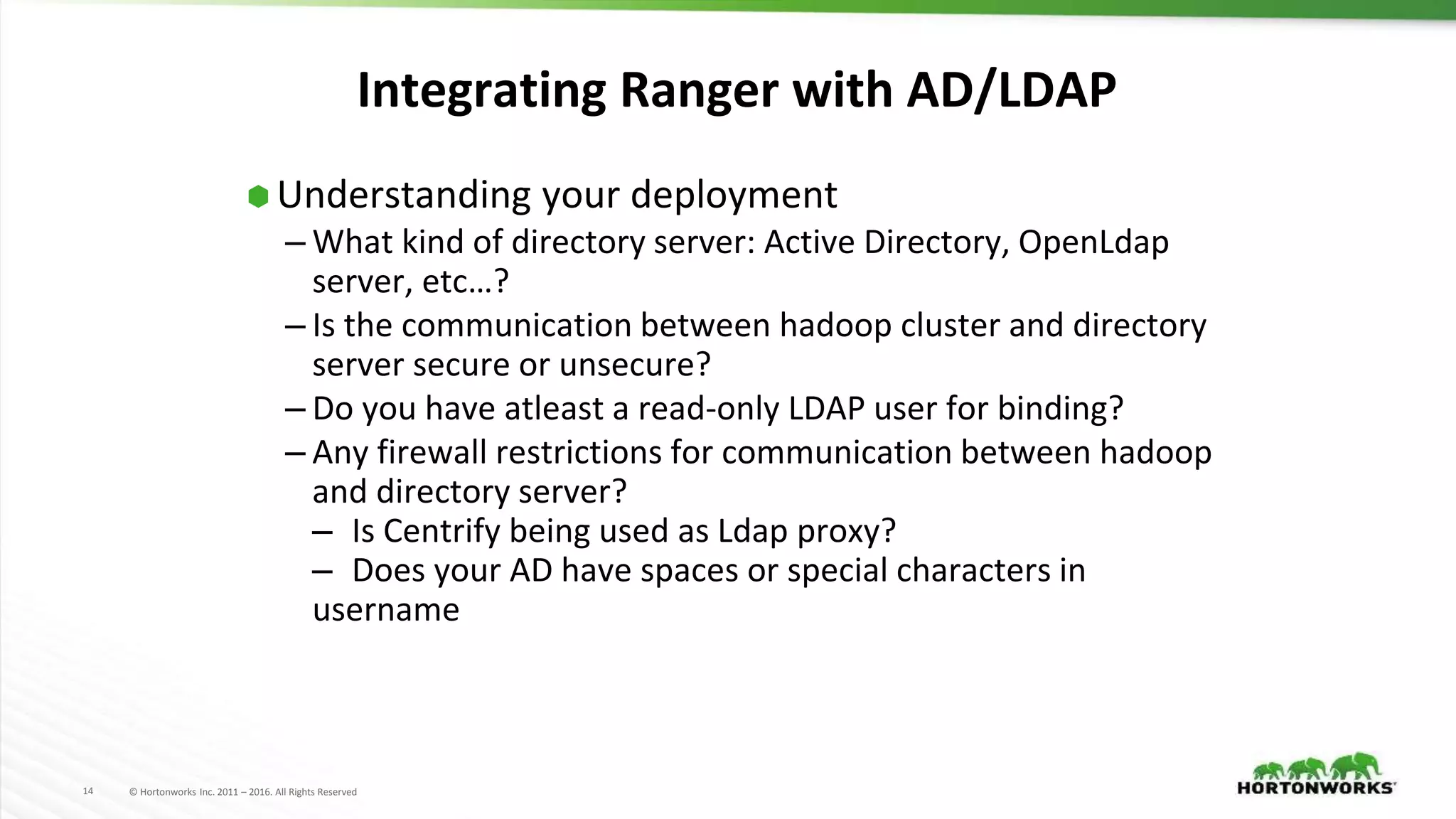

Integrating Ranger with AD/LDAP
⬢ Understanding your deployment
– What kind of directory server: Active Directory, OpenLdap
server, etc…?
– Is the communication between hadoop cluster and directory
server secure or unsecure?
– Do you have atleast a read-only LDAP user for binding?
– Any firewall restrictions for communication between hadoop
and directory server?
– Is Centrify being used as Ldap proxy?
– Does your AD have spaces or special characters in
username

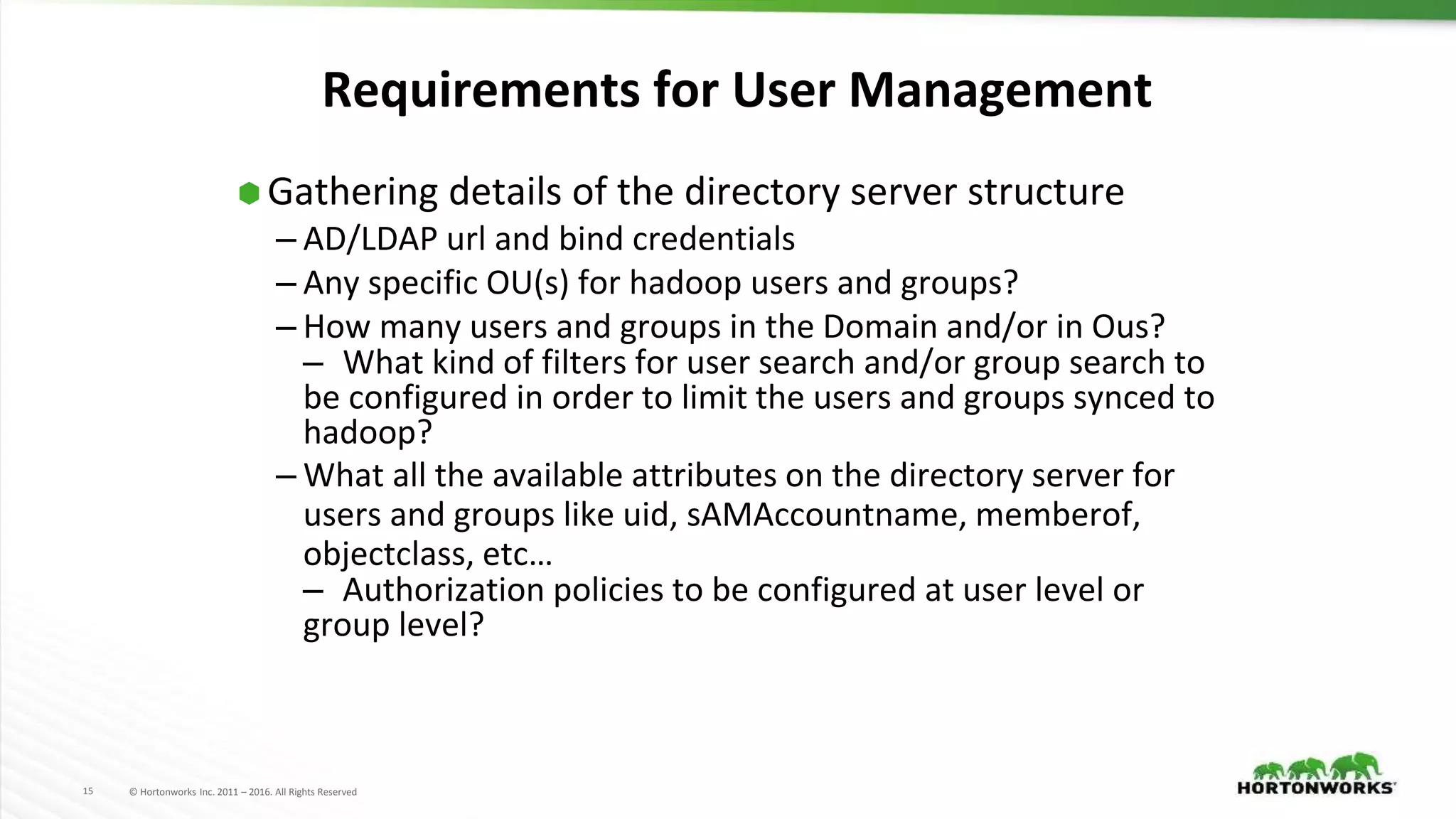

15. 15 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
⬢ Gathering details of the directory server structure
– AD/LDAP url and bind credentials
– Any specific OU(s) for hadoop users and groups?
– How many users and groups in the Domain and/or in Ous?
– What kind of filters for user search and/or group search to
be configured in order to limit the users and groups synced to
hadoop?
– What all the available attributes on the directory server for
users and groups like uid, sAMAccountname, memberof,
objectclass, etc…
– Authorization policies to be configured at user level or
group level?
Requirements for User Management

16. 16 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

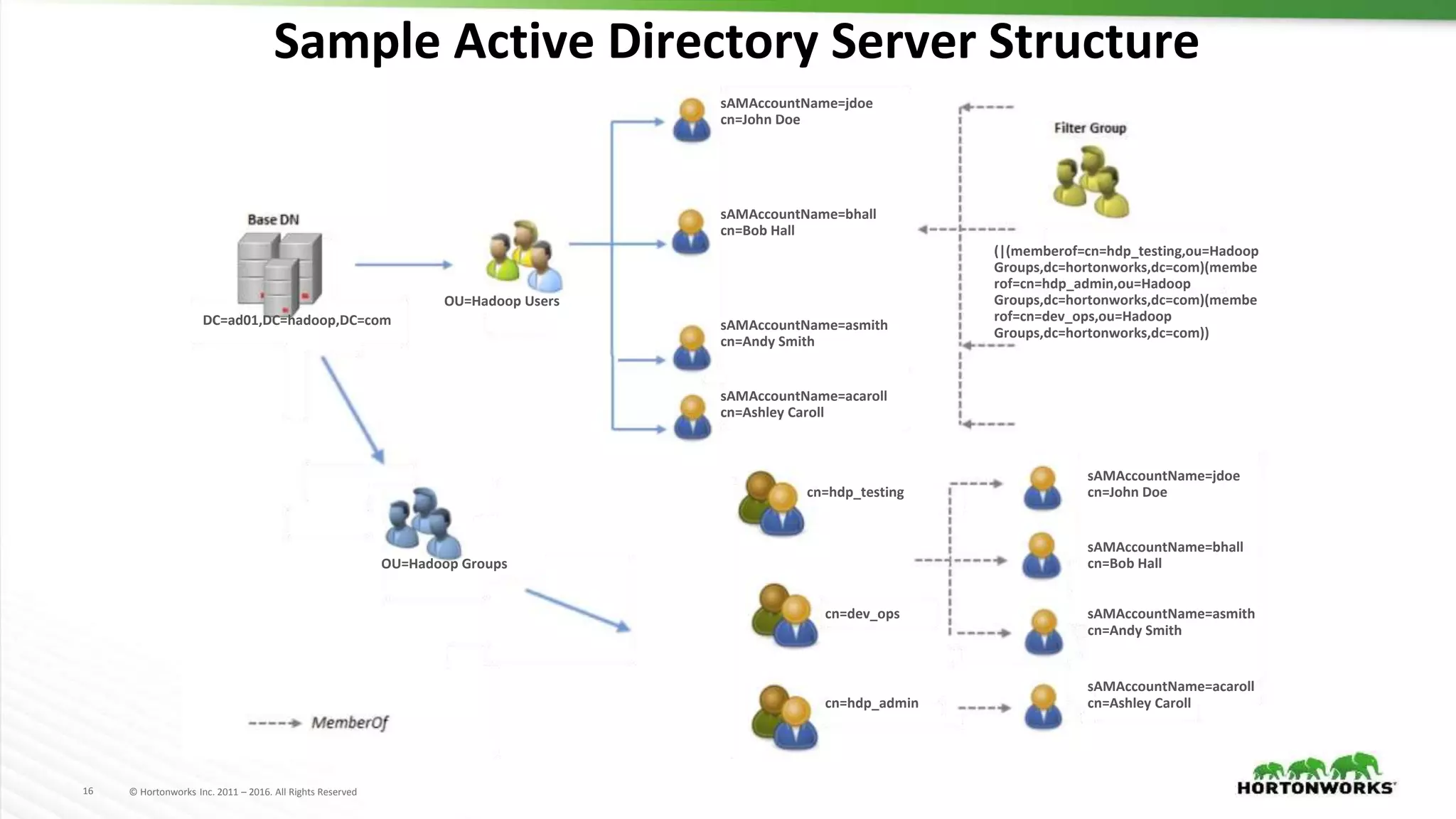

DC=ad01,DC=hadoop,DC=com
OU=Hadoop Users
OU=Hadoop Groups
sAMAccountName=jdoe
cn=John Doe
sAMAccountName=bhall
cn=Bob Hall
sAMAccountName=asmith
cn=Andy Smith
sAMAccountName=acaroll
cn=Ashley Caroll
(|(memberof=cn=hdp_testing,ou=Hadoop
Groups,dc=hortonworks,dc=com)(membe
rof=cn=hdp_admin,ou=Hadoop
Groups,dc=hortonworks,dc=com)(membe
rof=cn=dev_ops,ou=Hadoop
Groups,dc=hortonworks,dc=com))
cn=hdp_testing
cn=dev_ops
cn=hdp_admin
sAMAccountName=jdoe
cn=John Doe
sAMAccountName=bhall
cn=Bob Hall
sAMAccountName=asmith
cn=Andy Smith
sAMAccountName=acaroll
cn=Ashley Caroll
Sample Active Directory Server Structure

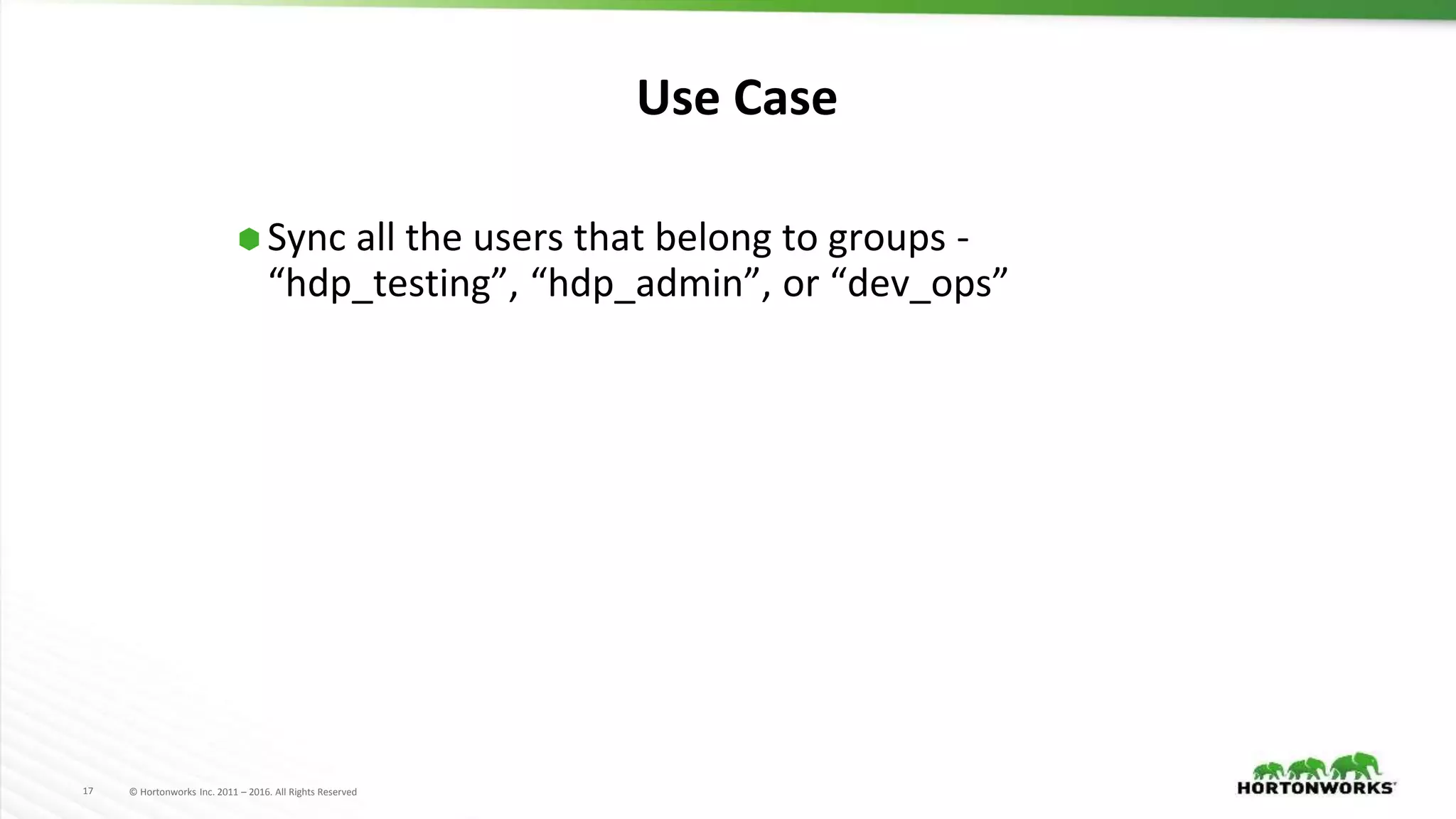

17. 17 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Use Case
⬢ Sync all the users that belong to groups -
“hdp_testing”, “hdp_admin”, or “dev_ops”

18. 18 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

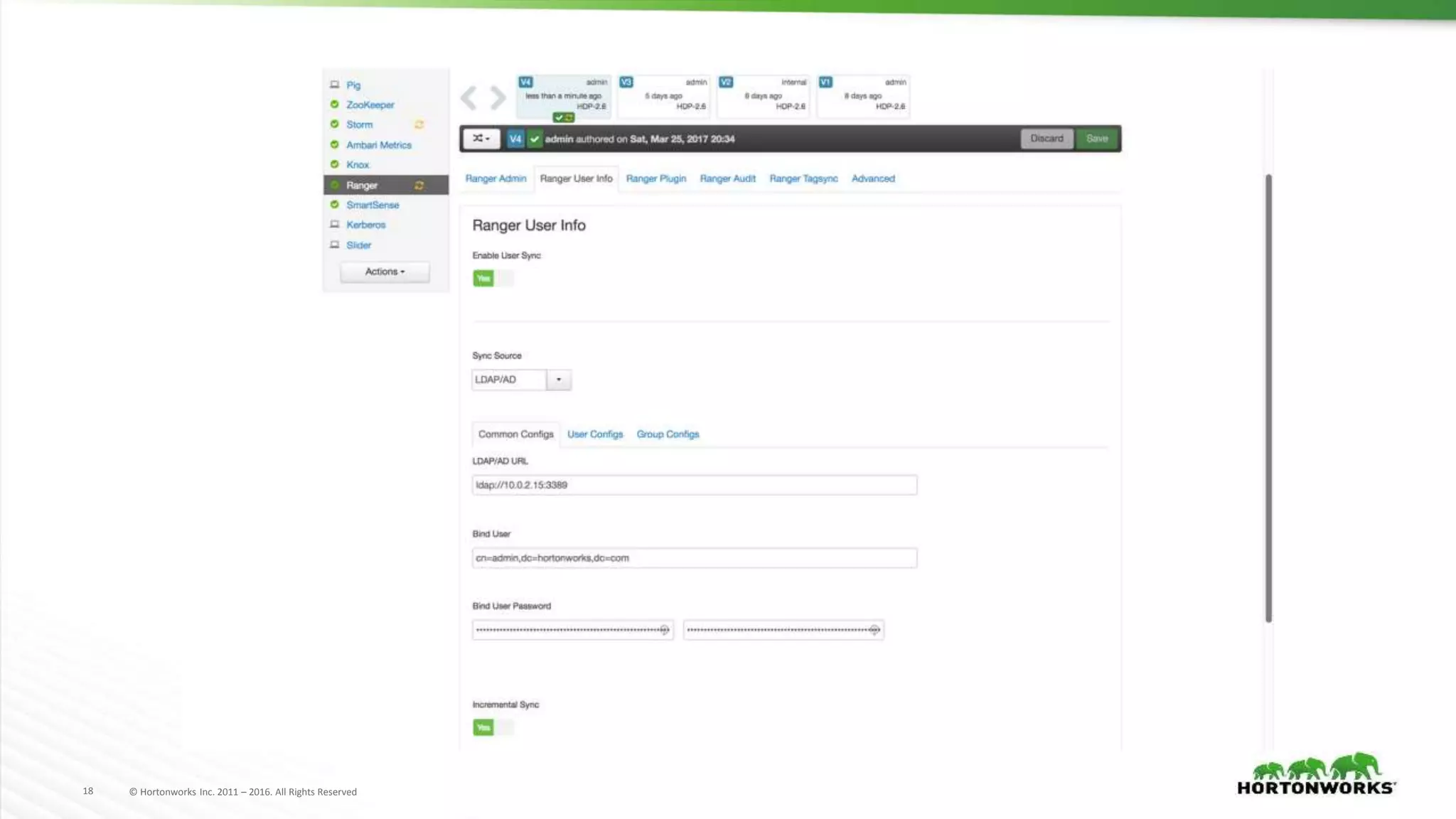

19. 19 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

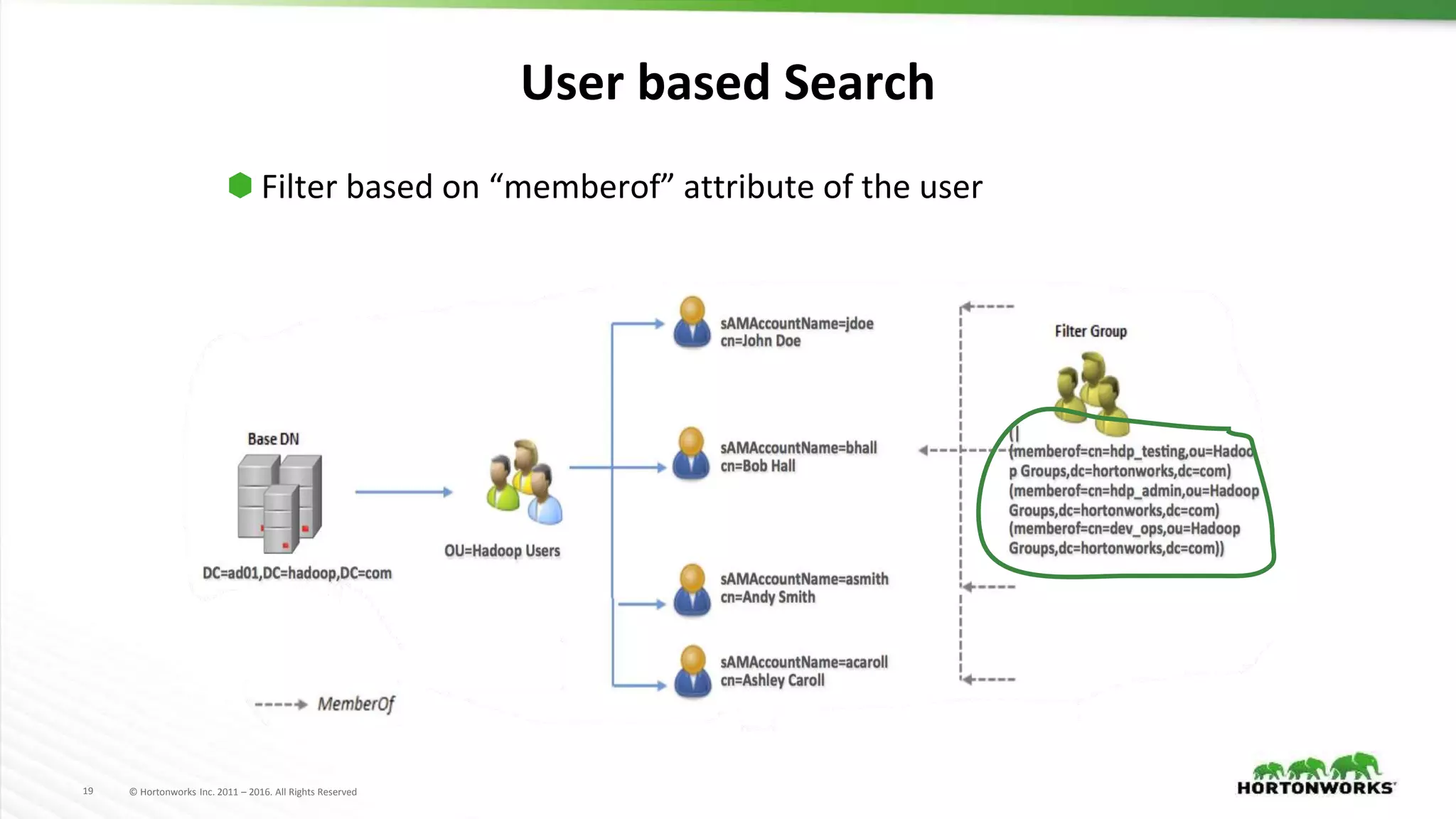

User based Search
⬢ Filter based on “memberof” attribute of the user

20. 20 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

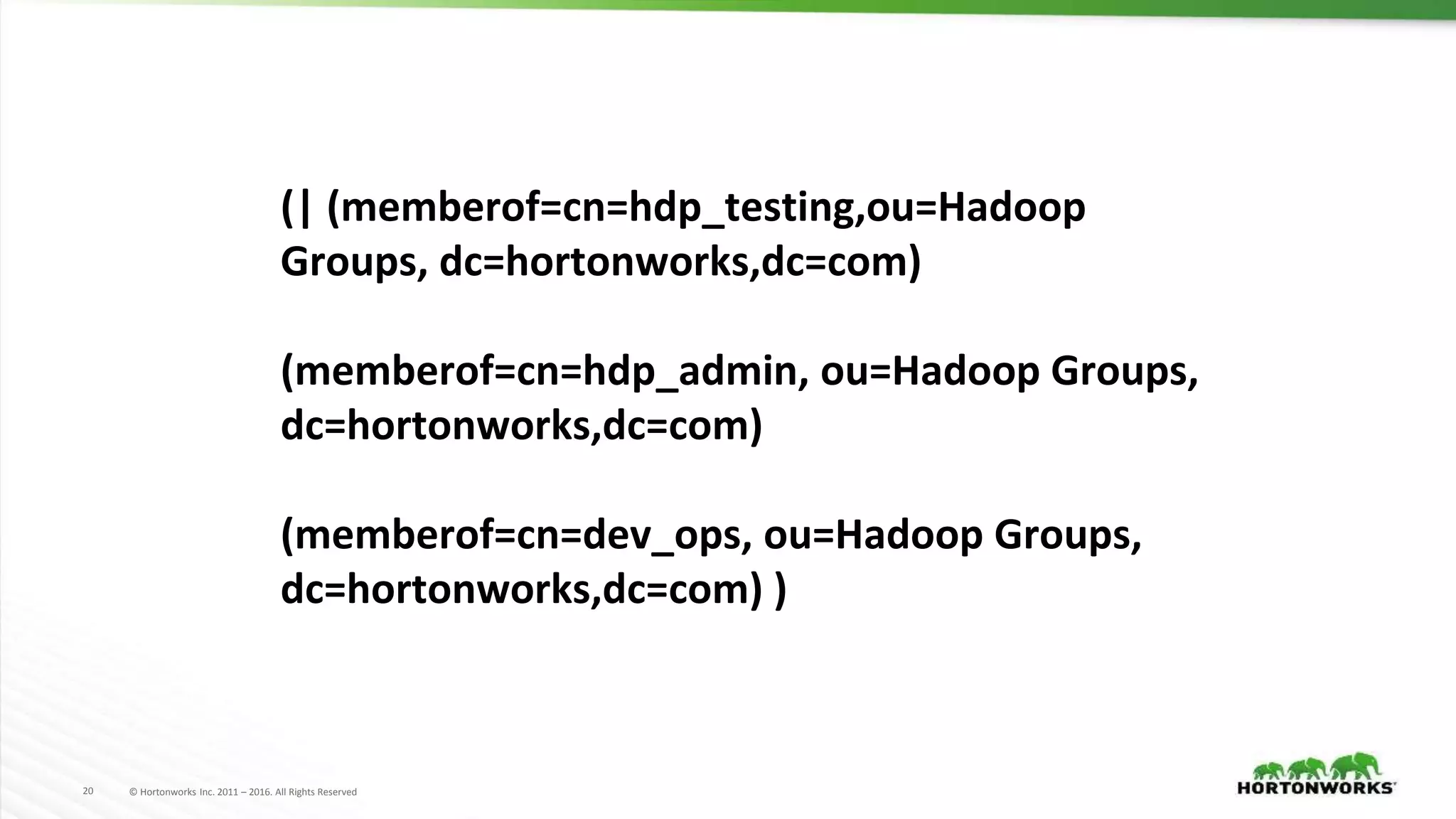

(| (memberof=cn=hdp_testing,ou=Hadoop
Groups, dc=hortonworks,dc=com)
(memberof=cn=hdp_admin, ou=Hadoop Groups,
dc=hortonworks,dc=com)
(memberof=cn=dev_ops, ou=Hadoop Groups,
dc=hortonworks,dc=com) )

21. 21 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

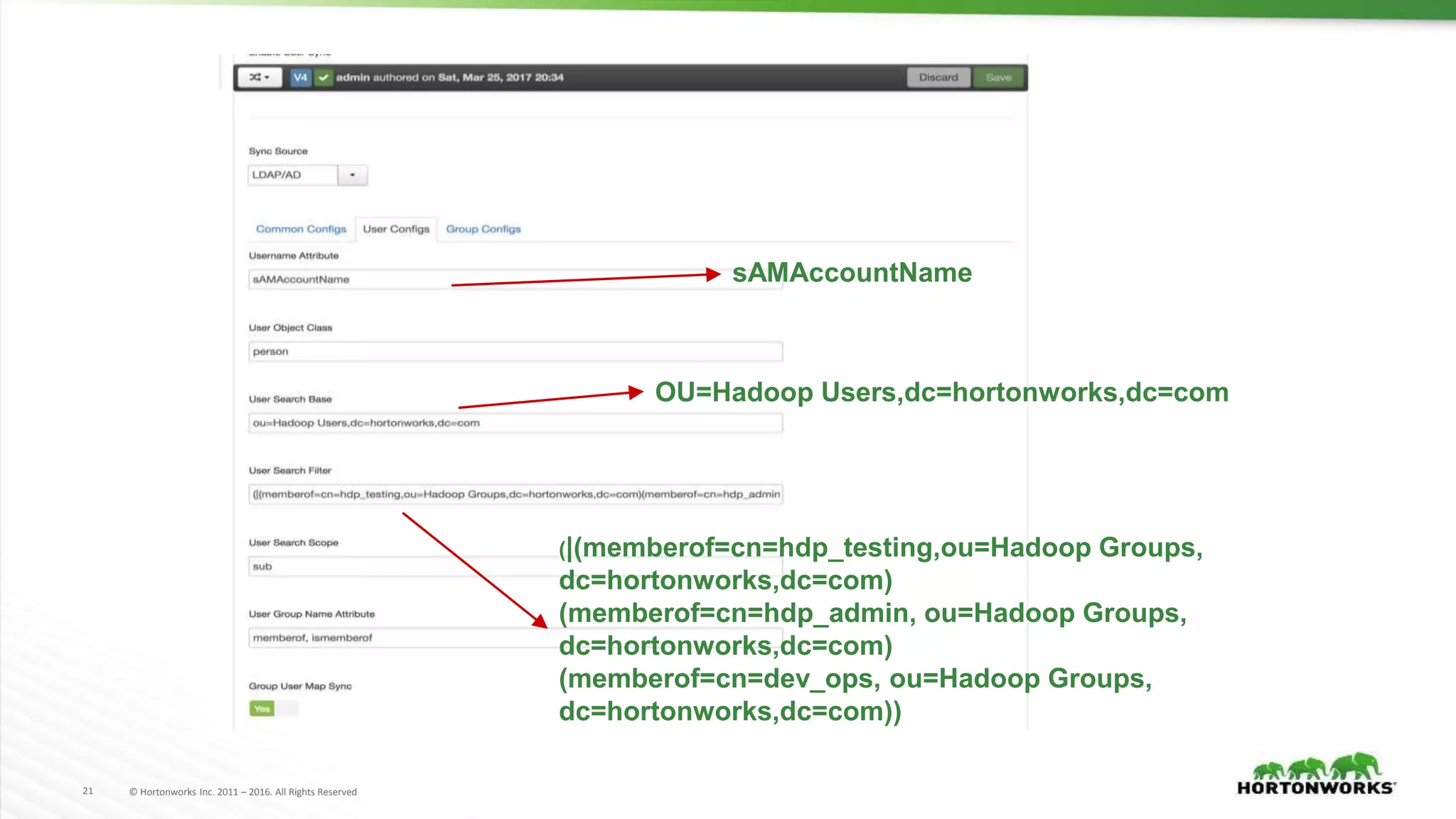

sAMAccountName
(|(memberof=cn=hdp_testing,ou=Hadoop Groups,
dc=hortonworks,dc=com)
(memberof=cn=hdp_admin, ou=Hadoop Groups,
dc=hortonworks,dc=com)
(memberof=cn=dev_ops, ou=Hadoop Groups,
dc=hortonworks,dc=com))
OU=Hadoop Users,dc=hortonworks,dc=com

22. 22 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

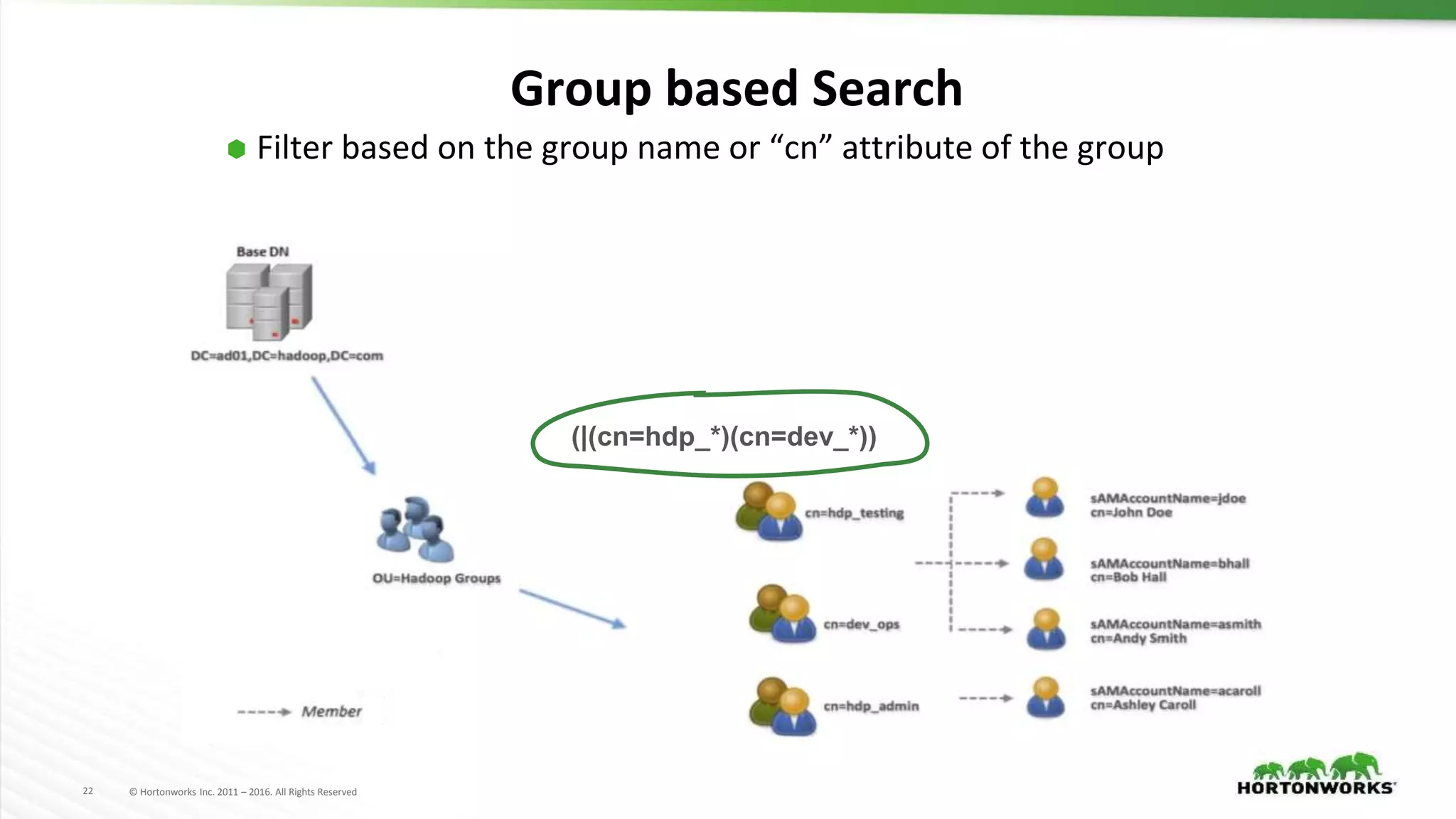

Group based Search
⬢ Filter based on the group name or “cn” attribute of the group
(|(cn=hdp_*)(cn=dev_*))

23. 23 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

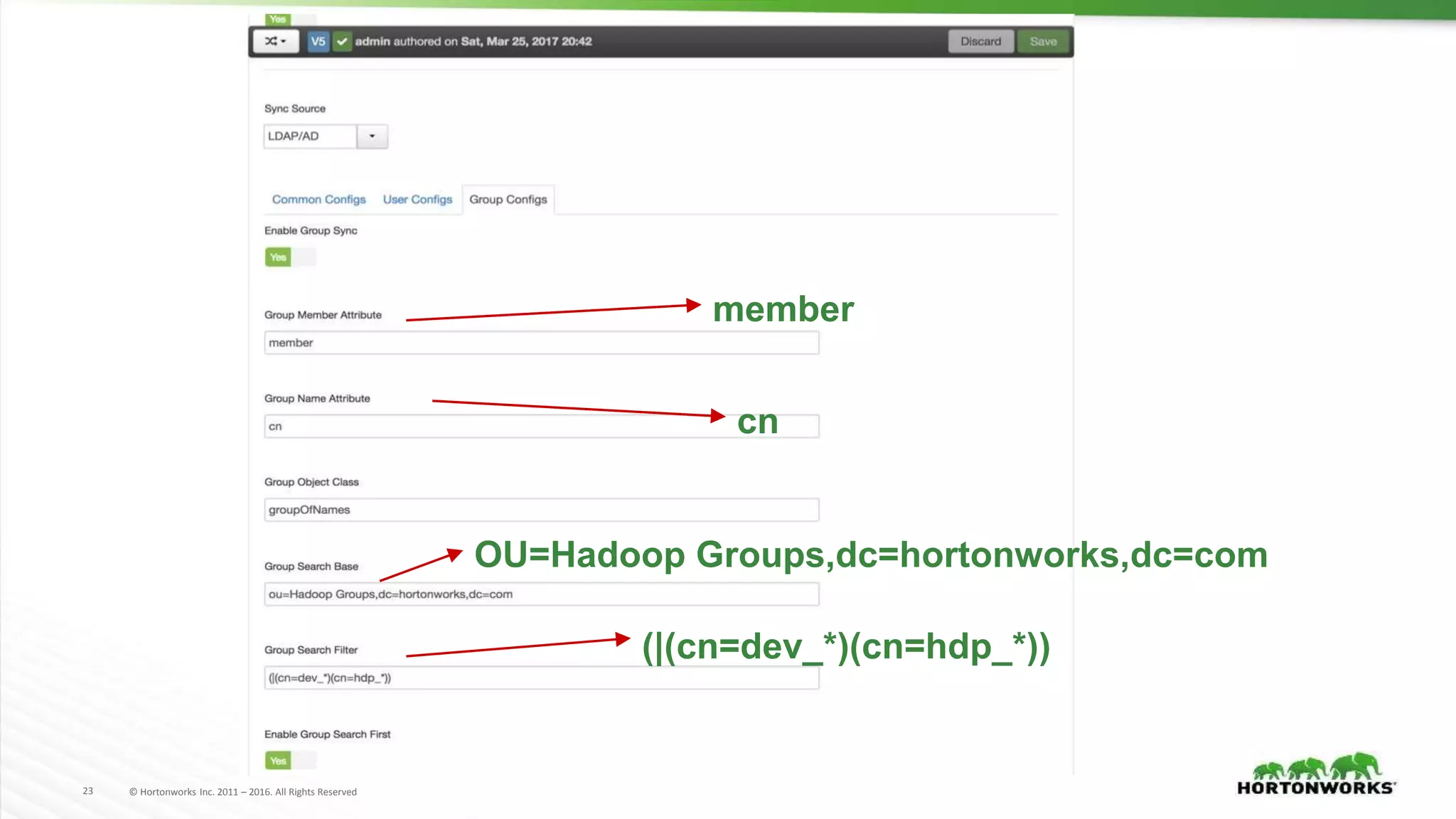

cn
OU=Hadoop Groups,dc=hortonworks,dc=com
member
(|(cn=dev_*)(cn=hdp_*))

24. 24 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

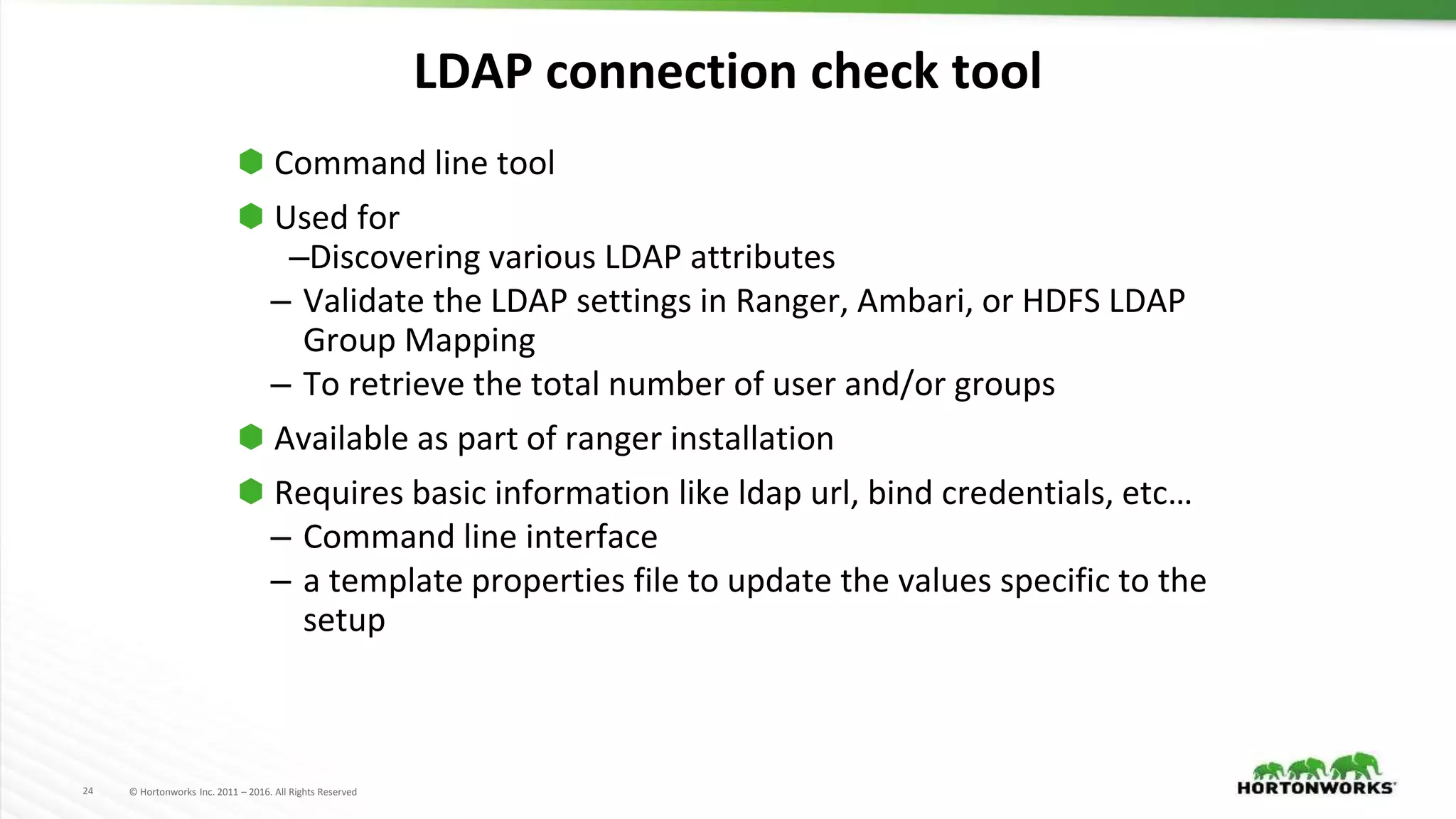

LDAP connection check tool
⬢ Command line tool
⬢ Used for
–Discovering various LDAP attributes
– Validate the LDAP settings in Ranger, Ambari, or HDFS LDAP
Group Mapping
– To retrieve the total number of user and/or groups
⬢ Available as part of ranger installation
⬢ Requires basic information like ldap url, bind credentials, etc…
– Command line interface
– a template properties file to update the values specific to the
setup

25. 25 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

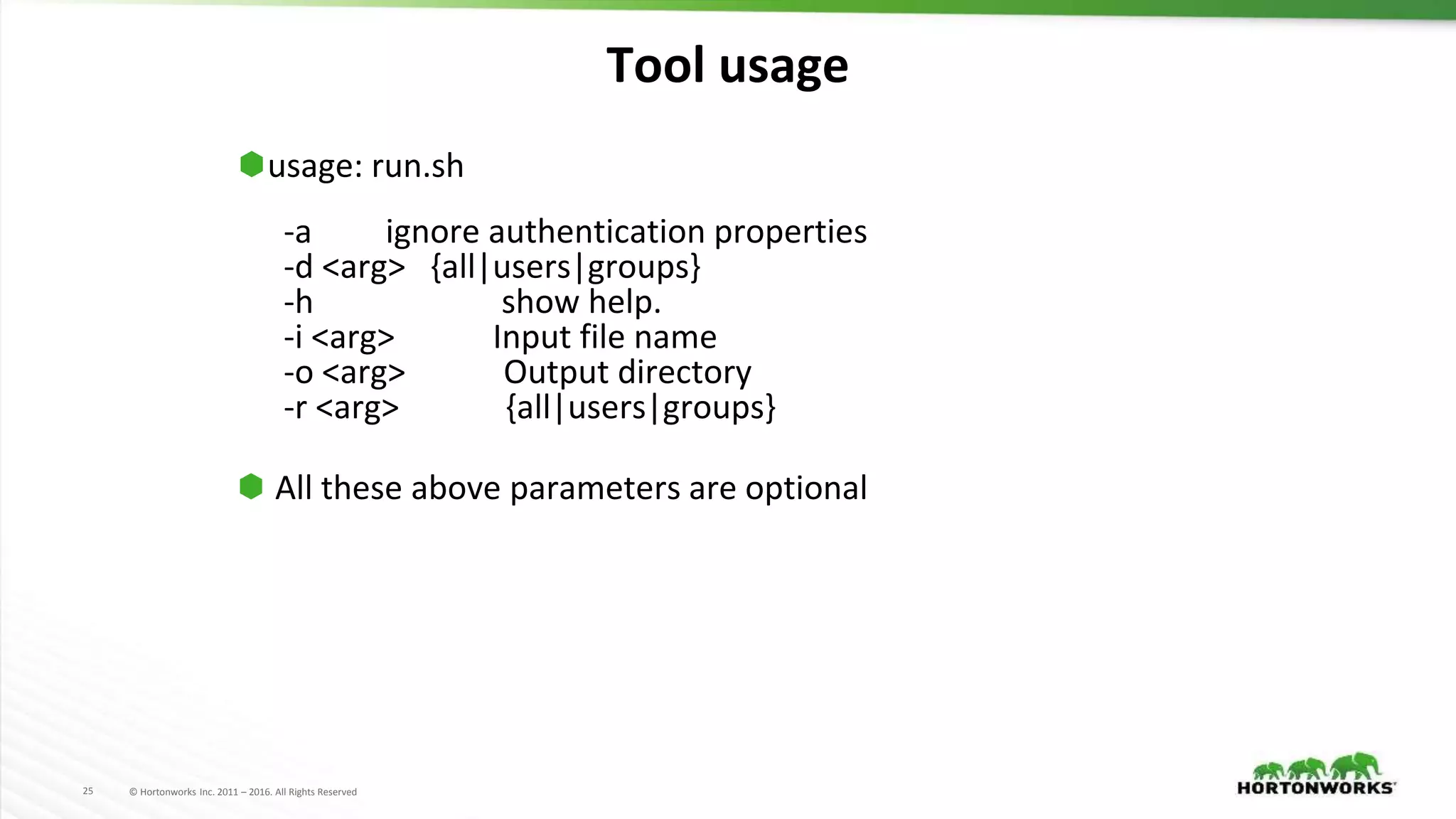

Tool usage
⬢usage: run.sh
-a ignore authentication properties
-d <arg> {all|users|groups}
-h show help.
-i <arg> Input file name
-o <arg> Output directory
-r <arg> {all|users|groups}
⬢ All these above parameters are optional

26. 26 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

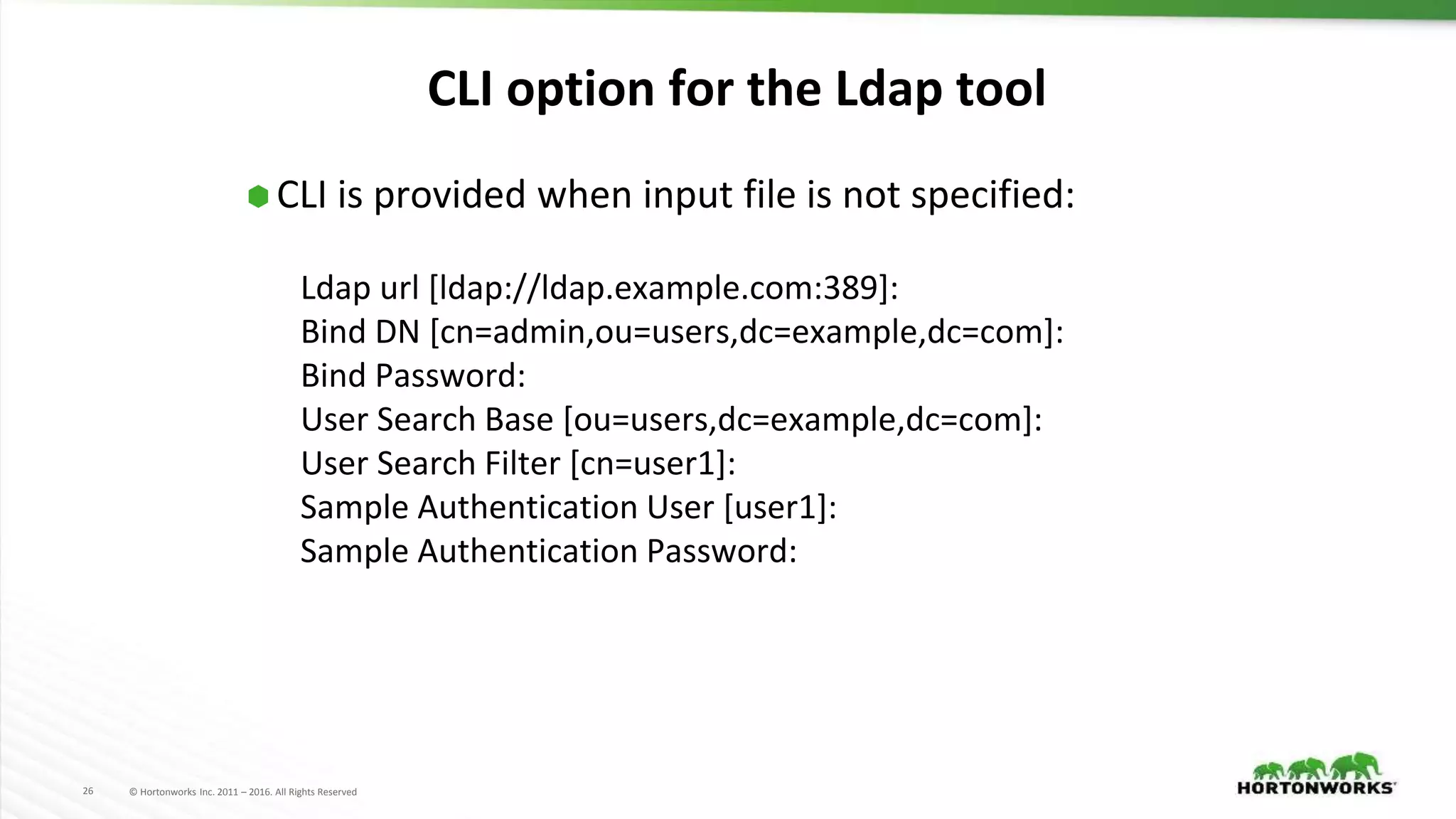

CLI option for the Ldap tool
⬢ CLI is provided when input file is not specified:
Ldap url [ldap://ldap.example.com:389]:
Bind DN [cn=admin,ou=users,dc=example,dc=com]:
Bind Password:
User Search Base [ou=users,dc=example,dc=com]:
User Search Filter [cn=user1]:
Sample Authentication User [user1]:
Sample Authentication Password:

27. 27 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

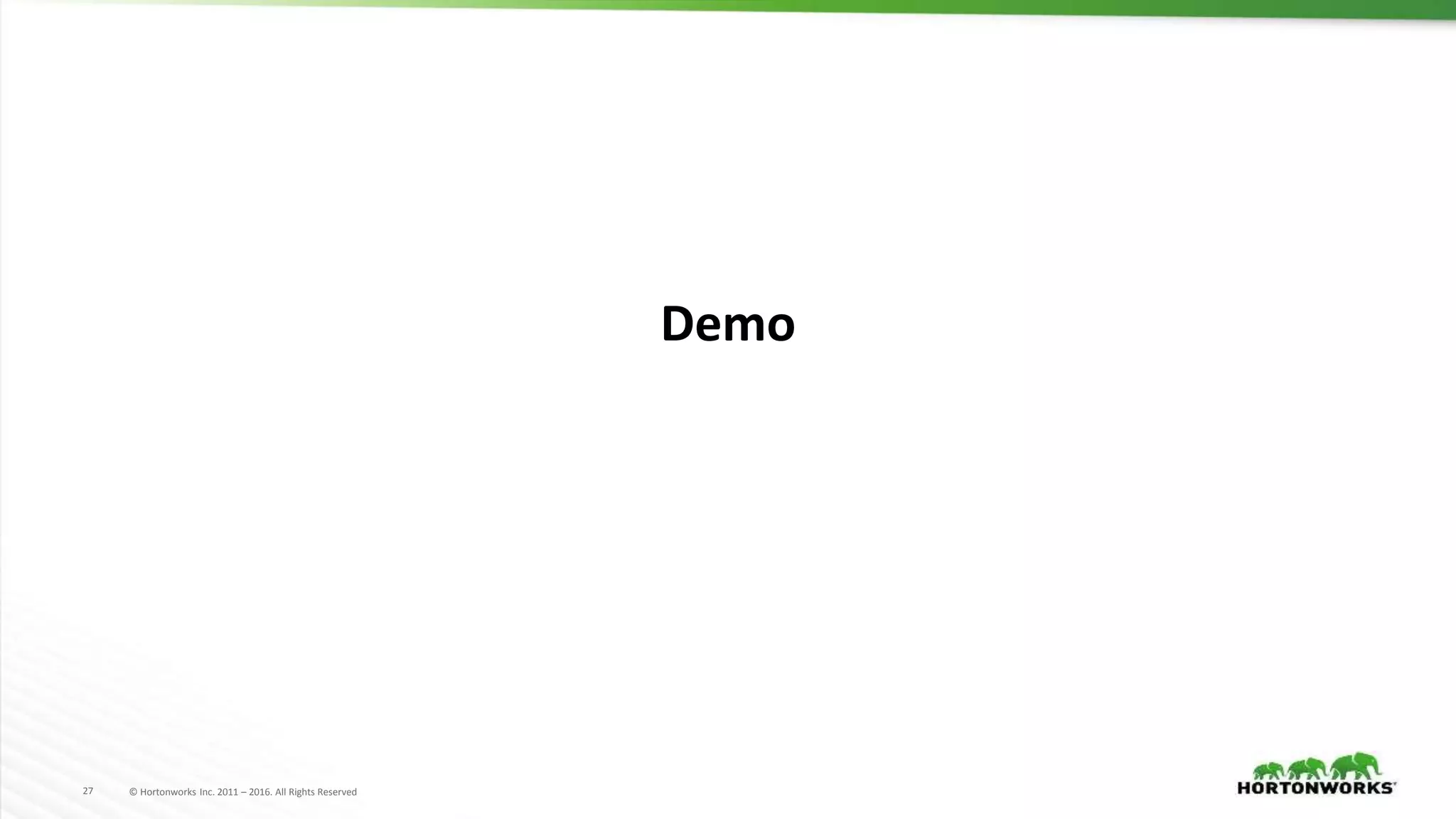

Demo

28. 28 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

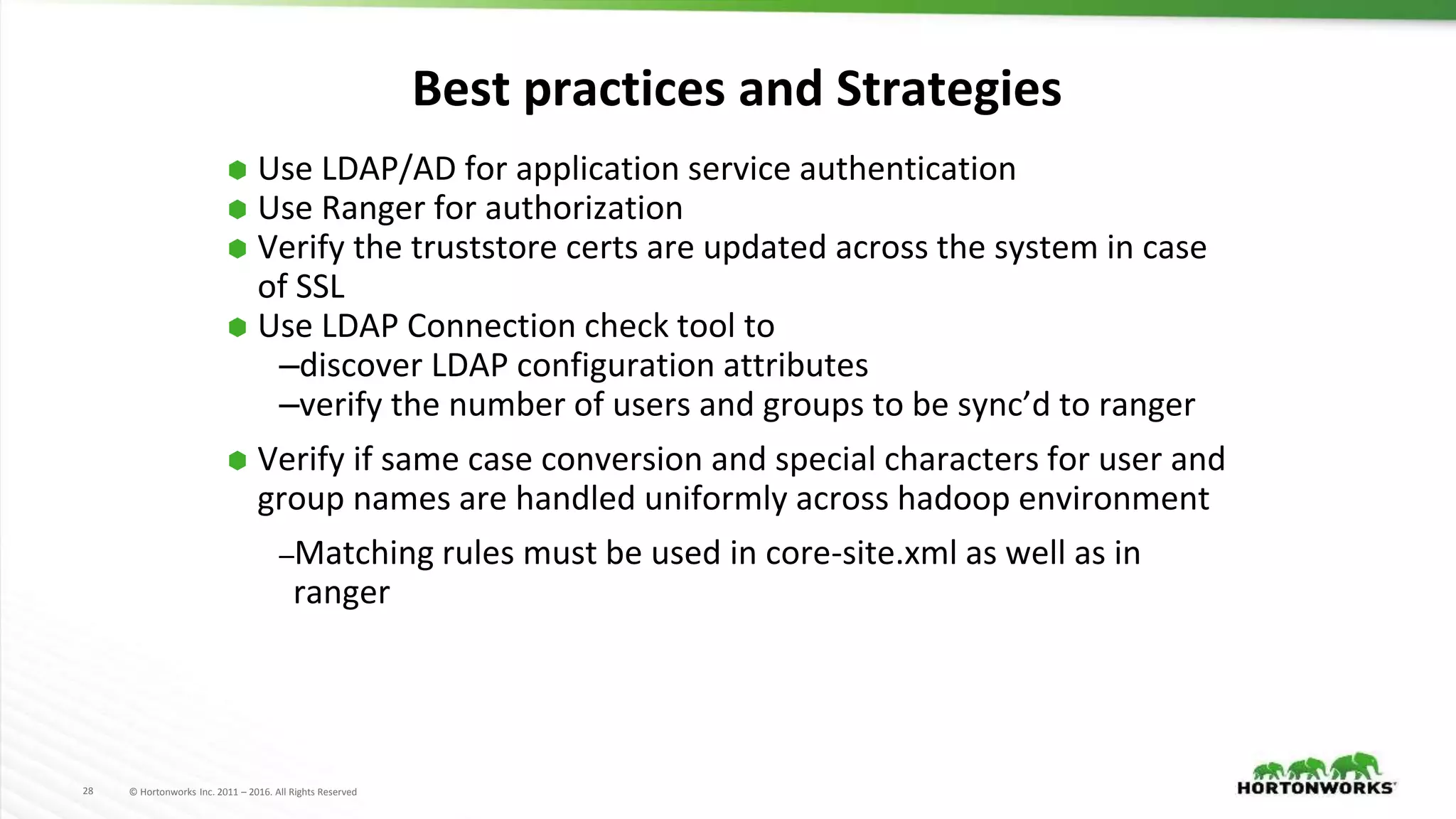

Best practices and Strategies
⬢ Use LDAP/AD for application service authentication
⬢ Use Ranger for authorization
⬢ Verify the truststore certs are updated across the system in case
of SSL
⬢ Use LDAP Connection check tool to
–discover LDAP configuration attributes
–verify the number of users and groups to be sync’d to ranger
⬢ Verify if same case conversion and special characters for user and
group names are handled uniformly across hadoop environment
–Matching rules must be used in core-site.xml as well as in
ranger

29. 29 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
