Curb Your Insecurity - Tips for a Secure Cluster (with Spark too)!!

Curb Your Insecurity with HDP
Tips for a Secure Cluster (with Spark too)
Hadoop Summit – San Jose
June 29th, 2016

2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Pardeep Kumar
Sr. Systems Architect, NA Prof. Services
4+ years in Hadoop
Helping Fortune500 customers succeed in
their Hadoop journey
Setup, implement, migrate and secure some
of the largest clusters in North America
Security, & Migration SME, HCC Guru
Loves Hadoop, Cricket and Kerberos ;)
pardeep.kumar@hortonworks.com
@hadooptutor
linkedin.com/in/pardeepkumarmishra
Ancil McBarnett
Sr. Solutions Engineer, NorthEast
Helping organizations design, implement,
operate and consume Hadoop and Big Data
Solutions. Specialize in Security and Hive
Tuning. HCC Guru.
Loves Cricket, and DJ Bravo Champion :D
amcbarnett@hortonworks.com
@mcbkingdom
linkedin.com/in/mcbkingdom

Hadoop Security in 4 Steps

How do I set policy across the entire cluster?
Who am I/prove it?
What can I do?
What did I do?
How can I encrypt at rest and over the wire?

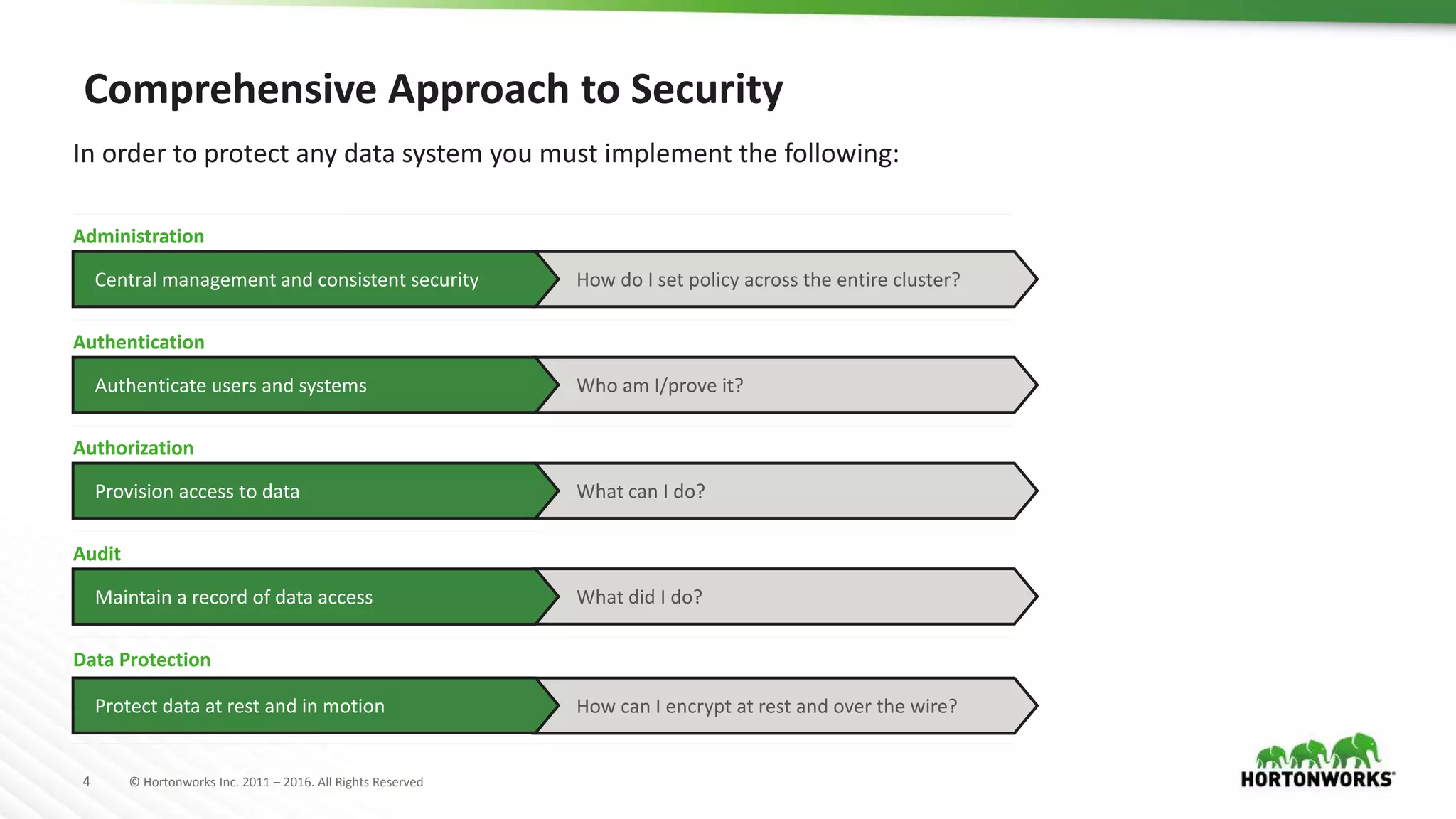

Comprehensive Approach to Security
Data Protection
Protect data at rest and in motion
In order to protect any data system you must implement the following:
Audit
Maintain a record of data access
Authorization
Provision access to data
Authentication
Authenticate users and systems
Administration
Central management and consistent security

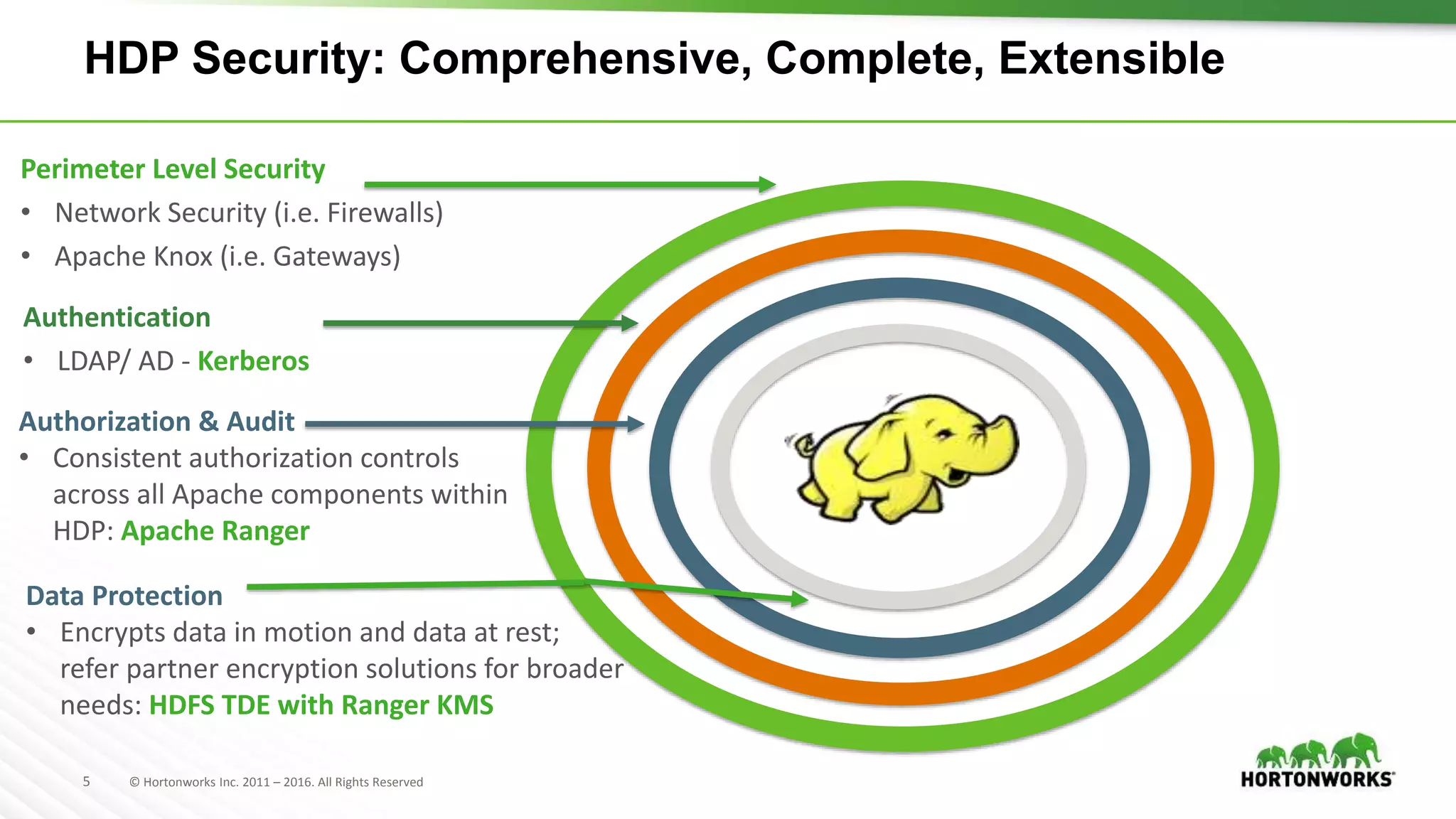

HDP Security: Comprehensive, Complete, Extensible
Perimeter Level Security
• Network Security (i.e. Firewalls)
• Apache Knox (i.e. Gateways)
Authentication
• LDAP/ AD - Kerberos
Data Protection
• Encrypts data in motion and data at rest;
refer partner encryption solutions for broader
needs: HDFS TDE with Ranger KMS
Authorization & Audit
• Consistent authorization controls
across all Apache components within
HDP: Apache Ranger

Authentication with Kerberos
Kerberos is necessary evil, just do it!!

Security Without Kerberos

Configure Kerberos – Ambari Wizard

Security With Kerberos

Apache Ranger

HDFS File Security

Hive Database and Table Security

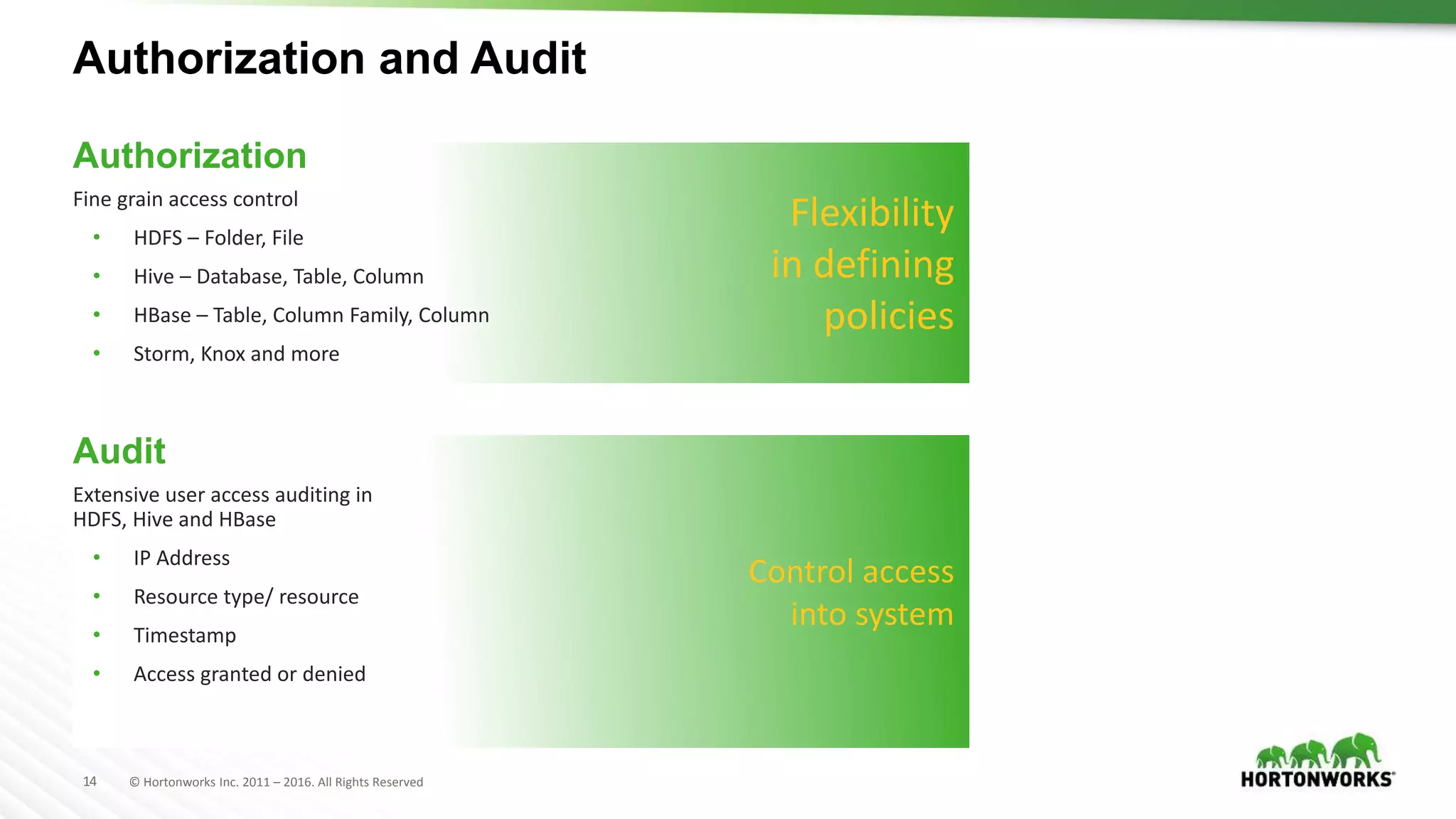

Authorization and Audit
Authorization
Fine grain access control
• HDFS – Folder, File
• Hive – Database, Table, Column
• HBase – Table, Column Family, Column
• Storm, Knox and more
Audit
Extensive user access auditing in
HDFS, Hive and HBase
• IP Address
• Resource type/ resource
• Timestamp
• Access granted or denied
Control access
into system
Flexibility
in defining
policies

Rest API Security with Apache Knox

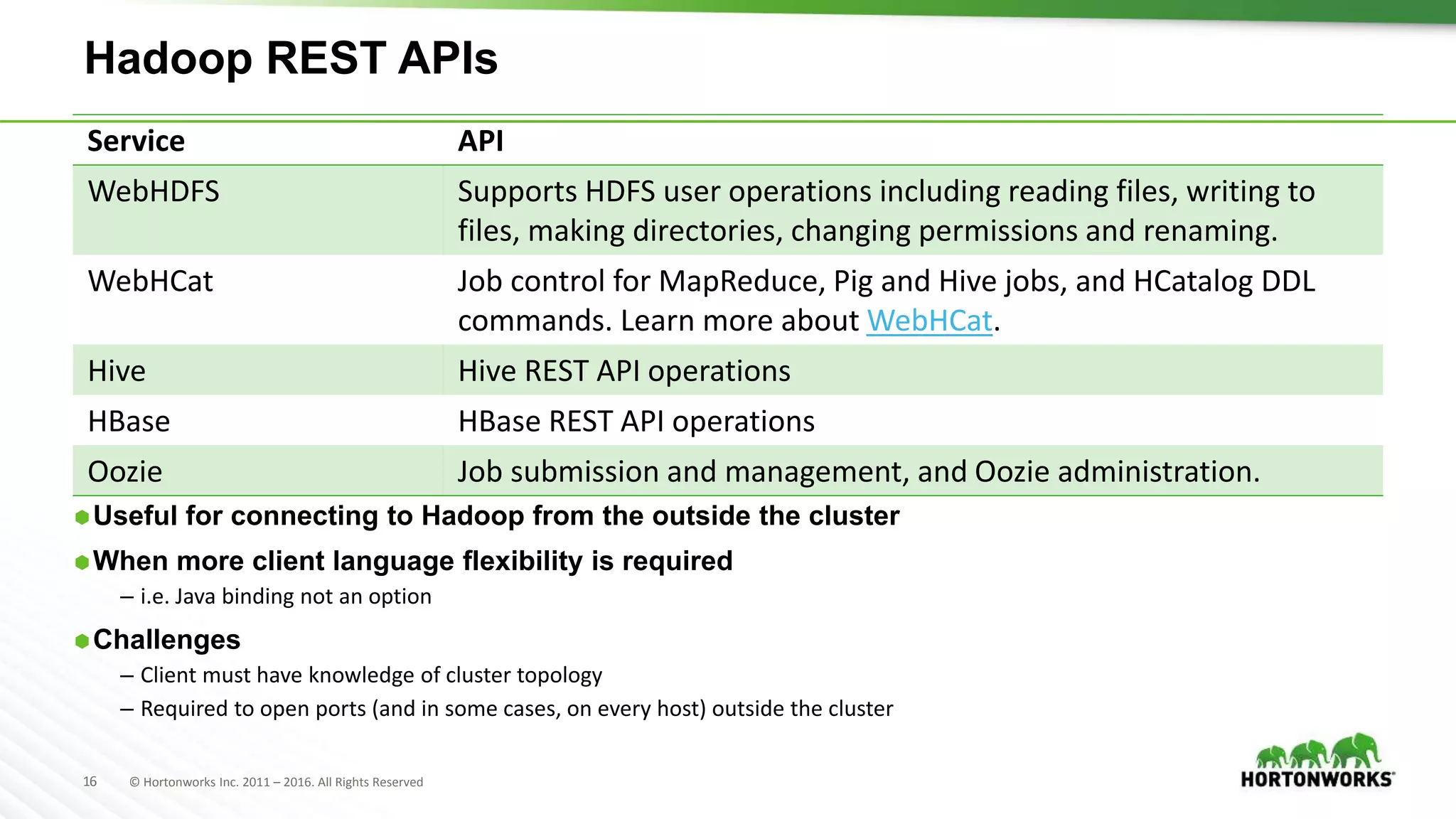

Hadoop REST APIs
Useful for connecting to Hadoop from the outside the cluster
When more client language flexibility is required
– i.e. Java binding not an option
Challenges
– Client must have knowledge of cluster topology
– Required to open ports (and in some cases, on every host) outside the cluster
Service API
WebHDFS Supports HDFS user operations including reading files, writing to
files, making directories, changing permissions and renaming.
WebHCat Job control for MapReduce, Pig and Hive jobs, and HCatalog DDL
commands. Learn more about WebHCat.
Hive Hive REST API operations
HBase HBase REST API operations
Oozie Job submission and management, and Oozie administration.

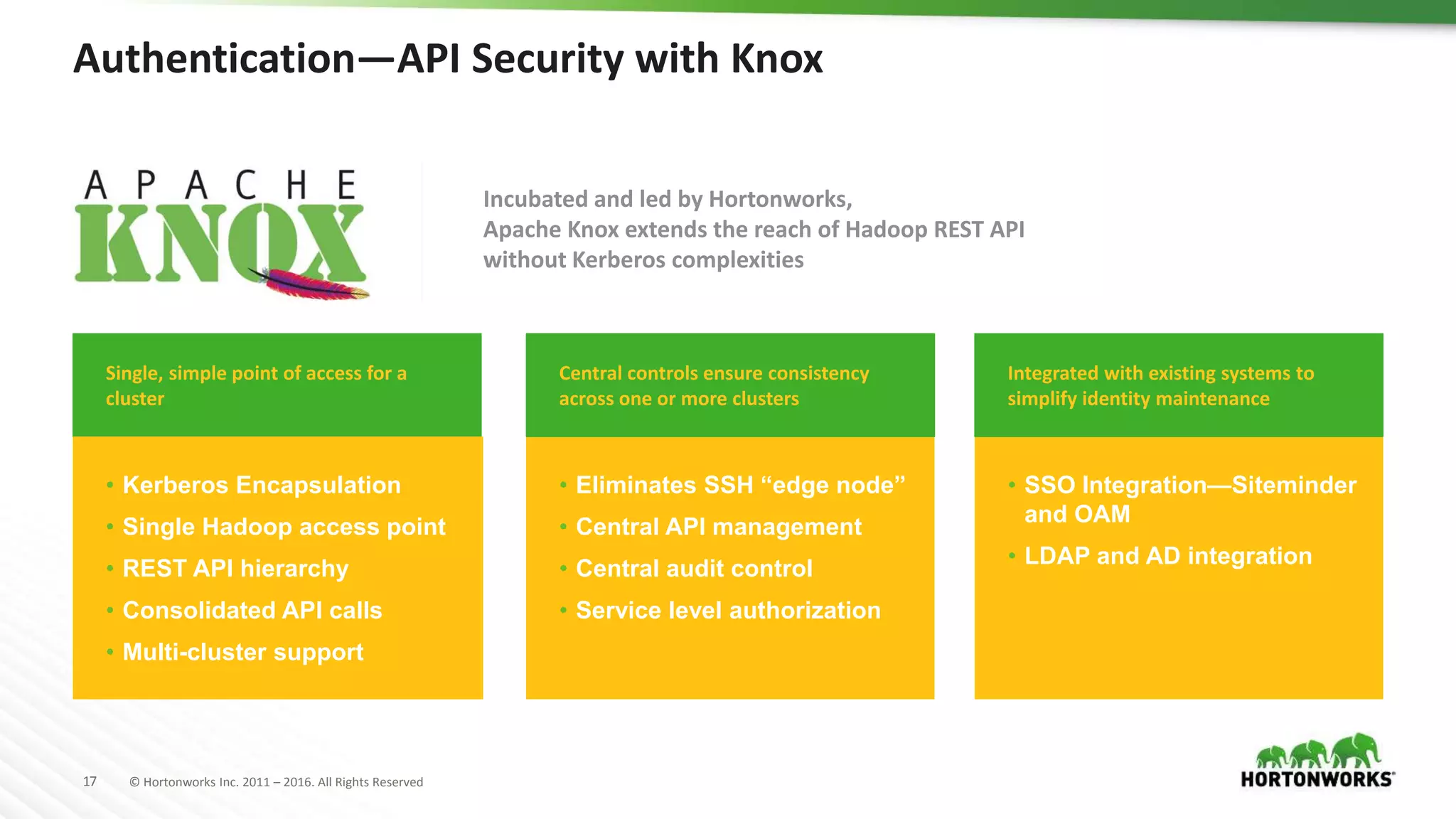

Authentication—API Security with Knox
• Eliminates SSH “edge node”
• Central API management
• Central audit control
• Service level authorization
• SSO Integration—Siteminder
and OAM
• LDAP and AD integration
Incubated and led by Hortonworks,
Apache Knox extends the reach of Hadoop REST API
without Kerberos complexities
Integrated with existing systems to
simplify identity maintenance
Single, simple point of access for a
cluster
Central controls ensure consistency
across one or more clusters
• Kerberos Encapsulation
• Single Hadoop access point
• REST API hierarchy
• Consolidated API calls
• Multi-cluster support

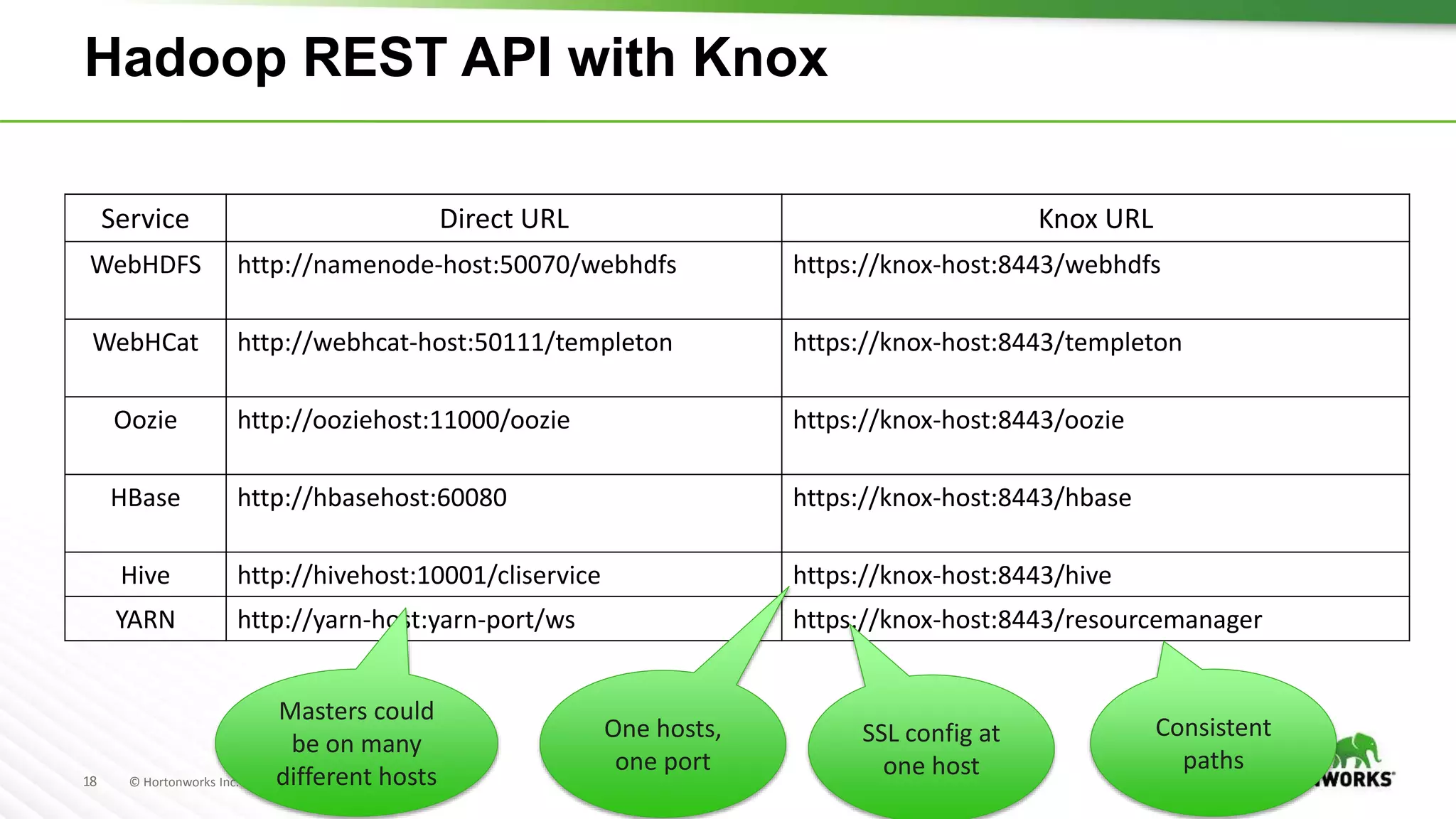

Hadoop REST API with Knox
Service Direct URL Knox URL
WebHDFS http://namenode-host:50070/webhdfs https://knox-host:8443/webhdfs
WebHCat http://webhcat-host:50111/templeton https://knox-host:8443/templeton
Oozie http://ooziehost:11000/oozie https://knox-host:8443/oozie
HBase http://hbasehost:60080 https://knox-host:8443/hbase
Hive http://hivehost:10001/cliservice https://knox-host:8443/hive
YARN http://yarn-host:yarn-port/ws https://knox-host:8443/resourcemanager
Masters could
be on many
different hosts
One hosts,
one port
Consistent
paths
SSL config at
one host

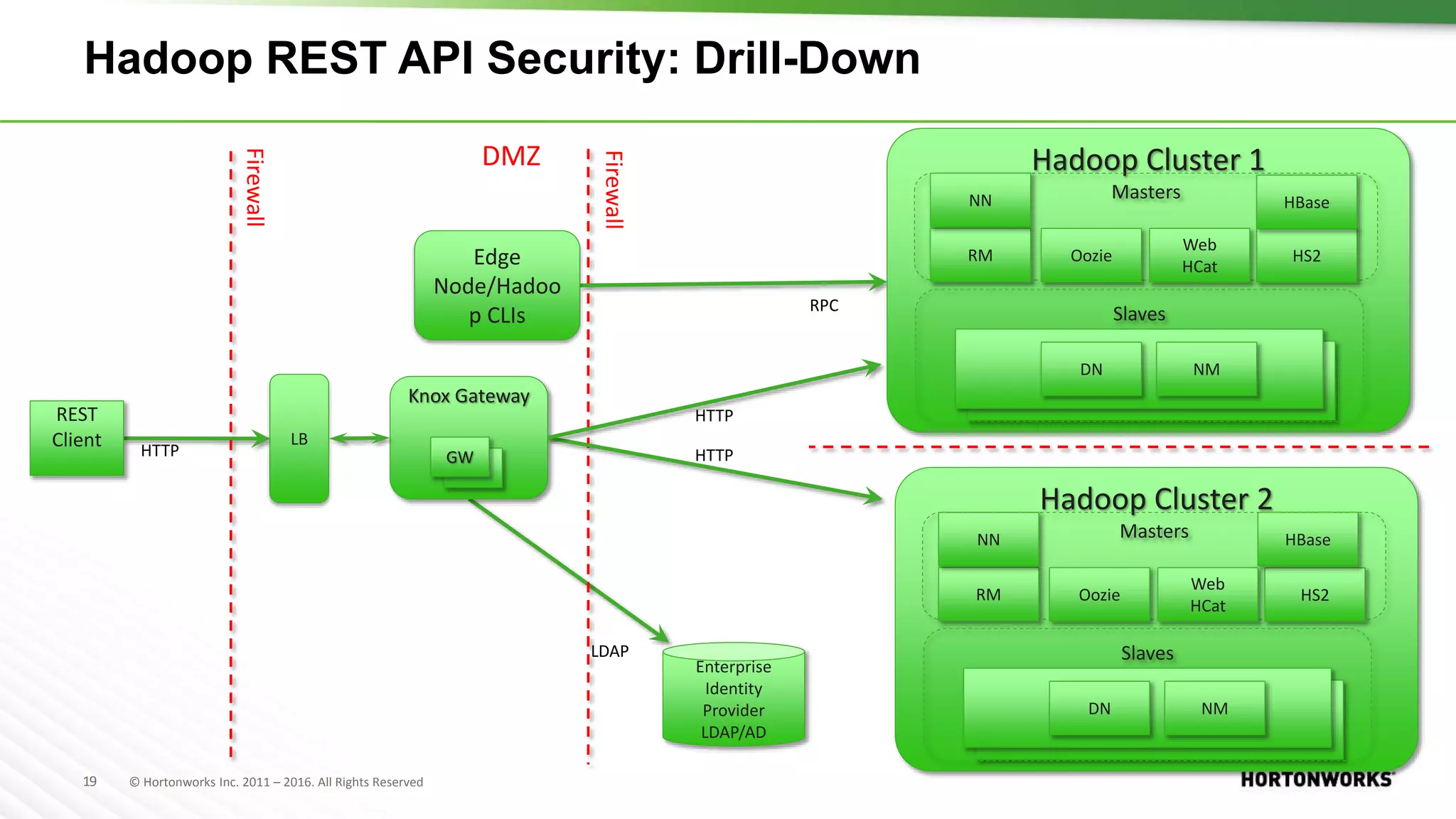

Hadoop REST API Security: Drill-Down
REST
Client
Enterprise
Identity
Provider
LDAP/AD
Knox Gateway
GW
GW
Firewall
Firewall
DMZ
LB
Edge
Node/Hadoo
p CLIs RPC
HTTP
HTTP HTTP
LDAP
Hadoop Cluster 1
Masters
Slaves
RM
NN
Web
HCat
Oozie
DN NM
HS2
Hadoop Cluster 2
Masters
Slaves
RM
NN
Web
HCat
Oozie
DN NM
HS2
HBase
HBase

Data Protection

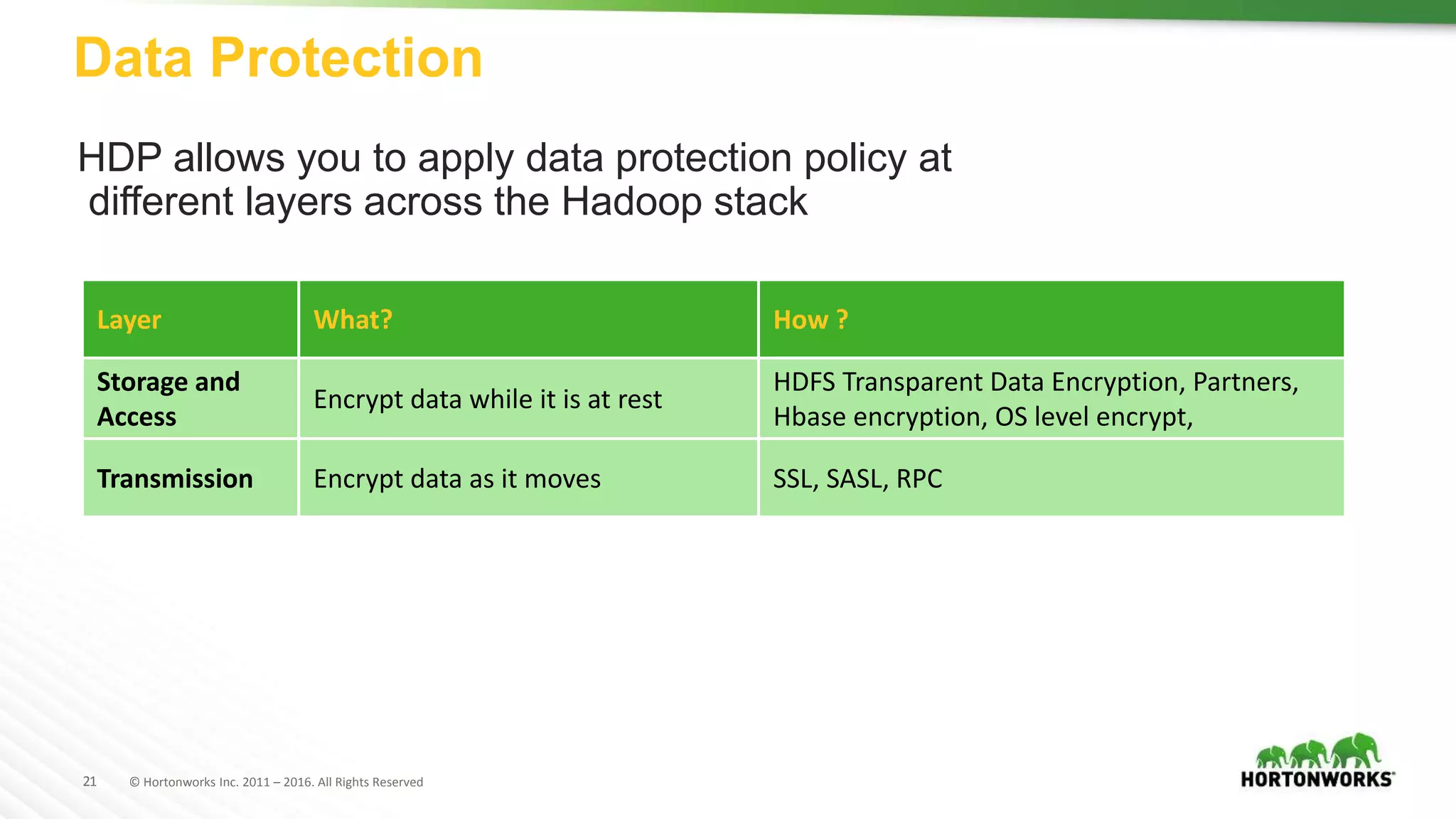

Data Protection
HDP allows you to apply data protection policy at
different layers across the Hadoop stack
Layer What? How ?
Storage and
Access
Encrypt data while it is at rest
HDFS Transparent Data Encryption, Partners,
Hbase encryption, OS level encrypt,
Transmission Encrypt data as it moves SSL, SASL, RPC

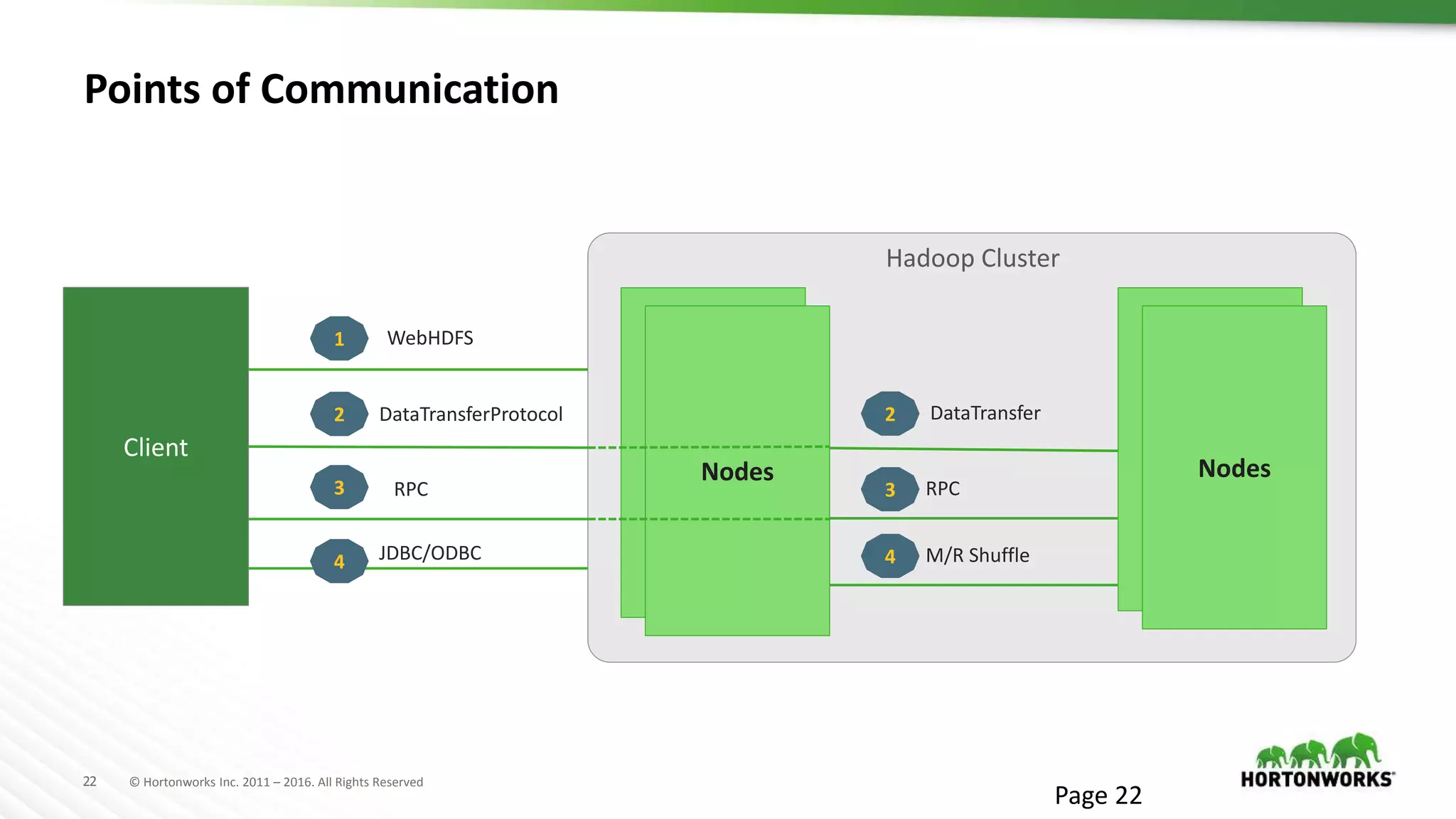

Points of Communication
Page 22
WebHDFS
DataTransferProtocol
Nodes
M/R Shuffle
Client
1
2
4
RPC3
Nodes
DataTransfer2
JDBC/ODBC
3
Hadoop Cluster
RPC
4

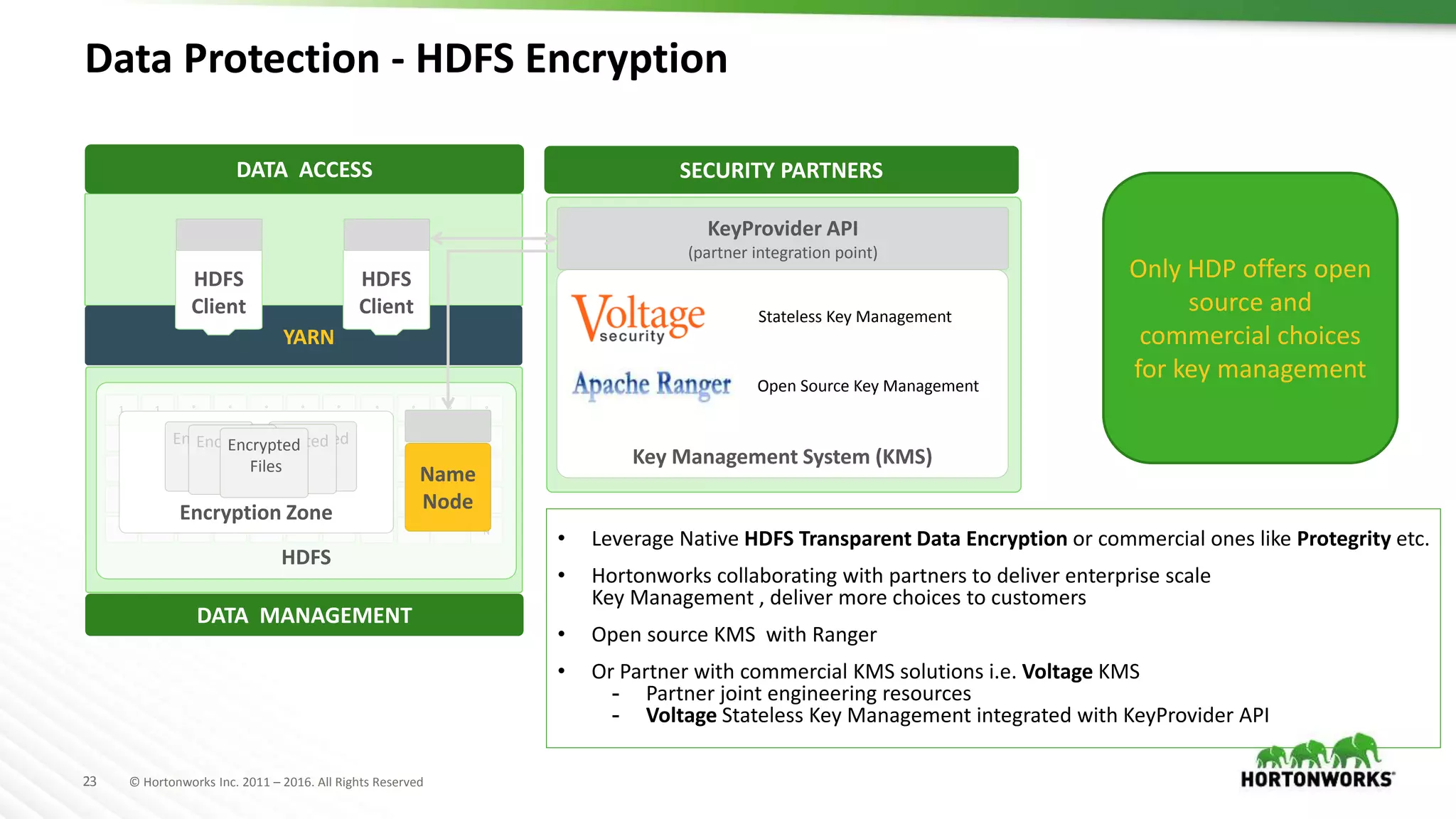

Data Protection - HDFS Encryption
DATA ACCESS
DATA MANAGEMENT
SECURITY PARTNERS
YARN
KeyProvider API
(partner integration point)
Key Management System (KMS)
Stateless Key Management
°
1
°
°
°
°
° °
° °
° °
° °
° N°
1 ° ° ° ° °
° ° ° ° ° °
° ° ° ° ° °
° ° ° ° ° °
° ° ° ° ° °
° °
° °
° °
° °
°
HDFS
Encryption Zone
Encrypted
File
Encrypted
File
Encrypted
File
Encrypted
File
Encrypted
Files
Name
Node
HDFS
Client
HDFS
Client
• Leverage Native HDFS Transparent Data Encryption or commercial ones like Protegrity etc.
• Hortonworks collaborating with partners to deliver enterprise scale
Key Management , deliver more choices to customers
• Open source KMS with Ranger
• Or Partner with commercial KMS solutions i.e. Voltage KMS
- Partner joint engineering resources
- Voltage Stateless Key Management integrated with KeyProvider API
Only HDP offers open
source and
commercial choices
for key managementOpen Source Key Management

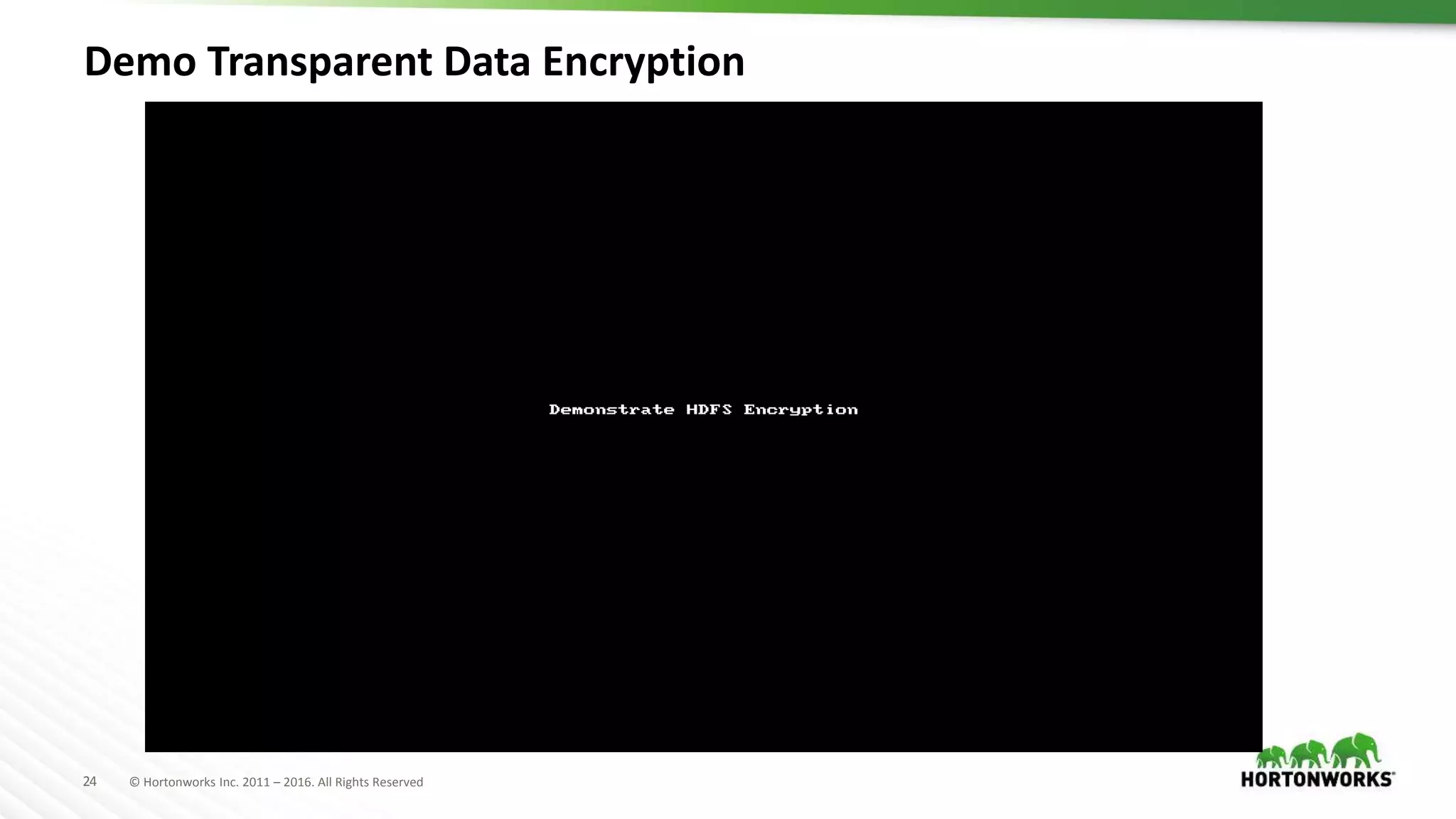

Demo Transparent Data Encryption

Securing Spark Deployments

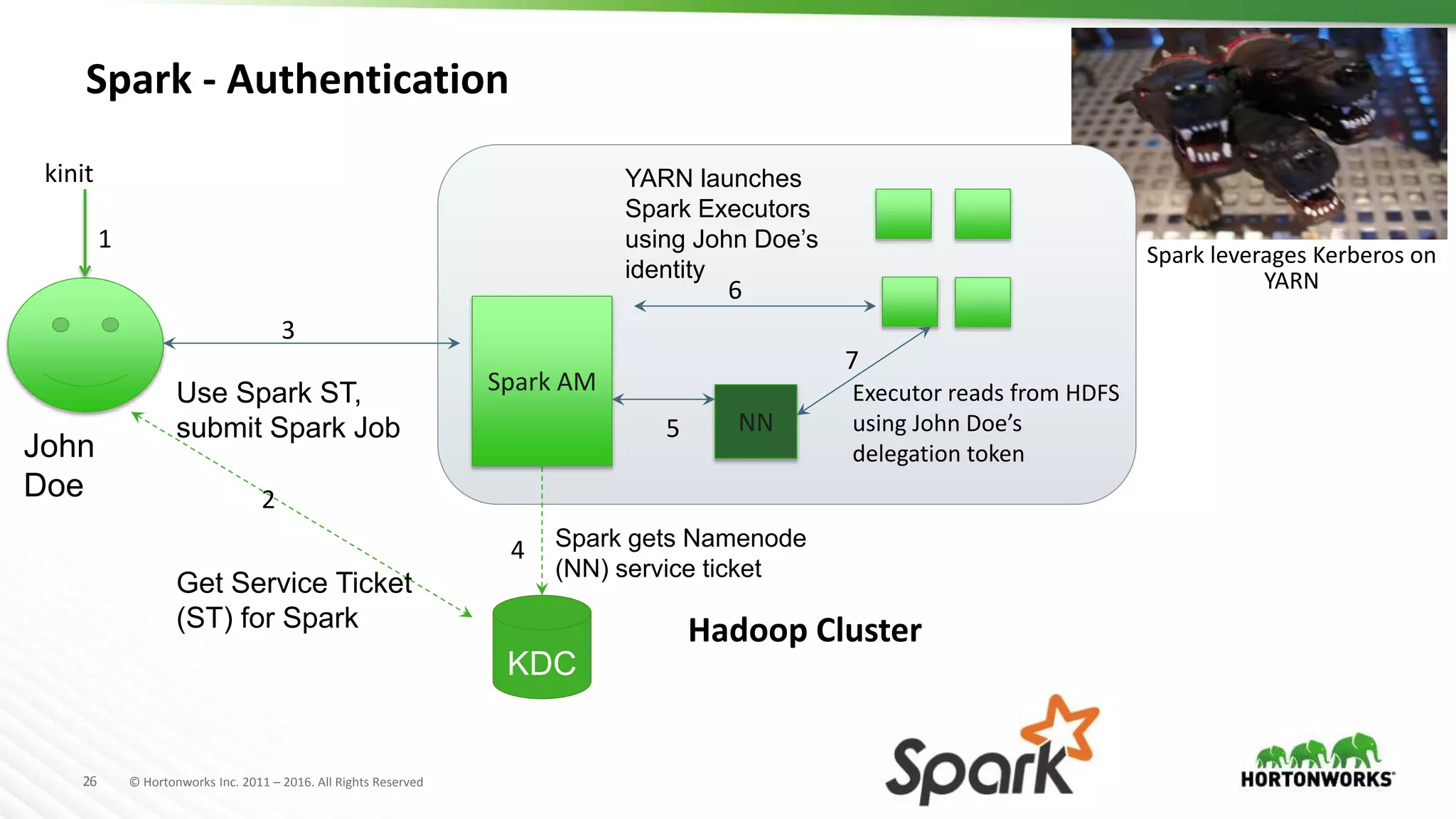

Spark - Authentication
Hadoop Cluster
Spark leverages Kerberos on
YARN
KDC
Use Spark ST,
submit Spark Job
Spark gets Namenode
(NN) service ticket
YARN launches
Spark Executors
using John Doe’s
identity
John
Doe
Spark AM
NN
Executor reads from HDFS
using John Doe’s
delegation token
kinit
1
2
3
4
5
6
7
Get Service Ticket
(ST) for Spark

HDFS

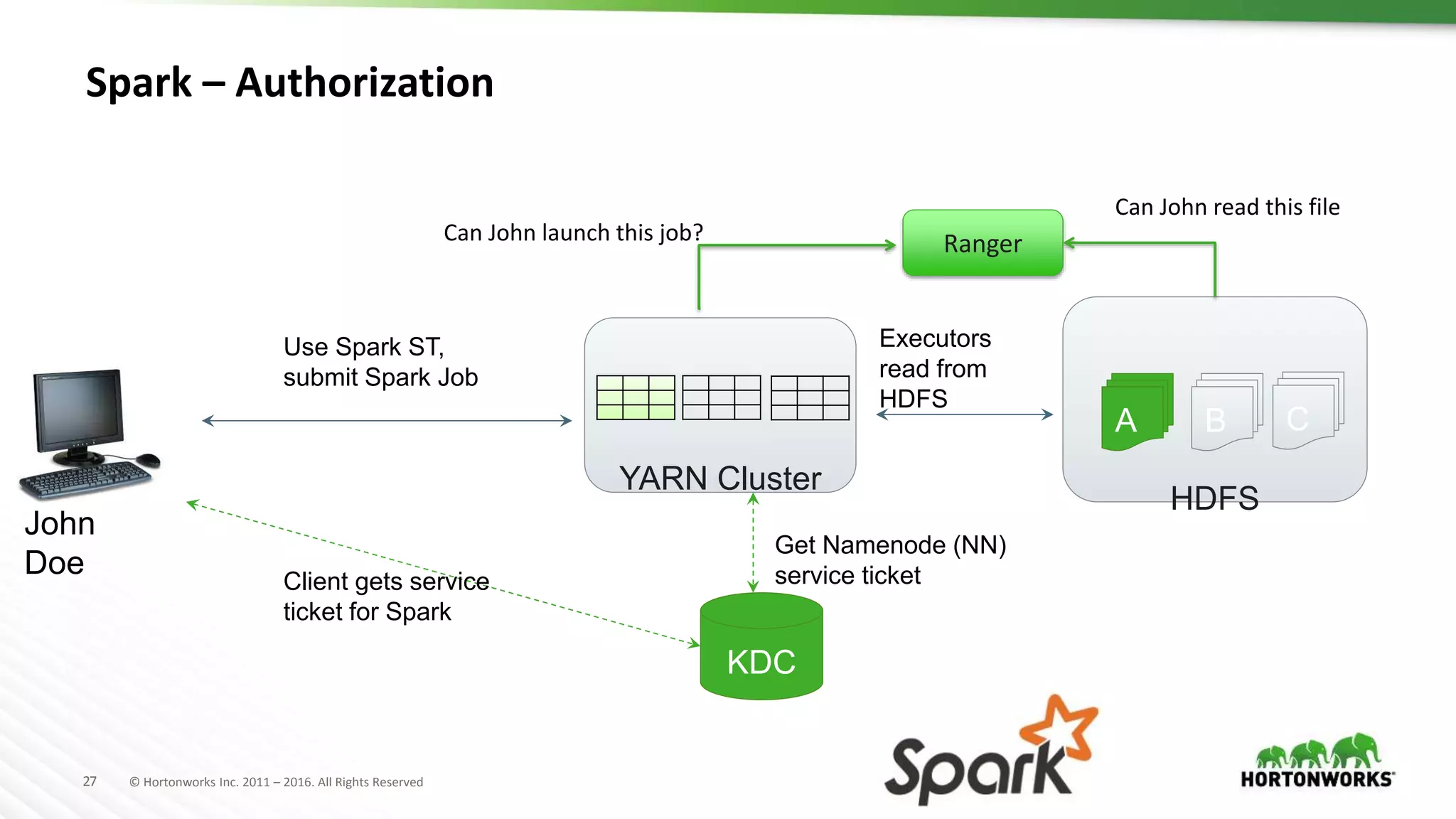

Spark – Authorization
YARN Cluster
A B C
KDC
Use Spark ST,
submit Spark Job
Get Namenode (NN)
service ticket
Executors
read from
HDFS
Client gets service
ticket for Spark
John
Doe
RangerCan John launch this job?
Can John read this file

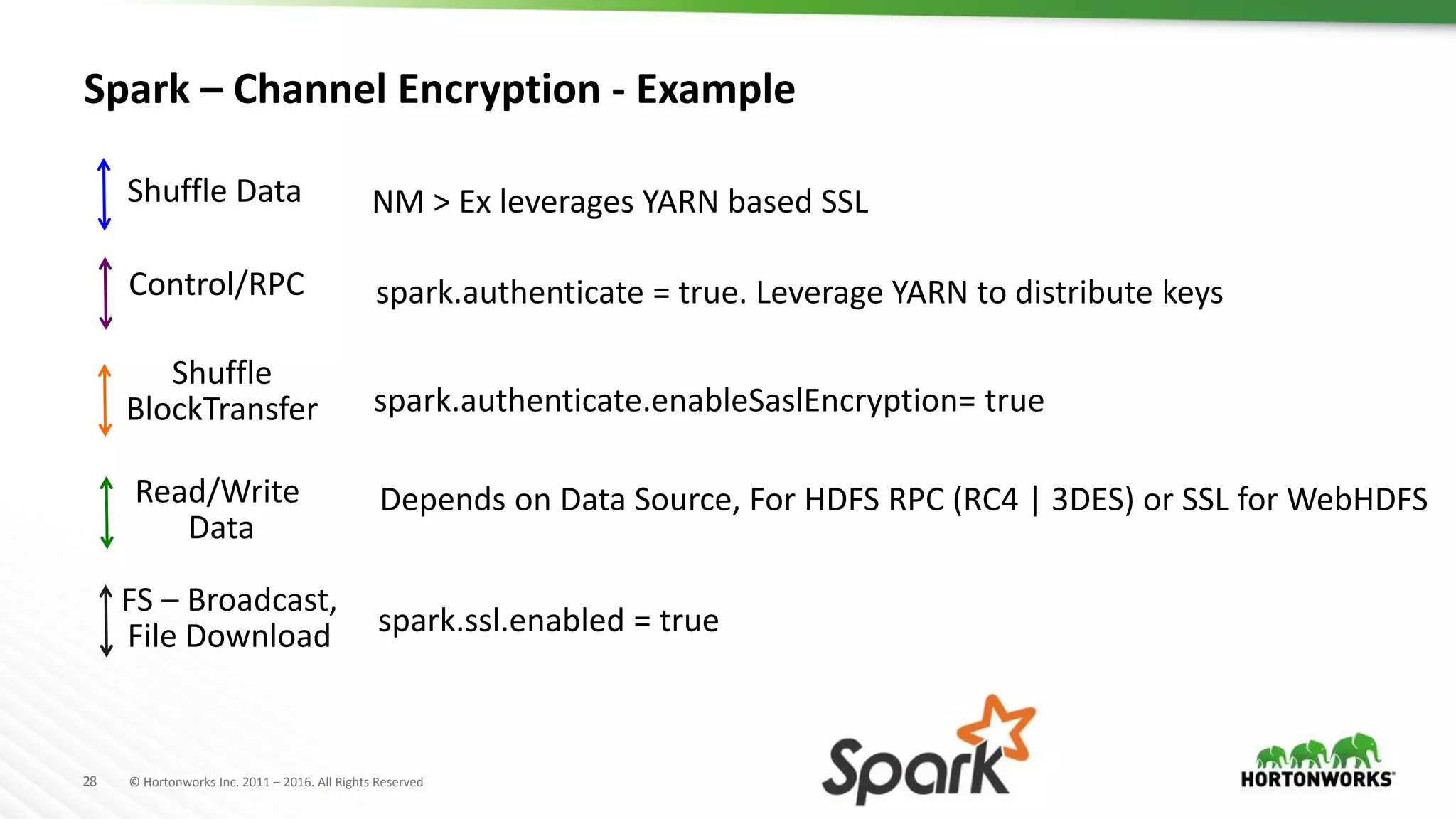

Spark – Channel Encryption - Example
Shuffle Data
Control/RPC
Shuffle
BlockTransfer
Read/Write
Data
FS – Broadcast,
File Download
spark.authenticate.enableSaslEncryption= true
spark.authenticate = true. Leverage YARN to distribute keys
Depends on Data Source, For HDFS RPC (RC4 | 3DES) or SSL for WebHDFS
NM > Ex leverages YARN based SSL
spark.ssl.enabled = true

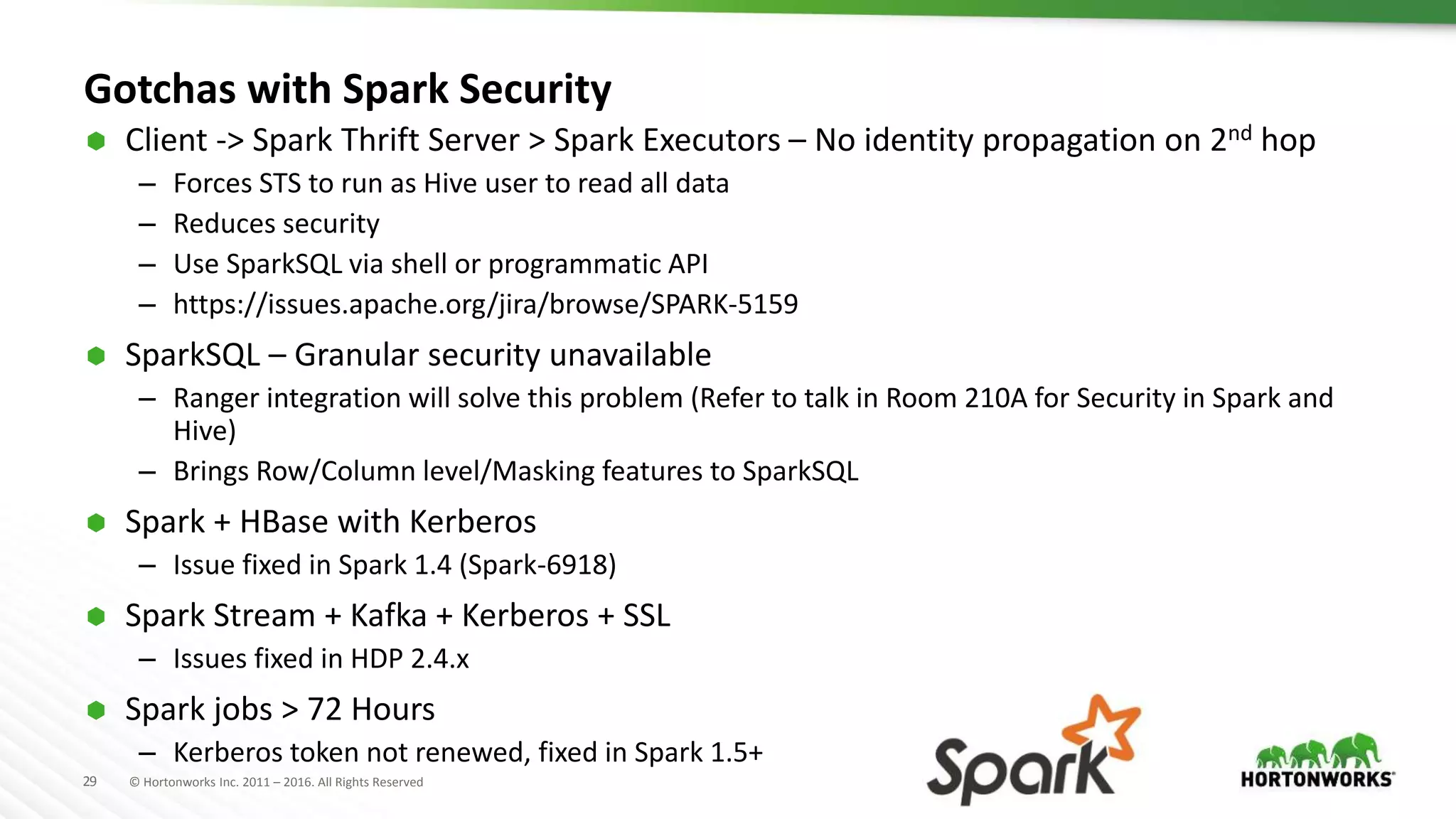

Gotchas with Spark Security
 Client -> Spark Thrift Server > Spark Executors – No identity propagation on 2nd hop
– Forces STS to run as Hive user to read all data
– Reduces security
– Use SparkSQL via shell or programmatic API
– https://issues.apache.org/jira/browse/SPARK-5159
 SparkSQL – Granular security unavailable
– Ranger integration will solve this problem (Refer to talk in Room 210A for Security in Spark and
Hive)
– Brings Row/Column level/Masking features to SparkSQL
 Spark + HBase with Kerberos
– Issue fixed in Spark 1.4 (Spark-6918)
 Spark Stream + Kafka + Kerberos + SSL
– Issues fixed in HDP 2.4.x
 Spark jobs > 72 Hours
– Kerberos token not renewed, fixed in Spark 1.5+

Questions??
