1. Base Station Vendors

2. Huawei Base Station Huawei is a leading global telecommunications solutions provider with long-term partnerships with operators around the world Vodafone was first trial of Huawei’s new base station option for commercial launch. The BSC provides the control functions and physical links between the mobile services switching center (MSC) and the base transceiver station (BTS)

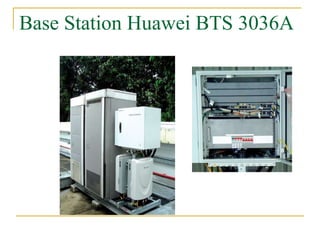

3. Base Station Huawei BTS 3036A

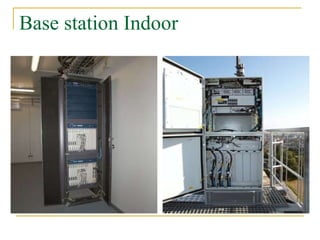

4. Base station Indoor

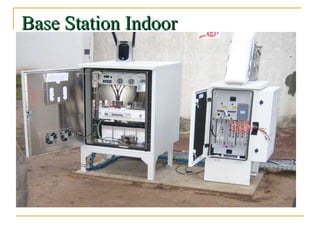

5. Base Station Indoor

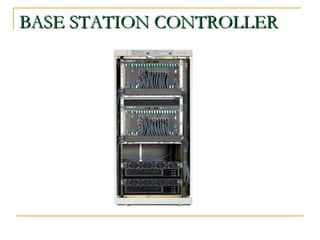

6. BASE STATION CONTROLLER

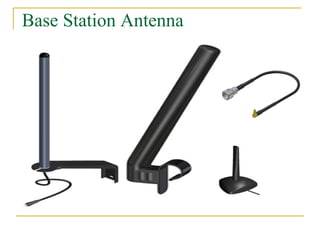

7. Base Station Antenna

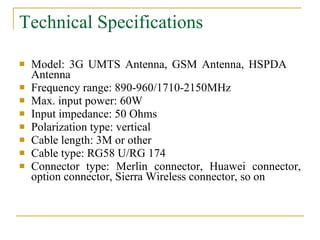

8. Technical Specifications Model: 3G UMTS Antenna, GSM Antenna, HSPDA Antenna Frequency range: 890-960/1710-2150MHz Max. input power: 60W Input impedance: 50 Ohms Polarization type: vertical Cable length: 3M or other Cable type: RG58 U/RG 174 Connector type: Merlin connector, Huawei connector, option connector, Sierra Wireless connector, so on

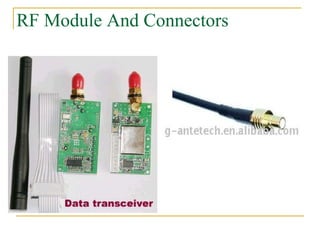

9. RF Module And Connectors

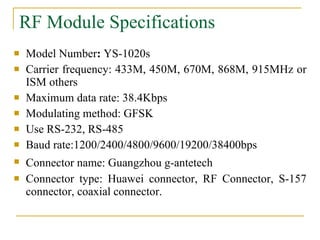

10. RF Module Specifications Model Number : YS-1020s Carrier frequency: 433M, 450M, 670M, 868M, 915MHz or ISM others Maximum data rate: 38.4Kbps Modulating method: GFSK Use RS-232, RS-485 Baud rate:1200/2400/4800/9600/19200/38400bps Connector name: Guangzhou g-antetech Connector type: Huawei connector, RF Connector, S-157 connector, coaxial connector.

11. Thanking you
