1. “Flying with Disability”

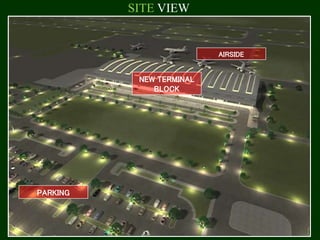

2. SITE VIEW
NEW TERMINAL
BLOCK
PARKING
AIRSIDE

3. SITE PLAN
NEW TERMINAL BLOCK
AIRSIDE
PARKING
Lvl +4500Lvl +4000Lvl +1200Lvl +1000Lvl +00
BARRIER-FREE ASPECTS FROM MAIN ROAD
TO THE DEPARTURE GATE
• THE MAIN TERMINAL BLOCK IS AT A LEVEL 4.5
MTS. FROM THE GROUND LEVEL.
• THE ENTIRE SLOPE IS DIVIDED INTO TWO
RAMPS AT 1:20, ONE ENDING AT THE PARKING
LEVEL, AT 1200 MTS. FROM THE GROUND AND
THE OTHER ENDING AT THE 4500 MTS. FROM
THE GROUND.
• THE PARKING IS AT A DIST. OF 106 MTS. FROM
THE ARRIVAL AND DEPARTURE GATE.
• THE SPECIALLY ABlED PERSON IS ASSISTED BY THE
RESPECTIVE AIRLINE MEMBERS FROM THE CAR
EITHER AT THE PARKING AREA OR AT THE MAIN
ENTRANCE GATE.
PARKING
LEVEL
DEPARTURE GATE

4. Site plan
RAMP 1:20
TERMINAL BLOCK
AIR SIDE
ARRIVAL &
DEPARTUREARRIVAL &
DEPARTURE
VEHICULAR ROAD
7.5 MTS WIDE
MAIN ROAD 9 MTS WIDE
PEDESTRIAN PATHWAY FROM THE PARKING
THROUGH THE LANDSCAPED GARDEN
A DROPPED KERB AND A RAMP &
1:4 IS PROVIDED AT THE
ENTRANCE TO ACCOMMODATE
THE LEVEL DIFFERENCE.

5. CIRCULATION SEQUENCE
ENTRANCE
PUBLIC
CONCOURSE
CHECK IN AREA
CHECK IN
COUNTER
SECURITY
CHECK
SECURITY
HOLD
AREA
SLOPED
AEROBRIDGE
TP THE
AIRCRAFT

6. CIRCULATION SEQUENCE
AIR SIDE
RAMP PROVIDED
ARRIVAL GATE
ARRIVAL AREA AND BAGGAGE COLLECTING BELT

7. SLIDINGDOOR
SIGNAGE
2100
MM
195 MM
GRANITE FLOOR.
CORRIDOR
ACCESSIBLE TOILET
• TOTAL NUMBER OF TOILETS:
43
• ACCESSIBLE TOILETS: 8
• DIMENSION FOR ALL
ACCESSIBLE TOILET:
2750 X 2780
• WITH EVERY PAIR OF TOILET
BLOCKS, ONE ACCESSIBLE
TOILET IS PROVIDED.
• DRINKING WATER FACILITY IS
ALSO PROVIDED AT ITS
PROXIMITY.
LATCH AT 3’6”
FROM FFL
(From inside)A SERVICE
BLOCK IS ALSO
PROVIDED WITH
INSTRUMENTS
FOR THE
PHYSICALLY
CHALLENGES
PEOPLE
DRINKING
WATER
FACILITY
PAIR OF TOIILET
BLOCKS
ACCESSIBLE TOILET

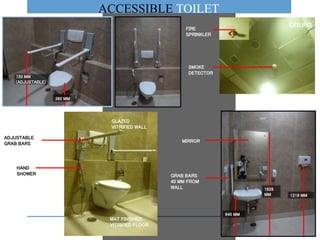

8. ACCESSIBLE TOILET
720 MM
(ADJUSTABLE)
380 MM
640 MM
1828
MM 1219 MM
MAT FINISHED
VITRIFIED FLOOR
GLAZED
VITRIFIED WALL
ADJUSTABLE
GRAB BARS
HAND
SHOWER
CEILING
SMOKE
DETECTOR
FIRE
SPRINKLER
MIRROR
GRAB BARS
40 MM FROM
WALL

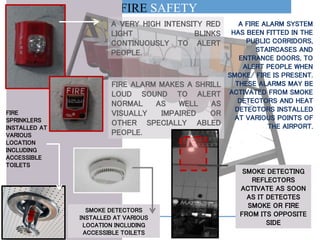

9. FIRE SAFETY
A FIRE ALARM SYSTEM
HAS BEEN FITTED IN THE
PUBLIC CORRIDORS,
STAIRCASES AND
ENTRANCE DOORS, TO
ALERT PEOPLE WHEN
SMOKE/ FIRE IS PRESENT.
THESE ALARMS MAY BE
ACTIVATED FROM SMOKE
DETECTORS AND HEAT
DETECTORS INSTALLED
AT VARIOUS POINTS OF
THE AIRPORT.
FIRE ALARM MAKES A SHRILL
LOUD SOUND TO ALERT
NORMAL AS WELL AS
VISUALLY IMPAIRED OR
OTHER SPECIALLY ABLED
PEOPLE.
A VERY HIGH INTENSITY RED
LIGHT BLINKS
CONTINUOUSLY TO ALERT
PEOPLE.
FIRE
SPRINKLERS
INSTALLED AT
VARIOUS
LOCATION
INCLUDING
ACCESSIBLE
TOILETS
SMOKE DETECTORS
INSTALLED AT VARIOUS
LOCATION INCLUDING
ACCESSIBLE TOILETS
SMOKE DETECTING
REFLECTORS
ACTIVATE AS SOON
AS IT DETECTES
SMOKE OR FIRE
FROM ITS OPPOSITE
SIDE

10. ACCESSIBLE LIFTS
TWO WAY DOOR IS
PROVIDED.
CONTROL
PANEL AT
1100MM HT.
NO HANDRAILS
•THERE ARE TOTAL 4 LIFTS.
•WITH INTERNAL CAR
DIMENSIONS OF 2000MM X
1850MM WIDE , WITH 1000MM
CLEAR ENTRANCE WIDTH.
•HAVE VOICE ANNOUNCEMENT
AND VIUSAL INDICATION
FACILITY.
•LIFT DOOR REMAINS OPEN AT
LANDING FOR 3 SECONDS. PLAN OF A LIFT
DEMERITS:
• IN AIRPORT, NUMBER OF LIFTS EXCEED 3, BUT NO LIFT
WITH INTERNAL CAR DIMENSION 1500MM X 1400MM IS
PRESENT.
•TWO WAY DOOR IS PROVIDED, HENCE ABSENCE OF
MIRROR.
•NO HANDRAILS.
•NO TACTILE WARNING TILES PLACED IN FRONT OF THE
LIFT DOOR.
TOTAL NO. OF LIFT 4, ESCALATOR 2

11. STAIRCASE
•THERE ARE TWO TYPES OF STAIRCASE.
1. DOG LEGGED STAIR
2. STRAIGHT STAIR
• BOTH STAIRCASE HAVE: RISER - 150MM
TREAD- 300MM
• WIDTH OF DOG LEGGED STAIRS= 1500MM
• WIDTH OF STRAIGHT STAIRS = 1800MM
• IN A STRAIGHT STAIRCASE AFTER 8 STEPS ,
LANDING OF 1500MM IS PROVIDED.
• TREADS AND WALL OF A STAIRCASE IS IN
CONTRASTING COLOURS.
1500
DEMERITS:
HANDRAIL
•THERE IS NO TACTILE WARNING STRIPS PROVIDED AT
LANDING AND AT BOTH THE BOTTOM AND TOP ENDS
OF A STIRCASE.
•NO BRAILLE AND TACTILE INFORMATION PROVIDED
ON HANDRAILS.
TOTAL NO. OF STAIRCASE 7

12. SEPARATE TICKET COUNTER IS
NOT BEEN PROVIDED.
SEPARATE SERVICE COUNTER IS
NOT BEEN PROVIDED
INFERENCE

13. NO TACTILE MARKINGS ARE
PROVIDED
NO SIGNAGE ARE PROVIDED FOR
SPECIALLY ABLED PEOPLE
INFERENCE

14. SEPARATE SEATING AREA IS NOT
BEEN PROVIDED FOR THE
SPECIALLY CHALLENGED PEOPLE
BARRIER FREE STAIR-LIFT IS NOT
BEEN PROVIDE
INFERENCE
