Physically Challanged Provisions in Architecture

ACCESSIBILITY FOR DISABLED
A DESIGN FOR A BARRIER FREE ENVIRONMENT

CLIENTS: GREEN MAX ESTATE PVT. LTD. ARCOP ASSOCIATES PVT. LTD.
PROJECT: IVY EXTENSION NEW TOWER (BLOCK-G),GURGAON,INDIA
1 1 JAN,2009

AIM:
AS AN ARCHITECT OUR RESPONSIBILITY IS TO INTEGRATE DISABLE PEOPLE
INTO SOCIETY IN ORDER FOR THEM TO TAKE AN ACTIVE PART IN SOCIETY
AND LEAD A NORMAL LIFE. TO BE ACTIVE, A DISABLE PERSON SHOULD BE
ABLE TO COMMUTE BETWEEN HOME, WORK AND OTHER DESTINATIONS.
THE TECHNICAL AIM OF THE PRESENTATION IS TO PROVIDE A BARRIER-
FREE ENVIRONMENT FOR THE INDEPENDENCE, CONVENIENCE AND
SAFETY OF ALL PEOPLE WITH DISABILITY.
IN PHYSICAL TERMS, THE PROVISION OF A BARRIER-FREE ENVIRONMENT
CAN BE UNDERSTAND IN FOUR COMPLEMENTARY DOMAINS:
INSIDE BUILDING
IN THE IMMEDIATE VICINITY OF BUILDINGS
ON LOCAL ROADS AND PATHS.
IN OPEN AREA AND RECREATIONAL AREAS.

1 2 JAN,2009

CONTENTS:
THE DATA DEALS WITH THE TECHNICAL CONSIDERATION AND DESIGN
PROVISION OR MEASURES TO BE TAKEN INTO ACCOUNT ON THE PLANNING
OF THE BUILT-UP ENVIRONMENT. FOR THE PURPOSE OF THIS DATA, ALL
INFORMATION IS DIVIDED INTO FOLLOWING PARTS:
OPEN SPACES CONSIDERATION

SIGNAGE
PATHWAYS
CURB RAMPS
PEDESTRIAN CROSSINGS
PARKING

1 3 JAN,2009

BUILT SPACES CONSIDERATION
RAMPS REST ROOM
ELEVATORS BUILDING TYPE
LIFTS SUMMARY
STAIRS
RAILING HANDRAILS
ENTRANCE
REACH

1 4 JAN,2009

OPEN SPACES

1 5 JAN,2009

PHYSICALLY HANDICAPPED

SIGNAGE

SIGNAGE TYPE SIGNAGE TYPE SIGNAGE TYPE

ROOM NO./
DISABLE INFORMATION
HOLDER RESERVED PARKING
ADA BRAILLE

WOMEN REST
ROOM PLEASE LEAVE
DISABLE DRIVER
2MTS.

IN CASE OF FIRE
MEN REST ROOM
FAMILY REST ROOM FOR ELEVATOR

HOSPITAL DISABLE PARKING NO SMOKING
WAITING WITH
BRAILLE

1 6 JAN,2009

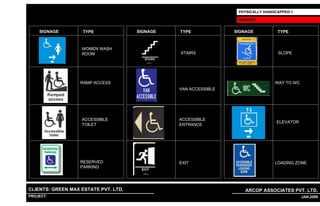

PHYSICALLY HANDICAPPED-1

SIGNAGE

SIGNAGE TYPE SIGNAGE TYPE SIGNAGE TYPE

WOMEN WASH
ROOM STAIRS SLOPE

RAMP ACCESS WAY TO WC
VAN ACCESSIBLE

ACCESSIBLE ACCESSIBLE
ELEVATOR
TOILET ENTRANCE

RESERVED EXIT LOADING ZONE
PARKING

1 7 JAN,2009

PATHWAYS:
A FOOTWAY, OR PAVEMENT, IS THE PEDESTRIAN PORTION OF
A HIGHWAY ADJACENT TO, OR CONTIGUOUS WITH, THE
CARRIAGEWAY. A FOOTPATH IS THE PEDESTRIAN PORTION OF
A HIGHWAY THAT HAS NO CONTIGUOUS CARRIAGEWAY
ASSOCIATED WITH IT.

The minimum width of an unobstructed pathway should be 0.90 m.
The minimum width of a two-way wheelchair traffic passage is 1.50
m. The preferable width is 1.80 m
ON A GUIDE STRIP WHERE ALTERNATIVE ROUTES EXIST
OR AT A JUNCTION OF GUIDE STRIPS
AT A PEDESTRIAN CROSSING
AROUND OBSTRUCTIONS WHICH ARE DIFFICULT FOR
THE SIGHTLESS TO DETECT.
A TACTILE GUIDING AREA, PREFERABLY OF RUBBER
TILES WITH MINIMUM DIMENSIONS OF 0.90 M X 0.90 M,
SHOULD BE CONSTRUCTED IN A GUIDE STRIP AT CROSS
PATHWAYS WHERE THE ROUTE BRANCHES OFF IN
SEVERAL DIRECTIONS.

1 8 JAN,2009

CURB RAMPS:
WHERE THE FOOTWAY IS NEW OR BEING TOTALLY
RECONSTRUCTED THE RAMP PROVIDED SHOULD
EXTEND OVER THE WHOLE WIDTH OF THE FOOTWAY
AND HAVE A MAXIMUM GRADIENT OF 1:9. A TACTILE
SURFACE SHOULD ALSO BE PROVIDED.

THE H MARKING SHOULD BE APPLIED TO ALL DROPPED CROSSINGS TO INDICATE TO MOTORISTS THAT
THERE IS A CROSSING PRESENT AND NOT TO PARK THERE.

IF A DROPPED KERB IS PROVIDED ON ONE SIDE OF THE ROAD, A DROPPED KERB MUST BE PROVIDED
AND ALIGNED ON THE OTHER SIDE AND ON ANY INTERVENING CENTRAL REFUGES.
THE MAXIMUM SLOPE OF A CURB RAMP SHOULD BE 1:12.

THE MINIMUM WIDTH OF A CURB RAMP SHOULD BE 0.90 M, EXCLUDING THE
SLOPING SIDES. THE RECOMMENDED WIDTH IS 1.20 M

1 9 JAN,2009

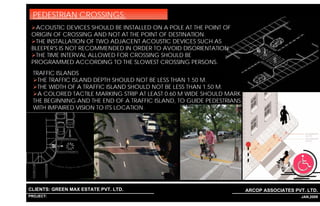

PEDESTRIAN CROSSINGS:
ACOUSTIC DEVICES SHOULD BE INSTALLED ON A POLE AT THE POINT OF
ORIGIN OF CROSSING AND NOT AT THE POINT OF DESTINATION.
THE INSTALLATION OF TWO ADJACENT ACOUSTIC DEVICES SUCH AS
BLEEPER'S IS NOT RECOMMENDED IN ORDER TO AVOID DISORIENTATION.
THE TIME INTERVAL ALLOWED FOR CROSSING SHOULD BE
PROGRAMMED ACCORDING TO THE SLOWEST CROSSING PERSONS.
TRAFFIC ISLANDS
THE TRAFFIC ISLAND DEPTH SHOULD NOT BE LESS THAN 1.50 M.
THE WIDTH OF A TRAFFIC ISLAND SHOULD NOT BE LESS THAN 1.50 M.
A COLORED TACTILE MARKING STRIP AT LEAST 0.60 M WIDE SHOULD MARK
THE BEGINNING AND THE END OF A TRAFFIC ISLAND, TO GUIDE PEDESTRIANS
WITH IMPAIRED VISION TO ITS LOCATION.

1 10 JAN,2009


PARKING

PARKING SPACE

1 11 JAN,2009

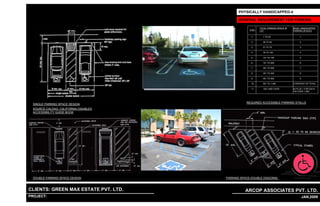

GENERAL REQUIREMENT FOR PARKING

TOTAL PARKING SPACE IN REQD’ HANDICAPPED
S.NO. LOT PARKING SPACES

1. 1 TO 25 1

2. 26 TO 50 2

3. 51 TO 75 3

4. 76 TO 100 4

5. 101 TO 150 5

6. 151 TO 200 6

7. 201 TO 300 7

8. 301 TO 400 8

9. 401 TO 500 9

10. 501 TO 1,000 2 PERCENT OF TOTAL

11. 1001 AND OVER 20 PLUS 1 FOR EACH
100 OVER 1,000.

REQUIRED ACCESSIBLE PARKING STALLS
SINGLE PARKING SPACE DESIGN
SOURCE-CALDAG, CALIFORNIA DISABLED
ACCESSIBILITY GUIDE BOOK

DOUBLE PARKING SPACE DESIGN PARKING SPACE-DOUBLE DIAGONAL

1 12 JAN,2009

BUILT SPACES

1 13 JAN,2009


RAMPS, ACCEPTABLE STANDARD-ADAAG

STRAIGHT CHANGE IN DIRECTION

RAMP LANDING

1 14 JAN,2009


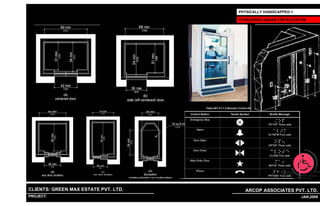

STANDARDS-ADAAG FOR ELEVATOR

1 15 JAN,2009

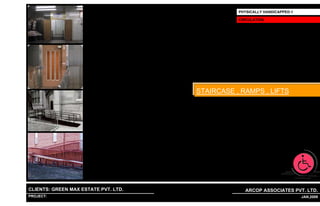

CIRCULATION

STAIRCASE , RAMPS , LIFTS

1 16 JAN,2009

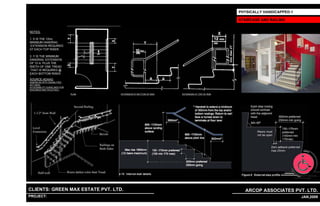

STAIRCASE AND RAILING

NOTES:

1. X IS THE 12inc.
MINIMUM HANDRAIL
EXTENSION REQUIRED
AT EACH TOP RISER.

2. Y IS THE MINIMUM
HANDRAIL EXTENSION
OF 12 in. PLUS THE
WIDTH OF ONE TREAD
THAT IS REQUIRED @
EACH BOTTOM RISER.

SOURCE-ADAAG
(AMERICAN WITH DISABILITIES
ACT (ADA)
ACCESSIBILITY GUIDELINES FOR
BUILDINGS AND FACILITIES.)

PLAN EXTENSION AT BOTTOM OF RUN EXTENSION AT TOP OF RUN

1 17 JAN,2009

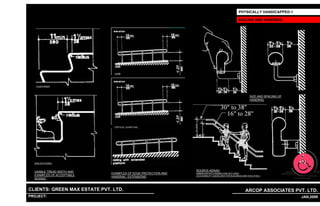

RAILING AND HANDRAIL

CURB

FLUSH RISER

SIZE AND SPACING OF
HANDRAIL

VERTICAL GUARD RAIL

ANGLED NOSING

USABLE TREAD WIDTH AND SOURCE-ADAAG
EXAMPLES OF EDGE PROTECTION AND (AMERICAN WITH DISABILITIES ACT (ADA)
EXAMPLES OF ACCEPTABLE ACCESSIBILITY GUIDELINES FOR BUILDINGS AND FACILITIES.)
HANDRAIL EXTENSIONS
NOSING

1 18 JAN,2009

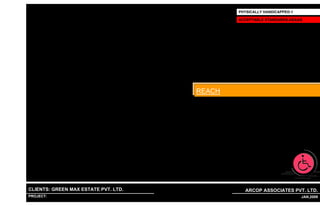

ACCEPTABLE STANDARDS-ADAAG

REACH

1 19 JAN,2009

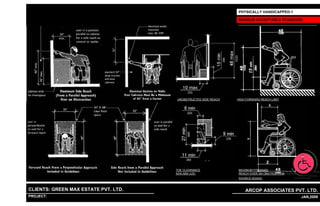

MINIMUM ACCEPTABLE STANDARD

UNOBSTRUCTED SIDE REACH HIGH FORWARD REACH LIMIT

TOE CLEARANCE MAXIMUM FORWARD
ADA-ABA (US) REACH OVER AN OBSTRUCTION
SOURCE-ADAAG

1 20 JAN,2009


WASHROOM

WASHROOMS

1 21 JAN,2009

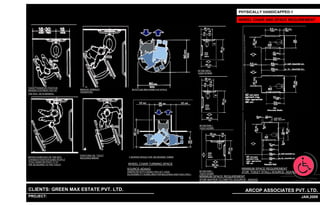

WHEEL CHAIR AND SPACE REQUIREMENT

48”X66”(MIN.)
1220X1675MM

TAKES TRANSFER POSITION
SWINGS FOOTREST OUT OF REMOVE ARMREST 60-IN.(1525 MM)-DIAMETER SPACE
TRANSFERS
THE WAY, SETS BRAKES.

48”X56”(MIN.)
1220X1420MM

POSITIONS ON TOILET
MOVES CHAIR OUT OF THE WAY RELEASES BREAK T-SHAPED SPACE FOR 180 DEGREE TURNS
CHANGES POSITION SOME PEOPLE
FOLD CHAIR OR PIVOT IT TO
THE 90 DEGREE TO THE TOILET WHEEL CHAIR TURNING SPACE
SOURCE-ADAAG MINIMUM SPACE REQUIREMENT
60”X56”(MIN.)
(AMERICAN WITH DISABILITIES ACT (ADA)
1525X1420MM
(FOR TOILET STALL) SOURCE- ADAAG
ACCESSIBILITY GUIDELINES FOR BUILDINGS AND FACILITIES.)
MINIMUM SPACE REQUIREMENT
(FOR WATER CLOSETS) SOURCE- ADAAG

1 22 JAN,2009

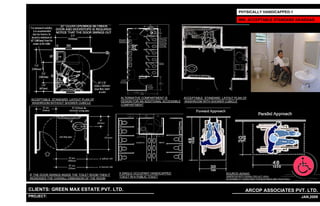

MIN. ACCEPTABLE STANDARD AS/ADAAG

ALTERNATIVE COMPARTMENT IS ACCEPTABLE STANDARD LAYOUT PLAN OF
ACCEPTABLE STANDARD LAYOUT PLAN OF
DESIGN FOR AN ADDITIONAL ACCESSIBLE WASHROOM WITH SHOWER CUBICLE
WASHROOM WITHOUT SHOWER CUBICLE
COMPARTMENT

A SINGLE OCCUPANT HANDICAPPED SOURCE-ADAAG
IF THE DOOR SWINGS INSIDE THE TOILET ROOM THEN IT
TOILET IN A PUBLIC TOILET (AMERICAN WITH DISABILITIES ACT (ADA)
INCREASES THE OVERALL DIMENSION OF THE ROOM ACCESSIBILITY GUIDELINES FOR BUILDINGS AND FACILITIES.)

1 23 JAN,2009

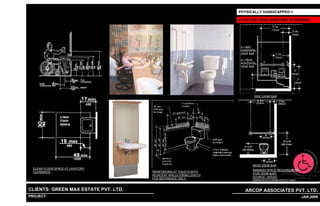

LAVATORY AND GRAB BAR STANDARD

SIDE GRAB BAR

REAR GRAB BAR
CLEAR FLOOR SPACE AT LAVATORY
MINIMUM SPACE REQUIREMENT
CLEARANCE REINFORCING AT TOILETS WITH
(FOR GRAB BAR)
ADJACENT WALLS (GRAB LENGTH
SOURCE- ADDAG
FOR REFERENCE ONLY . (AMERICAN WITH DISABILITIES ACT (ADA)
ACCESSIBILITY GUIDELINES FOR BUILDINGS AND FACILITIES.)

1 24 JAN,2009

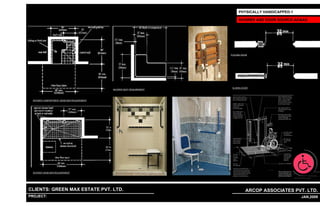

SHOWER AND DOOR SOURCE-ADAAG

FOLDING DOOR

SLIDING DOOR
SHOWER SEAT REQUIREMENT

SHOWER COMPARTMENT GRAB BAR REQUIREMENT

SHOWER GRAB BAR REQUIREMENT

1 25 JAN,2009

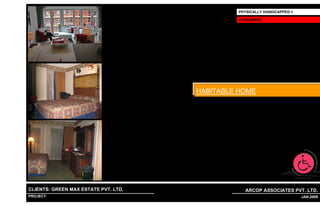

STANDARDS

HABITABLE HOME

1 26 JAN,2009

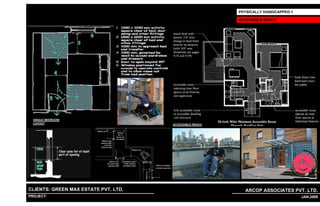

ACCESSIBLE REACH

SINGLE BEDROOM
SINGLE BEDROOM
LAYOUT
LAYOUT ACCESSIBLE REACH
ACCESSIBLE REACH

1 27 JAN,2009

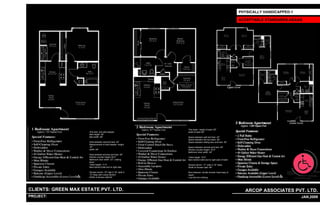

Two beds:- height of each 26"
One bed, one sofa sleeper width of each 60"
Bed height- 26"
Bed width- 60" Space between wall and bed- 22"
Space between the two beds- 39"
Area between wall and bed- 24" Space between sliding door and bed- 39"
Measurement of sofa sleeper- height
18" Space between armoire and bed- 46"
width- 60" Kitchen counter height- 35.5"
Bathroom door width- 34"
Area between armoire and bed- 50"
Kitchen counter height-35.5" Toilet height- 19.5"
Bathroom door width- 33" ( sliding Bars behind toilet and to right side of toilet
door)
Toilet height- 17.5" Shower bench- 17" wide X 16" deep
Bars behind toilet and to right side Width of shower stall- 59"

Shower bench- 18" high X 32" wide X Nice features- double shower head easy to
13" deep with cutout section reach
Width of shower stall-62" Low bars for clothing

1 28 JAN,2009


FIXTURES

FIXTURES

1 29 JAN,2009

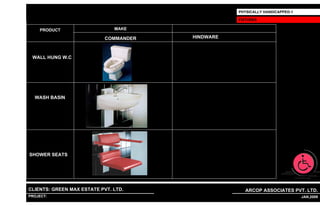

FIXTURES

PRODUCT MAKE

COMMANDER HINDWARE

WALL HUNG W.C

WASH BASIN

SHOWER SEATS

1 30 JAN,2009

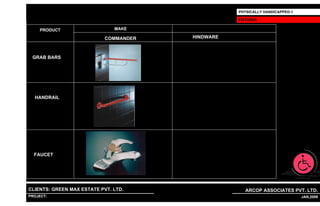

FIXTURES

PRODUCT MAKE

COMMANDER HINDWARE

GRAB BARS

HANDRAIL

FAUCET

1 31 JAN,2009



SUMMARY

1 32 JAN,2009

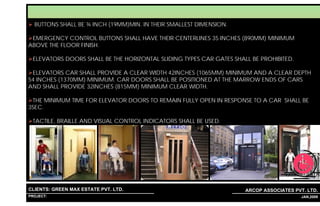

LIFT APPROACH:
BUTTONS SHALL BE ¾ INCH (19MM)MIN. IN THEIR SMALLEST DIMENSION.

EMERGENCY CONTROL BUTTONS SHALL HAVE THEIR CENTERLINES 35 INCHES (890MM) MINIMUM
ABOVE THE FLOOR FINISH.

ELEVATORS DOORS SHALL BE THE HORIZONTAL SLIDING TYPES CAR GATES SHALL BE PROHIBITED.

ELEVATORS CAR SHALL PROVIDE A CLEAR WIDTH 42INCHES (1065MM) MINIMUM AND A CLEAR DEPTH
54 INCHES (1370MM) MINIMUM. CAR DOORS SHALL BE POSITIONED AT THE MARROW ENDS OF CARS
AND SHALL PROVIDE 32INCHES (815MM) MINIMUM CLEAR WIDTH.

THE MINIMUM TIME FOR ELEVATOR DOORS TO REMAIN FULLY OPEN IN RESPONSE TO A CAR SHALL BE
3SEC.

TACTILE, BRAILLE AND VISUAL CONTROL INDICATORS SHALL BE USED.

1 33 JAN,2009

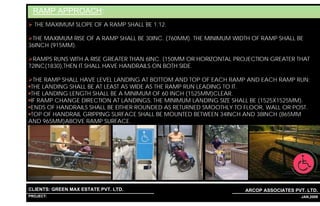

RAMP APPROACH:
THE MAXIMUM SLOPE OF A RAMP SHALL BE 1:12.

THE MAXIMUM RISE OF A RAMP SHALL BE 30INC. (760MM). THE MINIMUM WIDTH OF RAMP SHALL BE
36INCH (915MM).

RAMPS RUNS WITH A RISE GREATER THAN 6INC. (150MM OR HORIZONTAL PROJECTION GREATER THAT
72INC(1830),THEN IT SHALL HAVE HANDRAILS ON BOTH SIDE.

THE RAMP SHALL HAVE LEVEL LANDING AT BOTTOM AND TOP OF EACH RAMP AND EACH RAMP RUN:
THE LANDING SHALL BE AT LEAST AS WIDE AS THE RAMP RUN LEADING TO IT.
THE LANDING LENGTH SHALL BE A MINIMUM OF 60 INCH (1525MM)CLEAR.
IF RAMP CHANGE DIRECTION AT LANDINGS, THE MINIMUM LANDING SIZE SHALL BE (1525X1525MM).
ENDS OF HANDRAILS SHALL BE EITHER ROUNDED AS RETURNED SMOOTHLY TO FLOOR, WALL OR POST.
TOP OF HANDRAIL GRIPPING SURFACE SHALL BE MOUNTED BETWEEN 34INCH AND 38INCH (865MM
AND 965MM)ABOVE RAMP SURFACE.

1 34 JAN,2009

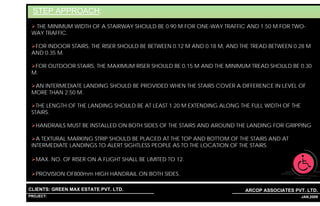

STEP APPROACH:
THE MINIMUM WIDTH OF A STAIRWAY SHOULD BE 0.90 M FOR ONE-WAY TRAFFIC AND 1.50 M FOR TWO-
WAY TRAFFIC.

FOR INDOOR STAIRS, THE RISER SHOULD BE BETWEEN 0.12 M AND 0.18 M, AND THE TREAD BETWEEN 0.28 M
AND 0.35 M.

FOR OUTDOOR STAIRS, THE MAXIMUM RISER SHOULD BE 0.15 M AND THE MINIMUM TREAD SHOULD BE 0.30
M.

AN INTERMEDIATE LANDING SHOULD BE PROVIDED WHEN THE STAIRS COVER A DIFFERENCE IN LEVEL OF
MORE THAN 2.50 M.

THE LENGTH OF THE LANDING SHOULD BE AT LEAST 1.20 M EXTENDING ALONG THE FULL WIDTH OF THE
STAIRS.

HANDRAILS MUST BE INSTALLED ON BOTH SIDES OF THE STAIRS AND AROUND THE LANDING FOR GRIPPING

A TEXTURAL MARKING STRIP SHOULD BE PLACED AT THE TOP AND BOTTOM OF THE STAIRS AND AT
INTERMEDIATE LANDINGS TO ALERT SIGHTLESS PEOPLE AS TO THE LOCATION OF THE STAIRS.

MAX. NO. OF RISER ON A FLIGHT SHALL BE LIMITED TO 12.

PROVISION OF800mm HIGH HANDRAIL ON BOTH SIDES.

1 35 JAN,2009

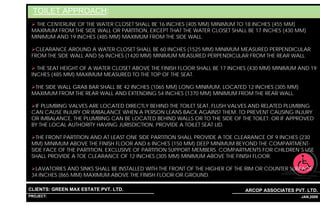

TOILET APPROACH:
THE CENTERLINE OF THE WATER CLOSET SHALL BE 16 INCHES (405 MM) MINIMUM TO 18 INCHES (455 MM)
MAXIMUM FROM THE SIDE WALL OR PARTITION, EXCEPT THAT THE WATER CLOSET SHALL BE 17 INCHES (430 MM)
MINIMUM AND 19 INCHES (485 MM) MAXIMUM FROM THE SIDE WALL.

CLEARANCE AROUND A WATER CLOSET SHALL BE 60 INCHES (1525 MM) MINIMUM MEASURED PERPENDICULAR
FROM THE SIDE WALL AND 56 INCHES (1420 MM) MINIMUM MEASURED PERPENDICULAR FROM THE REAR WALL.

THE SEAT HEIGHT OF A WATER CLOSET ABOVE THE FINISH FLOOR SHALL BE 17 INCHES (430 MM) MINIMUM AND 19
INCHES (485 MM) MAXIMUM MEASURED TO THE TOP OF THE SEAT.

THE SIDE WALL GRAB BAR SHALL BE 42 INCHES (1065 MM) LONG MINIMUM, LOCATED 12 INCHES (305 MM)
MAXIMUM FROM THE REAR WALL AND EXTENDING 54 INCHES (1370 MM) MINIMUM FROM THE REAR WALL.

IF PLUMBING VALVES ARE LOCATED DIRECTLY BEHIND THE TOILET SEAT, FLUSH VALVES AND RELATED PLUMBING
CAN CAUSE INJURY OR IMBALANCE WHEN A PERSON LEANS BACK AGAINST THEM. TO PREVENT CAUSING INJURY
OR IMBALANCE, THE PLUMBING CAN BE LOCATED BEHIND WALLS OR TO THE SIDE OF THE TOILET; OR IF APPROVED
BY THE LOCAL AUTHORITY HAVING JURISDICTION, PROVIDE A TOILET SEAT LID.

THE FRONT PARTITION AND AT LEAST ONE SIDE PARTITION SHALL PROVIDE A TOE CLEARANCE OF 9 INCHES (230
MM) MINIMUM ABOVE THE FINISH FLOOR AND 6 INCHES (150 MM) DEEP MINIMUM BEYOND THE COMPARTMENT-
SIDE FACE OF THE PARTITION, EXCLUSIVE OF PARTITION SUPPORT MEMBERS. COMPARTMENTS FOR CHILDREN’S USE
SHALL PROVIDE A TOE CLEARANCE OF 12 INCHES (305 MM) MINIMUM ABOVE THE FINISH FLOOR.

LAVATORIES AND SINKS SHALL BE INSTALLED WITH THE FRONT OF THE HIGHER OF THE RIM OR COUNTER SURFACE
34 INCHES (865 MM) MAXIMUM ABOVE THE FINISH FLOOR OR GROUND.

1 36 JAN,2009

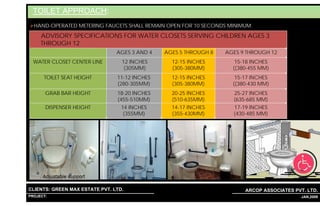

TOILET APPROACH:
HAND-OPERATED METERING FAUCETS SHALL REMAIN OPEN FOR 10 SECONDS MINIMUM.
ADVISORY SPECIFICATIONS FOR WATER CLOSETS SERVING CHILDREN AGES 3
THROUGH 12
AGES 3 AND 4 AGES 5 THROUGH 8 AGES 9 THROUGH 12
WATER CLOSET CENTER LINE 12 INCHES 12-15 INCHES 15-18 INCHES
(305MM) (305-380MM) ((380-455 MM)
TOILET SEAT HEIGHT 11-12 INCHES 12-15 INCHES 15-17 INCHES
(280-305MM) (305-380MM) ((380-430 MM)
GRAB BAR HEIGHT 18-20 INCHES 20-25 INCHES 25-27 INCHES
(455-510MM) (510-635MM) (635-685 MM)
DISPENSER HEIGHT 14 INCHES 14-17 INCHES 17-19 INCHES
(355MM) (355-430MM) (430-485 MM)

1 37 JAN,2009

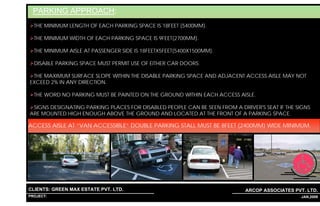

PARKING APPROACH:
THE MINIMUM LENGTH OF EACH PARKING SPACE IS 18FEET (5400MM).

THE MINIMUM WIDTH OF EACH PARKING SPACE IS 9FEET(2700MM).

THE MINIMUM AISLE AT PASSENGER SIDE IS 18FEETX5FEET(5400X1500MM).

DISABLE PARKING SPACE MUST PERMIT USE OF EITHER CAR DOORS.

THE MAXIMUM SURFACE SLOPE WITHIN THE DISABLE PARKING SPACE AND ADJACENT ACCESS AISLE MAY NOT
EXCEED 2% IN ANY DIRECTION.

THE WORD NO PARKING MUST BE PAINTED ON THE GROUND WITHIN EACH ACCESS AISLE.

SIGNS DESIGNATING PARKING PLACES FOR DISABLED PEOPLE CAN BE SEEN FROM A DRIVER'S SEAT IF THE SIGNS
ARE MOUNTED HIGH ENOUGH ABOVE THE GROUND AND LOCATED AT THE FRONT OF A PARKING SPACE.

ACCESS AISLE AT “VAN ACCESSIBLE” DOUBLE PARKING STALL MUST BE 8FEET (2400MM) WIDE MINIMUM.

1 38 JAN,2009

THANK YOU

1 39 JAN,2009

Physically Challanged Provisions in Architecture

More Related Content

What's hot

Viewers also liked

Similar to Physically Challanged Provisions in Architecture

Physically Challanged Provisions in Architecture
